Operating Instructions (Continued)
Modem/Fax Line Connection
1. Be sure your 220-240 volt device is turned off.
2. Connect the foreign phone line into the RJ11 jack labeled “Phone
Line”. (See figure 1) Note: An International Phone Adaptor may be
needed. Connect the modem/fax line into the RJ11 jack labeled
“To Modem”. Two phone cords with RJ11 connectors (not included)
may be needed to connect the foreign phone line and the
modem/fax line.
ONE YEAR WARRANTY
TM
We guarantee each new EuroSurge
workmanship and to perform under normal use and service. This guarantee
shall run for a period of one year from the date of purchase, and obligations
under this guarantee are limited to remedying any defect or replacing any
defective product and shall be effective only if the defective unit is returned
to us within 12 months after purchase. Damage due to abuse, misuse, or
overloading is not covered by this guarantee. We shall not be responsible
for any other loss or damage that may arise through the use by a purchaser
or others of this device, and the purchaser assumes such responsibility and
will hold Hybrinetics, Inc. harmless in respect to all such loss or damage.
Important: This is a factory direct warranty. Do not return defectives to
your retailer. All defectives must be returned to the factory accompanied
by a sales receipt with the original date of purchase. For more informa
tion please call our toll free number:
(800) 247-6900.
to be free from defects in material or
-
VOLTAGE VALET
EuroSurge
TM
TM

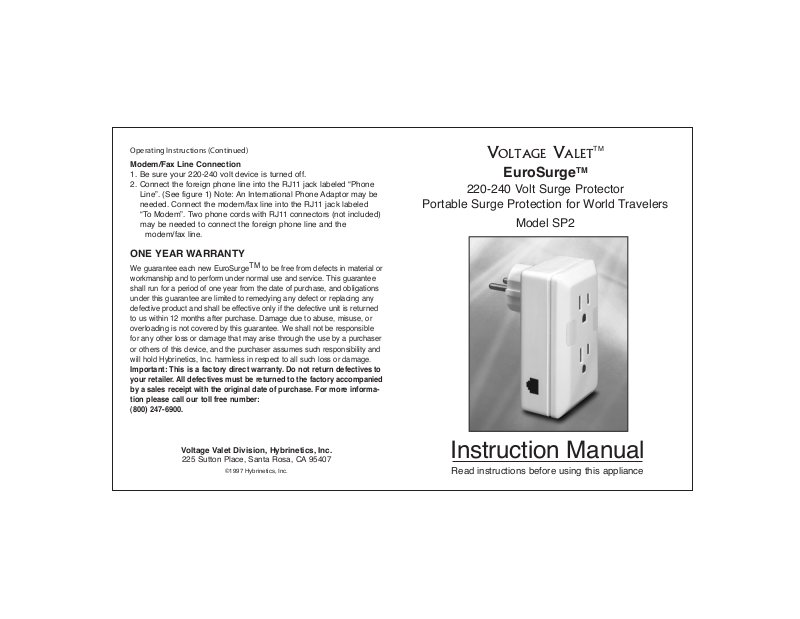

220-240 Volt Surge Protector
Portable Surge Protection for World Travelers
Model SP2
Voltage Valet Division, Hybrinetics, Inc.
225 Sutton Place, Santa Rosa, CA 95407
©1997 Hybrinetics, Inc.
Instruction Manual
Read instructions before using this appliance
The EuroSurge™ provides AC power and data line surge protection
E
UROSURGE
TM
CAUTION:
BOTH OUTLETS
220-240 VOLTS
WARNING: Use only with
devices that are 220-240
volt ready. Do not use with
110-120 volt devices.
PROTECTED WHEN LIT
GROUNDED WHEN LIT
To Modem
GROUNDED WHEN LIT
To Modem
Phone Line
PROTECTED WHEN LIT
Phone Line
for your 220-240 volt ready electronic devices while traveling in foreign
countries with 220-240 volt power sources.
Left Side
Front
Right Side
READ ALL lNSTRUCTIONS BEFORE USING
WARNING! EUROSURGE™ OUTPUT IS 220-240 VAC
DO NOT USE WITH 110/120 VAC DEVICES!
Be sure your electronic device is 220-240 volt ready. This
information is located in the specifications section of your operating
manual or on the manufacturer’s label located on the bottom or back
of your device as “Input Voltage”. Devices with auto ranging 100-240
VAC power supplies do not have a voltage selector switch and are
220-240 volt ready. Multi-voltage devices with a 110/220 or 120/240
VAC voltage selector switch must be set to the 220-240 volt position.
Phone Line
Protected When Lit
Grounded When Lit
Figure 1
SPECIFICATIONS
AC Input/Output 220-240 VAC 50/60 Hz.
AC Power Rating 8 Amps (1920 watts total)
Protected AC Outlets 2
AC Input Plug Schuko CEE 7/7
AC Output Receptacles NEMA 5/15
Joule Rating 1200
Surge Current 42,000 Amps
Response Time 1 Nanosecond
EMI/RFI Filtering 55 dB
Operation Indicators Visual
Protected Modem/Fax Line 1
Modem/Fax Connectors RJ11
Tax Impulse Filter Yes
To Modem
OPERATING INSTRUCTIONS
AC Power Connection
1. Be sure your 220-240 volt device is turned off.
2. Plug the EuroSurge™ into the 220-240 volt foreign wall outlet.
NOTE: A grounded EuroSurge™ adaptor plug may be needed.
3. Check the indicator lights (See figure 1):
• If BOTH the PROTECTED WHEN LIT and GROUNDED WHEN
LIT lights are on, the EuroSurge™ is operating normally.
• If the GROUNDED WHEN LIT light is out, there is no ground
connection. AC power is available but the surge protection circuit
is NOT active. Try another outlet.
• If the PROTECTED WHEN LIT light is out, the circuit has
absorbed a large power surge. AC power is available but the
surge protection circuit is NOT active. Replace unit.
4. If both indicator lights are lit plug the AC power cord of your 220 240 volt ready device into either AC power outlet on the
EuroSurge™. You may connect two 220-240 volt ready devices
simultaneously. Do not exceed the 8 amp maximum total rating.
