5. Align the back of the filter assembly with the notch in
water
reservoir and slide into place connecting the filter
inlet tube with the outlet tube
from water reservoir. Be
sure filter is fully seated on the water reservoir (Figure 4).
6. Swing the lid up and fill water reservoir with 8 oz. of
cold wate
r. DO NOT fill past the 8 oz. MAX level marked
on the inside of the water reservoir. Close lid.
7. Place on a firm flat surface.
8. Place cup under filter basket spout (Figure 5).
9. Plug into an electrical outlet. While holding the base,
press the ON button firmly until you hear a click
and the indicator light glows (Figu
re 6). Hot coffee
will quickly begin to flow
from the filter spout into
the cup. The Quick Café II will automatically shut
off when the brewing cycle is completed. Brewing
time is app
roximately 7 minutes on 120 volts and
app
roximately 3 minutes on 240 volts.
CAUTION: The
filter basket will be hot during and after
brewing cycle,
allow to cool befo
re next use.
TO CLEAN
1. Allow Quick Café II to cool before cleaning.
2. Fill heating unit approximately half full with hot soapy
water and wash interior with
a sponge or dishcloth;
drain, rinse and dr
y. The exterior of the heating unit may
be cleaned with
a damp soft cloth.
DO NOT IMMERSE
Quick Café II, ITS CORD,
OR PLUG IN
WATER OR
ANY OTHER LIQUID.
Wash all other parts in
hot soapy wate
r, using a
sponge
or dishcloth. Do
not use abrasive cleaners
or scouring pads on
any parts, as scratching
may occu
r. Do not wash
parts in an automatic
dishwashe
r.
TO STORE
QUICK CAFÉ II
Allow Quick Café II to cool
befo
re storing parts inside.
Make
sure all parts to be stored
are clean and dry. Stack in the
following
order (Figure 7):
Figure 7
www.voltagevalet.com
Voltage Valet Division, Hybrinetics, Inc.
225 Sutton Place, Santa Rosa, CA 95407
© 2007 HYBRINETICS. INC.
Limited Warranty
We guarantee each new Quick Café II against
defects in materials and workmanship for a period
of one year from the date of purchase. During
the warranty period, we will either, at our option,
repair or replace a product that proves to be
defective. The above warranty shall not apply to
defects resulting from: accident, unauthorized
modifications, misuse, abuse, overloading, or
improper maintenance. To obtain warranty service,
the product must be returned to the address
indicated below. Customer shall prepay all shipping
charges for a product returned to us for warranty
service, and we shall pay for return of the product
to customer. However, customer shall pay all
shipping charges, duties, and taxes for a product
returned to us from another country. WE MAKE
NO OTHER WARRANTIES, EITHER EXPRESSED
OR IMPLIED, WITH RESPECT TO THIS PRODUCT.
WE SPECI FI CA LLY D ISCLAIM TH E IMPLIED
WARR ANTIE S OF M ERC HA NTAB ILITY A ND
FITNESS FOR A PARTICULAR PURPOSE. We shall
not be responsible for any other loss or damage
that may arise through the use by a purchaser or
others of this device, and the purchaser assumes
and will hold us harmless in respect to such loss.
This warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state. Important: This is a factory-direct
warranty. Do not return defective products to
your retailer. All defective products must be
returned to the factory. For questions or further
information, please call our toll free number:
(800) 247-6900.

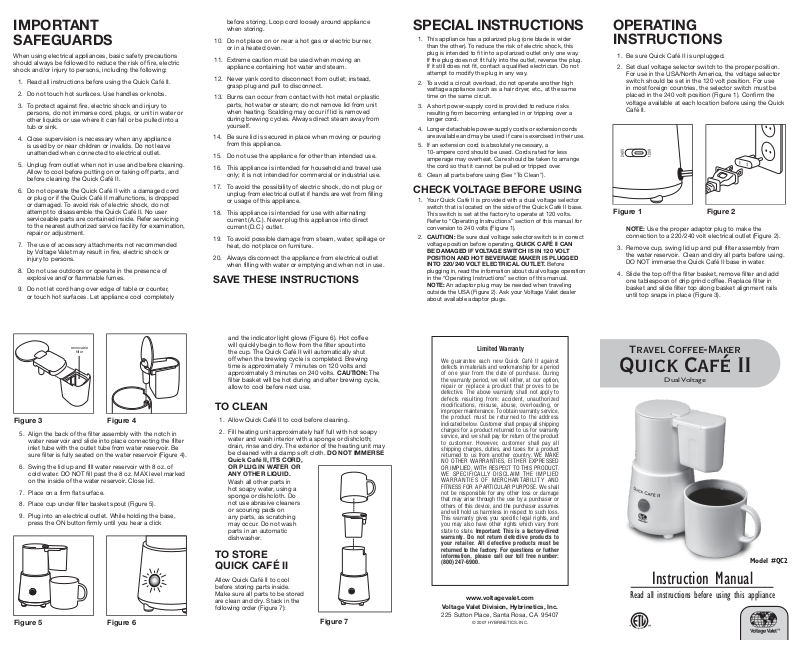

Instruction Manual
Read all instructions before using this appliance
Model #QC2
Travel Coffee-Maker
Quick Café II
Dual Voltage
OPERATING
INSTRUCTIONS
1. Be sure Quick Café II is unplugged.
2. Set dual voltage selector switch to the proper position.
For use in the USA/North America, the voltage selector
switch should be set in the 120 volt position.
For use
in most fo
reign countries, the selector switch must be
placed in the 240 volt position (Figu
re 1). Confirm the
voltage available at each location befo
re using the Quick
Café II.
NOTE: Use the proper adaptor plug to make the
connection to
a 220/240 volt electrical outlet (Figure 2).
3. Remove cup, swing lid up and pull filter assembly from
the water
reservoir. Clean and dry all parts before using.
DO NOT immerse the Quick Café II base in wate
r.
4. Slide the top off the filter basket, remove filter and add
one tablespoon
of drip grind coffee. Replace filter in
basket and slide filter top along basket alignment rails
until top snaps in place (Figu
re 3).
IMPORTANT
SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed to
reduce the risk of fire, electric
shock and/or injury to persons, including the following:
1. Read all instructions before using the Quick Café II.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to
persons, do not immerse co
rd, plugs, or unit in water or
other liquids
or use where it can fall or be pulled into a
tub
or sink.
4. Close supervision is necessary when any appliance
is used by
or near children or invalids. Do not leave
unattended when connected to electrical outlet.
5. Unplug from outlet when not in use and before cleaning.
Allow to cool befo
re putting on or taking off parts, and
befo
re cleaning the Quick Café II.
6. Do not operate the Quick Café II with a damaged cord
or plug or if the Quick Café II malfunctions, is dropped
or damaged. To avoid risk of electric shock, do not
attempt to disassemble the Quick Café II. No user
serviceable parts
are contained inside. Refer servicing
to the nea
rest authorized service facility for examination,
repair or adjustment.
7. The use of accessory attachments not recommended
by
Voltage Valet may result in fire, electric shock or
injury to persons.
8. Do not use outdoors or operate in the presence of
explosive and/or flammable fumes.
9. Do not let cord hang over edge of table or counter,
or touch hot surfaces. Let appliance cool completely
befo
re storing. Loop cord loosely around appliance
when storing.
10. Do not place on or near a hot gas or electric burner,
or in a heated oven.
11. Extreme caution must be used when moving an
appliance containing hot water and steam.
12. Never yank cord to disconnect from outlet; instead,
grasp plug and pull to disconnect.
13. Burns can occur from contact with hot metal or plastic
parts, hot water
or steam; do not remove lid from unit
when heating. Scalding may occur if lid is
removed
during
brewing cycles. Always direct steam away from
yourself.
14. Be sure lid is secured in place when moving or pouring
from this appliance.
15.
Do not use the appliance for other than intended use.
16.
This appliance is intended for household and travel use
only; it is not intended for comme
rcial or industrial use.
17. To avoid the possibility of electric shock, do not plug or
unplug
from electrical outlet if hands are wet from filling
or usage of this appliance.
18.
This appliance is intended for use with alternating
cur
rent (A.C.). Never plug this appliance into direct
cur
rent (D.C.) outlet.
19.
To avoid possible damage from steam, water, spillage or
heat, do not place
on furniture.
20.
Always disconnect the appliance from electrical outlet
when filling with water
or emptying and when not in use.
SAVE THESE INSTRUCTIONS
SPECIAL INSTRUCTIONS
1. This appliance has a polarized plug (one blade is wider
than the other).
To reduce the risk of electric shock, this
plug
is intended to fit into a polarized outlet only one way.
If the plug does not fit fully into the outlet,
reverse the plug.
If
it still does not fit, contact a qualified electrician. Do not
attempt to modify the plug
in any way.
2. To avoid a circuit overload, do not operate another high
wattage appliance such
as a hair dryer, etc., at the same
time on the same
circuit.
3. A short power-supply cord is provided to reduce risks
resulting from becoming entangled in or tripping over a
longer
cord.
4. Longer detachable power-supply cords or extension cords
are available and may be used if care is exercised in their use.
5. If an extension cord is absolutely necessary, a
10-ampe
re cord should be used. Cords rated for less
amperage may overheat.
Care should be taken to arrange
the
cord so that it cannot be pulled or tripped over.
6. Clean all parts before using (See “To Clean”).
CHECK VOLTAGE BEFORE USING
1. Your Quick Café II is provided with a dual voltage selector
switch that
is located on the side of the Quick Café II base.
This switch
is set at the factory to operate at 120 volts.
Refer to “Operating Instructions” section of this manual for
conversion to 240 volts (Figu
re 1).
2. CAUTION: Be sure dual voltage selector switch is in correct
voltag
e position before operating. QUICK CAFÉ II CAN
BE DAMAGED IF VOLTAGE SWITCH IS IN 120 VOLT
POSITIO
N AND HOT BEVERAGE MAKER IS PLUGGED
INT
O 220/240 VOLT ELECTRICAL OUTLET. Before
pluggin
g in, read the information about dual voltage operation
in the “Operating Instructions” section of this manual.
NOTE: An adaptor plug may be needed when traveling
outside the USA (Figu
re 2). Ask your Voltage Valet dealer
about available adaptor plugs.
Figure 1 Figure 2
Figure 3 Figure 4
removable
filter
Figure 5 Figure 6
