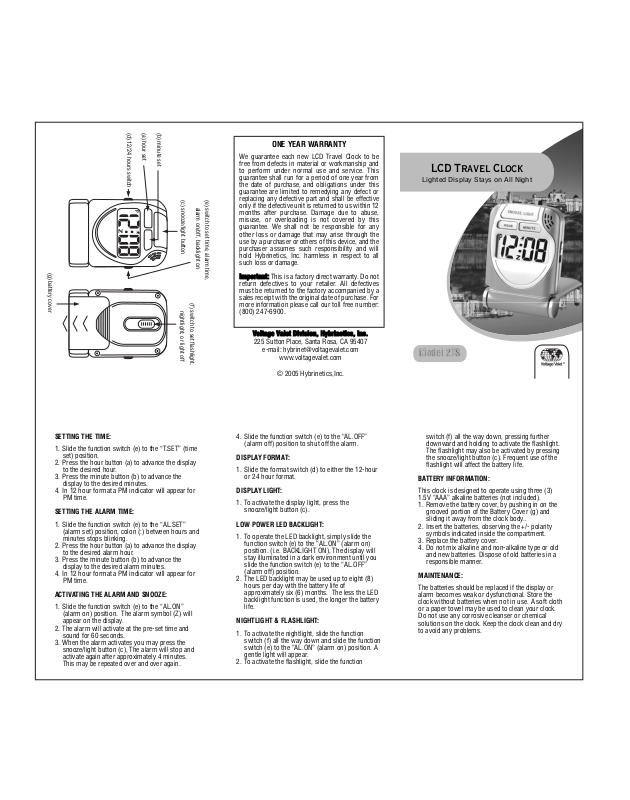

Voltage Valet 2TS User Manual

(g) battery cover

(d) 12/24 hours switch

(a) hour set

(b) minute set

P

(c) snooze/light button

(e) switch to set time, alarm time,

alarm on/off, backlight on

(f) switch to set flashlight,

nightlight, or light off

ONE YEAR WARRANTY

We guarantee each new LCD Travel Clock to be
free from defects in material or workmanship and
to perform under normal use and service. This
guarantee shall run for a period of one year from
the date of purchase, and obligations under this
guarantee are limited to remedying any defect or
replacing any defective part and shall be effective
only if the defective unit is returned to us within 12
months after purchase. Damage due to abuse,
misuse, or overloading is not covered by this
guarantee. We shall not be responsible for any
other loss or damage that may arise through the
use by a purchaser or others of this device, and the
purchaser assumes such responsibility and will
hold Hybrinetics, Inc. harmless in respect to all
such loss or damage.

Important: Important: This is a factory direct warranty. Do not

return defectives to your retailer. All defectives
must be returned to the factory accompanied by a
sales receipt with the original date of purchase. For
more information please call our toll free number:
[phone].

Voltage Valet Division, Hybrinetics, Inc.Voltage Valet Division, Hybrinetics, Inc.

225 Sutton Place, Santa Rosa, CA 95407

e-mail: [e-mail]

www.voltagevalet.com

© 2005 Hybrinetics,Inc.

LCD Travel Clock

Lighted Display Stays on All Night

Model 2TSModel 2TS

SETTING THE TIME:

1. Slide the function switch (e) to the “T.SET” (time
set) position.

2. Press the hour button (a) to advance the display
to the desired hour.

3. Press the minute button (b) to advance the
display to the desired minutes.

4. In 12 hour format a PM indicator will appear for
PM time.

SETTING THE ALARM TIME:

1. Slide the function switch (e) to the “AL.SET”
(alarm set) position, colon (:) between hours and
minutes stops blinking.

2. Press the hour button (a) to advance the display
to the desired alarm hour.

3. Press the minute button (b) to advance the
display to the desired alarm minutes.

4. In 12 hour format a PM indicator will appear for
PM time.

ACTIVATING THE ALARM AND SNOOZE:

1. Slide the function switch (e) to the “AL.ON”
(alarm on) position. The alarm symbol (Z) will
appear on the display.

2. The alarm will activate at the pre-set time and
sound for 60 seconds.

3. When the alarm activates you may press the
snooze/light button (c), The alarm will stop and
activate again after approximately 4 minutes.
This may be repeated over and over again.

4. Slide the function switch (e) to the “AL.OFF”
(alarm off) position to shut off the alarm.

DISPLAY FORMAT:

1. Slide the format switch (d) to either the 12-hour
or 24 hour format.

DISPLAY LIGHT:

1. To activate the display light, press the
snooze/light button (c).

LOW POWER LED BACKLIGHT:

1. To operate the LED backlight, simply slide the
function switch (e) to the “AL.ON” (alarm on)
position. (i.e. BACKLIGHT ON), The display will
stay illuminated in a dark environment until you
slide the function switch (e) to the “AL.OFF”
(alarm off) position.

2. The LED backlight may be used up to eight (8)
hours per day with the battery life of
approximately six (6) months. The less the LED
backlight function is used, the longer the battery
life.

NIGHTLIGHT & FLASHLIGHT:

1. To activate the nightlight, slide the function
switch (f) all the way down and slide the function
switch (e) to the “AL.ON” (alarm on) position. A
gentle light will appear.

2. To activate the flashlight, slide the function

switch (f) all the way down, pressing further
downward and holding to activate the flashlight.
The flashlight may also be activated by pressing
the snooze/light button (c). Frequent use of the
flashlight will affect the battery life.

BATTERY INFORMATION:

This clock is designed to operate using three (3)

1.5V “AAA” alkaline batteries (not included).

1. Remove the battery cover, by pushing in on the
grooved portion of the Battery Cover (g) and
sliding it away from the clock body..

2. Insert the batteries, observing the +/- polarity
symbols indicated inside the compartment.

3. Replace the battery cover.

4. Do not mix alkaline and non-alkaline type or old
and new batteries. Dispose of old batteries in a
responsible manner.

MAINTENANCE:

The batteries should be replaced if the display or
alarm becomes weak or dysfunctional. Store the
clock without batteries when not in use. A soft cloth
or a paper towel may be used to clean your clock.
Do not use any corrosive cleanser or chemical
solutions on the clock. Keep the clock clean and dry
to avoid any problems.
