26
A = Carrying Handle
B = Button to Open the Paper Filter Compart-
ment
C = Hose Release Button
D = Filter Replacement Indicator
E=Tool Rail
F = Accessories Compartment*
G= Parking Rail
H = On/Off Button
I = Power Regulation
J = Cable Retraction Button
K = Microfilter
L = Motor Protection Filter
M= Paper Filter
N= Handle
O= Suction Hose
P=Suction Tube
Q = Nozzle
*depending on model
F
K
L
M
A
B
C
D
E
F
G
H I J
Q
P
O
N
27
Contents
Unit description . . . . . . . . . . . . . . . . . . . . . . . . .26
Before Using for the First Time . . . . . . . . . . .27
Protecting the Environment . . . . . . . . . . . . . .27
User Safety Instructions. . . . . . . . . . . . . . . . . .27
Making the Vacuum Cleaner Ready
for Use 28
Using the Nozzles . . . . . . . . . . . . . . . . . . . . . . .28
Switching On . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Maintenance and Cleaning . . . . . . . . . . . . . . .30
What to do, if . . . . . . . . . . . . . . . . . . . . . . . . . .31
Before Using for the First Time
Please read carefully through all the information
given in the following. It provides important
information on the safety, usage and
maintenance of the appliance. Keep the
operating instructions in a safe place and pass
them on to any subsequent owners.
Protecting the Environment
Do not simply throw away packaging material
and old appliances!
Equipment Packaging:
• The cardboard packaging can be deposited in
the waste paper collection.
• Deposit the recyclable polyethylene (PE) bag
at a PE collection point.
Recycling the Appliance at the End of its Life:
• The plastic components all carry a material
identification marking so that, like the other
materials, they can be recycled at the end of
the life of the appliance.
Please inquire with your local authority about
your local recycling centre.
Safety Instructions
; This appliance complies with the following
EC directives: – 73/23/EWG dated 19. 02. 1973 –
Low Voltage Directive – 89/336/EWG dated
03. 05. 1989 (including Amendment Directive
92/31/EWG) – EMC Directive.
• Only connect the appliance to – 220/230 V –
AC.
• The mains circuit for the socket used must be
protected with a fuse with a rating of at least
10 A.
• Never remove the mains plug from the socket
by pulling on the cable.
• Do not use the appliance if:
– the cable is damaged.
– the housing shows visible signs of damage.
• Avoid running over the mains lead with the
appliance or the vacuum brush. The insulation
could be damaged.
• If a paper filter is not inserted, it is not
possible to close the cover. Please do not
use force!
• Always ensure that a paper filter, as well as a
MICROFILTER and a motor protection filter
are inserted.
• Toner dust from laser printers and copiers
must not be vacuumed using normal household vacuum cleaners.
• It is only permitted to use this vacuum
cleaner for dry vacuuming. People and animals must not be vacuumed using the appliance.
Keep children away from electrical appliances.
• The manufacturer does not accept any liability for any damage caused by improper use or
incorrect operation of the appliance.
• Leave wet shampooed carpets to dry completely. Otherwise the vacuum cleaner will be
damaged. Furthermore, protection against
electric shock may be impaired.
• Do not vacuum matches, glowing ashes or
cigarette ends using the appliance. Avoid
picking up hard, pointed objects as these may
damage the appliance or the paper filter.
• Do not subject the appliance to the effects of
the weather, humidity or sources of heat.
• In the event that the mains lead is defective,
the complete cable roller must be replaced by
VOLTA customer service or an authorised
repair centre.
• Repairs to electrical appliances are only to be
performed by qualified service engineers.
Improper repairs can give rise to significant
hazards for the user.
• For this reason, please contact you dealer or
VOLTA customer service direct in the event of
a malfunction.
28
Making the Vacuum Cleaner Ready
for Use
The accessories can be connected by either
applying pressure or twisting, and disconnected
by either pulling them apart or twisting.
Connect Together the Suction Hose and
Suction Tube.
Firmly connect the suction hose handle to the
suction tube.
Connect the Suction Tubes Together
Connect the two tubes together.
Connect the Suction Hose
Insert the suction hose connector in the suction
inlet. It locks in place and can be rotated all the
way around.
Press the release button and pull out the connector in order to remove the suction hose.
Mains Connection/Cable Rewind
The mains cable is in the cable compartment.
Pull out the cable and plug into the mains.
Unplug from the mains. Press the foot button,
the cable rewinds automatically following completion of vacuuming.
Using the Nozzles
Using the Floor Nozzle
For the daily care of carpets and hard floors. The
floor nozzle is universally suited for daily vacuuming of carpets and hard floor surfaces such as
parquet, tiles, linoleum, etc. without manual
change over.
29
Crevice and Upholstery Nozzle Stored in the
Appliance
For specific cleaning requirements, two other
items are included with the vacuum cleaner in
an integrated accessories compartment*. Open
the compartment by pressing gently as shown in
the Figure.
The nozzles may be attached to both the suction
tube or the handle on the suction hose, depending on requirements.
Crevice Nozzle
For vacuuming crevices, gaps and corners.
Upholstery Nozzle
For vacuum cleaning all upholstered furniture,
mattresses, etc.
The thread lifting strips on the nozzle even pick
up thread and lint.
*depending on model
Switching On
Switch On and Off
You can switch the appliance on and off
by pressing the On/Off button.
Power Regulation:
Power Regulation - Rotary Regulator
The suction power can be adjusted to suit the
specific situation using the electronic power
regulation.
30

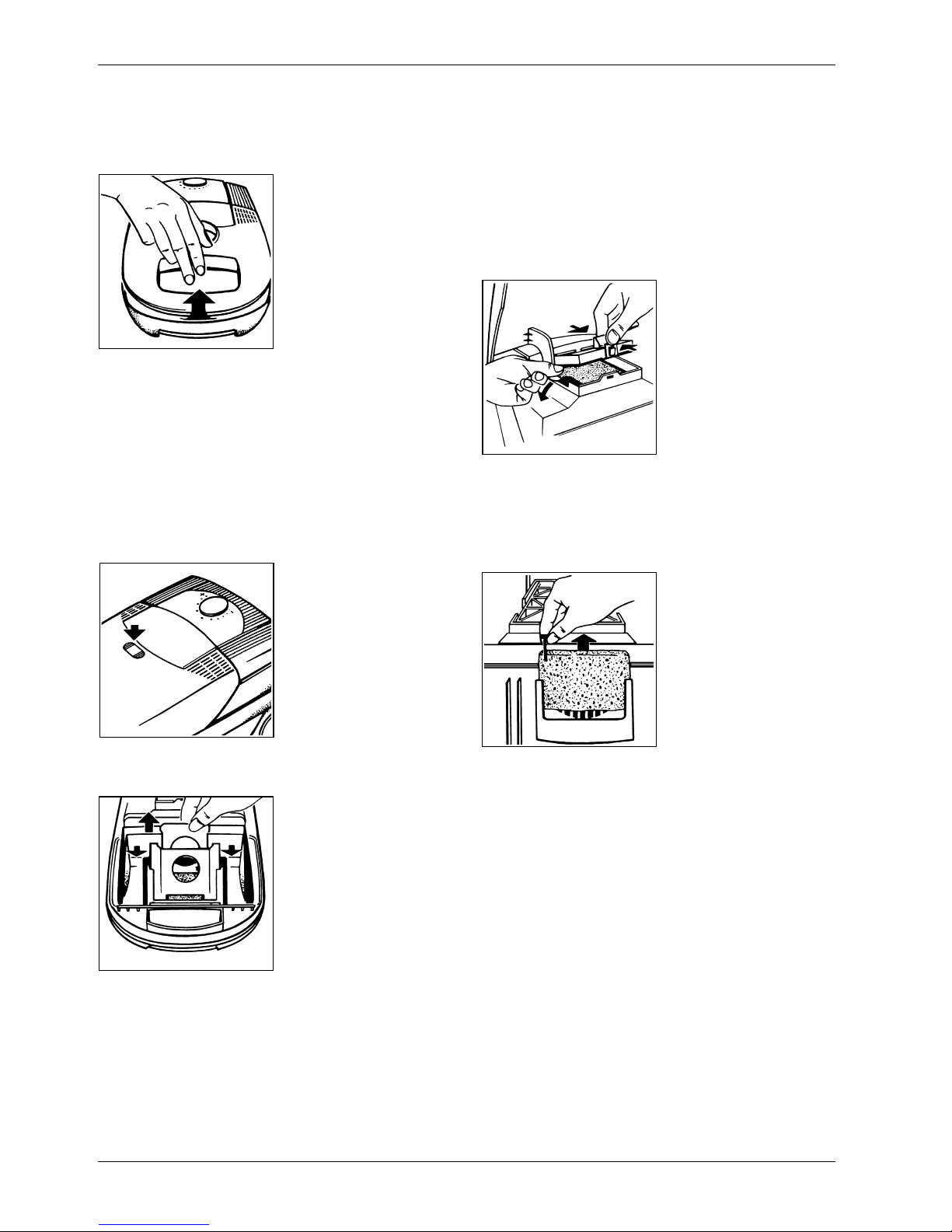

Maintenance and Cleaning
Prior to maintenance and cleaning, ensure that
the appliance is switched off and that it is
unplugged from the mains:
Changing the Paper Filter
The paper filter must be replaced if the window
on the filter replacement indicator is completely
red when the appliance is operating at maximum power and the nozzle is raised from the
floor.
The paper filter should be replaced even if it
does not appear to be full because fine dust can
block the pores in the surface of the filter.
The cover can be opened by pressing the button
and folding back until it locks.
Hygienic filter change: When removing the full
filter bag, pull the closing tab to automatically
close the opening. During this process you must
overcome light resistance when pulling the tab.
Bags full of normal household dust may be disposed of with household rubbish.
Insert the new paper filter to the stop in the
guide rails, only then can the lid be closed. If a
paper filter is not inserted, it is not possible to
close the cover. Please do not use force!
Changing the Microfilter
We recommend replacing the microfilter on
every fifth paper filter replacement, at the latest
when the dust level indicator is completely red
with a clean dust bag and the nozzle raised.
Open the lid and fold up. Remove the microfilter
using the clean hygiene tab (Figure) and dispose of it with the household rubbish. Insert the
new microfilter and close the cassette.
Motor Protection Filter
The motor protection filter is a permanent filter
and does not have to be regularly replaced.
Exception: the filter is damaged.
See under ”What to do, if ...”.
Cleaning
As required, wipe the housing and the paper filter compartment with a damp cloth. Do not use
any scourers or any solvents. Occasionally vacuum the floor nozzle and brush using the crevice nozzle.
31
Carrying and Storage
To make the appliance easier to store and carry,
slide the floor nozzle into the tool rail.
Parking System
For storing the suction pipe and nozzle during
short pauses in vacuuming. The bracket on the
nozzle is slid into the parking rail on appliance.
What to do, if ...
... the nozzle is hard to push
Reduce the power setting on the appliance.
Cleaning efficiency is not degraded in this case.
... the motor thermal cut-out has tripped
If the motor is overloaded, e.g. due to a full filter bag or blocked accessory, the thermal cutout shuts down the motor. In this case, switch
off the appliance, unplug from the mains, and
leave the motor to cool down.
Check paper filter bag, suction tube and suction
hose, remove any blockage.
The appliance can be turned on again after
approximately 30 minutes.
... the fuse has blown
The fuse may blow if you use other high power
electrical appliances on the same electrical circuit at the same time as the vacuum cleaner is
in use.
This problem may be prevented by setting the
electronic power regulator to minimum before
turning on the appliance and increasing the
power setting after switching on.
Your vacuum cleaner is equipped with an
electronic soft start controller that reduces
the start up current of the motor, this avoids
the mains fuse blowing under normal circumstances. As a result, at the lowest power setting the appliance may have a start delay of
approx. 4 seconds.
.
... the paper filter is damaged one day and
the motor protection filter is dirty
Remove the motor protection filter, clean (tap
out) and replace.
Insert new paper filter.
