INSTALLATION INSTRUCTIONS
VOLT® Low Voltage Landscape Lighting
VOLT® Elegant Harp Path & Area Light
VPL-1002
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specications and product details subject to change without notice.
© Copyright 2019, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
- 1 -
Page 2
INSTALLATION INSTRUCTIONS
VOLT® Elegant Harp Path & Area Light
VPL-1002
Important: Please Read Before Installation
!
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situations.
1. Make sure that the power is turned OFF before installing or servicing this
luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or
more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with UL Listed wire connectors that are
suitable for outdoor use.
5. Position the low voltage wire and wire connector so that it is located
within 6 inches (15.2 cm) from a building structure, a luminaire or tting.
6. The main low voltage cable is intended for shallow burial - less than 6
inches (152 mm).
Package Contents
A. (1) Fixture Body
B. (1) Shade
C. (1) Stake
Product Dimensions
2”
10”
D. (1) LED Lamp
E. (1) Diffuser
8”
26”
IMPORTANT SAFETY INSTRUCTIONS
!
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire tting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS
www.voltlighting.com
- 2 - - 3 -
[email protected] • 813.978.3700
Page 3
INSTALLATION INSTRUCTIONS
VOLT® Elegant Harp LED Path & Area Light
VPL-1002

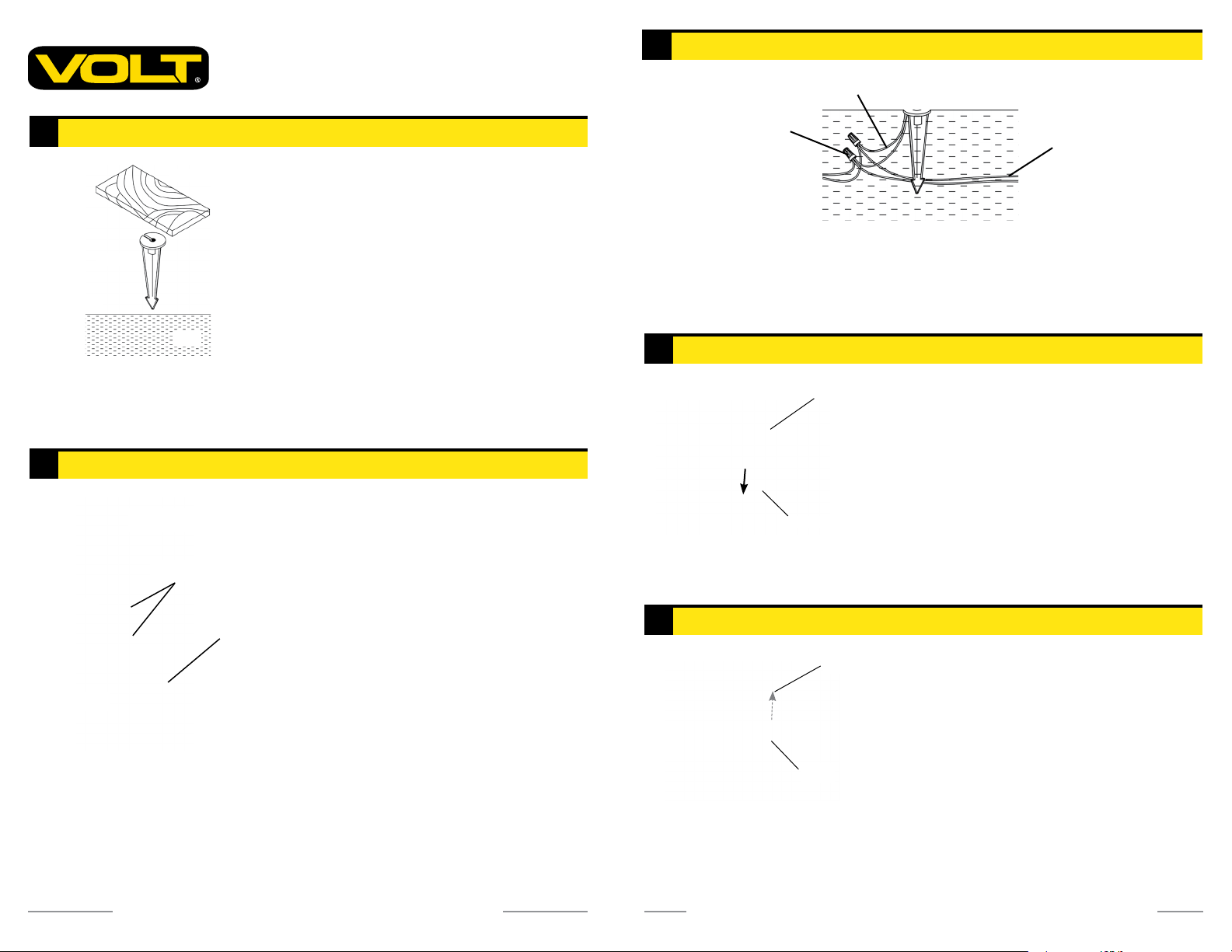

Wire Connection
3
Pigtail
Install Stake
1
Board
Stake
Ground
Soil
Install Fixture Body to Stake
2
Fixture Body
Wireway Slot
Base
Pigtail
Determine the desired location for mounting
the luminaire. Hammer the stake into the
ground until ange of stake is ush to grade.
To avoid damage to the stake, place a board on
top of the stake while hammering.
NOTE: If the ground is hard and the stake
is difcult to install, make a crosscut in the
ground using a at shovel.
Clear away an area in the ground at
the wireway slot on top of the stake.
Lay the luminaire pigtail into the
wireway slot and thread the coupler
at the bottom end of the xture body
onto the stake. Tighten until snug to
secure the base.
Wire Connectors
Main Supply Cable
Strip both leads from the luminaire pigtail. Using two wire connectors
(sold separately), connect the leads from the luminaire to the main low
voltage supply cable leads.
Remove Dome Lens
4
Loosen the dome lens from the
holder to expose the socket.
Insert bulb with the correct wattage
and type marked on the xture label.
Install Bulb
5
Holder
Dome Lens
Socket
Stake
www.voltlighting.com
- 4 -
CAUTION: Do not exceed maximum
wattage marked on luminaire label.
Bulb
NOTE: DO NOT touch bulb with bare
hands. Use soft cloth to handle bulb.
[email protected] • 813.978.3700
- 5 -
Page 4
INSTALLATION INSTRUCTIONS
Install Dome Lens
6
VOLT® Elegant Harp LED Path & Area Light
VPL-1002
Holder
Dome Lens
Thread the dome lens back onto the
holder and hand tighten.
Install/Replace Bulb
Please reference Step 4 - Step 6 to expose the Bulb and replace it with the
correct wattage and type marked on the xture label. Reinstall Shield.
IMPORTANT: LED Bulb must be protected from moisture and dust at all
times. Always reinstall shield when removed.
