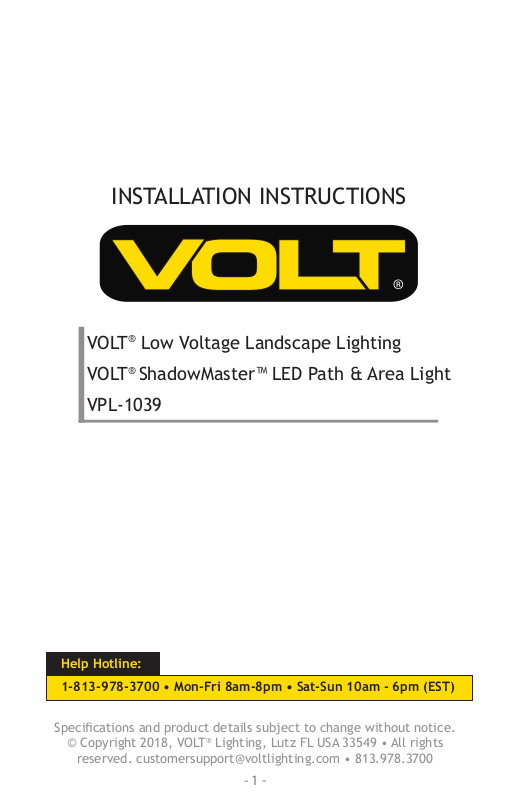

INSTALLATION INSTRUCTIONS
VOLT® Low Voltage Landscape Lighting
VOLT® ShadowMaster™ LED Path & Area Light
VPL-1039
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specications and product details subject to change without notice.
© Copyright 2018, VOLT® Lighting, Lutz FL USA 33549 • All rights
reserved. [email protected] • 813.978.3700
- 1 -
Page 2
INSTALLATION INSTRUCTIONS
VOLT® ShadowMaster™ LED Path & Area Light
VPL-1039
Important: Please Read Before Installation
!
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the warranty.
These instructions do not intend to cover all variations in installation, operation
maintenance or mounting situations.
1. Make sure that the power is turned OFF before installing or servicing this
luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or
more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with wire connectors that are suitable
for outdoor use.
5. Position the low voltage wire and wire connector so that it is located
within 6 inches (15.2 cm) from a building structure, a luminaire or tting.
6. The main low voltage cable is intended for shallow burial - less than 6
inches (152 mm).
7. If additional lengths of low voltage cable are required, please contact
www.voltlighting.com or call 1-813-978-3700.
Important Safety Instructions
!
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire tting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS
www.voltlighting.com
- 2 -
Page 3
Package Contents
A. ( 1 ) F i x t u r e B o d y
B. (1) Rod
Product Dimensions
34.5”
A. (1) XL Hammer Stake
C.
D.
B . ( 1 ) L E D P u c k L i g h t ( p r e - i n s t a l l e d )
11”
[email protected] • 813.978.3700
- 3 -
Page 4
INSTALLATION INSTRUCTIONS
Install Stake
1
VOLT® ShadowMaster™ LED Path & Area Light
VPL-1039
Stake
Ground
Soil
Install Fixture to Stake
2
Fixture
Board
Determine the desired location for
mounting the xture. Hammer the stake
into the ground until ange of stake is
ush to grade. To avoid damage to the
stake, place a board on top of the stake
while hammering.
NOTE: If the ground is hard and the stake
is difcult to install, make a crosscut in
the ground using a at shovel.
Clear away an area in the ground at
the wireway slot on top of the stake.
Lay the luminaire pigtail into the
wireway slot and thread the xture
onto the stake.
Tighten until snug. Thread the lock
nut at the bottom end of the xture
against the stake and hand tighten
until snug.
Wireway Slot
Pigtail
www.voltlighting.com
Lock Nut
- 4 -
Page 5
Wire Connections
3
Pigtail
Grease Filled
Wire Connectors

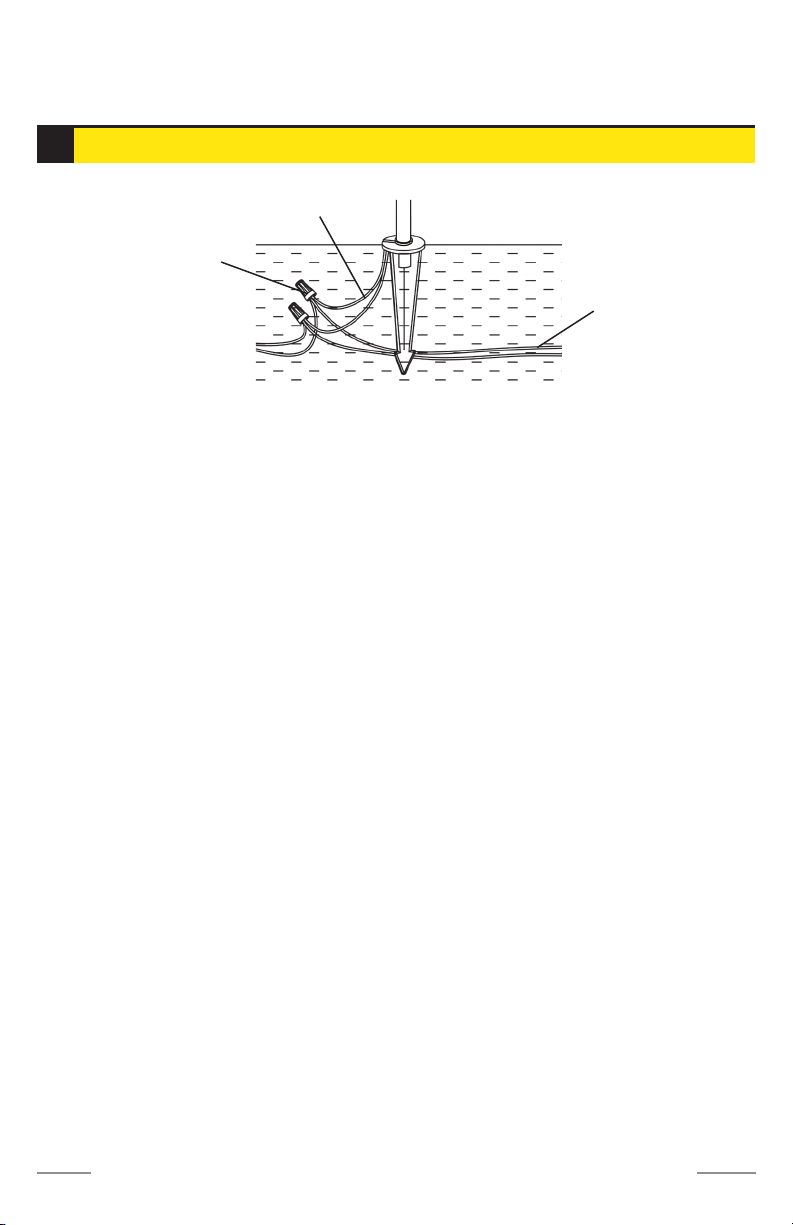

Strip both leads from the luminaire pigtail. Using two wire
connectors (sold seperately), connect the leads from the luminaire
to the main supply cable leads.
Main Supply Cable
[email protected] • 813.978.3700
- 5 -
Page 6
- 6 -
Page 7
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
www.voltlighting.com
Specications and product details subject to change without notice.
© Copyright 2018, VOLT® Lighting, Lutz FL USA 33549 • All rights
reserved. [email protected] • 813.978.3700
IS-VPL-1039-ver5.pdf
- 7 -
