Volt CKIT-2-B User Manual

CKIT-2-B

Expansion K

IT

VOLT Lighting, LLC • 15486 N. Nebraska Ave. • Lutz, FL 33549

www.voltlighting.com • [e-mail]

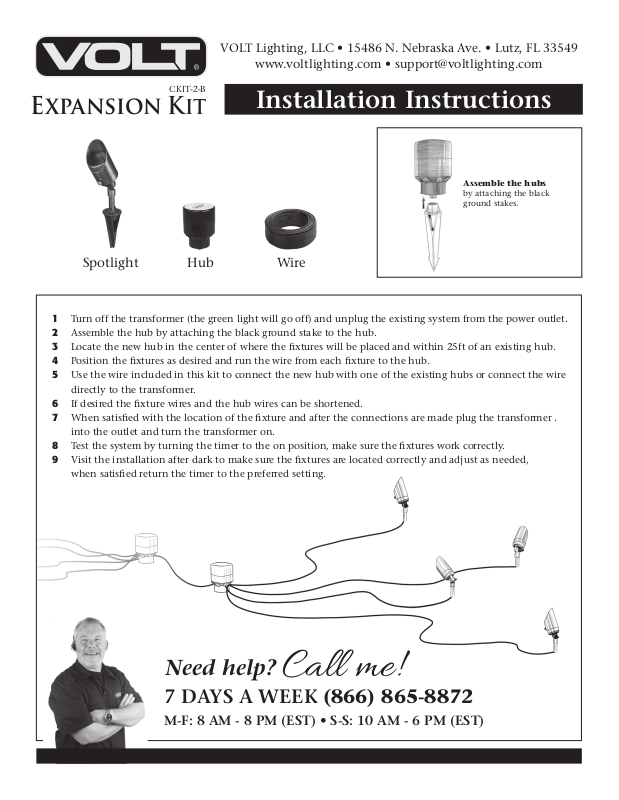

Installation Instructions

Assemble the hubs

by attaching the black
ground stakes.

Spotlight

1 Turn off the transformer (the green light will go off) and unplug the existing system from the power outlet.
2 Assemble the hub by attaching the black ground stake to the hub.
3 Locate the new hub in the center of where the xtures will be placed and within 25ft of an existing hub.
4 Position the xtures as desired and run the wire from each xture to the hub.
5 Use the wire included in this kit to connect the new hub with one of the existing hubs or connect the wire

directly to the transformer.

6 If desired the xture wires and the hub wires can be shortened.
7 When satised with the location of the xture and after the connections are made plug the transformer .

into the outlet and turn the transformer on.

8 Test the system by turning the timer to the on position, make sure the xtures work correctly.
9 Visit the installation after dark to make sure the xtures are located correctly and adjust as needed,

when satised return the timer to the preferred setting.

Hub

Wire
