VOLT® Low Voltage Landscape Lighting
VOLT® Stratum 9” & 12” Path & Area Light
VPL-300 Series
INSTALLATION INSTRUCTIONS
Specications and product details subject to change without notice.
© Copyright 2017, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Page 2
VOLT® Stratum 9” & 12” Path & Area Light
VPL-300 Series
Important: Please Read Before Installation
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situation.
1. Make sure that the power is turned OFF before installing or servicing this
luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or
more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with wire connectors that is suitable for
outdoor use.
5. Position the low voltage wire and wire connector so that it is located
within 6 inches (15.2 cm) from a building structure, a luminaire or tting.
6. The main low voltage cable is intended for shallow burial - less than 6
inches (152 mm)
7. If additional lengths of low voltage cable is required, please contact www.
voltlighting.com or call 1-813-978-3700.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire tting with a missing or damage shield.
SAVE THESE INSTRUCTIONS
!
!
www.voltlighting.com
Page 3
[email protected] • 813.978.3700
Package Contents
A. (1) Finial
B. (1) Waterproof Washer
C. (1) Shade
D. (1) Inner Shield
E. (1) Harp
F. (1) Stake
G. (1) Rod with Socket
Product Dimensions
Install Stake
1
Determine the desired location for mounting
the luminaire. Hammer the stake into the
ground until ange of stake is ush to grade.
To avoid damage to the stake, place a board on
top of the stake while hammering.
NOTE: If the ground is hard and the stake
is difcult to install, make a crosscut in the
ground using a at shovel.
Board
Stake
Soil
Ground
Page 4
INSTALLATION INSTRUCTIONS
www.voltlighting.com
VOLT® Stratum 9” & 12” Path & Area Light
VPL-300 Series

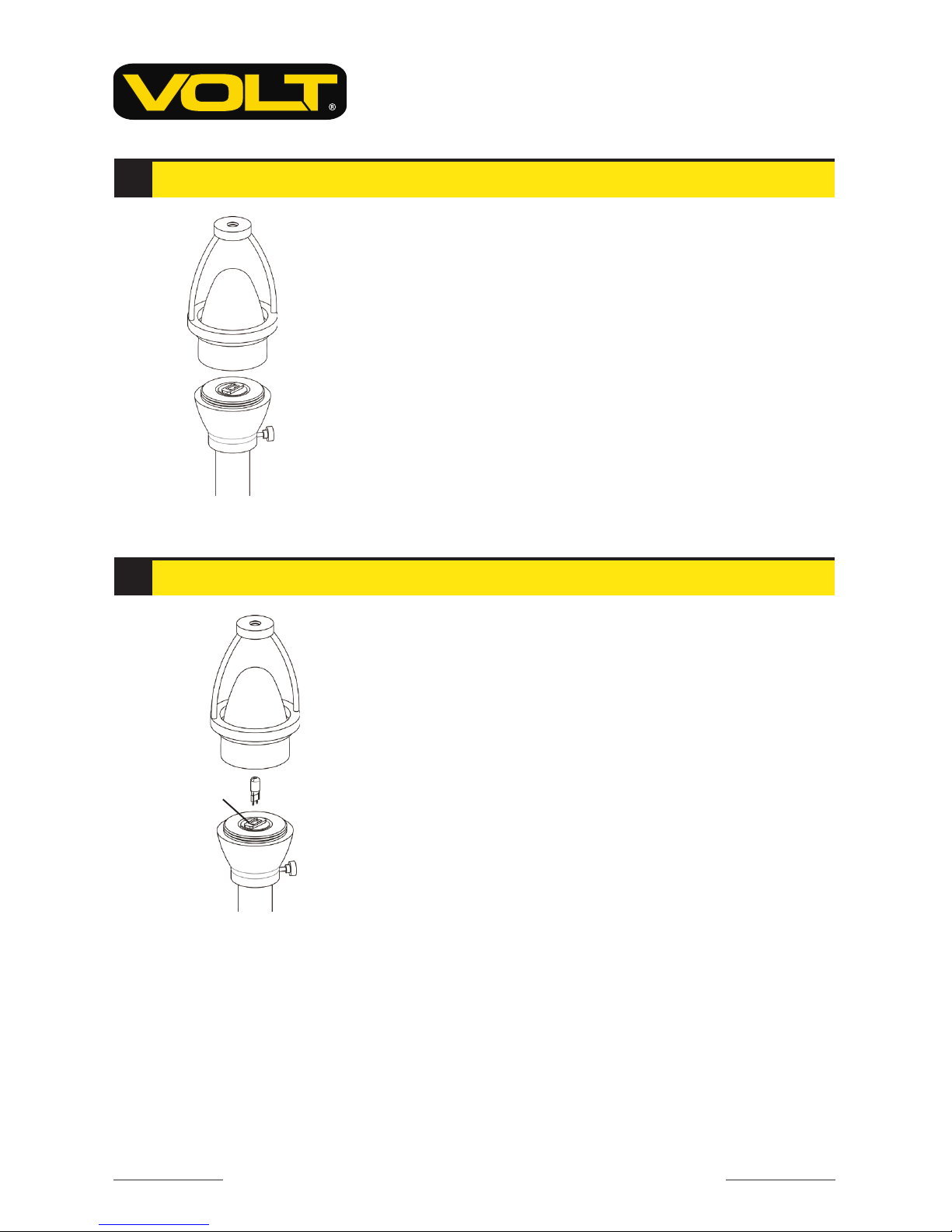

Screw the harp off the socket assembly.
Remove the harp and glass lens from the
socket assembly.
Insert the lamp with the correct wattage
and type marked on the luminaire label.
CAUTION: Do not exceed maximum
wattage marked on luminaire label.
NOTE: DO NOT touch lamp with bare
hands. Use soft cloth to handle lamp.
Place the glass lens back onto the socket
assembly and screw the harp on.
Remove Harp and Glass Lens
Install Lamp
2
3
Harp
Harp
Lamp
Glass Lens
Glass Lens
Socket
Socket
Assembly
Socket
Assembly
Page 5
[email protected] • 813.978.3700
Install Shade
4
Place the shade and waterproof
washer on the top end of the harp
and secure with the nial. Hand
tighten until snug.
Finial
Waterproof
Washer
Shade
Harp
Install Luminaire to Stake
5
Clear away an area in the ground at
the wireway slot in the top of the
stake. Lay the luminaire pigtail into
the wireway slot and screw the stem
onto the stake. If the assembly does
not look straight, adjust by pushing
or pulling on the stake only. Use
a bubble level against the side of
the stem to make sure the stem is
perpendicular to the ground.
Pigtail
Stem
Stake
Wireway Slot
Page 6
www.voltlighting.com
VOLT® Stratum 9” & 12” Path & Area Light
VPL-300 Series
INSTALLATION INSTRUCTIONS
Wire Connections
6
Pigtail
Main Low Voltage
Supply Cable
Maintenance – Install/Replace Lamp
Please reverse Step 2 - Step 4 to expose the lamp and replace it with
correct wattage and type marked on the luminaire label. Reinstall the inner
shield and shade.
IMPORTANT: Halogen lamps must be protected from moisture and dust at all
times. Always reinstall the shade and lens when moved.
Strip both of the leads from the luminaire pigtail. Using two wire
connectors (sold separately), connect the leads from the luminaire to
the main low voltage supply cable leads.
Wire Connectors
