Vollrath JT4HC Operator's Manual

Operator’s Manual
Dual Conveyor Convertible Toasters, Up to 1,100 Slices Per Hour*
Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that will or can cause severe personal injury or death.
CAUTION
Caution is used to indicate the presence of a hazard that will or can cause minor or major personal injury if the caution is ignored.
Model JT4HC
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment
• Plug only into grounded electrical outlets matching the voltage on the rating plate.
• Use this equipment in a flat, level position.
• Unplug equipment and let it cool before cleaning or moving. Equipment remains hot after it is turned off.
• Do not touch during operation.
• Unplug when not in use.
• Keep equipment and power cord away from open flames, electric burners or excessive heat.
• Do not operate unattended.
• Closely supervise equipment operating in public areas and/or around children.
• Do not operate if equipment has been damaged or is malfunctioning in any way.
FUNCTION AND PURPOSE
This equipment is intended to toast bread, bagels and sandwiches; and melt cheese. It is intended for use in commercial foodservice operations only. It is not intended for household, industrial or laboratory use.
Model
Item No.
CVT4-208Dual
CVT4-240Dual 240 CVT4-230Dual 230 Stripped Ends
* Slices per hour is based on maximum conveyor speed. Conveyor speed deter-
mines toasting time and affects color and texture of the toast. Results may vary based upon type of bread, color and texture preference.
No.
JT4HC
Voltage
208
Slices Per
Hour*(combined)
Up to 1,100
Plug
NEMA 6-30PCVT4-220Dual 220
CLEARANCE AND ENVIRONMENT REQUIREMENTS
Do not place on surfaces or near walls, partitions or kitchen furniture unless they are made of non-combustible material or clad with non­combustible heat-insulating material. Toasters must not be used near or below curtains and other combustible materials.
Do not place the toaster adjacent to a heat producing appliance.
Register your product at Vollrath.com/registration and become eligible to win a free 10" Vollrath Tribute® fry pan.
©
2018 The Vollrath Company L.L.C. Part No. 351736-1 en 11/7/18
SET UP
FEATURES
1. Place the toaster on a hard, flat, stable surface.
2. Turn the toaster on it’s side with the bottom facing you.
3. Install the collection pan by placing the back edge of the pan on the lip at the back of the toaster. Line up the hole in the pan with the screw. Tighten the screw to secure the collection pan.
I
H
F
G H F G E D C B
Bottom Conveyor Controls
A
Front View
E
D
C
B
Top Conveyo Controls
J
Back View
A Collection Pan B Power Knob
Full Power - maximum heat
Off
Standby - reduces electrical consumption by 75%.
C Bottom Heat Control Knob D Top Heat Control Knob E Conveyor Speed Control Knob F Conveyor G Crumb Tray H Adjustable Heat Shield
I Unload Tray/Back Panel
J Reset Button (Reference only. Access is via the front of the
toasters. See page 6.)
2 Dual Conveyor Convertible Toasters, Up to 1,100 Slices Per Hour* Operator’s Manual - Models JT2HC and JT3HC
BEFORE FIRST USE
1. Clean the toaster. See “Cleaning” on page 5.
OPERATION
This toaster ships set up to toast bread. To toast sandwiches, see See “Convert to A Pass through Toaster” on page 4.
CAUTION
Burn Hazard
Do not touch the equipment while it is heating or operating. Hot surfaces can burn skin.
NOTICE: The crumb trays must be installed in the toaster during
operation. Failure to install the crumb trays will cause the toaster to overheat.
Adjust the Heat Shield
Excess space above the product will create heat loss and may reduce performance.
1. When the equipment is cool to the touch, use a screwdriver to loosen the screw on the heat shield.
2. Grasp the shield and pull it up or down to adjust the opening so the tallest products can pass through. Re-tighten the screw.
Preheat
1. Plug the toaster into a grounded electrical outlet that matches the rating on the name plate found on the side of the toaster.
NOTICE: Using a voltage other than the nameplate rated voltage
will cause damage to the unit. Incorrect voltage, modification to the power cord or electrical components can damage unit and will void the warranty.
2. Rotate the power knob(s) to the full power position (I).
3. Set the conveyor speed control knob(s) to 7.
4. Rotate the top and bottom heat control knobs to high.
5. Wait 5 minutes for the toaster to preheat.
Test
1. Adjust the settings for the product to be toasted.
Tips
Product Suggestions
Bagels, wheat or rye bread or products with high moisture content.
Buttered or coated, such as pastries
Frozen Must be thawed before toasting.
Sandwiches
2. Test the settings by placing a sample of the food to be toasted onto the feed ramp. Place bagels or buns onto the feed ramp with the cut side facing up.
Use a slower conveyor speed.
Not recommended.
Use slower conveyor speed to allow protein ingredients to heat. Set bottom heat control low.
For One-Sided Toasting
TOP heat control to the desired setting. BOTTOM heat control to the OFF position.
3. Evaluate the results.
Toast Bread or Sandwiches
1. Adjust the top and bottom heat control settings and conveyor as needed for even toasting. Allow time for the toaster to adjust to new heat settings before placing bread or sandwiches on the conveyor.
2. For best performance do not overload the toaster. Wait a few seconds before loading a second row of bread or sandwiches into the toaster.
If an Item Becomes Stuck
1. Rotate the power knob to the OFF position (O) and unplug the toaster.
2. Let the toaster cool completely. Use tongs to remove the item. Take care to not bump the heating elements above and below the conveyor.
Dual Conveyor Convertible Toasters, Up to 1,100 Slices Per Hour* Operator’s Manual - Models JT2HC and JT3HC 3

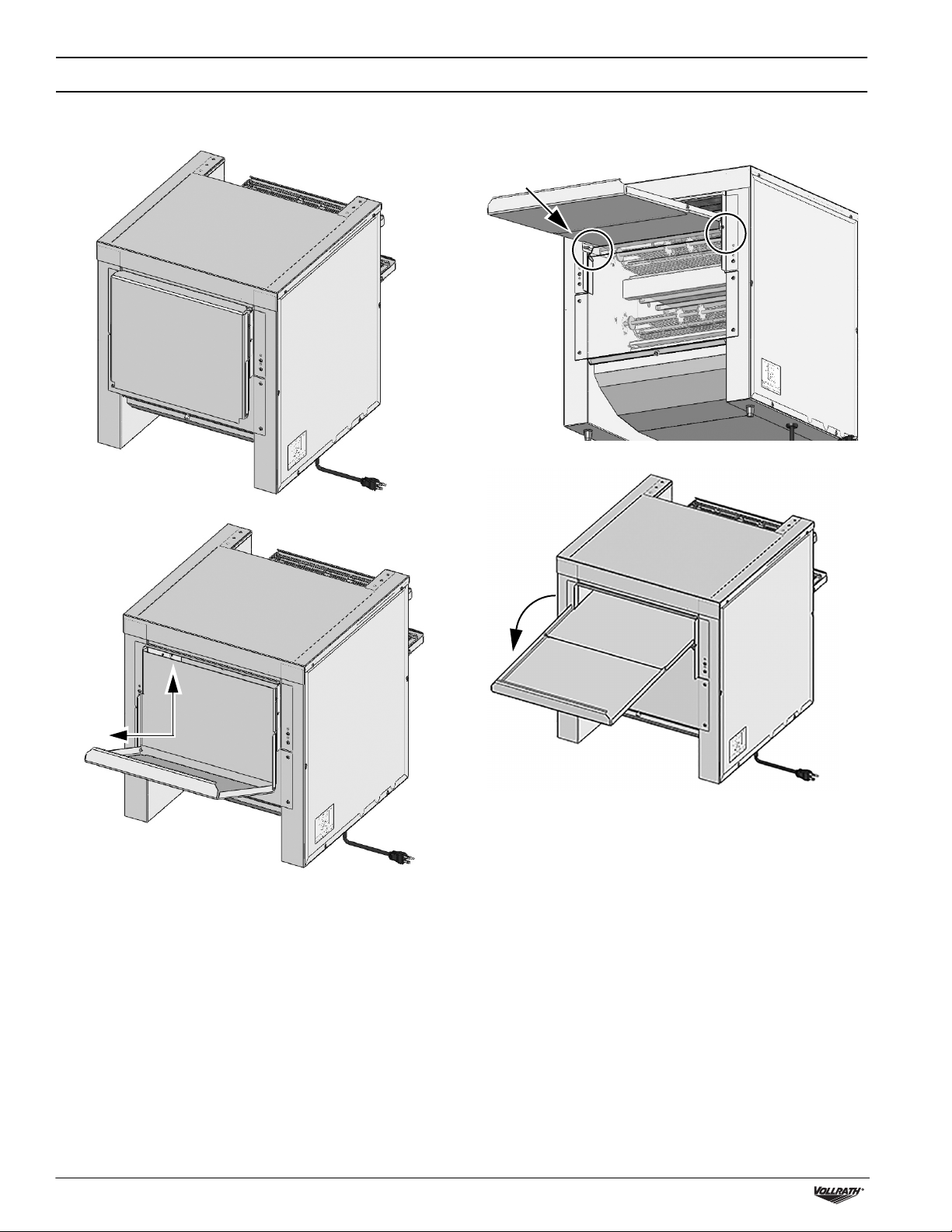

CONVERT TO A PASS THROUGH TOASTER
1. Position the toaster so you have access to the unload tray/back panel.
2. Lift the unload tray straight up and tilt outward as shown below.
3. Note the tabs on the underside of the back panel. Clip the tabs over the two metal pins under the edges of the panel.
4. Drop the unload tray into the horizontal position.
4 Dual Conveyor Convertible Toasters, Up to 1,100 Slices Per Hour* Operator’s Manual - Models JT2HC and JT3HC
CLEANING
WARNING
Electrical Shock Hazard
Do not spray water or cleaning products. Liquid could contact the electrical components and cause a short circuit or an electrical shock.
CAUTION
Burn Hazard
Allow equipment to cool before moving or cleaning.
NOTICE: Do not use abrasive materials, scratching cleansers or
scouring pads to clean the exterior of the equipment. These can damage the finish.
NOTICE: Heating elements do not need to be cleaned. Crumbs and
food debris will burn off. Over time the heating elements may develop a chalky appearance, but this will not impact performance.
Daily Cleaning
1. Before turning off the equipment and with the conveyor rotating, watch the conveyor belt for food debris.
2. When the food debris reaches the front of the conveyor, rotate the power knob to the OFF position.
3. Wait for the fan to stop running. Unplug the equipment.
4. Let the equipment cool completely.
5. When the equipment is cool, use a brush or scrub pad to remove the food debris.
6. To clean the exterior, use a soft cloth dipped in hot soapy water to wipe the exterior and fan air intake under the equipment. If needed, wipe the fan intake area with degreaser to prevent long term build up.
7. Empty and clean the crumb tray(s).
PREVENTATIVE MAINTENANCE
Contact an authorized service agent for a professional cleaning of the components.
Dual Conveyor Convertible Toasters, Up to 1,100 Slices Per Hour* Operator’s Manual - Models JT2HC and JT3HC 5
TROUBLESHOOTING
Problem Might be Caused By Course of Action
Toaster does not heat and the conveyor belt does not move.
Toaster is not plugged in. Plug in the toaster.
Power knob setting is incorrect. Rotate the power knob to the ON (|) position.
The wall breaker may be tripped.
The reset may be tripped. Look under the toaster to see if an object is preventing the fan
1. Inspect for tripped breaker.
2. Reset the breaker.
3. If the breaker was not tripped, inspect the toasting chamber for broken heat element tubes
For broken tubes, contact Vollrath Technical Services.
blades from turning.
1. Rotate the heat control knobs to the OFF position.
2. Rotate the power knob to the OFF (O) position.
3. Unplug the toaster.
4. Wait 30 minutes for the toaster cool.
5. Remove the object.
6. Plug in the toaster.
7. Rotate the power knob to the ON (|) position.
8. Press the reset button. You should hear and feel the button reset. The toaster should start to operate.
Toaster heats and the conveyor belt does not move.
Top or bottom heater tubes do not heat.
Toaster repeatedly overheats.
The fan is not running.
The toaster is turned off and the fan is running.
9. If the problem persists call Vollrath Technical Services.
Inspect the fan blades to see if they are dirty.
1. Rotate the heat control knobs to the OFF position.
2. Rotate the power knob to the OFF (O) position.
3. Unplug the toaster.
4. Wait 30 minutes for the toaster cool.
5. Clean the fan blades.
6. Plug in the toaster.
7. Rotate the power knob to the ON (|) position.
8. Press the reset button.
9. If the problem persists call Vollrath Technical Services.
There may be a problem with the motor/ speed control or drive chain.
One or more heater tubes may have burned out.
Heat control switch may be broken.
The crumb tray may not be installed. Verify the crumb tray is installed.
The fan may be dirty.
There may be a problem with the fan.
There may be a problem with the fan or the fan switch.
Normal operation. The fan turns on as needed to cool the toaster.
Contact Vollrath Technical Services.
Contact Vollrath Technical Services.
Verify the fan blades are clean. See instruction above for inspecting and cleaning the fan blades.
Run the toaster for 10 minutes. If the fan does not run, contact Vollrath Technical Services.
Run the toaster for 10 minutes. If the fan does not run, contact Vollrath Technical Services.
_
6 Dual Conveyor Convertible Toasters, Up to 1,100 Slices Per Hour* Operator’s Manual - Models JT2HC and JT3HC
This page intentionally left blank.
Dual Conveyor Convertible Toasters, Up to 1,100 Slices Per Hour* Operator’s Manual - Models JT2HC and JT3HC 7
SERVICE AND REPAIR
When under warranty, repair is available for this product. To begin the process:
1. Contact Vollrath Technical Services at 1-800-309-2250. Please be ready with the item number, model number and serial number. You can find this information on the nameplate located on the side or back of the equipment. Also please provide a proof of purchase indicating the date the equipment was purchased.
2. A technical services representative will help you troubleshoot the problem over the phone.
3. If the representative determines the issue requires professional service, he or she will help you locate an authorized service center.
4. Contact the authorized service center to make arrangements for the repair. Vollrath will cover the cost to repair and/or replace defective parts within the equipment warranty period.
WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.
The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user’s original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.
The warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses.
Warrantied Parts: The warranty period is 2 years parts, 1 year labor.
Heater Tubes: The warranty period is 1 year, including labor. Heater tube glass damage is not covered by this warranty.
For complete warranty information, product registration and new product announcements, visit www.vollrath.com.
The Vollrath Company, L.L.C. Headquarters 1236 North 18th Street Sheboygan, Wisconsin 53081-3201 USA Main Tel: 800-624-2051 or 920-457-4851 Main Fax: 800-752-5620 or 920-459-6573 Canada Customer Service: 800-695-8560 Tech Services: techservicereps@vollrathco.com www.vollrath.com
Pujadas Ctra. de Castanyet, 132 P.O. Box 121 17430 Santa Coloma de Farners (Girona) – Spain Tel. +34 972 84 32 01 info@pujadas.es
©
2018 The Vollrath Company L.L.C. Part No. 351736-1 en 11/7/18
