Vollrath 5950145 User Manual

Page 1
Project:
www.vollrathco.com
The Vollrath Company, L.L.C. 1236 North 18th Street Sheboygan, WI 53081-3201 U.S.A. Customer Service: 800.628.0830 Canada Customer Service: 800.695.8560 Main Fax: 800.752.5620 or 920.459.6573
Technical Services: 800.628.0832 Technical Services Fax: 920.459.5462
Agency Listings
This device complies with Part 18 FCC Rules.
Item Number:
Quantity:
MIRAGE® STANDARD DROP-IN INDUCTION WARMERS
MODELS
5950145 450W Drop-in Induction Warmer (US/Canada) 5950170 700W Drop-in Induction Warmer (US/Canada)
FEATURES
G4 engine for long lifeSimple 1-5 power level adjustments1-180 minute timer for length of cooking time control90% efficiency ratingWarmers display HOT when unit is turned off, if
the top is still hot
High-effiency, standard, single element drop-in induction
warmer with push button controls.
DESCRIPTION
The high-efficiency, standard drop-in induction warmers are designed for use in buffet stations with induction­ready chafers and serving pieces. The 120 volt warmers plug easily into standard 15 amp or 20 amp, 120V outlets.
The case frame is made from heavy-duty, 18-gauge stainless steel with a vitro ceramic top. The ceramic top is easily cleaned with a mild cleaner.
The induction warmer is equipped with a variety of safety features including:
Over-heat protectionSmall-article detectionPan auto-detection functionEmpty-pan shut-off
Vertical control panel for runoff of liquid spillsUnit comes complete with a 6-ft. (183 cm) cord and
plug and does not require hard wiring
Requires a 15A circuit Full one-year parts and labor warranty
IMPORTANT
This appliance is intended for use with
induction-ready cookware.
All models require unrestricted intake and exhaust
air ventilation for proper operation of the controls. The maximum intake temperature must not exceed 110
F (43C). Temperatures are measured in
ambient air while all appliances in the kitchen are in operation.
Drop-in models require a minimum clearance of
3 inches (7.6 cm) at the rear and 1 inch (2.5 cm) at the bottom.
Mirage
®
Standard Drop-in Induction Warmers
Due to continued product improvement, please consult www.vollrathco.com for current product specifications.
WARRANTY: All models shown come with Vollrath’s standard warranty against defects in materials and workmanship. For full warranty details, please refer to the Vollrath Equipment and Smallwares Catalog.
Approvals Date
Page 2
MIRAGE® STANDARD DROP-IN INDUCTION WARMERS
www.vollrathco.com
The Vollrath Company, L.L.C. 1236 North 18th Street Sheboygan, WI 53081-3201 U.S.A. Customer Service: 800.628.0830 Canada Customer Service: 800.695.8560 Main Fax: 800.752.5620 or 920.459.6573
Technical Services: 800.628.0832 Technical Services Fax: 920.459.5462
13¹⁄₈
(33.3)
11⁵⁄₈
(29.5)
2⁷⁄₈
(7.3)
14½
(36.8)
12½
(31.8)
mirage
REMOTE CONTROL
5¹³⁄₁₆
(14.8)
2³⁄₁₆
(5.6)
3¹⁄₁₆
(7.8)
2⁵⁄₈
(6.7 cm)
(16.5)
4⁷⁄₈
(12.4)
(3.8
2¹¹⁄₁₆ (6.9)
5
(12.70)
Cutout Dimension
14⁹⁄₁₆ (37)
13³⁄₈ (34)
11¾
(29.9)
¼" deep notch
to enable
unit to be
countersunk
Countertop
Front View
Top V iew
Cutout Dimension
12⁹⁄₁₆
(31.9)
SPECIFICATIONS – 1 PHASE, 60 HZ
Receptacle
Model
Max Pan
Size
kW
Rating
Volts
Nominal
Amps
Plug Weight
Shipping
Weight
Shipping Container
5950145
14
(35.6)
.45 W 120V AC 3.8 5-15P
12 lbs
(5.4 kg)
16.4 lbs (7.4 kg)
17³⁄₈ x 17 x 6⁷⁄₈
(44.2 x 43.2 x 17.5)
5950170
14
(35.6)
.7 W 120V AC 5.8 5-15P
12 lbs
(5.4 kg)
16.4 lbs (7.4 kg)
17³⁄₈ x 17 x 6⁷⁄₈
(44.2 x 43.2 x 17.5)
5-15R
120V
Side View Front ViewTop View
MODELS
5950145 450W Drop-in Induction Warmer (US/Canada) 5950170 700W Drop-in Induction Warmer (US/Canada)

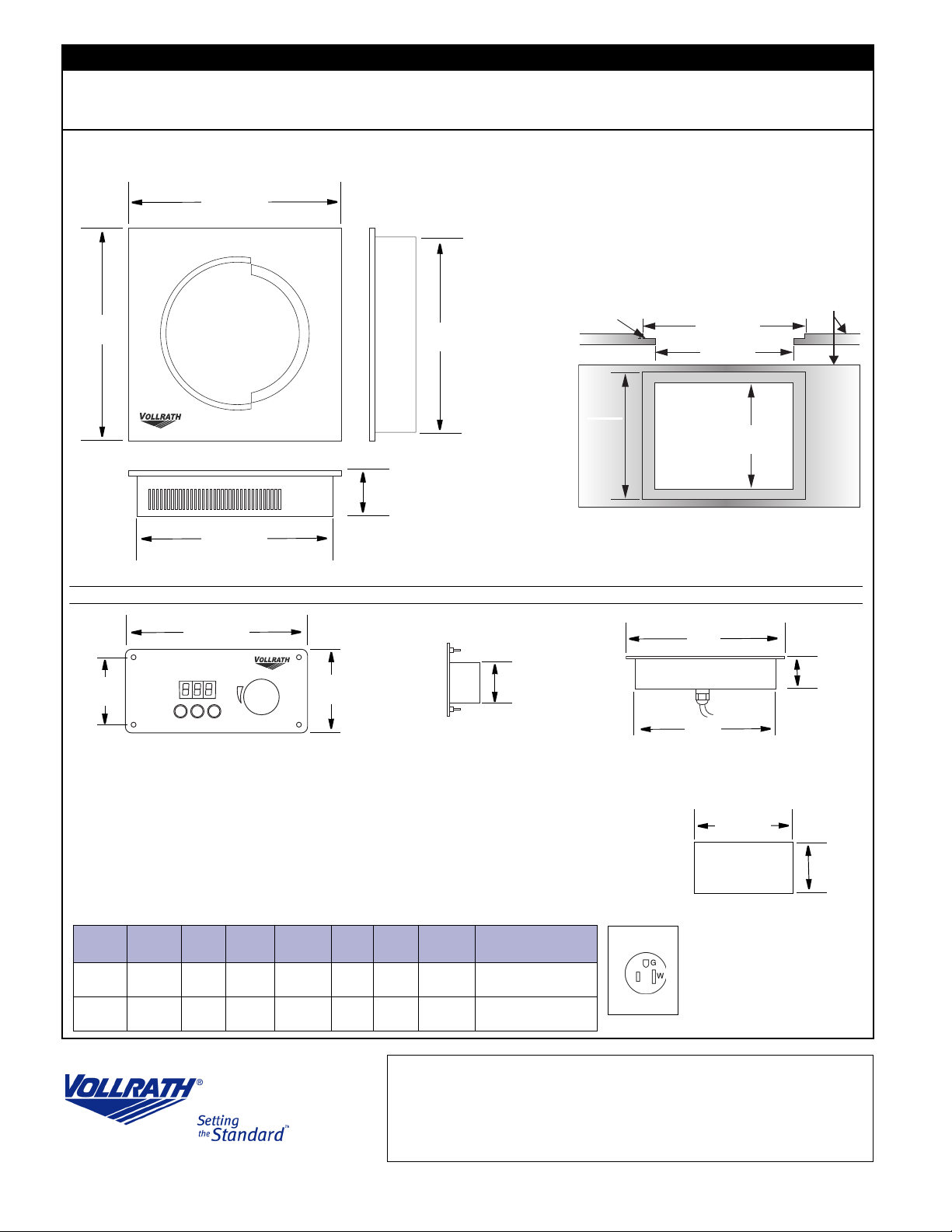

DIMENSIONS
Dimensions shown in inches (cm)
Standard Drop-in Induction Warmers
®
Mirage
©
2012 The Vollrath Company L.L.C. Form Number L35657 3/12
Printed in USA
