VOLKTEK NWT-707 User Manual

10Base-T

to

10Base-FL Converter

(Multi-mode & Single Mode)

User’s Manual

NWT-707

COPYRIGHT

All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted in any form or by any means, whether
electronic, mechanical, photo copying, recording or otherwise, without the
prior written permission of the publisher.

FCC WARNING

This equipment has been tested and found to comply with the limits for
class A device, pursuant to part 15 of FCC rules. These limits are
designed to provide reasonable protection against harmful interference in
a commercial installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communication. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case, the user will be required to
correct the interference at the user’s own expense.

CE

This is a Class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.

Take special note to read and understand all content given in the warning
boxes

Warning

Table of Contents

1 Introduction.................................................................. 1

About This Guide...........................................................1

Welcome................................................................... 1

Purpose.................................................................... 1

Terms/Usage............................................................ 1

Features.........................................................................2

Specifications.................................................................3

Package Contents .........................................................4

2 Hardware Description.................................................. 5

Product Overview ..........................................................5

3 Installation.................................................................... 7

Installing Your Converter...............................................7

Location.................................................................... 8

MDI/MDI-X Connection ............................................ 9

Install the converter................................................ 10

Desktop Installation................................................ 11

Powering On Unit................................................... 12

Connecting Fiber Cable.......................................... 13

Connecting Copper Cable...................................... 14

4 LED Indicators............................................................ 15

LED Table....................................................................15

Appendix A.................................................................... 16

Cables..........................................................................16

Appendix B.................................................................... 17

About RJ-45 Cables.....................................................17

Appendix C.................................................................... 18

Mini Converter Chassis................................................18

Affixing Brackets..................................................... 19

Installing the Converter .......................................... 20

Rear view of Chassis and specifications................ 21

Appendix D.................................................................... 22

Application Diagram.....................................................22

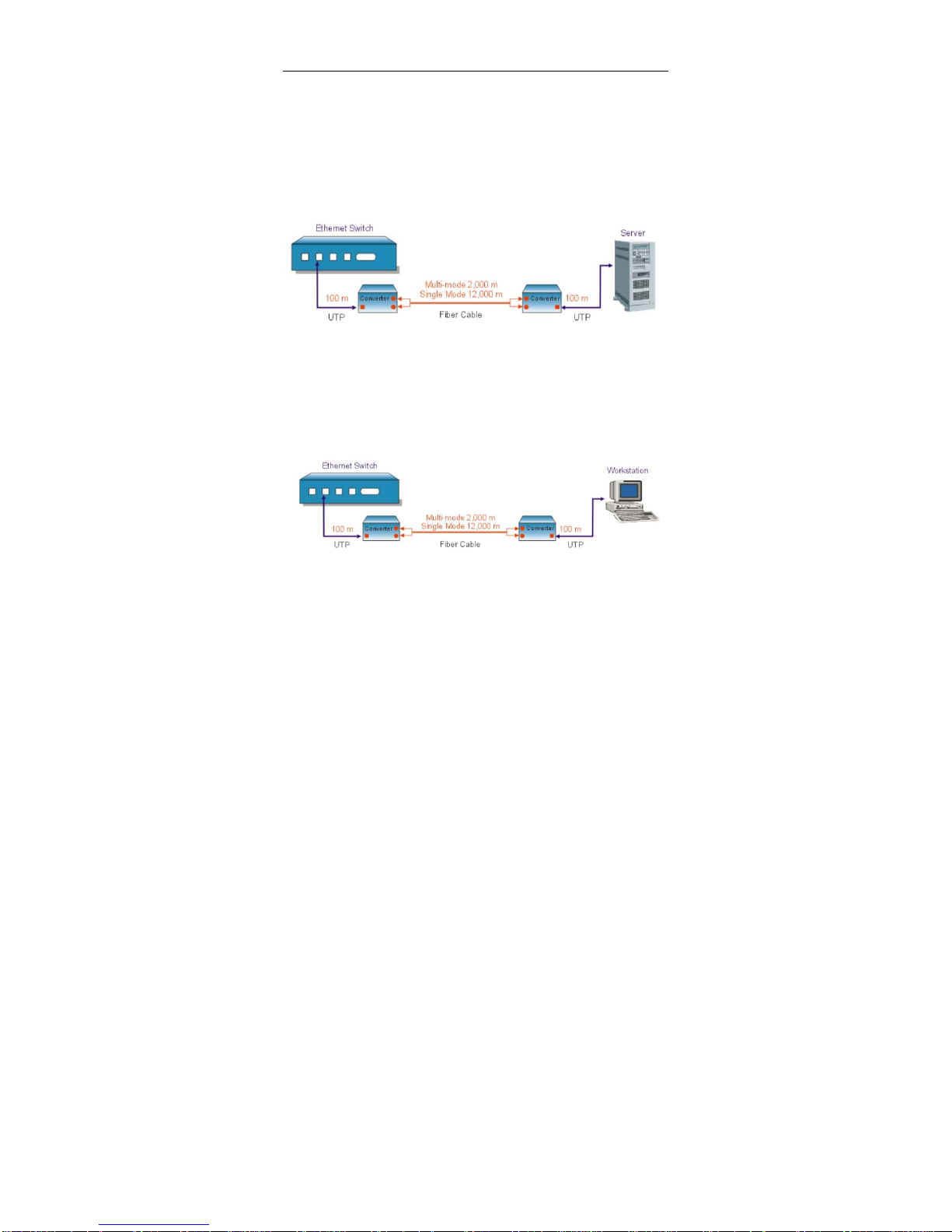

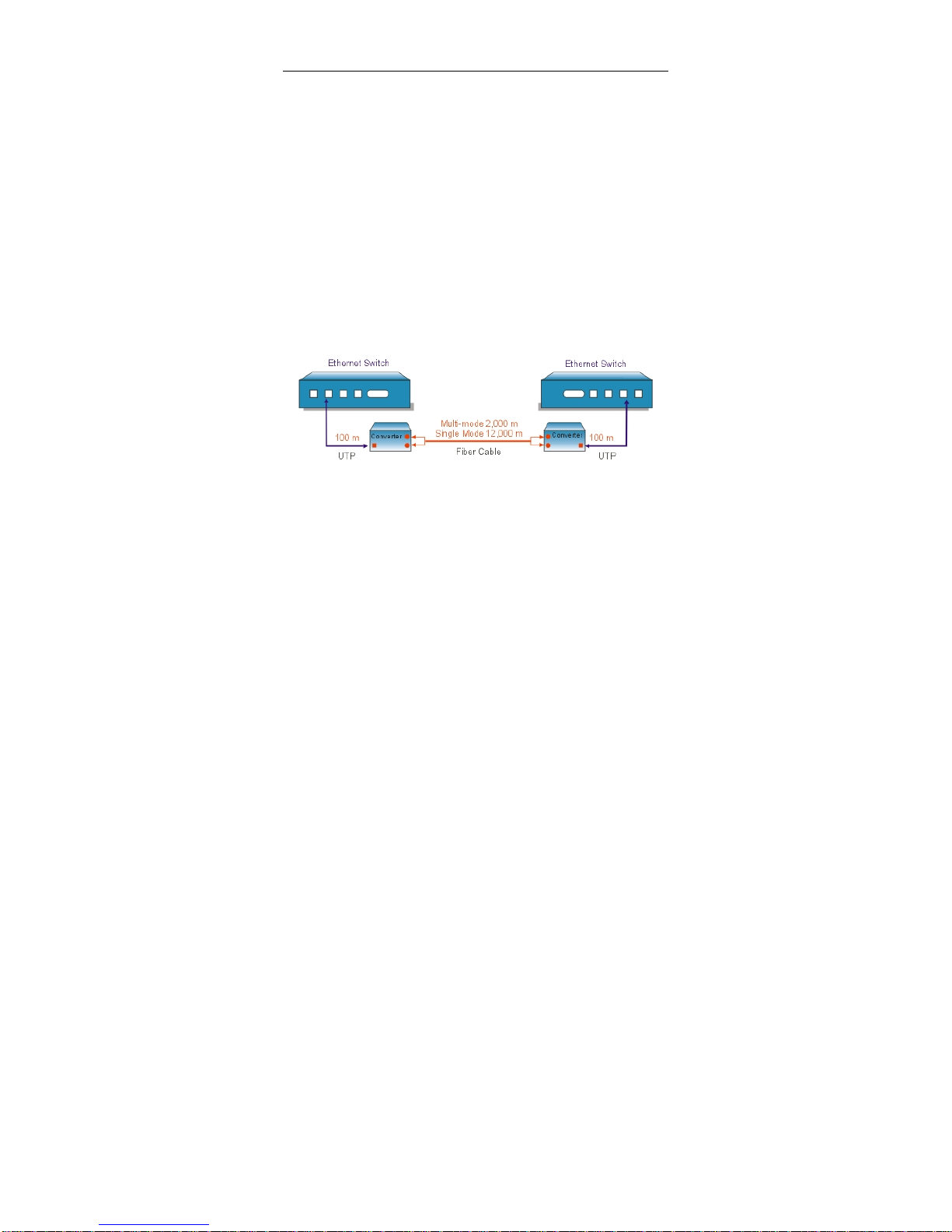

Application Diagram I............................................. 22

Application Diagram II............................................ 23

Application Diagram III........................................... 23

10Base-T to 10Base-FL Converter

1

1 Introduction

About This Guide
Welcome

Thank you for choosing the 10Base-T to 10Base-FL Media
Converter. This device integrates Ethernet copper and
fiber segments in a highly flexible package.

Purpose

This guide discusses how to install and configure your
10Base-T to 10Base-FL Media Converter.

Terms/Usage

In this guide, the term “Converter” (first letter upper case)
refers to your 10Base-T to 10Base-FL Media Converter,
and “converter” (first letter lower case) refers to other
converters.

10Base-T to 10Base-FL Converter

2

Features

• Complies with 802.3 10Base-T/FL standard

• MDI/MDI-X push button selection for RJ-45 port

connection

• Support ST or SC fiber connector

• Extend fiber distance up to 12km with single Mode

fiber

• Compatible with other 10Base-T/FL and 10/100
devices

• Status LEDs for activity & link to easily monitor
network activity

• External power supply

10Base-T to 10Base-FL Converter

3

Specifications

Standard: IEEE 802.3u
Connector: 1 RJ-45, 1 ST for Multi-mode or SC for

Single Mode

Max.
Distance: Twisted Pair: 100m (330ft)

Multi-mode: 2km (6600feet)
Single Mode: 12km (39600feet)

Unit LEDs: Power - illuminated for normal operation
Port LEDs: Link - illuminated when connectors are

attached

Receive - flashing or illuminated when

data packets are being received

Power: External power supply, 12V DC at 0.8A
Temperature: Operating : 0 to 70°

Storage: -20 to 70°

Humidity: Operating : 10% to 90%RH

Storage : 5% to 90%RH
Emissions: FCC Part 15 of Class A & CE Approved
Dimensions: 109.2 x 73.8 x 23.4 mm (LxWxH)
Switch: Push button switch: for TP MDI/MDI-X

Connection (Go to Location)

10Base-T to 10Base-FL Converter

4

Package Contents

The 10Base-T to 10Base-FL Converter package should
include:

• One converter

• One AC adapter (for external power supply)

• Four pieces self-adhesive pads

• One user’s manual

Go to Installing Your Converter

10Base-T to 10Base-FL Converter

5

2 Hardware Description

Product Overview

The Converter is primarily designed for network or data
installations that require the migration of cable media
between conventional coppers based wiring to Fiber
based installations. These Converters have been
specifically designed to support both a RJ-45 jack and a
ST or SC fiber optic connector. This allows it to connect
10Base-T network to the 10Base-FL (fiber) networks.

In addition, this Converter features an MDI/MDI-X
crossover “push button” switch for direct connection to a
workstation, switch or hub. This allows the network
manager freedom to configure between crossover and
straight through when establishing a connection between
RJ-45 ports. This Converter can create potential distances
of up to 12km (39600feet) with single mode fiber between
2 networking nodes.

10Base-T to 10Base-FL Converter

6

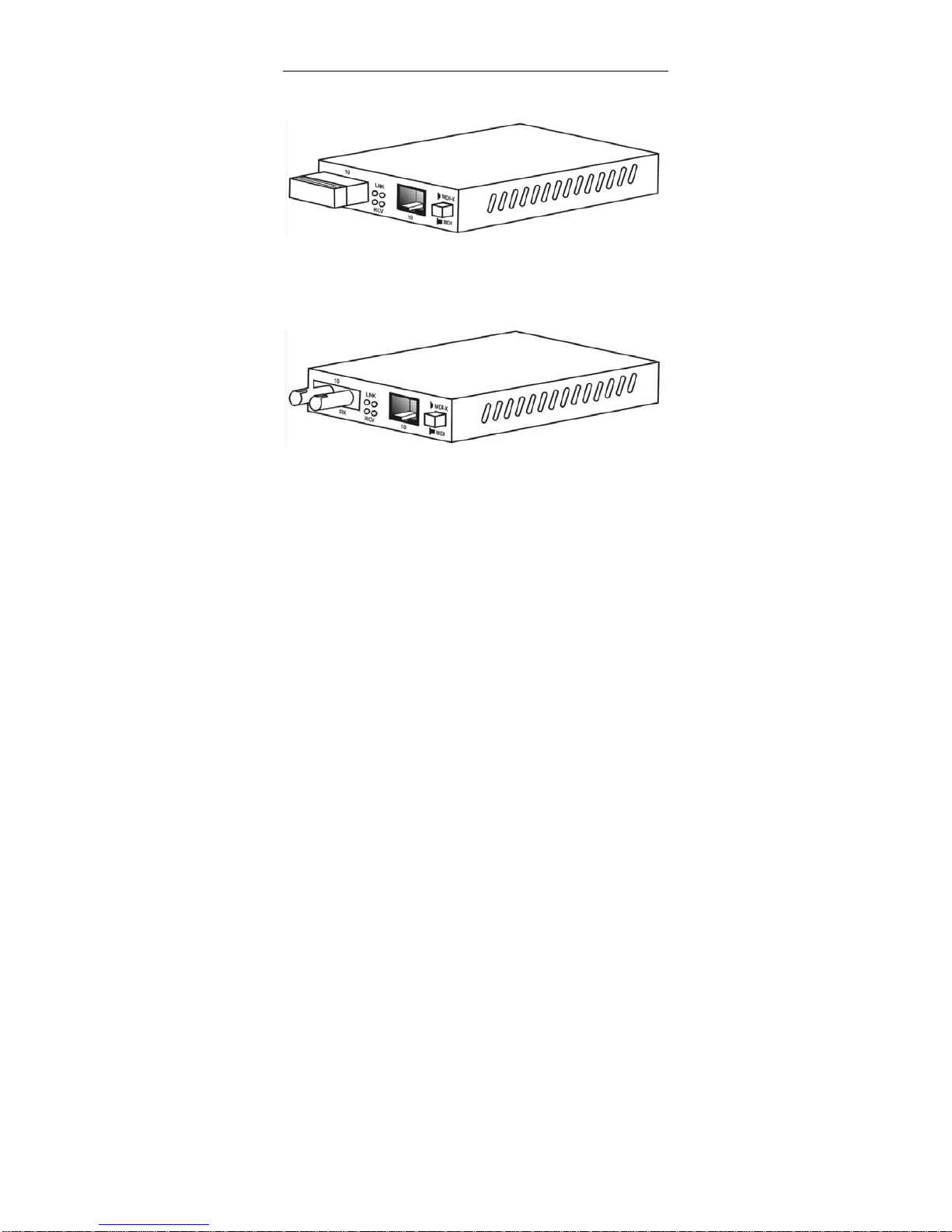

Front Panel View with SC and RJ-45 Connectors

Front Panel View with ST and RJ-45 Connectors

10Base-T to 10Base-FL Converter

7

3 Installation

Installing Your Converter

In this chapter, we will take a look at how to install
converters within its operating environment. First, it is
important to unpack the Converter and ensure that all the
components listed in Package Contents are present.

• Location

• MDI/MDI-X Connection

• Installing Converter

• Desktop Installation

• Powering On Unit

• Connecting Fiber Cable

• Connecting Copper Cable

10Base-T to 10Base-FL Converter

8

Location

The location selected for installing the Converter may
greatly affect its performance. When selecting a site, we
recommend considering the following rules:

1. Install the Converter in a fairly cool and dry place.
See Technical Specifications for the acceptable
temperature and humidity operating ranges.

2. Install the Converter in a location free from strong
electromagnetic field generators (such as motors),
vibration, dust, and direct exposure to sunlight.

3. Leave at least 10cm of space at the front and rear
of the unit for ventilation.

4. Affix the provided rubber pads to the bottom of the
Converter for grip, and to protect the case from
scratching.

10Base-T to 10Base-FL Converter

9

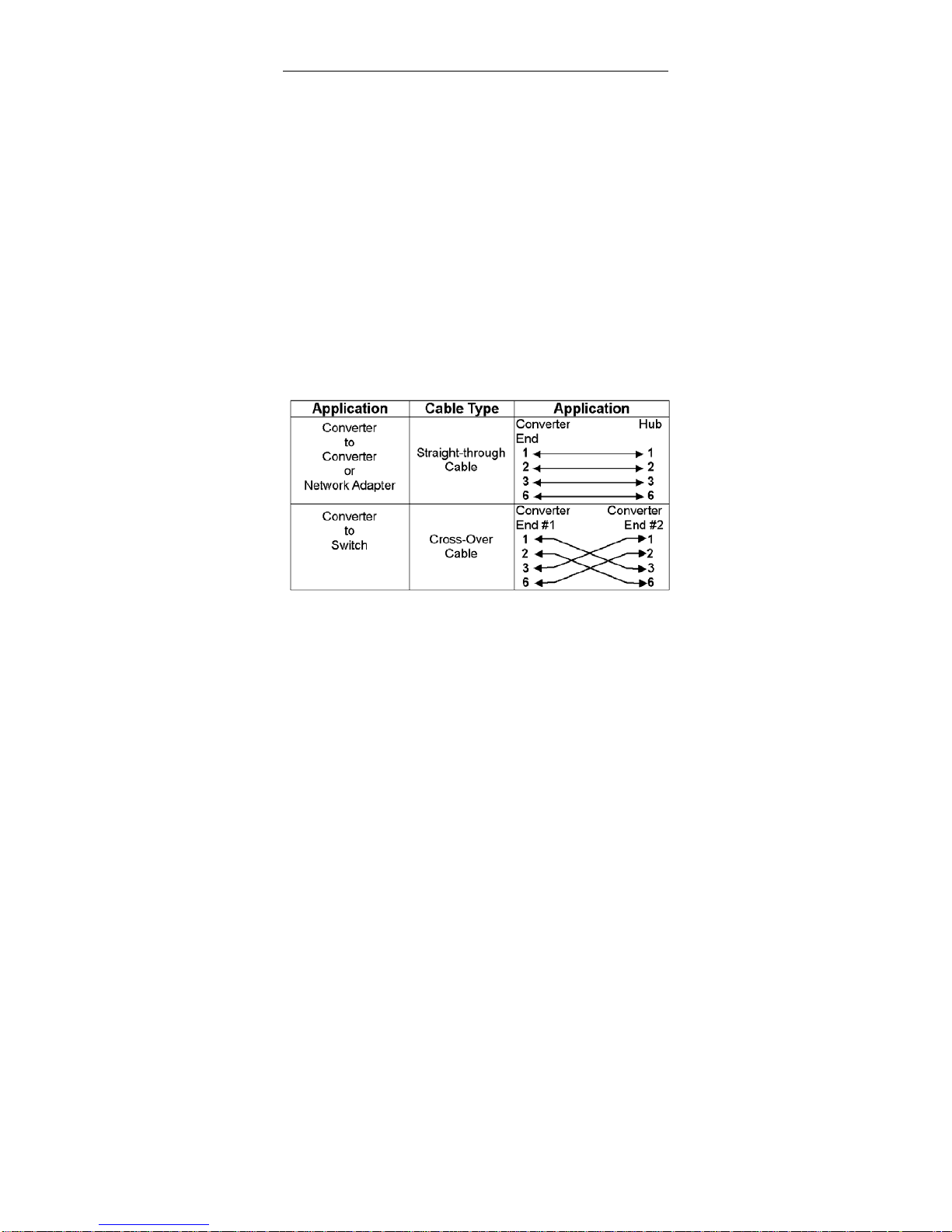

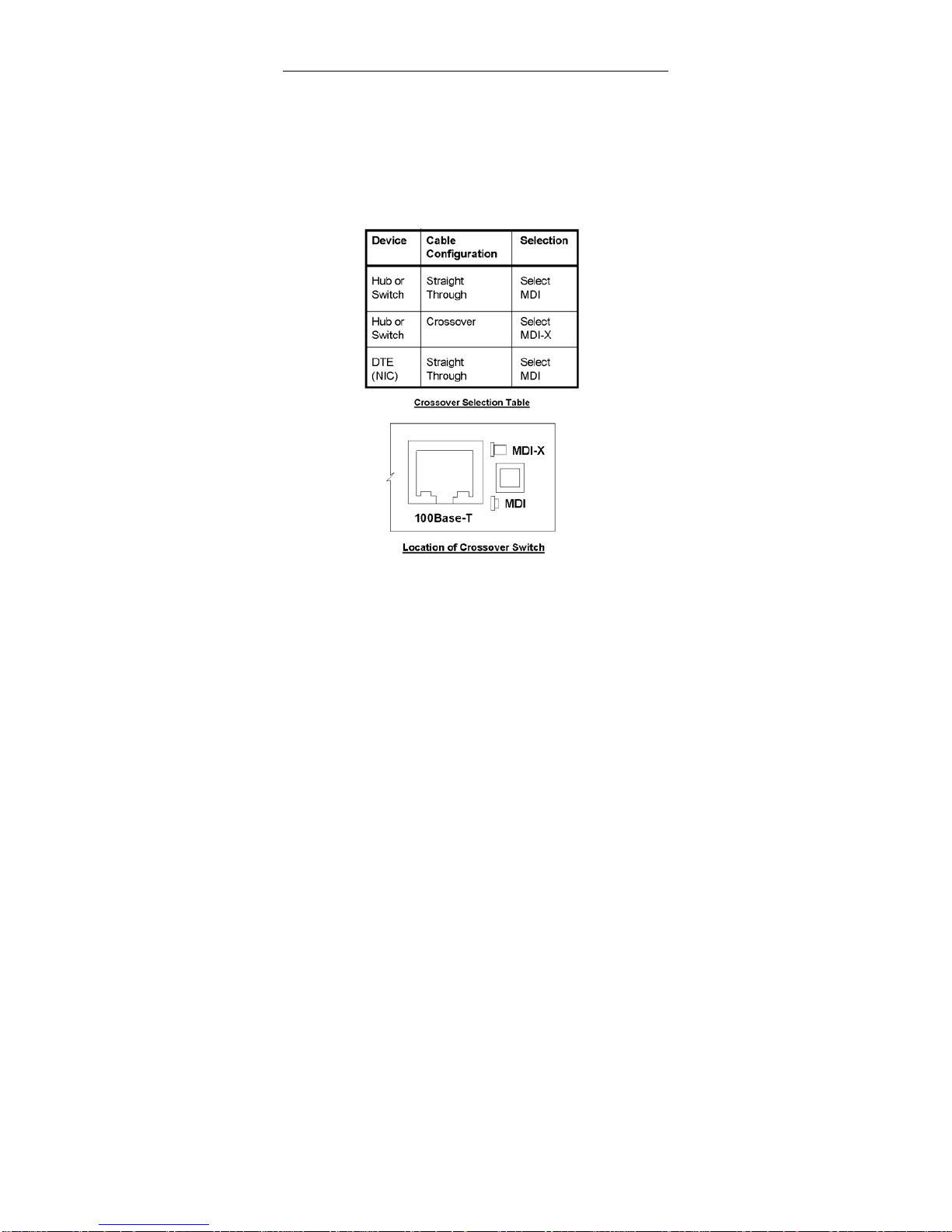

MDI/MDI-X Connection

The MDI / MDI-X function alleviates the worry of cable
type configuration used for connecting the Converter with
a 10Base-T device. Simply follow the chart below when
connecting the Converter, and use the push button to
select MDI or MDI-X accordingly.

10Base-T to 10Base-FL Converter

10

Install the converter

This Converter utilizes ports with fiber and copper port
connectors functioning under the Fast Ethernet protocol.

10BASE-T Port

The 10BASE-T port supports network speed of 10Mbps,
and is designed to operate in half-duplex transfer mode
only. This port also offers MDI/MDI-X crossover selection
to gives true "plug and play" capability. Just plug-in the
network cable to the port and adjust the push-button
according the chart above. The RJ-45 connector is
suitable for UTP cable Category 3, 4, 5 or better.

10BASE-FL Port

The 10BASE-FL port adds a fiber Ethernet link to your
network device. Compliant with IEEE 802.3, this port can
transmit data at 10Mbps in half-duplex mode across
distances of up to 2km through multi-mode fiber-optic
cable. The fiber port has a choice of fiber connector types:
ST and SC.

10Base-T to 10Base-FL Converter

11

Desktop Installation

Follow the instructions listed below to install the Converter
onto a desktop location.

1. Locate the Converter in a clean, flat and safe position
that has easy access to AC power.

2. Affix the four (4) self-adhesive rubber pads to the
underside of the Converter.

3. Apply AC power to the Converter. (The green PWR
LED on the front panel should light).

4. Connect cables from the network partner devices to
the ports on the front panel. (The green LNK LED on
the front panel associated with the port should light).

This Converter can also be mounted on a vertical surface.
Simply use the underside of the unit as a template to
measure and mark out the position of the holes on to the
surface where the unit is to be installed. Then use the two
screws provided to mount the converter firmly in place.

Warning Please exercise caution when using power tools.

Also, install this unit away from damp or wet locations, or in
close proximity to very hot surfaces. These types of
environments can have a detrimental effect on the converter
and cables. An ideal location is a lightly cooled pl ace such as
a typical equipment room.

10Base-T to 10Base-FL Converter

12

Powering On Unit

The Converter uses external power supply 12V DC @

0.8A 50~60 Hz.

1. Insert the power cable plug directly into the receptacle
located at the back of the device.

2. Plug the power adapter into an available socket.

3. Check the front-panel LEDs as the device is powered
on to verify that the Power LED is lit. If not, check that
the power cable is correctly and securely plugged in.

Note: For International use, you may need to change the AC

power adapter cord. You must use a power cord set that
has been approved for the receptacle type and e lectrical
current in your country.

10Base-T to 10Base-FL Converter

13

Connecting Fiber Cable

When connecting fiber cable to a 10BASE-FL port on the
Converter, be sure the correct type - ST or SC - connector
is used. Follow the steps below to properly connect fiber
cable:

1. Remove and keep the fiber port's rubber cover. When
not connected to a fiber cable, the rubber cover should
be replaced to protect the optics.

2. Check that the fiber terminators are clean. You can
clean the cable plugs by wiping them gently with a
clean tissue or cotton ball moistened with a little
ethanol. Dirty fiber terminators on fiber optic cables will
impair the quality of the light transmitted through the
cable and lead to degraded performance on the port.

3. Connect one end of the cable to the ST/SC port on the
Converter and the other end to the ST/SC port on the
other device.

4. Check the corresponding port LED on the Converter to
be sure that the connection is valid. (Refer to the LED
chart in next section)

Note: When inserting the cable, be sure the tab on the plug

clicks into position to ensure that it is properly seated.

Warning Because invisible laser radiation may be emitted

from the aperture of the fiber port when no cable is connected,
avoid exposure to laser radiation and do not stare into the
open apertures.

10Base-T to 10Base-FL Converter

14

Connecting Copper Cable

1. Insert one end of Category 5 twisted pair cable into an
available RJ-45 port on the Converter and the other
end into the port of the network node.

2. Check the corresponding port LED on the Converter to
make sure that the connection is valid. (Refer to LED
chart in next section)

10Base-T to 10Base-FL Converter

15

4 LED Indicators

LED Table

This Converter has LED indicators located at the front of
the device. The LEDs have been designed to give easy at­a-glance network status, and provides ‘real-time’
connectivity information. Please see below for an
interpretation of their functions:

LED Indicators

LED Condition Status

On (Green)

Converter is receiving
power

PWR

Off Power off or failure
On (Green)

Illuminated when

connectors are attached
Flashing
(Green)

Data traffic passing

through port

LNK

Off No link established
On (Amber) Receiving data packets

Flashing

Receiving data packets at

a slower rate

RCV

Off No data packets received

10Base-T to 10Base-FL Converter

16

Appendix A

Cables

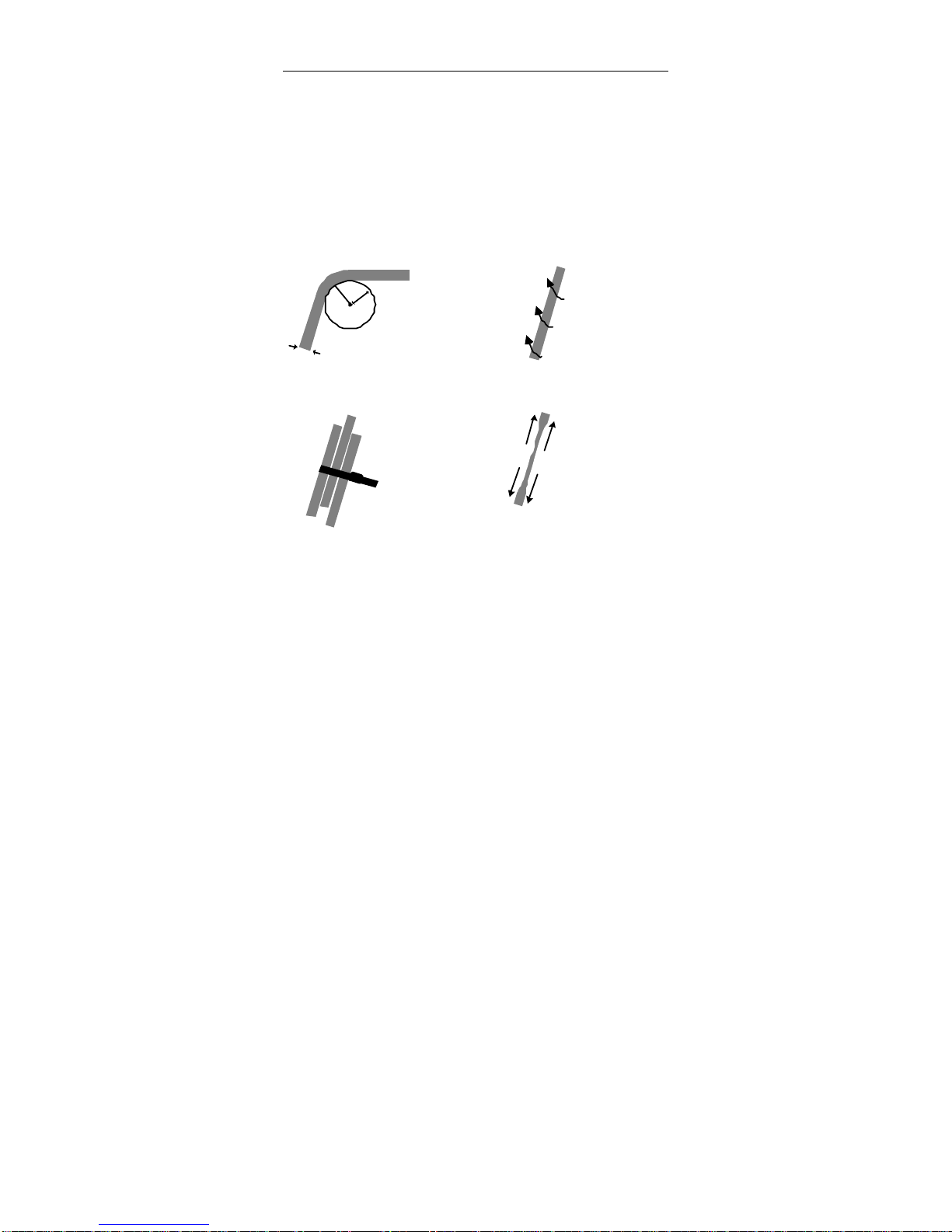

The following are some recommendations as to what you
should and should not do when installing cables.
Remember - cables are the deciding factor in network
performance.

2

4

m

m

6

m

m

Try to
maintain
a bend
radius o f
(min.) 4x
the diameter
of the cable
for UTP and
100x for fib er .

Try not to
allow the
cable to
twi st too
muc h - th is
creates a
strain on
the internal
cables.

Place cable ties
at regular
intervals - do
not over ti gh te n
cable ties - try
to avoid using

with fibe r.

Do not stretch
the cable
especially on
corners, in
vertical cable
t ra ys and when
spanning long
distances.

10Base-T to 10Base-FL Converter

17

Appendix B

About RJ-45 Cables

When connecting your network devices, use standard
Category 3 eight-way cables for 10Base-T configurations
and Category 5 cable for 100Base-TX. The pin
assignments are as follows:

Pin 1 TD+ Pair 2 White/Orange
Pin 2 TD- Pair 2 Orange/White
Pin 3 RX+ Pair 3 White/Green
Pin 4 N/A Pair 1 Blue/White
Pin 5 N/A Pair 1 White/Blue
Pin 6 RX- Pair 3 Green/White
Pin 7 N/A Pair 4 Brown/White
Pin 8 N/A Pair 4 Brown/White

10Base-T to 10Base-FL Converter

18

Appendix C

Mini Converter Chassis

The Chassis was developed to accommodate just one
media converter. The Chassis provides protection for
converter units and an option of AC or DC power supplies.
Now, network designers can plan their Ethernet, Fast
Ethernet, ATM, or Gigabit networks without having to
worry about the power source. Furthermore, its unique
sizes allows it to be installed in locations where space is
limited.

Features

• Simple and easy to install

• Adds fiber connectivity to otherwise copper based

networks

• Supports 10/100/1000Base, copper, fiber, single/multi-
mode converters with, RJ-45, ST, SC, MT-RJ, VF-45,
LC, WDM connectors

• Accommodates one media converter

• Suitable for all size of networks in all locations

• Provides internal AC or DC switching power supply

• Made from high quality durable steel

• Optional external redundant power adapter

10Base-T to 10Base-FL Converter

19

Affixing Brackets

We have supplied 2 special brackets that easily attaches
to the Converter. This allows for the secure placement of
the converter into the Chassis. It also seals off the front of
Chassis and allows it to function correctly.

Step 1 Using a Phillips screwdriver, remove two screws from

the side panels on the converter.

Step 2 Place
the converter and brackets on a flat horizontal

surface as illustrated above. Secure the brackets by
replacing the screws.

Ensure that the rails are flush-mounted with the underside of the
converter. The converter is now ready for loading into the Chassis.

10Base-T to 10Base-FL Converter

20

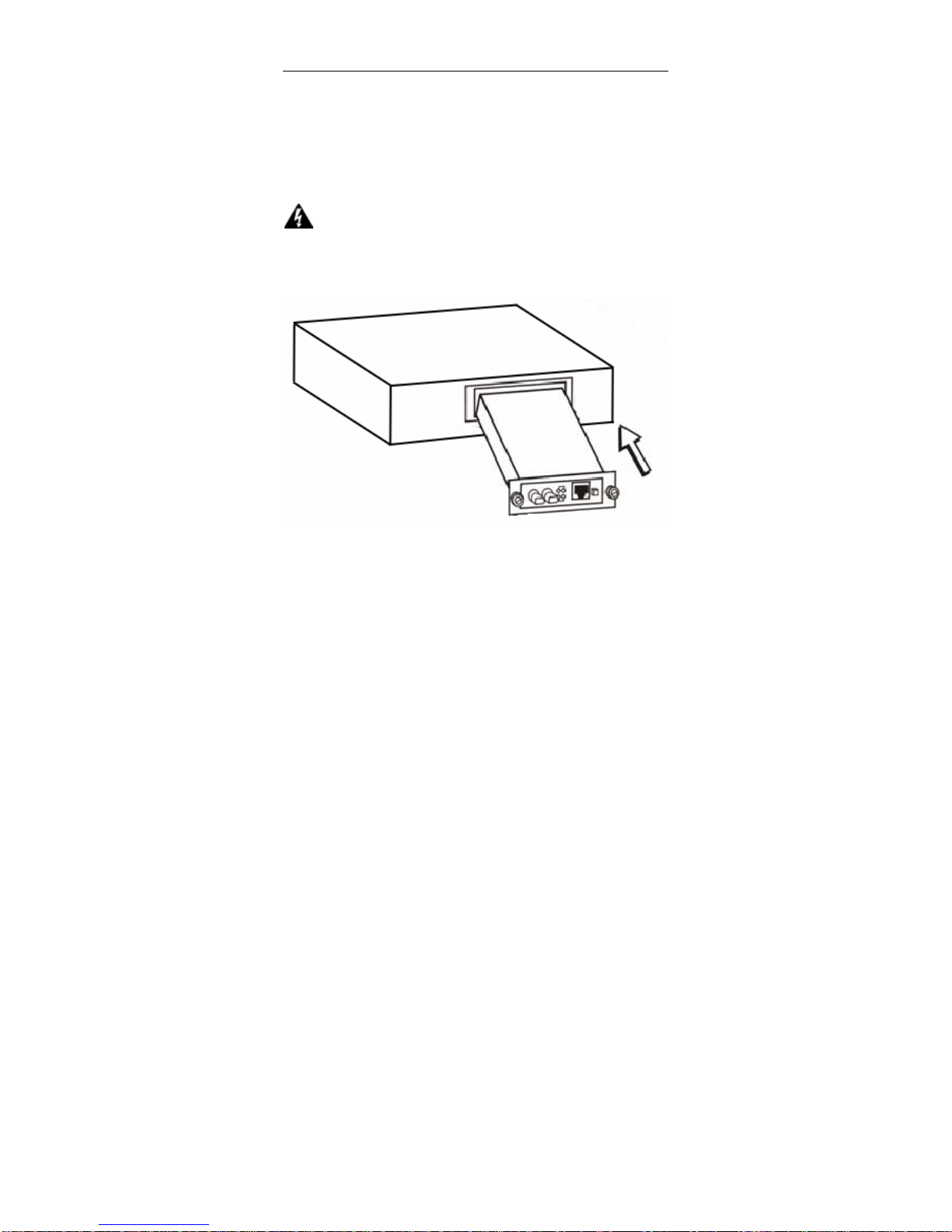

Installing the Converter

Once the Converter has been attached to the bracket, it
can be installed into the Chassis. Special care must be
taken to ensure the correct mating of the power connector.
Align the Converter so that it fits between the upper and
lower guide rails.

Warning

A

lways ensure that the converter power
socket is positioned at the base of the Chassis. Never
force the Converter into the Chassis - check power
socket position and alignment.

10Base-T to 10Base-FL Converter

21

Rear view of Chassis and specifications

Rear View of Chassis with AC Power Supply

Power: 100 - 240V AC (Optional 12V Adapter)
Dimensions: 109 x 174 x 44.3 mm (L x W x H)

Rear View of Chassis with DC Power Supply
Power: -48V DC (Optional 12V Adapter)
Dimensions: 109 x 174 x 44.3 mm (L x W x H)

10Base-T to 10Base-FL Converter

22

Appendix D

Application Diagram

To effectively expanding an Ethernet network, position two
converters back-to-back as illustrated.

Application Diagram I

In the figure below, the Converter is functioning as a high­speed bridge between switches creating increased
capacity for each user (node) on the local area network. It
is providing a 10Mbps full duplex link to a variety of
Ethernet network devices within a LAN.

10Base-T to 10Base-FL Converter

23

Application Diagram II

In the figure below, the Converter is functioning as a
server aggregation for an enterprise or LAN configuration.
It is providing a 10Mbps full duplex link to a workgroups of
10/100 switches located on separate floors within a single
building.

Application Diagram III

In the figure below, the Converter is functioning as a high­speed dedicated link within a campus network
configuration. It is providing a 10Mbps full duplex link to a
remote network node.

10Base-T to 10Base-FL Converter

24

VOLKTEK CORPORATION

4F, No. 192 Lian-Cheng Road

Chung-Ho, Taipei 235, Taiwan ROC

TEL: [phone]

FAX: [phone]

Tech Support: [phone]

ISO 9001 Certified
