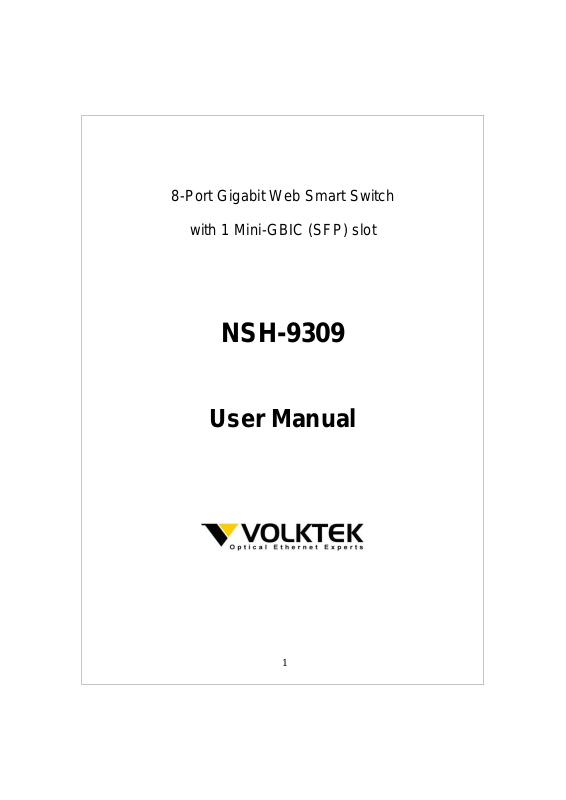

8-Port Gigabit Web Smart Switch
with 1 Mini-GBIC (SFP) slot
NSH-9309
User Manual
1
COPYRIGHT
All rights reserved. No part of this publication may be reproduced, stored in
a retrieval system, or transmitted in any form or by any means, whether
electronic, mechanical, photo copying, recording or otherwise, without the
prior written permission of the publisher.
FCC WARNING
This equipment has been tested and found to comply with the limits
for a class A device, pursuant to part 15 of FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
commercial installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communication.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case, the user will be required to correct the
interference at the user’s own expense.
CE
This is a Class A product. In a domestic environment, this product m
ay
cause radio interference in which case the user may be required to take
adequate measures.
Take special care to read and understand all the content in the warning
boxes.
2
Table of Contents
UNPACKING INFORMATION..........................................................5
INTRODUCTION..............................................................................5
GENERAL DESCRIPTION...................................................................5
KEY FEATURES...............................................................................6
THE FRONT PANEL..........................................................................6
THE REAR PANEL ...........................................................................7
INSTALLATION ...............................................................................8
DESKTOP INSTALLATION ..................................................................8
RACK INSTALLATION........................................................................8
INSTALLING NETWORK CABLES ........................................................8
DESCRIPTION OF SWITCH FUNCTIONS....................................10
JUMBO FRAME..............................................................................10
FLOW CONTROL AND BACKPRESSURE ............................................10
MIRROR .......................................................................................10
VLAN..........................................................................................10
TRUNK (AGGREGATION) ................................................................10
QUALITY OF SERVICE (QOS)..........................................................10
SNMP.........................................................................................10
MANAGEMENT GUIDE................................................................. 11
ACCESS THE SWITCH .................................................................... 11
HOMEPAGE ..................................................................................12
SYSTEM .......................................................................................13
PORT...........................................................................................14
VLAN..........................................................................................15
PVID...........................................................................................16
3
AGGREGATION/ TRUNK CONFIGURATION.........................................17
QUALITY OF SERVICE ....................................................................18
MIRROR .......................................................................................21
STORM FILTER..............................................................................22
SNMP.........................................................................................23
DISCOVERY..................................................................................24
STATISTICS OVERVIEW..................................................................25
DETAILED STATISTICS ...................................................................25
RESTART......................................................................................26
FACTORY DEFAULT .......................................................................26
SMART BOOT................................................................................26
SOFTWARE UPLOAD......................................................................26
PRODUCT SPECIFICATIONS.......................................................28
CONTACT INFORMATION............................................................29
4
Unpacking Information
Congratulations on purchasing this 8-Port Gigabit Web Smart Switch with 1
Mini-GBIC (SFP) Combo slot. Before you start, please verify that your package
contains the following items:
1. One 8-Port Gigabit Web Smart Switch with 1 SFP slot
2. One power cord
3. Rack-mounting brackets and screws (optional)
4. User Manual CD
Introduction
General Description
This Switch will instantly boost your networking throughput because it provides
you with 8 Gigabit ports that enable true Gigabit connectivity. Users are now
able to transfer large and bandwidth-hungry files faster and hence get a real
efficiency improvement. This efficiency is further e nhanced by the user-f riendly
Web-based management interface. In addition to the 8 copper ports, the
Switch offers 1 fiber port that can be used in the place of the nr. 8 copper
port (these are interchangeable or ‘combo’ ports). This mini-GBIC slot
offers the option of a long-distance, fiber-based connection. Use of the
mini-GBIC port automatically disables its corresponding copper port.
The management functions enable efficient network u sage. VLAN redu ces the
collisions caused by broadcasting. Port Aggregation enlarges the bandwid th of
the backbone connection. QoS secures the bandwidth for some
bandwidth-hungry applications like VoIP and video conferencing. The Switch
also supports 802.3x and backpressure flow control mechanisms to ensure
the correctness of data transmission.
5
Key Features
z 8 (eight) 10/100/1000Mbps Gigabit Ethernet ports.
z 1 (one) SFP slot for optional fiber connection.
z Auto-discovery Function for easy Network management.
z 8K MAC address entries and 8 groups VLAN table
z Supports Port Mirroring.
z Supports up to 7 ports and 4 groups port aggregation.
z Supports QoS for better communication quality.
z Supports full-duplex flow control and half-duplex backpressure
z Store-and-forward forwarding scheme
z Error packet filtering
z Supports Jumbo frame 9kB
z Supports 180kB buffer Memory
z Supports Web-based management interface.
z FCC Class A, CE, VCCI. RoHS-compliant
The Front Panel
The front panel features all the LED indicators:
Device LED:
LED Status Operation
Power (PWR)
Steady Green The switch is powered on
Off The switch is powered off
Port LEDs:
LED Status Operation
Green The port is connected at 1000 Mbps
A valid link is established, and there is data
transmitting/receiving.
No valid link on this port or the Port is connected at 10/100
Mbps
A valid link is established, and there is no data
transmitting/receiving.
A valid link is established, and there is data
transmitting/receiving.
No valid link on this port or the port is connected at 1000
Mbps
1000M
10/100M
Blinking Green
Off
Steady Green
Blinking Green
Off
6
Attention：The mini-GBIC (SFP) slot shares its LED indicators with its
interchangeable Gigabit RJ-45 (copper) combo port (the last copper
port). Use of the mini-GBIC slot automatically disables this
corresponding copper port.
The Rear Panel
The rear panel features all 8 the ports, the 1 SFP slot, the power receptacle and the restore
button:
Port Operation
The auto-negotiation feature allows ports to run in one of the following operation
modes:
Media Speed Duplex Mode
10/100/1000Mbps(copper)
1000Mbps Full Duplex
1000Mbps(Fiber)
(mini GBIC required)
Note: For the interchangeable (combo) ports (the last RJ-45 ports and the fiber slot),
if both the fiber and copper interfaces of the interchangeable pair (combo) are
connected (incorrect set-up), the system automatically accepts the fiber interface and
disables the copper port.
1000Mbps Full Duplex
Full Duplex 10Mbps
Half Duplex
Full Duplex 100Mbps
Half Duplex
Restore Default Button
You can use this button to reset the switch or restore it to its factory default settings.
To reset the switch, press the button once.
To restore factory default settings, press and hold the button for three seconds.
Power Receptacle
To be compatible with electricity standards around the world, the Switch is designed
7
to work with voltages between 100 and 240V AC and 50/60Hz. Please make sure that
your region’s electricity supply is within this range.
To power on the Switch, please plug the female end of the power cord firmly into the
receptacle of the Switch and the other (male) end into an electricity outlet (usually a
wall plug). After plugging in the power cord, check if the power LED is lit to indicate
normal power status.
Installation
This Switch can be placed on your desktop or mounted in a rack. Installation is very
easy. Users can use all the features of the Switch by simply attaching the cables and
turning the power on.
Before installing the Switch, we strongly recommend that …
1. … the Switch must be placed in an environment that is well ventilated – a
minimum space around the unit of 25mm is recommended.
2. … the Switch and relevant components are far from sources of electrical noise,
such as radios, transmitters and broadband amplifiers
3. … the Switch’s environment is protected from high levels of humidity.
Desktop Installation
1. Install the Switch on a level surface that can support the weight of the unit and the
relevant components.
2. Plug the Switch’s power cord into the power outlet.
Rack Installation
Rack mounting enables orderly installation in cases where many net working devices
have to be installed in the same area. The Switch is supplied with brackets and screws
for rack-mounting purposes.
1. Disconnect all cables from the Switch before mounting it.
2. Place the unit the right way up on a hard, flat surface with the front facing you.
3. Locate a mounting bracket over the mounting holes on one side of the unit.
4. Insert the screws and tighten them with a suitable screwdriver.
5. Repeat this for the other side of the unit.
6. Slide the unit into the rack and secure it with suitable screws.
7. Reconnect all the cables.
Installing Network Cables
1. Crossover or straight-through cable: All the ports on the Switch support
Auto-MDI/MDI-X functionality. Both straight-through and crossover cables can
8
be used to connect the Switch with PCs and other devices like switches, hubs
or router.
2. Category 3,4,5 or 5eUTP/STP cable: To make a valid connection and obtain
optimal performance, it is vital to use the appropriate cables that correspond to
the different transmitting/receiving speeds. To choose a suitable cable, please
refer to the following table:
Media Speed Wiring
10/100/1000Mbps
copper
1000Mbps Fiber
(Mini-GBIC
required)
10Mbps Category 3,4,5 Utp/STP
100Mbps Category 5 UTP/STP
1000Mbps Category 5,5e UTP/STP
1000Mbps The cable type differs according to the
mini-GBIC you choose. Please refer to the
instructions that came with your mini-GBIC
9
Description of Switch Functions
Jumbo Frame
The Switch supports Jumbo Frames, which means that it can transmit the same data
in fewer frames. This helps to ensure fewer overheads, shorter processing time, and
fewer interruptions.
NOTE: To enable Jumbo Frame, Flow Control should be enabled in advance.
Flow Control and Backpressure
Flow Control and Backpressure both help devices with different processing speeds to
communicate with each other. This ensures the correctness of data transmissions.
The 802.3x Flow Control and Backpressure mechanisms work respectively for fulland half-duplex modes. Flow Control can be enabled or disabled on a per-port basis.
Mirror
The Mirror function enables network administrators to monitor all traffic. By forwarding
a copy of the packets that are transferred by the monitored port, the sniffer port
receives all the packets and hence is able to monitor the traffic through the specified
port.
VLAN
This Switch supports Virtual LAN, which means the network can be segmented into
groups to reduce collisions caused by wide broadcasting. The Switch supports both
port-based VLAN and 802.1q tag-based VLAN. Port-based VLAN directs incoming
packets to VLANs according to their ingress ports. 802.1q-based VLAN adds a ta g to
the header of the packet to direct the packet to the right VLAN.
Trunk (Aggregation)
The Trunk function groups several ports into one combined transmission channel.
This increases the bandwidth, which helps to boost backbone connectivity. The
Switch allows a maximum of 4 groups and 8 members for each group.
Quality of Service (QoS)
QoS classifies packets into different precedence classes. The packets are transmitted
and received according to their classified priorities. This mechanism helps
high-bandwidth demanding applications such as VoIP to get an unobstructed
connection.
SNMP
The Switch supports SNMP (Simple Network Management Protocol). It allows the
product to be monitored by an SNMP management station.
10
Management guide
Access the Switch
This section shows you how to access and use the Switch’s advanced
management capability, which can be accessed via Internet Browser over the
network (in-band).
To access the Web-based management interface, you should configure the
management station with an IP address and subnet mask that is compatible with your
switch.
The factory defaults of the Switch:
IP： 192.168.1.1
Subnet Mask： 255.255.255.0
1. Run your Web Browser and enter the appropriate IP address in the Address field:
2. Key in the user name and password. The factory default value of User Name and
Password is “admin”.
11
Homepage
After successful log-in, the “SYSTEM Configuration” page appears (this is also the
Homepage). You can click on the hyperlinks on the left side of each page to get
access to each management function.
12
System
The System window provides the Switch’s system information and allows users to
configure most of these properties (see table under screenshot for details).
Items Functions
MAC Address The MAC address of this device..
S/W Version The soft ware version of this device.
IP Address Set up the IP address of the switch
Subnet Mask Set up the Subnet Mask of the switch
Gateway Set up the Gateway of the switch
Management VLAN The VLAN group that is allowed to access the
WEB-based management interface.
User Name The Log-in n ame. (Default: admin)
Password The Log-in password. (Default: admin)
System Name The name of the device.
To save the configuration of the system, click “Apply”.
Note:
After applying a new IP address, a new log-in page will appear automatically. Please
log in again to proceed to other configurations.
13
Port
This Port Configuration page shows the link status of each port and allows users to
configure speed, flow control and maximum frame size for each port.
Items Functions
Link Shows the link status of each port. The column lights green and
shows the link speed if there is valid connection on the port.
Mode
Flow Control Mark the checkbox to enable the FDX Flow Control, or unmark
Max Frame length Adjust the size of Jumbo Frames. The default is 1518 bytes.
To save the configuration of the system, click “Apply”. You can also click the “Refresh”
button to show the updated statuses of the ports.
Select a speed for this port. “Auto Speed” enables
auto-negotiation. “Disable” stops the port from functioning.
to disable.
The Maximum value can be up to 9k bytes.
14
VLAN
VLAN divides the network members into groups to reduce packet collisions and
improve the network efficiency. The switch supports 802.1q tag-based VLAN. Please
follow the instructions to configure.
To add new VLAN groups,
1. Fill in a VLAN ID, from 2 to 4094, in the “VLAN\Port” column.
2. Select the ports for each VLAN group.
3. Click the “Apply” button to execute.
To delete a VLAN group
1. Remove the members of the VLAN group by unmarking their marked
checkboxes.
2. Clear the VLAN ID of the VLAN you want to remove in the “VLAN\Port”
column. (Don’t type N/A. Just leave it blank)
3. Click the “Apply” button to execute.
Note:
1. When a port is configured to a specific VLAN group, a P(ort)V(lan)ID that
corresponds to the VLAN ID will be assigned automatically to this port. (Ex,
when you make port 3 of a VLAN part of VLAN ID “2”, the PVID “2 ” will be
assigned automatically to port 3.)
2. Settings in VLAN, Port Aggregation, and Mirror are co-dependent. Please
make sure that the settings won’t influence one another.
15
PVID
When the VLAN-enabled Switch receives a tagged packet, the packet will be sent to
the port’s default VLAN according to the PVID (port VLAN ID) of the receiving port.
Items Functions
Port
Egress Select “tagged” in the drop menu to enable the PVID checking
PVID
Only
tagged
Port Number 1~8
and tag inserting of one port, and select “untagged” to cancel.
For example, if an Egress-tagged port receives an untagged
frame, it will be transmitted as a PVID tagged frame. For the detail
tagging status, please refer to the following table.
Untagged Tagged
Packet
Frames In
Untagged Untagged Untagged Tagged (PVID)
Tagged Untagged Tagged (VID) Tagged (VID)
Pri-tagged Untagged Pri-tagged Tagged (PVID)
Port VLAN ID(1~4094)
Enable: block all untagged packets from accessing this port.
Disable: All packets are allowed to access this port.
Packet
Frames Out
Packet Frames In Packet Frames
Out
16
Aggregation/ Trunk Configuration
To set up the port trunk groups, put the selected ports’ numbers into the same
Aggregation group. You can choose up to eight groups. Don’t forget to click “Apply” to
save the settings.
There are three aggregation modes for you to set up, SMAC, DMAC, and XOR.
SMAC mode selects the path of packets according to Source MAC while DMAC
mode selects path according to Destination MAC. XOR mode calculates the result of
the DMAC and SMAC modes to decide the path of the packets.
17
Quality of Service
QoS enhances communication quality by giving precedence to certain classes of
packets. This switch provides port-based, tag-based and DSCP QoS modes:
Port-based mode QoS:
Port-based QoS allows users to configure each port as having a high or l ow priority.
To assign a priority level to each port:
1. Select “Port” in the “Mode” column for those ports that are going to function as
part of port-based QoS. Click the “Apply” button.
2. Click the “Port priority” button. The “Port Priority Setting” appears.
3. Click on the drop menu to specify priority levels.
4. Click “Apply” to execute.
18
Tag-based QoS:
Tag-based QoS assigns packet priority according to the tags on the packets.
To configure Tag-based QoS:
1. Select “Tagged” in the “Mode” column for those ports that are going to
perform tag-based QoS. Click the “Apply” button.
2. Click the “Tag priority” button. The “Tag Priority Setting” page shows up.
3. Select the port that you are going to configure from the drop menu.
4. Set the priorities as high or low for each Priority Tag type.
5. Click the “Apply” button again to execute your configuration.
19
DSCP-mode QoS:
DSCP-mode QoS assigns packet priority according to the types of the incoming
packets. It distinguishes packets according to the “Delay”, “Throughput” and
“Reliability” information attached to the packet. The types are listed as the following:
Bit 0 (Delay) Bit 1 (Throughput) Bit 3 (Reliability)
0 (Normal) 0 (Normal) 0 (Normal)
1 (Low) 1 (High) 1 (High)
Note: The Switch distinguishes packets with DSCP precedence “000(routine)” only.
To configure DSCP-based QoS configuration:
1. Select “DSCP” in the “Mode” column for those ports that are going to perform
DSCP-based QoS. Click the “Apply” button.
2. Click the “DSCP priority” button. The “DSCP Priority Setting” page shows
up.
3. Set the priorities as high or low for each precedence type.
4. Click the “Apply” button again to execute your configuration.
20
Mirror
The Mirror function copies all the packets that are transmitted by the source port to
the destination port. It allows administrators to analyze and monitor the traffic of the
monitored ports.
Mirror Configuration:
1. Select those ports that are going to be monitored by marking the checkboxes in
the “Monitor Port” column.
2. Click the drop menu in the “Sniffer Port” column. Select a port as the
administration port for monitoring those source ports.
3. Click “Apply” to activate.
21
Storm Filter
This “storm filter” page allows users to configure the rules for Storm Control, which
limits the flow of broadcast and multicast
To perform storm control:
1. Click on each drop menu to specify a speed for each frame type.
2. Click the “Apply” button to execute your configuration.
22
SNMP
This device supports SNMP-management, which allows network administrators to monitor
and configure this device with SNMP software. To allow this device to be managed via
SNMP:
1. Select “enable” in the drop menu.
2. Specify a trap IP. A trap IP is the destination port for sending trap information, which is
usually the IP address of network administrators.
3. Fill in a name in the “Community Get” column, which is the password for accessing
MIB with read-only authority.
4. Fill in a name in the “Community Set” column, which is the password for accessing
MIB with read-and-write authority.
23
Discovery
After installing a series of our switches, the discovery management tool helps users to
search and get access to those switches within the LAN.
Note: The discovery tool lists a maximum of 16 devices respectively for auto
and manual modes.
Auto Search
1. Click the “Apply” button to start.
2. The devices being fou nd are listed below.
3. Click the IP address hyperlink to get access to the device.
Manual Add
Add
1. Enter the IP address & name in the text box
2. Click “Add” to add the new IP address on the table
Delete
1. Click the check box of the one you want to remove
2. Click “Delete” to remove.
24
Statistics Overview
The Statistics Overview is provided for users to see the general transmitting and
receiving status of each port. Y ou may click the “Clear” button to clean all statistics or
click the “Refresh” button to renew the statistics.
Detailed Statistics
The Detailed Statistics is provided for users to see the detailed transmitting and
receiving status of each port. Please click the hyperlinks above to select a port.
You may also click the “Clear” button to clean all statistics or click the “Refresh”
button to renew the statistics.
25
Restart
Restart:
To restart the system, click the “Yes” button. The system restarts and shows the
authentication window. Please fill in the username and password to continue.
Factory Default
Restore Factory Default:
To restore the factory default settings, click the Yes button.
Note: The IP address of the device will also be reconfigured to the factory default
setting, which is 192.168.0.254.
Smart Boot
This Smart Boot page allows users to select the booting flash of the device.
”Active image number” shows the current flash for booting the device. To change the
booting flash, click on the appropriate flash in the “Boot image number” column and click
the “Apply” button to execute.
Software Upload
This “Software Upload” page allows users to upgrade firmware for this Switch.
26
To perform firmware upgrade:
1. Click the “Browse” button
2. Locate the firmware file
3. Click the “Upload” button to execute.
Note: This new firmware is going to be applied on the remaining flash that you have
NOT selected in “Smart Boot”, that is, the new firmware is going to be applied on
the flash that is NOT chosen as the booting flash. Please ensure that you boot this
device with the correct flash before performing a firmware upgrade.
27
Product Specifications
Standards
Interface
Cable Connections
Network Data Rate
Transmission Mode
LED indicators
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3x full-duplex operation and flow control
IEEE802.3ab/z 1000BASE-T
IEEE802.1Q VLAN interoperability
IEEE802.1p Priority Operation
8* 10/100/1000Mbps auto MDI/MDI-X RJ-45 switching ports
1* SFP( mini-GBIC) port
1 * Restore Default Button
RJ-45 (10BASE-T): Category 3,4,5 UTP/STP
RJ-45 (100BASE-TX): Category 5 UTP/STP
RJ-45 (1000BASE-T): Category 5,5e or enhanced UTP/STP
Fiber: depends on Mini-GBIC types
10/100/1000Mbps Auto-negotiation
10/100Mbps Full-duplex, Half-duplex
1000Mbps Full-duplex
System:
Power
RJ-45 Ports:
1000M, 10/100M
Memory
Emission
Operating
Temperature
Operating Humidity
Power Supply
8K MAC entries
180K Buffer Memory
9K Byte Jumbo Frame
FCC Class A, CE, VCCI, RoHS
0
0
~ 400C (320 ~ 1040F)
10% - 90% (non-condensing)
Internal power supply
100-240V/ 50-60Hz universal input
28
Contact Information
VOLKTEK CORPORATION
4F, No. 192 Lian-Cheng Road
Chung-Ho, Taipei 235, Taiwan ROC
TEL: +86 (2) 8242-1000
FAX: +886 (2) 8242-3333
Tech Support: +886 800-286-286
ISO 9001 Certified
29
Loading...
