Volfoni SmartCRYSTAL Pro, SmartCRYSTAL Pro VBSP-01000 User Manual
MUV110019-V1R1 User Manuel SmartCrystal
TM
-Pro
model VBSP-01000
User Manual
SMART
PRO
VOLFONI SAS
29, rue Jean Jacques Rousseau
75001 Paris
France
VOLFONI GmbH
27, Tegenstraße
80798 München
Germany
VOLFONI Ltd
21, Tower one
Lippo center 89,
Queensway
Hong-Kong
VOLFONI Inc
3450, Cahuenga Bd West.
UNIT 504
Los Angeles, CA, 90068
USA
VOLFONI Ltd.
90 Long Acre
Covent Garden
London
WC2E 9RZ
UK
VOLFONI AEIE
Ronda Guglielmo Marconi, 4
46980 Paterna (Valencia)
Spain
contact@volfoni.com
support@volfoni.com
www.volfoni.com
To avoid any damage :
-The SmartCrystal
TM
Pro should not be used with
projectors over 5,000 lumens.
-The SmartCrystal
TM
Pro should not be placed closer
than 20mm from the projector lens.
WARNINGS / CAUTIONS
1.
SUMMARY
Table of contents Page
1. PRODUCT OVERVIEW
2. REQUIREMENTS
2.1 POLARIZATION SCREEN
2.2 PROJECTOR
2.3 3D GLASSES
2.4 3D PLAYER WITH 3D CONTENT
3. MAIN CHARACTERISTICS
4. DESCRIPTION OF THE SMARTCRYSTAL
TM
PRO SYSTEM
5. USING YOUR SMARTCRYSTAL
TM
PRO
5.1 CONNECTION
5.2 INSTALLATION
5.3 START
5.4 SETTINGS
6. TECHNICAL SPECIFICATIONS
7. LED SIGNAL
8. TROUBLESHOOTING
9. IMPORTANT SAFETY RECOMMENDATIONS
10. 3D VIEWING GUIDELINES
11. MAINTENANCE OF YOUR POLARIZATION
MODULATOR
12. GUARANTEE
13. FURTHER INFORMATION
2.
2.
3.
3.
3.
3.
4.
4.
5.
5.
5.
5.
6.
6.
6.
6.
7.
7.
7.
Page
ENGLISH
FRANÇAIS
REGULATORY STANDARDS
1.
9.
16.
2.
1. PRODUCT OVERVIEW
SmartCrystal™ Pro, Volfoni’s latest innovation in passive 3D technology, is a
polarization window that can be placed immediately in-front of a 3D-Rready™
projector in order to generate stereoscopic 3D images on a suitable
projection-screen when using lightweight passive viewing-glasses. It is suitable
for both professionals and consumers and is perfect for boardroom presentations, conferences, classrooms, lectures, home theater or any environment
where high-quality visualization and simulation are key.
Made up of a multi-layer stack of liquid crystal elements based on Volfoni’s
Surface Switching Technology™, the lens offers high frame rate and optimal
efficiency, creating crisp and bright 3D images.
SmartCyrstal™ Pro can be connected directly to any suitable 3D synchronization source and works with projectors up to 5,000 lumens.
2. REQUIREMENTS
To use your SmartCrystal™ Pro, you need 3D content, a polarization preserving
projection screen, a 3D-Ready™ projector and passive circular polarized 3D
glasses.
2.1 Polarization preserving Silver Screen
In order to enjoy the best quality 3D images, you need a polarizationpreserving silver screen designed for 3D projection. If your screen was not
manufactured for 3D use, you might experience uncomfortable and blurry 3D
images with a high level of cross talk.
3.
2.2 Projector
Most 3D capable projectors are compatible with the SmartCrystal™ Pro. DLP
(Digital Light Processor) projectors are especially efficient for 3D projection.
The DLP-link function available with the 3D-Ready™ branded single-DLP
projector allows wireless connection of the SmartCrystal™ Pro.
LCD™ (Liquid Crystal Display) and LCoS™ (Liquid Crystal on Silicon) projection
technology, like JVC's D-ILA™ and Sony's SXRD™, generate a polarized light
beam that may not be compatible with SmartCrystal™ Pro's active polarization.
If your 3D projector is not compatible with the SmartCrystal™ Pro, we recommend using a regular white screen and active shutter glasses, such as Volfoni’s
EDGE
TM
line of active glasses. More information about our shutter glasses
EDGE
TM
are available on our website: www.volfoni.com.
2.3 3D glasses
The SmartCrystal™ Pro is compatible with most passive (circular-polarizing) 3D
glasses commonly used. Please contact Volfoni (contact@volfoni.com) if you
are interested in our line of premium, lightweight and durable passive 3D
glasses.
2.4 3D player with 3D content
For 3D projection, a 3D movie player and 3D BluRay (3D content) are required
in order to play stereoscopic videos. The SmartCrystal™ Pro can also be used
together with 3D computer games, 3D computer medical image and 3D computer aided design (CAD).
3. MAIN CHARACTERISTICS
QUALITY
New Surface Switching Technology™
Crisp and bright images
Upgradable software for optimal 3D performance
EFFICIENCY
Easy set-up for use with suitable single-lens 3D projectors
No battery or power cable required when powered through VESA supply
Meets all standards for electronics approved by CE
1 year guarantee
COMFORT
For use with lightweight 3D polarized glasses
Premium passive 3D glasses are available from VOLFONI (ref. VPPG-01000)
Important : in case of using the VPPG-01000 3D glasses, please note that these
glasses must not be used as sunglasses
4.
5. USING YOUR SmartCRYSTAL
TM
Pro
5.1 Connection

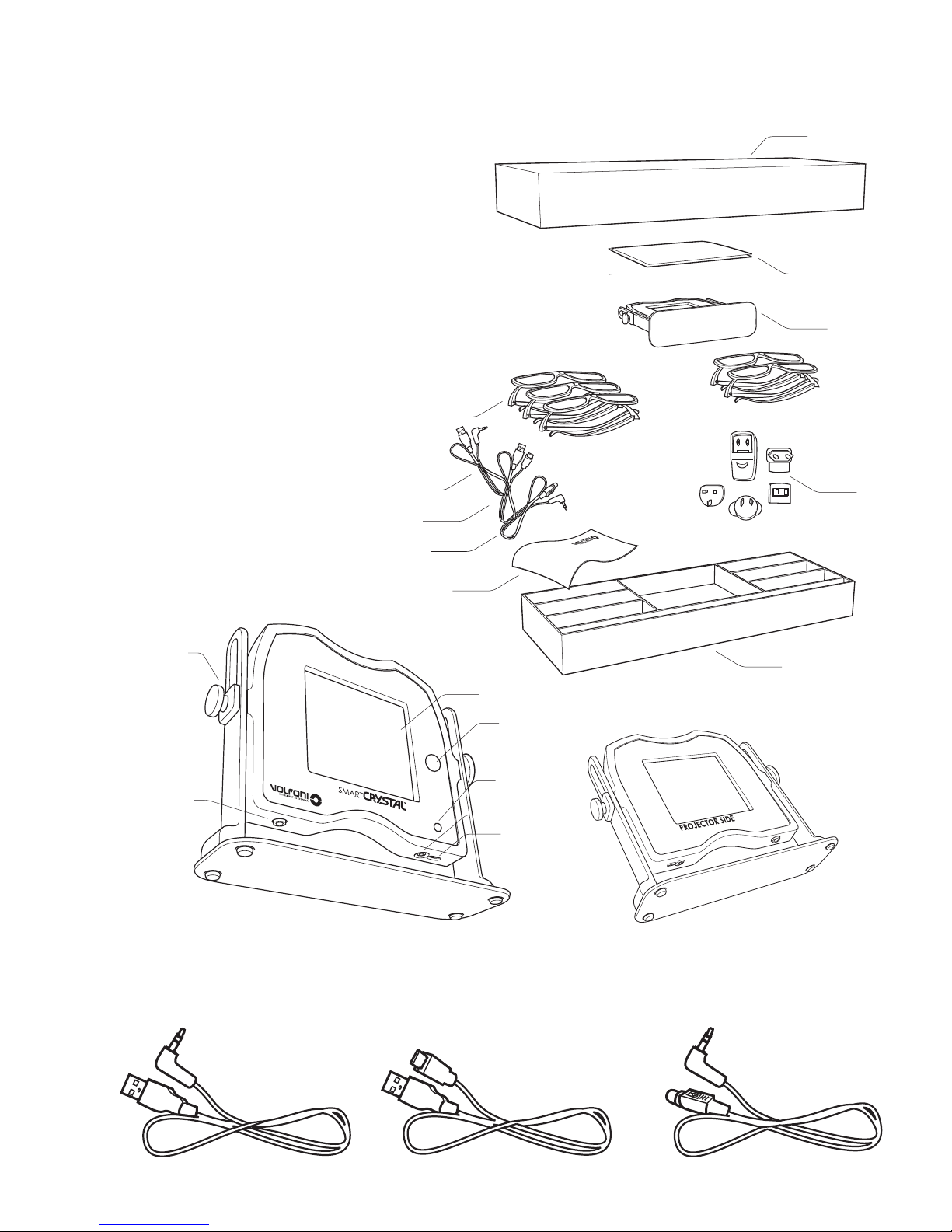

4. DESCRIPTION OF THE SmartCRYSTALTMPro SYSTEM
1. 5pcs premium passive glasses by Volfoni
(ref VPPG-01000)
2. SmartCrystal™ Pro System
3. SmartCrystal™ Pro Packaging
4. SmartCrystal™ Pro User manual
5. Power supply 5V 0.55A
+Plug EUR/US/UK/AUS
6. Cleaning wipe
7. Vesa MiniDIN3p Jack 3.5 bend 3p, 1m
8. Power cable USB-A Jack 3.5 bend 3p, 1m
(only used for DLP-Link mode)
9. Data micro USB, USB-A, 1m
(maintenance cable)
1. Polarization window
2. Jack 2.5 - “AUX”
3. Micro USB - “PC”
4. Adjustment screw
5. Jack 3.5 - “Sync”
6. DLP Link sensor
7. LED indicator
3.
3.
4.
2.
5.
1.
8.
9.
7.
6.
Power cable
USB > Jack USB > micro USB VESA > Jack
Data cable VESA cable
Connecting cables
PRO
2.
1.
3.
4.
5.
6.
7.
PC
AUX
SYNC
Front side
Back side
