Volcano SOLID VALVE Quick Start Manual

Quick Start Manual for

www.storz-bickel.com

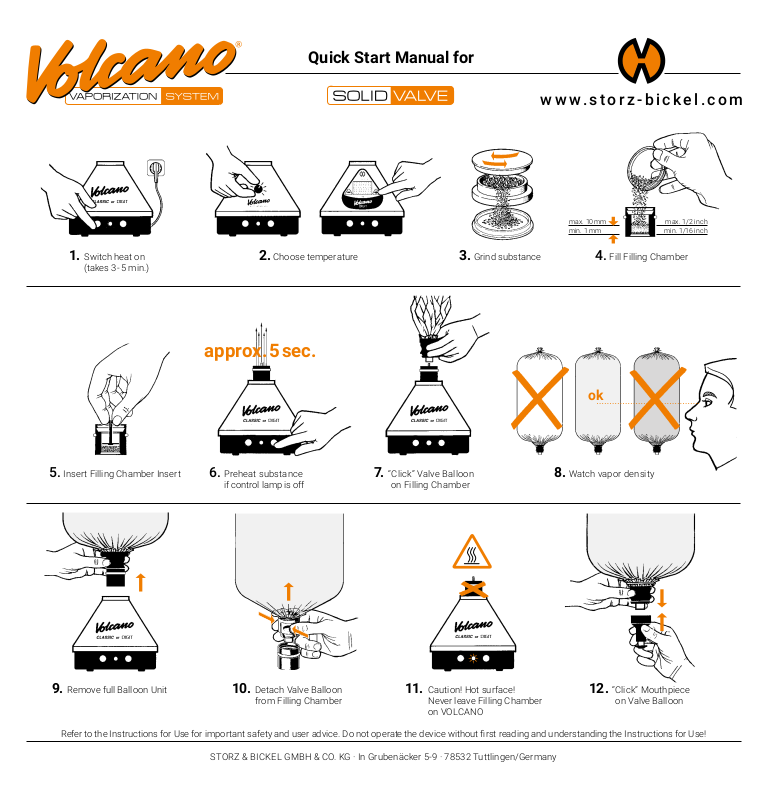

1. Switch heat on

(takes 3-5 min.)

5. Insert Filling Chamber Insert

2. Choose temperature 3. Grind substance 4. Fill Filling Chamber

approx. 5 sec.

6. Preheat substance

if control lamp is off

7. “Click” Valve Balloon

on Filling Chamber

max. 10 mm
min. 1 mm

ok

Watch vapor density

8.

max. 1/2 inch

min . 1/16 inch

9. Remove full Balloon Unit 10. Detach Valve Balloon

from Filling Chamber

Refer to the Instructions for Use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use!

STORZ & BICKEL GMBH & CO. KG · In Grubenäcker 5-9 · 78532 Tuttlingen/Germany

11. Caution! Hot surface!

Never leave Filling Chamber
on VOLCANO

12. “Click” Mouthpiece

on Valve Balloon

Dismantling, Cleaning, Replacing

www.storz-bickel.com

1. Pull off Lip Piece 2. Dismantled

Mouthpiece

6. Screw off nut from

Filling Chamber Insert

7. Dismantled

Filling Chamber Insert

11. Manual cleaning with alcohol

(min. 90%), also dishwasher safe

3. Pull off Slipring

and Balloon

8. Pull off Filling

Chamber Ring

12. Cut off a piece of approx.

50 -60 cm (19 -23 inch)

4. Screw off Valve Cap 5. Dismantled

Valve

10.

9. Screw off Filling

Chamber Cylinder

13. Tie close at one end

Dismantled
Filling Chamber

14. Attach Balloon

Fixation Ring

15. Attach Balloon

to Valve

16. Align Valve

Balloon to Valve

STORZ & BICKEL GMBH & CO. KG · In Grubenäcker 5-9 · 78532 Tuttlingen/Germany

17. Evert balloon

mantle

18. Attach Slipring

to secure Balloon

19. Ready to use

© by STORZ & B ICKEL GmbH & Co . KG · VA L-30 -092 02 -2018 · Subject to alter ations · All rights r eserved
