VOKERA Vision S User Instructions

Page 1

Users Instructions

Installation & Servicing Instructions

THESE INSTRUCTIONS TO BE RETAINED BY USER

Vokèra is a licensed member of the Benchmark scheme which aims to improve the standards of installation and commissioning of domestic hot water systems in the UK.

Vision S

High efciency system boiler

Vision 20 S G.C. N° 41-094-79 Vision 25 S G.C. N° 41-094-80

Page 2

Users instructions

Things you should know Page

1.1 Gas appliances 1

1.2 Electrical supply 1

1.3 Guarantee registration card 1

1.4 Appliance Log Book (UK only) 1

1.5 How does it work? 1

1.6 Dimensions 1

1.7 Clearances required 1

1.8 Frost protection system 1

1.9 Appliance status indicators 1

Getting started Page

2.1 Before switching ON 3

2.2 Appliance controls 3

2.3 Lighting the boiler 3

2.4 Adjusting the heating temperature 3

2.5 Explanation of features 3

2.6 Automatic temperature control 3

How to... Page

3.1 How to top-up the system pressure 4

3.2 How to reset the appliance 4

3.3 How to shut down the system for short periods 4

3.4 How to shut down the system for long periods 4

3.5 How to care for the appliance 4

What if... Page

4.1 What if I suspect a gas leak 4

4.2 What if I have frequently top-up the system 4

4.3 What if the appliance is due its annual service 4

4.4 What if I need to call an engineer 4

Installation and Servicing instructions

Design principles & operating sequence Page

1.1 Principle components 7

1.2 Mode of operation (at rest) 7

1.3 Mode of operation (heating) 7

1.4 Safety devices 7

Technical data Page

2.1 Central heating 8

2.2 Gas pressures 8

2.3 Expansion vessel 8

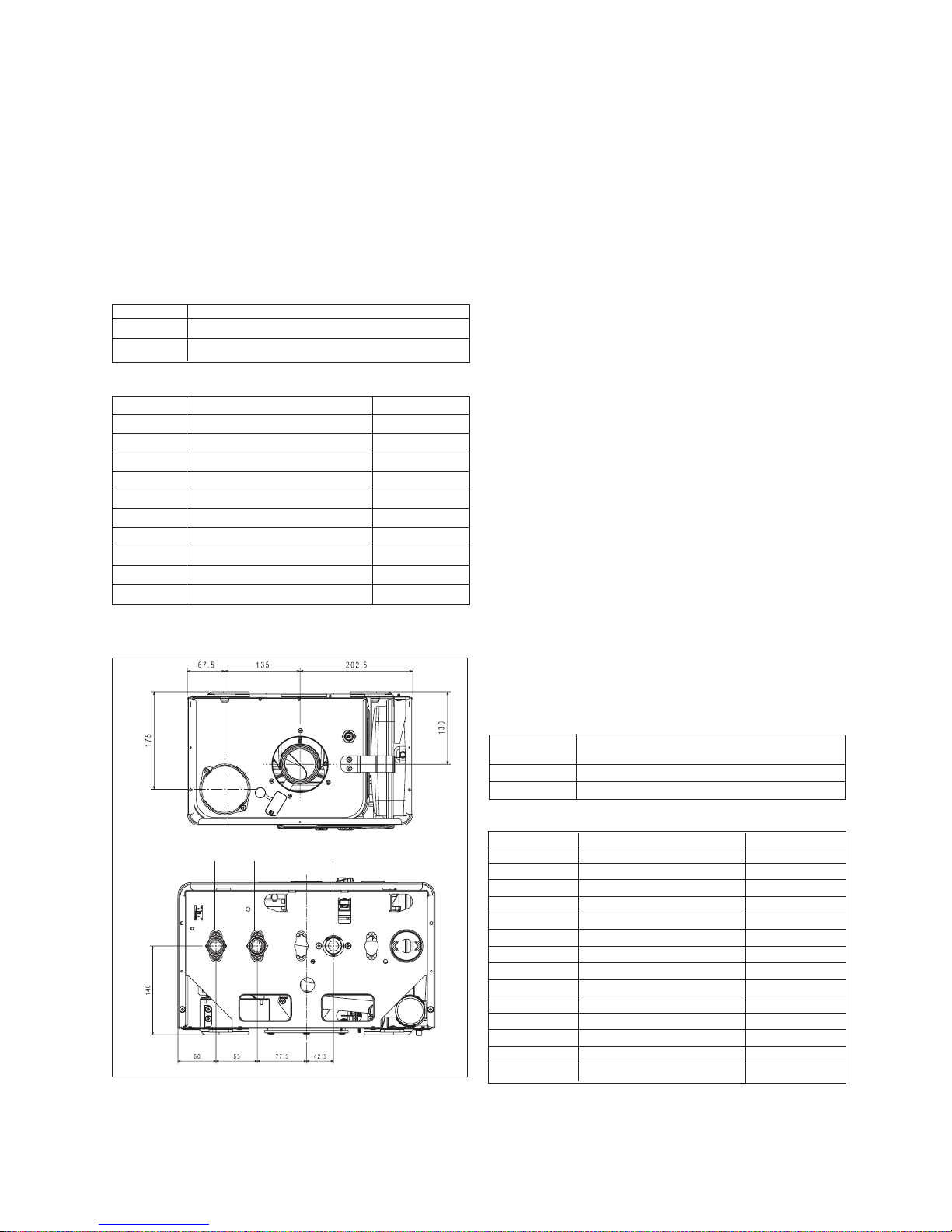

2.4 Dimensions 8

2.5 Clearances 8

2.6 Connections 8

2.7 Electrical 8

2.8 Flue details (concentric) 8

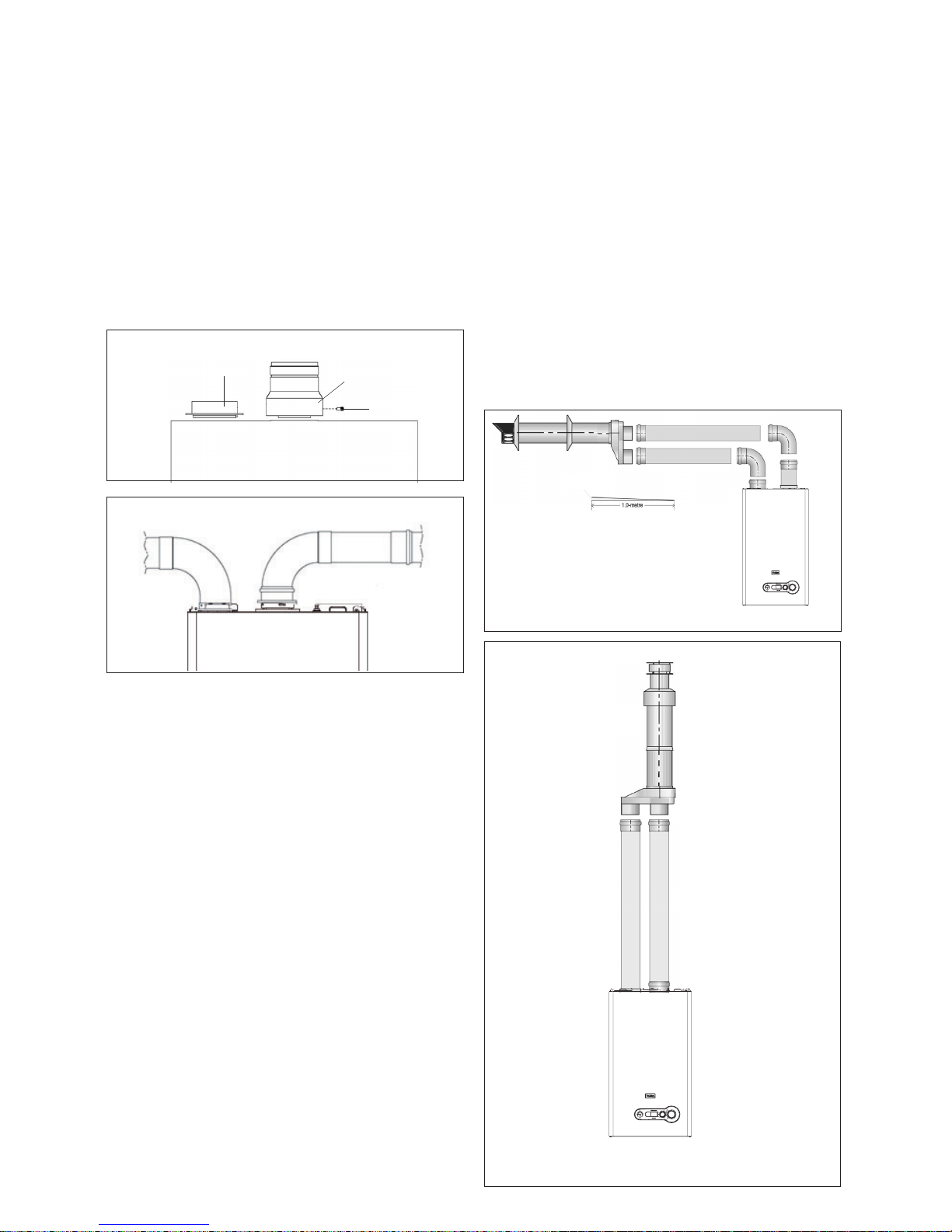

2.8A Flue details (twin pipes) 8

 2.9 Efciency 8

2.10 Emissions 8

2.11 Pump duty 9

General requirements (UK) Page

3.1 Related documents 10

3.2 Location of appliance 10

3.3 Gas supply 10

3.4 Flue system 10

3.5 Air supply 10

3.6 Water circulation 10

3.7 Electrical supply 11

3.8 Mounting on a combustible surface 11

3.9 Timber framed buildings 11

3.10 Inhibitors 11

General requirements (EIRE) Page 3A.1 Related documents 11 3A.2 Location of appliance 11 3A.3 Gas supply 11 3A.4 Flue system 11 3A.5 Air supply 12 3A.6 Water circulation 12 3A.7 Electrical supply 12 3A.8 Mounting on a combustible surface 12 3A.9 Timber framed buildings 12 3A.10 Inhibitors 12 3A.11 Declaration of conformity 12

Installation Page

4.1 Delivery 13

4.2 Contents 13

4.3 Unpacking 13

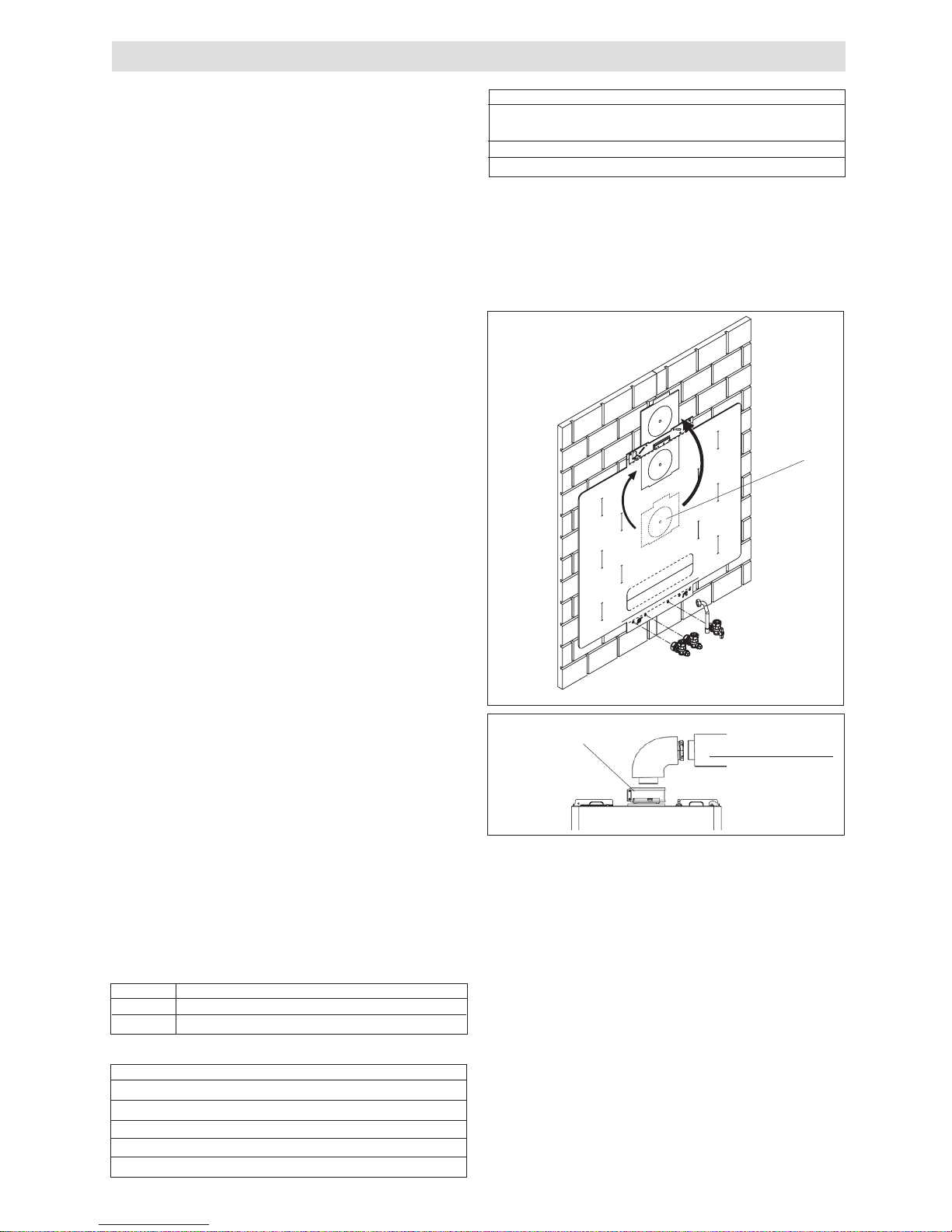

4.4 Preparation for mounting the appliance 13

 4.5 Fittingtheue 13

4.6 Connecting the gas & water 17

4.7 Electrical connections 17

Commissioning Page

5.1 Gas supply installation 18

5.2 The heating system 18

 5.3 Initialllingofthesystem 18  5.4 Initialushingofthesystem 18

5.5 Pre-operation checks 18

5.6 Initial lighting 18

5.7 Checking gas pressure & combustion analysis 18

 5.8 Finalushingoftheheatingsystem 18

5.9 Setting the boiler operating temperature 18

5.10 Setting the system design pressure 18

5.11 Regulating the central heating system 19

5.12 Final checks 19

5.13 Instructing the user 19

Servicing Page

6.1 General 19

6.2 Routine annual servicing 19

6.3 Replacement of components 19

6.4 Component removal procedure 19

6.5 Pump assembly 20

6.6 Safety valve 20

6.7 Lower automatic air release valves 20

6.8 Water pressure switch 20

6.9 Flow thermistor 20

6.10 Return thermistor 20

6.11 Printed circuit board 20

6.12 Gas valve 21

6.13 Electrodes 21

6.14 Flue fan & mixer 21

6.15 Burner 21

6.16 Main heat exchanger 22

6.17 Automatic by-pass 22

6.18 Expansion vessel removal 22

6.19 Condense trap removal 22

6.20 Flue collector removal 23

 Checks,adjustmentsandfaultnding Page

7.1 Checking appliance operation 23

7.2 Appliance modes of operation 23

7.3 Checking the CO2 & adjusting the valve 24

7.4 Combustion analysis test 24

7.5 Checking the expansion vessel 24

7.6 External faults 25

7.7 Electrical checks 25

 7.8 Faultnding 25

7.9 Component values & characteristics 25

7.10 Adjustments 26

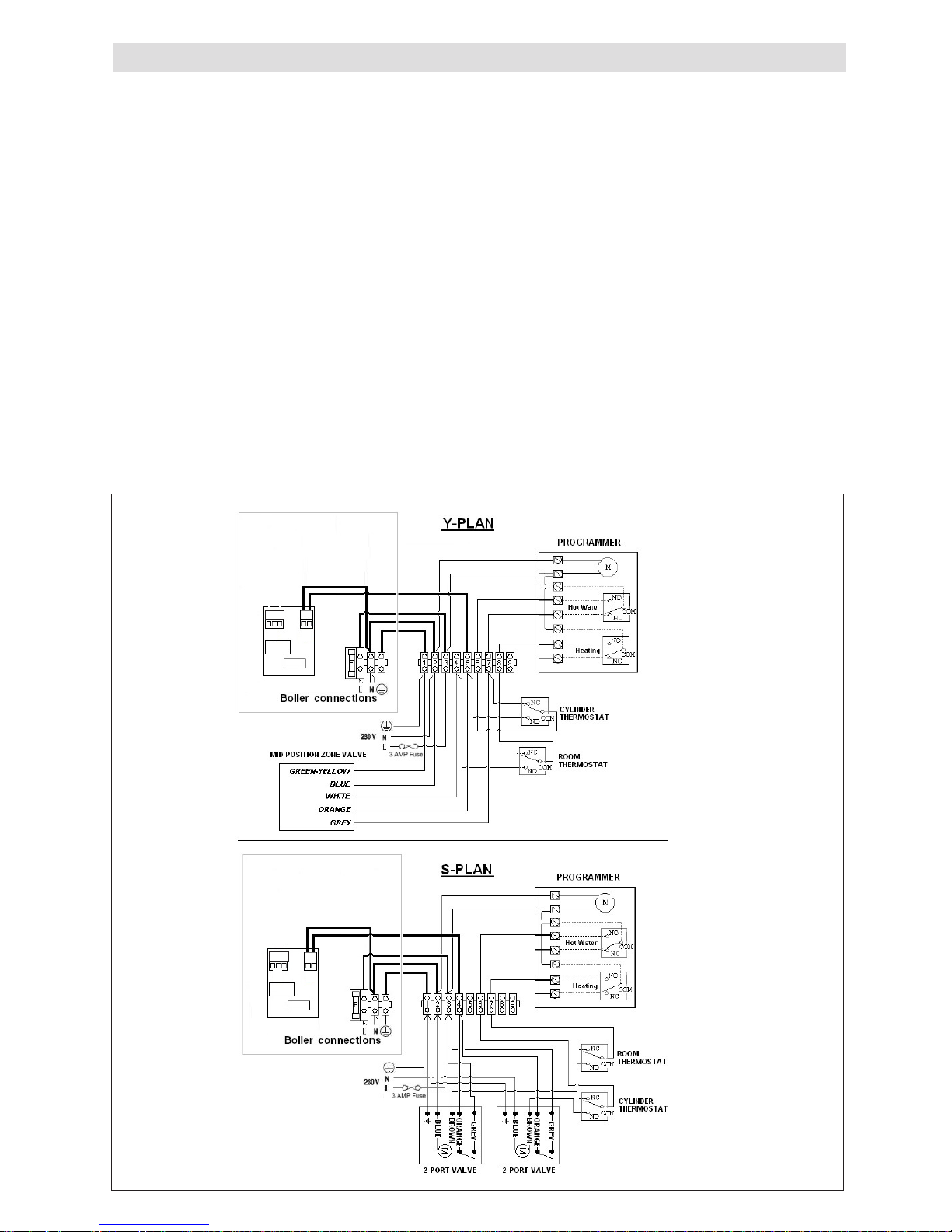

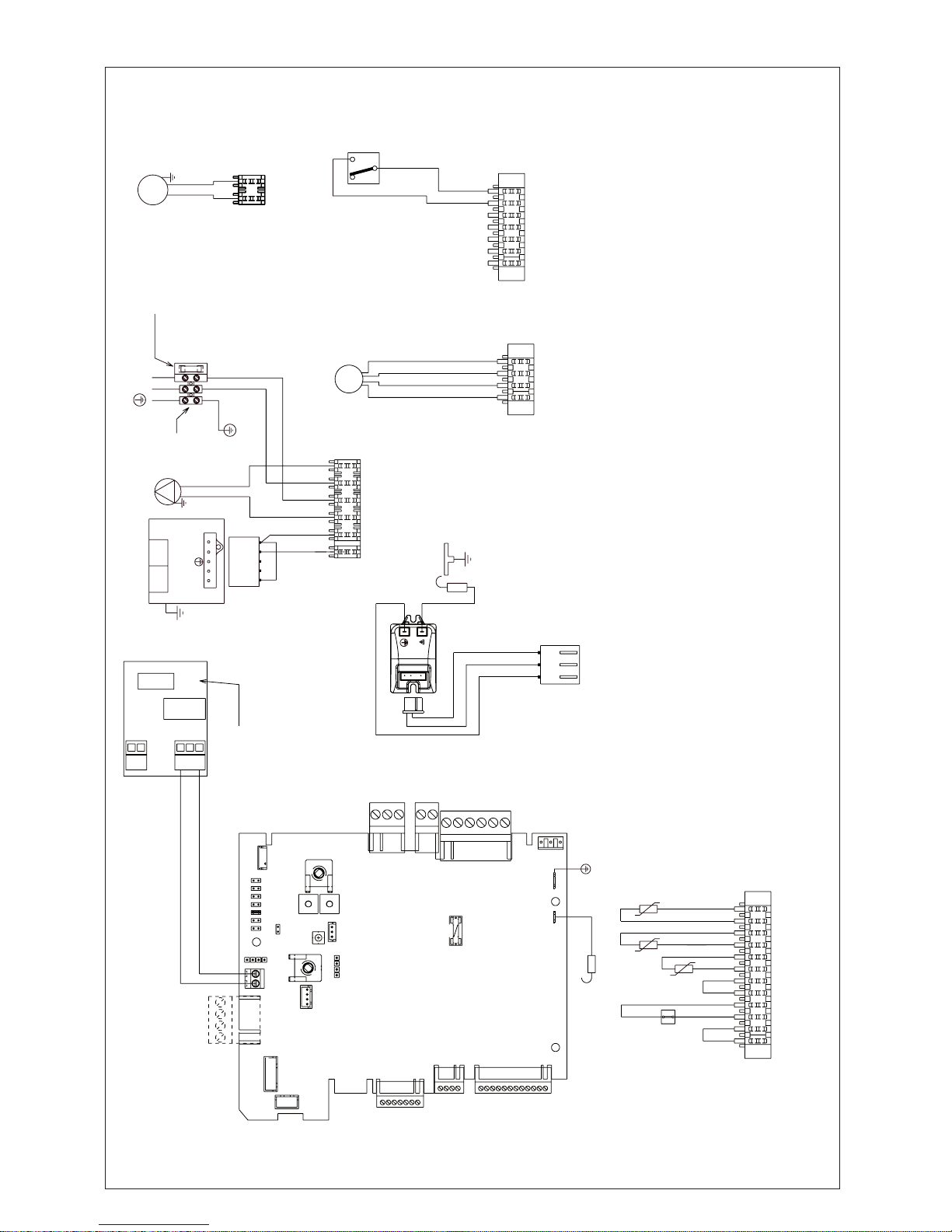

Wiring diagrams Page

8.1 External wiring 29

8.2 Typical control applications 29

8.3 Other devices 29

L.P.G. instructions Page

9.1 Related documents 31

9.2 Technical data 31

9.3 Converting the appliance gas type 31

9.4 Gas supply 31

9.5 Gas supply installation 31

9.6 Checking the CO2 and adjusting the gas valve 31

Benchmark 35-36

Commissioning 37

Page 3

USERS INSTRUCTIONS

1.1 GAS APPLIANCES

Gas Safety (Installations and Use) Regulations (UK).

In the interests of your safety and that of others it is a legal requirement that all gas appliances are installed and correctly maintained by a competent person and in accordance with the latest regulations.

1.2 ELECTRICAL SUPPLY

Please ensure that this appliance has been properly connected to the electrical supply by means of a double pole isolator or un-switched socket, and that the correct size of fuse (3 AMP)

has been tted.

Warning: this appliance must be earthed!

1.3 GUARANTEE REGISTRATION CARD

Please take the time to ll out your guarantee registration card.

The completed warranty card should be posted within 30 days of installation.

1.4 APPLIANCE COMMISSIONING CHECKLIST (UK only)

A checklist section can be found at the rear of the appliance installation booklet. This important document must be completed during the installation/commissioning of your boiler. All GAS SAFE registered installers carry a GAS SAFE ID card, and have a registration number. These details should be recorded in the Benchmark commissioning checklist section within the installation booklet. You can check your installers details by calling GAS SAFE direct on 08004085500. Failure to install and commission the appliance in accordance with the manufacturers instructions will invalidate the warranty. This does not affect your statutory rights.

1.5 HOW DOES IT WORK?

Your Vision boiler supplies heated water to your radiators and hot water to your hot water tank. The central heating is controlled via a time clock and any thermostats that your installer

may have tted. The boiler will light when it receives a request

from the time clock via any thermostat that may be installed. Your Vision boiler lights electronically and does not have a pilot light. In the unlikely event of a fault developing with your boiler, the supply of gas to the burner will be terminated automatically.

Dear Customer

Your Vokèra Vision boiler has been designed to meet and exceed the very latest standards in gas central heating technology,

and if cared for, will give years of reliable use and efciency.

Please therefore take some time to read these instructions carefully.

Do’s and Don’t’s

- Do ensure that the system pressure is periodically checked

- Do ensure that the boiler should not be used by children or unassisted disabled people

- Do ensure that you know how to isolate the appliance in an emergency

- Do ensure that you are familiar with the appliance controls

- Do ensure that your installer has completed the appliance log book section

- Do not attempt to remove the appliance casing or gain internal access

- Do not hang clothes etc. over the appliance

- Do not forget to have the appliance serviced annually.

This booklet is an integral part of the appliance. It is therefore necessary to ensure that the booklet is handed to the person responsible for the property in which the appliance is located/installed. A replacement copy can be obtained from Vokèra customer services.

INTRODUCTION

1.6 DIMENSIONS

1.7 CLEARANCES REQUIRED

1.8 FROST PROTECTION SYSTEM

The Vision is equipped with a built-in frost protection system, this enables the boiler to over-ride the time controls – even if switched off – and operate the burner and/or pump, should the temperature drop below 50C for the main. In particular the burner will be in ON status until the main temperature reaches 35°C for CH appliance. Please note that the frost protection system is designed to protect the appliance only, should frost protection be required for the heating system, additional controls may be required.

NOTE

The frost protection system is reliant on the appliance having a permanent electrical supply, and being in a non-fault condition.

1.9 APPLIANCE STATUS INDICATORS

Your boiler is equipped with a large LCD display that indicates the appliance operating status.

1. THINGS YOU SHOULD KNOW

Vision 20S - 25S

HEIGHT 715 mm

WIDTH 405 mm

DEPTH 248 mm

ABOVE 150 mm

BELOW 150 mm

LEFT SIDE 12 mm

RIGHT SIDE 12 mm

FRONT 600 mm

Page 4

Fig. 1

PRESSURE GAUGE

Ensure the system pressure is set correctly (minimum 0.5-bar)

MODE SELECTOR SWITCH/HEATING TEMPERATURE SELECTOR

Mode selector switch:

Boiler at OFF/standby - Select this position when you want the boiler to be switched off for short periods (days).

Heating & hot water - Select this position when you want the boiler to respond to a heating and hot water request from the time-clock programmer

Heating temperature selector: move the selector clockwise to increase the heating outlet temperature, or counter-clockwise to reduce the temperature (range: 40°C-80°C for standard central heating). The automatic temperature control function (SARA) is set within the blank bullet points.

MODE SELECTOR SWITCH

HEATING TEMPERATURE SELECTOR

PRESSURE GAUGE

Boiler reset - Select this position if the boiler requires to be reset.

Pressure gauge shows the current pressure of your heating system, the

gauge should be set between 1 and 1.5 BAR. When the appliance is operating the gauge may rise or fall slightly, this is quite normal. The minimum

permissible level for the safe and efcient operation of the appliance is

0.5 BAR. Should the pressure fall below 0.5 BAR, the boiler may lockout.

correct

pressure

value

DISPLAY

SARA

function

Page 5

DIGITAL DISPLAY

Symbol/Icon Description

Displayed when heating mode is active

Displayed when frost protection function is active

Displayed if an alarm or fault has been detected

Displayed when low system pressure has been detected

Displayed when an external sensor is connected to the boiler

Displayed if an ignition fault has been detected

2.1 BEFORE SWITCHING ON

Before switching the appliance on, please familiarise yourself with:

- how to isolate the appliance from the gas, water, and electricity supplies;

- how to check and top-up – if necessary – the system water pressure;

- the time clock or programmer (if tted);

- any external thermostats and their functions;

- the appliance controls.

2.2 APPLIANCE CONTROLS (see g. 1)

The appliance controls are situated on the lower front of the appliance. The appliance controls include:

- pressure gauge;

- appliance mode selector;

- temperature selector

NOTE

The appliance frost protection is active in all the boiler modes. The temperature selector can be used to vary the temperature of the water that circulates around your radiators.

The temperature range is adjustable between 40°C and 80°C. Refer to the main appliance status table for fault indicator and

boiler status.

2.3 LIGHTING THE BOILER

Ensure the gas and electrical supply to the boiler are turned on.

Turn the mode selector switch to the ON position. When there is a request for heating or hot water via the time clock or programmer, the boiler will begin an ignition sequence. When the

appliance reaches the CH set temperature, the burner will go off for a minimum period of approximately 3 minutes. When the programmer/time clock or external thermostats

heating request has been satised, the appliance will switch

off automatically.

2.4 ADJUSTING THE HEATING TEMPERATURE

Rotate the temperature selector – clockwise to increase, counterclockwise to decrease – to the desired temperature setting. The temperature can be set from a minimum of 40°C to a maximum

of 80°C (if standard CH mode is selected).

2.5 EXPLANATION OF FEATURES

Although the Vokèra Vision has been designed for simplicity of use, it utilises the latest in boiler technology, enabling a host of

functions to be carried out simultaneously.

2.6 AUTOMATIC TEMPERATURE CONTROL

The automatic temperature control function (SARA), permits the boiler (when the heating temperature selector is set within the blank bullet points) to automatically adjust (raise) the heating. The activation and the disable of the function is visualized on the display.

2. GETTING STARTED



Page 6

3.1 HOW TO TOP-UP THE SYSTEM PRESSURE

(g. 1-2)

The system pressure must be checked periodically to ensure the correct operation of the boiler. The needle on the gauge should be reading between 1 and 1.5 BAR when the boiler is in an off position and has cooled to room temperature. If the pressure requires ‘topping-up’ use the following instructions as a guide.

- Locate the lling valve connections (usually beneath the boiler, see g. 2).

- Attach the lling loop to both connections.

- Open the lling valve slowly until you hear water entering the

system.

- Close the lling valve when the pressure gauge (on the boiler) reads between 1 and 1.5 BAR (see g. 1).

- Remove the lling loop from the connections.

3.2 HOW TO RESET THE APPLIANCE

When the red fault LED is illuminated, the appliance will require to be reset manually. Before resetting the boiler, check what action is required to be taken, using the information on the fault code table below. Allow a period of two minutes to elapse before rotate the mode selector knob across the position

(see g. 1).

IMPORTANT

If the appliance requires to be reset frequently, it may be indicative of a fault, please contact your installer or Vokèra Customer Services for further advice.

3.3 HOW TO SHUT DOWN THE SYSTEM FOR

SHORT PERIODS

The system and boiler can be shut down for short periods by simply turning the time clock to the off position. It is also advisable to turn off the main water supply to the house.

3.4 HOW TO SHUT DOWN THE SYSTEM FOR

LONG PERIODS

If the house is to be left unoccupied for any length of time – especially during the winter – the system should be thoroughly drained of all water. The gas, water, and electricity supply to the house should also be turned off. For more detailed advice contact your installer.

3.5 HOW TO CARE FOR THE APPLIANCE

To clean the outer casing use only a clean damp cloth. Do not use any scourers or abrasive cleaners.

3. HOW TO...

Fig. 2

control

valve

temporary

connection

control

valve

supply pipe

double

check valve

ow/return

pipe

4.1 WHAT IF I SUSPECT A GAS LEAK

If you suspect a gas leak, turn off the gas supply at the gas meter and contact your installer or local gas supplier. If you

require further advice please contact your nearest Vokèra ofce.

4.2 WHAT IF I HAVE FREQUENTLY TO TOP-UP THE SYSTEM

If the system regularly requires topping-up, it may be indicative of a leak. Please contact your installer and ask him to inspect the system.

4.3 WHAT IF THE APPLIANCE IS DUE ITS ANNUAL SERVICE

Advice for tenants only

Your landlord should arrange for servicing.

Advice for homeowners Please contact Vokèra Customer Service (0844 3910999 (UK) or 056 7755057 (ROI) if you would prefer a Vokèra service

engineer or agent to service your appliance. Alternatively your local GAS SAFE registered engineer may be able to service the appliance for you.

4.4 - WHAT IF I NEED TO CALL AN ENGINEER

If you think your boiler may have developed a fault, please contact your installer or Vokèra Customer Services (0844 3910999 (UK) or 056 7755057 (ROI) have all your details to hand including full address and postcode, relevant contact numbers, and your completed appliance log book.

4. WHAT IF...

Page 7

FAULT CODES

ALARM CODE CAUSE ALARM TYPE ACTION

_St

AUTOSTOP Final Call engineer

_CL

CALL FOR SERVICE Temporary then nal Call engineer

A01

Ignition failure, ame not sensed,

internal fault

Final Reset, check appliance operation

A02

Limit thermostat fault Final Reset, check appliance operation

A03

Fan tacho signal fault Final Reset check appliance operation, check fan

A04

Insufcient system water pressure Final

Check/rell system pressure, reset, check

appliance operation

A06

Jumper tag conguration Temporary Check jumper tag conguration

A07

Primary (ow) thermistor fault Temporary Check primary thermistor, check wiring

Primary (ow) thermistor over temperature

Temporary then nal Reset, check appliance operation

Temperature differential Final

Reset, check appliance operation, check thermistors

A08

Return thermistor fault Temporary Check return thermistor, check wiring

Return thermistor over temperature Temporary then nal Reset, check appliance operation

Temperature differential inverted Final

Reset, check pump, ensure there is suf-

cient circulation around heating circuit/s

A09

Flue thermistor or ue thermistor

counter fault

Temporary

Check ue thermistor counter at power on, check ue thermistor, check wiring

Flue thermistor over temperature Final Reset, check appliance operation

A11

False ame Temporary None

A77

Low temperature thermostat fault Temporary Check low temperature thermostat

Adj

Calibration Na None

ACO

Service operation Na None



Purge cycle mode active Na None

Flame ON Na None

Hours Stand-by Na None

- - OFF Na None

Page 8

All installers are asked to follow the Benchmark Scheme by adhering to the Code of Practise, which can be obtained from www.centralheating.co.uk.

The Vision comprises a range of high-efciency system boilers

with outputs of 20kW and 25kW. These appliances – by design – incorporate electronic ignition, circulating pump, expansion vessel, safety valve, pressure gauge and automatic by-pass. The Vision range is produced as room sealed, category II2H3P appliances, suitable for internal wall mounting applications only.

Each appliance is provided with a fan powered ue outlet with

an annular co-axial combustion air intake that can be rotated – horizontally – through 360 degrees for various horizontal

or vertical applications. The Vision can also be used with the

Vokèra twin ue system. The Vision is approved for use with C13 & C33 type ue ap-

plications. These appliances are designed for use with a sealed system only; consequently they are not intended for use on open vented systems. This booklet is an integral part of the appliance. It is therefore necessary to ensure that the booklet is handed to the person responsible for the property in which the appliance is located/ installed. A replacement copy can be obtained from Vokèra customer services.

Fig. 3

General layout

1 Drain valve 2 Three porte valve actuator 3 Safety valve 4 Pump 5 Bottom auto air vent (AAV) 6 Main heat exchanger 7 Flues thermistor (NTC) 8 Fan assembly with mixer 9 Silencer 10 Flue gas analysis test point 11 Flue outlet & air intake 12 Top AAV 13 De-aerator 14 Spark Electrode - Sensing Electrode 15 Ignition transformer 16 Flow thermistor (NTC) - High limit thermostat 17 Expansion vessel 18 Pressure switch 19 Return thermistor (NTC) 20 Gas valve 21 Condense trap

R Heating return connection

F Heating ow connection

G Gas connection

INTRODUCTION

INSTALLATION AND SERVICING INSTRUCTIONS

R F G

Page 9

1.1 PRINCIPLE COMPONENTS

• A fully integrated electronic control board featuring electronic temperature control, anti-cycle control, pump over-run, selfdiagnostic fault indicator, full air/gas modulation

• Aluminium heat exchanger

• Electronic ignition with ame supervision

• Integral high-head pump

• Fan

• Expansion vessel

• Water pressure switch

• Flue sensor

• Pressure gauge

• Safety valve

1.2 MODE OF OPERATION (at rest)

When the appliance is at rest and there are no requests for heating or hot water, the following functions are active:

• frost-protection system – the frost-protection system protects

the appliance against the risk of frost damage. For CH line, if the main temperature falls to 5°C, the appliance will function on minimum power until the temperature on main reaches 35°C.

• anti-block function – the anti-block function enables the pump

to be energised for short periods, when the appliance has been inactive for more than 24-hours.

1.3 MODE OF OPERATION (Heating)

When there is a request for heat via the time clock and/or any external control, the pump and fan are started, the fan speed will modulate until the correct signal voltage is received at the control PCB. At this point an ignition sequence is enabled.

Ignition is sensed by the electronic circuit to ensure ame stability

at the burner. Once successful ignition has been achieved, the electronic circuitry increases the gas rate to 75% for a period of 15 minutes. Thereafter, the boiler’s output will either be increase to maximum or modulate to suit the set requirement. When the appliance reaches the desired temperature the burner will shut down and the boiler will perform a three-minute anti-cycle (timer delay).

When the request for heat has been satised the appliance

pump and fan may continue to operate to dissipate any residual heat within the appliance.

1.4 SAFETY DEVICES

When the appliance is in use, safe operation is ensured by:

• a water pressure switch that monitors system water pressure and will de-activate the pump, fan, and burner should the system water pressure drop below the rated tolerance;

• fan speed sensor to ensure safe operation of the burner;

• a high limit thermostat that over-rides the temperature control

circuit to prevent or interrupt the operation of the burner;

• ame sensor that will shut down the burner when no ame

signal is detected;

• ue sensor;

• a safety valve which releases excess pressure from the

primary circuit.

Fig. 4

Expansion

vessel

Safety

valve

Pump

Return

temperature

sensor

Main heat

exchanger

Bottom

AAV

Pressure

switch

Drain valve

Flow temperature

sensor

Top AAV

Automatic

by-pass

return

ow

SECTION 1 - DESIGN PRINCIPLES AND OPERATING SEQUENCE

Page 10

SECTION 2 - TECHNICAL DATA

2.1 Central Heating Vision 20S Vision 25S

Heat input (kW) 20.00 25.00

Maximum heat output (kW) 60/80°C 19.50 24.45

Minimum heat output (kW) 60/80°C 4.91 5.90

Maximum heat output (kW) 30/50°C 20.84 26.23

Minimum heat output (kW) 30/50°C 5.36 6.40

Minimum working pressure 0.25-0.45 bar

Maximum working pressure 3 bar

Minimum ow rate 350 l/h

2.2 Gas Pressures Vision 20S Vision 25S

Inlet pressure (G20) 20.0 mbar 20.0 mbar

Heating maximum gas rate (m3/hr) 2.12 2.64

Minimum gas rate (m3/hr) 0.53 0.63

Injector size (mm) 5.1 5.6

Silencer ange (ø mm) (tted) 31 -

2.3 Expansion Vessel Vision 20S Vision 25S

Capacity 8 litres

Maximum system volume 74 litres

Pre-charge pressure 1 bar

2.4 Dimensions Vision 20S Vision 25S

Height (mm) 715

Width (mm) 405

Depth (mm) 250

Dry weight (kg) 26 27

2.5 Clearances Vision 20S Vision 25S

Sides 12mm

Top 150mm from casing or 25mm above ue elbow (whichever is applicable)

Bottom 150mm

Front 600mm

2.6 Connections Vision 20S Vision 25S

Flow & return 22mm

Gas 22mm

Safety valve 15mm

Condense

21mm

2.7 Electrical Vision 20S Vision 25S

Power consumption (Watts) 96 107

Voltage (V/Hz) 230/50

Internal fuse 3.15A T (for PCB) - 3.15A F (for connections block)

External fuse 3A

2.8 Flue Details (concentric) Vision 20S Vision 25S

Maximum horizontal ue length (60/100mm) 5.85m 4.85m

Maximum vertical ue length (60/100mm) 6.85m 5.85m

2.8A Flue Details (twin pipes) Vision 20S Vision 25S

Maximum horizontal ue length (80mm/80mm) 45m/45m 40m/40m

Maximum vertical ue length (80mm/80mm) 45m/45m 40m/40m

2.9 Efciency Vision 20S Vision 25S

SEDBUK (%) 90.13 90.26

2.10 Emissions Vision 20S Vision 25S

CO2 @ maximum output (%) 9.0 9.0

CO2 @ minimum output (%) 9.5 9.5

CO @ maximum output (ppm) 180 160

CO @ minimum output (ppm) 20 20

NOx rating class 5 class 5

Page 11

Key Location Minimum distance

A Below an opening (window, air-brick, etc.) 300 mm B Above an opening (window, air-brick, etc.) 300 mm C To the side of an opening (window, air-brick, etc.) 300 mm D Below gutter, drain-pipe, etc. 25 mm E Below eaves 25 mm F Below balcony, car-port roof, etc. 25 mm

G To the side of a soil/drain-pipe, etc. 25 mm (60mm for 80/125 - 5” ue) H From internal/external corner 25 mm (60mm for 80/125 - 5” ue)

I Above ground, roof, or balcony level 300 mm J From a surface or boundary facing the terminal 600 mm K From a terminal facing a terminal 1200 mm L From an opening in the car-port into the building 1200 mm M Vertically from a terminal on the same wall 1500 mm N Horizontally from a terminal on the same wall 300 mm P From a structure to the side of the vertical terminal 300 mm

Q From the top of the vertical terminal to the roof ashing As determined by the xed collar

of the vertical terminal R To the side of a boundary 300 mm S To the side of an opening or window on a pitched roof 600 mm T Below an opening or window on a pitched roof 2000 mm V From a vertical terminal to an adjacent opening (window, air-brick, etc.) (call Vokera technical for advice) W From a vertical terminal to an adjacent vertical terminal 300 mm (only if both terminals are the same hight)

Fig. 5

2.11 PUMP DUTY

Fig. 6 shows the ow-rate available – after allowing for pressure loss through the appliance – for system requirements. When

using this graph, apply only the pressure loss of the system.

Fig. 6

1st speed

2nd speed

3rd speed

Flow rate (l/h)

Residual head (x 100 mbar)

0,0

1,0

2,0

3,0

4,0

5,0

6,0

0 100 200 300400 500600 700800 9001000

Page 12

SECTION 3 - GENERAL REQUIREMENTS (UK)

This appliance must be installed by a competent person in accordance with the Gas Safety (Installation & Use) Regulations.

3.1 RELATED DOCUMENTS

The installation of this boiler must be in accordance with the relevant requirements of the Gas Safety (Installation & Use) Regulations, the local building regulations, the current I.E.E. wiring regulations, the bylaws of the local water undertaking, the Building Standards (Scotland) Regulation and Building Standards (Northern Ireland) Regulations. It should be in accordance also with any relevant requirements of the local authority and the relevant recommendations of the following British Standard Codes of Practice.

3.2 LOCATION OF APPLIANCE

The appliance may be installed in any room or internal space, although particular attention is drawn to the requirements of the current I.E.E. wiring regulations, and in Scotland, the electrical provisions of the Building Regulations, with respect to the installation of the appliance in a room or internal space containing a bath or shower.

BS 5440 PART 1 FLUES BS 5440 PART 2 FLUES & VENTILATION

BS 5449 PART 1 FORCED CIRCULATION HOT WATER SYSTEMS BS 5546 INSTALLATION OF GAS HOT WATER SUPPLIES FOR DOMESTIC PURPOSES BS 6798 INSTALLATION OF BOILERS OF RATED INPUT NOT EXCEEDING 60kW BS 6891 LOW PRESSURE INSTALLATION PIPES BS 7074 PART 1 APPLICATION, SELECTION, AND INSTALLTION OF EXPANSION VESSELS AND ANCILLARY EQUIPMENT FOR SEALED WATER SYSTEMS

3.5 AIR SUPPLY

The following notes are intended for general guidance only.

This appliance is a room-sealed, fan-ued boiler, consequently

it does not require a permanent air vent for combustion air supply. When installed in a cupboard or compartment, ventilation for cooling purposes is also not required.

3.6 WATER CIRCULATION

Detailed recommendations are given in BS 5449 Part 1 and BS 6798. The following notes are for general guidance only.

3.6.1 PIPEWORK

It is recommended that copper tubing to BS 2871 Part 1 is used in conjunction with soldered capillary joints. Where possible pipes should have a gradient to ensure air is carried naturally to

air release points and that water ows naturally to drain cocks.

Except where providing useful heat, pipes should be insulated to avoid heat loss and in particular to avoid the possibility of freezing. Particular attention should be paid to pipes passing

through ventilated areas such as under oors, loft space and

void areas.

3.6.2 AUTOMATIC BY-PASS

The appliance has a built-in automatic by-pass, consequently there is no requirement for an external by-pass, however the design of the system should be such that it prevents boiler ‘cycling’.

3.6.3 DRAIN COCKS

These must be located in accessible positions to facilitate draining of the appliance and all water pipes connected to the appliance. The drain cocks must be manufactured in accordance with BS 2879.

3.6.4 AIR RELEASE POINTS

These must be positioned at the highest points in the system where air is likely to be trapped. They should be used to expel

trapped air and allow complete lling of the system.

3.6.5 EXPANSION VESSEL

The appliance has an integral expansion vessel to accommodate the increased volume of water when the system is heated. It can accept up to 8 litres of expansion from within

the system, generally this is sufcient, however if the system

has an unusually high water content, it may be necessary to provide additional expansion capacity (see 6.18).

3.6.6 FILLING POINT

A method for initial lling of the system and replacing water lost

during servicing etc. directly from the mains supply, should be

provided (see g. 8). This method of lling complies with the

current Water Supply (Water Fittings) Regulations 1999 and Water Bylaws 2000 (Scotland). If an alternative location.

3.6.7 LOW PRESSURE SEALED SYSTEM

An alternative method of lling the system would be from an

independent make-up vessel or tank mounted in a position at least 1 metre above the highest point in the system and at least

5 metres above the boiler (see g. 8). The cold feed from the make-up vessel or tank must be tted

with an approved non-return valve and stopcock for isolation purposes. The feed pipe should be connected to the return pipe as close to the boiler as possible.

3.6.8 FREQUENT FILLING

Frequent lling or venting of the system may be indicative

of a leak. Care should be taken during the installation of the appliance to ensure all aspects of the system are capable of withstanding pressures up to at least 3 bar.

When an appliance is installed in a room or internal space containing a bath or shower, the appliance or any control pertaining to it must not be within reach of a person using the bath or shower. The location chosen for the appliance must permit

the provision of a safe and satisfactory ue and termination.

The location must also permit an adequate air supply for combustion purposes and an adequate space for servicing and air circulation around the appliance. Where the installation of the appliance will be in an unusual location special procedures may be necessary, BS 6798 gives detailed guidance on this aspect. A compartment used to enclose the appliance must be designed

and constructed specically for this purpose. An existing compartment/cupboard may be utilised provided that it is modied

to suit. Details of essential features of compartment/cupboard design including airing cupboard installations are given in BS

6798. This appliance is not suitable for external installation.

3.3 GAS SUPPLY

The gas meter – as supplied by the gas supplier – must be checked to ensure that it is of adequate size to deal with the maximum rated input of all the appliances that it serves. Instal-

lation pipes must be tted in accordance with BS 6891.

Pipe work from the meter to the appliance must be of adequate size. Pipes of a smaller size than the appliance gas inlet connection must not be used. The installation must be tested for tightness in accordance with BS6891. If the gas supply serves more than one appliance, it must be ensured that an adequate supply is maintained to each appliance when they are in use at the same time.

3.4 FLUE SYSTEM

is likely to cause a nuisance (see g. 6). In cold and/or humid

weather, water vapour will condense on leaving the terminal; the effect of such pluming must be considered. If installed less than 2m above a pavement or platform to

which people have access (including balconies or at roofs)

the terminal must be protected by a guard of durable material.

The guard must be tted centrally over the terminal. Refer to

BS 5440 Part 1, when the terminal is 0.5 metres (or less) below plastic guttering or 1 metre (or less) below painted eaves.

Page 13

This appliance must be installed by a competent person in

accordance with and dened by, the Standard Specication

(Domestic Gas Installations) Declaration (I.S. 813).

3A.1 RELATED DOCUMENTS

The installation of this boiler must be in accordance with the relevant requirements of the local building regulations, the current ETCI National Rules for Electrical Installations and the bylaws of the local water undertaking. It should be in accordance also with any relevant requirements of the local and/or district authority.

3A.2 LOCATION OF APPLIANCE

The appliance may be installed in any room or internal space, although particular attention is drawn to the requirements of the current ETCI National Rules for Electrical Installations, and I.S. 813, Annex K. When an appliance is installed in a room or internal space containing a bath or shower, the appliance or any control pertaining to it must not be within reach of a person using the bath or shower. The location chosen for the appliance must permit the provision

of a safe and satisfactory ue and termination. The location must

also permit an adequate air supply for combustion purposes and an adequate space for servicing and air circulation around the appliance. Where the installation of the appliance will be in an unusual location special procedures may be necessary, refer to I.S. 813 for detailed guidance on this aspect. A compartment used to enclose the appliance must be de-

SECTION 3A - GENERAL REQUIREMENTS (EIRE)

3.7 ELECTRICAL SUPPLY

The appliance is supplied for operation on 230V @ 50Hz electrical supply; it must be protected with a 3-amp fuse. The method of connection to the mains electricity supply must allow for complete isolation from the supply. The preferred method is by using a double-pole switch fused spur with a contact separation of at least 3,5mm (3° high-voltage category). The switch must only supply the appliance and its corresponding controls, i.e. time clock, room thermostat, etc. Alternatively an un-switched shuttered socket with a fused 3-pin plug both complying with BS 1363 is acceptable.

3.8 MOUNTING ON A COMBUSTIBLE SURFACE

If the appliance is to be tted on a wall of combustible material, there is no requirement for a sheet of reproof material to

protect the wall.

3.9 TIMBER FRAMED BUILDINGS

If the appliance is to be tted in a timber framed building, it should be tted in accordance with the Institute of Gas Engineers

publication (IGE/UP/7) ‘Guide for Gas Installations in Timber Frame Buildings’.

3.10 INHIBITORS

Vokèra recommend that an inhibitor - suitable for use with aluminium heat exchangers - is used to protect the boiler and system from the effects of corrosion and/or electrolytic action. The inhibitor must be administered in strict accordance with the manufacturers instructions*. *Water treatment of the complete heating system - including the boiler - should be carried out in accordance with BS 7593 and the Domestic Water Treatment Association’s (DWTA) code of practice.

ow/return

pipe

control

valve

temporary

connection

control

valve

supply

pipe

double

check valve

Fig. 7

Fig. 8

Make-up vessel or tank

Automatic air-vent

Non-return

valve

Stopcock

5.0 metres minimum

Heating return

signed and constructed specically for this purpose. An existing compartment/cupboard may be utilised provided that it is

modied to suit.

This appliance is not suitable for external installation.

3A.3 GAS SUPPLY

The gas meter – as supplied by the gas supplier – must be checked to ensure that it is of adequate size to deal with the maximum rated input of all the appliances that it serves. Instal-

lation pipes must be tted in accordance with I.S. 813.

Pipe work from the meter to the appliance must be of adequate size. Pipes of a smaller size than the appliance gas inlet connection must not be used. The installation must be tested for tightness in accordance with I.S. 813. If the gas supply serves more than one appliance, it must be ensured that an adequate supply is maintained to each appliance when they are in use at the same time.

3A.4 FLUE SYSTEM

The terminal should be located where the dispersal of combustion products is not impeded and with due regard for the damage and discoloration that may occur to building products located nearby. The terminal must not be located in a place where it is likely to cause a nuisance (see I.S. 813). In cold and/or humid weather, water vapour will condense on leaving the terminal; the effect of such pluming must be considered. If installed less than 2m above a pavement or platform to

which people have access (including balconies or at roofs)

Page 14

the terminal must be protected by a guard of durable material.

The guard must be tted centrally over the terminal. Refer to

I.S. 813, when the terminal is 0.5 metres (or less) below plastic guttering or 1 metre (or less) below painted eaves.

3A.5 AIR SUPPLY

The following notes are intended for general guidance only.

This appliance is a room-sealed, fan-ued boiler, consequently it

does not require a permanent air vent for combustion air supply. When installed in a cupboard or compartment, ventilation for cooling purposes is also not required.

3A.6 WATER CIRCULATION

Specic recommendations are given in I.S. 813. The following

notes are for general guidance only.

3A.6.1 PIPEWORK

It is recommended that copper tubing be used in conjunction with soldered capillary joints. Where possible pipes should have a gradient to ensure air

is carried naturally to air release points and that water ows

naturally to drain cocks. Except where providing useful heat, pipes should be insulated to avoid heat loss and in particular to avoid the possibility of freezing. Particular attention should be paid to pipes passing

through ventilated areas such as under oors, loft space and

void areas.

3A.6.2 AUTOMATIC BY-PASS

The appliance has a built-in automatic by-pass, consequently there is no requirement for an external by-pass, however the design of the system should be such that it prevents boiler ‘cycling’.

3A.6.3 DRAIN COCKS

These must be located in accessible positions to facilitate draining of the appliance and all water pipes connected to the appliance.

3A.6.4 AIR RELEASE POINTS

These must be positioned at the highest points in the system where air is likely to be trapped. They should be used to expel

trapped air and allow complete lling of the system.

3A.6.5 EXPANSION VESSEL

The appliance has an integral expansion vessel to accommodate the increased volume of water when the system is heated. It can accept up to 8 litres of expansion from within

the system, generally this is sufcient, however if the system

has an unusually high water content, it may be necessary to provide additional expansion capacity (see 6.18).

3A.6.6 FILLING POINT

A method for initial lling of the system and replacing water lost during servicing etc. is provided (see g. 7). You should ensure this method of lling complies with the local water authority

regulations.

3A.6.7 LOW PRESSURE SEALED SYSTEM

An alternative method of lling the system would be from an

independent make-up vessel or tank mounted in a position at least 1 metre above the highest point in the system and at

least 5 metres above the boiler (see g. 8). The cold feed from the make-up vessel or tank must be tted with an approved

non-return valve and stopcock for isolation purposes. The feed pipe should be connected to the return pipe as close to the boiler as possible.

3A.6.8 FREQUENT FILLING

Frequent lling or venting of the system may be indicative

of a leak. Care should be taken during the installation of the appliance to ensure all aspects of the system are capable of withstanding pressures up to at least 3 bar.

3A.7 ELECTRICAL SUPPLY

The appliance is supplied for operation on 230V @ 50Hz electrical supply; it must be protected with a 3-amp fuse. The method

of connection to the mains electricity supply must allow for complete isolation from the supply. The preferred method is by using a double-pole switch fuse spur with a contact separation of at least 3,5 mm (3° high-voltage category). The switch must only supply the appliance and its corresponding controls, i.e. time clock, room thermostat, etc.

3A.8 MOUNTING ON A COMBUSTIBLE SURFACE

If the appliance is to be tted on a wall of combustible material, there is no requirement for a sheet of reproof material to

protect the wall.

3A.9 TIMBER FRAMED BUILDINGS

If the appliance is to be tted in a timber framed building, it should be tted in accordance with I.S. 813 and local Building

Regulations. The Institute of Gas Engineers publication (IGE/UP/7) ‘Guide

for Gas Installations in Timber Frame Buildings’ gives specic

advice on this type of installation.

3A.10 INHIBITORS

Vokèra recommend that an inhibitor - suitable for use with aluminium heat exchangers - is used to protect the boiler and system from the effects of corrosion and/or electrolytic action. The inhibitor must be administered in strict accordance with the manufacturers instructions*. *Water treatment of the complete heating system - including the boiler - should be carried out in accordance with I.S. 813 and the Domestic Water Treatment Association’s (DWTA) code of practice.

3A.11 DECLARATION OF CONFORMITY

A Declaration of Conformity (as dened in I.S. 813) must be

provided on completion of the installation. A copy of the declaration must be given to the responsible person and also to the gas supplier if required.

Page 15

Fig. 10

4.1 DELIVERY

Due to the weight of the appliance it may be necessary for two people to lift and attach the appliance to its mounting. The appliance is contained within a heavy-duty cardboard carton.

Lay the carton on the oor with the writing the correct way up.

4.2 CONTENTS

Contained within the carton is:

• the boiler

• the wall bracket

• carton template

• an accessories pack containing appliance service connections

and washers

• the instruction pack containing the installation, servicing & user instructions, guarantee registration card and a 3-amp fuse.

4.3 UNPACKING

At the top of the carton pull both sides open – do not use a knife – unfold the rest of the carton from around the appliance, carefully remove all protective packaging from the appliance and lay the accessories etc. to one side. Protective gloves should be used to lift the appliance, the appliance back-frame should be used for lifting points.

4.4 PREPARATION FOR MOUNTING THE AP-

PLIANCE

The appliance should be mounted on a smooth, vertical surface, which must be capable of supporting the full weight of the appliance. Care should be exercised when determining the position of the appliance with respect to hidden obstructions such as pipes, cables, etc. When the position of the appliance has been decided – using the template supplied – carefully mark the position of the wall

mounting bracket (see g. 11) and ue-hole (if applicable).

4.5 FITTING THE FLUE

The top ue outlet permits both horizontal and vertical ue applications to be considered, alternatively, the Vokèra twin ue system can be utilised if longer ue runs are required.

4.5.1 CONCENTRIC HORIZONTAL FLUE

(For concentric vertical ue, see 4.5.2). (For twin ue applications, see 4.5.3).

The appliance can be used with either the Vokèra condensing

60/100mm concentric ue system or the optional 80/125mm concentric ue system.

NOTE These instructions relate only to the Vokèra condensing

60/100mm concentric ue system. For specic details on the installation of the 80/125mm concentric ue system please refer to the instructions supplied. The appliance ue outlet elbow can be rotated through 360º on its vertical axis. In addition the ue

may be extended from the outlet elbow in the horizontal plane (see 2.9). A reduction must also be made to the maximum length (see table below) when additional bends are used.

Reduction for additional bends Bend Reduction in maximum ue length for each bend

45º bend 1.0 metre (60/100) - 1.0 metre (80/125)

90º bend 1.0 metre (60/100) - 1.5 metre (80/125)

Horizontal ue terminals and accessories

Part No. Description Length

29450120 Horizontal ue kit 900mm

Telescopic ue kit 455/630mm

522 Plume management kit 1370mm 29450123 90-degree bend N/A 29450124 45-degree bends (pair) N/A

29450125 500mm extension 500mm 29450126 1000mm extension 1000mm 29450127 2000m extension 2000mm 29450128 Telescopic extension 372/519mm 529 Wall bracket pack (5) 208mm

Using the template provided (A), mark and drill a 125mm hole

for the passage of the ue pipe. The hole should be drilled to ensure any condense uid that forms, is allowed to drain back to the appliance (see g. 11). The xing holes for the wall-mounting

bracket should now be drilled and plugged, an appropriate type

and quantity of xing should be used to ensure that the bracket

is mounted securely. Once the bracket has been secured to the wall, mount the appliance onto the bracket.

FITTING THE TELESCOPIC HORIZONTAL FLUE KIT

In some instances It may necessary to cut the inner 60mm pipe

of the ue bend at the point indicated (g.12 pos. A) to allow for easier insertion to the boiler ue spigot.

FITTING THE HORIZONTAL FLUE KIT

Carefully measure the distance from the centre of the appliance

ue outlet to the edge of the nished outside wall (dimension

X). Add 65mm to dimension X to give you Dimension Y (see

g 11). Measure dimension Y from the terminal end of the concentric ue pipe and cut off the excess ensuring any burrs are removed. Pass the concentric ue pipe through the previously drilled hole. Fit the ue bend to the boiler ue outlet and insert the concentric ue pipe into the ue bend ensuring the correct

seal is made. Using the clamp, gasket, and screws supplied,

secure the ue bend to the appliance ue spigot.

NOTE

Fit the internal (white) trim to the ue assembly prior to connecting the ue pipe to the bend. You must ensure that the entire ue system is properly supported and connected. Seal the ue assembly to the wall using

cement or a suitable alternative that will provide satisfactory

weatherproong. The exterior trim can now be tted.

SECTION 4 - INSTALLATION

Fig. 9

Terminal or extension

Outer clamps

Page 16

Fig.12

EXTENDING THE FLUE

Connect the bend – supplied with the terminal kit – to the top

of the boiler using clamp (supplied) see g. 10. The additional bends & extensions have push-t connections, care should be

taken to ensure that the correct seal is made when assembling

the ue system. Connect the required number of ue extensions or bends (up to the maximum equivalent ue length) to the ue terminal (see g. 10-13). The ue system should have

a minimum of 1º; maximum of 3º rise from the boiler to outside,

to ensure any condense uid that forms, is allowed to drain

back to the appliance.

NOTE

When cutting an extension to the required length, you must ensure that the excess is cut from the plain end of the extension

(see g. 10-13). Remove any burrs, and check that all seals are located properly. You must ensure that the entire ue system is properly supported and connected. Seal the ue assembly to

the wall using cement or a suitable alternative that will provide

satisfactory weatherproong. The interior and exterior trim can now be tted.

Fig. 13

Fig. 11

4.5.1.2 FITTING THE REAR FLUE (g. 14) (rear ue outlet

only)

Using the template provided, mark and drill a 125mm hole

for the passage of the ue pipe. The hole should be drilled LEVEL to ensure any condense uid that forms, is allowed to drain back to the appliance. The xing holes for the wall-

mounting bracket should now be drilled and plugged, an ap-

propriate type and quantity of xing should be used to ensure

that the bracket is mounted securely. Once the bracket has

been secured to the wall, attach the rear ue terminal to the appliance (using the previously retained screws) and x the

telescopic terminal to the correct length (wall thickness) ensuring that the terminal will protrude through the wall by the correct distance. At this point, lift the appliance and carefully insert the terminal into and through the wall, ensuring that the holes in the appliance back frame are aligned with the studs on the wall bracket.

Fig.14

Fig.16

Using the screws and washers provided, secure the appliance onto the wall bracket and tighten with a suitable spanner.

Seal the ue assembly to the wall using cement or a suitable alternative that will provide satisfactory weatherproong. The exterior wall trim can now be tted.

Fig.15

Part No. Description Length 29450133 Rear ue terminal 825mm

Page 17

IMPORTANT

The vertical ue terminal is 1.0 metre in length and cannot be

cut; therefore it may be necessary to adjust the height of the appliance to suit or use a suitable extension. Connect the vertical ue assembly to the boiler ue spigot using the 100mm clip, gasket & screws (supplied), ensuring the

correct seal is made. The ue support bracket (supplied with the vertical ue kit) can now be tted. If the vertical ue requires extension/s or additional bend/s, connect the required number of ue extensions or bends (up to the maximum equivalent ue length) between the boiler and vertical ue assembly (see g. 13). Ensure that any horizontal sections of the ue system have a

minimum 1º; maximum 3º fall back to the boiler (1º = 17mm per 1000mm).

NOTE

When cutting an extension to the required length, you must ensure that the excess is cut from the plain end of the extension. Remove any burrs, and check that any seals are located properly. You must ensure that the entire ue system is properly supported and connected.

4.5.3 TWIN FLUE SYSTEM

The Vokèra twin ue system enables greater ue distances to be achieved than that of a concentric ue system. It can be

used for horizontal or vertical applications, however the twin

ue system must be converted to the dedicated concentric ue kit for termination. It is essential that the installation of the twin ue system be carried out in strict accordance with these

instructions.

GUIDANCE NOTES ON TWIN FLUE INSTALLATION

• The ue must have a have a minimum 1º; maximum 3º (1º

= 17mm per 1000mm) fall back to the appliance to allow

any condensate that may form in the ue system to drain

via the condensate drain. Consideration must also be given to the fact that there is the possibility of a small amount of condensate dripping from the terminal.

• Ensure that the entire ue system is adequately supported,

use at least one bracket for each extension.

• As the exhaust outlet pipe can reach very high temperatu-

res it must be protected to prevent persons touching the hot surface.

• The condensate drain pipe must be connected in accordan-

ce with building regulations.

Reduction for bends

Bend Reduction in maximum ue length for

each bend 45º bend 1.0 metre 90º bend 1.5 metre

Twin ue accessories

Part No. Description Length

0225805 Horizontal ue terminal 1.0 metre 0225810 Vertical ue terminal 1.0 metre

359 Twin adapter kit N/A

531 Pitched roof ashing plate N/A 532 Flat roof ashing plate N/A

0225815 Condensate drain kit N/A 0225820 0.25m extension (pair) 250mm 0225825 0.5m extension (pair) 500mm 0225830 1.0m extension (pair) 1000mm 0225835 2.0m extension (pair) 2000mm 0225840 45º bend (pair) N/A 0225845 90º bend (pair) N/A 0225850 Twin bracket (5) N/A 0225855 Single bracket (5) N/A

MOUNTING THE BOILER

The xing holes for the wall-mounting bracket should now be drilled and plugged, an appropriate type and quantity of xing

should be used to ensure that the bracket is mounted securely. Once the bracket has been secured to the wall, mount the appliance onto the bracket.

4.5.2 CONCENTRIC VERTICAL FLUE

The appliance can be used with either the Vokèra condensing

60/100mm concentric ue system or the optional 80/125mm concentric ue system.

NOTE These instructions relate only to the Vokèra condensing

60/100mm concentric ue system. For specic details on the installation of the 80/125mm concentric ue system please re-

fer to the instructions supplied.

The vertical ue terminal can be connected directly to the appliance ue outlet. Alternatively, an extension or bend can be connected to the appliance ue outlet if desired, however if additional bends are tted, a reduction must be made to the maximum ue length (see table below).

Reduction for bends

Bend Reduction in maximum ue length for each bend

45º bend 1.0 metre (60/100) - 1.0 metre (80/125)

90º bend 1.0 metre (60/100) - 1.5 metre (80/125)

Vertical ue terminal and accessories

Part No. Description Length

29450122 Vertical ue terminal 1000mm 531 Pitched roof ashing plate N/A 532 Flat roof ashing plate N/A

29450123 90-degree bend N/A 29450124 45-degree bends (pair) N/A 29450125 500mm extension 500mm 29450126 1000mm extension 1000mm 29450127 2000mm extension 2000mm 29450128 Telescopic extension 372/519mm 529 Wall bracket pack (5) 208mm

Using the dimensions given in g. 11 as a reference, mark and

cut a 125mm hole in the ceiling and/or roof.

Fig. 17

Fit the appropriate ashing plate to the roof and insert the vertical ue terminal through the ashing plate from the outside, ensuring that the collar on the ue terminal ts over the ashing. The xing holes for the wall-mounting bracket should now be drilled and plugged, an ‘appropriate type and quantity of xing

should be used to ensure that the bracket is mounted securely. Once the bracket has been secured to the wall, mount the appliance onto the bracket.

RTN

FLOW GAS

Page 18

Fig. 18

HORIZONTAL TERMINATION (g. 20)

The twin ue system must be converted to the dedicated concentric ue kit for termination.

• The horizontal terminal is supplied with a built-in converter box and cannot be shortened.

• A 130mm hole is required for the passage of the concentric terminal through the wall.

• The air inlet pipe must always be level with or below, that of the exhaust pipe.

Depending on site conditions it may be preferable to install the

terminal assembly prior to tting the twin ue pipes.

Mark and drill a level 130mm hole for the passage of the horizontal

ue terminal. Insert the terminal assembly into the ue hole. Push-t the twin ue pipes onto the concentric to twin converter

box ensuring that the exhaust pipe connects to the exhaust connection on the concentric to twin converter.

If necessary cut the plain ends (male) of the twin ue pipes to

allow connection to the concentric to twin converter.

NOTE

Before cutting twin ue pipes ensure allowances have been

made for connection onto the previous piece and onto the

concentric to twin converter. The last twin ue pipes must be

pushed 50mm onto the male spigots of the concentric to twin converter.

NOTE

Seal the ue terminal assembly to the wall using cement or a

suitable alternative that will provide satisfactory weatherproof-

ing. The interior and exterior trim can now be tted.

VERTICAL TERMINATION (g. 21)

The twin ue system must be converted to the dedicated concentric ue kit for termination.

• The vertical terminal is supplied with a built-in converter box and cannot be shortened.

INSTALLATION OF TWIN ADAPTOR KIT (g. 18 & 19)

• Insert the exhaust connection manifold (A) onto the appliance

ue outlet.

• Remove the blanking plate (located to the left of the appliance

ue outlet) and – using the same screws – install the air inlet

plate (B).

• Using the hole in the exhaust connection manifold as a guide,

drill a 3mm hole in the appliance ue spigot and secure the exhaust manifold connection to the ue spigot using the screw

provided (C).

• Using the two holes in the air inlet plate as a guide, drill a 3mm hole in each and secure the air inlet pipe/bend using the screws provided.

The twin ue pipes extensions and accessories can now be

installed by pushing together (the plain end of each extension or bend should be pushed approximately 50mm into the female socket of the previous piece).

Fig. 19

• A 130mm hole is required for the passage of the concentric terminal through the ceiling and/or roof.

Depending on site conditions it may be preferable to install the

terminal assembly prior to tting the twin ue pipes. Fit the appropriate ashing plate to the roof and insert the vertical ue terminal through the ashing plate from the outside, ensuring that the collar on the ue terminal ts over the ashing. Push-t the twin ue pipes onto the concentric to twin converter

ensuring that the exhaust pipe connects to the exhaust connection on the concentric to twin converter.

If necessary cut the plain ends (male) of the twin ue pipes to

allow connection to the concentric to twin converter.

NOTE

• Before cutting twin ue pipes ensure allowances have been

made for connection onto the previous piece and onto the

concentric to twin converter. The last twin ue pipes must be

pushed 50mm onto the male spigots of the concentric to twin converter.

• You must ensure that the entire ue system is properly sup- ported and connected.

• Ensure that any horizontal sections of pipe have a 1º fall towards the appliance (17mm per 1000mm).

Fig. 20

1-deg = 17mm

Fig. 21

Page 19

4.6 CONNECTING THE GAS AND WATER

The appliance is supplied with an accessory pack that includes service valves. The service valves are for welding. The accessory pack contains sealing washers’ etc, for use with the service valves.

NOTE

It will be necessary to hold the valve with one spanner whilst tightening with another

4.6.1 GAS (g. 22)

The appliance is supplied with a 15mm service valve, connect a 15mm pipe to the inlet of the valve and tighten both nuts.

NOTE

It will be necessary to calculate the diameter of the gas supply pipe to ensure the appliance has an adequate supply of gas.

4.6.2 FLOW & RETURN (g. 22)

The appliance is supplied with 22mm service valves for the

ow and return connections, connect a 22mm pipe to the inlet

of each valve and tighten both nuts.

NOTE

Depending on system requirements, it may necessary to in-

crease the size of the ow & return pipe work after the service

valve connections.

4.6.3 SAFETY VALVE (g. 22)

Connect the safety valve connection pipe to the safety valve outlet. Connect a discharge pipe to the other end of the safety valve connection pipe and tighten. The discharge pipe must have a continuous fall away from the appliance to outside and allow any water to drain away thereby eliminating the possibility of freezing. The discharge pipe must terminate in a position where any water – possibly boiling – discharges safely without causing damage or injury, but is still visible.

4.6.4 CONDENSE PIPE

During normal operation the boiler produces condense which is collected in a trap located in the lower part of the boiler. A

exible pipe (condense outlet pipe) is connected to the outlet of the trap. The exible pipe must be connected to a plastic

waste pipe only. The plastic waste pipe must have a minimum of a 3º fall towards the drain. Any external run of pipe should be insulated to prevent the risk of freezing.

4.6.5 CONNECTING THE CONDENSATE OUTLET

Gently pull the condense outlet pipe down from its location inside the boiler until approximately 100mm protrudes from the underside of the boiler, care should be taken to ensure that the pipe connection to the trap remains secure. Connect a suitable plastic (not copper) pipe (no less than 21mm diameter) to the outlet pipe and ensure it discharges in accordance with local building regulations or other rules in force.

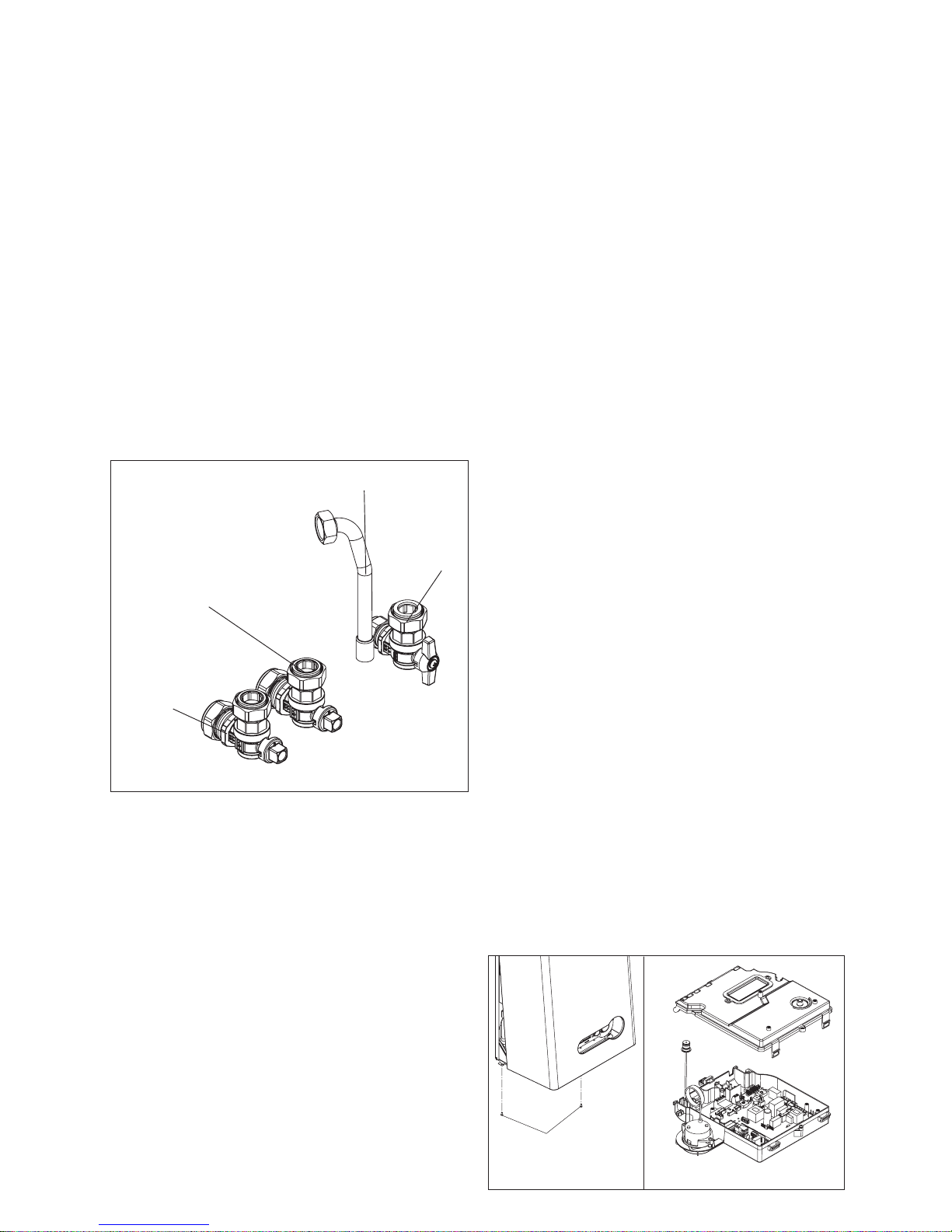

Fig. 22

4.7 ELECTRICAL CONNECTIONS

The boiler is supplied with a 2-metre y-lead. This lead can be used for connection to the electrical supply. Connect the y-lead

to a fused plug or fused isolator in the following way:

• brown wire to LIVE supply

• blue wire to NEUTRAL supply

• green/yellow to EARTH connection.

Insert the supplied 3-AMP fuse into the fused isolator or fused plug.

Should the y-lead be unsuitable, refer to 4.7.3 for details on

how to connect the electrical supply directly to the boiler.

The electrical supply must be as specied in section 3/3A. A qualied electrician should connect the appliance to the electrical

supply. If controls - external to the appliance - are required, a competent person must undertake the design of any external electrical circuits, please refer to section 8 for detailed instructions. ANY EXTERNAL CONTROL OR WIRING MUST BE SERVED FROM THE SAME ISOLATOR AS THAT OF THE APPLIANCE. The supply cable from the isolator to the appliance

must be 3-core exible sized 0.75mm to BS 6500 or equivalent.

Wiring to the appliance must be rated for operation in contact with surfaces up to 90 ºC.

4.7.1 CASING REMOVAL (g. 23)

To gain internal access to the appliance you must rst remove

the casing, proceed as outlined below:

• locate and unscrew the 2-screws (A) that secure the outer

casing to the appliance

• lift the casing upward to disengage it from the top locating

hooks and then remove

• store the casing and screws safely until required. Re-t in

the reverse order

• remove the retaining screw below the control fascia and

gently lower it until it rests.

4.7.2 APPLIANCE TERMINAL BLOCK

The appliance terminal block is located on the rear of the control fascia. Remove the casing as described in 4.7.1. Gently pull the control panel forwards and down. Locate the terminal block

cover (g. 24).

NOTE

The appliance comes with a factory tted link (‘TA’) to allow

basic operation of the boiler via the mode selector switch. If it is anticipated that external controls will be required please refer to the wiring diagrams in section 8 for more detailed information.

4.7.3 CONNECTING THE MAINS (230V) INPUT

Unhook and remove the terminal block cover (230V). Pass the cable through the cable anchorage point. Connect the supply cable wires (LIVE, NEUTRAL, & EARTH) to their corresponding terminals (L, N, & E) on the appliance – high voltage – terminal block. When connecting the EARTH wire, ensure that it’s left slightly longer that the others, this will prevent strain on the EARTH wire should the cable become taut.

The securing screw on the cable anchorage should now be tightened. This must be done before the terminal block cover

is re-tted in its position.

NOTE

It is the installer’s responsibility to ensure that the appliance is properly Earthed. Vokèra Ltd. cannot be held responsible for any damages or injuries caused as a result of incorrect Earth wiring.

Fig. 23

Fig. 24

Gas

cock

C/H ow

valve

C/H return

valve

Safety valve outlet

Page 20

5.1 GAS SUPPLY INSTALLATION

Inspect the entire installation including the gas meter, test for tightness and purge. Refer to BS 6891 (I.S. 813 in ROI) for

specic instruction.

5.2 THE HEATING SYSTEM

The appliance contains components that may become damaged or rendered inoperable by oils and/or debris that are residual from the installation of the system, consequently it is essential

that the system be ushed in accordance with the following

instructions.

5.3 INITIAL FILLING OF THE SYSTEM

Ensure both ow and return service valves are open, remove

appliance casing as described in 4.7.1, identify the automatic air release valves (AAV) and loosen the dust cap/s by turning the cap anti-clockwise one full turn. Ensure all manual air release valves located on the heating system are closed. Connect the

lling loop as shown in g. 4, slowly proceed to ll the system by rstly opening the inlet valve connected to the ow pipe, and then turning the lever on the ll valve, to the open position. As

water enters the system the pressure gauge will begin to rise. Once the gauge has reached 1 BAR close both valves and begin

venting all manual air release valves, starting at the lowest rst.

It may be necessary to go back and top-up the pressure until

the entire system has been lled. Inspect the system for water

tightness, rectifying any leaks.

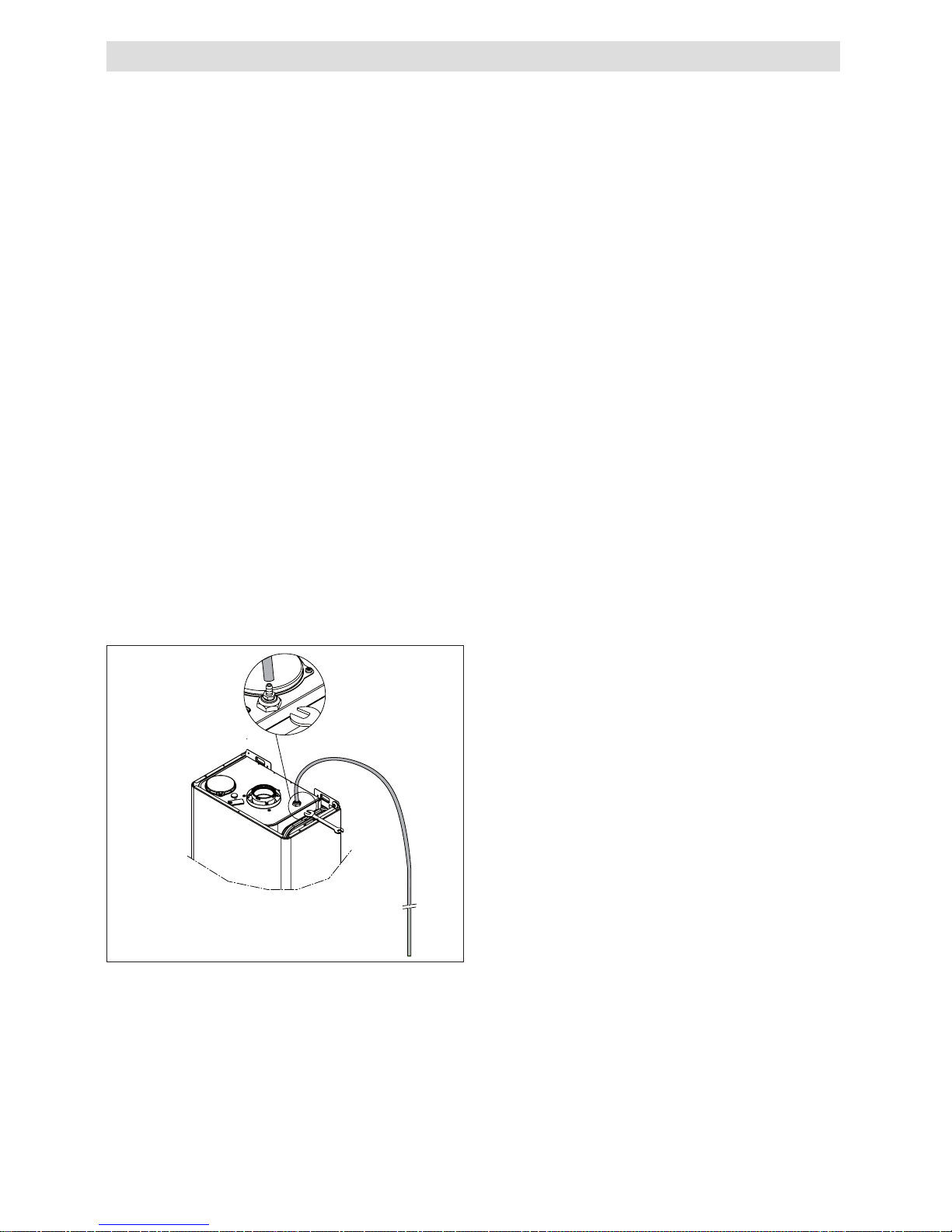

5.3.1 MANUAL AIR RELEASE (g. 25)

When the boiler has been lled for the rst time or the system has been drained and relled, it will be necessary to release

any air that may have become trapped within the appliance heat exchanger. Slacken the bleed screw until water is released and then close.

IMPORTANT, THERE ARE NO OTHER MANUAL AIR RELEASE VALVES LOCATED ON THE APPLIANCE.

5.4 INITIAL FLUSHING OF THE SYSTEM

The whole of the heating system must be ushed both cold

and hot as detailed in 5.8. Open all radiator or heating valves

and the appliance ow & return service valve. Drain the boiler

and system from the lowest points. Open the drain valve full bore to remove any installation debris from the boiler prior to

lighting. Rell the boiler and heating system as described in 5.3.

5.5 PRE-OPERATION CHECKS

Before attempting the initial lighting of the appliance, the following checks must be carried out:

• ensure all gas service valves from the meter to the appliance are open and the supply pipe has been properly purged;

• ensure the proper electrical checks have been carried out, (see

7.8) particularly continuity, polarity and resistance to earth;

Fig. 25

• ensure the 3 AMP fuse – supplied with the appliance – has

been tted;

• ensure the system has been lled, vented and the pressure

set to 1 BAR;

• ensure the ue system has been tted properly and in ac- cordance with the instructions;

• ensure all appliance service valves are open.

5.6 INITIAL LIGHTING

Ensure the electrical supply to the appliance is switched on. Ensure any external controls are switched to an ‘ON’ position and are calling for heat. Move the selector switch to the ON position, the appliance will now operate as described in 1.2. Should the appliance fail to ignite, refer to 5.6 and/or section 7

(mode of operation, parameter setting & faultnding).

5.7 CHECKING GAS PRESSURE AND COMBUS-

TION ANALYSIS

The appliance is factory set so should require no additional adjustment once installed. However to satisfy the requirements of GSIUR 26/9 (I.S. 813 ROI), it will be necessary to gas rate the appliance using the gas meter that serves the appliance and carry out a combustion analysis check in accordance with BS 7967 (UK) to ensure that correct combustion is

occurring, see ow chart on page 34.

Additionally, if the gas valve has been adjusted, replaced, or the appliance has been converted for use with another gas type, then it becomes necessary to carry out a combustion analysis check to ensure that correct combustion is occurring. If there are no means to carry out a combustion analysis check, then it will not be possible to complete the commissioning procedure. Details on how to carry out the combustion analysis can be found in section 7.

IMPORTANT

It’s imperative that a sufcient dynamic – gas – pressure is

maintained at all times. Should the dynamic gas pressure fall below an acceptable level, the appliance may malfunction or sustain damage.

5.8 FINAL FLUSHING OF THE HEATING SYSTEM

The system shall be ushed in accordance with BS 7593 (I.S.

813 ROI). Should a cleanser be used, it must be suitable for Aluminium heat exchangers. It shall be from a reputable manufacturer and shall be administered in strict accordance with the manufacturers’ instructions and the DWTA code of practice.

NOTE

Chemicals used to cleanse the system and/or inhibit corrosion must be pH neutral, i.e. they should ensure that the level of the pH in the system water remains neutral. Premature failure of certain components can occur if the level of pH in the system water is out-with normal levels.

5.8.1 INHIBITORS

See Section 3 “General Requirements”.

5.9 SETTING THE FLOW OUTLET TEMPERA-

TURE

The ow outlet temperature can be adjusted between 40 °C -

80 °C for standard CH system by using the Heating thermostat

knob (see g.1).

5.10 SETTING THE SYSTEM DESIGN PRESSURE

The design pressure should be a minimum of 0.5 BAR and a maximum of 1.5 BAR. The actual reading should ideally be 1 BAR plus the equivalent height in metres (0.1 BAR = 1 metre) to the highest point in the system above the base of the appliance (up to the maximum of 1.5 BAR total).

N.B. The safety valve is set to lift at 3 BAR/30 metres/45 psig. To lower the system pressure to the required value, drain off some water from the appliance drain valve until the required

gure registers on the pressure gauge (see g. 1).

SECTION 5 - COMMISSIONING

Page 21

6.1 GENERAL

Once the appliance has been serviced, the benchmark Service Record must be completed.

For UK only: It is important that the Benchmark Service Record is correctly completed and handed to the user. Failure to install and commission the appliance to the manufacturers instructions will invalidate the warranty.

To ensure the continued safe and efcient operation of the appliance, it is recommended that it is checked and serviced at regular intervals. To ensure correct and safe operation of the appliance, it is essential that any worn or failed component be replaced only with a genuine Vokèra spare part. It should be remembered that although certain generic components may

look similar, they will be specic to an individual appliance or

product range. Use of non-genuine Vokèra spare parts could invalidate your warranty and may pose a potential safety hazard. The frequency of servicing will depend upon the particular installation conditions, but in general, once per year should be

sufcient. It is the law that any servicing work is carried out by

competent person such as a Vokèra engineer, an approved service agent, British Gas, GAS SAFE registered personnel or other suitably qualied personnel. The following instructions apply to the appliance and its controls, but it should be remembered that the central heating and the domestic hot water systems would also require attention from time to time.

6.2 ROUTINE ANNUAL SERVICING

• Check the operation of the appliance and ensure it functions

as described in section 7.

• Compare the performance of the appliance with its design specication. The cause of any noticeable deterioration should be identied and rectied without delay.

• Thoroughly inspect the appliance for signs of damage or deterioration especially the ue system and the electrical

apparatus.

• Check and adjust – if necessary – all burner pressure settings (see 7.4).

• Check and adjust – if necessary – the system design pressure (see 5.10).

5.11 REGULATING THE CENTRAL HEATING

SYSTEM

Fully open all radiator and circuit valves and run the appliance for both heating and hot water until heated water is circulating. If conditions are warm remove any thermostatic heads. Adjust radiator return valves and any branch circuit return valves until the individual return temperatures are correct and are approximately equal.

5.12 FINAL CHECKS

• ENSURE ALL TEST NIPPLES ON THE APPLIANCE GAS

VALVE ARE TIGHT AND CHECKED FOR TIGHTNESS.

• ENSURE THE APPLIANCE FLUE SYSTEM IS FITTED

CORRECTLY AND IS PROPERLY SECURED.

• ENSURE ALL PIPE WORK IS RE-CHECKED FOR TIGHTNESS.

• RE-FIT APPLIANCE CASING.

• COMPLETE BENCHMARK CHECKLIST.

FOR UK ONLY

Complete details of the boiler, controls, installation and commissioning in the Benchmark checklist at the back of this book. It is important that the Benchmark checklist is correctly completed and handed to the user. Failure to install and commission the appliance to the manufacturers instructions will invalidate the warranty.

5.13 INSTRUCTING THE USER

Hand over all documentation supplied with this appliance – including these instructions – and explain the importance of keeping them in a safe place.

Explain to the user how to isolate the appliance from the gas, water and electricity supplies and the locations of all drain points. Show the user how to operate the appliance and any associated controls correctly.

Show the user the location of the lling valve and how to top-

up the system pressure correctly and show the location of all manual air release points. Explain to the user how to turn off the appliance for both long and short periods and advise on the necessary precautions to prevent frost damage.

Explain to the user that for continued safe and efcient operation,

the appliance must be serviced annually by a competent person.

IMPORTANT

To validate the appliance warranty, it’s necessary to register the appliance details with us. The warranty can be registered in several ways:

• by completing the warranty registration card and posting to us using the envelope supplied

• online at: vokera.co.uk

• for UK residents by calling: 0870 607 0281

• for ROI residents by calling: 056 6655057.

SECTION 6 - SERVICING INSTRUCTIONS

• Carry out an analysis of the ue gases (see 7.5), and visually check the condition of the entire ue assembly.

• Compare the results with the appliance design specication. Any deterioration in performance must be identied and rectied without delay.

• Check that the main heat exchanger is clean and free from

any debris or obstruction.

• Check and clean – if necessary – the condense trap to ensure correct operation.

The ame side of the burner is made of state-of-the-art material. Being fragile:

- be particularly careful when handling, mounting or dismantling the burner and adjacent components (e.g. electrodes, insulation panelling etc.)

- avoid direct contact with any cleaning appliance (e.g. brushes, aspirators, blowers, etc.).

This component does not need any maintenance, please do not remove it from its housing, except where the gasket may have to be replaced. The manufacturer declines all responsibility in cases of damages due to failing to observe the above.

6.3 REPLACEMENT OF COMPONENTS

Although it is anticipated that this appliance will give years of reliable, trouble free service, the life span of components will be determined by factors such as operating conditions and usage.

Should the appliance develop a fault, the fault nding section

will assist in determining which component is malfunctioning.

6.4 COMPONENT REMOVAL PROCEDURE

To remove a component, access to the interior of the appliance is essential. Isolate the appliance from the electrical supply and remove the fuse. And when necessary, close all service valves on the appliance, remove the appliance casing as described in section 4.7.1 and drain the water content from the appliance via the drain valve. Ensure some water absorbent cloths are available to catch any residual water that may drip from the

Page 22

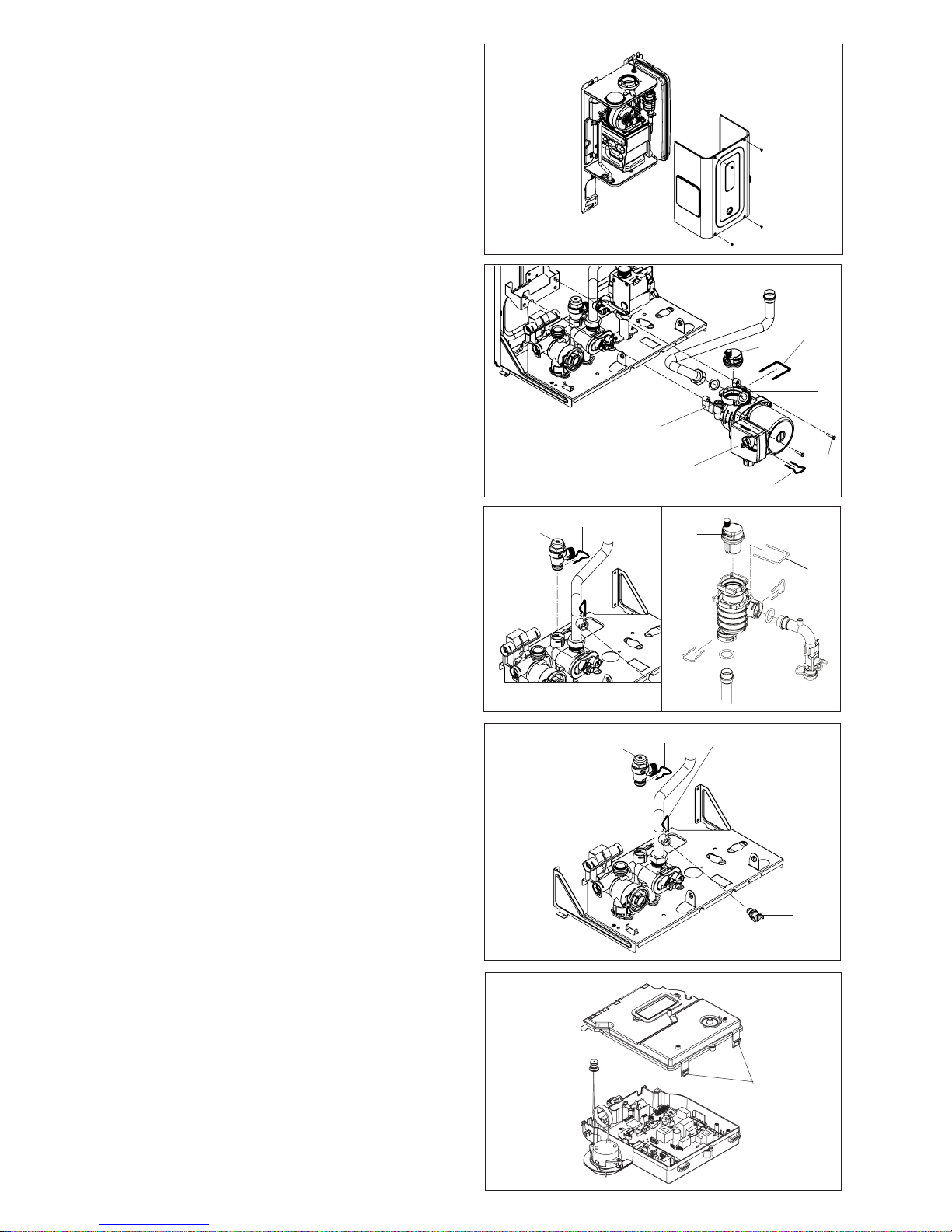

Fig. 26

Fig. 27

Fig. 28

Fig. 29

Fig. 30

Fig. 31

appliance or removed component. Undertake a complete commissioning check as detailed in section 5, after replacing any component. ALWAYS TEST FOR GAS TIGHTNESS IF ANY

GAS CARRYING COMPONENTS HAVE BEEN REMOVED OR DISTURBED.

6.4.1 AIR BOX FRONT COVER REMOVAL (g. 26)

Locate the 4 screws and remove air box front cover.

6.5 PUMP ASSEMBLY (g. 27)

Carry out component removal procedure as described in 6.4. Disconnect and remove the pump outlet pipe (A) from the pump assembly/combustion chamber connection. Remove the expansion pipe locking pin (B) from the top of the

pump assembly and withdraw the exible pipe. Locate and

remove the pressure gauge securing pin (C) and disconnect the pressure gauge from the pump assembly. Disconnect the electrical wiring from the pump’s electrical connection point (D). Locate and remove the 2 securing screws (E) at the rear of the pump assembly. Remove locking pin (F) from pump base and lift pump assembly clear of the hydraulic manifold. The pump assembly can now be removed from the appliance. Replace carefully in the reverse order.

6.6 SAFETY VALVE (g. 28)

Carry out component removal procedure as described in 6.4. Disconnect the outlet pipe (G) from the safety valve, remove safety valve locking pin (H) from the hydraulic manifold. Replace in the reverse order.

6.7 LOWER AUTOMATIC AIR RELEASE VALVE

(g. 27)

Carry out component removal procedure as described in 6.4. Remove the expansion pipe locking pin (B) from the pump assembly and remove the expansion pipe. Locate and remove the AAV locking pin (I) from the pump assembly and remove the AAV assembly (J). Replace in the reverse order.

6.7.1 TOP AUTOMATIC AIR RELEASE VALVE (g. 29)

Carry out component removal procedure as described in 6.4. Remove the AAV locking pin (K) from the deaerator assembly and remove the AAV assembly (L). Replace in the reverse order.

6.8 WATER PRESSURE SWITCH (g. 30)

Carry out component removal procedure as described in 6.4. Locate and remove the locking pin (N) from the water pressure switch (M). Remove the wiring. Carefully withdraw the switch. Replace in the reverse order.

6.9 FLOW THERMISTOR (g. 3 - pos. 16)

Carry out component removal procedure as described in 6.4.

Unclip and remove the air chamber front cover. Unclip the ow thermistor from the ow outlet pipe. Disconnect thermistor

electrical plug. Replace in the reverse order.

6.10 RETURN THERMISTOR (g. 3 - pos. 19)

Carry out component removal procedure as described in 6.4. Unclip and remove the air chamber front cover. Unclip the return thermistor from the return inlet pipe. Disconnect thermistor electrical plug. Replace in the reverse order.

6.11 PRINTED CIRCUIT BOARD (g. 31)

Carry out component removal procedure as described in 6.4. Pull the control fascia forward and lower it. Push the clips (O) which secure the PCB cover, remove cover, after carefully tak-

ing note of all wiring connections and jumper tag conguration.

Disconnect all wiring from the PCB, locate and remove the PCB securing screws, remove the PCB. Replace in the reverse order ensuring that the position of the 2 control knobs are correctly aligned with the respective potentiometers on the PCB. Ensure that the correct jumper tag conguration has been respected. It will be necessary to check the functioning of the PCB is set for the correct boiler output, type and application. Details on setting fan speeds can be found in section 7.10.

Page 23

6.14 FLUE FAN & MIXER (g. 34-35)

Carry out component removal procedure as described in 6.4. Remove the air chamber front cover. Locate and remove the gas pipe locking pin (A1) and swing/rotate the gas pipe away from the fan assembly (B1), (if necessary unscrew the gas pipe from the gas valve G1). Locate and slacken the silencer (H1). Locate and remove the sense electrode. To remove the fan (E1), disconnect the electrical connections attached to the fan, locate and remove the four screws (F1). Gently ease the fan from its location. To remove the mixer (C1) locate and remove the three screws (D1), the mixer can be removed after the fan removal. Replace in the reverse order. Ensure all seals are in good condition, taking care to ensure they are replaced correctly.

6.15 BURNER (g. 34)

Carry out component removal procedure as described in 6.4. Remove the air chamber front cover. Locate and remove the gas pipe locking pin (A1) and swing/rotate the gas pipe away from the fan assembly (B1), (if necessary unscrew the gas pipe from the gas valve G1). Locate and slacken the silencer (H1), disconnect the electrical connections attached to the fan. Disconnect the electrode leads and ancillary wiring from their respective connectors. Locate and remove the screws (I1) which secure the burner assembly in position to the heat exchanger (J1). Gently ease the fan assembly out of its location. Once the assembly has been removed, the burner (K1) can be withdrawn from the heat engine. Ensure the seals (L1) is in good condition, taking care to ensure it is replaced correctly. Replace in the reverse order.

Fig. 33

6.13 ELECTRODES (g. 33)

Carry out component removal procedure as described in 6.4. Remove the air chamber front cover. Disconnect the electrode leads and ancillary wiring from their respective connectors. Remove the retaining screws (V) for electrode. Remove the spark ignition electrode (W). Remove the ame sensor electrod (Y).

6.12 GAS VALVE (g. 32)

Carry out component removal procedure as described in 6.4. The gas valve must be changed as complete unit. Disconnect the electrical plug and leads from the gas valve, slacken and unscrew gas valve inlet and outlet connections. Please note, the sealing washers (Q) must be discarded and replaced with new sealing washers. Disconnect the compensation pipe (R). Unscrew gas pipe connections (S-T), the gas valve can now be removed. Replace in the reverse order. Check and adjust burner pressure settings.

WARNING, A GAS TIGHTNESS CHECK MUST BE CARRIED OUT.

6.12.1 INJECTOR (g. 32)

Carry out component removal procedure as described in 6.4. Unscrew and remove gas pipe connections (S-T). Locate and remove the injector (U) inside the valve. Replace in the reverse order. Check and adjust burner pressure settings.

WARNING, A GAS TIGHTNESS CHECK MUST BE CARRIED OUT.

Fig. 32

Fig. 34

Page 24

Fig. 35

Fig. 36

Fig. 38

Fig. 37

6.16 MAIN HEAT EXCHANGER (g. 35)

Carry out component removal procedure as described in 6.4. Remove the air chamber front cover. Locate and remove the gas pipe locking pin (A1) and swing/rotate the gas pipe away from the fan assembly (B1), (if necessary unscrew the gas pipe from the gas valve G1). Disconnect the electrical connections attached to the fan. Disconnect the electrode leads and ancillary wiring from their respective connectors. Disconnect the ow locking pin (N1), return locking pin (M1) on the heat exchanger. Locate and remove the 4-screws that secure the heat exchanger to the combustion chamber (O1).

Move the heat exchanger and disconnect it from the ue collector

(P1). The heat exchanger can now be lifted up and withdrawn from the appliance. Replace in the reverse order. Ensure all seals are in good condition, taking care to ensure they are replaced correctly.

6.17 AUTOMATIC BY-PAS (g. 36)

Carry out component removal procedure as described in 6.4. Remove the locking pin (Q1) that secures the cover (R1) to the hydraulic manifold. Using a hooked piece of wire, carefully withdraw the by-pass cartridge (S1). Ensure all seals are in good condition, taking care to ensure they are replaced correctly. Replace in the reverse order ensuring the cartridge is facing the correct way.

6.18 EXPANSION VESSEL REMOVAL (g. 37)

Carry out component removal procedure as described in 6.4.

Disconnect the expansion vessel from the exible expansion pipe. Disconnect the exible expansion pipe from the vessel.

Unscrew the nut that secures the vessel to the lower frame. Locate and remove the screw (U1) that secure the vessel to the top. The expansion vessel can now be removed. Replace in the reverse order. Ensure all seals are in good condition, taking care to ensure they are replaced correctly.

6.19 CONDENSE TRAP REMOVAL (g. 38)

Carry out component removal procedure as described in 6.4. Disconnect the the locking pin (V1) that secures the trap to the top condense pipe. Disconnect the lower rubber condense pipe from the condense trap. Carefully remove the condense trap. For cleaning unlock the upper and lower closing plug (W1). Replace in the reverse order.

Page 25

7.1 CHECKING APPLIANCE OPERATION

When carrying out any repairs or servicing to the appliance, the relevant commissioning procedure must be undertaken to ensure the continued safe operation of the appliance. Particular attention should be made to ensure gas tightness, water tightness and the electrical integrity of the appliance.

7.2 APPLIANCE MODES OF OPERATION

NOTE

There must be sufcient system water pressure (min. 0.5 bar)

to ensure the water pressure switch is activated. If there is in-

sufcient system pressure the pump and fan will be prevented

from operating and the low-pressure fault code will be indicated.

7.2.1 SELECTOR SWITCH IN THE OFF POSITION

When the selector switch is in the OFF position, the following functions are active.

Active functions:

•frost-protection system

•pump anti-block.

7.2.2 ON-BOARD FUNCTIONS

• CO FUNCTION: the CO function when activated, will allow the appliance to run at CH maximum, whilst a combustion analysis check or a mechanical gas valve calibration is being carried out. Whilst the CO function is active, all other functions are disabled (minimum power operating period, anti-cycle, set-point, etc). Once enabled, the CO function will remain active for a 15-minute period, or until the function is manually deactivated.

• FROST-PROTECTION: this function is only active when there are no requests for heating or HW. If the temperature drops below 5°C, the boiler will operate on minimum power until the temperature of the thermistors reaches 35°C . Thereafter the pump & fan will over-run for 30-seconds.

• ANTI-C YCLE FUNCTION: the anti-cycle function ensures the burner remains switched off for at least 3-minutes after the set-point hysterisis (set-point + 5-deg) for CH heat request.

• PUMP ANTI-BLOCK FUNCTION: when there has been no heating or HW request for 24-hours, the anti-block cycle is activated. The pump will be activated for a period of 30-seconds.

• SARA function: the SARA function permits the boiler (when the set-point is within the SARA range) to automatically adjust

(raise) the heating ow outlet temperature should the room

thermostat contacts remain closed for more that 20-minutes.

7.2.3 HEATING MODE

With the selector switch in the heating & hot water position and any additional controls (time clock, programmer, room thermostat, etc.) calling for heat, the appliance will operate in the heating mode. The pump and fan will be activated via

the ow temperature sensor. When the fan is sensed to be

operating correctly (tacho signal), the ignition sequence commences. Ignition is sensed by the electronic circuit to ensure

ame stability at the burner. Once successful ignition has been

achieved, the electronic circuitry increases the gas rate to 75% for a period of 15 minutes. The speed of the fan and therefore the output of the boiler is determined by the temperature of the water sensed by the

ow temperature sensor, consequently a high temperature at the ow sensor results in a lower fan speed. As the water tem-

perature increases, the temperature sensors – located on the

ow pipe of the boiler – reduce the fan speed via the electronic

circuitry. Depending on the load, either the water temperature will continue to rise until the set point is achieved or the water temperature will fall whereby fan speed will increase relative to the output required. When the boiler has reached the set point (+ hysterisis), the burner will switch off. The built-in anti-cycle device prevents the burner from re-lighting for approximately

3-minutes. When the temperature of the ow sensor falls below

the set point (- hysterisis), the burner will re-light.

NOTE

If the spark/sensing electrode does not sense ignition the appliance will re-attempt ignition a further 4-times then go to lockout. When the set-point has been reached (the position of the heating temperature selector) as measured at the primary thermistor, the appliance will begin the modulation phase whereby the fan and gas valve will continuously modulate to maintain the set-point. If the temperature continues to rise and exceeds the set-point by 5°C (hysterisis), the burner will shut down. A new ignition sequence will be enabled when the 3- minute anti-cycle has been performed and the temperature at the primary thermistor has dropped 5°C (hysterisis) below the set-point.

ATTENTION Gas type and appliance output must be set according to the

specic appliance specication. Vokèra accepts no responsibility if the gas type is not correctly adjusted according to the

respective appliance specication as detailed on the appliance

data badge.

SECTION 7 - CHECKS, ADJUSTMENTS AND FAULT FINDING

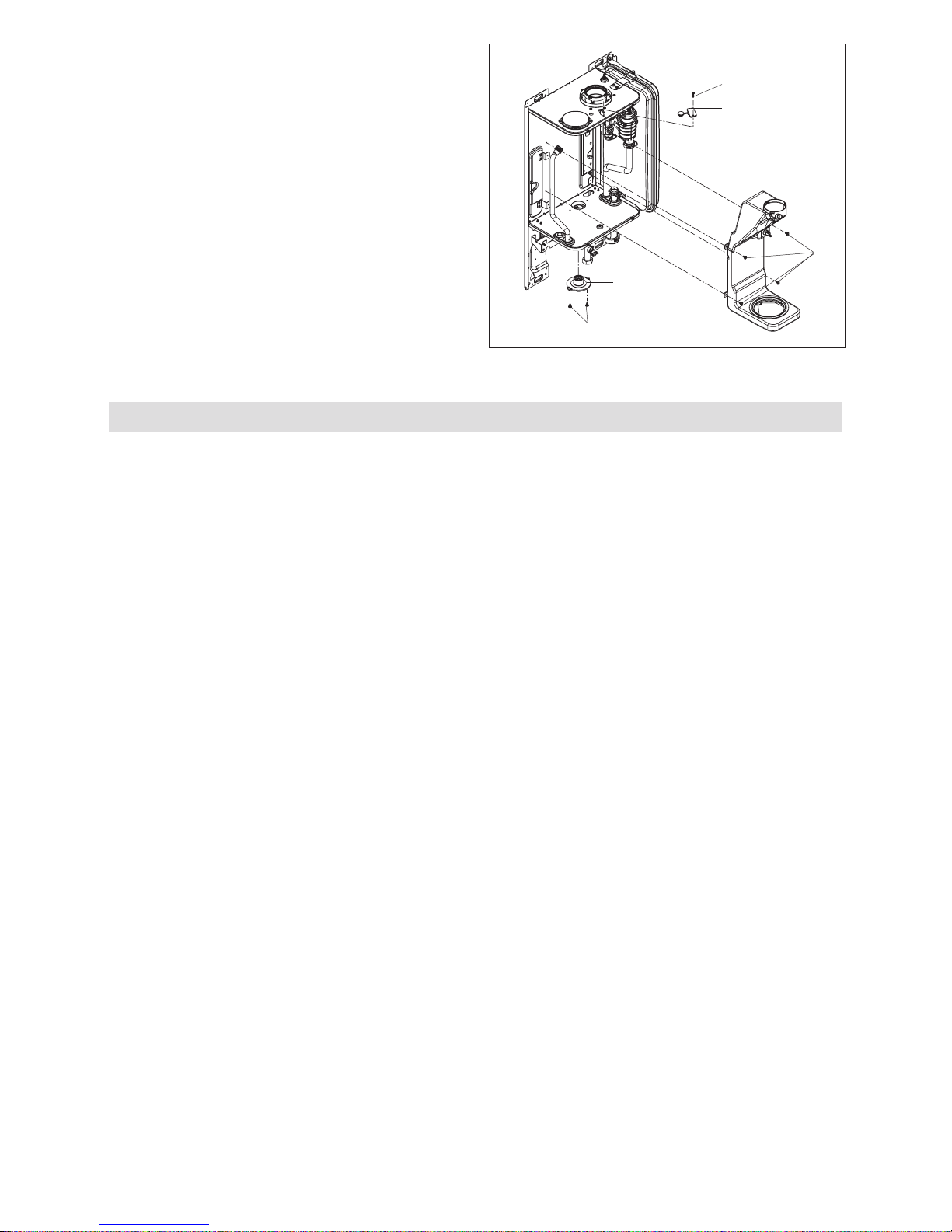

Fig. 39

6.20 FLUE COLLECTOR REMOVAL (g. 39)

Carry out component removal procedure as described in 6.4. Remove the air chamber front cover. Remove the heat exchanger as per 6.16. Locate and remove the screw (Y1) that secures

the ue gas analysis test point cover (Z1). Disconnect the ues

thermistor wiring connections. Locate and remove the 4 screws (A2). Locate and remove the 2 screws (A3). Gently ease the condensate collector (A4) out off its location. Gently ease the

ue collector out off its location. Replace in the reverse order.

Page 26

7.3 CHECKING THE CO2 AND ADJUSTING THE GAS VALVE

THE GAS VALVE MUST BE SET-UP OR ADJUSTED WITH THE AID OF A PROPERLY CALIBRATED FLUE GAS ANALYSER. Isolate the appliance from the electrical supply and remove the appliance casing as described in 4.7.1, to gain access to the printed circuit board, locate and open the closing plug on the dash board (L2), Restore the electrical supply to the boiler and switch the boiler to the OFF mode. locate and press the CO button (see g. 36 pos. SW1). Press the button the number of times according the function requirement as par 7.3.1.

Set the ue gas analyser to read CO2 and insert the probe into the ue analysis test point (Y1-Z1 g. 33).

Fig. 40

SW1

use the supplied

screwdriver to push the

CO botton (SW1)

7.3.2 GAS VALVE MAXIMUM SETTING

Set the CO2 button at maximum heating (see 7.3.1), once the maximum heating is obtained (only yellow led blinking) check that it corresponds with the appropriate CO2 value (Maximum) for the respective appliance (see 2.11). If the CO2 reading is correct, proceed to gas valve minimum setting (7.3.3). However, if the CO2 reading is incorrect, the maximum gas pressure must be adjusted as follows:

• using a 2.5mm Allen key, very slowly turn the maximum ad-

justment screw (see g. 41) – clockwise to decrease, counter

clockwise to increase – until the correct value is displayed on the CO2 analyser (allow time for the analyser to stabilise).

7.3.3 GAS VALVE MINIMUM SETTING

Set the CO2 button at minimum (see 7.3.1), once the minimum

is obtained (yellow led blinking + green led xed) check that it

corresponds with the appropriate CO2 value (Minimum) for the respective appliance (see 2.11). If the CO2 reading is correct, proceed to completion (7.3.4). However, if the CO2 reading is incorrect, the minimum gas pressure must be adjusted as follows:

• locate the minimum adjustment screw (g. 41), using a suitable screwdriver remove the protection plug

• using a 4mm Allen key, very slowly turn the minimum adjustment screw (see g. 41) - clockwise to increase, counter

clockwise to decrease - until the correct value is displayed on the CO2 analyser (allow time for the analyser to stabilise).

7.3.4 COMPLETION

On completion of the combustion analysis check and/or any gas valve adjustment, ret the plug (g. 40 L2) and move the mode selector through position. Remove the test probe

from the test point and ret the sealing screw/s and/or cap.

IMPORTANT A GAS TIGHTNESS CHECK MUST BE CARRIED OUT IF ANY GAS CARRYING COMPONENTS HAVE BEEN REMOVED, REPLACED OR DISTURBED.

7.4 COMBUSTION ANALYSIS TEST

A combustion analysis check can easily be carried out on the appliance via the test points located on the top of the appliance (see 7.3).

• Insert the ue gas analyser probe into the ue gas test point (see g. 39).

7.3.1 CO2 FUNCTION SETTINGS

Locate the CO button (see 7.3) Select the main selector switch in position

CO2 FUNCTIONS ACTION ON THE BUTTON LED STATUS

combustion analysis mode press once = burner running at maximum heating ACO gas valve maximun setting (*) press twice = burner running at maximum absolute ACO gas valve minimum setting press three time = burner running at minimum ACO

(*) this step has not to be used for the system boiler. If you nd in this situation press the button once again.

NOTE

1 - Any additional pressing of CO button after the third time the burner switched between maximum absolute and minimum. 2 - To restart the CO function it is necessary to pass throught the position with the main selector switch

• Operate the boiler in combustion analysis mode (see 7.3.1) and compare the values with those shown in section 2 (Nat. Gas) or section 10 (LPG). If different adjust the gas valve according to 7.3.1, 7.3.2, & 7.3.3.

Note: If a measured CO/CO2 ratio of 0.004/1 or less AND a CO reading of less than 350ppm cannot be achieved, please contact Vokera technical for advice.

7.5 CHECKING THE EXPANSION VESSEL

Carry out the component removal procedure as described in

6.4. You must ensure that the boiler is completely drained of

water. Using a suitable pressure gauge, remove dust cap on expansion vessel and check the charge pressure. The correct charge pressure should be 1.0 bar ± 0.1 bar. If the charge pressure is less, use a suitable pump to increase the charge.

NOTE

You must ensure the drain valve is in the open position whilst re-charging takes place. Replace the dust cap and carry out the relevant commissioning procedure (section 5).

g. 41

Minimum

screw

Inlet gas pressure

connection

Compensation pipe

connection

Maximum

screw

Page 27

7.9 COMPONENT VALUES & CHARACTERISTICS

APPLIANCE STATUS LED AND FAULT CODES

When the boiler detects a temporary fault condition, the ap-

propriate code is shown. If/when the fault is nal, the pump

will perform a 60-second post circulation and fault code will be displayed. See table on page. 5.

COMPONENT VALUE

Fan 230Vac Pump 230Vac Ignition transformer 230Vac Gas valve 230Vac Room thermostat connection 24Vdc Y and S plan input connection (CN1) 230Vac NTC thermistor (dry contact) 10Kohm NTC thermistor (wet contact) 10Kohm

FUNCTION VALUE

Standard Heating temperature range (min – max °C) 40 - 80 75% maximum CH time 15 min Heating OFF hysterisis (°C) SP + 5 Heating ON hysterisis (°C) SP – 5 Anti-cycle delay 3-min Pump over-run 30-sec Low output (min. output + %) Min+25 CO function max temp. (°C) 90 CO re-light temp. (°C) 78 CO function time 15-min Flow NTC max temp. (°C) 90 High limit thermostat (°C) 105 Flue NTC max temp. (°C) 125 Maximum differential (°C) 35

IGNITION CONTROL VALUE

Ignition attempts before L/O (lockout) 5 Re-ignition attempts after loss

of ame signal

7.6 EXTERNAL FAULTS

Before carrying out any faultnding or component replacement,

ensure the fault is not attributable to any aspect of the installation.

7.6.1 INSTALLATION FAULTS

Symptom Possible cause

No ignition Check wiring/check electrical supply

No hot water Check external controls No heating Check external controls

Fault Possible cause Fault code Check gas supply, check ue

system, check polarity

7.7 ELECTRICAL CHECKS

Any electrical checks must be carried out by a suitably quali-

ed person.

7.7.1 EARTH CONTINUITY TEST

Isolate the appliance from the electrical supply, and using a suitable multi-meter carry out a resistance test. Connect test leads between an appliance earth point and the earth wire of the appliance supply cable. The resistance should be less than 1 OHM. If the resistance is greater than 1 OHM check all earth wires and connectors for continuity and integrity.

7.7.2 SHORT CIRCUIT CHECK

Isolate the appliance from the electrical supply, and using a suitable multi-meter, carry out a short circuit test between the Live & Neutral connections at the appliance terminal strip. Repeat above test on the Live & Earth connections at the appliance terminal strip.

NOTE

Should it be found that the fuse has failed but no fault is indicated, a detailed continuity check will be required to trace the fault. A visual inspection of components may also assist in locating the fault.

7.7.3 POLARITY CHECK

With the appliance connected to the electrical supply and using a suitable multimeter, carry out the following voltage tests:

• connect test leads between the Live & Neutral connections at the appliance terminal strip. The meter should read approximately 230V ac. If so proceed to next stage. If not, see

7.7.4.

• connect test leads between the Live & Earth connections at the appliance terminal strip. The meter should read approximately 230V ac. If so proceed to next stage. If not, see

7.7.4.

• connect test leads between the Neutral & Earth connections at the appliance terminal strip. The meter should read approximately 0 – 15Vac. If so polarity is correct. If not, see

7.7.4.

7.7.4 REVERSED POLARITY OR SUPPLY FAULT

Repeat the above tests at the appliance isolator, if testing reveals correct polarity and/or supply at the isolator, re-check wiring and connections between the isolator and the appliance. If tests on the isolator also reveal reversed polarity or a supply fault, consult the local electricity supplier for advice.

7.7.5 RESISTANCE TO EARTH CHECK

Isolate the appliance from the electrical supply, and using a suitable multi-meter carry out a resistance test. Connect test leads between the Live & Earth connections at the appliance

terminal strip. If the meter reads other than innity there is a

fault that must be isolated, carry out a detailed continuity check to identify the location of the fault. These series of checks must be carried out before attempting

any faultnding procedures on the appliance. On completion

of any task that required the disconnection and re-connection of any electrical wiring or component, these checks must be repeated.

7.8 FAULT FINDING

Before attempting any faultnding, the electrical checks as

detailed in 7.7 must be carried out. Isolate the appliance from the electrical supply.

Disconnect any external controls from terminal plug (CN5 g.

44), and insert a link-wire between the two wires at the ‘TA’ connections.

NOTE

Restore the electrical supply to the boiler and turn the selector switch to the on position. The boiler should now function as described in section 7. Should the boiler fail to respond, the internal fuses and connectors should be checked to ensure integrity and continuity.

Page 28

7.10 ADJUSTMENTS

The boiler has already been adjusted by the manufacturer during production. If the adjustments need to be made again, for example after extraordinary maintenance, replacement of the gas valve, or conversion from methane gas to LPG, observe the following procedures. The adjustment of the maximum and minimum output, and of the maximum and minimum heating and of slow switch-on, must be made strictly in the sequence indicated, and only by

qualied personnel only:

- disconnect the boiler from the power supply

- turn the heating water temperature selector to its maximum

- remove the casing as described in 4.7.1

- gently pull the control panel forwards and down

- locate the terminal block cover (g. 26)

- insert the jumpers JP1 and JP3

- power up the boiler The display shows “ADJ” for approximately 4 seconds Next change the following parameters: 1 - Domestic hot water/absolute maximum 2 - Minimum 3 - Heating maximum 4 - Soft light fan speed as follows:

- turn the heating water temperature selector to set the required value

- press the CO button and then skip to the calibration of the next parameter.

Live electrical parts (230 V AC).

The following icons light up on the monitor:

1. during domestic hot water/absolute maximum calibration

2. during minimum calibration

3. during heating maximum calibration

4. P during soft light fan speed calibration

End the procedure by removing jumpers JP1 and JP3 to store these set values in the memory. THE function can be ended at any time without storing the set values in the memory and retaining the original values as follows:

- remove jumpers JP1 and JP3 before all 4 parameters have been set

- set the function selector to (OFF/RESET)

- cut the power supply

- waiting for 15 minutes after it is connected.

Calibration can be carried out without switch on the

boiler.

By turning the heating selection knob, the monitor au-

tomatically shows the number of rotations, expressed in hundreds (e.g. 25 = 2,500 rpm).

GAS VALVE CALIBRATION

- Connect the boiler to the power supply

- Open the gas tap

- Set the function selector to (OFF/RESET) (monitor off)

- remove the casing as described in 4.7.1

- gently pull the control panel forwards and down

- locate the terminal block cover (g. 26)

- Press the CO button

Live electrical parts (230 V AC).

- Wait for burner ignition.

The display shows “ACO”. The boiler operates at maximum

heat output.

The “combustion analysis” function remains active for a limit-

ed time (15 min); if a delivery temperature of 90°C is reached, the burner is switched off. It will be switched back on when this temperature drops below 78°C.

- Insert the analyser probe in the ports provided in the air distribution box, after removing the screws from the cover

- Press the “combustion analysis” button a second time to reach the number of rotations corresponding to the maximum domestic hot water output (table 1)

- Check the CO2 value: (table 4) if the value does not match the value given in the table, use the gas valve maximum

adjustment screw

- Press the “combustion analysis” button a third time to reach the number of rotations corresponding to the minimum output (table 2)

- Check the CO2 value: (table 5) if the value does not match the value given in the table, use the gas valve minimum adjustment screw

- To exit the “combustion analysis” function, turn the control knob

- Remove the ue gas probe and ret the plug

- Close the instrument panel and ret the housing.

The “combustion analysis” function is automatically deactivated if the board triggers an alarm. In the event of a fault during the combustion analysis cycle, carry out the reset procedure.

table 1

table 2

table 4

table 5

MAXIMUM NUMBER OF

FAN ROTATIONS

METHANE GAS (G20)

LIQUID

GAS (G31)

Vision 20S

49 49 rpm

Vision 25S

53 52 rpm

MINIMUM NUMBER OF

FAN ROTATIONS

METHANE GAS (G20)

LIQUID GAS

(G31)

14 14 rpm

Max. CO

METHANE GAS (G20)

LIQUID GAS

(G31)

9.0 10.5 %

Min. CO

METHANE GAS (G20)

LIQUID GAS

(G31)

9.5 10.5 %

table 3

SOFT LIGHT FAN SPEED

METHANE GAS (G20)

LIQUID GAS

(G31)

40 40 rpm

Page 29

7.10.1 CHECKING THE FAN SPEED

Locate the CO button (see Fig 40 pos SW1). Select the main selector switch to the ON position, press the

CO button once, the display will then scroll through the fan speeds along with the relevant icon.

7.10.2 THERMOREGULATION To set the temperature regulation curve, locate potentiometer

(P3). By turning (P3), the curve is shown on the LCD display.

The user can adjust the temperature of the heating system indirectly by changing the required room temperature from between 15°C & 25°C, this will allow the PCB to recalculate the system temperature required, the default temperature for calculating the curve is 20°C. The graph below can be used to determine the correct curve setting.

REFERENCE TEMPERATURE 15 °C

REFERENCE TEMPERATURE 20 °C

REFERENCE TEMPERATURE 25 °C

20 °C

25 °C

15 °C

-20-15-10-5051015202530

ROOM TEMPERATURE CURVE OFFSET

DELIVERY TEMPERATURE (°C)

EXTERNAL TEMPERATURE (°C)

Fig. 42

The boiler is supplied with the adjustments shown in the table. Depending on plant engineering requirements or regional ue gas emission limits it is, however,

possible to modify this value, referring to the graphs below.

COs.a. curve (Qnheating)

Heat output (kW)

HTG curve (Qnheating)

Heat output (kW)

Fan rotations (rpm)

CO emissions s.a. (p.p.m.)

Vision 25S

The boiler is supplied with the adjustments shown in the table. Depending on plant engineering requirements or regional ue gas emission limits it is, however,

possible to modify this value, referring to the graphs below.

COs.a. curve (Qnheating)

Heat output (kW)

HTG curve (Qnheating)

Heat output (kW)

Fan rotations (rpm)

CO emissions s.a. (p.p.m.)

Vision 20S

100

110

120

130

140

150

160

170

180

190

200

46810121416182022

100

110

120

130

140

150

160

468101214161820222

1200

1600

2000

2400

2800

3200

3600

4000

4400

4800

5200

4 6 8 10 12 14 16 18 20 22

1200

1600

2000

2400

2800

3200

3600

4000

4400

4800

5200

5600

4681012141618202224

Page 30

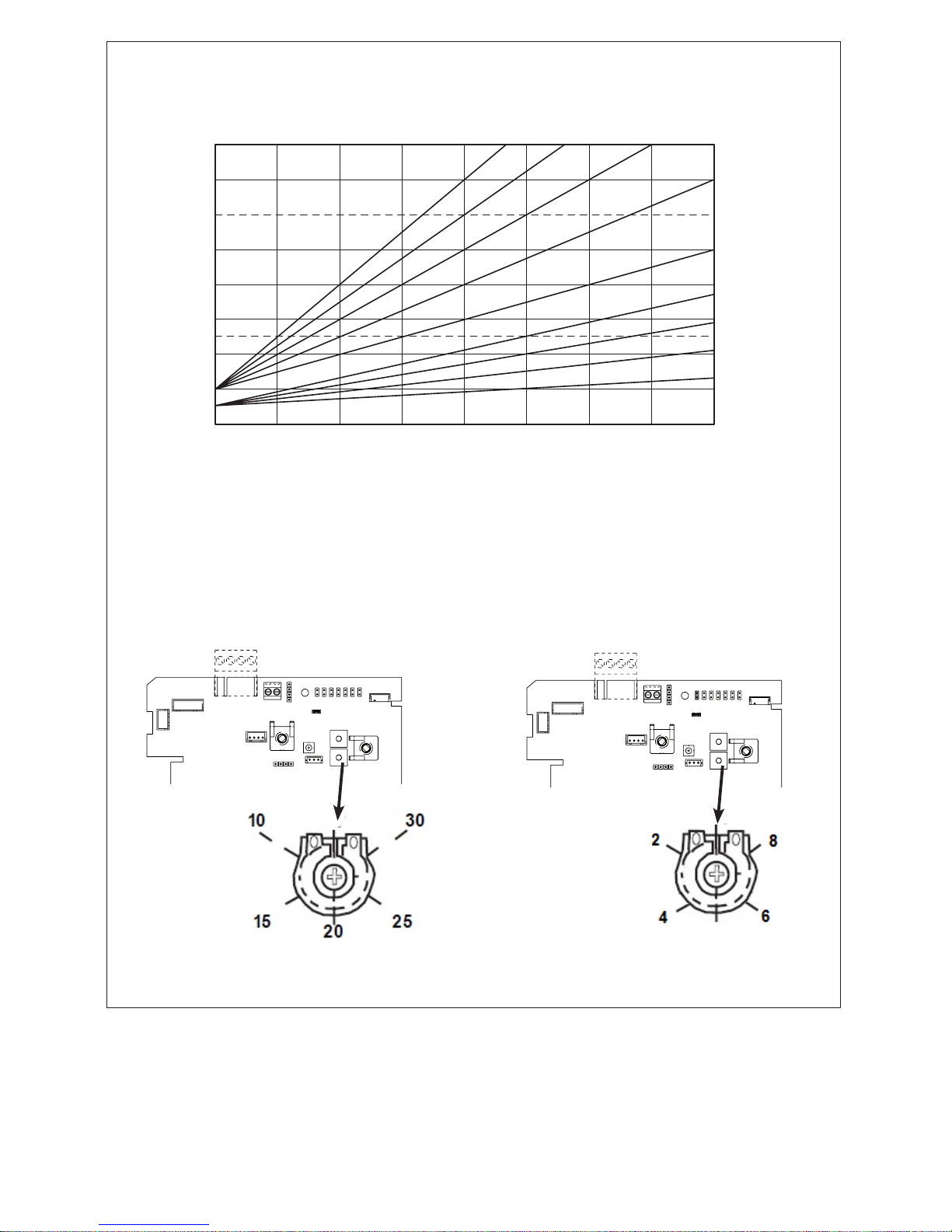

CURVE DI TERMOREGOLAZIONE

-20

0,2

0,4

0,6

0,8

1,0

1,5

2,02,53,0

T80

T45

-15-10-505101520

CLIMATIC CURVES

EXTERNAL TEMPERATURE (°C)

FLOW OUTLET TEMPERATURE (°C)

T80 Maximum set point for standard T range (JP7 removed) T45 Maximum set point for low T range (JP7 inserted)

Fig. 43

CN8

CN7

CN6

CN5

CN12

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

CN15

CN13

CN14

SW1

JP7 REMOVED

JP7 INSERTED

CN8

CN7

CN6

CN5

CN12

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

CN15

CN13

CN14

SW1

Page 31

SECTION 8 - WIRING DIAGRAMS

8.1 EXTERNAL WIRING

External controls must to be added to the system and they must be connected to the appliance as shown in the following diagrams. For advice on controls that are not featured in this book, please contact Vokera technical on 0844 3910999

8.1.1 EXTERNAL WIRING LIMITATIONS

Low voltage and High voltage cables must be run separately.

8.2 TYPICAL CONTROL APPLICATIONS

The appliance can be used with the following controls:

● twin-channel programmers.

The appliance can be used in conjunction with typical ‘S’-Plan systems and ’Y’-Plan systems. Please contact Vokera technical should you require further detailed instruction.

8.3 OTHER DEVICES

Contact the controls manufacturer and/or Vokera technical

department should you require more specic information on

the suitability of a particular control. Further guidance on the recommended practice for the installation of external controls,

can be found in CHeSS – HC5/HC6 (www.energyefciency.

gov.uk).

Fig. 44

NCNO

BE11

CN2

CN1

NCNO

BE11

CN2

CN1

Page 32

brown

CN3

blue

F Hv

CN2

brown

blue

2 1

5 4

GAS VALVE

12 43

OPEOPE

pink

blue

brown

Fuse 3.15A F

230 V

blue

brown

blue

CN9

W.P.S.

white

TSC2

blue

Spark

electrode

brown

yellow/green

CN1

red (+)

blue (HS)

pink (PWM)

grey (-)

CN10

F Lv

CN11

white

F.T.

-t°

R.S.

red

-t°

F.S.

grey grey black

F.O.HT.

blue blue

white

CN8

CN7

CN11

CN10

CN9

CN6

CN5

CN12

CN4

CN3

CN2

AKL

CN1

FA1

FA2

arancione

E.R.

JP1

JP2 JP3

JP4

JP5

JP6

JP7

JP8

CN15

CN13

CN14

SW1

3.15A T

CN1

CN2

black

BE11

FUNCTIONAL DIAGRAM

Fig. 45

F.S. (1) Flame sensor

F1 Fuse 3.15A T

F External fuse 3.15A F

M3 Terminal strip for electrical connection hight power

P Pump

OPE Gas valve solenoids

F Hv Fan power supply 230 V

F Lv Fan signal control

WPS Water pressure switch

S.E. Spark electrode

TSC2 Ignition transformer

F.O.H.T Flow over heat thermostat

FS Flue sensor

FT Flow thermistor (NTC)

RS Return thermistor (NTC)

AKL Main PCB with vis medium integrated

BE11 On board relè PCB

P1 Selector switch and heating potentiometer

P2 Unused

P3 Unused

P4 Unused

JP1 Unused

JP2 Unused

JP3 Unused

JP4 Unused

JP5 Selection operating only heating

JP6 Unused

JP7 Unused

JP8 Closed - Unused

CN1-CN15 Connectors - (CN4 Unused – CN5 room thermostat (24 Vdc)

S.W. CO2 function button

Page 33

9.1 RELATED DOCUMENTS

BS 5440 PARTS 1 & 2 FLUES & VENTILATION REQUIREMENTS

BS 5449 PART 1 FORCED CIRCULATION OF HOT WATER SYSTEMS BS 5482 PART 1 DOMESTIC BUTANE & PROPANE GAS BURNERS IN PERMAMENT

DWELLINGS BS 5546 INSTALLATION OF GAS HOT WATER SUPPLIES FOR DOMESTIC PURPOSES BS 6798 INSTALLATION OF BOILERS OF RATED NOT EXCEEDING 60kW

SECTION 9 - LPG INSTRUCTIONS

9.6 CHECKING THE CO2 AND ADJUSTING THE GAS VALVE

THE GAS VALVE MUST BE SET-UP OR ADJUSTED WITH THE AID OF A PROPERLY CALIBRATED FLUE GAS ANALYSER. Isolate the appliance from the electrical supply and remove the appliance casing as described in 4.7.1. Restore the electrical supply to the boiler and switch the boiler to the OFF mode. Have access to the printed circuit board, locate and open the

closing plug on the dash board (L2 g. 40), locate and press the CO button (see g. 36 pos. SW1). The appliance will now

operate in CO2 mode for approximately 15-minutes. Set the

ue gas analyser to read CO2 and insert the probe into the ue analysis test point (Y1-Z1 g. 39).

9.6.1 CO2 FUNCTION SETTINGS

Locate the CO button (see 7.3) Select the main selector switch in position

9.3 CONVERTING THE APPLIANCE GAS TYPE

To convert the appliance to another gas type it is necessary to change the injector and adjust the gas valve (CO2).

• To change the injector see 6.12.1

• To replace the ange on the silencer see 6.15

• To adjust CO2 values see 10.6

9.4 GAS SUPPLY

The gas supply must be connected to the appliance by a com-

petent LPG installer and must be of sufcient size to supply

the appliance at its maximum output. An existing supply must be checked to ensure that it is of adequate size to deal with the maximum rated input of this and any other appliances that it serves.

9.5 GAS SUPPLY INSTALLATION

The entire installation including the meter must be purged and checked for gas tightness.

(*) this step has not to be used for the system boiler. If you nd in this situation press the button once again.

Gas Pressures Vision 20S Vision 25S

Inlet pressure 37.0 mbar 37.0 mbar

Heating maximum gas rate (kg/hr) 1.55 1.94

Minimum gas rate (kg/hr) 0.39 0.47

Injector size 3.9 mm 4.3

Silencer ange 27 mm 29 mm

CO2 @ maximum output (%) 10.5 10.5

CO2 @ minimum output (%) 10.5 10.5

CO @ maximum output (ppm) 190 250

CO @ minimum output (ppm) 20 25

CO2 FUNCTIONS ACTION ON THE BUTTON DISPLAY

combustion analysis mode press once = burner running at maximum heating

ACO

gas valve maximun setting (*) press twice = burner running at maximum absolute

ACO

gas valve minimum setting press three time = burner running at minimum

ACO

NOTE

1 - Any additional pressing of CO button after the third time the burner switched between maximum absolute and minimum. 2 - To restart the CO2 function it is necessary to pass throught the position with the main selector switch

Page 34

9.6.2 GAS VALVE MAXIMUM SETTING

Set the CO button at maximum (see 10.3.1), once the maximum is obtained check that it corresponds with the appropriate CO2 value (Maximum) for the respective appliance. If the CO2 reading is correct, proceed to gas valve minimum setting (10.7.2). However, if the CO2 reading is incorrect, the maximum gas pressure must be adjusted as follows:

• using a 2.5mm Allen key, very slowly turn the maximum ad-

justment screw (see g. 41) – clockwise to decrease, counter

clockwise to increase – until the correct value is displayed on the CO2 analyser (allow time for the analyser to stabilise).

9.6.3 GAS VALVE MINIMUM SETTING

Set the CO button at minimum (see 10.3.1), once the minimum is obtained check that it corresponds with the appropriate CO2 value (Minimum) for the respective appliance. If the CO2 reading is correct, proceed to completion (10.7.3). However, if the CO2 reading is incorrect, the minimum gas pressure must be adjusted as follows:

• locate the minimum adjustment screw (g. 41), using a suit- able screwdriver remove the protection plug

• using a 4mm Allen key, very slowly turn the minimum adjust-

ment screw (see g. 41) - clockwise to increase, counter

clockwise to decrease - until the correct value is displayed on the CO2 analyser (allow time for the analyser to stabilise).

9.6.4 COMPLETION

On completion of the combustion analysis check and/or any gas valve adjustment, ret the plug (L2 j) and move the mode selector to the position. Remove the test probe from the test

point and ret the sealing screw/s and/or cap.

IMPORTANT A GAS TIGHTNESS CHECK MUST BE CARRIED OUT IF ANY GAS CARRYING COMPONENTS HAVE BEEN REMOVED, REPLACED OR DISTURBED.

ATTENTION Gas type and appliance output must be set according to

the specic appliance specication.

Vokèra accepts no responsibility if the gas type and/or appliance output is not correctly adjusted according to the respective appliance specication as detailed on the appliance data badge.

Fig. 46

Fig. 47

Page 35

Page 36

Page 37

COMMISSIONING: CO AND COMBUSTION RATIO CHECK

CO AND COMBUSTION RATIO CHECK First verify that flue integrity has been visually checked in accordance with the “Before CO and combustion ratio check” box (above) before proceeding to the “Check CO and combustion ratio at maximum rate” stage.

SET BOILER TO MAXIMUM RATE In accordance with section 7.3-

7.4, set boiler to operate at maximum rate (full load condition). Allow sufficient time for combustion to

CHECK CO AND COMBUSTION RATIO AT MAXIMUM RATE

With boiler still set at maximum rate, insert analyser probe into flue gas sampling point. Allow readings to stabilise before recording.

Is CO less than 350ppm AND CO/CO2 ratio

less than 0.004?

Check all seals around the appliance burner, internal flue seals, door and case seals. Rectify where necessary.

Is CO less than 350ppm AND CO/CO2 ratio

less than 0.004?

CHECK CO AND COMBUSTION RATIO AT MINIMUM RATE

With boiler set at minimum rate, insert analyser probe into flue gas sampling point. Allow readings to stabilise before recording.

YES

Turn off appliance and call Vokera technical helpline for advice. The appliance must not be commissioned until problems are identified and resolved. If commissioning cannot be fully completed, the appliance must be disconnected from the gas supply in accordance with the GSIUR.

NOTE: Check and record CO and combustion ratio at both maximum AND minimum rate before contacting Vokera technical.

SET BOILER TO MINIMUM RATE

In accordance with section 7.3-

7.4, set boiler to operate at minimum rate (to minimum load condition). Allow sufficient time for combustion to stabilise.

YES

Is CO less than 350ppm AND CO/CO2 ratio less than 0.004?

Boiler is operating satisfactorily

No further actions required.

Ensure test points are capped, boiler case is correctly replaced and all other commissioning procedures are completed.

Complete Benchmark Checklist, recording CO and combustion ratio readings as required.

NOTE

The air/gas ratio valve is factory-set and must not be adjusted during commissioning unless this action is recommended, following contact with Vokera technical. If any such adjustment is recommended and further checking of the boiler is required, the engineer must be competent to carry out this work and to use the flue gas analyser accordingly. If the boiler requires conversion to operate with a different gas family (e.g., conversion from natural gas to LPG) separate guidance will be provided by Vokera technical and must be followed.

YES

BEFORE CO AND COMBUSTION RATIO CHECK

The boiler installation instructions should have been followed, gas type verified and gas supply pressure/rate checked as required prior to commissioning. As part of the installation process, ESPECIALLY WHERE A FLUE

HAS BEEN FITTED BY PERSONS OTHER THAN THE BOILER INSTALLER, visually check the integrity of the whole flue

system to confirm that all components are correctly assembled, fixed and supported. Check that the maximum flue lengths have not been exceeded and all guidance has been followed (e.g. Technical Bulletin 008). The flue gas analyser should be of the correct type, as specified by BS 7967. Before use, the flue gas analyser should have been maintained and calibrated as specified by the manufacturer. The installer must have the relevant competence for use of the analyser. Check and zero the analyser IN FRESH AIR, as per analyser manufacturer’s instructions.

Page 38

Page 39

Page 40

Cod. 20072186 - 09/13 - Ed. 0

Registered address:

Vokèra Ltd

Borderlake House

Unit 7 Riverside Industrial Estate

London Colney Herts AL2 1HG

enquiries@vokera.co.uk

www.vokera.co.uk

www.vokera.ie

Sales, General Enquires

T 0844 391 0999 F 0844 391 0998

Vokèra Ireland

West Court, Callan

Co Kilkenny

T 056 7755057 F 056 7755060

Vokèra Limited reserve the right to change

specication without prior notice

Consumers statutory rights are not affected.

A Riello Group Company.

Company Reg No: 1047779
