RC05 Programmable
room thermostat
2
3
CONTENTS
General Information 4
Description of Control Panel 6
Description of Buttons 6
Description of Display 7
Using the Control Panel 8
Regulating and Testing the System 8
Room Thermostat 10
Timer thermostat 12
Boiler Control 15
Available Functions 18
Regulating the Room Thermostat Temperature 18
Regulating the Domestic Hot Water Temperature 19
Regulating the Heating and Domestic Hot Water Temperature 20
Weekly T imer Thermostat Function 23
Temporary change in level 26
Cleaning Function 27
Holiday Function 28
Combustion Analysis 29
Fault Signalling 30
4
GENERAL INFORMATION
TO ENSURE THA T THE REMOTE CONTROL P ANEL IS USED CORRECTL Y, PLEASE
READ CAREFULLY THE ENTIRE CONTENTS OF THIS MANUAL.
W ARNINGS
1) The remote control panel should be
installed in the room that is most easily
accessible for checking the temperature
of the environment (normally the
lounge).
2) To ensure correct operation of the
sensor, the control panel should be
positioned at a height of 1.5 metres
from the floor.
3) The control panel is supplied with low
voltage directly by the boiler. It also
contains a buffer battery, which has a
minimum life of 4 years and guarantees
that the user settings are maintained
even when there is a black-out or a
break in the boiler connection.
4) It is essential that the control panel be
kept well away from heat sources and
draughts: as these may affect the
accuracy of the room thermostat
incorporated in the panel.
5) Do not attempt to open or remove the
panel, it requires no maintenance.
6) Do not press against the surface of the
liquid crystal display: this could damage
the surface itself and cause viewing
problems.
7) T o clean the display , simply wipe with a
dry cloth: any infiltrating liquid could
damage the liquid crystals.
WHAT IS THE REMOTE CONTROL
PANEL USED FOR?
The control panel offers the possibility of
controlling the operation of your boiler
without having to access it directly.
The control panel is normally installed in
the largest room of the house where it will
always be easy to make checks and
regulations.
HOW IT IS USED
The control panel has three operating
modes:
1) ROOM THERMOST A T
The control panel keeps the temperature
of the room constant on the basis of the
settings made by the user.
2) PROGRAMMABLE ROOM
THERMOSTAT
In this mode, you can programme 2
different temperatures settings for
certain periods of the day.
5
3) BOILER CONTROL
In this mode the control panel operates the
boiler controls only . It does not control room
temperature or ON/OFF periods.
EXPLANA TION OF TECHNICAL TERMS
• Heating water: the water that flows
through the radiators having been heated
in the boiler.
• Domestic hot water: the water that flows
through the DHW fittings.
• Error code: a code that appears on the
display and signals any faults in the
boiler.
• Initial configuration: the configuration
set on the control panel when it is
switched on for the first time or when it is
reset.
• Display: the liquid crystal screen on
which all the symbols corresponding to
the various functions are displayed.
• Antifreeze function: the function that
prevents a drop in temperature freezing
the water that flows in the pipes, causing
damage to the heating system. This
function is activated when the
environmental temperature drops below
6.6 °C.
• Reset: the operation that restores the
initial configuration of the control panel,
clearing all settings made by the user,
except for the system time.
• Summer operating mode: the mode in
which the control panel is to be set when
the heating system does not have to be
in operation (e.g. spring, summer).
The boiler supplies domestic hot water only .
• Winter operating mode: the status in
which the control panel is to be set when
the heating system has to be in operation
(e.g. autumn, winter).
The boiler can supplies heating and
domestic hot water .
• Comfort level temperature: the
temperature that represents ideal heating
for the rooms.
• Room temperature: the temperature
measured in the room in which the panel
is installed.
• Outdoor temperature: the temperature
measured by the external sensor.
• Climatic curve (Linea & Compact
only): this is the relation between the
outdoor temperature and the calculate
flow outlet temperature, required when
an external sensor is fitted. The RC05
checks the temperature sensed at the
external sensor and calculates the
required flow outlet temperature based
on the curve that has been set on the
RC05 (see installation instructions). The
calculated flow outlet temperature
ensures optimum comfort and efficiency
is maintened. The curve is set by your
installer during the installation of the
RC05.
• Economy level temperature: the
temperature setting used during nightsetback or to maintain a minimum
temperature level in the property.
NOTE
• The room temperature is displayed in the
range from -9.9 °C to 38 °C.
• The outdoor temperature is displayed in
the range from -20 °C to 18 °C.
• Temperatures outside these ranges are
indicated by means of three dashes “-
- -”.
6
Regulates the heating and domestic hot water temperature
Makes a temporary change in level
Programs the boiler
Changes mode (OFF-SUMMER-WINTER)
Sets cleaning and holiday function
Increases setting
Selects and confirms data and changes room temperature
Decreases setting
Releases boiler, reset data and tests display
NOTE: the symbols of the buttons shown in the illustration and key are used throughout
the text of this manual.

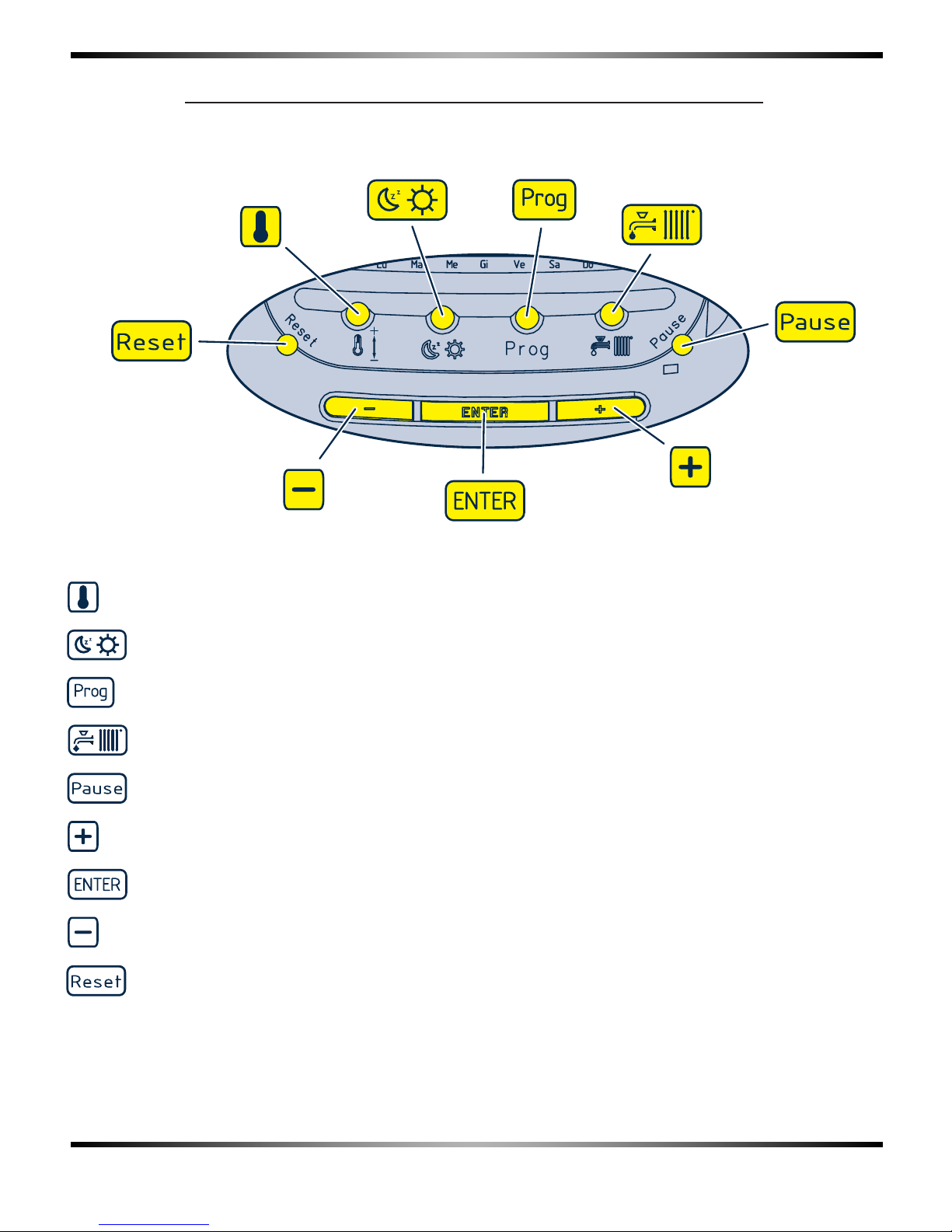

DESCRIPTION OF CONTROL PANEL
DESCRIPTION OF BUTTONS
7

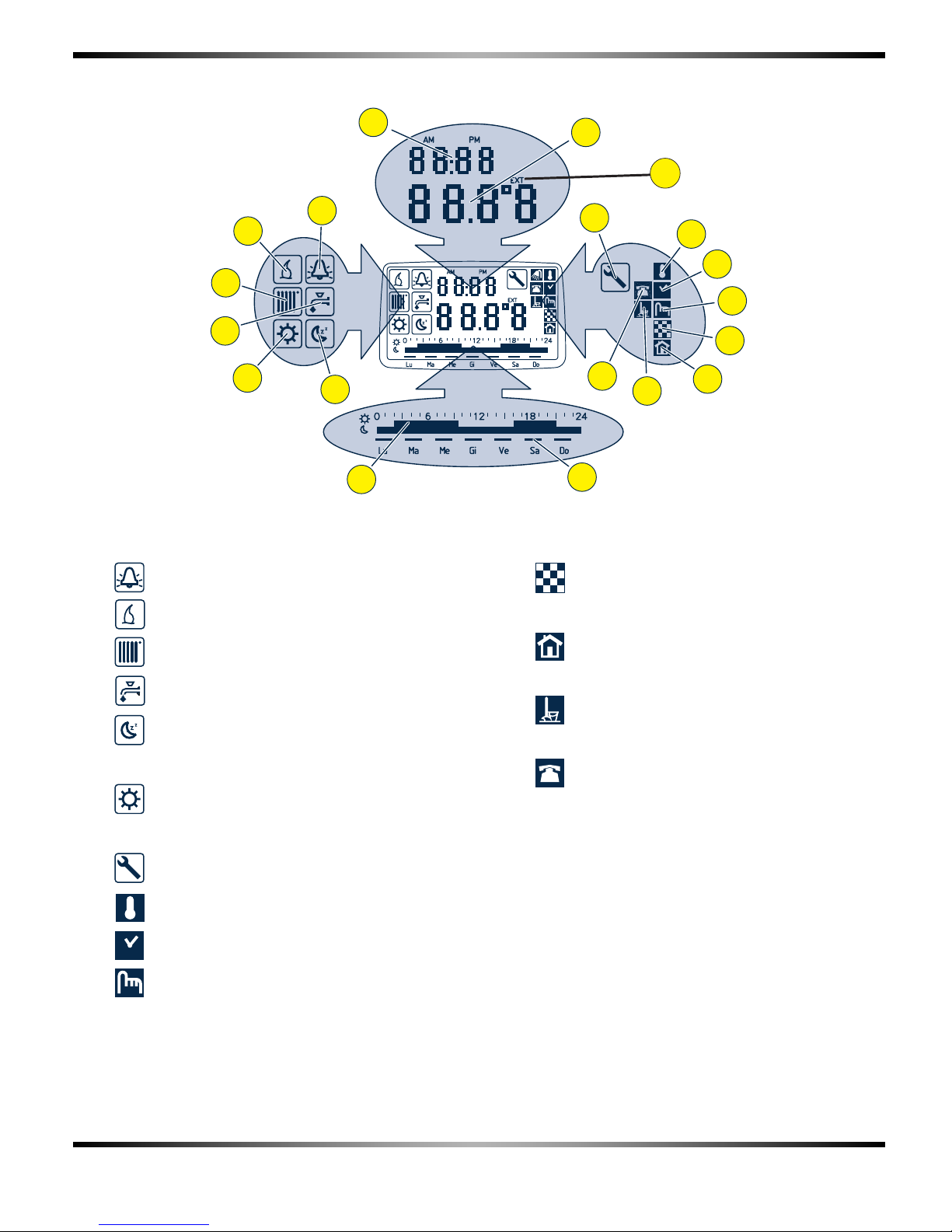

DESCRIPTION OF DISPLAY
15
16
17
18
5
4
3
2
1
6
7
8
9
10
11
12
13
14
1 - Boiler lockout indicator
2 -
Heat request indicator
3 -
Heating indicator
4 -
Domestic hot water indicator
5 -
Economy level temperature
indicator
6 - Comfort level temperature
indicator
7 - Scheduled servicing indicator
8 -
Room thermostat indicator
9 -
Timer thermostat indicator
10 -
Boiler control indicator
11 - Underfloor heating function
indicator
12 - Thermoregulation status
indicator
13 -
Cleaning/holiday function
indicator
14 -
Telephone interface function
indicator
15 - Time and error numeric display field
16 - Temperature numeric display field
17 - Daily schedule progress bar
18 - Week day display segments
19 - EXT, outdoor temperature
NOTE: the symbols of the indicators shown in the key are used throughout the text of
this manual.
19
8
Fig. 3
USING THE CONTROL P ANEL
SETTING AND TESTING THE RC05
It will be necessary to set or program the RC05 when it is first connected to the boiler . It
may be also necessary to set the time and/or program if the unit is reset or the battery
has been changed. If no selections are made within10 seconds, during regulation and
testing, the system exits automatically from the procedure.
Fig. 1
OFF POSITION
When the boiler has an electrical supply
and is connected to the RC05, the unit will
be in the OFF position.

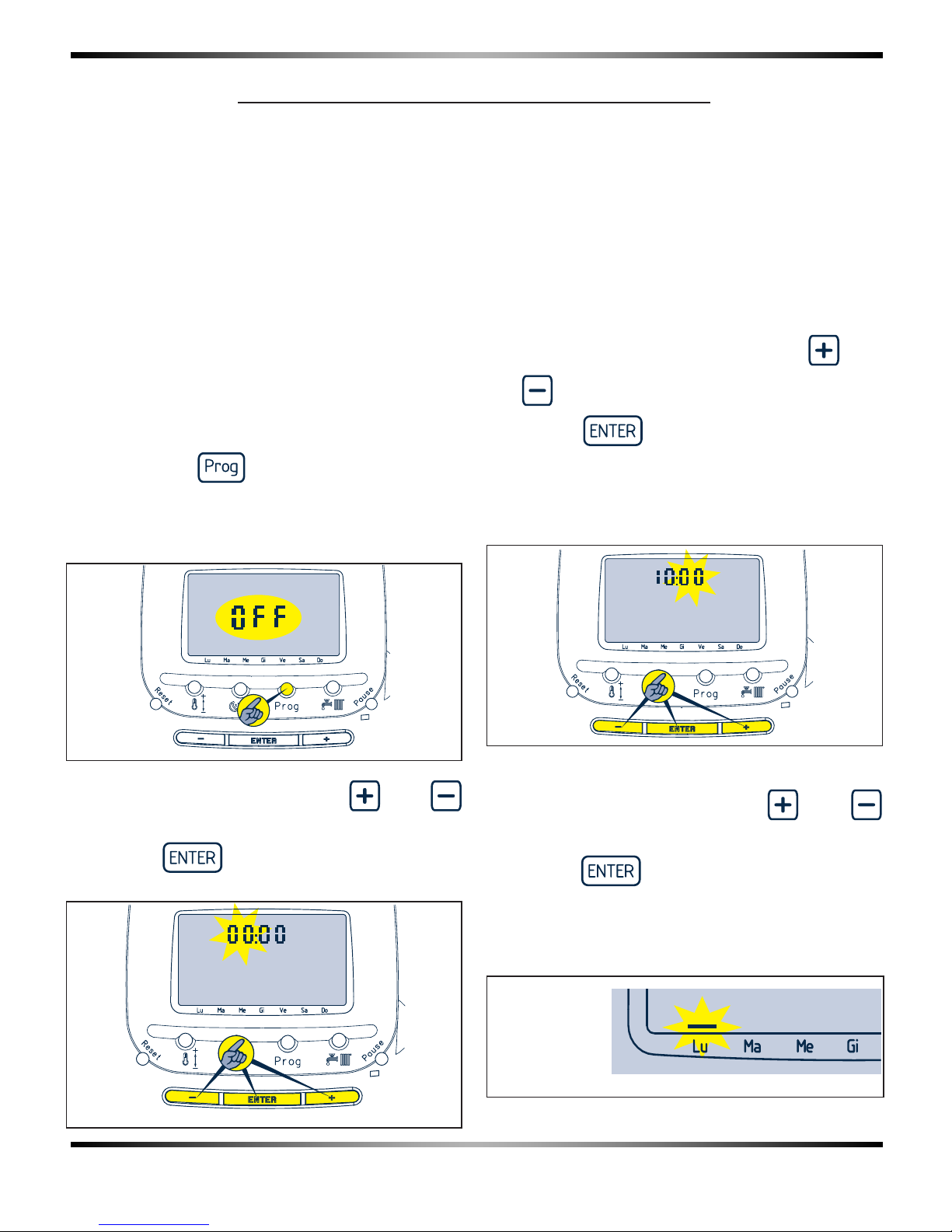

SETTING THE TIME
When the display shows the word OFF:
1) Press the
button
2) On the display :
• the two time digits start to blink
3) To set the hour, press the
and
buttons
4) Press
to confirm
Fig. 2
Fig. 4
5) On the display:
• the two minute digits start to blink
6) To set the minutes, press the
and
buttons
7) Press
to confirm.
8) On the display (fig. 4):
• the week day indicator dash starts to
blink
9) To set the day, press the
and
buttons
10)Press
to confirm. If confirmation
is not given within 10 seconds, the
system exits automatically from the
procedure.
9
Fig. 5

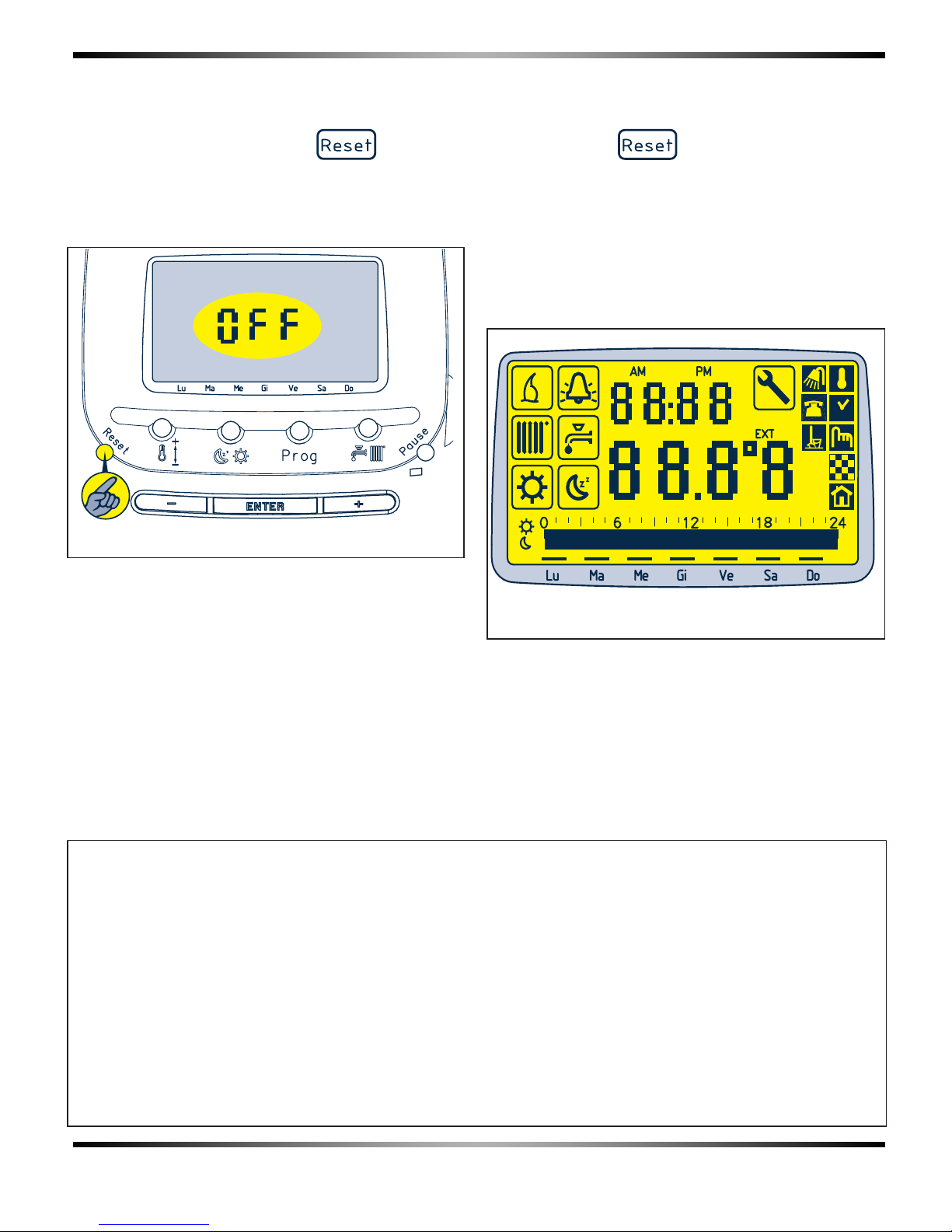

TESTING THE DISPLA Y
When the display shows the word OFF:
1) Press and release the
button
2) The display shows:
• all indicators for about 3 seconds
CHOOSE THE OPERA TING MODE
The RC05 is supplied ready for use as a
ROOM THERMOST A T. To enable use as a
programmable room thermostat, see page
12. To enable use as a boiler only control,
see page 15.
Fig. 6
RESETTING THE SYSTEM
When the display shows the word OFF:
1) Keep the
button pressed for 5
seconds
2) The display shows:
• all the indicators
3) 5 seconds after the system has been
reset, the display is cleared.
DEF AUL T SETTING
Operating mode ROOM THERMOSTAT
DHW level temperature 42.5°C
Central heating level temperature 71.5°C
Curve C5
Room thermostat level 20.0°C
Comfort level temperature 20°C
Economy level temperature 16°C
Reset does not change time setting. Standard program is set for the timer themostat (see page 12).
10

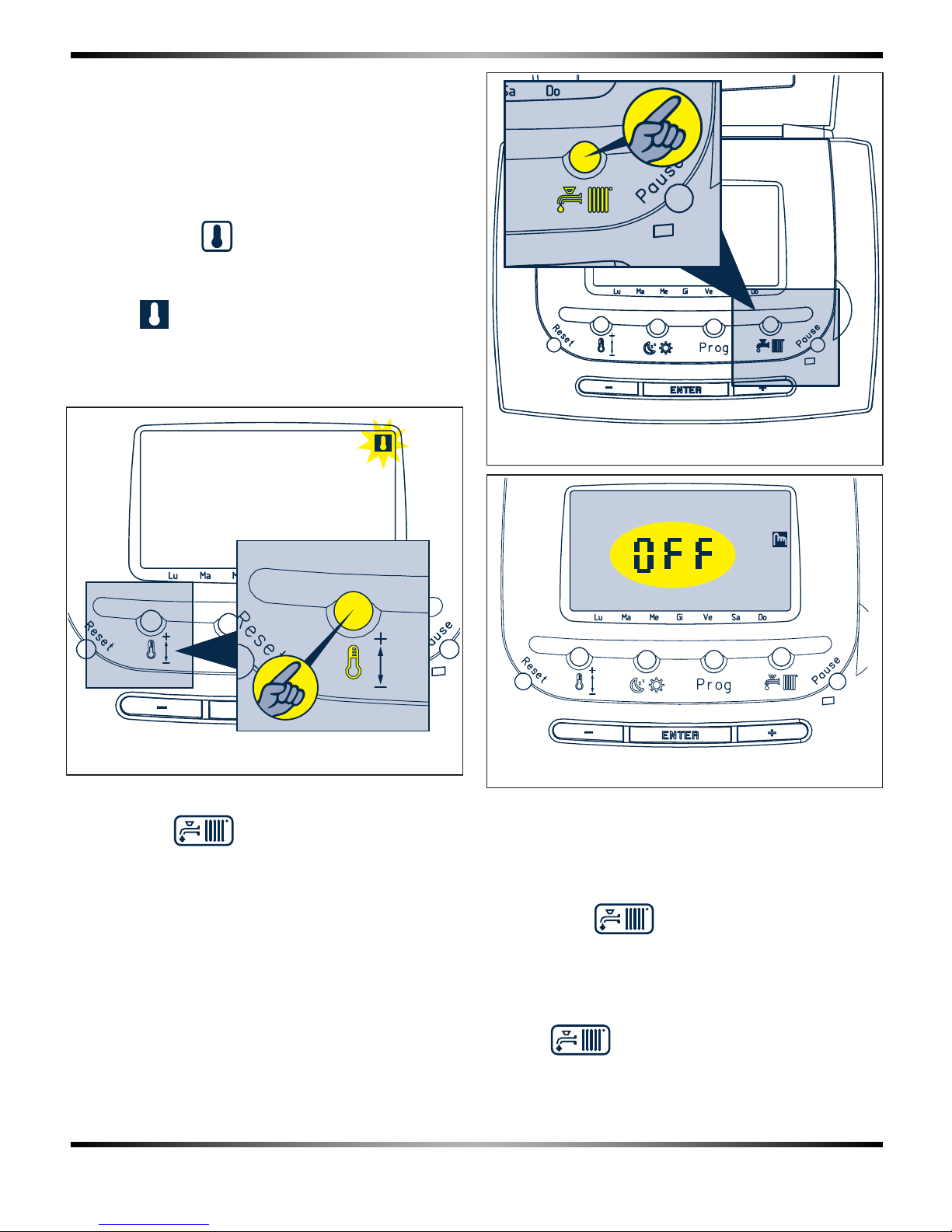

Fig. 8
Fig. 7
ROOM THERMOST A T
If used as a room thermostat, the control
panel enables you to:
• set the desired room temperature
• control the room temperature
• regulate the temperature of the heating
and the domestic hot water.
There are three operating modes:
• ROOM THERMOST A T OFF
• ROOM THERMOST A T SUMMER
• ROOM THERMOST A T WINTER
WARNING: in all operating modes, the
symbol is displayed.
When the
button is pressed, the
boiler switches from one operating mode
to another (OFF-SUMMER-WINTER)
(fig. 7).
ROOM THERMOST A T OFF
WARNING: when the system is turned on
for the first time or reset, it enters ROOM
THERMOSTAT OFF mode. In this
operating mode, the control panel is off.

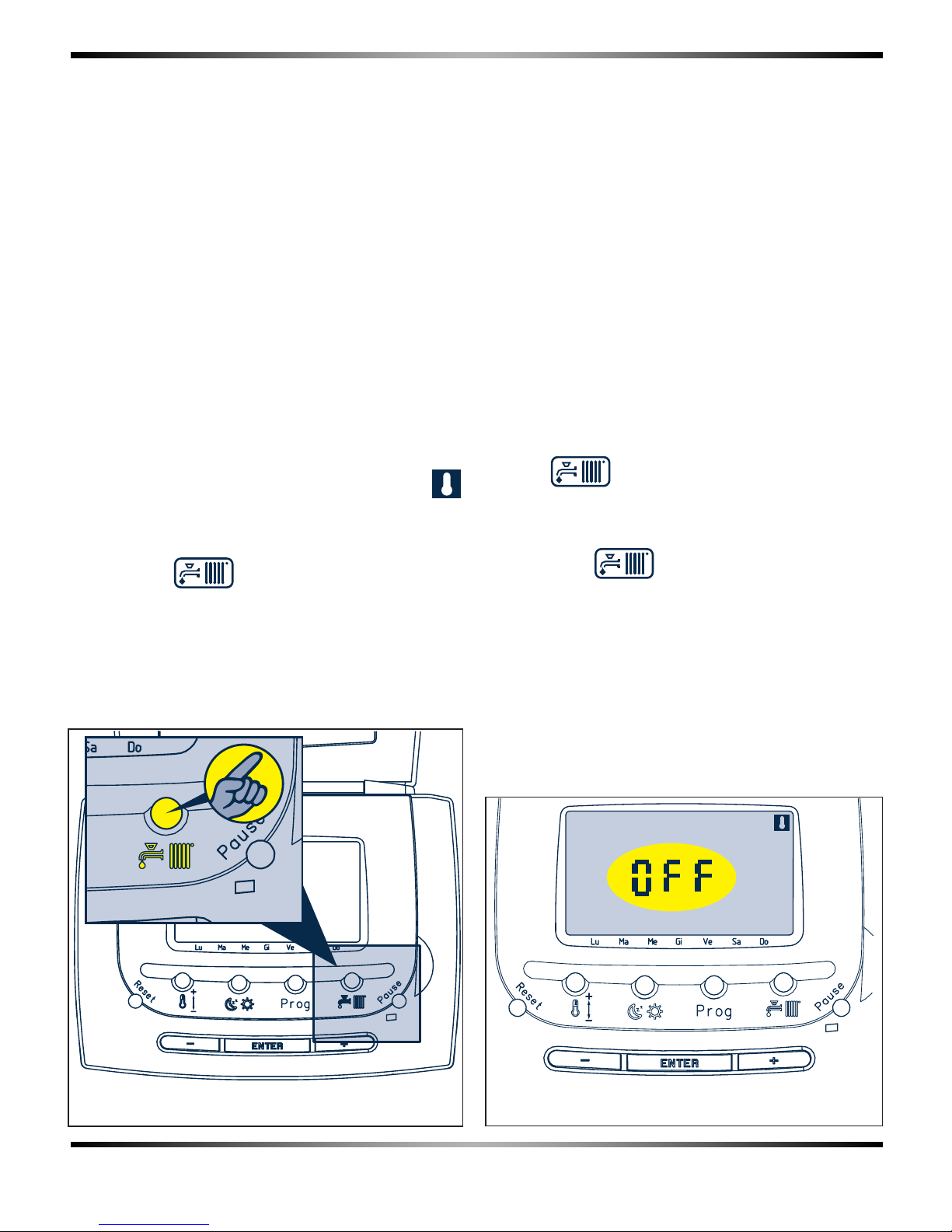

The display:
• the word OFF in the temperature field
(fig. 8)
To switch off the panel (for short periods)
press
button till the display shows
the word OFF.
When the
button is pressed, the
system enters ROOM THERMOSTAT
SUMMER operating mode (fig.7).
11
Fig. 9

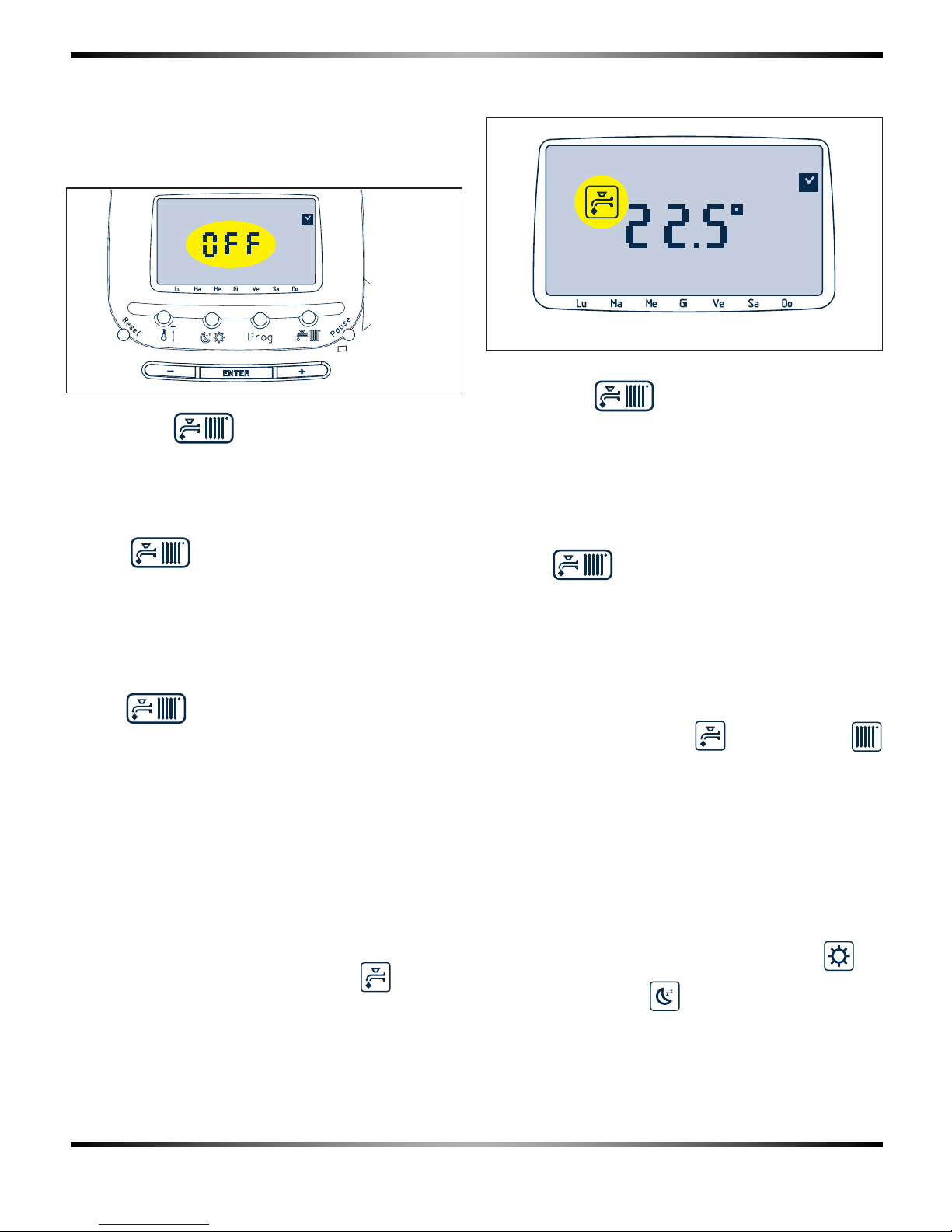

ROOM THERMOST A T SUMMER
To select room thermostat summer mode,
when the word OFF is shown on the
display , press
button.
In this ooperating mode, the boiler supplies
domestic hot water only.
The preset value of the domestic hot water
temperature is 42.5°C.
The display shows (fig. 9):
• domestic hot water indicator
• room temperature
Enabled functions:
• DOMESTIC HOT WATER
TEMPERATURE REGULATION
(page 19)
• F AULT SIGNALLING (page 30)
When the button is pressed, the
system enters ROOM THERMOSTAT
WINTER operating mode (fig. 7).
ROOM THERMOST A T WINTER
From the thermostat summer mode press
button to select the thermostat
winter mode.
In this operating mode, the boiler can
supply domestic hot water and heat the
environment at the same time.
The temperature values set are:
• domestic hot water: 42,5 °C
• heating water: 71,5 °C
• room thermostat: 20 °C

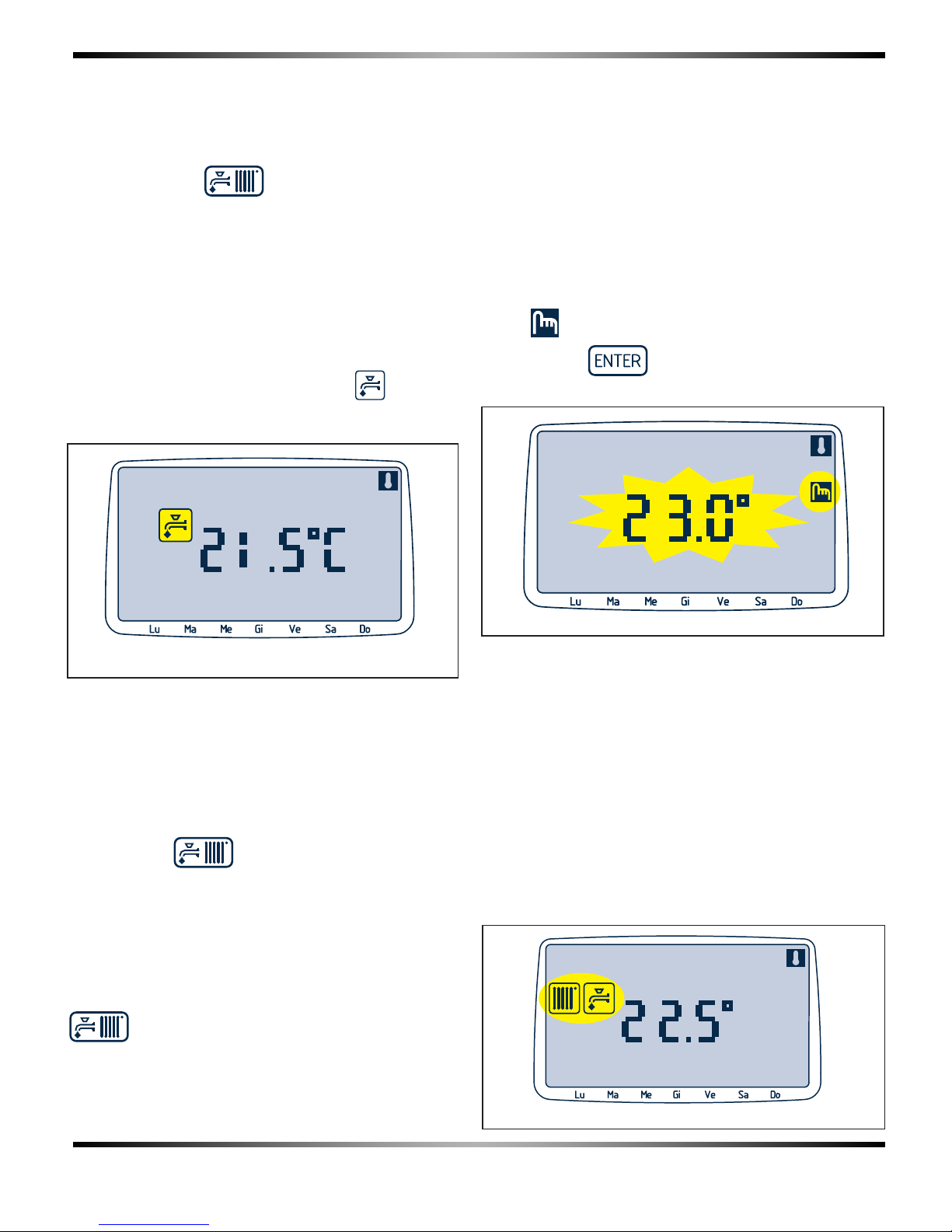

On the display (fig. 10):
• the room temperature set blinks for 5
seconds and the change indicator lights
up
. T o change the value press +/- and/
or press to confirm.
Then (fig. 11):
• the heating and domestic hot water
indicators light up
• the room temperature value measured by
the control panel sensor appears on the
display
• if external sensor is installed, room
temperature level the panel shows
alternately room temperature level and
external temperature
Fig. 10
Fig.11
12
Enabled functions:
• ROOM THERMOST AT TEMPERA TURE
REGULATION (page 18)
• HEATING AND DOMESTIC HOT
WA TER TEMPERA TURE REGULA TION
(page 20)
• CLEANING FUNCTION (page 27)
• HOLIDAY FUNCTION (page 28)
• F AULT SIGNALLING (page 30)
Operation:
Whenever the room temperature measured
by the sensor is 0.4 °C less than the one
set by the user , the control panel makes a
request for heat to the boiler: during this
phase, the display shows the
indicator .
The boiler is turned off when the
temperature reaches the value set.
When the
button is pressed, the
system returns to the ROOM THERMOSTA T
OFF operating mode (fig. 6).
If used as a timer thermostat, the control
panel will enable you to:
• set in advance, for every day of the week,
the desired temperature according to
specific time bands between which the
comfort level temperature (higher)
alternates with the economy level
temperature (lower).
This means that instead of having to set
the desired temperature level at all times,
the control panel is capable of following
the weekly schedule that best suits your
needs, making the boiler alternate
between comfort and economy settings.
The comfort level temperature should be
set when you want your ideal room
temperature. The economy level
temperature should be selected if you
want a certain temperature to be
maintained in the rooms as a minimum
threshold never to be exceeded (e.g.
when you are out or at night).
• set the heating and domestic hot water
temperature.
There are three operating modes:
• TIMER THERMOST A T OFF
• TIMER THERMOST A T SUMMER
• TIMER THERMOST A T WINTER
WARNING: in all operating modes, the
display shows the symbol.
To enable timer thermostat mode:
1) Set the system in ROOM
THERMOST AT OFF mode
2) Keep the
button pressed for 5
seconds
3) On the display:
TIMER THERMOST A T
13
Fig. 12
Fig. 13
Fig. 14
• the indicator blinks for 2 seconds to
confirm the new configuration TIMER
THERMOST AT OFF (fig. 13).
WARNING: once set in timer thermostat
mode, the control panel will maintain this
configuration even if the boiler is turned off
or there is a power failure.
T o disable the TIMER THERMOST A T mode
and return to the ROOM THERMOSTAT
function:
1)Set the system in TIMER THERMOSTA T
OFF mode
2)Keep the
button pressed for 5
seconds
3)On the display:
• the
indicator blinks for 2” to confirm
the new ROOM THERMOSTAT OFF
configuration (fig. 13).
When the
button is pressed, the
system switches from one operating mode
to another (OFF-SUMMER-WINTER) (fig. 14).
14
TIMER THERMOST A T OFF
The display shows:
• the word OFF in the temperature field (fig.
15).
When the
button is pressed, the
system enters the TIMER THERMOSTAT
SUMMER operating mode (fig. 14).
To switch off the panel (for short periods)
press
button till the display shows
the word OFF.
TIMER THERMOST A T SUMMER
To select timer thermostat summer mode,
when the word OFF is shown on the display ,
press
button.
WARNING: in TIMER THERMOSTAT
SUMMER mode, the time setting is not
enabled in that room heating control is not
one of the available functions. The boiler
supplies supply domestic hot water only.
The preset domestic hot water temperature
value 42.5 °C.
The display shows (fig. 16):
• domestic hot water indicator
• room temperature
Available functions:
• DOMESTIC HOT WA TER TEMPERATURE
REGULA TION (page 20)
• F AULT SIGNALLING (page 29)
When the
button is pressed, the
system enters the TIMER THERMOSTAT
WINTER operating mode (fig. 14).
TIMER THERMOST A T WINTER
From the timer thermostat summer mode
press
button to select the timer
thermostat winter mode.In this operating
mode, the boiler can supply both heating
and domestic hot water .

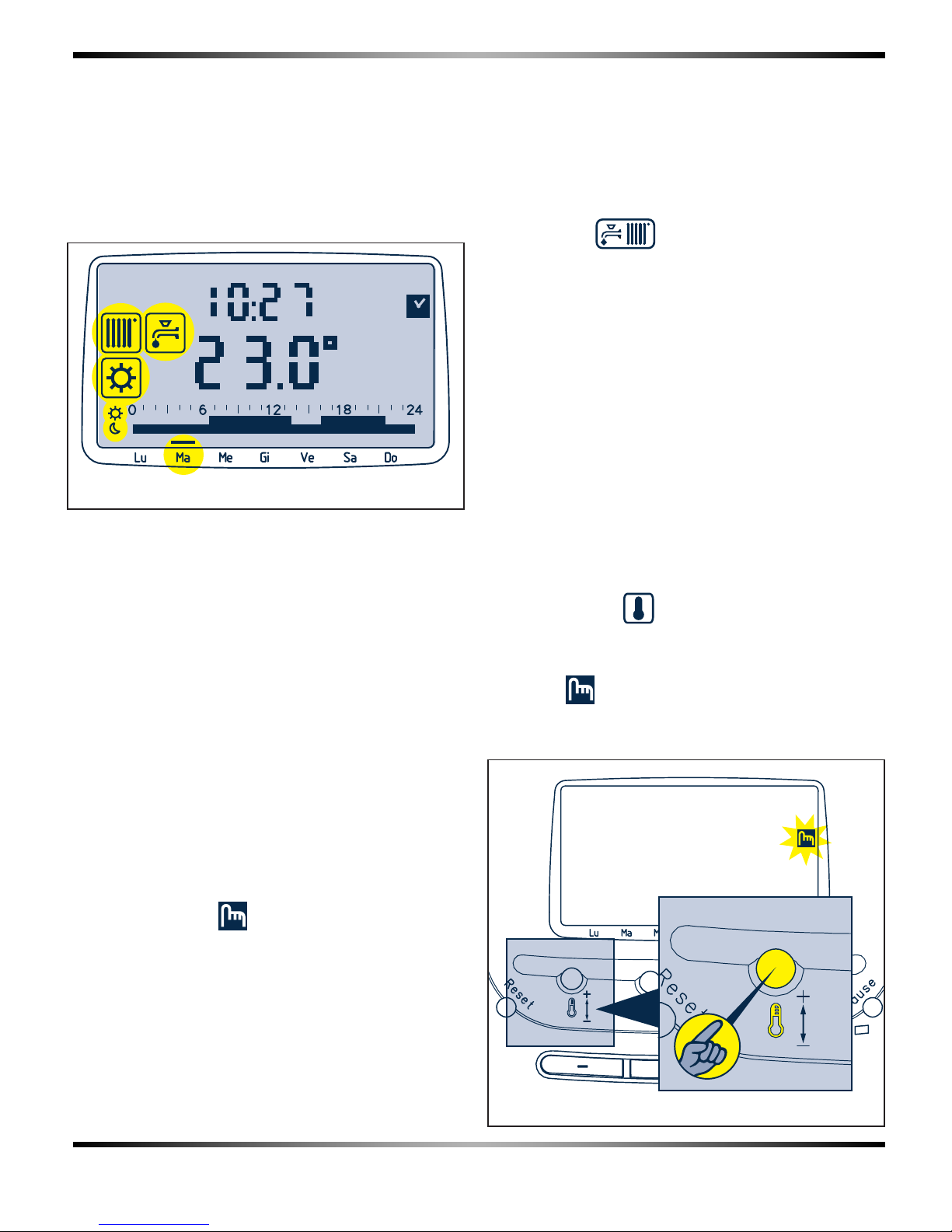

The display shows (fig. 17):
• domestic hot water
and heating
indicators
• current time
• room temperature
• if external sensor is installed, room
temperature level the panel shows
alternately room temperature level and
external temperature
• comfort level temperature value
or
economy level
corresponding to the
current half hour
• current day of the week
• daily schedule for current day
Fig.16
Fig. 15
15
Fig. 17
Fig. 18
Available functions:
• WEEKLY TIMER THERMOSTAT
FUNCTION (page 22)
• HEATING AND DOMESTIC HOT
WA TER TEMPERA TURE REGULA TION
(page 20)
BOILER CONTROL
Boiler control is useful if you only require
the control to adjust the outlet temperature
of the heating and domestic hot water.
When the panel is in boiler control mode, it
cannot control room temperature or ON/
OFF periods.
There are three operating modes:
• BOILER CONTROL OFF
• BOILER CONTROL SUMMER
• BOILER CONTROL WINTER
WARNING: the
symbol is displayed in
all operating modes.
To activate boiler control mode (fig. 18):
1) Set the system in ROOM THERMOST A T
OFF mode.
If you are in TIMER THERMOSTAT
mode, to return to OFF, see page 13
2) Keep the
button pressed for 5
seconds
3) On the display (fig. 18):
• the indicator blinks for 2 seconds
to confirm the new BOILER CONTROL
OFF configuration
• TEMPORARY CHANGE IN LEVEL
FUNCTION (page 25)
• CLEANING FUNCTION (page 27)
• HOLIDAY FUNCTION (page 28)
• F AULT SIGNALLING (page 30)
When the
button is pressed, the
system enters the TIMER THERMOSTAT
OFF operating mode (fig. 15).
16
Fig.20
Fig. 19
Fig. 21
WARNING: once set in boiler control mode,
the control panel will maintain this
configuration even if the boiler is turned off
or there is a power failure.
To disable boiler control mode and return
to room thermostat mode (fig. 19):
1) Keep the button pressed for 5
seconds
2) On the display:
• the indicator blinks for 2” to confirm
the new ROOM THERMOSTAT OFF
configuration
When the button is pressed, the
system switches from one operating mode
to another (OFF-SUMMER-WINTER) (fig.
20).
WARNING: the anti-freeze function is
disabled in boiler control mode.
BOILER CONTROL OFF
The display shows (fig. 21):
• the word OFF in the temperature field
When the
button is pressed, the
system enters the BOILER CONTROL
SUMMER operating mode (fig. 20).
To switch off the panel (for short periods)
press
button till the display shows
the word OFF.
17
Fig. 22
Fig. 23
BOILER CONTROL SUMMER
To select boiler control summer mode,
when the word OFF is shown on the display ,
press
button.

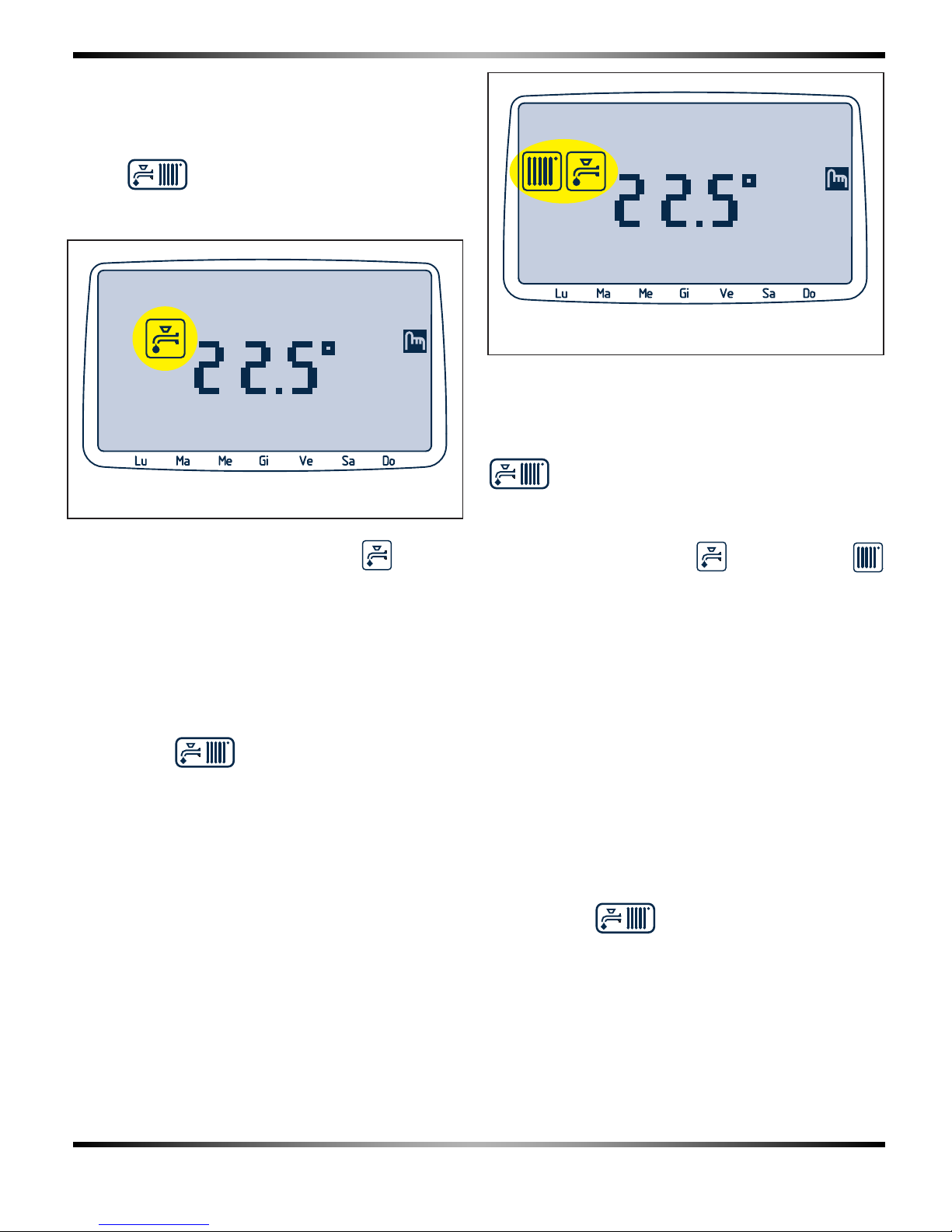

The display shows (fig. 22):
• domestic hot water indicator
• room temperature
Available functions:
• DOMESTIC HOT WATER
TEMPERATURE REGULATION
(page 19)
• F AULT SIGNALLING (page 30)
When the
button is pressed, the
system enters the BOILER CONTROL
WINTER operating mode (fig. 20).
BOILER CONTROL WINTER
From the boiler control summer mode press
button to select the boiler control
winter mode.
The display shows (fig. 23):
• domestic hot water and heating
indicators
• room temperature
• if external sensor is installed, room
temperature level the panel shows
alternately room temperature level and
external temperature
Available functions:
• HEATING AND DOMESTIC HOT
WA TER TEMPERA TURE REGULA TION
(page 20)
• F AULT SIGNALLING (page 30)
When the
button is pressed, the
system returns to the BOILER CONTROL
OFF operating mode (fig. 20).
18

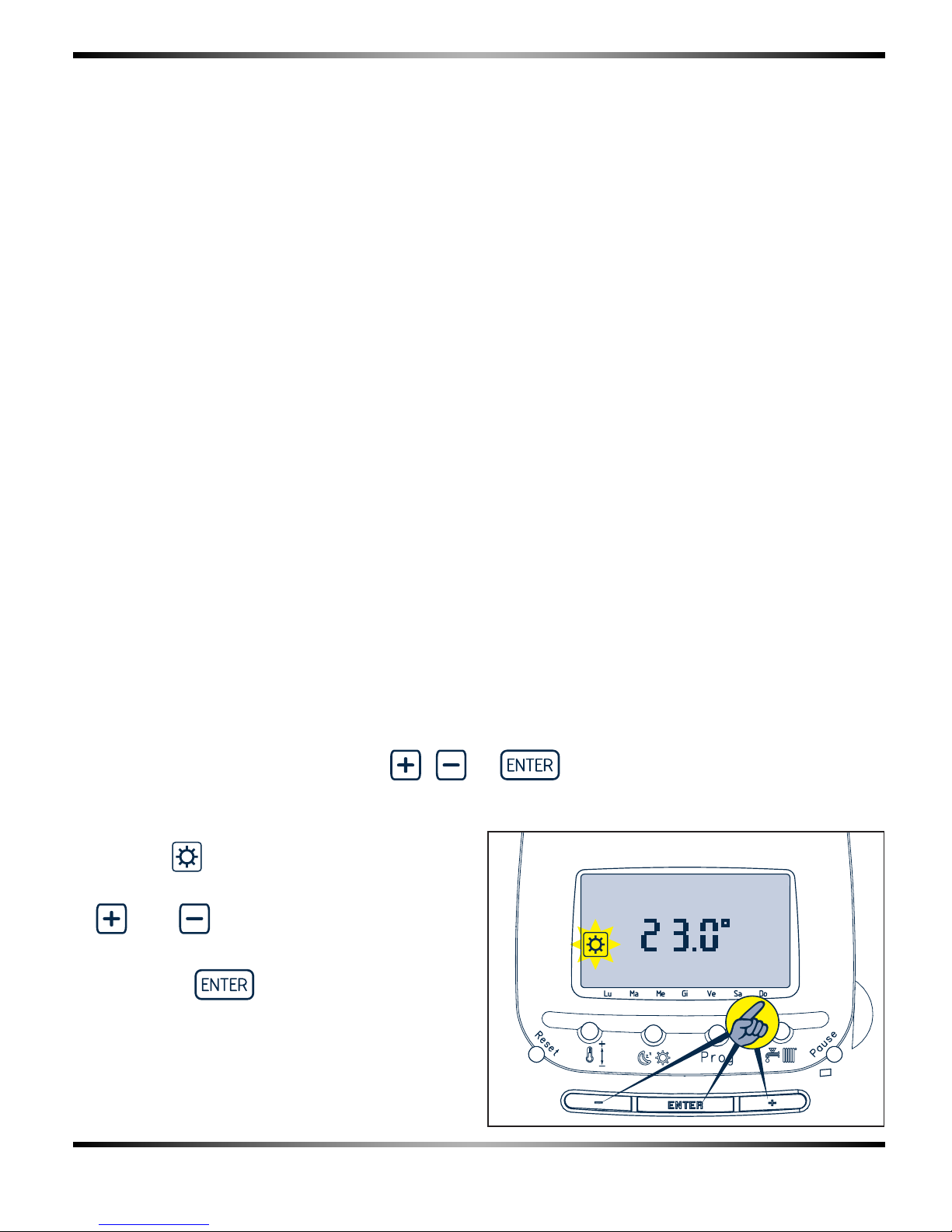

AVAILABLE FUNCTIONS

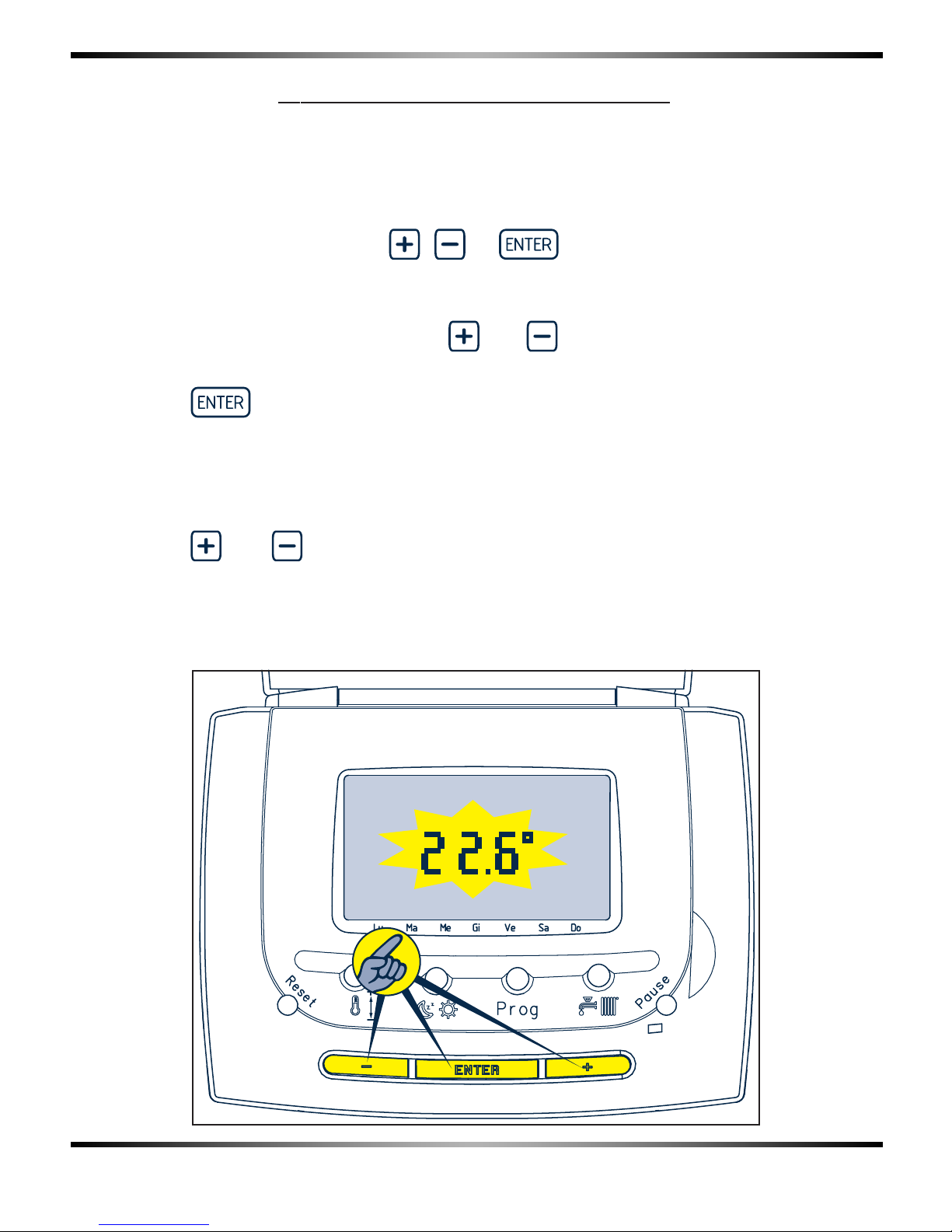

REGULA TING THE ROOM THERMOST A T TEMPERA TURE
Function enabled in ROOM THERMOSTAT WINTER mode.

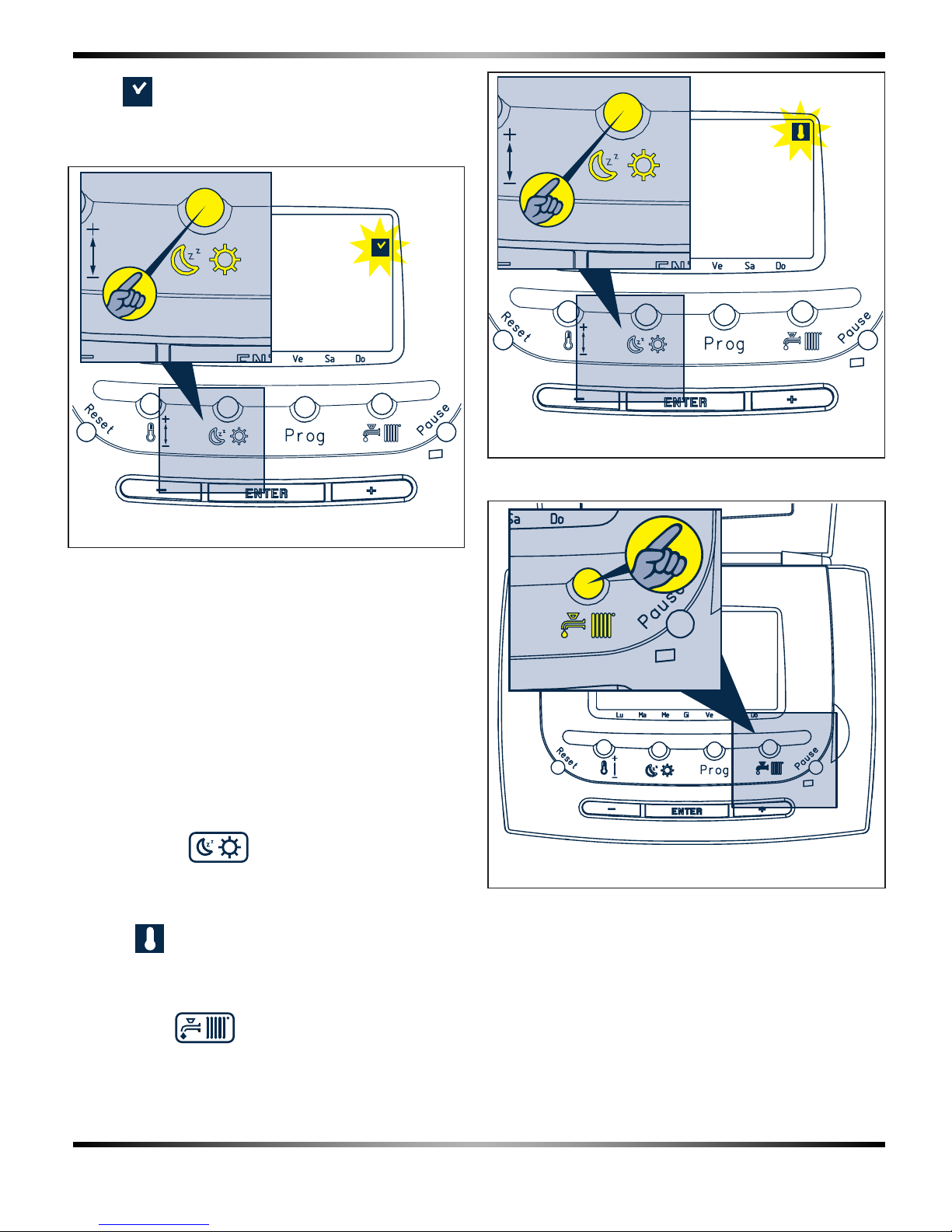

1) Press one of the three buttons
, or
2) On the display:
• the room thermostat temperature set blinks
3) T o change the temperature, press the
and buttons. The changes will be set in
steps of 0,2 °C.
4) Press the
button to confirm the desired temperature value. If no confirmation
is given within 10 seconds, the system exits automatically from the procedure and
stores the current temperature.
WARNING: to display the room thermostat temperature, follow the procedure without
pressing the
and buttons.
19

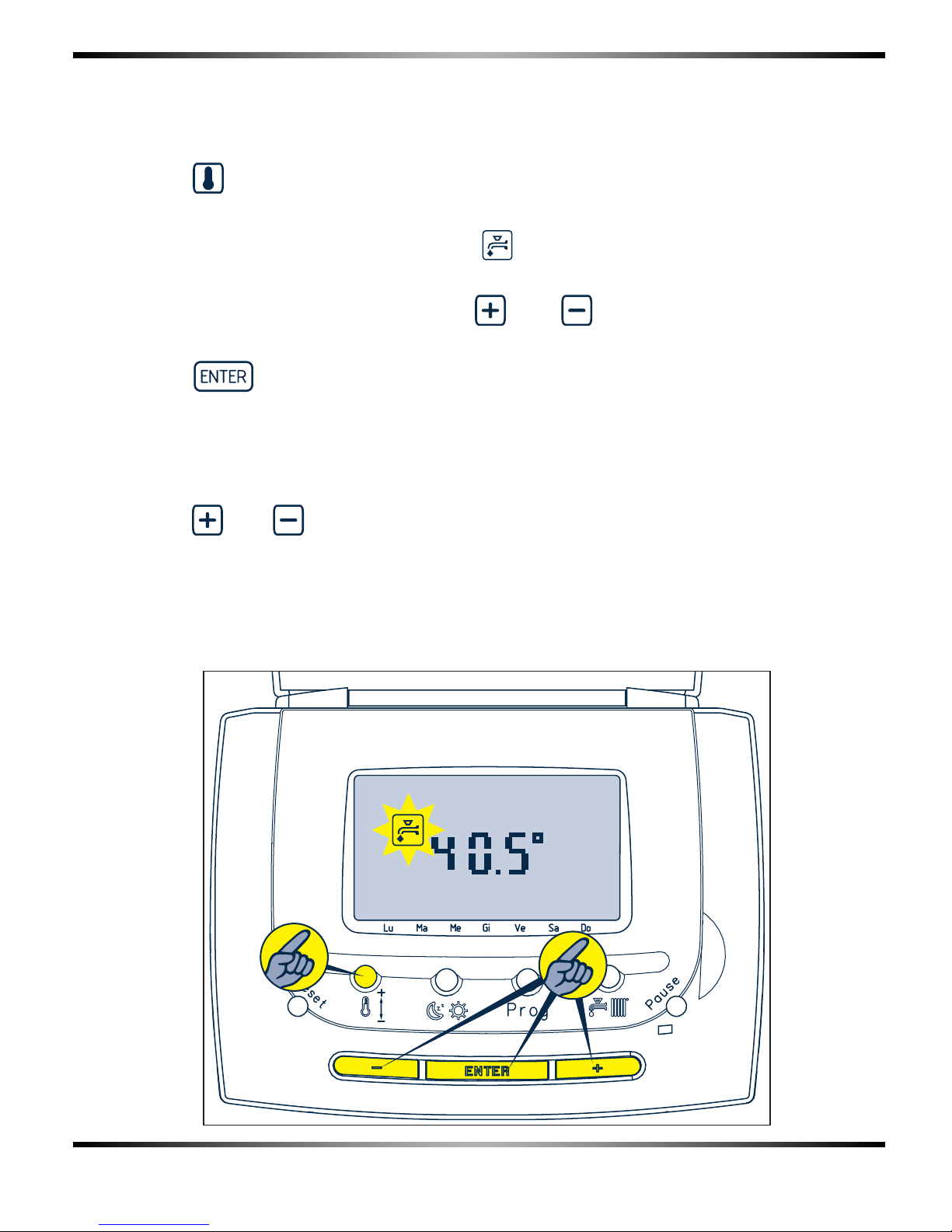

REGULA TING THE DOMESTIC HOT W A TER TEMPERA TURE
Function enabled in the SUMMER operating mode.
1) Press the
button :
2) On the display:
• the DOMESTIC HOT WATER indicator
starts to blink
• the current domestic hot water temperature appears
3) To change the temperature, press the
and buttons. The changes will be
made in steps of 2.5 °C.
4) Press the
button to confirm the desired temperature value. If confirmation is
not given within 10 seconds, the system exits automatically from the procedure and
stores the current temperature.
WARNING: to display the domestic hot water temperature, follow the procedure without
pressing the
and buttons.
20
REGULATING THE HEA TING AND
DOMESTIC HOT W A TER TEMPERA TURE
Function enabled in WINTER operating mode.
Domestic hot water temperature regulation
1) Press the
button
2) On the display:
• the
indicator starts to blink
• the current domestic hot water temperature appears
3) T o change the temperature, press the
and buttons. The changes will be set in
steps of 2.5 °C.
4) Press the
button to confirm the desired temperature value. If confirmation is
not given within 5 seconds, the system exits automatically from the procedure and
stores the current temperature.
21

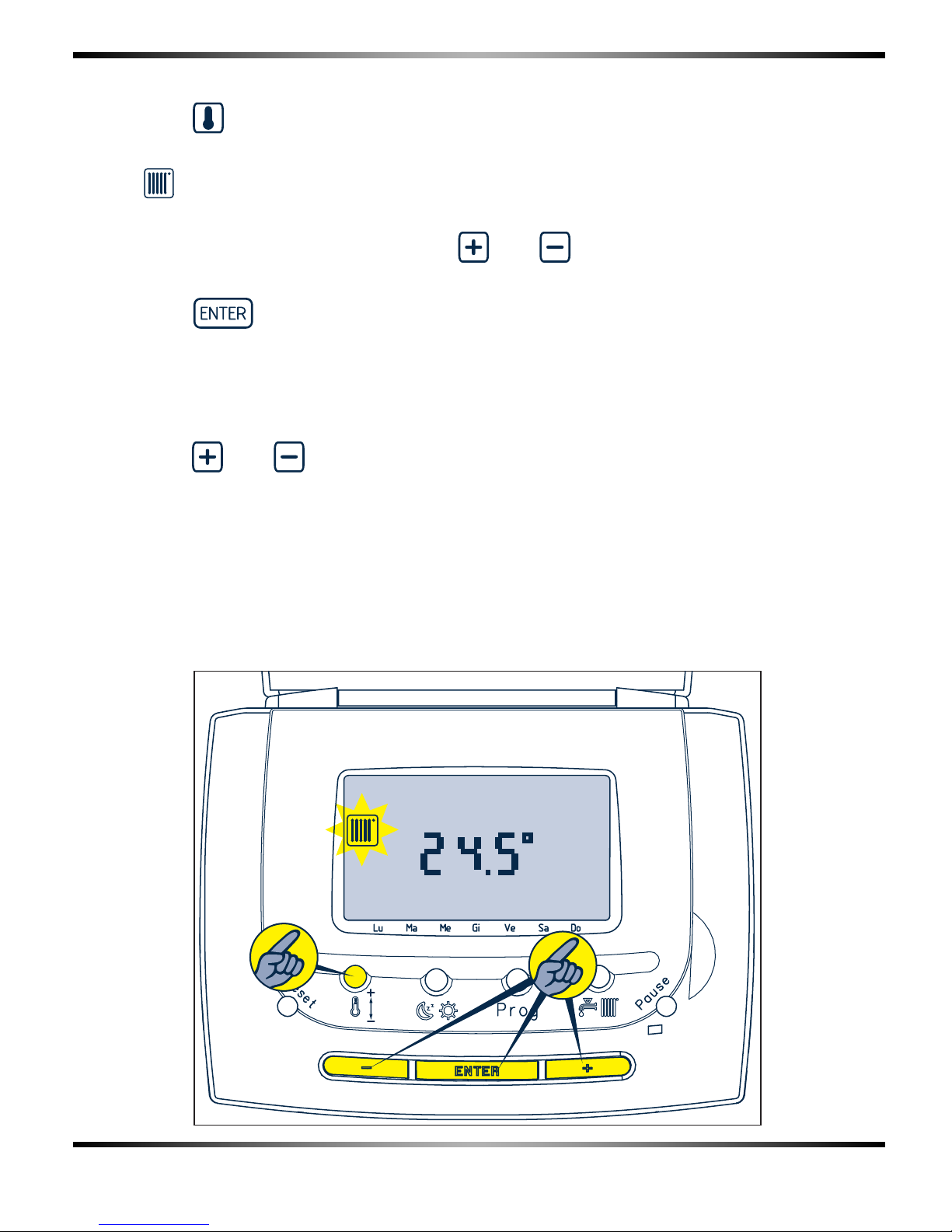

Heating temperature regulation (external sensor not installed)
5) Press the
button
6) On the display:
• the
indicator starts to blink
• the current heating temperature appears
7) To change the temperature, press the
and buttons. The changes will be set
in steps of 4.5 °C.
8) Press the
button to confirm the desired temperature value. If confirmation is
not given within 5 seconds, the system exits automatically from the procedure and
stores the current temperature.
WARNING: to display one or both temperature values, follow the procedure without
pressing the
and buttons.
22
Thermo-regulation (RC05 with external sensor) with Linea & Compact boilers
When external sensor is connected to the RC05, it is not possible to adjust the outlet
flow temperature, this is because the flow outlet temperature is adjusted automatically
by the RC05 to ensure optimum comfort and efficiency. It is possible to set one of nine
different temperature curves (C1 to C9) that will best suit your geographical location and
system type. This setting is adjusted by your installer during the installation of the RC05.
Further information can be found in the installation instructions.
Thermo-regulation with Hydra boilers (with external sensor)
When external sensor is connected to the Hydra boiler, it is not possible to adjust the
outlet flow temperature, this is because the flow outlet temperature is adjusted
automatically by the appliance to ensure optimum comfort and efficiency. It is possible
to set a unique climatic curve that will best suit your geographical location and system
type. This setting is adjusted by your installer during the installation of the external sensor .
Further information can be found in the installation instructions.
The heating curve should be set by a
competent person at the first ignition of the
boiler and written on the box hereafter .
For details please refer to the external sensor
instruction.
If it is necessary set this value operate as
follow:
1) Press the
button
2) On the display:
• the
indicator starts to blink
• the current heating curve appears (CX)
3) To change the heating curve, press the
and buttons.
4) Press the
button to confirm the desired heating curve. If confirmation is not
given within 5 seconds, the system exits automatically from the procedure and stores
the current heating curve.
WARNING: to display one or both temperature values, follow the procedure without
pressing the
and buttons.
REMARK for Hydra and Pinnacle boilers: the heating temperature value set on the
boiler display is valid also when control panel is installed. Even if is possible to select
upper value the regulation field is limited to the value set in boiler.
Heating curve:
23
WEEKL Y TIMER THERMOST A T FUNCTION
Function enabled in weekly timer thermostat operating mode.
Operation
• the system is assigned two temperature levels: comfort level and economy level
• each day of the week may be divided into time bands
• each time band is assigned one of the two temperature levels
The remote control panel is equipped with a preset standard program which may be
modified at will.
Standard program settings
• Comfort level temperature: 20 °C
• Economy level temperature: 16 °C
• Time schedule from Monday to Friday:
- from midnight to 6 a.m.: economy level temperature
- from 6 a.m. to 9 a.m.: comfort level temperature
- from 9 a.m. to 5 p.m.: economy level temperature
- from 5 p.m. to 10 p.m.: comfort level temperature
- from 10 p.m. to midnight: economy level temperature
• Time schedule for Saturday and Sunday:
- from midnight to 7 a.m.: economy level temperature
- from 7 a.m. to 11 p.m.: comfort level temperature
- from 11 p.m. to midnight: economy level temperature

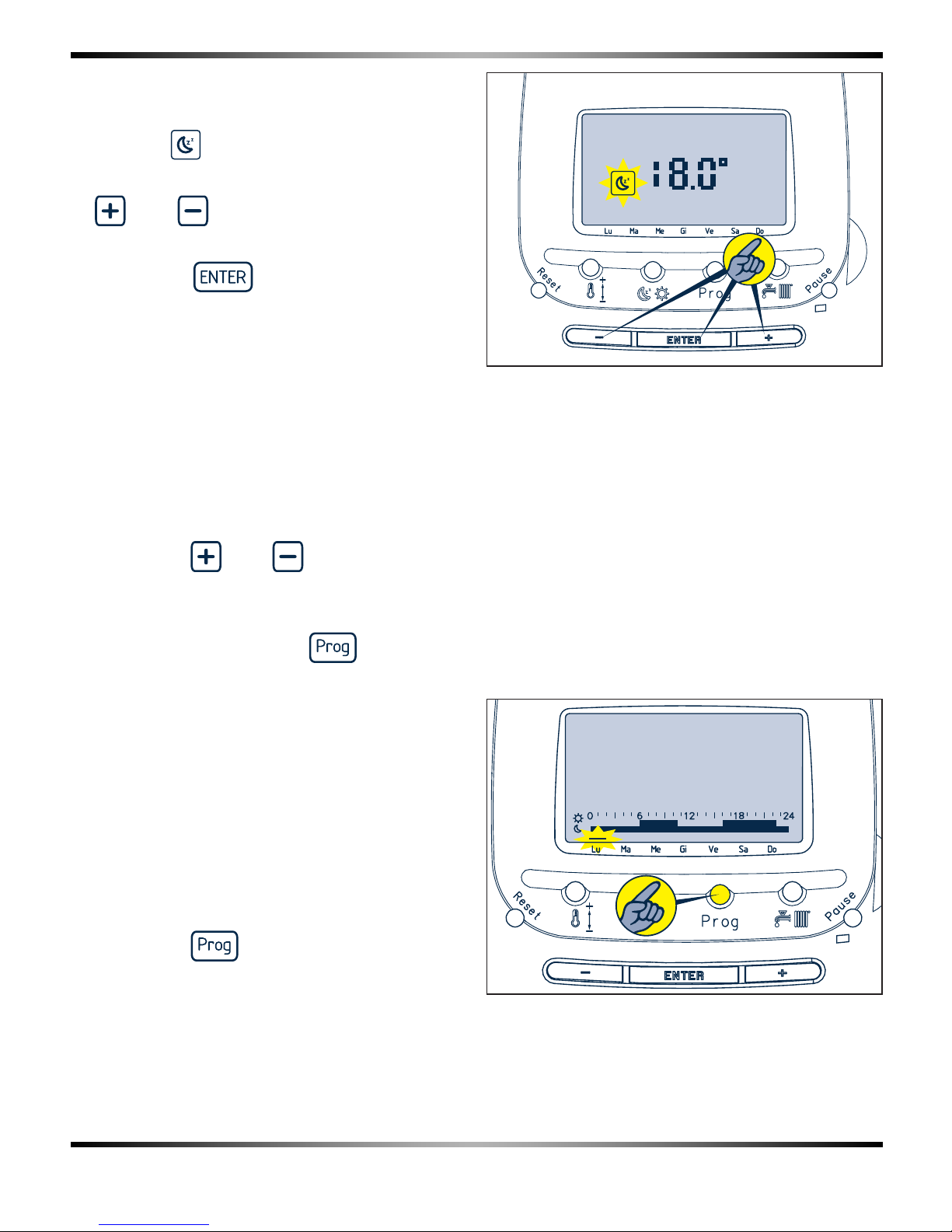

Comfort and economy temperature level regulation
1) Press one of the three buttons , or
2) On the display:
• the comfort level temperature blinks
and the
indicator lights up
3) To change the temperature, press the
and buttons. The changes will
be set in steps of 0,2 °C.
4) Press the
button to confirm the
desired temperature value.
24
5) On the display:
• the economy level temperature blinks
and the
indicator lights up
6) To change the temperature, press the
and buttons. The changes will
be made in steps of 0.2 °C.
7) Press the
button to confirm the
desired temperature value. If
confirmation is not given within 10
seconds, the system exits automatically
from the procedure and stores the
current temperature.
WARNING: the economy level temperature set must be lower than the comfort level
temperature. The system will automatically impose these limits during the programming
phase.
WARNING:to display one or both temperature values, follow the procedure without
pressing the
and buttons.
Displaying the time band settings
1) Press and release the button
2) On the display:
• the week day indicators start to blink
in sequence
• the corresponding time schedule
appears beside each day
3) After seven days have passed, the
system exits automatically from the
display procedure.

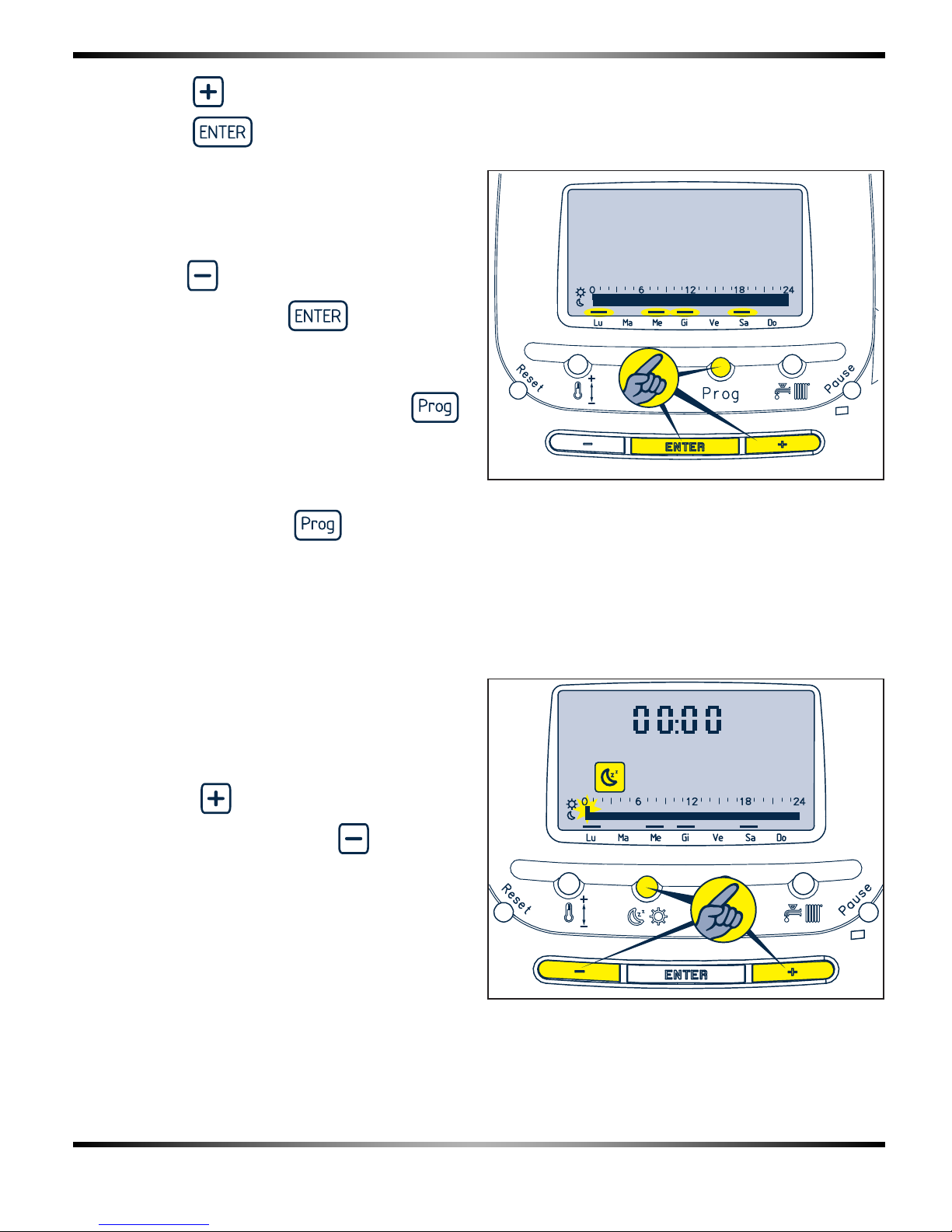

Programming the timer thermostat
1) Press the button twice.
2) On the display:
• the Monday indicator starts to blink
WARNING: a single day may be selected or groups of days may be created with the
same schedule.
25
3) Press the button to scroll through the days of the week
4) Press the
button to select one or more days
5) On the display:
• the indicators of the day or days
selected appear steady.
If an error is made in selecting the days,
press the
button to return to the day
to be corrected and
to delete it.
Then resume the procedure from step
3.
6) T o confirm the selection, press the
button. If confirmation is not given within
15 seconds, the system exits
automatically from the procedure.
WARNING: when the
button has
been pressed, the system moves on to the time band programming phase.
7) On the display:
• the indicators of the day or group of days selected remain on
• the time 00.00 (midnight) appears
• the segment corresponding to this time
starts blinking
• the economy level temperature
indicator appears
8) Press the
button to increase the
programming time or the
button to
decrease it.
The changes will be made in steps of half
an hour. The economy temperature level
is assigned to this time band.
26

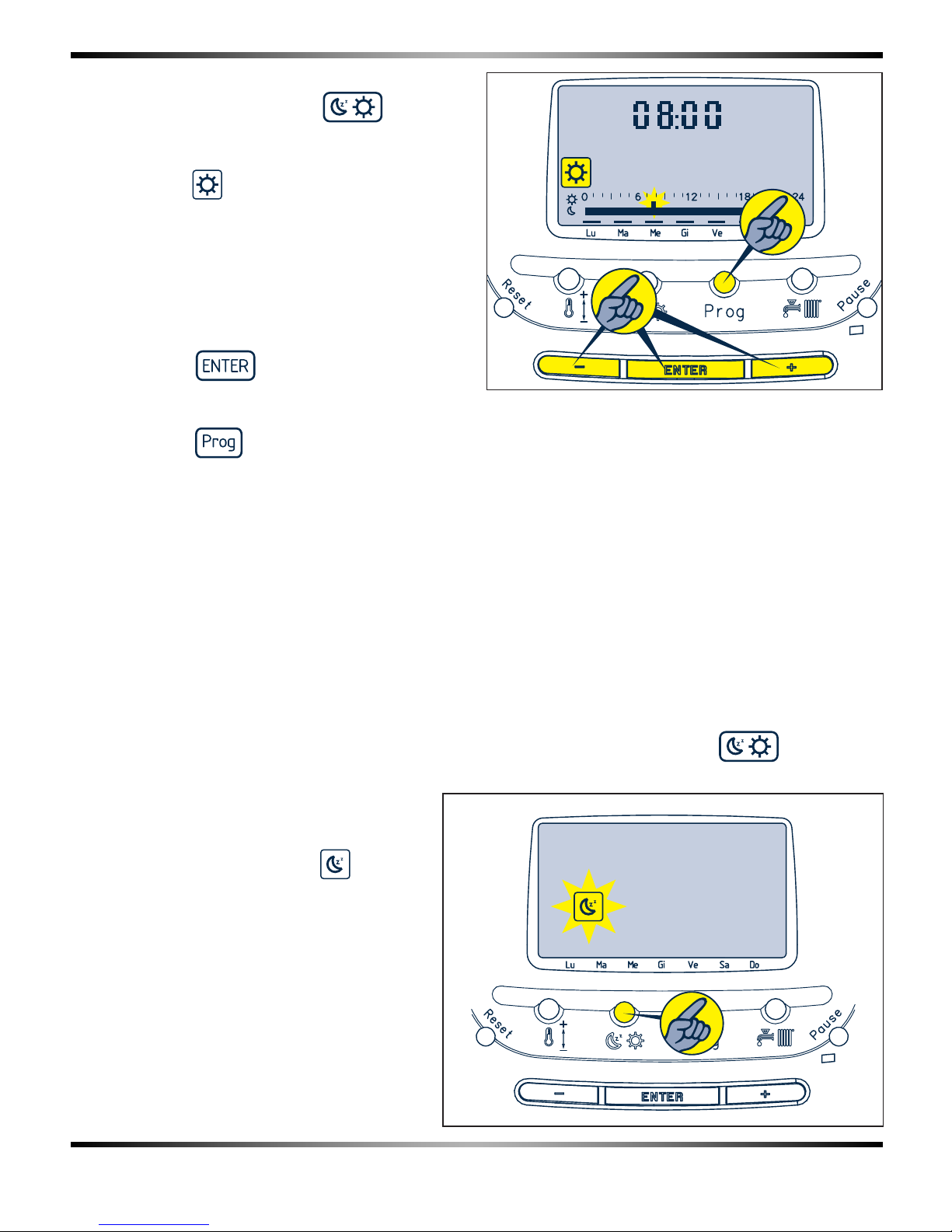

9) At the desired time for the change in
temperature, press the button
10)The display shows:
• the comfort temperature level
indicator
11)Proceed as indicated in step 9 to set
the new time band. This band is
assigned the comfort temperature
level.
12)Continue as described until the desired
daily schedule is obtained.
13)Press the button to confirm and
exit from the time programming phase
or , if there are no other days to be set,
press the button to exit from the timer thermostat programming phase.
WARNING: when you start to set the schedule for a single day, the system shows the
last setting made. When you start to set the schedule for a group of days, the system
always shows a blank schedule.
TEMPORARY CHANGE IN LEVEL
During operation on a given level (e.g. comfort level temperature), the boiler’s operation
may be changed (e.g. economy level temperature) by pressing the
button. To
indicate that the level has been
changed with respect to the schedule,
the manually selected level indicator
blinks on the display (e.g. ). When
the program specifies the next change
in level, the manual setting will be
cancelled and the display’s normal
contents will be restored.
If the system is set to OFF, the change
in level will be cancelled.
27

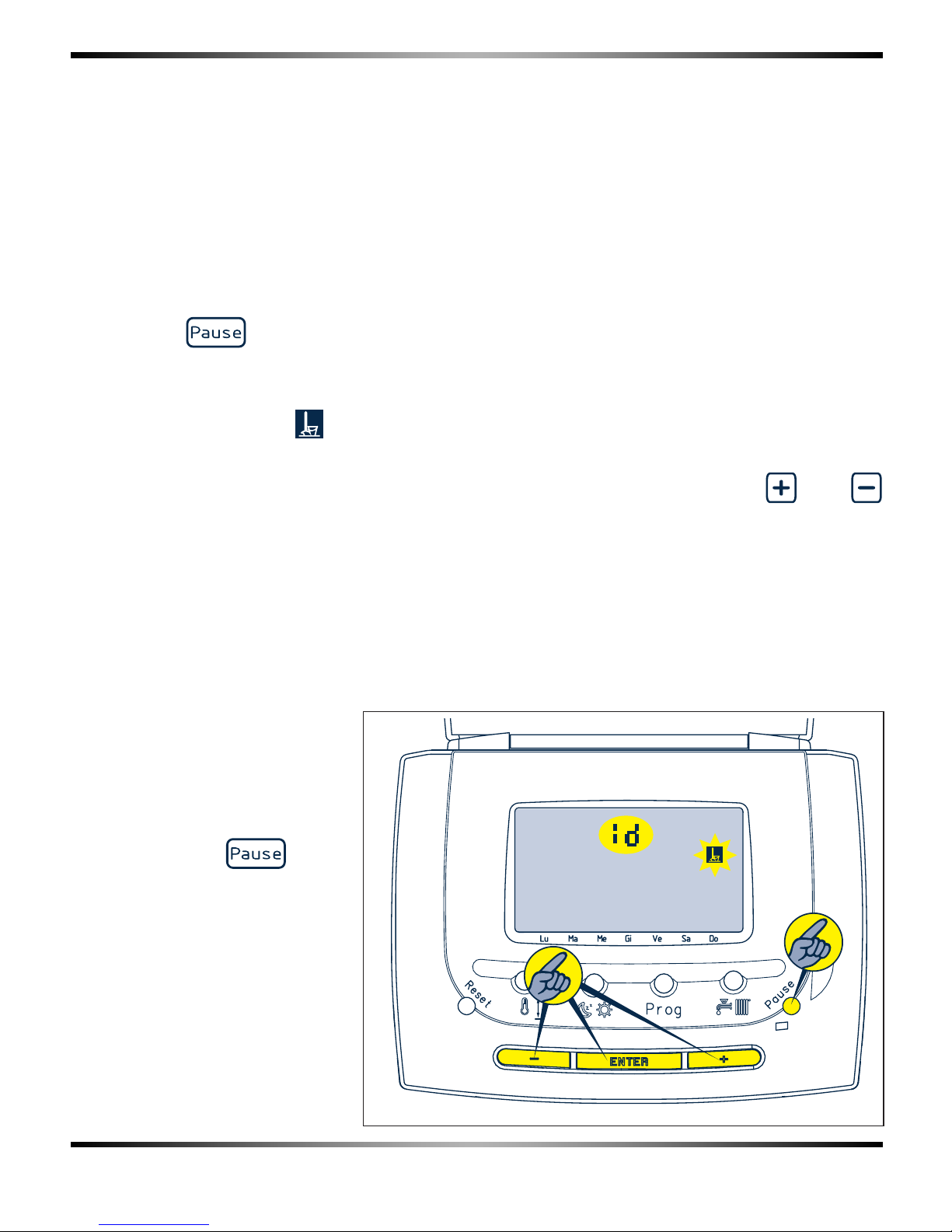

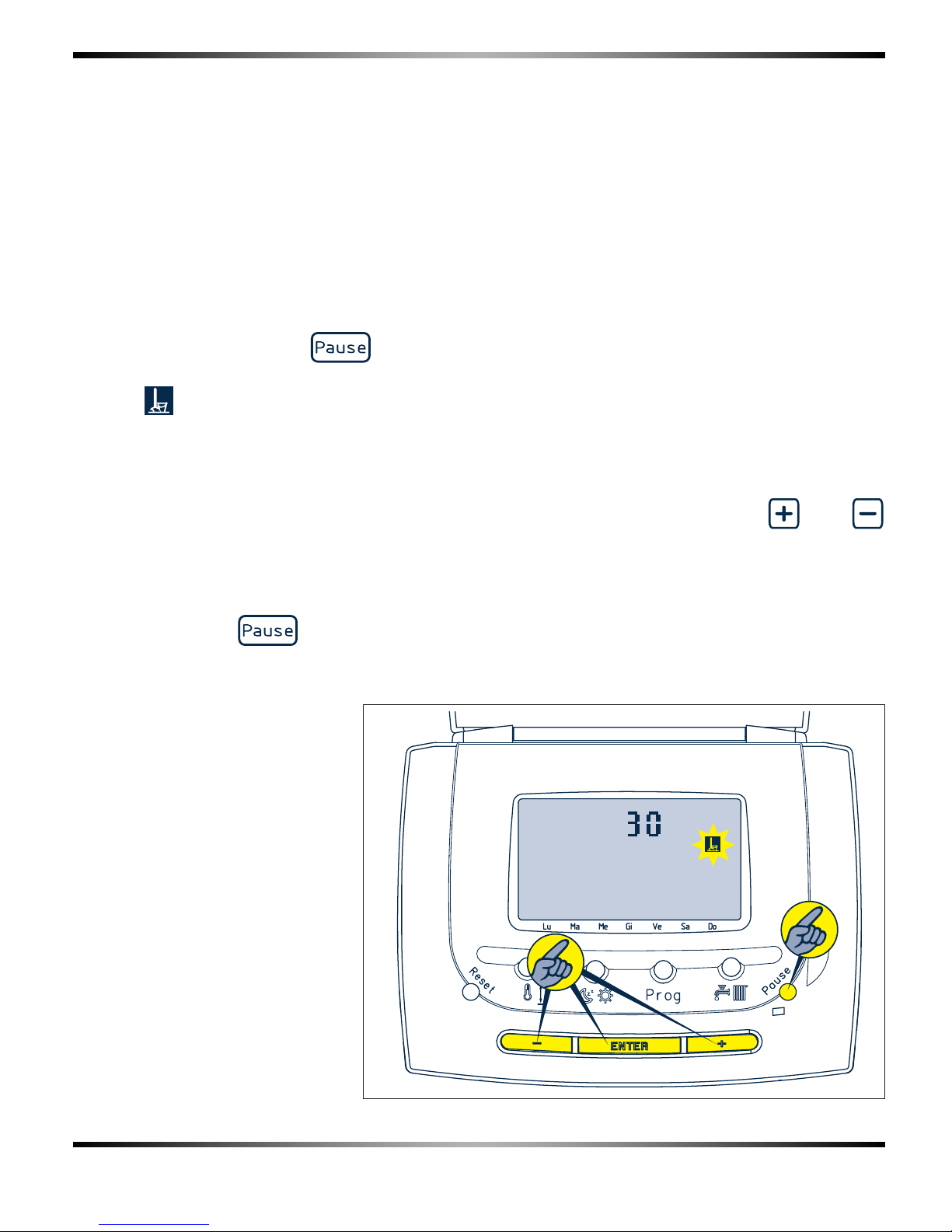

CLEANING FUNCTION
Function enabled in WINTER operating mode.
This function is useful when the windows of the room in which the control panel is
installed are opened for a given period of time, to prevent the drop in temperature
from turning on the boiler and a resulting dispersion of heat. By activating the
function, you can stop the control panel from having any control over the room
temperature for a period of 30 minutes.
To enable the function:
1) Press and release the button
2) On the display:
• the indicator starts to blink
• the number of minutes remaining until the end of the procedure appears (at the
start, 30)
• the number of minutes decreases to zero
3) You may increase or decrease this value at any time by pressing the
and
buttons
4) When the time is reset, the function is disabled and the system returns to the previous
operating mode.
WARNING: if the
button is pressed during the countdown, the system will exit
from the cleaning function and return to the operating mode it was in when the function
was activated.
WARNING: if there is a power
failure during the procedure,
when power is restored the
system will not automatically
return to the cleaning function.
The function has to be
selected again.
WARNING: during the
cleaning function, the boiler
can produce domestic hot
water.
28
HOLIDAY FUNCTION
Function enabled in WINTER operating mode.
Using this function you can have the schedule suspended for a given period if, for example,
the house is to remain empty while you are away on holiday. During this period, the
control panel is prevented from requesting heat from the boiler for a maximum period of
180 days.
To enable the function:
1) Keep the
button pressed for at least 5 seconds
2) The display shows:
• the number of days remaining until the end of the procedure: at the start the value
is 1d (1 day) and the
symbol blinks
• the number of days decreases to zero
3) You can increase or decrease this value at any time by pressing the
and
buttons
4) When the time is reset (0d), the function is disabled and the system returns to the
previous operating mode
WARNING: the day count starts from the date on which the function was activated
irrespective of the time of activation.
Example: lon 3
rd
February, you activate the holiday function for 4 days. The procedure
remains active for 3
rd
, 4th, 5
th
and 6th February and from
midnight of day 7 the system
returns to the previous
operating mode.
WARNING: if the button
is pressed during the
countdown, the system will exit
from the holiday function and
return to the operating mode it
was in when the function was
activated.
29
WARNING: if there is a power failure during the procedure, when it is restored, the
system returns automatically to the holiday function. The count resumes from the last
day counted.
WARNING: during the holiday function, the boiler can produce domestic hot water.

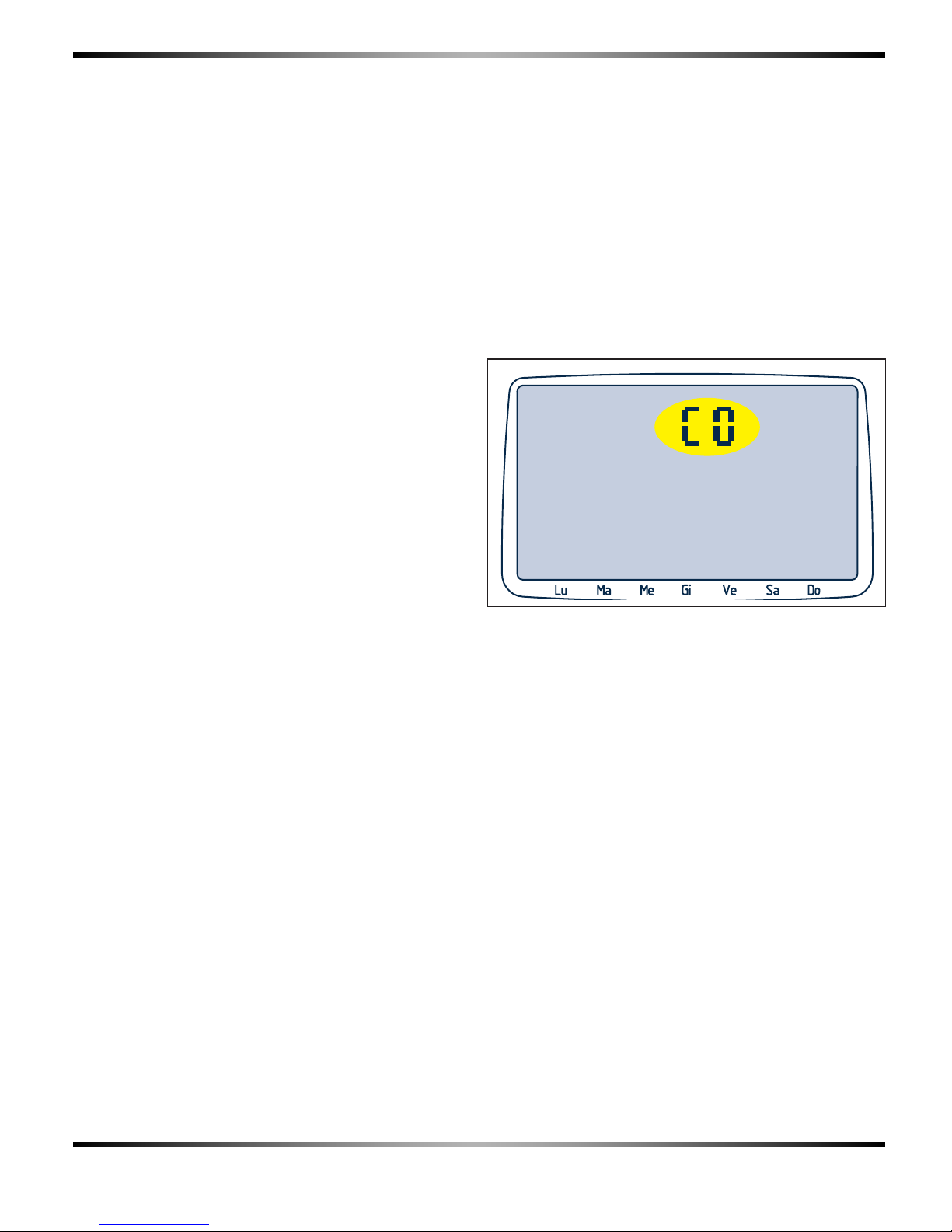

COMBUSTION ANALYSIS
This function is not supported by the
control panel: when it is activated on the
boiler , the display shows the indication CO.
30

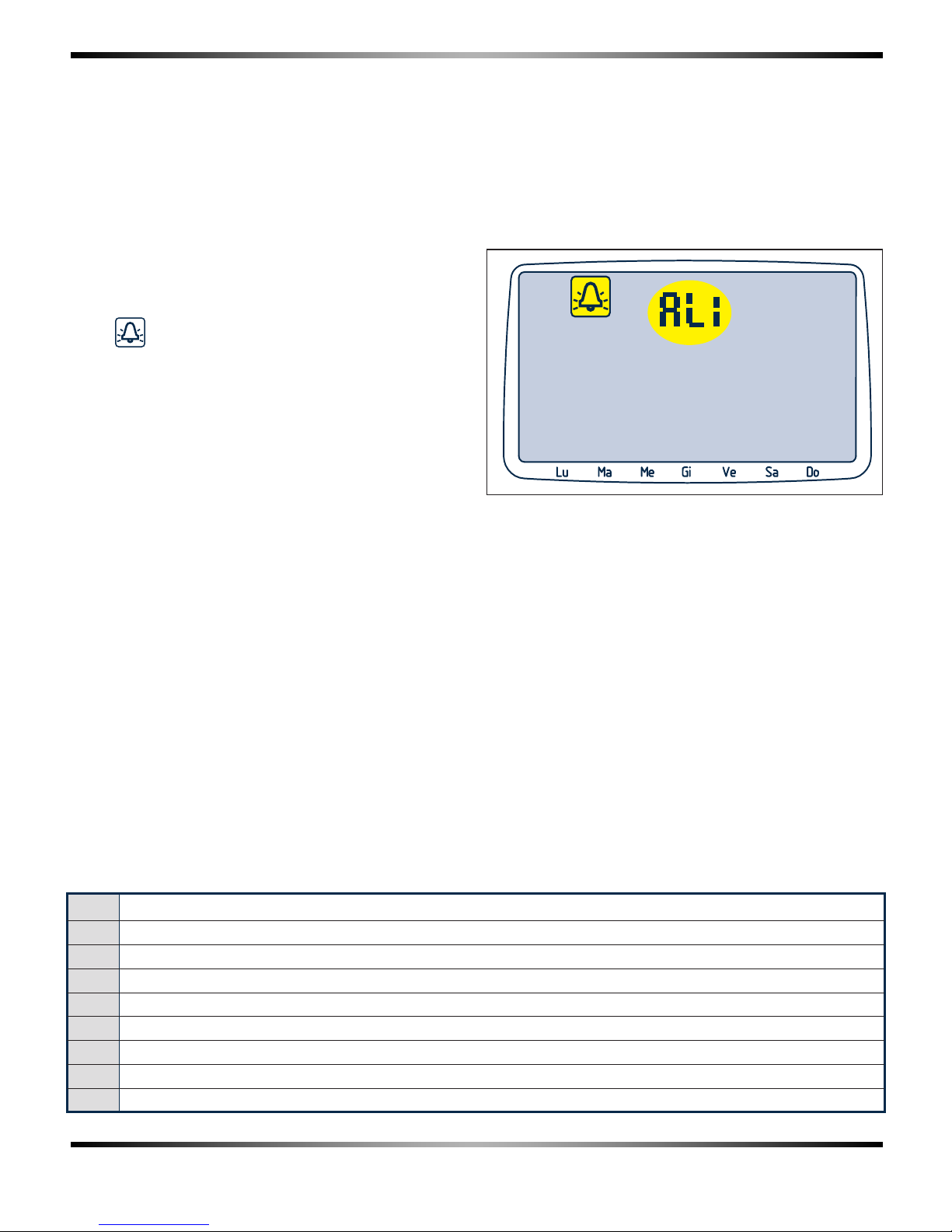

F AUL T SIGNALLING
The control panel signals any faults in the boiler’s operation on the display. This function
provides information in real time about any faults that have occurred and their exact
nature.
WARNING: during fault signalling, the boiler
functions are disabled.
If a fault occurs:
1) The display shows:
• the indicator
• the error code
Clearing an alarm
To clear the fault signal and restore the
boiler’s operation, press and release the
(RESET) button and wait for the alarm code
to be cleared.
Details of fault code 05
Should a problem develop with the connection between th boiler and the RC05, the
boiler will resume operation as determined by the settings made on the boiler control
panel. Should the connection be broken completely, the display will be blank and no
fault code will be shown on the RC05.
NOTE
Should any fault code be displayed repeatedly , you should contact your installer or V okera
Customer Services.
AL1 Flame lockout, ensure the gas is turned on at the meter
AL2 Boiler overheating, ensure that the radiator valves are turned on
AL3 Flue problem - call engineer
AL4 Low water pressure, ensure the boiler’s pressure gauge is above 0.5bar
AL5 Communication fault between RC05 and boiler - call engineer
AL6 Sensor fault - call engineer
AL7 Sensor fault - call engineer
AL8 Burner overheat
AL9 Appliance fault
F AUL T CODE T ABLE
31
Registered address:
Vokèra Ltd
Borderlake House
Unit 7 Riverside Industrial Estate
London Colney
Herts AL2 1HG
enquiries@vokera.co.uk
www.vokera.co.uk
www.vokera.ie
Sales, General Enquires
T 0844 391 0999
F 0844 391 0998
Vokèra Ireland
West Court, Callan
Co Kilkenny
T 056 7755057
F 056 7755060
Vokèra Limited reserve the right to change
specification without prior notice
Consumers statutory rights are not affected.
A Riello Group Company.
Company Reg No: 1047779
Cod. 10024477 - Ed. 1 - 10/03
Loading...
