Page 1

evolve

High e󰀩ciency system boiler

Users Instructions

Installation & Servicing Instructions

evolve 18S G.C. N° 41-094-98 evolve 24S G.C. N° 41-094-99 evolve 30S G.C. N° 41-364-01 evolve 35S G.C. N° 41-364-02

THESE INSTRUCTIONS TO BE RETAINED BY USER

Vokèra is a licensed member of the Benchmark scheme which aims to improve the standards of installation and commissioning of domestic hot water systems in the UK.

Page 2

1. THINGS YOU SHOULD KNOW ................................................... 2

2. GETTING STARTED ....................................................................5

3. HOW TO.... ................................................................................. 11

4. WHAT IF ..................................................................................... 12

SECTION 1 - DESIGN PRINCIPLES AND OPERATING

SEQUENCE ...................................................................................14

SECTION 2 - TECHNICAL DATA ..................................................15

SECTION 3 - CONTROL PANEL (REC10) .................................... 18

SECTION 4 - GENERAL REQUIREMENTS (UK) .........................24

SECTION 4A - GENERAL REQUIREMENTS (EIRE) ....................25

SECTION 5 - INSTALLATION ....................................................... 27

SECTION 6 - COMMISSIONING ...................................................32

SECTION 7 - SERVICING INSTRUCTIONS .................................. 44

SECTION 8 - CHECKS, ADJUSTMENTS AND FAULT FINDING ....50

SECTION 9 - LPG INSTRUCTIONS .............................................. 56

Commissioning checklist ............................................................ 57

Benchmark ...............................................................................58-60

RANGE RATED

This boiler can be adapted to the heat requirements of the system, and in fact it is possible to set the range rated parameter as shown

in the specic paragraph.

After setting the desired output report the value in the table on the back cover of this manual, for future references.

USERS INSTRUCTIONS

INTRODUCTION

Dear Customer Your Vokèra evolve boiler has been designed to meet and exceed the very latest standards in gas central heating technology,

and if cared for, will give years of reliable use and e󰀩ciency.

Please therefore take some time to read these instructions carefully.

Do’s and Don’t’s

- Do ensure that the system pressure is periodically checked

- Do ensure that the boiler is not used by children or unassisted disabled people

- Do ensure that you know how to isolate the appliance in an emergency

- Do ensure that you are familiar with the appliance controls

- Do ensure that your installer has completed the appliance log book section

- Do not attempt to remove the appliance casing or gain internal access

- Do not hang clothes etc. over the appliance

- Do not forget to have the appliance serviced annually.

This booklet is an integral part of the appliance. It is therefore necessary to ensure that the booklet is handed to the person responsible for the property in which the appliance is located/installed. A replacement copy can be obtained from Vokèra customer services.

At the end of its life, the product should be not be disposed of as solid urban waste, but rather it should be handed over to a

di󰀨erentiated waste collection centre.

1. THINGS YOU SHOULD KNOW

1.1 GAS APPLIANCES

Gas Safety (Installation and Use) Regulation (UK).

In the interests of your safety and that of others it is a legal requirement that all gas appliances are installed and correctly maintained by a competent person and in accordance with the latest regulations.

1.2 ELECTRICAL SUPPLY

Please ensure that this appliance has been properly connected to the electrical supply by means of a double pole isolator or un-switched socket, and that the correct size of fuse (3 AMP)

has been tted.

Warning: this appliance must be earthed!

1.3 WARRANTY REGISTRATION

Please take the time to register the appliance warranty using the documentation provided, call 0800 479 0754 (UK) or 056

7755055 to obtain your warranty conrmation code (please

have your appliance warranty card to hand).

1.4 APPLIANCE COMMISSIONING CHECKLIST (UK only)

The Benchmark checklist section can be found at the rear of the appliance installation booklet. This important document must be completed during the installation/commissioning of your boiler. All GAS SAFE registered installers carry a GAS SAFE ID card, and have a registration number. These details should be recorded in the Benchmark commissioning checklist section within the installation booklet. You can check your installers details by calling GAS SAFE direct on 08004085500. Failure to install and commission the appliance in accordance with the manufacturers instructions will invalidate the warranty.

This does not a󰀨ect your statutory rights.

Page 3

1.5 HOW DOES IT WORK?

Your evolve boiler supplies heated water to your radiators and hot water to your hot water taps. The central heating is controlled via a time clock and any thermostats that your installer may

have tted. The boiler will light when it receives a request from

the time clock via any thermostat that may be installed. Your evolve boiler lights electronically and does not have a pilot light. In the unlikely event of a fault developing with your boiler, the supply of gas to the burner will be terminated automatically.

1.6 DIMENSIONS

evolve 18S - 24S 30S - 35S

HEIGHT 740 mm 740 mm

WIDTH 420 mm 420 mm

DEPTH 275 mm 350 mm

1.7 CLEARANCES REQUIRED

ABOVE 100mm* BELOW 100mm^ LEFT SIDE 2mm RIGHT SIDE 2mm** FRONT 4mm***

1.8 FROST PROTECTION SYSTEM

The evolve is equipped with a built-in frost protection system, this enables the boiler to over-ride the time controls – even if

switched o󰀨 – and operate the burner and/or pump, should

the temperature within the appliance drop below 5 °C. Please note that the frost protection system is designed to protect the appliance only, should frost protection be required for the heating system, additional controls may be required.

NOTE

The frost protection system is reliant on the appliance having a permanent electrical supply, and being in a non-fault condition.

1.9 APPLIANCE STATUS INDICATORS

Your appliance incorporates the REC 10 UI (User Interface), that displays information on appliance status and condition.

* 100mm if rear-ue outlet is used or 25mm above ue bend

if top ue outlet is used. Consideration should be given to

providing reasonable clearance for the insertion of a FGA probe.

** Disconnection of adjacent components may be required in

order to facilitate syphon removal.

*** Provided that a door or removal panel enables 450mm

access for maintenance.

^ Can be reduced to 5mm if a removal panel enables 100mm

for maintenance.

100

Page 4

CONTROL PANEL (REC10)

FRI

Depending on the type of application, some of the functions described in this manual might not be available.

The REC 10 UI is a multi-functional control that enables you to view the operating status of your appliance at a glance; and is also used to adjust/set the various ‘User’ settings, including temperature setpoints.

The REC 10 UI also incorporates an embedded timer that - if enabled - can be used to program and control the ON/OFF times for your central heating. Please consult you installer for further advice on this function.

The REC 10 UI features a backlit liquid crystal display.

18/05/2013 12:17

PLANT

bar

1.3

STATE

°C

INFO SET

HOT WATER TEMPERATURE

REC10

LED

Fig. 1

LED

REC10

Light signal indicating the operating status of the boiler. Can be red or green (see specific paragraph)

Boiler control panel

ok= confirm

back= ret

urn to the previous screen

cancel selection

Key area

return to the main screen (press > 2 sec.)

up= allows you to choose between the options PLANT-STATE-SET-INFO-MENU and to

submenus

scrolling upwards

down= allows you to choose between the options PLANT-STATE-SET-INFO-MENU and to

submenus

scrolling down

System Icons may appear on both the left and right of the display; and they signify the following condition/status:

This icon indicates that the OFF operating status mode has been set. Each ignition request is ignored except for the frost-protection function. The pump anti-lock and frost-protection function remain active.

This icon indicates that WINTER mode has been selected (HEATING function enabled). If a heating request from the main zone is in progress, the icon will be flashing.

This icon indicates that the circuit for domestic hot water production is enabled. When a domestic hot water request is in progress, the icon flashes (default value - parameter: “water tank type = 0”).

surf through the

surfe through the

When the “central heating programming timing” is enabled this icon indicates that the system heating (main zone) is in AUTOMATIC mode (the management of the heating requests follows what has been set with the timer). If the heating function is not enabled during the current time frame, the icon will be crossed out.

When the “central heating programming timing” is enabled this icon indicates that the system heating (main zone) is in MANUAL mode (the management of the heating requests does not follow what has been set with the programming timing, but it is always active).

OFF

This icon indicates that the system (main zone) has been set to off (not active).

This icon indicates that the system is detecting the presence of a flame.

This icon indicates the presence of an anomaly or fault condition, and is always flashing.

Note:

The temperature of the heating outlet sensor is shown at the centre of the main screen. The value’s meaning is indicated at the bottom of the display.

Whenever a heating request is in progress, the value displayed at the centre of the screen refers to the system’s ow sensor, with the relative

indication. The value expressed in bar refers to the system’s water pressure.

The top of the screen shows the current date and time, as well as the outdoor temperature, if available.

Page 5

2. GETTING STARTED

FRI

2.1 BEFORE SWITCHING ON

fore switching the appliance on, please familiarise yourself with:

- how to isolate the appliance from the gas, water, and electricity supplies;

- how to check and top-up – if necessary – the system water pressure;

- any external thermostats and their functions;

- the appliance controls.

2.2 APPLIANCECONTROLS(seeg.1)

The appliance controls are concealed behind the front ap of

the appliance.

NOTE

The appliance frost protection is active in all the boiler modes. The control panel functions can be used to vary the temperature of the water that circulates around your radiators

and the water that ows from your hot water taps.

The heating temperature range can be adjusted between 20C

- 40C (low temperature) or 40C - 80C (high temperature) this

range is congured by your installer and the default is the high

temperature range. Refer to the main appliance status table for fault indicator and

boiler status.

2.3 LIGHTING THE BOILER

Ensure the gas and electrical supply to the boiler are turned on.

After completing all operations required to prepare commissioning, proceed as follows to start the boiler.

congured with the REC10 H):

- PLANT

- MAIN ZONE

- ZONE 1

- ZONE 2.

The TIME AND DATE, LANGUAGE and BACKLIGHT settings are are related to the appliance only. The information contained in the INFO menu is related to the appliance. No domestic hot water parameters can be set if MAIN, ZONE 1 or ZONE 2 is selected.

2.6 STATE

The STATE function can be used to set the BOILER and MAIN ZONE operating modes.

To do this, it is necessary to highlight the desired entry using the “up” and “down” keys and then pressing “ok” to conrm the selection. Pressing “back” takes you back to the initial screen without making any selection.

STATE

BOILER

MAIN ZONE

2.4 START SCREEN

When the appliance is first connected to the electrical supply, the REC 10 may require you to set the time and date (see

2.9.1), and the appliance will enter its ‘pre-purge’ mode that

will last for several minutes. On completion of the ‘pre-purge’ phase, the appliance will enter its ‘standby’ mode unless a heating or HW request has been made.

By pressing the “up” and “down” keys it is possible to move the selection of the functions in this order:

- PLANT

- STAT E

- SET

- INFO

- MENU.

By pressing the “ok” key you can access the settings of the selected function (except for PLANT). The “back” key is inactive (except for PLANT).

18/05/2013 12:17

PLANT

bar

1.3

STATE

°C

INFO SET

HOT WATER TEMPERATURE

2.5 PLANT

The PLANT menu only becomes available if additional zones

have been added and congured with this system via the

REC10 H.

In order to change zones (see above), highlight PLANT if necessary pressing the “up” and “down” keys. Then, pressing the “ok” and “back” keys, it will be possible to select the other zones in this sequence (only if added and

2.6.1 Boiler

This function can be selected in order to set the boiler’s status, by choosing one of the following options:

- OFF

- WINTER.

The highlighted status is that which is currently selected. In

order to select a di󰀨erent status highlight it using the “up” and “down” keys and then press “ok” to conrm the selection.

Once the selection has been validated, the display returns to the STAT E screen. Press “back” to return to the start screen without making any selection.

BOILER

OFF

WINTER

OFF: if OFF is selected, the system enters the standby mode, whereby only the standby functions remain active.

WINTER: if WINTER is selected, the system activates the boiler to heat the hot water and/or the central heating.

2.6.2 Main zone

Selecting this function allows you to set the main zone’s status, by choosing one of the following options:

- if the embedded time clock is disabled (default):

- ZONE ON: boiler responds to heating request

- ZONE OFF: boiler does not respond to any request for heating

Page 6

MAIN

SET

HEATING

SELECTION

MON

ZONE ON

ZONE OFF

- if the embedded time clock has been enabled:

- AUTO - MANUAL - HEAT OFF.

MAIN

AUTO

When an outdoor temperature sensor is installed, the outlet setpoint temperature is automatically adjusted by the system, in order to maintain the ambient temperature according to any variations in the outdoor temperature. If you want to adjust the outlet temperature, raising it or lowering it with respect to that automatically calculated by the boiler, it is possible to change the HEATING setpoint selecting the desired comfort level within the range (-5 ÷ +5). The user is then asked to confirm the setpoint setting: select CONFIRM or CANCEL using the “up” and “down” keys, and confirm the selection pressing “ok”.

Once the selection is confirmed, the display returns to the SET screen.

If the selection is cancelled or the “back” key is pressed you return to the previous SET screen.

SET

MANUAL

HEAT OFF

In order to select a different status highlight it using the “up” and “down”keys and confirm the selection by pressing “ok”. Once the selection has been validated, the display returns to the STAT E screen. Press “back” to return to the S TATE screen without making any selection.

ON: if ON is selected, the zone heating requests are met. AUTO: if AUTO is selected, the zone heating requests will be

managed based on the scheduled programme. MANUAL: if MANUAL is selected, the zone requests will be

managed based on the selection set by the user. HEAT OFF: If HEAT OFF is selected, the zone heating

requests will be ignored.

NOTE: if you want to deactivate the zone in WINTER, you must select the required season (WINTER in the BOILER menu) and set the zone concerned to OFF.

2.7 SET

With the SET function it is possible to congure the HEATING

setpoints. To do this, it is necessary to highlight the desired entry using the “up” and “down” keys and then pressing “ok” to conrm the selection. Pressing “back” takes you back to the initial screen without making any selection.

THE PARAMETER

WILL BE CHANGED

CONFIRM CANCEL

CONFIRM OR DELETE

2.8 INFO

The INFO function can be used to display a series of data regarding the system.

ATTENTION - The displayed data is for information only and

cannot be modied.

Press the “up” and “down” keys to go through the list of information available, in this order:

- SCREED HEATER OPERATING HOURS (*)

- CH PROBE

- RETURN PROBE

- EXHAUST PROBE

- OUTDOOR TEMPERATURE SENSOR (*)

- EXT T FOR THERMOREG (*)

- FAN SPEED

- ZONE 1 DELIVERY (*)

- ZONE 2 DELIVERY (*)

- EXHAUST PROBE HOURS

- MAIN ZONE SET-POINT

- SET MAIN ZONE

- ZONE 2 SET-POINT (*)

- WATER PRESSURE.

The “ok” key is inactive. The “back” key allows you to return to the initial screen. (*) In the absence of additional zones or if the screed heater

function is not operating, the relative information will not be displayed.

2.7.1 Heating

Press the “up” and “down” keys to change the heating

setpoint temperature and conrm the selection by pressing

“ok”. Press “back” to return to the SET screen without making any selection.

SET

HEATING

°C

78,0

2.9 MENU

Using the MENU it is possible to access the conguration of

the SETTINGS and the TIME SCHEDULE (available only if the embedded timer is enabled (POR=1). To do this, it is necessary to highlight the desired entry using the “up” and “down” keys and then pressing “ok” to conrm the selection. Pressing “back” takes you back to the initial screen without making any selection.

18/11/2013 12:17

SETTINGS

TIME SCHEDULE

SELECT OPTION

Page 7

2.9.1 Settings

SELECT OPTION

MON

SELECT THE ZONE

Select this function to modify the following settings:

- TIME AND DATE

- LANGUAGE

- BACKLIGHT.

To access the desired setting, it is necessary to highlight it using the “up” and “down” keys and then pressing “ok” to

conrm the selection.

Press “back” to return to the start screen without making any selection.

SETTINGS

: 30 days

05:11

OPTIMUM EFFICIENCY

TIME & DATE

LANGUAGE

BACKLIGHT

TIME AND DATE

Press “ok” to highlight in sequence HOURS, MINUTES, DAY, MONTH, YEAR and press the “up” and “down” keys to change the desired values. Once the sequence has nished by pressing “ok”, the settings will be saved and the display will return to the initial screen. By pressing “back” at any time the system will return to the SETTINGS cancelling the changes that were made.

TIME & DATE

ENTER TIME AND DATE

12 17:

18 / 11 / 2013

USE THE ARROWS TO MODIFY

: 30 days

°C

- 2.9.2 Time schedule

This function can only be selected if the embedded clock has been enabled (POR=1), it is possible to change the following:

- MAIN. To access the desired timer programme, it is necessary to highlight the relevant zone, e.g. MAIN, using the “up” and “down” keys and then pressing “ok” to conrm the selection. Press “back” to return to the start screen without making any selection. For a detailed description of the scheduled programming timer, please refer to the section

18/11/2013 12:17

“2.10 TIME SCHEDULE”

SCHEDULE

MAIN

LANGUAGE

Press the “up” and “down” keys to select the desired language. Pressing “ok” the language selection is conrmed and the display returns to the initial screen. Pressing “back” the system returns to the SETTINGS screen without changing the system’s language.

LANGUAGE

ENGLISH

ITALIANO

SELECT LANGUAGE

BACKLIGHT

The screen saver display (backlight o󰀨) is automatically

activated when the time, that has been set in parameter \ MENU \ SETTINGS \ BACKLIGHT, elapsed without having pressed any buttons. In the screen saver the current time is normally displayed. “ ” symbol and the number of days to STOP appear if the AUTOSTOP function is active. When there is a heat request, the current time is replaced with

the boiler ow temperature and turns on the icon concerning

the type of request in progress.

A system e󰀩ciency indicator is also displayed at the top of

the screen:

- HIGH EFFICIENCY (if the average value of the return probe > 55°C)

- OPTIMUM EFFICIENCY (if average value of the return probe < 55°C).

2.10 TIME SCHEDULE

Select the desired day using the “up” and “down” keys. A table will be displayed indicating the day and the time settings that have been pre-programmed. Press “ok” to access the programming for the selected day. Pressing “back” takes you back to the initial screen without making any selection.

MAIN

END

START

07:30

08:30

11:30

13:30

18:00

22:30

ZONE SCHEDULE

Once the selection has been made, the user can choose from among the following options:

- ADD: you can add up to four start & end periods

- MODIFY

- DELETE

- COPY.

2.10.1 Add

This function serves to add a new time frame to the selected day (up to a maximum of 4). Press “ok” to select the function, after having highlighted it (if necessary) using the “up” and “down” keys.

SELECT

A DAY

THURSDAY

Page 8

START

SELECT OPTION

USE THE ARROWS TO MODIFY

START

MAIN

ADD

THURSDAY

MODIFY

DELETE

COPY

07:30 11:30 18:00

END

08:30 13:30 22:30

SELECT OPTION

USE THE ARROWS TO MODIFY

SELECT OPTION

07:30 11:30 18:00

END

08:30 13:30 22:30

MAIN

THURSDAY

ADD

MODIFY

DELETE

COPY

MAIN

END

START 07:30

11:30 18:00

08:30

13:30 22:30

THURSDAY

SELECT

PERIOD TO

MODIFY

07:30

USE THE ARROWS TO MODIFY

Press the “up” and “down” keys to increase or decrease by 30 minutes the start time and press “ok” to conrm the selection.

MAIN

END

START

07:30 11:30 18:00

08:30 13:30 22:30

THURSDAY

ADD

PERIOD

ENTER

START TIME

14:00

Press the “up” and “down” keys to increase or decrease by 30 minutes the end time and press “ok” to conrm the selection.

MAIN

END

START

07:30 11:30 18:00

08:30 13:30 22:30

THURSDAY

ADD

PERIOD

ENTER

END TIME

15:00

14:00

USE THE ARROWS TO MODIFY

In order to conrm that the operation has been completed

successfully, the display will show the table with the new time frame ashing.

MAIN

END

START

07:30

08:30

11:30

13:30

14:00

15:00

18:00 22:30

THURSDAY

ADD

MODIFY

DELETE

COPY

Press the “up” and “down” keys to increase or decrease by 30 minutes the start time and press “ok” to conrm the selection.

MAIN

END

START

07:30

11:30

18:00

08:30

13:30

22:30

THURSDAY

ENTER

START TIME

11:30

Press the “up” and “down” keys to increase or decrease by 30 minutes the end time and press “ok” to conrm the selection.

MAIN

END

START

07:30

11:30

18:00

08:30

13:30

22:30

THURSDAY

ENTER

END TIME

14:00

USE THE ARROWS TO MODIFY

In order to conrm that the operation has been completed

successfully, the display will show the table with the new time frame ashing.

At this point the user can select a new time frame to be

modied, or else can press “back” to return to the previous TIME SCHEDULE screen.

MAIN

END

START 07:30

11:30 18:00

08:30

14:00 22:30

THURSDAY

SELECT

PERIOD TO

MODIFY

2.10.2 Modify

This function serves to edit a time frame already present for the selected day. Press “ok” to select the function, after having highlighted it (if necessary) using the “up” and “down” keys.

Press the “up” and “down” keys to select the desired time band and press “ok” to conrm the selection.

USE THE ARROWS TO MODIFY

07:30

2.10.3 Delete

This function serves to delete a time frame already present for the selected day. Press “ok” to select the function, after having highlighted it (if necessary) using the “up” and “down” keys.

MAIN

END

START

07:30

08:30

11:30

13:30

18:00

22:30

Press the “up” and “down” keys to select the desired time band and press “ok” to conrm the selection.

THURSDAY

ADD

MODIFY

DELETE

COPY

Page 9

START

FRI

HOT WATER TEMPERATURE

07:30

11:30 18:00

END 08:30

13:30 22:30

MAIN

THURSDAY

SELECT

PERIOD TO

DELETE

MAIN

SCHEDULE OF THURSDAY

WILL BE COPIED ON THE DAYS :

TUESDAY

USE THE ARROWS TO MODIFY

To conrm or cancel the selection made, highlight the corresponding option and conrm it by pressing “ok”. In order to conrm that the operation has been completed

successfully, the display will show the table with the selected time frame ashing just before deleting it from the table.

MAIN

START

END

07:30

08:30

11:30

13:30

18:00

22:30

CONFIRM OR DELETE SELECTION

THURSDAY

ARE YOU SURE

TO DELETE

THE PERIOD ?

CONFIRM

CANCEL

2.10.4 Copy

This function serves to copy the same scheduled programme for other days of the week. Press “ok” to select the function, after having highlighted it (if necessary) using the “up” and “down” keys.

MAIN

END

START

07:30

08:30

11:30

13:30

18:00

22:30

SELECT OPTION

Press the “up” and “down” keys to select the day on which to copy the hourly schedule to and press “ok” to conrm the selection.

SELECT DAYS ON WHICH YOU WANT

TO COPY SCHEDULE OF THURSDAY

MON TUE WED THU

SAT SUN

THURSDAY

ADD

MODIFY

DELETE

COPY

MAIN

FRI

USE THE ARROWS TO MODIFY

2.11 FAULTS

Should a fault occur, a screen will appear on the display indicating the relative error code and a brief alphanumeric description of the fault. Pressing the “back” button it is possible to return to the main screen, where a fault is signalled by this ashing icon .

The user can return to the fault description screen by using the “up” and “down” keys and then pressing the “ok” key. The faults description screen is automatically displayed once the display illumination time has elapsed without any button being pressed. Press the “up” and “down” keys to display the descriptions of any other faults that may be present.

18/05/2013 12:17

PLANT

1.3

bar

°C

STATE

INFO SET

For fault E041

If the pressure drops below the safety threshold of 0.3 bar the boiler displays the fault code “E041 - WATER TRANSDUCER LOAD THE SYSTEM” for a transitional time of 10 min during

which it is possible to open the external lling tap until the

pressure is between 1 and 1.5 bar.

E041

WATER TRANSDUCER

LOAD THE SYSTEM

The day will be highlighted and others can be selected using the same procedure.

When nished highlight CONFIRM and press “ok”.

In order to conrm that the operation has been completed

successfully, the display will show the list of days to which the scheduled programme has been copied.

CONFIRM

USE THE ARROWS TO MODIFY

SELECT DAYS ON WHICH YOU WANT

TO COPY SCHEDULE OF THURSDAY

MON TUE WED THU

USE THE ARROWS TO MODIFY

MAIN

FRI

SAT SUN

CONFIRM

If the pressure drops frequently, contact the Technical Assistance Centre.

For fault E091

The boiler has an auto-diagnostic system which, based on the total number of hours in certain operating conditions, can signal the need to clean the primary heat exchanger. The intervention of the Technical Assistance Centre is necessary.

Page 10

Boiler faults list

ERROR

CODE

E010 ame lockout/ACF electronic fault ON nal

E011 extraneous ame

E020 limit thermostat

E030 fan fault ON nal

E040 water transducer - check system water pressure ON nal

E041 water transducer - check system water pressure

E042 water transducer fault ON nal

E060 conguration fault

E070

E077 main zone water thermostat ON temporary

E080

E090

E091 clean primary heat exchanger

-- water pressure low - check the system

-- water pressure high - check the system

-- boiler board communication lost ON temporary

-- BUS 485 communication lost ON temporary

fault ow sensor/overtemperature ow sensor/

fault return line probe/return line probe overtemperature/

outlet/return line probe di󰀨erential alarm

ERROR MESSAGE RED LED GREEN LED RED and GREEN

ashing

0.2 sec. on/0.2 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ow/return sensor di󰀨erential alarm

fault ue gases probe/

ue gases overtemperature probe

0.5 sec. on/0.5 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ashing

DESCRIPTION OF

temporary

nal

temporary

temporary/nal/ nal

temporary

nal

temporary

ALARM TYPE

List of combustion faults

ERROR

CODE

E021 iono alarm ON

E022 iono alarm ON

E023 iono alarm ON

E024 iono alarm ON

E067 iono alarm ON

E088 iono alarm ON

E097 iono alarm ON

E085 combustion fault/high CO ON

E094 combustion fault/high CO ON

E095 combustion fault/high CO ON

E058 mains voltage fault ON

E065 current modulation alarm ON

E086 obstruction fumes alarm ON

Warning lights

BOILER STATUS RED LED GREEN LED RED and GREEN NOTES

Power-on

Vent cycle

OFF status

No heat request (stby)

Transitional ignition/

overtemperature

Presence of ame ON

Chimney sweep ON Only if the ame is present

Screed heater

ERROR MESSAGE

ashing 0.5 sec. on/

1 sec. o󰀨

ashing 1 sec.on/

1 sec. o󰀨

LED RED

ashing 0.5 sec. on/

1 sec. o󰀨

ashing 0.3 sec. on/

0.5 sec. o󰀨

ashing 0.3 sec. on/

0.5 sec. o󰀨

ashing 0.3 sec. on/

0.5 sec. o󰀨

ashing 1 sec.on/

1 sec. o󰀨

LED

GREEN

These are temporary alarms that if they occur 6 times in an hour they

become denitive; the alarm E097 is displayed and is followed by post-

purging for 45 seconds at the fan’s maximum speed.

It is not possible to release the alarm before the end of the post-purging

unless the boiler’s power supply is switched o󰀨.

These are temporary alarms that if they occur 3 times in an hour they

become denitive; the last error to occur is displayed and is followed by a

post-purging of 5 minutes at the fan’s maximum speed. It is not possible to release the alarm before the end of the post-purging

unless the boiler’s power supply is switched o󰀨.

These are temporary faults that restrict the ignition cycle.

Temporary fault reported during the post ventilation. It is maintained a post ventilation of 5 min at maximum fan speed.

ashing 0.5 sec. on/

0.5 sec. o󰀨

DESCRIPTION OF TYPE OF ALARM

The red and green LEDs come on at the same time

The red and green LEDs come sequentially one at a time

The red and green LEDs come on alternately

Page 11

3. HOW TO...

E020

LIMIT THERMOSTAT

REC10 ATTEMPTS EXHAUSTED

3.1 HOW TO TOP-UP THE SYSTEM PRESSURE

The system pressure must be checked periodically to ensure the correct operation of the boiler. The system pressure is shown at the top of the LCD display or can be read on the gauge located on the underside of the appliance. When the boiler is at room temperature, the system pressure should be approximately

1.0 bar. If the pressure requires ‘topping-up’ use the following instructions as a guide.

- Locate the lling valve connections (usually beneath the boiler, see g. 1).

- Attach the lling loop to both connections.

- Open the lling valve slowly until you hear water entering the

system.

- Close the lling valve when the pressure gauge (on the boiler)

reads between 1 and 1.5 BAR.

- Remove the lling loop from the connections.

3.2 HOW TO RESET THE APPLIANCE

Reset function

E020

- heating frost-protection: this function is activated if the temperature measured by the flow sensor drops below 5°C. A heat request is generated in this phase with the ignition of the burner at minimum output, which is maintained until the outlet water temperature reaches 35° C;

- DHW frost-protection: the function starts if the temperature measured by the DHW sensor falls below 5°C. A heat request is generated in this phase with the ignition of the burner at minimum output, which is maintained until the outlet water temperature reaches 55° C.

The activation of the FROST-PROTECTION function is indicated by a scrolling message at the base of the REC10 display.

- pump anti-blocking: the circulating pump is energised for a 30-second period if it remains inactive for more than 24-hours.

3.4 HOW TO SHUT DOWN THE SYSTEM FOR

LONG PERIODS

If the boiler will not be in used for a prolonged period of time, the following operations must be carried out:

- switch the boiler to OFF

- isolate the appliance from the gas and electricity supplies.

In this case, the frost-protection and anti-blocking systems are deactivated. Drain both the heating and domestic water systems to avoid any risk of freezing.

BOILER

LIMTIT THERMOSTAT

PRESS OK RESET

At this point, if the correct operating conditions have been restored, the boiler will restart automatically. If the attempts to reset the fault do not restore the boiler’s functionality, please contact your local Customer Support Service. Up to a maximum of 3 reset attempts can be made using the REC10, after which the machine must be disconnected from the power supply to reset the number of attempts available.

Request the intervention of the Technical Assistance Centre.

3.3 HOW TO SHUT DOWN THE SYSTEM FOR SHORT PERIODS

If necessary the boiler status can be switched to the OFF position during short periods of absence.

BOILER

OFF

WINTER

OFF

3.5 HOW TO CARE FOR THE APPLIANCE

To clean the outer casing use only a clean damp cloth. Do not use any scourers or abrasive cleaners.

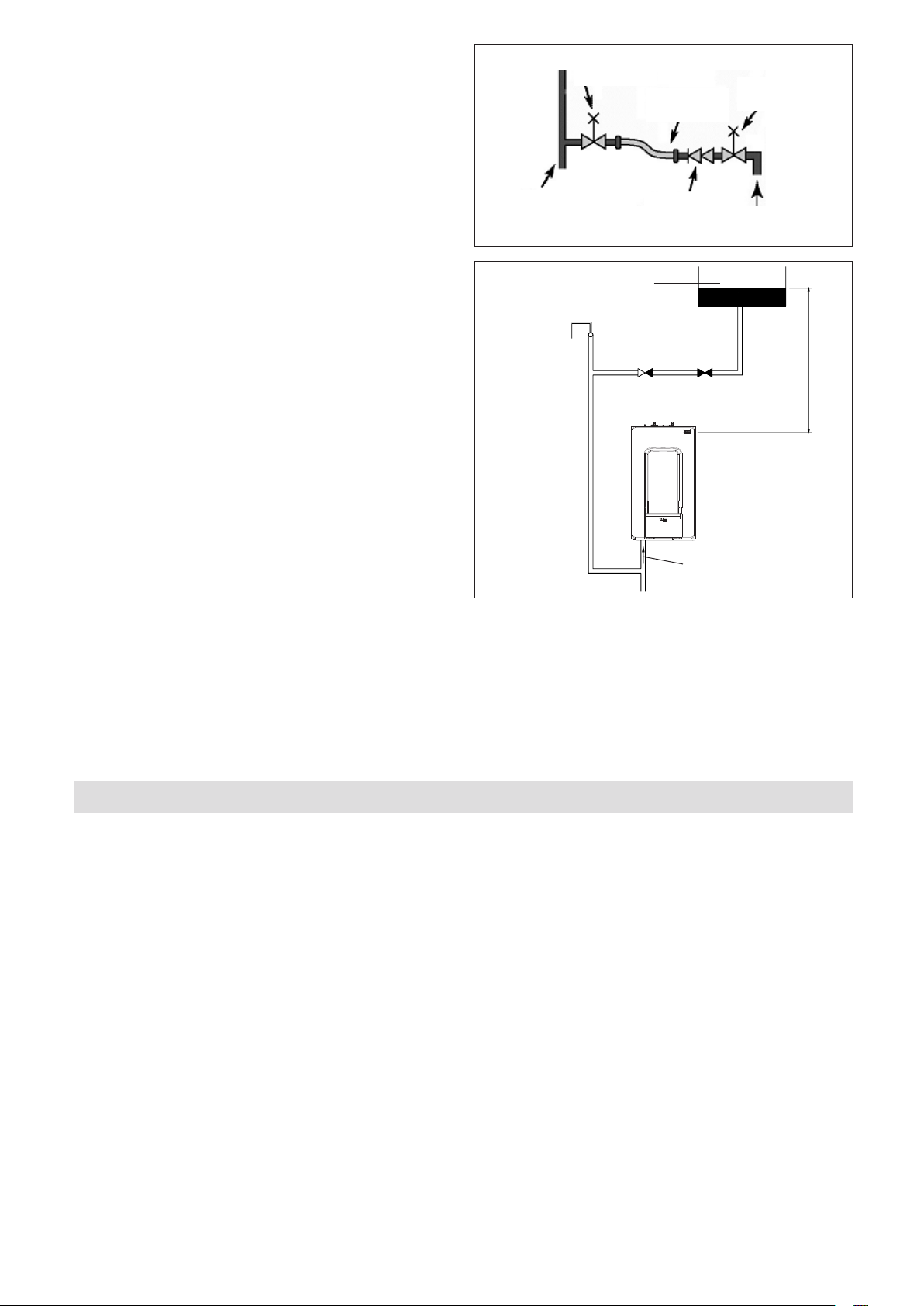

Fig. 1

control

valve

ow/return

pipe

control

valve

temporary

connection

double

check valve

supply pipe

Provided that the electrical and gas supplies remain switched ON to the appliance, the following frost-protection functions will remain active in order to protect the appliance:

WINTER

Page 12

4. WHAT IF...

4.1 WHAT IF I SUSPECT A GAS LEAK

If you suspect a gas leak, turn o󰀨 the gas supply at the gas

meter and contact your installer or local gas supplier. If you

require further advice please contact your nearest Vokèra o󰀩ce.

4.2 WHAT IF I HAVE FREQUENTLY TO TOP-UP THE SYSTEM

If the system regularly requires topping-up, it may be indicative of a leak. Please contact your installer and ask him to inspect the system.

4.3 WHAT IF THE APPLIANCE IS DUE ITS ANNUAL SERVICE

Advice for tenants only

Your landlord should arrange for servicing.

Advice for homeowners Please contact Vokèra Customer Service (0844 3910999 (UK) or 056 7755057 (ROI) if you would prefer a Vokèra service

engineer or agent to service your appliance. Alternatively your local GAS SAFE registered engineer may be able to service the appliance for you.

4.4 WHAT IF I NEED TO CALL AN ENGINEER

If you think your boiler may have developed a fault, please contact your installer or Vokèra Customer Services (0844 3910999 (UK) or 056 7755057 (ROI) have all your details to hand including full address and postcode, relevant contact numbers, and your appliance log book. It is a requirement of your warranty terms

& conditions that your Benchmark logbook has been lled out

correctly and is fully up to date.

Page 13

INSTALLATION AND SERVICING INSTRUCTIONS

INTRODUCTION

All installers are asked to follow the Benchmark Scheme by adhering to the Code of Practise, which can be obtained from www.centralheating.co.uk.

The evolve has a new ACC (Active Combustion Control) system.

This new control system ensures functionality, e󰀩ciency and

low emissions under any conditions. The ACC system uses an ionisation sensor immersed in the

burner ame, whose information allows the control board to

operate the gas valve that regulates the fuel. This sophisticated control system provides the auto-regulation of the combustion, so there is no need for an initial calibration. The ACC system is able to adapt the boiler to operate with

di󰀨erent gas compositions, di󰀨erent outlet pipes lengths and di󰀨erent altitudes (within the specied design limits).

The ACC system can also perform an auto-diagnostic operation that locks out the burner before the permitted upper emission limit is exceeded. The evolve product family comprises a range of high-e󰀩ciency combination and system boilers. These appliances – by design – incorporate electronic ignition, circulating pump, expansion vessel, safety valve, pressure gauge and automatic by-pass. The range is produced as room sealed, category II2H3P appliances, suitable for internal wall mounting applications only.

Each appliance is provided with a fan powered ue outlet with

an annular co-axial combustion air intake that can be rotated – horizontally – through 360 degrees for various horizontal or vertical applications.

These appliances are designed for use with a sealed system only; consequently they are not intended for use on open vented systems.

This booklet is an integral part of the appliance. It is therefore necessary to ensure that the booklet is handed to the person responsible for the property in which the appliance is located/ installed. A replacement copy can be obtained online from the Vokèra website - www.vokera.co.uk.

The boiler complies with basic requirements of the following Directives:

- Regulation (EU) 2016/426;

- Yield directive: Article 7(2) and Annex III of directive 92/42/ EEC;

- Electromagnetic compatibility directive 2014/30/EU;

- Low-voltage directive 2014/35/EU;

- Directive 2009/125/EC Ecodesign for energy-using appliances;

- Regulation (EU) 2017/1369 Energy labeling;

- Delegated Regulation (EU) No. 811/2013;

- Delegated Regulation (EU) No. 813/2013.

At the end of its life, the product should be not be dis-

posed of as solid urban waste, but rather it should be handed over to a di󰀨erentiated waste collection centre.

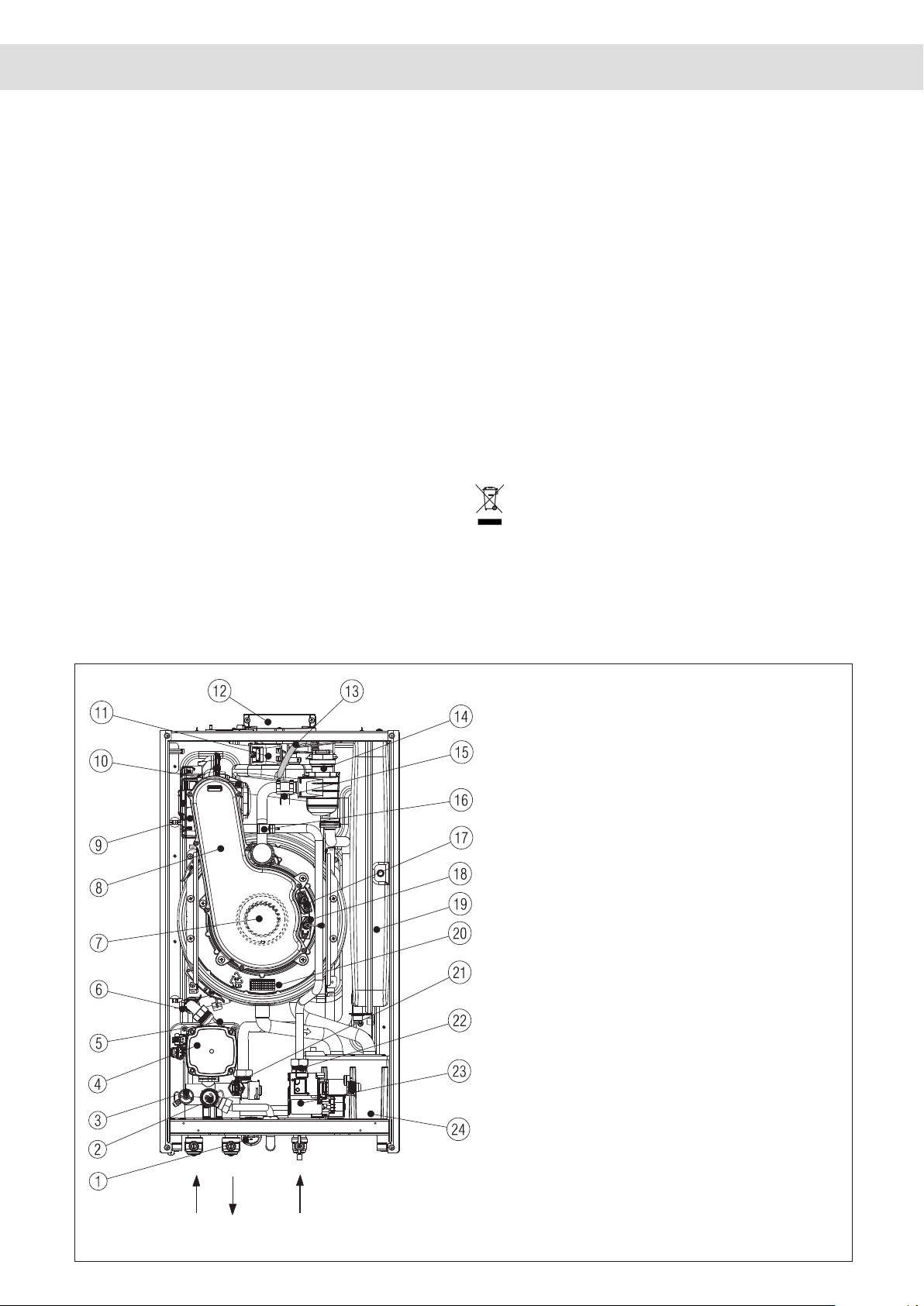

General layout

1 Analogue pressure gauge 2 Safety valve 3 Drain valve 4 Pump 5 Lower auto air vent 6 Return sensor 7 Burner 8 Inlet conveyor 9 Fan 10 Mixer 11 Ignition transformer 12 Top ue outlet 13 AAV hose 14 Upper auto air vent 15 Limit thermostat 16 Flow sensor 17 Ignition electrode 18 Detection electrode 19 Expansion vessel 20 Main heat exchanger 21 Pressure transducer 22 Injector 23 Gas valve 24 Siphon

R F G

R Heating return connection F Heating ow connection G Gas connection

Fig. 2

Page 14

SECTION 1 - DESIGN PRINCIPLES AND OPERATING SEQUENCE

1.1 PRINCIPLE COMPONENTS

• A fully integrated electronic control board featuring electronic temperature control, anti-cycle control, pump over-run, selfdiagnostic fault indicator, full air/gas modulation

• Aluminium heat exchanger

• Electronic ignition with ame supervision

• Integral high-head pump

• Fan

• Expansion vessel

• Flue sensor

• Pressure transducer

• Safety valve

1.2 MODE OF OPERATION (at rest)

When the appliance is at rest and there are no requests for heating or hot water, the following functions are active:

• frost-protection system: the frost-protection system protects the appliance against the risk of frost damage, if the main temperature falls to 5°C, the appliance will function on minimum power until the temperature on main reaches 35°C.

• anti-block function: the anti-block function enables the pump to be energised for short periods, when the appliance has been inactive for more than 24-hours.

1.3 MODE OF OPERATION (Heating)

When there is a request for heat via the REC/or any external control, the pump and fan are started, the fan speed will modulate until the correct signal voltage is received at the control PCB. At this point an ignition sequence is enabled.

Ignition is sensed by the electronic circuit to ensure ame stability

at the burner. Once successful ignition has been achieved, the electronic circuitry increases the gas rate to 75% for a period of 15 minutes. Thereafter, the boiler’s output will either be increase to maximum or modulate to suit the set requirement. When the appliance reaches the desired temperature the burner will shut down and the boiler will perform a three-minute anti-cycle (timer delay).

When the request for heat has been satised the appliance

pump and fan may continue to operate to dissipate any residual heat within the appliance.

1.4 SAFETY DEVICES

When the appliance is in use, safe operation is ensured by:

• a pressure transducer that monitors system water pressure and will de-activate the pump, fan, and burner should the system water pressure drop below the required minimum value;

• fan speed sensor to ensure safe operation of the burner;

• a high limit thermostat that over-rides the temperature control circuit to prevent or interrupt the operation of the burner;

• ame sensor that will shut down the burner when no ame

signal is detected and/or when incomplete combustion or high emissions are detected;

• ue sensor that will shut down the burner if the ue threshold

temperature is exceeded;

• a safety valve which releases excess pressure from the primary circuit.

NOTE

When the appliance is rst switched ON or when the electrical

supply is interrupted then restored, the appliance will enter a short ‘purge’ cycle whereby the pump cycles ON & OFF for approximately 2-minutes. Only when the ‘purge’ cycle has been completed, will the appliance go through an ignition sequence.

Main heat

exchanger

temperature

Expansion

vessel

Pump

Drain valve

Return

sensor

return

Lower

AAV

Analogue pressure

gauge

Automatic

by-pass

Flow temperature

sensor

Pre

ssure

transduce

Safety valve

ow

Upper

AAV

High limit

thermostat

Fig. 3

Page 15

SECTION 2 - TECHNICAL DATA

2.1 Central Heating evolve 18S evolve 24S evolve 30S evolve 35S

Heat input (kW) 18.00 24.00 32.00 35.00

Maximum heat output (kW) 60/80°C 17.60 23.54 31.39 34.30

Minimum heat output (kW) 60/80°C 3.61 4.19 4.99 5.87

Maximum heat output (kW) 30/50°C 19.17 25.56 34.08 37.21

Minimum heat output (kW) 30/50°C 3.99 4.58 5.28 6.32

Heat input RANGE RATED (Qn) (kW) 18.00 24.00 32.00 35.00

Minimum heat input RANGE RATED (Qm) (kW) 6.70 4.30 5.10 6.00

Minimum working pressure 0.25-0.45 bar

Maximum working pressure 3.0 bar

Minimum ow rate 350 l/h

2.2 Gas Pressures

Inlet pressure (G20) 20.0 mbar 20.0 mbar 20.0 mbar 20.0 mbar

Heating maximum gas rate (m3/hr) 1.90 2.54 3.38 3.70

Minimum gas rate (m3/hr) 0.39 0.45 0.54 0.63

Injector size (mm) 1 x 4.3 1 x 4.3 1 x 6.0 1 x 6.0

2.3 Expansion Vessel

Capacity 8 litres 9 litres

Maximum system volume 74 litres

Pre-charge pressure 1 bar

2.4 Dimensions

Height (mm) 740

Width (mm) 420

Depth (mm) 275 350

Dry weight (kg) 34 37

2.5 Clearances

Sides 2mm*

Top 100mm** from casing or 25mm above ue elbow (whichever is applicable)**

Bottom 100mm^

Front 450mm^^

* It may be necessary to remove adjacent components if component removal/replacement is required ** Consideration should be given to providing reasonable clearance for the insertion of a FGA probe. ^ This can be reduced to 4mm if a removal panel enables the required 100mm ^^ When installed in a cupboard, this dimension can be reduced to 4mm provided that the required 450mm

is available when the door is opened/removed.

2.6 Connections

Flow & return 22mm

Gas 15mm

Safety valve 15mm

Condense 21mm

2.7 Electrical

Power consumption CH (Watts) 54 65 93 85

Voltage (V/Hz) 230/50

Internal fuse 4 A T (for PCB) - 3.15A F (for connections block)

External fuse 3A

2.8 Flue Details (concentric 60-100)

Maximum horizontal ue length (60/100mm) 10.0 m 10.0 m 6.0 m 5.0 m

Maximum vertical ue length (60/100mm) 11.0 m 11.0 m 7.0 m 6.0 m

2.9E󰀩ciency

SEDBUK (%) 90.26 90.40 90.40 90.35

2.10 Emissions

CO2 @ maximum output (%) (*) 9.2 9.0 9.0 9.0

CO2 @ minimum output (%) (*) 9.1 8.9 8.8 9.1

CO @ maximum output (ppm) 140 150 160 220

CO @ minimum output (ppm) 10 10 20 15

NOx rating class 6 class 6 class 6 class 6

2.11 Fan rotations

Number of fan rotations with slow ignition (rpm) 5,500 5,500 5,000 5,000

Maximum number of heating fan rotations (rpm) 5,600 6,500 8,000 7,000

Minimum number of heating fan rotations (rpm) 1,500 1,500 1,700 1,600

(*) CO2 tolerance = +0.6% -1%

Page 16

Parameter Symbol evolve

18S

evolve

24S

evolve

30S

evolve

35S

Unit

Seasonal space heating energy e󰀩ciency class - A A A A Water heating energy e󰀩ciency class - - - - - Rated heat output Pnominal 18 24 31 34 kW Seasonal space heating energy e󰀩ciency ηs 94 94 94 94 %

Useful heat output

At rated heat output and high-temperature regime (*) P4 17.6 23.5 31.4 34.3 kW At 30% of rated heat output and low-temperature

regime (**) P1 5.9 7.9 10.5 11.5 kW

Usefule󰀩ciency

At rated heat output and high-temperature regime (*) η4 88.2 88.3 88.2 88.2 % At 30% of rated heat output and low-temperature

regime (**) η1 98.9 98.9 98.6 98.5 %

Auxiliary electricity consumption

At full load elmax 28.0 37.0 31.4 34.3 W At part load elmin 14.0 14.0 10.5 11.5 W In Stand-by mode PSB 3.0 3.0 3.0 3.0 W

Other parameters

Stand-by heat loss P󰀬by 42.0 42.0 46.0 42.0 W Pilot ame energy consumption Pign - - - - W

Annual energy consumption QHE 37 42 56 62 GJ Sound power level, indoors

LWA 51 53 52 51 dB

Emissions of nitrogen oxides NOx 46 33 48 44 mg/kWh

For combination heaters

Declared load prole - - - -

Water heating energy e󰀩ciency ηwh - - - - %

Daily electricity consumption Qelec - - - - kWh Daily fuel consumption Qfuel - - - - kWh Annual electricity consumption AEC - - - - kWh Annual fuel consumption AFC - - - - GJ

(*) High-temperature regime means 60 °C return temperature at heater inlet and 80 °C feed temperature at heater outlet. (**) Low temperature means for condensing boilers 30 °C, for low-temperature boilers 37 °C and for other heaters 50 °C

return temperature (at heater inlet).

NOTE (if the outdoor temperature sensor or the control panel, or even both devices, are present in the boiler) With reference to the Delegated Regulation (EU) No. 811/2013, the information in the table can be used for completing the product data sheet and the labelling for room heating appliances, for mixed heating appliances, for all those appliances for enclosed space heating, for temperature control devices and solar devices:

ADDED DEVICES CLASS BONUS

OUTDOOR TEMPERATURE SENSOR II 2% CONTROL PANEL* V 3% OUTDOOR TEMPERATURE SENSOR + CONTROL PANEL* VI 4%

(*) Set as ambient regulator

Page 17

2.12 PUMP DUTY

Fig. 4 shows the ow-rate available – after allowing for pressure loss through the appliance – for system requirements. When

using this graph, apply only the pressure loss of the system.

600

550

500

450

400

350

300

250

Residual head (mbar)

200

150

100

0 100 200 300 400 500 600 7 00 800 900 1000 110 0 1 200

Flow rate (l/h)

Fig. 4

Fig. 5

Key Location Minimum distance

A Below an opening (window, air-brick, etc.) 300 mm B Above an opening (window, air-brick, etc.) 300 mm C To the side of an opening (window, air-brick, etc.) 300 mm D Below gutter, drain-pipe, etc. 25 mm E Below eaves 25 mm F Below balcony, car-port roof, etc. 25 mm G To the side of a soil/drain-pipe, etc. 25 mm (60mm for 80/125mm) H From internal/external corner 25 mm (60mm for 80/125mm) I Above ground, roof, or balcony level 300 mm J From a surface or boundary facing the terminal 600 mm* K From a terminal facing a terminal 1200 mm L From an opening in the car-port into the building 1200 mm M Vertically from a terminal on the same wall 1500 mm N Horizontally from a terminal on the same wall 300 mm P From a structure to the side of the vertical terminal 300 mm

Q From the top of the vertical terminal to the roof ashing As determined by the xed collar

of the vertical terminal R To the side of a boundary 300 mm S To the side of an opening or window on a pitched roof 600 mm T Below an opening or window on a pitched roof 2000 mm V From a vertical terminal to an adjacent opening (window, air-brick, etc.) (call Vokera technical for advice) W From a vertical terminal to an adjacent vertical terminal 300 mm (only if both terminals are the same height)

*The possibility that this may be deemed as causing a nuisance, should be considered

Page 18

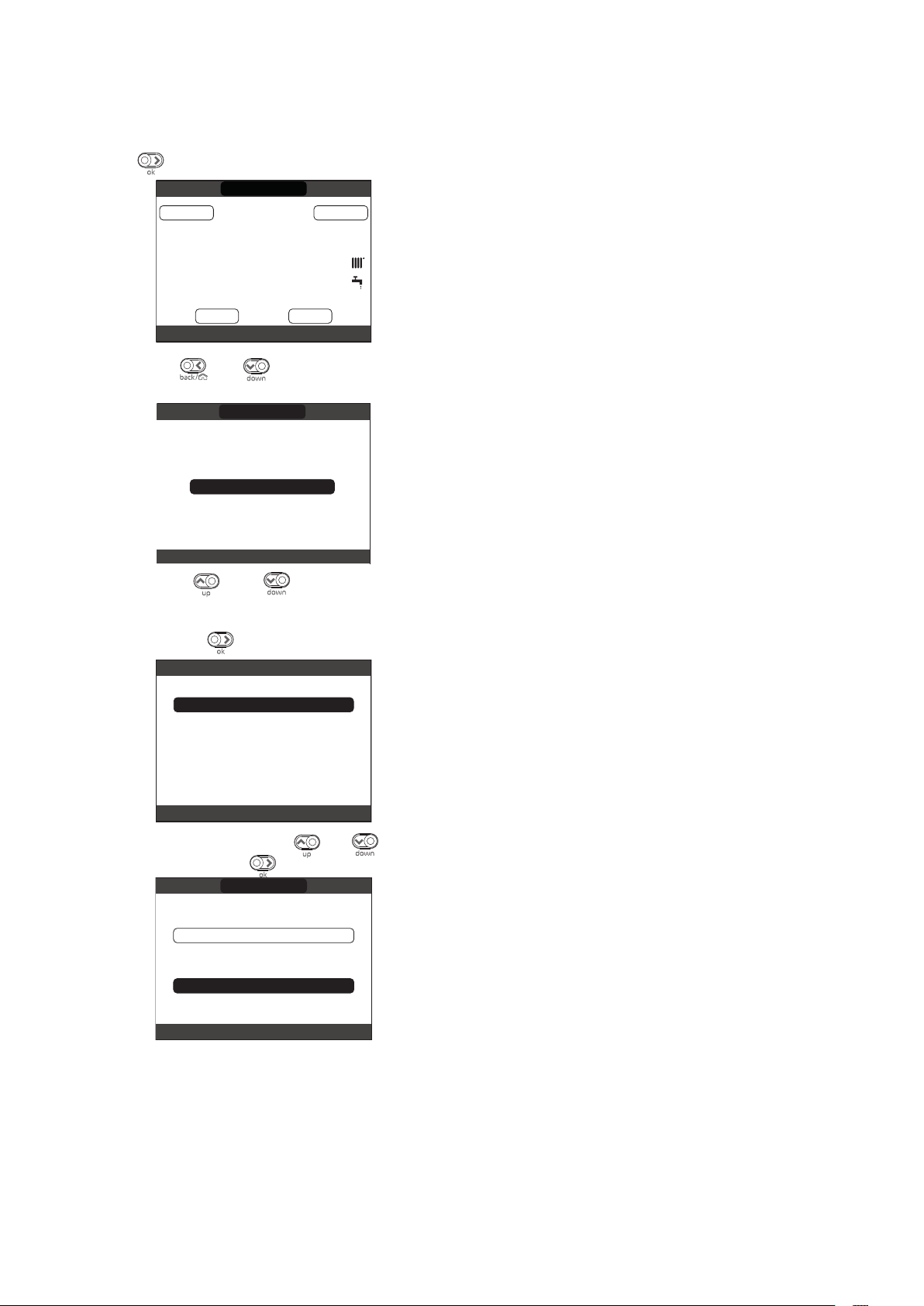

SECTION 3 - CONTROL PANEL (REC10)

FRI

HOT WATER TEMPERATURE

The REC10 is a fully functional UI (User Interface) that acts as a visual reference for the appliance and system status; and can also be used to view, input and adjust relevant system parameters and functions. The centre of the UI will normally display the current operating temperature (according to the mode of operation); however when the screensaver is active, the current time will be displayed.

The value expressed in bar refers to the system’s water pressure.

The top of the screen shows the information regarding the current date and time, as well as the outdoor temperature, if available.

On the left and right sides are displayed the icons indicating the status of the system; their meaning is as follows.

18/05/2013 12:17

PLANT

bar

1.3

°C

INFO SET

STATE

LED

REC10

LED

REC10

Key area

This icon indicates that the OFF operating status mode has been set. Any ignition request is ignored except for the frost-protection function. The pump anti-lock and frost protection functions remain active.

This icon indicates that WINTER mode has been selected (HEATING function enabled). If a heating request from the main zone is in progress, the icon will be flashing.

When the “embedded clock ” is enabled this icon indicates that the system heating (main zone) is in AUTOMATIC mode (the management of the heating requests follows the ON/OFF times that have been programmed). If the heating function is not enabled during the current time frame, the icon will be crossed out.

Light signal indicating the operating status of the boiler. Can be red or green (see specific paragraph)

Boiler control panel

ok= confirm

back= ret

cancel selection

up= allows you to choose between the options PLANT-STATE-SET-INFO-MENU and to

down= allows you to choose between the options PLANT-STATE-SET-INFO-MENU and to

urn to the previous screen

return to the main screen (press > 2 sec.)

submenus

scrolling upwards

scrolling down

surf through the

surfe through the

Pressing the keys from among the following options:

• PLANT: the display will indicate the temperature of the flow

• STATE/BOILER: enables access to choose the operating

• STATE/MAIN ZONE (if embedded clock disabled): enables

• STATE/MAIN ZONE (if embedded clock is enabled):

• SET: to view or adjust the heating setpoint value

• INFO: to view the current values or status of the various

• MENU: to access the system’s configuration menus.

OFF This icon indicates that the system (main zone) has been set to off (not active).

This icon indicates that the system is detecting the presence of a flame.

This icon indicates the presence of an anomaly, and is always flashing.

“up” and “down”

it is possible to choose

The configuration MENU is organised with a multi-access level tree structure. With the “ok” key you can access the selected submenu, with the

sensor of the boiler

possible to navigate through the submenus, while the “back” key takes you back to the previous level.

mode of the appliance: OFF, Winter

access to choose the operating mode (On or OFF) of the main heating zone

enables access to choose operating mode of the embedded clock (AUTO, MANUAL, OFF)

An access level has been fixed for each submenu: USER level, always available; TECHNICAL level, password protected. Below is a summary of the MENU tree structure of the REC10.

Some of the information might not be available on the REC10 depending on the access level, the status of the machine or the system conguration.

appliance inputs/sensors

“up” and “down”

keys it is

Page 19

Only zones with

20°C (BT)

45°C (BT)

(BT)

Only mixing z ones with A

Only mixing z ones with ACTUATION=BE16

Only

SETTINGS

TIME SCHEDULE

TECHNICAL

TIME & DATE

LANGUAGE

BACKLIGHT

MAIN

ZONE1

ZONE2

DHW

DHW HEAT PUMP

INSTALLATION

DEFAULT VALUE

FACTORY SET

ZONES MANAGER

MODIFY ZONE MAIN MAIN / ZONE 1 / ZONE2 INSTALLER

SENSOR CALIBRATION 0,0°C - 6,0°C 6,0°C INSTALLER

SYSTEM RESET

ACTUATION TYPE

REQUEST TYPE THERMOSTAT

BE16 ADDRESS - - 1 6

HYDRAULIC CONF DIRECT ZONE DIRECT ZONE MIXING ZONE

ZONE TYPE HIGH TEMP. HIGH TEMP. LOW TEMP. INSTALLER

MIN CH SET

MAX CH SET

CHANGE NAME

PI - PROPORTIONAL 5 0 99

PI - INTEGRAL 10 0 99

VALVE RUN 120 sec 0 sec 240 sec

CLOSING AT POWE R ON 140 sec 0 sec 240 sec

OUTLET OVER 55°C 0°C 100°C

OUTLET OVER TEST TIME 0min 0min 240min

OUTLET OVER WAIT TIME 2min VALVE RUN 240min

OUTLET OVER REST TIME 2min 0min 240min

FREEZE PROT TEMP 6°C -20°C 50°C

FREEZE PROT OFFSET ZONE 5°C 1°C 20°C

FREEZE PROT T EXT 10°C 0°C 100°C

POR

ADD ZONE

DELETE ZONE

in the AMBIENT)

5 min 1 min 15 min USER

ITRF05/AKM ITRF05/AKM BE16

40°C (AT)

80,5°C (AT)

0 (1 if REC10

MINIMUM

VALUE

ITALIANO / ENGLISH USER

THERMOSTAT / TEMPERATURE PROBE /

REC10 MASTER / REC10 SLAVE

20°C MAX CH SET INSTALLER

MIN CH SET

0 1 INSTALLER

MAXIMUM

VALUE

80,5°C (AT)

45°C

Only zones with ACTUATION = BE16

Only mixing z ones with ACTUATION=BE16

Only BT zones with ACTUATION =BE16

BT zones with ACTUATION =BE16

Only zones with ACTUATION = BE16

ACCESS LEVEL

Only if POR = 1

Only MAIN zone

NOTES

USER

INSTALLER

ACTUATION = BE16

INSTALLER

SERVICE

CTUATION=BE16

SERVICE

INSTALLER

VALUE

SET

Page 20

Only in instantaneous configuration

DEFAULT VALUE

FACTORY SET

PARAMETERS INSTALLER

TIMER OFF CH 3 min 0 min 20 min INSTALLER

HYST ON HIGH TEMP 5°C 2°C 10°C SERVICE

HYST OFF HIGH TEMP 5°C 2°C 10°C SERVICE

HYST ON LOW TEMP 3°C 2°C 10°C SERVICE

HYST OFF LOW TEMP 3°C 2°C 10°C SERVICE

SP INCR HIGH TEMP 5°C 0°C 10°C SERVICE

SP INCR LOW TEMP 0°C 0°C 6°C SERVICE

INCR COOLING SP 0°C 0°C 10°C SERVICE

PUMP DUTY CYCLE 85 0 100 INSTALLER

RESET TIMERS CH FUNC. NOT ACTIVE FUNC. NOT ACTIVE FUNCTION ACTIVE INSTALLER

DHW THERMOSTAT RELATED RELATED ABSOLUTE

SLIDING OUTLET

CH DELAY POST-DHW 0 0 1 SERVICE

CH DELAY TIME 6sec 1sec 255sec

DEACTIVATE FUNC. DEACTIVATE FUNC. ACTIVATE FUNCTION

MINIMUM

VALUE

MAXIMUM

VALUE

ACCESS LEVEL

NOTES

INSTALLER

SERVICE

If CH DELAY POST-DHW = 1

SET

VALUE

RESS TRANSDUCE R

LOAD ENABLE 0 0 1

ART LOADING VALUE

PREHEATING 0 0 2

DHW DELAY

DO_AUX1

THERMOREGULATION INSTALLER

CLIMATIC CURVES MAIN MAIN / ZONE1 / ZONE2 INSTALLER

FIXED SET POINT

NIGHT COMP FUNC. NOT ACTIVE FUNC. NOT ACTIVE FUNCTION ACTIVE

CURVE SLOPE

AMBIENT INFLUE NCE 10 0 20

OFFSET 20°C 20°C 40°C

COOLING 18°C 4°C 20°C INSTALLER

BUILDING TYPE 5min 5min 20min

OUTDOOR REACTIVITY 20 0 255

RANGE RATED MAX CH MIN MAX CH INSTALLER

CALIBRATION INSTALLER

MIN 1200 RPM 3600 RPM INSTALLER

MAX 3700 RPM 6300 RPM INSTALLER

MAX CH

1 0 1 SER

6 0,4 1

0sec 0sec 60sec

0 0 2

80,5 °C (AT)

45 °C (BT)

2,0 1,0 3,0

0,4 0,2 0,8

2,0 0,1 5,0

see MULTIGAS TABLE

MIN CH SET MAX CH SET

MIN MAX INSTALLER

Only if PRESS TRANSDUCER = 1

Only if LOAD ENABLE = 1

Only if managed by the c ontrol board

Only in instantaneous configuration

Only if managed by the control board

If EXTERNAL PROBE NOT connected

If EXTERNAL PROBE connected

If EXTERNAL PROBE connected,

request type TA and zone type AT

If EXTERNAL PROBE connected,

request type TA and zone type BT

If request type AMBIENT PROBE

Only if EXTERNAL PROBE connected

VICE

SERVICE

INSTALLER

SERVICE

INSTALLER

or REC10

INSTALLER

or REC10

INSTALLER

or REC10

INSTALLER

Page 21

Only if VENT CYLCE in progress

DEFAULT VALUE

FACTORY SET

SWEEPER INSTALLER

ACTIVATE FUNCTION INSTALLER

DEACTIVATE FUNCTION INSTALLER

MAX SPEED MAX INSTALLER

RANGERATED SPEED RANGE RATED

MIN SPEED MIN INSTALLER

CHANGE FAN SPEED Current speed MIN MAX INSTALLER

ANTI-LEGIONELLA WEEKLY FUNCTION

VENT CYCLE ENABLE FUN. ENABLE FUN. DISABLE FUN. SERVICE

DISABLE FUNCTION SERVICE

ENABLE FUNCTION SERVICE

MINIMUM

VALUE

F. NOT ACTIVE / DAILY FUNCTION /

WEEKLY FUNCTION

MAXIMUM

VALUE

ACCESS LEVEL

NOTES

INSTALLER

SET

VALUE

STOP FUNCTION

EXHAUST PROBE RESET INSTALLER

ADD WATER TANK

WATER TANK INSTALLER

REMOVE WATER TANK INSTALLER

ATER TANK TYPE

WATER TANK SETPOINT 50°C 37,5°C 60°C

ROST PROTECT

TANK F

TANK FR PROT OFFSET 5°C 1°C 20°C

ADD SOLAR PLANT

SOLAR

REMOVE SOLAR PLANT

T MAX TANK

DELTA T ON PUMP

DELTA T OFF PUMP

INTEGRATION DELAY

COLLECTOR T MIN

COLLECTOR T MAX

COLLECTOR T PROT

COLLECTOR T AUTH

COLLECTOR T LOCK

PWM COLL PUMP

TANK COOLING

SOLAR PUMP STATE

7°C 0°C 100°

60°C 10°C 130°C INSTALLER

8°C DELTA T OFF 30°C INSTALLER

4°C 4°C DELTA T ON INSTALLER

0 min 0 min 199 min INSTALLER

(- -) (- -) / -30°C 0°C INSTALLER

110°C COLL. T PROT 180°C INSTALLER

110°C 80°C. T MAX COLL. INSTALLER

40°C T LOCK 95°C INSTALLER

35°C -20°C COLL. T AUTH INSTALLER

0 min 0 min 30 min INSTALLER

FUNC. NOT ACTIVE FUNC. NOT ACTIVE FUNCTION ACTIVE INSTALLER

OFF OFF / ON / AUTO INSTALLER

Only if HEAT PUMP enabled to DHW

Only if solar system is not configured

INSTALLER

Only in instantaneous configuration

INSTALLER

Only

if only heating boiler

INSTALLER

SERVICE

INSTALLER

Page 22

DEFAULT VALUE

FACTORY SET

ADD HEAT PUMP

HEAT PUMP INSTALLER

REMOVE HEAT PUMP

USE FREE CONTACTS / USE BUS USE BUS USE BUS USE FREE CONTACTS SERVICE

ENABLE / DISABLE COOLING DEACTIVATE FUNCTION FUNCTION ACTIVE DEACTIVATE FUNCTION INSTALLER

MINIMUM

VALUE

MAXIMUM

VALUE

ACCESS LEVEL

NOTES

INSTALLER

Only if heat pump not configured

INSTALLER

Only if heat pump configured

SET

VALUE

USE FOR DHW / DON'T USE FOR DHW

ANTI FREEZE DELTA SET 1°C 0°C 6°C SERVICE

ENABLE / DISABLE NIGHT REDUCT DEACTIVATE FUNCTION FUNCTION ACTIVE DEACTIVATE FUNCTION INSTALLER

REDUCED FREQUE NCY 100% 50% 100% SERVICE

MIN OUTDOOR TEMP 5°C -5°C 20°C INSTALLER

MIN DHW OUT TEMP 5°C -5°C 20°C INSTALLER

MIN EMERG OUT T -10°C -20°C 10°C INSTALLER

BOILER INTEGR DELAY 30min 1min 240min SERVICE

HP INTEGR DELAY 30min 1min 240min SERVICE

BOILER WAITING 2min 1min 60min SERVICE

HEAT PUMP WAITING 2min 1min 60min SERVICE

INTEGRATION OFFSET 5°C 0°C 10°C SERVICE

WINTER SUMMER DELAY 0h 0h 24h SERVICE

WARNING VALIDATION 60sec 1sec 300sec SERVICE

ENABLE CIRC STATE ON/ AUTO AUTO ON AUTO INSTALLER

DHW HP SETPOINT 60°C 20°C 60°C SERVICE

DHW

OFFSET 10°C 0°C 25°C SERVICE

ENABLE ALARM HISTORY SERVICE

ALARM HISTORY INSTALLER

SCREED HEATING DEACTIVATE F. DEACTIVATE F. ACTIVATE F. INSTALLER

DEACTIVATE FUNCTION INSTALLER

ACTIVATE FUNCTION INSTALLER

FUNCTION SETTINGS SERVICE

TFMIN 20°C 15°C 30°C SERVICE

TFMAX 35°C 30°C 55°C SERVICE

COMBUSTION CHECK

GAS TYPE

BOILER TYPE

COMBUSTION OFFSET

SYSTEM INFO

DHW FUNCTION

NOT ACTIVE

RESTORE

DHW FUNCTION

ACTIVE

RESTORE

NG/LPG

A/B/C/D/E

DHW FUNCTION

NOT ACTIVE

RESET

INSTALLER

SERVICE

Page 23

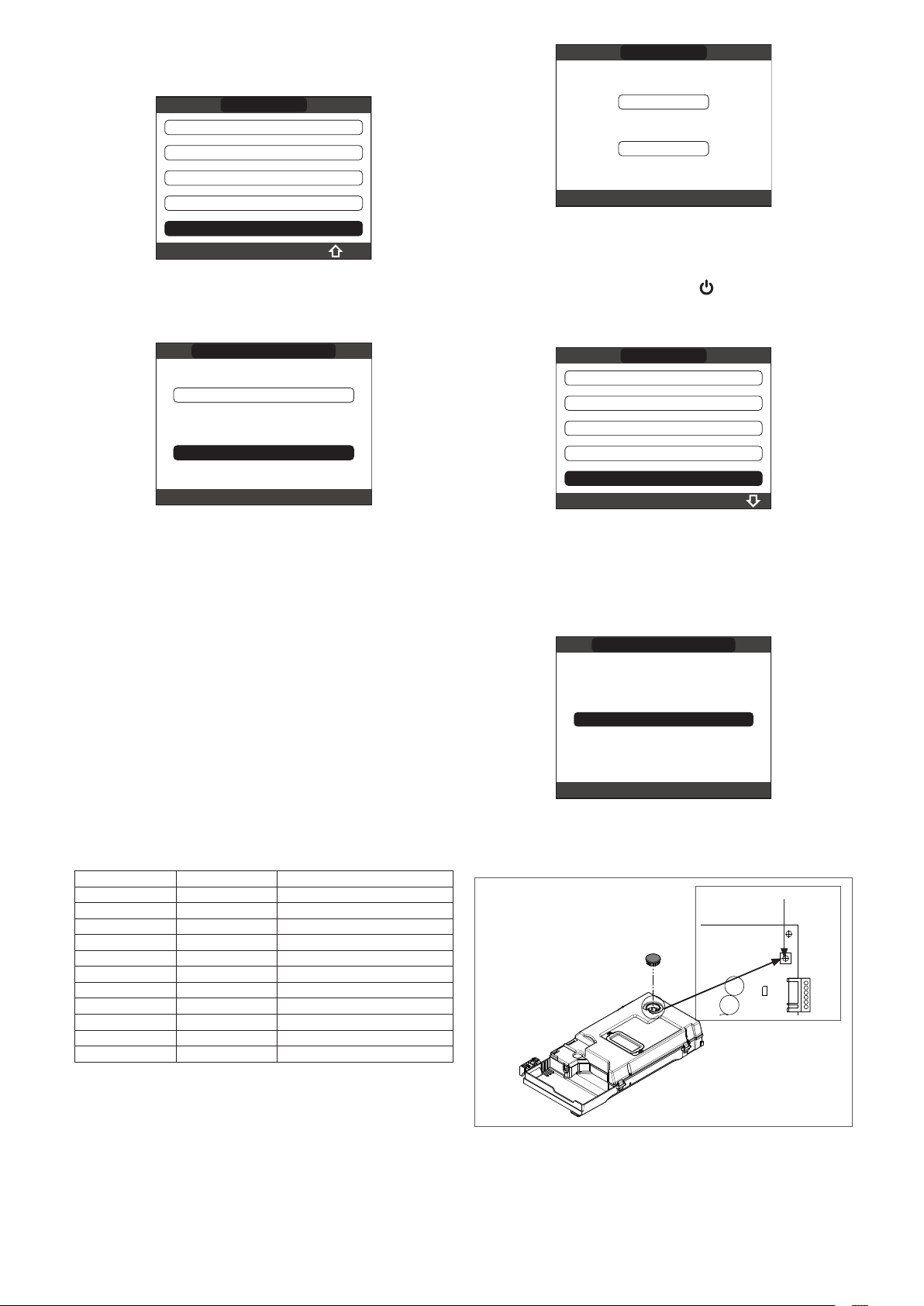

3.1 Access to the technical parameters

FRI

HOT WATER TEMPERATURE

18/11/2013

FRI

SELECT OPTION

Through the REC10 it is possible to access, using the TECHNICAL menu, a series of parameters that can be programmed to allow you to personalise the operation of the boiler:

- select MENU on the initial page of the REC10 and press the key

18/05/2013 12:17

PLANT

bar

1.3

°C

INFO SET

STATE

- keep the keys enter the

password menu (about 5 sec)

and

SETTINGS

pressed at the same time to

12:17

- using the keys and select the value of the password to

access the INSTALLER or SERVICE authorisation level, depending on the level of the tree menu, then press the key

INSERT PASSWORD

- select TECHNICAL with the keys and , confirming the selection with the key

- access the desired menu and change/view the parameter concerned (see the menu tree on page 19).

It is possible to return to the start page at any time by keeping the key “back” pressed for at least 2 seconds.

SETTINGS

TECHNICAL

SELECT OPTION

Page 24

SECTION 4 - GENERAL REQUIREMENTS (UK)

BS 5440 PART 1 FLUES BS 5440 PART 2 FLUES & VENTILATION BS 5449 PART 1 FORCED CIRCULATION HOT WATER SYSTEMS

BS 6798 INSTALLATION OF BOILERS OF RATED INPUT NOT EXCEEDING 70kW BS 6891 LOW PRESSURE INSTALLATION PIPES

This appliance must be installed by a competent person in accordance with the Gas Safety (Installation & Use) Regulations.

4.1 RELATED DOCUMENTS

The installation of this boiler must be in accordance with the relevant requirements of the Gas Safety (Installation & Use) Regulations, the local building regulations, the current I.E.E. wiring regulations, the bylaws of the local water undertaking, the Building Standards (Scotland) Regulation, and Building Standards (Northern Ireland) Regulations. It should be in accordance also with any relevant requirements of the local authority and the relevant recommendations of the following British Standard Codes of Practice.

4.2 LOCATION OF APPLIANCE

The appliance may be installed in any room or internal space, although particular attention is drawn to the requirements of the current I.E.E. wiring regulations, and in Scotland, the electrical provisions of the Building Regulations, with respect to the installation of the appliance in a room or internal space containing a bath or shower. When an appliance is installed in a room or internal space containing a bath or shower, the appliance or any control pertaining to it must not be within reach of a person using the bath or shower (refer to IEE regs). The location chosen for the appliance must permit the provision

of a safe and satisfactory ue and termination. The location

must also permit an adequate air supply for combustion purposes and an adequate space for servicing and air circulation around the appliance. Where the installation of the appliance will be in an unusual location special procedures may be necessary, BS 6798 gives detailed guidance on this aspect. A compartment used to enclose the appliance must be

designed and constructed specically for this purpose. An

existing compartment/cupboard may be utilised provided that it is modied to suit. Details of essential features of compartment/cupboard design including airing cupboard installations are given in BS 6798.

This appliance is not congured for external installation

applications.

4.3 GAS SUPPLY

The gas meter – as supplied by the gas supplier – must be checked to ensure that it is of adequate size to deal with the maximum rated input of all the appliances that it serves. Installation pipes must be tted in accordance with BS 6891. Pipe work from the meter to the appliance must be of adequate size. Pipes of a smaller size than the appliance gas inlet connection must not be used. The installation must be tested for soundness in accordance with BS6891. If the gas supply serves more than one appliance, it must be ensured that an adequate supply is maintained to each appliance when they are in use at the same time.

NOTE

It is recognised that ‘pressure loss’ through the gas cock and gas valve may result in a pressure drop of approximately 2mbar between the gas meter and gas valve inlet test point; this will not impair the performance of the appliance, provided that a dynamic pressure of 18mbar is available at the appliance inlet.

4.4 FLUE SYSTEM

The terminal should be located where the dispersal of combustion products is not impeded and with due regard for the damage and discoloration that may occur to building products located nearby. The terminal must not be located in a place where it is likely to cause a nuisance (see g. 5).

In cold and/or humid weather, water vapour will condense

on leaving the terminal; the e󰀨ect of such pluming must be

considered. If installed less than 2m above a pavement or platform to which

people have access (including balconies or at roofs) the terminal

must be protected by a guard of durable material. The guard

must be tted centrally over the terminal. Refer to BS 5440

Part 1, when the terminal is 0.5 metres (or less) below plastic guttering or 1 metre (or less) below painted eaves.

4.5 AIR SUPPLY

The following notes are intended for general guidance only. This

appliance is a room-sealed, fan-ued boiler, consequently it

does not require a permanent air vent for combustion air supply. When installed in a cupboard or compartment, ventilation for cooling purposes is also not required.

4.6 WATER CIRCULATION

Detailed recommendations are given in BS 5449 Part 1 and BS 6798. The following notes are for general guidance only.

4.6.1 PIPEWORK

It is recommended that copper tubing to BS 2871 Part 1 is used in conjunction with soldered capillary joints. Where possible pipes should have a gradient to ensure air is carried naturally to air release points and that water ows naturally to drain cocks. Except where providing useful heat, pipes should be insulated to avoid heat loss and in particular to avoid the possibility of freezing. Particular attention should be paid to pipes passing

through ventilated areas such as under oors, loft space, and

void areas.

4.6.2 AUTOMATIC BY-PASS

The appliance has a built-in automatic by-pass, consequently there is no requirement for an external by-pass, however the design of the system should be such that it prevents boiler ‘cycling’.

4.6.3 DRAIN COCKS

These must be located in accessible positions to facilitate draining of the appliance and all water pipes connected to the appliance. The drain cocks must be manufactured in accordance with BS 2879.

4.6.4 AIR RELEASE POINTS

These must be positioned at the highest points in the system where air is likely to be trapped. They should be used to expel trapped air and allow complete lling of the system.

4.6.5 EXPANSION VESSEL

The appliance has an integral expansion vessel to accommodate the increased volume of water when the system is heated. Refer to the specication table for more detailed information.

4.6.6 FILLING POINT

A method for initial lling of the system and replacing water lost

during servicing etc. directly from the mains supply, should be provided (see g. 6). This method of lling complies with the current Water Supply (Water Fittings) Regulations 1999 and Water Bylaws 2000 (Scotland).

4.6.7 LOW PRESSURE SEALED SYSTEM

An alternative method of lling the system would be from an

independent make-up vessel or tank mounted in a position at least 1 metre above the highest point in the system and at least

5 metres above the boiler (see g. 7). The cold feed from the make-up vessel or tank must be tted

with an approved non-return valve and stopcock for isolation purposes. The feed pipe should be connected to the return pipe as close to the boiler as possible.

Page 25

4.6.8 FREQUENT FILLING

Frequent lling or venting of the system may be indicative

of a leak. Care should be taken during the installation of the appliance to ensure all aspects of the system are capable of withstanding pressures up to at least 3 bar.

4.7 ELECTRICAL SUPPLY

The appliance is supplied for operation on 230V @ 50Hz electrical supply; it must be protected with a 3-amp fuse (supplied). The method of connection to the mains electricity supply must allow for complete isolation from the supply. The preferred method is by using a double-pole switch with a contact separation of at least 3mm. The switch must only supply the appliance and its corresponding controls, i.e. time clock, room thermostat, etc. Alternatively an un-switched shuttered socket with a fused 3-pin plug both complying with BS 1363 is acceptable.

Warning!

This appliance must be earthed.

4.8 MOUNTING ON A COMBUSTIBLE SURFACE

The appliance can be mounted on a wall of combustible material

without any requirement to t any additional protective (re-

resistant) material.

4.9 TIMBER FRAMED BUILDINGS

If the appliance is to be tted in a timber framed building, it should be tted in accordance with the Institute of Gas Engineers

publication (IGE/UP/7) ‘Guide for Gas Installations in Timber Frame Buildings’.

4.10 WATER TREATMENT

Vokera recommend that water treatment be carried out in accordance with the Benchmark Guidance on water treatment in central heating systems. If water treatment products are to be used, then they must be entirely suitable for use with an aluminium heat exchanger. Any water treatment product, must be administered in strict accordance with the manufacturer’s instructions. If the appliance is to be installed to an existing system; water

treatment and ushing of the complete heating system should

be carried out in accordance with BS 7593 and the Benchmark Guidance on water treatment in central heating systems.

ow/return

pipe

Automatic air-vent

control

valve

Make-up vessel or tank

Non-return

valve

temporary

connection

double

check valve

Stopcock

Heating return

Fig. 6

control

valve

supply

pipe

5.0 metres minimum

Fig. 7

SECTION 4A - GENERAL REQUIREMENTS (EIRE)

This appliance must be installed by a competent person in

accordance with and dened by, the Standard Specication

(Domestic Gas Installations) Declaration (I.S. 813).

4A.1 RELATED DOCUMENTS

The installation of this boiler must be in accordance with the relevant requirements of the local building regulations, the current ETCI National Rules for Electrical Installations, and the bylaws of the local water undertaking. It should be in accordance also with any relevant requirements of the local and/or district authority.

4A.2 LOCATION OF APPLIANCE

The appliance may be installed in any room or internal space, although particular attention is drawn to the requirements of the current ETCI National Rules for Electrical Installations, and I.S. 813, Annex K. When an appliance is installed in a room or internal space containing a bath or shower, the appliance or any control pertaining to it must not be within reach of a person using the bath or shower. The location chosen for the appliance must permit the provision

of a safe and satisfactory ue and termination. The location must

also permit an adequate air supply for combustion purposes and an adequate space for servicing and air circulation around the appliance. Where the installation of the appliance will be in an unusual location special procedures may be necessary, refer to I.S. 813 for detailed guidance on this aspect.

A compartment used to enclose the appliance must be designed and constructed specically for this purpose. An existing compartment/cupboard may be utilised provided that

it is modied to suit. This appliance is not congured for external installation.

4A.3 GAS SUPPLY

The gas meter – as supplied by the gas supplier – must be checked to ensure that it is of adequate size to deal with the maximum rated input of all the appliances that it serves. Installation pipes must be tted in accordance with I.S. 813. Pipe work from the meter to the appliance must be of adequate size. Pipes of a smaller size than the appliance gas inlet connection must not be used. The installation must be tested for soundness in accordance with I.S. 813. If the gas supply serves more than one appliance, it must be ensured that an adequate supply is maintained to each appliance when they are in use at the same time.

NOTE

Page 26

4A.4 FLUE SYSTEM

on leaving the terminal; the e󰀨ect of such pluming must be

considered. If installed less than 2m above a pavement or platform to

which people have access (including balconies or at roofs)

the terminal must be protected by a guard of durable material.

The guard must be tted centrally over the terminal. Refer to

I.S. 813, when the terminal is 0.5 metres (or less) below plastic guttering or 1 metre (or less) below painted eaves.

4A.5 AIR SUPPLY

The following notes are intended for general guidance only.

This appliance is a room-sealed, fan-ued boiler, consequently it

does not require a permanent air vent for combustion air supply. When installed in a cupboard or compartment, ventilation for cooling purposes is also not required.

4A.6 WATER CIRCULATION

Specic recommendations are given in I.S. 813. The following

notes are for general guidance only.

4A.6.1 PIPEWORK

It is recommended that copper tubing be used in conjunction with soldered capillary joints.. Where possible pipes should have a gradient to ensure air

is carried naturally to air release points and that water ows

naturally to drain cocks. Except where providing useful heat, pipes should be insulated to avoid heat loss and in particular to avoid the possibility of freezing. Particular attention should be paid to pipes passing

through ventilated areas such as under oors, loft space, and

void areas.

4A.6.2 AUTOMATIC BY-PASS

The appliance has a built-in automatic by-pass, consequently there is no requirement for an external by-pass, however the design of the system should be such that it prevents boiler ‘cycling’.

4A.6.3 DRAIN COCKS

These must be located in accessible positions to facilitate draining of the appliance and all water pipes connected to the appliance.

4A.6.4 AIR RELEASE POINTS

These must be positioned at the highest points in the system where air is likely to be trapped. They should be used to expel trapped air and allow complete lling of the system.

4A.6.8 FREQUENT FILLING

Frequent lling or venting of the system may be indicative

of a leak. Care should be taken during the installation of the appliance to ensure all aspects of the system are capable of withstanding pressures up to at least 3 bar.

4A.7 ELECTRICAL SUPPLY

Warning!

This appliance must be earthed.

4A.8 MOUNTING ON A COMBUSTIBLE SURFACE

The appliance can be mounted on a wall of combustible material

without any requirement to t any additional protective (re-

resistant) material.

4A.9 TIMBER FRAMED BUILDINGS

If the appliance is to be tted in a timber framed building, it should be tted in accordance with I.S. 813 and local Building

Regulations. The Institute of Gas Engineers publication (IGE/UP/7) ‘Guide

for Gas Installations in Timber Frame Buildings’ gives specic

advice on this type of installation.

4A.10 WATER TREATMENT

treatment and ushing of the complete heating system should

be carried out in accordance with BS 7593 and the Benchmark Guidance on water treatment in central heating systems.

4A.11 DECLARATION OF CONFORMITY

A Declaration of Conformity (as dened in I.S. 813) must be

provided on completion of the installation. A copy of the declaration must be given to the responsible person and also to the gas supplier if required.

4A.6.5 EXPANSION VESSEL

The appliance has an integral expansion vessel to accommodate the increased volume of water when the system is heated. Refer to the specication table for more detailed information.

4A.6.6 FILLING POINT

A method for initial lling of the system and replacing water lost during servicing etc. should be provided (see g. 6). You should ensure this method of lling complies with the local water

authority regulations.

4A.6.7 LOW PRESSURE SEALED SYSTEM

An alternative method of lling the system would be from an

independent make-up vessel or tank mounted in a position at least 1 metre above the highest point in the system and at

least 5 metres above the boiler (see g. 7). The cold feed from the make-up vessel or tank must be tted with an approved

non-return valve and stopcock for isolation purposes. The feed pipe should be connected to the return pipe as close to the boiler as possible.

Page 27

SECTION 5 - INSTALLATION

5.1 DELIVERY

Due to the weight of the appliance it may be necessary for two people to lift and attach the appliance to its wall bracket. The appliance is contained within a heavy-duty cardboard carton.

Lay the carton on the oor with the writing the correct way up.

5.2 CONTENTS

Contained within the carton is:

• the boiler

• the wall bracket

• carton template

• an accessories pack containing appliance service connections and washers

• the instruction pack containing the installation, servicing & user instructions, guarantee registration card and a 3-amp fuse.

5.3 UNPACKING

At the top of the carton pull both sides open – do not use a knife – unfold the rest of the carton from around the appliance, carefully remove all protective packaging from the appliance and lay the accessories etc. to one side. Protective gloves should be used to lift the appliance, the appliance back-frame should be used for lifting points.

5.4 PREPARATION FOR MOUNTING THE

APPLIANCE

The appliance should be mounted on a smooth, vertical, surface, which must be capable of supporting the full weight of the appliance. Care should be exercised when determining the position of the appliance with respect to hidden obstructions such as pipes, cables, etc. When the position of the appliance has been decided – using the template supplied – carefully mark the position of the wall

mounting bracket and ue-hole (if applicable).

Top ue

5.5.1 CONCENTRIC HORIZONTAL FLUE

These instructions relate specically to the installation of this appliance with the Vokera 60/100mm ‘X-type’ (click-t) ue terminals and accessories. For specic instructions on installing this appliance with an alternative Vokera ue system,

e.g. 80/125mm; please refer to the instructions supplied with

the specic ue system, or download the instructions from the Vokera website. The appliance ue outlet elbow can be rotated through 360º on its vertical axis. In addition the ue may be

extended from the outlet elbow in the horizontal plane (see 2.9). A reduction must also be made to the maximum length (see table below) when additional bends are used.

Reduction for additional bends

Bend Reductioninmaximumuelengthforeachbend

45º bend 1.0 metre 90º bend 1.0 metre

Horizontal ue terminals and accessories

Code Description Length

20122759 XF standard horizontal ue kit TBC 20122761 XT telescopic ue kit TBC 29450123 90-degree bend N/A 29450124 45-degree bends (2) N/A 29450125 500mm extension 500mm 29450126 1000mm extension 1000mm 29450127 2000mm extension 2000mm 29450128 Telescopic extension 372/519mm 29450133 Rear-ue terminal kit TBC 522 Plume management kit 1370mm 529 100mm ue brackets (5) N/A

Using the template provided (A), mark and drill a 125mm hole

for the passage of the ue pipe. Each horizontal terminal,

incorporates an incline on the inner (60mm) pipe; this enables the terminal to be installed on a level plane. However any

extended horizontal ue runs must incorporate a 3-degree fallback from the ue terminal towards the appliance. The xing

holes for the wall-mounting bracket should now be drilled and

plugged, an appropriate type and quantity of xing should be

used to ensure that the bracket is mounted securely. Once the bracket has been secured to the wall, mount the appliance onto the bracket.

90° bend

Fig. 11

Rear ue

Fig. 9

5.5 FITTING THE FLUE

This appliance incorporates a ‘click-t’ ue connection at the top of the appliance, and also incorporates a rear-ue connection. Should the rear-ue connection be preferred, the ue outlet will require to be re-congured from a top outlet to a rear outlet.

Please refer to section 5.5.1.2 and the instructions supplied

with the rear-ue kit (code 29450133) on how to re-congure the ue outlet and how to install the rear-ue terminal.

ange installed

as standard

FITTING THE HORIZONTAL FLUE KIT

Carefully measure the distance from the centre of the appliance

ue outlet to the edge of the nished outside wall (dimension X). Add 65mm to dimension X to give you Dimension Y (see g. 12).

Measure dimension Y from the terminal end of the concentric

ue pipe and cut o󰀨 the excess ensuring any burrs are removed. IMPORTANT: The X-type ue terminals are supplied with

a sachet of silicone lubricant; smear a small amount of the lubricant around both inner and outer connections, at both

ends of the ue bend. NOTE: Attach the decorative white plastic trim to the ue pipe

at this point if it’s required.

Attach the ue bend to the ue terminal ensuring that both pipes are fully inserted into the ue bend. Insert the assembled ue terminal and bend into the pre-drilled hole and o󰀨er up the ue bend to the appliance ue spigot.

Page 28

NOTE: The appliance incorporates a ‘click-t’ ue connection (see g. 11). Ensure that both screws ‘C’ (g. 11) on the ‘clickt’ have been slackened o󰀨. Ensure that the bend is correctly aligned with the connector and insert the ue bend into the

connector until it clicks into position (this is when the tabs at points ‘A’ are located in the groove of the ue bend - see g.

11). Both screws (C) should now be tightened.

NOTE: If more convenient, the ue bend can be attached to the appliance before connecting it to the ue terminal.

NOTE: Ensure that the outlet of the ue terminal is correctly orientated as shown in g. 12.

NOTE

You must ensure that the entire ue system is properly supported and connected. Seal the ue assembly to the wall using

cement or a suitable alternative that will provide satisfactory

weatherproong. The exterior trim can now be tted.

Fig. 12

terminal (see g. 11-14). The ue system should have a 3º rise from the boiler to outside, to ensure any condense uid that

forms, is allowed to drain back to the appliance.

NOTE

When cutting an extension to the required length, you must ensure that the excess is cut from the plain end of the extension

(see g. 11-14). Remove any burrs, and check that all seals are located properly. You must ensure that the entire ue system is properly supported and connected. Seal the ue assembly to

the wall using cement or a suitable alternative that will provide

satisfactory weatherproong. The interior and exterior trim can now be tted.

Fig. 14

5.5.1.2 FITTINGTHEREARFLUE(g.15)(rearueoutlet only)

Refer to g. 16 & 17 and the instructions supplied with the rearue kit (code 29450133) for details on how to re-congure the

appliance from a top outlet to a rear outlet. Using the template provided, mark and drill a 125mm hole

for the passage of the ue pipe. The hole should be drilled

LEVEL as the terminal already incorporates a fall-back to

the appliance. The xing holes for the wall-mounting bracket

should now be drilled and plugged, an appropriate type and

quantity of xing should be used to ensure that the bracket is

mounted securely. Once the bracket has been secured to the

wall, attach the rear ue terminal to the appliance (using the previously retained screws) and x the telescopic terminal to

the correct length (wall thickness) ensuring that the terminal will protrude through the wall by the correct distance. Once the terminal has been adjusted to the correct length,

ensure that the ue outlet is orientated to the correct position, and then insert the xing screw (supplied) and attach the sealing strip (supplied) at the ue joint.

NOTE: If required the telescopic section that incorporates the

ue outlet can be trimmed to reduce its length.

NOTE:Theinner60mmpipeoftherearueterminalmust becutby8mmatthepointindicated(g.15pos.A).

At this point, lift the appliance and carefully insert the terminal into and through the wall, ensuring that the wall bracket engages with the corresponding holes at the top of the appliance.

Fig.15

Fig.13

EXTENDING THE FLUE

Connect the bend - supplied with the ue terminal - to the appliance ‘click-t’ connector.

IMPORTANT: The X-type ue terminals are supplied with

a sachet of silicone lubricant; smear a small amount of the lubricant around both inner and outer connections, at both

ends of the ue bend. NOTE: The appliance incorporates a ‘click-t’ ue connection

(see g. 11). Ensure that both screws ‘C’ (g. 11) on the ‘clickt’ have been slackened o󰀨. Ensure that the bend is correctly aligned with the connector and insert the ue bend into the

connector until it clicks into position (this is when the tabs at points ‘A’ are located in the groove of the ue bend - see g.

11). Both screws (C) should now be tightened. The additional

bends & extensions have push-t connections, care should be

taken to ensure that the correct seal is made when assembling

the ue system. Connect the required number of ue extensions or bends (up to the maximum equivalent ue length) to the ue

A: cutting 8mm

pre-shearing

When reconguring the outlet from a top to a rear outlet, it is necessary to remove the ‘click-t’ connector; replace all but

one of the securing screws - using the remaining screw to

secure the top outlet cap (g. 16).

When removing the rear outlet cap; retain the 4-screws as

these are required to attach the rear-ue terminal to the appliance (g. 17).

Page 29

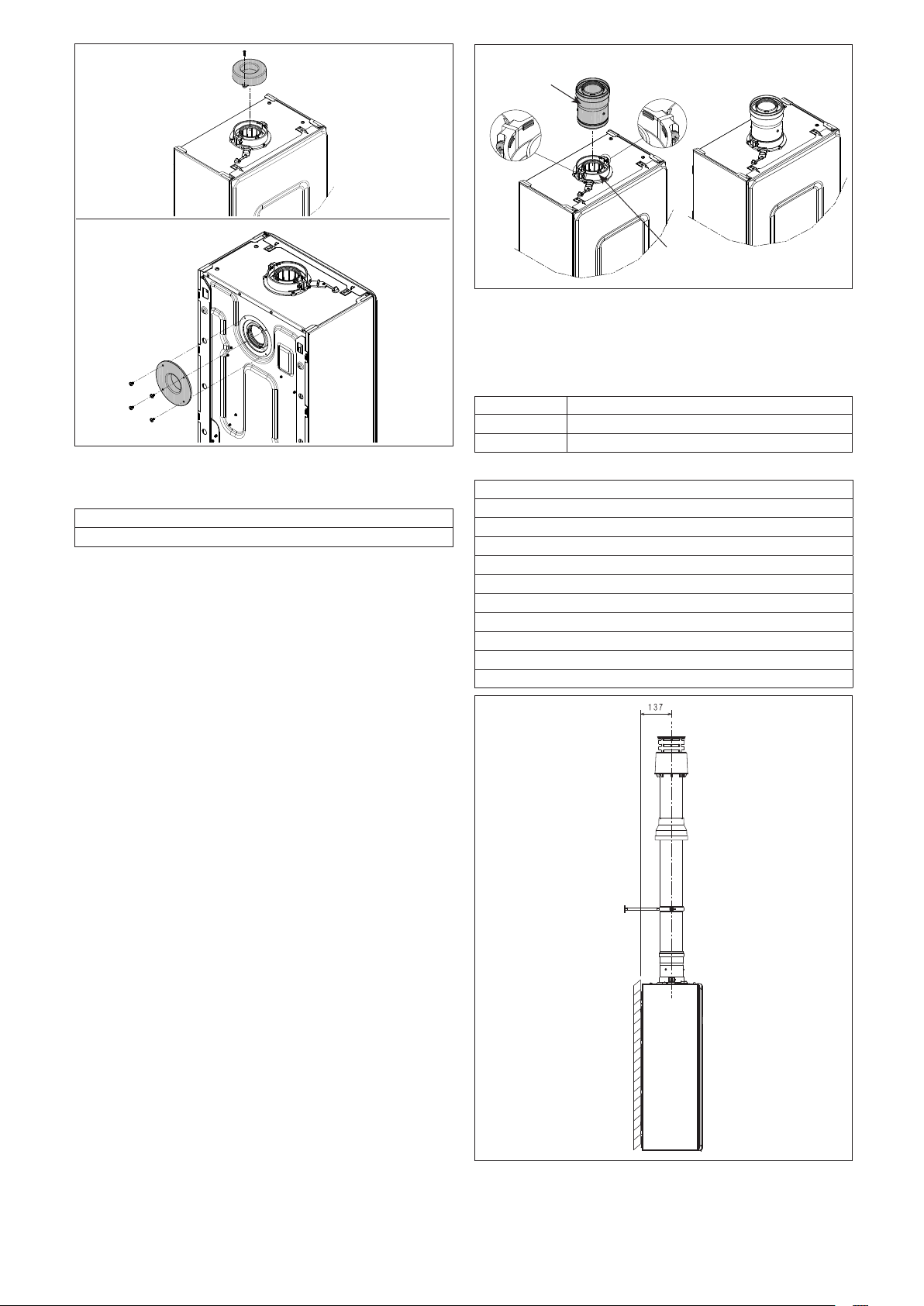

vertical

connection

Fig.16

Fig.17

Seal the ue assembly to the wall using cement or a suitable alternative that will provide satisfactory weatherproong. The exterior wall trim can now be tted.

Part No. Description Length

29450133 Rear ue terminal 825mm

5.5.2 CONCENTRIC VERTICAL FLUE

Using g.19 as a reference, cut a 110mm diameter hole in the roof and/or ceiling to facilitate the route of the vertical ue

system. NOTE: ensure that the top of the appliance - if already in position - is covered and protected from the possibility of any

dust or debris falling or entering the appliance via the ue outlet. Fit the appropriate ashing to the roof and insert the vertical ue

terminal through the ashing from outside, ensuring that the collar of the terminal is located over the outlet of the ashing.

The xing holes for the appliance wall mounting bracket should

now be drilled and plugged. An appropriate type and quantity

of xing should be used to ensure that the bracket is mounted

securely. Once the bracket has been secured to the wall, mount the appliance onto the bracket.

If the vertical ue system requires additional extensions or bends,

connect these to the vertical terminal, ensuring the following:

- the maximum permitted ue length is not exceeded

- reductions to the maximum ue length have been made for any bends that are used on the vertical ue system

- any horizontal sections of the ue system, incorporate a

3-degree fallback to the appliance

- the entire ue system is fully supported and secured using

the appropriate brackets

- if/when an extension is cut to a shorter length, ensure that the excess length is cut from the plain end of the extension, and that any burrs or rough edges are removed

- all seals are properly located before assembling or connecting

the ue system.

IMPORTANT: The VX ue terminal is supplied with a sachet of

silicone lubricant; smear a small amount of the lubricant around both inner and outer connections, at both ends of the vertical

ue connector (supplied with the VX terminal). NOTE: The appliance incorporates a ‘click-t’ ue connection

(see g. 18). Ensure that both screws ‘C’ (g. 11) on the ‘click-t’ have been slackened o󰀨. Ensure that the connector is correctly aligned with the ‘click-t’ and insert it into the ‘click-t’ until it

clicks into position (this is when the tabs at points ‘A’ are located

in the groove of the vertical ue connector - see g. 18). Both

screws (C) should now be tightened. NOTE: If more convenient, the vertical ue connector can be

attached to the vertical ue terminal/extension before connecting

it to the appliance.

ange installed

as standard

Fig.18

NOTE

Additional bends and/or extensions can be connected to the terminal connector if desired, however if additional bends are

tted, a reduction must be made to the maximum ue length

(see table below). Reduction for bends

Bend Reductioninmaximumuelengthforeachbend

45º bend 1.0 metre 90º bend 1.0 metre

Vertical ue terminal and accessories

Code Description Length

20122763 Vokera XV Vertical Flue kit 1000mm 29450123 90-degree bend N/A 29450124 45-degree bends (2) N/A 29450125 500mm extension 500mm 29450126 1000mm extension 1000mm 29450127 2000mm extension 2000mm 29450128 Telescopic extension 372/519mm 529 100mm ue brackets (5) N/A 531 Pitched roof ashing N/A 532 Flat roof ashing N/A

Fig. 19

IMPORTANT

The vertical ue terminal is 1.0 metre in length and cannot be

cut; therefore it may be necessary to adjust the height of the appliance to suit or use a suitable extension.

Page 30

5.6 CONNECTING THE GAS AND WATER

The appliance is supplied with an accessory pack that includes service valves. The service valves are of the compression type. The accessory pack contains sealing washers’ etc, for use with the service valves. When connecting pipe work to the valves,

tighten the compression end rst then insert the sealing washers

before tightening the valve to the appliance.

NOTE

It will be necessary to hold the valve with one spanner whilst tightening with another.

5.6.1GAS(g.20)

The appliance is supplied with a 15mm service valve, connect a 15mm pipe to the inlet of the valve and tighten both nuts.

NOTE

It will be necessary to calculate the diameter of the gas supply pipe to ensure the appliance has an adequate supply of gas.

5.6.2FLOW&RETURN(g.20)

The appliance is supplied with 22mm service valves for the

ow and return connections, connect a 22mm pipe to the inlet

of each valve and tighten both nuts.

NOTE

Depending on system requirements, it may necessary to increase

the size of the ow & return pipe work after the service valve

connections.

5.6.3SAFETYVALVE(g.20)

Connect the safety valve connection pipe to the safety valve outlet and tighten. The discharge pipe must have a continuous fall away from the appliance to outside and allow any water to drain away thereby eliminating the possibility of freezing. The discharge pipe must terminate in a position where any water

- possibly boiling - discharges safely without causing damage or injury, but is still visible.

Fig. 20

C/H ow

valve

Safety valve

outlet

Gas cock

5.7 ELECTRICAL CONNECTIONS

The boiler is supplied with a y-lead. This lead can be used for connection to the electrical supply. Connect the y-lead to a

fused plug or fused isolator in the following way:

• brown wire to LIVE supply

• blue wire to NEUTRAL supply

• green/yellow to EARTH connection. Insert the supplied 3-AMP fuse into the fused isolator or fused

plug. Should the y-lead be unsuitable, refer to 5.7.3 for details

on how to connect the electrical supply directly to the boiler.

The electrical supply must be as specied in section 4/4A. A qualied electrician should connect the appliance to the

electrical supply. If controls - external to the appliance - are required, a competent person must undertake the design of any external electrical circuits, please refer to section 8 for detailed instructions. ANY EXTERNAL CONTROL OR WIRING MUST BE SERVED FROM THE SAME ISOLATOR AS THAT OF THE APPLIANCE. The supply cable from the isolator to the

appliance must be 3-core exible sized 0.75mm to BS 6500 or

equivalent. Wiring to the appliance must be rated for operation in contact with surfaces up to 90 ºC.

The appliance is supplied with a ‘D-sub’ interface, that enables

various control congurations to be connected to the appliance

without any need for the removal of the casing. NOTE: The appliance will enter a fault condition if/when the D-sub

interface is removed or incorrectly attached to the appliance. For detailed wiring information and schematic diagrams see Section 8.

D-sub Interface

- Loosen cover retaining screws (V) and remove cover.

- Refer to g. 22 and below for relevant wiring connections for

the envisaged controls regime:

- TA (5 & 6) - for use with a ‘voltage-free’ control, e.g. room thermostat and/or clock (remove link wire)

- OT+ (13 & 14) - for use with BeSMART control

- SE (11 & 12) - for use with an external temperature sensor

- TBT (9 & 10) - for use as a fail-safe if/when an external device fails, e.g. condensate pump.

- Make the required connections.

- Replace cover and re-tighten securing screws.

- Press and hold both tabs and insert the D-sub interface into

the D-sub socket on the appliance underside (g. 21).

- Tighten the securing screw V1.

C/H return valve

5.6.4 CONDENSATE DISPOSAL

This appliance will - under normal operating conditions - produce

condensate uid that will require to be disposed of via the

dwelling’s waste water drainage system. Vokera strongly recommends that the condensate pipe is connected to the internal waste water pipework in accordance with BS6798. BS6798 provides comprehensive instruction and advice on all permissible condensate disposal methods; notwithstanding this, it is essential that the following is strictly adhered to:

- use only plastic drainage pipe (minimum OD of 21.5mm)

- horizontal runs must incorporate a minimum 45mm fall per metre, away from the appliance

- external pipework and/or pipework in unheated areas, must have a minimum OD of 32mm and be insulated with Class-O pipe insulation

- the route, type, and termination of the condensate disposal

method, must not permit any spillage of condensate uid,

into the dwelling in the event of a blockage or freezing of the condesate pipework.

Should it not be possible to route and terminate the condensate pipework internally using ‘gravity discharge’; Vokera recommends that the Vokera condensate pump (code 404) be considered as an alternative solution.

Ensure that the end-user is aware of the e󰀨ect/consequences

of the condensate pipework becoming blocked or frozen.

Fig. 21

Page 31

FRI

Fig. 22

1-2-3-4 5-6 TA Room thermostat

7 - 8 TBOL Not used 9-10 TBT Low temperature limit thermostat 11-12 SE Outdoor temperature sensor 13-14 OT+ Open therm 15-16 SBOL Not used 17-18 X1 Not used 19-20 X2 Not used

(- A B +)

TBOL

TBT

Voltage free contact input

Bus 485

(contact must be free of voltage)

OT+

15 SBOL

M20

Opentherm Control

When an OT control is connected to the appliance, the UI screen will display ‘Opentherm Connected’. The control functions of the appliance UI will be transferred to the OT control, which can then be used to set/adjust the main heating zone settings and the hot water settings.

UI Functions When OT Control is Connected

STATE function is disabled on the UI and must be set/adjusted via the OT control. The outlet HW temperature cannot be adjusted via the appliance UI, and is set/adjusted via the OT control.

INFO Menu

When an OT control is connected, the info menu will display

the HW set-point instead of the HW ow-rate.

NOTE

All/any functions of the ‘main’ zone are disabled on the appliance UI and can only be accessed/adjusted via the OT

control.

18/05/2013 12:17

PLANT

bar

1.5

Open Therm connected

°C

STATE

INFO SET

HOT WATER TEMPERATURE

5.7.1 FRONT COVER REMOVAL

Refer to g. 23.

- Locate and remove screws ‘A’ that secure the spring clips to the underside of the appliance.

- Gently unclip the spring clips ‘C’ and pull the front cover outwards and then upwards in order to disengage it from the tabs ‘B’ at the top of the appliance.

- Place the front cover in a safe area to avoid any risk of damage.

- Replace in the reverse order.

REMOVAL OF SIDE PANEL/S

Remove the front cover as indicated above:

- locate and remove the 2-screws that secure the side panel to the appliance

- gently prise the side panel forward to release it from the securing tabs on the appliance rear

- replace in the reverse order.

WARNING

DO NOT remove the ‘side’ panels if/when the appliance has been installed to within the minimum clearances, i.e. 2mm.

When retting the side panels, it is essential that the LH

panel is tted to the left side and the RH panel is tted to

the right side (refer to the attached label).

The front cover and

side panels are an intrinsic part of the ‘room-sealed’ element of the appliance; any damage that results in a loss of their integrity will require the replacement of the cover.

The noise absorbing panels that are located inside the front cover and side panels also act as seals to ensure airtightness and the room-sealed integrity of the appliance. It is essential that these are correctly

positioned during the retting of the front cover

and/or side panels. Any subsequent damage or deterioration to the noise absorbing panels must be

rectiedbeforetheappliancei

Fig. 23

s put back into service.

5.7.2 APPLIANCE MAIN ELECTRICAL SUPPLY INPUT

The appliance is supplied with an electrical y-lead (approx.

1.5m long) and the D-sub interface has a link wire inserted across the TA terminals (5 & 6); these measures enable the

basic function of the appliance once the y-lead is connected

to the electrical supply. However if this is not suitable, then it is

possible to remove and replace the ‘y-lead’ with an alternative

method of connection to the electrical supply.

5.7.3 CONNECTING A 230V SUPPLY TO THE APPLIANCE PCB

WARNING Isolate the appliance from the electrical supply before

carrying out this procedure.

Remove the front cover as detailed in 5.7.1. Locate the red clip that retains the control panel in the upright position and move it to the left to release the control panel.

Lower the control panel and remove the two PCB cover retaining screws (located adjacent to the PCB’s front retaining clips).

Push in the two front clips, and pull out the side clip in order to release the cover and then remove the cover - lifting from the front upwards.

The 230v electrical supply input is located at the rear right hand side of the PCB (see Section-8 schematics); disconnect

and remove the factory-tted y-lead, and use the same

cable-entry point, route, and respective electrical terminals for the new 230v supply cable.

NOTE

Ensure that the Earth wire is approximately 30mm longer that the Live and Neutral wires and that each terminal screw is tight.

Carry out any relevant electrical checks as detailed in 8.5 before replacing the PCB cover; ensuring that no cables or wiring is trapped.

Ret the PCB cover screws and move the control panel back

to the upright position ensuring the red securing clip, clicks into place.

Replace the appliance front cover as detailed in 5.7.1 paying attention to the importance of ensuring the cover is providing

an e󰀨ective seal.

NOTE

It is the installer and/or electrician’s responsibility to ensure that the appliance properly earthed. Vokera Ltd. cannot be held responsible for any damages and/or injuries that result from the incorrect wiring of the appliance; or from an

ine󰀨ective/defective Earth connection.

Page 32

SECTION 6 - COMMISSIONING

FRI

STATE

BOILER

MAIN ZONE

BOILER

OFF

WINTER

6.1 PRELIMINARY CHECKS

Before starting up the boiler, check:

- conrm via the appliance data badge, that the appliance is

suitable/congured for the gas type and electrical supply

that has been provided to the appliance

- inspect the entire ue system and ensure that it has been installed in accordance with these instructions and the relevant standards that apply locally and/or nationally

- that the required clearances have been met in respect of the requirements for maintenance

- inspect the entire installation including the gas meter, test for tightness and purge. Refer to BS 6891 (I.S. 813 in ROI)

for specic instruction

- ensure that the rated delivery of the gas meter is adequate enough to serve this appliance and any other gas appliance connected to the same meter

- ensure that the gas supply pipework is of adequate size to provide the maximum gas rate required by this appliance.

6.1.1 FIRST IGNITION ERRORS

- Ensure that the gas supply is ON, water supply is ON, and electrical supply is ON. Ensure that the system pressure is at least 0.6 bar.

- D-sub interface incorrectly located (alarm code E077); ensure that the D-sub interface is located within the guide

slot (g. 21).

- Pump rotator shaft seized (possible alarm code E020 and no circulation within boiler/heating system); this can occur if the appliance has been stored or inactive for a prolonged period.

- To ‘release’ the seized rotator shaft:

- remove front cover as detailed in 5.7.1

- refer to g. 24 and locate the hole (1) that allows access

to the shaft centre screw (a)

- insert an N2 Phillips screwdriver (b) into the screw-head,

gently push forward and turn the shaft with the screwdriver

- this will release the rotator shaft

- replace the front cover as detailed in 5.7.1 ensuring

correct seal.

TIME & DATE

ENTER TIME AND DATE

12 17:

18 / 11 / 2013

USE THE ARROWS TO MODIFY

- Note: it is possible to change the TIME and DATE settings, as well as LANGUAGE and the duration of the back-lighting, at any time by entering the MENU from the main screen and then selecting SETTINGS.

Whenever the power supply to the appliance is interrupted and then restored, an automatic venting cycle is carried out lasting 6 min. To interrupt the vent cycle, carry out the procedure explained in the section

“6.3 First commissioning”

- Set the boiler to OFF from REC10 selecting the status menu and then BOILER.

18/05/2013 12:17

PLANT

bar

1.3

STATE

°C

INFO SET

HOT WATER TEMPERATURE

Fig. 24

6.2 PROGRAMMING THE BOILER

- Position the system’s main switch to the “on” position.

- If necessary set the TIME and DATE setting the HOURS, MINUTES, DAY, MONTH and YEAR with the keys “up” and “down”, confirming the selection.

- Through the REC10 it is possible to access, using the TECHNICAL menu, a series of parameters that can be programmed to allow you to personalise the operation of the boiler based on the type of system.

- Then set the parameters according to the desired operating modes.

6.2.1 BOILER CONFIGURATION

The REC10 UI is supplied with a default conguration that

enables a standard type of external control, e.g. room thermostat & clock, programmable room thermostat, etc. to be connected to the appliance or alternatively the Vokera BeSMART OT+ control. Alternatively and if desired the embedded 7-day clock can be enabled (default is disabled) to control the ON/OFF time schedule for the central heating. In order to enable the embedded clock, it is necessary to access

the ‘INSTALLATION’ parameters as dened in section 8 (see

also menu hierarchy on page 18).

Page 33

NOTE

FUNCTION NOT ACTIVE

RESET TIMER CH

FUNCTION ACTIVE

INSTALLER

MAIN

INSTALLER

INSTALL

Do not enable the embedded clock if another type of timing control, e.g. time clock, programmable room thermostat, etc. is – or will be – connected to the appliance, in order to manage the heating timing schedule. The following functions can also be accessed and adjusted via the installer parameters (see section 8 & page 18) if required/necessary.

NOTE

The ‘installer’ parameters should only be accessed and

adjusted by suitably qualied personnel.

TECHNICAL

INSTALLATION

PARAMETERS

TERMOREGOLAZIONE

THERMOREGULATION

RANGE RATED

CALIBRATION

INSTALLER

- Select from among the following options with the “up” and “down”, keys, confirming the selection.

PARAMETERS

TIMER OFF CH

Pin 1 and 2 of X32 Not present Jumpered

DO_AUX1 = 0 additional pump

management

DO_AUX1 = 1 zone valve

management

DO_AUX1 = 2 additional pump

management

zone valve management

additional pump management

6.2.2 CONFIGURATION OF THE ZONE

It is possible to customise the management of the heating zone by accessing the ZONES MANAGER menu.

- Access the technical parameters as explained in the section

“3.1 Access to the technical parameters”

- In sequence select INSTALLATION, ZONES MANAGER and MODIFY ZONE with the “up” and “down” keys, confirming the selection.

TECHNICAL

INSTALLATION

PARAMETERS

THERMOREGULATION

RANGE RATED

CALIBRATION

INSTALLER

RESET TIMERS CH

INSTALLER

- TIMER OFF CH

This parameter allows you to change the TIMER OFF

CH, regarding the delay time introduced for re-igniting the burner in the face of an off due to the heating temperature being reached. The factory setting for this parameter is 3 minutes and can be set to a value between 0 min and 20 min selecting the desired one with the “up” and “down”, keys confirming the selection.

TIMER OFF CH

MIN

- RESET TIMERS CH

This parameter allows you to reset the REDUCED HEATING

MAXIMUM OUTPUT TIMING, during which the speed of the fan is limited to 75% of the maximum heating output that has been set, and the TIMER OFF CH. The factory setting for this parameter is FUNCTION INACTIVE, select FUNCTION ACTIVE using the keys “up” and “down”, confirming the selection for resetting the timings.

INSTALL

ZONES MANAGER

SENSOR CALIBRATION

SYSTEM RESET

INSTALL

MODIFY ZONE

ADD ZONE

DELETE ZONE

INSTALLER

- Select the desired heating zone and then choose from among the options with the “up” and “down” keys, confirming the selection:

- DO_AUX1

This parameter allows you to configure the operation of

an additional relay (only if the relay board is installed (not supplied as standard) to bring a phase (230Vac) to a second heating pump (additional pump) or a zone valve. The factory setting for this parameter is 0 and can be set within the 0 - 2 range with the following meaning:

- TYPE OF ACTUATION

Set the parameter in question to ITRF05/AKM (default

value)

- TYPE OF HEAT REQUEST

This parameter allows you to specify the type of heat

request, it is possible to choose from among the following options:

THERMOSTAT (factory setting): the heat request is

generated with an ON/OFF thermostat

REC10 MASTER: the heat request is generated by the

REC10 MASTER; in this case the REC10 assumes the function of an HIU (Human Machine Interface)

Page 34

- TYPE OF ZONE

FRI

HOT WATER TEMPERATURE

MON

SELECT OPTION

MON

ZONE SCHEDULE

PARAMETERS

THERMOREGULATION

RANGE RATED

TECHNICAL

INSTALLER

CALIBRATION

INSTALLATION

This parameter allows you to specify the type of zone

to be heated, it is possible to choose from among the

following options: HIGH TEMPERATURE (factory setting): LOW TEMPERATURE

- MIN SET HEAT

This parameter allows you to specify the minimum heating

setpoint that is possible (range 20°C - 80.5°C, default

20°C for high temperature systems; range 20°C - 45°C,

default 20°C for low temperature systems)

- MAX SET HEAT

This parameter allows you to specify the maximum

heating setpoint that is possible (range 20°C - 80.5°C,

default 80.5°C for high temperature systems - range 20°C

- 45°C, default 45°C for low temperature systems)

- CHANGING NAME

This parameter allows you to attribute a specific name to

the heating zone

- POR (embedded clock function)

This parameter enables or disables the embedded clock. Embedded clock disabled (default) = 0

Central heating is controlled (ON & OFF) by the room

thermostat connection (TA). Embedded clock enabled = 1

Central heating ON/OFF times are controlled according to

the (default) heating programme, whilst room temperature

is controlled via the room thermostat (TA). Ensure that the

operating mode (‘STATE’ menu) is set to AUTO.

6.2.3 EMBEDDED CLOCK HEATING SCHEDULE

When the embedded clock is enabled (POR=1 - see above), a default heating schedule is used to manage the ON/OFF timings for each day of the week (operating mode = AUTO). if necessary, the default heating schedule can be changed according to the User’s needs. Refer to section 2.10 for detailed instruction/guidance on how to access and change the default heating schedule.

18/05/2013 12:17

18/11/2013 12:17

6.2.4 SETTING THE THERMOREGULATION

Thermoregulation (weather compensation) controlled by the appliance, can only be enabled if an external sensor has been installed and connected to the D-sub interface (SE terminals 11 & 12). When the presence of an external sensor is detected, the appliance immediately enables the thermoregulation function and calculates a required outlet (flow) temperature that is based on the external temperature and the chosen climatic curve. The temperature measured by the outdoor temperature sensor is displayed on the initial page in the top right, alternating with the display of the time. When thermoregulation is enabled (outdoor temperature sensor present), the algorithm for automatically calculating the outlet setpoint depends on the type of heat request. In any case, the thermoregulation algorithm will not directly use the outdoor temperature, but rather a calculated outdoor temperature that takes into account the building’s insulation: in buildings that are well insulated, the outdoor temperature variations will have less impact than those that are poorly insulated by comparison. Enabling THERMOREGULATION occurs in the following way:

- select THERMOREGULATION with the “up” and “down” keys, confirming the selection.

PLANT

bar

1.3

°C .3

INFO SET

SCHEDULE

MAIN

SELECT THE ZONE

STATE

START

07:30 11:30 18:00

08:30 13:30 22:30

SETTINGS

TIME SCHEDULE

MAIN

END

SELECT

A DAY

THURSDAY

Using the REC10 it is possible to set the value of the following parameters:

BUILDING TYPE

It is indicative of the frequency with which the value of the calculated outdoor temperature for thermoregulation is updated, a low value for this setting will be used for buildings that have little insulation. Setting range: [5min - 20min] Factory setting: [5min]

REACTIVITY EXT SENSOR

It is an indication of the speed with which variations of the measured outdoor temperature affect the calculated outdoor temperature value for thermoregulation, low values indicate high speeds. Setting range: [0 - 255] Factory setting: [20]

At this point, to change the value of the previous parameters, proceed as described below:

- in sequence select THERMOREGULATION and TYPE OF BUILDING rather than REACTIVITY EXT SENSOR with the “up” and “down” keys, confirming the selection

- set the desired value with the “up” and “down” keys, confirming the selection.

Note: The value of the calculated outdoor temperature used by the thermoregulation algorithm is displayed in the INFO menu under T EXT FOR THERMOREG.

HEAT REQUEST FROM THERMOSTAT or POR (Programmable Timer)

In this case the outlet setpoint depends on the outdoor temperature for obtaining a reference ambient temperature of 20°C. There are 2 parameters that compete to calculate the output setpoint:

- slope of the compensation curve (KT)

- offset on the reference ambient temperature.

SELECTING THE COMPENSATION CURVE

The compensation curve for heating maintains a theoretical temperature of 20°C indoors, when the outdoor temperature is between +20°C and -20°C. The choice of the curve depends on the minimum outdoor temperature envisaged (and therefore on the geographical location), and on the delivery temperature envisaged (and therefore on the type of system). It is carefully calculated by the installer on the basis of the following formula:

KT = T. outlet envisaged - Tshift

20- min. design external T

Tshift = 30°C standard system 25°C floor installations

If the calculation produces an intermediate value between two curves, you are advised to choose the compensation curve nearest the value obtained. Example: if the value obtained from the calculation is 1.3, this is between curve 1 and curve 1.5. Choose the nearest curve, i.e. 1.5. The settable KT values are as follows: radiator system: 1.0-3.0 under floor heating system 0.2-0.8.

Using the REC10 it is possible to set the selected thermoregulation curve:

- in sequence select THERMOREGULATION and CLIMATIC CURVES with the “up” and “down” keys, confirming the selection

- select the desired heating zone with the “up” and “down” keys, confirming the selection

- set the desired climatic curve with the “up” and “down” keys, confirming the selection.

Page 35

OFFSET ON THE REFERENCE AMBIENT TEMPERATURE

Riduzione notturna P ARALLELA

-20-15-10-505101520

CURVE DI TERMOREGOLAZIONE

FRI

arancione

E.R.

giallo (B)

nero (-)

rosso (+)

arancione (A)

(OT+)

(ES)

(TBT)

(RT)

REC

F= 3.15A F

230 V

blu

marrone

TSC2

blu

marrone

giallo/verde

N F

marrone

X15

blu

V Hv

verde A1)

rosso (A2)

arancione (K2)

bianco(K1)

BE20

C.S.A.

marrone

blu

In any event, the user can indirectly modify the value of the HEATING setpoint inserting an offset on the reference temperature that can vary within the range -5-+5 (offset 0 = 20°C).

NIGHT COMPENSATION

Whenever a programmable timer is connected to the ROOM THERMOSTAT input, from the TECHNICAL\ THERMOREGULATION\CLIMATIC CURVES\MAIN the NIGHT COMPENSATION function can be enabled. In this case, when the CONTACT is CLOSED, the heat request is made by the flow sensor, on the basis of the outdoor temperature, to obtain a nominal ambient temperature on DAY level (20°C).

The opening of the contact does not produce a switch-off, but a reduction (parallel translation) of the climatic curve on NIGHT level (16°C). Also in this case, the user can indirectly modify the value of the HEATING setpoint inserting once again an offset on the reference DAY temperature (20°C) rather than NIGHT (16°C) that can vary within the range [-5 - +5].

18/05/2013 12:17

PLANT

bar

1.3

°C

INFO SET

HOT WATER TEMPERATURE

STATE

BOILER

MAIN ZONE

STATE

BOILER

OFF

WINTER

THERMOREGULATION CURVES

T80

T45

DELIVERY TEMPERATURE (°C)

OUTSIDE TEMPERATURE (°C)

WEATHER COMPENSATION CURVE

25 ° C

20 °C

15 °C

DELIVERY TEMPERATURE (°C)

OUTSIDE TEMPERATURE (°C)

PARALLEL NIGHT-TIME REDUCTION

DELIVERY TEMPERATURE (°C)

20 °C

16 °C

DAY

temperature

Curva climatica GIORNO

curve

Curva climatica NOTTE

temperature

NIGHT

curve

OUTSIDE TEMPERATURE (°C)

T80 std systems heating temperature set

point (jumper pos.1 not inserted)

T45 oor systems heating temperature set

point (jumper pos.1 inserted)

6.3 FIRST COMMISSIONING

- Carry out the procedure as detailed in section 6.1.

- Ensure that all services (gas, water, electricity) are supplied and turned ON at the appliance.

- Ensure that the appliance has been set to WINTER (access via STATE menu).

- Ensure that any time control and/or temperature control is calling for heat.

2,02,53,0

the “ ” icon appears on the display. The boiler will start up and continue working until the set temperatures are reached, after which it will then go back to standby.

VENT CYCLE FUNCTION

When the appliance is switched on for the first time or whenever the electrical supply has been switched off and then restored, an automatic vent cycle is carried out lasting 6 min. When the vent cycle is in progress, all heat requests are paused except for domestic hot water ones when the boiler is not set to OFF, and a sliding message

- When any heat request is generated and the burner is lit,

-20

-15-10-505101520

at the foot of the page appears on the main page of the REC10.

In this condition the green and red LEDs are alternately

displayed every 0.5 second.

combustion analysis button SW1

-20-15-10-5051015202530

SW1

X17

X14

The vent cycle can be interrupted from the TECHNICAL menu of the REC10:

- select VENT CYCLE with the “up” and “down” keys, confirming the selection

TECHNICAL

THERMOREGULATION

RANGE RATED

CALIBRATION

SWEEPER

VENT CYCLE

INSTALLER

Page 36

- select STOP FUNCTION with the “up” and “down” keys,

FRI

HOT WATER TEMPERATURE

confirming the selection.

VENT CYCLE

DISABLE FUNCTION

ENABLE FUNCTION

STOP FUNCTION

INSTALLER

The REC10 will briefly display a wait message after which you will automatically be taken to the main screen.

18/05/2013 12:17

HOT WATER TEMPERATURE

PLANT

bar

1.3

°C

INFO SET

STATE

WINTER / : when the operating mode is set to WINTER (STATE>BOILER>WINTER). The operating mode of the appliance is set to react to any request for heating and/or hot water via the relevant control, e.g. room thermostat, cylinder thermostat, etc.

NOTE

The main zone also needs to be set to ON (embedded clock disabled) or AUTO/MANUAL (embedded clock enabled) in order for the appliance to provide heating.

The UI will display the flow outlet temperature is displayed.

BOILER

OFF

the temperature, raising it or lowering it with respect to that automatically calculated by the electronic board, it is possible to change the HEATING setpoint by selecting SET on the main screen of the REC10 and selecting within the range (-5 - +5) the desired comfort level (see section

Setting the thermoregulation”

“6.2.4

Note: when there is an outdoor temperature sensor connected it is still possible to have the boiler operate at a fixed point setting the values of MIN SP HEAT and MAX SP HEAT at the desired HEATING setpoint.

6.6 BOILER START-UP

In order to initiate a heating request, it is essential that any time or temperature control is set to an ON period and at a higher than current ambient temperature respectively. The boiler will be in standby until the burner switches on following a heat request.

The display shows “ ” to indicate the presence of a ame.

18/05/2013 12:17

PLANT

bar

1.3

STATE

°C

INFO SET

During any heating request, the appliance will attempt to reach and maintain the selected set point, at which point it will modulate the fan speed to maintain the set outlet temperature. Should the outlet temperature begin to exceed the set point,

the burner will switch o󰀨 and the pump will continue to run.

In the unlikely event of a fault or malfunction occurring, the

appliance will enter a temporary or nal fault condition, during

which it shutdown; this is signalled via the UI by a warning triangle and a short description of the fault. For further detailed information on fault codes please refer to section 6.12.

6.4 ADJUSTING THE HEATING WATER TEMPERATURE WITHOUT AN OUTDOOR

TEMPERATURE SENSOR CONNECTED

When there is no outdoor temperature sensor, the boiler operates at a fixed-point, the HEATING setpoint in this case can be set selecting SET on the main screen of the REC10 and selecting the desired value within the range [40°C -

80.5°C] for high temperature systems or [20°C - 45 °C] for low

temperature systems (default is high temperature).

6.5 ADJUSTING THE HEATING WATER TEMPERATURE WITH AN OUTDOOR TEMPERATURE SENSOR CONNECTED

When an outdoor temperature sensor is installed, the outlet temperature is automatically selected by the system, which quickly adjusts the ambient temperature according to the variations in the outdoor temperature. If you want to change 36

WINTER

SET

HEATING

E010

FLAME LOCKOUT

PRESS OK RESET

6.7 RESET FUNCTION

In the unlikely event of the appliance entering a fault condition; use the arrow buttons on the UI to navigate to the warning triangle, and press select. Then follow the instruction/advice as shown on the UI screen.

If the release attempts do not restart the boiler, contact the local Technical Assistance Centre.

6.8 SCREED HEATING FUNCTION

For a low temperature system the boiler has a “screed heating” function that can be activated in the following way:

- set the status of the boiler to OFF

BOILER

OFF

WINTER

Page 37

- select SCREED HEATING with the “up” and “down” keys,

EXHAUST PROBE RESET

SCREED HEATING

TECHNICAL

INSTALLER

CALIBRATION

RANGE RATED

SWEEPER

INSTALLER

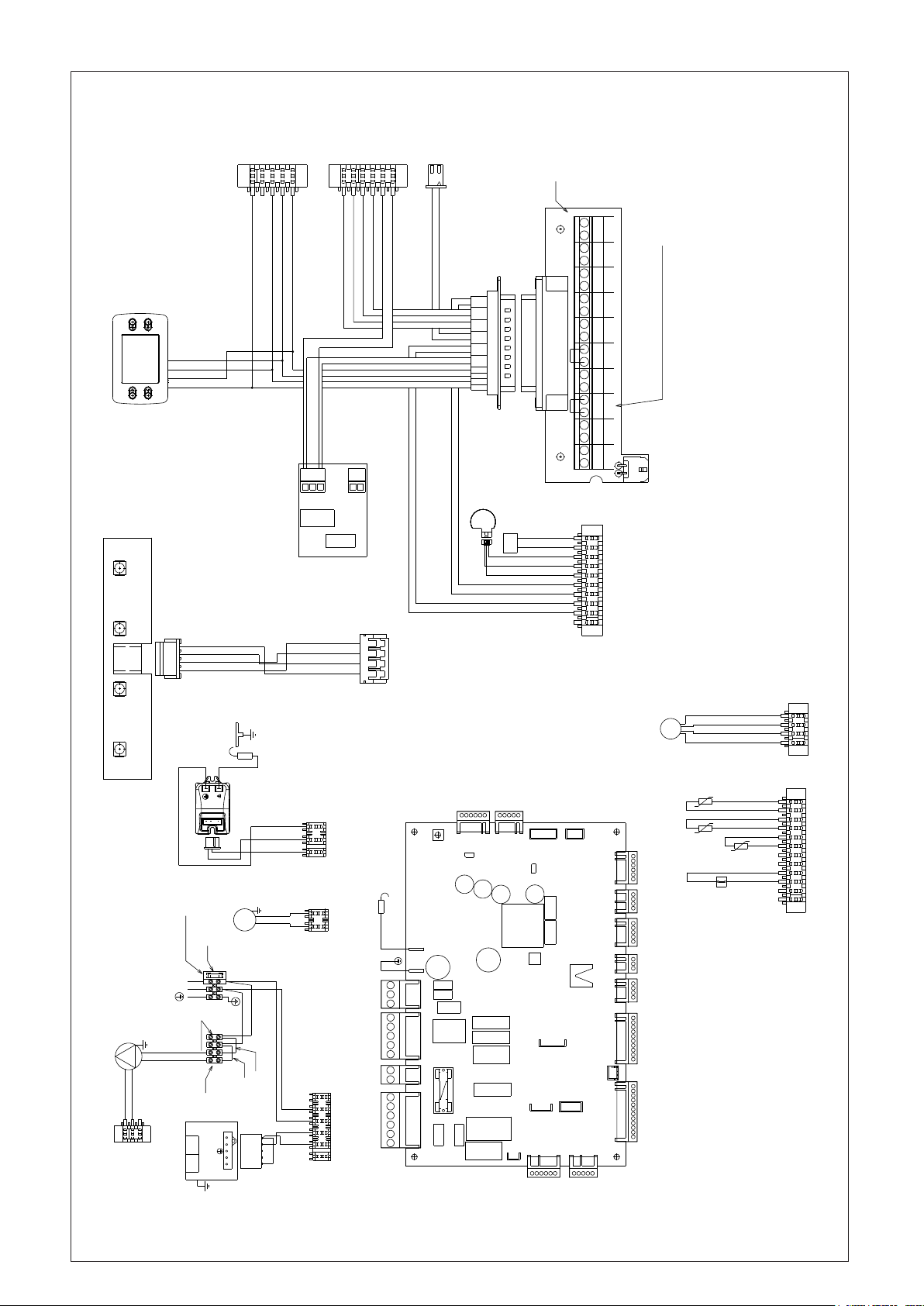

E.R.

612

nero (RT) nero (RT)

rosa (OT+)

arancione (ES)

rosso (+)

giallo (B)

arancione (A)

nero (-)

giallo (B)

nero (-)

rosso (+)

arancione (A)

bianco (TBT)

(OT+)

(ES)

(TBT)

(RT)

REC

X11

X14

X25

TSC2

blu

marrone

giallo/verde

N F

marrone

X15

blu

V Hv

verde A1)

rosso (A2)

arancione (K2)

bianco(K1)

BE20

C.S.A.

marrone

blu

combustion analysis button SW1

confirming the selection (note: SCREED HEATING is not available if the boiler is not OFF)

- select ACTIVATE FUNCTION with the “up” and “down” keys and confirm the selection to activate the function

- select DEACTIVATE FUNCTION with the “up” and “down” keys and confirm the selection to deactivate the function.

When the SCREED function is enabled, a scrolling message is displayed on the lower part of the UI screen SCREED HEATING FUNCTION IN PROGRESS - OUTLET TEMPERATURE, while on the electronic board the red and green LEDs flash alternately with a frequency of 1 sec ON - 1 sec OFF. The “screed heating” function lasts 168 hours (7 days) during which, in the zones configured as low temperature, a heating request is simulated with an initial zone outlet of 20°C, then increased in line with the table on the side. Accessing the INFO menu from the main page of the REC10 it is possible to display the TIME FUNC SCREED HEATING value regarding the number of hours since the start of the function. Once activated, the function takes priority, if the appliance is shut down by disconnecting the power supply, when it is restarted the function picks up from where it was interrupted. The function can be interrupted before its end by putting the appliance in a condition other than OFF or else by selecting DEACTIVATE FUNCTION from the relative menu.

Note: The temperature and increase values can be set to different values only by qualified personnel, only if strictly necessary. The manufacturer declines all responsibility if the parameters are incorrectly set.

DAY TIME TEMPERATURE

6.9 CHECKS DURING AND AFTER THE FIRST

After start up, check that the boiler carries out the start-up procedures and subsequent shut-down correctly.

NOTE

In order to perform a combustion analysis check, you should ensure that the appliance is HOT; this can be achieved by generating a heating or hot water request for several minutes:

- checking the combustion.

SCREED HEATING

DEACTIVATE FUNCTION

ACTIVATE FUNCTION

1 0 20°C

6 22°C 12 24°C 18 26°C

2 0 28°C

12 30°C

3 0 32°C 4 0 35°C 5 0 35°C 6 0 30°C 7 0 25°C

COMMISSIONING

BOILER

OFF

WINTER

6.10 COMBUSTION CHECK

To carry out the combustion analysis, proceed as follows:

- ensure that the electrical supply to the appliance is switched ON

- set the status of the boiler to OFF

- access the technical parameters as explained in section 8

- select SWEEPER with the “up” and “down” keys, confirming the selection

TECHNICAL

PARAMETERS

THERMOREGULATION

RANGE RATED

CALIBRATION

SWEEPER

INSTALLER

NOTE

The dynamic gas pressure can be checked by attaching a manometer to the test point located on the gas cock (please also refer to 4.3).

- select ACTIVATE FUNCTION with the “up” and “down” keys, confirming the selection.

SWEEPER

ACTIVATE FUNCTION

INSTALLER

- Note: the sweeper function can also be activated by pressing the SW1 key on the electronic board AKM (this requires removing the plug (C) from the cover of the instrument panel to access the electrical components).

Wait for the burner to ignite. The boiler will operate at maximum heating output and it will

be possible to check the combustion.

- Insert the analyser probes in the specific positions on the air distribution box, after removing screw (A) and cap of the flue gases analysis socket (B).

- Perform the combustion check verifying that the CO2 values correspond to those indicated in section-2 “Technical Data”.

SW1

X17

Page 38

- Once completed, remove the analyser probe and close

INSTALLER

Curva portata termica - giri venlatore

Caldaia Vision+ 18S

the combustion analysis test points, using the previously removed cap and screw.

Should the readings be signicantly di󰀨erent from the

values declared in the technical data table; do not attempt to carry out any adjustment of the gas valve.

Please call the Vokera technical Helpline for assistance and further advice.

The gas valve is non-adjustable and must not be tampered with. Tampering with the gas valve will result in the malfunction of the appliance and possible damage to components.

When the sweeper function is in progress all the heat requests are paused and a scrolling message appears at the foot of the main page of the REC10; green and red LEDs are o󰀨.

6.11 RANGE RATED

This appliance can be ‘range-rated’ if necessary, and this function enables a bespoke maximum heat output to be set according to the specic application:

- access the technical parameters as explained in section 8

- select RANGE RATED

TECHNICAL

INSTALLATION

PARAMETERS

THERMOREGULATION

RANGE RATED

CALIBRATION

- set the desired heating maximum value (rpm) with the “up” and “down” keys, confirming the selection

RANGE RATED

When the checks are completed:

- set the boiler to “SUMMER” or “WINTER” mode depending on the User’s requirements

- regulate the heat request temperature values according to the customer’s needs.

IMPORTANT

The sweeper function is active for a time limit of 15 minutes; the burner shuts down if an outlet temperature of 95° C is reached. It will ignite again when the temperature falls below 75° C.

evolve 18S

8400

8000

7600

7200

6800

6400

6000

5600

5200

4800

4400

4000

3600

3200

2800

Fan rotations (rpm)

2400

2000

1600

1200

800

2 4 6 8 10 12 14 1 6 1 8 20 22 24 26 28 30

HTG curve (Qnheating)

Heat output (kW)

5100

RPM

- once the desired power is set (maximum heating) note the value onto the supplied self-adhesive label. For further checks and adjustments refer to the set value.

The calibration does not a󰀨ect the boiler ignition.

The boiler is supplied with the settings indicated in the technical data (section 2). Nonetheless, it is possible to alter or limit the appliance output, according to the system requirements or the regional regulations on the combustion gas emission limits, to set that value by referring to the graphs below.

Page 39

8400

Curva portata termica - giri venlatore

Caldaia Vision 24S

4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34

8000

7600

7200

6800

6400

6000

5600

5200

4800

4400

4000

3600

3200

2800

Fan rotations (rpm)

2400

2000

1600

1200

800

2 4 6 8 10 12 14 16 1 8 20 22 24 2 6 28 30

evolve 24S

HTG curve (Qnheating)

Heat output (kW)

8400

8000

7600

7200

6800

6400

6000

5600

5200

4800

4400

4000

3600

Fan rotations (rpm)

3200

2800

2400

2000

1600

1200

evolve 30S

HTG curve (Qnheating)

Heat output (kW)

Page 40

evolve 35S

FRI

HTG curve (Qnheating)

8800

8400

8000

7600

7200

6800

6400

6000

5600

5200

4800

4400

4000

3600

Fan rotations (rpm)

3200

2800

2400

2000

1600

1200

4 6 8 10 12 14 16 18 20 22 24 26 28 30 3 2 34 36 3 8 40 4 2 44 4 6

Heat output (kW)

6.12 LIGHTS AND FAULTS

In the unlikely event of appliance malfunction and/or a

system fault, the appliance will enter a nal or temporary fault

condition, whereby it will shut down and a warning triangle

will appear on the left side of the UI screen. Use the arrow buttons on the UI to navigate to the warning triangle, and press select. Then follow the instruction/advice as shown on the UI screen.

18/05/2013 12:17

PLANT

bar

1.3

STATE

°C

INFO SET

HOT WATER TEMPERATURE

The faults description screen is automatically displayed once the display illumination time has elapsed without any button being pressed. Press the “up” and “down” keys to display the descriptions of any other faults that may be present.

Reset function

In order to reset the boiler’s operation in the event of a fault, it is necessary to access the fault description screen. If the lockout is of a non-volatile type that requires a reset procedure, this will be indicated on the screen, and can be performed by pressing the “ok” button on the REC10. At this point, if the correct operating conditions have been restored, the boiler will restart automatically. There are a maximum of 3 consecutive attempts at a release by the REC10, should all 3 attempts at reset fail, the appliance will require to be isolated briefly from the electrical supply in order to carry out any further reset attempts. Once the electrical supply has been restored, further attempts at reset can be carried out.

E020

LIMIT THERMOSTAT

REC10 ATTEMPTS EXHAUSTED

If the attempts to reset the boiler are unsuccessful, please contact the Vokera technical helpline.

For fault E041

If the pressure drops below the safety pressure limit of

0.3 bar the boiler displays the fault code “E041 - WATER TRANSDUCER LOAD THE SYSTEM” for a transitional time

of 10 min during which it is possible to open the external lling

tap until the pressure is between 1 and 1.5 bar.

E041

WATER TRANSDUCER

LOAD THE SYSTEM

If the pressure drops frequently, contact your installer or the Vokera customer care centre.

Page 41

For fault E060

SELECTION

18/05/2013 12:17

INFO SET

°C .3

FRI

PLANT

HOT WATER TEMPERATURE

STATE

1.3

bar

There is a conguration error; check that the appliance has been congured as a CH only boiler.

For fault E091

The boiler has an auto-diagnostic system which, based on the total number of hours in certain operating conditions, can signal the need to clean the primary exchanger (alarm code E091). Once the cleaning operation has been completed, reset to zero the total hour meter with special kit supplied as an accessory following procedure indicated below:

- access the technical parameters as explained in section 8

- select EXHAUST PROBE RESET with the “up” and “down” keys, confirming the selection

TECHNICAL

THERMOREGULATION

RANGE RATED

CALIBRATION

SWEEPER

EXHAUST PROBE RESET

INSTALLER

- select CONFIRM to confirm the rest of the flue gases probe meter or else CANCEL to cancel the operation

THE PARAMETER

WILL BE CHANGED

CONFIRM CANCEL

CONFIRM OR DELETE

NOTE: the meter resetting procedure should be carried out after each in-depth cleaning of the primary exchanger or if this latter is replaced. The total hours can be verified in the following way:

- select INFO on the initial screen of the REC10 and press

“ok”

- with the “up” and “down” keys select EXHAUST PROBE RESET and press “ok” to display the value of the flue gases probe meter.

Boiler faults list

ERROR

CODE

E010 ame lockout/ACF electronic fault ON nal

E011 extraneous ame

E020 limit thermostat

E030 fan fault ON nal

E040 water transducer - check system water pressure ON nal

E041 water transducer - check system water pressure

E042 water transducer fault ON nal

E060 Conguration fault

E070

E077 main zone water thermostat ON temporary

E080

E090

E091 clean primary heat exchanger

-- water pressure low - check the system

-- water pressure high - check the system

-- boiler board communication lost ON temporary

-- BUS 485 communication lost ON temporary

fault ow sensor/overtemperature ow sensor/

fault return line probe/return line probe overtemperature/

outlet/return line probe di󰀨erential alarm

ERROR MESSAGE RED LED GREEN LED RED and GREEN

ashing

0.2 sec. on/0.2 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ow/return sensor di󰀨erential alarm

fault ue gases probe/

ue gases overtemperature probe

0.5 sec. on/0.5 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ashing

0.5 sec. on/0.5 o󰀨

ashing

DESCRIPTION OF

temporary

nal

temporary

temporary/nal/ nal

temporary

nal

temporary

ALARM TYPE

List of combustion faults

ERROR

CODE

E021 iono alarm ON

E022 iono alarm ON

E023 iono alarm ON

E024 iono alarm ON

E067 iono alarm ON

E088 iono alarm ON

E097 iono alarm ON

ERROR MESSAGE

LED RED

LED

GREEN

DESCRIPTION OF TYPE OF ALARM

These are temporary alarms that if they occur 6 times in an hour they

become denitive; the alarm E097 is displayed and is followed by post-

purging for 45 seconds at the fan’s maximum speed.

It is not possible to release the alarm before the end of the post-purging

unless the boiler’s power supply is switched o󰀨.

Page 42

INSTALLER

BOILER

OFF

WINTER

E085 combustion fault/high CO ON

E094 combustion fault/high CO ON

E095 combustion fault/high CO ON

E058 mains voltage fault ON

E065 current modulation alarm ON

E086 obstruction fumes alarm ON

Warning lights

BOILER STATUS RED LED GREEN LED RED and GREEN NOTES

Power-on

Vent cycle

OFF status

No heat request (stby)

Transitional ignition/

overtemperature

Presence of ame ON

Chimney sweep ON Only if the ame is present

Screed heater

ashing 0.5 sec. on/

1 sec. o󰀨

ashing 1 sec.on/

1 sec. o󰀨

ashing 0.5 sec. on/

1 sec. o󰀨

ashing 0.3 sec. on/

0.5 sec. o󰀨

ashing 0.3 sec. on/

0.5 sec. o󰀨

ashing 0.3 sec. on/

0.5 sec. o󰀨

ashing 1 sec.on/

1 sec. o󰀨

These are temporary alarms that if they occur several times in an hour they

become denitive; the last error to occur is displayed and is followed by a

post-purging of 5 minutes at the fan’s maximum speed. It is not possible to release the alarm before the end of the post-purging

unless the boiler’s power supply is switched o󰀨.

These are temporary faults that restrict the ignition cycle.

Temporary fault reported during the post ventilation. It is maintained a post ventilation of 5 min at maximum fan speed.

ashing 0.5 sec. on/

0.5 sec. o󰀨

The red and green LEDs come on at the same time

The red and green LEDs come sequentially one at a time

The red and green LEDs come on alternately

6.13 ALARM HISTORY

The ALARM HISTORY function is automatically enabled only after the machine has been powered up for at least 2 consecutive hours, during this period of time any alarms that arise would not be saved in the “alarm history”.

The alarms can be displayed in chronological order, from the most recent to the oldest, up to a maximum of 50 alarms; to display the alarm history:

- access the technical parameters as explained in section 8

- select ALARM HISTORY with the “up” and “down” keys, confirming the selection

TECHNICAL

RANGE RATED

CALIBRATION

SWEEPER

EXHAUST PROBE RESET

ALARM HISTORY

- scroll through the alarm history with the “up” and “down” keys; for each alarms a sequential number is displayed, an

error code and the date and time the alarm occurred.

VENT CYCLE

1 - 12:00 01/01/14

E080

BOILER

OFF

WINTER

6.15 SWITCHING OFF FOR LENGTHY PERIODS

Refer to section 3.4 for detailed advice on shutting down the appliance for an extended period of time.

OFF

RETURN PROBE OVERTEMP

It is possible to return to the start page at any time by keeping the “back” key pressed for at least 2 seconds.

Note: once enabled, the ALARM HISTORY function can no longer be disabled; there is no procedure for resetting the alarm history.

If an alarm repeats consecutively, it is saved only once.

6.14 TEMPORARY SWITCH-OFF

In the event of temporary absences (weekends, short breaks, etc.) set the status of the boiler to OFF .

Refer to section 3.3 for further details.

6.16 COMBUSTION PARAMETERS

Although the parameters referring to the combustion control system ACC (Active Combustion Control) are preset in the factory, the simultaneous replacement of both electronics boards (AKM and REC 10 MASTER) will require the reprogramming of these parameters.

- Access the technical parameters as explained in the section 8

- Select COMBUSTION MONITORING with the “up” and “down” keys, confirming the selection

Page 43

TECHNICAL

SERVICE

PARAMETERS

VENT CYCLE

EXHAUST PROBE RESET

ALARM HISTORY

COMBUSTION MONITORING

SERVICE

- Select GAS TYPE

- Set this parameter depending on the type of gas of the boiler. The values for this parameter are NG = NATURAL

GAS - LPG = LPG

COMBUSTION MONITORING

GAS TYPE

Do not clean panels, painted parts and plastic parts with paint thinner.

Panel cleaning must be carried out only with soapy water.

Maintenance of the combustion control system Maintenance electrode

The detection electrode/ionization sensor has an important function in the boiler ignition phase and in the maintenance of a proper combustion; in this context, in case of replacement, it is necessary to always ensure that it is correctly positioned

and to strictly observe the reference shown in the gure.

BOILER TYPE

COMBUSTION OFFSET

SERVICE

- Select BOILER TYPE

- Set this parameter depending on the type of boiler as shown in the table

BOILER TYPE

evolve 18S A

evolve 24S B

evolve 30S D

evolve 35S E

- Select COMBUSTION OFFSET

- Select RESTORE

- Press OK to confirm.

COMBUSTION OFFSET

RESTORE

RESET

SERVICE

6.17 MAINTENANCE

In case where, after the replacement of the electronic board or the maintenance of the detection electrode or the burner, the combustion analysis would restore out of tolerance values, it may be necessary to take action on the parameter COMBUSTION OFFSET as described in the section

Note: in case of replacement of the electrode, slight

variations of the combustion parameters can not be excluded. These data wil return to nominal values after a few hours of operation.

Do not clean the appliance or its parts with inammable

substances (e.g. petrol, alcohol, etc.).

“6.16 COMBUSTION PARAMETERS”

ame

ignition electrode

ame detection electrode/

ionization sensor

Do not clean the electrode with sandpaper or any other abrasive material.

The ‘Iono’ electrode will degrade over a over a period of time and continued usage; it is therefore strongly recommended that it be replaced after 5-years of use; in

order to ensure continued performance and e󰀩ciency,

and avoid appliance malfunction.

6.18 FINAL CHECKS

• ENSURE THE APPLIANCE FLUE SYSTEM IS FITTED CORRECTLY AND IS PROPERLY SECURED.

• ENSURE ALL PIPE WORK IS RE-CHECKED FOR TIGHTNESS.

• COMPLETE BENCHMARK CHECKLIST.

FOR UK ONLY

Complete details of the boiler, controls, installation and commissioning in the Benchmark checklist at the back of this book. It is important that the Benchmark checklist is correctly completed and handed to the user. Failure to install and commission the appliance to the manufacturers instructions will invalidate the warranty.

6.19 INSTRUCTING THE USER

Hand over all documentation supplied with this appliance – including these instructions – and explain the importance of keeping them in a safe place. Explain to the user how to isolate the appliance from the gas, water and electricity supplies and the locations of all drain points. Show the user how to operate the appliance and any associated controls correctly. Show the

user the location of the lling valve and how to top-up the system

pressure correctly and show the location of all manual air

release points. Explain to the user how to turn o󰀨 the appliance

for both long and short periods and advise on the necessary precautions to prevent frost damage.

Explain to the user that for continued safe and e󰀩cient operation,

the appliance must be serviced annually by a competent person.

IMPORTANT

To validate the appliance warranty, it’s necessary to register the appliance details with us. The warranty can be registered in several ways:

• online at: vokera.co.uk

• for UK residents by calling: 0800 479 0751

• for ROI residents by calling: 056 7755055.

Page 44

SECTION 7 - SERVICING INSTRUCTIONS

7.1 GENERAL

Once the appliance has been serviced, the benchmark Service Record must be completed.

For UK only

It is important that the Benchmark Service Record is correctly completed and handed to the user. Failure to install and commission the appliance to the manufacturers instructions will invalidate the warranty.

To ensure the continued safe and e󰀩cient operation of the

appliance, it is recommended that it is checked and serviced at regular intervals. To ensure correct and safe operation of the appliance, it is essential that any worn or failed component be replaced only with a genuine Vokèra spare part. It should be remembered that although certain generic components may

look similar, they will be specic to an individual appliance

or product range. Use of non-genuine Vokèra spare parts could invalidate your warranty and may pose a potential safety hazard. The frequency of servicing will depend upon the particular installation conditions, but in general, once per

year should be su󰀩cient. It is the law that any servicing work

is carried out by competent person such as a Vokèra engineer, an approved service agent, British Gas, GAS SAFE registered

personnel or other suitably qualied personnel. The following

instructions apply to the appliance and its controls, but it should be remembered that the central heating and the domestic hot water systems would also require attention from time to time.

7.2 ROUTINE ANNUAL MAINTENANCE

The appliance incorporates many ‘state-of-the-art’ components that are either ‘solid-state’ or are regarded as ‘non-serviceable’ items. As a consequence, the requirements for routine annual maintenance are focussed upon:

1. ensuring that the appliance and ue system are in a safe

condition

2. ensuring that the appliance is operating safely

3. ensuring that the appliance is performing to its design

specication.

When the appliance has been installed to within the minimum stated clearances; the appliance layout is such that it enables routine annual maintenance to be carried out entirely from the front of the appliance.

NOTE

Any noticeable defect or deterioration on or within the

appliance and ue system that impacts or a󰀨ects the above

requirements; will warrant further diagnosis and repair, which may result in the replacement of components.

Specic advice and instruction on the removal and replacement

of component parts of the appliance can be found in the following pages of this section.

7.2.1 ROUTINE ANNUAL MAINTENANCE REQUIREMENTS

1. Check the operation of the appliance and ensure the

performance is in line with the appliance specication.

2. Using the UI menu, navigate to the alarms history and

check for any recent alarm events (menu string is: MENU>SETTINGS>TECHNICAL>ALARM HISTORY).

Refer to the alarm/fault codes description chart for further

information.

3. Remove the front cover (see 5.7.1) and visually inspect the

internal components and electrical wiring for any defect or deterioration.

4. Visually check for any dirt or debris within the condensate

trap (the trap is translucent and can be checked visually).

5. Replace the front cover as detailed in 5.7.1 taking notice of

the importance of ensuring that the e󰀨ectiveness of the –

front cover – seals are not compromised.

6. Carry out a combustion analysis as detailed in 6.10.

7. Visually check the entire ue system for any damage, defect,

or deterioration.

NOTE

In order to access the ‘alarms history’ it is necessary to access the password protected settings. Refer to section 8 for further details.

7.2.2 UNSCHEDULED MAINTENANCE

The appliance incorporates software that monitors the operating conditions of the appliance, and will record any

‘unusual usage conditions’ that will a󰀨ect the requirement to

remove and clean the burner/heat exchanger assembly. When the ‘unusual usage’ hours reach a pre-determined threshold, the appliance will signal – via alarm code E091 – that the heat exchanger requires to be cleaned.

7.3 REPLACEMENT OF COMPONENTS

Although it is anticipated that this appliance will provide years of trouble-free service and outstanding performance; the lifespan of any component will be determined by factors such as operating conditions and usage levels. Should the appliance develop a

fault, the fault-nding section of this manual will greatly assist

in determining the cause; however further advice can be sought from the Vokera Technical Help-line. Remember always to use only genuine Vokera spare parts.

7.4 COMPONENT REMOVAL PROCEDURE

To remove/replace a component, access to the interior of the appliance is usually essential. Always isolate the appliance from the electrical supply – and if necessary remove the fuse.

• Close all service valves if any hydraulic and/or gas carrying item is to be removed.

• Remove the front cover – and where necessary or convenient – the side panels of the appliance as detailed in

5.7.1.

• If required, drain the primary circuit via the drain valve (located adjacent to the diverter valve) using the tubing supplied with the appliancee.

NOTE

When removing a hydraulic component, ensure that some water absorbent cloths are available to catch any residual water that may drip from the appliance and/or the removed component.

When the appliance has been installed to within the stated minimum clearances; it may be necessary to remove

adjacent components in order to facilitate access to a specic

component. Carry out the relevant elements of the commissioning

procedure (section 6.3) after replacing a component.

ALWAYS TEST FOR GAS TIGHTNESS IF ANY GAS CARRYING COMPONENT HAS BEEN DISTURBED, REMOVED, OR REPLACED.

WHEN REPLACING THE SIDE PANELS AND/OR THE FRONT COVER, ENSURE THE ROOM SEALED INTEGRITY OF THE APPLIANCE HAS NOT BEEN COMPROMISED – REFER TO 5.7.1.

7.4.1 APPLIANCE PCB

Carry out the component removal procedure as outlined in 7.4. Remove the appliance PCB cover as detailed in 5.7.3.

TO REMOVE AND REPLACE THE APPLIANCE PCB

Remove the 4-screws – located at each corner of the PCB – that secure the PCB to the rear of the control panel. Remove the screws and store them safely. Take note of the corresponding locations where each of the wiring plugs and terminals are connected to on the PCB, and then carefully remove each plug/terminal. Replace the PCB in the reverse

order and ret the securing screws and PCB cover. Ret the

front cover as detailed in 5.7.1.

NOTE

If a new PCB has been installed, the appliance conguration

will need to be uploaded onto the new PCB from the REC10 UI. Therefore at start-up, the UI screen will request selection

of the conguration type:

• from AKM

• from REC10.

Use the up/down buttons to highlight ‘REC10’ and press select (for detailed advice on this, refer to section 7.4.23).

Page 45

7.4.2 REC10 USER INTERFACE (UI)

Carry out the component removal procedure as outlined in 7.4. Remove the appliance PCB cover as detailed in 5.7.3.

TO REMOVE AND REPLACE THE REC10

Locate and remove the 2-screws that secure the REC10 to its aperture. From the front of the control panel, gently lever out the REC10 from its sealing aperture; and once removed, disconnect the wiring plug from the REC10. Replace the

REC10 in the reverse order and ret the securing screws and PCB cover. Ret the front cover as detailed in 5.7.1.

NOTE

If a new REC10 has been installed, the appliance conguration

will need to be uploaded onto the new REC10 from the appliance PCB. Therefore at start-up, the UI screen on the

REC10 will request selection of the conguration type:

• from AKM

• from REC10. Use the up/down buttons to highlight ‘AKM’ and press select (for detailed advice on this, refer to section 7.4.22).

NOTE

If both REC10 and appliance PCB are replaced simultaneously, refer to the detailed guidance provided in section 8.8 and 6.16,

on how to set up a new appliance conguration.

7.4.3 ELECTRODE ASSEMBLIES

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Disconnect the electrode from its wiring connector. Each electrode assembly is retained by two securing screws (A); remove both securing screws from the relevant electrode assembly and carefully withdraw the electrode from its location – taking extreme care not to damage or bend the electrode in the process. Replace in the reverse order.

NOTE

Any damage or deterioration to the electrode seal will require it to be replaced with a new seal.

7.4.5 BURNER

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Remove air/gas conveyor cover as detailed in 7.4.4. Locate and remove cylindrical burner (A). Replace in the reverse order ensuring that the seal (B) is correctly located, and that the burner (A) is also correctly located (both the seal and the burner incorporate a ‘notch’ that must be in alignment with the corresponding tab of the burner aperture).

Ret air/gas conveyor cover as detailed in 7.4.4.

7.4.6 FAN & MIXER ASSEMBLY

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Disconnect wiring from fan. Disconnect electrode leads. Disconnect outlet gas pipe (F) from the gas valve loosen nut (G), and remove locking pin (E) that secures the pipe to the fan mixer. Loosen the 4 screws (H). The entire fan mixer assembly can now be removed. Replace in the reverse order ensuring any worn or damaged seals are replaced with new ones.

7.4.4 AIR/GAS CONVEYOR COVER

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Remove securing screws (A). Replace in the reverse order.

NOTE

Any damage or deterioration to the seal will require it to be replaced with a new seal.

7.4.7 FAN REMOVAL

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Remove the fan and mixer assembly as detailed in 7.4.6. Remove the 4-hex screws (A) that secure the fan to the air/ gas mixer assembly. Replace in the reverse order ensuring any worn or damaged seals are replaced with new ones.

Page 46

7.4.8 PRIMARY HEAT EXCHANGER

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Disconnect wiring to fan. Detatch the wiring from the clip on the left rear side of the exchanger. Disconnect electrode leads. Loosen the 2 screws (C) and disconnect and/or remove ow pipe (D) from cyclonic separator as detailed in 7.4.6. Disconnect return pipe (A) from pump outlet. Disconnect and remove outlet gas pipe (F) as detailed in 7.4.6. Disconnect condensate pipe (B) from the bottom of the exchanger (C). Locate and remove the 4-securing screws (D) that secure the exchanger to the appliance back frame. Gently withdraw the entire fan/mixer & heat exchanger assembly from the appliance. Carefully replace the assembly in the reverse order paying attention to aligning the rear outlet of the exchanger with the

corresponding inlet of the ue gas conveyor and ensuring no

pipes or wiring is trapped between the exchanger and the appliance back frame. Replace any worn or damaged seals where necessary.

7.4.11 EXPANSION VESSEL

Carry out the component removal procedure as outlined in

7.4, paying special attention to the possibility of some residual

water still remaining within the vessel (with the appliance drain still open, it is possible to displace most of the residual water in the vessel by attaching a pump to the valve on the vessel and pump it out via the drain). Remove the front cover as detailed in 5.7.1. Disconnect the exible expansion pipe (D) from the bottom of the expansion vessel (H). Locate and remove the top rear securing screw (C). Locate and remove the front securing screw (C). The vessel can now be lifted out of its lower retaining bracket. Replace in the reverse order, ensuring that the vessel’s charge pressure is correct and that any worn or damaged seals are replaced with new ones.

7.4.9 FLUE GAS CONVEYOR

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Remove the fan/mixer & heat exchanger assembly as detailed in 7.4.8. Disconnect tubing from the top AAV at the conveyor. Disconnect the condensate tubing (A) from the bottom of the conveyor (D). Locate and remove the 3-securing screws (C) and withdraw the conveyor. Replace in the reverse order ensuring any worn or damaged seals are replaced with new ones.

7.4.10 IGNITION TRANSFORMER

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Disconnect wiring from ignition transformer (B). Locate and remove securing screw (A). Replace in the reverse order.

7.4.12 CONDENSATE TRAP

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. The condensate trap can be removed from the right hand side if/when there is a minimum of 50mm clearance to the side of

the appliance. This method of removal is signicantly quicker.

The following method of removal assumes that there is

insu󰀩cient clearance to the right-side of the appliance.

NOTE

Ensure that the appliance/components are protected from any residual water that may still remain within the expansion vessel. Disconnect the gas valve as detailed in 7.4.18. (NOTE: it is not necessary to remove the electrical wiring to the gas valve), and move it to the side.

Disconnect the exible pipe from the bottom of the expansion

vessel. Disconnect the three rubber tubes (A) that are connected to the condensate trap. Disconnect pipe (C) that is connected to the condensate outlet (located beneath the appliance). Remove the locking pin (B) at the condensate outlet that secures the condensate trap to the lower frame of the appliance. The condensate trap can now be lifted and removed from its location. Replace in the reverse order, ensuring any worn or damaged seals are replaced with new ones.

Page 47

7.4.13.1 PUMP HEAD

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Disconnect both electrical plugs on the pump head. Unscrew the 4 retaining screws (A) that secure the pump head to the pump body (use a 4mm allen key or t-bar) and remove the pump head. Replace in the reverse order.

7.4.14 BYPASS/NON RETURN VALVE

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Remove locking pin (1) as shown in the diagram. Disconnect and remove in sequence: plug (2), ring (3), bypass valve support (4) and the by-pass cartridge (5). Ensure all seals are in good condition, taking care to ensure they are replaced correctly. Replace in the reverse order ensuring the cartridge is facing the correct way.

7.4.13.2 LOWER AAV

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Locate and remove the locking pin (B) that secures the exible expansion pipe to the pump body; then remove the pipe from its aperture. Locate and pull out locking pin (G) until it touches the edge of the safety valve pipe. Apply rm pressure around the AAV (H) in order to free it from its aperture within the pump body. Replace in the reverse order ensuring that the AAV is orientated as shown in the diagram; and ensure that the AAV is fully inserted and clicks into it’s aperture. NOTE: the locking

pin for the exible expansion pipe can only be inserted one

way, with the straight leg to the right. Replace any worn or damaged seals with new ones.

7.4.13.3 PUMP ASSEMBLY

Disconnect the return pipe from the pump outlet. Disconnect the electrical plugs from the pump head. Extract the locking pin (E) from the base of the pump body (F). Remove locking pin (B) from the top right of the pump body. Locate and remove securing screws (D). Gently lift the pump assembly upwards then outwards, then remove locking pin (C) from the top left of the pump body, before removing the assembly from the appliance. Replace in the reverse order. Replace any worn or damaged seals with new ones.

7.4.15.1 DEGASSING UNIT

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Detach the rubber tube (A) that connects to the AAV (E). Locate and remove the locking pin (C).

Using rm steady pressure, extract the AAV from its aperture

Replace in the reverse order. NOTE: The AAV must be inserted as shown in the diagram.

The rubber O’ring seal should be placed over the AAV and smeared with some silicone grease. The AAV should ‘click’ when correctly inserted into its aperture.

7.4.15.2 CYCLONIC SEPERATOR

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Remove both locking pins that secure the inlet and outlet pipes to the separator (D). Slacken - but do not remove - both screws that secure the outlet pipe on the main heat exchanger (allowing the pipe to rotate freely). Gently prize apart the inlet/outlet pipes from the separator until it is free. Detach the rubber tube (A) that connects to the AAV. Replace in the reverse order ensuring that any worn or damaged seals are replaced with new ones.

Page 48

7.4.16 PRESSURE TRANSDUCER

MULTI ZONE CONTROLLER

REC10 V01.26

PRESS A BUTTON

TO CONTINUE

SELECT THE TYPE

OF CONFIGURATION

NEW

FROM AKM

REC10

SELECT THE TYPE

OF CONFIGURATION

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Locate and remove locking pin (A). Remove transducer (B). Disconnect plug from transducer. Replace in the reverse order.

7.4.17 SAFETY VALVE

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Disconnect safety valve outlet pipe (C) from the safety valve. Locate and remove locking pin (D) and then extract safety valve (E) from its aperture. Replace in the reverse order.

Locate and remove the locking pin that secure the pressure gauge to the pump assembly (rear left side). Ease the connection from its aperture. Locate and remove the 2-screws that secure the gauge to the underside of the appliance. The gauge incorporates a ‘bayonet’ type connection; rotate the gauge 90-degree in order to remove it from its aperture, ensuring that the gauge tubing does not get jammed or caught internally. Replace in the reverse order ensuring that any worn or damaged seal is replaced with a new one.

7.4.21 FLUE SENSOR

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. If required, remove the fan/mixer assembly as detailed in 7.4.6. Disconnect the electrical plug from the sensor. Unscrew the sensor from the sensor pocket. Replace in the reverse order, ensuring any worn or damaged seals are replaced with new ones.

7.4.22 REPLACING THE REC10 MASTER

The system’s configuration operations need to be carried out by professionally qualied personnel of the Technical Assistance Centre.

When replacing the REC10 MASTER, at the subsequent restart it displays an initial screen with the firmware revision. Pressing “ok” starts a guided procedure for configuring the system, see section Follow the procedure and carry out the FROM AKM type of configuration.

“8.8 REC10 System reset”

7.4.18 GAS VALVE

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Slacken o󰀨 nut (A) and unscrew the 2 screws (B). Swivel the gas valve (C) round and disconnect the electrical connections. Remove the nozzle (D) for use with a replacement valve if the gas valve is to be replaced. Replace in the reverse order.

NOTE: the gas valve is a non-serviceable item - DO NOT attempt to alter or adjust any of its mechanical settings. Both sealing washers must be replaced.

7.4.23 REPLACING THE AKM01 BOARD

The configuration operations should be carried out by professionally qualied personnel of the Technical Assistance Centre. The systems continually carries out a consistency control between the saved configuration data on the AKM01 electronic board and those saved in the REC10; therefore, when replacing the AKM01 electronic board, it can happen that the system detects an inconsistency between the data saved on the AKM01 and that in the REC10. In this case, the latter will ask the user which of the two configurations is to be considered valid; selecting to recuperate the configuration from the REC itself it is possible to avoid reconfiguring the machine:

- select REC10 with the “up” and “down” keys, confirming the selection.

7.4.19 DRY CONTACT SENSORS (FLOW, RETURN, HI-LIMIT)

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1. Identify the sensor to be replaced. Remove the pipe clip that incorporates the sensor from its location. Disconnect both wires from the sensor. Remove the sensor from the pipe clip. Replace in the reverse order - ensuring that the sensor is correctly positioned and that some heat conduction paste has been applied to the face of the sensor.

7.4.20 ANALOGUE PRESSURE GAUGE

Carry out the component removal procedure as outlined in 7.4. Remove the front cover as detailed in 5.7.1.

7.4.24 GUIDANCE ON THE REMOVAL & REPLACEMENT OF COMPONENTS

The following table provide guidance on the removal and replacement of components from the appliance with regards to the average ‘R&R’ (Removal & Replacement) time, and the required skill level. This guidance is based on the assumption that the removal of components will be undertaken using ‘FRONT’ access only.

Page 49

7.4.25 GUIDANCE ON THE REMOVAL & REPLACEMENT OF COMPONENTS

The following table provide guidance on the removal and replacement of components from the appliance with regards to the average ‘R&R’ (Removal & Replacement) time, and the

TASK TIME (minutes) SKILL LEVEL

Burner

required skill level. This guidance is based on the assumption that the removal of components will be undertaken using ‘FRONT’ access only.

Fan/mixer assembly

Fan 9

Top electrode 3

Lower electrode 2

Gas valve 3

Return NTC sensor 3

Flow NTC sensor 2

High limit thermostat 2

Ignition transformer 2

Pump head 4

Complete pump assembly 8

Pressure transducer 2

Safety valve 3

Analogue pressure gauge 6

Non-return valve 3

Automatic bypass 3

Expansion vessel 4

Flue sensor 10

Top automatic air vent 4

Lower automatic air vent 3

Condensate trap 7

Cyclonic separator 5

Primary heat exchanger 12

Exhaust ue gas conveyor 12

Appliance PCB 4

REC10 User Interface 4

Front cover 1

Side cover* 1

*NOTE

Do not attempt removal of the side cover/s if/when there is less than 25mm clearance to the side of the appliance.

Page 50

SECTION 8 - CHECKS, ADJUSTMENTS AND FAULT FINDING

8.1 CHECKING APPLIANCE OPERATION

When carrying out any repairs or servicing to the appliance, the relevant commissioning procedure must be undertaken to ensure the continued safe operation of the appliance. Particular attention should be made to ensure gas tightness, water tightness and the electrical integrity of the appliance.

8.2 APPLIANCE MODES OF OPERATION

NOTE

There must be su󰀩cient system water pressure (min. 0.5 bar)

to ensure the water pressure switch is activated. If there is

insu󰀩cient system pressure the pump and fan will be prevented

from operating and the low-pressure fault code will be indicated.

8.2.1 OFF

When the appliance has been set to OFF via the REC10 UI, the following functions will remain active:

• frost-protection system

• pump anti-block.

8.2.2 ON-BOARD FUNCTIONS

• FROST-PROTECTION: this function is only active when there are no requests for heating or HW. If the temperature drops below 5°C, the boiler will operate on minimum power until the temperature of the thermistors reaches 35°C for CH and 55°C for DHW. Thereafter the pump & fan will over-run for 30-seconds.

• ANTI-CYCLE FUNCTION: the anti-cycle function ensures the

burner remains switched o󰀨 for at least 3-minutes after the

set-point hysterisis (set-point + 5-deg) for CH heat request.

• PUMP ANTI-BLOCK FUNCTION: when there has been no heating or HW request for 24-hours, the anti-block cycle is activated. The pump will be activated for a period of 30-seconds.

8.2.3 HEATING MODE

When a ‘heating’ request is generated via the connected external control/s and/or the REC10 UI, the appliance will operate in the heating mode. The pump and fan will be activated

via the ow temperature sensor. When the fan is sensed to

be operating correctly (tacho signal), the ignition sequence commences. Ignition is sensed by the electronic circuit to

ensure ame stability at the burner. Once successful ignition

has been achieved, the electronic circuitry increases the gas rate to 75% for a period of 15 minutes. The speed of the fan and therefore the output of the boiler is determined by the temperature of the water sensed by the

ow temperature sensor, consequently a high temperature at the ow sensor results in a lower fan speed. As the water

temperature increases, the temperature sensors – located

on the ow pipe of the boiler – reduce the fan speed via the

electronic circuitry. Depending on the load, either the water temperature will continue to rise until the set point is achieved or the water temperature will fall whereby fan speed will increase relative to the output required. When the boiler has reached

the set point (+ hysterisis), the burner will switch o󰀨. The built-

in anti-cycle device prevents the burner from re-lighting for approximately 3-minutes.

When the temperature of the ow sensor falls below the set

point (- hysterisis), the burner will re-light.

NOTE

If burner ignition is not detected at the rst attempt, the appliance

will repeat the ignition sequence another two times (3-times in total) before going to lockout. When the set-point has been reached as measured at the primary thermistor, the appliance will begin the modulation phase whereby the fan and gas valve will continuously modulate to maintain the set-point. If the temperature continues to rise and exceeds the set-point by 5°C (hysterisis), the burner will shut down. A new ignition sequence will be enabled when the 3- minute anti-cycle has been performed and the temperature at the primary thermistor has dropped 5°C (hysterisis) below the set-point.

NOTE

When the request for heating and/or hot water has been

satised, the appliance pump and fan may continue to circulate

to dissipate any residual heat within the appliance.

ATTENTION

Gas type and appliance outputs are factory set by default, at

the values declared in the specication data in section 2.

Vokera cannot accept any responsibility for any damage or malfunction that has been caused as a result of tampering or incorrect set up of this appliance during installation or commissioning.

8.3 CHECKING THE EXPANSION VESSEL

Carry out the component removal procedure as described in

7.4. You must ensure that the boiler is completely drained of water. Using a suitable pressure gauge, remove dust cap on expansion vessel and check the charge pressure. The correct charge pressure should be 1.0 bar ± 0.1 bar. If the charge pressure is less, use a suitable pump to increase the charge.

NOTE

You must ensure the drain valve is in the open position whilst re-charging takes place. Replace the dust cap and carry out the relevant commissioning procedure (section 6).

8.4 EXTERNAL FAULTS

Before carrying out any faultnding or component replacement,

ensure the fault is not attributable to any aspect of the installation.

8.4.1 INSTALLATION FAULTS

Symptom Possible cause

No ignition Check wiring/check electrical

supply

No Heating and/or HW Check external controls

Fault Possible cause Fault code Check gas supply, check ue

system

8.5 ELECTRICAL CHECKS

Any electrical checks must be carried out by a suitably qualied

person.

8.5.1 EARTH CONTINUITY TEST

Isolate the appliance from the electrical supply, and using a suitable multi-meter carry out a resistance test. Connect test leads between an appliance earth point and the earth wire of the appliance supply cable. The resistance should be less than 1 OHM. If the resistance is greater than 1 OHM check all earth wires and connectors for continuity and integrity.

8.5.2 SHORT CIRCUIT CHECK

Isolate the appliance from the electrical supply, and using a suitable multi-meter, carry out a short circuit test between the Live & Neutral connections at the appliance terminal strip. Repeat above test on the Live & Earth connections at the appliance terminal strip.

NOTE

Should it be found that the fuse has failed but no fault is indicated, a detailed continuity check will be required to trace the fault. A visual inspection of components may also assist in locating the fault.

8.5.3 POLARITY CHECK

With the appliance connected to the electrical supply and using a suitable multimeter, carry out the following voltage tests:

• connect test leads between the Live & Neutral connections at the appliance terminal strip. The meter should read approximately 230V ac. If so proceed to next stage. If not, see 8.6.

• connect test leads between the Live & Earth connections at the appliance terminal strip. The meter should read approximately 230V ac. If so proceed to next stage. If not, see 8.6.

• connect test leads between the Neutral & Earth connections at the appliance terminal strip. The meter should read approximately 0 – 15Vac. If so polarity is correct. If not, see 8.6.

Page 51

8.5.4 REVERSED POLARITY OR SUPPLY FAULT

INSTALLER

Repeat the above tests at the appliance isolator, if testing reveals correct polarity and/or supply at the isolator, re-check wiring and connections between the isolator and the appliance. If tests on the isolator also reveal reversed polarity or a supply fault, consult the local electricity supplier for advice.

DISTANCE TO EARTH CHECK

Isolate the appliance from the electrical supply, and using a suitable multi-meter carry out a resistance test. Connect test leads between the Live & Earth connections at the appliance

terminal strip. If the meter reads other than innity there is a

fault that must be isolated, carry out a detailed continuity check to identify the location of the fault. These series of checks must be carried out before attempting

any faultnding procedures on the appliance. On completion

of any task that required the disconnection and re-connection of any electrical wiring or component, these checks must be repeated.

8.6 FAULT FINDING

Before attempting any faultnding, the electrical checks as

detailed in 8.5 must be carried out. Isolate the appliance from the electrical supply. Disconnect any external controls from terminal plug, and insert a link-wire between the two wires at the ‘TA’ connections of the D-sub interface.

NOTE

Restore the electrical supply to the boiler and RESET functionning. The boiler should now function as described in section 8.2. Should the boiler fail to respond, the internal fuses and connectors should be checked to ensure integrity and continuity.

CONFIRM

CANCEL

- the UI screen will display the rmware version – press any key to continue

- select language (ENGLISH)

- enter the time and date

- select MASTER

- select conguration type: NEW or FROM AKM (see below)

MULTI ZONE CONTROLLER

REC10 V01.26

PRESS A BUTTON

TO CONTINUE

ENGLISH

8.7 APPLIANCE STATUS AND FAULT CODES

When the boiler detects a temporary fault condition, the

appropriate code is shown. If/when the fault is nal, the pump

will perform 30 to 60-second post circulation (depending on the error code) and fault code will be displayed. For combustion fault, FAN can also post vent up to 5min if required.

8.8 REC10 SYSTEM RESET

Warning! – This operation must only be carried out by

qualiedpersonnel!

If required, the system conguration can be reset back to the factory default conguration; however care needs to be taken

in order to carry out a successful reset:

- access the technical parameter settings as outlined in section 8

- scroll to and select the following menu string:

MENU>TECHNICAL>INSTALLATION>SYSTEM

RESET>CONFIRM

TECHNICAL

INSTALLATION

PARAMETERS

THERMOREGULATION

RANGE RATED

CALIBRATION

INSTALL

ITALIANO

TIME & DATE

ENTER TIME AND DATE

12 17:

18 / 11 / 2013

USE THE ARROWS TO MODIFY

SELECT THE TYPE

OF CONFIGURATION

FROM AKM

NEW

8.8.1 CONFIGURATION FROM AKM PCB

- Select conguration type: FROM AKM

- The REC10 will use the information/settings stored on the

AKM PCB to congure the appliance

ZONES MANAGER

SENSOR CALIBRATION

SYSTEM RESET

INSTALLER

SELECT THE TYPE

OF CONFIGURATION

FROM AKM

NEW

Page 52

8.8.2 NEW CONFIGURATION

PLANT

CH ONLY

INSTANTANEOUS

SELECT THE PLANT

CONFIGURATION

STORAGE TANK

- Select conguration type: NEW

- Select location of REC10: ON BOARD

- Select PLANT type: CH ONLY – INSTANTANEOUS – STORAGE TANK (see below)

SELECT THE TYPE

OF CONFIGURATION

FROM AKM

NEW

CALDAIA

DOVE E’ POSIZIONATO

IL MULTI ZONE CONTROLLER?

MACCHINA

AMBIENTE

8.10 TYPICAL BESMART CONNECTION – CONNECTED TO THE ‘D-SUB’ INTERFACE

OTBus

8.11 TYPICAL CONNECTION FROM REMOTE ROOM THERMOSTAT AND CLOCK – CONNECTED TO THE ‘D-SUB’ INTERFACE

- select CH ONLY if the appliance is a ‘heat’ only system boiler

- select INSTANTANEOUS if the appliance is a combination boiler

- then select FLUX METER (only selectable with INSTANTANEOUS).

NOTE

After a system reset where the conguration selection is

‘new’, carry out a check on the various (applicable) installation

parameters to ensure that the ‘new’ conguration meets the

requirements of the system.

PLANT

FLUX SWITCH

FLUX METER

8.9 ACCESS TO INSTALLATION PARAMETERS

Warning! – Unqualied personnel and/or ‘end-users’

should not attempt to access or adjust ANY installation parameter; serious damage or appliance malfunction may occur as the result of an incorrectly set parameter.

To access the installation parameters:

1. select MENU from the REC10 UI

2. simultaneously press and hold both the ‘return’ and ‘downarrow’ buttons until the display changes to show: INSERT PASSWORD

3. using the ‘up-arrow’ button, press until ‘18’ is shown in the display, then press ‘select’

4. use the following menu string: MENU>TECHNICAL

5. refer to the menu hierarchy tree on page 19 for further details.

Page 53

8.12 S-PLAN & Y-PLAN WIRING CONFIGURATIONS

Warning!–Failuretofollowthewiringcongurationsas

detailed below, may result in malfunction and/or internal damage to the appliance.

The evolve system boilers incorporate an internal relay that enables a direct switched 230v supply to be used to generate a heating or hot water request from an external control system such as Y-PLAN or S-PLAN.

To congure an S or Y PLAN control system with the evolve boiler, proceed as follows:

1. Isolate the appliance from the electrical supply and remove

the front cover as detailed in section 5.7.1. gain access to the appliance PCB as detailed 5.7.3

2. Identify the internal relay PCB (BE11), which is located to

the right hand side of the main control PCB

3. Route the external wiring from the Y-Plan/S-Plan control

system through one of the cable entry points that are located on the lower right-side of the appliance

4. Using the (below) relevant diagram as a reference, connect the switched 230v supply (Live & Neutral) from the external control system (Y-Plan/S-Plan) to the small PCB (BE11) at terminals CN1

5. Replace the PCB cover ensuring that no internal wiring is trapped or strained

6. Replace the appliance front cover as detailed in 5.7.1.

NOTE

• Under no circumstances should the Y-Plan/S-Plan wiring

be connected directly to the D-Sub interface and/or the TA connections.

• Ensure that the appliance and all other external controls, are

served and isolated from the same electrical supply/isolator

• Ensure that the cable entry point is suitably sealed with

silicone sealant or adhesive tape.

Page 54

FUNCTIONAL DIAGRAM

REC

BE20

X14

X11

X25

M20

grey grey

black (alim.) blue (sign.) brown (-) red red violet violet

19 18

SBOL

15 14

OT+

13 12

11 10

TBT

8 7 6 5 4 3 2

Voltage free contact input

TBOL

B A

X19

orange (A)

yellow (B)

black (-)

red (+)

orange (A)

yellow (B)

black (-)

black (NO)

black (C)

CN2

orange (SE)

black (C)

pink (OT+)

orange (SE)

CN1

black

white (TBT)

(SBOL)

11 10 9

(OT+)

8 7

(SE)

6 5

(TBT)

4 3

(TBOL)

(TA)

T.P.

BE11

MOD

3 2 1

green (A1)

white (K1)

red (A2)

orange (K2)

red (A2)

white (K1) green (A1)

X10

4 3 2 1

PWM

blue (-)

brown (+)

TSC2

F= 3.15A F

L N

230 V

brown

230 V

blue

OPEOPE

GAS VALVE

auxiliary

red red

white white

grey grey

blue blue

X13 4

grey (-) blue (HS)

F Lv

pink (PWM) red (+)

-t°

R.S.

X17

yellow/green

blue

brown

X6 3

SW1

F.S.

blue

brown

F Hv

brown

blue

brown

blue

brown

blue

5 4 3 2

pink

1 2 43

blue

brown brown blue

X15

orange

X15

F2=4A T

X14

X12

AKM0x

X10

X11

X23

X16

1 4

1 5

X21

1 4

X13

X19

X25

CN1

X18

X22

F.T.

F.O.H.T.

-t°

F.S.

-t°

Page 55

Key

AKM0X Main PCB REC Remote control BE20 Led board:

green led (working status or temporary stop) red led (boiler lock out)

X1-X25-CN1 Connectors S.W. CO2 function button F.S. Flame sensor F External fuse 3.15A F F2 Fuse 4A T M3-M4 Terminal strip for electrical connection high

power

M20 Terminal box

(- A B +) ● Bus 485 TA ● Room Thermosat (contact must be free

of voltage)

TBOL ● Thermostat water tank TBT ● Low temperature limit thermostat SE ● External sensor OT+ ● Open therm SBOL ● Sensor water tank X1 – X2 ● Not used

P Pump PWM PWM signal OPE Gas valve solenoids F Hv Fan power supply 230 V TSC2 Ignition transformer S.E. Spark electrode F.O.H.T Flow over heat thermostat FS Flue sensor FT Flow thermistor (NTC) RS Return thermistor (NTC) P.T. Pressure transducer MOD Modulator F Lv Fan signal control

Page 56

SECTION 9 - LPG INSTRUCTIONS

COMBUSTION MONITORING

COMBUSTION OFFSET

BOILER TYPE

GAS TYPE

SERVICE

9.1 RELATED DOCUMENTS

BS 6798 INSTALLATION OF BOILERS OF RATED INPUT NOT EXCEEDING 60 kW BS 5449 PART 1 FORCED CIRCULATION HOT WATER SYSTEMS BS 5440 PART 1 FLUES BS 5482 PART 1 DOMESTIC BUTANE & PROPANE GAS BURNERS IN PERMANENT DWELLINGS

9.2 TECHNICAL DATA

Gas Pressures evolve 18S evolve 24S evolve 30S evolve 35S

Inlet pressure 37.0 mbar 37.0 mbar 37.0 mbar 37.0 mbar

Maximum gas rate 1.40 (kg/h) 1.86 (kg/h) 2.48 (kg/h) 2.72 (kg/h)

Minimum gas rate 0.40 (kg/h) 0.47 (kg/h) 0.56 (kg/h) 0.65 (kg/h)

Injector size (mm) 1 x Ø 4.3 mm 1 x Ø 4.3 mm 1 x Ø 6.0 mm 1 x Ø 6.0 mm

Number of fan rotations with slow ignition 5,500 (rpm) 5,500 (rpm) 5,000 (rpm) 5,000 (rpm)

Maximum number of heating fan rotations 5,600 (rpm) 6,500 (rpm) 8,000 (rpm) 7,000 (rpm)

Minimum number of heating fan rotations 2,000 (rpm) 2,000 (rpm) 2,100 (rpm) 2,000 (rpm)

Emissions

NOx (max-min) 60 - 35 p.p.m. 40 - 40 p.p.m. 40 - 50 p.p.m. 30 - 40 p.p.m.

CO (max-min) 150 - 15 p.p.m. 200 - 30 p.p.m. 200 - 20 p.p.m. 180 - 20 p.p.m.

CO2 (max-min) (*) 10.2 - 10.2 % 10.3 - 10.0 % 10.1 - 10.1 % 10.0 - 10.0 %

(*) CO2 tolerance = +0.6% -1%

9.3 APPLIANCE RE-CONFIGURATION FOR LPG

WARNING! The gas supply to the appliance must remain turned OFF until the following procedure has been completed.

1. Using the REC10 UI, navigate to STATE>BOILER and select ‘OFF’.

2. Refer to Section 8 on how to access the ‘Service’ parameters, and use passkey ‘53’ to navigate to

MENU>SETTINGS>TECHNICAL>COMBUSTION-

MONITORING>GAS-TYPE

3. Scroll to ‘LPG’ and press the select button.

4. Use the ‘back’ button to return to the ‘TECHNICAL’ menu and select ‘CALIBRATION’.

5. Using the data in table 9.2, adjust the fan speed settings to the values indicated in 9.2 – pressing the select button to

conrm each change.

6. Press and hold the ‘back’ button for 2-seconds to exit the ‘Service’ parameters menu.

7. Carry out a combustion check – as detailed in Section 6.12 – using the LPG values as indicated in table 9.2 above.

NOTE

The appliance gas valve is factory set and therefore nonadjustable. Do not attempt to adjust or interfere with the settings of the gas valve, as to do so, will cause the appliance to malfunction and may lead to serious damage.

TECHNICAL

PARAMETERS

VENT CYCLE

EXHAUST PROBE RESET

ALARM HISTORY

COMBUSTION MONITORING

SERVICE

- select GAS TYPE

- select LPG

GAS TYPE

LPG

SERVICE

The boiler DOES NOT require additional adjustments.

The boiler may only be converted by qualied sta󰀨.

After conversion apply the new rating plate contained in the kit.

Page 57

COMMISSIONING: CO AND COMBUSTION RATIO CHECK

SET BOILER TO MAXIMUM RATE

stabilise. , insert analyser probe into air inlet sampling point.

Is O2 ≥20.6%

CHECK CO AND

YES

CHECK CO AND COMBUSTION

recording.

Turn off appliance and

and resolved.

Turn off appliance and call

YES

BEFORE CO AND COMBUSTION RATIO CHECK

The installation instructions should have been followed, gas type verified and gas supply pressure/rate checked as required prior to commissioning. As part of the installation process, ESPECIALLY WHERE A

FLUE HAS BEEN FITTED BY PERSONS OTHER THAN THE BOILER INSTALLER, visually check the integrity of the whole

flue system to confirm that all components are correctly assembled, fixed and supported. Check that the maximum flue lengths have not been exceeded and all guidance has been followed (e.g. Technical Bulletin 008). The flue gas analyser should be of the correct type, as specified by BS 7967. Before use, the flue gas analyser should have been maintained and calibrated as specified by the manufacturer. The installer must have the relevant competence for use of the analyser. Check and zero the analyser IN FRESH AIR, as per analyser manufacturer’s instructions.

Vokera’s technical helpline for advice. The appliance must not be commissioned until problems are identified and resolved. If commissioning cannot be fully completed, the appliance must be disconnected from the gas supply in accordance with the GSIUR.

NOTE: Check and record CO and

combustion ratio at both maximum AND minimum rate before contacting the Vokera

In accordance with, section 7.3, set boiler to operate at maximum rate (full load condition). Allow sufficient time for combustion to

Verify flue integrity

Analyser readings indicate that combustion products and inlet air are mixing. Further investigation of the flue is therefore required. Check that flue components are correctly assembled, fixed and supported as per boiler/flue instructions. Check that flue and flue

terminal are not obstructed.

and CO2 < 0.2%?

call Vokera’s technical helpline for advice. The appliance must not be commissioned until problems are identified

Is CO less than 350ppm AND CO/CO

2 ratio

less than

0.004?

NOTE

The air/gas ratio valve is factory-set and must not be adjusted during commissioning unless this action is recommended, following contact with the Vokera technical help line. If any such adjustment is recommended and further checking of the boiler is required, the engineer must be competent to carry out this work and to use the flue gas analyser accordingly. If the boiler requires conversion to operate with a different gas family (e.g., conversion from natural gas to LPG) separate guidance will be provided by the Vokera technical help line and must be followed.

COMBUSTION RATIO AT MAXIMUM RATE

With boiler still set at maximum rate, insert analyser probe into flue gas sampling point. Allow readings to stabilise before

Check all seals around the appliance burner, internal flue seals, door and case seals. Rectify where necessary.

Is CO < 350ppm a

nd CO/CO2 ratio

ess than 0.004 ?

RATIO AT MINIMUM RATE

With boiler set at minimum rate, insert analyser probe into flue gas sampling point. Allow readings to stabilise before

Is CO less than 350ppm AND CO/CO

2 ratio less

than 0.004?

SET BOILER TO MINIMUM RATE

In accordance with section 7.3, set boiler to operate at minimum rate (to minimum load condition). Allow sufficient time for combustion to stabilise.

Boiler is operating satisfactorily No further actions required.

Ensure test points are capped, boiler case is correctly replaced and all other commissioning procedures are completed. Complete Benchmark Checklist, recording CO and combustion ratio readings as required.

Page 58

Benchmark Commissioning and Servicing Section

It is a requirement that the boiler is installed and commissioned to the

manufacturers instructions and the data elds on the commissioning checklist

completed in full.

To instigate the boiler guarantee the boiler needs to be registered with the manufacturer within one month of the installation.

To maintain the boiler guarantee it is essential that the boiler is serviced annually by a Gas Safe registered engineer who has been trained on the boiler installed. The service details should be recorded on the Benchmark Service Interval Record and left with the householder.

www.centralheating.co.uk

Page 59

GAS BOILER SYSTEM COMMISSIONING CHECKLIST

This Commissioning Checklist is to be completed in full by the competent person who commissioned the boiler as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference.

Failuretoinstallandcommissionaccordingtothemanufacturer’sinstructionsandcompletethisBenchmarkCommissioningChecklistwillinvalidatethe warranty.Thisdoesnotaffectthecustomer’sstatutoryrights.

Customername: Telephonenumber:

Address:

Boilermakeandmodel:

Boilerserialnumber:

Commissionedby(PRINTNAME): GasSaferegisternumber:

Companyname: Telephonenumber:

Companyaddress:

Commissioningdate:

To be completed by the customer on receipt of a Building Regulations Compliance Certicate*

BuildingRegulationsNoticationNumber(ifapplicable):

CONTROLS(ticktheappropriateboxes)

Timeandtemperaturecontroltoheating

Timeandtemperaturecontroltohotwater Cylinderthermostatandprogrammer/timer CombinationBoiler

Heatingzonevalves Fitted Notrequired

Hotwaterzonevalves Fitted Notrequired

Thermostaticradiatorvalves Fitted Notrequired

Automaticbypasstosystem Fitted Notrequired

Boilerinterlock Provided

ALL SYSTEMS

ThesystemhasbeenushedandcleanedinaccordancewithBS7593andboilermanufacturer’sinstructions Yes

Whatsystemcleanerwasused?

Whatinhibitorwasused? Quantitylitres

Hasaprimarywatersystemlterbeeninstalled? Yes No

CENTRAL HEATING MODE measureandrecord:

Gasrate m³/hr OR ft³/hr

Burneroperatingpressure(ifapplicable) mbar ORGasinletpressure mbar

Centralheatingowtemperature °C

Centralheatingreturntemperature °C

COMBINATION BOILERS ONLY

Istheinstallationinahardwaterarea(above200ppm)? Yes No

Ifyes,andifrequiredbythemanufacturer,hasawaterscalereducerbeentted? Yes No

Whattypeofscalereducerhasbeentted?

DOMESTIC HOT WATER MODEMeasureandRecord:

Gasrate m³/hr OR ft³/hr

Burneroperatingpressure(atmaximumrate) mbar ORGasinletpressureatmaximumrate mbar

Coldwaterinlettemperature °C

Hotwaterhasbeencheckedatalloutlets Yes Temperature °C

Waterowrate I/min

CONDENSING BOILERS ONLY

Thecondensatedrainhasbeeninstalledinaccordancewiththemanufacturer’sinstructionsand/orBS5546/BS6798 Ye s

ALL INSTALLATIONS

Recordthefollowing:

TheheatingandhotwatersystemcomplieswiththeappropriateBuildingRegulations Ye s

Theboilerandassociatedproductshavebeeninstalledandcommissionedinaccordancewiththemanufacturer’sinstructions Ye s

Theoperationoftheboilerandsystemcontrolshavebeendemonstratedtoandunderstoodbythecustomer Yes

Themanufacturer’sliterature,includingBenchmarkChecklistandServiceRecord,hasbeenexplainedandleftwiththecustomer Ye s

CommissioningEngineer’sSignature

Customer’sSignature

(Toconrmsatisfactorydemonstrationandreceiptofmanufacturer ’sliterature)

Atmax.rate:COppm AND CO/CO

Atmin.rate:(wherepossible)COppm AND CO/CO

Roomthermostatandprogrammer/timer Programmableroomthermostat

Load/weathercompensation Optimum start control

Ratio

*AllinstallationsinEnglandandWalesmustbenotiedtoLocalAuthorityBuildingControl(LABC)eitherdirectlyorthrougha

CompetentPersonsScheme.ABuildingRegulationsComplianceCerticatewillthenbeissuedtothecustomer.

www.centralheating.co.uk

Page 60

SERVICE RECORD

It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed.

Service Provider

BeforecompletingtheappropriateServiceRecordbelow,pleaseensureyouhavecarriedouttheserviceasdescribedinthemanufacturer’sinstructions. Alwaysusethemanufacturer’sspeciedsparepartwhenreplacingcontrols.

SERVICE 01

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Signature

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

SERVICE 03

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Signature

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

SERVICE 05

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

Date:

SERVICE 02

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Signature

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

SERVICE 04

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Signature

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

SERVICE 06

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

Date:

Signature

SERVICE 07

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Signature

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

SERVICE 09

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Record:

Comments:

Signature

*AllinstallationsinEnglandandWalesmustbenotiedtoLocalAuthorityBuildingControl(LABC)eitherdirectlyorthrougha

CompetentPersonsScheme.ABuildingRegulationsComplianceCerticatewillthenbeissuedtothecustomer.

Atmax.rate: COppm AND CO² %

Atmin.rate:

(WherePossible) COppm AND CO

Date:

Signature

SERVICE 08

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Atmax.rate: COppm AND CO² %

Record:

Comments:

Signature

Atmin.rate:

(WherePossible) COppm AND CO

SERVICE 10

Engineername:

Companyname:

TelephoneNo:

GassaferegisterNo:

Atmax.rate: COppm AND CO² %

Record:

Comments:

Signature

Atmin.rate:

(WherePossible) COppm AND CO

Date:

Page 61

Vokèra Warranty Terms and Conditions

Vokèra Ltd offer customers the comfort of a parts and labour warranty repair service subject to the following terms and conditions.

Vokèra Ltd only obligation under the guarantee shall be to repair or replace the faulty appliance at Vokèra Ltd discretion. This will be carried out where a fault arises from defects within the appliance, caused by either material or workmanship of the manufacturer.

1. The boiler must have been installed and commissioned within 12 months of manufacture by a registered Gas Safe (RGII ROI) installer in accordance with the guidelines in the installation and servicing booklet provided with the boiler.

2. This guarantee does not protect malfunction or damage arising from incorrect installation, commissioning or maintenance procedures, as laid out in the installation handbook, inefficient flue system, poor or incorrect electricity, wrong gas supply or pressure, tampering by inexperienced persons and any other cause not directly due to manufacture.

3. Vokèra Ltd cannot accept responsibility for any costs arising from repair or maintenance carried out by any third party.

4. The “Benchmark” commissioning sheet must be completed by the installer and left with the boiler for reference purpose.

5. The warranty will commence from the date of installation. Without proof of purchase ie an invoice or completed “Benchmark” commissioning sheet, the warranty will commence from the date of manufacture as detailed on the appliance data plate.

6. To qualify for the full term of warranty, the boiler must be serviced once annually by a Gas Safe Registered Engineer (RGII ROI). Proof of annual service in accordance with the manufacturer’s instructions must be provided (e.g. Benchmark Service Record). If this condition is not met the period of warranty will extend to only 12 months from date of installation.

By registering your appliance, you will be helping us provide you with the best after sales service in the unlikely event that your boiler requires attention during the guarantee period.

If the boiler suffers a mechanical or an electrical breakdown or you require an annual service, please contact our Customer Care Centre on:

UK: 01274 866100

ROI: 056 7755057

Our normal working hours, excluding Bank holidays are:

8.15am - 5.00pm Monday to Friday

8.00am - 12.00pm Saturday (UK only)

We will arrange for an engineer or appointed agent, to inspect and repair, or where in our sole opinion repair is not economic, arrange to replace the boiler.

7. Health & Safety:

a. Engineers will only attend to boiler products where it is considered by the engineer that the installation does not

pose a risk to health and safety.

b. A permanently fixed access ladder must service installations in lofts or attics. Adequate lighting and permanently

fixed flooring must also be available.

c. Cupboard installations must provide minimum working clearances as detailed in the installation instructions.

Vokèra will not accept responsibility for the removal of cupboards, kitchen units or trims in order to gain access for repairs.

8. Warranty does not apply:

a. If the boiler is removed from its place of installation without our prior consent. b. To any defect, damage or breakdown caused by inadequate servicing of the boiler or by deliberate action,

accident, misuse or third party interference including modification or an attempted repair which does not fully comply with industry standards.

c. To any defect, damage or breakdown caused by the design, installation and maintenance of the central heating

system.

Page 62

d. To de-scaling or other work required as a result of hard water scale deposits or from damage caused by

aggressive water or sludge resulting from corrosion. Indications that such work may be required include a noisy

boiler, cold spots on radiators, sludge in pipes and poor circulation of the central heating system. e. If the claim/contact procedure set out in section 6 is not adhered to. f. To any other costs or expenses caused by or arising as a result of the breakdown of a Vokèra Boiler. g. To any costs incurred during delays in fixing reported faults.

9. We reserve the right to a charge a callout fee where:

a. There is no completed “Benchmark” commissioning sheet or equivalent control document present. b. There is incomplete or no service record(s) for each and every year the boiler has been installed. c. A fault cannot be found. d. The breakdown or fault has been caused by an event, which is excluded from the warranty – see section 8. e. Failure to cancel an agreed appointment prior to our engineers visit. f. The boiler is outside the period of warranty or the conditions of the warranty have not been met.

10. If we fit replacement parts or replace a boiler it will not extend the period of the warranty. All replaced parts or

boilers will become the property of Vokèra Ltd.

11. The warranty applies only where a Vokèra boiler has been installed in a domestic dwelling in the United Kingdom,

Northern Ireland or Republic of Ireland, to provide heat and/or hot water to the central heating system.

12. Vokèra Ltd warranty is offered in addition to the rights provided to a consumer by law. Details of these rights

can be obtained from a Trading Standards Authority or a Citizen Advice Bureaux.

Your Personal Details

Vokèra takes care of your personal details in order to protect your privacy. Below we detail how we use any data you provide us with and how we manage that data to protect it.

Personal data is collected by us confidentially and in accordance with data protection law regulations. Vokèra is registered as a data controller with the Information Commissioner’s Office.

Your personal data is only stored if you volunteer to provide it, for example, to request information, submit a service visit, or to register a product for purposes of warranties and surveys etc. Vokèra will only use your personal data to satisfy the request you have made, and will not disclose information to third parties without your prior consent.

Any personal data stored by Vokèra is protected to ensure unauthorised persons cannot access or disclose the data. Vokèra uses security measures to protect the data we collect, in order to prevent manipulation, loss and destruction. No user information provided is stored anywhere on the internet that can be accessed by the public.

Vokèra may like to inform you of products and services that you could be interested in, and request your opinion of our services. Participation is voluntary and you can request not to receive such communications at any time or request your details to be updated by emailing: marketing@vokera.co.uk.

Tel: 01274 866100 (UK), 056 7755057 (ROI)

UK:

Vokèra Ltd, Customer Care, Stubs Beck Lane, West 26 Business Park, Whitehall Road, Cleckheaton, BD19 4TT

ROI:

Vokèra Ltd, Customer Care, West Court, Callen, Co Kilkenny, Ireland , R95 PW40

Email: service@vokera.co.uk (UK), eire-service@vokera.co.uk (ROI)

Guarantor – Vokèra Ltd, Borderlake House, Unit 7 Riverside Ind Est, London Colney, Herts AL2 1HG

Page 63

Page 64

RANGE RATED - EN 15502

The max CH input of this boiler has been adjusted to_____ kW, equivalent to _____ rpm max CH fan speed.

Date___/____/____

Signature _____________________

Boiler serial number

_____________________

Cod. 20127584 - 09/19 - Ed. 9

Registered address:

Unit 7 Riverside Industrial Estate

enquiries@vokera.co.uk

www.vokera.co.uk

Sales, General Enquires

Vokèra Limited reserve the right to change

specication without prior notice

Consumers statutory rights are not a󰀨ected.

Company Reg No: 1047779

Vokèra Ltd

Borderlake House

London Colney Herts AL2 1HG

www.vokera.ie

T 0844 391 0999 F 0844 391 0998

Vokèra Ireland

West Court, Callan

Co Kilkenny

T 056 7755057 F 056 7755060

Vokera Evolve 18S/24S/30S/35S INSTALLATION AND SERVICING INSTRUCTIONS (Cod. 20127584 - 09/19 - Ed. 9)

Specifications and Main Features

Frequently Asked Questions

User Manual
