Void Incubus Series User Manual

Incubus System

User Guide V1.1

Version 1.1

This user guide is subject to change without notice. For the latest online version, visit: www.voidacoustics.com

Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics Research Ltd.

Incubus System User Guide V1.1 Page 3

Contents

1 Safety and regulations 4

1.1 Important safety instructions 4

1.2 Limitations 4

1.3 EC declaration of conformity 4

1.4 WEEE directive 4

2 Limited warranty 5

3 Unpacking and Checking 6

4 About 7

4.1 Welcome 7

4.2 Incubus series overview 7

5 Speciﬁcations and dimensions 8

5.1 Air Array 8

5.1.1 Key features 8

5.1.2 Air Array speciﬁcations 8

5.1.3 Air Array dimensions 9

5.2 Hyperfold 10

5.2.1 Key features 10

5.2.2 Hyperfold speciﬁcations 10

5.2.3 Hyperfold dimensions 11

5.2.4 Hyperfold impedance graph 11

5.3 Incubus Sub 12

5.3.1 Key features 12

5.3.2 Incubus Sub speciﬁcations 12

5.3.3 Incubus Sub dimensions 13

5.3.4 Incubus Sub impedance graph 13

6 Cabling and wiring 14

6.1 Electrical safety 14

6.2 Cable consideration for ﬁxed installations 14

6.3 Typical ampliﬁer rack array 14

6.4 Air Array layout 15

6.5 Air Array wiring diagram 16

6.6 Air Array LF Bias Q5 speakONTM A wiring 17

6.9 Air Array MHF Bias Q5 speakONTM B wiring 18

6.8 Hyperfold wiring diagram 19

6.9 Hyperfold Bias Q5 speakONTM wiring 19

6.10 Incubus Sub wiring diagram 20

6.11 Incubus Sub Bias Q5 speakONTM wiring 21

7 System design 22

7.1 System design principles 22

7.2 Loudspeaker placement and positioning 23

8 Mounting 26

8.1 Installation Safety 26

8.2 Ground stack bracket 27

8.3 Flying bracket 29

9 Adjustments 32

9.1 Wheel removal 32

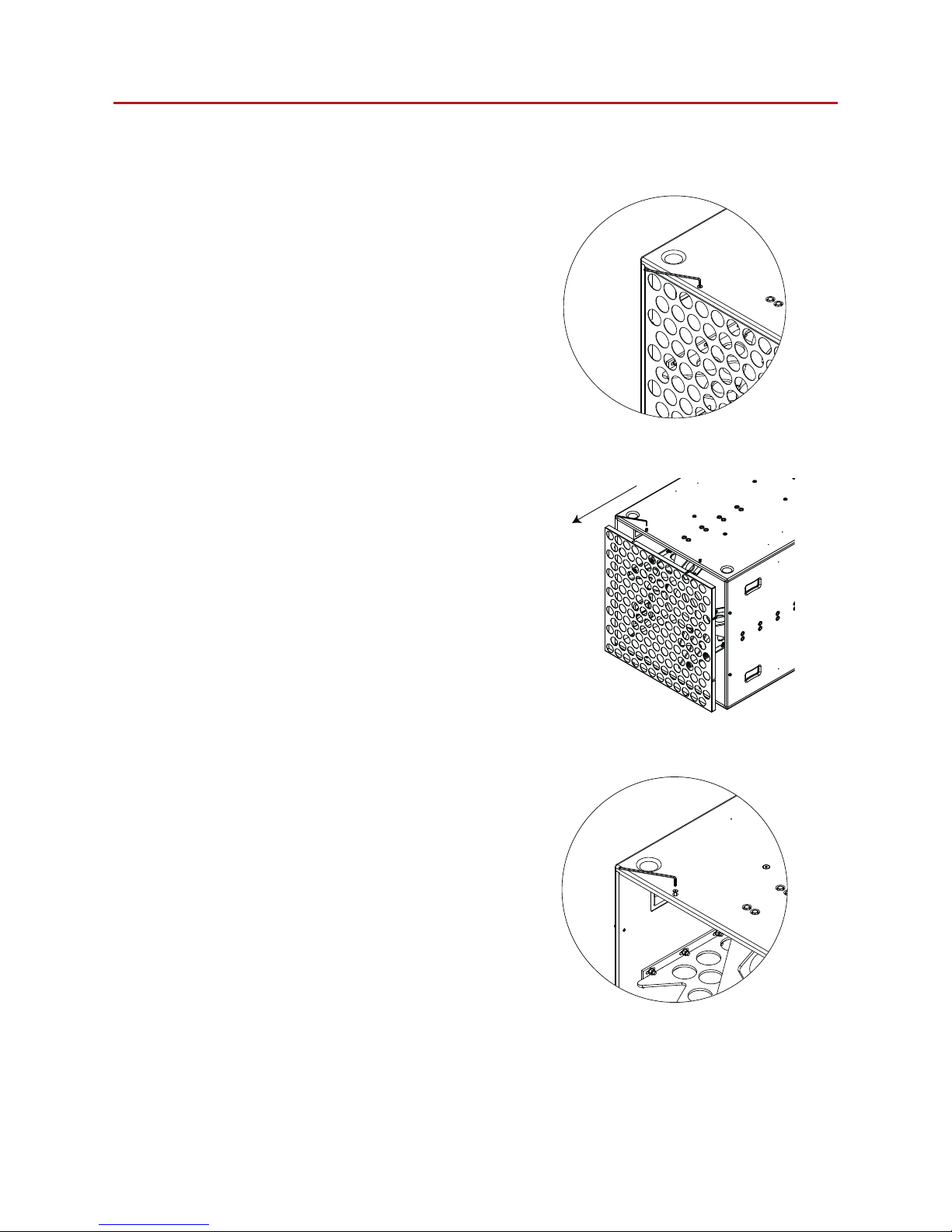

9.2 Hyperfold grille removal 33

10 Service 34

11 Appendix 35

Incubus System User Guide V1.1 Page 4

1.1 Important safety instructions

The lightning ﬂash with and arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety instructions - read this ﬁrst

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat source such as radiators, heat registers, stoves, or other such apparatus that produce heat.

9. Do not defeat the safety purpose of the grounding-type plug. A grounding type plug has two blades and a third grounding prong. The third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect power cords from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus.

11. Onlyuseattachmentsandaccessoriesspeciﬁedby Void Acoustics.

12. Only use with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplugtheapparatusduringlightningstormsorwhenunused forlongperiodsoftime.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Since the mains power supply cord attachment plug is used to disconnect the device, the plug should always be easily accessible.

16. Void loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage. Avoid prolonged exposure to the high sound levels from the loudspeaker.

1.2 Limitations

This guide is provided to help familiarise the user with the loudspeaker system and its accessories. It is not intended to provide comprehensive electrical, ﬁre, mechanical and noise training and is not a substitute for industry-approved training. Nor does this guide absolve the user of their obligation to comply with all relevant safety legislation and codes of practice.

While every care has been taken in creating this guide, safety is user-dependent and Void Acoustics Research Ltd cannot guarantee complete safety whenever the system is rigged and operated.

1.3 EC declaration of conformity

Manufacturer:

Void Acoustics Research Ltd, Unit 15 Dawkins Road Ind Est, Poole, Dorset, BH15 4JY, United Kingdom.

We declare the under our sole responsibility the following product models: Air Array, Hyperfold and Incubus Sub

are intended to be used as loudspeakers and are in conformity with the following EC Directives, including all amendments, and with national legislation implementing these directives:

• BS EN 60065:2002

• BS EN 55103-1/-2

March 2016

Alex Skan

Technical Director

1.4 WEEE directive

If the time arises to throw away your product, please recycle all the components possible.

This symbol indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for recovery and recycling. By separating this product from other household-type waste, the volume of waste sent to incinerators or land-ﬁlls will be reduced and natural resources will thus be conserved.

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) aims to minimise the impact of electrical and electronic goods on the environment. Void Acoustics Research Ltd complies with the Directive 2002/96/EC and 2003/108/EC of the European Parliament on waste electrical ﬁnance the cost of treatment and recovery of electronic equipment (WEEE) in order to reduce the amount of WEEE that is being disposed of in land-ﬁll sites. All of our products are marked with the WEEE symbol; this indicates that this product must NOT be disposed of with other waste. Instead it is the user’s responsibility to dispose of their waste electrical and electronic equipment by handing it over to an approved reprocessor, or by returning it to Void Acoustics Research Ltd for reprocessing. For more information about where you can send your waste equipment for recycling, please contact Void Acoustics Research Ltd or one of your local distributors.

1 Safety and regulations

Incubus System User Guide V1.1 Page 5

The warranty

For a period of three (3) years from the date of delivery to the original purchaser (as shown on the original invoice or sales receipt; a copy of this may be required as proof of warranty dates), Void Acoustics Research Ltd (hereinafter “Void”) warrants to the Original Owner (person or company who originally purchased the product brand new from either Void or a Void Authorised Dealer/Distributor) of each new Incubus Series product (provided it was purchased at an Authorised Void Dealer) that it is free of defects in materials and workmanship and that each product will meet or exceed all factory published speciﬁcations for each respective model. Void agrees to repair or replace (at its discretion) all defective parts at no charge for labour or materials; subject to following provisions:

Warranty violations

Void shall take no responsibility for repair or replacement as speciﬁed under this warranty, if the damaged product has been subject to misuse, accident, neglect or failure to comply with normal maintenance procedures; or if the serial number has been defaced, altered or removed. Nor will Void accept responsibility for, or resulting from, improper alterations or unauthorised parts or repairs. This warranty does not cover any damage to speakers or any other consequential damage resulting from breach of any written or implied warranty.

Void warranty provisions

Void will remedy any defect, regardless of the reason for failure (except as excluded) by repair, or replacement. Void will remedy the defect and ship the product within a reasonable time after receipt of the defective product at a Void Authorised Service Centre.

To obtain warranty service

If a Void product requires service, the Owner must contact Void or an Authorised Void Service Centre to receive an R.A.N. (Return Authorisation Number) and instructions on how to return the product to the Void Authorised Service Centre, or to Void.

Void (or its Authorised Service Centre) will initiate corrective repairs upon receipt of the returned product. Please save the original carton and all the packing materials in case shipping is required. All products being returned to the factory or service centre for repairs must be shipped prepaid.

If the repairs made by Void or the Void Authorised Service Centre are not satisfactory, the Owner is instructed to give written notice to Void. If the defect or malfunction remains after a reasonable number of attempts by Void to remedy the defect or malfunction, the Original Owner shall then have the option to elect either a refund or replacement of said Void product free of charge. The refund shall be an amount equal to but not greater than the actual purchase price, not including any taxes, interest, insurance, closing costs and other ﬁnance charges (minus reasonable depreciation on the product). If a refund is necessary, the Original Owner must make the defective or malfunctioning product available to Void free and clear of all liens or other restrictions.

Equipment modiﬁcations

Technical and design speciﬁcations are subject to change without notice.

Void reserves the right to modify or change equipment (in whole or part) at any time prior to delivery thereof, in order to include therein electrical or mechanical improvements deemed appropriate by Void, but without incurring any liability to modify or change any equipment previously delivered, or to supply new equipment in accordance with any earlier speciﬁcations.

Disclaimer of consequential and incidental damages

You, the Original Owner, are not entitled to recover from Void any incidental damages resulting from any defect in the Void product.

This includes any damage to another product or products resulting from such a defect.

Warranty alterations

No person has the authority to enlarge, amend, or modify this Warranty. This Warranty is not extended by the length of time which the Original Owner is deprived of the use of product. Repairs and replacement parts provided pursuant to the Warranty shall carry only the non-expired portion of the Warranty.

This Statement of Warranty supersedes all

others contained in this user guide.

2 Limited warranty

Incubus System User Guide V1.1 Page 6

All Void Acoustics products are carefully manufactured and thoroughly tested before being despatched. Your dealer will ensure that your Void products are in pristine condition before being forwarded to you but mistakes and accidents can happen.

Before signing for your delivery:

• Inspect your shipment for any signs of contamination, abuse or transit damage as soon as you receive it

• Check your Void Acoustics delivery fully against your order

• If your shipment is incomplete or any of its contents are found to be damaged; inform the shipping company and inform your dealer.

Air Array loudspeakers are heavy (144.8 kg/319 lbs including stand) and require a minimum two people to lift.

• Undo the four butterﬂy catches on the transport case then remove the lid making sure the lid is clear before moving sideways

• If you need to place the Air Array on a ﬂat surface ensure you use a lint free product to protect the ﬁnish

• When removing the Air Array take care not to damage the lower tray of the transport case.

Keep the original packaging in case you need to return a product for service later.

See section

2 for warranty conditions and see section 10 if your product needs servicing.

3 Unpacking and checking

Incubus System User Guide V1.1 Page 7

4.1 Welcome

Many thanks for purchasing this Void Acoustics Incubus Series loudspeaker. We truly appreciate your support. At Void, we design, manufacture and distribute advanced professional audio systems for the installed and live sound market sectors. Like all Void products, our highly skilled and experienced engineers have successfully combined pioneering technologies with ground-breaking design aesthetics, to bring you superior sound quality and visual innovation. In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability.

4.2 Incubus series overview

Designed with the sole purpose of being the best dance club system available, Incubus redeﬁnes expectations around the world. Providing levels of control thought impossible, its ability to deliver both linear frequency and power shading within a single mid top enclosure ensures perfect sound for everyone on the dance ﬂoor. Incubus is the number one choice for discerning interior designers because its physical signature cries out for extreme expression. Anyone looking to push both sonic and visual boundaries to the edge whilst raising mankind’s awareness via elevated forms of entertainment needs to audition Incubus.

4 About

Incubus System User Guide V1.1 Page 8

5.1 Air Array

5.1.1 Key features

• Visually striking appearance for style-led environments

• Fibreglass composite construction

• 14 discrete proprietary drive units

• Integrated ﬂying and mounting system

• Ground stack on ow frequency enclosures

• Optional ﬂoor stand or ﬂying bracket

• Standard red ﬁnish, optional custom colours

5.1.2 Air Array speciﬁcations

Frequency response 90 Hz - 26 kHz ±3 dB Eciency

LF: 111 dB 1W/1m, MF: 114 dB 1W/1m, HF: 116 dB 1W/1m Crossover point Preset via dedicated processor Nominal impedance LF: 2 x 4 :, MF: 2 x 4 :, HF: 2 x 5.33 : Power handling

LF: 3600 W AES, MF: 800 W AES, HF: 320 W AES Maximum output

143 dB cont, 146 dB peak Driver conﬁguration 4 x 12” LF, 4 x 3” MF compression driver,

6 x 1” HF compression driver Dispersion 90°H x 45°V Connectors 2 x 8-pole speakON™ NL8 Height 1240 mm (48.8”) Width 944 mm (37.2”) Depth 813 mm (32”) Weight 144.8 kg (319.2 lbs) including stand Enclosure Fibreglass composite Rigging Stack mounted or proprietary ﬂying system Finish Smooth cellulose

Measured in half space 2 AES2 - 1984 compliant 3 Calculated

5 Speciﬁcations and dimensions

Incubus System User Guide V1.1 Page 9

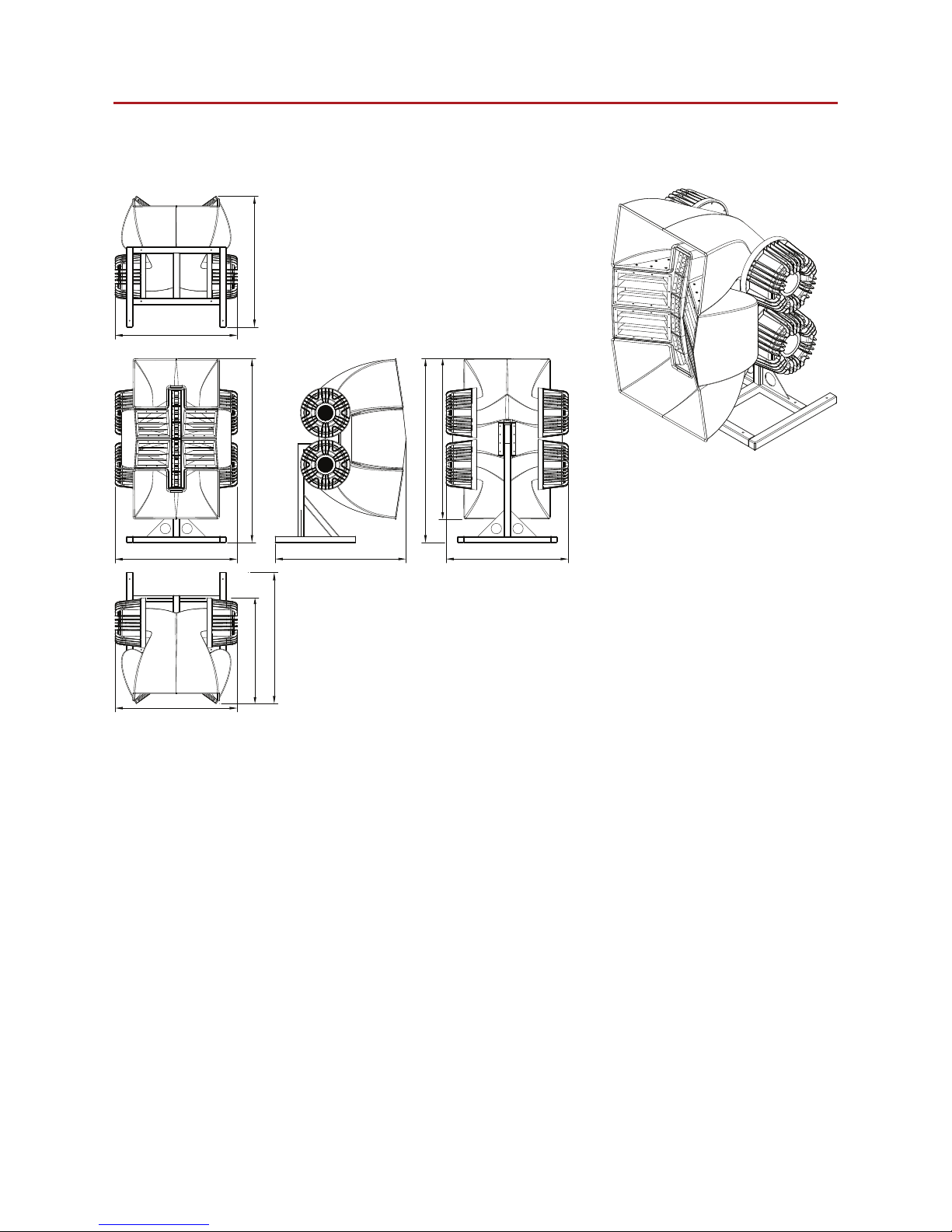

5.1.3 Air Array dimensions

944 (37.2”)

1422 (56”)

944 (37.2”)

1012 (39.8”)

944 (37.2”)

1012 (39.8”)

813 (32”)

1012 (39.8”) 944 (37.2”)

1422 (56”)

1240 (48.8”)

Figure 5.1: Dimensions

5 Speciﬁcations and dimensions

Incubus System User Guide V1.1 Page 10

5.2 Hyperfold

5.2.1 Key features

• High power density in a compact footprint

• Exceptional upper bass speed and articulation

• Four high power 15” low frequency drivers

• Distinctive aluminium cabinet bracing

• 18 mm birch plywood construction

• Textured ‘TourCoat’ polyurea ﬁnish

5.2.2 Hyperfold speciﬁcations

Frequency response 60 Hz - 190 Hz ±3 dB Eciency

109.5 dB 1W/1m Crossover points Preset via dedicated processor Nominal impedance 2 x 4 : Power handling

4000 W AES

Maximum output

142 dB cont, 145 dB peak Conﬁguration 4 x 15” low frequency drivers Dispersion Array dependent Connectors 2 x 4-pole speakON™ NL4 Height 748 mm (29.4”) Width 738 mm (29.1”) Depth 1218 mm (47.9”) Weight 150 kg (330.7 lbs) Enclosure 18 mm birch plywood Finish Textured ‘TourCoat’ polyurea, smooth cellulose

Measured in half space 2 AES2 - 1984 compliant 3 Calculated

5 Speciﬁcations and dimensions

Incubus System User Guide V1.1 Page 11

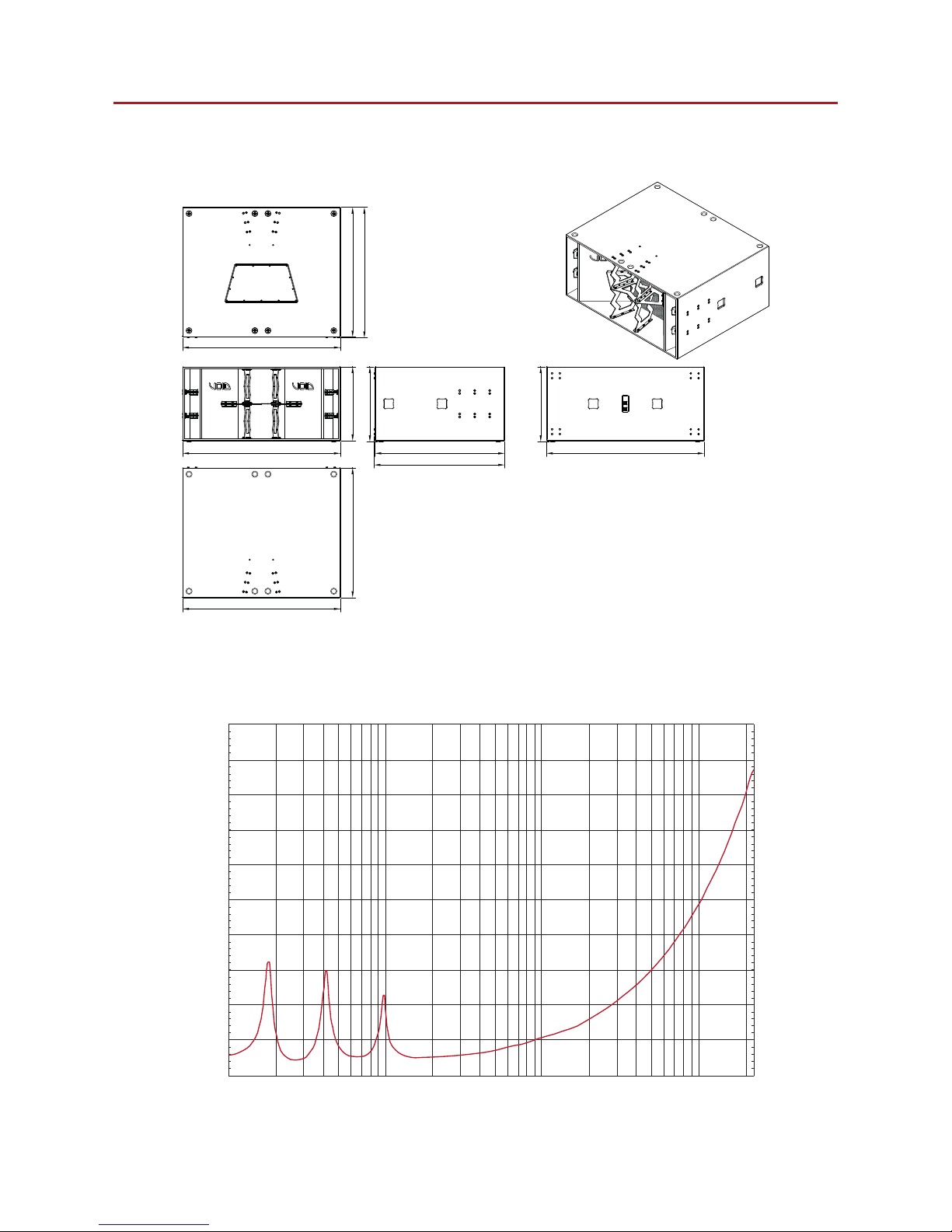

5.2.3 Hyperfold dimensions

738 (29.1”)

1218 (47.9”)

738 (29.1”)

1218 (47.9”)

748 (29.4”)

738 (29.1”)

748 (29.4”)

1218 (47.9”)

Figure 5.2: Dimensions

5 Speciﬁcations and dimensions

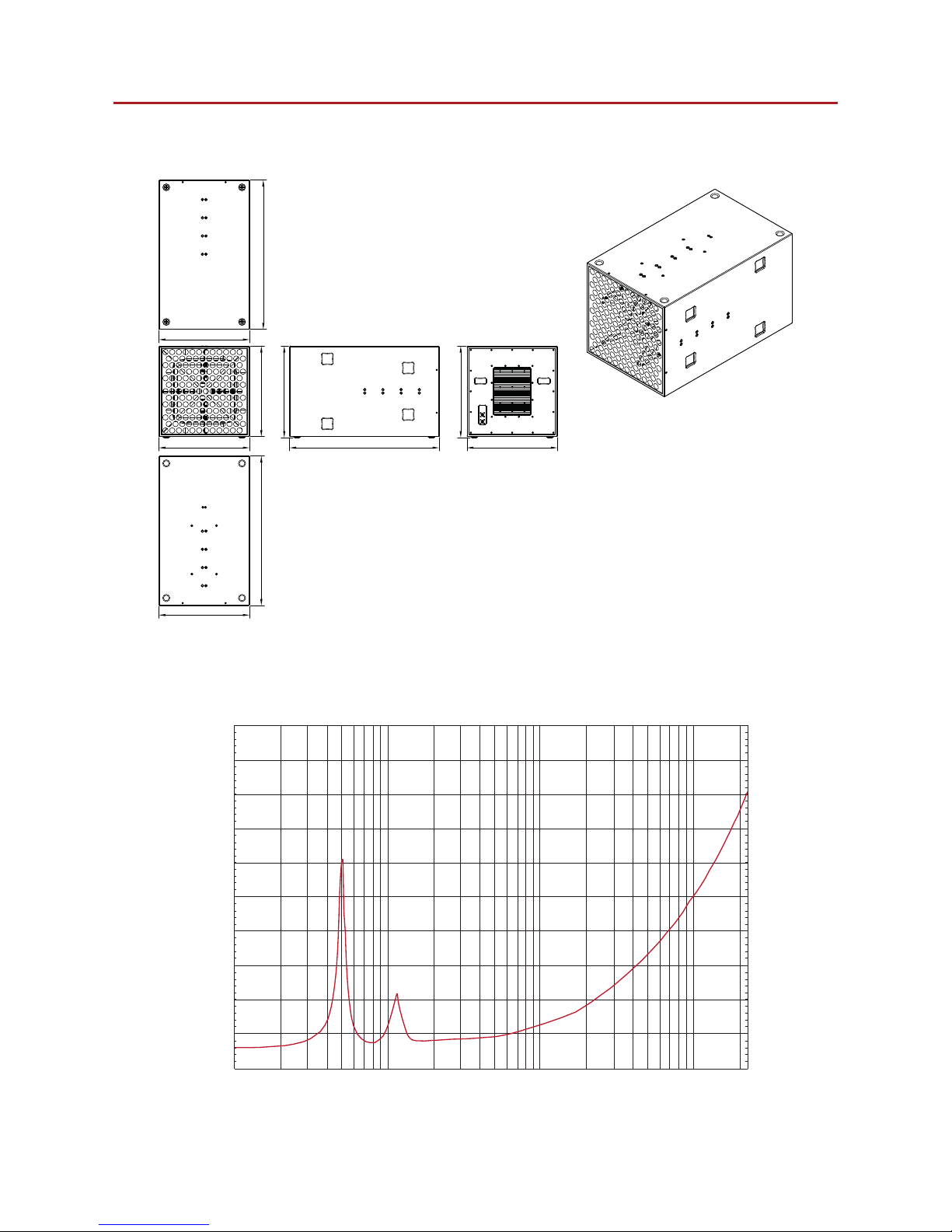

5.2.4 Hyperfold impedance graph

10 10020 50

200 500 1k 2k 5k 10k 20k

Frequency (Hz)

Impedance (Ω)

Figure 5.3: Impedance graph

Incubus System User Guide V1.1 Page 12

5.3 Incubus Sub

5.3.1 Key features

• Distinctive aluminium cabinet bracing

• 3 x high power 21” low frequency drivers

• Extended sub frequency response to 30 Hz

• 18 mm birch plywood construction

• Black textured ‘TourCoat’ polyurea ﬁnish

5.3.2 Incubus Sub speciﬁcations

Frequency response 29 Hz - 95 Hz ±3 dB Eciency

105 dB 1W/1m Crossover point Preset via dedicated processor Nominal impedance 3 x 8 : Power Handling

6000 W AES Maximum output

140 dB cont, 146 dB peak Driver conﬁguration 3 x 21” LF with 6” voice coils Dispersion Array dependent Connectors 2 x 8-pole speakON™ NL8 Height 704 mm (27.7”) Width 1479 mm (58.2”) Depth 1218 mm (48”) Weight 214 kg (471.8 lbs) Enclosure 18 mm birch plywood Finish Textured ‘TourCoat’ polyurea

Measured in half space 2 AES2 - 1984 compliant 3 Calculated

5 Speciﬁcations and dimensions

Incubus System User Guide V1.1 Page 13

5.3.3 Incubus Sub dimensions

1479 (58.2”)

1218 (48”)

1479 (58.2”)

1218 696 (27.4”)

1218 (48”)

704 (27.7”)

1479 (58.2”)

704 (27.7”)

1225 (48.2”)

Figure 5.4: Dimensions

5 Speciﬁcations and dimensions

5.3.4 Incubus Sub impedance graph

10 10020 50

200 500 1k 2k 5k 10k 20k

Frequency (Hz)

Impedance (Ω)

Figure 5.5: Impedance graph

Incubus System User Guide V1.1 Page 14

6.1 Electrical safety

To avoid electrical hazards please note the following:

• Do not access the inside of any electrical equipment. Refer servicing to Void-approved service agents

6.2 Cable considerations for ﬁxed installations

We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations. The cables should use Oxygen Free Copper (OFC) of grade C11000 or above. Cables for permanent installations should be compliant with the following standards:

• IEC 60332.1 Fire retardancy of a single cable

• IEC 60332.3C Fire retardancy of bunched cables

• IEC 60754.1 Amount of Halogen Gas Emissions

• IEC 60754.2 Degree of acidity of released gases

• IEC 61034.2 Measurement of smoke density

We suggest using the following maximum copper cable lengths to keep level losses below 0.6 dB.

Metric mm

Imperial AWG 8 : load 4 : load 2 : load

2.50 mm

13 AWG 36 m 18 m 9 m

4.00 mm

11 AWG 60 m 30 m 15 m

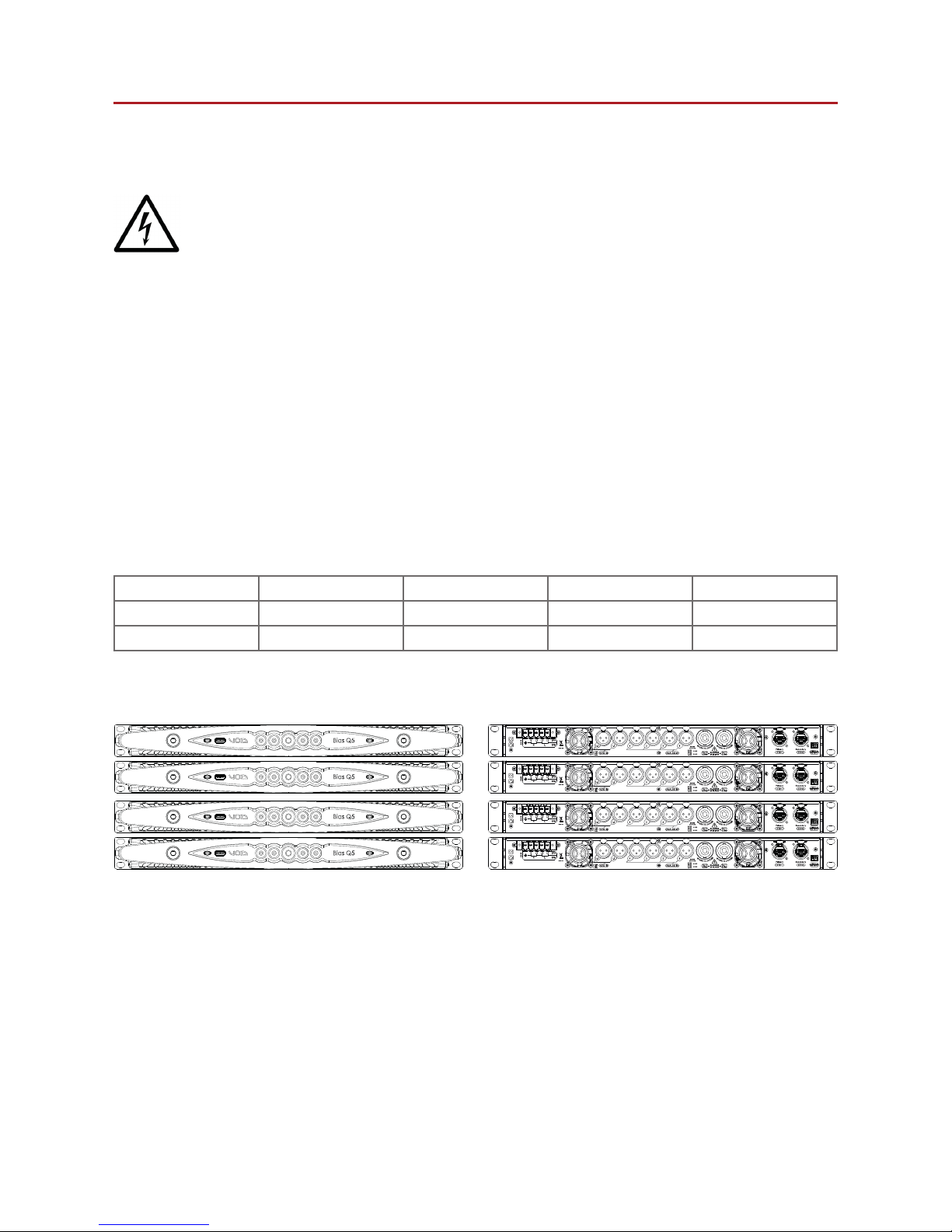

6.3 Typical ampliﬁer rack array

6 Cabling and wiring

Figure 6.2: Typical ampliﬁer rack layout for Q5 and V9

Incubus System User Guide V1.1 Page 15

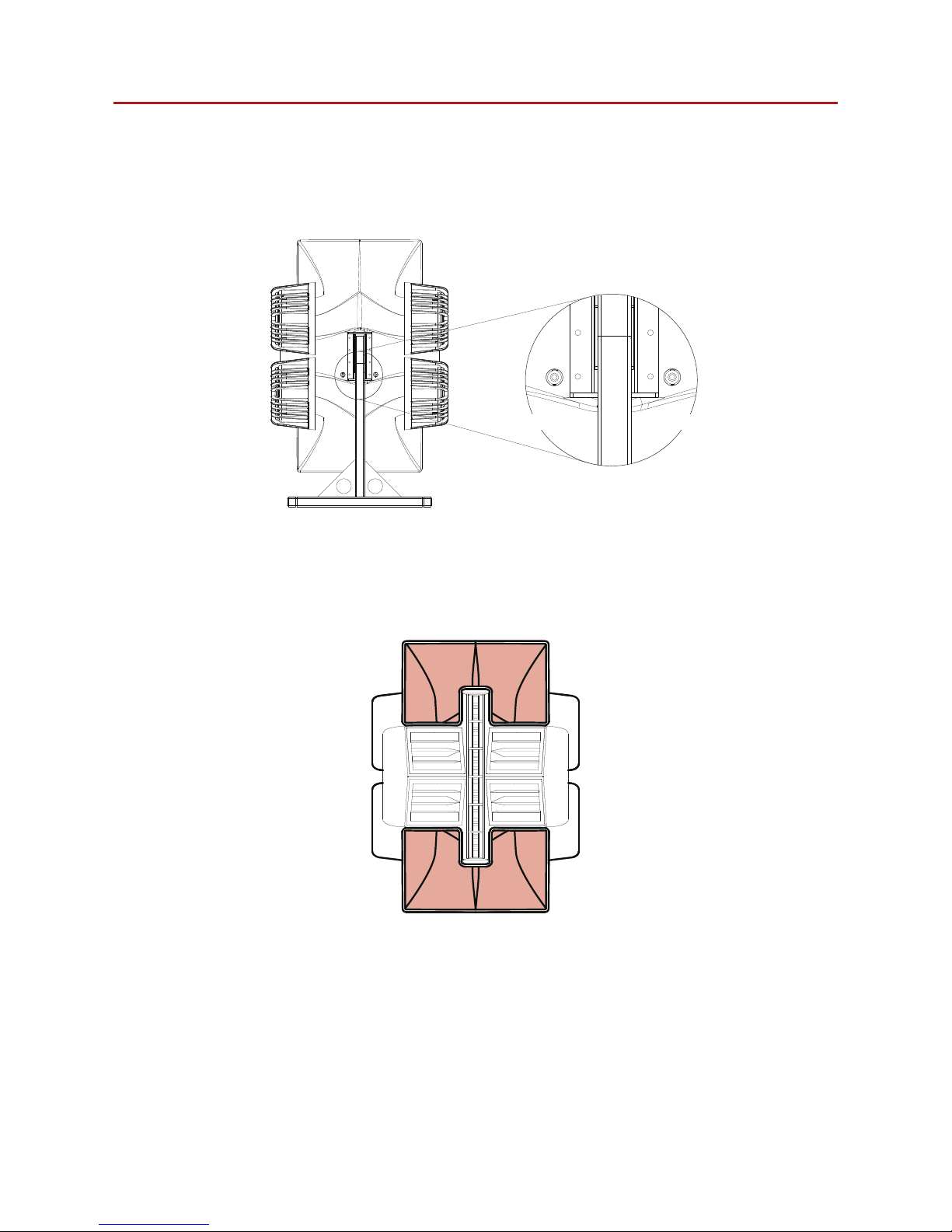

speakON

A speakON

Figure 6.3: speakONTM layout

6.4 Air Array layout

For clarity throughout this guide the speakON

connections on the rear of the Air Array will be

referred to speakON

A for the left and speakONTM B for the right as shown in ﬁgure 6.1.

A further aid given will be a diagrammatic representation of which drivers would be engaged within the loudspeaker for each section. So, for example, ﬁgure 6.3 below shows the section for the low frequency drivers.

Figure 6.4: LF drivers

6 Cabling and wiring

Incubus System User Guide V1.1 Page 16

1+ 12+ 23+ 34+ 4-

Left

Top 12” LF

2-3+

Top 12” LF

Bottom 12” LF

Bottom 1.5” HF

Top 1.5” HF

Top 3” MF

Bottom 3” MF

1+ 12+ 23+ 34+ 4-

Right

2-3+

Bottom 3” MF

speakON

A NL8

Pins Driver Power handling Impedance +/-1 Bottom 2 x 12” 1800 W AES 4 : +/-2 Top 2 x 12” 1800 W AES 4 :

speakONTM B NL8

Pins Driver Power handling Impedance +/-1 Bottom 2 x 3” 400 W AES 4 : +/-2 Top 2 x 3” 400 W AES 4 : +/-3 Bottom 3 x 1” 160 W AES 5.3 : +/-4 Top 3 x 1” 160 W AES 5.3 :

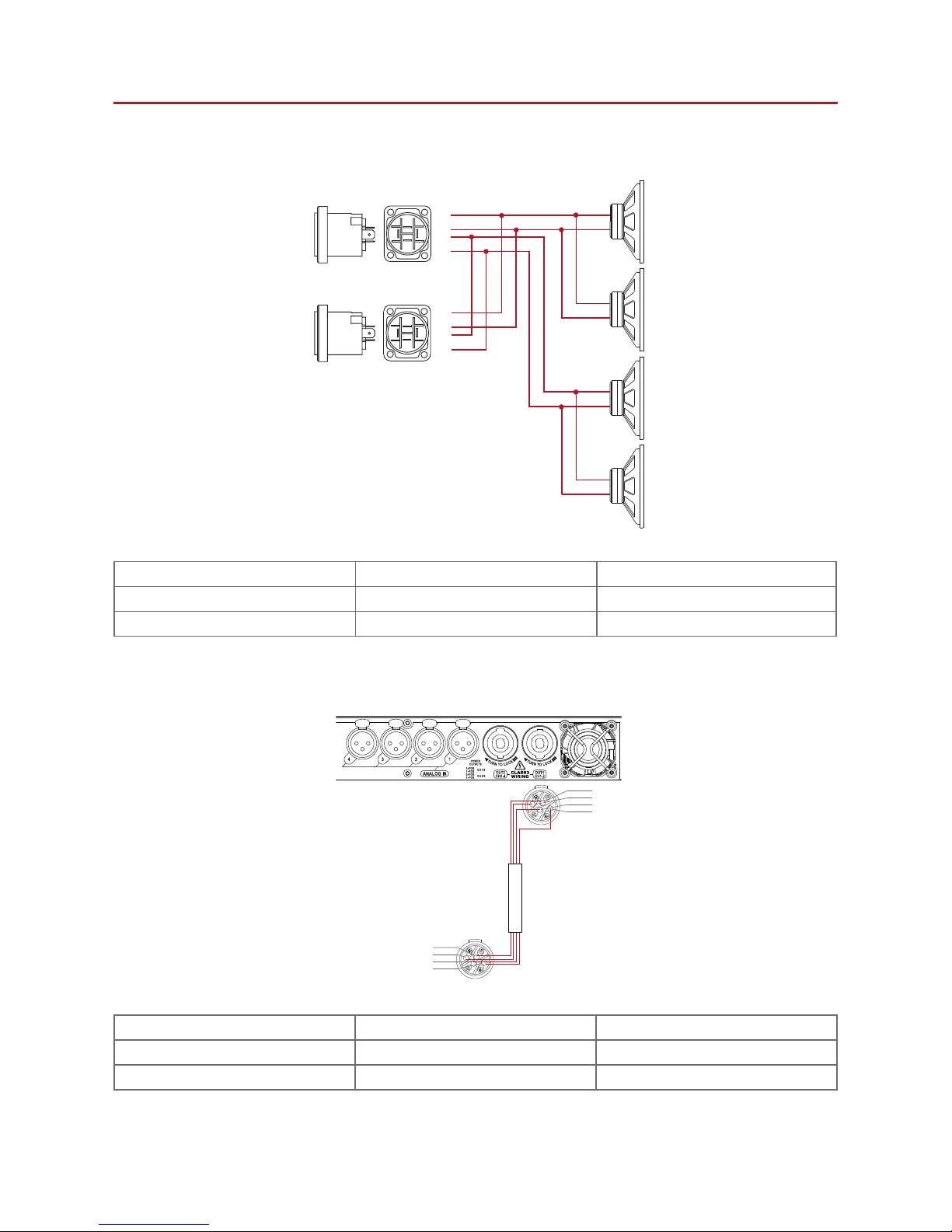

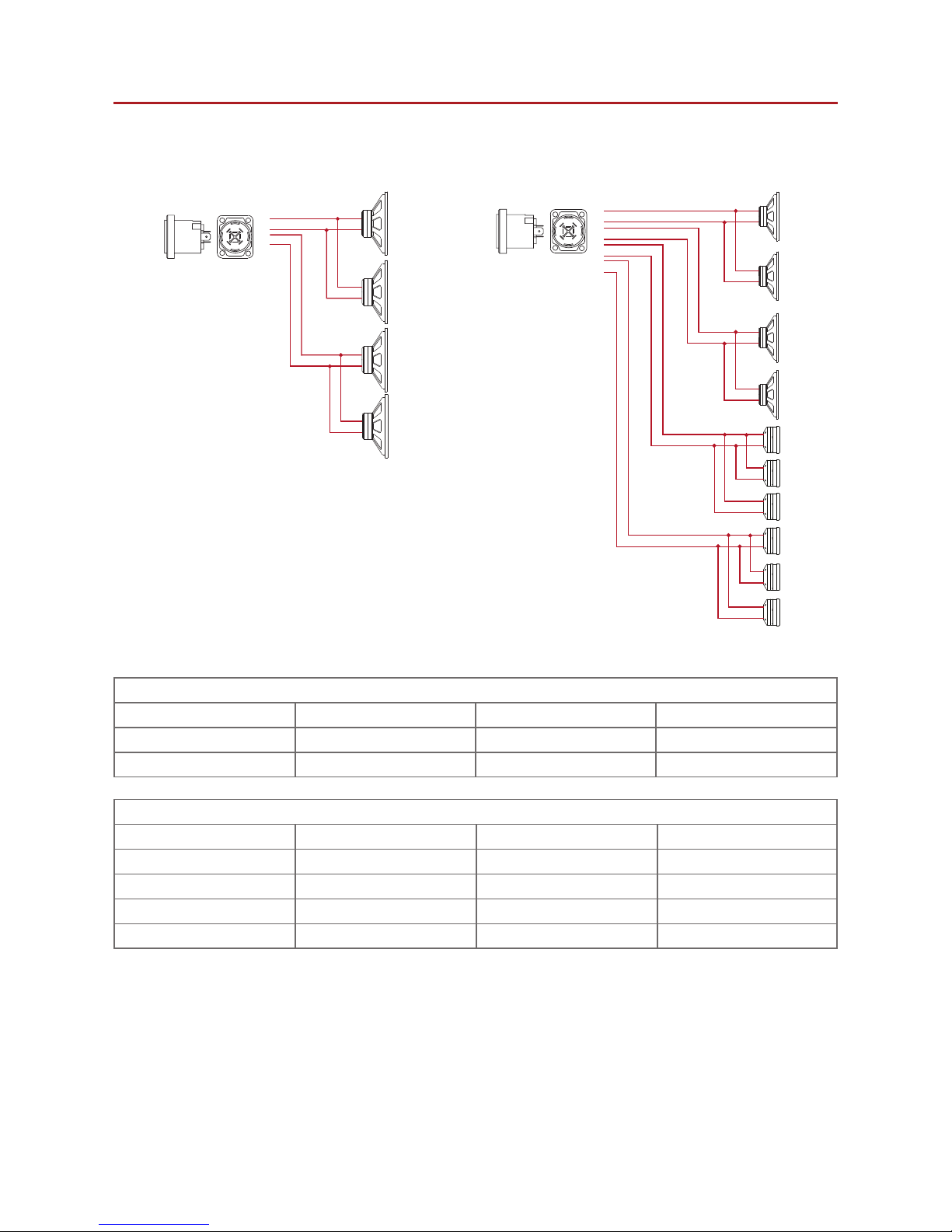

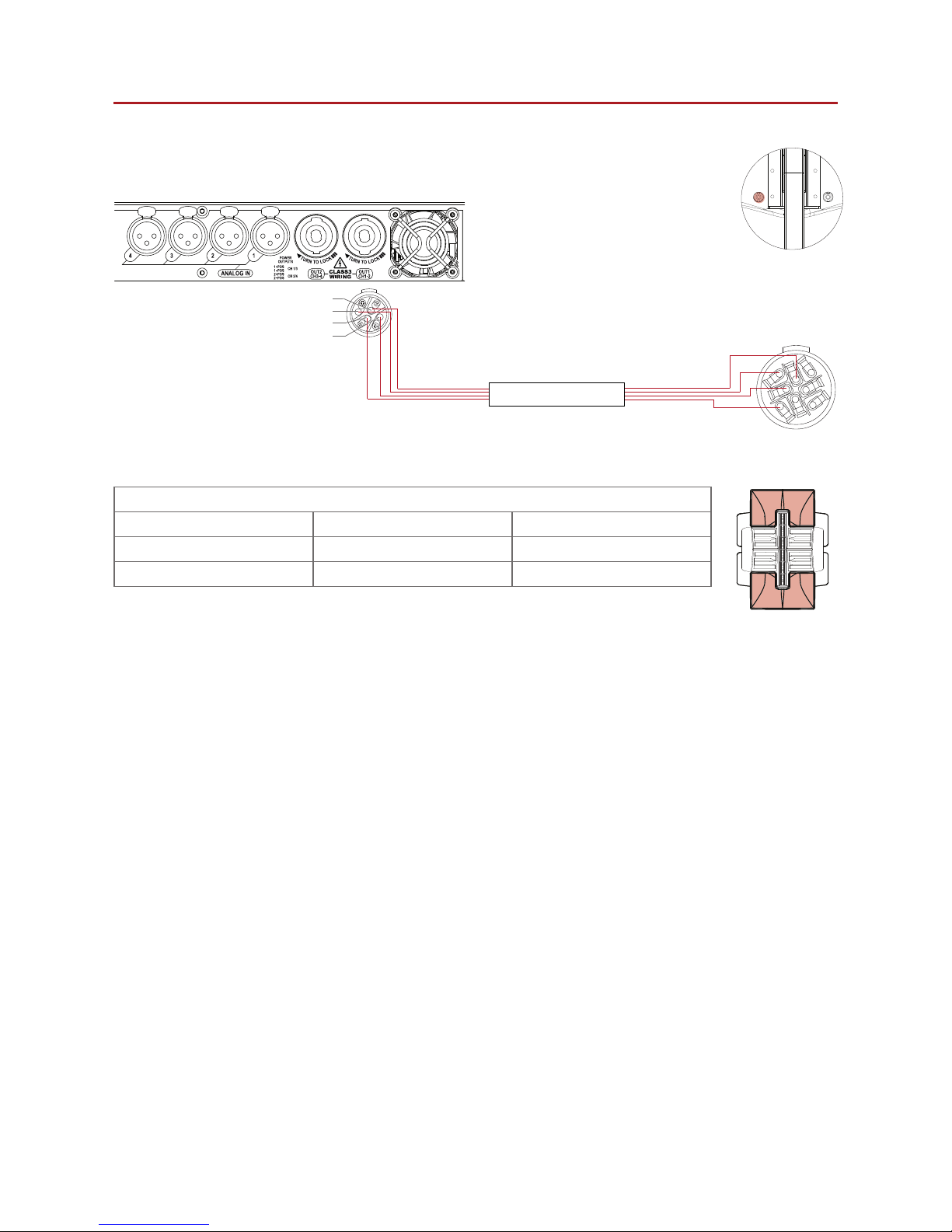

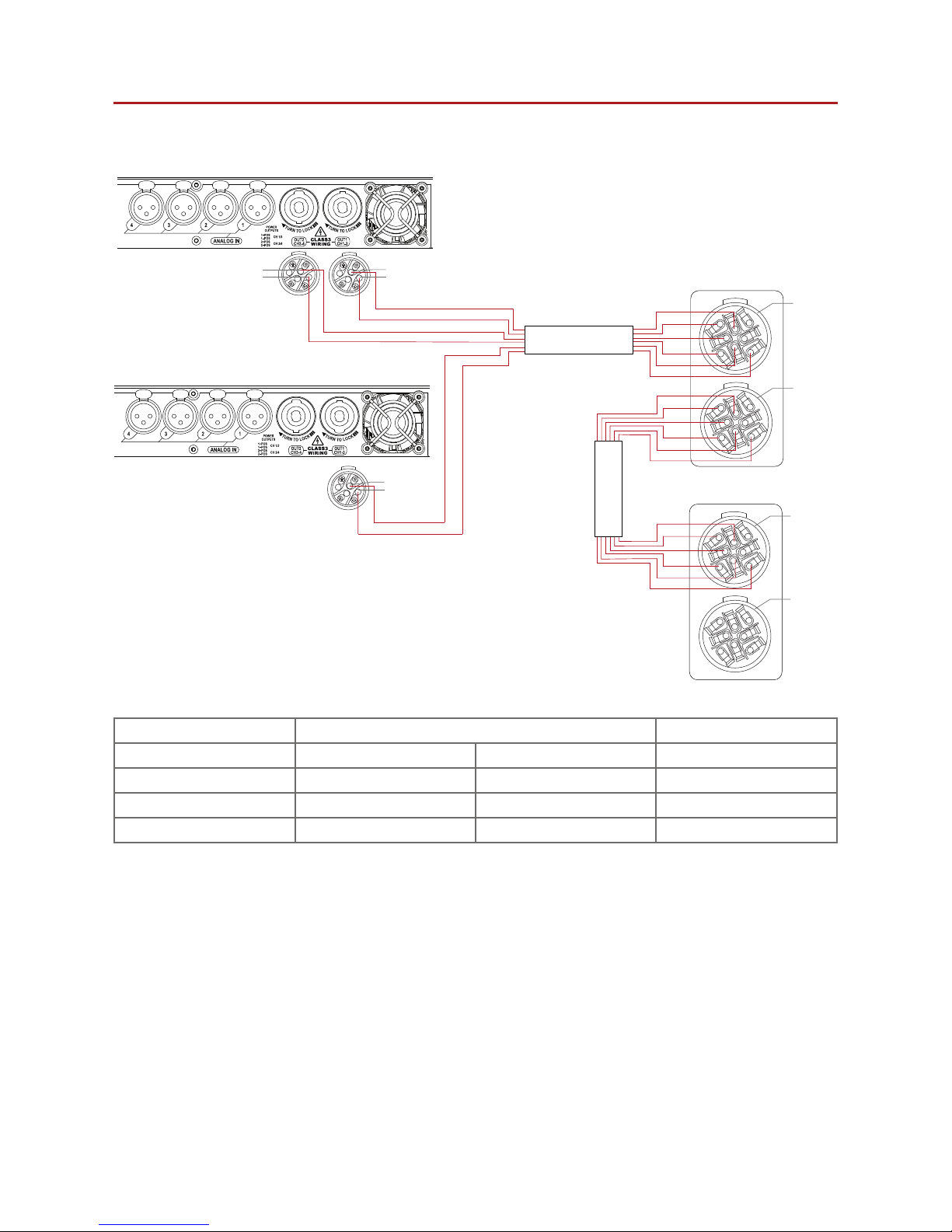

6.5 Air Array wiring diagram

Figure 6.5: Air Array wiring diagram

6 Cabling and wiring

speakON

A speakON

Incubus System User Guide V1.1 Page 17

6 Cabling and wiring

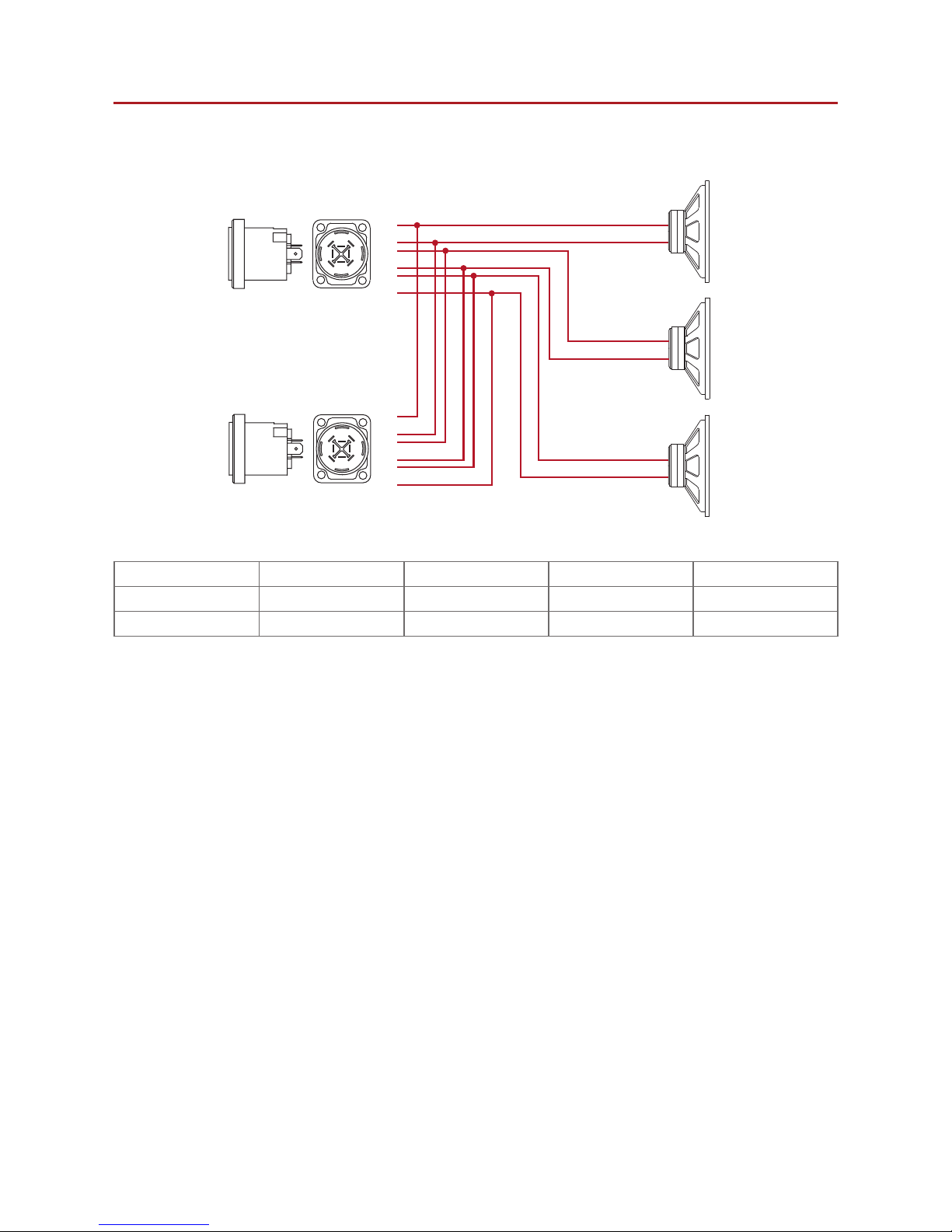

6.6 Air Array LF Bias Q5 speakON

A wiring

LF 1+

LF 1+ LF 1LF 2+ LF 2-

LF 1-

LF 2+ LF 2-

Figure 6.6: Bias V3 left speakONTM A connection

(NOTE: pins +/-3 and +/-4 are not connected)

Bias Q5 for LF (speakONTM A connection)

Channel Channel 1 Channel 2 Output Bottom 2 x 12” LF Top 2 x 12” LF speakON

NL8 pins +/-1 +/-2

Incubus System User Guide V1.1 Page 18

6 Cabling and wiring

MF 1+

MF 1-

MF 2+

MF 2-

HF 3+

HF 3-

HF 4+

HF 4-

MF 1+ (MF 1+) MF 1- (MF 1-) MF 2+ (MF 2+) MF 2- (MF 2-)

HF 1+ (HF 3+) HF 1- (HF 3-) HF 2+ (HF 4+) HF 2- (HF 4-)

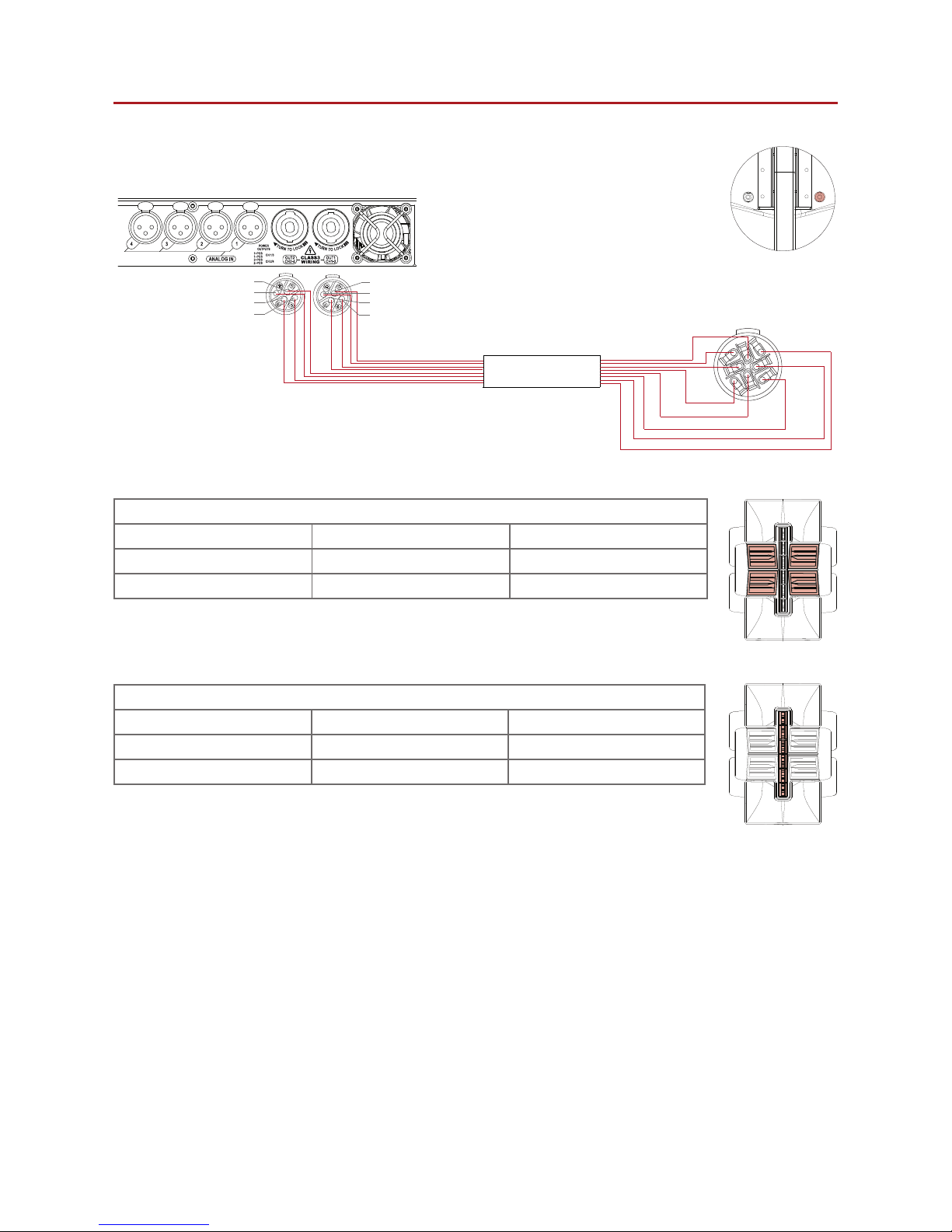

Figure 6.7: Bias Q5 (right speakONTM connection)

Bias Q5 for HF (speakONTM B connection)

Output 2 Channel 3 Channel 4 Output Bottom 3 x 1” HF Top 3 x 1” HF speakON

NL8 pins +/-3 +/-4

6.7 Air Array MHF Bias Q5 speakON

B wiring

Bias Q5 for MF (speakONTM B connection)

Output 1 Channel 1 Channel 2 Output Bottom 2 x 3” MF Top 2 x 3” MF speakON

NL8 pins +/-1 +/-2

Incubus System User Guide V1.1 Page 19

6 Cabling and wiring

1+ 12+ 2-

Out/Link

15” LF

6.8 Hyperfold wiring diagram

speakONTM pins +/-1 speakONTM pins +/-2 In LF (2 x 15”) LF (2 x 15”) Out LF link LF link

Figure 6.8: Wiring diagram

6.9 Hyperfold Bias Q5 speakON

wiring

1+ 12+ 2-

Figure 6.9: Bias Q5

Bias Q5 Channel 1 Channel 2 Output LF (2 x 15”) LF (2 x 15”) Max parallel units 2 (2 : load to ampliﬁer) 2 (2 : load to ampliﬁer)

Incubus System User Guide V1.1 Page 20

6 Cabling and wiring

1+ 12+ 23+ 34+ 4-

2-3+

21” LF (2)

21” LF (1)

21” LF (3)

1+ 12+ 23+ 34+ 4-

Out/Link

2-3+

6.10 Incubus Sub wiring diagram

Figure 6.10: Wiring diagram

speakONTM pins +/-1 +/-2 +/-3 +/-4 In 21” LF (1) 21” LF (2) 21” LF (3) n/c Out LF link LF link LF link n/c

Incubus System User Guide V1.1 Page 21

6 Cabling and wiring

LF 1+ LF 2-

LF 1+ LF 1LF 2+ LF 2-

LF 3+ LF 3-

LF 1+ LF 1-

LF 2+

LF 2LF 3+ LF 3-

Incubus Sub 1

Incubus Sub 2

Out/Link

LF 1+ LF 1-

LF 2+

LF 2LF 3+ LF 3-

LF 1+ LF 1-

LF 2+

LF 2LF 3+ LF 3-

Figure 6.11: Bias Q5

Ampliﬁer Bias Q5 1 Bias Q5 2

Output Output 1 Output 2 Output 1 speakON

NL4 pins 1+/2- 1+/2- 1+/2Drivers 21” LF (1) 21” LF (2) 21” LF (3) speakON

NL8 pins 1+/1- 2+/2- 3+/3-

6.11 Incubus Sub Bias Q5 speakON

wiring

Incubus System User Guide V1.1 Page 22

7 System design

7.1 System design principles

Incubus Series loudspeakers can be arrayed as a single pair facing forward to provide a wide stereo image.

For permanent installation, it is recommended to ﬂy the Air Array loudspeakers for more even coverage. This also allows co-located low frequency enclosures in a single block, increasing sensitivity and providing more consistent bass coverage.

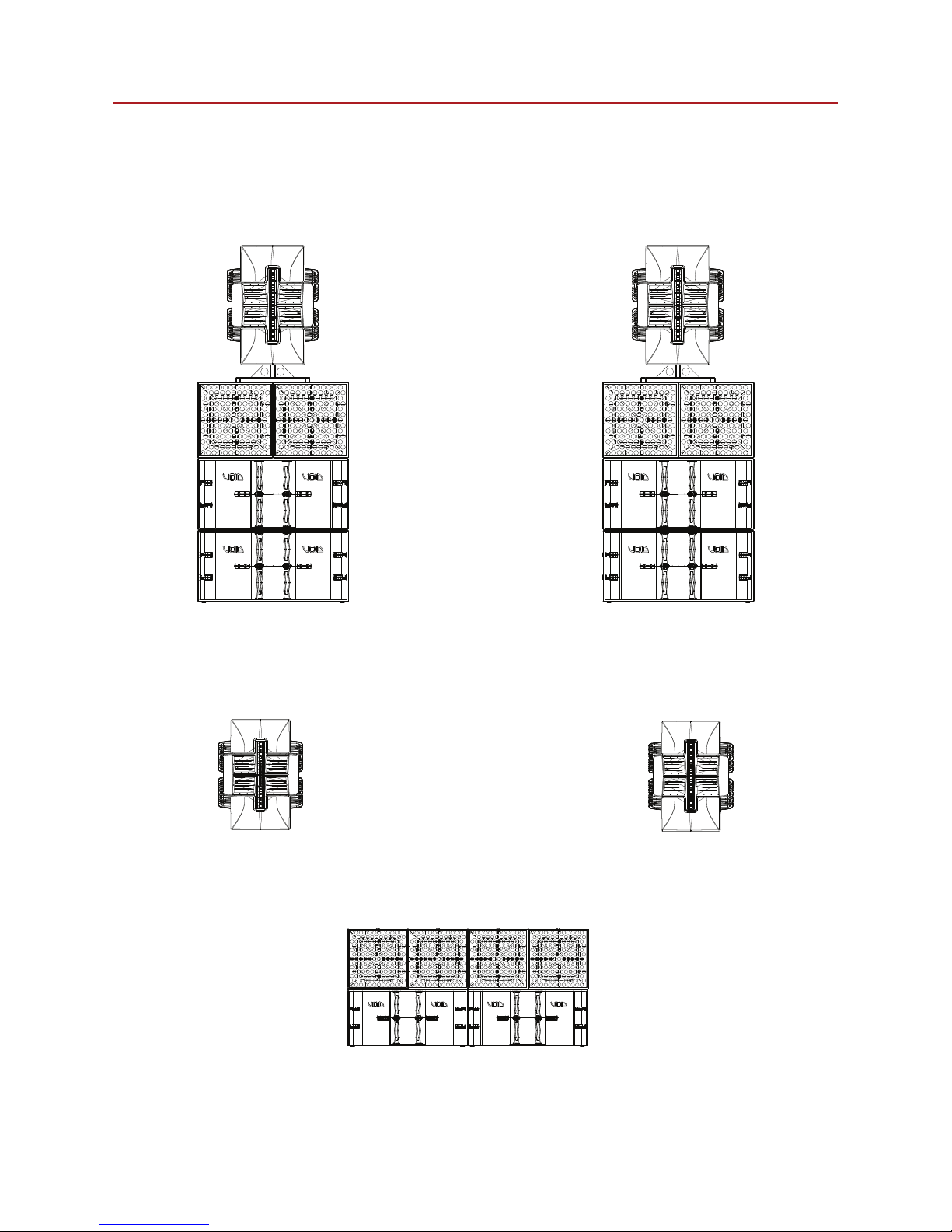

Figure 7.1: Incubus pair arrangement

Figure 7.2: Permanent installation

Incubus System User Guide V1.1 Page 23

7 System design

7.2 Loudspeaker placement and positioning

When deploying Air Array loudspeakers, it is important to consider the speakers’ vertical position to maximise coverage in the vertical axis. Horizontal loudspeaker dispersion ﬁgures dictate the coverage of the loudspeaker, left to right, to the

-3 dB points. The same can be said for the vertical dispersion ﬁgure, but when applied to a listening area, this ﬁgure dictates the audience area coverage front to back.

Vertical dispersion is often overlooked or not assessed properly, resulting in ineciently deployed loudspeaker systems that require more ﬁll loudspeakers than are necessary to achieve required coverage. Following are some basic guidelines when considering the vertical position of your Air Array loudspeaker.

With optimum vertical positioning and aiming applied the loudspeaker system can be used at maximum eciency. With a point source loudspeaker in this conﬁguration the speaker is placed 2m-4m from the ground, aimed half way to two thirds of the way back from the audience area, as shown in ﬁgure 7.4. The applied aiming reduces unwanted reﬂections from the ceiling and directs the highest energy concentration to the audience area requiring it most. This is the most desirable position for the loudspeakers in this example.

Figure 7.4: Correct loudspeaker placement

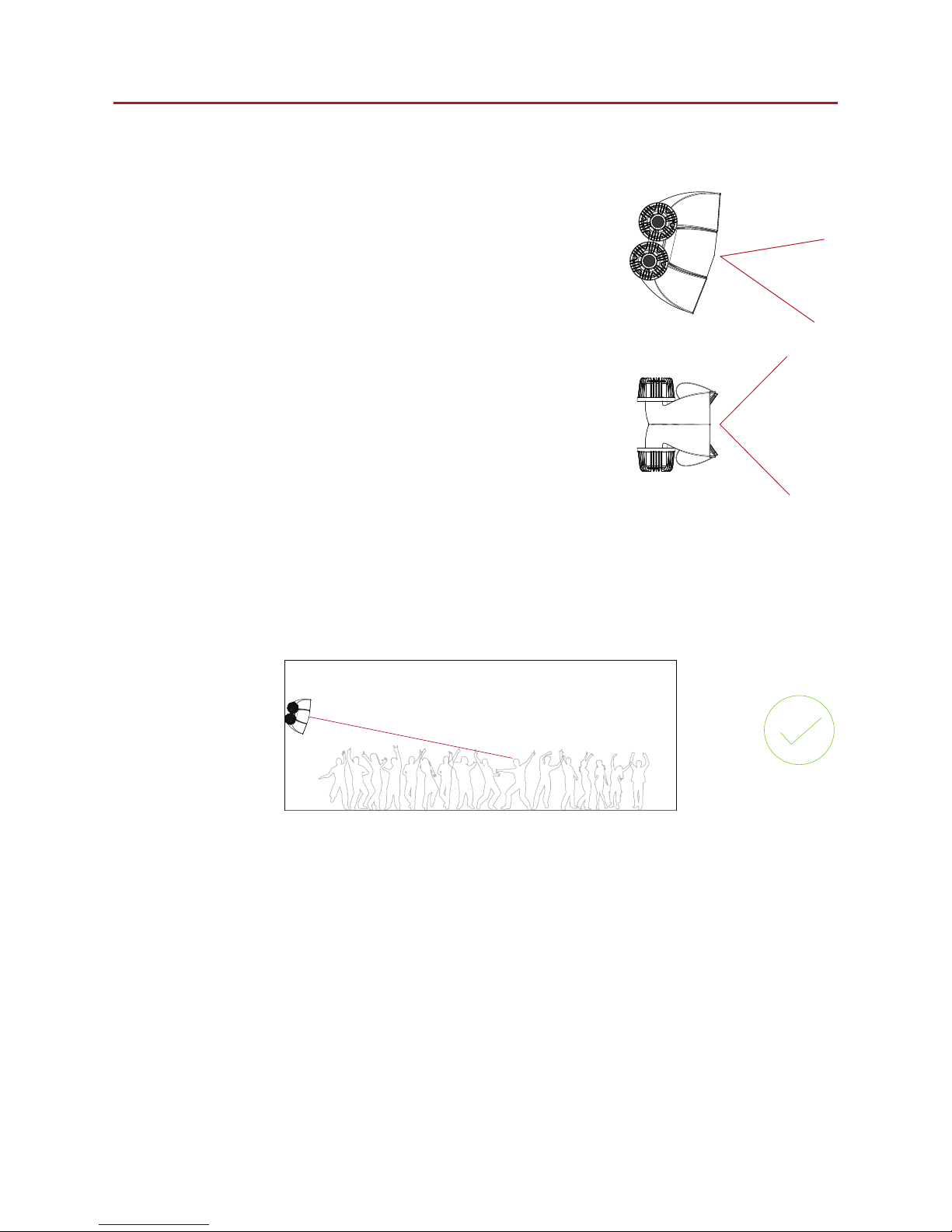

Figure 7.3a: Vertical dispersion (side view)

Figure 7.3b: Horizontal dispersion (top view)

Incubus System User Guide V1.1 Page 24

7 System design

A multi-point loudspeaker system in a club/bar environment can be very pleasing for the listener. However, it’s important that the processes applied to previous examples are still implemented. In ﬁgure 7.5 you can see the loudspeakers have been positioned and aimed optimally. When deploying a multi-point loudspeaker system, extra consideration must be taken to counter unwanted room eects. Careful positioning and aiming of loudspeakers will minimise room eects, while maintaining even coverage throughout the audience area.

Figure 7.5: Multi point loudspeaker arrangement

Audience

Stage

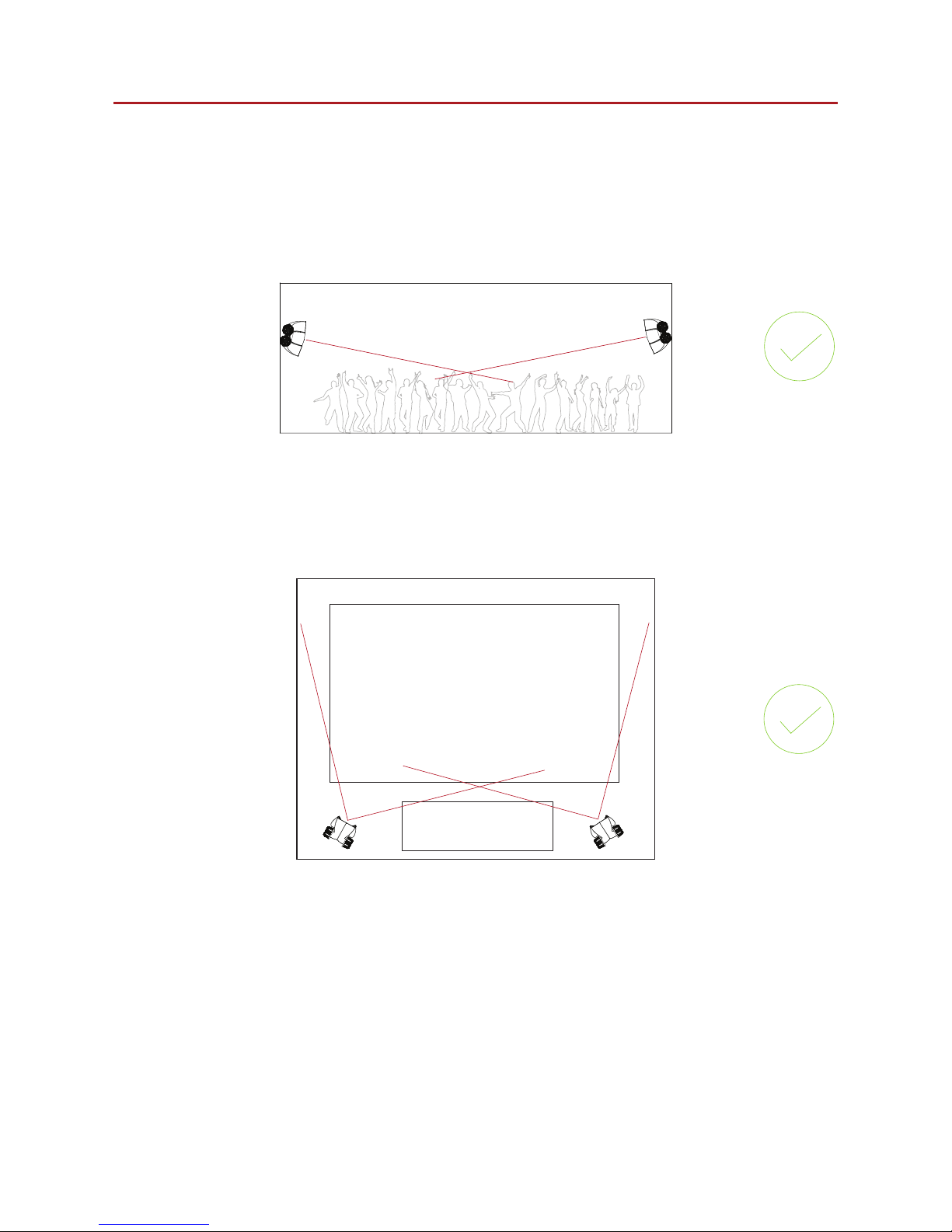

Figure 7.6: Correct horizontal dispersion

In the horizontal plane rotate the Air Array loudspeaker toward the audience area at an angle such that the centre line of the dispersion from each loudspeaker meets about two thirds of the way towards the rear of the audience area. This will help provide a wider coverage and result in more of the power being used usefully.

Incubus System User Guide V1.1 Page 25

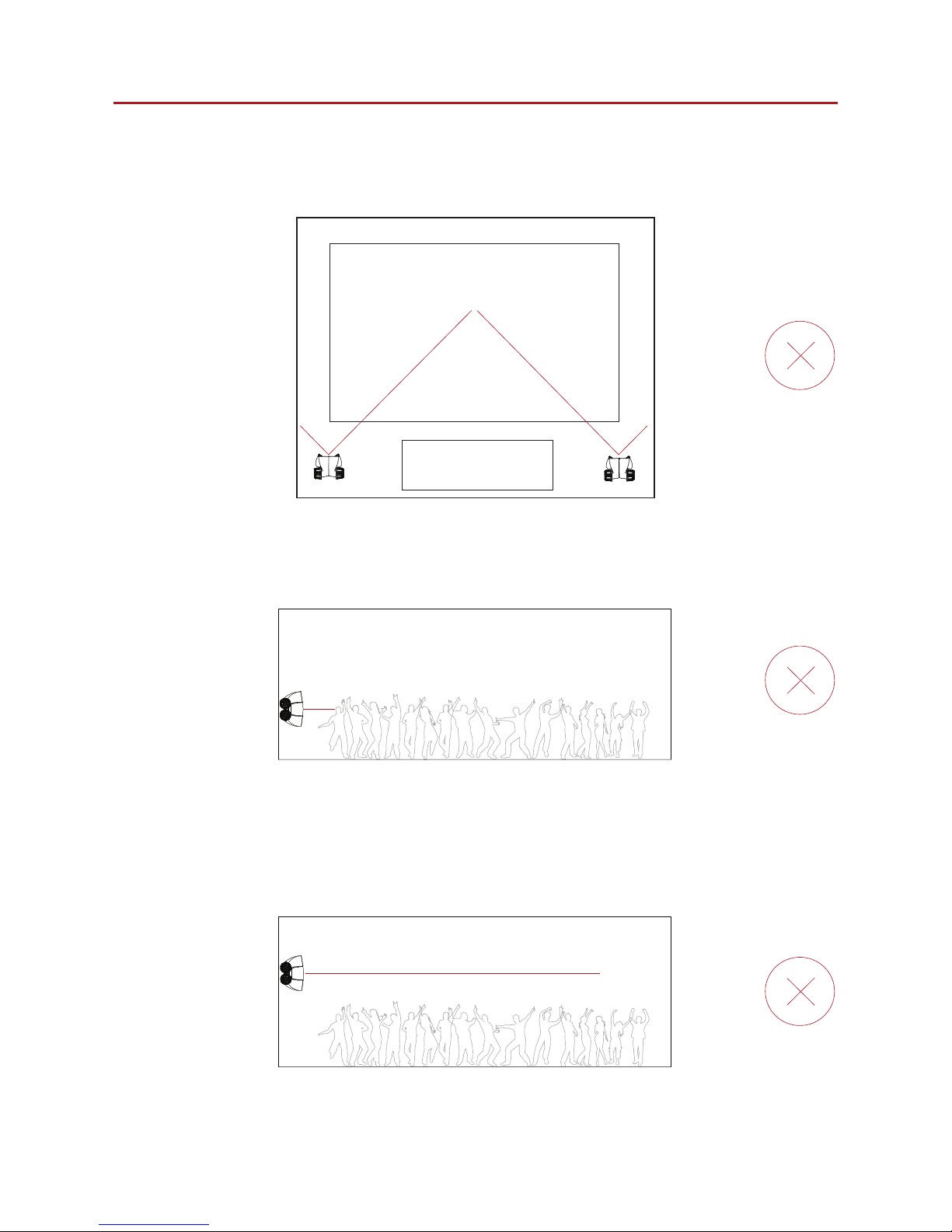

Figure 7.8: Incorrect loudspeaker placement

Figure 7.9: Incorrect loudspeaker placement

Figure 7.9 shows the loudspeaker vertical position is optimal for the audience area but the user hasn’t applied an aiming angle. In this case, a large portion of energy is directed at the ceiling that could result in reduced intelligibility and unwanted room acoustic characteristics. The shallow angle of attack will also induce refraction issues on a hot dance ﬂoor, leading to reduced HF penetration at mid and far distances, again reducing intelligibility and coherence.

In ﬁgure 7.8 the loudspeakers vertical positioning is too low for the audience area. Mid and high range frequencies are absorbed by the ﬁrst two rows of people, resulting in poor coverage and potential acoustic issues from room reﬂections.

Audience

Stage

Avoid directing the Air Array loudspeakers straight forward. This will result in a proportion of the power being directed towards the walls, creating possible reﬂective issues, as well as causing a gap in coverage at the centre of the audience area.

Figure 7.7: Incorrect horizontal dispersion

7 System design

Incubus System User Guide V1.1 Page 26

8 Mounting

Tools required

• 19 mm ratchet spanner/wrench

• 10 mm Allen key

• 6 mm Allen key

8.1 Installation safety

To avoid mechanical hazards, please note the following:

• Safety regulations vary in dierent regions. Full compliance with those regulations must be your priority

• Rigging must only be undertaken by fully-qualiﬁed and experienced riggers who understand local regulations

• This may include consulting a structural engineer before installation of wall brackets

• Remember that all personnel have a duty of care to themselves, to their assistants, to the venue sta and to the public

• Before lifting any part of the system above head height, check the whole rig for loose tools or other items that may fall and cause injury

• Do not use a telephone (even if hands-free) while rigging. Always concentrate fully on the rigging operation

• Do not rig equipment that is worn, damaged, corroded, mishandled or over-stressed in any way

• Use only Void-approved mounting equipment and accessories.

Incubus System User Guide V1.1 Page 27

8.2 Ground stack bracket

Step 1:

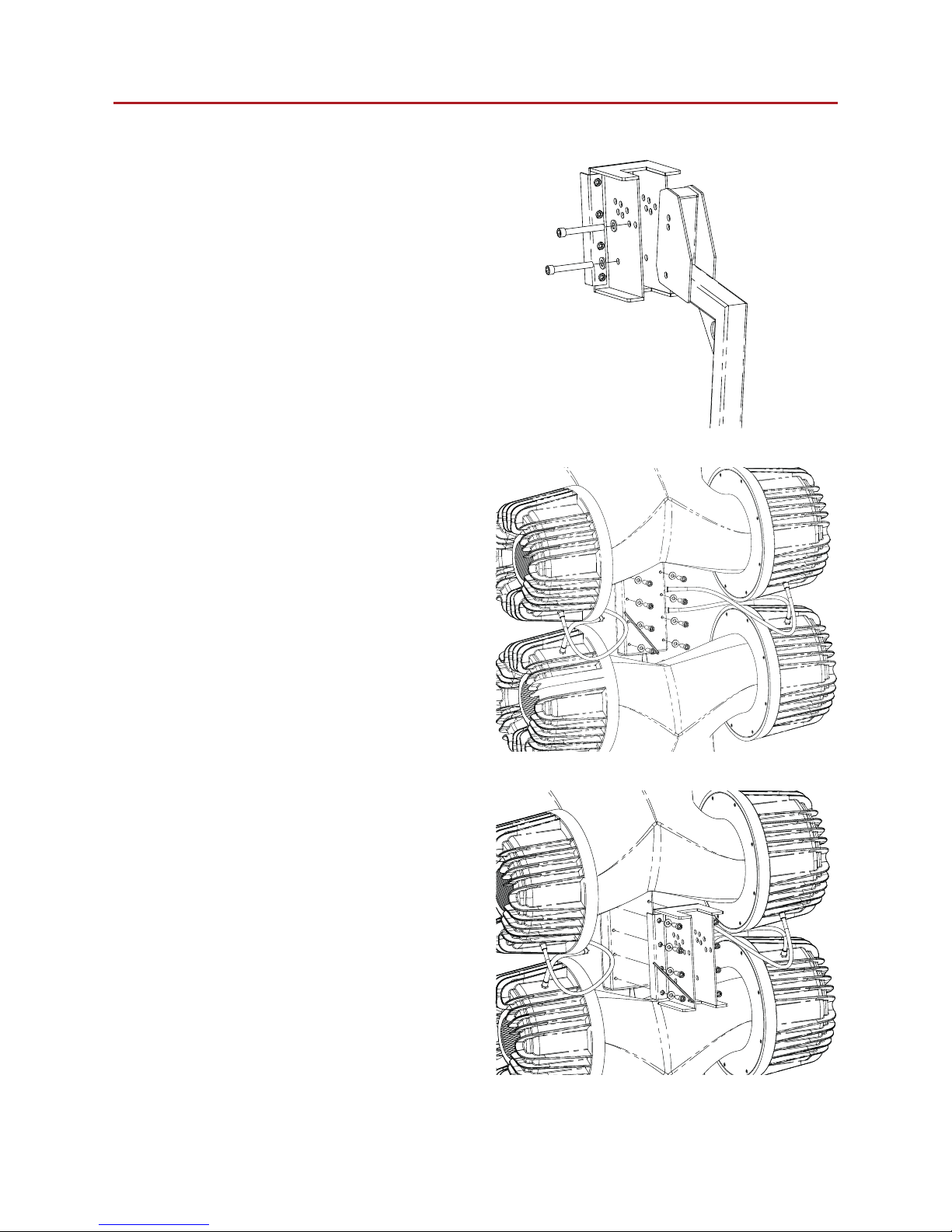

Remove the backing plate from the Air Array bracket by removing both M12 bolts from the bracket assembly.

Figure 8.1: Backing plate removal

Step 2:

Remove all eight M8 bolts from the rear of the Air Array loudspeaker.

Figure 8.2: M8 bolt removal

Step 3:

Attached the backing plate to the Air Array ensuring that all eight M8 bolts are securely fastened.

Figure 8.3: Backing plate attachment

Incubus System User Guide V1.1 Page 28

8.2 Ground stack bracket

Step 4:

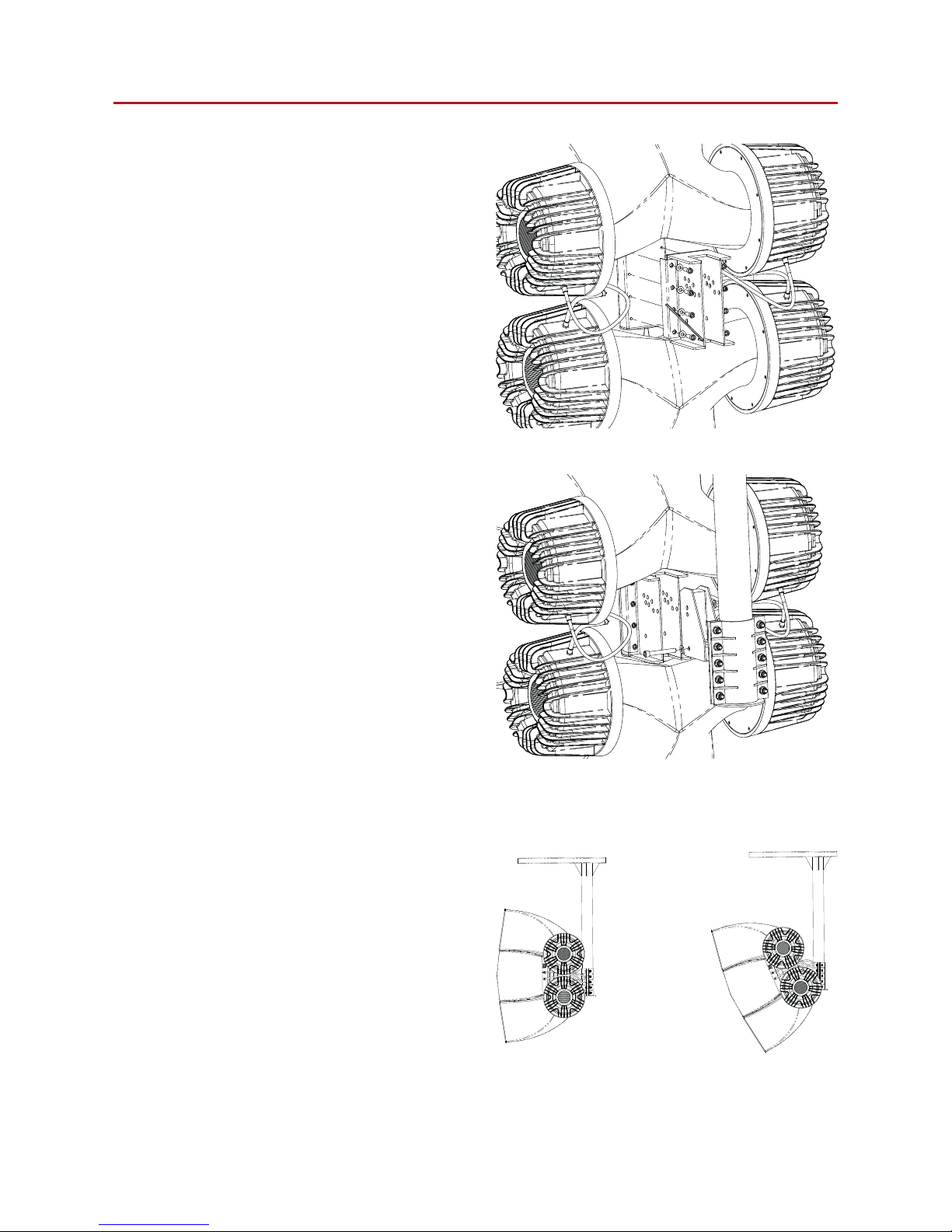

Carefully lower the Air Array loudspeaker into position onto the bracket assembly and attach the M12 bolt through the bracket assembly.

Note: Air Array loudspeakers are heavy and require a minimum of two people to lift. At this stage of the mounting procedure it becomes necessary to have three people, two to lift the Air Array loudspeaker and one to attach the bracket.

Figure 8.4: Air Array positioning

Step 5:

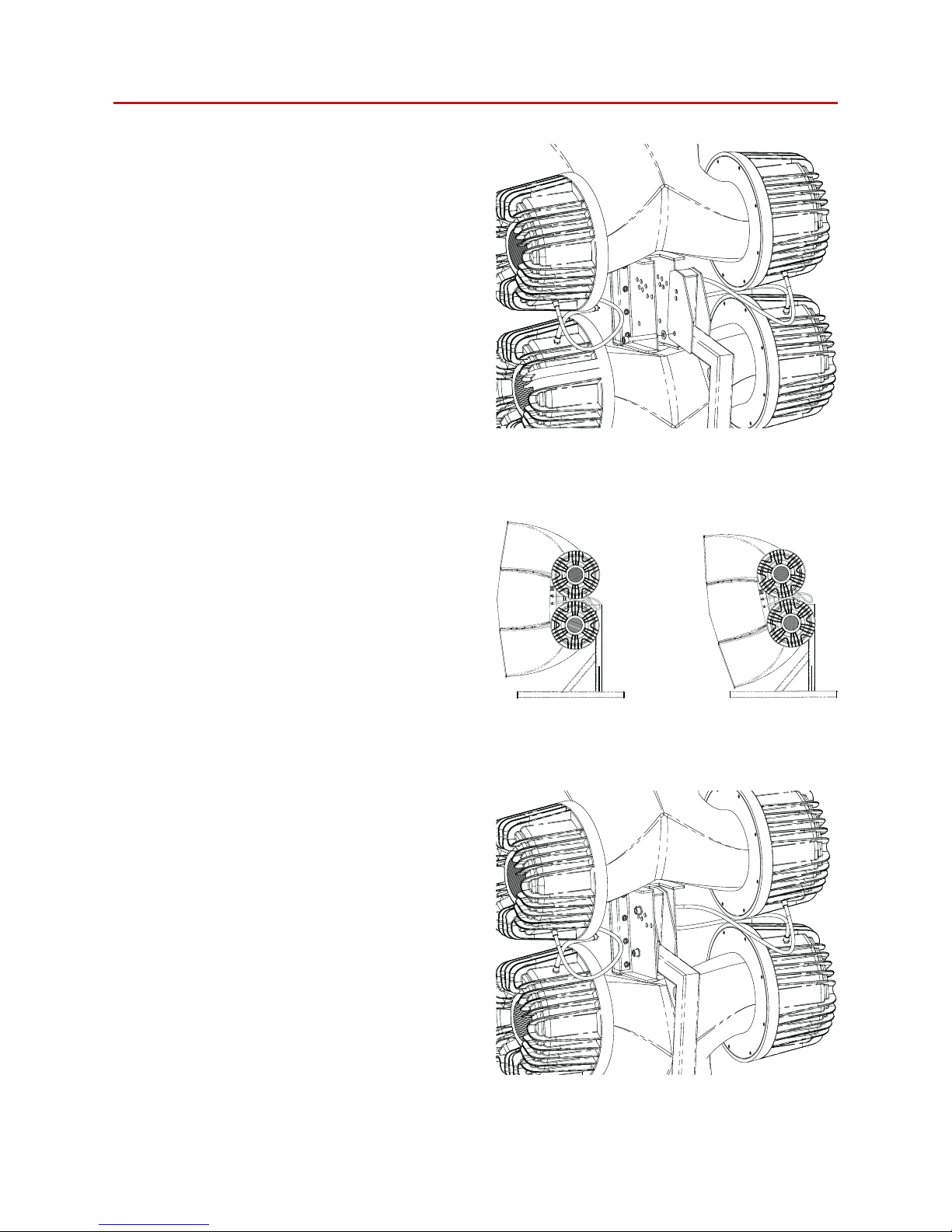

Adjust the vertical angle of the Air Array to the required position.

Figure 8.5: Vertical angle positioning

Step 6:

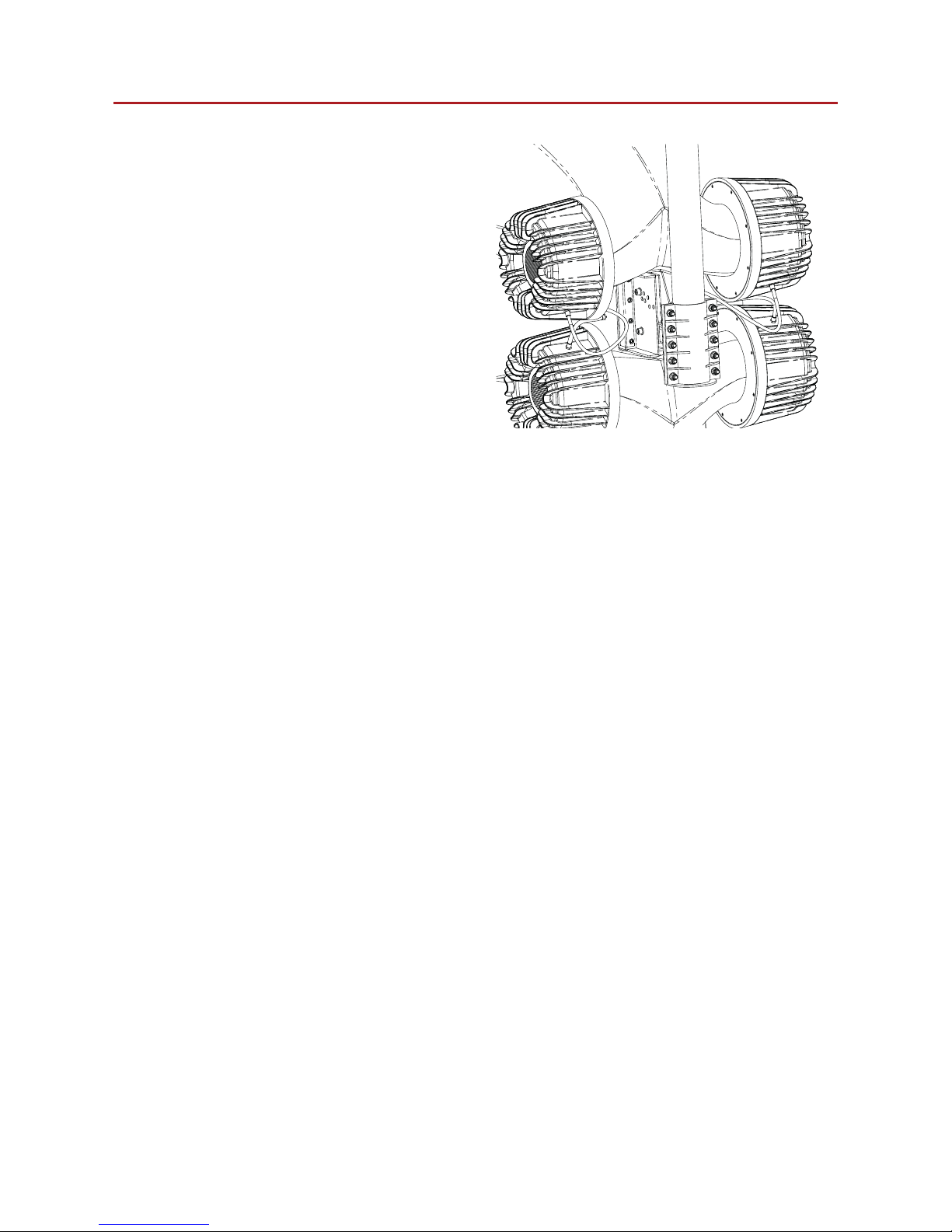

Fit the M12 through the appropriate slot.

Figure 8.6: M12 bolt ﬁxing

Incubus System User Guide V1.1 Page 29

8.3 Flying bracket

Step 1:

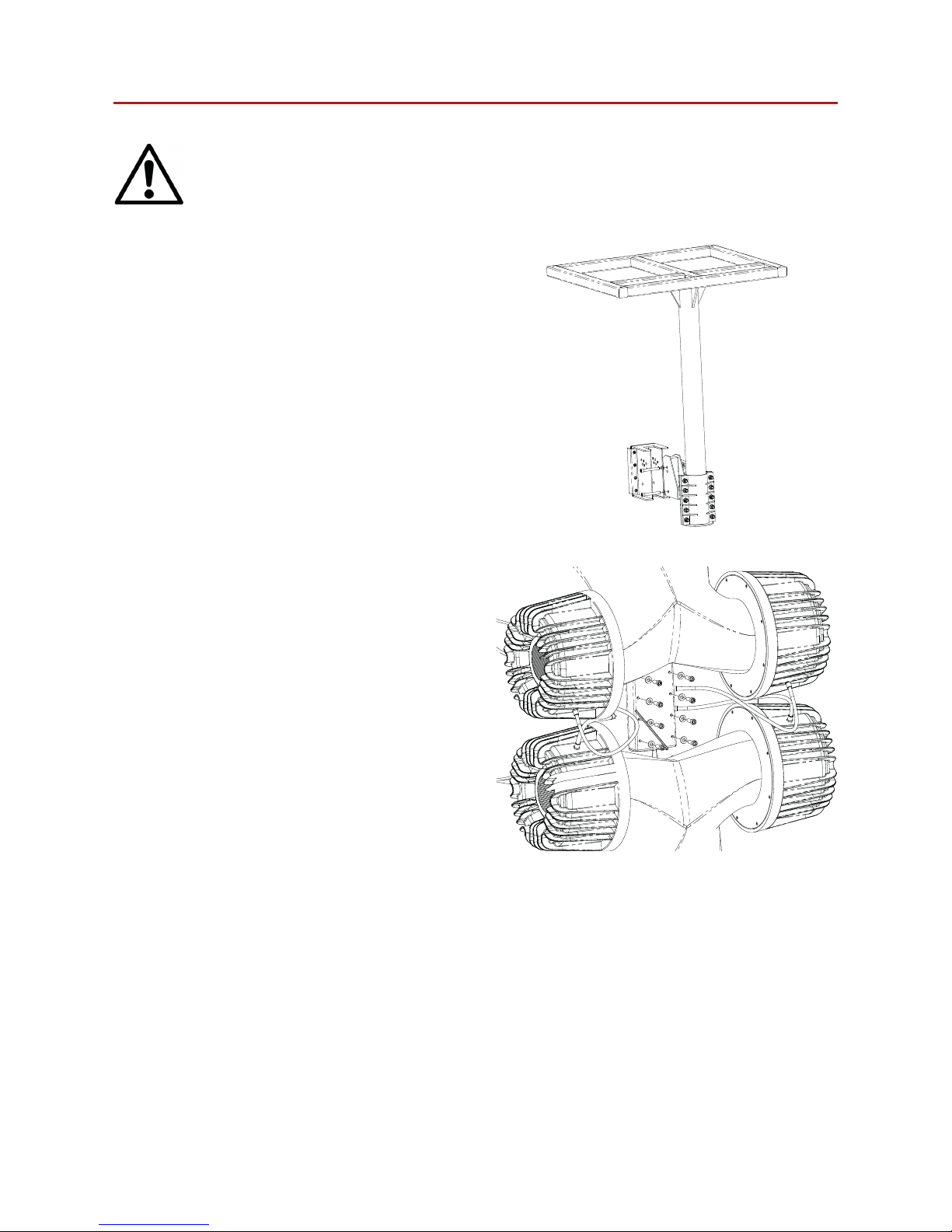

Remove the backing plate from the Air Array bracket by removing both M12 bolts from the bracket assembly.

Figure 8.6: Backing plate removal

Step 2:

Remove all eight M8 bolts from the rear of the Air Array loudspeaker.

Figure 8.7: M8 bolt removal

Note: Flying the Air Array from a ceiling involves complex and dynamic loads, always consult a Void approved distributor for guidance on how to ﬁx it.

Incubus System User Guide V1.1 Page 30

8.3 Flying bracket

Step 3:

Attached the backing plate to the Air Array ensuring that all eight M8 bolts are securely fastened.

Figure 8.8: Backing plate attachment

Step 4:

Carefully lower the Air Array loudspeaker into position onto the bracket assembly and attach the M12 bolt through the bracket assembly.

Figure 8.9: Air Array positioning

Step 5:

Adjust the vertical angle of the Air Array to the required position.

Figure 8.10: Vertical angle positioning

Incubus System User Guide V1.1 Page 31

8.3 Flying bracket

Step 6:

Fit the M12 through the appropriate slot.

Figure 8.11: M12 bolt ﬁxing

Incubus System User Guide V1.1 Page 32

Step 3: Replace the M8 bolts by hand until ﬁnger tight before using hand tools.

Note: Replacing bolts is of particular importance as without them there can be air leakage and detuning.

9 Adjustments

To avoid damage when making adjustments please note the following:

• Removing the grille can cause debris to collect within the enclosure, take care to remove anything that may have collected internally

• Do not use impact tools.

9.1 Wheel removal

Figure 9.1: Bolt removal

Step 1: Remove all four M6 bolts with a 13 mm spanner/wrench.

Step 2: Remove/add the wheels and keep in a safe place. Repeat the process for the other three wheels.

Figure 9.2: Wheel removal

Figure 9.3: Bolt tightening

Incubus System User Guide V1.1 Page 33

Figure 9.4: Bolt removal

Step 1: Undo all eight M6 tab bolts using a 4 mm Allen key, take care NOT to remove the tab bolts as they may become lost within the enclosure.

Figure 9.5: Grille removal

Step 2: Remove grille.

Step 3: Replace the M6 bolts by hand until ﬁnger tight before using hand tools.

Figure 9.6: Bolt replacement

9.2 Hyperfold grille removal

9 Adjustments

Incubus System User Guide V1.1 Page 34

Void Incubus System loudspeakers should only be serviced by a fully-trained technician.

No user serviceable parts inside. Refer servicing to your dealer.

10.1 Return authorisation

Before returning your faulty product for repair, please remember to get an R.A.N. (Return Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will handle the necessary paperwork and repair. Failure to go through this return authorisation procedure could delay the repair of your product.

Note that your dealer will need to see a copy of your sales receipt as proof of purchase so please have this to hand when applying for return authorisation.

10.2 Shipping and packing considerations

• When sending a Void Incubus System loudspeaker to an authorised service centre, please write a detailed description of the fault and list any other equipment used in conjunction with the faulty product.

• Accessories will not be required. Do not send the instruction manual, cables or any other hardware unless your dealer asks you to.

• Pack your unit in the original factory packaging if possible. Include a note of the fault description with the product. Do not send it separately.

• Ensure safe transportation of your unit to the authorised service centre.

10 Service

Incubus System User Guide V1.1 Page 35

11 Appendix: Architectural speciﬁcations

Air Array architectural speciﬁcations

The loudspeaker shall be an active three-way system with independent dedicated ampliﬁcation consisting of four high power 12” (304.8 mm) horn loaded low frequency (LF) transducers, a mid frequency section consisting four 3” (76.2 mm) mid frequency (MF) compression drivers with attached waveguides and six 1” (25.4 mm) high frequency (HF) compression driver mounted on a waveguide to allow constant directivity.

Two hyperbolic horns fed from a split manifold and driven by the four LF transducers shall provide the low frequency section. Each LF transducer shall be enclosed in an independent moulded ﬁbreglass enclosure featuring a heatsink cooling system to reduce power compression levels. Mid frequency transducers are in a sealed enclosure mounted in a V bae conﬁguration for a more coherent radiation pattern over frequency range. HF transducers shall be arranged in a line source conﬁguration positioned on a physical arc, providing a virtual common feed point, resulting in an improved directivity pattern control and higher SPL over the high frequency range. Line source behavioural conditions are met by all sections hence allowing frequency and power shading within a single enclosure.

The LF transducers shall be constructed on a cast aluminium frame, with a treated paper cone,

101.6 mm (4”) voice coil, wound with copper wires on a high quality voice coil former

and neodymium magnets, for high power handling and long term-reliability. Each 3” MF transducer shall have a 6” diaphragm reproducing frequencies down to 500 Hz, and shall be mounted on a high standard waveguide with path length compensation for a better directivity pattern control over the frequency spectrum. The HF transducers shall project sound through a high precision planar waveguide to achieve pattern control and low distortion.

Performance speciﬁcations for a typical production unit shall be as follows: the usable onaxis bandwidth shall be 90 Hz to 26 kHz (±3 dB), with an average 45° directivity pattern on the vertical axis and 90° on the horizontal one (-6 dB down from on-axis level) from 1 kHz to 12 kHz; maximum SPL of 146 dB peak measured at 1 m using IEC268-5 pink noise. Power handling shall be 3600 W AES for the LF section at a rated impedance of 2 x 4 :, 800 W AES for the MF section at a rated impedance of 2 x 4 : and 320 W AES for the HF section at a rated impedance 2 x 5.3 :. The system shall be powered by its own dedicated power ampliﬁcation modules with DSP management, from which crossover points will also be set. The wiring connection shall be via two Neutrik speakON™ NL8. The left NL8 shall be used to power the LF section and the right one shall power the MHF section.

The enclosure shall be of a ﬁbreglass composite with a smooth cellulose ﬁnish of any RAL colour. The system shall be stack mounted with a dedicated stand or can also be ﬂown with a load tested suspension system. The external dimensions of the enclosure shall be (W) 944 mm x (H) 1240 mm x (D) 813 mm (37.2” x 48.8” x 32”). Weight shall be 144.8 kg (319.2 lbs) including stand.

The loudspeaker shall be the Void Acoustics Air Array.

Incubus System User Guide V1.1 Page 36

11 Appendix: Architectural speciﬁcations

Hyperfold architectural speciﬁcations

The loudspeaker shall be an active manifold horn loaded sub system consisting of four high power 15” (381 mm), long excursion, low frequency (LF) transducers mounted in a birch plywood enclosure.

Each low frequency transducer shall be constructed on a cast aluminium frame, with a treated paper cone, 101.6 mm (4”) voice coil, wound with copper wires on a high quality voice coil former for high power handling and long-term reliability.

Performance speciﬁcations for a typical production unit shall be as follows: the usable bandwidth shall be 60 Hz to 190 Hz (±3 dB); maximum SPL of 145 dB peak (142 dB continuous) measured at 1 m using IEC268-5 pink noise. Power handling shall be 4000 W AES at a rated impedance of 2 : (2 x 4 :) with pressure sensitivity at 109.5 dB measured at 1W/1m. The system shall be powered by its own dedicated power ampliﬁcation module with DSP management. The wiring connection shall be via two Neutrik speakON™ NL4 (one for input and one for loop-out to another speaker), allow for pre-wiring of the connector before installation.

The enclosure shall be constructed from 18 mm multi-laminate birch plywood coated with textured polyurea with a smooth cellulose ﬁnish. It shall have a lightweight aluminium bracing and external dimensions of (H) 748 mm x (W) 738 mm x (D) 1218 mm (29.4” x 29.1” x 47.9”). Weight shall be 150 kg (330.7 lbs).

The loudspeaker shall be the Void Acoustics Hyperfold.

Incubus System User Guide V1.1 Page 37

11 Appendix: Architectural speciﬁcations

Incubus Sub architectural speciﬁcations

The loudspeaker shall be an active bandpass-horn hybrid system consisting of three high power 21” (533.4 mm), long excursion, low frequency (LF) transducers mounted in a rectangular enclosure.

Each low frequency transducer shall be constructed on a cast aluminium frame, with a treated paper cone, 152.4 mm (6”) voice coil, wound with copper wires on a high quality voice coil former for high power handling and long-term reliability.

Performance speciﬁcations for a typical production unit shall be as follows: the usable bandwidth of 29 Hz to 95 Hz (±3 dB), with a maximum SPL of 146 dB peak (140 dB continuous) measured at 1 m using IEC268-5 pink noise. Power handling shall be 6000 W AES at a rated impedance of 3 x 8 : and a pressure sensitivity of 105 dB measured at 1W/1m. The system shall be powered by its own dedicated power ampliﬁcation module with DSP management. The wiring connection shall be via two Neutrik speakON™ NL8 (one for input and one for loop-out to another speaker), to allow for pre-wiring of the connector before installation.

The enclosure shall be constructed from a 18 mm multi-laminate birch plywood ﬁnished in a textured ‘TourCoat’ polyurea. It shall have lightweight aluminium bracing and external dimensions of (H) 704 mm x (W) 1479 mm x (D) 1218 mm (27.7” x 58.2” x 48”). Weight shall be 214 kg (471.8 lbs).

The loudspeaker shall be the Void Acoustics Incubus Sub.

www.voidacoustics.com

Head Oce

Void Acoustics Research Ltd Unit 15 Dawkins Road Industrial Estate Poole Dorset BH15 4JY England

+44 (0) 1202 666 006

info@voidacoustics.com

Registered in England & Wales No. 07533536

North America

Void Acoustics North America

503-854-7134

sales.usa@voidacoustics.com

Void Incubus Series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
