Page 1

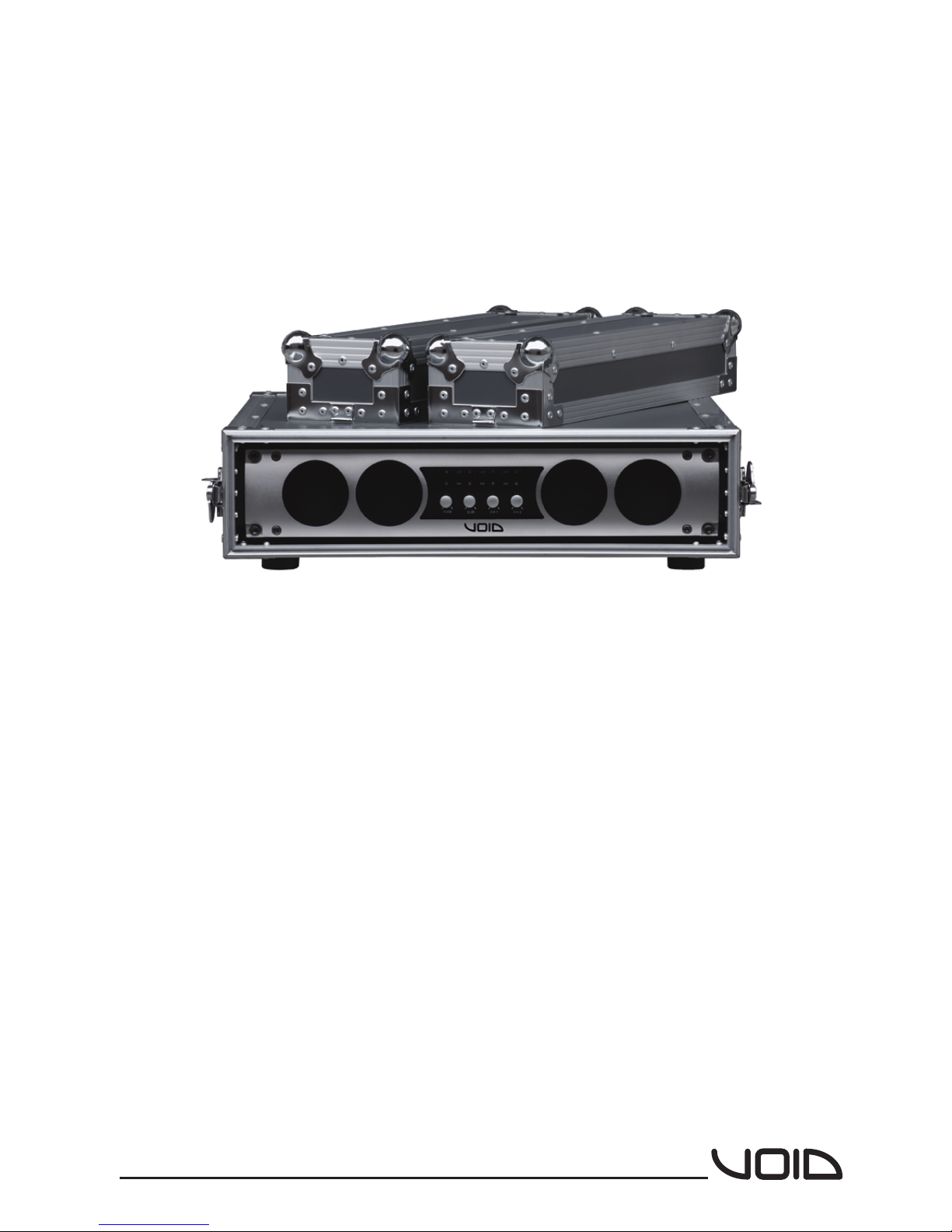

BASYS B3 AMPLIFIER
OWNER'S MANUAL
Page 2
BASYS B3 AMPLIFIER
OWNER'S MANUAL
Basys
Page 3
Basys
Page 3
Reference Manual
Features
Rugged, touring grade chassis. E.I.A. Standard 19" (48.3cm) rack-mountable.
Three output channels. Two stereo channels for Hi output and one summed mono Sub channel.
Front panel power switch with soft start for loudspeaker protection.
Built in Hi and Lo pass electronic crossovers.
Anti Clip limit protection prevents harmful signals from damaging loudspeakers.
High damping factor provides greater control over low frequency drivers for a clean, accurate low end.
Balanced jack/XLR inputs with balanced direct XLR outputs.
Complete protection against shorted outputs, mismatched loads, overheating and DC input/output.
Efficient heat sinks and self-contained forced air cooling system.
Three year warranty and guarantee.
Precautions
Although your amplifier is protected from external faults, the following safety precautions are recommended:
1. There are important differences between the CH 1&2 Hi outputs and the Sub&Hi outputs. Do not connect
B12 cabinets directly to the Sub&Hi outputs. Connect B12 cabinets to the CH 1&2 Hi outputs using the
B12's top input speakon, or the link out Speakon on B15 Sub cabinets to the B12's lower input speakon.
B15 Subs must be connected to the Sub&Hi outputs with 4 core cable for the B12's to operate.
2. Switch off the amplifier or turn down the inputs before connecting to the in/out XLR's.
3. Do not short the ground lead of an output cable to the input signal ground. This will form a ground loop
and may cause oscillations.
4. Do not operate the amplifier from AC mains in excess of 10% variation above or below the selected line
voltage, and only at the specified line frequency.
Page 4
Basys
Page 4
Reference Manual

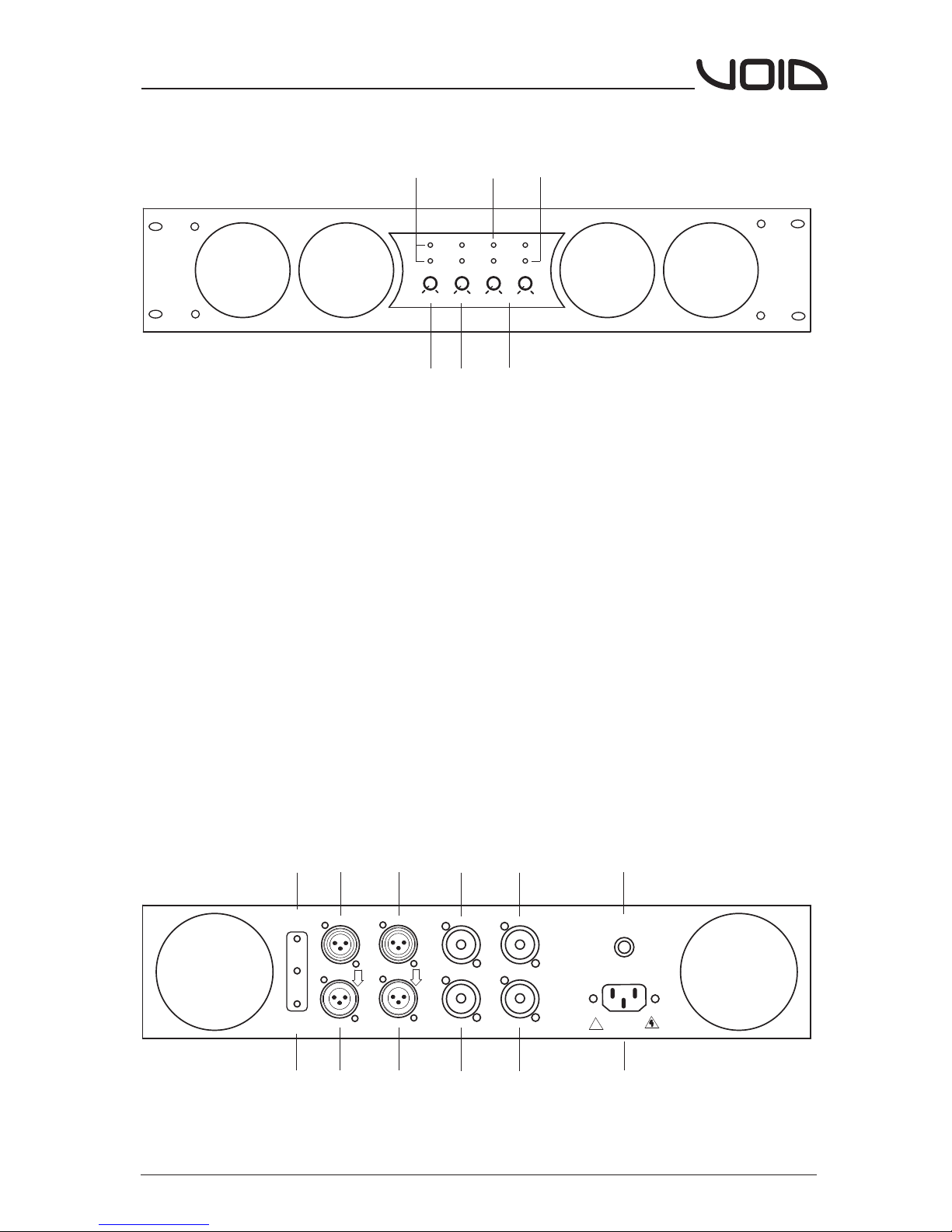

Front Panel
1.Power Switch
Rotate clockwise to turn the amp on and counter clockwise for off.
2.Sub Level Control
To control the Sub output level.
3.CH 1&2 Level Controls
To control CH 1&2 Hi outputs.
4.Power on LED's
Both Power LED's will light to show that the amplifier is on.
5.Signal LEDs
When illuminated the LEDs indicate an audio signal is present at the channel's
output.
6.Limit LED
The Limit LED indicates when the limiter is active. The limiter circuit examines
the audio signal to prevent the amplifier from clipping.
1
3
1
3
4
5
2
SUB
CH 1 CH 2
ON OFF
SIG
SIG
LIMTLIMT
SIG
LIMT
6
BREAKER
OUTPUTS
CH 2
CH 1
15 A
50/60 Hz
!
220 - 240 VAC
HI OUT
HI +1 -1
SUB & HI
SUB +1 -1
HI +2 -2
CE
4
5
6
5
6
7
8
AC INPUT
CH 1 & CH 2 80 Hz
HIGH PASS FILTER
SUB OUT 80 Hz
LOW PASS FILTER
2
INPUTS
CH 1CH 2
3
4
LINK
LINK
Page 5
Basys
Page 5
Reference Manual
Rear Panel
1.Filter Bypass Control
Used to bypass the Hi Outputs 80 Hz Hi pass filter. The filter is factory preset to
the enable position
2.Filter Frequency Control
Used to adjust the sub out low pass filter frequency. The filter is factory preset to
80 Hz for use with Basys systems, but can be adjusted from 50 Hz up to 250 Hz for
use with other speaker systems or setups.
3.Input JACK/XLR's
The input impedance of the balanced jack/XLR is 20K ohms. Pin 2 & tip = +ve
4.Output XLR's
Linked output from the inputs.
5.CH1 and CH2 Hi Outputs
Stereo Hi outputs wired 1+ and 1-
6.Sub&Hi Outputs
Summed mono Sub output on 1+ and 1-, Hi Output on 2+ and 2-
7.Power Breaker
Resetable breaker for amplifier protection, rated at 15 amps
8.Power Connector
IEC power input connector. AC 230V, 50 Hz
TECHNICAL SPECIFICATIONS
S/N 20Hz-20kHz, ref full output
20kΩ balanced
LIMITER COMPRESSION RATIO
INPUT SENSITIVITY
FREQUENCY RESPONSE ref.100W@8Ω
20Hz - 20kHz +/- 0.5 dB
TOTAL HARMONIC DISTORTION (THD)
230 VAC 50Hz +/- 10%
VOLTAGE RANGE
AMPLIFIER PROTECTION
1.1 Vrms
CROSSTALK
SLEW RATE
CMRR
INPUT IMPEDANCE
DAMPING FACTOR 1kHz and Below
CONNECTORS
COOLING
40V/us
20:1
Input: balanced XLR output: 4 way Speakon
Continuously variable speed fans
Full short circuit, open circuit, thermal, ultrasonic, and
RF protection, stable into reactive or mismatched loads
0.05%
>90dB
>100dB
CH 1&2 >350 - Sub Out >600
100 dB
Model : Basys B3 Amplifier
HI - LO PASS FREQUENCY
Hi out 80 Hz 18 dB/oct Sub out 50 - 250 Hz 18 dB/oct
Page 6
Basys
Page 6
Reference Manual
8
4
8
4
1kHz
10Hz-20kHz
290
283
400
391
460
452
650 640
0.1%THD+N 0.1%THD+N
B3
CH 1 & CH 2
SUB Out
Impedance
RMS Output Power (watts)
TECHNICAL SPECIFICATIONS
Dimensions :
48.2 cm rack mount width, 9 cm high and 44.5 cm deep
Weight :
22.0 Kg net
25.5 Kg shipping weight
Maximum Current Draw
all ch - 4 ohms 10 Amps
Page 7
Basys
Page 5
Reference Manual
Service
This unit has very sophisticated circuitry and should only be serviced by a fully trained
technician.
No user serviceable parts inside
Refer servicing to a qualified technician
Worldwide Service
Service may be obtained from your local authorised service centre. To obtain service,
simply present your sales receipt as proof of purchase along with the defective unit to
an authorised service centre. They will handle the necessary paperwork and repair.
Remember to transport your unit in the original factory packaging.
1. When sending a Basys Series product to an authorised service centre for service,
please write a detailed description of the fault and list any other equipment used in
conjunction with the faulty product. Send the fault description with the faulty product,
do not send it separately.
2. Ensure safe transportation of your unit to the authorised service centre. Ship it in the
original factory packaging if possible.
3. Do not ship the unit in any kind of rack. Ignoring this warning may result in extensive
damage to the unit and the equipment rack. Accessories are not needed. Do not
send the instruction manual, cables or any other hardware.
4. Before returning your faulty product for repair, please remember to get a return
authorisation number from the dealer whom you purchased your product from.
Failure to do so could delay the repair of your product.
Warranty Registration
Please take time to fill out the warranty registration form at the back of this manual and
return it to Void Acoustics.
Environmental
WEEE Mark
If you want to dispose of this product, do not mix with general
household waste. There are separate collection systems for used
electronic products in accordance with legislation under the WEEE
Directive (Directive 2002/96/EC) and is effective only within the
European Union.
This product is Rohs compliant
bP
Page 8
Basys
Page 6
Reference Manual
LIMITED WARRANTY
THE WARRANTY
For a period of three (3) years from the date of delivery to the original purchaser (as shown
on the original invoice or sales receipt), Void Acoustics (hereinafter "Void") warrants to the
ORIGINAL OWNER of each new Basys Series product (provided it was purchased at an
Authorised Void Dealer) that it is free of defects in materials and workmanship and that each
product will meet or exceed all factory published specifications for each respective model.
Void agrees to repair or replace (at its discretion) all defective parts at no charge for labour or
materials; subject to following provisions:
WARRANTY VIOLATIONS
Void shall take no responsibility for repair or replacement as specified under this warranty, if
the damaged product has been subject to misuse, accident, neglect or failure to comply with
normal maintenance procedures; or if the serial number has been defaced, altered or
removed. Nor will Void accept responsibility for, or resulting from, improper alterations or
unauthorised parts or repairs. This warranty does not cover any damage to speakers or any
other consequential damage resulting from breach of any written or implied warranty.
VOID WARRANTY PROVISIONS
Void will remedy any defect, regardless of the reason for failure (except as excluded) by
repair, or replacement. Void will remedy the defect and ship the product within a reasonable
time after receipt of the defective product at an Void Authorised Service Centre.
TO OBTAIN WARRANTY SERVICE
In the event that a Void product requires service, the Owner must contact Void or an
Authorised Void Service Centre to receive an R.A.N. (Return Authorisation Number) and
instructions on how to return the product to the Void Authorised Service Centre, or to the
factory. Void (or its Authorised Service Centre) will initiate corrective repairs upon receipt of
the returned product. Please save the original carton and all the packing materials in case
shipping is required. All products being returned to the factory or service centre for repairs
must be shipped prepaid.
If the repairs made by Void or the Void Authorised Service Centre are not satisfactory, the
Owner is instructed to give written notice to Void. If the defect or malfunction remains after a
reasonable amount of attempts by Void to remedy the defect or malfunction, the Owner shall
then have the option to elect either a refund or replacement of said Void product free of
charge. The refund shall be an amount equal to but not greater than the actual purchase
price, not including any taxes, interest, insurance, closing costs and other finance charges
(minus reasonable depreciation on the product). If a refund is necessary, the Owner must
make the defective or malfunctioning product available to Void free and clear of all liens or
other restrictions.
MODIFICATIONS OF EQUIPMENT
Void reserves the right to modify or change equipment (in whole or part) at any time prior to
delivery thereof, in order to include therein electrical or mechanical improvements deemed
appropriate by Void, but without incurring any liability to modify or change any equipment
previously delivered, or to supply new equipment in accordance with any earlier
specifications.
DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES
YOU, THE OWNER, ARE NOT ENTITLED TO RECOVER FROM VOID ANY INCIDENTAL
DAMAGES RESULTING FROM ANY DEFECT IN THE VOID PRODUCT. THIS INCLUDES
ANY DAMAGE TO ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A
DEFECT.
WARRANTY ALTERATIONS
No person has the authority to enlarge, amend, or modify this Warranty. This Warranty is not
extended by the length of time which the Owner is deprived of the use of product. Repairs
and replacement parts provided pursuant to the Warranty shall carry only the non-expired
portion of the Warranty.
THIS STATEMENT OF WARRANTY SUPERSEDES ALL OTHERS CONTAINED IN THIS
MANUAL
Technical and design specifications are subject to change without notice
Page 9
Warranty Copy
Date of purchase Model
Serial number
Suppliers name and address
Post code : Tel :
What to do if your Void product needs repair
Contact the dealer from whom you purchased the product
and get a return authorisation number.
Return the product (preferably in its original box) to :
Void Acoustics, Unit 10B, Dawkins Road Ind Est, Poole,
Dorset, BH15 4JD, UK.
Void Acoustics
Warranty
This Void Acoustics product is guaranteed against defects
due to faulty materials or workmanship for a period of 3
years from the date of original purchase, subject to the
following restrictions.
1. This warranty is only valid in the country of purchase.
2. That the product has not been abused or operated in
conjunction with unsuitable or faulty apparatus.
3. That the product has not been modified, disassembled
or tampered with by any person other than Void Acoustics
technical staff.
4. That the product has not suffered damage in transit.
Do not send goods to Void Acoustics without first obtaining
a return authorisation number.
Carriage costs to Void Acoustics will be returned to the
customer if warranty work proves necessary. Packing,
insurance and freight on the return journey will be paid by
Void Acoustics or its authorised dealers.
This warranty in no way affects your statutory rights.
Void Acoustics
Unit 10B, Dawkins Road Ind Est, Poole, Dorset, BH15 4JD
Tel: +44 (0)870 1651 332 Fax: +44 (0)870 1651 352
Page 10
Void Acoustics
Unit 10B
Dawkins Road Ind Est
Poole
Dorset
BH15 4JD
UK
Warranty Registration
Thank you for purchasing this Void product. Please
complete this warranty registration card and cut off this
part and send it to the address overleaf.
Date of purchase Model
Serial number
Suppliers name and address
Post code : Tel :
Your name and address
Post code : Tel :
Loading...
