Air Vantage
User Guide V1.0
©2018 Void Acoustics Research Ltd.
Version 1.0
This user guide is subject to change without notice.
For the latest online version, visit: www.voidacoustics.com
Void Acoustics and the Void logo are registered trademarks of Void
Acoustics Research Ltd. in the United Kingdom, USA and other
countries; all other Void trademarks are the property of Void Acoustics
Research Ltd.
Air Vantage User Guide V1.0
Page 3
Contents
1 Safety and regulations 4
1.1 Important safety instructions 4
1.2 Limitations 4
1.3 EC declaration of conformity 4
1.4 WEEE directive 4
2 Limited warranty 5
3 Unpacking and Checking 6
4 About 7
4.1 Welcome 7
4.2 Air Vantage overview 7
4.3 Key features 7

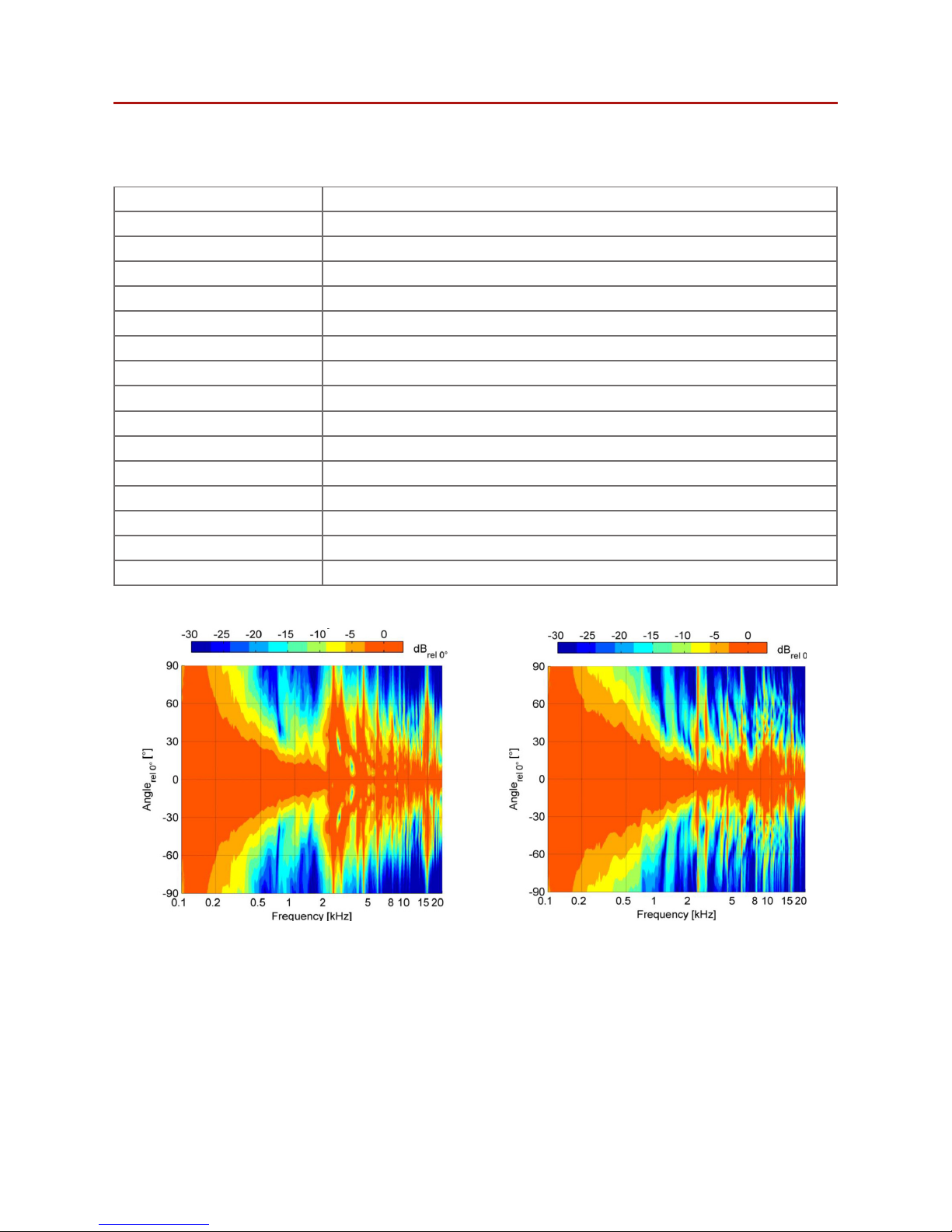

4.4 Specifications 8
4.5 Dimensions 9
5 Cabling and wiring 10
5.1 Electrical safety 10
5.2 Cable considerations for fixed
installations
10

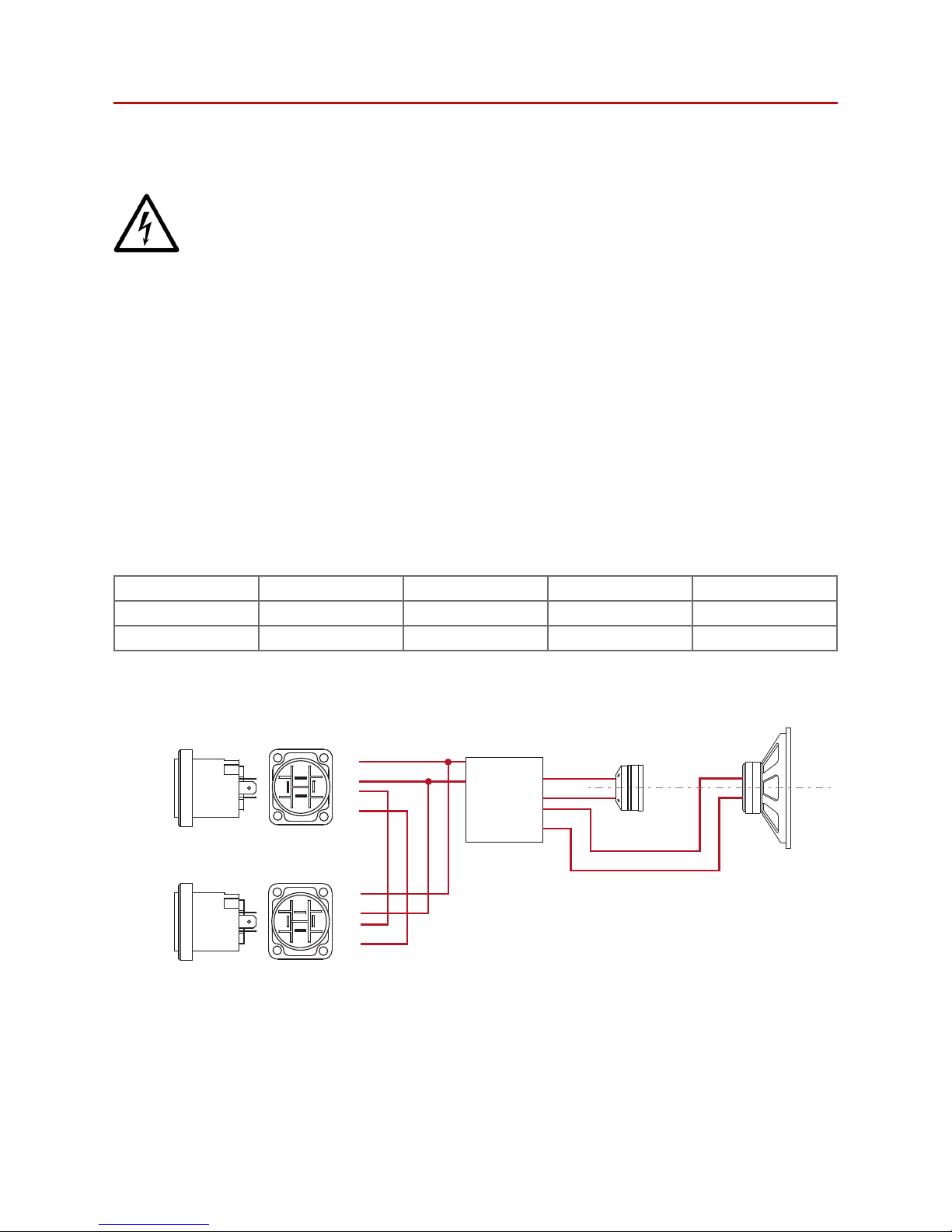

5.3 Air Vantage wiring diagram 10

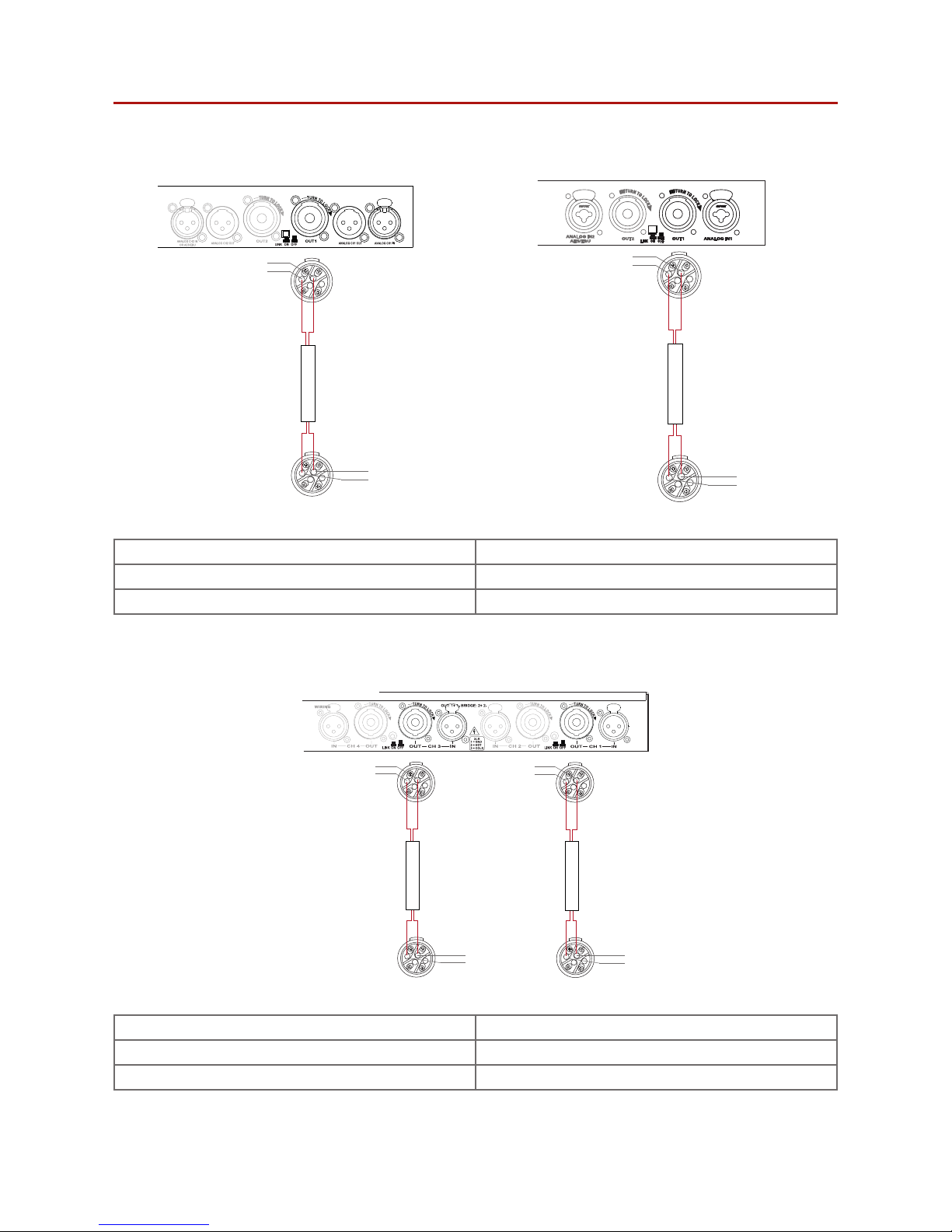

5.4 Bias V3/V9 speakONTM wiring 11
5.5 Bias VQ speakONTM wiring 11
5.6 Bias D1/Q2 Phoenix wiring 12
5.7 Bias Q5 speakONTM wiring 12
6 System design 13
6.1 Bass alignment 13
6.2 System design principles 13

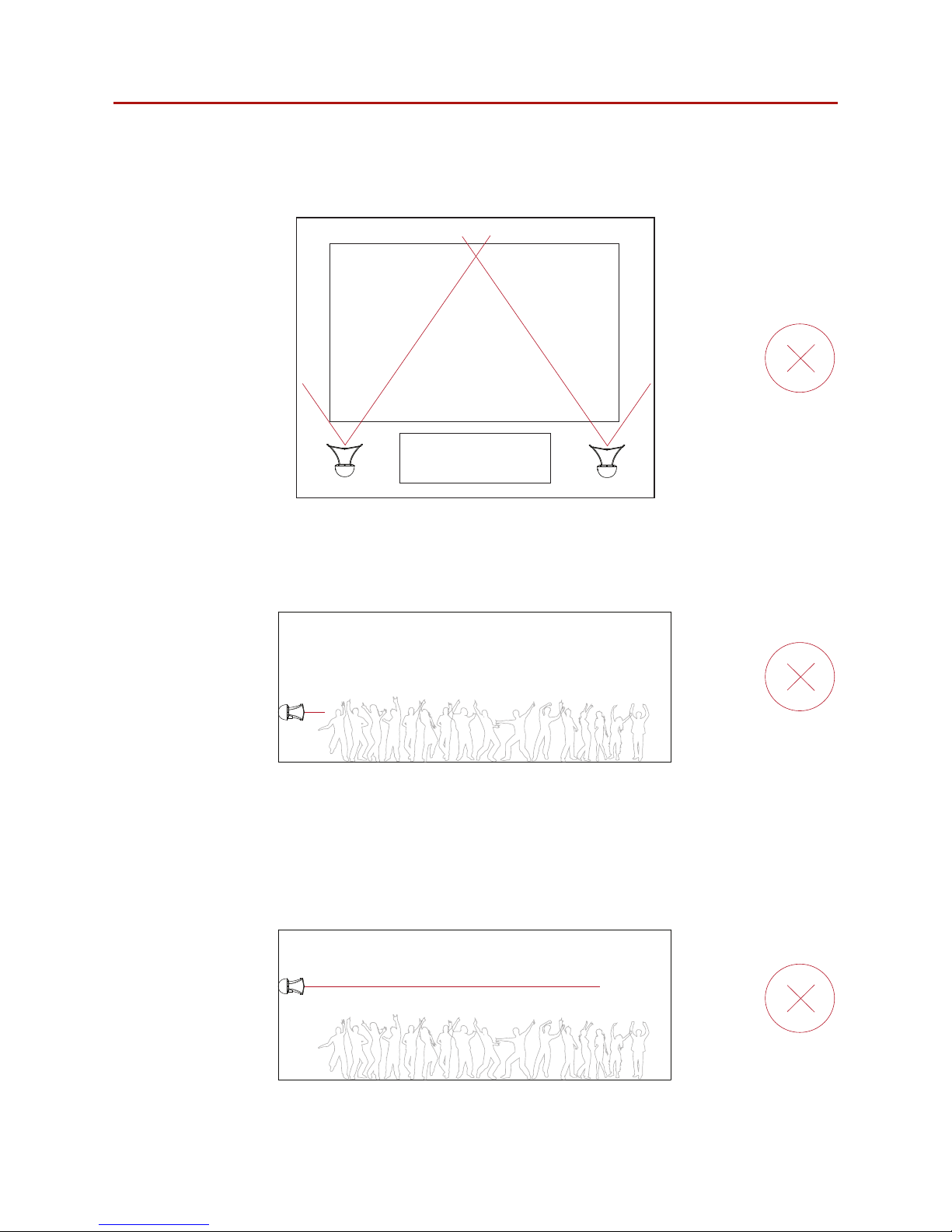

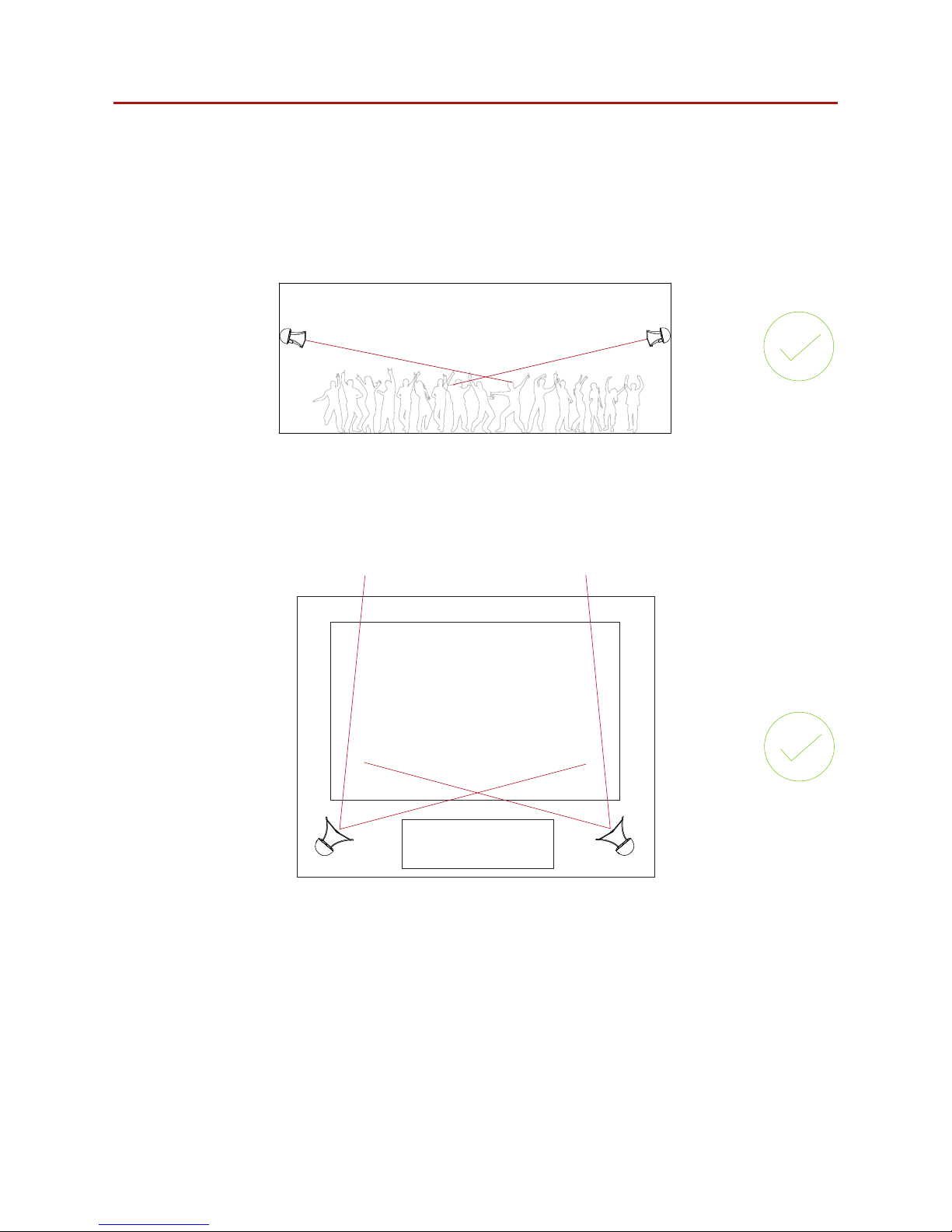

6.3 Loudspeaker placement and positioning 15
7 Mounting 18
7.1 Installation safety 18

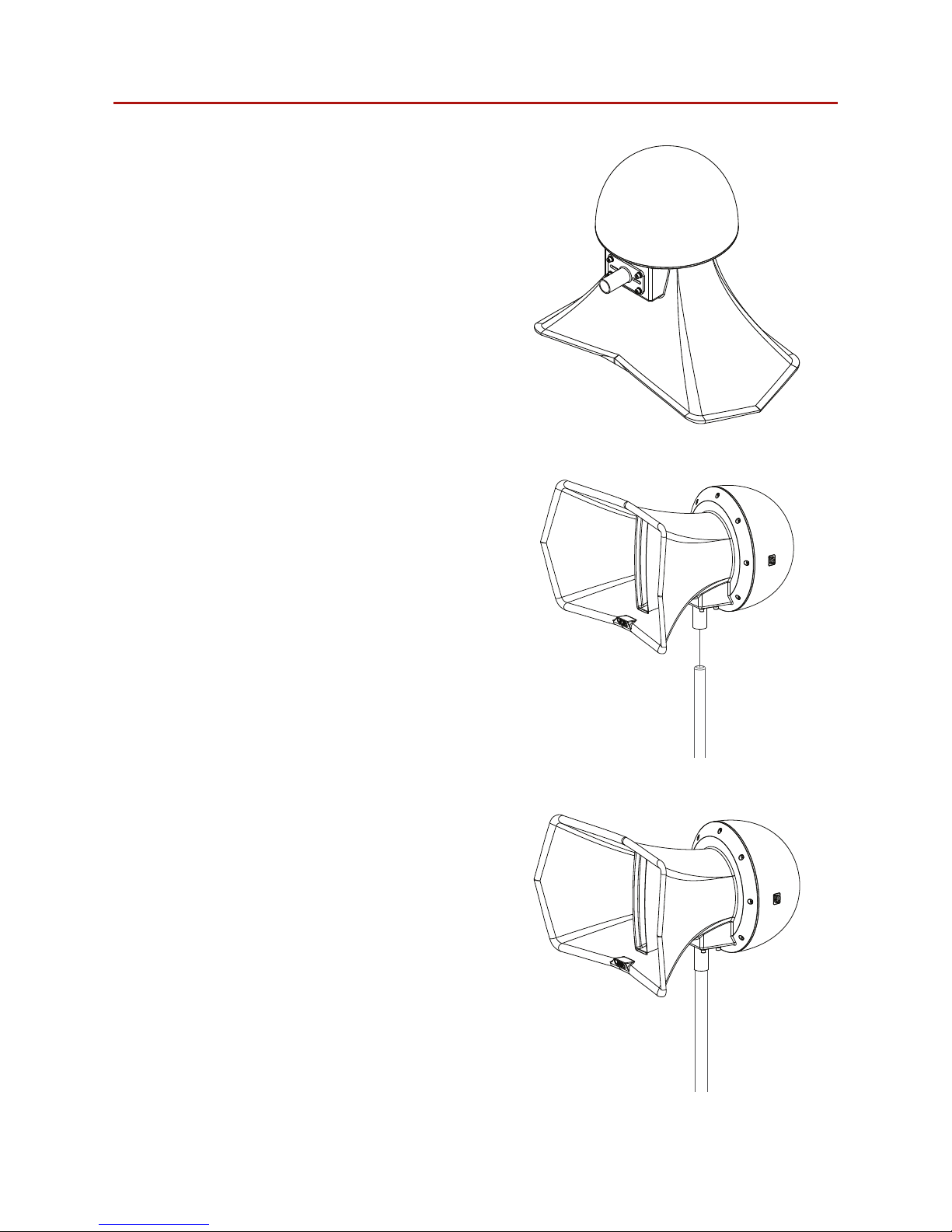

7.2 Pole mounting 19
7.3 Stud bracket mounting 21
7.4 Wall mounting over bracket 23
7.5 Wall mounting under bracket 25

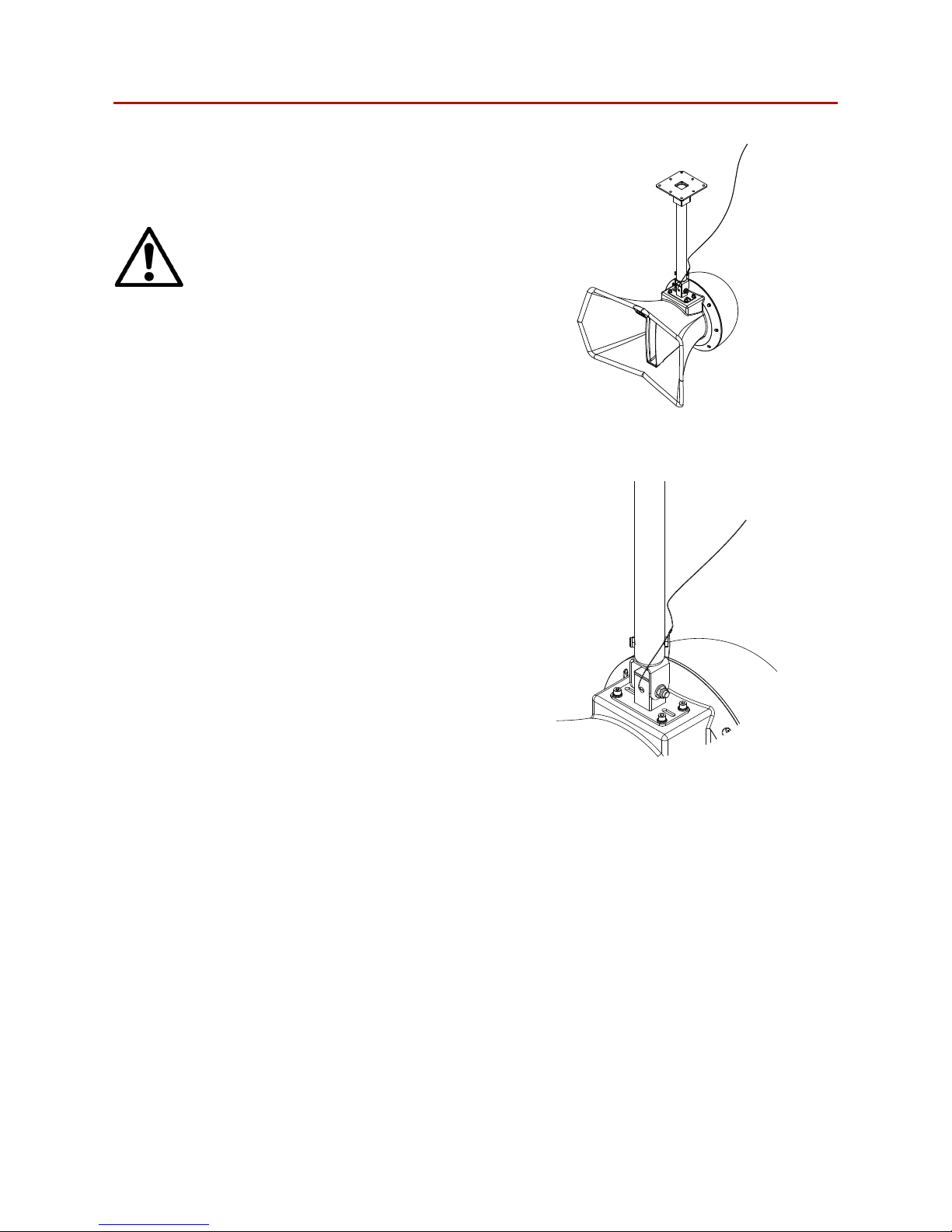

7.6 Ceiling pole mounting 27
7.7 Pole mount 29
8 Service 31
8.1 Return authorisation 31
8.2 Shipping and packing considerations 31
9 Appendix 32
Air Vantage User Guide V1.0
Page 4
1.1 Important safety instructions
The lightning flash with and arrowhead symbol
within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sucient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user of the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Safety instructions - read this first
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat source such as radiators, heat
registers, stoves, or other such apparatus that produce heat.
9. Do not defeat the safety purpose of the grounding-type
plug. A grounding type plug has two blades and a third
grounding prong. The third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect power cords from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit the apparatus.
11. Onlyuseattachmentsandaccessoriesspecifiedby Void
Acoustics.
12. Only use with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplugtheapparatusduringlightningstormsorwhenunused
forlongperiodsoftime.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in
any way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. Since the mains power supply cord attachment plug is used
to disconnect the device, the plug should always be easily
accessible.
16. Void loudspeakers can produce sound levels capable
of causing permanent hearing damage from prolonged
exposure. The higher the sound level, the less exposure
needed to cause such damage. Avoid prolonged exposure to
the high sound levels from the loudspeaker.
1.2 Limitations
This guide is provided to help familiarise the user with the
loudspeaker system and its accessories. It is not intended to provide
comprehensive electrical, fire, mechanical and noise training and is
not a substitute for industry-approved training. Nor does this guide
absolve the user of their obligation to comply with all relevant
safety legislation and codes of practice.
While every care has been taken in creating this guide, safety is
user-dependent and Void Acoustics Research Ltd cannot guarantee
complete safety whenever the system is rigged and operated.
1.3 EC declaration of conformity
Manufacturer:
Void Acoustics Research Ltd,
Unit 15 Dawkins Road Ind Est,
Poole, Dorset,
BH15 4JY,
United Kingdom.
We declare the under our sole responsibility the following product
models: Air Motion, Tri Motion, Airten, Air Stream, Air Vantage, Air 8
are intended to be used as loudspeakers and are in conformity with
the following EC Directives, including all amendments, and with
national legislation implementing these directives:
• BS EN 60065:2002
• BS EN 55103-1/-2
March 2016
Alex Skan
Technical Director
1.4 WEEE directive
If the time arises to throw away your product, please recycle all the
components possible.
This symbol indicates that when the end-user
wishes to discard this product, it must be sent
to separate collection facilities for recovery
and recycling. By separating this product from
other household-type waste, the volume of
waste sent to incinerators or land-fills will be
reduced and natural resources will thus be
conserved.
The Waste Electrical and Electronic Equipment Directive (WEEE
Directive) aims to minimise the impact of electrical and electronic
goods on the environment. Void Acoustics Research Ltd complies
with the Directive 2002/96/EC and 2003/108/EC of the European
Parliament on waste electrical finance the cost of treatment and
recovery of electronic equipment (WEEE) in order to reduce the
amount of WEEE that is being disposed of in land-fill sites. All of
our products are marked with the WEEE symbol; this indicates that
this product must NOT be disposed of with other waste. Instead
it is the user’s responsibility to dispose of their waste electrical
and electronic equipment by handing it over to an approved
reprocessor, or by returning it to Void Acoustics Research Ltd for
reprocessing. For more information about where you can send
your waste equipment for recycling, please contact Void Acoustics
Research Ltd or one of your local distributors.
1 Safety and regulations
Air Vantage User Guide V1.0
Page 5
Limited warranty
The warranty
For a period of three (3) years from the date of
delivery to the original purchaser (as shown on the
original invoice or sales receipt; a copy of this may be
required as proof of warranty dates), Void Acoustics
Research Ltd (hereinafter “Void”) warrants to the
Original Owner (person or company who originally
purchased the product brand new from either Void
or a Void Authorised Dealer/Distributor) of each
new Air Series product (provided it was purchased
at an Authorised Void Dealer) that it is free of
defects in materials and workmanship and that each
product will meet or exceed all factory published
specifications for each respective model. Void agrees
to repair or replace (at its discretion) all defective
parts at no charge for labour or materials; subject to
following provisions:
Warranty violations
Void shall take no responsibility for repair or
replacement as specified under this warranty, if
the damaged product has been subject to misuse,
accident, neglect or failure to comply with normal
maintenance procedures; or if the serial number
has been defaced, altered or removed. Nor will Void
accept responsibility for, or resulting from, improper
alterations or unauthorised parts or repairs. This
warranty does not cover any damage to speakers
or any other consequential damage resulting from
breach of any written or implied warranty.
Void warranty provisions
Void will remedy any defect, regardless of the
reason for failure (except as excluded) by repair, or
replacement. Void will remedy the defect and ship
the product within a reasonable time after receipt of
the defective product at a Void Authorised Service
Centre.
To obtain warranty service
If a Void product requires service, the Owner must
contact Void or an Authorised Void Service Centre to
receive an R.A.N. (Return Authorisation Number) and
instructions on how to return the product to the Void
Authorised Service Centre, or to Void.
Void (or its Authorised Service Centre) will initiate
corrective repairs upon receipt of the returned
product. Please save the original carton and all the
packing materials in case shipping is required. All
products being returned to the factory or service
centre for repairs must be shipped prepaid.
If the repairs made by Void or the Void Authorised
Service Centre are not satisfactory, the Owner
is instructed to give written notice to Void. If the
defect or malfunction remains after a reasonable
number of attempts by Void to remedy the defect
or malfunction, the Original Owner shall then have
the option to elect either a refund or replacement of
said Void product free of charge. The refund shall be
an amount equal to but not greater than the actual
purchase price, not including any taxes, interest,
insurance, closing costs and other finance charges
(minus reasonable depreciation on the product).
If a refund is necessary, the Original Owner must
make the defective or malfunctioning product
available to Void free and clear of all liens or other
restrictions.
Equipment modifications
Technical and design specifications are subject to
change without notice.
Void reserves the right to modify or change
equipment (in whole or part) at any time prior to
delivery thereof, in order to include therein electrical
or mechanical improvements deemed appropriate
by Void, but without incurring any liability to modify
or change any equipment previously delivered, or
to supply new equipment in accordance with any
earlier specifications.
Disclaimer of consequential and incidental
damages
You, the Original Owner, are not entitled to recover
from Void any incidental damages resulting from any
defect in the Void product.
This includes any damage to another product or
products resulting from such a defect.
Warranty alterations
No person has the authority to enlarge, amend, or
modify this Warranty. This Warranty is not extended
by the length of time which the Original Owner
is deprived of the use of product. Repairs and
replacement parts provided pursuant to the Warranty
shall carry only the non-expired portion of the
Warranty.
This Statement of Warranty supersedes all
others contained in this user guide.
2 Limited warranty
Air Vantage User Guide V1.0
Page 6
All Void Acoustics products are carefully manufactured and thoroughly tested before being
despatched. Your dealer will ensure that your Void products are in pristine condition before
being forwarded to you but mistakes and accidents can happen.
Before signing for your delivery:
• Inspect your shipment for any signs of contamination, abuse or transit damage as soon as
you receive it
• Check your Void Acoustics delivery fully against your order
• If your shipment is incomplete or any of its contents are found to be damaged; inform the
shipping company and Inform your dealer.
Air Vantage loudspeakers are heavy (23.5 kg/51.8 lbs) and require a minimum two people to lift.
• Undo the four butterfly catches on the transport
case then remove the lid making sure the lid is
clear before moving sideways
• If you need to place the Air Vantage on a flat
surface ensure you use a lint free product to
protect the finish
• To remove from the transport case, each
person should hold the Air Vantage on each
side, with one hand on the edge of the horn
flare, and the other supporting the weight of the
drivers to the rear as shown in figure 3.1
• When removing the Air Vantage take care not to
foul on the lower tray of the transport case.
Keep some of the original packaging in case you
need to return a product for service later.
See section 2 for registration and warranty conditions and see section 8 if your product needs
service.

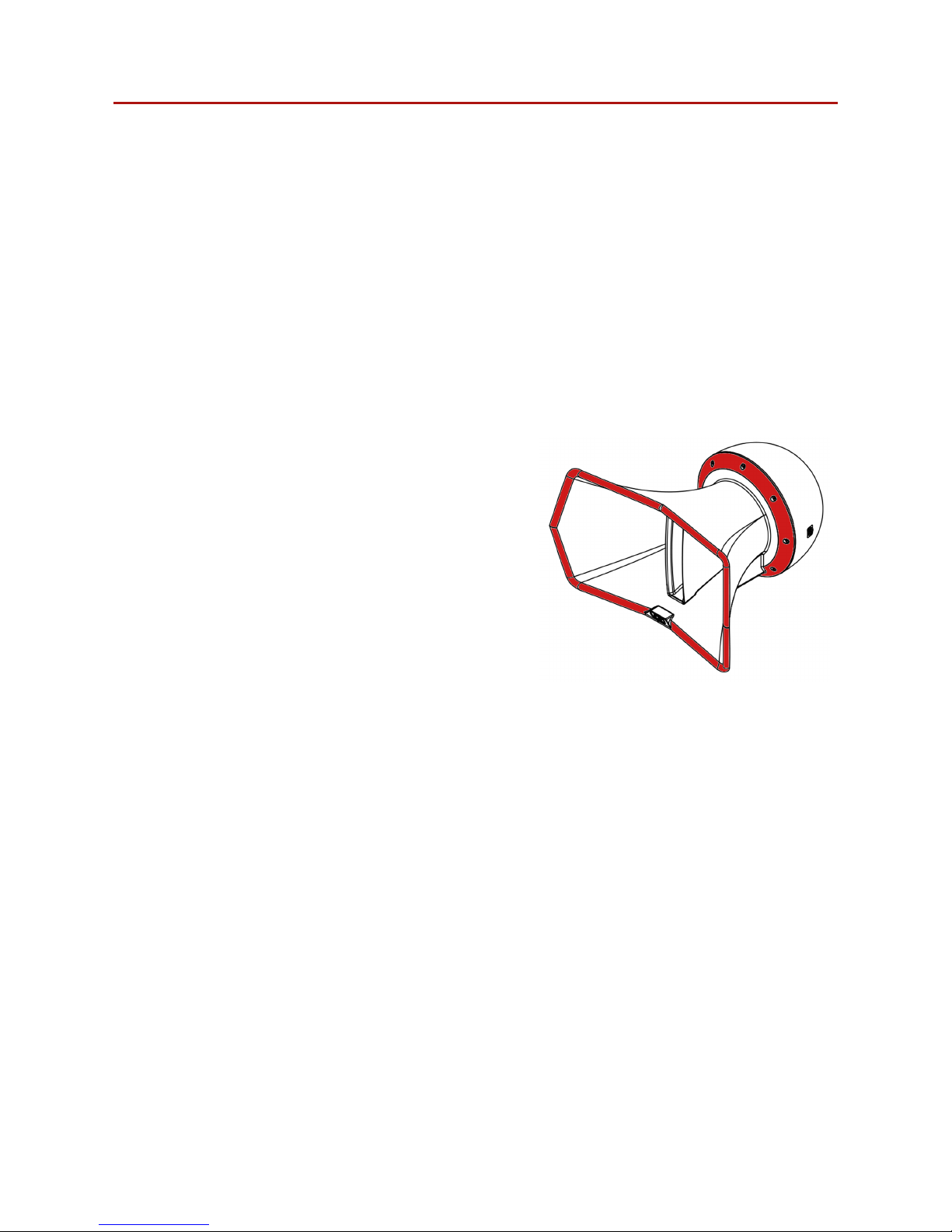

Figure 3.1: Safe Handling Positions
(as indicated in red)
3 Unpacking and checking
Air Vantage User Guide V1.0
Page 7
4.1 Welcome
Many thanks for purchasing this Void Acoustics Air Vantage. We truly appreciate your support.
At Void, we design, manufacture and distribute advanced professional audio systems for
the installed and live sound market sectors. Like all Void products, our highly skilled and
experienced engineers have successfully combined pioneering technologies with groundbreaking design aesthetics, to bring you superior sound quality and visual innovation. In buying
this product, you are now part of the Void family and we hope using it brings you years of
satisfaction. This guide will help you both use this product safely and ensure it performs to its
full capability.
4.2 Air Vantage overview
The Air Vantage can either be used as a stand-alone mid-top with LF enclosures in a main
club system, or be paired with the Sub Vantage for monitoring duties. The same attributes
that make it eminently suitable as a DJ monitor, such as true point source transmission and a
smooth frequency response, also shine when it comes to filling a dance floor with high SPL
and accurate sound.
Particular attention was paid when designing its internal crossover to achieve the best possible
phase response, which has allowed for prolonged listening periods at very high SPLs, with
minimum fatigue. Venues with low ceilings are also a prime candidate for the mid-top, as its
diminutive vertical dimensions and tight pattern control allow for close mounting to a ceiling.
A fully adjustable mounting bracket is available, allowing any desired amount of vertical tilt to
be applied. A Neutrik speakON™ NL4s is provided for driver connections.
4.3 Key features
• Fibreglass composite construction
• Visually striking appearance
• Fast transient response
• Multiple colour options.
4 About
Air Vantage User Guide V1.0
Page 8
4.4 Air Vantage specifications
Frequency response 140 Hz - 20 kHz -3 dB
Eciency
1
100 dB 1W/1m
Crossover point 1.6 kHz Passive
Nominal impedance 8 Ω
Power handling
2
500 W AES
Maximum output
3
127 dB cont, 133 dB peak
Driver configuration 1 x 12”, 1 x 1.5” coax
Mounting Tilt adjustable mount (optional)
Dispersion 70°H x 40°V
Connectors 1 x 4 pole speakONTM NL4
Height 415 mm (16.3”)
Width 718.5 mm (28.3”)
Depth 660 mm (26”)
Weight 23.5 kg (51.8 lbs)
Enclosure Smooth cellulose
Colour Custom colours available upon request
1
Measured in half space 2 AES2 - 1984 compliant 3 Calculated
4 About
Figure 4.1: Horizontal directivity isobars Figure 4.2: Vertical directivity isobars
Air Vantage User Guide V1.0
Page 9
415 (16.3”)
660 (26”)
415 (16.3”)
660 (26”)
718.5 (28.3”)
388 (15.3”)
718.5 (28.3”)

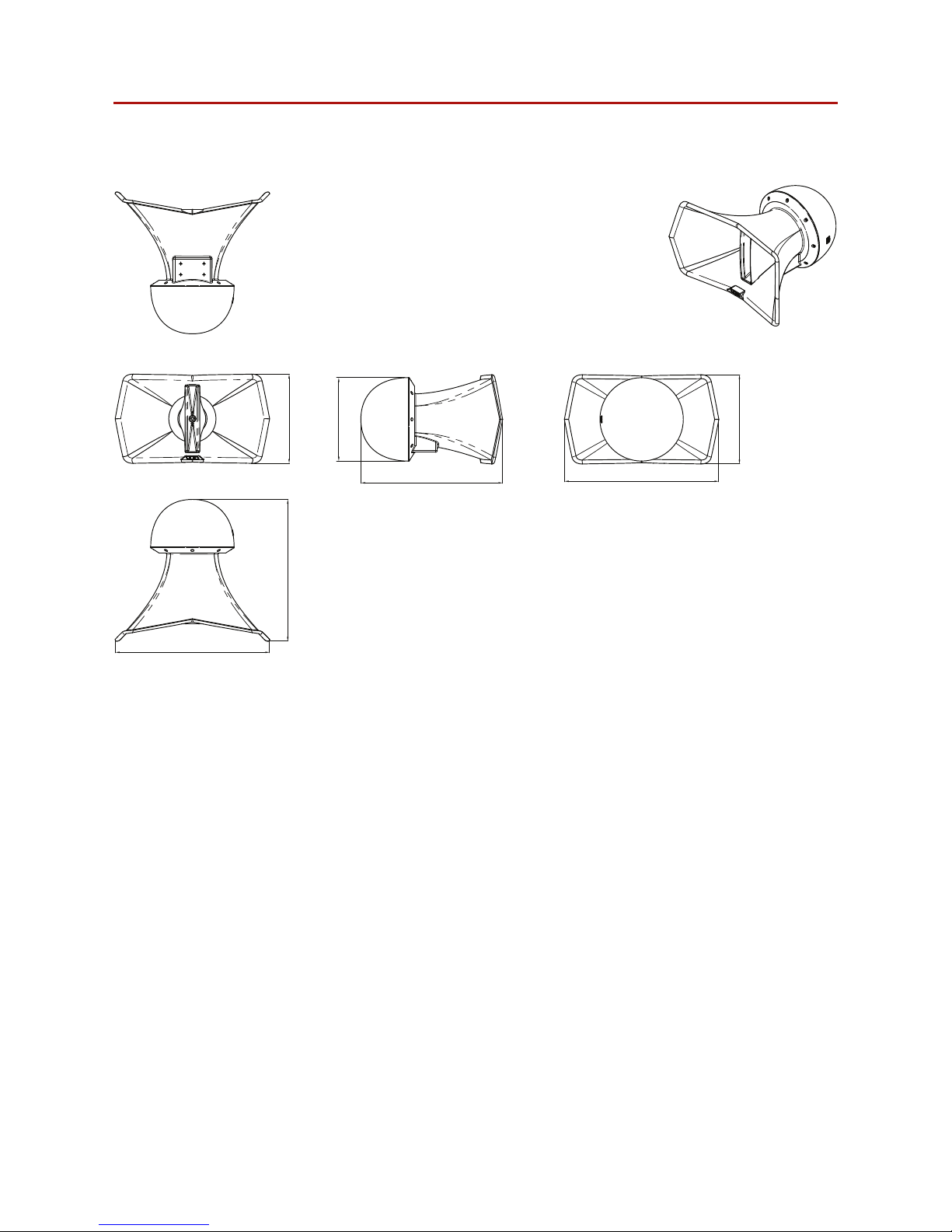

4.5 Air Vantage dimensions
Figure 4.3: Dimensions
4 About
Air Vantage User Guide V1.0
Page 10
5 Cabling and wiring
5.1 Electrical safety
To avoid electrical hazards please note the following:
• Do not access the inside of any electrical equipment. Refer servicing to Voidapproved service agents
5.2 Cable considerations for fixed installations
We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for
permanent installations. Cables for permanent installations should be compliant with the
following standards:
• IEC 60332.1 Fire retardancy of a single cable
• IEC 60332.3C Fire retardancy of bunched cables
• IEC 60754.1 Amount of Halogen Gas Emissions
• IEC 60754.2 Degree of acidity of released gases
• IEC 61034.2 Measurement of smoke density
We suggest using the following maximum copper cable lengths to keep level losses below 0.6 dB.
Metric mm
2
Imperial AWG 8 Ω load 4 Ω load 2 Ω load
2.50 mm
2
13 AWG 36 m 18 m 9 m
4.00 mm
2
11 AWG 60 m 30 m 15 m
5.3 Air Vantage wiring diagram
+
-
+
-
1+
1-
2+
2-
1+
1-
2+
2-
1+
12+
2-
1+
12+
2-
Passive
Crossover
In
Out/Link
1.5” HF
12” LF
Co-Axial
Figure 5.1: Air Vantage wiring diagram
Air Vantage User Guide V1.0
Page 11

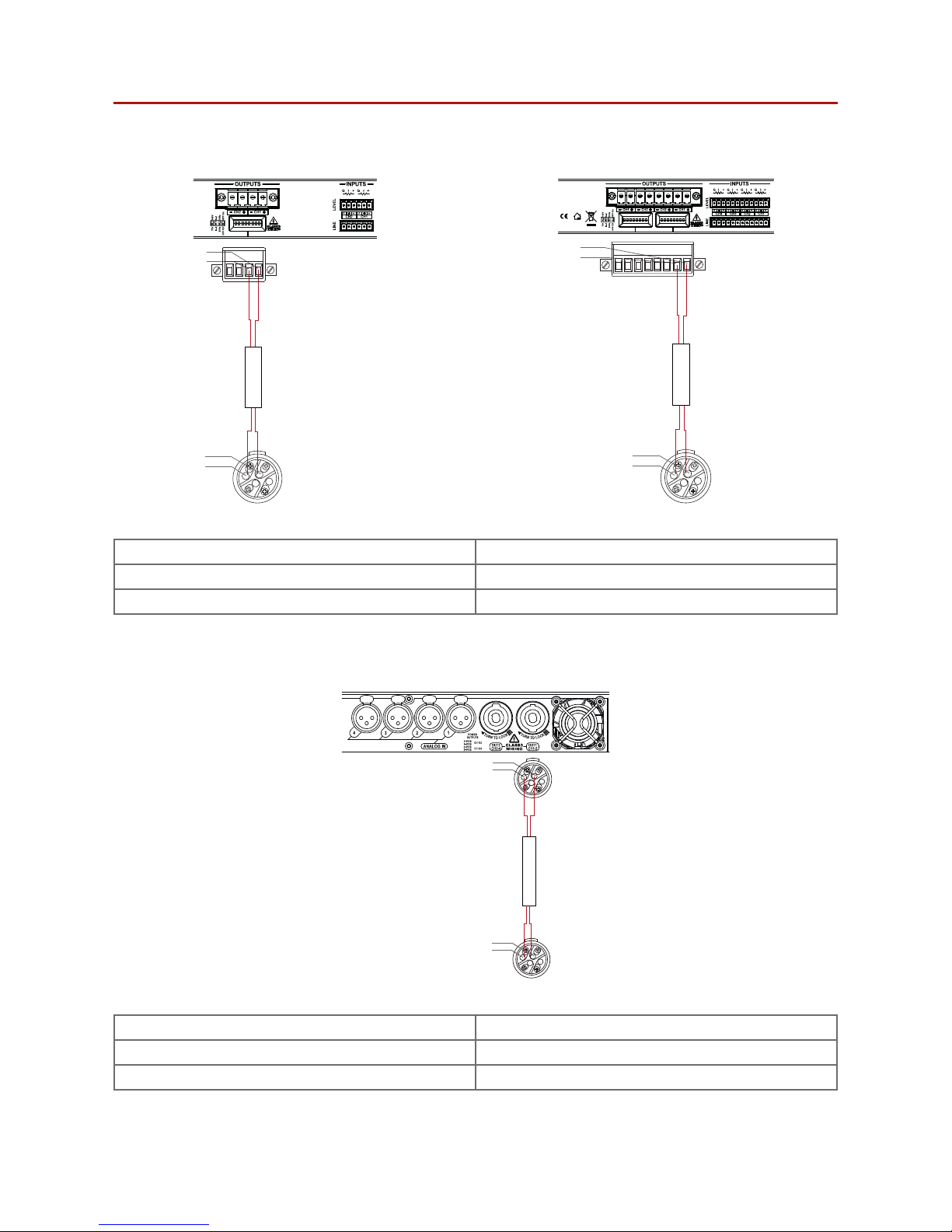

5.4 Bias V3/V9 speakON
TM
wiring
1+
1-
1+
1-
1+
1-
1+
1-
Figure 5.2: Bias V3 Figure 5.3: Bias V9
5.5 Bias VQ speakON
TM
wiring
1+
1-
1+
1-
1+
1-
1+
1-
Bias V3/V9 Single channel
Output LF (12”) and HF (1.5”)
Max parallel units 4 (2 Ω load to amplifier)
Bias VQ Single channel
Output Left LF (12”) and HF (1.5”)
Max quantity per channel 2 (4 Ω load to amplifier)
Figure 5.4: Bias VQ
5 Cabling and wiring
Air Vantage User Guide V1.0
Page 12
5.6 Bias D1/Q2 Phoenix wiring
1+
1-
1+
1-
+1
-1
1+
1-
Figure 5.5: Bias D1 Figure 5.6: Bias Q2
5.5 Bias Q5 speakON
TM
wiring
1+
1-
1+
1-
Bias V3/V9 Single channel
Output LF (12”) and HF (1.5”)
Max parallel units 4 (2 Ω load to amplifier)
Bias VQ Single channel
Output LF (12”) and HF (1.5”)
Max quantity per channel 4 (2 Ω load to amplifier)
Figure 5.7: Bias Q5
5 Cabling and wiring
Air Vantage User Guide V1.0
Page 13
6 System design
6.1 Air Vantage bass alignment
Loudspeaker/
amplifier
combination
Air Vantage Stasys 118 Air Vantage Stasys 218
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Bias VQ -10 2.45
1
n/a n/a
Bias VQ 0 0
2
n/a n/a
Bias VQ -9 7 -10* 2.8
3
Bias V3/V9/
D1/Q2/Q5
0 0 0 0
Bias V3/V9/
D1/Q2/Q5
-10 2.45 -10* 2.3
Bias V3/V9/
D1/Q2/Q5
0 0 0 0
Loudspeaker/
amplifier
combination
Air Vantage Nexus XL Air Vantage Stasys X/Xair
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Bias VQ n/a n/a n/a n/a
Bias VQ n/a n/a n/a n/a
Bias VQ -11.5 9 -10* 5.4
3
Bias V3/V9/
D1/Q2/Q5
0 0 0 0
Bias V3/V9/
D1/Q2/Q5
-13 3.65 -10* 4.34
Bias V3/V9/
D1/Q2/Q5
0 0 0 0
All polarities positive unless otherwise stated.
1
125 Hz Linkwitz-Riley 24 dB
2
148 Hz Butterworth 24 dB
3
Invert polarity
*This is for 1:1 ratio of sub to top, if adding more subs, increase the gain on the mid-high
element by 4-5 dB for each additional sub.
Air Vantage User Guide V1.0
Page 14
30°
30°

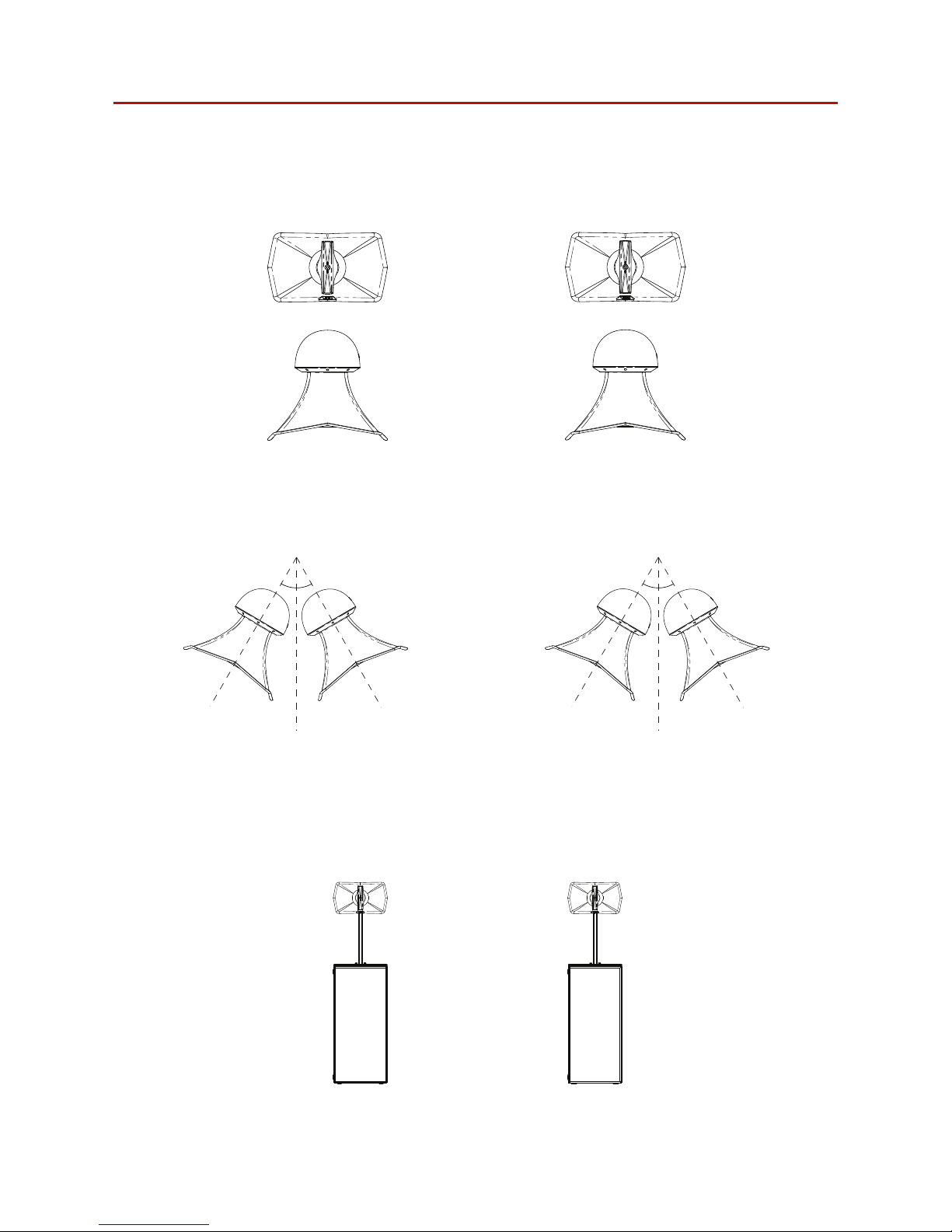

Figure 6.2: Air Vantage dual pair arrangement
For applications requiring wide horizontal coverage, use two Air Vantage in pairs, angled at
about 30°.
30°
30°
For temporary installation, a popular system configuration is two stacks consisting of a Stasys
Xair on its end, with an Air Vantage and ground-stack board. This raises the Air Vantage to a
useful height above the audience, and the sensitivity of the Stasys Xair matches the Air Vantage
well. This system is suitable for events of up to 500 people.
Figure 6.3: Air Vantage bass cabinet mounting
6 System design
6.2 System design principles
Air Vantage loudspeakers can be arrayed as a single pair facing forward to provide a wide
stereo image.

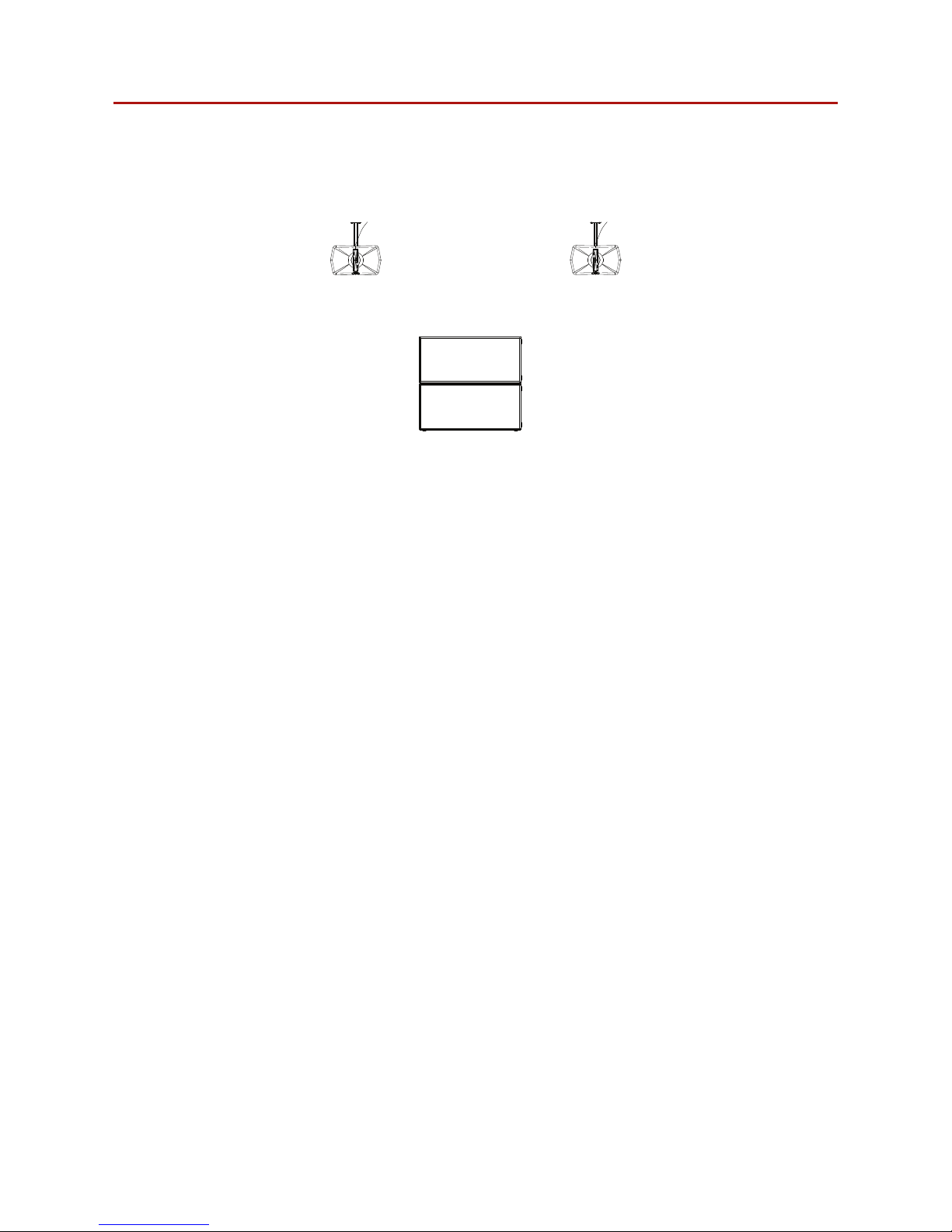

Figure 6.1: Air Vantage single pair arrangement
Air Vantage User Guide V1.0
Page 15
For permanent installation, it is recommended to fly Air Vantage for more even coverage. This
also allows co-located low frequency enclosures in a single block, increasing sensitivity and
providing more consistent bass coverage.

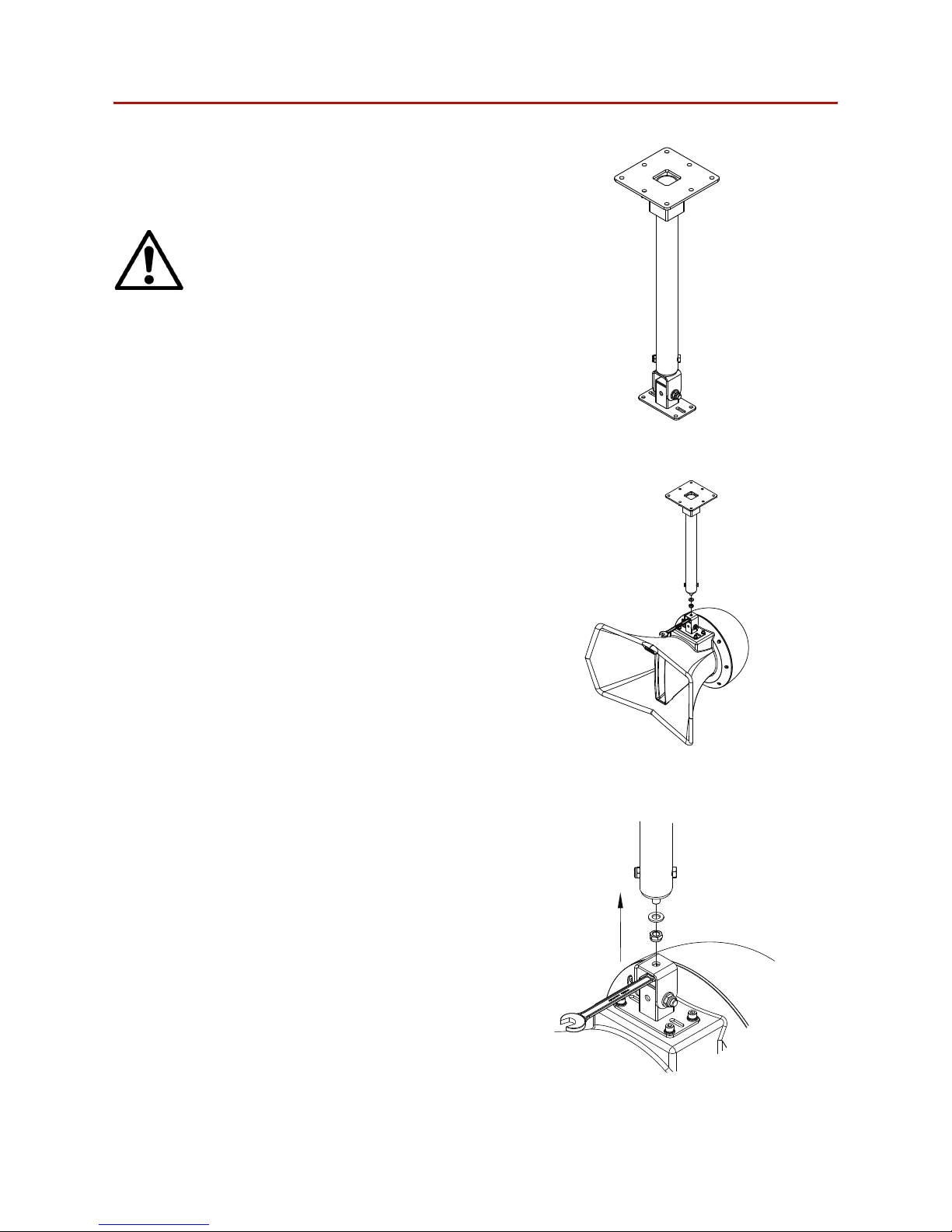

Figure 6.4: Air Vantage ceiling mounting
Air Vantage User Guide V1.0
Page 16
6 System design
6.3 Loudspeaker placement and positioning
When deploying Air Vantage, it is important to consider
the speakers’ vertical position to maximise coverage in the
vertical axis. Horizontal loudspeaker dispersion figures dictate
the coverage of the loudspeaker, left to right, to the -3 dB
points. The same can be said for the vertical dispersion figure,
but when applied to a listening area, this figure dictates the
audience area coverage front to back.
Vertical dispersion is often overlooked or not assessed
properly, resulting in ineciently deployed loudspeaker
systems that require more fill loudspeakers than are necessary
to achieve required coverage. Following are some basic
guidelines when considering the vertical position of your Air
Vantage loudspeaker.
With optimum vertical positioning and aiming applied the
loudspeaker system can be used at maximum eciency. With
a point source loudspeaker in this configuration the speaker
is placed 2m-4m from the ground, aimed half way to two thirds of the way back from the
audience area, as shown in figure 6.6. The applied aiming reduces unwanted reflections from
the ceiling and directs the highest energy concentration to the audience area requiring it most.
This is the most desirable position for the loudspeakers in this example.

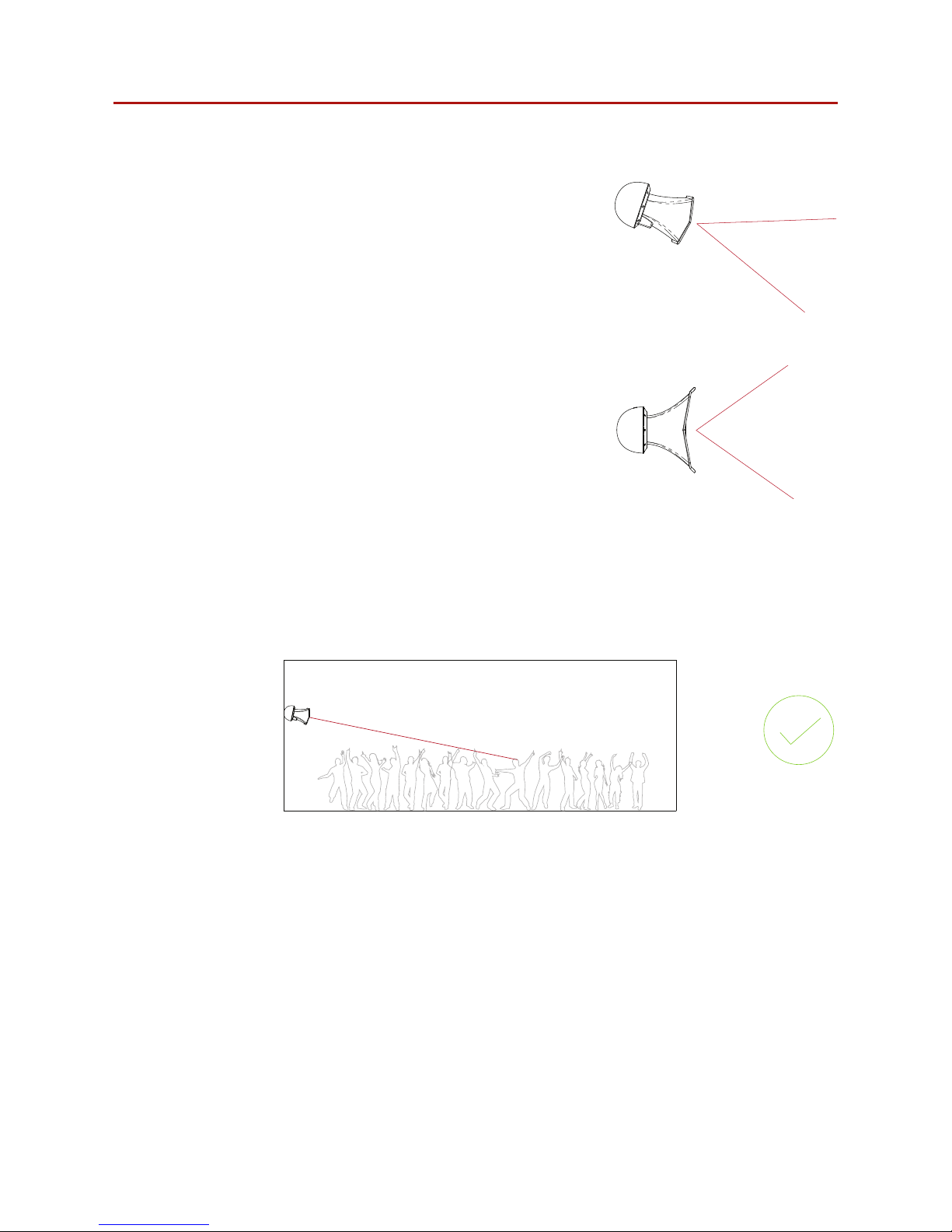

Figure 6.6: Correct loudspeaker placement
Figure 6.5a: Vertical dispersion (side view)
Figure 6.5b: Horizontal dispersion (top view)
Air Vantage User Guide V1.0
Page 17
A multi-point loudspeaker system in a club/bar environment can be very pleasing for the
listener. However, it’s important that the processes applied to previous examples are still
implemented. In figure 6.7 you can see the loudspeakers have been positioned and aimed
optimally. When deploying a multi-point loudspeaker system, extra consideration must be
taken to counter unwanted room eects. Careful positioning and aiming of loudspeakers will
minimise room eects, while maintaining even coverage throughout the audience area.
Figure 6.7: Multi point loudspeaker arrangement
Audience
Stage
Figure 6.8: Correct horizontal dispersion
In the horizontal plane rotate the Air Vantage toward the audience area at an angle such that
the centre line of the dispersion from each loudspeaker meets about two thirds of the way
towards the rear of the audience area. This will help provide a wider coverage and result in
more of the power being used usefully.
6 System design
Air Vantage User Guide V1.0
Page 18
Figure 6.10: Incorrect loudspeaker placement
Figure 6.11: Incorrect loudspeaker placement
In figure 6.10 the loudspeakers vertical positioning is too low for the audience area. Mid
and high range frequencies are absorbed by the first two rows of people, resulting in poor
coverage and potential acoustic issues from room reflections.
Figure 6.11 shows the loudspeaker vertical position is optimal for the audience area but the
user hasn’t applied an aiming angle. In this case, a large portion of energy is directed at the
ceiling that could result in reduced intelligibility and unwanted room acoustic characteristics.
The shallow angle of attack will also induce refraction issues on a hot dance floor, leading to
reduced HF penetration at mid and far distances, again reducing intelligibility and coherence.
Audience
Stage
Avoid directing the Air Vantage straight forward. This will result in a proportion of the power
being directed towards the walls, creating possible reflective issues, as well as causing a gap in
coverage at the centre of the audience area.
Figure 6.9: Incorrect horizontal dispersion
6 System design
Air Vantage User Guide V1.0
Page 19
7 Mounting
Tools Required
• 6 mm Allen key
• 19 mm ratchet spanner/wrench
7.1 Installation safety
To avoid mechanical hazards, please note the following:
• Safety regulations vary in dierent regions. Full compliance with those
regulations must be your priority
• Rigging must only be undertaken by fully qualified and experienced riggers who
understand local regulations
• This may include consulting a structural engineer before installation of wall brackets
• Remember that all personnel have a duty of care to themselves, to their assistants, to the
venue sta and to the public
• Before lifting any part of the system above head height, check the whole rig for loose tools
or other items that may fall and cause injury
• Do not use a telephone (even if hands-free) whilst rigging. Always concentrate fully on the
rigging operation
• Do not rig equipment that is worn, damaged, corroded, mishandled or over-stressed in any way
• Use only Void-approved mounting equipment and accessories.
Air Vantage User Guide V1.0
Page 20

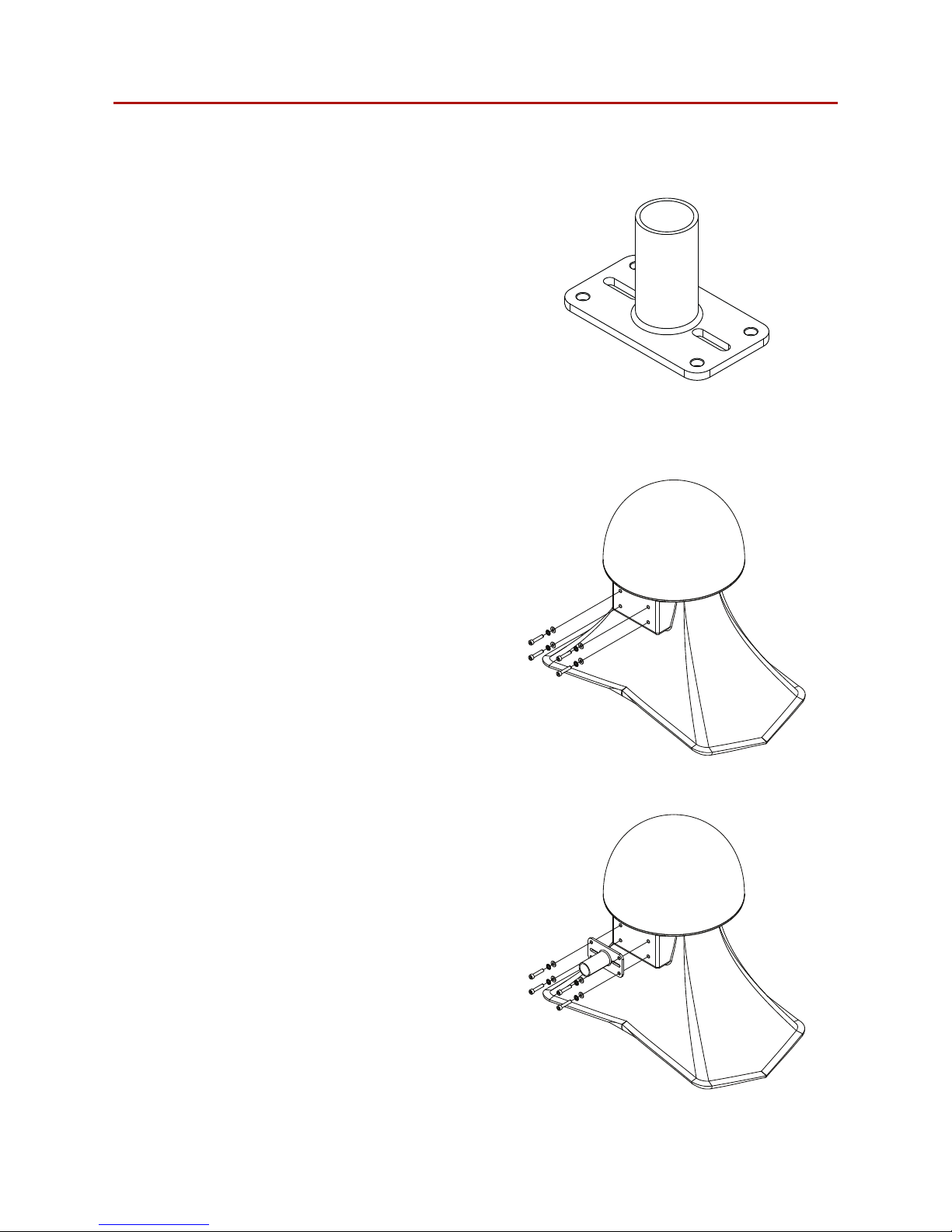

Parts required:
• Air Series pole mount
Figure 7.1: Air series pole mount
Figure 7.3: Air Series pole mount bracket positioning
Figure 7.2: M8 socket cap removal
Step 1:
Lay a soft lint free rug clear of debris on the
ground to avoid damage to the loudspeaker.
Place the Air Vantage with the horns face
down and remove all four M8 socket cap Allen
bolts.
Step 2:
Place the Air Series pole mount into position
and insert the M8 socket cap Allen bolts
7.2 Air Vantage Pole Mounting
Air Vantage User Guide V1.0
Page 21
Figure 7.4: Air Series pole mount bracket fixing
Step 3:
Fix all four M8 socket cap Allen bolts taking
care not to over tighten.
Figure 7.6: Air Series pole mount
Step 5:
Finally ensure that the Air Vantage loudspeaker
is safely in place.
Figure 7.5: Air Series pole mount positioning
Step 4:
After erecting the pole use two people to
lift the Air Vantage loudspeaker into position
taking care to use the safe handling positions
in section 3.
7.2 Air Vantage Pole Mounting
Air Vantage User Guide V1.0
Page 22

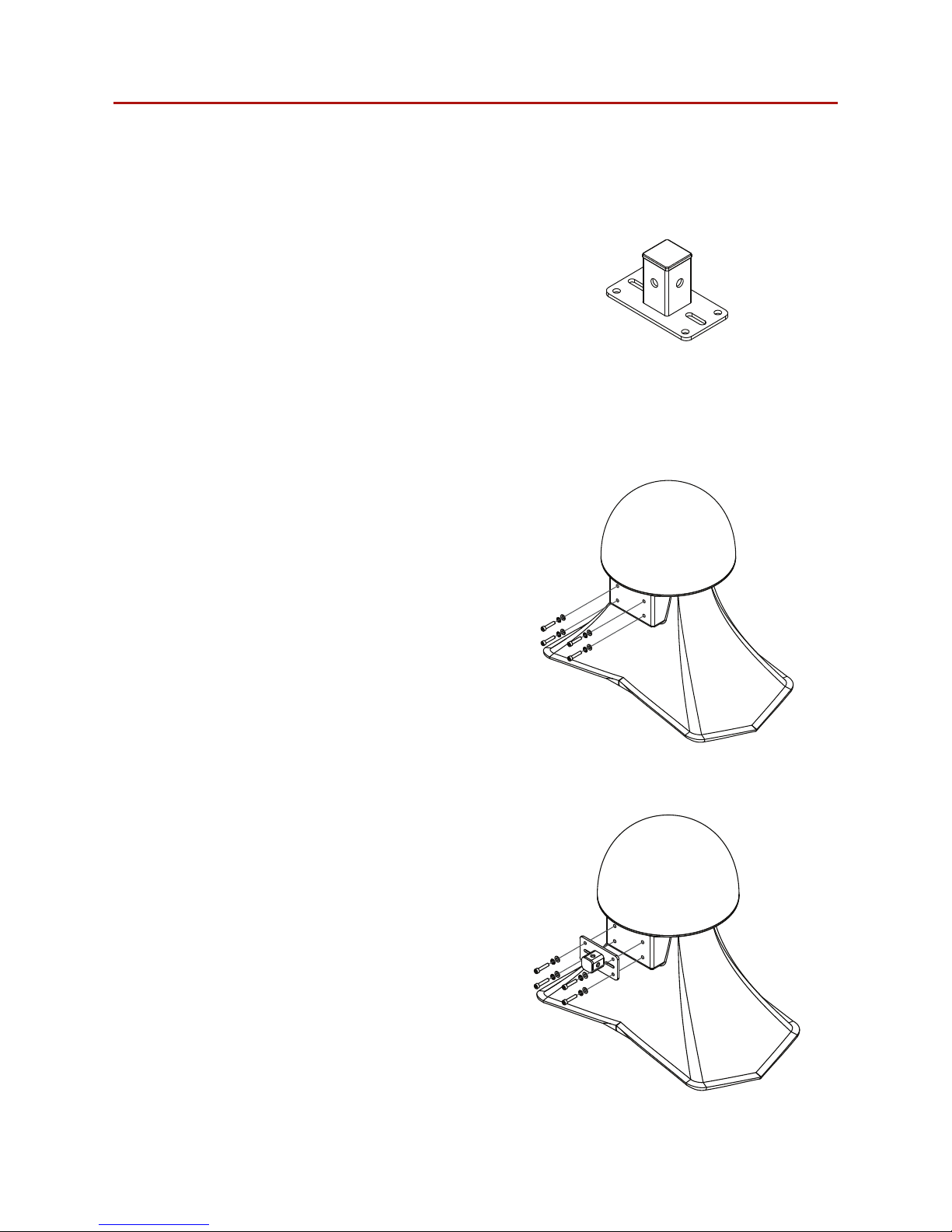

7.3 Stud bracket mounting
Figure 7.7: Air Series stud mount bracket
Parts required:
• Air Series stud mount bracket
Figure 7.9: Air Series stud mount bracket positioning
Step 2:
Place the Air Series stud mount bracket into
position and insert the M8 socket cap Allen
bolts.
Figure 7.8: M8 socket cap removal
Step 1:
Lay a soft lint free rug clear of debris on the
ground to avoid damage to the loudspeaker.
Place the Air Vantage with the horns face
down and remove all four M8 socket cap Allen
bolts.
Air Vantage User Guide V1.0
Page 23

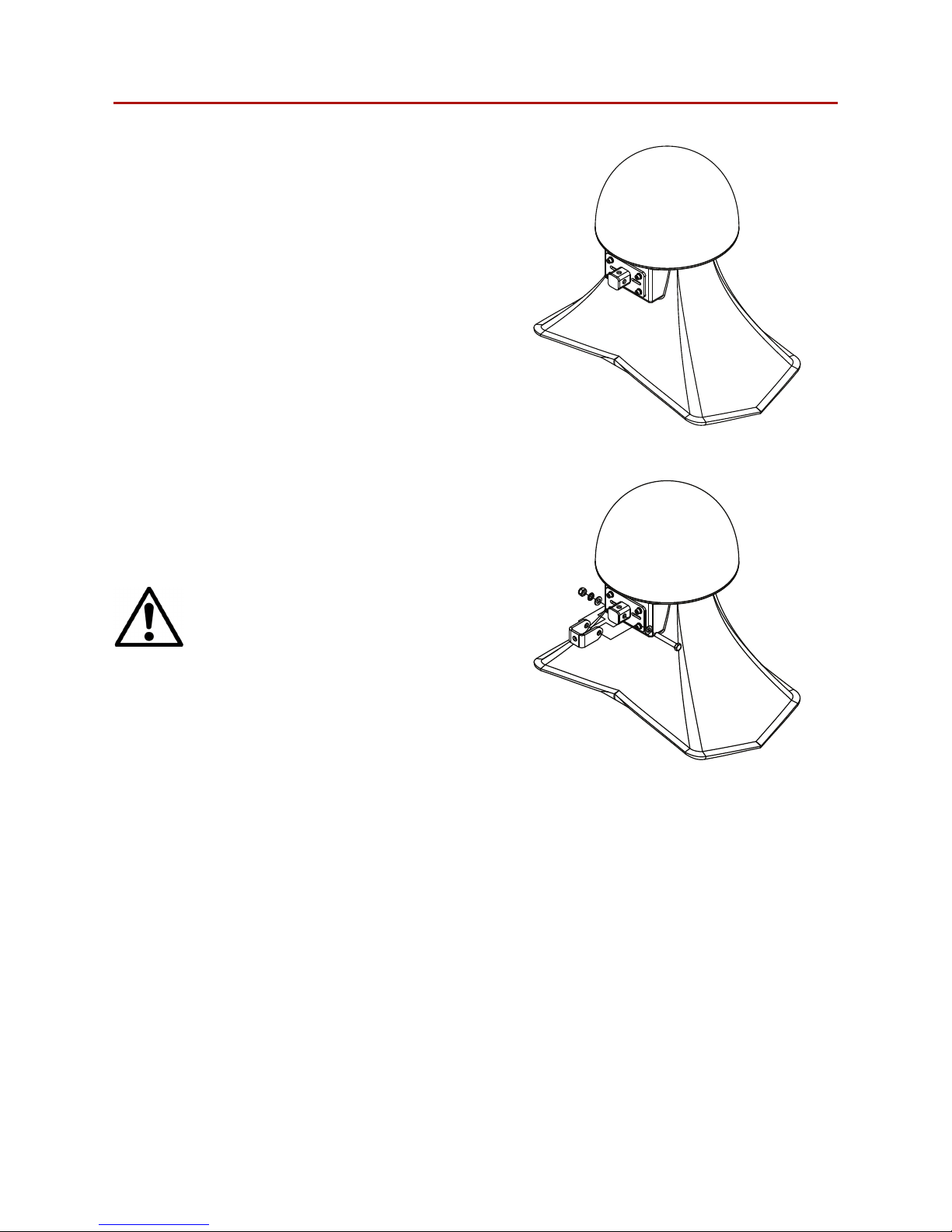

Figure 7.10: Air Series stud mount bracket fixing
Step 3:
Fix all four M8 socket cap Allen bolts taking
care not to over tighten.
Figure 7.11: Air Series stud mount U bracket fixing
Step 4:
Attach the Air Series U bracket (included with
Air Series Stud mount).
Note:
The U bracket is threaded for the
bolt on one side only. Insert the
M12 x 70 mm bolt through the
non-threaded side and tighten.
Then tighten the M12 Aerotight nut.
7.3 Stud bracket mounting

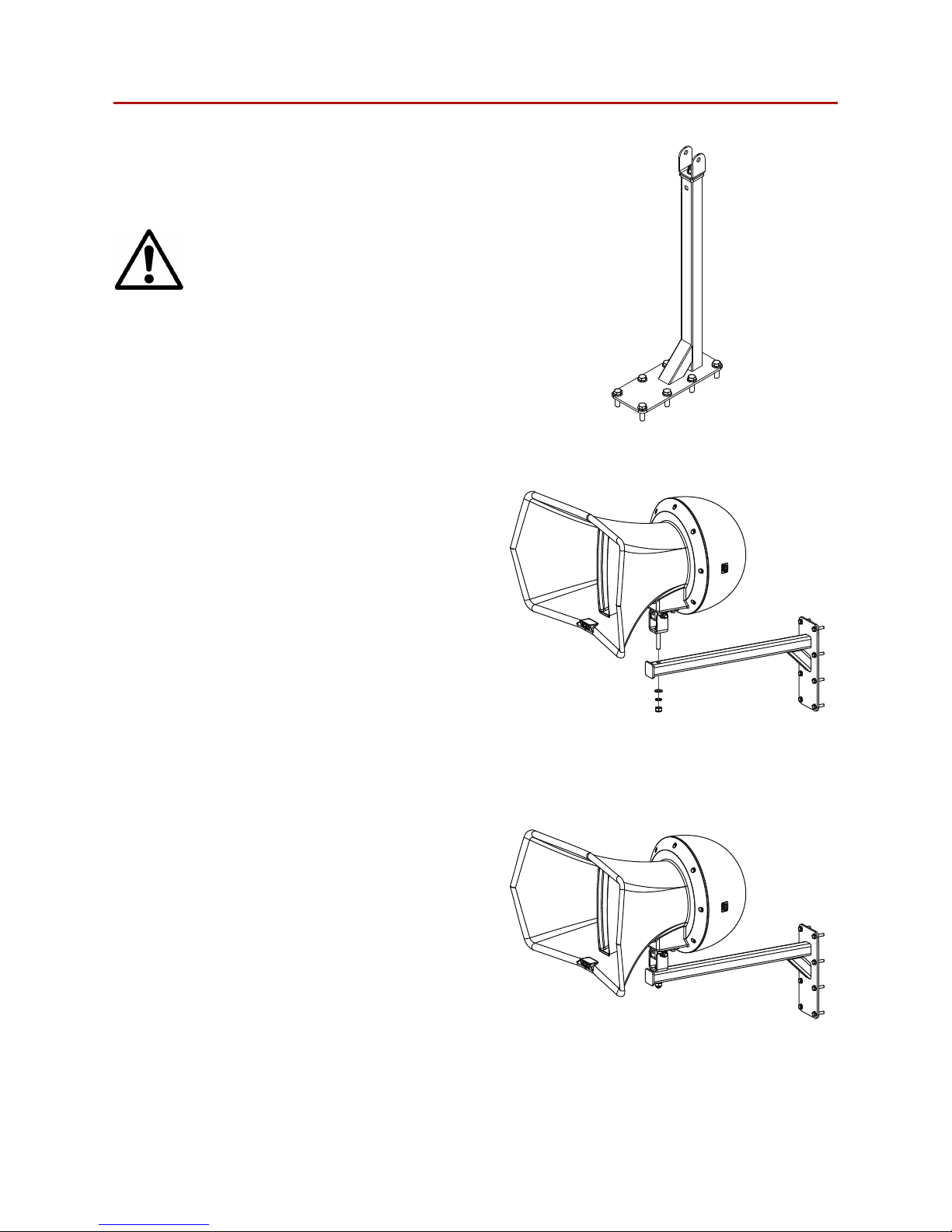

Air Vantage User Guide V1.0
Page 24
7.4 Wall mounting over bracket
Figure 7.13: Air Vantage loudspeaker positioning
Step 1:
Lift the Air Vantage loudspeaker into place
using two people and the safe handling
positions in section 3.
Figure 7.12: WHD 75 wall/ceiling mount
Parts required:
• WHD 75 wall/ceiling mount
Note:
All eight bolts must be fitted when
securing the bracket to the wall.
Figure 7.14: Air Vantage loudspeaker fixing
Step 2:
Lower the Air Vantage into place and attach
the with M12 Aerotight bolt below but do not
tighten.
Air Vantage User Guide V1.0
Page 25

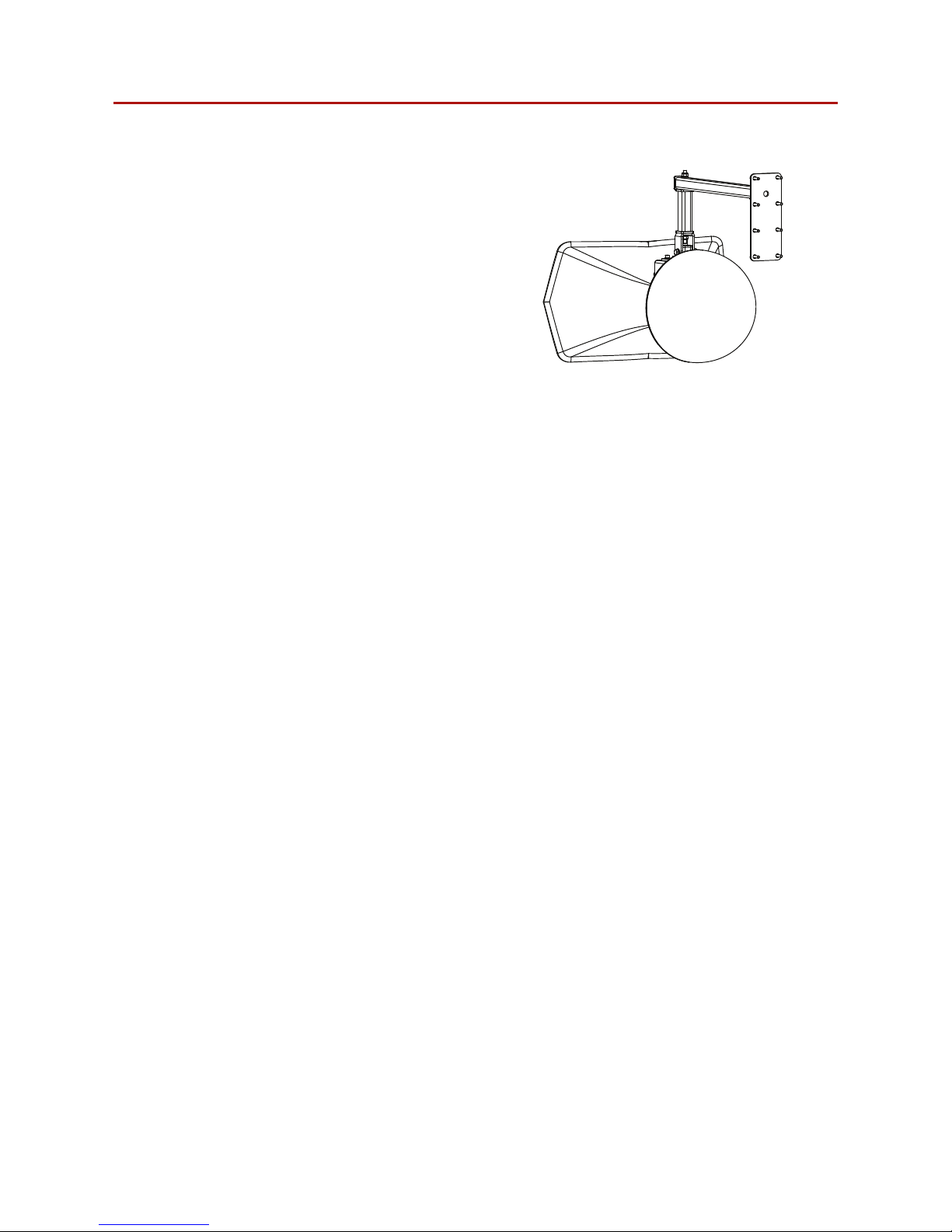

Figure 7.15: Air Vantage loudspeaker positioning
Step 3:
Rotate the Air Vantage loudspeaker into the
desired position and tighten the M12 Aerotight
bolt.
7.4 Wall mounting over bracket
Air Vantage User Guide V1.0
Page 26
7.5 Wall mounting under bracket

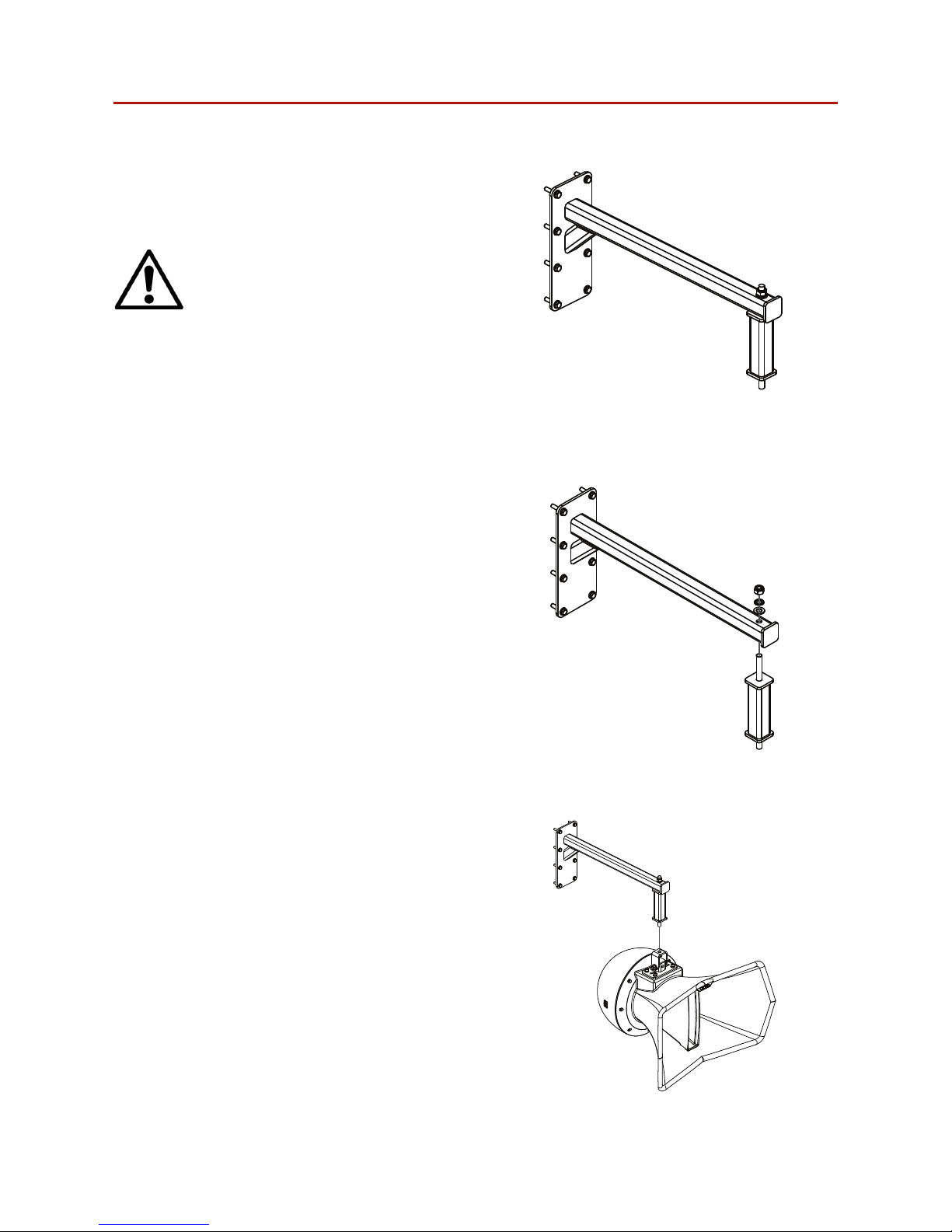

Figure 7.16: WHD wall/ceiling mount with extension piece
Parts required:
• WHD 75 wall/ceiling mount
• Multi bracket extension
Note:
All eight bolts must be fitted when
securing the bracket to the wall.
Figure 7.17: WHD wall/ceiling mount with extension piece fixing
Step 1:
Attach the extension piece to the WHD 75
wall/ceiling mount with the M12 Aerotight nut.
Figure 7.18: Air Vantage positioning
Step 2:
Raise the Air Vantage loudspeaker into
position, taking care to follow the safe handling
positions in section 3, and attach the M12
Aerotight nut but do not tighten.
Air Vantage User Guide V1.0
Page 27
B

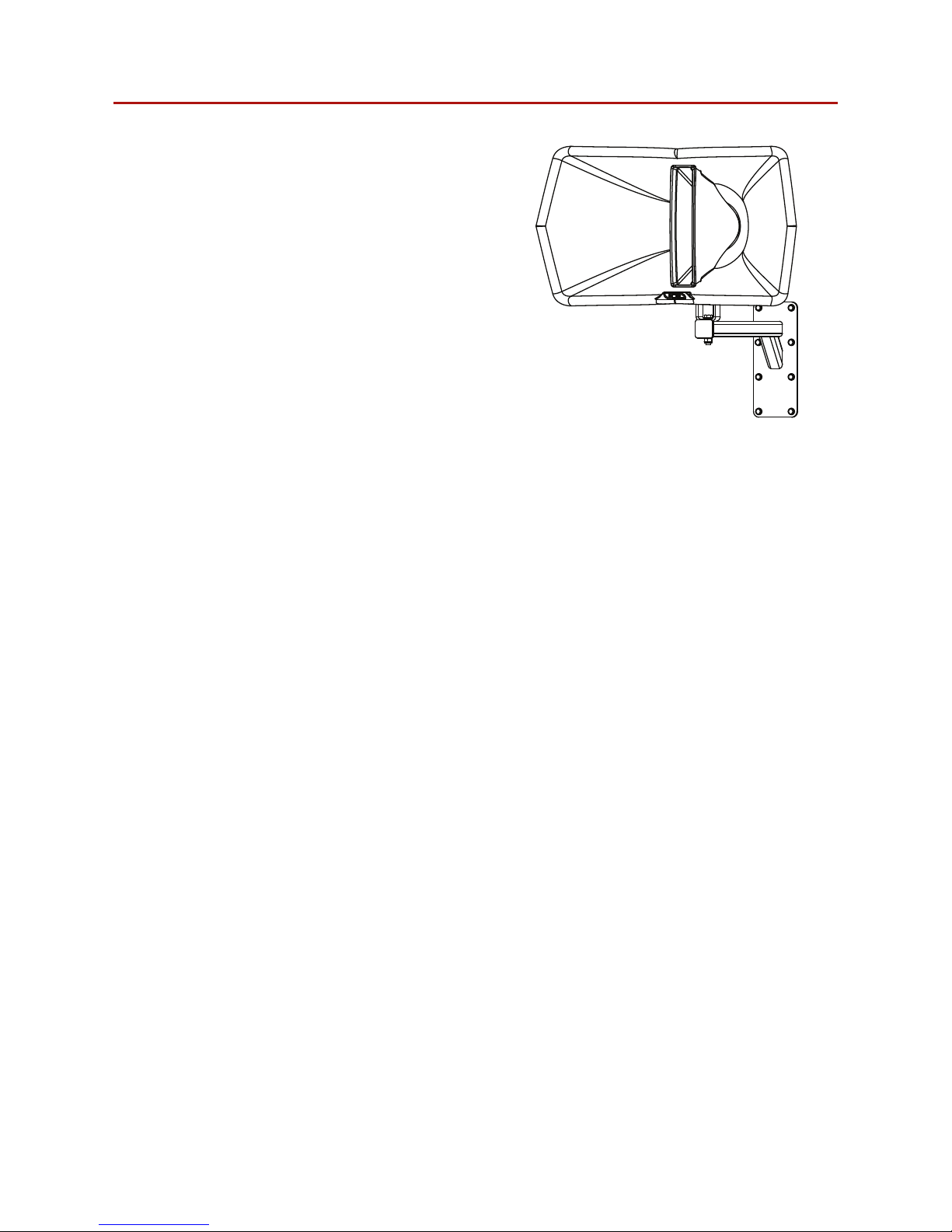

Figure 7.19: Air Vantage fixing
Step 3:
Rotate the Air Vantage loudspeaker into the
desired position and tighten the M12 Aerotight
bolt.
7.5 Wall mounting under bracket
Air Vantage User Guide V1.0
Page 28
7.6 Ceiling pole mounting
Figure 7.20: Air series ceiling bracket
Parts required:
• Air series ceiling bracket
Note:
All eight bolts must be fitted when
securing the bracket to the wall.
Figure 7.21: Air Vantage positioning
Step 1:
Lift the Air Vantage into position making sure
to hold it by the safe lifting positions detailed in
section 3.
Figure 7.22: Air Vantage positioning detail
Step 2:
Attach the Air Vantage bracket with the M12
Aerotight nut using a 19 mm ratchet spanner.
Air Vantage User Guide V1.0
Page 29
Figure 7.23: Safety wire attachment
Step 3:
Attach the secondary bond (safety wire) to the
central box section.
The safety wire must be rated
to 23.5 kg (51.8 lbs) with a safety
factor conforming to local
regulations.
Figure 7.24: Safety wire attachment detail
7.6 Ceiling pole mounting
Air Vantage User Guide V1.0
Page 30

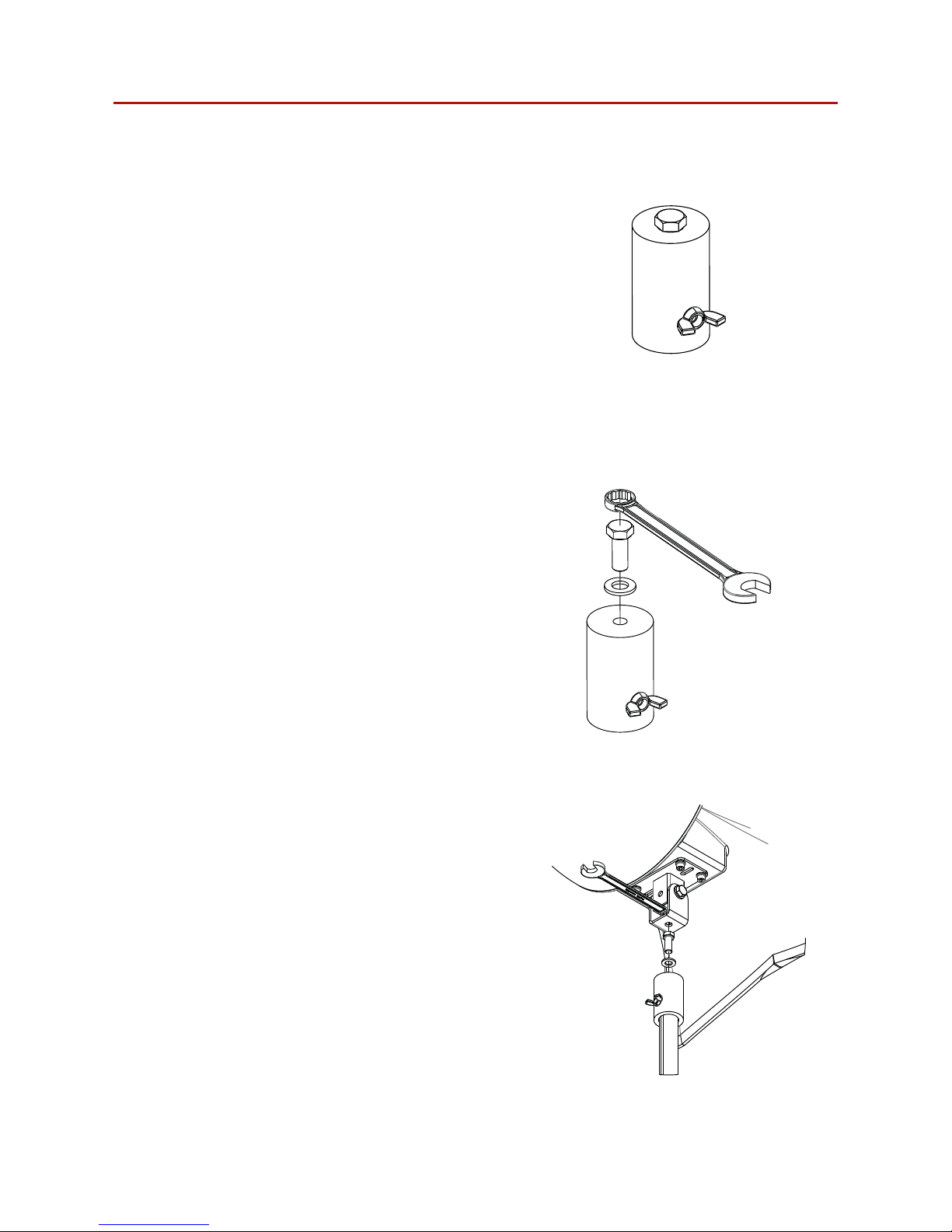

7.7 Pole mount
Figure 7.25: Air series pole mount bracket
Parts required:
• Air series pole mount bracket
Figure 7.26: Pole mount bracket removal
Figure 7.27: Mounting to the U bracket
Step 1:
Remove the M12 bolt from the pole mount
bracket.
Step 2:
Mount the pole mount bracket to the U bracket.
Air Vantage User Guide V1.0
Page 31

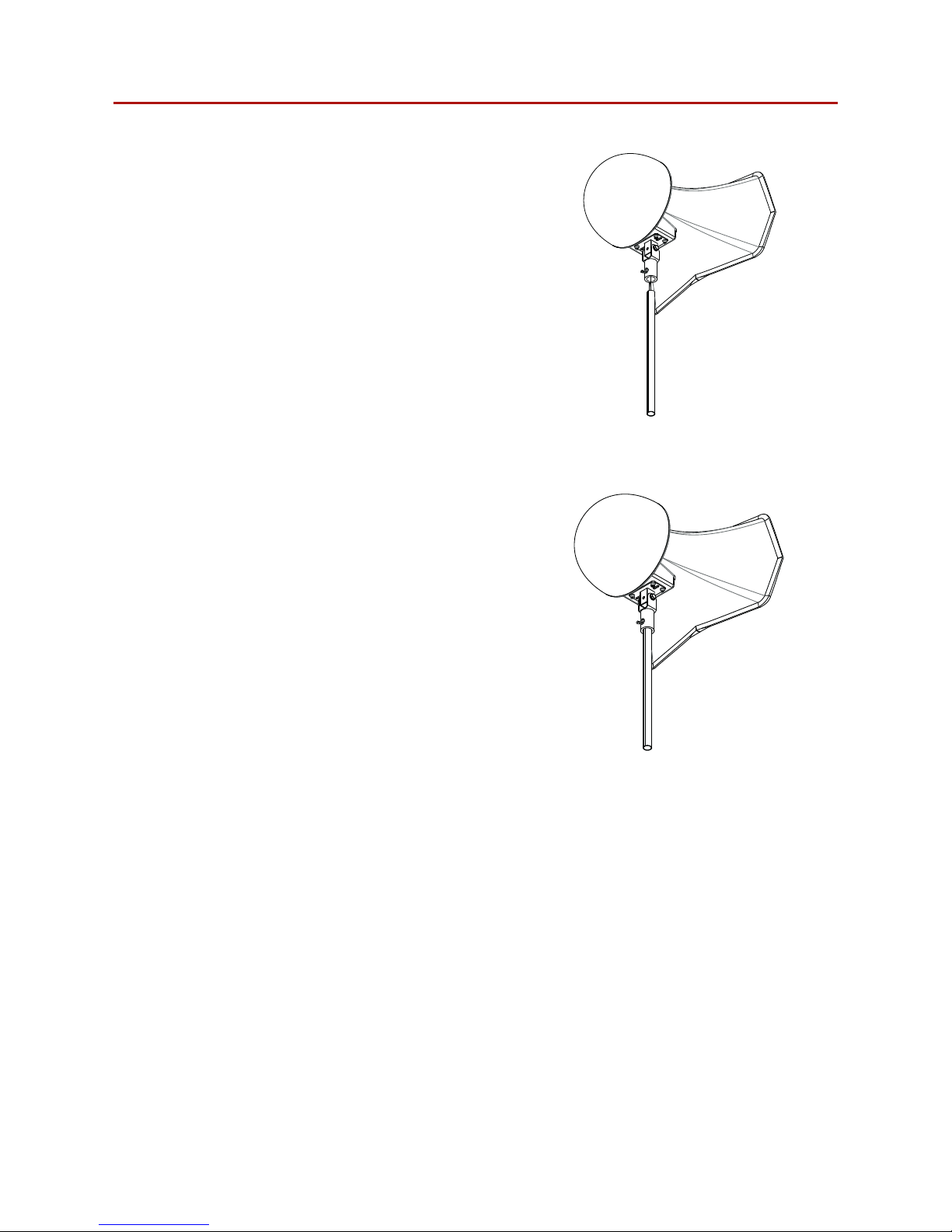

Figure 7.28: Positioning the loudspeaker
Step 3:
Lift the Air Vantage loudspeaker into position
taking care to follow the safe handling
positions detailed in section 3.
Figure 7.29: Adjusting the loudspeaker position
7.7 Pole mount
Step 4:
Adjust the loudspeaker into the desired
position and then tighten the wing nut on the
pole mount bracket.
Air Vantage User Guide V1.0
Page 32
Void Air Vantage loudspeakers should only be serviced by a fully-trained technician.
No user serviceable parts inside. Refer servicing to your dealer.
8.1 Return authorisation
Before returning your faulty product for repair, please remember to get an R.A.N. (Return
Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will
handle the necessary paperwork and repair. Failure to go through this return authorisation
procedure could delay the repair of your product.
Note that your dealer will need to see a copy of your sales receipt as proof of purchase so
please have this to hand when applying for return authorisation.
8.2 Shipping and packing considerations
• When sending a Void Air Vantage loudspeaker to an authorised service centre, please write
a detailed description of the fault and list any other equipment used in conjunction with
the faulty product.
• Accessories will not be required. Do not send the instruction manual, cables or any other
hardware unless your dealer asks you to.
• Pack your unit in the original factory packaging if possible. Include a note of the fault
description with the product. Do not send it separately.
• Ensure safe transportation of your unit to the authorised service centre.
8 Service
Air Vantage User Guide V1.0
Page 33
9 Appendix
Architectural specification
The loudspeaker shall be a passive, two-way system consisting of one high power 12” (304.8
mm) horn loaded low frequency (LF) transducer and 1.5” (25 mm) exit co-axial high frequency
(HF) compression driver mounted in a high precision waveguide within an aesthetically
designed enclosure.
The co-axial transducer shall be constructed on a cast aluminium frame, with the low
frequency transducer consisting of a treated paper cone with its dust cap removed and a
25.4 mm (1”) voice coil, wound with copper wire on a high quality voice coil former, with
neodymium magnets for high power handling and long-term reliability.
The high frequency transducer, which also uses neodymium magnets, shall be bolted through
the rear of the magnet structure belonging to the low frequency transducer to form a co-axial
drive unit. The sound will project through a machined waveguide that exits in the centre of the
low frequency transducer coupling with its horn by using the 718 mm (28.3”) bae diameter
of such horn to achieve greater SPL and pattern control on high frequencies.
Performance specifications for a typical production unit shall be as follows: the usable onaxis bandwidth of 140 Hz to 20 kHz (±3 dB), with an average 40° directivity pattern in the
vertical axis and 70° in the horizontal one (-6 dB down from on-axis level) from 1 kHz to 12
kHz; maximum SPL of 133 dB peak (127 dB continuous) measured at 1 m using IEC268-5 pink
noise. Power handling at 500 W AES at a rated impedance of 8 Ω; crossover point at 1.2 kHz
passive. The system shall be powered by its own dedicated power amplification module with
DSP management, with the wiring connection via one Neutrik speakON™ NL4 .
The enclosure shall be of a moulded fibreglass composite with a smooth cellulose finish in
any RAL colour and an aesthetic design. It shall contain an adjustable tilt mount for rigging and
external dimensions of (H) 415 mm x (W) 718.5 mm x (D) 660 mm (16.3” x 28.3” x 26”). Weight
shall be 23.5 kg (51.8 lbs).
The loudspeaker shall be the Void Acoustics Air Vantage.
