Page 1
Airten
User Guide V1.0
Page 2
©2018 Void Acoustics Research Ltd.
Version 1.0
This user guide is subject to change without notice.
For the latest online version, visit: www.voidacoustics.com
Void Acoustics and the Void logo are registered trademarks of Void
Acoustics Research Ltd. in the United Kingdom, USA and other
countries; all other Void trademarks are the property of Void Acoustics
Research Ltd.
Page 3
Airten User Guide V1.0
Page 3
Contents
1 Safety and regulations 4
1.1 Important safety instructions 4
1.2 Limitations 4
1.3 EC declaration of conformity 4
1.4 WEEE directive 4
2 Limited warranty 5
3 Unpacking and Checking 6
4 About 7
4.1 Welcome 7
4.2 Airten overview 7
4.3 Key features 7

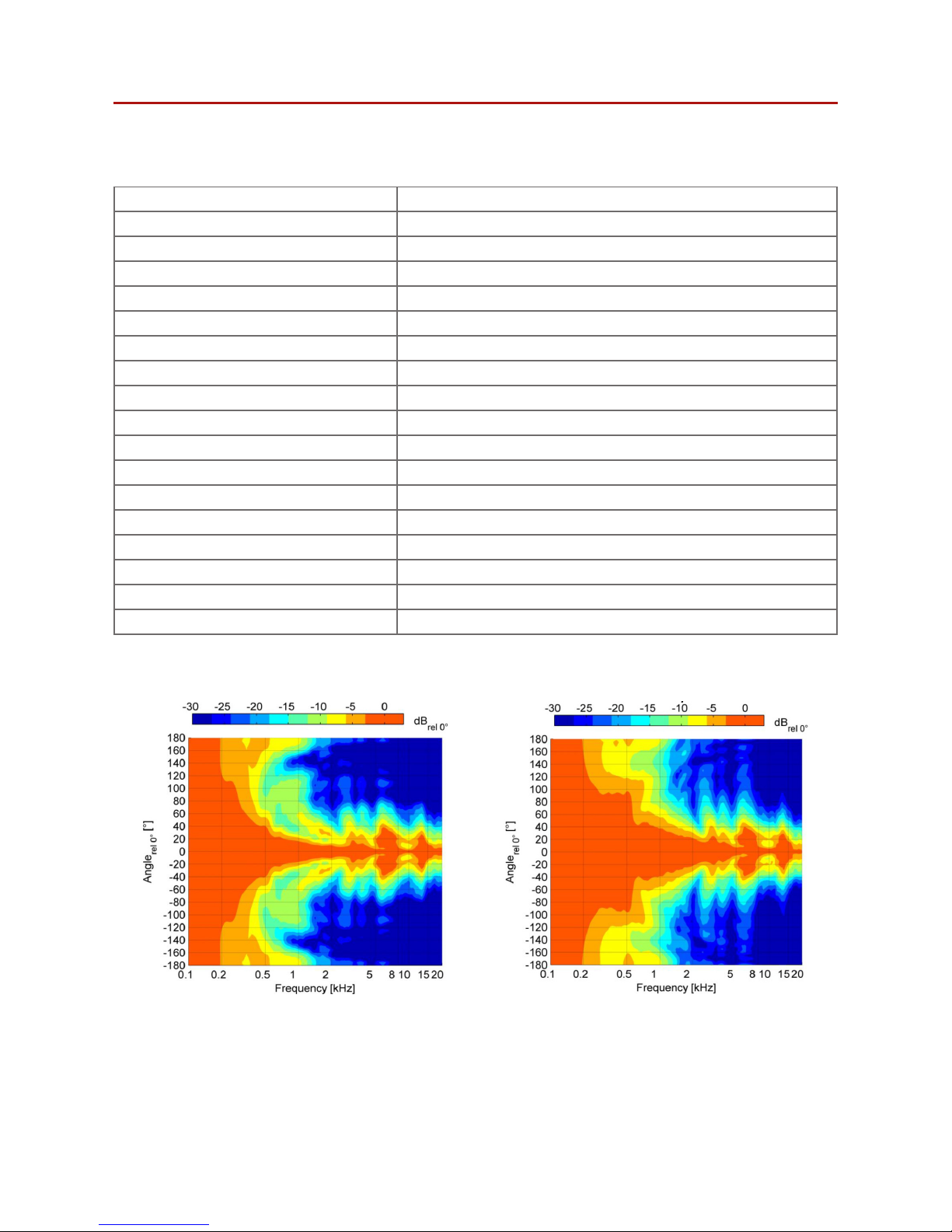

4.4 Airten specifications 8

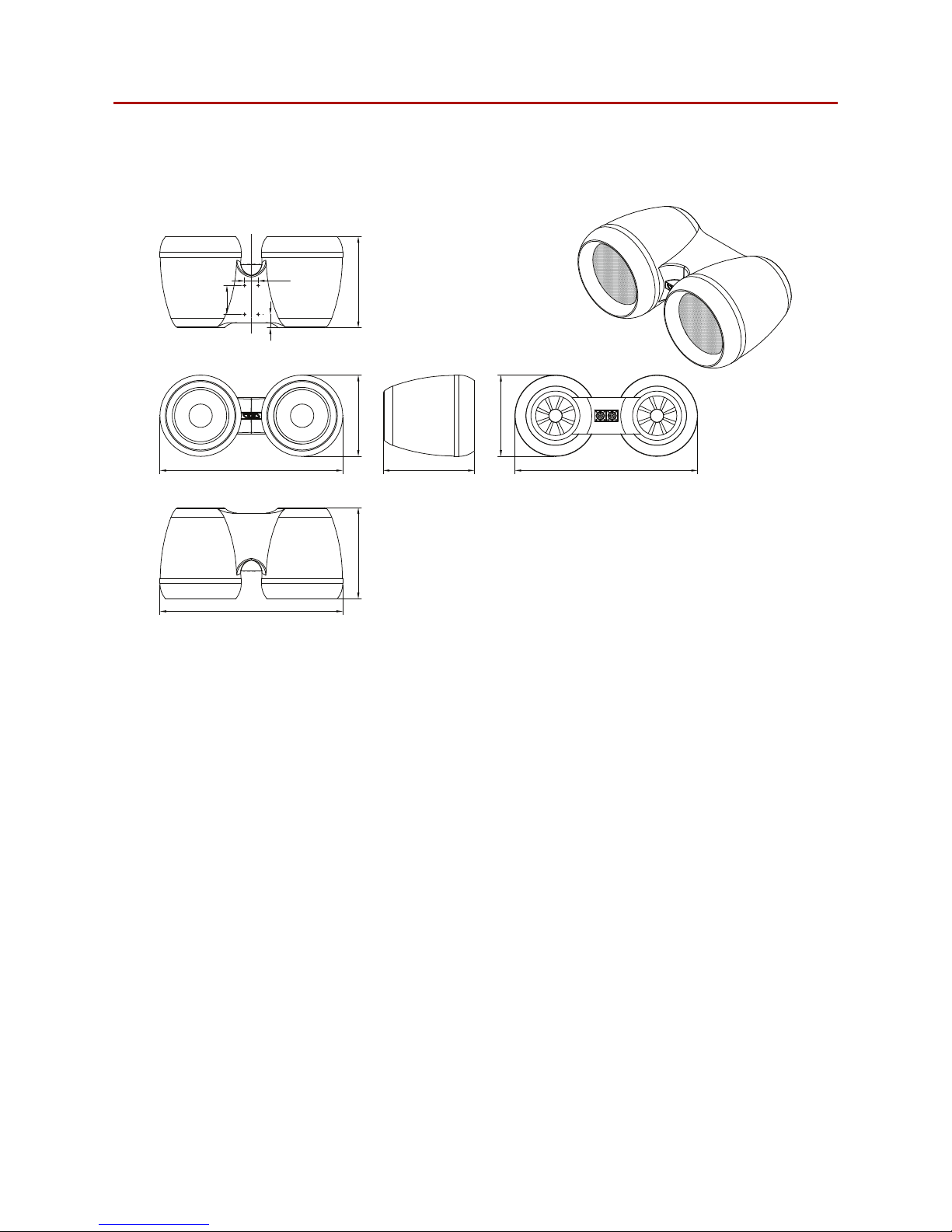

4.5 Airten dimension 9
5 Cabling and wiring 10
5.1 Electrical safety 10
5.2 Cable considerations for fixed
installations
10

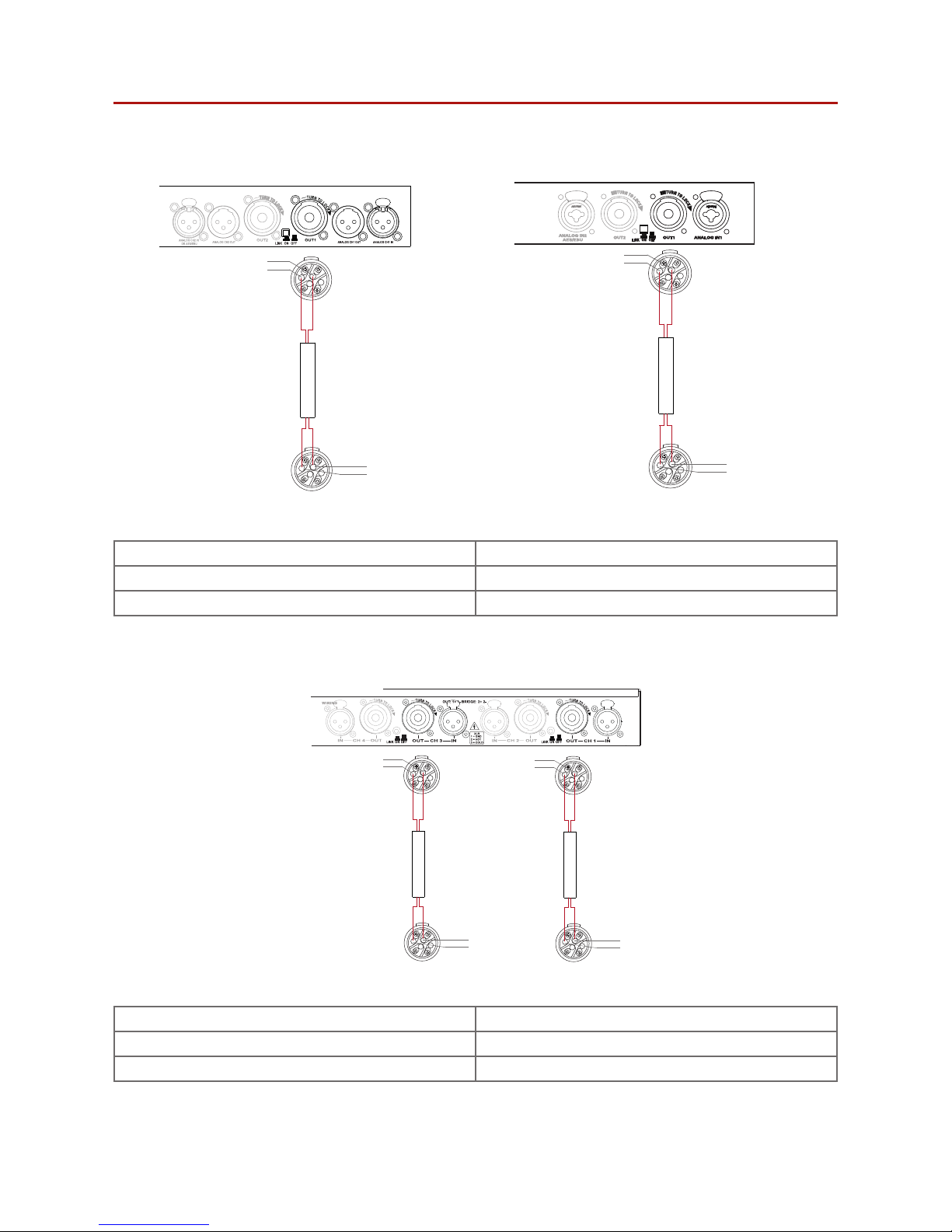

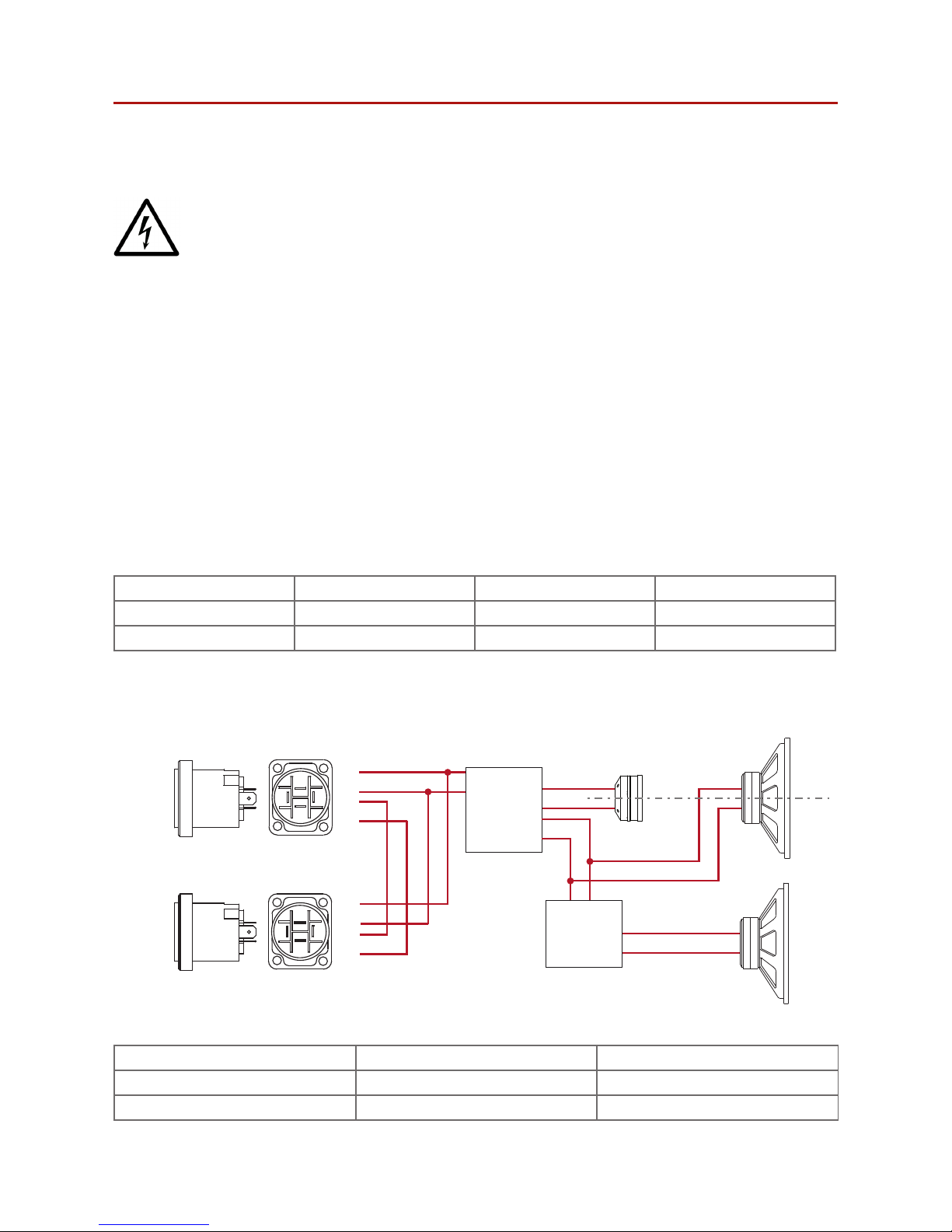

5.3 Airten wiring diagram 10

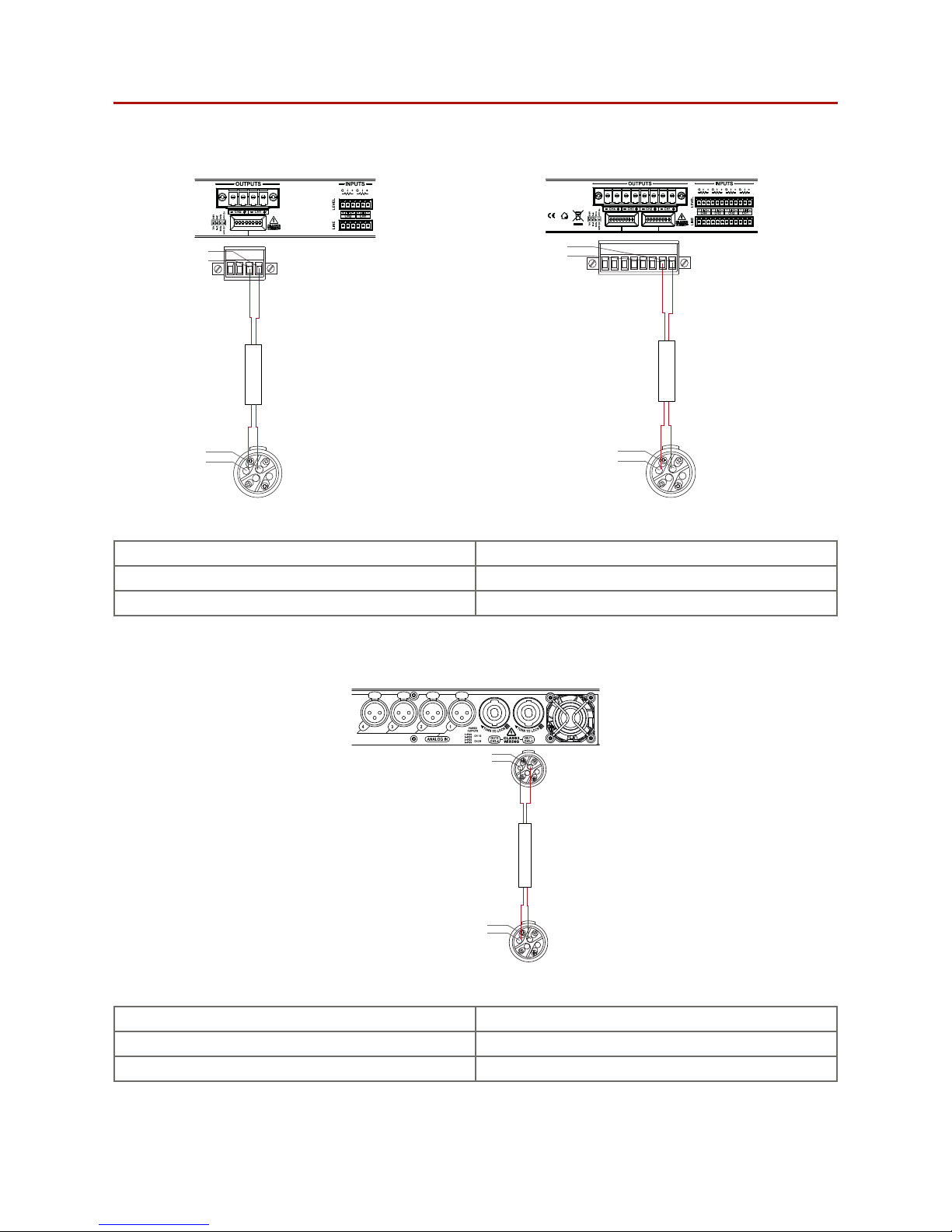

5.4 Bias V3/V9 speakONTM wiring 11
5.5 Bias VQ speakONTM wiring 11
5.6 Bias D1/Q2 Phoenix wiring 12
5.7 Bias Q5 speakONTM wiring 12
6 System design 13

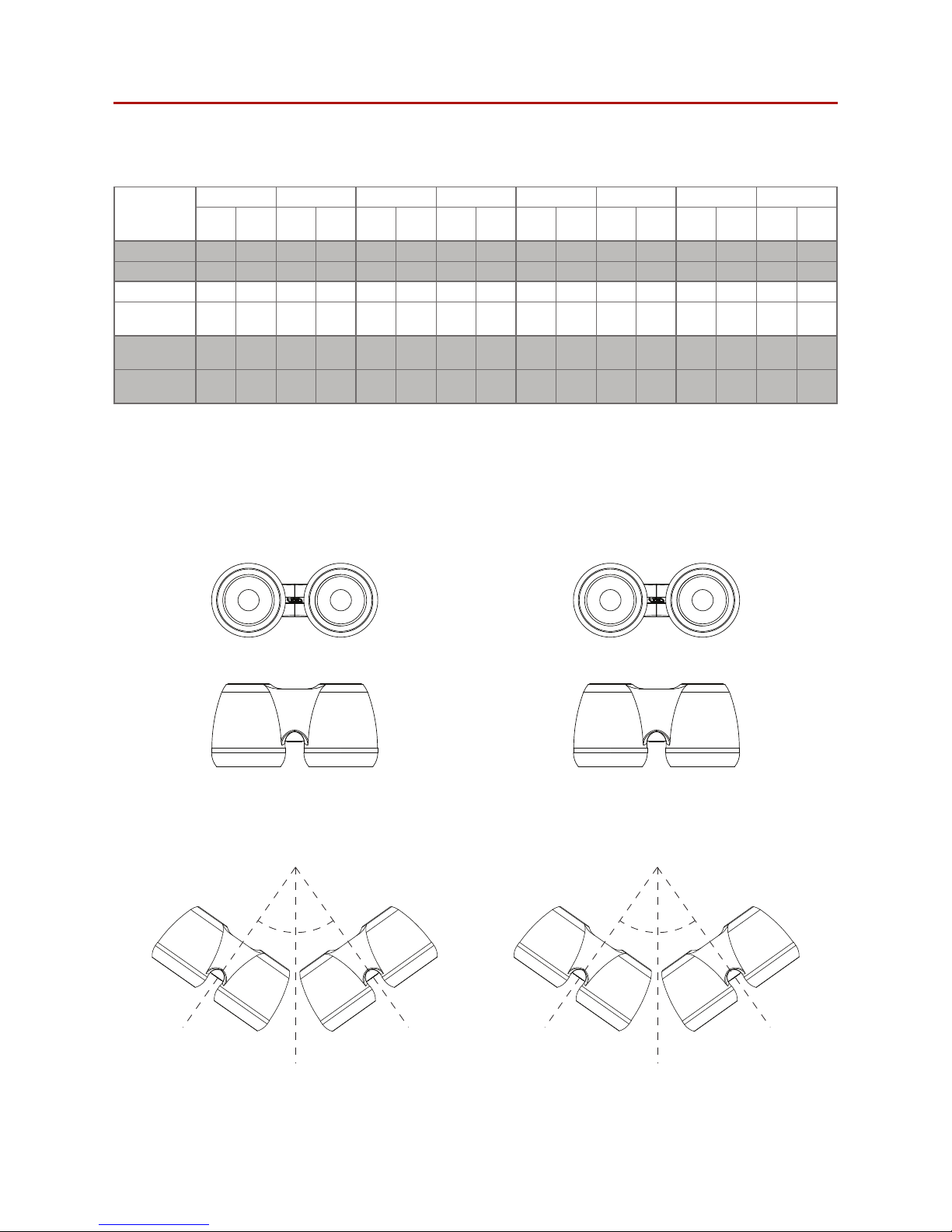

6.1 Bass alignment 13
6.2 System design principles 13

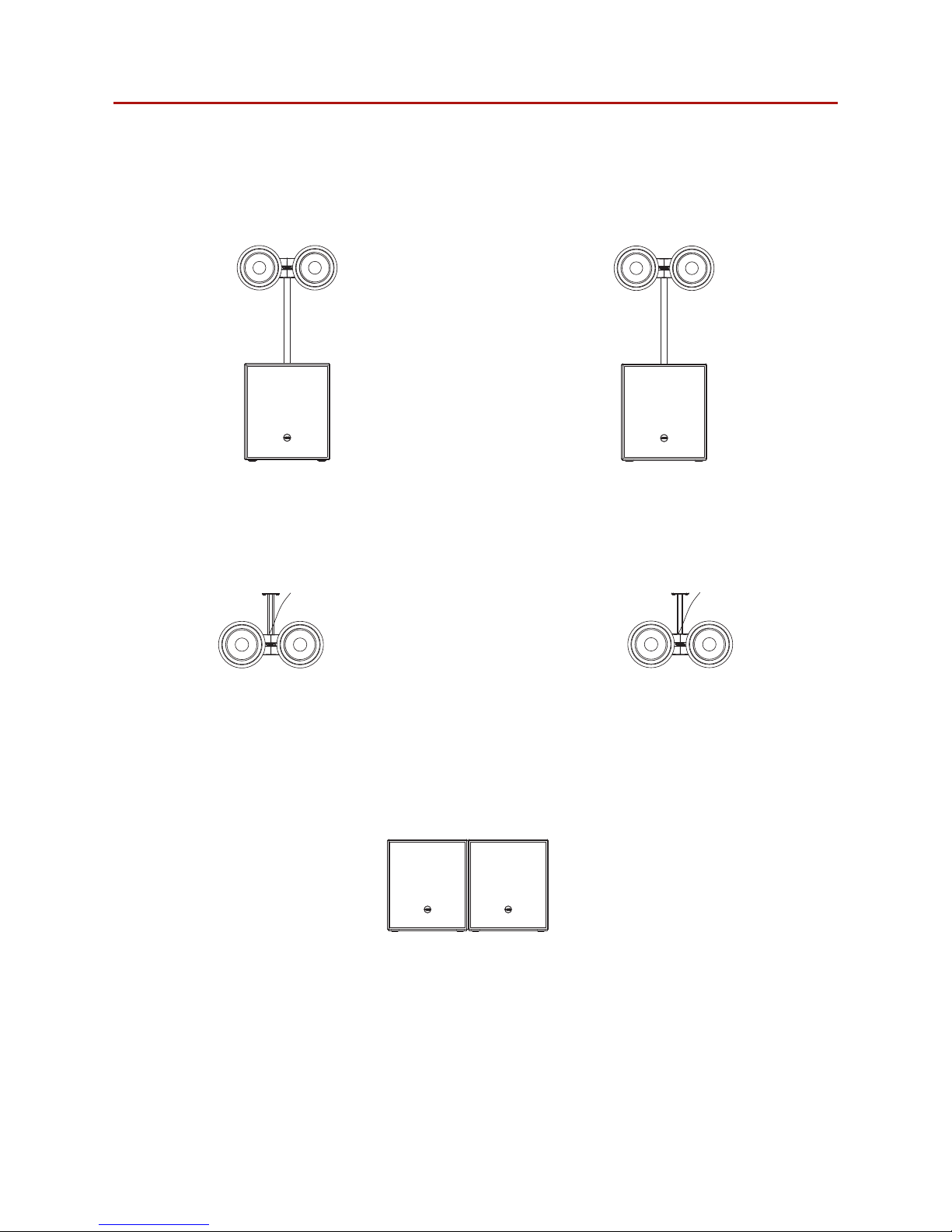

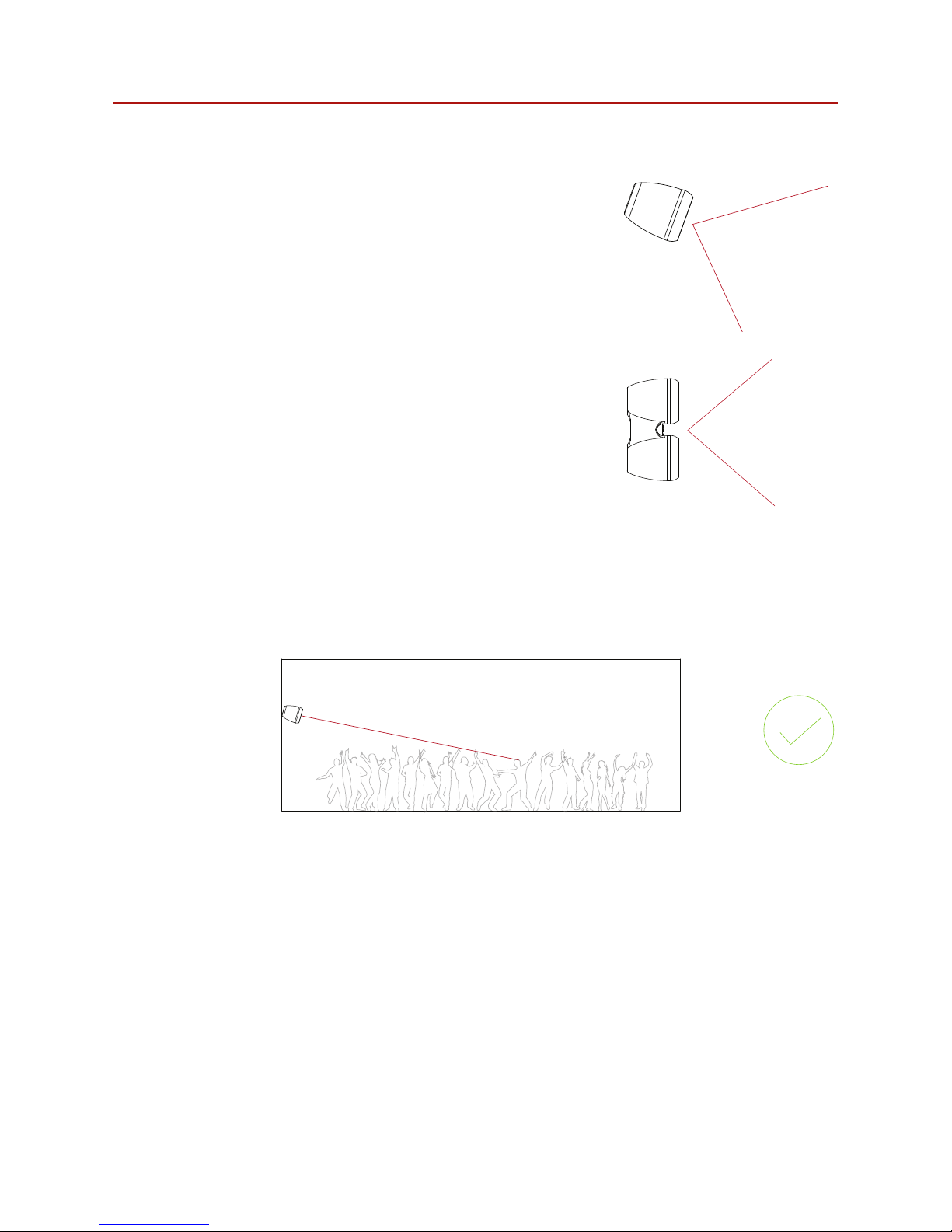

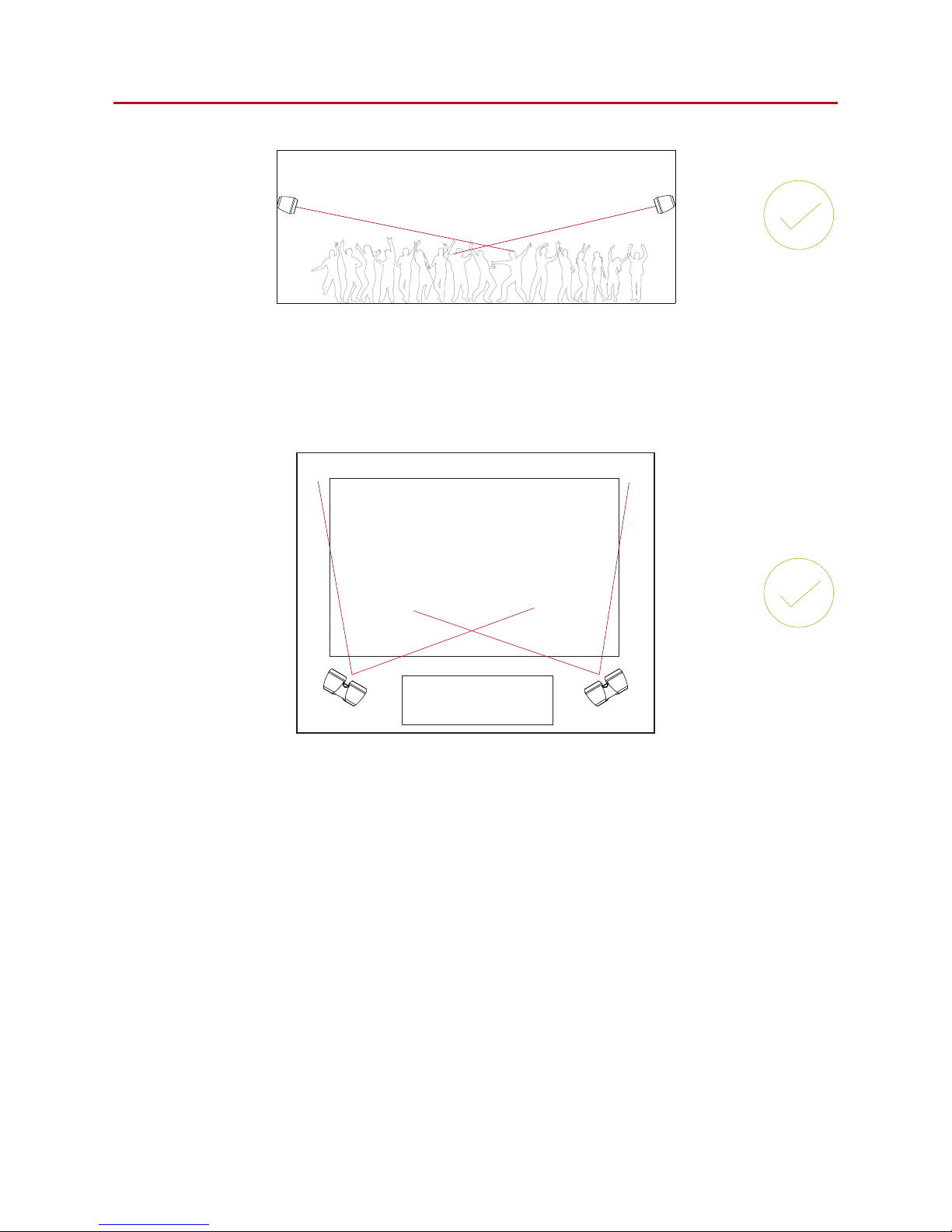

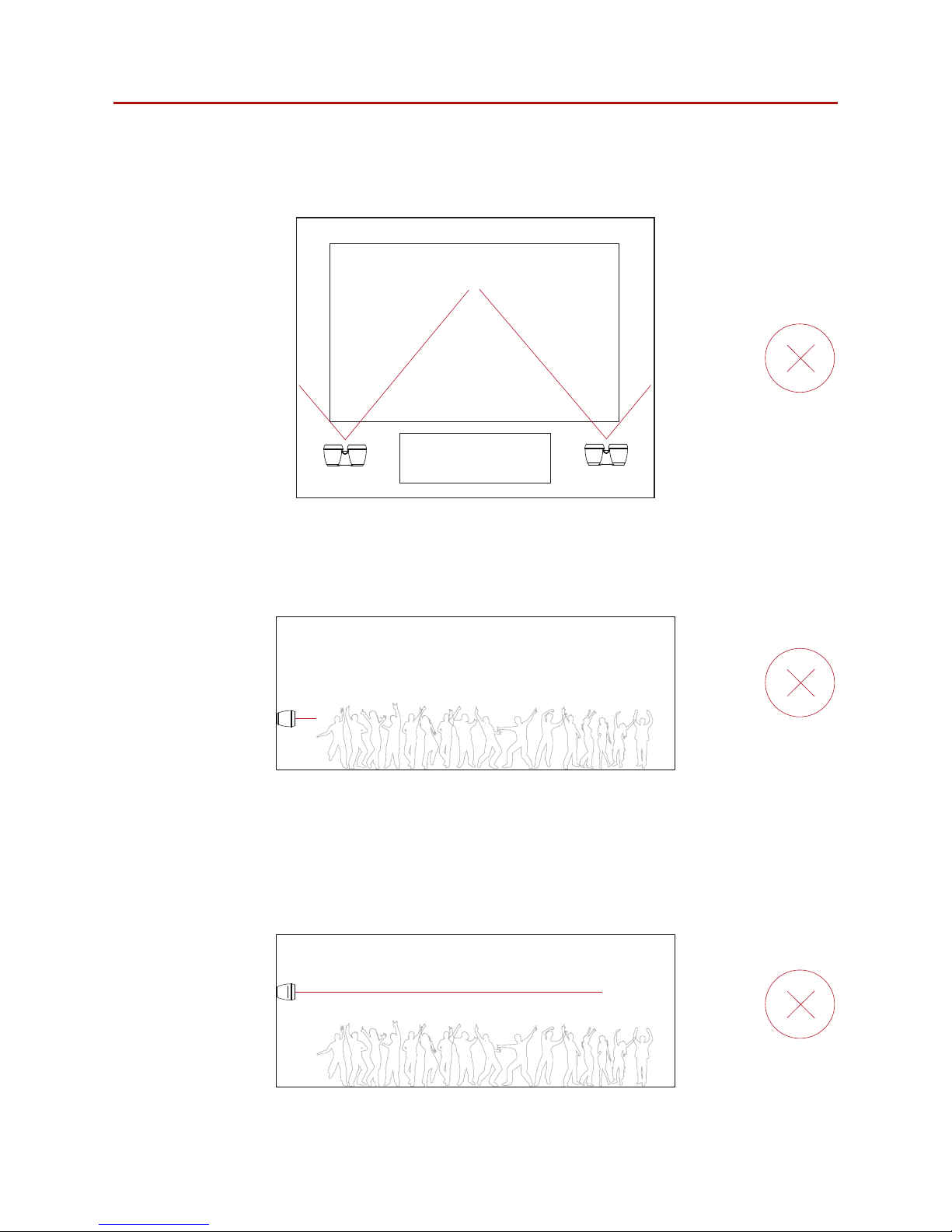

6.3 Loudspeaker placement and
positioning
15
7 Mounting 18
7.1 Installation safety 18
7.2 Airten pole mounting 19

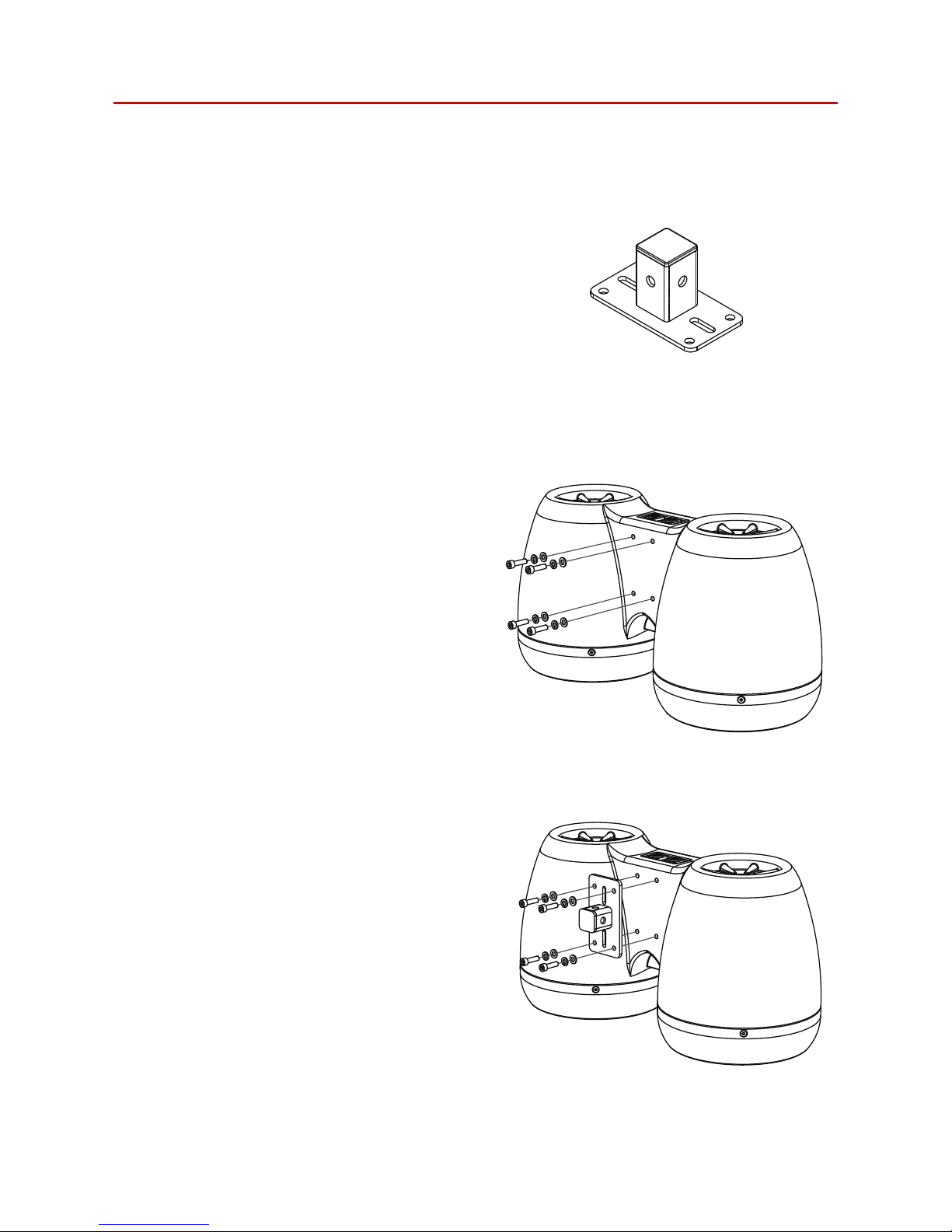

7.3 Attaching the stud bracket 21
7.4 Airten wall mounting over bracket 23
7.5 Airten well mounting under bracket 25
7.6 Airten ceiling mounting 27
7.7 Pole mounting on U bracket 29
8 Service 31
8.1 Return authorisation 31
8.2 Shipping and packing considerations 31
9 Appendix 32
Page 4
Airten User Guide V1.0
Page 4
1.1 Important safety instructions
The lightning flash with and arrowhead symbol
within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sucient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user of the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Safety instructions - read this first
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat source such as radiators, heat
registers, stoves, or other such apparatus that produce heat.
9. Do not defeat the safety purpose of the grounding-type
plug. A grounding type plug has two blades and a third
grounding prong. The third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect power cords from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit the apparatus.
11. Onlyuseattachmentsandaccessoriesspecifiedby Void
Acoustics.
12. Only use with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplugtheapparatusduringlightningstormsorwhenunused
forlongperiodsoftime.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in
any way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. Since the mains power supply cord attachment plug is used
to disconnect the device, the plug should always be easily
accessible.
16. Void loudspeakers can produce sound levels capable
of causing permanent hearing damage from prolonged
exposure. The higher the sound level, the less exposure
needed to cause such damage. Avoid prolonged exposure to
the high sound levels from the loudspeaker.
1.2 Limitations
This guide is provided to help familiarise the user with the
loudspeaker system and its accessories. It is not intended to provide
comprehensive electrical, fire, mechanical and noise training and is
not a substitute for industry-approved training. Nor does this guide
absolve the user of their obligation to comply with all relevant
safety legislation and codes of practice.
While every care has been taken in creating this guide, safety is
user-dependent and Void Acoustics Research Ltd cannot guarantee
complete safety whenever the system is rigged and operated.
1.3 EC declaration of conformity
Manufacturer:
Void Acoustics Research Ltd,
Unit 15 Dawkins Road Ind Est,
Poole, Dorset,
BH15 4JY,
United Kingdom.
We declare the under our sole responsibility the following product
models: Air Motion, Tri Motion, Airten, Air Stream, Air Vantage, Air 8
are intended to be used as loudspeakers and are in conformity with
the following EC Directives, including all amendments, and with
national legislation implementing these directives:
• BS EN 60065:2002
• BS EN 55103-1/-2
March 2016
Alex Skan
Technical Director
1.4 WEEE directive
If the time arises to throw away your product, please recycle all the
components possible.
This symbol indicates that when the end-user
wishes to discard this product, it must be sent
to separate collection facilities for recovery
and recycling. By separating this product from
other household-type waste, the volume of
waste sent to incinerators or land-fills will be
reduced and natural resources will thus be
conserved.
The Waste Electrical and Electronic Equipment Directive (WEEE
Directive) aims to minimise the impact of electrical and electronic
goods on the environment. Void Acoustics Research Ltd complies
with the Directive 2002/96/EC and 2003/108/EC of the European
Parliament on waste electrical finance the cost of treatment and
recovery of electronic equipment (WEEE) in order to reduce the
amount of WEEE that is being disposed of in land-fill sites. All of
our products are marked with the WEEE symbol; this indicates that
this product must NOT be disposed of with other waste. Instead
it is the user’s responsibility to dispose of their waste electrical
and electronic equipment by handing it over to an approved
reprocessor, or by returning it to Void Acoustics Research Ltd for
reprocessing. For more information about where you can send
your waste equipment for recycling, please contact Void Acoustics
Research Ltd or one of your local distributors.
1 Safety and regulations
Page 5
Airten User Guide V1.0
Page 5
Limited warranty
The warranty
For a period of three (3) years from the date of
delivery to the original purchaser (as shown on the
original invoice or sales receipt; a copy of this may be
required as proof of warranty dates), Void Acoustics
Research Ltd (hereinafter “Void”) warrants to the
Original Owner (person or company who originally
purchased the product brand new from either Void
or a Void Authorised Dealer/Distributor) of each
new Air Series product (provided it was purchased
at an Authorised Void Dealer) that it is free of
defects in materials and workmanship and that each
product will meet or exceed all factory published
specifications for each respective model. Void agrees
to repair or replace (at its discretion) all defective
parts at no charge for labour or materials; subject to
following provisions:
Warranty violations
Void shall take no responsibility for repair or
replacement as specified under this warranty, if
the damaged product has been subject to misuse,
accident, neglect or failure to comply with normal
maintenance procedures; or if the serial number
has been defaced, altered or removed. Nor will Void
accept responsibility for, or resulting from, improper
alterations or unauthorised parts or repairs. This
warranty does not cover any damage to speakers
or any other consequential damage resulting from
breach of any written or implied warranty.
Void warranty provisions
Void will remedy any defect, regardless of the
reason for failure (except as excluded) by repair, or
replacement. Void will remedy the defect and ship
the product within a reasonable time after receipt of
the defective product at a Void Authorised Service
Centre.
To obtain warranty service
If a Void product requires service, the Owner must
contact Void or an Authorised Void Service Centre to
receive an R.A.N. (Return Authorisation Number) and
instructions on how to return the product to the Void
Authorised Service Centre, or to Void.
Void (or its Authorised Service Centre) will initiate
corrective repairs upon receipt of the returned
product. Please save the original carton and all the
packing materials in case shipping is required. All
products being returned to the factory or service
centre for repairs must be shipped prepaid.
If the repairs made by Void or the Void Authorised
Service Centre are not satisfactory, the Owner
is instructed to give written notice to Void. If the
defect or malfunction remains after a reasonable
number of attempts by Void to remedy the defect
or malfunction, the Original Owner shall then have
the option to elect either a refund or replacement of
said Void product free of charge. The refund shall be
an amount equal to but not greater than the actual
purchase price, not including any taxes, interest,
insurance, closing costs and other finance charges
(minus reasonable depreciation on the product).
If a refund is necessary, the Original Owner must
make the defective or malfunctioning product
available to Void free and clear of all liens or other
restrictions.
Equipment modifications
Technical and design specifications are subject to
change without notice.
Void reserves the right to modify or change
equipment (in whole or part) at any time prior to
delivery thereof, in order to include therein electrical
or mechanical improvements deemed appropriate
by Void, but without incurring any liability to modify
or change any equipment previously delivered, or
to supply new equipment in accordance with any
earlier specifications.
Disclaimer of consequential and incidental
damages
You, the Original Owner, are not entitled to recover
from Void any incidental damages resulting from any
defect in the Void product.
This includes any damage to another product or
products resulting from such a defect.
Warranty alterations
No person has the authority to enlarge, amend, or
modify this Warranty. This Warranty is not extended
by the length of time which the Original Owner
is deprived of the use of product. Repairs and
replacement parts provided pursuant to the Warranty
shall carry only the non-expired portion of the
Warranty.
This Statement of Warranty supersedes all
others contained in this user guide.
2 Limited warranty
Page 6
Airten User Guide V1.0
Page 6
All Void Acoustics products are carefully manufactured and thoroughly tested before being
despatched. Your dealer will ensure that your Void products are in pristine condition before
being forwarded to you but mistakes and accidents can happen.
Before signing for your delivery:
• Inspect your shipment for any signs of contamination, abuse or transit damage as soon as
you receive it
• Check your Void Acoustics delivery fully against your order
• If your shipment is incomplete or any of its contents are found to be damaged; inform the
shipping company and inform your dealer.
Airten loudspeakers are heavy (20 kg/44.1 lbs) and require a minimum two people to lift.
• Airten loudspeakers come double boxed and
are stapled shut; take care when unboxing and
removing the staples to avoid injury or damage
to the loudspeaker
• If you need to place the loudspeaker on a flat
surface ensure you use a lint free product to
protect the finish
• When you have removed the Airten
loudspeaker from the packaging inspect it to
ensure there is no damage and keep all original
packaging in case it needs to be returned for
any reason.
See section 2 for warranty conditions and see
section 8 if your product needs service.
3 Unpacking and checking

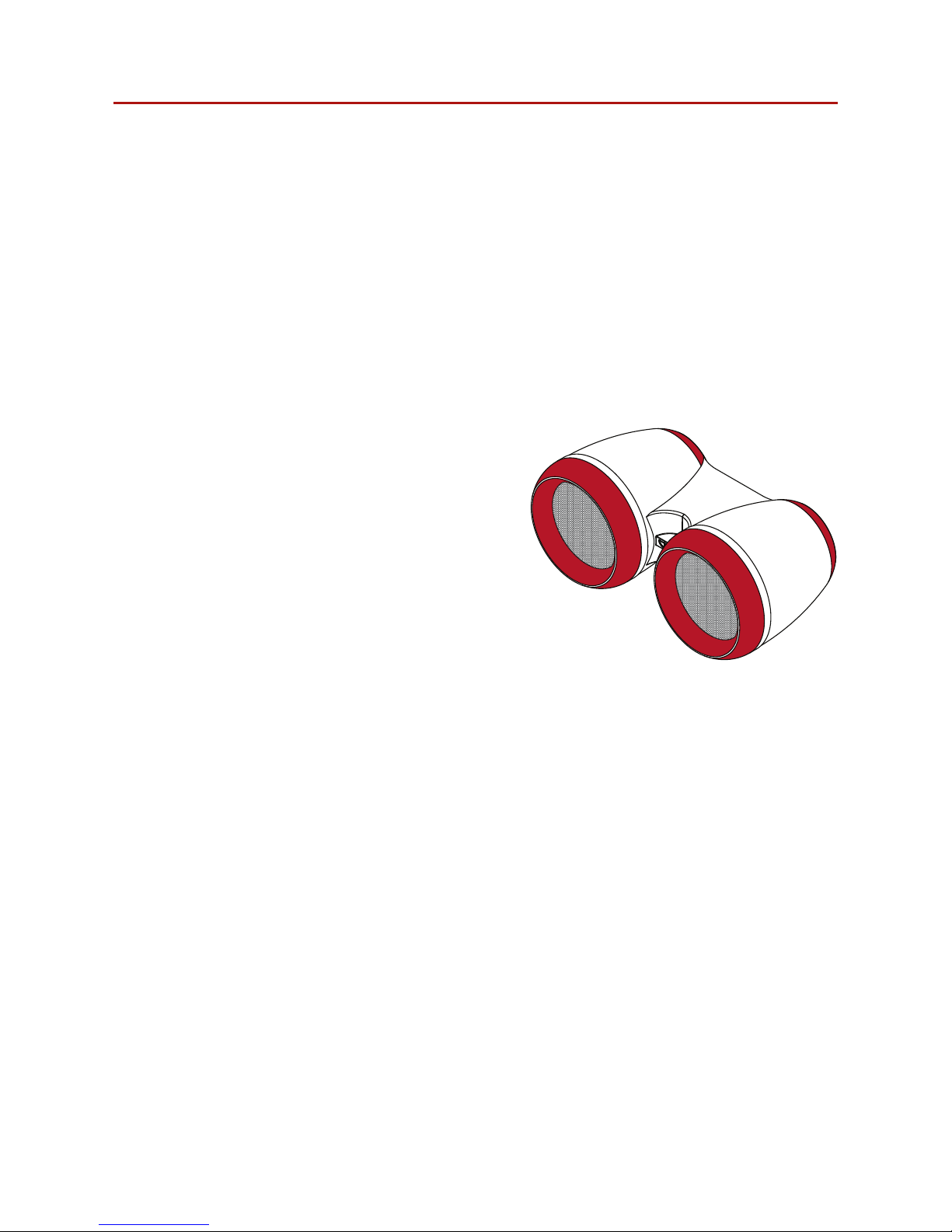

Figure 3.1: Safe handling positions
(as indicated in red)
Page 7
Airten User Guide V1.0
Page 7
4.1 Welcome
Many thanks for purchasing this Void Acoustics Airten. We truly appreciate your support.
At Void, we design, manufacture and distribute advanced professional audio systems for
the installed and live sound market sectors. Like all Void products, our highly skilled and
experienced engineers have successfully combined pioneering technologies with groundbreaking design aesthetics, to bring you superior sound quality and visual innovation. In buying
this product, you are now part of the Void family and we hope using it brings you years of
satisfaction. This guide will help you both use this product safely and ensure it performs to its
full capability.
4.2 Airten overview
Don’t be fooled by the Airten V2’s small size. Its dual driver LF configuration results in greater
bass extension, while a coaxial point source element for the mid and high frequency, housed
in a space-age composite enclosure, delivers exceptional fidelity across its wide dispersion
pattern.
The total elimination of energy-robbing enclosure resonance has been achieved using
super strong composites that include fibreglass, providing desirable acoustical properties
and allowing the Airten V2’s evolved form to emerge. Unique ‘intake protection’ is employed
to accurately control and limit excursion, requiring no additional outboard processing or
powering. The increased headroom available by monitoring the components at source has
produced a system capable of output levels normally associated with enclosures over twice
the size of Airten, making it particularly favoured for near-field DJ monitoring.
4.3 Key features:
• Small footprint ideal for DJ monitoring
• Very low enclosure resonance
• Focused 80°H x 80°V dispersion pattern
• Space saving coaxial MF/HF driver
• Fibreglass composite construction
• Smooth cellulose finish
• Standard red, black and white finishes, optional custom colours
• Integrated mounting plate
• Internal electronic control prevents overdriving
4 About
Page 8
Airten User Guide V1.0
Page 8
4.4 Airten specifications
Frequency response 60 Hz - 20 kHz ±3 dB
Eciency
1
99.2 dB 1W/1m
Crossover points Passive 500 Hz and 1.6 kHz
Nominal impedance 4 Ω
Power handling
2
500 W AES
Maximum output
3
125 dB cont, 128 dB peak
Driver configuration 2 x 10” LF, 1 x 1” HF compression driver
Dispersion 80°H x 80°V
Protection Internal electronic control
Connectors 2 x 4-pole speakON™ NL4
Height 303 mm (11.9”)
Width 681 mm (26.8”)
Depth 330 mm (13”)
Weight 20 kg (44.1 lbs)
Enclosure Fibreglass composite
Rigging Integral mounting plate
Finish Smooth cellulose
Colour Custom colours available upon request
1
Measured in half space 2 AES2 - 1984 compliant 3 Calculated
Figure 4.1: Horizontal directivity isobars Figure 4.2: Vertical directivity isobars
4 About
Page 9
Airten User Guide V1.0
Page 9
4.5 Airten dimensions
50 (2”)
108
(4.3”)
50.8
(2”)
330 (13”)
681 (26.8”)
303 (11.9”)
330 (13”)
681 (26.8”)
303 (11.9”)
330 (13”)
681 (26.8”)
Figure 4.3: Dimensions
4 About
Page 10
Airten User Guide V1.0
Page 10
5 Cabling and wiring
5.1 Electrical safety
To avoid electrical hazards please note the following:
• Do not access the inside of any electrical equipment. Refer servicing to Voidapproved service agents
5.2 Cable considerations for fixed installations
We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for
permanent installations. Cables for permanent installations should be compliant with the
following standards:
• IEC 60332.1 Fire retardancy of a single cable
• IEC 60332.3C Fire retardancy of bunched cables
• IEC 60754.1 Amount of Halogen Gas Emissions
• IEC 60754.2 Degree of acidity of released gases
• IEC 61034.2 Measurement of smoke density
We suggest using the following maximum copper cable lengths to keep level losses below 0.6 dB.
Metric mm
2
Imperial AWG 4 Ω load 2 Ω load
2.50 mm
2
13 AWG 18 m 9 m
4.00 mm
2
11 AWG 30 m 15 m
5.3 Airten wiring diagram
+
-
+
-
1+
1-
2+
2-
1+
1-
2+
2-
1+
12+
2-
1+
12+
2-
Passive
Crossover
In
Out/Link
1” HF
10” LF
Co-Axial
Passive
Crossover
+
-
10” LF
Figure 5.1: Airten wiring diagram
speakONTM pins 1+/1- speakONTM pins 2+/2In HF (1”) and LF (2 x 10”) Link/out
Out Link/out Link/out
Page 11
Airten User Guide V1.0
Page 11
5.4 Bias V3/V9 speakON
TM
wiring
1+
1-
1+
1-
1+
1-
1+
1-
Figure 5.2: Bias V3 Figure 5.3: Bias V9
Bias V3/V9 Output 1 or 2
Output LF (2 x 10”) and HF (1”)
Max parallel units 2 (2 Ω load to amplifier)
5.5 Bias VQ speakON
TM
wiring
1+
1-
1+
1-
1+
1-
1+
1-
Figure 5.4: Bias VQ
Bias VQ Single channel
Output LF (2 x 10”) and HF (1”)
Max quantity per channel 1 (4 Ω load to amplifier)
5 Cabling and wiring
Page 12
Airten User Guide V1.0
Page 12
5.6 Bias D1/Q2 Phoenix wiring
1+
1-
1+
1-
+1
-1
1+
1-
Figure 5.5: Bias D1 Figure 5.6: Bias Q2
Bias D1/Q2 Output 1 or 2
Output LF (2 x 10”) and HF (1”)
Max parallel units 2 (2 Ω load to amplifier)
5.7 Bias Q5 speakON
TM
wiring
1+
1-
1+
1-
Figure 5.7: Bias Q5
Bias Q5 Output 1
Output LF (2 x 10”) and HF (1”)
Max quantity per channel 2 (2 Ω load to amplifier)
5 Cabling and wiring
Page 13
Airten User Guide V1.0
Page 13
6 System design
Figure 6.1: Airten single pair arrangement
35° 35°
Figure 6.2: Air Motion dual pair arrangement
35° 35°
6.2 System design principles
Airten loudspeakers can be arrayed as a single pair facing forward to provide a wide stereo image.
For applications requiring wide horizontal coverage, use two Airten in pairs, angled at about 35°.
6.1 Airten bass alignment
Loudspeaker/
amplifier
combination
Airten Stasys 118 Airten Stasys 218 Airten Nexus XL Airten Stasys X/Xair
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Gain Delay
(ms)
Bias VQ -1.5* 1.66* n/a n/a n/a n/a n/a n/a
Bias VQ 0* 0* n/a n/a n/a n/a n/a n/a
Bias VQ 0 6.23 0 6.23 -4.5 8.22 -2 8
Bias V3/V9/
D1/Q2/Q5
0 0 0 0 0 0 0 0
Bias V3/V9/
D1/Q2/Q5
0 1.66 0 1.66 -4.5 3.63 -2 3.41
Bias V3/V9/
D1/Q2/Q5
0 0 0 0 0 0 0 0
All polarities positive unless otherwise stated.
*100 Hz Linkwitz-Riley 24 dB
Page 14
Airten User Guide V1.0
Page 14
For temporary installation, a popular system configuration is two stacks consisting of Stasys
118, with an Airten on a pole mount. This raises the Airten to a useful height above the
audience, and the sensitivity of the Stasys 118 matches the Airten well. This system is suitable
for events of up to 250 people.

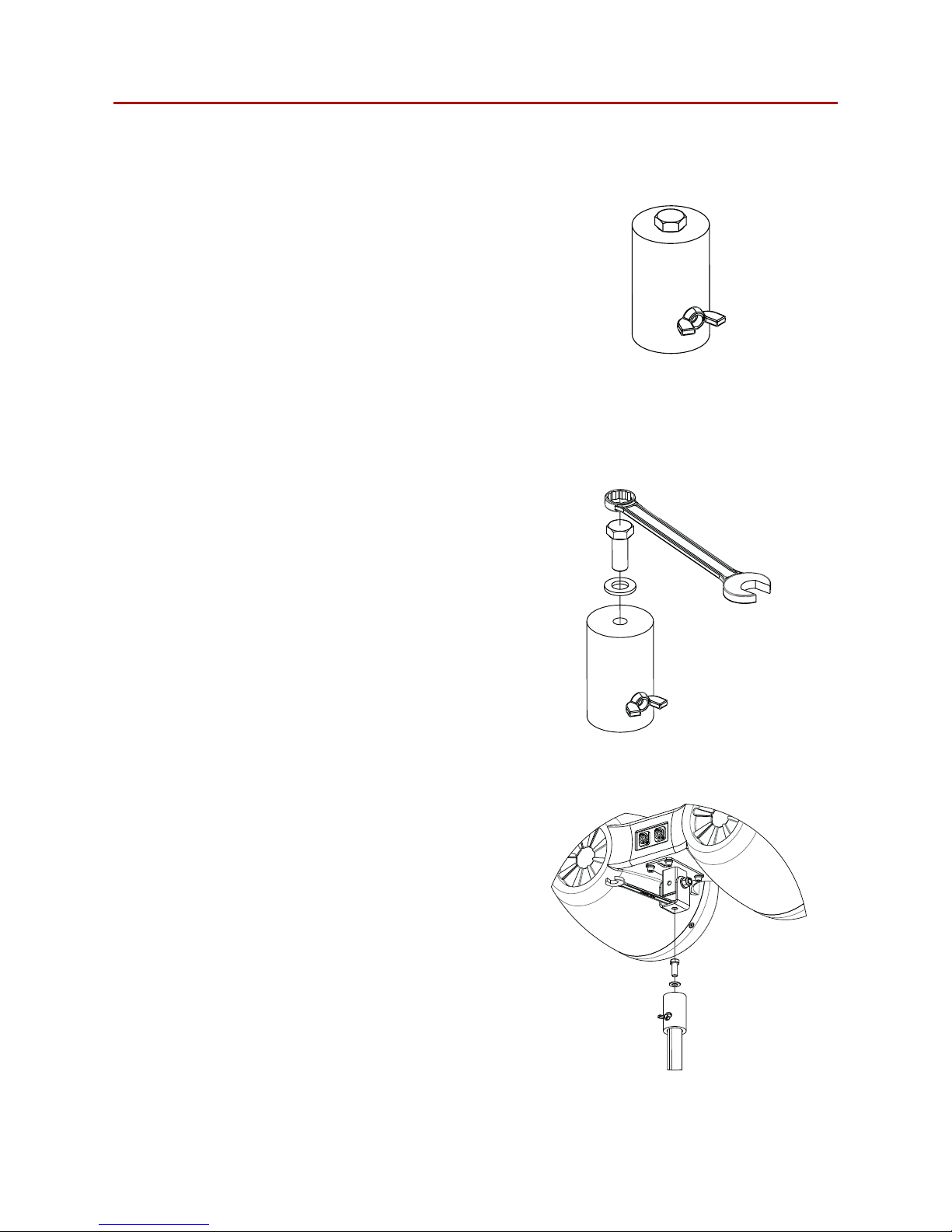

Figure 6.3: Airten bass cabinet mounting
For permanent installation, it is recommended to fly Airten for more even coverage. This
also allows co-located low frequency enclosures in a single block, increasing sensitivity and
providing more consistent bass coverage.

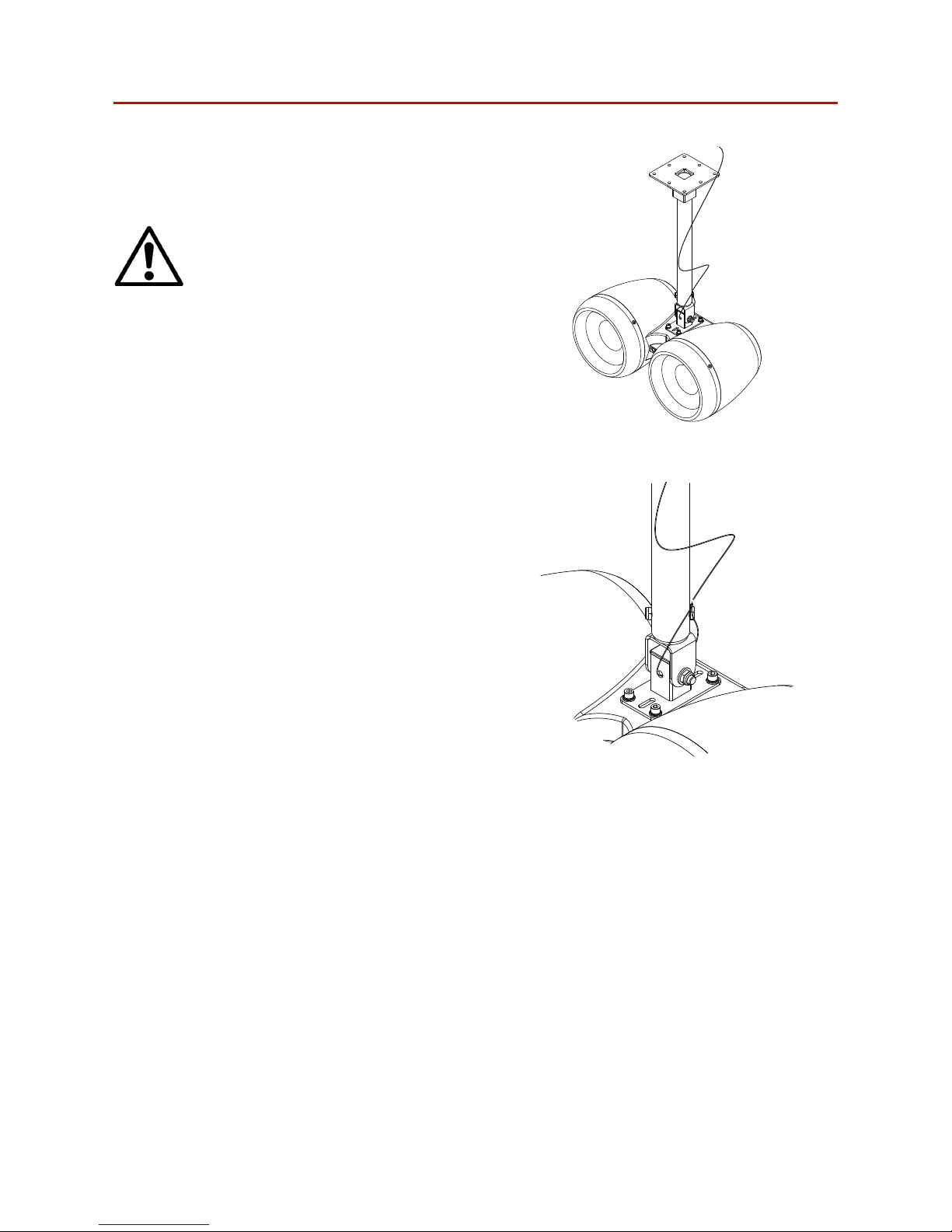

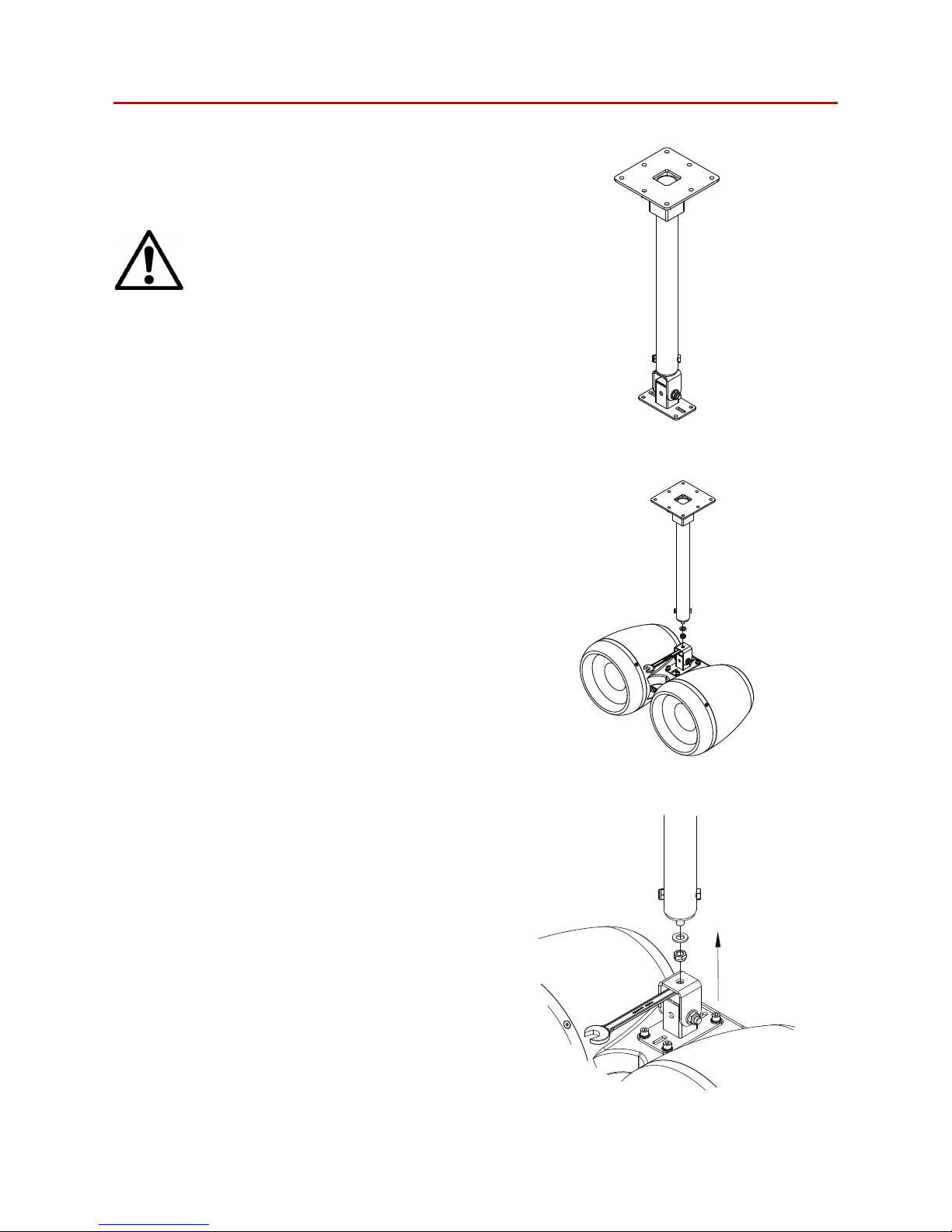

Figure 6.3: Airten ceiling mounting
6 System design
Page 15
Airten User Guide V1.0
Page 15
6 System design
6.3 Loudspeaker placement and positioning
When deploying Airten, it is important to consider the
speakers’ vertical position to maximise coverage in the vertical
axis. Horizontal loudspeaker dispersion figures dictate the
coverage of the loudspeaker, left to right, to the -3 dB points.
The same can be said for the vertical dispersion figure, but
when applied to a listening area, this figure dictates the
audience area coverage front to back.
Vertical dispersion is often overlooked or not assessed
properly, resulting in ineciently deployed loudspeaker
systems that require more fill loudspeakers than are necessary
to achieve required coverage. Following are some basic
guidelines when considering the vertical position of your
Airten loudspeaker.
With optimum vertical positioning and aiming applied the
loudspeaker system can be used at maximum eciency. With
a point source loudspeaker in this configuration the speaker
is placed 2m-4m from the ground, aimed half way to two thirds of the way back from the
audience area, as shown in figure 6.6. The applied aiming reduces unwanted reflections from
the ceiling and directs the highest energy concentration to the audience area requiring it most.
This is the most desirable position for the loudspeakers in this example.
Figure 6.6: Correct loudspeaker placement
Figure 6.5a: Vertical dispersion (side view)
Figure 6.5b: Horizontal dispersion (top view)
A multi-point loudspeaker system in a club/bar environment can be very pleasing for the
listener. However, it’s important that the processes applied to previous examples are still
implemented. In figure 6.7 you can see the loudspeakers have been positioned and aimed
optimally. When deploying a multi-point loudspeaker system, extra consideration must be
taken to counter unwanted room eects. Careful positioning and aiming of loudspeakers will
minimise room eects, while maintaining even coverage throughout the audience area.
Page 16
Airten User Guide V1.0
Page 16
Figure 6.7: Multi point loudspeaker arrangement
Audience
Stage
Figure 6.8: Correct horizontal dispersion
In the horizontal plane rotate the Airten toward the audience area at an angle such that
the centre line of the dispersion from each loudspeaker meets about two thirds of the way
towards the rear of the audience area. This will help provide a wider coverage and result in
more of the power being used usefully.
6 System design
Page 17
Airten User Guide V1.0
Page 17
Figure 6.10: Incorrect loudspeaker placement
Figure 6.11: Incorrect loudspeaker placement
Figure 6.11 shows the loudspeaker vertical position is optimal for the audience area but the
user hasn’t applied an aiming angle. In this case, a large portion of energy is directed at the
ceiling that could result in reduced intelligibility and unwanted room acoustic characteristics.
The shallow angle of attack will also induce refraction issues on a hot dance floor, leading to
reduced HF penetration at mid and far distances, again reducing intelligibility and coherence.
In figure 6.10 the loudspeakers vertical positioning is too low for the audience area. Mid
and high range frequencies are absorbed by the first two rows of people, resulting in poor
coverage and potential acoustic issues from room reflections.
Audience
Stage
Avoid directing the Airten straight forward. This will result in a proportion of the power being
directed towards the walls, creating possible reflective issues, as well as causing a gap in
coverage at the centre of the audience area.
Figure 6.9: Incorrect horizontal dispersion
6 System design
Page 18
Airten User Guide V1.0
Page 18
7 Mounting
Tools Required
• 6 mm Allen key
• 19 mm ratchet spanner/wrench
7.1 Installation safety
To avoid mechanical hazards, please note the following:
• Safety regulations vary in dierent regions. Full compliance with those
regulations must be your priority
• Rigging must only be undertaken by fully qualified and experienced riggers who
understand local regulations
• This may include consulting a structural engineer before installation of wall brackets
• Remember that all personnel have a duty of care to themselves, to their assistants, to the
venue sta and to the public
• Before lifting any part of the system above head height, check the whole rig for loose tools
or other items that may fall and cause injury
• Do not use a telephone (even if hands-free) whilst rigging. Always concentrate fully on the
rigging operation
• Do not rig equipment that is worn, damaged, corroded, mishandled or over-stressed in
any way
• Use only Void-approved mounting equipment and accessories.
Page 19
Airten User Guide V1.0
Page 19
Parts required:
• Air Series pole mount

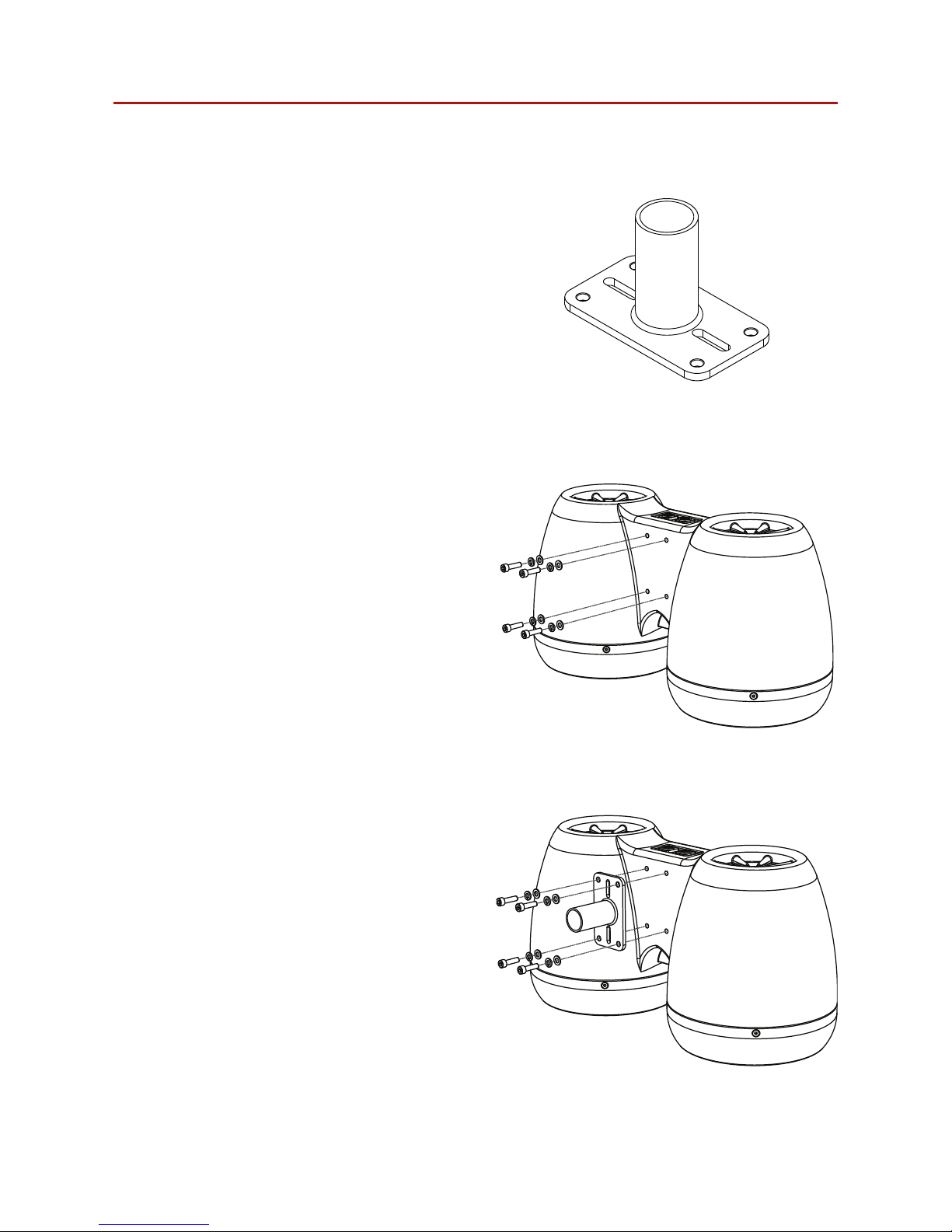

Figure 7.1: Air series pole mount
Figure 7.3: Air Series pole mount bracket positioning
Figure 7.2: M8 socket cap removal
Step 1:
Lay a soft lint free rug clear of debris on the
ground to avoid damage to the loudspeaker.
Place the Airten with the horns face down and
remove all four M8 socket cap Allen bolts.
Step 2:
Place the Air Series pole mount into position
and insert the M8 socket cap Allen bolts.
7.2 Airten Pole Mounting
Page 20
Airten User Guide V1.0
Page 20

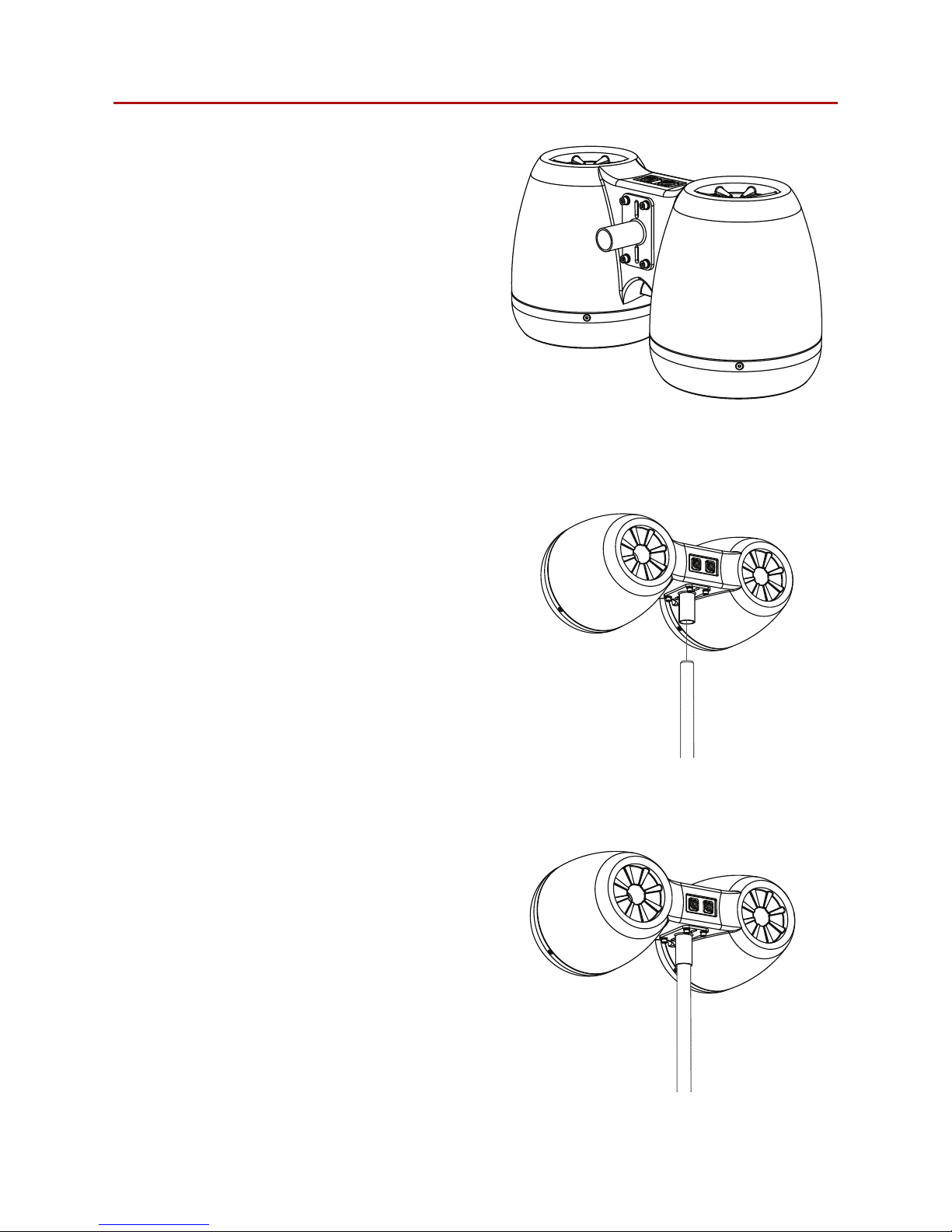

Figure 7.4: Air Series pole mount bracket fixing
Step 3:
Fix all four M8 socket cap Allen bolts taking
care not to over tighten.
Figure 7.6: Air Series pole mount
Step 5:
Finally ensure that the Airten loudspeaker is
safely in place.
Figure 7.5: Air Series pole mount positioning
Step 4:
After erecting the pole use two people to lift
the Airten loudspeaker into position taking care
to use the safe handling positions in section 3.
7.2 Airten Pole Mounting
Page 21
Airten User Guide V1.0
Page 21
7.3 Attaching the stud bracket
Figure 7.7: Air Series stud mount bracket
Parts required:
• Air Series stud mount bracket
Figure 7.9: Air Series stud mount bracket positioning
Step 2:
Place the Air Series stud mount bracket into
position and insert the M8 socket cap Allen
bolts.
Figure 7.8: M8 socket cap removal
Step 1:
Lay a soft lint free rug clear of debris on the
ground to avoid damage to the loudspeaker.
Place the Airten with the horns face down and
remove all four M8 socket cap Allen bolts.
Page 22
Airten User Guide V1.0
Page 22

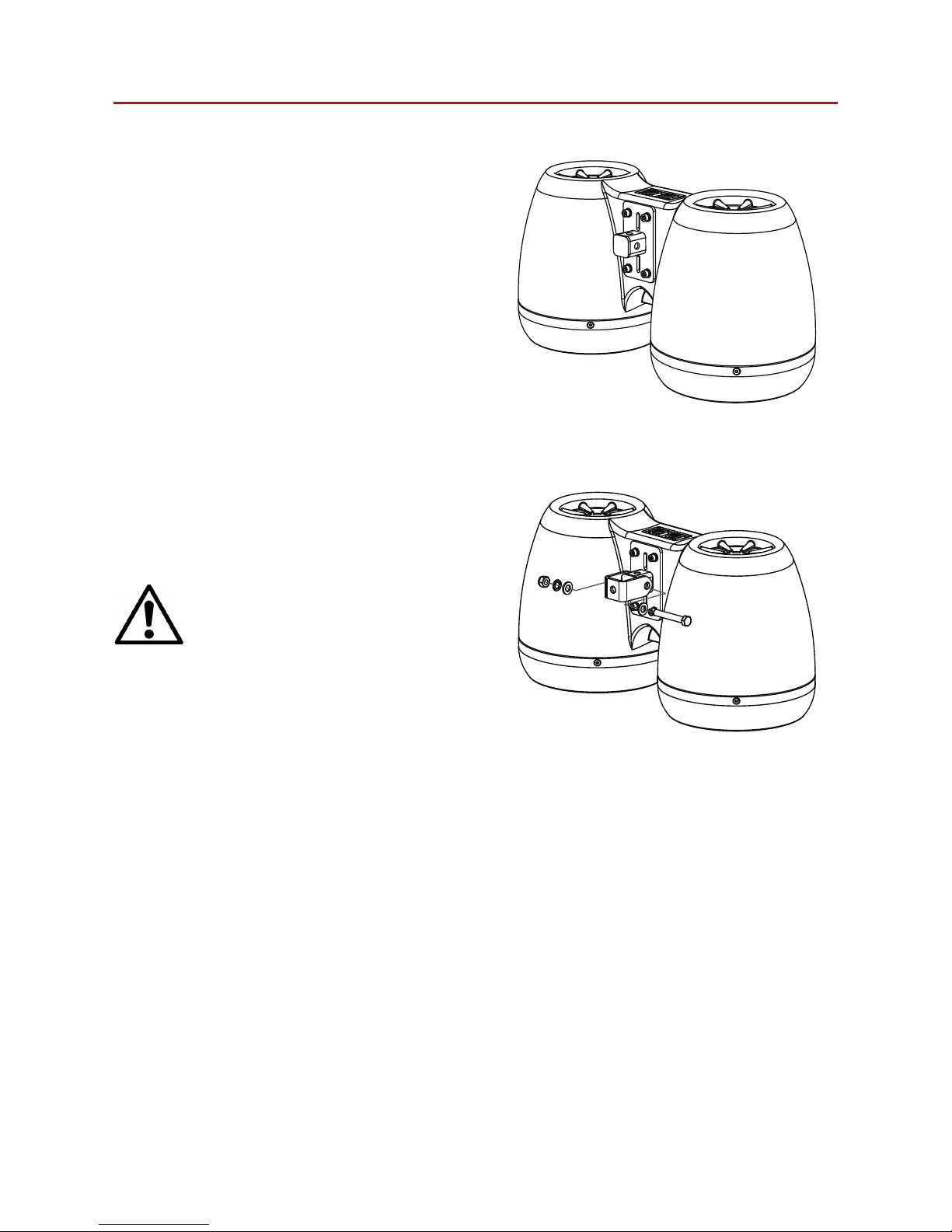

Figure 7.10: Air Series stud mount bracket fixing
Step 3:
Fix all four M8 socket cap Allen bolts taking
care not to over tighten.
Figure 7.11: Air Series stud mount U bracket fixing
Step 4:
Attach the Air Series U bracket (included with
Air Series Stud mount).
Note:
The U bracket is threaded for the
bolt on one side only. Insert the
M10 x 70 mm bolt through the
non-threaded side and tighten.
Then tighten the M10 Aerotight nut.
7.3 Attaching the stud bracket
Page 23
Airten User Guide V1.0
Page 23
Figure 7.13: Airten loudspeaker positioning
Step 1:
Lift the Airten loudspeaker into place using
two people and the safe handling positions in
section 3.

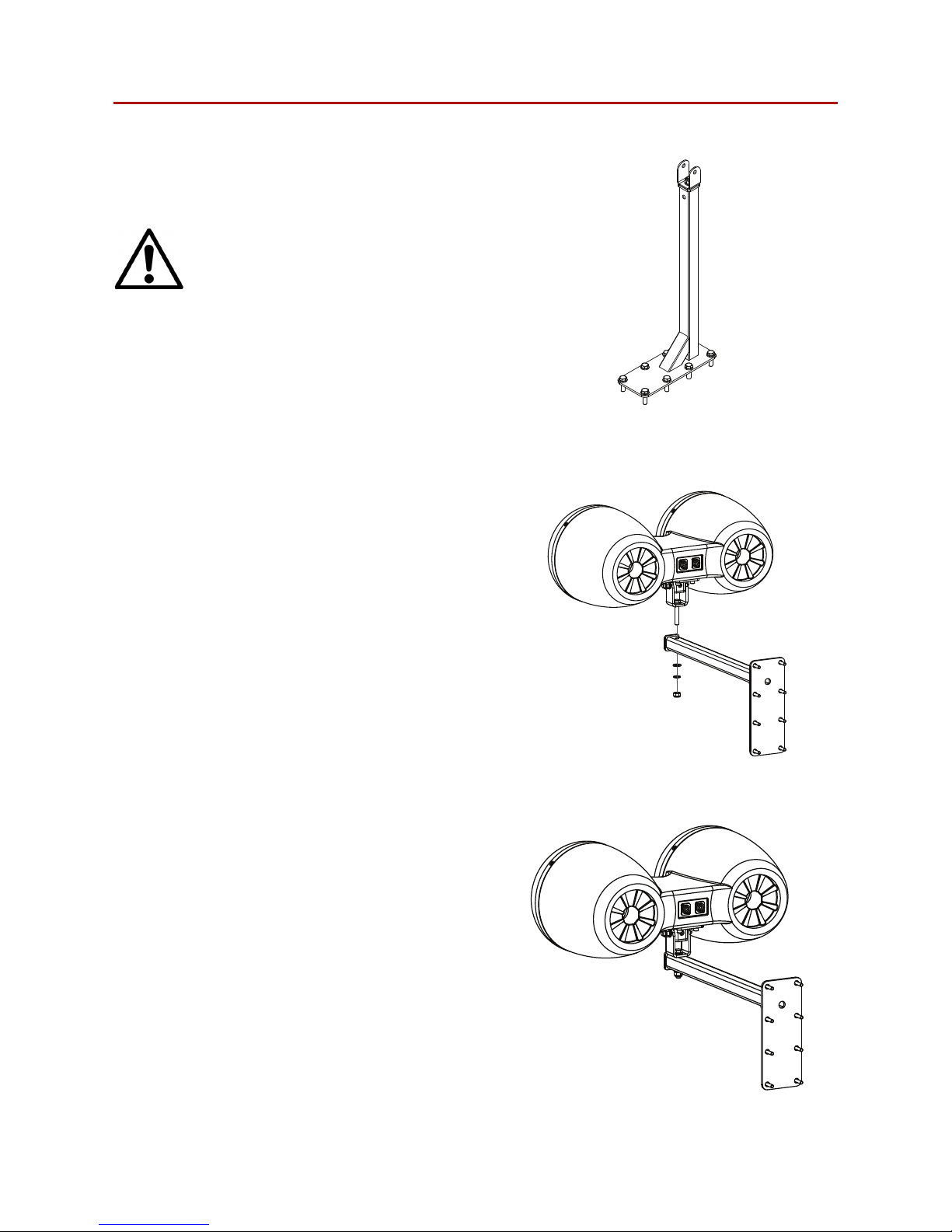

Figure 7.12: WHD 75 wall/ceiling mount
Parts required:
• WHD 75 wall/ceiling mount
Note:
All eight bolts must be fitted when
securing the bracket to the wall.
Figure 7.14: Airten loudspeaker fixing
Step 2:
Lower the Airten into place and attach the with
M10 Aerotight bolt below but do not tighten.
7.4 Airten wall mounting over bracket
Page 24
Airten User Guide V1.0
Page 24

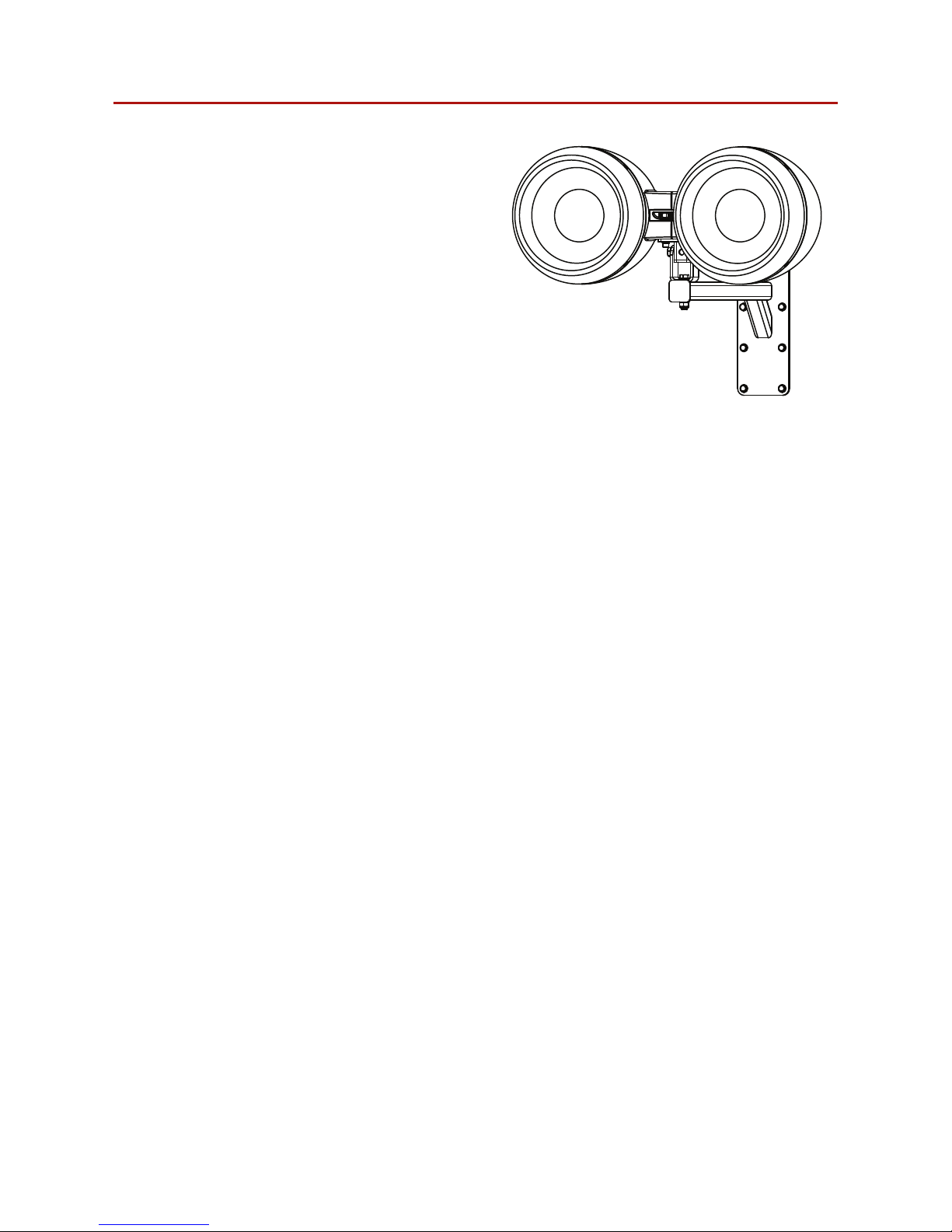

Figure 7.15: Airten loudspeaker positioning
Step 3:
Rotate the Airten loudspeaker into the desired
position and tighten the M10 Aerotight bolt.
7.4 Airten wall mounting over bracket
Page 25
Airten User Guide V1.0
Page 25

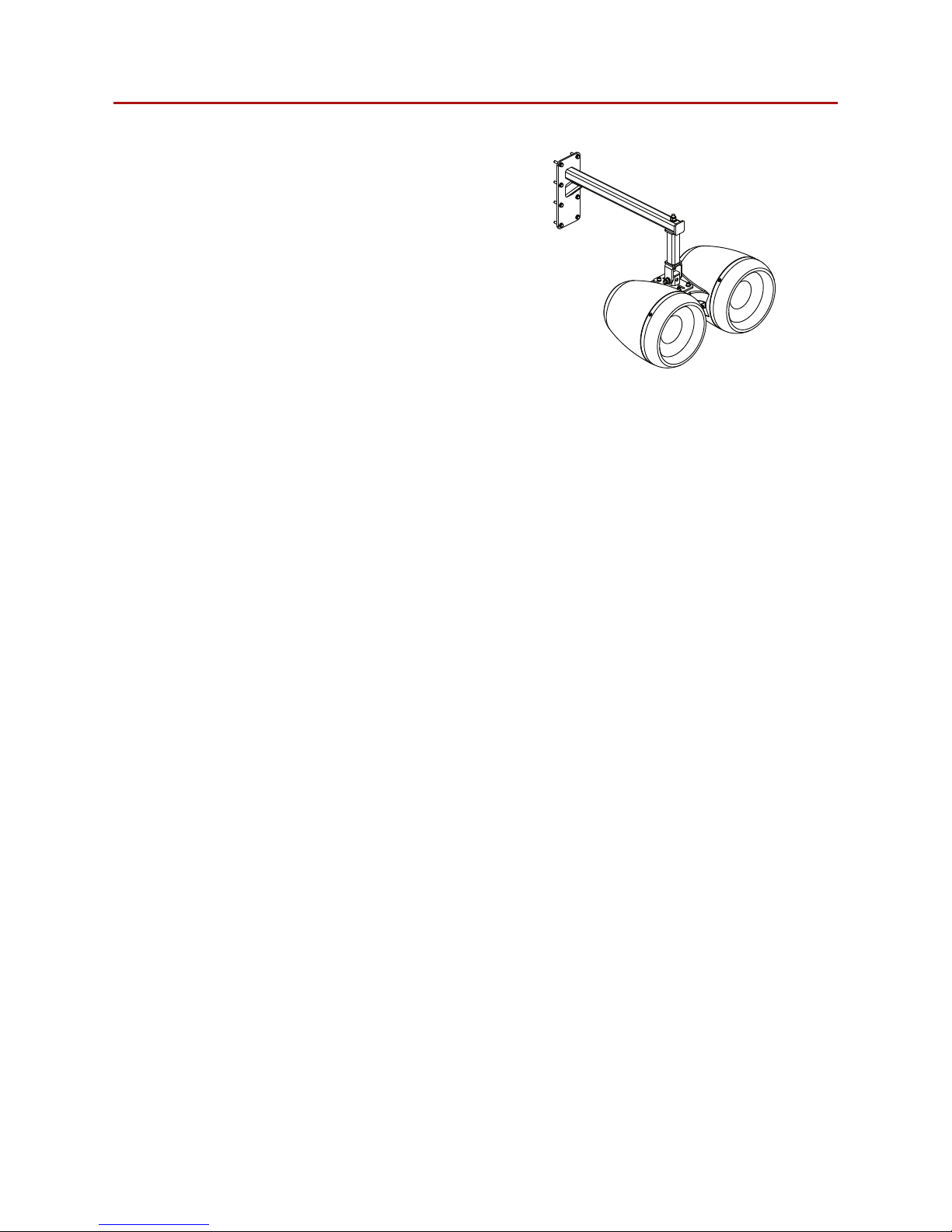

7.5 Airten wall mounting under bracket

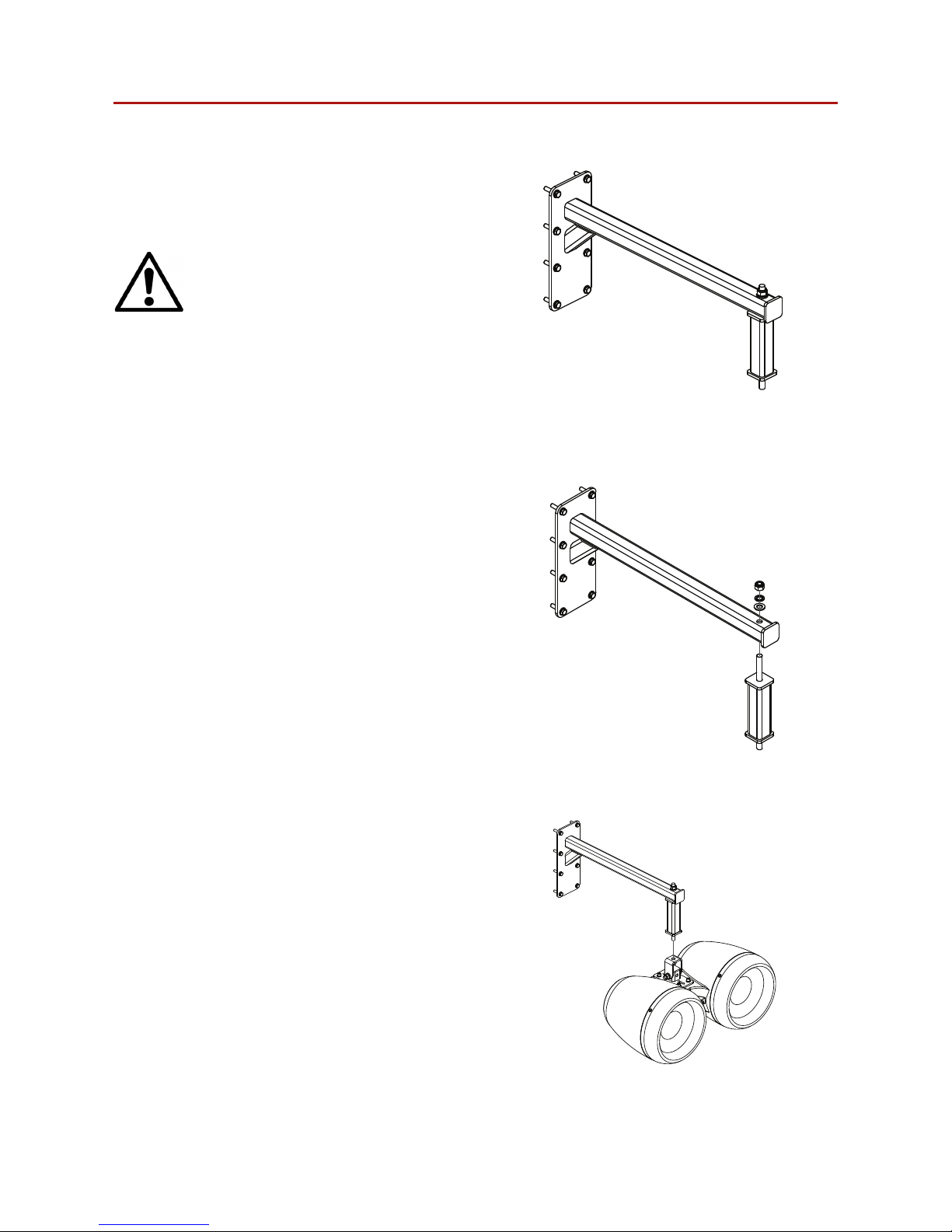

Figure 7.16: WHD wall/ceiling mount with extension piece
Parts required:
• WHD 75 wall/ceiling mount
• Multi bracket extension
Note:
All eight bolts must be fitted when
securing the bracket to the wall.
Figure 7.17: WHD wall/ceiling mount with extension piece fixing
Step 1:
Attach the extension piece to the WHD 75
wall/ceiling mount with the M10 Aerotight nut.
Figure 7.18: Airten positioning
Step 2:
Raise the Airten loudspeaker into position,
taking care to follow the safe handling
positions in section 3, and attach the M10
Aerotight nut.
Page 26
Airten User Guide V1.0
Page 26
Figure 7.19: Airten fixing
Step 3:
Rotate the Airten loudspeaker into the desired
position and tighten the M10 Aerotight bolt.
7.5 Airten wall mounting under bracket
Page 27
Airten User Guide V1.0
Page 27
7.6 Ceiling pole mounting
Figure 7.20: Air series ceiling bracket
Parts required:
• Air series ceiling bracket
Note:
All eight bolts must be fitted when
securing the bracket to the wall.
Figure 7.21: Airten positioning
Step 1:
Lift the Airten into position making sure to
hold it by the safe lifting positions detailed in
section 3.
Figure 7.21: Airten positioning
Step 2:
Attach the Airten bracket with the M12
Aerotight nut using a 19 mm ratchet spanner.
Page 28
Airten User Guide V1.0
Page 28
Figure 7.23: Safety wire attachment
Step 3:
Attach the secondary bond (safety wire) to the
central box section.
The safety wire must be rated
to 20 kg with a safety factor
conforming to local regulations.
Figure 7.24: Safety wire attachment detail
7.6 Ceiling pole mounting
Page 29
Airten User Guide V1.0
Page 29
7.7 Pole mounting on U bracket
Figure 7.25: Air series pole mount bracket
Parts required:
• Air series pole mount bracket
Figure 7.26: Pole mount bracket removal
Figure 7.27: Mounting to the U bracket
Step 1:
Remove the M12 bolt from the pole mount
bracket.
Step 2:
Mount the pole mount bracket to the U bracket.
Page 30
Airten User Guide V1.0
Page 30
7.7 Pole mounting on U bracket

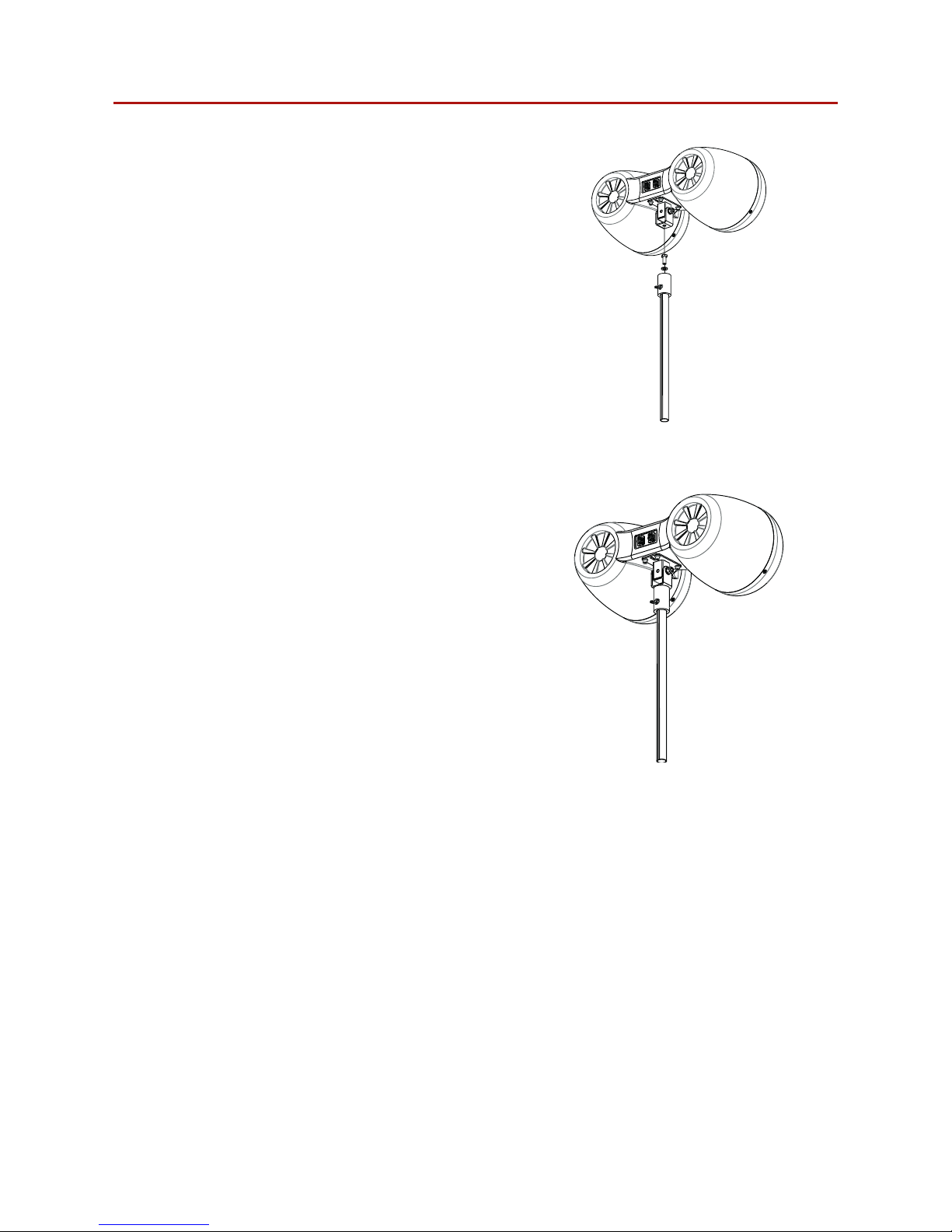

Figure 7.28: Positioning the loudspeaker
Step 3:
Lift the Airten loudspeaker into position taking
care to follow the safe handling positions
detailed in section 3.
Figure 7.29: Adjusting the loudspeaker position
Step 4:
Adjust the loudspeaker into the desired
position and then tighten the wing nut on the
pole mount bracket.
Page 31
Airten User Guide V1.0
Page 31
Void Airten loudspeakers should only be serviced by a fully-trained technician.
No user serviceable parts inside. Refer servicing to your dealer.
8.1 Return authorisation
Before returning your faulty product for repair, please remember to get an R.A.N. (Return
Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will
handle the necessary paperwork and repair. Failure to go through this return authorisation
procedure could delay the repair of your product.
Note that your dealer will need to see a copy of your sales receipt as proof of purchase so
please have this to hand when applying for return authorisation.
8.2 Shipping and packing considerations
• When sending a Void Airten loudspeaker to an authorised service centre, please write a
detailed description of the fault and list any other equipment used in conjunction with the
faulty product.
• Accessories will not be required. Do not send the instruction manual, cables or any other
hardware unless your dealer asks you to.
• Pack your unit in the original factory packaging if possible. Include a note of the fault
description with the product. Do not send it separately.
• Ensure safe transportation of your unit to the authorised service centre.
8 Service
Page 32
Airten User Guide V1.0
Page 32
9 Appendix
The loudspeaker shall be a passive two-way system, consisting of two high power 10” (250
mm) direct radiating reflex loaded low frequency (LF) transducers, and 1” (25 mm) diameter coaxial direct radiating reflex loaded high frequency (HF) transducer, mounted in an aesthetically
designed enclosure.
The co-axial transducer shall be constructed on a cast aluminium frame, with the low
frequency transducer consisting of a polycarbonate LF cone with its dust cap removed and
a 25.4 mm (1”) voice coil, wound with copper wire on a high quality voice coil former, for
high power handling and long-term reliability. The high frequency transducer shall be bolted
through the rear of the magnet structure that belongs to the low frequency transducer to form
a co-axial drive unit. The sound shall project through a machined waveguide that exits in the
centre of the low frequency transducer and uses the 250 mm (10”) bae diameter to achieve
pattern control and low distortion.
Performance specifications for a typical production unit shall be as follows: a usable on-axis
bandwidth of 60 Hz to 20 kHz (±3 dB), with an average 80° directivity pattern in the vertical
axis and 80° in the horizontal one (-6 dB down from on-axis level) from 1 kHz to 10 kHz;
maximum SPL of 128 dB peak measured at 1m using IEC268-5 pink noise; power handling
at 500 W AES at a rated impedance of 4 Ω; and crossover points at 500 Hz and 1.6 kHz using
3rd order filters (18 dB per octave). The system shall be powered by its own dedicated power
amplification module with DSP management, with the wiring connection via two Neutrik
speakON™ NL4 (one for input and one for link-out to another speaker), to allow for pre-wiring
of the connector before installation.
The enclosure shall be moulded fibreglass reinforced plastic construction, with a smooth
cellulose finish of any RAL colour, and shall include integral threaded inserts for the fitment of
wall and ceiling mounting hardware. The external dimensions shall be (H) 303 mm x (W) 681
mm x (D) 330 mm (11.9” x 26.8” x 13”). Weight shall be 20 kg (44.1 lbs).
The loudspeaker shall be the Void Acoustics Airten V2.
Architectural specifications
