Page 1
Voice-Acoustic Ikarray-8
Connection to
HDSP-6, HDSP-3 amplier
and Paveosub-118sp /-218sp
Quick Guide
Page 2
5°
5°
Connection of 4 elements
to HDSP-6 amplier
15°
15°
Module 1 Module 2
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
Preset
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]
Preset
Page 3
5°
5°
Connection of 4 elements
to HDSP-6 amplier
5°
15°
Module 1 Module 2
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (5°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
Preset
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]
Preset

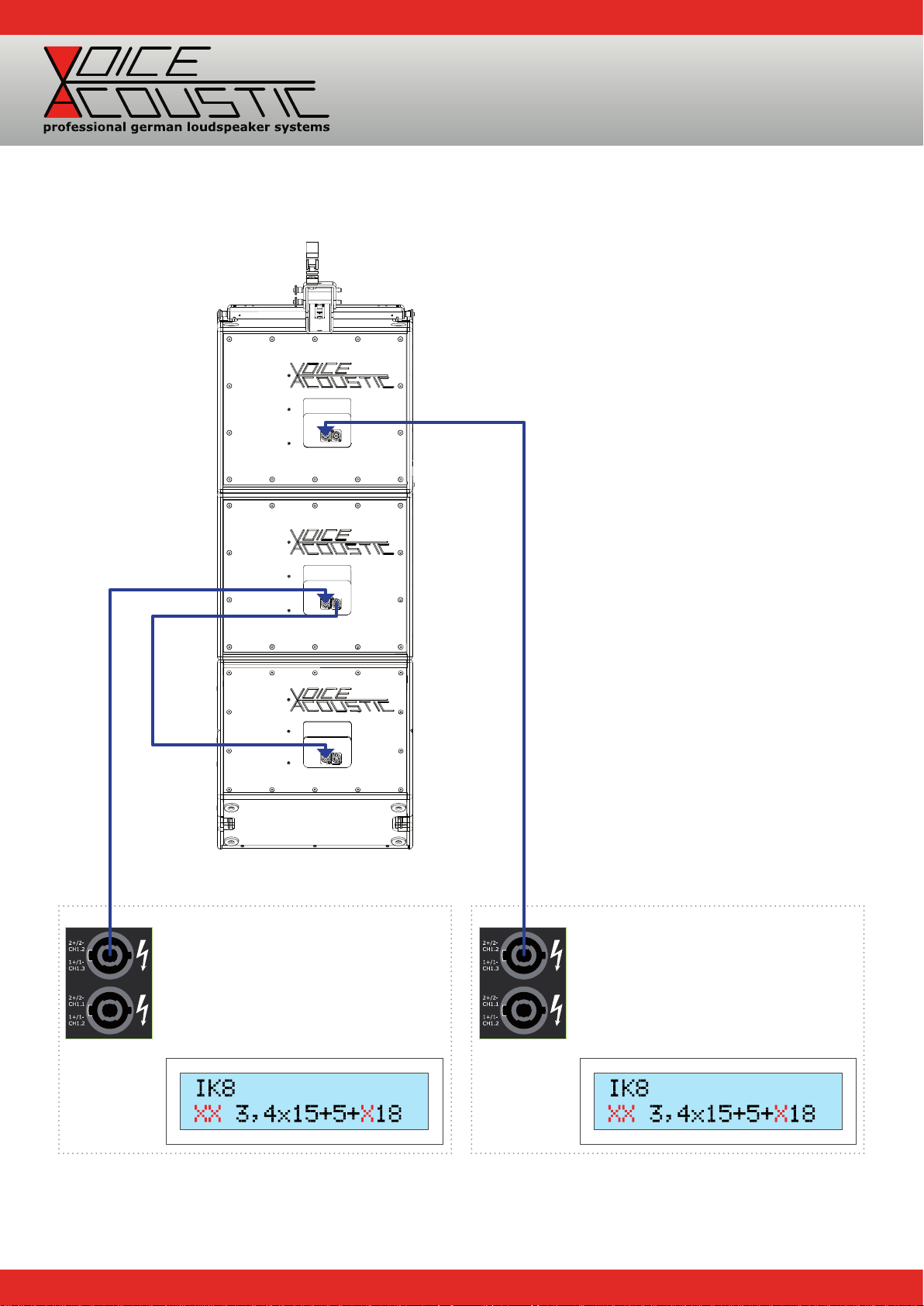

Page 4
5°
5°
Connection of 3 elements
to HDSP-6 amplier
Preset
15°
Module 1 Module 2
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
Preset
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]

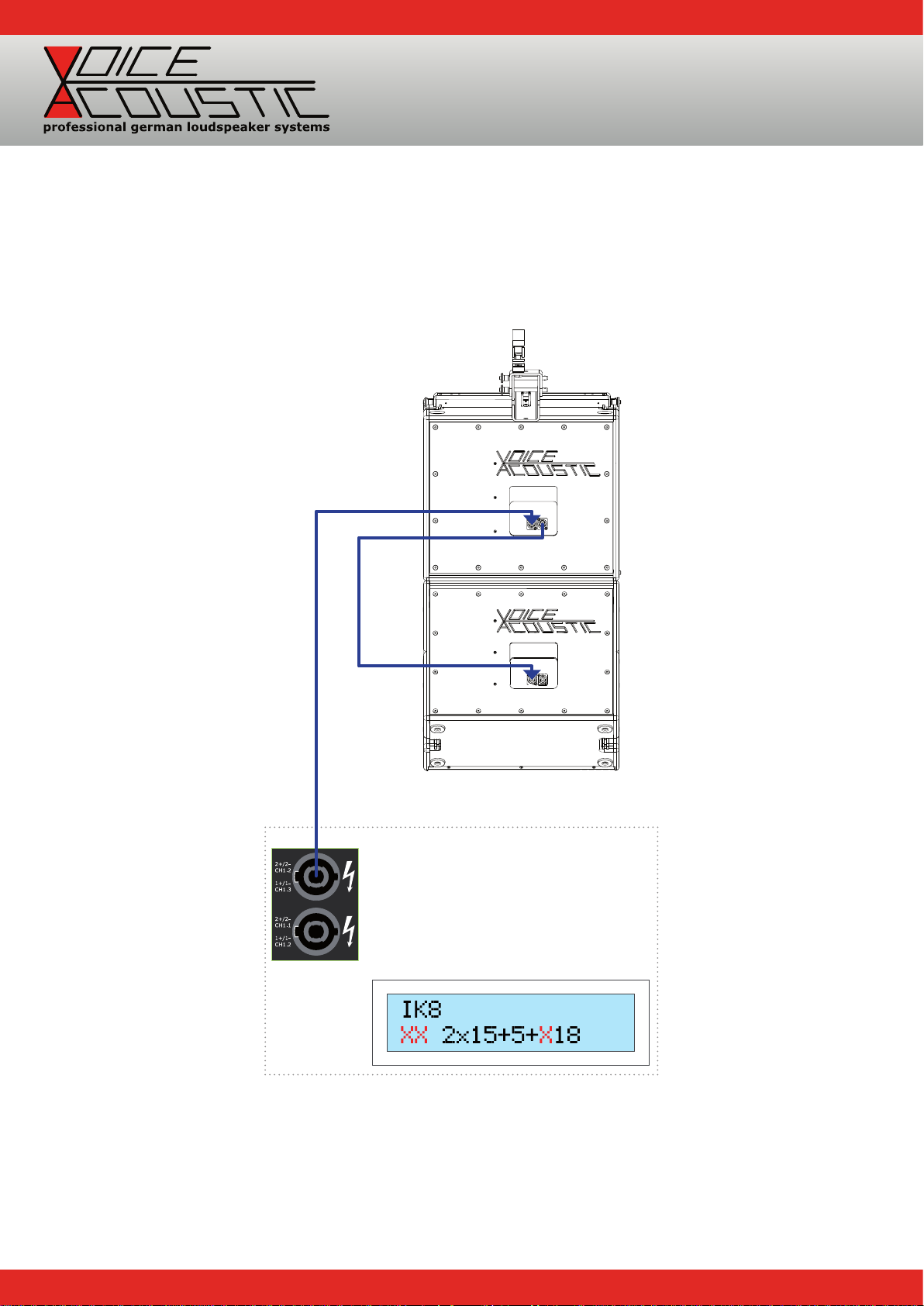

Page 5
5°
Connection of 2 elements
to HDSP-3 amplier
Preset
15°
Module 1
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]
Page 6
15°
Connection of 2 elements
to HDSP-3 amplier
Preset
15°
Module 1
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (15°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W
Speakon 2+/2- OUT CH1, 2.400 W
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]

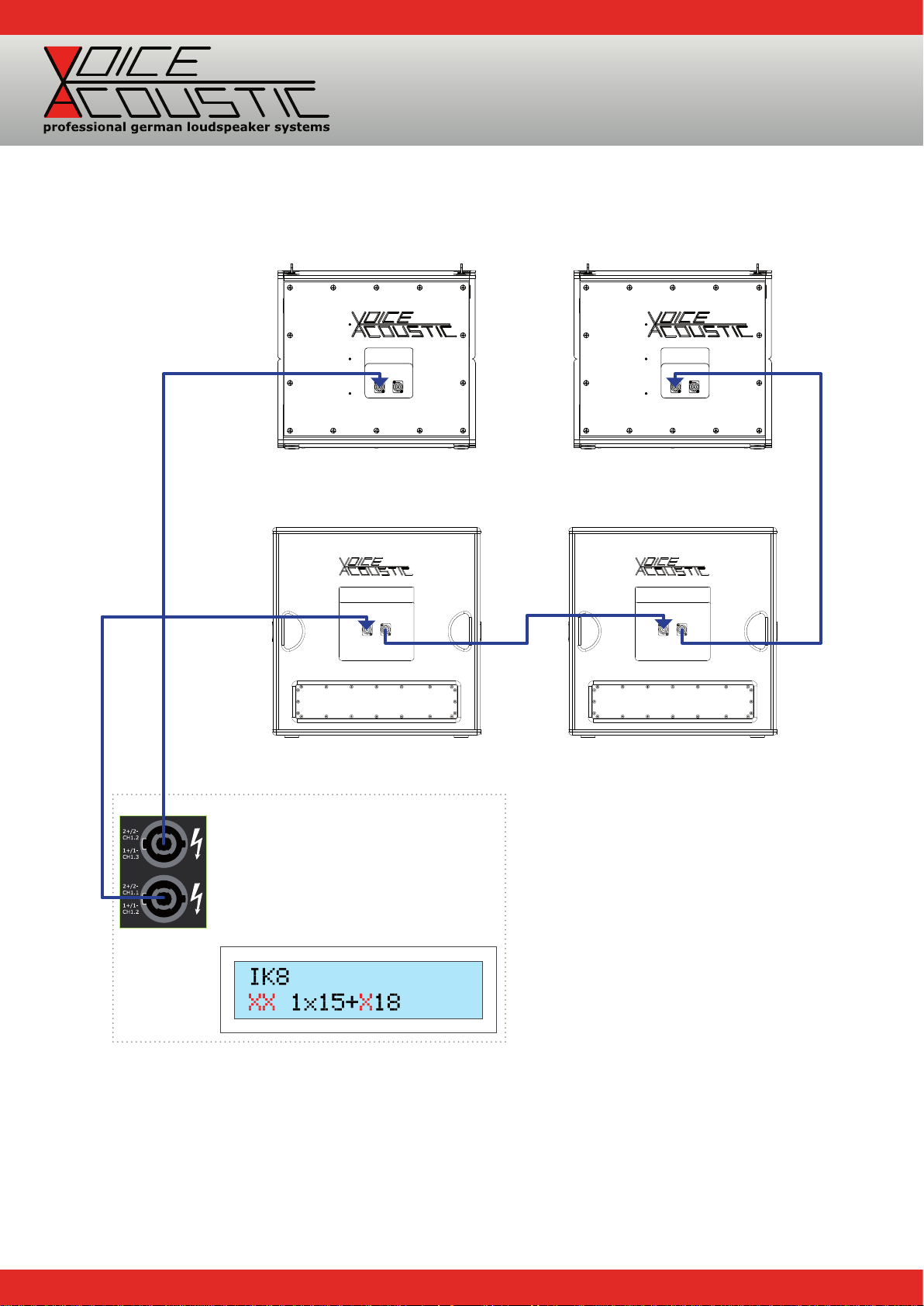

Page 7
Connection of 2 elements
15° 15°
to HDSP-3 amplier
Preset
Module 1
Pin assignment upper socket:
Speakon 1+/1- OUT CH3, 800 W (15°)
Speakon 2+/2- OUT CH2, 800 W
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W (15°)
Speakon 2+/2- OUT CH1, 2.400 W
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]

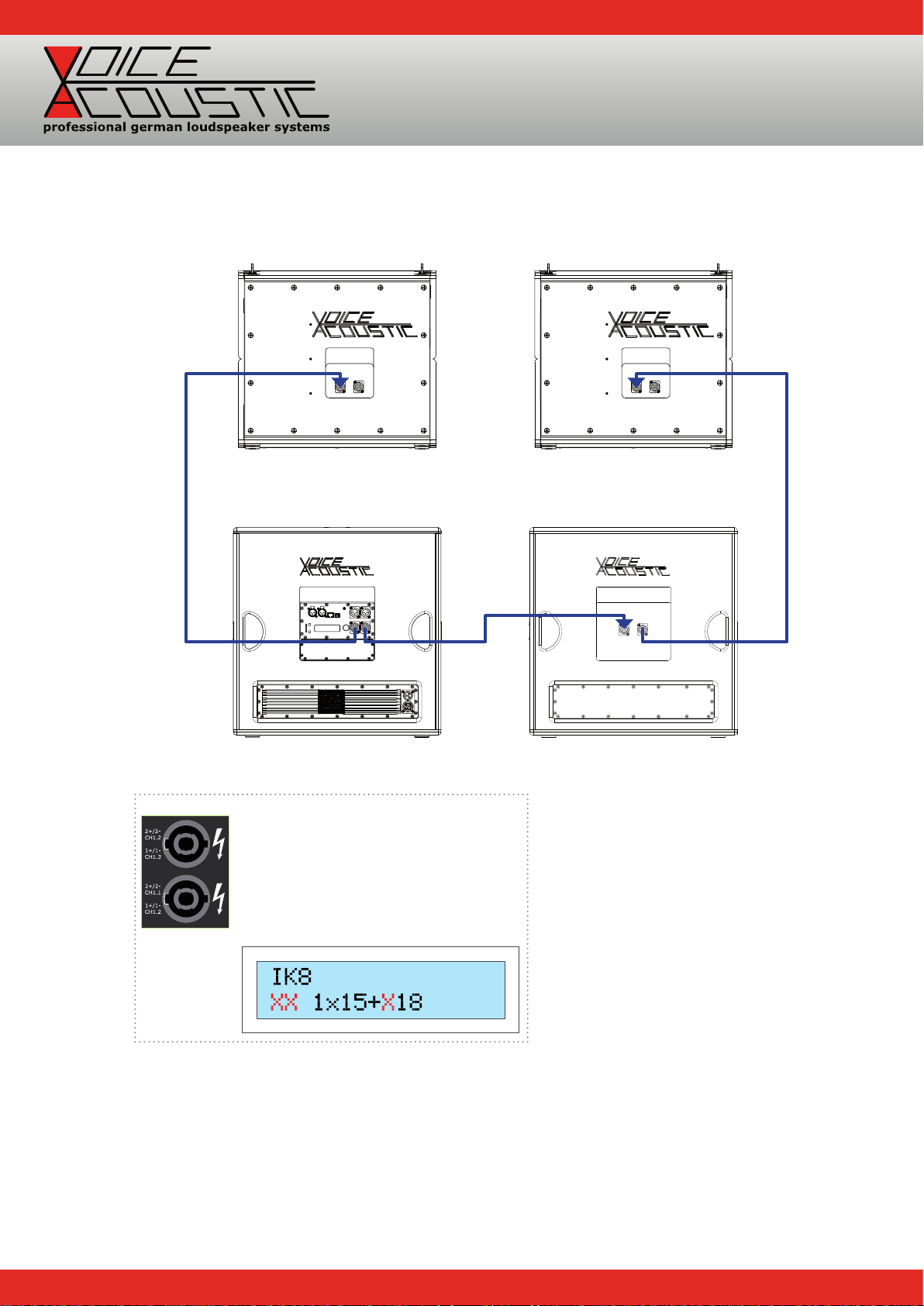

Page 8
15° 15°
Connection of 2 elements
to Paveosub-118sp
Preset
Module 1
Pin assignment left socket:
Speakon 1+/1- OUT CH3, 800 W (15°)
Speakon 2+/2- OUT CH2, 800 W
Pin assignment right socket:
Speakon 1+/1- OUT CH2, 800 W (15°)
Speakon 2+/2- OUT CH1, 2.400 W
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]

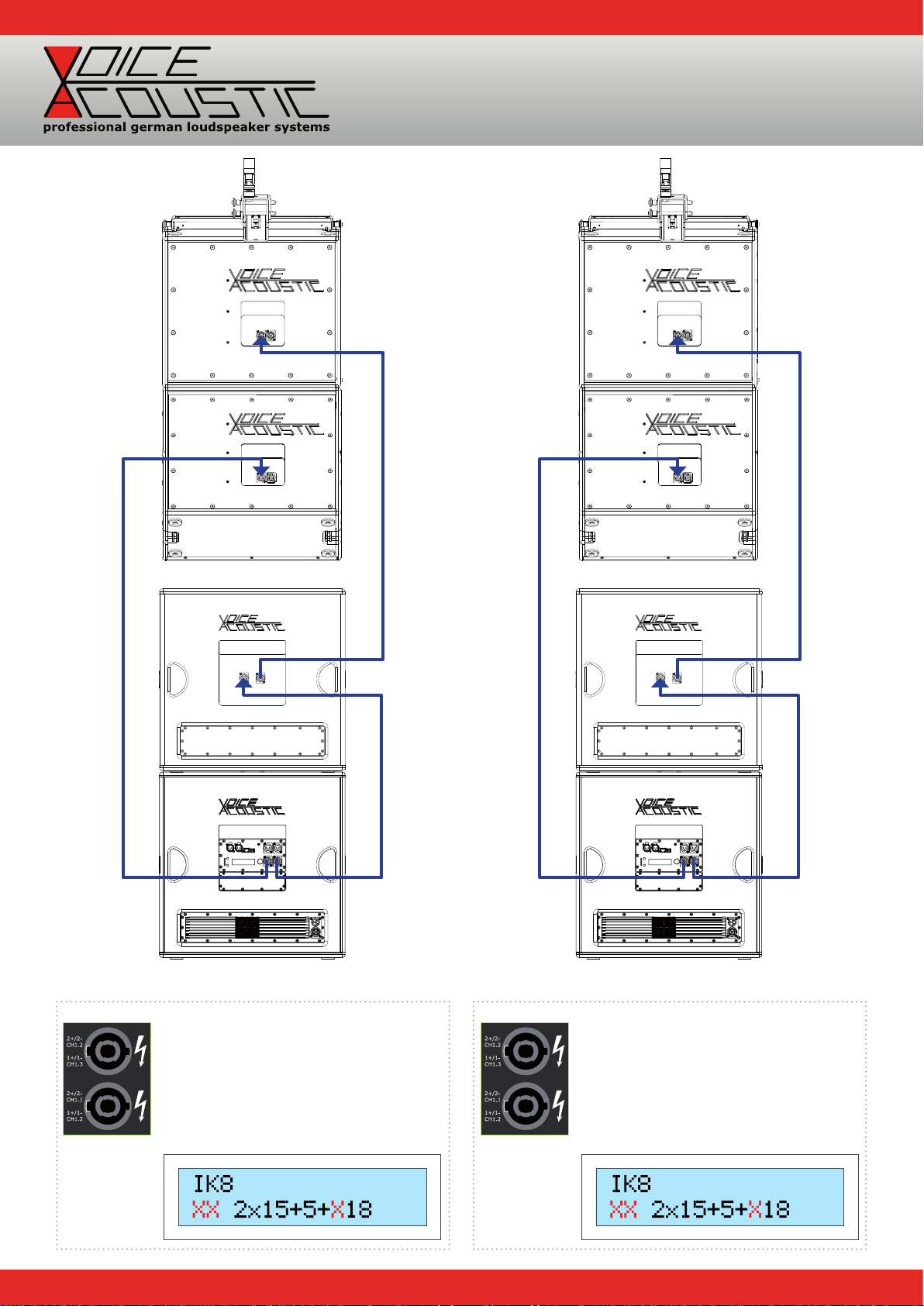

Page 9
Connection of 2 elements
to Paveosub-118sp
5°
15°
5°
15°
Module 1
Pin assignment left socket:
Speakon 1+/1- OUT CH3, 800 W
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment right socket:
Speakon 1+/1- OUT CH2, 800 W (5°)
Speakon 2+/2- OUT CH1, 2.400 W
Preset
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]
Preset
Pin assignment left socket:
Speakon 1+/1- OUT CH3, 800 W
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment right socket:
Speakon 1+/1- OUT CH2, 800 W (5°)
Speakon 2+/2- OUT CH1, 2.400 W
Module 2

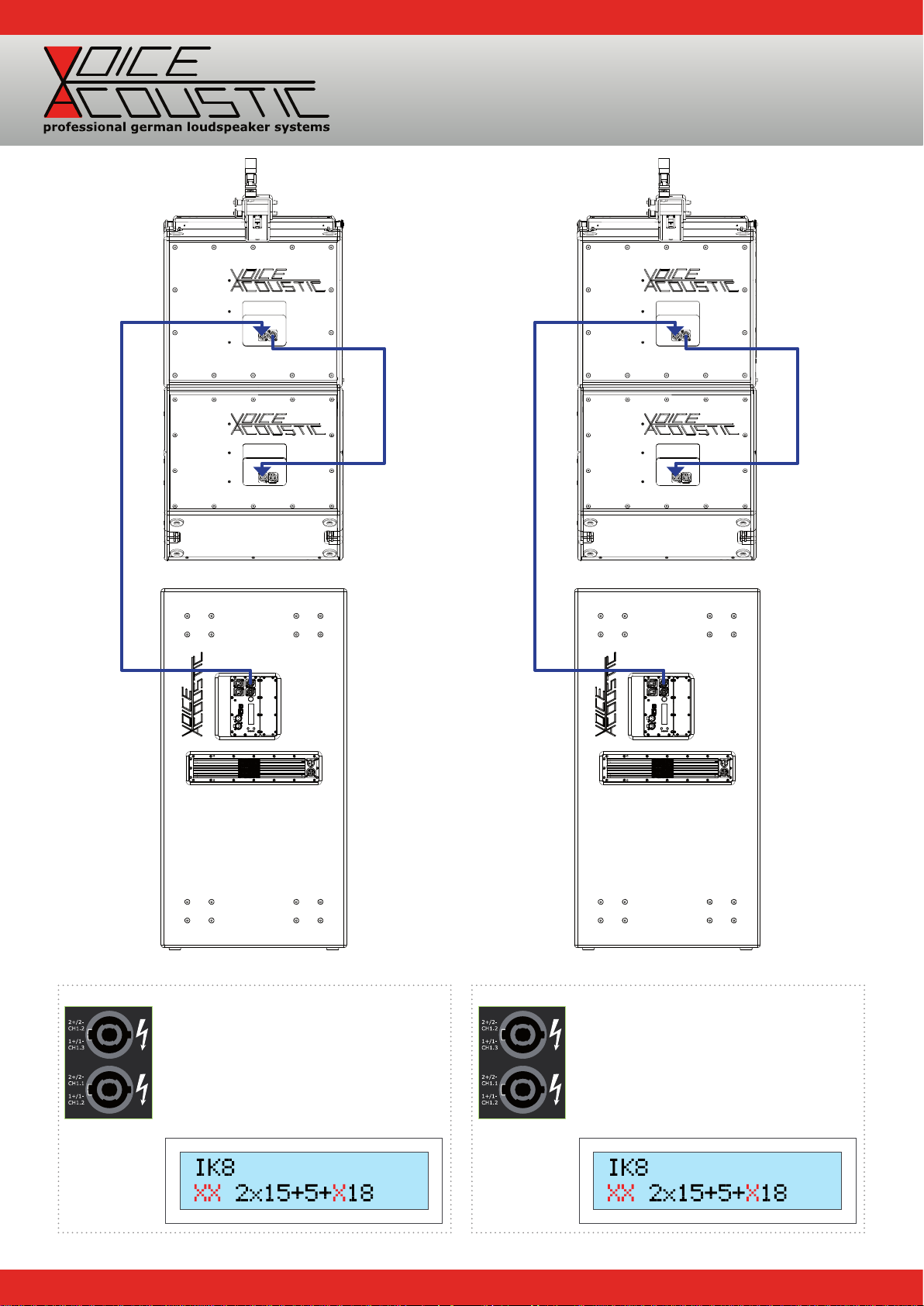

Page 10
Connection of 2 elements
to Paveosub-218sp
5°
15°
5°
15°
Modul 1
Pin assignment upper socket*:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W (15°)
Speakon 2+/2- OUT CH1
Preset
*The Ikarrays are connected to the right socket, if the Paveosub-218sp is operated horizontally.
www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: +49 (0) 4234 942 777 - [email protected]
Preset
Pin assignment upper socket*:
Speakon 1+/1- OUT CH3, 800 W (5°)
Speakon 2+/2- OUT CH2, 800 W (15°)
Pin assignment lower socket:
Speakon 1+/1- OUT CH2, 800 W (15°)
Speakon 2+/2- OUT CH1
Modul 2
