Page 1

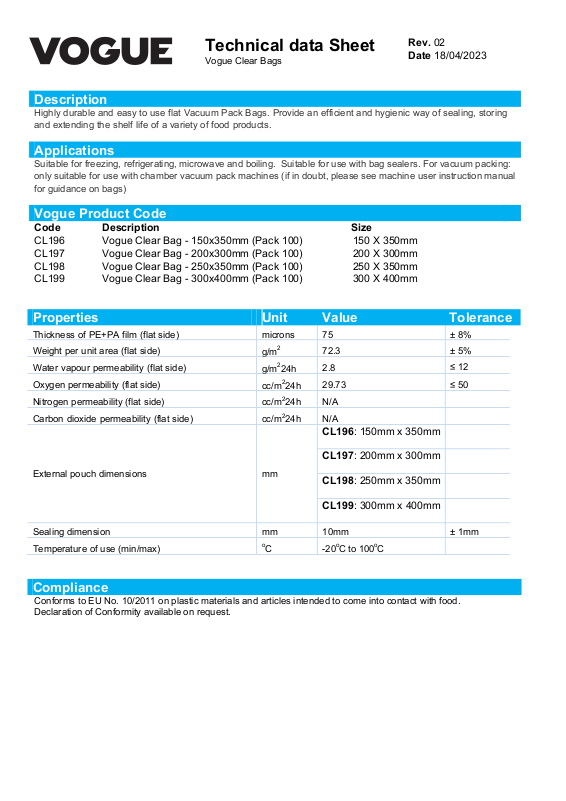

Technical data Sheet
Vogue Clear Bags
Rev. 02
Date 18/04/2023
Description
Highly durable and easy to use flat Vacuum Pack Bags. Provide an efficient and hygienic way of sealing, storing
and extending the shelf life of a variety of food products.
Applications
Suitable for freezing, refrigerating, microwave and boiling. Suitable for use with bag sealers. For vacuum packing:
only suitable for use with chamber vacuum pack machines (if in doubt, please see machine user instruction manual
for guidance on bags)
Vogue Product Code
Code Size
CL196
CL197
CL198
CL199
Description
Vogue Clear Bag - 150x350mm (Pack 100)
Vogue Clear Bag - 200x300mm (Pack 100)
Vogue Clear Bag - 250x350mm (Pack 100)
Vogue Clear Bag - 300x400mm (Pack 100)
150 X 350mm
200 X 300mm
250 X 350mm
300 X 400mm
Properties Unit Value Tolerance
Thickness of PE+PA film (flat side) microns 75 ± 8%
Weight per unit area (flat side)
Water vapour permeability (flat side)
Oxygen permeability (flat side)
Nitrogen permeability (flat side)
Carbon dioxide permeability (flat side)
2
g/m
g/m224h
cc/m224h
cc/m224h
cc/m224h
72.3
2.8
29.73
N/A
N/A
± 5%
≤ 12
≤ 50
CL196: 150mm x 350mm
CL197: 200mm x 300mm
External pouch dimensions mm
CL198: 250mm x 350mm
CL199: 300mm x 400mm
Sealing dimension mm 10mm ± 1mm
Temperature of use (min/max)
o
C -20 C to 100 C
o
o
Compliance
Conforms to EU No. 10/2011 on plastic materials and articles intended to come into contact with food.
Declaration of Conformity available on request.
