Page 1
TVM 3220 Series
TVM 3240 Series
Full Installation Guide
TVM 3220/3240 Series English
1
Everything you need to get your TV safely on the wall, in no time
Before you start
…we just wanted to say thanks for choosing Vogel’s. Smart choice.
And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new mount.
Page 2
Stay safe
TVM 3220/3240 Series English
2
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and
your family at substantial risk.
Don’t dare risk it… Read all
Vogel’s recommends that the mounting and/or installation of this product should be carried out by a
suitably qualified expert.
Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation.
Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum
weight and size limits specified for this product, and that the TV mounting bolts used are of a suitable
length and diameter. Note that not all the TV mounting accessories provided are required for the
installation of any one TV.
The wall mounting accessories provided are exclusively intended for installation on walls made of solid
brick, solid concrete or solid wood columns.
Any material covering the wall must not exceed 3 mm/ 0.12 inch.
For mounting on walls made of other materials, such as hollow bricks, wood panels or plasterboard,
please consult your installer and/or specialist supplier.
Clean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean the product.
Only qualified, certified personnel may repair the product. Use only original spare parts. The use of other
parts will result in voiding the warranty, and could lead to injuries.
Alterations to the product and technical modifications are not permitted. This will void the warranty, and
could lead to injuries.
Always store the product in a dry and safe place with a temperature between -10°C to +50°C.
Handle and transport the product with care.
Repack the product when transporting or not using it for a longer period of time.
Lifting your TV is a two-person job. Don’t be bold!
Page 3
What’s in your box?
TVM 3220/3240 Series English
3
D. Safety instructions
E. Bolts for fastening adapter on TV (see contents below)
F. Spacers
G. Washers Ø 18 mm
Something missing? Make sure your packaging has everything in place:
A. Wall mount
B. Adapter
D. Safety instructions
E. Bolts for fastening adapter on TV (see contents below)
F. Spacers
G. Washers Ø 18 mm
H. Screws
H. Screws
I. Plugs (fischer© DuoPower)
J. Washers Ø 22 mm
K. Covers
L. Protective TV patches
M. Cable clips
N. Cable clip for wall plate
O. Spirit level
Contents of the TV fasteners kit:
4x M4*12mm bolts
4x M4*25mm bolts
4x M6*12mm bolts
4x M6*25mm bolts
4x M8*12mm bolts
4x M8*25mm bolts
4x M8*45mm bolts
4x M6 washer
4x spacer 10mm
P. Thumbnut
Page 4
You don't need all fasteners to mount your TV. Store the rest for later or other use!
TVM 3220/3240 Series English
4
Got your tools ready?
Don’t start without all the necessary tools:
Crosshead screwdriver
Drilling machine
8mm or 5/16” concrete/brick drill (for concrete/brick walls only)
4mm or 5/32” wood drill (for wooden walls only)
Stud finder (optional)
Socket wrench no. 10
Pencil
M4 (4mm) Allen key
Take care of your safety
Who cares about looking cool? Always wear personal protective equipment:
Eye protection
Ear protection
Safety shoes
Page 5
Ready… set… get installing!
TVM 3220/3240 Series English
5
Step 1: Attach the adapter to the TV
1. Put the TV carefully on a clean surface without any obstacles.
2. Screw the adapter Ⓑ on to the TV with the bolts Ⓔ and washers Ⓖ.
Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help:
vogels.com/contact
Make sure bolts and spacers are positioned correctly.
Refer to the user manual of your TV for the correct mounting material.
Page 6
TVM 3220/3240 Series English
8
Step 2: Attach the wall mount to the wall
How well do you know your walls? What they’re made of matters more than you think…
Concrete/Brick wall
Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
1. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template.
2. Drill the holes.
How deep do you drill? Check the length of the screw (not the
plug!) to find the right depth – this stops things from breaking.
Page 7

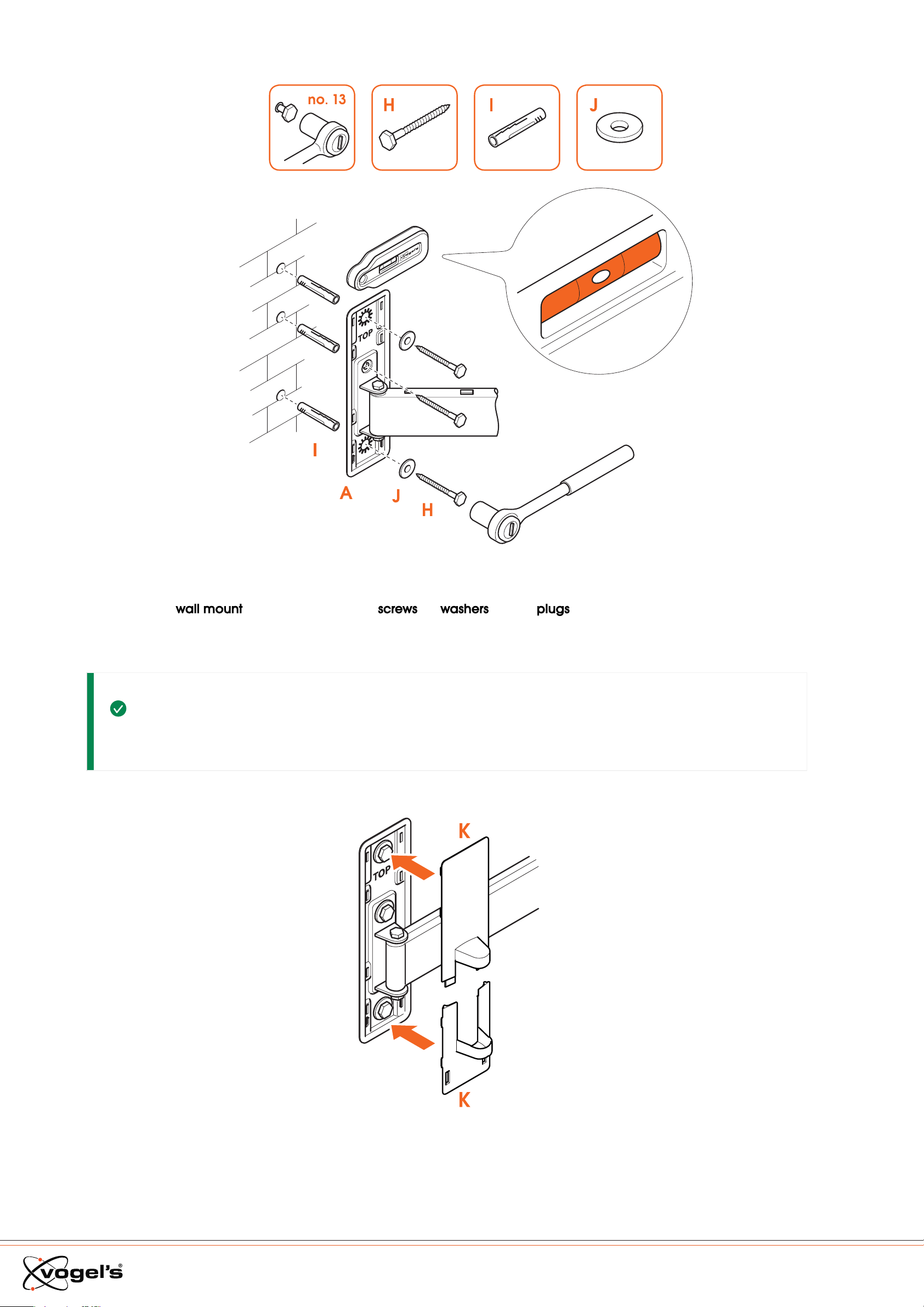

3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level to level the wall
TVM 3220/3240 Series English
9
mount.
Lubricate the screws for easy screwing in.
4. Place the covers Ⓚ.
Page 8

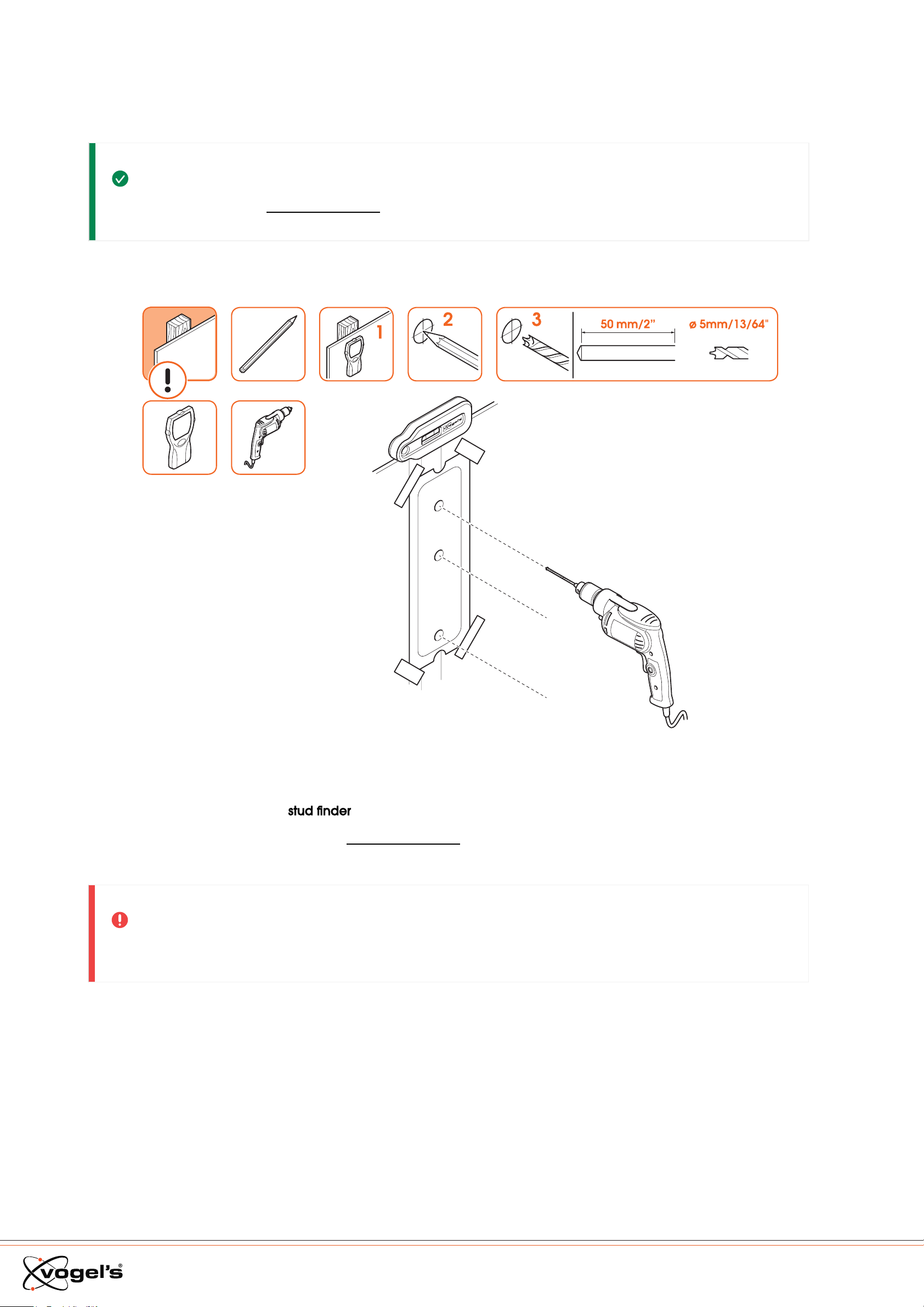

Wooden wall with studs
TVM 3220/3240 Series English
10
Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
1. Don’t just guess! Always use a
2. Find the perfect spot for drilling with our
Don’t destroy your belongings! The wall mount must always be attached to the studs.
3. Now for the fun part… drilling the holes.
stud finder to determine the position of studs.
DrillRight™ AR app and the included drilling template.
Page 9

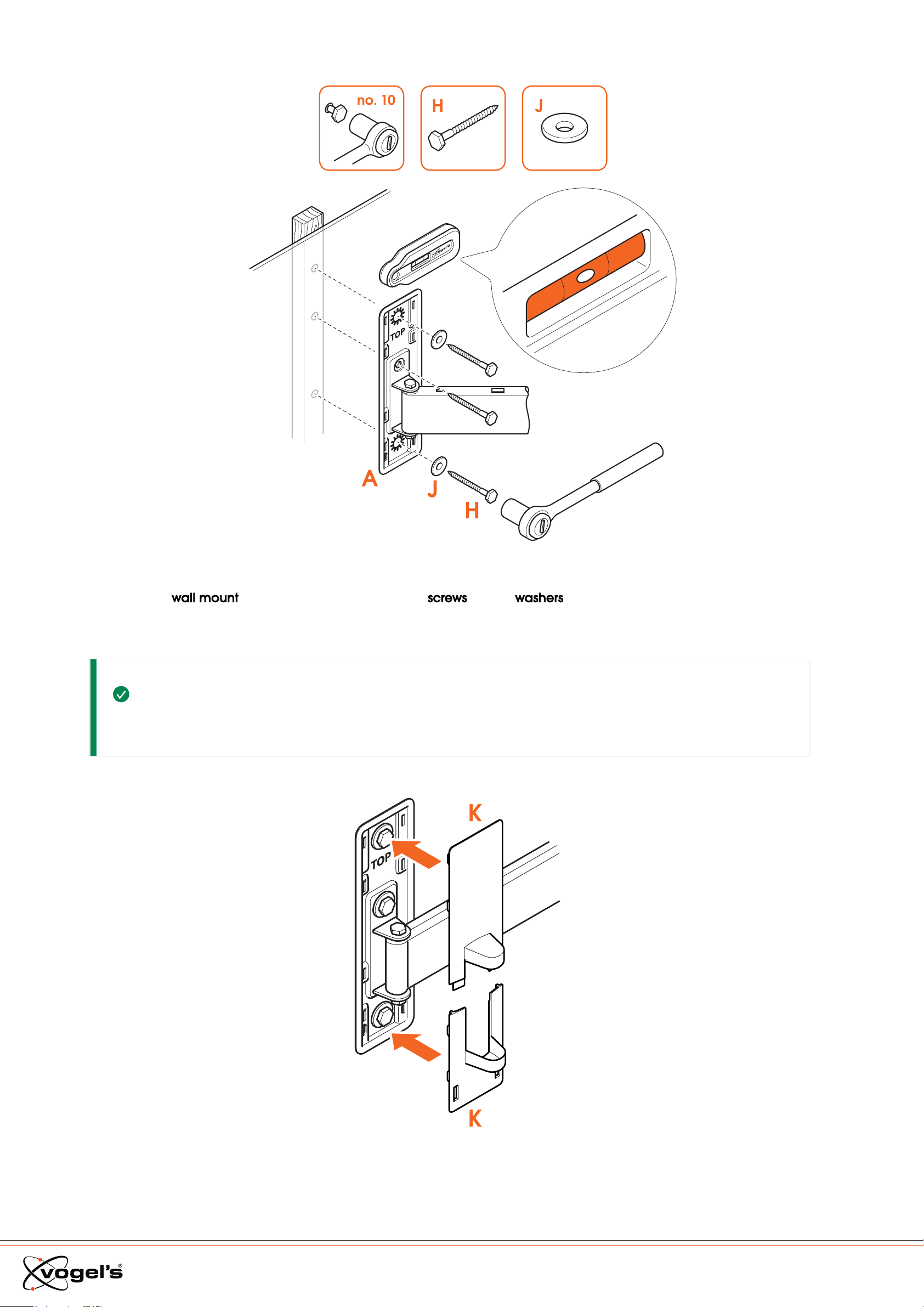

4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ. Use the spirit level to level the wall
TVM 3220/3240 Series English
11
mount.
Lubricate the screws for easy screwing in.
5. Place the covers Ⓚ.
Page 10
TVM 3220/3240 Series English
12
Other wall type/I don’t know my wall type
If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or
you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care
team at www.vogels.com/contact.

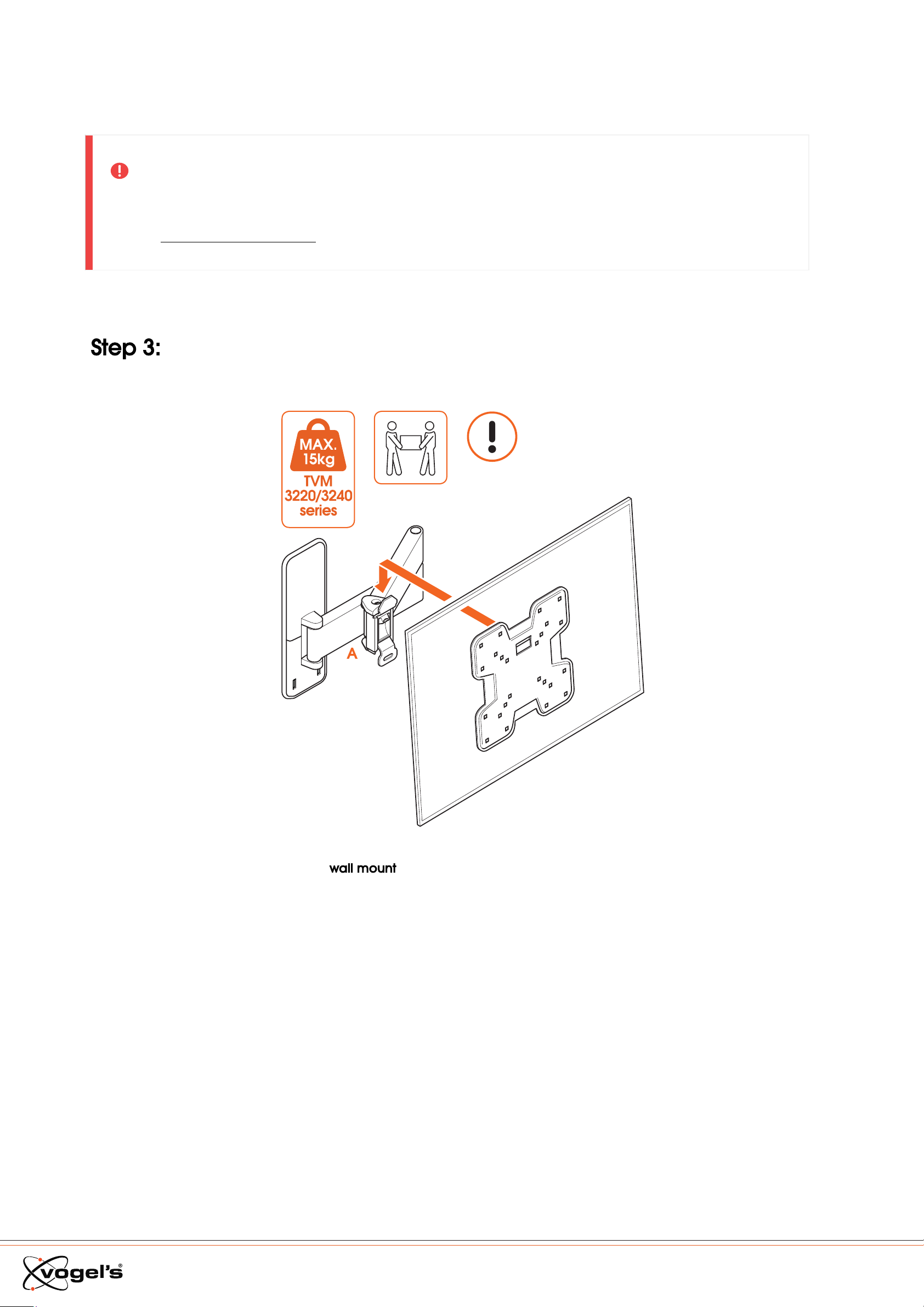

Step 3: Attach the TV to the wall mount
1. Carefully lift and attach the TV to the wall mount Ⓐ.
Page 11

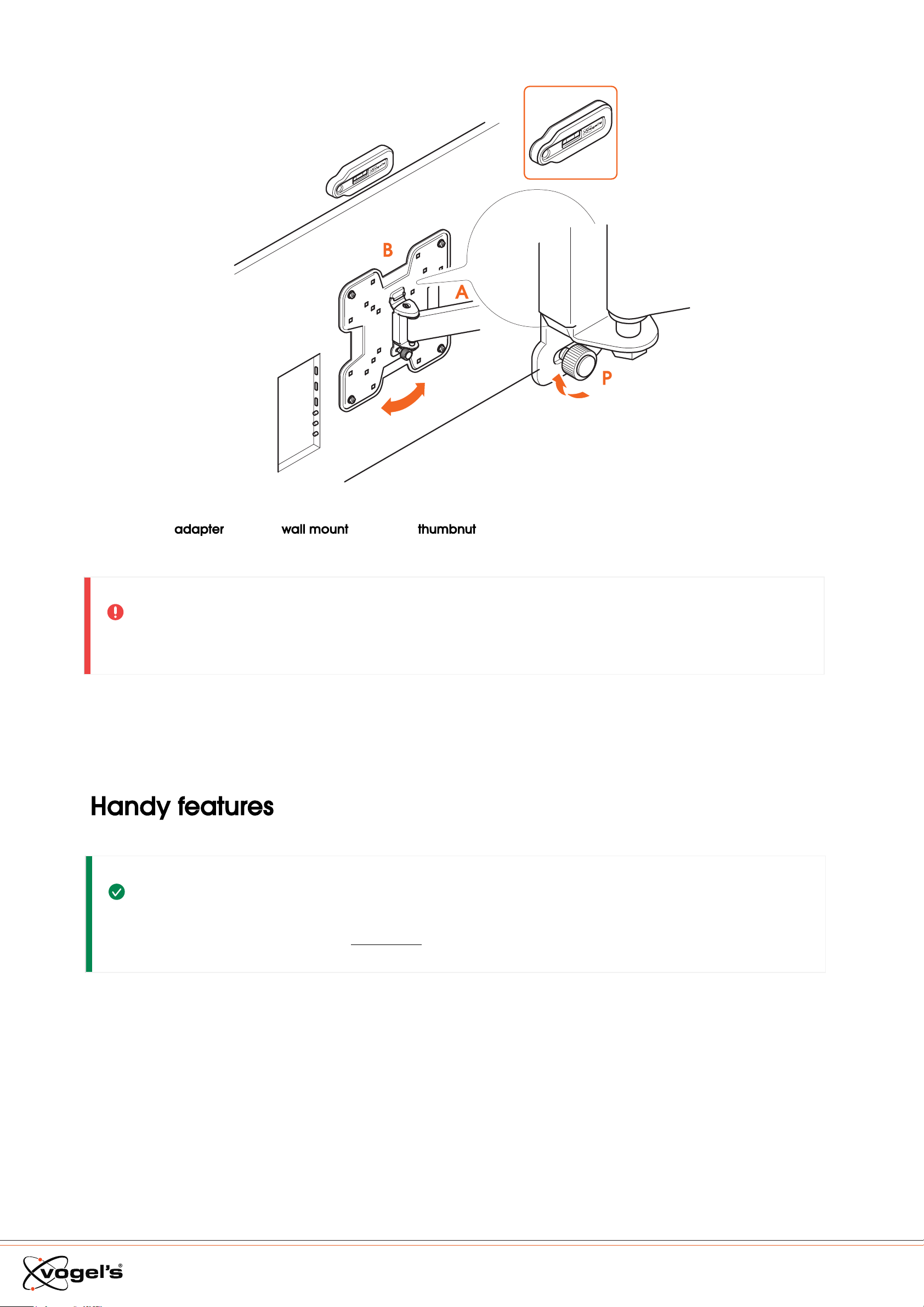

2. Attach the adapter Ⓑ to the wall mount Ⓐ with the thumbnut Ⓟ. Make sure the TV is levelled, using the spirit level.
TVM 3220/3240 Series English
13
Li
fting your TV is a two-person job.
Job done now! Enjoy watching your TV!
Don’t be bold!
Handy features
Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV
accessories? Take a look at our website vogels.com!
Page 12

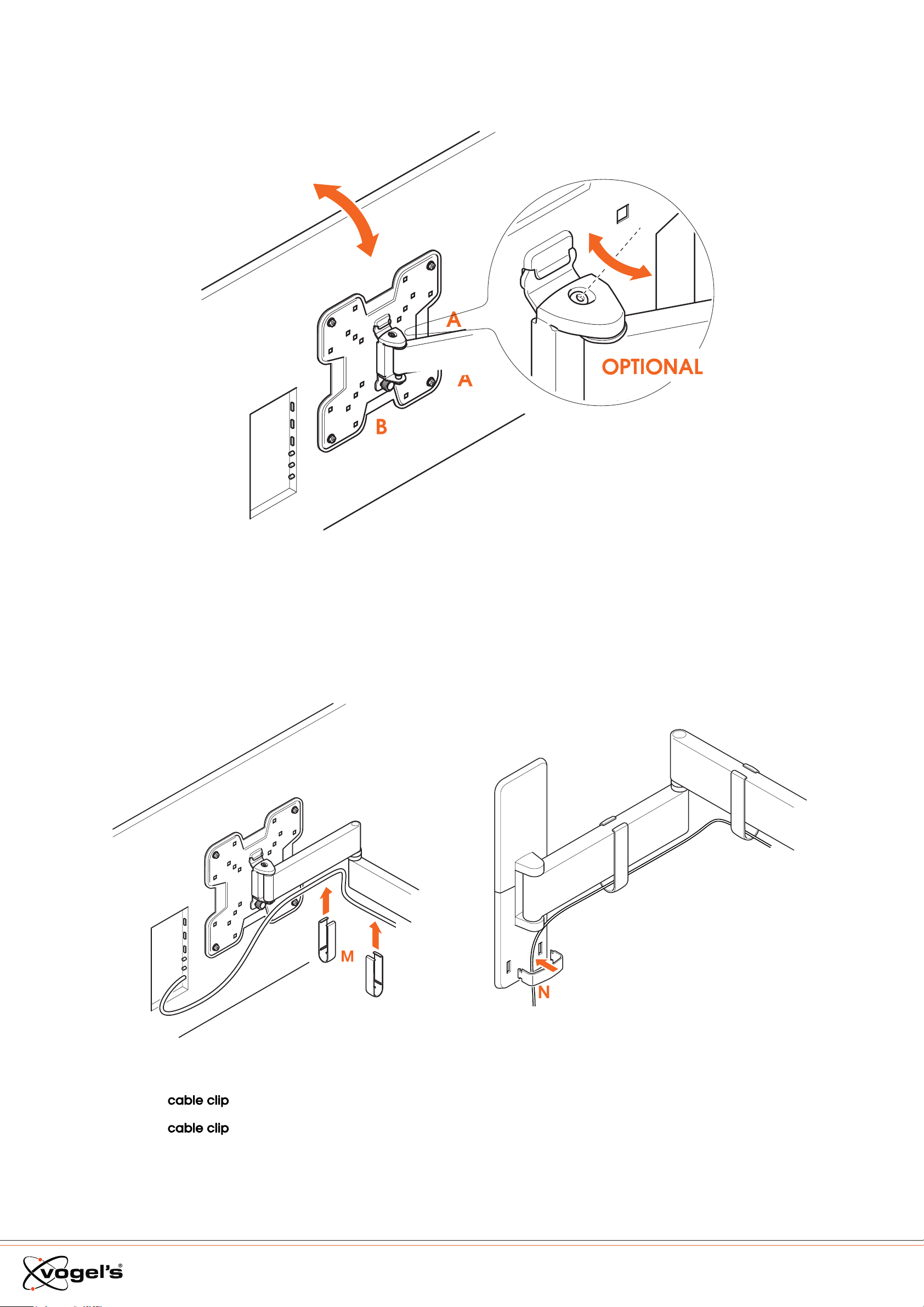

Tilt to avoid refl
TVM 3220/3240 Series English
14
ections
1. Adjust the tilt angle by pulling the TV forwards or backwards.
2. Optional: If the screen tilts downwards. Tighten the bolt with key.
Guide your cables
1. Guide the cables.
2. Place the
3. Place the
cable clip Ⓜ on the arm, where needed.
cable clip Ⓝ on the wall plate.
Page 13

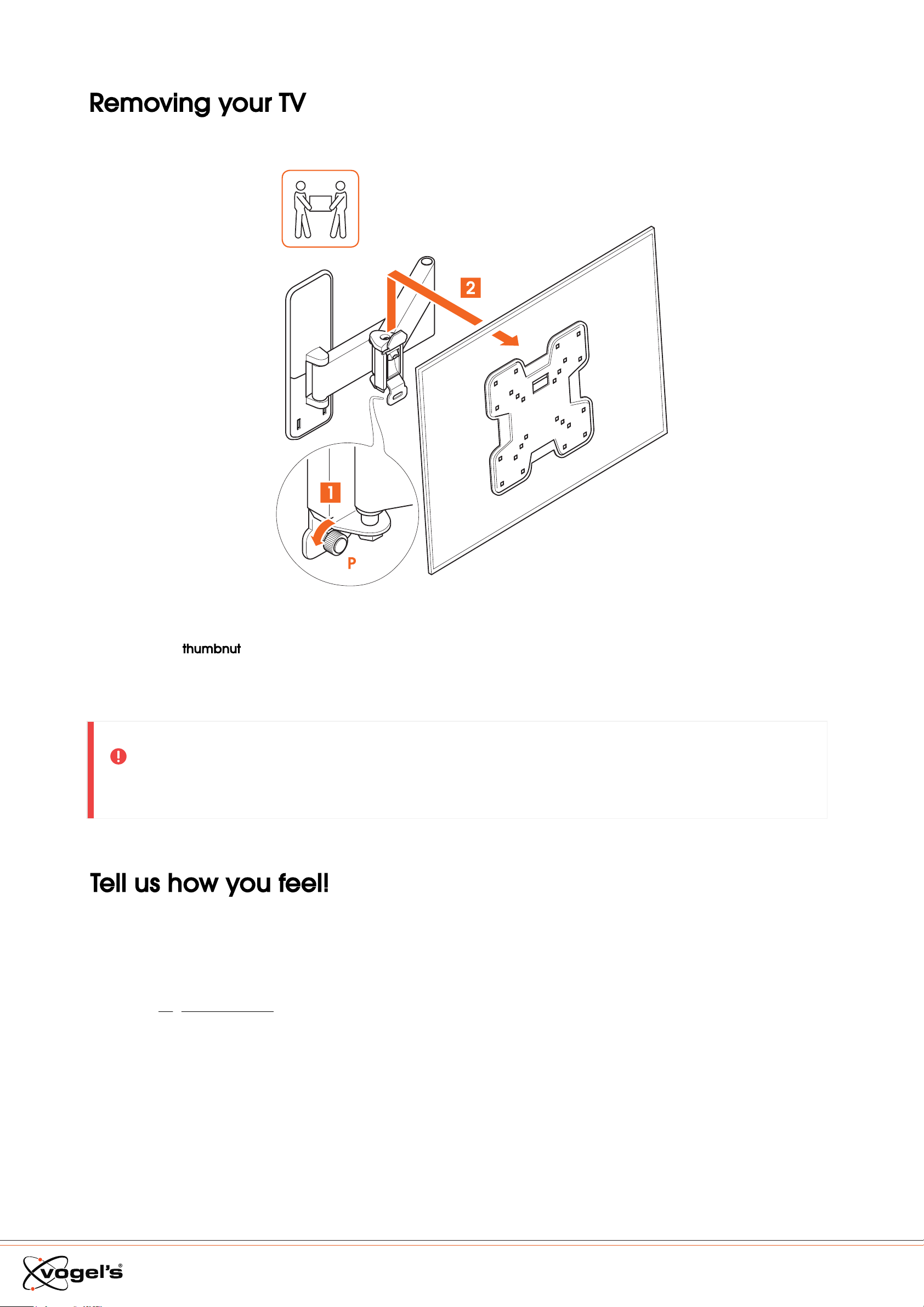

Removing your TV
TVM 3220/3240 Series English
16
1. Remove the
2. Remove the TV, and put it down somewhere safe.
Again, lifting your TV is a two-person job. Always get help.
thumbnut Ⓟ.
Tell us how you feel!
Your opinion matters more than you might think. It helps us make better products, and helps other customers make
informed choices.
Share your feedback, and sign up to win Vogel’s products!
Simply visit
vogels.com/review for sharing or the Terms and Conditions.
Page 14
Confused? Unsure? Going crazy?
TVM 3220/3240 Series English
17
There’s plenty of help waiting for you, online:
[email protected]
www.vogels.com/contact
facebook.com/
VogelsForSure/
instagram.com/
vogels_official/
www.youtube.com/
c/VogelsForSure
Page 15
Simple troubleshooting
TVM 3220/3240 Series English
18
Found a problem you can’t fix? Don’t panic… try these!
Problem Cause Solution
‘There are stains on the
arms of the wall mount’
‘My TV does not remain
horizontal levelled, with
moving/turning it’
The stains are caused by the
paper pulp interior in the box.
We decided to reduce the
amount of plastic in the
packaging and therefore there
is no plastic bag around the
product anymore to prevent
from some paper dust on the
product. So, these stains might
occur, unfortunately.
When you level your TV and
tighten the thumbnut by hand, it
might not be tight enough to
stay level.
The stains are easy to remove with a cloth.
Level the TV with a spirit level and tighten the
thumbnut thoroughly with a 4 mm allen key,
instead of by hand.
‘I don’t have the right
bolts for my TV!’
‘I have a lot of leftover
bolts, is something
wrong?’
‘My wall screws have
snapped!’
The world of TV technology is
always changing – it can be
hard to keep up sometimes. So,
it might be the case that the
correct bolt size is not
included… you’re just too
advanced!
No, you did it very well! You only
need 4 bolts to install the mount
to your TV. Because of all the
different types of TVs, we have
included the most common
sizes for the most sold TVs.
You might not be drilling deep
enough… or your drill could be
too blunt, so that the hole is too
narrow and the screw gets stuck.
Just ask Vogel’s Consumer Care to request a
service kit, and we’ll send everything you need.
Click here to contact Vogel's Consumer Care.
Don’t waste the other bolts, save them!
You can use them for another TV when you buy
a new one or use it elsewhere.
Use another hole in the wall plate to fix the wall
mount to the wall. Make sure you use a sharp
drill of the correct size. Use the size of the screw
as indication of the depth to be drilled.
Page 16
FAQs
TVM 3220/3240 Series English
19
‘Where can I request the correct bolts for my TV (a
service kit)?’
‘Where can I find installation videos?’
‘What if I need spare parts?’ If you require a spare part, please contact your local
‘Where can I find the drilling template?’ The drilling template is printed on the inlay card in the
Whatever you need, simply contact your local Vogel's
dealer or Vogel's.
Consumer Care.
The installation video can be found at the product
page of your product on our website. It can also be
found on our YouTube channel:
www.youtube.com/c/VogelsForSure
dealer or Vogel's.
Consumer Care.
box. You can cut it out for your convenience.
Click here to contact Vogel's
Click here to contact Vogel's
‘How high do I need to hang my TV?’ The center of your TV should ideally be positioned at
eye level, while seated. Download and use the free
DrillRight™ AR app to determine the height of the TV
and to mark the first hole.
‘How high do I need to hang my TV in case of a tilt
mount?’
‘Which bolts or screws do I need to use?’ Vogel's offers a complete assembly kit with all
‘Why do you use Fischer© plugs?’ The Fischer© DuoPower plug is widely regarded as the
When a wall mount with tilt function is used, your TV
can be mounted above eye level.
mounting materials included in the box, for both your
TV and wall. Do you miss the correct bolts for your TV?
Please contact your local Vogel's dealer.
contact Vogel's Consumer Care.
best standard in plugs. Don’t settle for less!
Click here to
‘What is VESA?’ VESA is a standard pattern of mounting location holes
on the back of a TV which allows many standard TV
mounts to be easily fitted to your TV.
Page 17
Go green!
We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling
facility, or contact your municipal office. Recycling matters!
TVM 3220/3240 Series English
20
Guarantee
Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of durable materials and
is based on a meticulous design. That is why Vogel’s gives you a 10-year guarantee for defects in materials and
manufacturing.
1. Vogel’s guarantees that if during the guarantee period of a product, faults arise due to defects in manufacturing
and/or materials, it will, at its discretion, repair or if necessary replace the product, free of charge. A guarantee for
normal wear and tear is hereby expressly excluded.
2. If the guarantee is invoked, the product should be sent to Vogel’s, together with the original purchase document
(invoice, sales slip or cash receipt). The purchase document should clearly show the name of the supplier and the date
of purchase.
3. Vogel’s guarantee shall lapse in the following cases:
If the product has not been drilled, installed and used in accordance with the Instructions for Use;
If the product has been altered or repaired by someone other than Vogel’s;
If a fault arises due to external causes (outside the product) such as for example lightning, water nuisance, fire,
scuffing, exposure to extreme temperatures, weather conditions, solvents or acids, wrong use or negligence;
If the product is used for different equipment than is mentioned on or in the packing.
Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands
Vogel’s Products BV 2021 © All rights reserved.
Loading...
