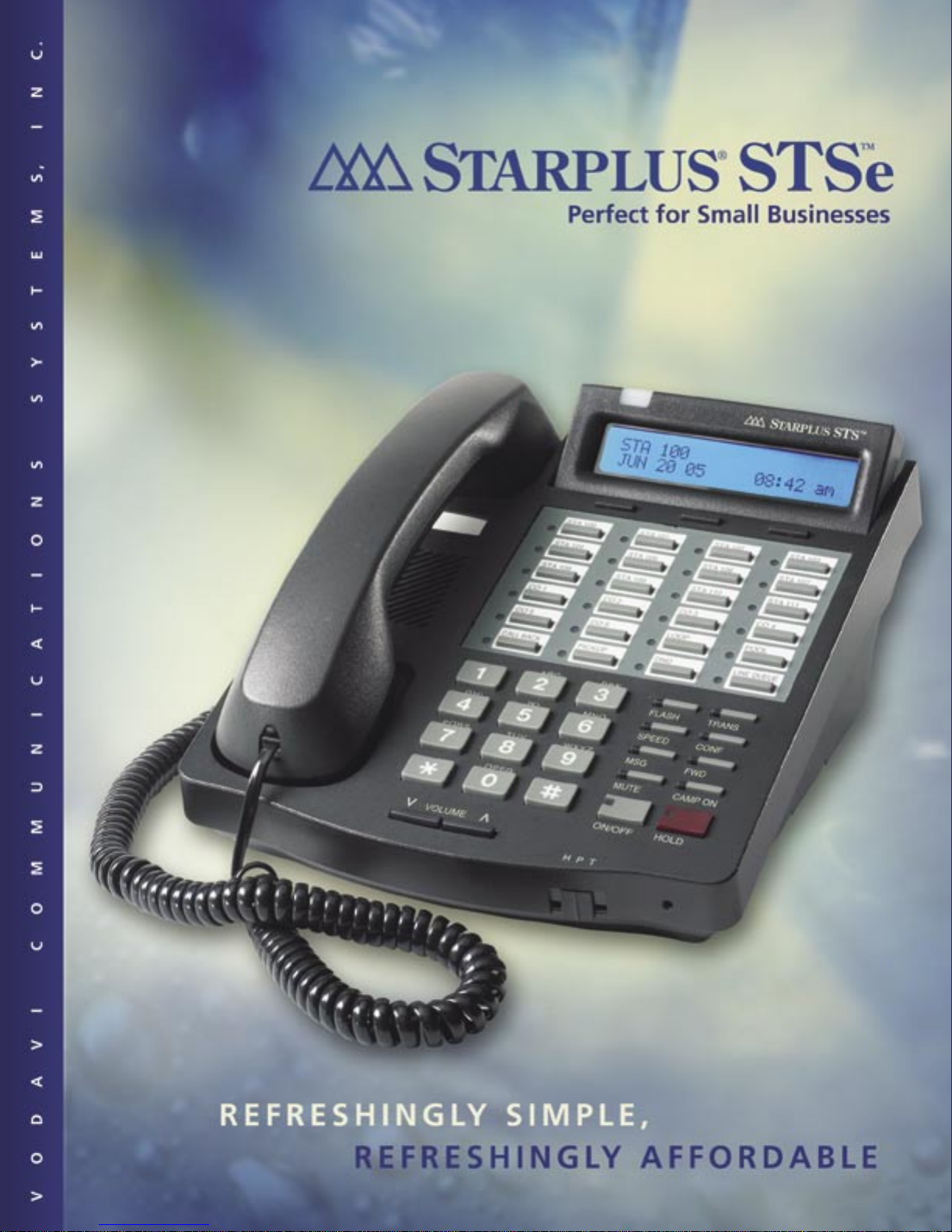

Vodavi Starplus STS Brochure

Download

Page 1

Page 2

Refreshingly Flexible

NEW & IMPROVED!

•

PBX/Centrex

Compatibility

•

Supports full T1,

fractional T1 or ISDN PRI

•

Phones are CTI

adaptable

•

ADP – Additional

Device Port on every phone for fax or modem connection

•

Standard 2.5 mm

Headset Jack on every phone

•

Voice Mail does

not reduce System Capacity

•

UCD & LCR

Capability

Our new backlit display telephone has

all the great features of the original

STS phone, with the added advantage

of a blue backlight. The blue

backlight is perfect for low

light environments and makes

an attractive addition to

any desktop

Phone System

•

Fax Detect –

Elimitates the need for a dedicated FAX line

Refreshingly Simple

•

Easy to Configure,

Install & Program

•

One phone model

loaded with features

•

Soft keys below

display enable quick access to system features

•

Name & number

display Caller ID is available on all phones

•

Optional In-Skin

Voice Mail

•

Basic or Expanded

System options

NEW! Backlit Display Phone

Available in charcoal gray.

Standard STS Telephones

NEW & IMPROVED!

The Vodavi STARPLUS STS product family is a market leader in small

business. With over 30,000 systems installed throughout the United States,

you can be assured of the system’s track performance

and reliability.

Vodavi’s popular STARPLUS STS telephone

system just got better! Our new STARPLUS STSe master cabinet has a host of new features that will help you stay ahead of the game. Features such as automatic daylight savings, tenant share and virtual stations have been added by popular demand. With the same modest price, the STARPLUS STSe remains a refreshingly affordable communications solution for enterprises requiring less than 48 phones.

STS System Capacities

CO Lines

Basic System (BKSU) 12 24 2*

Max Capacity With (EKSU) 24 48 2*

Digital Stations

Analog Ports

*The total number of analog (SLT) devices per system that can be supported is 22 (including the 2 on board).

If 22 SLT’s are installed, the digital station count is reduced to 8.

Available in off-white or charcoal gray.

Page 3

Vodavi offers two voice processing solutions for the STARPLUS STSe System,

Door Phone

communication with visitors at a gate or door entry.

an In-Skin Flash Voice Mail Card and an In-Skin HDD Voice Mail Card.

STARPLUS STSe In-Skin Flash Voice Mail Card

Designed for small office/home office applications, this is a great entry-level

voice mail system that will allow users to reap the benefits of voice messaging

with very little investment. This is an 8-port system with 64 mailboxes and 3 hours of message storage, expandable to 9 hours.

This system has the following productivity enhancing features:

• Live Call Screening/Answering Machine Emulation

• Automated Attendant

• Automatic Routing

• Dial-by-Name

• Menu Routing

• Pager Notification

• Password Protection

• RAN Announcement Mailbox

• Smart Transfer

• Time & Date Stamp

• Voice Messaging

• One Touch Record

STARPLUS STSe In-Skin HDD Voice Mail Card

For a more robust feature set and larger message storage capacity, this HDD-based voice mail card is perfect for the medium-sized business needing advanced message notification options, sophisticated call routing or for businesses requiring message storage and retrieval over long periods of time.

This is also an 8-port system, but has unlimited mailbox capacity and up to

200 hours of message storage.

In addition to all the features offered by the Flash-based system, the HDD-based system also offers:

STARPLUS STSe

In-Skin Voice Mail

Solutions

By offering two voice

mail solutions that

plug right in to the

STARPLUS STSe

system cabinet,

voice mail becomes a

refreshingly affordable

option for any small

business. The in-skin

“card” eliminates the

need for expensive

external equipment.

• Cascading Menus

• Cell Phone Notification

• Flag messages with special delivery options

• Incoming Caller ID

• Park & Page

The 2.4 GHz Wanderer - With many of the bene ts of the STS phone, the Wanderer adds mobility from 100 to over 250 feet with the accessibility of your desktop phone number and extension. The Wanderer range may vary based on environment.

- Add a one-touch two-way Vodavi speakerphone for

Both systems are 8-

ports. The Flash card

is for users requiring

fewer than 64 mailboxes

and 9 hours of storage.

The HDD card is for

users with greater

mailbox and message

storage requirements,

or more sophisticated

call routing needs.

Page 4

Features

Account Codes - Unveried/Veried/Traveling COS

Alarm Key - Diagnostics Alert

Alpha-Numeric Display (Super Twist)

All Call Paging

Automated Attendant (Optional Includes Alternate Ringing Mode)

Analog Adapters

Answering Machine Emulation

Attendant override

Attendant Alert (911 feature)

Attendant Unavailable (Alternate Position)

Attendant - Setting System Day & Night Time

Attendant - Directory by List Programming

Attendant - Software Version Display

Attendant - Speed Dial - System Storing

Attendant Administration

Attendant/Extension Console

Attendant Recall

Automatic Three Mode Operation (Day/Night/Special)

Automatic Hold

Automatic Line Selection (Programmable)

Automatic Mode (Day/Night/Special)

Automatic Privacy

BGM (1) channel - MOH

Barge In

Battery Backup Support

Busy Lamp Field

Call Announce - Privacy

Call Back

Call Coverage – Enhanced with STSe!

Call Duration Timer

Call Forward - All Calls

Call Forward - Busy

Call Forward Busy/No Answer

Call Forward DND – NEW with STSe!

Call Forward Extension Direct

Call Forward - Extension - External

Call Forward - Override

Call Forward - No Answer

Call Park (System/Personal/Station)

Call Pickup (Directed Pickup/Group Pickup)

Caller ID Name & Number

Calling Station Tone Mode

4717 East Hilton Avenue Suite 400 Phoenix, Arizona 85034 800-843-4863

www.vodavi.com

480-998-2469 (fax)

Caller ID Call Table (100-System)

Call Operator/Attendant (Programmable Code)

Caller ID Answered/Unanswered Call Review

Call Transfer

Calling Party Indication

Camp-On Extension

Centrex Compatibility

Class of Service - CO Line

Class of Service - Extension

CO Ring Tones

CO Line Receive Assignment (allows answering ability while restricting outgoing access.)

CO Line Ring Assignment

CO Line Type Assignment (PBX, CO, Device Port)

CO Lines Offnet Forward - Incoming (via Speed Dial)

CO Line Group (Pooled Access)

CO Alternate Route

CO Line Name Programming (7-character)

CO Line Assignment (Complete Flexibility)

CO Line Programming Copy

CO Line Queuing (CO Line Call Back)

CO Line Ringing Mode (Day/Night/Special)

CO Line Signaling (Tone/Pulse)

CO Line Loop Supervision (Call Abandon)

Computer Telephony Integration (CTI)

Conference (Establish/Exit/Re-enter/Terminate)

CTI Adaptable

Database Programming via Flash

Database Programming via PC-DBA

Daylight Savings Time – NEW with STSe!

Day/Night Special Mode

Dial Pad Conrmation Tone

DID*

Disable Outgoing Co Access

DTMF Receivers (One per Analog Port)

Dial By Name

DISA

DSS/BLF

Distinctive Ringing (On CO/STA)

Discriminating Ringing (Internal/External Call Specic)

Default Numbering Plan

Do Not Disturb Plan

Dual Color LEDs

End to End Signaling

Executive/Secretary Screen

Extension Groups (Paging, Pick Up)

Extension Programming Copy

Extension Swapping

Extension User Name

External Music Source

Fax Detect – NEW with STSe!

Feature Code List

Flash

Flexible Feature Button Inquiry

Flexible System Numbering Plan

Flexible Extension Numbering Plan

Flexible Feature Button Programming

Forced CO Call Forward

Forced Intercom Call Forward

Forced Intercom Tone Ring

Forced Release

Group Listening

Headset Mode

Hold Abandon

Holding Call Answer/Select

Hold - Common (System)

Hold - Exclusive

Hold Reminder

Hot Key

Hour Mode Selection

Hot Line

Hunt Groups via UCD-Linear

I-Hold Indication

I-Use Indication

Incoming CO Transfer

Intercom Buttons/Intercom Call/Keyset Mode

Intercom Non Blocking

Interactive Softkeys

Last Number Redial

Mailbox Buttons

Meet me Page

Message Waiting

Music On Hold

Mute

Muted Ring

Name in Display

Night Service Activate

OHVO – Off Hook Voice Over

On Hook Dialing

Off Hook Preference/Programming

One Touch Recording

Paging (Internal/External)

Paging (Allow & Deny)

Pause Insertion

Personalized Messages

PBX/Centrex on a Flex Button

PBX/Centrex Transfer

Power Supply – 110VAC

Privacy

Privacy Release

Private Line

Pulse to DTMF Conversion

Recall

Relay Activation – NEW with STSe!

Reminder Tones

Remote Programming via PC-DBA

Repeat Redial

Ringing Line Priority

Saved Number Redial

Screened Transfer

SLT/Analog Device Support

SLT Co Line Flash

SLT Hotline

Speakerphone

Station ID Lock

Station Off Net Call Forwarding (via speed dial)

SMDR

Station Renumbering

Speed Dial (20 per station)

Speed Dial (80 system)

Storing Speed Numbers

T1 Capability

Tenant Groups – NEW with STSe!

Text Messaging

Toll Restriction

UCD (Available/Unavailable Mode)

UCD (Display calls in queue)

UCD Agent Log Off/On

UCD Overow (Station Forward)

UCD Reroute Destination

UCD Voice Announce Group

Universal Day/Night Answer

User Name Programming

Virtual Stations – NEW with STSe!

Voice Mail/Call forward to voice mail groups

Voice Announce - Handsfree Reply

Volume Controls

Warning Time

Warning Tone

Worksheets (Flex Button Program Worksheet & Speed Dial Program Worksheet)

*TI Required.

Proud to be tracked by NASDAQ: VTEK

is a trademark of Vodavi Technology, Inc.

L3501 08/05
