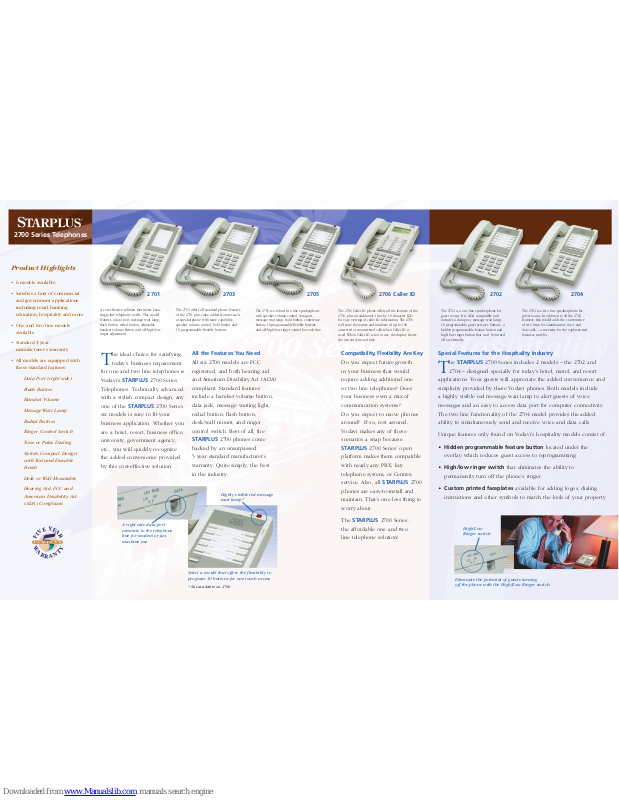

2700 Series Telephones

2700 Series

Hospitality

he ideal choice for satisfying

today’s business requirement

for one and two line telephones is

Vodavi’s

STARPLUS 2700 Series

Telephones. Technically advanced

with a stylish compact design, any

one of the

STARPLUS 2700 Series

six models is sure to fit your

business application. Whether you

are a hotel, resort, business office,

university, government agency,

etc., you will quickly recognize

the added convenience provided

by this cost-effective solution.

All the Features You Need

All six 2700 models are FCC

registered, and both hearing aid

and American Disability Act (ADA)

compliant. Standard features

include a handset volume button,

data jack, message waiting light,

redial button, flash button,

desk/wall mount, and ringer

control switch. Best of all, the

STARPLUS 2700 phones come

backed by an unsurpassed

5 year standard manufacturer’s

warranty. Quite simply, the best

in the industry.

Compatibility, Flexibility Are Key

Do you expect future growth

in your business that would

require adding additional one

or two line telephones? Does

your business own a mix of

communication systems?

Do you expect to move phones

around? If so, rest assured.

Vodavi makes any of these

scenarios a snap because

STARPLUS 2700 Series’ open

platform makes them compatible

with nearly any PBX, key

telephone system, or Centrex

service. Also, all

STARPLUS 2700

phones are easy-to-install and

maintain. That’s one less thing to

worry about.

The

STARPLUS 2700 Series…

the affordable one and two

line telephone solution!

2702 27042705 2706 Caller ID27032701

Select a model that offers the flexibility to program 10 buttons for one touch access.

*Not available on 2706.

A right side data port connects to the telephone line for modem or fax machine use.

Special Features for the Hospitality Industry

he STARPLUS 2700 Series includes 2 models – the 2702 and

2704 – designed specially for today’s hotel, motel, and resort

applications. Your guests will appreciate the added convenience and

simplicity provided by these Vodavi phones. Both models include

a highly visible red message wait lamp to alert guests of voice

messages and an easy to access data port for computer connectivity.

The two line functionality of the 2704 model provides the added

ability to simultaneously send and receive voice and data calls.

Unique features only found on Vodavi’s hospitality models consist of:

•

Hidden programmable feature button located under the

overlay which reduces guest access to reprogramming

•

High/low ringer switch that eliminates the ability to

permanently turn off the phone’s ringer

•

Custom printed faceplates available for adding logos, dialing

instructions and other symbols to match the look of your property

High/Low Ringer switch

Eliminate the potential of guests turning off the phone with the High/Low Ringer switch.

A cost-effective solution that meets basic single line telephone needs. This model features a data port, message wait lamp, flash button, redial button, adjustable handset volume button and off/high/low ringer adjustment.

The 2703 offers all standard phone features of the 2701 plus value added features such as speakerphone with mute capability, speaker volume control, hold button and 10 programmable flexible buttons.

The 2705 is a robust two line speakerphone with speaker volume control, data port, message wait lamp, hold button, conference button, 10 programmable flexible buttons and off/high/low ringer control for each line.

The 2706 Caller ID phone offers all the features of the 2703, plus an additional 4 line by 16 character LCD for easy viewing of caller ID information. The 2706 will store the names and numbers of up to 100 answered or unanswered calls when Caller ID is used. When Caller ID is not in use, the display shows the current date and time.

The 2702 is a one line speakerphone for guest rooms. It is ADA compatible and includes a data port, message wait lamp, 10 programmable guest services buttons, a hidden programmable feature button and high/low ringer button that can’t be turned off accidentally.

The 2704 is a two line speakerphone for guest rooms. In addition to all the 2702 features, this model adds the convenience of two lines for simultaneous voice and data calls – a necessity for the sophisticated business traveler.

Product Highlights

• 6 models available

• Satisfies a host of commercial and government applications including retail, banking, education, hospitality and more

• One and two line models available

• Standard 5 year manufacturer’s warranty

• All models are equipped with these standard features:

Data Port (right side)

Flash Button

Handset Volume

Message Wait Lamp

Redial Button

Ringer Control Switch

Tone or Pulse Dialing

Stylish, Compact Design

with Textured Durable

Finish

Desk or Wall Mountable

Hearing Aid, FCC and

American Disability Act

(ADA) Compliant

LIMITED

Highly visible red message wait lamp.*

Page 2

Features

The Affordable One and Two Line

Telephone Solution

About Vodavi

Since 1983, Vodavi has been delivering practical

and affordable telecommunication solutions for small-to-

medium-sized businesses and call centers. Our product

lines range from complete digital communications

systems to in-building wireless, voice processing/unified

messaging, commercial grade telephones, internet

telephony, computer telephony and interactive voice

response products. Our dedication to providing superior

products and outstanding customer service has garnered

Vodavi numerous product achievement awards and

allowed Vodavi to solidify its position as one of the top

ten suppliers of key telephone systems in the United

States. Whether managing a busy call center or an entire

networked communication system, Vodavi can meet the

quality, flexibility, budgetary and reliability requirements

of any business application.

Product Specifications

Weight: 2.5 lbs. Footprint: 8.75" x 6.25" Handset: Standard K Style, Hearing Aid Compatible Handset Cord Length: 12 ft Line Cord Length: 15 ft Signaling: Standard 12 tone DTMF Message Waiting: 90 VDC (Standard FSK for 2706) Flash Timing: 500 ms (Programmable 300 ms – 900 ms) Cabling Requirement: 1 pair Minimum Operating Voltage: 24 to 56 VDC Non Polarity FCC Specifications: Part 15, Subpart J, Class A, Part 68 Safety Standard: NTRL/C Ringer Equivalence: Z/B Switchable Registered Connector: USOC RJ 11

L1060 04/01

we’re talking

technology

www.vodavi.com

8300 East Raintree Drive Scottsdale, Arizona 85260 800-843-4863 480-998-2469 (fax)

are trademarks of Vodavi Technology, Inc. Features and specifications are subject to change without notice.

2700 Series Telephones

LIMITED

The Affordable One and Two Line

Telephone Solution

2701 2703 2705 2706 2702 2704

A - lead ▲▲ ▲▲

Caller ID ▲

Conference button ▲▲

Data jack ▲▲▲ ▲▲▲

Desk/Wall mountable ▲▲▲ ▲▲▲

Flash button ▲▲▲ ▲▲▲

Handset holder for wallmount ▲▲▲ ▲▲▲

Handset volume ▲▲▲ ▲▲▲

Hidden programming button ▲▲

Hold button ▲▲▲▲▲

Hold LED for each line ▲▲▲▲▲

Line in use indicator for each line ▲▲▲▲▲

Low/High ringer ▲▲

Message wait lamp ▲▲▲ ▲▲▲

Mute button ▲▲▲▲▲

Mute with LED ▲▲▲▲▲

Number memory 10 10 100 10 10

Off/High/Low ringer control

▲▲▲ ▲

Pause ▲▲▲▲▲

Positive disconnect hookswitch ▲▲ ▲ ▲▲▲

Programmable flexible buttons 10 10 12 10 10

Programmable timers

▲▲▲▲▲

Redial button ▲▲▲ ▲▲▲

Ring indicator for each line ▲▲▲▲▲

Single line ▲▲ ▲▲

Speaker volume control ▲▲▲▲▲

Speakerphone ▲▲▲▲▲

Speakerphone with LED ▲▲▲▲▲

Tone/Pulse ▲▲▲ ▲▲▲

Two lines ▲▲

Five year warranty ▲▲▲ ▲▲▲

Black ▲▲▲ ▲

Off-White ▲▲▲ ▲▲▲
