Vocollect TT600-50300 User Manual

Rhein Tech Laboratories Report Number: 2003191 R0.04
360 Herndon Parkway FCC: Part 15.247
Suite 1400 Industry Canada: RSS-210

http://www.rheintech.com

Model: TT-600

FCC ID: MQOTT600-50300 Herndon, VA 20170

APPENDIX I: MANUAL

Please see the following pages.

Page 41 of 68

Part #: 695096 Rev. 7

Vocollect terminals are designed to be compliant with the rules and regulations in the
locations into which they are sold and are labeled as required. Vocollect terminals are
type approved and do not require the user to obtain license or authorization before
using them. Changes or modifications not expressly approved by Vocollect, Inc. could
void the user's authority to operate the equipment.

This product may contain one of these radio devices. Please refer to the device label.

Card Manufacturer and P/N Vocollect Talkman

FCC ID #

Symbol-LA-3021-101-US

MQOTT600-22300 2570A-TT600T2

Vocollect Talkman
Canadian ID #

2Mbps 100mW
H9PLA3021-100
Symbol-LA-4121-1020-US

MQOTT600-35300 2570A-TT600
H9PLA4121
Lucent-PC24E-H-FC

MQOTT500-33300 230-391152A
Worldcard
CISCO-AIR-PCM350

MQOTT600-40300 2570A-TT600
LDK102040
Vocollect Wi-Fi

MQOTT600-50300 2570A-TT600-50300
600-2400-032

The Talkman product is approved for:

1. FCC Part 15 Subpart C

2. Industry Canada RSS211 and RSS139

3. ETSI 300-328, ETSI 300-826, EN 60950

For More Information

The Talkman online documentation provides detailed information about the Talkman
terminal, how to use it, and how to troubleshoot problems that you may encounter. You
can also contact Vocollect at:

Vocollect
703 Rodi Road
Pittsburgh, PA 15235
Toll-free: 866.Vocollect (866.862.6553)
E-mail: [e-mail]
Main World Wide Web page: www.vocollect.com
Copyright 2001 Vocollect, Inc. All Rights Reserved

Product Notes & Warnings

• Talkman T2 terminals are assembled under strict Vocollect manufacturing
guidelines. Tampering with a terminal in any manner will void published operating
specifications and may void the product warranty.

• Never remove the battery from a Talkman terminal unless the terminal has been
properly powered off.

• Vocollect highly recommends that the Talkman terminal be worn on the right side
of the body with the terminal’s buttons on the top and its connectors toward the
operator’s back.

• When a terminal is not in use, it should be placed properly into a terminal charger.

• It is recommended that a hog hair cleaning brush (or similar brush) be used to

clean the contacts on the terminal. This brush is a small, inexpensive, three-row
toothbrush style, general cleaning brush. It is made of natural, stiff hog hair
bristles and has a 7 3/4" plywood handle. Gently brush the terminal’s contacts to
clean away dirt and other obstructions that might prohibit them from making a
solid connection.

Product Specifications

Weight
Length
Width
Depth
I/O Ports

Operating Temperature
Storage Temperature
Drop Test

Humidity

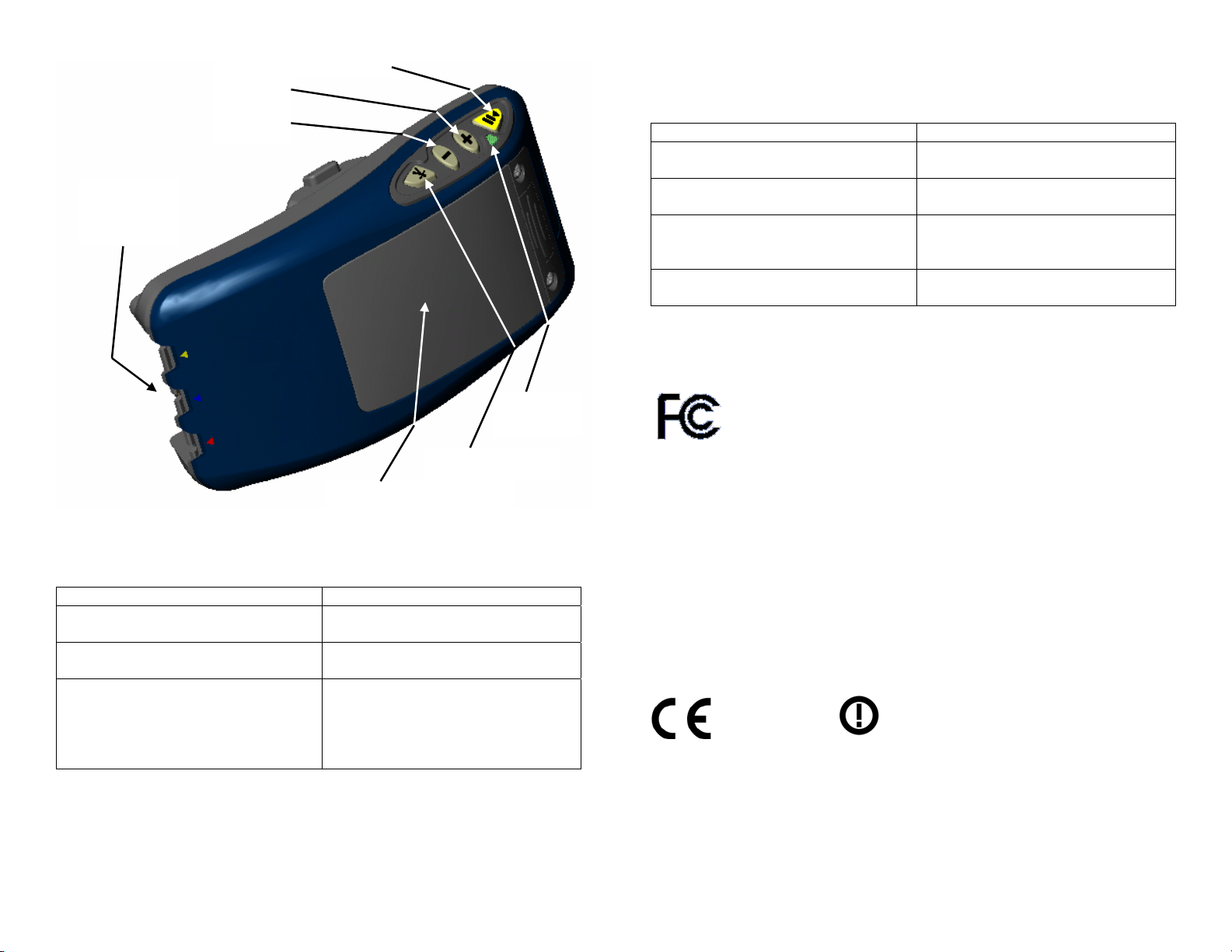

Talkman  T2 Terminal

15.9 ounces (with standard battery)

6.5” (16.5 cm)

3.38” (8.5 cm)

1.5” (4 cm)

• Headset port (yellow)

• Maintenance port with audio out and

RS-232 serial support (red)

• Bar code port with RS-232 decoded
bar code support (blue)

-29° to 50° C (-20° to 122° F)

-34° to 60° C (-30° to 140° F)

The Talkman terminal meets the MIL STD
810F specification for shock and vibration.
In addition the terminal has been tested to
the following specifications:

• 25 drops from 5 feet and 10 additional
drops from 6 feet onto polished
concrete

• 10 drops from 5 feet at –20° F onto
polished concrete

Functional from 5% to 95% non­condensing
