Achieving a Successful VCMInstallation

Perform the requirements to successfully install VMware vCenter Configuration Manager (VCM), and then install VCM in any of the supported single-tier, two-tier, or three-tier installation configurations.

Determine your specific hardware and software requirements for VMware vCenter Configuration Manager (VCM). Perform the preparatory steps to install and configure your physical and virtual machines for a successful VCM installation.

To determine your hardware and software requirements, begin by answering several questions.

n

How many vCenter Server, UNIX, Linux, and Windows servers and workstations will you license?

n

How often will you collect data?

n

How much data will you collect?

n

How long will you retain the collected data and change data?

n

What additional VCM components will you use? For available VCM components, see the Download VMware vCenter Configuration Manager Web site.

n

Do you understand the VCM security requirements? See the VCM Security Guide.

1

To achieve a successful VCM installation, you must understand the hardware and software requirements for VCM Collector machines and VCM managed machines, prepare your environment for VCM installation, then install VCM.

Before you install VCM, use the following chapters to prepare for VCM installation. Perform the prerequisite steps and procedures in the order presented, configure resources, configure your installation environment, then install VCM.

After you install VCM, set the file growth for your VCMdatabase, then create a maintenance plan.

VCM Collector and Agent OS Platform Support

All Agent and Collector OS platform support is specific to versions and editions indicated in the supported platforms table. Some configurations can reduce or block the performance or functionality of VCM components, such as configurations by vendors, third-party, custom lock downs, endpoint security products, policies, and restricted system. Troubleshooting and support of VCM components in lockeddown or reconfigured environments is not included under the standard product maintenance agreement. Support in these environments is available through an additional Professional Services engagement.

All testing is performed in a hardened environment, as documented in the VCM Security Guide. Testing with OS vendor hardening applied for the VCM Collector is part of the supported configurations.

VMware, Inc.

10

vCenter Configuration Manager Advanced Installation Guide

For details about VCM Collector machines, see Hardware Requirements for Collector Machines and Software and Operating System Requirements for Collector Machines in the VCM Installation Guide.

For details about VCM managed machines, see Hardware and Operating System Requirements for Managed Machines in the VCM Installation Guide.

11

VMware, Inc.

Hardware Requirements for Collector Machines

Your VCM Collector hardware requirements depend on the number of physical and virtual managed machines in your environment.

Use this information to determine how many machines you plan to manage. You can determine the individual hardware requirements to ensure a successful VCM installation.

Disk space requirements vary based on the following factors.

n

Number of machines from which you collect data

n

Type of data collected and filters used

n

Frequency of collections

n

Data retention

Determine the Size of Your Environment

VCM hardware requirements are recommended based on whether your environment contains 1–1000, 1000–2000, 2000–5000, or more managed machines. To determine the number of managed machines on which to base your collector size, consider the number of vCenter Server instances, Windows servers and workstations, UNIX or Linux machines, and virtual machines that you are licensing. Identify any other VCM components that you are licensing. To determine your total number of managed machines, enter data for your enterprise in the sizing worksheet.

2

In VCM, the term “managed machines” refers to the servers and workstations that VCM manages, and from which VCM collects data. If you use VCM for Microsoft Active Directory (AD), this definition includes AD objects that you plan to have in your environment in the next 12 to 24 months.

Use the formulas in the worksheets to determine how your AD objects will increase your managed machine count and affect your final sizing requirements. After you complete the worksheet and determined the number of managed machines, size your Collector machine. Use the blank worksheet to record the managed machines in your environment.

VMware, Inc.

12

vCenter Configuration Manager Advanced Installation Guide

Table 2–1. Sizing Worksheet

Product Description Anticipated Number o f Managed

VCM Windows Servers

ESXi Servers

Guest Virtual Machines

Linux or UNIX

Mac

Windows Workstations

Machin es in th e Next 12-24 Months

VCM for AD

Divide total number of AD objects by 100 to determine the approximate "machine count" for your AD environment.

Total Managed Machines: _______

In the following example, an enterprise environment contains machines and objects that represent 1377 managed machines, which places it in the 1000–2000 managed machines category.

Table 2–2.

Example of Sizing Worksheet with Sample Data

Product Description

Anticipat ed Number o f Managed Machin es in th e Next 12-24 Months

VCM Windows Servers 92

vSphere/ESX/ESXi Servers 5

Virtual Machines (VM) 50

Linux or UNIX 100

Mac 100

Windows Workstations 920

VCM for AD

Divide total number of AD objects by 100 to determine the approximate "machine count" for your AD environment.

10,000 AD Objects/100 = 100 managed

machines to accommodate VCM for

AD

Total Managed Machines: 1377

Identify Your Specific Hardware Requirements

Size your VCM Collector and database based on the requirements for managed vCenter Server instances and the number of machines managed by VCM.

Database Sizing for Managed vCenter Server Instances

Use the following requirements to size your SQLServer database depending on the number of hosts and guests per vCenter Server managed by VCM. These requirements are in addition to the base VCM storage requirements, and are based on an estimated 10% data change per day times 15 days of data retention.

13

VMware, Inc.

Hard ware Requirements for Collector Machines

Table 2–3. VCMDatabase Sizing per vCenter Server Instance

Host s Guests Est. Daily Ch ange Data Retent ion in Days Data Size

25 250 10% 15 3GB

50 500 10% 15 6GB

250 2500 10% 15 30GB

The best practice in production environments is to have the Managing Agent process requests for a single vCenter Server. Dedicate one Managing Agent machine for each vCenter Server. In a single vCenter Server instance environment, the VCM Collector can be the Managing Agent.

A single Managing Agent can manage multiple vCenter Server instances depending on your collection schedules and when potential job latency is not an issue, such as when a single Managing Agent must process multiple requests serially. A single Managing Agent can manage multiple vCenter Server instances as long as only one vCenter Server is collected at a time.

When job latency is not a problem, and depending on your collection schedules, you might dedicate a single Managing Agent for every five vCenter Server instances or 100 hosts. You could dedicate one Managing Agent to a vCenter Server that manages 100 hosts, or a collection of four vCenter Server instances that each manage 10 hosts could share a Managing Agent.

Hardware and Disk Requirements By Number of Managed Machines

Use the Minimum Hardware Requirements and Minimum Disk Configuration Requirements tables to determine your hardware and disk configuration requirements for a single-tier server installation.

Use the total number of managed machines from the Sizing Worksheet to locate your environment size (1–1000, 1000–2000, 2000–5000, or more). If you have more than 5000 machines in your environment, contact VMware Technical Support to help you determine your hardware requirements.

If you run SQLServer on a virtual machine, see Microsoft SQL Server on VMware Best Practices Guide at

http://www.vmware.com/files/pdf/sql_server_best_practices_guide.pdf. If you run SQL Server in a Hyper-

V environment, see Best Practices and Performance Considerations for Running SQL Server 2008 in a Hyper-V Environment on the Microsoft Web site.

The requirements listed in the following tables are based on the following assumptions.

n

Daily VCM collections using the default filter set with additional Microsoft AD security descriptors collected using VCM for AD.

n

15 days retention of change data.

n

Simple recovery mode only.

n

Daily VCM Patching collections.

n

No applications other than VCM are running on your server.

VCM for AD collections cause the TempDB database to grow significantly. If you have a fully populated Microsoft Active Directory and plan to perform frequent AD collections, increase your hardware requirements.

Longer data retention, additional WMI, registry filters, and custom information collections also add to the requirements.

The following table provides hardware requirements for a single-tier server installation of VCM. If you are installing VCM in a two-tier or three-tier environment, approximate sizing requirements are provided in the VMware Knowledge Base. See http://kb.vmware.com/kb/2033894.

VMware, Inc.

14

vCenter Configuration Manager Advanced Installation Guide

Table 2–4. Minimum Hardware Requirements by Number of Managed Machines for Single-Tier Server Installations

Requ irements Number of VCM Manag ed Machines

1–1000 1000–2000 2000+

Processors Dual Xeon or single Dual

Core 2GHz minimum

Quad Xeon or two Dual Core 2GHz minimum

Eight-way Xeon or four Dual Core 2GHz minimum

RAM 8GB+ minimum 12GB+ minimum 16GB+ minimum

Number of

2 3 4 Separate Disk Channels

The space allocations in the following table do not include space for backups. Allocate backup space that is equal to the size of the VCM data for a single full backup, or larger to keep multiple partial backups.

Table 2–5. Minimum Disk Configuration Requirements by Number of Managed Machines

Number of VCM Manag ed Machin es

RAID Channel and RAID Level Partitions Usable

Space

1–500 Channel 0 – RAID 1 OS 36GB

Collector Data

36GB

Files

TempDB 36GB

SQL Log Files 28GB

Channel 1 – RAID 0+1 (recommended) or

SQL Data Files 56GB

RAID 10

501–1000 Channel 0 – RAID 1 OS 36GB

Collector Data

36GB

Files

Channel 1 – RAID 1 TempDB 56GB

SQL Log Files 56GB

Channel 2 – RAID 0+1 (recommended) or

SQL Data Files 113GB

RAID10

1001–2000 Channel 0 – RAID 1 OS 36GB

Collector Data

54GB

Files

Channel 1 – RAID 1 TempDB 113GB

Channel 2 – RAID 1 SQL Log Files 113GB

Channel 3 – RAID 0+1 (recommended) or

SQLData Files 227GB

RAID 10

15

VMware, Inc.

Software and Operating System Requirements for Collector Machines

Your VCM environment software configuration must meet the requirements to install VCM 5.6. The software requirements are based on the number of managed machines in your environment and your installation configuration.

The software requirements are organized into steps. You must perform the steps in the order specified to ensure a successful VCM installation.

All software requirements apply to the server in your single-tier installation. For more information about installation configurations, see "VCM Installation Configurations" on page 18.

Sizing Impacts on Software Requirements

Use the total number of managed machines that you identified in "Determine the Size of Your

Environment" on page 12 to locate your environment size (1–1000, 1000–2000, 2000–5000, or more). If you

have more than 5000 machines in your environment, contact VMware Technical Support for your specific requirements.

VCM supports Standard and Enterprise editions of SQL Server 2008 R2.

3

CAUTION If your Windows machine has an evaluation version of SQLServer StandardEdition or

Enterprise Edition, use it only for evaluation purposes. Do not use an evaluation version in a production environment, because it is not officially supported for production.

Table 3–1. Minimum Software Requirements by Number of VCM Managed Machines

Soft ware Compo nent

Operating System

SQL Version SQL Server 2008 R2 Standard

SSRS Version SQL Server 2008 Reporting

Number of Manag ed Machines

1–1000 1000–2000 2000–5000

Windows Server 2008 R2 Windows Server 2008 R2 Windows Server 2008 R2

Edition (64-bit)

Services

SQL Server 2008 R2 Standard Edition (64-bit)

SQL Server 2008 Reporting Services

Software Installation and Configuration Overview

VCM supports the Collector running on a Windows Server 2008 R2 operating system. Complete the preparatory steps to prepare your Windows Server 2008 R2 machine for a successful VCM installation. When you use VCM Installation Manager to install VCM, the system checks will run without error, indicating that you have met all of the requirements to install VCM.

Enterprise Edition SQL Server 2008 R2

Standard Edition (64-bit) SQL Server 2008 Reporting

Services

VMware, Inc.

16

vCenter Configuration Manager Advanced Installation Guide

VCM supports several installation configurations including single-tier, two-tier, and three-tier. You use Installation Manager to install VCM in these configurations.See "Preparing for Installation" on page 18.

To understand the requirements to upgrade or migrate your environment to the latest version of VCM, see "VCM Upgrades and Migrations" on page 17.

VCM Upgrades and Migrations

To upgrade your version of VCM to the current version, you must have VCM 5.5, 5.5.1, 5.4, or 5.4.1. To migrate your environment to the current version of VCM, you must have version 4.11.1 or later installed and running.

CAUTION VCM 5.6 does not include the Patch Administrator role. If you previously assigned the

Patch Administrator role to a user, either reassign a different role to the user or let the user know that the role no longer exists.

What to do next

To upgrade VCM, see the upgrade and migration examples at "Upgrading or Migrating VCM" on page

128.

17

VMware, Inc.

Preparing for Installation

Prepare your environment for a VCMinstallation by performing the prerequisites to include hardware, software, and physical and virtual machines before you install VCM components and tools.

VCM Installation Configurations

VCM supports several installation configurations including single-tier, two-tier, and three-tier. Use Installation Manager to install VCM in these configurations.

n

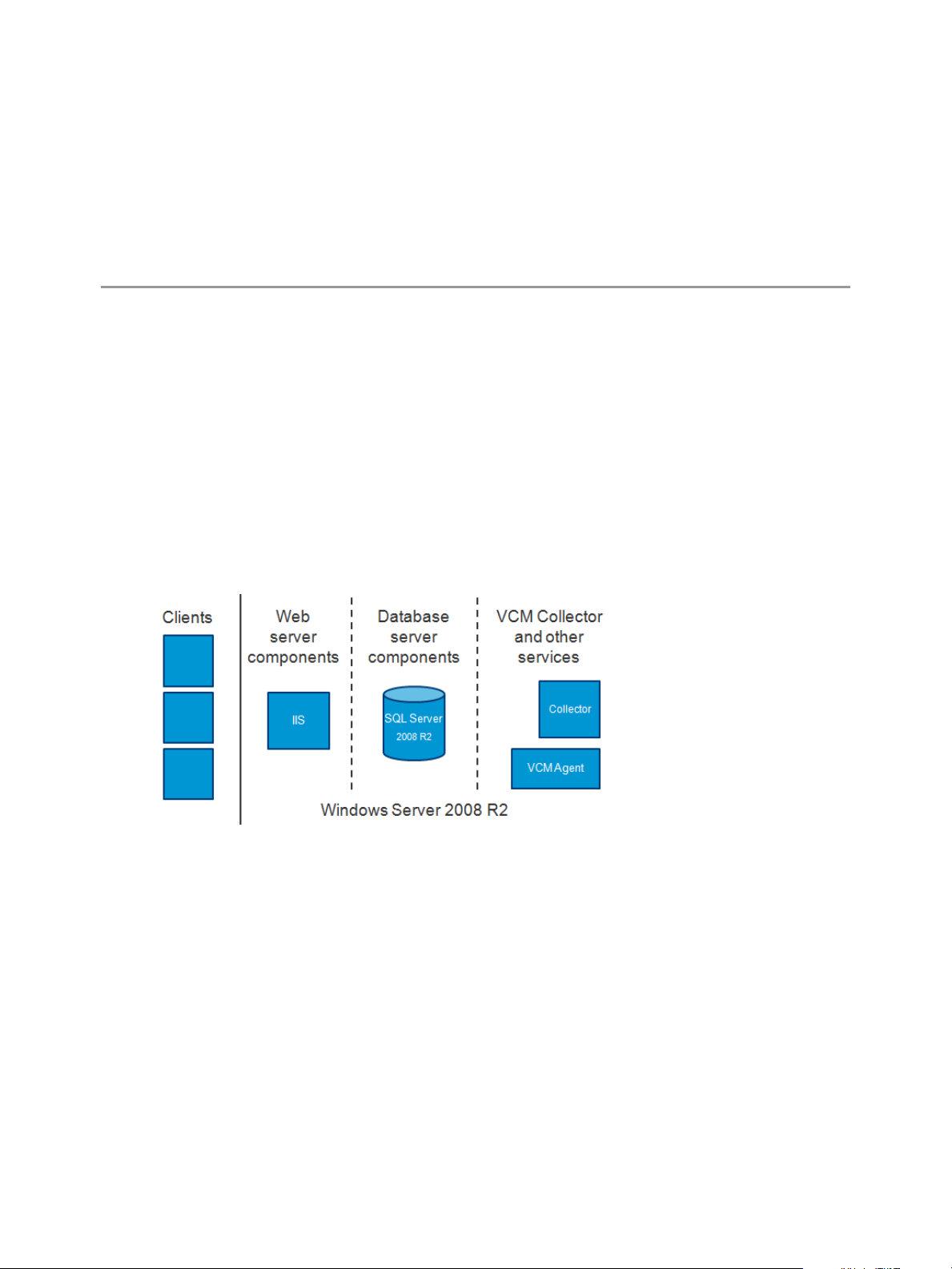

Single-Tier Server Installation

In a single-tier server installation, the VCM database server, Web server, and the VCM Collector components reside on a single Windows Server 2008 R2 machine, which is referred to as the VCM Collector. The installation installs all of the core VCM components, including the databases, console, and services. This configuration enables integrated security by default.

n

Two-Tier Split Installation

In a two-tier split installation, the VCM database resides on the Windows Server 2008 R2 database server machine, and the VCM Collector and Web components reside on the second Windows Server 2008 R2 machine.

4

n

Three-Tier Split Installation

In a three-tier split installation, the VCM databases, the Web applications, and the VCM Collector components reside on three different Windows Server 2008 R2 machines.

To perform the prerequisite steps for VCM installation, see "System Prerequisites to Install VCM" on page

20.

VMware, Inc.

18

vCenter Configuration Manager Advanced Installation Guide

19

VMware, Inc.

System Prerequisites to Install VCM

Perform the system prerequisites to prepare your physical or virtual machine for VCM installation. The prerequisites ensure that your machine meets the requirements for your environment to support a successful VCM installation.

After you perform the system prerequisites, during VCM installation the Installation Manager runs system checks on the database server, Web server, and VCM Collector machine in your installation configuration. These system checks verify that you have satisfied all of the prerequisites for a successful VCM installation. During the system checks, Foundation Checker verifies component-specific issues against VCM, captures common issues, and identifies any problems with the version of VCM being installed.

Foundation Checker might generate warnings, which you must review. In some cases, you might need to resolve the warnings before you install VCM, even though the warnings will not prevent you from starting the installation.

If Foundation Checker generates errors, you must resolve them before you install VCM. For more information about Foundation Checker, see the VCM Foundation Checker User's Guide.

Use the following topics to verify your system requirements.

5

n

Verify that your environment meets the security requirements. See the VCM Security Guide.

n

"Establish Local Administration Rights" on page 21

Verify that the user account of the person who performs the VCM installation, upgrade, or migration has all of the required rights.

n

"Verify Browser Compatibility" on page 22

Verify that the target VCM Collector machine, and any other machines that will access the VCM Web console interface on the VCM Collector, have a compatible Web browser installed.

n

"Verify the Default Network Authority Account" on page 22

Define the network authority account in the Local Administrators group on the Collector machine before you install VCM. The network authority account must be a domain account. VCM uses the default network authority account to collect data from Windows Agent machines.

n

"Specify the Collector Services Account" on page 23

Specify the Collector Service account to use during VCM installation. The account can be a system administrator account and must exist in the Local Administrators group on the Collector machine. The account must not be the Local System account.

n

"Verify the VMware Application Services Account" on page 23

VMware, Inc.

20

vCenter Configuration Manager Advanced Installation Guide

Verify that the VMware Application Services Account is a domain user.

n

"Verify the VCM Agent is Not Installed" on page 24

The target Windows machine must not have a VCM Agent installed before you install VCM. If an Agent is installed, you must uninstall the Agent for VCM to install.

n

"Verify the SQLXML Version" on page 25

SQLXML provides client-side XML functionality and enhancements to existing SQL features. SQLXML

4.0 SP1 is installed with SQL Server 2008 R2. Verify that the correct version is installed.

Establish Local Administration Rights

Verify that the user account of the person who performs the VCM installation, upgrade, or migration has all of the required rights.

The following rights are required.

n

System administrator on the machines on which the installation or upgrade is performed.

n

System administrator on the database instance to be used.

n

Member of a domain.

The installing user account should not be the account used for VCM services, because the login of the VCM service account is disabled during installation.

After installation, do not create a VCM user that uses the SQL Server services account credentials.

What to do next

Verify the compatibility of your browser. See "Verify Browser Compatibility" on page 22.

21

VMware, Inc.

Verify Browser Compatibility

Verify that the target VCM Collector machine, and any other machines that will access the VCM Web console interface on the VCM Collector, have a compatible Web browser installed.

VCM supports the following browsers.

n

Internet Explorer version 8 and 9.

n

Internet Explorer version 10 in compatibility mode.

n

Mozilla Firefox version 6.0 or later with the Internet Explorer IE Tab add-on. This add-on requires Internet Explorer 6.0 to be installed on the machine.

What to do next

Verify the default Network Authority account. See "Verify the Default Network Authority Account" on

page 22.

Verify the Default Network Authority Account

Define the network authority account in the Local Administrators group on the Collector machine before you install VCM. The network authority account must be a domain account. VCM uses the default network authority account to collect data from Windows Agent machines.

System Prerequisites to Install VCM

You specify the default network authority account during VCM installation. The default network authority account can be a system administrator account, such as a Domain Admin in the Local Admin Group.

It is acceptable, but not preferred, to use the same account for the Application services account, Collector service account, VCM Remote account, and the Tomcat Services account. If you use a single account, the permissions required for the Collector service account will be sufficient. The account must be a local administrator, should not be a domain administrator, has bulk-insert permissions in SQL, and is a dbo of the VCM databases. In general, the Default Network Authority should be a different account, possibly a Domain Administrator with rights on more systems in the environment.

Procedu re

1. On the Collector, right-click Computer and select Manage to open Server Manager.

2. Expand Configuration, expand Local Users and Groups, and click Groups.

3. Double-click Administrators and verify that the network authority account is listed as a member of the

Administrators group.

If the user or administrator’s group is not listed, add the user or group to the list. Verify that the user has Windows administrator rights issued by the network administrator.

To change the network authority account after installing VCM, click Administration and select Settings > Network Authority.

What to do next

Keep Server Manager open to specify the Collector Services account. See "Specify the Collector Services

Account" on page 23.

Verify the SQL Server Service Account

The SQL Server service account, under which the service for the SQL Server instance runs to manage the VCM databases, must be LocalSystem or an account that has local administrative privileges.

VMware, Inc.

22

vCenter Configuration Manager Advanced Installation Guide

CAUTION Do not use Network Service for the SQL Server service account. If you use the Network

Service account for your SQL Server instance, VCM installation could fail. Foundation Checker does not check for this account during VCM installation.

The LocalSystem account, NT AUTHORITY\System, has unrestricted access to all local system resources. This account is a member of the Windows Administrators group on the local machine.

If the NT AUTHORITY\System account does not have access to the VCM installation binary files, the installation results in an access denied error. This situation is not common, but could occur if the installation files are copied to or extracted in a user's home directory. In this case, you must grant access to the NT AUTHORITY\System account from the installation source directory, then run the installation again. A user or user’s group has access when they have full control of the file or folder.

Specify the Collector Services Account

Specify the Collector Service account to use during VCM installation. The account can be a system administrator account and must exist in the Local Administrators group on the Collector machine. The account must not be the Local System account.

Logging in to VCM using a service account can lead to unexpected or inconsistent behavior. Services that use the same account as a logged in user might modify the logged in user's current role or the machine group, or log the user out of the system.

If the password for the account changes, you must change the password in the Services Management console and the Component Services DCOM Config console.

Procedu re

1. In Server Manager, verify that the Groups menu is open.

If not, expand Configuration, expand Local Users and Groups, and click Groups.

2. Double-click Administrators and verify that the account used for Collector Services is listed as a

member of the Administrators group.

If the user or administrator’s group is not listed, to ensure that the user has Windows administrator rights issued by the network administrator, add the user or group to the list.

What to do next

Keep Server Manager open to specify the VCM Application Services account in Server Manager. See

"Verify the VMware Application Services Account" on page 23.

Verify the VMware Application Services Account

Verify that the VMware Application Services Account is a domain user.

IMPORTANT Never use this account as a VCM login or for any other purpose. Logging in to VCM using a

service account can lead to unexpected or inconsistent behavior. Services that use the same account as a logged in user might modify the logged in user's current role or the machine group, or log the user out of the system.

23

VMware, Inc.

Procedu re

1. In Server Manager, verify that the Groups menu is open.

If not, expand Configuration, expand Local Users and Groups, and click Groups.

2. Double-click Administrators and verify that the application services account is listed as a member of

the Administrators group.

If the user or administrator’s group is not listed, add the user or group to the list. Ensure that the user has Windows administrator rights issued by the network administrator.

What to do next

Verify that the VCM Agent is not installed on the Collector machine. See "Verify the VCM Agent is Not

Installed" on page 24.

Verify the VCM Agent is Not Installed

The VCM Collector installation includes an updated Agent. The target Windows machine must not have a VCM Agent installed before you install VCM. If an Agent is installed, you must uninstall the Agent for VCM to install.

Procedu re

System Prerequisites to Install VCM

1. To determine whether a VCM Agent is installed on the Windows machine, verify whether the following folder exists.

%windir%\CMAgent

The %windir% environment variable specifies the directory where Windows is installed. This folder is the default location. The Agent installation directory is accessible in the registry at the following location.

HKLM\Software\Configuresoft\ECM\4.0\Common\PathsRootDir

2. If a VCM Agent is installed, remove the Agent from the target Windows machine.

a. If a working VCM Collector exists, use the VCM Web console to unlicense this machine and

remove the VCM Agent.

b. If a working VCM Collector does not exist, uninstall the Agent manually.

3. To uninstall the Agent manually, determine if the Agent was installed using the MSI installer.

a. Search for the string CMAgent under the following registry key.

HKEY_LOCAL_

MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows\CurrentVersion\Uninstall

If an Uninstall registry subkey exists that has a GUID-named key and reference to the VCM Agent, such as {7C51E2CA-C932-44EF-8B77-3C03356A24CC}, the VCM Agent was installed using the MSI Installer.

b. Examine the uninstall data to confirm that this is the VCM Agent.

VMware, Inc.

c. Open the setting UninstallString and copy the value.

An example value is as follows.

MsiExec.exe /X{7C51E2CA-C932-44EF-8B77-3C03356A24CC}

d. If an Uninstall GUIDregistry key that references the VCM Agent does not exist, the Agent was

installed using the manual installer.

24

vCenter Configuration Manager Advanced Installation Guide

4. Uninstall the VCM Agent.

a. If the Agent was installed using the MSI installer, to uninstall the Agent click Start and click Run to

execute the command line using the UninstallString registry value.

An example value is as follows.

MsiExec.exe /X{7C51E2CA-C932-44EF-8B77-3C03356A24CC}.

b. If the Agent was installed using the manual installer, run the following command to uninstall the

Agent.

%windir%\CMAgent\Uninstall\Packages\CMAgentInstall\UnCMAgentInstall.exe /S

INSTALL.LOG

What to do next

Verify that the correct version of SQLXML is installed. See "Verify the SQLXML Version" on page 25.

Verify the SQLXML Version

SQLXML provides client-side XML functionality and enhancements to existing SQL features. SQLXML 4.0 SP1 is installed with SQL Server 2008 R2. Verify that the correct version is installed.

Procedu re

1. Click Start and click Control Panel.

2. Click Programs and select Programs and Features.

3. Verify that SQLXML 4.0 SP1 appears in the list of installed programs.

4. If SQLXML 4.0 SP1 does not appear, install it from the Microsoft Download Center.

What to do next

n

If you will install VCM on a virtual machine, configure the disk, CPU, and memory resources. See

"Configure Resources to Install VCM on a Virtual Machine" on page 26.

n

Understand the use of secure communications certificates and be prepared to specify the certificates during VCM installation. See Secure Communications Certificates in the VCM Installation Guide.

25

VMware, Inc.

Configure Resources to Install VCM on a Virtual Machine

To install VCM on a virtual machine, you must prepare the virtual machine to be used as a VCM Collector. Because VCM can place heavy workloads on the database, you must understand your environment workloads to determine the resource requirements.

For the VCM Collector to operate properly on a virtual machine, the virtual machine must satisfy several prerequisites to run SQL Server on a VMware virtual machine.You should provision the VCM virtual machine similar to a high throughput OLTP database application.

Use these guidelines to install VCM in development, test, or IT environments. For large scale environments, you might need to alter the requirements.

IMPORTANT Do not install VCM on an ESX server that has over-allocated resources.

Prerequisit es

n

Follow the requirements for physical hardware.See the VCM Installation Guide.

n

Perform the system prerequisite tasks. See the VCM Installation Guide.

6

n

Follow the best practices to install SQLServer. See the Microsoft SQL Server on VMware Best Practices Guide available on the VMware Web site at http://www.vmware.com.

Procedu re

1. "Configure the Disk to Install VCM on a Virtual Machine" on page 27

Configure the disk for the virtual machine. For large scale environments, you might need to alter the requirements.

2. "Configure the CPU to Install VCM on a Virtual Machine" on page 27

Configure the CPU for the virtual machine. For large scale environments, you might need to alter the requirements.

3. "Configure the Memory to Install VCM on a Virtual Machine" on page 28

Allocate the memory for the virtual machine. For large scale environments, you might need to alter the requirements.

What to do next

Familiarize yourself with the certificate names in advance so that you can select them during installation. See the VCM Installation Guide.

VMware, Inc.

26

vCenter Configuration Manager Advanced Installation Guide

Configure the Disk to Install VCM on a Virtual Machine

Configure the disk for the virtual machine. For large scale environments, you might need to alter the requirements.

Prerequisit es

n

Prepare the virtual machine to be used as a VCM Collector. See "Configure Resources to Install VCM

on a Virtual Machine" on page 26.

n

Keep the spindle count consistent and allocate a sufficient number of spindles to the database files when you migrate VCM from a physical machine to a virtual machine.

n

Place the database data files on multiple logical unit numbers (LUNs).

n

Create a TEMPDB data file for each virtual CPU that is allocated to the VCM Collector.

n

Use paravirtual SCSI (PVSCSI) controllers for the database disks to provide greater throughput and lower CPU utilization, which improves VCM performance.

n

Maintain a 1:1 mapping between the number of virtual machines and the number of LUNs on a single ESX host to avoid disk I/O contention.

Procedu re

1. Start vCenter Server.

2. Select your virtual machine.

3. Click the Resource Allocation tab.

4. In the CPU pane, click Edit.

5. In the Virtual Machine Properties dialog box, click the Resources tab.

6. In the Resource Allocation pane, click Disk and update the disk resource allocation to meet the needs of your environment.

7. Click OK.

What to do next

Configure the CPUfor the virtual machine. See "Configure the CPU to Install VCM on a Virtual Machine"

on page 27.

Configure the CPU to Install VCM on a Virtual Machine

Configure the CPU for the virtual machine. For large scale environments, you might need to alter the requirements.

Prerequisit es

n

Prepare the virtual machine to be used as a VCM Collector. See "Configure Resources to Install VCM

on a Virtual Machine" on page 26.

n

Test the workload in your planned virtualized environment to verify that the physical CPU resources on the ESX host adequately meet the needs of guest virtual machines.

n

Provision multiple virtual CPUs only if the anticipated workload will use them. Over-provisioning might result in higher virtualization overhead.

n

Install the latest version of VMware Tools on the guest operating system.

27

VMware, Inc.

Configure Resources to Install VCM on a Virtual Machine

Procedu re

1. Start vCenter Server.

2. Select your virtual machine.

3. Click the Resource Allocation tab.

4. In the CPU pane, click Edit.

5. In the Virtual Machine Properties dialog box, click the Resources tab.

6. In the Resource Allocation pane, click CPU and change the CPU resource allocation.

7. Click OK.

What to do next

Configure the memory for the virtual machine. See "Configure the Memory to Install VCM on a Virtual

Machine" on page 28.

Configure the Memory to Install VCM on a Virtual Machine

Allocate the memory for the virtual machine. For large scale environments, you might need to alter the requirements.

Prerequisit es

n

Prepare the virtual machine to be used as a VCM Collector. See "Configure Resources to Install VCM

on a Virtual Machine" on page 26.

n

Verify that the ESX host has sufficient cumulative physical memory resources to meet the needs of the guest virtual machines. Do not install VCM on an ESX server that has over allocated resources.

n

On the ESX host, enable memory page sharing and memory ballooning to optimize memory.

n

To reduce or avoid disk I/O, increase the database buffer cache.

Procedu re

1. Start vCenter Server.

2. Select your virtual machine.

3. Click the Resource Allocation tab.

4. In the Memory pane, click Edit.

5. In the Virtual Machine Properties dialog box, click the Resources tab.

6. In the Resource Allocation pane, click Memory and change the memory resource allocation.

7. Click OK.

What to do next

Prepare your single-tier, two-tier, or three-tier installation configuration. See "Single-Tier Server

Installation" on page 34, "Two-Tier Split Installation" on page 60, or "Three-Tier Split Installation" on page

86.

VMware, Inc.

28

vCenter Configuration Manager Advanced Installation Guide

29

VMware, Inc.

Secure Communications Certificates

During VCM installation, specify the Collector and Enterprise certificates. VCM uses Transport Layer Security (TLS) to secure all UNIX Agents and all Windows Agents using HTTP, and TLS uses certificates to authenticate the Collector and Agents to each other.

If you use your own certificates, you must familiarize yourself with the certificate names in advance so that you can select them during installation.

A valid Collector certificate must have the following attributes.

n

Located in the local machine personal certificate store.

n

Valid for Server Authentication. If any Enhanced Key Usage extension or property is present, it must include the Server Authentication OID 1.3.6.1.5.5.7.3.1. If the Key Usage extension is present, it must include DIGITAL_SIGNATURE.

n

Active, and not expired.

If you do not want to use your own certificates, you can have Installation Manager generate the Collector and Enterprise certificates for you, select the Generate option during the installation.

7

If you install more than one Collector that will communicate with the same Agents, or if you plan to replace or renew your certificates, follow the special considerations to generate and select certificates in VCM Installation Manager. See the VCM Security Guide.

Authenticating the Server to the Client

VCM supports Server Authentication to authenticate the server to the client. In VCM environments where TLS is used, VCM Agents verify the identity of the Collectors by verifying the certificates. If you use your own certificates, you must familiarize yourself with the certificate names in advance so that you can select them during installation.

The server typically authenticates a client or user by requiring information such as a user name and password. When Server Authentication is used, the client or user verifies that the server is valid. To accomplish this verification, the server provides a certificate issued by a trusted authority, such as Verisign. If your client Web browser has the Verisign Certified Authority certificate in its trusted store, the Web browser can trust that the server is actually the Web site you access.

To guarantee the identity of servers and clients, TLS uses certificates that are managed by a public key infrastructure (PKI). A certificate is a package that contains a public key, information that identifies the owner and source of that key, and one or more certifications (signatures) to verify that the package is authentic. To sign a certificate, an issuer adds information about itself to the information that is already contained in the certificate request. The public key and identifying information are hashed and signed using the private key of the issuer’s certificate.

VMware, Inc.

30

vCenter Configuration Manager Advanced Installation Guide

Certificates are defined by the X.509 RFC standard, which includes fields that form a contract between the creator and consumer. The Enhanced Key Usage extension specifies the use for which the certificate is valid, including Server Authentication.

Enterprise and Collector Certificates

An Enterprise Certificate and one or more Collector Certificates enable secure HTTP Collector and Agent communication in VCM. The Enterprise Certificate enables VCM to operate in a multi-Collector environment. Agents have the Enterprise Certificate in their trusted certificate stores, and they use the Enterprise Certificate to validate any certificate issued by the Enterprise Certificate. All Collector Certificates are expected to be issued by the Enterprise Certificate, which is critical in environments where a single Agent is shared between multiple Collectors.

Server authentication is required to establish a TLS connection with an Agent. All VCM Collectors should have a common Enterprise Certificate. Each Collector Certificate is issued by the Enterprise Certificate, and is capable of Server Authentication. Collector Certificates in VCM must adhere to the requirements for secure communications certificates. See "Secure Communications Certificates" on page 30.

n

The Collector Certificate initiates and secures a TLS communication channel with an HTTP Agent. The Agent must be able to establish that the Collector Certificate can be trusted, which means that the Collector Certificate is valid and the certification path starting with the Collector Certificate ends with a trusted certificate. By design, the Enterprise Certificate is installed in the Agent’s trusted store. The trust chain ends with the Enterprise Certificate.

n

Self-signed Agent Certificates are generated during Agent installation, upon first contact from the Collector. Agent Certificates are used for Mutual Authentication only. VCM support for Mutual Authentication requires the administrator to manually verify the fingerprint of each Agent's certificate before marking those Agents as trusted in Administration > Certificates.

n

The Collector Certificate and associated private key must be available to the Collector. This certificate is stored in the local machine personal system store.

Delivering Initial Certificates to Agents

VCM Agents use the Enterprise Certificate to validate Collector Certificates. The Agent must have access to the Enterprise Certificate as a trusted certificate. In most cases, VCM delivers and installs the Enterprise Certificate as needed during the HTTP Agent installation.

When you manually install Windows HTTP or VCM Remote client components, you must specify a path to the PEM file that provides the Enterprise Certificate and the Collector's public key.

Installing the Agent from a Disk (Windows only)

The VCM Installation DVD does not contain customer-specific certificates. If HTTP is specified, the manual VCM installer requests the location of the Enterprise Certificate file during the installation. You must have the Enterprise Certificate file available at installation time. You can copy the certificate file, which has a

.pem extension, from the CollectorData folder on the Collector. You must copy the certificate file

when you run the manual installer directly using CMAgentInstall.exe or when you use the Agent Only option in the DVD auto-run program.

31

VMware, Inc.

Secure Communications Certificates

Using CMAgentInstall.exe to install the Agent (Windows only)

The CMAgentInstall.exe or CMAgent[version].msi is the manual Agent installer program. The manual installer requests the location of the Enterprise Certificate file when HTTP is specified. You must have the Enterprise Certificate file available at installation time. You can copy the certificate file from the CollectorData folder on the Collector. For information about using the EXE and command line options to install the Agent, see the VCM Administration Guide.

Using the MSI Install Package

When you specify HTTP, the MSI Agent install package also requires access to the .pem file. For information about using the MSI and command line options to install the Agent, see the VCM Administration Guide.

Installing the Agent for UNIX/Linux

See Install the Agent on UNIX/Linux Machines in the VCM Administration Guide.

What to do next

Configure your installation configuration. See "Single-Tier Server Installation" on page 34, "Two-Tier Split

Installation" on page 60, or "Three-Tier Split Installation" on page 86.

VMware, Inc.

32

vCenter Configuration Manager Advanced Installation Guide

33

VMware, Inc.

Single-Tier Server Installation

In a single-tier server installation, the VCM database server, Web server, and the VCM Collector components reside on a single Windows Server 2008 R2 machine, which is referred to as the VCM Collector. The installation installs all of the core VCM components, including the databases, console, and services. This configuration enables integrated security by default. Integrated security, also referred to as Windows Authentication or NT Challenge Response authentication, provides trusted logon to the Web console without having to configure Kerberos.

VCM 5.6 supports 64-bit environments that include 64-bit hardware, the 64-bit Windows Server 2008 R2 operating system, and SQL Server 2008 R2.

Figure 8–1. Single-Tier Server Installation Components

8

VMware, Inc.

34

vCenter Configuration Manager Advanced Installation Guide

Figure 8–2. TypicalVCM Enterprise-Wide, Single-Server Installation

VCM Agent Proxies for Virtualization can be installed on the VCM Collector, which is the default installation, or on one or more separate Windows Servers.

n

If the Agent Proxy is installed on the VCM Collector, which is the default installation, the Collector communicates directly with the ESX Servers.

n

If the Agent Proxy is installed on a separate Server, which is optional, the VCM Collector communicates with the Agent Proxy Server, which communicates with the ESX Servers.

In addition to the VCM Collector, the single-tier installation configuration includes an Operating System Provisioning Server. The OS Provisioning Server manages the OS provisioning actions as commanded by VCM.

For hardware and software requirements for the OS Provisioning Server, see the VCM Installation Guide.

35

VMware, Inc.

Figure 8–3. VCM Collector with OS Provisioning Ser ver

Single-Tier Server Installation

For advanced information to install VCM in a single-tier environment, see the VCM Advanced Installation Guide.

Configure a Single-Tier Installation Environment

In a single-tier installation configuration, you configure the single Windows Server 2008 R2 machine for the Database, Web, and VCM Collector components, then install VCM. The machine can be a physical or virtual Windows machine.

Prerequisit es

n

Perform the general system prerequisites. See "System Prerequisites to Install VCM" on page 20.

n

Connect the single Windows Server 2008 R2 VCM Collector machine to your domain.

n

Obtain the SQL Server 2008 R2 Enterprise or Standard edition installation disk or verify access to a file share where the installer resides.

n

Verify that the single-tier server machine has at least 11 GB of free disk space and 2GB of RAM.

VMware, Inc.

36

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. "Verify that the Installing User is an Administrator" on page 37

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account.

2. "Install and Configure a Windows Server 2008 R2 Operating System" on page 38

To prepare your Windows machine for VCMinstallation, install the Windows Server 2008 R2 operating system on each Windows machine in your installation configuration and verify that the settings are configured for VCM operation.

3. "Install the .NET Framework" on page 40

To support library and language interoperability, the VCMCollector must have the required versions of the .NET Framework installed.

4. "Configuring the Database Components of the VCM Collector" on page 42

To ensure that the installation creates the VCM databases, you must configure the database components of the VCM Collector before you install VCM. In a single-tier installation configuration, the VCM database resides on the VCM Collector. The databases include VCM, VCM_Coll, VCM_Raw, and VCM_UNIX.

5. "Configure the Web Components" on page 47

The Web components of the VCM Collector contain Web applications such as IIS and SQL Server Reporting Services (SSRS), other services, and VCM software components. Before you install VCM, you must configure the Web components of the VCM Collector.

6. "Configure SSRS on the VCMCollector" on page 51

SQL Server Reporting Services (SSRS) is a server-based report generation software system that is administered using a web interface and used to deliver VCM reports.

7. "Configure the VCM Collector Components" on page 57

The VCM Collector contains the VCM software application, VCM services, and the OS Provisioning Server. To prepare the VCM Collector components for VCM installation, configure the required utilities.

What to do next

Review the DCOMand port requirements, and use VCM Installation Manager to install the VCM components. See "Installing VCM" on page 116.

Verify that the Installing User is an Administrator

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account.

37

VMware, Inc.

Single-Tier Server Installation

Procedu re

1. Verify that the user is an Administrator.

a. Click Start and select All Programs > Administrative Tools > Computer Management.

b. Expand System Tools, expand Local Users and Groups, and click Users.

c. Right-click the user and click Properties.

d. Click the Member Of tab and verify that Administrators is listed.

e. If Administrators is not listed, add the user to the Administrators group.

f. Click Check Names and click OK.

2. Verify that the user is a domain account.

a. Click Groups.

b. Right-click Administrators and click Properties.

c. Verify that the Domain User is listed in the Members area.

What to do next

Prepare your Windows machine for VCM installation. See "Install and Configure a Windows Server 2008

R2 Operating System" on page 38.

Install and Configure a Windows Server 2008 R2 Operating System

To prepare your Windows machine for VCMinstallation, install the Windows Server 2008 R2 operating system on each Windows machine in your installation configuration and verify that the settings are configured for VCM operation.

Prerequisit es

n

Determine whether you require the Windows Server 2008 R2 Enterprise Edition or Standard Edition. See the VCM Installation Guide.

n

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account. See "Verify that the Installing User is an Administrator" on page 37.

n

Verify that the computer name settings for your Windows machine is a valid DNS machine name with no underscores. If you attempt to change the machine name after the machine is identified as a Collector, problems might occur with VCM, SQL Server, and SQL Server Reporting Services.

VMware, Inc.

38

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Install Microsoft Windows Server 2008 R2 on your Windows machine.

2. During the installation, you can configure several options.

Option Description

Regional and Language

Determines how numbers, dates, currencies, and time settings appear.

n

Language: Setting for your language. The default is English.

Options

n

Time and currency format: Determines how numbers, dates, currencies, and time settings appear. The default is English (United States).

n

Keyboard or input method: Allows text entry for multiple languages. The default is US.

Disk Configuration

Allows you to separate the machine disk drive into partitions to store data in different partitions. You can create new disk partitions and delete existing partitions. After you configure the disk, select a partition to install Windows Server 2008 R2 Edition.

Product Key When the installation prompts, enter your product key.

Licensing Modes

Administrator Password

Windows Server 2008 R2 Standard edition supports a single license that is included with the product key.

The installation setup creates an account called administrator. To log on, you must create a password that complies with the criteria. The password must have the following attributes.

n

Minimum of six characters

n

Does not contain “administrator” or “admin”

n

Contains uppercase letters

n

Contains lower case letters

n

Contains numbers

n

Contains at least one non-alphanumeric character

3. Perform the initial configuration tasks to set the time zone and the computer name.

Configure the Operating System Locale Settings

To set the language for VCM installation, verify that your Windows Server Locale Setting is configured correctly.

Procedu re

1. In Windows Explorer, click Start and select Control Panel > Clock, Language, and Region.

2. Click Region and Language.

3. Click the Administrative tab and set the language to English (United States).

39

VMware, Inc.

Single-Tier Server Installation

Disable the Remote Desktop Session Host

A Remote Desktop Session Host server hosts Windows-based programs for Remote Desktop Services clients.

If the Remote Desktop Session Host role service is enabled, you must disable it to avoid changes to settings for new connections, modifications of existing connections, or removal of connections.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. In the navigation pane, expand Roles and click Remote Desktop Services.

3. In the Remote Desktop Services pane, scroll down to Role Services.

4. Click the Remote Desktop Session Host role service to highlight it.

5. Click Remove Role Services.

6. Deselect the Remote Desktop Session Host role service and follow the prompts to finish disabling the Remote Desktop Session host role.

Enable DCOM

The Distributed Component Object Model (DCOM) protocol allows application components to interact across Windows machines. DCOM must be enabled on the Windows machine to install and run VCM.

Although DCOMis enabled by default when Windows Server 2008 R2 is installed, DCOMmight have been disabled by a custom installation or a lock-down script.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Component Services to open Component Services.

2. In the Component Services navigation pane, expand Component Services and expand Computers.

3. Right-click the computer and click Properties.

4. Click the Default Properties tab.

5. Select Enable Distributed COM on this computer and click OK.

What to do next

Install the .NET framework. See "Install the .NET Framework" on page 40.

Install the .NET Framework

To support library and language interoperability, the VCMCollector must have the required versions of the .NET Framework installed.

VCM 5.6 requires the .NET 3.5.1 Framework. If you use Package Studio, the VCM Collector must have .NET 3.5.1 installed. If you use Package Manager, the VCM Collector must have .NET 3.5.1 or .NET 4.0 installed.

Determine the installed version of the .NET Framework. If one of the .NET Framework versions is missing, install the version from the Microsoft download Web site.

VMware, Inc.

40

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Click Features.

3. Verify that .NET Framework 3.5.1 appears in the feature summary.

4. If .NET Framework 3.5.1 does not appear, under Features select Add Features and select .NET 3.5.1.

Verify the ASP.NET Client System Web Version

To support client programming, verify the ASP.NET Client System Web version to confirm that the .NET framework is installed correctly, and install it if the version is not correct.

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name> and click Sites.

3. Expand Default Web Site, expand aspnet_client, and expand system_web.

4. Verify that the version is 2_0_50727.

Verify the ASPRole Service

To support client programming, verify the status of the ASP Role Service to confirm that the .NET framework is installed correctly.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Server Manager (<server name>) and expand Roles.

3. Click Web Server (IIS).

4. Scroll down to Role Services.

5. Locate ASP and verify whether the role service is installed.

6. If the role service is not installed, click Add Role Services and add the ASP role service.

Verify the ASP.NETRole Service

To support client programming, verify the status of the ASP.NET Role Service to confirm that the .NET framework is installed correctly.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Server Manager (<server name>) and expand Roles.

3. Click Web Server (IIS).

4. Scroll down to Role Services.

5. Locate ASP.NET and verify that the role service is installed.

6. If the role service is not installed, click Add Role Services and add the ASP.NET role service.

What to do next

Configure the database components. See "Configuring the Database Components of the VCM Collector"

on page 42.

41

VMware, Inc.

Single-Tier Server Installation

Configuring the Database Components of the VCM Collector

To ensure that the installation creates the VCM databases, you must configure the database components of the VCM Collector before you install VCM. In a single-tier installation configuration, the VCM database resides on the VCM Collector. The databases include VCM, VCM_Coll, VCM_Raw, and VCM_UNIX.

VCM operates with a Standard or Enterprise edition of SQL Server. You must install the 64-bit SQL Server 2008 R2, English (United States) version on your designated database server machine and verify that the settings are configured correctly for a VCM installation. For information about installing the VCM Collector on a non-English operating system, see the VMware knowledge base article at

http://kb.vmware.com/kb/1035034.For information about VCM Agent support on non-English platforms,

see the VMware knowledge base article at http://kb.vmware.com/kb/2008337.

If you plan to change the communication port that SQL Server uses from the default port of 1433 to a nonstandard port number, make the changes during the installation of SQL Server and SQL Server Reporting Services (SSRS). Changing the port after you install SSRS disables SSRS communication with SQL Server, which causes an SSRS validation error during the VCM installation process. If you change the port after installation, you must configure additional SSRS settings to repair the configuration.

Install SQL Server on the VCMCollector

In a single-tier installation configuration, the VCM database server resides on the same server on which you install VCM. The database server contains the VCM, VCM_Coll, VCM_Raw, and VCM_UNIX databases. You must configure the VCM database server before you install VCM in a single-tier installation configuration.

CAUTION If your Windows machine has an evaluation version of SQLServer StandardEdition or

Enterprise Edition, use it only for evaluation purposes. Do not use an evaluation version in a production environment, because it is not officially supported for production.

Prerequisit es

n

Obtain the SQL Server 2008 R2 Enterprise or Standard edition installation disk or verify access to a file share where the installer resides.

Procedu re

1. Start the SQLServer 2008 R2 installation.

2. Perform the following actions to install SQL Server 2008 R2 Enterprise or Standard edition.

Wizard Page Action

SQL Server

Click New installation or add features to an existing installation.

Installation Center

Setup Support Rules

Setup Support

Click Install and verify that all of the rules pass. To view the detailed system configuration check report, click the link.

Click Install to install the setup support files.

Files

VMware, Inc.

42

vCenter Configuration Manager Advanced Installation Guide

Wizard Page Action

Setup Support

Verify that all of the rules passed. Rules – for SQL Server Setup support files

Installation

Select New installation or add shared features. Type

Product Key Verify that the product key is entered.

License Terms Accept the license terms.

Setup Role Select SQL Server Feature Installation.

Feature Selection

Select the following features.

Instance Features:

n

Database Engine Services

n

Reporting Services

Shared Features:

n

Client Tools Connectivity

n

SQL Server Books online

Installation Rules

Instance Configuration

Disk Space Requirements

Server Configuration

Database Engine Configuration

n

Management Tools - Basic and Management Tools - Complete

Verify that the rules passed. To view the detailed system configuration check

report, click the link.

Select Default Instance. If an instance of SQL Server is not installed, the installation

creates a default instance. If an instance of SQLServer is already installed, select

Named Instance and assign a name.

Review the disk usage summary.

Click Use the same account for all SQL Server services and enter the NT

AUTHORITY\SYSTEM account and password.

It is possible to use a domain account for SQL Server services. A domain account

might be required for split installations, because the SQL Server Agent might need

access to the Collector for some activities. If you use a domain account, you should

use a local administrator on the SQL Server machine to access DBServices.

Otherwise, you must grant manual permissions.

Select Windows authentication and click Add Current User to add the account to

the SQL Server administrators.

Error

Review the summary information. Reporting

43

VMware, Inc.

Wizard Page Action

Single-Tier Server Installation

Installation Configuration

Verify that the rules passed. To view the detailed system configuration check

report, click the link. Rules

Ready to Install

What to do next

n

Reboot the single-server machine.

n

Configure the SQLServer properties. See "Verify and Configure the SQL Server Properties" on page 44.

Review the summary of features and click Install to install SQL Server 2008 R2.

When the installation is finished, click the link to view the log file.

Verify and Configure the SQL Server Properties

To ensure that SQLServer will operate with VCM, verify the SQLServer property settings and set the server-wide SQL database settings in preparation to install VCM. For information about server-wide and database-specific SQL Server database settings, see the VCM Administration Guide.

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Right-click the SQL instance and select Properties.

3. Confirm the General page server properties.

a. Verify that the Version is 10.50.1600.1

b. Verify that the Language is English (United States).

If the language is not correct, uninstall and install the correct version of SQL Server.

c. Verify that the Server Collation is SQL_Latin1_General_CP1_CI_AS.

If the server collation is not correct, uninstall and reinstall SQL Server.

4. Select and confirm the Security page server properties.

a. Select Windows Authentication mode, which is recommended.

b. Although SQL Server and Windows Authentication mode is acceptable for VCM, select Windows

Authentication mode, which is recommended.

5. Select and confirm the Database Settings page server properties.

a. For Default index fill factor, type or select a percentage value, which specifies the amount of free

space in each index page when the page is rebuilt.

Set the fill factor to 80% to keep 20% free space available in each index page.

b. For Recovery interval (minutes), type or select 5.

6. Click OK to save your changes.

What to do next

To ensure that SQLServer and VCMoperate correctly together, verify that the SQLServer name matches the Windows machine name. See "Verify Matching SQL Server and Computer Names" on page 45.

VMware, Inc.

44

vCenter Configuration Manager Advanced Installation Guide

Verify Matching SQL Server and Computer Names

To ensure that SQLServer and VCM operate correctly together, you must verify that the SQLServer name matches the Windows machine name. If you recently installed SQL Server 2008 R2, you do not need to verify that the names match. If you obtained a machine that was renamed after the operating system and SQL Server 2008 R2 were installed, verify and reset the SQLServer server name.

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Click Database Engine Query.

3. In the SQL Query pane, type SELECT @@Servername and click Execute.

4. Verify that the resulting SQL Server name matches the Windows machine name.

5. If the SQL Server name does not match the Windows machine name, reset the SQL Server name.

a. In the SQL Query pane, type the following command and replace NewServerName with the server

name.

exec sp_dropserver @@SERVERNAME exec sp_addserver 'NewServerName', 'local'

b. Click Execute.

c. To restart the SQL Server services, click Start and select Programs > Microsoft SQL Server 2008

R2 > Configuration Tools > SQL Server Configuration Manager > SQL Server 2008 R2 Services.

d. Right-click SQL Server and click Restart.

6. Reboot the database server machine.

What to do next

Verify that the SQL Server Agent service account has the SQL Server sysadmin role. See "Verify the

SQLServer Agent Service Account is a sysadmin" on page 45.

Verify the SQLServer Agent Service Account is a sysadmin

The SQL Server Agent service account that runs scheduled jobs in SQL Server must be a sysadmin.

Procedu re

1. Click Start and select All Programs.

2. Click Microsoft SQL Server 2008 R2 and select SQL Server Management Studio.

3. Expand the server, expand Security, expand Server Roles.

4. Double-click sysadmin and view the members of the sysadmin role.

5. Verify that the account to use for the SQL Server Agent service is a member of the sysadmin fixed role.

6. If the account is not a member of the sysadmin fixed role, add this role to the account.

What to do next

Select the SQL Server Agent service account See "Select the SQLServer Agent Service Account" on page 46.

45

VMware, Inc.

Single-Tier Server Installation

Select the SQLServer Agent Service Account

SQL Server Agent is a service that runs scheduled jobs in SQLServer and runs as a specific user account. Verify that the SQL Server Agent service account that you provided during the SQL Server installation is a SQL Server sysadmin.

Prerequisit es

n

Verify that the account you provide for the SQL Server Agent service has permission to log on as a service and the required additional permissions. See the online Microsoft Developer Network for more information.

n

Understand the supported service account types for non-clustered and clustered servers. VCM 5.6 supports Active/Active SQL clusters. See the online Microsoft Developer Network for more information.

n

Verify that the account you will use for the SQL Server Agent service account has the sysadmin privilege. See "Verify the SQLServer Agent Service Account is a sysadmin" on page 45.

Procedu re

1. On the VCMdatabase server machine, click Start and select All Programs.

2. Click Microsoft SQL Server 2008 R2 and select Configuration Tools > SQL Server Configuration Manager.

3. Click SQL Server Services.

4. Right-click SQL Server Agent (MSSQLSERVER) and click Properties.

5. On the Log On tab, select a log on option and provide the account information.

Option Description

Built-in account In a single-tier installation, you can select the Local System account,

which has unrestricted access to all system resources. In a split installation environment, do not select the built-in Local System account. This account is a member of the Windows Administrators group on the local machine.

This account In a split installation, the SQLServer Agent must be running as a user

account. Select a Windows domain account for the SQL Server Agent service account.

This option provides increased security. Select this option for jobs that require application resources across a network, to forward events to other Windows application logs, or to notify administrators through email or pagers.

6. Type or select an account name that has the sysadmin privilege.

7. Click OK.

What to do next

Establish SQLServer administration rights. See "Establish SQL Server Administration Rights" on page 46.

Establish SQL Server Administration Rights

Members of the SQLServer sysadmin fixed server role can perform any activity in the server. The user who installs VCM must have SQL Server sysadmin rights.

VMware, Inc.

46

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Expand the server instance, select Security and select Logins.

3. Right-click the login ID of the user who installs VCM and select Properties.

4. In the Select a page area, select Server Roles.

5. In the Server roles area, select the sysadmin check box.

6. Click OK to save the settings and close the window.

What to do next

Configure the Web components of the VCM Collector. See "Configure the Web Components" on page 47.

Configure the Web Components

The Web components of the VCM Collector contain Web applications such as IIS and SQL Server Reporting Services (SSRS), other services, and VCM software components. Before you install VCM, you must configure the Web components of the VCM Collector.

The Windows machine that hosts the Web components must be running Internet Information Services (IIS) 7.5. IIS is installed when you install Windows Server 2008 R2.

The SQL Server license includes SQL Server Reporting Services (SSRS). In your installation configuration, when you run SSRS and SQL Server on the same machine, the SQL Server database machine can take on the role of the Report Server (SSRS).

VCM 5.6 supports running SSRS on the Web server or on the database server in a split installation. Depending on the separation of services in your environment, you might want to install SSRS on the Web server machine in a split installation, because SSRS has its own Web server.

If you install SSRS on the Web server, it requires an additional SQL Server license, because you are installing SSRS on a Windows Server 2008 R2 machine that is separate from the SQL Server database services. If you run SQL Server Enterprise Edition, all SQL Server services running in guests on a single virtual machine host are covered by the Enterprise Edition license.

Prerequisit es

n

Perform the prerequisite tasks for your installation configuration.

n

Place the Web server in the Internet Explorer Trusted Zone so that Internet Explorer can delegate the VCM user's credentials to the Web service for use with SQL Server. See "Place the Web Server in the

Internet Explorer Trusted Zone" on page 100.

n

If the domain firewall is turned on, verify that any required ports are open. If the database server is blocked from communicating with the Collector, problems can occur when you submit jobs. VCM displays an error about the SAS service, and the VCM Debug Event Log displays failures when calling ecm_sp_collector_control.

n

Verify that .NET Framework 3.5.1 is installed on Windows Server 2008 R2 machines where Package Studio will be installed.

n

Verify that you have an Internet connection to check for patch bulletin updates.

n

On the Windows Server 2008 R2 Web server machine, verify that the following .NET Framework

47

VMware, Inc.

Single-Tier Server Installation

components are installed.

n

Windows Process Activation Service

n

Process Model

n

.NETEnvironment

n

Configuration APIs

Procedu re

1. Restart the Web server machine.

2. Click Start and select All Programs > Administrative Tools > Server Manager.

3. Click Roles and verify that the Web Server (IIS) role appears.

4. If the Web Server (IIS) role does not appear, in the Roles Summary area, click Add Roles and add the Web Server (IIS) role.

5. On the Select Server Roles page, select Web Server (IIS) and select the Web Server components to add.

Option Action

Common HTTPFeatures Select these options:

n

Static Content

n

Default Document

n

Directory Browsing

n

HTTP Errors

Application Development Select these options:

n

ASP .NET

n

.Net Extensibility

n

ASP

n

ISAPI Extensions

n

ISAPI Filters

n

Server Side Includes

Health and Diagnostics Select these options:

n

HTTP Logging

n

Request Monitor

Security Select these options:

n

Basic Authentication

VMware, Inc.

n

Request Filtering

Performance Select:

n

Static Content Compression

48

vCenter Configuration Manager Advanced Installation Guide

Configuring IIS

To ensure that the Web components are correctly configured, verify that the correct role services are enabled, the bindings are set correctly, and the default Web site is correct.

Verify the IIS 7.5 Role Services are Enabled

Verify that the correct IIS 7.5 Role Services are enabled on the VCM Collector.

Procedu re

1. On the Collector, click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Roles and click Web Server (IIS).

3. If the Web Server (IIS) role does not appear in the list of Roles, scroll to Role Services, click Add Role Services and add the Web Server (IIS) Role.

When you installed IIS, the ASP Role Service, ASP.NET Role Service, and IIS ServerSideIncludes Role Service were installed.

4. In the Web Server (IIS) pane, scroll to Role Services and verify that the status is set to Installed for the following Role Services.

Role Service Cat egory Role Service

Common HTTP Features Static Content

Default Document

Directory Browsing

HTTPErrors

HTTPRedirection

Application Development ASP.NET

.NET Extensibility

ASP

ISAPIExtensions

ISAPI Filters

Server Side Includes

Health and Diagnostics HTTP Logging

Logging Tools

Request Monitor

Tracing

Security Basic Authentication

Windows Authentication

Digest Authentication

URL Authorization

Request Filtering

IP and Domain Restrictions

Performance Static Content Compression

Dynamic Content Compression

49

VMware, Inc.

Single-Tier Server Installation

Role Service Cat egory Role Service

Management Tools IISManagement Console

IIS Management Scripts and Tools

Management Service

5. If any of the Role Services are not installed, click Add Role Services, select the check boxes of the services to install, and click Install.

Configure the IIS 7.5 Settings

IIS settings configure the information required for requests to communicate with a Web site. To support VCMinteraction with IIS, configure the settings for the IIS 7.5 bindings on the VCMCollector machine to ensure that the settings are correct.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name>, expand Sites, and click Default Web Site.

3. In the Actions pane, under Manage Web Site and Browse Web Site, click Advanced Settings.

4. Expand Connection Limits and set Connection Time-out (seconds) to 3600.

5. Click OK.

Verify the IIS 7.5 Default Web Site

IIS 7.5 provides a default Web site that defines the default authentication settings for applications and virtual directories. Verify that the IIS 7.5 default Web site has the correct settings.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name>, expand Sites, and click Default Web Site.

3. In the Default Web Site Home pane, locate the IIS options.

4. Double-click Authentication and set the authentication.

Option Action

Anonymous Authentication Set to Disabled.

ASP.NET Impersonation Set to Disabled.

Basic Authentication Set to Enabled.

Forms Authentication Set to Disabled.

Verify the ISAPI Extensions

The ISAPI Extensions role provides support for dynamic Web content development. You must verify that the role service is installed, and install it if needed.

VMware, Inc.

50

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Server Manager (<server name>) and expand Roles.

3. Click Web Server (IIS).

4. Scroll to Role Services.

5. Locate ISAPI Extensions and verify that the role service is installed.

6. If the role service is not installed, click Add Role Services and add the ISAPI Extensions role service.

What to do next

Prepare SQL Server Reporting Services (SSRS) to generate VCM reports. See "Configure SSRS on the

VCMCollector" on page 51.

Configure SSRS on the VCMCollector

SQL Server Reporting Services (SSRS) is a server-based report generation software system that is administered using a web interface and used to deliver VCM reports.

Back Up Your SSRS Key

The rskeymgmt utility manages the symmetric keys used by a report server. This utility provides a way to delete encrypted content that can no longer be used if you cannot recover or apply the key.

Use the Microsoft command-line utility to back up the symmetric key to an encrypted file.

Prerequisit es

n

See the online Microsoft Support center for details about how to use the rskeymgmt utility.

Procedu re

1. On the Collector file system, locate the rskeymgmt.exe utility at c:\Program Files (x86) \Microsoft SQLServer\100\Tools\Binn or the directory where you installed SQLServer.

2. To copy your SSRS key set to a removable media device and store it in a secure location, open a command line prompt and run the rskeymgmt.exe utility with the appropriate options.

Disable IE Protected Mode for SSRS

On the VCM Collector, when User Account Control (UAC) is turned on and Internet Explorer Protected Mode is enabled, SSRS user permissions errors and Web service errors on dashboards and node summaries can occur. UAC and Internet Explorer Protected Mode also block access to the http://localhost/reports SSRS administration interfaces. If you use another machine to access the VCM Web console interface, this problem does not occur.

CAUTION Do not use the VCM Collector Web console interface for general Internet access, because

doing so causes VCM SSRS dashboard errors. If you access the Internet through the VCM Collector Web console interface, to enable the SSRS dashboards you must either disable Internet Explorer Protected Mode for the zone of the Collector or run Internet Explorer as administrator.

Do not modify the Internet Explorer Protected Mode setting in other circumstances, because doing so reduces the protection on the Collector and can increase the exposure of the Collector to attacks through Internet Explorer.

51

VMware, Inc.

Single-Tier Server Installation

Procedu re

1. In Internet Explorer, click Tools.

2. Click Internet Options and click the Security tab.

3. Click Local intranet and deselect the Enable Protected Mode (requires restarting Internet Explorer) check box.

4. Click Apply and OK, and close all instances of Internet Explorer.

Configure SSRS

Configure SSRS manually in your installation configuration, because the SSRS command-line configuration tool does not perform these steps.

SSRS might require HTTPS during installation. If HTTPSis required, you manually export a self-signed certificate and import it to the VCM Collector machine’s root certificate store. If you do not manually export the certificate, a manual import of a VCM report might fail. If the manual import fails, run the import from the VCM Collector machine. For more information, see the Microsoft IIS Resource Kit Tools.

Prerequisit es

n

Back up your SSRS key. See "Back Up Your SSRS Key" on page 51.

n

Disable the Internet Explorer Protected Mode. See "Disable IE Protected Mode for SSRS" on page 51.

Procedu re

1. On your single server, start SQLServer 2008 R2 Reporting Services Configuration Manager.

a. Click Start, select Run, and type rsconfigtool.exe.

b. In the Reporting Services Configuration Connection dialog box, click Connect to connect and log in

to SQL Server 2008 R2 Reporting Services.

2. Update the SQL Server database.

a. In the navigation pane, click Database and click Change Database.

b. In the Report Server Database Configuration pane, verify that Action is selected.

c. On the Change Database page, select Create a new report server database and click Next.

d. Change the server name of your database server to the database machine and database instance

where SSRS will connect.

e. Verify that the authentication type is set to Current User – Integrated Security and click Test

Connection.

f. When the test message is successful, close the Test Connection dialog box and click Next.

g. On the Database pane, enter a name for the Database and select the language as English (United

States).

h. Set the Report Server Mode to Native Mode and click Next.

i. In the Credentials pane, change the Authentication Type to Windows Credentials, specify an

account, and click Next.

VMware, Inc.

Specify an account that has permission to connect from the Web service on the single server to the database on the single server, and specify the password for the account.

j. In the Summary pane, review the selections and click Next.

k. In the Progress and Finish pane, resolve any errors, and click Finish.

52

vCenter Configuration Manager Advanced Installation Guide

3. Update the encryption keys.

a. In the navigation pane, click Encryption Keys.

b. In the Delete Encrypted Content area, click Delete and accept the prompt to delete all encrypted

data.

c. In the Change area, click Change to replace the encryption key, and click OK.

4. Configure the Web Service URL.

a. In the navigation pane, click Web Service URL.

b. Verify or configure the settings and click Apply to activate the Report Server Web Service URL.

Option Action

Virtual Directory Set to ReportServer.

IP Address Set to All Assigned (Recommended).

TCP Port Set to 80 if you are not using HTTPS.

SSLCertificate Not Selected

c. In the Results area, confirm that the virtual directory is created and that the URL is reserved.

5. Confirm the Report Manager URL.

a. In the navigation pane, click Report Manager URL and click Apply to activate the Report Manager

URL.

b. Verify that the virtual directory was created and that the URL was reserved in the Results area.

c. Click the default URL and verify that it opens SQLServer Reporting Services.

6. Click Exit to close SQLServer 2008 R2 Reporting Services Configuration Manager.

What to do next

To authenticate users and client applications against the report server, configure Basic Authentication on the report server. See "Configure Kerberos Authentication" on page 54.

Configure Basic Authentication on the Report Server

SQL Server Reporting Services (SSRS) provides several options to authenticate users and client applications against the report server. When you install VCM in a single-tier split installation and use Basic authentication, you must allow direct access to the Reports virtual directory.

Update the RSReportServer.config file so that VCM can authenticate users who use the VCM Web console, and users can launch SSRS reports. To configure Basic authentication on the report server, edit the XML elements and values in the RSReportServer.config file.

Procedu re

1. On the Windows machine where you installed SSRS, locate the rsreportserver.config file.

The default location is C:\Program Files\Microsoft SQL

ServerReportingServicesInstance\Reporting

Services\ReportServer\rsreportserver.config.

2. Stop the SSRS service.

3. Open the rsreportserver.config file for editing.

53

VMware, Inc.

Single-Tier Server Installation

4. In the file, locate the <AuthenticationTypes> block.

The block resembles the following example.

</AuthenticationTypes>

...

</Authentication>

5. Remove any existing parameters and add the <RSWindowsBasic/> parameter to the <AuthenticationTypes> XML element.

The modified block resembles the following block.

</AuthenticationTypes>

...

</Authentication>

6. Save the configuration file.

7. Start the SSRS service.

What to do next

To authenticate VCM reports with Kerberos, see "Configure Kerberos Authentication" on page 54.

Configure Kerberos Authentication

The Kerberos network protocol uses secret-key cryptography to ensure security in your VCM applications. To authenticate VCM Reports, you must use Basic Authentication with HTTPS or Kerberos Authentication.

When you configure Kerberos Authentication in your installation, configure it on the database server.

Prerequisit es

n

Verify that your Windows Server 2008 R2 machine has Active Directory management tools installed. If the tools are not installed, install them. See Microsoft TechNet online. This configuration requires an Active Directory domain running at Windows Server 2003 or later domain functional level.

n

If SQL Server Reporting Services is running on a different Windows machine than the VCM Collector in a single-tier installation, verify that the Application Pool account is a local administrator.

VMware, Inc.

54

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Log in to your Windows Server 2008 R2 machine as a user who has domain administrator privileges.

2. Start Active Directory Domain Services and select Active Directory Users and Computers.

3. Verify whether AD accounts exist in your domain for the SQLServer service and the VCM IIS Application Pool.

4. If the accounts do not exist, create them.

a. Set the database account to be a local administrator on the database server.

b. Make the Application Pool account a local administrator on the VCM Collector in a single-tier

installation.

5. Select the Computers container and locate the Web system.

a. Open the properties for Web system.

b. Click the Delegation tab.

c. Select Trust this computer for delegation to any service.

6. Open IIS manager and set the identity of the CMAppPool application pool to the IISaccount.

7. In Reporting Services Configuration Manager, configure the SQL Server Reporting Services service to run as the IISApplication Pool account.

8. Change SQL Server to run as the SQLServerDomain account.

a. In Reporting Services Configuration Manager, click Encryption Keys and click Delete to delete

encrypted content.

b. In the navigation pane, click Service Account and enter the app_pool_account account for the

database connection.

9. Open a command prompt to set the service principal names directory property for the Active Directory service accounts.

a. Click Start, select All Programs > Accessories, right-click Command Prompt, and select Run as

administrator.

b. Type: Setspn -a MSSQLSvc/db_server_name domain\sql_server_account_name and

press Enter.

c. Type: Setspn -a MSSQLSvc/db_server_name:1433 domain\sql_server_account_name

and press Enter.

d. Type: Setspn -a MSSQLSvc/db_server_fqdn domain\sql_server_account_name and

press Enter.

e. Type: Setspn -a MSSQLSvc/db_server_fqdn:1433 domain\sql_server_account_name

and press Enter.

55

VMware, Inc.

Single-Tier Server Installation

10. Verify whether SSRSis running on the SQLServer and if it is not running, locate and update the Report Server configuration file named rsreportserver.config.

a. Locate the AuthenticationTypes XML element.

b. Remove <RSWindowsNTLM/> and <RSWindowsBasic/>.

c. Add <RSWindowsNegotiate/> and <RSWindowsKerberos/>.

The default location for the configuration file is C:\Program Files\Microsoft SQL

ServerReportingServicesInstance\Reporting

Services\ReportServer\rsreportserver.config.

11. In SQL Server Management Studio, grant the Application Pool user access to the VCM and VCM_Unix databases, with membership in the VCM__SelectRole_General role in each database.

12. (Optional) If you did not configure the SQL Server Reporting Services service to run as the IISApplication Pool account before installing VCM, start Internet Explorer as administrator and set the report settings.

a. Click Start, select All Programs, right-click Internet Explorer and select Run as administrator.

b. Connect to http://localhost/Reports/Pages/Folder.aspx.

c. Click ECM Reports and click the ECM data source to display the properties menu.

d. To use integrated authentication, type the following text into the Connection string text box and

click Apply.

Integrated Security=SSPI;Data Source=db_server_name;Initial

Catalog=VCM;LANGUAGE=us_english;

e. Click the back button to return to the ECM Reports view.

13. Select Folder Settings, select Security, select the new SSRS user or group, and click New Role Assignment.

14. Click Browser to allow the VCM SSRS user or group to view folders and reports and subscribe to reports, and click OK.

15. In Server Manager, set the authentication mode.

a. In the navigation pane, select Roles > Web Server (IIS) and click Add Role Services in the Role

Services area.

b. In the Select Role Services wizard, locate the Security (Installed) section, click Windows

Authentication, and follow the prompts to install the service.

c. In the navigation pane, select Roles > Web Server (IIS).

d. Under server_name, select Sites\Default Web Site\VCM, double-click Authentication, and

verify that Windows Authentication is the only option enabled.

e. Under server_name\Sites\Default Web Site, double-click Authentication, click Windows

Authentication, verify that Windows Authentication is enabled, and click Advanced Settings.

f. Verify that Kernel Mode Authentication is disabled and click OK.

VMware, Inc.

56

vCenter Configuration Manager Advanced Installation Guide

16. In Windows Explorer, update the configuration files.

a. Open the configuration file at

Windows\System32\inetsrv\config\applicationhost.config and locate the <authentication> section.

b. Verify that Windows authentication is enabled, and if it is not enabled, enable it.

c. Save any changes and close the file.

17. Open a command prompt to set the property for the Active Directory service accounts for the service principal names directory.

a. Click Start and select All Programs > Accessories.

b. Right-click Command Prompt and select Run as administrator.

c. Type Setspn -a http/web_server_name domain\Application Pool Account Name and

press Enter.

d. Type Setspn -a http/web_server_fqdn domain\Application Pool Account Name and

press Enter.

18. Open the properties for the SQLServer and Application Pool accounts, click the Delegation tab, and select Trust this user for delegation to any service.

What to do next

Configure the VCMCollector Components before you install VCM. See "Configure the VCM Collector

Components" on page 57.

Configure the VCM Collector Components

The VCM Collector contains the VCM software application, VCM services, and the OS Provisioning Server. To prepare the VCM Collector components for VCM installation, configure the required utilities.

In your single-tier installation configuration, configure the Web server and VCM Collector components on the same machine.

NOTE This procedure is required only if you did not install the complete set of Management Tools and support components earlier.

Prerequisit es

n

Perform the prerequisite tasks for your installation configuration. See "Single-Tier Server Installation"

on page 34.

n

From the VCM Collector, verify that you can access the Microsoft Download Center, Microsoft SQL Server 2008 Feature Pack to download SQL XML 4.0 and SP1 in the following procedure. See the online Microsoft Download Center.

n

Verify that you can access the Microsoft Download Center, Microsoft SQL Server 2008 R2 Feature Pack to download and install the Native Client (sqlncli.msi) in the following procedure. See the online Microsoft Download Center. The SQL Command Line Tools in the SQLServer 2008 R2 Feature Pack are required.

n

Install .NET Framework 3.5.1 on the Windows Server 2008 R2 machines where Package Studio will be installed.

57

VMware, Inc.

Single-Tier Server Installation

Procedu re

1. Download and install SQL XML 4.0 and SP1, X64 Package.

2. Download and install SQL Server 2008 R2 Command Line Utilities, which includes the SQLCMD utility, X64 Package (SqlCmdLnUtils.msi).

The SQL Command Line Tools in the SQLServer 2008 R2 Feature Pack are required.

3. Download and install the SQL Server 2008 R2 Native Client, X64 Package (sqlncli.msi).

The Native Client from the SQL Server 2008 R2 Feature Pack is required.

4. Reboot the VCM Collector.

What to do next

Review the DCOMand port requirements, and install VCM. See "Installing VCM" on page 116.

VMware, Inc.

58

vCenter Configuration Manager Advanced Installation Guide

59

VMware, Inc.

Two-Tier Split Installation

In a two-tier split installation, the VCM database resides on the Windows Server 2008 R2 database server machine, and the VCM Collector and Web components reside on the second Windows Server 2008 R2 machine.

VCM 5.6 supports 64-bit environments that include 64-bit hardware, the 64-bit Windows Server 2008 R2 operating system, and SQL Server 2008 R2.

CAUTION A two-tier installation configuration uses basic authentication with HTTPS by default. Be

aware of the risks to exposure of sensitive data if you use basic security without HTTPS. Optionally, you can use Kerberos Authentication.

Figure 9–1. Two-Tier Split Installation

9

You must install SQL Server Reporting Services (SSRS) on either the database server or the combined VCMCollector and Web server.

The VMware Knowledge Base includes information about sizing your hardware environment for a twotier installation of VCM. See http://kb.vmware.com/kb/2033894.

For advanced information to install VCM in a two-tier environment, see the VCM Advanced Installation Guide.

VMware, Inc.

60

vCenter Configuration Manager Advanced Installation Guide

Configuring a Two-Tier Split Installation Environment

In a two-tier installation environment, you configure the database server first, then configure the combined VCM Collector and Web server before you install VCM. All machines are physical or virtual Windows machines.

Your VCM database server and combined Web and VCM Collector server need the following components.

Datab ase Server Components Combin ed Web an d VCM Co llecto r Server Components

VCM Database Components SSRS 2008 for VCM Reports

VMware VCM Package Manager for Windows VCM Web Console

SSRS 2008 for VCM Reports (Optional if you install it on the combined Web and VCM Collector)

(Optional) Other Tools (Optional) SSRS 2008 for VCM Reports

Prerequisit es

n

Perform the general system prerequisite steps. See "System Prerequisites to Install VCM" on page 20.

n

Connect the database server machine to the domain.

n

Connect the combined VCM Collector and Web server machine to the domain.

n

Obtain the SQL Server 2008 R2 Enterprise or Standard edition installation disk or verify access to a file

VCM Collector Components

Import/Export Utility

Foundation Checker

VMware VCM Package Manager for Windows

VMware VCM Package Studio

share where the installer resides.

Procedu re

1. "Verify that the Installing User is an Administrator" on page 62

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account.

2. "Install and Configure a Windows Server 2008 R2 Operating System" on page 62

To prepare your Windows machine for VCMinstallation, install the Windows Server 2008 R2 operating system on each Windows machine in your installation configuration and verify that the settings are configured for VCM operation.

3. "Configuring the VCM Database Server" on page 65

To ensure that the installation creates the VCM databases, you must configure the VCM database server before you install VCM. In a two-tier split installation configuration, the VCM database server resides on a dedicated machine. The databases include VCM, VCM_Coll, VCM_Raw, and VCM_UNIX.

4. "Configure the Combined VCM Collector and Web Server" on page 71

In a two-tier split installation configuration, the VCM Collector and the Web server components reside together on a dedicated Windows Server 2008 R2 machine, and the VCM database server resides on a separate Windows Server 2008 R2 machine.

5. "Configure the Web Components" on page 72

61

VMware, Inc.

The combined VCM Collector and Web server contains Web applications such as IIS and SQL Server Reporting Services (SSRS), other services, and VCM software components. Before you install VCM, you must configure the combined VCM Collector and Web server.

6. "Configure the VCM Collector Components" on page 84

The combined VCM Collector and Web server contains the VCM software application, VCM services, and the OS Provisioning Server. To prepare the VCM Collector components of the combined VCM Collector and Web server for VCM installation, configure the required utilities.

What to do next

Review the DCOMand port requirements, and use VCM Installation Manager to install the VCM components. See "Installing VCM" on page 116.

Verify that the Installing User is an Administrator

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account.

Procedu re

1. Verify that the user is an Administrator.

a. Click Start and select All Programs > Administrative Tools > Computer Management.

Two-Tier Split Installation

b. Expand System Tools, expand Local Users and Groups, and click Users.

c. Right-click the user and click Properties.

d. Click the Member Of tab and verify that Administrators is listed.

e. If Administrators is not listed, add the user to the Administrators group.

f. Click Check Names and click OK.

2. Verify that the user is a domain account.

a. Click Groups.

b. Right-click Administrators and click Properties.

c. Verify that the Domain User is listed in the Members area.

What to do next

Prepare your Windows machine for VCM installation. See "Install and Configure a Windows Server 2008

R2 Operating System" on page 62.

Install and Configure a Windows Server 2008 R2 Operating System

To prepare your Windows machine for VCMinstallation, install the Windows Server 2008 R2 operating system on each Windows machine in your installation configuration and verify that the settings are configured for VCM operation.

VMware, Inc.

62

vCenter Configuration Manager Advanced Installation Guide

Prerequisit es

n

Determine whether you require the Windows Server 2008 R2 Enterprise Edition or Standard Edition. See the VCM Installation Guide.

n

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account. See "Verify that the Installing User is an Administrator" on page 62.

n

Verify that the computer name settings for your Windows machine is a valid DNS machine name with no underscores. If you attempt to change the machine name after the machine is identified as a Collector, problems might occur with VCM, SQL Server, and SQL Server Reporting Services.

Procedu re

1. Install Microsoft Windows Server 2008 R2 on your Windows machine.

2. During the installation, you can configure several options.

Option Description

Regional and Language

Determines how numbers, dates, currencies, and time settings appear.

n

Language: Setting for your language. The default is English.

Options

n

Time and currency format: Determines how numbers, dates, currencies, and time settings appear. The default is English (United States).

n

Keyboard or input method: Allows text entry for multiple languages. The default is US.

Disk Configuration

Allows you to separate the machine disk drive into partitions to store data in different partitions. You can create new disk partitions and delete existing partitions. After you configure the disk, select a partition to install Windows Server 2008 R2 Edition.

Product Key When the installation prompts, enter your product key.

Licensing Modes

Administrator Password

Windows Server 2008 R2 Standard edition supports a single license that is included with the product key.

The installation setup creates an account called administrator. To log on, you must create a password that complies with the criteria. The password must have the following attributes.

n

Minimum of six characters

n

Does not contain “administrator” or “admin”

n

Contains uppercase letters

n

Contains lower case letters

n

Contains numbers

n

Contains at least one non-alphanumeric character

3. Perform the initial configuration tasks to set the time zone and the computer name.

63

VMware, Inc.

Two-Tier Split Installation

Configure the Operating System Locale Settings

To set the language for VCM installation, verify that your Windows Server Locale Setting is configured correctly.

Procedu re

1. In Windows Explorer, click Start and select Control Panel > Clock, Language, and Region.

2. Click Region and Language.

3. Click the Administrative tab and set the language to English (United States).

Disable the Remote Desktop Session Host

A Remote Desktop Session Host server hosts Windows-based programs for Remote Desktop Services clients.

If the Remote Desktop Session Host role service is enabled, you must disable it to avoid changes to settings for new connections, modifications of existing connections, or removal of connections.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. In the navigation pane, expand Roles and click Remote Desktop Services.

3. In the Remote Desktop Services pane, scroll down to Role Services.

4. Click the Remote Desktop Session Host role service to highlight it.

5. Click Remove Role Services.

6. Deselect the Remote Desktop Session Host role service and follow the prompts to finish disabling the Remote Desktop Session host role.

Enable DCOM

The Distributed Component Object Model (DCOM) protocol allows application components to interact across Windows machines. DCOM must be enabled on the Windows machine to install and run VCM.

Although DCOMis enabled by default when Windows Server 2008 R2 is installed, DCOMmight have been disabled by a custom installation or a lock-down script.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Component Services to open Component Services.

2. In the Component Services navigation pane, expand Component Services and expand Computers.

3. Right-click the computer and click Properties.

4. Click the Default Properties tab.

5. Select Enable Distributed COM on this computer and click OK.

What to do next

Configure the database server. See "Configuring the VCM Database Server" on page 65.

VMware, Inc.

64

vCenter Configuration Manager Advanced Installation Guide

Configuring the VCM Database Server

To ensure that the installation creates the VCM databases, you must configure the VCM database server before you install VCM. In a two-tier split installation configuration, the VCM database server resides on a dedicated machine. The databases include VCM, VCM_Coll, VCM_Raw, and VCM_UNIX.

The SQL Server license includes SQL Server Reporting Services (SSRS). In your two-tier split installation configuration, when you run SSRS and SQL Server on the same machine, the SQL Server database machine can take on the role of the Report Server (SSRS).

VCM 5.6 supports running SSRS on the Web server or on the database server in a split installation. Depending on the separation of services in your environment, you might want to install SSRS on the Web server machine in a split installation, because SSRS has its own Web server.

If you install SSRS on the Web server, it requires an additional SQL Server license, because you are installing SSRS on a Windows Server 2008 R2 machine that is separate from the SQL Server database services. If you run SQL Server Enterprise Edition, all SQL Server services running in guests on a single virtual machine host are covered by the Enterprise Edition license.

VCM operates with a Standard or Enterprise edition of SQL Server. You must install the 64-bit SQL Server 2008 R2, English (United States) version on your designated database server machine and verify that the settings are configured correctly for a VCM installation. For information about installing the VCM Collector on a non-English operating system, see the VMware knowledge base article at

http://kb.vmware.com/kb/1035034.For information about VCM Agent support on non-English platforms,

see the VMware knowledge base article at http://kb.vmware.com/kb/2008337.

If you plan to change the communication port that SQL Server uses from the default port of 1433 to a nonstandard port number, make the changes during the installation of SQL Server and SQL Server Reporting Services (SSRS). Changing the port after you install SSRS disables SSRS communication with SQL Server, which causes an SSRS validation error during the VCM installation process. If you change the port after installation, you must configure additional SSRS settings to repair the configuration.

Disable the Firewall or Add an Exception for SQL Server Port 1433

On the machine that is running SQL Server, to access SQLServer through a firewall, you must configure the firewall or add an exception for port 1433. Port 1433 is the SQL Server default instance running over TCP.

Procedu re

1. To turn off the Windows domain firewall, follow these steps.

a. Click Start and select Control Panel.

b. Click System and Security.

c. Click Windows Firewall.

d. Click Turn Windows Firewall on or off.

e. Under Domain network location settings, click Turn off Windows Firewall.

2. To add an exception for SQL port 1433, follow these steps.

65

VMware, Inc.

Two-Tier Split Installation

a. In Windows Firewall in the Control Panel, click Advanced Settings to open the Windows Firewall

with Advanced Security dialog box.

b. Click Inbound Rules and click New Rule.

c. Click Port and Next.

d. Click TCP, click Specific local ports, type 1433, and click Next.

e. Click Allow the connection and click Next.

f. Click Domain, uncheck Private, uncheck Public, and click Next.

g. Type a name for the rule and click Finish.

Install SQL Server on the Database Server

In a two-tier split installation configuration, the VCM database server resides on a dedicated machine. The database server contains the VCM, VCM_Coll, VCM_Raw, and VCM_UNIX databases. You must configure the VCM database server before you install VCM in a two-tier split installation configuration.

CAUTION If your Windows machine has an evaluation version of SQLServer StandardEdition or

Enterprise Edition, use it only for evaluation purposes. Do not use an evaluation version in a production environment, because it is not officially supported for production.

Prerequisit es

n

Obtain the SQL Server 2008 R2 Enterprise or Standard edition installation disk or verify access to a file share where the installer resides.

Procedu re

1. Start the SQLServer 2008 R2 installation.

2. Perform the following actions to install SQL Server 2008 R2 Enterprise or Standard edition.

Wizard Page Action

SQL Server

Click New installation or add features to an existing installation.

Installation Center

Setup Support Rules

Setup Support

Click Install and verify that all of the rules pass. To view the detailed system configuration check report, click the link.

Click Install to install the setup support files.

Files

Setup Support

Verify that all of the rules passed. Rules – for SQL Server Setup support files

VMware, Inc.

Installation

Select New installation or add shared features. Type

Product Key Verify that the product key is entered.

66

vCenter Configuration Manager Advanced Installation Guide

Wizard Page Action

License Terms Accept the license terms.

Setup Role Select SQL Server Feature Installation.

Feature Selection

Installation Rules

Instance Configuration

Disk Space Requirements

Server Configuration

Select the following features.

Instance Features:

n

Database Engine Services

Shared Features:

n

Client Tools Connectivity

n

SQL Server Books online

n

Management Tools - Basic and Management Tools - Complete

Verify that the rules passed. To view the detailed system configuration check

report, click the link.

Select Default Instance. If an instance of SQL Server is not installed, the installation

creates a default instance. If an instance of SQLServer is already installed, select

Named Instance and assign a name.

Review the disk usage summary.

Click Use the same account for all SQL Server services and enter the NT

AUTHORITY\SYSTEM account and password.

It is possible to use a domain account for SQL Server services. A domain account

might be required for split installations, because the SQL Server Agent might need

access to the Collector for some activities. If you use a domain account, you should

use a local administrator on the SQL Server machine to access DBServices.

Otherwise, you must grant manual permissions.

Database Engine

Select Windows authentication and click Add Current User to add the account to

the SQL Server administrators. Configuration

Error

Review the summary information. Reporting

Installation Configuration

Verify that the rules passed. To view the detailed system configuration check

report, click the link. Rules

Ready to Install

What to do next

n

Reboot the database server machine.

67

Review the summary of features and click Install to install SQL Server 2008 R2.

When the installation is finished, click the link to view the log file.

VMware, Inc.

Two-Tier Split Installation

Verify and Configure the SQL Server Properties

To ensure that SQLServer will operate with VCM, verify the SQLServer property settings and set the server-wide SQL database settings in preparation to install VCM. For information about server-wide and database-specific SQL Server database settings, see the VCM Administration Guide.

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Right-click the SQL instance and select Properties.

3. Confirm the General page server properties.

a. Verify that the Version is 10.50.1600.1

b. Verify that the Language is English (United States).

If the language is not correct, uninstall and install the correct version of SQL Server.

c. Verify that the Server Collation is SQL_Latin1_General_CP1_CI_AS.

If the server collation is not correct, uninstall and reinstall SQL Server.

4. Select and confirm the Security page server properties.

a. Select Windows Authentication mode, which is recommended.

b. Although SQL Server and Windows Authentication mode is acceptable for VCM, select Windows

Authentication mode, which is recommended.

5. Select and confirm the Database Settings page server properties.

a. For Default index fill factor, type or select a percentage value, which specifies the amount of free

space in each index page when the page is rebuilt.

Set the fill factor to 80% to keep 20% free space available in each index page.

b. For Recovery interval (minutes), type or select 5.

6. Click OK to save your changes.

What to do next

To ensure that SQLServer and VCMoperate correctly together, verify that the SQLServer name matches the Windows machine name. See "Verify Matching SQL Server and Computer Names" on page 68.

Verify Matching SQL Server and Computer Names

To ensure that SQLServer and VCM operate correctly together, you must verify that the SQLServer name matches the Windows machine name. If you recently installed SQL Server 2008 R2, you do not need to verify that the names match. If you obtained a machine that was renamed after the operating system and SQL Server 2008 R2 were installed, verify and reset the SQLServer server name.

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

VMware, Inc.

2. Click Database Engine Query.

3. In the SQL Query pane, type SELECT @@Servername and click Execute.

4. Verify that the resulting SQL Server name matches the Windows machine name.

68

vCenter Configuration Manager Advanced Installation Guide

5. If the SQL Server name does not match the Windows machine name, reset the SQL Server name.

a. In the SQL Query pane, type the following command and replace NewServerName with the server

name.

exec sp_dropserver @@SERVERNAME exec sp_addserver 'NewServerName', 'local'

b. Click Execute.

c. To restart the SQL Server services, click Start and select Programs > Microsoft SQL Server 2008

R2 > Configuration Tools > SQL Server Configuration Manager > SQL Server 2008 R2 Services.

d. Right-click SQL Server and click Restart.

6. Reboot the database server machine.

What to do next

n

Reboot the database server machine.

n

Verify that the SQL Server Agent service account has the SQL Server sysadmin role. See "Verify the

SQLServer Agent Service Account is a sysadmin" on page 69.

Verify the SQLServer Agent Service Account is a sysadmin

The SQL Server Agent service account that runs scheduled jobs in SQL Server must be a sysadmin.

Open SQLServer Management Studio and verify that the account you will use for the SQL Server Agent service account has the sysadmin privilege.

Procedu re

1. Click Start and select All Programs.

2. Click Microsoft SQL Server 2008 R2 and select SQL Server Management Studio.

3. Expand the server, expand Security, expand Server Roles.

4. Double-click sysadmin and view the members of the sysadmin role.

5. Verify that the account to use for the SQL Server Agent service is a member of the sysadmin fixed role.

6. If the account is not a member of the sysadmin fixed role, add this role to the account.

What to do next

Select the SQL Server Agent service account See "Select the SQLServer Agent Service Account" on page 69.

Select the SQLServer Agent Service Account

SQL Server Agent is a service that runs scheduled jobs in SQLServer and runs as a specific user account. Verify that the SQL Server Agent service account that you provided during the SQL Server installation is a SQL Server sysadmin. The SQL Server Agent runs as a user account.

69

VMware, Inc.

Two-Tier Split Installation

Prerequisit es

n

Verify that the account you provide for the SQL Server Agent service has permission to log on as a service and the required additional permissions. See the online Microsoft Developer Network for more information.

n

Understand the supported service account types for non-clustered and clustered servers. VCM 5.6 supports Active/Active SQL clusters. See the online Microsoft Developer Network for more information.

n

Verify that the account you will use for the SQL Server Agent service account has the sysadmin privilege. See "Verify the SQLServer Agent Service Account is a sysadmin" on page 69.

Procedu re

1. On the VCMdatabase server machine, click Start and select All Programs.

2. Click Microsoft SQL Server 2008 R2 and select Configuration Tools > SQL Server Configuration Manager.

3. Click SQL Server Services.

4. Right-click SQL Server Agent (MSSQLSERVER) and click Properties.

5. On the Log On tab, select a log on option and provide the account information.

Option Description

Built-in account In a single-tier installation, you can select the Local System account,

which has unrestricted access to all system resources. In a split installation environment, do not select the built-in Local System account. This account is a member of the Windows Administrators group on the local machine.

This account In a split installation, the SQLServer Agent must be running as a user

account. Select a Windows domain account for the SQL Server Agent service account.

This option provides increased security. Select this option for jobs that require application resources across a network, to forward events to other Windows application logs, or to notify administrators through email or pagers.

6. Type or select an account name that has the sysadmin privilege.

7. Click OK.

What to do next

Establish SQLServer administration rights. See "Establish SQL Server Administration Rights" on page 70.

Establish SQL Server Administration Rights

Members of the SQLServer sysadmin fixed server role can perform any activity in the server. The user who installs VCM must have SQL Server sysadmin rights.

VMware, Inc.

70

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Expand the server instance, select Security and select Logins.

3. Right-click the login ID of the user who installs VCM and select Properties.

4. In the Select a page area, select Server Roles.

5. In the Server roles area, select the sysadmin check box.

6. Click OK to save the settings and close the window.

What to do next

Configure the combined VCM Collector and Web server. See "Configure the Combined VCM Collector

and Web Server" on page 71.

Configure the Combined VCM Collector and Web Server

In a two-tier split installation configuration, the VCM Collector and the Web server components reside together on a dedicated Windows Server 2008 R2 machine, and the VCM database server resides on a separate Windows Server 2008 R2 machine.

To configure the combined VCM Collector and Web server for a two-tier installation, verify the SQLXML version, configure IIS, install and configure SSRS, then configure the VCM Collector components.

Install the .NET Framework

To support library and language interoperability, the VCMCollector must have the required versions of the .NET Framework installed.

VCM 5.6 requires the .NET 3.5.1 Framework. If you use Package Studio, the VCM Collector must have .NET 3.5.1 installed. If you use Package Manager, the VCM Collector must have .NET 3.5.1 or .NET 4.0 installed.

Determine the installed version of the .NET Framework. If one of the .NET Framework versions is missing, install the version from the Microsoft download Web site.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Click Features.

3. Verify that .NET Framework 3.5.1 appears in the feature summary.

4. If .NET Framework 3.5.1 does not appear, under Features select Add Features and select .NET 3.5.1.

Verify the ASP.NET Client System Web Version

To support client programming, verify the ASP.NET Client System Web version to confirm that the .NET framework is installed correctly, and install it if the version is not correct.

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name> and click Sites.

3. Expand Default Web Site, expand aspnet_client, and expand system_web.

4. Verify that the version is 2_0_50727.

71

VMware, Inc.

Two-Tier Split Installation

Verify the ASPRole Service

To support client programming, verify the status of the ASP Role Service to confirm that the .NET framework is installed correctly.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Server Manager (<server name>) and expand Roles.

3. Click Web Server (IIS).

4. Scroll down to Role Services.

5. Locate ASP and verify whether the role service is installed.

6. If the role service is not installed, click Add Role Services and add the ASP role service.

Verify ASP.NETRole Service

To support client programming, verify the status of the ASP.NET Role Service to confirm that the .NET framework is installed correctly.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Server Manager (<server name>) and expand Roles.

3. Click Web Server (IIS).

4. Scroll down to Role Services.

5. Locate ASP.NET and verify that the role service is installed.

6. If the role service is not installed, click Add Role Services and add the ASP.NET role service.

What to do next

Configure the Web components for the combined VCM Collector and Web server. See "Configure the

Web Components" on page 72.

Configure the Web Components

The combined VCM Collector and Web server contains Web applications such as IIS and SQL Server Reporting Services (SSRS), other services, and VCM software components. Before you install VCM, you must configure the combined VCM Collector and Web server.

The Windows machine that hosts the Web components must be running Internet Information Services (IIS) 7.5. IIS is installed when you install Windows Server 2008 R2.

For a two-tier installation, the Web server components reside on the same machine as the VCM Collector.

The SQL Server license includes SQL Server Reporting Services (SSRS). In your two-tier split installation configuration, when you run SSRS and SQL Server on the same machine, the SQL Server database machine can take on the role of the Report Server (SSRS).

VCM 5.6 supports running SSRS on the Web server or on the database server in a split installation. Depending on the separation of services in your environment, you might want to install SSRS on the Web server machine in a split installation, because SSRS has its own Web server.

VMware, Inc.

72

vCenter Configuration Manager Advanced Installation Guide

If you install SSRS on the Web server, it requires an additional SQL Server license, because you are installing SSRS on a Windows Server 2008 R2 machine that is separate from the SQL Server database services. If you run SQL Server Enterprise Edition, all SQL Server services running in guests on a single virtual machine host are covered by the Enterprise Edition license.

Prerequisit es

n

Perform the prerequisite tasks for your two-tier split installation configuration. See "Two-Tier Split

Installation" on page 60.

n

Place the Web server in the Internet Explorer Trusted Zone so that Internet Explorer can delegate the VCM user's credentials to the Web service for use with SQL Server. See "Place the Web Server in the

Internet Explorer Trusted Zone" on page 100.

n

If the domain firewall is turned on, verify that any required ports are open. If the database server is blocked from communicating with the Collector, problems can occur when you submit jobs. VCM displays an error about the SAS service, and the VCM Debug Event Log displays failures when calling ecm_sp_collector_control.

n

Verify that .NET Framework 3.5.1 is installed on Windows Server 2008 R2 machines where Package Studio will be installed.

n

Verify that you have an Internet connection to check for patch bulletin updates.

n

On the Windows Server 2008 R2 Web server machine, verify that the following .NET Framework components are installed.

n

Windows Process Activation Service

n

Process Model

n

.NETEnvironment

n

Configuration APIs

Procedu re

1. Restart the Web server machine.

2. Click Start and select All Programs > Administrative Tools > Server Manager.

3. Click Roles and verify that the Web Server (IIS) role appears.

4. If the Web Server (IIS) role does not appear, in the Roles Summary area, click Add Roles and add the Web Server (IIS) role.

5. On the Select Server Roles page, select Web Server (IIS) and select the Web Server components to add.

Option Action

Common HTTPFeatures Select these options:

n

Static Content

n

Default Document

n

Directory Browsing

n

HTTP Errors

73

VMware, Inc.

Option Action

Application Development Select these options:

n

ASP .NET

n

.Net Extensibility

n

ASP

n

ISAPI Extensions

n

ISAPI Filters

n

Server Side Includes

Health and Diagnostics Select these options:

n

HTTP Logging

n

Request Monitor

Security Select these options:

n

Basic Authentication

n

Request Filtering

Two-Tier Split Installation

Performance Select:

n

Static Content Compression

Configuring IIS

To ensure that the Web components are correctly configured, verify that the correct role services are enabled, the bindings are set correctly, and the default Web site is correct.

Verify the IIS 7.5 Role Services are Enabled

Verify that the correct IIS 7.5 Role Services are enabled on the combined VCM Collector and Web server .

Procedu re

1. On the Collector, click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Roles and click Web Server (IIS).

3. If the Web Server (IIS) role does not appear in the list of Roles, scroll to Role Services, click Add Role Services and add the Web Server (IIS) Role.

When you installed IIS, the ASP Role Service, ASP.NET Role Service, and IIS ServerSideIncludes Role Service were installed.

VMware, Inc.

74

vCenter Configuration Manager Advanced Installation Guide

4. In the Web Server (IIS) pane, scroll to Role Services and verify that the status is set to Installed for the following Role Services.

Role Service Cat egory Role Service

Common HTTP Features Static Content

Application Development ASP.NET

Health and Diagnostics HTTP Logging

Security Basic Authentication

Default Document

Directory Browsing

HTTPErrors

HTTPRedirection

.NET Extensibility

ASP

ISAPIExtensions

ISAPI Filters

Server Side Includes

Request Monitor

Windows Authentication

Digest Authentication

URL Authorization

Request Filtering

IP and Domain Restrictions

Performance Static Content Compression

Dynamic Content Compression

Management Tools IISManagement Console

IIS Management Scripts and Tools

Management Service

5. If any of the Role Services are not installed, click Add Role Services, select the check boxes of the services to install, and click Install.

Configure the IIS 7.5 Settings

IIS settings configure the information required for requests to communicate with a Web site. To support VCMinteraction with IIS, configure the settings for the IIS 7.5 bindings on the combined VCMCollector and Web server to ensure that the settings are correct.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name>, expand Sites, and click Default Web Site.

3. In the Actions pane, under Edit Site, click Bindings.

4. Click Add to open the Site Bindings dialog box.

75

VMware, Inc.

Two-Tier Split Installation

a. In the Type menu, select http.

b. In the IPaddress menu, select All Unassigned.

c. In the Port text box, type 80.

5. In the Site Bindings dialog box, click Close.

6. In the Actions pane, under Manage Web Site and Browse Web Site, click Advanced Settings.

7. Expand Connection Limits and set Connection Time-out (seconds) to 3600.

8. Click OK.

Verify the IIS 7.5 Default Web Site

IIS 7.5 provides a default Web site that defines the default authentication settings for applications and virtual directories. Verify that the IIS 7.5 default Web site has the correct settings.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name>, expand Sites, and click Default Web Site.

3. In the Default Web Site Home pane, locate the IIS options.

4. Double-click Authentication and set the authentication.

Option Action

Anonymous Authentication Set to Disabled.

ASP.NET Impersonation Set to Disabled.

Basic Authentication Set to Enabled.

Forms Authentication Set to Disabled.

Verify the ISAPI Extensions

The ISAPI Extensions role provides support for dynamic Web content development. You must verify that the role service is installed, and install it if needed.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Server Manager (<server name>) and expand Roles.

3. Click Web Server (IIS).

4. Scroll to Role Services.

5. Locate ISAPI Extensions and verify that the role service is installed.

What to do next

Prepare SQL Server Reporting Services (SSRS) to generate VCM reports. See "Installing and Configuring

SSRS on the Combined VCM Collector and Web Server" on page 77.

VMware, Inc.

6. If the role service is not installed, click Add Role Services and add the ISAPI Extensions role service.

76

vCenter Configuration Manager Advanced Installation Guide

Installing and Configuring SSRS on the Combined VCM Collector and Web Server

SQL Server Reporting Services (SSRS) is a server-based report generation software system that is administered using a web interface and used to deliver VCM reports.

Back Up Your SSRS Key

The rskeymgmt utility manages the symmetric keys used by a report server. This utility provides a way to delete encrypted content that can no longer be used if you cannot recover or apply the key.

Use the Microsoft command-line utility to back up the symmetric key to an encrypted file.

Prerequisit es

n

See the online Microsoft Support center for details about how to use the rskeymgmt utility.

Procedu re

1. On the Collector file system, locate the rskeymgmt.exe utility at c:\Program Files (x86) \Microsoft SQLServer\100\Tools\Binn or the directory where you installed SQLServer.

2. To copy your SSRS key set to a removable media device and store it in a secure location, open a command line prompt and run the rskeymgmt.exe utility with the appropriate options.

Install SQL Server Reporting Services

In a two-tier installation configuration, for the Web server to generate VCM reports, install SQL Server Reporting Services (SSRS).

Prerequisit es

n

Back up your SSRS key. See "Back Up Your SSRS Key" on page 77.

n

Obtain the SQL Server 2008 R2 Enterprise or Standard edition installation disk or verify access to a file share where the installer resides.

Procedu re

1. Start the SQLServer 2008 R2 installation.

2. Perform the actions to install SQL Server Reporting Services.

Wizard Page Action

SQL Server Installation Center

Setup Support Rules

Setup Support Files

Click New installation or add features to an existing installation.

Click Install and verify that all of the rules pass. To view the detailed system configuration check report, click the link.

Click Install to install the setup support files.

Setup Support

Verify that all of the rules passed. Rules – for SQL Server Setup support files

77

VMware, Inc.

Wizard Page Action

Two-Tier Split Installation

Installation

Select New installation or add shared features. Type

Product Key Verify that the product key is entered.

License Terms Accept the license terms.

Setup Role Select SQL Server Feature Installation.

Feature Selection

Installation Rules

Instance Configuration

Select the following options.

n

Reporting Services

n

Client Tools Connectivity

n

(Optional) SQL Server Books Online

n

Management Tools - Basic

n

Management Tools - Complete

Verify that the rules passed. To view the detailed system configuration check

report, click the link.

Select Default Instance. If an instance of SQL Server is not installed, the installation

creates a default instance. If an instance of SQL Server is installed, select Named

Instance and assign a name.

Disk Space

Review the disk usage summary. Requirements

Server Configuration

Database Engine Configuration

Error Reporting

Installation Configuration Rules

Ready to Install

Click Use the same account for all SQL Server services.

n

If you will not install SSRS on the combined VCMCollector and Web Server machine, enter the NT AUTHORITY\SYSTEM account and password.

n

If you will install SSRS on the combined VCMCollector and Web Server, use the Network Service account instead of NT AUTHORITY\SYSTEM.

It is possible to use a domain account for SQL Server services. A domain account

might be required for split installations, because the SQL Server Agent might need

access to the Collector for some activities. If you use a domain account, you should

use a local administrator on the SQL Server machine to access DBServices,

otherwise you must grant manual permissions.

Select Mixed Mode (SQL Server authentication and Windows authentication),

enter and confirm the password, and click Add Current User to add the account to

the SQL Server administrators.

Review the summary information.

Verify that the rules passed. To view the detailed system configuration check

report, click the link.

Review the summary of features and click Install to install SQL Server Reporting

Services. When the installation is finished, click the link to view the log file.

VMware, Inc.

78

vCenter Configuration Manager Advanced Installation Guide

Configure SSRS

Configure SSRS manually in your installation configuration, because the SSRS command-line configuration tool does not perform these steps.

SSRS might require HTTPS during installation. If HTTPSis required, you manually export a self-signed certificate and import it to the VCMCollector machine’s root certificate store. If you do not manually export the certificate, a manual import of a VCM report might fail. If the manual import fails, run the import from the VCM Collector machine. For more information, see the Microsoft IIS Resource Kit Tools.

Prerequisit es

n

Back up your SSRS key. See "Back Up Your SSRS Key" on page 77.

Procedu re

1. On your combined VCMCollector and Web server, start SQLServer 2008 R2 Reporting Services Configuration Manager.

a. Click Start, select Run, and type rsconfigtool.exe.

b. In the Reporting Services Configuration Connection dialog box, click Connect to connect and log in

to SQL Server 2008 R2 Reporting Services.

2. Update the SQL Server database.

a. In the navigation pane, click Database and click Change Database.

b. In the Report Server Database Configuration pane, verify that Action is selected.

c. On the Change Database page, select Create a new report server database and click Next.

d. Change the server name of your database server to the database machine and database instance

where SSRS will connect.

e. Verify that the authentication type is set to Current User – Integrated Security and click Test

Connection.

f. When the test message is successful, close the Test Connection dialog box and click Next.

g. On the Database pane, enter a name for the Database and select the language as English (United

States).

h. Set the Report Server Mode to Native Mode and click Next.

i. In the Credentials pane, change the Authentication Type to Windows Credentials, specify an

account, and click Next.

Specify an account that has permission to connect from the combined VCMCollector and Web server to the database server, and specify the password for the account.

j. In the Summary pane, review the selections and click Next.

k. In the Progress and Finish pane, resolve any errors, and click Finish.

3. Update the encryption keys.

a. In the navigation pane, click Encryption Keys.

b. In the Delete Encrypted Content area, click Delete and accept the prompt to delete all encrypted

data.

c. In the Change area, click Change to replace the encryption key, and click OK.

4. Configure the Web Service URL.

79

VMware, Inc.

Two-Tier Split Installation

a. In the navigation pane, click Web Service URL.

b. Verify or configure the settings and click Apply to activate the Report Server Web Service URL.

Option Action

Virtual Directory Set to ReportServer.

IP Address Set to All Assigned (Recommended).

TCP Port Set to 80 if you are not using HTTPS.

SSLCertificate Not Selected

c. In the Results area, confirm that the virtual directory is created and that the URL is reserved.

5. Confirm the Report Manager URL.

a. In the navigation pane, click Report Manager URL and click Apply to activate the Report Manager

URL.

b. Verify that the virtual directory was created and that the URL was reserved in the Results area.

c. Click the default URL and verify that it opens SQLServer Reporting Services.

6. Click Exit to close SQLServer 2008 R2 Reporting Services Configuration Manager.

What to do next

To authenticate users and client applications against the report server, configure Basic Authentication on the report server. See "Configure Basic Authentication on the Report Server for Multi-Tier Installations" on

page 80.

Configure Basic Authentication on the Report Server for Multi-Tier Installations

SQL Server Reporting Services (SSRS) provides several options to authenticate users and client applications against the report server. When you install VCM in a two-tier split installation and use Basic authentication, you must allow direct access to the Reports virtual directory.

Update the RSReportServer.config file so that VCM can authenticate users who use the VCM Web console, and users can launch SSRS reports. To configure Basic authentication on the report server, edit the XML elements and values in the RSReportServer.config file.

Procedu re

1. On the Windows machine where you installed SSRS, locate the rsreportserver.config file.

The default location is C:\Program Files\Microsoft SQL

ServerReportingServicesInstance\Reporting

Services\ReportServer\rsreportserver.config.

2. Stop the SSRS service.

3. Open the rsreportserver.config file for editing.

VMware, Inc.

80

vCenter Configuration Manager Advanced Installation Guide

4. In the file, locate the <AuthenticationTypes> block.

The block resembles the following example.

</AuthenticationTypes>

...

</Authentication>

5. Remove any existing parameters and add the <RSWindowsBasic/> parameter to the <AuthenticationTypes> XML element.

The modified block resembles the following block.

</AuthenticationTypes>

...

</Authentication>

6. Save the configuration file.

7. Start the SSRS service.

What to do next

To authenticate VCM reports with Kerberos, see "Configure Kerberos Authentication" on page 81.

Configure Kerberos Authentication

The Kerberos network protocol uses secret-key cryptography to ensure security in your VCM applications. To authenticate VCM Reports, you must use Basic Authentication with HTTPS or Kerberos Authentication.

When you configure Kerberos Authentication in your two-tier split installation, configure it on the database server and the combined VCMCollector and Web server.

Prerequisit es

n

Verify that your Windows Server 2008 R2 machine has Active Directory management tools installed. If the tools are not installed, install them. See Microsoft TechNet online. This configuration requires an Active Directory domain running at Windows Server 2003 or later domain functional level.

n

If SQL Server Reporting Services is running on a different Windows machine than the VCM Collector in a two-tier installation, verify that the Application Pool account is a local administrator.

81

VMware, Inc.

Two-Tier Split Installation

Procedu re

1. Log in to your Windows Server 2008 R2 machine as a user who has domain administrator privileges.

2. Start Active Directory Domain Services and select Active Directory Users and Computers.

3. Verify whether AD accounts exist in your domain for the SQLServer service and the VCM IIS Application Pool.

4. If the accounts do not exist, create them.

a. Set the database account to be a local administrator on the database server.

b. Make the Application Pool account a local administrator on the VCM Collector in a two-tier

installation.

5. Select the Computers container and locate the Web system.

a. Open the properties for Web system.

b. Click the Delegation tab.

c. Select Trust this computer for delegation to any service.

6. Open IIS manager and set the identity of the CMAppPool application pool to the IISaccount.

7. In Reporting Services Configuration Manager, configure the SQL Server Reporting Services service to run as the IISApplication Pool account.

8. Change SQL Server to run as the SQLServerDomain account.

a. In Reporting Services Configuration Manager, click Encryption Keys and click Delete to delete

encrypted content.

b. In the navigation pane, click Service Account and enter the app_pool_account account for the

database connection.

9. Open a command prompt to set the service principal names directory property for the Active Directory service accounts.

a. Click Start, select All Programs > Accessories, right-click Command Prompt, and select Run as

administrator.

b. Type: Setspn -a MSSQLSvc/db_server_name domain\sql_server_account_name and

press Enter.

c. Type: Setspn -a MSSQLSvc/db_server_name:1433 domain\sql_server_account_name

and press Enter.

d. Type: Setspn -a MSSQLSvc/db_server_fqdn domain\sql_server_account_name and

press Enter.

e. Type: Setspn -a MSSQLSvc/db_server_fqdn:1433 domain\sql_server_account_name

and press Enter.

VMware, Inc.

82

vCenter Configuration Manager Advanced Installation Guide

10. Verify whether SSRSis running on the SQLServer and if it is not running, locate and update the Report Server configuration file named rsreportserver.config.

a. Locate the AuthenticationTypes XML element.

b. Remove <RSWindowsNTLM/> and <RSWindowsBasic/>.

c. Add <RSWindowsNegotiate/> and <RSWindowsKerberos/>.

The default location for the configuration file is C:\Program Files\Microsoft SQL

ServerReportingServicesInstance\Reporting

Services\ReportServer\rsreportserver.config.

11. In SQL Server Management Studio, grant the Application Pool user access to the VCM and VCM_Unix databases, with membership in the VCM__SelectRole_General role in each database.

12. (Optional) If you did not configure the SQL Server Reporting Services service to run as the IISApplication Pool account before installing VCM, start Internet Explorer as administrator and set the report settings.

a. Click Start, select All Programs, right-click Internet Explorer and select Run as administrator.

b. Connect to http://localhost/Reports/Pages/Folder.aspx.

c. Click ECM Reports and click the ECM data source to display the properties menu.

d. To use integrated authentication, type the following text into the Connection string text box and

click Apply.

Integrated Security=SSPI;Data Source=db_server_name;Initial

Catalog=VCM;LANGUAGE=us_english;

e. Click the back button to return to the ECM Reports view.

13. Select Folder Settings, select Security, select the new SSRS user or group, and click New Role Assignment.

14. Click Browser to allow the VCM SSRS user or group to view folders and reports and subscribe to reports, and click OK.

15. In Server Manager, set the authentication mode.

a. In the navigation pane, select Roles > Web Server (IIS) and click Add Role Services in the Role

Services area.

b. In the Select Role Services wizard, locate the Security (Installed) section, click Windows

Authentication, and follow the prompts to install the service.

c. In the navigation pane, select Roles > Web Server (IIS).

d. Under server_name, select Sites\Default Web Site\VCM, double-click Authentication, and

verify that Windows Authentication is the only option enabled.

e. Under server_name\Sites\Default Web Site, double-click Authentication, click Windows

Authentication, verify that Windows Authentication is enabled, and click Advanced Settings.

f. Verify that Kernel Mode Authentication is disabled and click OK.

83

VMware, Inc.

Two-Tier Split Installation

16. In Windows Explorer, update the configuration files.

a. Open the configuration file at

Windows\System32\inetsrv\config\applicationhost.config and locate the <authentication> section.

b. Verify that Windows authentication is enabled, and if it is not enabled, enable it.

c. Save any changes and close the file.

17. Open a command prompt to set the property for the Active Directory service accounts for the service principal names directory.

a. Click Start and select All Programs > Accessories.

b. Right-click Command Prompt and select Run as administrator.

c. Type Setspn -a http/web_server_name domain\Application Pool Account Name and

press Enter.

d. Type Setspn -a http/web_server_fqdn domain\Application Pool Account Name and

press Enter.

18. Open the properties for the SQLServer and Application Pool accounts, click the Delegation tab, and select Trust this user for delegation to any service.

What to do next

Configure the VCM Collector components of the combined VCM Collector and Web server before you install VCM. See "Configure the VCM Collector Components" on page 84.

Configure the VCM Collector Components

The combined VCM Collector and Web server contains the VCM software application, VCM services, and the OS Provisioning Server. To prepare the VCM Collector components of the combined VCM Collector and Web server for VCM installation, configure the required utilities.

In your two-tier split installation configuration, configure the Web server and VCM Collector components on the same machine.

NOTE This procedure is required only if you did not install the complete set of Management Tools and support components earlier.

Prerequisit es

n

Perform the prerequisite tasks for your two-tier split installation configuration. See "Two-Tier Split

Installation" on page 60.

n

From the VCM Collector, verify that you can access the Microsoft Download Center, Microsoft SQL Server 2008 Feature Pack to download SQL XML 4.0 and SP1 in the following procedure. See the online Microsoft Download Center.

n

Verify that you can access the Microsoft Download Center, Microsoft SQL Server 2008 R2 Feature Pack to download and install the Native Client (sqlncli.msi) in the following procedure. See the online Microsoft Download Center. The SQL Command Line Tools in the SQLServer 2008 R2 Feature Pack are required on the combined VCM Collector and Web server.

n

VMware, Inc.

Install .NET Framework 3.5.1 on the Windows Server 2008 R2 machines where Package Studio will be installed.

84

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Download and install SQL XML 4.0 and SP1, X64 Package.

2. Download and install SQL Server 2008 R2 Command Line Utilities, which includes the SQLCMD utility, X64 Package (SqlCmdLnUtils.msi).

The SQL Command Line Tools in the SQLServer 2008 R2 Feature Pack are required on the combined VCM Collector and Web server.

3. Download and install the SQL Server 2008 R2 Native Client, X64 Package (sqlncli.msi).

The Native Client from the SQL Server 2008 R2 Feature Pack is required on the combined VCM Collector and Web server.

4. Reboot the combined VCM Collector and Web server.

What to do next

Review the DCOMand port requirements, and use VCM Installation Manager to install the VCM components. See "Installing VCM" on page 116.

85

VMware, Inc.

Three-Tier Split Installation

In a three-tier split installation, the VCM databases, the Web applications, and the VCM Collector components reside on three different Windows Server 2008 R2 machines.

CAUTION A three-tier installation configuration uses basic authentication with HTTPS by default. Be

aware of the risks to exposure of sensitive data if you use basic security without HTTPS. Optionally, you can use Kerberos Authentication.

VCM 5.6 supports 64-bit environments that include 64-bit hardware, the 64-bit Windows Server 2008 R2 operating system, and SQL Server 2008 R2.

Figure 10–1. Three-Tier Split Installation

10

VCM 5.6 supports running SSRS on the Web server or on the database server in a split installation. Depending on the separation of services in your environment, you might want to install SSRS on the Web server machine in a split installation, because SSRS has its own Web server.

The VMware Knowledge Base includes information about sizing your hardware environment for a threetier installation of VCM. See http://kb.vmware.com/kb/2033894.

For advanced information to install VCM in a three-tier environment, see the VCM Advanced Installation Guide.

VMware, Inc.

86

vCenter Configuration Manager Advanced Installation Guide

Configuring a Three-Tier Split Installation Environment

In a three-tier installation environment, you configure the database server first, configure the Web server next, then configure the VCM Collector. All machines are physical or virtual Windows machines.

Prerequisit es

n

Perform the general system prerequisite tasks. See "System Prerequisites to Install VCM" on page 20.

n

Connect the database server machine, Web server machine, and VCM Collector machine to the domain.

n

Obtain the SQL Server 2008 R2 Enterprise or Standard edition installation disk or verify access to a file share where the installer resides.

Procedu re

1. "Verify that the Installing User is an Administrator" on page 87

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account.

2. "Install and Configure a Windows Server 2008 R2 Operating System" on page 88

To prepare your Windows machine for VCMinstallation, install the Windows Server 2008 R2 operating system on each Windows machine in your installation configuration and verify that the settings are configured for VCM operation.

3. "Configure the VCM Database Server" on page 90

To ensure that the installation creates the VCM databases, you must configure the VCM database server before you install VCM. In a three-tier split installation configuration, the VCM database server resides on a dedicated machine. The databases include VCM, VCM_Coll, VCM_Raw, and VCM_UNIX.

4. "Configure the Web Server" on page 96

The Web server contains Web applications such as IIS and SQL Server Reporting Services (SSRS), other services, and VCM software components. Before you install VCM, you must configure the Web server.

5. "Configure the VCM Collector" on page 110

The VCM Collector contains the VCM software application, VCM services, and the OS Provisioning Server. To prepare the VCM Collector for VCM installation, configure the required utilities.

What to do next

Review the DCOMand port requirements, and use VCM Installation Manager to install the VCM components. See "Installing VCM" on page 116.

Verify that the Installing User is an Administrator

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account.

87

VMware, Inc.

Three-Tier Split Installation

Procedu re

1. Verify that the user is an Administrator.

a. Click Start and select All Programs > Administrative Tools > Computer Management.

b. Expand System Tools, expand Local Users and Groups, and click Users.

c. Right-click the user and click Properties.

d. Click the Member Of tab and verify that Administrators is listed.

e. If Administrators is not listed, add the user to the Administrators group.

f. Click Check Names and click OK.

2. Verify that the user is a domain account.

a. Click Groups.

b. Right-click Administrators and click Properties.

c. Verify that the Domain User is listed in the Members area.

What to do next

Prepare your Windows machine for VCM installation. See "Install and Configure a Windows Server 2008

R2 Operating System" on page 88.

Install and Configure a Windows Server 2008 R2 Operating System

To prepare your Windows machine for VCMinstallation, install the Windows Server 2008 R2 operating system on each Windows machine in your installation configuration and verify that the settings are configured for VCM operation.

Prerequisit es

n

Determine whether you require the Windows Server 2008 R2 Enterprise Edition or Standard Edition. See the VCM Installation Guide.

n

The user who installs the Windows Server 2008 R2 operating system must be an Administrator and a domain account. See "Verify that the Installing User is an Administrator" on page 87.

n

Verify that the computer name settings for your Windows machine is a valid DNS machine name with no underscores. If you attempt to change the machine name after the machine is identified as a Collector, problems might occur with VCM, SQL Server, and SQL Server Reporting Services.

VMware, Inc.

88

vCenter Configuration Manager Advanced Installation Guide

Procedu re

1. Install Microsoft Windows Server 2008 R2 on your Windows machine.

2. During the installation, you can configure several options.

Option Description

Regional and Language

Determines how numbers, dates, currencies, and time settings appear.

n

Language: Setting for your language. The default is English.

Options

n

Time and currency format: Determines how numbers, dates, currencies, and time settings appear. The default is English (United States).

n

Keyboard or input method: Allows text entry for multiple languages. The default is US.

Disk Configuration

Allows you to separate the machine disk drive into partitions to store data in different partitions. You can create new disk partitions and delete existing partitions. After you configure the disk, select a partition to install Windows Server 2008 R2 Edition.

Product Key When the installation prompts, enter your product key.

Licensing Modes

Administrator Password

Windows Server 2008 R2 Standard edition supports a single license that is included with the product key.

The installation setup creates an account called administrator. To log on, you must create a password that complies with the criteria. The password must have the following attributes.

n

Minimum of six characters

n

Does not contain “administrator” or “admin”

n

Contains uppercase letters

n

Contains lower case letters

n

Contains numbers

n

Contains at least one non-alphanumeric character

3. Perform the initial configuration tasks to set the time zone and the computer name.

Configure the Operating System Locale Settings

To set the language for VCM installation, verify that your Windows Server Locale Setting is configured correctly.

Procedu re

1. In Windows Explorer, click Start and select Control Panel > Clock, Language, and Region.

2. Click Region and Language.

3. Click the Administrative tab and set the language to English (United States).

89

VMware, Inc.

Three-Tier Split Installation

Disable the Remote Desktop Session Host

A Remote Desktop Session Host server hosts Windows-based programs for Remote Desktop Services clients.

If the Remote Desktop Session Host role service is enabled, you must disable it to avoid changes to settings for new connections, modifications of existing connections, or removal of connections.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. In the navigation pane, expand Roles and click Remote Desktop Services.

3. In the Remote Desktop Services pane, scroll down to Role Services.

4. Click the Remote Desktop Session Host role service to highlight it.

5. Click Remove Role Services.

6. Deselect the Remote Desktop Session Host role service and follow the prompts to finish disabling the Remote Desktop Session host role.

Enable DCOM

The Distributed Component Object Model (DCOM) protocol allows application components to interact across Windows machines. DCOM must be enabled on the Windows machine to install and run VCM.

Although DCOMis enabled by default when Windows Server 2008 R2 is installed, DCOMmight have been disabled by a custom installation or a lock-down script.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Component Services to open Component Services.

2. In the Component Services navigation pane, expand Component Services and expand Computers.

3. Right-click the computer and click Properties.

4. Click the Default Properties tab.

5. Select Enable Distributed COM on this computer and click OK.

What to do next

Configure the database server. See "Configure the VCM Database Server" on page 90.

Configure the VCM Database Server

To ensure that the installation creates the VCM databases, you must configure the VCM database server before you install VCM. In a three-tier split installation configuration, the VCM database server resides on a dedicated machine. The databases include VCM, VCM_Coll, VCM_Raw, and VCM_UNIX.

The SQL Server license includes SQL Server Reporting Services (SSRS). In your three-tier split installation configuration, when you run SSRS and SQL Server on the same machine, the SQL Server database machine can take on the role of the Report Server (SSRS).

VCM 5.6 supports running SSRS on the Web server or on the database server in a split installation. Depending on the separation of services in your environment, you might want to install SSRS on the Web server machine in a split installation, because SSRS has its own Web server.

VMware, Inc.

90

vCenter Configuration Manager Advanced Installation Guide

If you install SSRS on the Web server, it requires an additional SQL Server license, because you are installing SSRS on a Windows Server 2008 R2 machine that is separate from the SQL Server database services. If you run SQL Server Enterprise Edition, all SQL Server services running in guests on a single virtual machine host are covered by the Enterprise Edition license.

VCM operates with a Standard or Enterprise edition of SQL Server. You must install the 64-bit SQL Server 2008 R2, English (United States) version on your designated database server machine and verify that the settings are configured correctly for a VCM installation. For information about installing the VCM Collector on a non-English operating system, see the VMware knowledge base article at

http://kb.vmware.com/kb/1035034.For information about VCM Agent support on non-English platforms,

see the VMware knowledge base article at http://kb.vmware.com/kb/2008337.

If you plan to change the communication port that SQL Server uses from the default port of 1433 to a nonstandard port number, make the changes during the installation of SQL Server and SQL Server Reporting Services (SSRS). Changing the port after you install SSRS disables SSRS communication with SQL Server, which causes an SSRS validation error during the VCM installation process. If you change the port after installation, you must configure additional SSRS settings to repair the configuration.

Install SQL Server on the Database Server

In a three-tier split installation configuration, the VCM database server resides on a dedicated machine. The database server contains the VCM, VCM_Coll, VCM_Raw, and VCM_UNIX databases. You must configure the VCM database server before you install VCM in a three-tier split installation configuration.

CAUTION If your Windows machine has an evaluation version of SQLServer StandardEdition or

Enterprise Edition, use it only for evaluation purposes. Do not use an evaluation version in a production environment, because it is not officially supported for production.

Prerequisit es

n

Obtain the SQL Server 2008 R2 Enterprise or Standard edition installation disk or verify access to a file share where the installer resides.

Procedu re

1. Start the SQLServer 2008 R2 installation.

2. Perform the following actions to install SQL Server 2008 R2 Enterprise or Standard edition.

Wizard Page Action

SQL Server

Click New installation or add features to an existing installation.

Installation Center

Setup Support Rules

Setup Support

Click Install and verify that all of the rules pass. To view the detailed system configuration check report, click the link.

Click Install to install the setup support files.

Files

Setup Support

Verify that all of the rules passed. Rules – for SQL Server Setup support files

91

VMware, Inc.

Wizard Page Action

Three-Tier Split Installation

Installation

Select New installation or add shared features. Type

Product Key Verify that the product key is entered.

License Terms Accept the license terms.

Setup Role Select SQL Server Feature Installation.

Feature Selection

Select the following features.

Instance Features:

n

Database Engine Services

Shared Features:

n

Client Tools Connectivity

n

SQL Server Books online

n

Management Tools - Basic and Management Tools - Complete

Installation Rules

Instance Configuration

Verify that the rules passed. To view the detailed system configuration check

report, click the link.

Select Default Instance. If an instance of SQL Server is not installed, the installation

creates a default instance. If an instance of SQLServer is already installed, select

Named Instance and assign a name.

Disk Space Requirements

Server Configuration

Database Engine Configuration

Error Reporting

Installation Configuration Rules

Ready to Install

Review the disk usage summary.

Click Use the same account for all SQL Server services and enter the NT

AUTHORITY\SYSTEM account and password.

It is possible to use a domain account for SQL Server services. A domain account

might be required for split installations, because the SQL Server Agent might need

access to the Collector for some activities. If you use a domain account, you should

use a local administrator on the SQL Server machine to access DBServices.

Otherwise, you must grant manual permissions.

Select Windows authentication and click Add Current User to add the account to

the SQL Server administrators.

Review the summary information.

Verify that the rules passed. To view the detailed system configuration check

report, click the link.

Review the summary of features and click Install to install SQL Server 2008 R2.

When the installation is finished, click the link to view the log file.

VMware, Inc.

92

vCenter Configuration Manager Advanced Installation Guide

What to do next

n

Reboot the database server machine.

Verify and Configure the SQL Server Properties

To ensure that SQLServer will operate with VCM, verify the SQLServer property settings and set the server-wide SQL database settings in preparation to install VCM. For information about server-wide and database-specific SQL Server database settings, see the VCM Administration Guide.

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Right-click the SQL instance and select Properties.

3. Confirm the General page server properties.

a. Verify that the Version is 10.50.1600.1

b. Verify that the Language is English (United States).

If the language is not correct, uninstall and install the correct version of SQL Server.

c. Verify that the Server Collation is SQL_Latin1_General_CP1_CI_AS.

If the server collation is not correct, uninstall and reinstall SQL Server.

4. Select and confirm the Security page server properties.

a. Select Windows Authentication mode, which is recommended.

b. Although SQL Server and Windows Authentication mode is acceptable for VCM, select Windows

Authentication mode, which is recommended.

5. Select and confirm the Database Settings page server properties.

a. For Default index fill factor, type or select a percentage value, which specifies the amount of free

space in each index page when the page is rebuilt.

Set the fill factor to 80% to keep 20% free space available in each index page.

b. For Recovery interval (minutes), type or select 5.

6. Click OK to save your changes.

What to do next

n

Restart the database machine.

n

To ensure that SQLServer and VCMoperate correctly together, verify that the SQLServer name matches the Windows machine name. See "Verify Matching SQL Server and Computer Names" on

page 93.

Verify Matching SQL Server and Computer Names

To ensure that SQLServer and VCM operate correctly together, you must verify that the SQLServer name matches the Windows machine name. If you recently installed SQL Server 2008 R2, you do not need to verify that the names match. If you obtained a machine that was renamed after the operating system and SQL Server 2008 R2 were installed, verify and reset the SQLServer server name.

93

VMware, Inc.

Three-Tier Split Installation

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Click Database Engine Query.

3. In the SQL Query pane, type SELECT @@Servername and click Execute.

4. Verify that the resulting SQL Server name matches the Windows machine name.

5. If the SQL Server name does not match the Windows machine name, reset the SQL Server name.

a. In the SQL Query pane, type the following command and replace NewServerName with the server

name.

exec sp_dropserver @@SERVERNAME exec sp_addserver 'NewServerName', 'local'

b. Click Execute.

c. To restart the SQL Server services, click Start and select Programs > Microsoft SQL Server 2008

R2 > Configuration Tools > SQL Server Configuration Manager > SQL Server 2008 R2 Services.

d. Right-click SQL Server and click Restart.

6. Reboot the database server machine.

What to do next

n

Reboot the database server machine.

n

Verify that the SQL Server Agent service account has the SQL Server sysadmin role. See "Verify the

SQLServer Agent Service Account is a sysadmin" on page 94.

Verify the SQLServer Agent Service Account is a sysadmin

The SQL Server Agent service account that runs scheduled jobs in SQL Server must be a sysadmin.

Open SQLServer Management Studio and verify that the account you will use for the SQL Server Agent service account has the sysadmin privilege.

Procedu re

1. Click Start and select All Programs.

2. Click Microsoft SQL Server 2008 R2 and select SQL Server Management Studio.

3. Expand the server, expand Security, expand Server Roles.

4. Double-click sysadmin and view the members of the sysadmin role.

5. Verify that the account to use for the SQL Server Agent service is a member of the sysadmin fixed role.

6. If the account is not a member of the sysadmin fixed role, add this role to the account.

What to do next

Select the SQL Server Agent service account See "Select the SQLServer Agent Service Account" on page 95.

VMware, Inc.

94

vCenter Configuration Manager Advanced Installation Guide

Select the SQLServer Agent Service Account

SQL Server Agent is a service that runs scheduled jobs in SQLServer and runs as a specific user account. Verify that the SQL Server Agent service account that you provided during the SQL Server installation is a SQL Server sysadmin. The SQL Server Agent runs as a user account.

Prerequisit es

n

Verify that the account you provide for the SQL Server Agent service has permission to log on as a service and the required additional permissions. See the online Microsoft Developer Network for more information.

n

Understand the supported service account types for non-clustered and clustered servers. VCM 5.6 supports Active/Active SQL clusters. See the online Microsoft Developer Network for more information.

n

Verify that the account you will use for the SQL Server Agent service account has the sysadmin privilege. See "Verify the SQLServer Agent Service Account is a sysadmin" on page 94.

Procedu re

1. On the VCMdatabase server machine, click Start and select All Programs.

2. Click Microsoft SQL Server 2008 R2 and select Configuration Tools > SQL Server Configuration Manager.

3. Click SQL Server Services.

4. Right-click SQL Server Agent (MSSQLSERVER) and click Properties.

5. On the Log On tab, select a log on option and provide the account information.

Option Description

Built-in account In a single-tier installation, you can select the Local System account,

which has unrestricted access to all system resources. In a split installation environment, do not select the built-in Local System account. This account is a member of the Windows Administrators group on the local machine.

This account In a split installation, the SQLServer Agent must be running as a user

account. Select a Windows domain account for the SQL Server Agent service account.

This option provides increased security. Select this option for jobs that require application resources across a network, to forward events to other Windows application logs, or to notify administrators through email or pagers.

6. Type or select an account name that has the sysadmin privilege.

7. Click OK.

What to do next

Establish SQLServer administration rights. See "Establish SQL Server Administration Rights" on page 95.

Establish SQL Server Administration Rights

Members of the SQLServer sysadmin fixed server role can perform any activity in the server. The user who installs VCM must have SQL Server sysadmin rights.

95

VMware, Inc.

Procedu re

1. Click Start and select All Programs > Microsoft SQL Server 2008 R2 > SQL Server Management Studio.

2. Expand the server instance, select Security and select Logins.

3. Right-click the login ID of the user who installs VCM and select Properties.

4. In the Select a page area, select Server Roles.

5. In the Server roles area, select the sysadmin check box.

6. Click OK to save the settings and close the window.

What to do next

Configure the dedicated Web server. See "Configure the Web Server" on page 96.

Configure the Web Server

The Web server contains Web applications such as IIS and SQL Server Reporting Services (SSRS), other services, and VCM software components. Before you install VCM, you must configure the Web server.

The Windows machine that hosts the Web components must be running Internet Information Services (IIS) 7.5. IIS is installed when you install Windows Server 2008 R2.

Three-Tier Split Installation

The SQL Server license includes SQL Server Reporting Services (SSRS). In your three-tier split installation configuration, when you run SSRS and SQL Server on the same machine, the SQL Server database machine can take on the role of the Report Server (SSRS).

VCM 5.6 supports running SSRS on the Web server or on the database server in a split installation. Depending on the separation of services in your environment, you might want to install SSRS on the Web server machine in a split installation, because SSRS has its own Web server.

If you install SSRS on the Web server, it requires an additional SQL Server license, because you are installing SSRS on a Windows Server 2008 R2 machine that is separate from the SQL Server database services. If you run SQL Server Enterprise Edition, all SQL Server services running in guests on a single virtual machine host are covered by the Enterprise Edition license.

Prerequisit es

n

Perform the prerequisite tasks for your three-tier split installation configuration. See "Three-Tier Split

Installation" on page 86.

n

Place the Web server in the Internet Explorer Trusted Zone so that Internet Explorer can delegate the VCM user's credentials to the Web service for use with SQL Server. See "Place the Web Server in the

Internet Explorer Trusted Zone" on page 100.

n

If the domain firewall is turned on, verify that any required ports are open. If the database server is blocked from communicating with the Collector, problems can occur when you submit jobs. VCM displays an error about the SAS service, and the VCM Debug Event Log displays failures when calling ecm_sp_collector_control.

n

VMware, Inc.

Verify that .NET Framework 3.5.1 is installed on Windows Server 2008 R2 machines where Package Studio will be installed.

Verify that you have an Internet connection to check for patch bulletin updates.

On the Windows Server 2008 R2 Web server machine, verify that the following .NET Framework

96

vCenter Configuration Manager Advanced Installation Guide

components are installed.

n

Windows Process Activation Service

n

Process Model

n

.NETEnvironment

n

Configuration APIs

Procedu re

1. Restart the Web server machine.

2. Click Start and select All Programs > Administrative Tools > Server Manager.

3. Click Roles and verify that the Web Server (IIS) role appears.

4. If the Web Server (IIS) role does not appear, in the Roles Summary area, click Add Roles and add the Web Server (IIS) role.

5. On the Select Server Roles page, select Web Server (IIS) and select the Web Server components to add.

Option Action

Common HTTPFeatures Select these options:

n

Static Content

n

Default Document

n

Directory Browsing

n

HTTP Errors

Application Development Select these options:

n

ASP .NET

n

.Net Extensibility

n

ASP

n

ISAPI Extensions

n

ISAPI Filters

n

Server Side Includes

Health and Diagnostics Select these options:

n

HTTP Logging

n

Request Monitor

Security Select these options:

n

Basic Authentication

n

Request Filtering

Performance Select:

n

Static Content Compression

97

VMware, Inc.

Three-Tier Split Installation

Configuring IIS

To ensure that the Web components are correctly configured, verify that the correct role services are enabled, the bindings are set correctly, and the default Web site is correct.

Verify the IIS 7.5 Role Services are Enabled

Verify that the correct IIS 7.5 Role Services are enabled on the Web server.

Procedu re

1. On the Collector, click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Roles and click Web Server (IIS).

3. If the Web Server (IIS) role does not appear in the list of Roles, scroll to Role Services, click Add Role Services and add the Web Server (IIS) Role.

When you installed IIS, the ASP Role Service, ASP.NET Role Service, and IIS ServerSideIncludes Role Service were installed.

4. In the Web Server (IIS) pane, scroll to Role Services and verify that the status is set to Installed for the following Role Services.

Role Service Cat egory Role Service

Common HTTP Features Static Content

Default Document

Directory Browsing

HTTPErrors

HTTPRedirection

Application Development ASP.NET

.NET Extensibility

ASP

ISAPIExtensions

ISAPI Filters

Server Side Includes

Health and Diagnostics Logging Tools

Request Monitor

Tracing

Security Basic Authentication

Windows Authentication

Digest Authentication

URL Authorization

Request Filtering

IP and Domain Restrictions

VMware, Inc.

Performance Static Content Compression

Dynamic Content Compression

98

vCenter Configuration Manager Advanced Installation Guide

Role Service Cat egory Role Service

Management Tools IISManagement Console

5. If any of the Role Services are not installed, click Add Role Services, select the check boxes of the services to install, and click Install.

Configure the IIS 7.5 Settings

IIS settings configure the information required for requests to communicate with a Web site. To support VCMinteraction with IIS, configure the settings for the IIS 7.5 bindings on the Web server to ensure that the settings are correct.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name>, expand Sites, and click Default Web Site.

3. In the Actions pane, under Edit Site, click Bindings.

IIS Management Scripts and Tools

Management Service

4. Click Add to open the Site Bindings dialog box.

a. In the Type menu, select http.

b. In the IPaddress menu, select All Unassigned.

c. In the Port text box, type 80.

5. In the Site Bindings dialog box, click Close.

6. In the Actions pane, under Manage Web Site and Browse Web Site, click Advanced Settings.

7. Expand Connection Limits and set Connection Time-out (seconds) to 3600.

8. Click OK.

Verify the IIS 7.5 Default Web Site

IIS 7.5 provides a default Web site that defines the default authentication settings for applications and virtual directories. Verify that the IIS 7.5 default Web site has the correct settings.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Internet Information Services (IIS) Manager.

2. Expand <server name>, expand Sites, and click Default Web Site.

3. In the Default Web Site Home pane, locate the IIS options.

4. Double-click Authentication and set the authentication.

Option Action

Anonymous Authentication Set to Disabled.

ASP.NET Impersonation Set to Disabled.

Basic Authentication Set to Enabled.

99

VMware, Inc.

Three-Tier Split Installation

Option Action

Forms Authentication Set to Disabled.

Verify the ISAPI Extensions

The ISAPI Extensions role provides support for dynamic Web content development. You must verify that the role service is installed, and install it if needed.

Procedu re

1. Click Start and select All Programs > Administrative Tools > Server Manager.

2. Expand Server Manager (<server name>) and expand Roles.

3. Click Web Server (IIS).

4. Scroll to Role Services.

5. Locate ISAPI Extensions and verify that the role service is installed.

6. If the role service is not installed, click Add Role Services and add the ISAPI Extensions role service.

What to do next

Place the Web server in the Internet Explorer trusted zone so that Internet Explorer can delegate the VCM user's credentials to the Web service for use with SQL Server. See "Place the Web Server in the Internet

Explorer Trusted Zone" on page 100.

Place the Web Server in the Internet Explorer Trusted Zone

To ensure that Internet Explorer can delegate the VCM user's credentials to the Web service for use with SQL Server, you must place the VCM Web server in the Internet Explorer Trusted Zone.

When the VCM Web server is in the trusted zone, users can disable navigation into the trusted zone from less privileged zones, which reduces the potential of cross-site scripting. When the Web server is not in a trusted zone, the browser cannot authenticate the Web server.

Procedu re

1. Open Internet Explorer.

2. Click Tools and select Internet Options.

3. Click the Security tab.

4. In the Select a zone to view or change security settings area, click Local intranet.

5. Click Sites.

6. In the Local intranet dialog box, click Advanced.

7. In the Add this website to the zone area, type the host name and click Add.

8. Click Close.

9. Click OK and click OK again.

What to do next

Grant the Collector service access to the patch download folder to download patches during Windows patch deployment. See "Access to Patch Download Folder for Windows Patch Deployment" on page 101.

VMware, Inc.

100

VMware vCenter Configuration Manager - 5.6 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

About This Book

VCM Collector and Agent OS Platform Support

Hardware Requirements for Collector Machines

Determine the Size of Your Environment

Identify Your Specific Hardware Requirements

Database Sizing for Managed vCenter Server Instances

Hardware and Disk Requirements By Number of Managed Machines

Software and Operating System Requirements for Collector Machines

Sizing Impacts on Software Requirements

Software Installation and Configuration Overview

VCM Upgrades and Migrations

Preparing for Installation

VCM Installation Configurations

System Prerequisites to Install VCM

Establish Local Administration Rights

Verify Browser Compatibility

Verify the Default Network Authority Account

Verify the SQL Server Service Account

Specify the Collector Services Account

Verify the VMware Application Services Account

Verify the VCM Agent is Not Installed

Verify the SQLXML Version

Configure Resources to Install VCM on a Virtual Machine

Configure the Disk to Install VCM on a Virtual Machine

Configure the CPU to Install VCM on a Virtual Machine

Configure the Memory to Install VCM on a Virtual Machine

Secure Communications Certificates

Authenticating the Server to the Client

Enterprise and Collector Certificates

Delivering Initial Certificates to Agents

Single-Tier Server Installation

Configure a Single-Tier Installation Environment

Verify that the Installing User is an Administrator

Install and Configure a Windows Server 2008 R2 Operating System

Configure the Operating System Locale Settings

Disable the Remote Desktop Session Host

Enable DCOM

Install the .NET Framework

Verify the ASP.NET Client System Web Version

Configuring the Database Components of the VCM Collector

Verify and Configure the SQL Server Properties

Verify Matching SQL Server and Computer Names

Establish SQL Server Administration Rights

Configure the Web Components

Configuring IIS

Verify the ISAPI Extensions

Back Up Your SSRS Key

Disable IE Protected Mode for SSRS

Configure SSRS

Configure Basic Authentication on the Report Server

Configure Kerberos Authentication

Configure the VCM Collector Components

Two-Tier Split Installation

Configuring a Two-Tier Split Installation Environment

Verify that the Installing User is an Administrator

Install and Configure a Windows Server 2008 R2 Operating System

Configure the Operating System Locale Settings

Disable the Remote Desktop Session Host

Enable DCOM

Configuring the VCM Database Server

Disable the Firewall or Add an Exception for SQL Server Port 1433

Install SQL Server on the Database Server

Verify and Configure the SQL Server Properties

Verify Matching SQL Server and Computer Names

Establish SQL Server Administration Rights

Configure the Combined VCM Collector and Web Server

Install the .NET Framework

Configure the Web Components

Installing and Configuring SSRS on the Combined VCM Collector and Web Server

Configure Kerberos Authentication

Configure the VCM Collector Components

Three-Tier Split Installation

Configuring a Three-Tier Split Installation Environment

Verify that the Installing User is an Administrator

Install and Configure a Windows Server 2008 R2 Operating System
