SAFETY INSTRUCTION
! General
Always use a seat belt, and keep your feet on the
scooter all the time.
Never operate the scooter while you are under the
influence of alcohol.
Never use electronic radio transmitters such as
walkie-talkies, or cellular phones.
Make sure that there are no obstacles behind you
while reversing your scooter.
Do not make a sharp turn or a sudden stop while
riding your scooter.
Do not ride your scooter in traffic.
www.vitamobilitywerks.com
4
Do not attempt to climb curbs greater than
limitation show on Technical Specification
Do not leave your hands and legs off the scooter
when driving.
Do not ride your scooter during snow in order to
avoid accident on slippery road.
Do not allow unsupervised children to play near
this equipment while the batteries are charging.
! Warning – Don’t operate your scooter for the first time without completely reading and
understanding this user manual.
1. Don’t operate scooter on public streets and roadways. Be aware that it may be difficult for
traffic to see you when you are seated on the scooter. Obey all local pedestrian traffic rules.
Wait until your path is clear of traffic, and then proceed with extreme cautions.
2. To prevent injury to yourself or others, always ensure that the power is switched off when
getting on or off of the scooter.
3. Always check that the drive wheels are engaged (drive mode) before driving. Do not switch off
the power when the scooter is still moving forward. This will bring the chair to an extremely
abrupt stop.
4. Do not use this product or any available optional equipment without first completely reading
and understanding these instructions. If you are unable to understand the warnings, cautions or
instructions, contact a healthcare professional, the dealers or technical supports before
attempting to use this equipment, otherwise, injury or damage may occur.
5. There are certain situations, including some medical conditions, where the scooter user will
www.vitamobilitywerks.com
5
need to practice operating the scooter in the presence of a trained attendant. A trained attendant
can be defined as a family member or care professional especially trained in assisting a scooter
user in various daily living activities. Consult with your physician if you are taking any
medication that may affect your ability to operate your scooter safely.
6. Do not attempt to lift or move a power scooter by any of its removable parts including the
armrests, seats or shrouds. Personal injury and damage to the power chair may result.
7. Never try to use your scooter beyond its limitations as described in this manual.
8. Please do not sit on your scooter while it is in a moving vehicle.
9. Keep your hands away from the wheels (tires) while driving scooters. Be aware that loose
fitting clothing can become caught in the drive tires.
10. Consult your physician if you are taking prescribed medication or if you have any certain
physical limitations. Some medications and limitations may impair your ability to operate
scooters in a safe manner.
11. Be aware when the drive mode is unlocked or locked.
12. Don’t remove anti-tipper if there is any-tipper equipped with the scooter.
13. Contact with tools can cause electrical shock and do not connect an extension cord to the
AC/DC converter or the battery charger.
14. Do not attempt to lift or move your scooter by any of its removal parts, such as the armrests,
seats, or shroud.
15. When climbing an incline, don’t drive at an angle up the face of the incline. Drive your scooter
straight up the incline. This greatly reduces the possibility of a tip or a fall.
16. Don’t climb a slope steeper than the scooter’s limitation.
17. Don’t attempt to have your scooter proceed backward down any step, curb or other obstacle.
This may cause the scooter to fall or tip.
18. Always reduce your speed and maintain a stable center of gravity when cornering sharply.
Don’t corner sharply when driving scooters at higher speeds.
19. Operating in rain, snow, salt, mist conditions and on icy or slippery surfaces may have an
adverse affect on the electrical system.
20. Never sit on your scooter when it is being used in connection with any type of lift or elevation
product. Your scooter is not designed with such use in mind and any damage or injury incurred
from such use is not the responsibility of VMW.
! Modifications
Vita Mobility Werks has designed and engineered power scooters to provide maximum utility.
However, under no circumstances should you modify, add, remove, or disable any part or function
of your power scooter. Personal injury and damage to the power chair may result.
1. Do not modify your power scooter in any way not authorized by VMW. Do not use accessories
if they have not been tested or approved for VMW products.
2. Get to know the feel of your power scooter and its capabilities. VMW recommends that you
www.vitamobilitywerks.com
6
perform a safety check before each use to make sure your scooter operates safely.
! Inspections prior to using your power scooter:
1. If equipped with pneumatic tires, please check for proper tire inflations.
2. Please check all electrical connections and make sure they are tight and not corroded.
3. Please check all harness connections and make sure they are secured properly.
4. Please check the brakes.
! Weight limitation.
1. Please refer to the specifications table for weight capacity information. Power scooter is rated
for a maximum weight capacity.
2. Stay within the specified weight capacity for your scooter. Exceeding the weight capacity voids
your warranty. VMW will not be held responsible for injuries or property damage resulting
from failure to observe weight limitations.
3. Don’t carry passengers on scooters. Carrying passengers on scooter may affect the center of
gravity, resulting in a tip or a fall.
! Tire inflation
1. If your scooter is equipped with pneumatic tires, it is necessary to check the air pressure at
least one time a week.
2. Proper inflation pressures will prolong the life your tires and ensure the smooth operation
while riding.
3. Do not under-inflate or over-inflate your tires. It is critically important that 30-25 psi (2-2.4bar)
tire pressure be maintained in pneumatic tires at all times.
4. Inflating your tires from an unregulated air source could over-inflate them, resulting in a burs
tire.
! Temperature
1. Some of the parts of the power scooter are susceptible to change in temperature. The controller
can only operate in temperature that ranges between -25 ~ 50.
2. At extreme low temperatures, the batteries may freeze, and your power scooter may not be
able to operate. In extreme high temperatures, it may operate at slower speeds due to a safety
feature of the controller that prevents damage to the motors and other electrical components.
ELECTROMAGNETIC INTERFERENCE (EMI)
,-./01234/4.5.6728.9:/7;/.6.<:0793<=>/.=2.<3166?/39/:-./10.1/7;/<788@93<1:379=>/-1=/=1:@01:.4/7@0/
.9530798.9:/A3:-/.6.<:0781B9.:3</CDEF/01437/A15.=/:-1:/10./.83::.4/G?/:.6.53=379>/01437/194/
<788@93<1:379/=3B916="/,-.=./DE/A15./10./3953=3G6./194/:-.30/=:0.9B:-/39<0.1=.=/1=/79./122071<-/
www.vitamobilitywerks.com
7
:-./=7@0<."/H66/.6.<:03<16/<794@<:70=/1<:/1=/19:.991=/:7/:-./DE/=3B916=/194>/:7/510?39B/4.B0..=>/166/
27A.0/A-..6<-130=/194/=<77:.0=/10./=@=<.2:3G6./:7/.6.<:0781B9.:3</39:.0;.0.9<./CDEIF"/,-./
39:.0;.0.9<./<7@64/0.=@6:/39/1G970816>/@939:.9:37916/875.8.9:/194J70/.001:3</<79:076/7;/:-./
5.-3<6."/,-./K93:.4/L:1:.=/M774/194/40@B/H48393=:01:379/CMNHF/=@BB.=:=/:-1:/:-./;7667A39B/
=:1:.8.9:/G./39<702701:.4/:7/:-./@=.0O=/819@16/;70/166/27A.0/=<77:.0/63P./:-./E9"/Q7A.0/=<77:.0=/
81?/1=/=@=<.2:3G6./:7/.6.<:0781B9.:3</39:.0;.0.9<./CDEIF>/A-3<-/3=/39:.0;.039B/.6.<:0781B9.:3</
.9.0B?/.83::.4/;078/=7@0<.=/=@<-/1=/01437/=:1:379=>/,R/=:1:379=>/181:.@0/01437/CSHTF/:019=83::.0>/
:A7UA1?/01437=>/<.66@610/2-79.=/194/16108/=?=:.8=/7;/=-72="/,-./39:.0;.0.9<./C;078/01437/A15./
=7@0<.=F/<19/<1@=./:-./27A.0/=<77:.0/:7/0.6.1=./3:=/G01P.=>/875./G?/3:=.6;/70/875./39/@939:.94.4/
430.<:379="/I:/<19/16=7/2.0819.9:6?/4181B./:-./27A.0.4/=<77:.0O=/<79:076/=?=:.8"/,-./39:.9=3:?/7;/
:-./DE/.9.0B?/<19/G./8.1=@0.4/39/576:=/2.0/8.:.0/CRJ8F"/D1<-/27A.0.4/=<77:.0/<19/0.=3=:/DEI/@2/
:7/1/<.0:139/39:.9=3:?"/,-3=/3=/<166.4/V388@93:?/6.5.6W"/,-./-3B-.0/:-./388@93:?/6.5.6/:-./B0.1:.0/:-./
207:.<:379"/H:/:-3=/:38.>/<@00.9:/:.<-9767B?/3=/<121G6./7;/20753439B/1:/6.1=:/#+/RJ8/7;/388@93:?/
6.5.6>/A-3<-/A7@64/207534./@=.;@6/207:.<:379/1B139=:/<78879/=7@0<.=/7;/01431:.4/DEI"/
/
Following the warnings listed below should reduce the chance of unintended brake release or
powered scooter movement that could result in serious injury:
1. Do#not#turn#on#hand+held#personal#communication#devices#such#as#citizens#band#(CB)#radios#and#
cellular#phones#while#the#powered#scooter#is#turned#on.#
2. Be#aware#of#nearby#transmitters#such#as#radio#or#TV#stations#and#try#to#avoid#coming#close#to#
them.#
3. If#unintended#movement#or#bra ke #releas e#occ urs ,#turn#th e#po w ere d#sc oote r#off#as#soo n#as #it#is#
safe.#
4. Be#aware#that#adding#accessories#or#components,#or#modifying#the#powered#scooter,#may#make#it#
more#susceptible#to#interference#from#radio#wave#sources#(Note:#It#is#difficult#to#evaluate#the#
effect#on#the#overall#immunity#of#the#powered#scooter).#
5. Report#all#incidents#of#unintended#movement#or#brake#release#to#the#powered#scooter#
manufacturer,#and#note#whether#there#is#a#radio#wave#source#nearby.#
TURN OFF YOUR POWERED SCOOTER AS SOON AS POSSIBLE WHEN EXPERIENCING
THE FOLLOWING:
" Unintentional scooter movements
" Unintended or uncontrollable direction.
" Unexpected brake release
The FDA has written to the manufacturers of power scooters asking them to test new products to be
sure they provide a reasonable degree of immunity against EMI. The FDA requires that a powered
wheelchair should have an immunity level at least 20 V/m, which provides a reasonable degree of
protection against more common sources of EMI. The higher the immunity level the greater the
protection. Your powered scooter has an immunity level of 20 V/m that should protect against
www.vitamobilitywerks.com
8
common sources of EMI. Warning: The scooter itself can disturb the performance of the
electromagnetic fields such as emitted by alarm systems of shops
TECHNICAL SPECIFICATIONS
MODEL
V8
WEIGHT CAPACITY
400 lbs
SEAT: TYPE/SIZE
20" A2
DRIVE WHEEL
13"x4" V8X 14” X 6.5”
FRONT CASTER (WHEEL)
13"x4"
REAR CASTER (ANTI-TIPPER)
None
MAX SPEED
8MPH
BATTERY SPECIFICATIONS
12V 50Ah x 2pcs or 12V 62Ah x
2pcs(Optional)
BATTERY RANGE
22 miles/28 miles
CHARGER TYPE
5Amp,Off Board120/240 Volt,50/60Hz
CONTROLLER TYPE
S-Drive 120 Amp
MOTOR TYPE
700W 4-POLE MOTOR
WEIGHT: W/ BATTERY
238 lbs
WEIGHT: W/O BATTERY
176 lbs
TURNING RADIUS
45.6"
SUSPENSION
FULL
LENGTH
62”
WIDTH
28”
HEIGHT
53”
SEAT WIDTH
20”
SEAT HEIGHT
18”
SEAT DEPTH
19”
BACK HEIGHT
30”
WHEEL BASE
38”
GROUND CLEARANCE
5”
LEG ROOM
16”
www.vitamobilitywerks.com
9
COMFORT ADJUSTMENT
Adjustments for Seating Comfort:
Driving and Braking
You can use the lever to control the forward speed and the reserve speed of your scooter.
Please refer to the following instruction to move forward/backward your scooter.
" Use your right finger to pull back on the right side of the throttle lever in order to move
forward.
" Use your left finger to push the left side of the throttle lever in order to move forward.
" Use your left finger to pull back on the left side of the throttle lever in order to move
backward.
" Use your right finger to push the right side of the throttle lever in order to move backward.
Press the bottom to adjust
the height of the headrest.
Adjust the seat back lever
for seating back angle.
The flip-up armrest height
can be adjusted by turning
the adjustment dial.
# Turn the swivel lever downwards to rotate the seat.
# Push the front lever upwards to move the seat forward
and backward.
# Rotate the seat to the desired position.
# Make sure the seat stays straight ahead while the
scooter is in motion.
www.vitamobilitywerks.com
10
# Release the throttle lever and then allow your scooter to come to a complete stop.
# Hand brake system available. (Optional)
# The automatic brake will become activated if the transferring speed is more than 30% of
the maximum speed while the scooter is driving down-slope at free-wheel mode.
WARNING !
Move forward
Move backward
*Optional hand brake lever
Disengaged
(Free Wheel)
Engaged
$ Please be noted that the scooter will be at free-wheel
mode, when the motor is disengaged.
$ To use the parking brake, you must move and lock
the lever into the engaged position!
$ When your power scooter is in freewheel mode, the
braking system is disengaged!
$ Stand to the side of the scooter to engage or
disengage freewheel mode. Never sit on a scooter to
do it!
www.vitamobilitywerks.com
11
Tiller Positioning
" Press down the lever and adjust it into your preferred position.
" Never attempt to adjust the tiller while the scooter is in motion.
" Make sure the tiller is at a comfortable setting and located securely.
www.vitamobilitywerks.com
12
OPERATION AND CONTROL PANEL
1. Control Panel Layout
LCD（Liquid Crystal Display）Power Scooter Control Panel, TN Type
Function & Adjustment Buttons
LED
LCD Screen
LED
Right Indicator
Headlight
Parking Indicator
Left Indicator
Right Indicator control
Parking lamp control
MODE button
Headlight control
Horn Button
Left Indicator control
SET button
Position Light control
High / Low speed control
Warning Indicator
Position Light
www.vitamobilitywerks.com
13
2. Functions
2-1 Function Descriptions
FUNCTION
SPECIFICATION
1
Temperature
“°C” / “°F” modes
2
Clock
Hour / Minute display and setting
3
Odometer
Trip Meter
ODO (99999 max), TRIP (999.9 max)
Sum of distance and time
4
Speedometer
7 Segment display (2 1/2 digits +1 decimal)
“km/h” and “mph” symbol
5
High /Low Speed
& Turn Status
Indicated as icon and
6
Power Indicator
Battery remaining capacity and charging indicator
(6 squares + Battery icon)
7
Headlight
Blue LED
Including “Power-Saving” mode
8
Position Light
Orange LED
Placed inside headlight, used while rainy or gloomy weather
9
Brake Light
Including “Brake-Mode” and “Parking Mode”
10
Left-Right Direction
Indicators
Green LED
Flash mode
Auto switch-off after 30 seconds
11
Parking Light
Red LED
Including “Parking Mode”
Right/Left indicators flash simultaneously
12
Malfunction Messages
Red LED
Malfunction code:
7 Segment display (1digit) + warning symbol
13
Power-On-Self-Test
All LED illuminated
www.vitamobilitywerks.com
14
2-2 Buttons & Indicators
ITEM
DESCRIPTION
LED Indicators
Left-Indicator (Green)
Right- Indicator (Green)
Position Light (Amber)
Headlight (Blue)
Warning Indicator (Red)
Parking Indicator (Red)
LCD Backlight
Illumination: 700 mcd min (Orange color)
Connecter
CON1: 20PIN
3. Usage Conditions
ITEM
SPECIFICATION
Voltage
DC 24 V
Operation Voltage
DC 16 ~32 V
Storage Temperature
-40°C ~ 90°C
Operation Temperature
-25°C ~ 55°C
Meter Angle
at Handle Cover
30° of elevation while scooter assembly
(LCD orientate to 6 o’clock)
Function & Adjustment Buttons:
www.vitamobilitywerks.com
15
4. Characteristics Test
General Characteristic Performance Test (20 ± 5)
Hardware Circuit:
ITEM
SPECIFICATION
RESULT (n = )
Lowest Operation Voltage
16V max
V
Consuming Current
(VB = 24.0V)
Dynamic: 200 mA max
(backlight and all of LED illuminated)
Static: 5 mA max
(Key Off status)
MA
mA
5. Operation of Control Panel
5-1. Temperature Meter
ITEM
DESCRIPTIONS
Operation Feature
Temperature sensor (NTC) detects and transfers the signal to a temperature
value.
Tolerance
± 2°C
Working Mode
Press to switch to TEMP-Mode:
* Display Range : -20°C ~50°C / -4°F ~122°F
www.vitamobilitywerks.com
16
ITEM
DESCRIPTIONS
Setting Mode
(Unit Switch)
# Press + for more than 2 seconds to enter
Setting-Mode, and the backlight illuminates in the meantime.
# When “°C” or “°F” flashing, press to switch °C / °F.
Exit
Setting Mode
Under Setting-Mode, when
1) idle for more than 20 seconds,
2) press + for more than 2 seconds,
the system will save the last setting value automatically and back to
Working-Mode.
5-2. Clock
ITEM
DESCRIPTIONS
Tolerance
±2 sec. (per day)
Initial
Setting Value
『Hour：Min』mode :『AM 12:00』
Working Mode
Press to switch to CLOCK-Mode:
AM
PM
# Display Range : AM12:00 ~ PM11:59
During 1 to 9 o’clock, “0” of tens on Hour digits won’t show on LCD.
www.vitamobilitywerks.com
17
ITEM
DESCRIPTIONS
Setting Mode
(Time Switch)
Press + for longer than 2 seconds to enter Setting-Mode,
the backlight illuminates in the meantime.
1) When “Hour” digit is flashing, press to increase the number, and
then press into “Min” setting mode.
2) When “Min” digit is flashing, press to increase the number, then
press back to “Hour” setting mode.
# If press for longer than 2 seconds, the number will increase
continually till the button released.
# The setting value runs cyclically (only 2 sec. from 0 to 9)
Exit Setting Mode
Under Setting-Mode, when
1) idle for longer than 20 seconds
2) press + for longer than 2 seconds,
the system will save the last setting value automatically and back to
Working-Mode.
5-3. Odometer
ITEM
DESCRIPTIONS
Operation Features
OptoCoupler sensor detects the signal and then converts into a distance value.
Units Switch
When speedometer was set as
「km/h」, the odometer displays as kilometer.
「mph」, the odometer displays as mile.
「/h」, means the odometer is displaying as travel hours.
www.vitamobilitywerks.com
18
ITEM
DESCRIPTIONS
ODO Mode
Press switching to『ODO』mode
km
/h
mph
# Display Range:00000~99999
# When the total distance ran to 99999km or 62149mile (99999÷1.609mile), the
digits will be reset to zero “00000”.
TRIP Mode
Press switching to『TRIP』mode
# Display Range:0.0~999.9
# When the distance goes to 999.9, the counter will stop, please press
for 3 seconds to reset to zero “0.0”.
www.vitamobilitywerks.com
19
5-4. Speedometer
ITEM
DESCRIPTIONS
Operation Features
OptoCoupler sensor detects the signal and then converts into a speed value.
When drive shaft runs at 2100 rpm, speedometer will display “60km/h”.
Tolerance
+15~20%
Digits range
0.0 ~ 30.0 Display Rate：0.5
Setting Mode
(Units Switch)
# Press + for longer than 2 seconds to enter
Setting-Mode, backlight illuminates in the meantime.
# When 『km/h』 / 『mph』/ 『/h』are flashing, press to switch
the unit.
www.vitamobilitywerks.com
20
ITEM
DESCRIPTIONS
Working Mode
Press to enter 『SPEED』mode
km
/h
mph
# 「km/h」means the speed is counted as kilometer.
「mph」means the speed is counted as mile.
# When SPEED was set on “km/h” or “mph”, even the waiting screen is not
SPEED mode; LCD will switch to SPEED mode when WIP (accelerator) is
acting, and back to previous waiting screen automatically once WIP
(accelerator) stopped.
# When SPEED was set on “/h”, speedometer will be disabled (fit to
non-speedometer model) and replaced by WIP (accelerator) operation screen.
Forward Backward
# When SPEED was set on “/h”, LCD won’t switch automatically to SPEED
mode from another screen while WIP acted.
www.vitamobilitywerks.com
21
ITEM
DESCRIPTIONS
Exit Setting Mode
Under setting mode, when
1) Idle for 20 seconds
2) Press + for longer than 2 seconds,
The system will save the last setting value automatically and back to
Working-Mode.
5-5. High/Low Speed & Turn Indicators
ITEM
DESCRIPTIONS
Operation Features
# Press to switch High / Low speed.
(*Control signals: TRN, with memory storage)
# Take exterior turn-switch as determinant signal
(*Control signals: TRN)
Symbols of Status
High Speed:
Low Speed:
Turn Status: (Flashing)
Flicker Frequency
1 second
www.vitamobilitywerks.com
22
5-6. Power Indication
ITEM
DESCRIPTIONS
Battery Remaining
Capacity
Remaining
Capacity (%)
Scale Bar
100
(6)
85
(5)
70
(4)
55
(3)
40
(2)
30
(1)
and icon is flashing
20
Warning LED is flashing
Flicker
Frequency
2 seconds
Operation
Characters
# The scale status only decreases, won’t increase.
# When the remaining capacity was less than 30%, warning sound (“Bi-Bi” - two
short sounds) act at 1second intervals.
# While (1) Key OFF (2) Charging-Mode (3) Sleep-Mode, the warning sound
will be released.
www.vitamobilitywerks.com
23
ITEM
DESCRIPTIONS
Charge Indication
Remaining
Capacity (%)
Scale Bar
40
(2)
55
(3)
70
(4)
80
(5)
90
(6)
100
(7)
Increase
Frequency
0.5 second
Operation
Character
# Scale status only decreases, won’t increase.
# Take the PIN3(CH3) of charger as the determinant signal, when CH3 is grounded (L),
LCD will enter Charging-Mode, not limited by “KEY ON” or “KEY OFF”.
# Any pressing of button will illuminate LCD backlight, and switch off automatically if
no more pressing after 5 seconds.
Remarks
Above scale bar status only for reference, the accurate diagnosis is still subject to the
indicator of charger.
www.vitamobilitywerks.com
24
5-7. Headlight
ITEM
DESCRIPTIONS
Operation Feature
Take exterior headlight switch as determinant signal.
# Press button to switch on/off LED .
# LCD backlights will be turned on/off when headlight switching on/off.
Power Saving Mode
# When motor is resting, power modulate down to 30% (Headlight)
# When motor acts, power modulate up to 100% (Headlight)
Usage Condition
While (1) KEY OFF (2) Power-Saving Mode (3) Sleep-Mode, the function will
be disabled.
Determinant
Condition
# Power-Saving % Full-Power : React immediately
# Full-Power % Power-Saving : 5 sec delay
Remarks
(1) Loop Load: 24V/50W max
(2) With “short circuit” and “overload” protection
5-8. Position Light
ITEM
DESCRIPTIONS
Operation Feature
Take exterior position-light switch as determinant signal.
# Press button to switch on/off LED .
# LCD backlights will be turned on/off when back-up lamp switching
on/off.
Usage Condition
While (1) KEY OFF (2) Power-Saving Mode (3) Sleep-Mode, the function
will be disabled.
Remarks
(1) Loop Load: 24V/50W max
(2) With “short circuit” and “overload” protection
www.vitamobilitywerks.com
25
5-9. Brake and Reversing Light
ITEM
DESCRIPTIONS
Operation Feature
Take exterior WIP / RBK / Headlight / Back-up lamps switch as determinant
signal.
Control Mode
# Judge to be “Brake” or “Handbrake” state, when WIP (accelerator) signal
changed from actuated to neural position, and will recover automatically
after 3 seconds (Brake-Light Mode).
# Judge to be “Reverse” state, the brake light flashes (Reversing-light Mode)
# When the headlight and position light was turned on/off, and the brake light
will be turn on/off simultaneously.
Usage Condition
While (1) controller closed (2) Charging-Mode, the function will be disabled.
Determinant
Condition
# Parking status is adjusted by “motor direction” and “controller”
# Warning sound of parking was managed by controller
Remarks
(1) Loop Load: 24V/50W max
(2) With “short circuit” and “overload” protection (electric type)
Flicker Frequency
1 second
www.vitamobilitywerks.com
26
5-10. Direction Indicators and Parking Light
ITEM
DESCRIPTIONS
Operation
Feature
Take exterior left-right direction indicators and parking lamp switch as the
determinant signal.
(Control Mode)
Left-direction lamp
Right-direction lamp
Parking lamp
Press button once, the left-indicator start to flash, and the
warning sound act simultaneously, then press button again to switch off the
indicator.
Press button once, the right-indicator start to flash, and the
warning sound act simultaneously, then press button again to switch off the
indicator.
Press button once, the right /left/ park indicators
start to flash, warning sound act, then press button again to turn off
above indicators.
Usage Condition
While (1) KEY OFF (2) Charging-Mode (3) Sleep-Mode, the function will
be disabled.
Flicker Frequency
1 second
Warning Sound Frequency
One short “Bi” sound per second
Determinant Condition
Left-Right indicators have priority to Parking lamp.
<Ex.>
If “Parking lamp” turned on already, now you start “Right indicator” function, the
flashing indicator lamps will change from both side (left & right) to right side, and
the “Parking lamp” function will be closed.
Remarks
(1) Load circuit for left-direction light: 24V/50W max
(2) Load circuit for right-direction light: 24V/50W max
(3) With “short circuit” and “overload” protection
www.vitamobilitywerks.com
27
5-11. Malfunction Messages
ITEM
DESCRIPTIONS
Operation Feature
Take the connector pin (KEY) of controller as determinant signal, then converts
it into digital code.
Usage Condition
When the controller send out an error message, warning indicator start
flashing with controller signal at same time, the “Error message code” will show
on LCD screen.
5-12. Power-On-Self-Test
ITEM
DESCRIPTIONS
Initial Status
When scooter power on, the control panel will take a self-test first; the backlight
and all LCD segments will be tuned on for 3 seconds, then switch automatically
to the default working mode.
LCD Backlight
When press + buttons, the LCD backlight will illuminate
and turn off automatically if the button doesn’t be operated for longer than 5
seconds.
www.vitamobilitywerks.com
28
CHARGING INTRUCTIONS
Battery Charger Instruction
5A
www.vitamobilitywerks.com
29
2. SPECIFICATION
Item
BATTERY CHARGER (SWITCHING MODE)
Model
4F24050
Output Current(DC)
5A
Charging Voltage(DC)
28.8V
Floating Voltage(DC)
27.6V
Input Current (AC)
4/2 A
Input Voltage(AC)
115 Vac Or 230 Vac 50/60 Hz (Manual Select)
Efficiency
AC-DC 80% min
Operating Temperature
32°F ~ 104°F
Performance
Switching Mode
Charging Method
Constant current two stage constant voltage
Battery Application
24V Lead Acid Rechargeable Battery (20Ahr ~ 60Ahr)
Output Detection
1. Short Circuit Protection
2. Output Voltage/ Current Limit
3. Reverse Power Protection
4. Overheat Detection
Operating Temperature
32~ 104 Degree (Fahrenheit)
Measure
L 7.5”×W 4”×H 2”
Weight
2.1 lbs
Color
Black
www.vitamobilitywerks.com
30
3.OPERATING INSTRUCTION
% Manual adjust the correct input voltage (115V/230V)
% Connect the plug of battery charger to the socket of battery.
% Plug in the power cord. Turn the power on. Normally, the LED (Power) light will turn on
when electric current passes.
% Charging starts. During charging, LED (Charge) will indicate Orange Light, when it turns to
Green Light, that means well-charged.
4. LED INDICATION
% LED (POWER)-GREEN LIGHT ON: POWER ON
% LED (CHARGE)-ORGANGE LIGHT ON: CHARGING
% GREEN LIGHT ON: FULLY CHARGED
5. TROUBLE SHOOTING
(1) If LED (POWER) light is off
% Check the input voltage (115V/230V) is the same as you adjust.
% If light is still off, please check and repair the battery charger.
(2) If LED (CHARGE) light is off
% Check to see the clips connections is correct.
% If the battery is fully charged, the LED (CHARGE) light will be off.
% If light is still off, the battery may be defective.
(3) If ORANGE light cannot turn to GREEN
% The battery can’t be charged. Please check and recover it.
(4) If ORANGE LIGHT turns to GREEN LIIGHT immediately.
% Check to see the battery is fully charged. If not, the battery may be defective. Check and
recover it.
6. CAUTION
(1) To prolong charger life, do not connect the short output for long time.
(2) Through charger change automatically and can be used for deeply discharged battery, do not
use for extremely discharged, short aged and defective battery.
(3) Use the charger in a well-ventilated area.
(4) Use for LEAD ACID batteries 12V (13-60 Amp-Hr.) * 2 only.
(5) Do not use for voltage input except the specified. (Make sure your present voltage input (115V
or 230 V) and adjust manually)
(6) Before using the battery charger, read all instructions and cautionary markings.
(7) Use the battery charger in a well-ventilated area
(8) To avoid the risk of injury, charge only lead-acid or gel cell type rechargeable batteries.
(9) Please turn off the power after charging
www.vitamobilitywerks.com
31
(10) Plug the off-board charger power cord into the charger port during battery charging.
WARNING !
$ Always charge your batteries in well-ventilated areas.
$ The charger is intended for indoor use only. Please protect it from the moisture.
$ For maximum performance, it is recommended that you replace both batteries at the same time
if the batteries are weak.
$ If the scooter will not be used for a long period of time, arrange to have the batteries recharge
at least once every month to avoid deterioration of the batteries.
$ Can we use a different charger? Please understand that chargers are selected specifically for
particular applications and matched to the type and size of specific batteries. In order to charge
your scooters safely and efficiently, we recommend use of the charger supplied as original
equipment with your VMW product only. Any charging method resulting in batteries being
charged individually is prohibited.
Off-Board Charger Port
The off-board charger port is mounted
on the tiller.
www.vitamobilitywerks.com
32
BATTERY INSTRUCTION & MAINTENANCE
# Read through the charger operating instruction before using it.
# If you use your scooter every day, please charge its batteries as soon as you finish using it for
the day. Your scooter will be ready each morning.
# Avoid deeply discharging your scooter’s batteries.
# Charge the battery at least 24 hours a week if the power chair or scooter has not been used.
(This is to make sure that the electrolyte is always at the top level)
# If the battery cannot be charged (Orange light cannot turn to Green) or if the Orange light turns
to Green immediately, please check it with the technicians. The battery may be defective.
# The voltage difference between the two batteries on a power unit cannot be more than 0.5 V; the
battery case should be inspected for cleanliness and evidence of damage.
# If the charger indicates red light, please kindly check if the charger is defected or if the cable
wiring connection is poor.
# Please keep the battery Θand connectors clean otherwise the charging condition will be poor.
To Change the batteries in your scooters:
# Remove the battery cover and captain seat.
# Unfasten the battery tie-down strap.
# Disconnect the battery harnesses properly.
# Disconnect the battery cables from the battery terminals.
# Remove the old batteries from the battery wells.
# Place a new battery in each battery well.
# Connect the red battery cable to the positive (+) battery terminal and then connect the black
battery cable to the negative (-) battery terminal.
# Reposition the terminal boots over the battery terminals.
# Reconnect the battery tie-down strap.
# Reinstall the battery cover and seat back to the scooter.
www.vitamobilitywerks.com
33
WARNING!
$ If you hand is wet or sweaty, Do NOT replace the batteries.
$ Please always use two batteries of the same type at the same amp-hour capacity.
$ Always replace both batteries at the same time. Please do not mix old and new batteries
together.
Wheel Replacement
WARNING! Wheels should be replaced by an authorized dealer or qualified technician
in a workshop.
# Please refer to the following illustration for quick and safe wheel replacements.
# Remove the key from the power switch.
# Elevate the side of the scooter of which you want to remove the tires. Please ask the authorized
dealer or qualified technician for extra help while elevating the scooter.
# Remove the related nut, washers and hub from the axle (Please see figure below)
# Please pull the tire off the inside/outside rim properly.
# Slide the new tire back into the inside/outside rim properly.
# Put the tire back onto the axle and tighten the drive wheel nut and washers onto the axle.
Battery Cable
Battery harnesses
Battery Terminal
www.vitamobilitywerks.com
34
SCOOTER MAINTENANCE & REPAIR
Your power scooter is designed for minimal maintenance. However, like any motorized vehicle it requires
routine maintenance. To keep your power scooters or power wheelchairs for years of trouble-free operation,
we recommend you follow the following maintenance checks as scheduled.
Maintenance Job
Daily
Weekly
Monthly
Semi-Annual
Electrical System
$ Battery meter – Inspect the battery meter to
determine if batteries are needed to be re-charged
$ Controller / Display panel – Make sure they are not
frayed or have any exposed wiring
$ Check all plug & wiring connections for firm
condition
$ Have the batteries been fully charged before the
daily operation
$ Are all holder and screws firmly fixed and safe?
$ Are all electric lighting system (if applicable) in
working order
Tyres & Wheels
$ Have pneumatic tyres checked for necessary air
pressure
$ Front & Rear wheels must be able to spin smoothly
without any interference
$ Rear & Front wheels must spin without wobbling
$ Visually inspect the tire tread. If it is less than
1/32”, please have your tires replaced by your local
dealer.
Others
$ Motor brushes. We recommend that your
authorized dealer inspect the brushes every
six-month if your power scooter or power
wheelchair is not operating smoothly. If the
inspection determines excessive motor bushes worn
out, they must be replaced otherwise the motor
damage will result.
www.vitamobilitywerks.com
35
WARNING! Failure to maintain the brushes could void the power scooter
warranty.

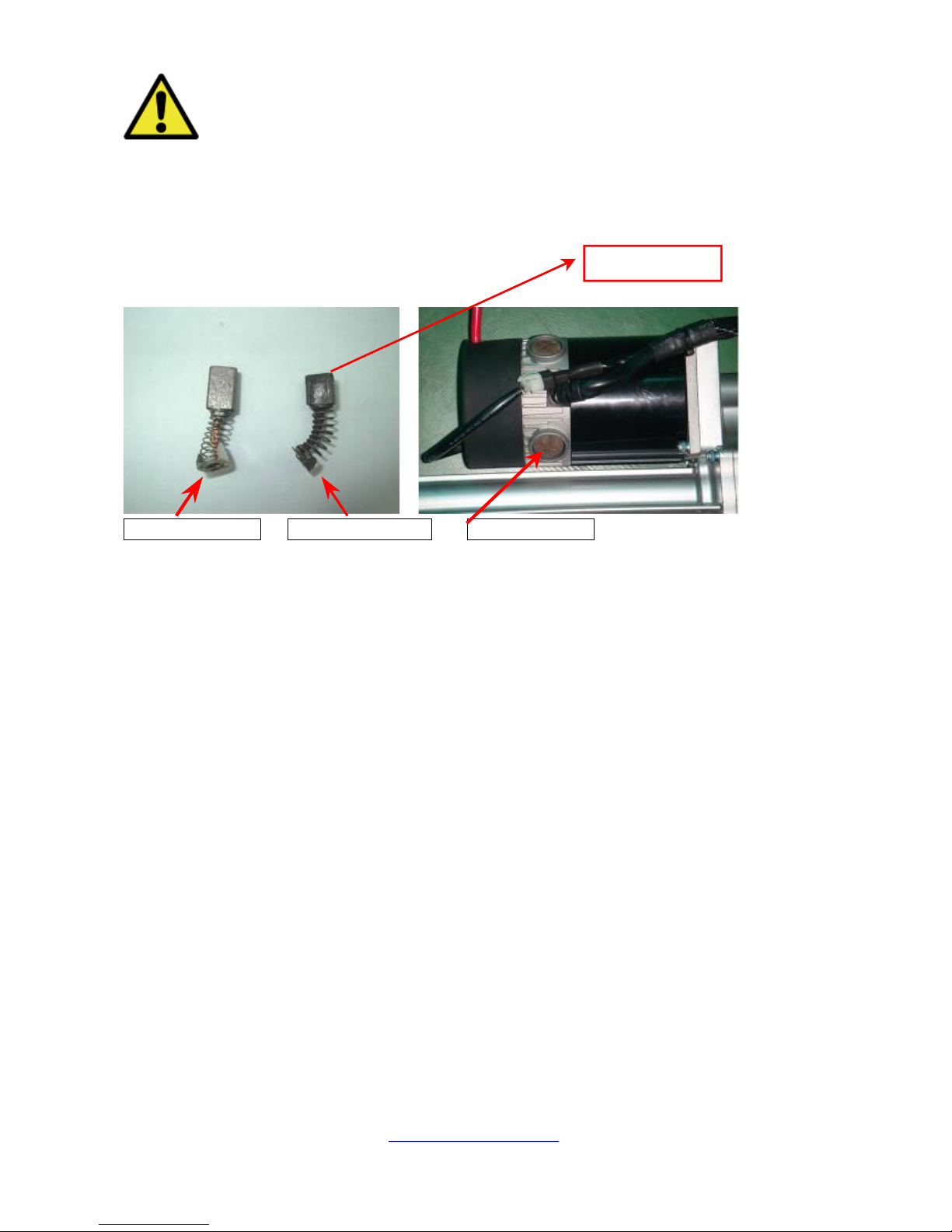

To inspect or replace the motor brushes:
1. Unscrew the motor brush caps.
2. Remove the brushes.
3. Inspect the brushes for wear.
4. Replace the brushes if necessary.
New Motor Brush Worn Motor Brush Motor Brush caps
Inspect the state of the battery terminals every six months. Make sure that they are not corroded and
the connections are tight. Periodically apply a thin film of petroleum jelly on the surface of
terminals to guard against corrosion.
CHECKS & REMINDER:
# Make sure to keep the controller clean while protecting it from rain or water. Never hose off
your power scooter or place it in direct contact with water.
# Keep wheels free from lint, hair, sand and carpet fibers.
# All upholstery can be washed with warm water and mild soap. Occasionally check the seat and
back for sagging, cuts and tears. Replace if necessary. Do not store your scooter in damp or
humid conditions as this will lead to mildew and rapid deterioration of the upholstery parts.
# All moving mechanism will benefit from simple lubrication and inspection. Lubricate using
petroleum jelly or light oil. Do not use too much oil, otherwise small drips could stain and
damage carpets and furnishings etc. Always perform a general inspection of the tightness of all
nuts and bolts.
Less than 9 mm
www.vitamobilitywerks.com
36
TROUBLESHOOTING & FAULT REPAIR
If you experience any technical problems, it is recommended that you check with your local dealer before
attempting to troubleshoot on your own.
The following symptoms could indicate a serious problem with your power scooter. Contact your local
dealer if any of the following arises:
1. Motor noise
2. Frayed harnesses
3. Cracked or broken connectors
4. Uneven wear on any of tires
5. Jerky motion
6. Pulling to one side
7. Bent or broken wheel assemblies
8. Does not power up
9. Powers up, but does not move
www.vitamobilitywerks.com
37
CIRCUIT DIAGRAM
VMW’S MANUFACTURER PATENT
A brand new double-A arms suspension system.
www.vitamobilitywerks.com
38
V8 - BOM LIST DRAWING
www.vitamobilitywerks.com
39
WARRANTY DECLARATION
Quality/ Warranty Declaration
Products are to be fit for purpose and of excellent quality and performance. For valid warranty
claims VMW will, at their discretion, replace/ repair/ refund items mutually agreed to be defective.
VMW’s Warranty as Following:
" Frame: Two-year limited warranty
" Controllers: One-and-a-half-year limited warranty
" Electronic Components and Charger: One-year limited warranty
" Warranty Exclusion. The following items are not covered by warranty.
$ Motor brushes
$ Wheel Tires
$ Arm Pads
$ Seat Cushion
$ Fuses / Bulbs
$ Tiller Cover
$ Rear Shroud
$ Front Shroud
$ Batteries and Consumable parts
Any damage or defect of any nature occurring from the misuse, abuse of the product, improper
operation or improper storage is not to be covered. The warranty is to start from the date of arrival
of our products.
VITA MOBILITY WERKS
www.vitamobilitywerks.com
40
CARE AND MAINTENANCE
Scooters require a minimal amount of care and maintenance. The following areas require inspection
and/or care and maintenance.
TIRE PRESSURE
% If equipped with pneumatic tires, always maintain the psi/bar/kPa air pressure rating indicated
on each tire.
% Your power scooter comes with standard pneumatic tyres. If your power scooter comes with
optional air tires, make sure to maintain the pressure of the tires between 30-35 psi.
% It is important that the psi/bar/kPa air pressure rating indicated on each tire be maintained in
pneumatic tires at all times. Do not overinflate your tires. Low pressure may result in loss of
control, and overinflated tires may burst. Failure to maintain the psi/bar/kPa air pressure rating
indicated on the tires at all times may result in tire and/or wheel failure. Regularly inspect your
scooter’s tires for signs of wear.
CLEANING AND DISINFECTION
% Use a damp cloth and mild, non-abrasive cleanser to clean the plastic and metal parts of your
scooter. Avoid using products that may scratch the surface of your scooter.
% If necessary, clean your product with an approved disinfectant. Make sure the disinfectant is
safe for use on your product before application.
% Follow all safety instructions for the proper use of the disinfectant and/or cleaning agent
before applying it to your product. Failure to comply may result in skin irritation or premature
deterioration of upholstery and/or scooter finishes.
BATTERY TERMINAL CONNECTIONS
% Make certain that the terminal connections remain tight and un-corroded.
% The batteries must sit flat in the battery wells.
% The battery terminals should face towards the inside of the scooter.
WIRING HARNESSES
% Regularly check all wiring connections.
% Regularly check all wiring insulation, including the charger power cord, for wear or damage.
% Have your authorized dealer repair or replace any damaged connector, connection, or insulation that
you find before using your scooter again.
www.vitamobilitywerks.com
41
AXLE BEARINGS AND THE MOTOR/TRANSAXLE ASSEMBLY
These items are all pre-lubricated, sealed, and require no subsequent lubrication.
WHEEL REPLACEMENT
If your scooter is equipped with pneumatic tires and you have a flat tire, you can have the tube
replaced. If your scooter is equipped with a solid tire insert either the solid insert or the entire wheel
must be replaced depending on the model. Contact your authorized dealer regarding replacement
wheels for your scooters.
MOTOR BRUSHES
The motor brushes are housed inside of the motor transaxle/assembly. Your authorized dealer
should inspect them periodi-cally for wear.
CONSOLE, CHARGER, AND REAR ELECTRONICS
% Keep these areas free of moisture.
% Allow these areas to dry thoroughly if they have been exposed to moisture before operating your
scooter again.
STORING YOUR SCOOTER
If you plan on not using your scooter for an extended period of time, it is best to:
% Fully charge its batteries prior to storage.
% Disconnect the batteries from the scooter.
% Store your scooter in a warm, dry environment.
% Avoid storing your scooter where it will be exposed to temperature extremes.
Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme temperatures,
or stored without a full charge may be permanently damaged, causing unreliable performance and
limited service life. It is recommended that you charge the scooter batteries periodically throughout
periods of prolonged storage to ensure proper performance.
DISPOSAL OF YOUR SCOOTER
Your scooter must be disposed of according to applicable local and national statutory regulations.
Contact your local waste disposal agency or authorized dealer for information on proper disposal of
packaging, metal frame components, plastic components, electronics, and batteries.
Loading...
