VMS CS-I-VZ User Manual

VMS-CS-I-VZ

1080p Ultra-WDR Zoom AF Box IP Camera

This guide is for quick installing and connecting the Full HD Multiple Streams Ultra-WDR Zoom AF Box IP Camera.
For more details, please refer to the User’s Manual of the camera in the supplied CD.

Camera’s Connectors

No.

Connector

Definition

1

Audio I/O

Two-way audio transmission

2

Power LED

For power connection indication (green light)

3

Default Button

Press the button with a proper tool for at least 20 seconds to restore
the system.

4

RJ-45

For network and PoE connections

5

Network LEDs

For network connection and activity indication

6

Alarm I/O

1

Alarm Out +

5

GND

2

Alarm Out –

6

D –

3

Alarm In +

7

D + 4 Alarm In –

7

BNC Connector

For analogue video output

8

microSD Card Slot

Insert the microSD card into the card slot to store videos and
snapshots. Do not remove the microSD card when the camera is
powered on.

9

Power (DC 12V / AC 24V)

＋

DC 12V

AC 24V 1

DC 12V Reserved

AC 24V GND

－

DC 12V GND

AC 24V 2

NOTE: It is not recommended to record with the microSD card for 24/7 continuously, as it may not be able
to support long term continuous data read/write. Please contact the manufacturer of the microSD card for
information regarding the reliability and the life expectancy.

Camera Cabling

Please follow the instructions below for cable connections.

Power Connection

Please use a DC 12V / AC 24V power adaptor and plug it to the power connector of camera and the power outlet.
Alternatively, users can use an Ethernet cable and connect it to the RJ-45 connector of the camera and a Power
Sourcing Equipment (PSE) switch.

NOTE: If PoE is used, make sure PSE is in used in the network.

Ethernet Cable Connection

Connect one end of the Ethernet cable to the RJ-45 connector of the camera, and plug the other end of the cable
to the network switch or PC.

NOTE: In some cases, Ethernet crossover cable might be needed when connecting the camera directly to
the PC.

NOTE: Check the status of the link indicator and the activity indicator LEDs. If the LEDs are unlit, please
check the LAN connection.

Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.

Before Login to the Camera

A client program will be automatically installed to the PC when connecting to the camera. Before logging in to the
camera, please ensure downloading the ActiveX control is allowed by either changing the ActiveX controls and plug-

1 2 3 4

I/O

DC

VIDEO

AC 24V

DC 12V

ins or setting Internet’s security level to default. For further details, please refer to the User’s Manual in the supplied
CD.

ActiveX Controls and Plug-ins Settings

Internet Security Level

Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the

browser. Then click on <Internet Options>.
Step 3: Click on the <Security> tab and select

<Internet>, and click on <Custom level> to
change ActiveX settings.

Step 4: Set “ActiveX controls and plug-ins” items to
<Prompt> or <Enable>.

Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the

browser. Then click on <Internet Options>.
Step 3: Click on the <Security> tab and select

<Internet>.
Step 4: Down the page, click <Default Level> and click

on <OK> to confirm the setting. Close the
browser window, and open a new one later for
accessing the IP camera.

Camera Login

The default IP address of the camera is: 192.168.0.250. Therefore, to access the camera for the first time, please
set the IP address of the PC as: 192.168.0.XXX; for example:

IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0

Login ID and Password

 Key in the camera’s IP address in the URL bar of the web browser window and hit on “Enter”.
 Enter the default username (Admin) and password (1234) in the prompt request dialogue. Note that username

is case sensitive.

Install the ActiveX Control

 After connecting to the camera, the request for installing the ActiveX control will appear just below the URL bar.
 Right click on the information bar, and then click on <Install ActiveX Control…> to permit ActiveX control

installation.

 In the pop-up security warning window, click on <Install> to start downloading DC Viewer software on the PC.
 Click on <Finish> after DC Viewer installation is completed.

Browser-based Viewer

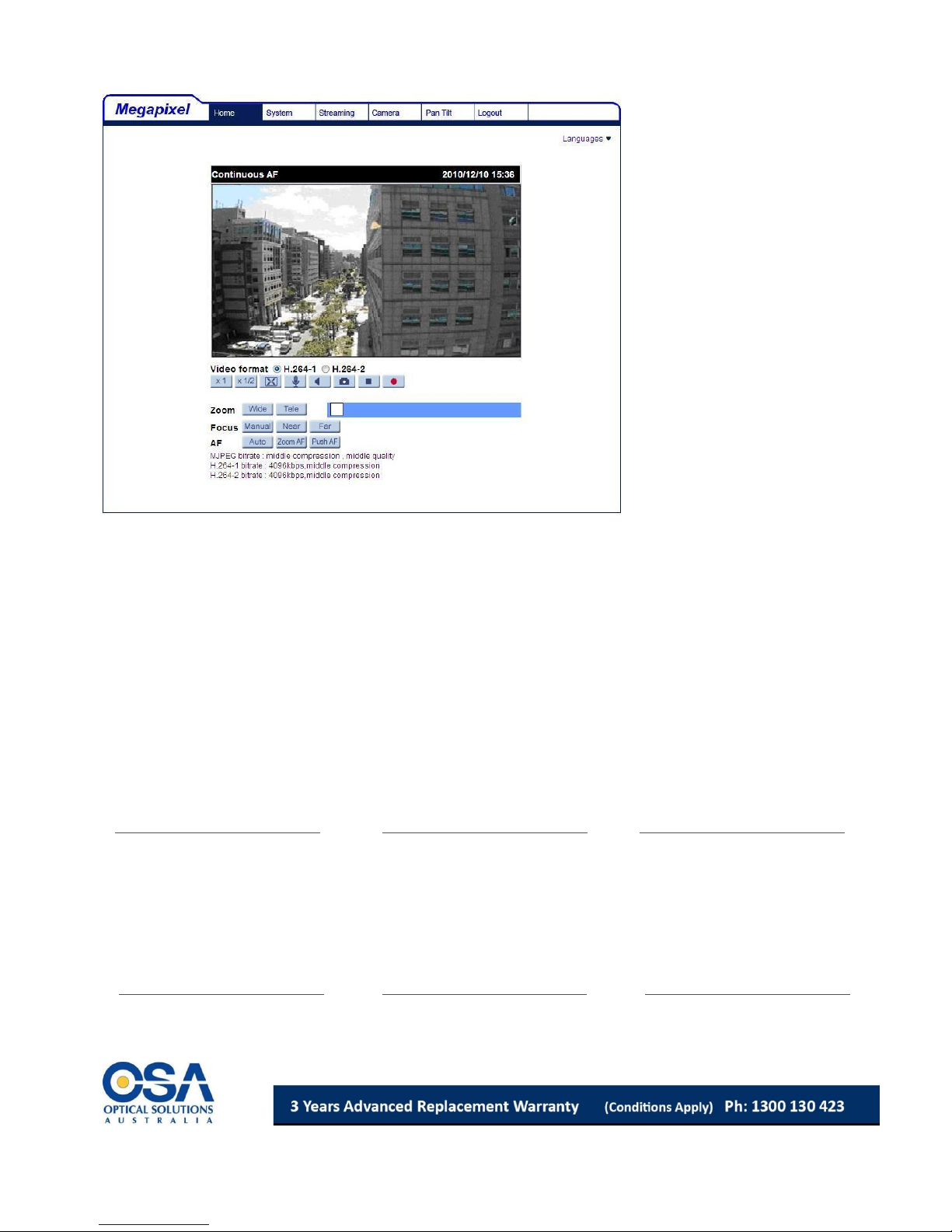

The main page of the IP camera user interface is shown as the figure below. Please note that function buttons will
vary depending on the camera model.
