Video Mount Products Mounting Solutions For Video,Audio, & Security... Nothing Holds Up Better!

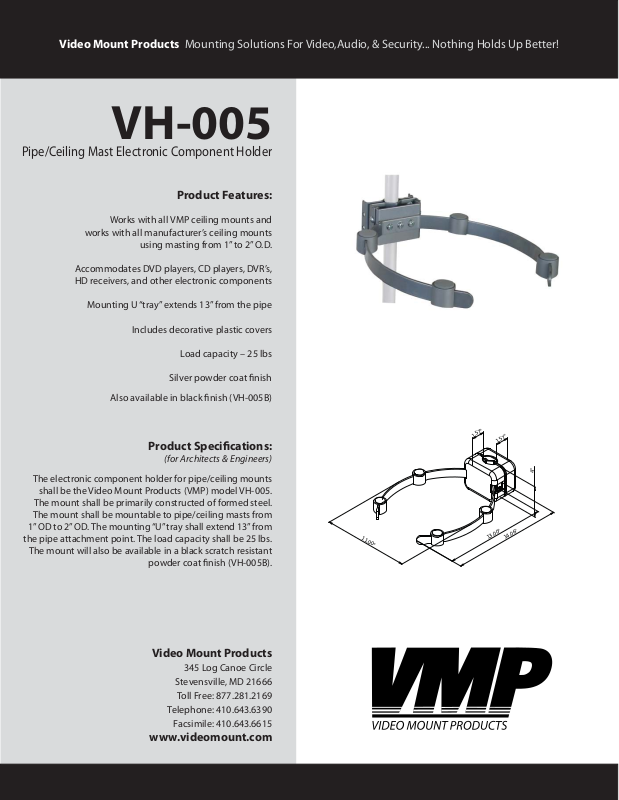

VH-005
Pipe/Ceiling Mast Electronic Component Holder
Product Features:
Works with all VMP ceiling mounts and
works with all manufacturer’s ceiling mounts
using masting from 1” to 2” O.D.
Accommodates DVD players, CD players, DVR’s,
HD receivers, and other electronic components
Mounting U “tray” extends 13” from the pipe
Includes decorative plastic covers
Load capacity – 25 lbs
Silver powder coat nish
Also available in black nish (VH-005B)
Product Speci cations:
(for Architects & Engineers)
The electronic component holder for pipe/ceiling mounts
shall be the Video Mount Products (VMP) model VH-005.
The mount shall be primarily constructed of formed steel.
The mount shall be mountable to pipe/ceiling masts from
1” OD to 2” OD. The mounting “U” tray shall extend 13” from
the pipe attachment point. The load capacity shall be 25 lbs.
The mount will also be available in a black scratch resistant
powder coat nish (VH-005B).
11.00
"
1.57
"
13.00
1.57
"
"
4
"
"
14.06
Video Mount Products
345 Log Canoe Circle
Stevensville, MD 21666
Toll Free: 877.281.2169
Telephone: 410.643.6390
Facsimile: 410.643.6615
www.videomount.com
