VMP LCD-MID-FB User Manual

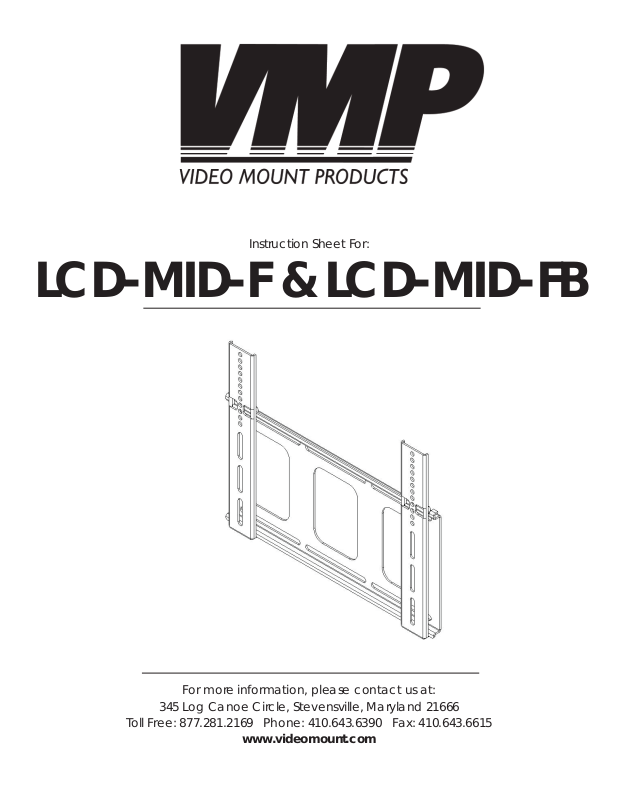

Instruction Sheet For:

LCD-MID-F & LCD-MID-FB

For more information, please contact us at:

345 Log Canoe Circle, Stevensville, Maryland 21666

Toll Free: 877.281.2169 Phone: [phone] Fax: [phone]

www.videomount.com

Step 2: Mounting the wall plate

Step 1

Before starting, lay out all parts to your mount and match them to
the parts list provided. Verify that you have all your parts before
attempting to assemble the mount.

Step 2

Mark the wall or desired mounting surface in preparation of instal­lation of wall plate . If mounting to wooden studs, pre drill pilot
holes using a 7/32” drill bit. Attach the wall plate to the wooden
stud using the 5/16” by 2.5” long lag screw and washer

1

1

)

22

21

making sure the small ear fl aps are on the top rail of the wall plate
. WARNING: Please verify that your mounting surface will support

1

the combined weight of your mount, mounting hardware, and fl at
panel. Also verify that the mounting surface is safe to drill through.
Please note only mounting hardware for mounting to wooden studs
will be provided with the unit. If mounting to a surface other than
wooden studs then other hardware will be required. If in doubt or
uncertain about any of the above, please contact a professional
installer.

Step 3A: Attaching the mounting

brackets to the monitor

(spacers not needed)

Step 3B: Attaching the mounting

brackets to the monitor (spacers

used due to recessed hole patterns)

Step 3

Determine the correct screw size and if you need to use wash­ers, lock washers, or spacers. Note: Spacers are used for TVs with
recessed hole patterns. Secure the TV to the mounting bracket
using the appropriate hardware through . Note: The

2

5

19

brackets have to be level with each other to work properly.

Step 4

Use the hooks in the mounting bracket to hook on the top rail
of the wall plate . Use security screws and the long allen
key to secure the TVs to the wall plate and to secure its

4

1

2

3

1

horizontal position.

Please verify that all nuts and screws are securely tightened.

Step 4: Securing the mounting

brackets to the wall plate

Enjoy Your Mount!

WARNING: The installer of these products must verify that the mount
surface, ceiling or wall, will safely support the combined weight of
all attached equipment and hardware. Video Mount Products will
not be held liable for the improper use or installation of its products.
