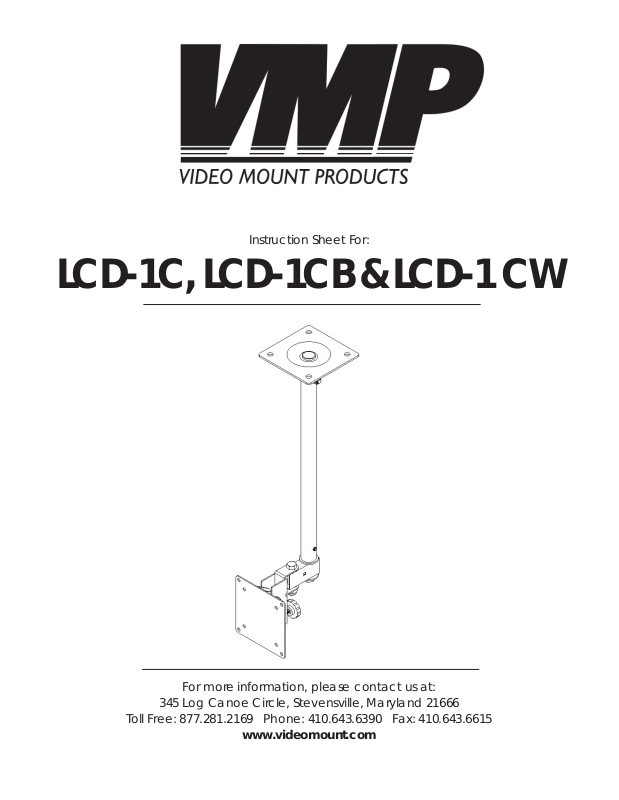

Instruction Sheet For:
LCD-1C, LCD-1CB & LCD-1 CW
For more information, please contact us at:
345 Log Canoe Circle, Stevensville, Maryland 21666
Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615
www.videomount.com
21
22
14
24
23
11
1
13
4
10
8712
5
4
4
4
19
1
QTY.
18
1
1
2
20
17
16
15
1
1
1
1
1
1
3
4
2
1
2
1
2
9
2
1
1
1
1
Ceiling Plate
DESCRIPTION
Support Tube
Swivel Bracket
Extension Tube
Mounting Plate
Nylon Nut M6*P1.0
LCD-1C
1
2
3
4
5
NO.
ITEM
7
32mm
1/2"*
20UNC*50mm
Screw M6*P1.0*L35
Nylon Nut 3/8"-16UNC
8
9
Adjusting Screw 1/4"-
Screw M12*P1.75*L65
Washer
11
12
10
19*T1.6
3/8"*
End Plug
Cable Clips
Screw 3/8"-16UNC*L2"
Washer
14
15
16
13
19*T1.6
8.3*
M3 Allen Key
Screw M4*P0.7*L12
Screw M5*P0.8*L12
Nylon Nut 5/16"-18UNC
Screw 5/16"-18UNC*L1-1/2"
Brake Screw 1/4"-20UNC*L3/8"
17
18
19
20
Lag Screw 5/16"*L2.5"
Washer
21
22
23
24
Step 2: Attaching the mounting
plate to the LCD
Step 1
Before starting, lay out all parts to your mount and match them to
the parts list provided. Verify that you have all your parts before
attempting to assemble the mount.
Step 2
Attach the mounting plate to the LCD using the M4 or M5
screws.
21
5
22
Step 3
Mark the ceiling or desired mounting surface in preparation of installation of ceiling plate . If mounting to wooden ceiling joists,
1
pre drill pilot holes using a 7/32” drill bit. Attach the ceiling plate
to the wooden ceiling joist using the 5/16” by 2.5” long lag screw
1
23
and washer . WARNING: Please verify that your mounting
24
surface will support the combined weight of your mount, mounting hardware, and fl at panel. Also verify that the mounting sur-
face is safe to drill through. Please note only mounting hardware
for mounting to wooden ceiling joists will be provided with the unit.
If mounting to a surface other than wooden ceiling joists then other
hardware will be required. If in doubt or uncertain about any of the
above, please contact a professional installer.
Step 3: Attaching the ceiling
plate to the ceiling
Step 4: Attaching the swivel
bracket to the support tube
Step 4
Attach the swivel bracket assembly from step 2 to the support tube
using the 3/8” screw , washers and nylon nut . Insert
3
adjustable screw into the back of the swivel bracket for
12
16
15
8
4
use when tilting the monitor.
Step 5: Attaching the support
tube to the extension tube
Step 5
Attach the support tube to the extension tube using the
M12 screw and washers .
10
3
11
2
Step 6
Attach the extension tube to the ceiling plate using
the 5/16” screw and nylon nut . Secure the M12 screw
10
from slipping in the extension tube by tightening the ¼”
brake screw into the threaded hole in the side of the extension tube using the Allen key .
2
18
17
2
19
2
20
1
Step 7
Attach the mounting plate to the swivel bracket using
the M6 screw and nylon nut .
9
5
7
4
Step 8
Insert end plugs into the support tube . For cable management, insert the cable clips by pushing the arrow ends
14
13
into the square holes in the support tube .
3
3
Step 6: Attaching the extension
tube to the ceiling plate
Please verify that all nuts and screws are securely tightened.
Step 7: Attaching the
mounting plate to the
swivel bracket
Enjoy Your Mount!
WARNING: The installer of these products must verify that
the mounting surface, ceiling or wall, will safely support the
combined weight of all attached equipment and hardware.
Video Mount Products will not be held liable for the improper
use or installation of its products.
