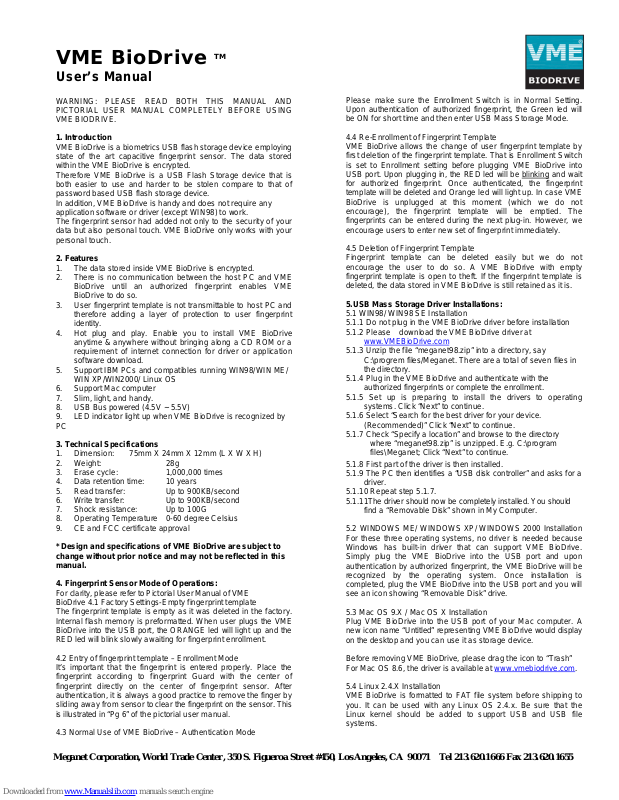

VME BioDrive User Manual

VME BioDrive TM

f

r

r

f

r

User’s Manual

WARNING: PLEASE READ BOTH THIS MANUAL AND
PICTORIAL USER MANUAL COMPLETELY BEFORE USING
VME BIODRIVE.

1. Introduction

VME BioDrive is a biometrics USB flash storage device employing
state of the art capacitive fingerprint sensor. The data stored
within the VME BioDrive is encrypted.
Therefore VME BioDrive is a USB Flash Storage device that is
both easier to use and harder to be stolen compare to that o
password based USB flash storage device.
In addition, VME BioDrive is handy and does not require any
application software or driver (except WIN98) to work.
The fingerprint sensor had added not only to the security of you
data but also personal touch. VME BioDrive only works with you
personal touch.

2. Features

1. The data stored inside VME BioDrive is encrypted.

2. There is no communication between the host PC and VME
BioDrive until an authorized fingerprint enables VME
BioDrive to do so.

3. User fingerprint template is not transmittable to host PC and
therefore adding a layer of protection to user fingerprint
identity.

4. Hot plug and play. Enable you to install VME BioDrive
anytime & anywhere without bringing along a CD ROM or a
requirement of internet connection for driver or application
software download.

5. Support IBM PCs and compatibles running WIN98/WIN ME/
WIN XP/WIN2000/ Linux OS

6. Support Mac computer

7. Slim, light, and handy.

8. USB Bus powered (4.5V ~ 5.5V)

9. LED indicator light up when VME BioDrive is recognized by

PC

3. Technical Specifications

1. Dimension: 75mm X 24mm X 12mm (L X W X H)

2. Weight: 28g

3. Erase cycle: 1,000,000 times

4. Data retention time: 10 years

5. Read transfer: Up to 900KB/second

6. Write transfer: Up to 900KB/second

7. Shock resistance: Up to 100G

8. Operating Temperature 0-60 degree Celsius

9. CE and FCC certificate approval

* Design and specifications of VME BioDrive are subject to
change without prior notice and may not be reflected in this
manual.

4. Fingerprint Sensor Mode of Operations:

For clarity, please refer to Pictoria l User Manual of VME
BioDrive 4.1 Factory Settings-Empty fingerprint template
The fingerprint template is empty as it was deleted in the factory.
Internal flash memory is preformatted. When user plugs the VME
BioDrive into the USB port, the ORANGE led will light up and the
RED led will blink slowly awaiting for fingerprint enrollment.

4.2 Entry of fingerprint template – Enrollment Mode

It’s important that the fingerprint is entered properly. Place the
fingerprint according to fingerprint Guard with the center o
fingerprint directly on the center of fingerprint sensor. Afte
authentication, it is always a good practice to remove the finger by
sliding away from sensor to clear the fingerprint on the sensor. This
is illustrated in “Pg 6” of the pictorial user manual.

4.3 Normal Use of VME BioDrive – Authentication Mode

Meganet Corporation, World Trade Center, 350 S. Figueroa Street #450, Los Angeles, CA 90071 Tel [phone] Fax [phone]

Please make sure the Enrollment Switch is in Normal Setting.
Upon authentication of authorized fingerprint, the Green led will
be ON for short time and then enter USB Mass Storage Mode.

4.4 Re-Enrollment of Fingerprint Template

VME BioDrive allows the change of user fingerprint template by
first deletion of the fingerprint template. That is Enrollment Switch
is set to Enrollment setting before plugging VME BioDrive into
USB port. Upon plugging in, the RED led will be
for authorized fingerprint. Once authenticated, the fingerprint
template will be deleted and Orange led will light up. In case VME
BioDrive is unplugged at this moment (which we do not
encourage), the fingerprint template will be emptied. The
fingerprints can be entered during the next plug-in. However, we
encourage users to enter new set of fingerprint immediately.

4.5 Deletion of Fingerprint Template

Fingerprint template can be deleted easily but we do not
encourage the user to do so. A VME BioDrive with empty
fingerprint template is open to theft. If the fingerprint template is
deleted, the data stored in VME BioDrive is still retained as it is.

5. USB Mass Storage Driver Installations:

5.1 WIN98/ WIN98 SE Installation

5.1.1 Do not plug in the VME BioDrive driver before installation

5.1.2 Please download the VME BioDrive driver at

www.VMEBioDrive.com

5.1.3 Unzip the file “meganet98.zip” into a directory, say
C:\progrem files/Meganet. There are a total of seven files in
the directory.

5.1.4 Plug in the VME BioDrive and authenticate with the
authorized fingerprints or complete the enrollment.

5.1.5 Set up is preparing to install the drivers to operating
systems. Click “Next” to continue.

5.1.6 Select “Search for the best driver for your device.
(Recommended)” Click “Next” to continue.

5.1.7 Check “Specify a location” and browse to the directory

where “meganet98.zip” is unzipped. E.g. C:\program
files\Meganet; Click “Next” to continue.

5.1.8 First part of the driver is then installed.

5.1.9 The PC then identifies a “USB disk controller” and asks for a
driver.

5.1.10 Repeat step 5.1.7.

5.1.11The driver should now be completely installed. You should
find a “Removable Disk” shown in My Computer.

5.2 WINDOWS ME/ WINDOWS XP/ WINDOWS 2000 Installation

For these three operating systems, no driver is needed because
Windows has built-in driver that can support VME BioDrive.
Simply plug the VME BioDrive into the USB port and upon
authentication by authorized fingerprint, the VME BioDrive will be
recognized by the operating system. Once installation is
completed, plug the VME BioDrive into the USB port and you will
see an icon showing “Removable Disk” drive.

5.3 Mac OS 9.X / Mac OS X Installation

Plug VME BioDrive into the USB port of your Mac computer. A
new icon name “Untitle d” represe nting VME BioDri ve would display
on the desktop and you can use it as storage device.

Before removing VME BioDrive, please drag the icon to “Trash”
For Mac OS 8.6, the driver is available at

5.4 Linux 2.4.X Installation

VME BioDrive is formatted to FAT file system before shipping to
you. It can be used with any Linux OS 2.4.x. Be sure that the
Linux kernel should be added to support USB and USB file
systems.

www.vmebiodrive.com.

blinking and wait

VME BioDrive TM

A

A

A

A

A

A

r

A

A

A

A

User’s Manual

5.4.1 Plug VME BioDrive into the USB port

5.4.2 Enter the system user ID “root” and input the command
“Mount/dev/sda/mnt”

5.4.3 Before removing the VME BioDrive, please input the
command “Umount/mnt”

6. VME BioDrive Care

VME BioDrive is a product of superior design and craftsmanship
and should be treated with care. The suggestions below will help
you to fulfill any warranty obligations and to enjoy the products for
many years.

6.1 Place and remove the finger from the fingerprint sensor in the

recommended way as in “Pg 6 of VME BioDrive Pictorial Use
Manual”

6.2 While placing the finger on the fingerprint sensor, always

touch the fingerprint metal protective so to have better ESD
protection on VME BioDrive.

6.3 Regularly clean the fingerprint sensor with clean dry cloth.

6.4 Always place the fingerprint cover to protect the fingerprint

sensor from unintentional scratches.

6.5 Regularly run scandisk to ensure data integrity of VME

BioDrive. 6.6 Always enroll a total of five fingerprints.

6.7 Keep VME BioDrive out of reach of small children.

6.8 Always re-enroll the new set of fingerprints after deleting the

fingerprint template. This will help to prevent theft.

7. Precautions of Use:

7.1 Do not unplug the VME BioDrive during fingerprint enrollment

and during data read/write. This may cause data corruption to
fingerprint templates or files; and in the worst case causing
permanent damage to VME BioDrive.

7.2 Do not apply any fluid to VME BioDrive during

especially on the fingerprint sensor.

7.3 Do not store the VME BioDrive in hot areas. High temperature

can shorten the live of electronic devices or melt certain

plastic.

7.4 Do not store the VME BioDrive in dusty, dirty areas. It’s

moving parts can be damage.

7.5 Do not store the VME BioDrive in cold areas. When it warms

up (to room temperature), moisture can form inside, which
may damage electronics circuit boards.

7.6 Do not attempt to open the VME BioDrive, non-expert

handling may damage it.

7.7 Do not paint the VME BioDrive. Paint can clog the moving

parts and prevent proper operation.

7.8 Do not use harsh chemicals, cleaning solvents, or strong

detergents to clean the VME BioDrive.

8. FAQ:

Q1: Which operating systems can the VME BioDrive operate on?

NS: VME BioDrive can operate on any of the following OS –

Windows 98/98SE, Windows ME/2000/XP, Mac OS 9.X / OS
Q2: What kind of data can be stored in the VME BioDrive?

NS: You can save any types of data/files on VME BioDrive

whether they are text, graphic, program, music or multimedia files.

cleaning

Q3: When the light is flashing on the VME BioDrive, what does
that mean?

NS: When the light is flashing, that means the VME BioDrive is
in use and data transfer is taking place between the VME
BioDrive and host machine.

Q4: How many times can the VME BioDrive be used and how
long the data be stored on the VME BioDrive?

NS: The VME BioDrive can write and erase at least 1 million

Meganet Corporation, World Trade Center, 350 S. Figueroa Street #450, Los Angeles, CA 90071 Tel [phone] Fax [phone]

times, while data on the VME BioDrive can be stored more
than 10 years.

Q5: Does VME BioDrive resist vibration, magnetic fields and
humidity?

NS: The VME BioDrive is highly resistant to vibration and can
be operated under wider ranges of magnetic fields and
humidity.

Q6: Can the data on the VME BioDrive be shared in a
networking environment?

NS: Yes, the data can be shared in a networking
environment, as long as the host machine enables the share
function for the VME BioDrive.

Q7: Can the VME BioDrive be formatted?

NS: Yes, the VME BioDrive can be formatted by using normal
formatting function.

Q8: Can other programs be running at the same time while
using VME BioDrive?

NS: Yes, other programs and applications can be running at
the same time while using VME BioDrive.

Q9: What should I do if the VME BioDrive icon does not
appear/ disappear on the screen after inserting / extracting?

NS: Simply click the “View” menu and select “Refresh”

Q10: What should I do when VME BioDrive is plugged into
USB port and the system find VME BioDrive, but I can’t access
VME BioDrive?

NS: Try Formatting the VME BioDrive.

9. Warranty and Return Policy

9.1 Our product is guaranteed for a period of 90 days after the

date of purchase against defects in material and
workmanship.

9.2 The warranty is invalid if the defect is due to accidental

damages including transport, misuse, abuse, tampering,
failure to follow procedures as outlined in the user manual,
neglect and in case alteration or repair carried out by
unauthorized persons, normal wear and tear, and
corrosion.

9.3 Service under guarantee is only provided when complete

registration of online warranty card is done within 14days
from the date of purchase on the receipt.

9.4 Please visit

registration.

9.5 We will not accept any returns unless accompanied with an

approved RMA#.

9.6 Product is subject to replacement or exchange for the same

item only. No refunds.

9.7 Product must be under warranty. If not, the customer is

notified and product is returned.

9.8 We will not be held accountable for international shipment

delays due to packages held up in customs.

** MEGANET IS NOT RESPONSIBLE FOR ANY LOST
PROFITS, LOST DATA OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE,
OR INABILITY TO USE OF THIS PRODUCT. MEGANET
DOES NOT GUARANTTEE VME BioDrive TO WORK ON ALL
COMPUTERS. THE GOVERNING LAWS OF THIS PRODUCT
ARE LAWS OF CALIFORNIA, USA

Email (Technical Support):
Email (Sales): [e-mail]

www.VMEBioDrive.com for online warranty

[e-mail]
