VMC VW-330-CW Instruction Manual

A

p

display will show

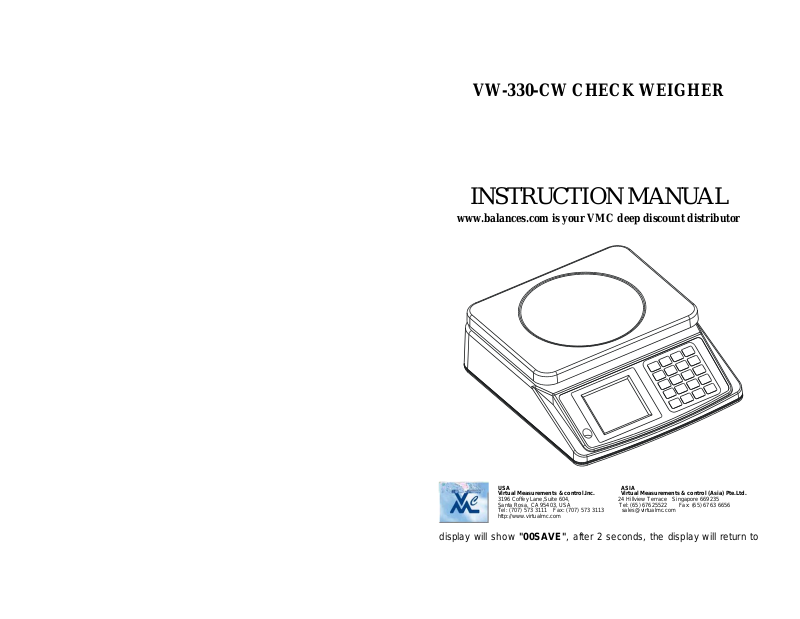

VW-330-CW CHECK WEIGHER

INSTRUCTION MANUAL

www.balances.com is your VMC deep discount distributor

USA ASI
Virtual Measur ements & control.In c. Virtual Measurements & control (Asia) Pte.Ltd.

3196 Coffey Lane,Suite 6 04, 24 Hillview Terrace Singapore 669235
Santa Rosa, CA 95403, USA Tel: [phone] Fax: [phone]
Tel: [phone] Fax: [phone] [email protected]
htt

://www.virtualmc.com

"00SAVE"

, after 2 seconds, the display will return to

A/D value.

4.

Place the full weight (eg.15kg forVW-15kg) on platform. After the
stable A/D value is displayed, and then press
show "00SAVE" and now calibration is finished.
Return to weighing mode
Power off. Take off the short circuit connector plug (jumper) at the board
and plug in 1、2 socket , then place the scale on a flat, stable surface,
turn the power on, all display segments will appear on the LCD a few
seconds and finally “0” will appear on the display. The scale is now in
weighing mode. Place full weight(eg.15kg forVW-15kg) on the platform
to make sure that weighing is correct, if not, repeat steps 2-4.

Ⅴ

.REMARK

1. Place the scale horizontally and keep the bubble inside of bubble

level aligned with the red circle.

2. When the recharging sign“
immediately, the time of charging is about eight to ten hours.

3. You must use the charger (adapter) supplied with the scale.

4. If after recharging and the battery does not last long, replace with
new battery.

5. For power saving, please turn off the back-light. Please turn off the
power when not in use.

” turn on, please charge the battery

[ZERO]

, the display will

4

VW-330-CW CHECK WEIGHER MANUAL

Ⅰ . Power on:

Place the scale horizontally and keep the bubble inside the bubble

level aligned with the red circle (See Fig.1).

Correct Incorrect

Fig.1
Ⅱ . Function explanation:

1. WEIGHT

2. TARE WEIGHT

3. GROSS WEIGHT DISPLAY indicates the gross weight on the

platter.

4. LOW

user defined LOW Limit.

5. HIGH indicato r turns on with alarm when the weight exceeds the
user defined HIGH Limit.

6. CHECK WT

check weighing mode.

7. WT indicator turns on when the scale is set to [CH=2] weighing
mode.

8. LOW BAT

normal operate voltage.

9. M+

and could be accumulation up to 99 counts.

10. TOTAL

11. ZERO

accurate weighing operation, zero range is 4%.

DISPLAY indicates the net weight on the platter.

indicator turns on with alarm when the weight is under the

indicator turns on when the scale is set to [CH=1]

Indicator turns on when battery voltage is lower then

DISPLAY indicate the times and the weight for accumulation,

DISPLAY indicates the accu mu la te d tota l weig ht.

KEY set readjust the scale in correct zero position for

DISPLAY indicates the preset tare weight.

1

12. NUMERIC (0-9) KEY is used for setting numeric data for sample
limit weight of checking.

13. TARE

KEY deducts the gross weight on the platter (box or

container etc.) as the tare weight and the preset tare weight.

14. MEMORY CANCEL [MC] KEY is used for memory recall and

[ENT]

press

15. CE

KEY is used for canceling the numeric setting data or the

key for canceling the memorized data.

previous setting weight data.

16. UNIT KEY is used for select a weighing unit.

Ⅲ . OPERATION:

1. ZERO:

Press [ZERO] key to zero the scale.

2. The weighing mode:

1). There are two weighing mode. You may select

weighing mode or

[ WT]

weighing mode

[CHECK WT]

2). The operation of the two weig hi ng mode:

Power ON, the display will show “0” and [CHECK WT] or [WT]

indicator. If the display indicates the

[CHECK WT]

key, the first row of LCD display will show “SET-L”, the

[CHECK WT]

indicator, press

second row of LCD display will show flash “0.0000”, press digital
key(0~9) input the lower limit, press [CHECK WT] key, now input
lower limit alarm is complete. the first row of LCD display will show
“SET-H”, the third row of LCD display will show flash “0.0000”, press
digital key(0~9) input the upper limit, press

[CHECK WT]

input upper limit alarm is complete. Place weight on the platter, the
display will show weighing value.

Press [WT] key, the display will show [CH=2], press

the display will show

[WT]

2 3

indicator, press digital key(0~9) input the

[ENT]

key again,

key, now

preset the tare weight, press the [TARE] key, the first row of LCD
display will show a negative number of preset the tare weight, the
second row of LCD display will show preset the tare weight, Place
weight on the platter, the first row of LCD display will show net weight,
the second row of LCD display will show preset the tare weight, the
third row of LCD display will show gross weight.

3. The conversion of the two weighing mode:

when the display shows [WT] indicator, the scale is [WT] weighing

mode; press [CHECK WT] key, the display will show [CH=1], press

[ENT]

key again, the display will show

scale is in

[CHECK WT]

when the display shows

weighing mode。

[CHECK WT ]

[CHECK WT]

indicator, the

indicator, the scale is

[CHECK

WT] weighing mode; press [WT] key, the display will show [CH=2],

press
is in

[ENT]

key again, the display will show

[WT]

weighing mode。

[WT]

indicator, the scale

Ⅳ.CALIBRATION

How to calibrate

1.

Before entering calibration mode, the power is turn on for 1minute.

2. Enter calibration mode

Turn the power off. Take off the short circuit connector plug (jumper) at
the board and plug in 2、3 socket(near the IC), then place the scale on a
flat, stable surface. Turn the power on, the display will show the empty
load A/D value.

3. Calibration by the weight

Wait for the stable A/D value to be displayed, Press [ZERO] the
