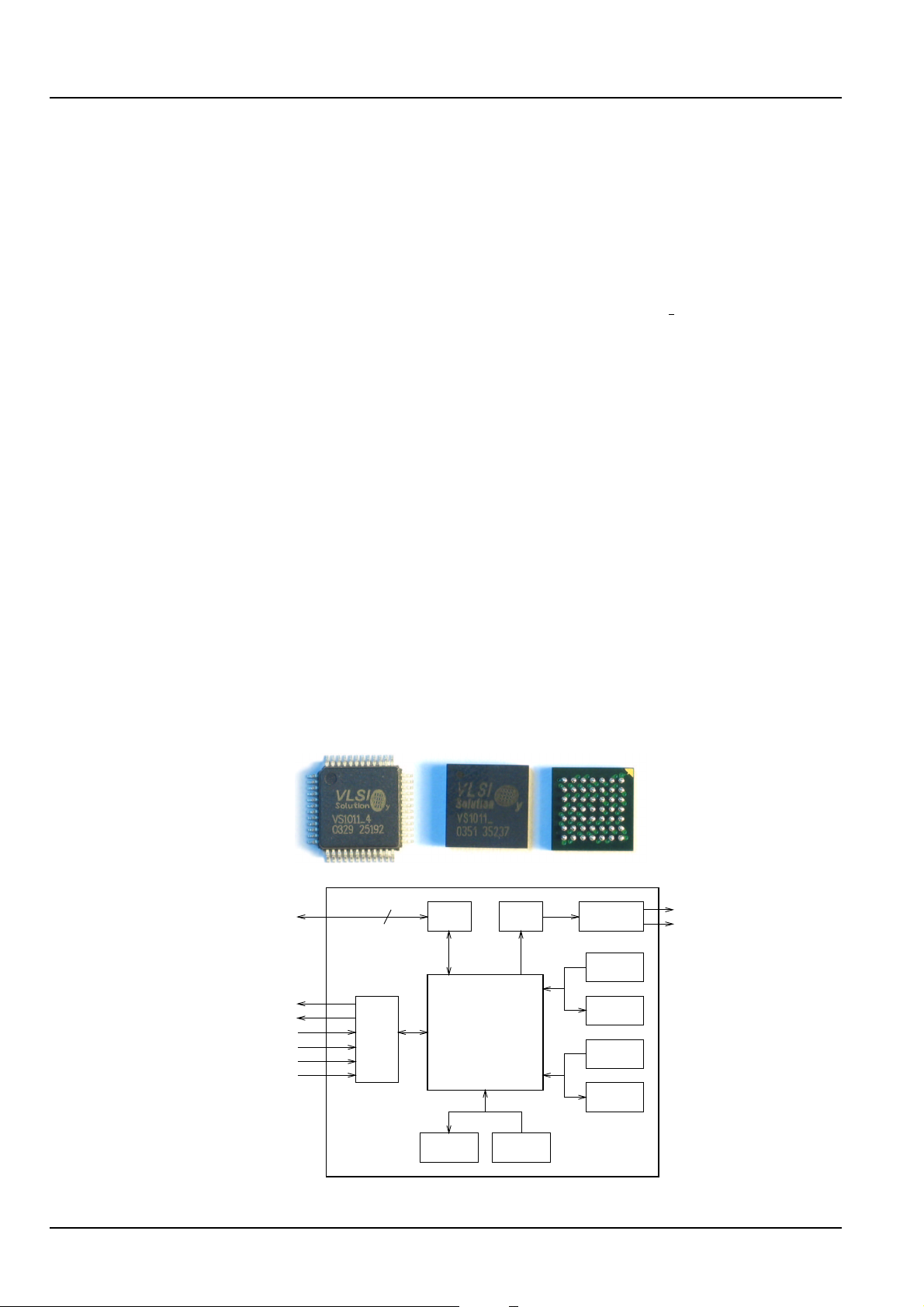

VS1011e

Instruction RAM

Instruction ROM

Stereo DAC

Stereo Ear− phone Driver

audio

output

X ROM

X RAM

Y ROM

Y RAM

VSDSP

Serial Data/ Control Interface

DREQ

SCLK

XCS

VS1011

GPIO

XDCS

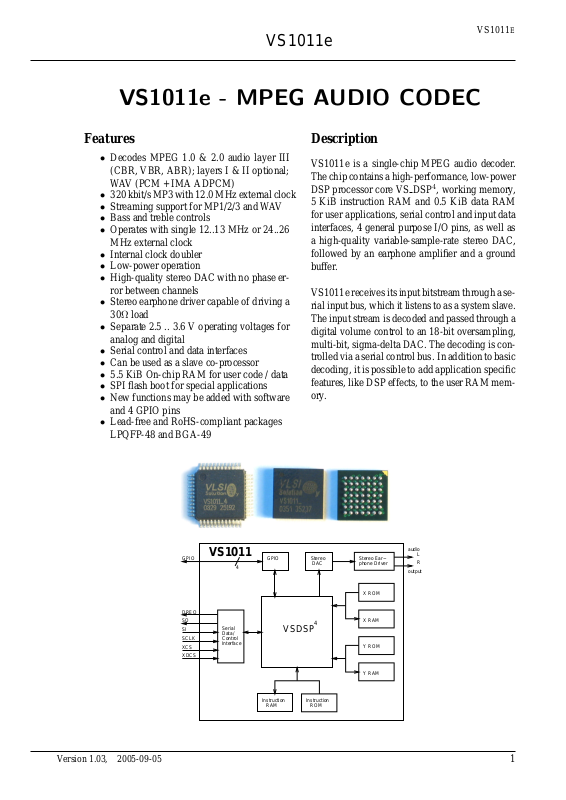

VS1011e - MPEG AUDIO CODEC

VS1011E

Features

• Decodes MPEG 1.0 & 2.0 audio layer III (CBR, VBR, ABR); layers I & II optional; WAV (PCM + IMA ADPCM)

• 320kbit/sMP3 with 12.0MHzexternalclock

• Streaming support for MP1/2/3 and WAV

• Bass and treble controls

• Operates with single 12..13 MHz or 24..26

MHz external clock

• Internal clock doubler

• Low-power operation

• High-quality stereo DAC with no phase er-

ror between channels

• Stereo earphone driver capable of driving a 30Ω load

• Separate 2.5 .. 3.6 V operating voltages for analog and digital

• Serial control and data interfaces

• Can be used as a slave co-processor

• 5.5 KiB On-chip RAM for user code / data

• SPI ﬂash boot for special applications

• New functions may be added with software

and 4 GPIO pins

• Lead-free and RoHS-compliant packages LPQFP-48 and BGA-49

Description

VS1011e is a single-chip MPEG audio decoder. The chip contains a high-performance, low-power DSP processor core VS DSP4, working memory, 5 KiB instruction RAM and 0.5 KiB data RAM for user applications, serial control and input data interfaces, 4 general purpose I/O pins, as well as a high-quality variable-sample-rate stereo DAC, followed by an earphone ampliﬁer and a ground buffer.

VS1011e receives its input bitstream through a serial input bus, which it listens to as a system slave. The input stream is decoded and passed through a digital volume control to an 18-bit oversampling, multi-bit, sigma-delta DAC.The decoding is controlled via a serial control bus. In addition to basic decoding, it is possible to add application speciﬁc features, like DSP effects, to the user RAM memory.

Version 1.03, 2005-09-05 1

VLSI

Solution

VS1011E

VS1011e

CONTENTS

Contents

1 License 8

2 Disclaimer 8

3 Deﬁnitions 8

4 Characteristics & Speciﬁcations 9

4.1 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.2 Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.3 Analog Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.4 Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.5 Digital Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.6 Switching Characteristics - Boot Initialization . . . . . . . . . . . . . . . . . . . . . . . 11

5 Packages and Pin Descriptions 12

5.1 Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5.1.1 LQFP-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5.1.2 BGA-49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.1.3 SOIC-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.2 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.2.1 LQFP-48 and BGA-49 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . 14

5.2.2 SOIC-28 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Version 1.03, 2005-09-05 2

6 Connection Diagram, LQFP-48 16

7 SPI Buses 17

VLSI

Solution

VS1011E

VS1011e

7.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.2 SPI Bus Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.2.1 VS1002 Native Modes (New Mode) . . . . . . . . . . . . . . . . . . . . . . . . 17

7.2.2 VS1001 Compatibility Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.3 Serial Protocol for Serial Data Interface (SDI) . . . . . . . . . . . . . . . . . . . . . . . 18

7.3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7.3.2 SDI in VS1002 Native Modes (New Mode) . . . . . . . . . . . . . . . . . . . . 18

7.3.3 SDI in VS1001 Compatibility Mode . . . . . . . . . . . . . . . . . . . . . . . . 18

7.4 Data Request Pin DREQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CONTENTS

7.5 Serial Protocol for Serial Command Interface (SCI) . . . . . . . . . . . . . . . . . . . . 19

7.5.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

7.5.2 SCI Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.5.3 SCI Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

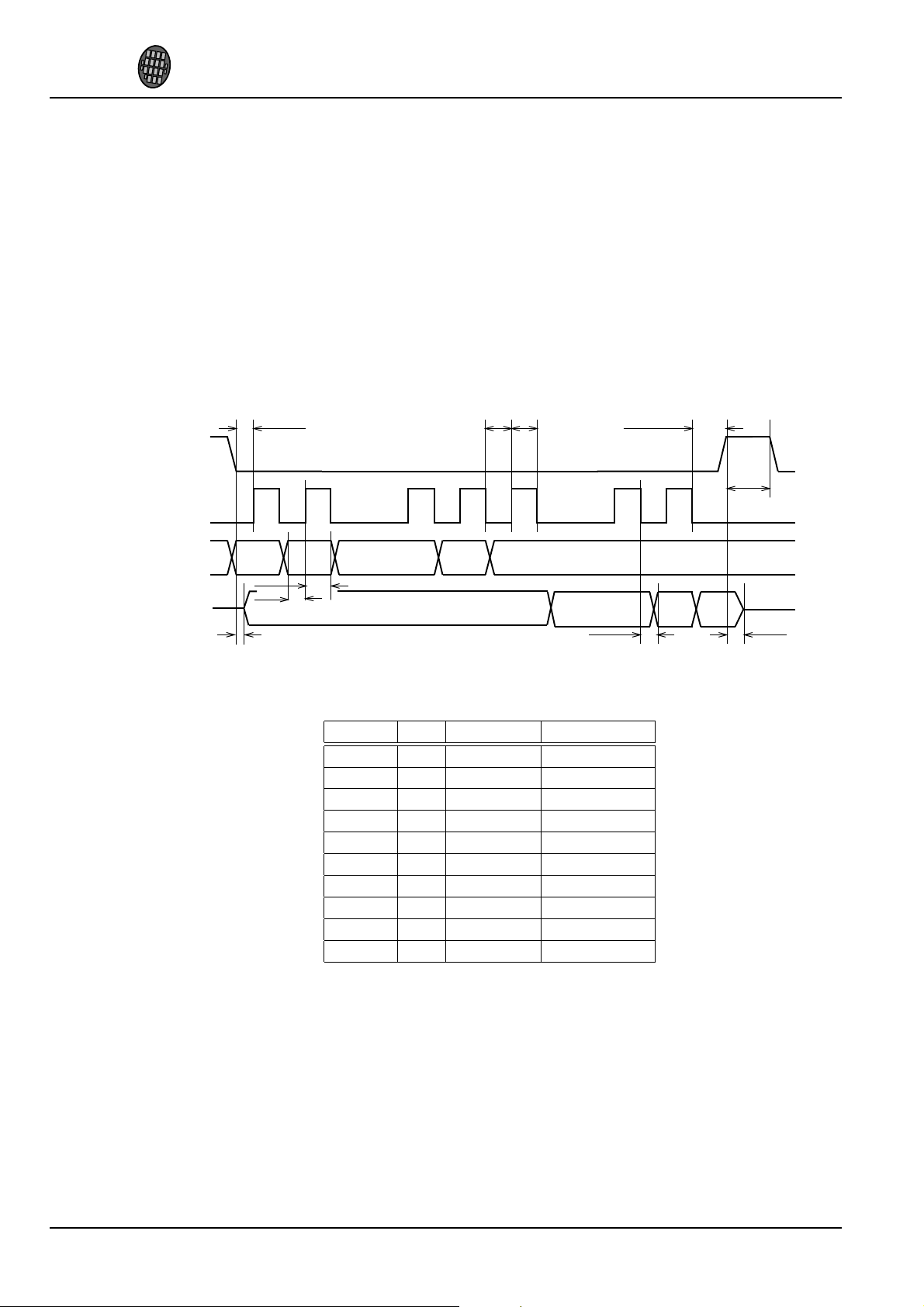

7.6 SPI Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.7 SPI Examples with SM SDINEW and SM SDISHARED set . . . . . . . . . . . . . . . 22

7.7.1 Two SCI Writes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7.7.2 Two SDI Bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7.7.3 SCI Operation in Middle of Two SDI Bytes . . . . . . . . . . . . . . . . . . . . 23

8 Functional Description 24

8.1 Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Version 1.03, 2005-09-05 3

8.2 Supported Audio Codecs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

8.2.1 Supported MP1 (MPEG layer I) Formats . . . . . . . . . . . . . . . . . . . . . 24

8.2.2 Supported MP2 (MPEG layer II) Formats . . . . . . . . . . . . . . . . . . . . . 25

8.2.3 Supported MP3 (MPEG layer III) Formats . . . . . . . . . . . . . . . . . . . . 25

VLSI

Solution

VS1011E

VS1011e

8.2.4 Supported RIFF WAV Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

8.3 Data Flow of VS1011e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

8.4 Serial Data Interface (SDI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

8.5 Serial Control Interface (SCI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8.6 SCI Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8.6.1 SCI MODE (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.6.2 SCI STATUS (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8.6.3 SCI BASS (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

8.6.4 SCI CLOCKF (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

CONTENTS

8.6.5 SCI DECODE TIME (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.6.6 SCI AUDATA (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.6.7 SCI WRAM (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.6.8 SCI WRAMADDR (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.6.9 SCI HDAT0 and SCI HDAT1 (R) . . . . . . . . . . . . . . . . . . . . . . . . . 33

8.6.10 SCI AIADDR (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8.6.11 SCI VOL (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8.6.12 SCI AICTRL[x] (RW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

9 Operation 35

9.1 Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

9.2 Hardware Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Version 1.03, 2005-09-05 4

9.3 Software Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

9.4 SPI Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.5 Play/Decode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.6 Feeding PCM data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

VLSI

Solution

VS1011E

VS1011e

9.7 SDI Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.7.1 Sine Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.7.2 Pin Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.7.3 Memory Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.7.4 SCI Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

10 VS1011e Registers 39

10.1 Who Needs to Read This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10.2 The Processor Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

CONTENTS

10.3 VS1011e Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10.4 SCI Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10.5 Serial Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10.6 DAC Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

10.7 GPIO Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

10.8 Interrupt Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

10.9 System Vector Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.9.1 AudioInt, 0x20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.9.2 SciInt, 0x21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.9.3 DataInt, 0x22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.9.4 UserCodec, 0x0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.10System Vector Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Version 1.03, 2005-09-05 5

10.10.1 WriteIRam(), 0x2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

10.10.2 ReadIRam(), 0x4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

10.10.3 DataBytes(), 0x6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

10.10.4 GetDataByte(), 0x8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

VLSI

Solution

VS1011E

VS1011e

10.10.5 GetDataWords(), 0xa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

11 VS1011 Version Changes 46

11.1 Changes Between VS1011b and VS1011e, 2005-07-13 . . . . . . . . . . . . . . . . . . 46

11.2 Migration Checklist from VS1011b to VS1011e, 2005-07-13 . . . . . . . . . . . . . . . 46

12 Document Version Changes 47

12.1 Version 1.03 for VS1011e, 2005-09-05 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.2 Version 1.02 for VS1011e, 2005-07-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.3 Version 1.01 for VS1011b, 2004-11-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

CONTENTS

12.4 Version 1.00 for VS1011b, 2004-10-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.5 Version 0.71 for VS1011, 2004-07-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.6 Version 0.70 for VS1011, 2004-05-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.7 Version 0.62 for VS1011, 2004-03-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.8 Version 0.61 for VS1011, 2004-03-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

13 Contact Information 48

Version 1.03, 2005-09-05 6

VLSI

Solution

VS1011E

VS1011e

LIST OF FIGURES

List of Figures

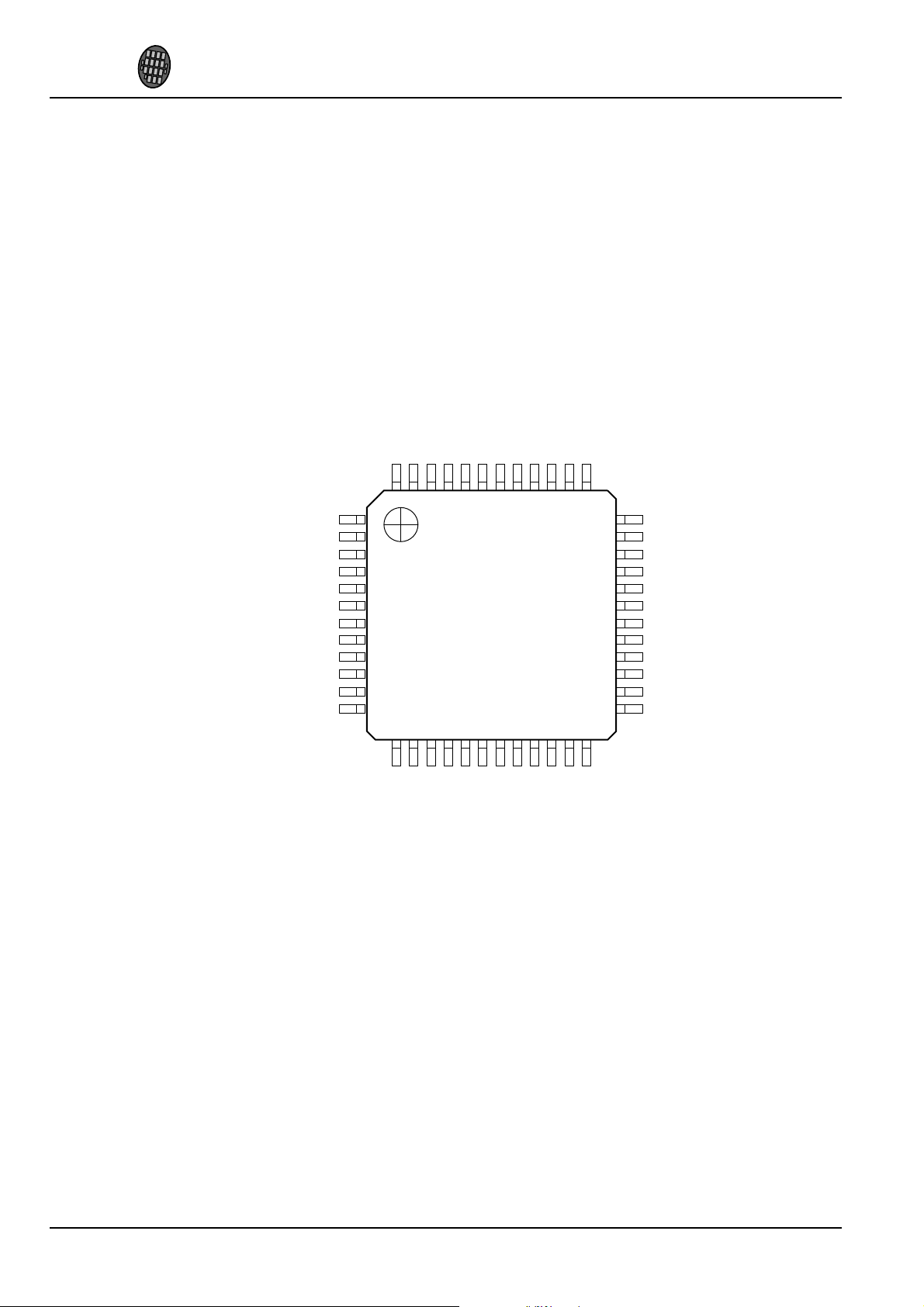

1 Pin Conﬁguration, LQFP-48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

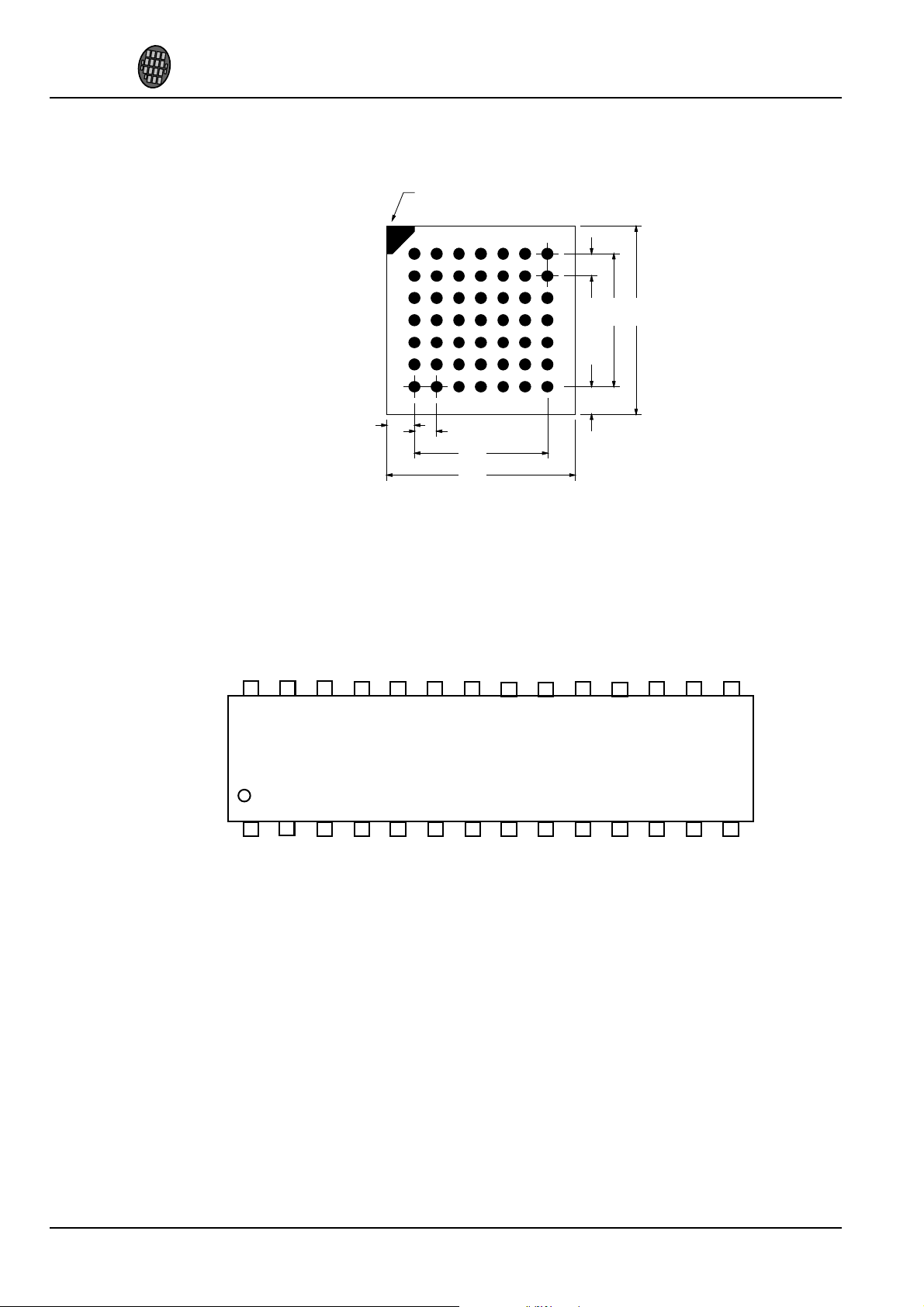

2 Pin Conﬁguration, BGA-49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Pin Conﬁguration, SOIC-28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

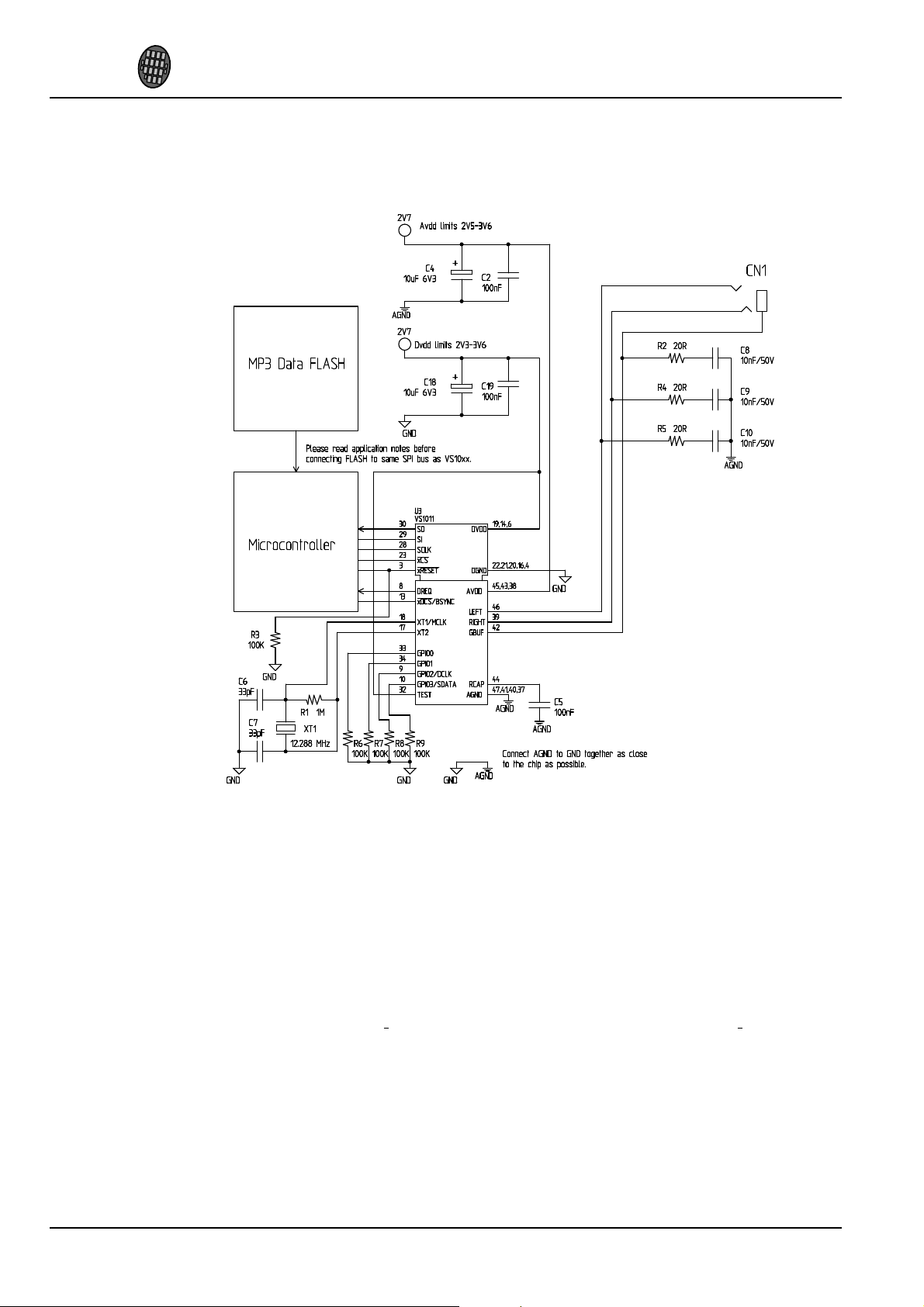

4 Typical Connection Diagram Using LQFP-48. . . . . . . . . . . . . . . . . . . . . . . . 16

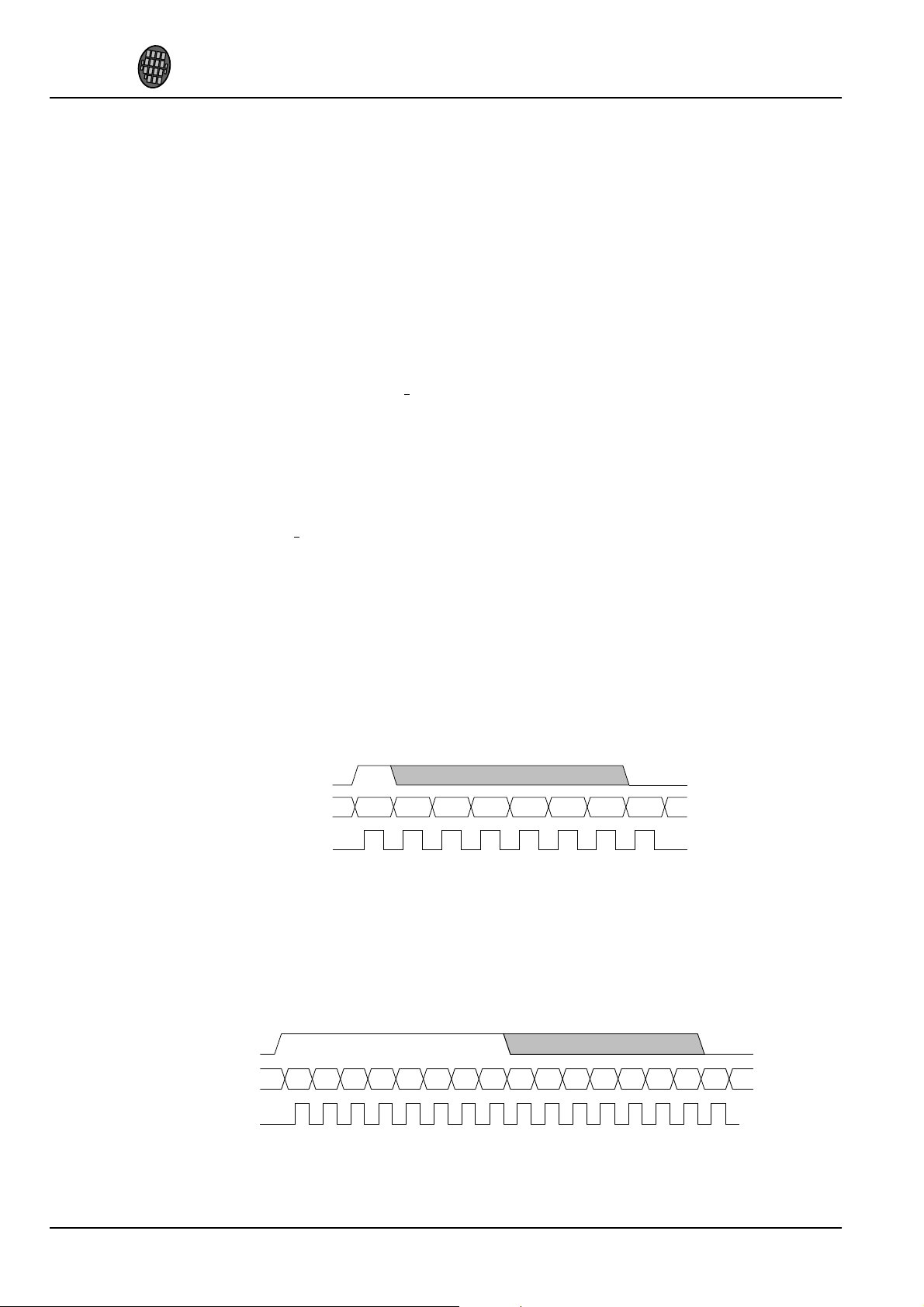

5 BSYNC Signal - one byte transfer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6 BSYNC Signal - two byte transfer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

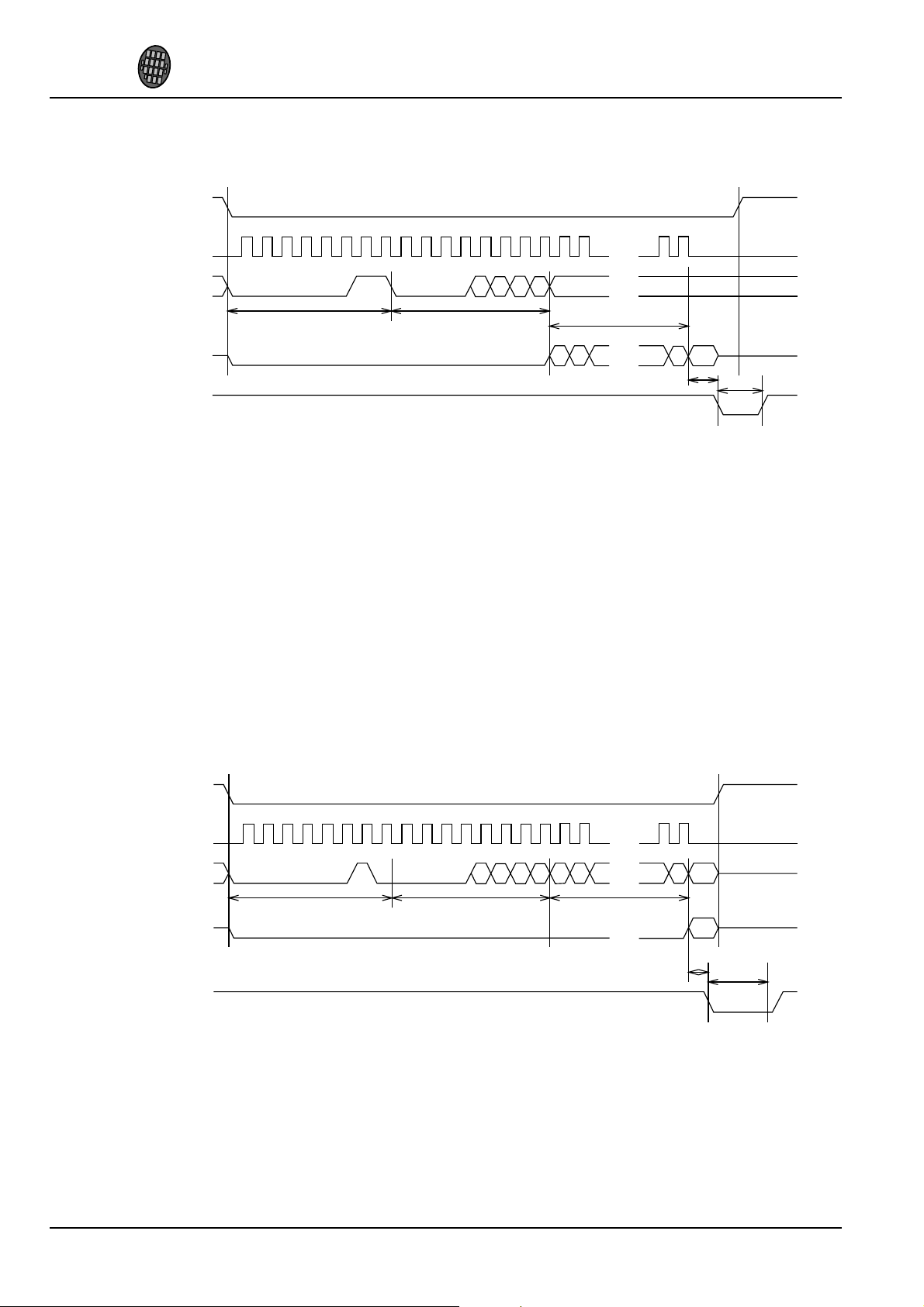

7 SCI Word Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8 SCI Word Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

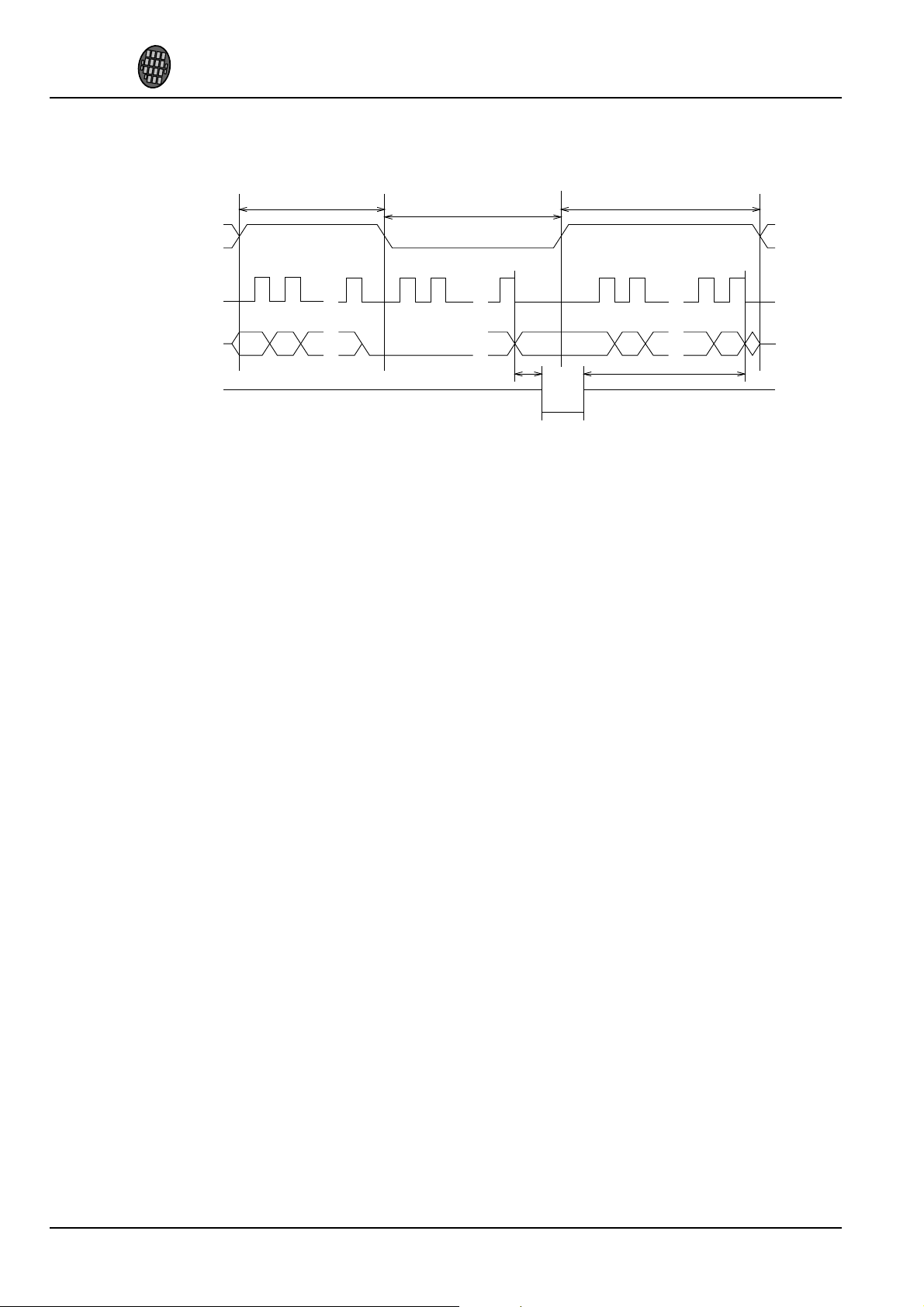

9 SPI Timing Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

10 Two SCI Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

11 Two SDI Bytes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

12 Two SDI Bytes Separated By an SCI Operation. . . . . . . . . . . . . . . . . . . . . . . 23

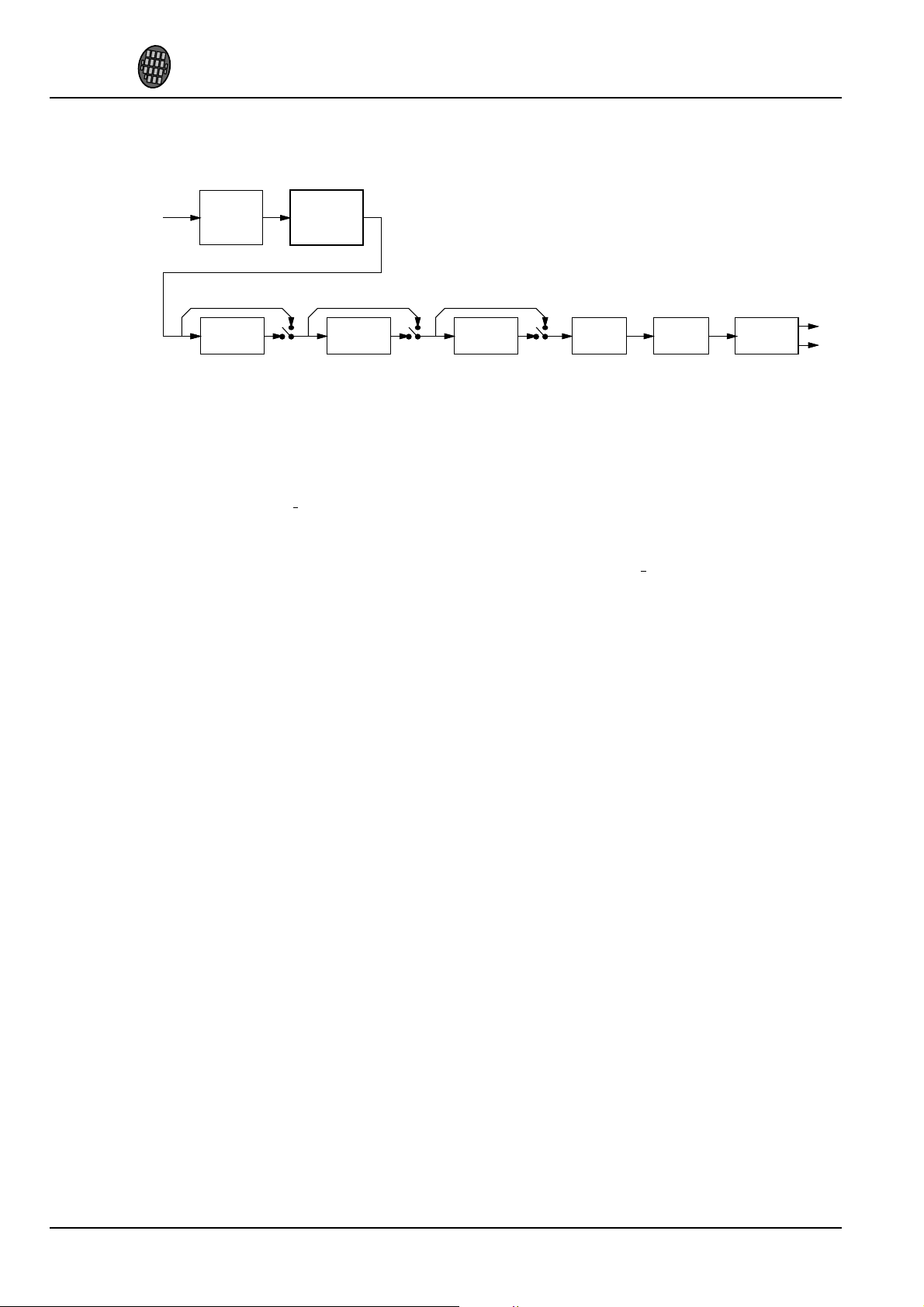

13 Data Flow of VS1011e. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

14 User’s Memory Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Version 1.03, 2005-09-05 7

VLSI

Solution

VS1011E

VS1011e

1. LICENSE

1 License

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson.

Note: if you enable Layer I and Layer II decoding, you are liable for any patent issues that may arise from using these formats. Joint licensing of MPEG 1.0 / 2.0 Layer III does not cover all patents

pertaining to layers I and II.

2 Disclaimer

All properties and ﬁgures are subject to change.

3 Deﬁnitions

B Byte, 8 bits. b Bit. Ki “Kibi” = 210= 1024 (IEC 60027-2). Mi “Mebi” = 220= 1048576 (IEC 60027-2). VS DSP VLSI Solution’s DSP core. W Word. In VS DSP, instruction words are 32-bit and data words are 16-bit wide.

Version 1.03, 2005-09-05 8

VLSI

Solution

VS1011e

4. CHARACTERISTICS& SPECIFICATIONS

4 Characteristics & Speciﬁcations

4.1 Absolute Maximum Ratings

Parameter Symbol Min Max Unit

Analog Positive Supply AVDD -0.3 3.6 V Digital Positive Supply DVDD -0.3 3.6 V Current at Any Digital Output ±50 mA Voltage at Any Digital Input DGND-1.0 DVDD+1.01V Operating Temperature -30 +85 Functional Operating Temperature -40 +95 Storage Temperature -65 +150

Must not exceed 3.6 V

◦

VS1011E

C C C

4.2 Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit

Ambient Operating Temperature -40 +85◦C Analog and Digital Ground Positive Analog AVDD 2.5 2.7 3.6 V Positive Digital DVDD 2.3 2.5 3.6 V Input Clock Frequency XTALI 24 24.576 26 MHz Input Clock Frequency, with clock doubler XTALI 12 12.288 13 MHz Internal Clock Frequency CLKI 24224.576 26 MHz Master Clock Duty Cycle 40 50 60 %

Must be connected together as close to the device as possible for latch-up immunity.

The maximum sample rate that can be played with correct speed is CLKI/512.

Thus, if CLKI is 24 MHz, 48 kHz sample rate is played 2.5% off-key.

AGND DGND 0.0 V

Version 1.03, 2005-09-05 9

VLSI

Solution

VS1011E

VS1011e

4. CHARACTERISTICS & SPECIFICATIONS

4.3 Analog Characteristics

Unless otherwise noted: AVDD=2.5..3.6V, DVDD=2.3..3.6V, TA=-40..+85◦C, XTALI=12..13MHz, internal Clock Doubler active. DAC tested with 1307.894 Hz full-scale output sinewave, measurement bandwidth 20..20000 Hz, analog output load: LEFT to GBUF 30Ω, RIGHT to GBUF 30Ω.

Parameter Symbol Min Typ Max Unit

DAC Resolution 18 bits Total Harmonic Distortion THD 0.1 0.2 % Dynamic Range (DAC unmuted, A-weighted) IDR 90 dB S/N Ratio (full scale signal) SNR 70 85 dB Interchannel Isolation (Cross Talk) 50 75 dB Interchannel Isolation (Cross Talk), with GBUF 40 dB Interchannel Gain Mismatch -0.5 0.5 dB Frequency Response -0.1 0.1 dB Full Scale Output Voltage (Peak-to-peak) 1.4 1.6 Deviation from Linear Phase 5 Analog Output Load Resistance AOLR 16 30 Analog Output Load Capacitance 100 pF

2.0 Vpp

◦

Ω

3.2 volts can be achieved with +-to-+ wiring for mono difference sound.

AOLR may be much lower, but below Typical distortion performance may be compromised.

4.4 Power Consumption

Average current tested with an MPEG 1.0 Layer III 128 kbit/s sample and generated sine, output at full volume, XTALI = 12.288 MHz, internal clock doubler enabled, DVDD = 2.5 V, AVDD = 2.7 V.

Parameter Min Typ Max Unit

Power Supply Consumption AVDD, Reset 0.5 30 µA Power Supply Consumption DVDD, Reset 1 30 µA

Power Supply Consumption AVDD, sine test, 30Ω 20 mA Power Supply Consumption AVDD, sine test, 30Ω + GBUF 39 50 mA Power Supply Consumption DVDD, sine test 8 17 mA

Power Supply Consumption AVDD, no load 6 mA Power Supply Consumption AVDD, output load 30Ω 10 mA Power Supply Consumption AVDD, 30Ω + GBUF 16 mA Power Supply Consumption DVDD 16 mA

Version 1.03, 2005-09-05 10

VLSI

Solution

VS1011E

VS1011e

4. CHARACTERISTICS & SPECIFICATIONS

4.5 Digital Characteristics

Parameter Symbol Min Typ Max Unit

High-Level Input Voltage 0.7×DVDD DVDD+0.31V Low-Level Input Voltage -0.2 0.3×DVDD V High-Level Output Voltage at IO= -2.0 mA 0.7×DVDD V Low-Level Output Voltage at IO= 2.0 mA 0.3×DVDD V Input Leakage Current -1.0 1.0 µA SPI Input Clock Frequency

CLK I

MHz

Rise time of all output pins, load = 50 pF 50 ns

Must not exceed 3.6V

Value for SCI reads. SCI and SDI writes allow

CLK I

4.6 Switching Characteristics - Boot Initialization

Parameter Symbol Min Max Unit

XRESET active time 2 XTALI XRESET inactive to software ready 500001XTALI Power on reset, rise time of DVDD 10 V/s

DREQ rises when initialization is complete. You should not send any data or commands before that.

Version 1.03, 2005-09-05 11

VLSI

Solution

VS1011E

VS1011e

5. PACKAGES AND PIN DESCRIPTIONS

5 Packages and Pin Descriptions

5.1 Packages

Both LPQFP-48 and BGA-49 are lead (Pb) free and also RoHS compliant packages. RoHS is a short name of Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

SOIC-28 is not a lead-free package.

5.1.1 LQFP-48

Figure 1: Pin Conﬁguration, LQFP-48.

LQFP-48 package dimensions are at http://www.vlsi.ﬁ/ .

Version 1.03, 2005-09-05 12

VLSI

Solution

5.1.2 BGA-49

1 2

4 5

6 7

TOP VIEW

0.80 TYP

4.80

7.00

1.10 REF

0.80 TYP

1.10 REF

4.80

7.00

A1 BALL PAD CORNER

VS1011e

VS1011E

5. PACKAGES AND PIN DESCRIPTIONS

Figure 2: Pin Conﬁguration, BGA-49.

BGA-49 package dimensions are at http://www.vlsi.ﬁ/ .

5.1.3 SOIC-28

SOIC − 28

Figure 3: Pin Conﬁguration, SOIC-28.

SOIC-28 package dimensions are at http://www.vlsi.ﬁ/ .

1516171819202122232728 26 2425

1413121110987654321

Version 1.03, 2005-09-05 13

VLSI

Solution

VS1011e

5.2 Pin Descriptions

5.2.1 LQFP-48 and BGA-49 Pin Descriptions

VS1011E

5. PACKAGES AND PIN DESCRIPTIONS

Pin Name LQFP-

48 Pin

BGA49 Ball

Pin Type

Function

XRESET 3 B1 DI active low asynchronous reset, schmitt-triggered DGND0 4 D2 PWR digital ground

DVDD0 6 D3 PWR digital power supply DREQ 8 E2 DO data request, input bus

GPIO22/ DCLK GPIO32/ SDATA

XDCS4/ BSYNC

9 E1 DI general purpose IO 2 / serial input data bus clock

10 F2 DI general purpose IO 3 / serial data input

13 E3 DI data chip select / byte sync, connect to DVDD if not used

DVDD1 14 F3 PWR digital power supply DGND1 16 F4 PWR digital ground

XTALO 17 G3 AO crystal output XTALI 18 E4 AI crystal input DVDD2 19 G4 PWR digital power supply DGND2 20 F5 PWR digital ground (in BGA-49, DGND2, 3, 4 conn. together) DGND3 21 G5 PWR digital ground DGND4 22 F6 PWR digital ground

XCS SCLK

23 G6 DI chip select input (active low) 28 D6 DI clock for serial bus

29 E7 DI serial input

SO 30 D5 DO3 serial output, active when XCS=0, regardlessof XRESET TEST 32 C6 DI reserved for test, connect to DVDD

GPIO0/ SPIBOOT

GPIO1

2,3

33 C7 DIO general purpose IO 0, use 100 kΩ pull-down resistor 34 B6 DIO general purpose IO 1

AGND0 37 C5 PWR analog ground, low-noise reference AVDD0 38 B5 PWR analog power supply RIGHT 39 A6 AO right channel output AGND1 40 B4 PWR analog ground AGND2 41 A5 PWR analog ground GBUF 42 C4 AO ground buffer AVDD1 43 A4 PWR analog power supply RCAP 44 B3 AIO ﬁltering capacitance for reference AVDD2 45 A3 PWR analog power supply LEFT 46 B2 AO left channel output AGND3 47 A2 PWR analog ground

First pin function is active in New Mode, latter in Compatibility Mode.

If not used, use 100 kΩ pull-down resistor.

Use 100 kΩ pull-down resistor. If pull-up is used instead, SPI Boot is tried. See Chapter 9.4 for details.

If not used, use 100 kΩ pull-up resistor.

Pin types:

Type Description

DI Digital input, CMOS Input Pad DO Digital output, CMOS Input Pad DIO Digital input/output DO3 Digital output, CMOS Tri-stated Output Pad

Type Description

AI Analog input AO Analog output AIO Analog input/output PWR Power supply pin

In BGA-49, no-connect balls are A1, A7, B7, C1, C2, C3, D1, D4, D7, E5, E6, F1, F7, G1, G2, G7. In LQFP-48, no-connect pins are 1, 2, 5, 7, 11, 12, 15, 24, 25, 26, 27, 31, 35, 36, 48.

Version 1.03, 2005-09-05 14

VLSI

Solution

5.2.2 SOIC-28 Pin Descriptions

VS1011e

VS1011E

5. PACKAGES AND PIN DESCRIPTIONS

Pin Name Pin Pin

Function

Type

DREQ 1 DO data request, input bus GPIO22/ DCLK GPIO32/ SDATA XDCS4/ BSYNC

2 DIO serial input data bus clock

3 DI serial data input

4 DI byte synchronization signal DVDD1 5 PWR digital power supply DGND1 6 PWR digital ground XTALO 7 CLK crystal output XTALI 8 CLK crystal input DVDD2 9 PWR digital power supply DGND2 10 PWR digital ground

XCS SCLK

11 DI chip select input (active low)

12 DI clock for serial bus

13 DI serial input SO 14 DO3 serial output, active when XCS=0, regardless of XRESET TEST 15 DI reserved for test, connect to DVDD GPIO0/ SPIBOOT

GPIO1

2,3

16 DIO general purpose IO 0, use 100 kΩ pull-down resistor

17 DIO general purpose IO 1 AGND0 18 PWR analog ground AVDD0 19 PWR analog power supply RIGHT 20 AO right channel output AGND2 21 PWR analog ground RCAP 22 AIO ﬁltering capacitance for reference AVDD2 23 PWR analog power supply LEFT 24 AO left channel output AGND3 25 PWR analog ground XRESET 26 DI active low asynchronous reset DGND0 27 PWR digital ground DVDD0 28 PWR digital power supply

First pin function is active in New Mode, latter in Compatibility Mode.

If not used, use 100 kΩ pull-down resistor.

Use 100 kΩ pull-down resistor. If pull-up is used instead, SPI Boot is tried. See Chapter 9.4 for details.

If not used, use 100 kΩ pull-up resistor.

Pin types:

Type Description

DI Digital input, CMOS Input Pad DO Digital output, CMOS Input Pad DIO Digital input/output DO3 Digital output, CMOS Tri-stated Output Pad

Version 1.03, 2005-09-05 15

Type Description

AI Analog input AO Analog output AIO Analog input/output PWR Power supply pin

VLSI

Solution

VS1011e

6 Connection Diagram, LQFP-48

VS1011E

6. CONNECTION DIAGRAM, LQFP-48

Figure 4: Typical Connection Diagram Using LQFP-48.

The ground buffer GBUF can be used for common voltage (1.23 V) for earphones. This will eliminate the need for large isolation capacitors on line outputs, and thus the audio output pins from VS1011e may be connected directly to the earphone connector.

If GBUF is not used, LEFT and RIGHT must be provided with 1-100 µF capacitors depending on load resistance.

Note: This connection assumes SM SDINEW is active (see Chapter 8.6.1). If also SM SDISHARE is used, xDCS should have a pull-up resistor (see Chapter 7.2.1).

Version 1.03, 2005-09-05 16

VLSI

Solution

VS1011E

VS1011e

7. SPI BUSES

7 SPI Buses

7.1 General

The SPI Bus - that was originally used in some Motorola devices - has been used for both VS1011e’s Serial Data Interface SDI (Chapters 7.3 and 8.4) and Serial Control Interface SCI (Chapters 7.5 and 8.5).

7.2 SPI Bus Pin Descriptions

7.2.1 VS1002 Native Modes (New Mode)

These modes are active on VS1011e when SM SDINEW is set to 1. DCLK, SDATA and BSYNC are replaced with GPIO2, GPIO3 and XDCS, respectively.

SDI Pin SCI Pin Description

XDCS XCS Active low chip select input. A high level forces the serial interface into

standby mode, ending the current operation. A high level also forces serial output (SO) to high impedance state. If SM SDISHARE is 1, pin XDCS is not used, but the signal is generated internally by inverting XCS.

SCK Serial clock input. The serial clock is also used internally as the master

clock for the register interface. SCK can be gated or continuous. In either case, the ﬁrst rising clock edge after XCS has gone low marks the ﬁrst bit to be written.

SI Serial input. If a chip select is active, SI is sampled on the rising CLK edge.

- SO Serial output. In reads, data is shifted out on the falling SCK edge. In writes SO is at a high impedance state.

7.2.2 VS1001 Compatibility Mode

This mode is active when SM SDINEW is 0 (default). In this mode, DCLK, SDATA and BSYNC are active.

SDI Pin SCI Pin Description

- XCS Active low chip select input. A high level forces the serial interface into standby mode, ending the current operation. A high level also forces serial output (SO) to high impedance state. There is no chip select for SDI, which is always active.

Version 1.03, 2005-09-05 17

BSYNC - SDI data is synchronized with a rising edge of BSYNC.

DCLK SCK Serial clock input. The serial clock is also used internally as the master

clock for the register interface. SCK can be gated or continuous. In either case, the ﬁrst rising clock edge after XCS has gone low marks the ﬁrst bit to be written.

SDATA SI Serial input. SI is sampled on the rising SCK edge, if XCS is low.

- SO Serial output. In reads, data is shifted out on the falling SCK edge. In writes SO is at a high impedance state.

VLSI

Solution

VS1011E

BSYNC

SDATA

DCLK

D7 D6 D5 D4 D3 D2 D1 D0

BSYNC

SDATA

DCLK

D7 D6 D5 D4 D3 D2 D1 D0

VS1011e

7. SPI BUSES

7.3 Serial Protocol for Serial Data Interface (SDI)

7.3.1 General

The serial data interface operates in slave mode so the DCLK signal must be generated by an external circuit.

Data (SDATA signal) can be clocked in at either the rising or falling edge of DCLK (Chapter 8.6).

VS1011e assumes its data input to be byte-sychronized. SDI bytes may be transmitted either MSb or LSb ﬁrst, depending of contents of SCI MODE (Chapter 8.6).

7.3.2 SDI in VS1002 Native Modes (New Mode)

In VS1002 native modes (which are available also in VS1011e), byte synchronization is achieved by XDCS (or XCS if SM SDISHARE is 1). The state of XDCS (or XCS) may not change while a data byte transfer is in progress. To always maintain data synchronization even if there may be glitches in the boards using VS1011e, it is recommended to turn XDCS (or XCS) every now and then, for instance once after every ﬂash data block or a few kilobytes, just to keep sure the host and VS1011e are in sync.

For new designs, using VS1002 native modes are recommended, as they are easier to implement than BSYNC generation.

7.3.3 SDI in VS1001 Compatibility Mode

When VS1011e is running in VS1001 compatibility mode, a BSYNC signal must be generated to ensure correct bit-alignment of the input bitstream. The ﬁrst DCLK sampling edge (rising or falling, depending on selected polarity), during which the BSYNC is high, marks the ﬁrst bit of a byte (LSB, if LSB-ﬁrst order is used, MSB, if MSB-ﬁrst order is used). If BSYNC is ’1’ when the last bit is received,the receiver stays active and next 8 bits are also received.

Figure 5: BSYNC Signal - one byte transfer.

Figure 6: BSYNC Signal - two byte transfer.

Version 1.03, 2005-09-05 18

VLSI

Solution

VS1011E

VS1011e

Using VS1001 compatibility mode in new designs is strongly discouraged.

7. SPI BUSES

7.4 Data Request Pin DREQ

The DREQ pin/signal is used to signal if VS1011e’s FIFO is capable of receiving data. If DREQ is high, VS1011e can take at least 32 bytes of SDI data or one SCI command. When these criteria are not met, DREQ is turned low, and the sender should stop transferring new data.

Because of a 32-byte safety area, the sender may send upto 32 bytes of SDI data at a time without checking the status of DREQ, making controlling VS1011e easier for low-speed microcontrollers.

Note: DREQ may turn low or high at any time, even during a byte transmission. Thus, DREQ should only be used to decide whether to send more bytes. It should not abort a transmission that has already started.

Note: In VS10XX products upto VS1002, DREQ was only used for SDI. In VS1011e DREQ is also used to tell the status of SCI.

7.5 Serial Protocol for Serial Command Interface (SCI)

7.5.1 General

The serial bus protocol for the Serial Command Interface SCI (Chapter 8.5) consists of an instruction byte, address byte and one 16-bit data word. Each read or write operation can read or write a single register. Data bits are read at the rising clock edge, so the user should update data at the falling clock edge. Bytes are always sent MSb ﬁrrst.

The operation is speciﬁed by an 8-bit instruction opcode. The supported instructions are read and write. See table below.

Instruction

Name Opcode Operation READ 0000 0011 Read data

WRITE 0000 0010 Write data

Note: VS1011e sets DREQ low after each SCI operation. The duration depends on the operation. It is not allowed to start a new SCI/SDI operation before DREQ is high again.

Version 1.03, 2005-09-05 19

VLSI

Solution

7.5.2 SCI Read

0 1 2 3 4 5 6 7 8 9 10 11 12 13 30 3114 15 16 17

0 0 0 0 0 0 1 1 0 0 0 0

3 2 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

15 14 1 0

instruction (read) address

data out

XCS

SCK

don’t care don’t care

DREQ

execution

0 1 2 3 4 5 6 7 8 9 10 11 12 13 30 3114 15 16 17

0 0 0 0 0 0 1 0 0 0 0

3 2 1 0

1 0

address

XCS

SCK

15 14

data out

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0SO

0 0 0 0

instruction (write)

DREQ

execution

VS1011e

Figure 7: SCI Word Read

VS1011E

7. SPI BUSES

VS1011e registers are read by the following sequence, as shown in Figure 7. First, XCS line is pulled low to select the device. Then the READ opcode (0x3) is transmitted via the SI line followed by an 8-bit word address. After the address has been read in, any further data on SI is ignored. The 16-bit data corresponding to the received address will be shifted out onto the SO line.

XCS should be driven high after data has been shifted out.

DREQ is driven low for a short while when in a read operation by the chip. This is a very short time and doesn’t require special user attention.

7.5.3 SCI Write

Version 1.03, 2005-09-05 20

Figure 8: SCI Word Write

VS1011e registers are written to using the following sequence, as shown in Figure 8. First, XCS line is pulled low to select the device. Then the WRITE opcode (0x2) is transmitted via the SI line followed by an 8-bit word address.

VLSI

Solution

VS1011E

XCS

SCK

0 1 1514 16

tXCSS

tXCSH

tWL tWH

tSU

tDIS

tXCS

VS1011e

7. SPI BUSES

After the word has been shifted in and the last clock has been sent, XCS should be pulled high to end the WRITE sequence.

After the last bit has been sent, DREQ is driven low for the duration of the register update, marked “execution” in the ﬁgure. The time varies depending on the register and its contents (see table in Chapter 8.6 for details). If the maximum time is longer than what it takes from the microcontroller to feed the next SCI command or SDI byte, it is not allowed to ﬁnish a new SCI/SDI operation before DREQ has risen up again.

7.6 SPI Timing Diagram

Figure 9: SPI Timing Diagram.

Symbol Min Max Unit

tXCSS 5 ns tSU -26 ns tH 2 XTALI cycles tZ 0 ns tWL 2 XTALI cycles tWH 2 XTALI cycles tV 2 (+ 25ns1) XTALI cycles tXCSH -26 ns tXCS 2 XTALI cycles tDIS 10 ns

25ns is when pin loaded with 100pF capacitance. The time is shorter with lower capacitance.

Note: As tWL and tWH, as well as tH require at least 2 clock cycles, the maximum speed for the SPI bus that can be used for read operations is 1/6 of VS1011e’s external clock speed XTALI. For write operations maximum speed is 1/4 of XTALI.

Note: Negative numbers mean that the signal can change in different order from what is shown in the diagram.

Version 1.03, 2005-09-05 21

VLSI

Solution

VS1011e

1 2 3 30 31

1 0 1 0

0 0 0 0 0 0

X X

XCS

SCK

32 33 61 62 63

SCI Write 1

SCI Write 2

DREQ

DREQ up before finishing next SCI write

1 2 3

XCS

SCK

7 6 5 4 3 1 0 7 6 5 2 1 0

SDI Byte 1

SDI Byte 2

0 6 7 8 9 13 14 15

DREQ

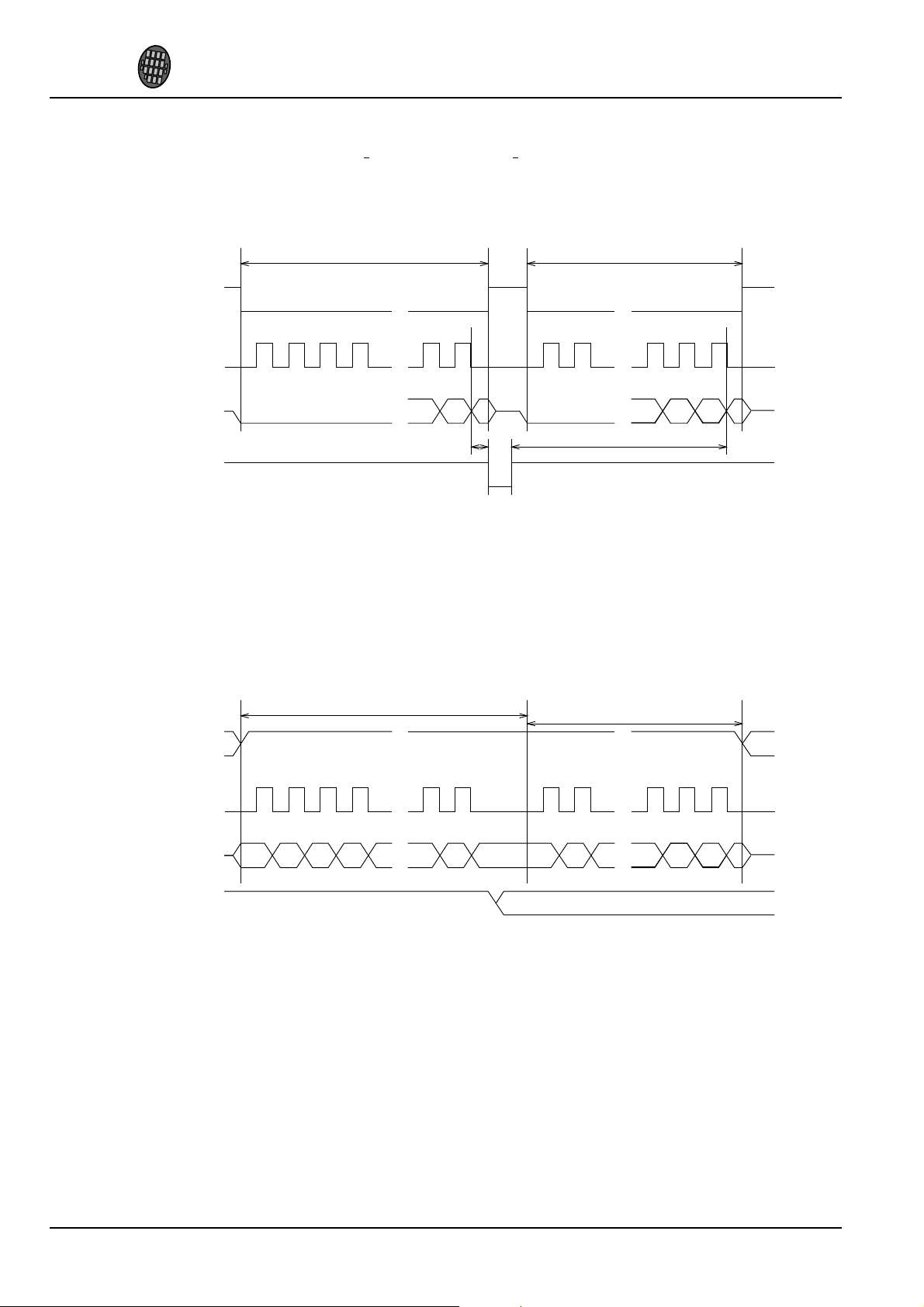

7.7 SPI Examples with SM SDINEW and SM SDISHARED set

7.7.1 Two SCI Writes

VS1011E

7. SPI BUSES

Figure 10: Two SCI Operations.

Figure 10 shows two consecutive SCI operations. Note that xCS must be raised to inactive state between the writes. Also DREQ must be respected as shown in the ﬁgure.

7.7.2 Two SDI Bytes

Figure 11: Two SDI Bytes.

SDI data is synchronized with a raising edge of xCS as shown in Figure 11. However, every byte doesn’t need separate synchronization.

Version 1.03, 2005-09-05 22

VLSI

Solution

VS1011E

XCS

SCK

7 6 5 1

0 0

0 7 6 5 1 0

SDI Byte

SCI Operation

SDI Byte

8 9 39 40 41 46 47

DREQ high before end of next transfer

VS1011e

7. SPI BUSES

7.7.3 SCI Operation in Middle of TwoSDI Bytes

Figure 12: Two SDI Bytes Separated By an SCI Operation.

Figure 12 shows how an SCI operation is embedded in between SDI operations. xCS edges are used to synchronize both SDI and SCI. Remember to respect DREQ as shown in the ﬁgure.

Version 1.03, 2005-09-05 23

VLSI

Solution

VS1011E

VS1011e

8. FUNCTIONAL DESCRIPTION

8 Functional Description

8.1 Main Features

VS1011e is based on a proprietary digital signal processor, VS DSP. It contains all the code and data memory needed for MPEG, WAV PCM and WAV IMA ADPCM audio decoding, together with serial interfaces, a multirate stereo audio DAC and analog output ampliﬁers and ﬁlters.

VS1011e can play all MPEG 1.0, and 2.0 layer I, II and III ﬁles, as well as MPEG 2.5 layer III ﬁles, with all sample rates and bitrates, including variable bitrate (VBR) for layer III. Note, that decoding of layers I and II must be activated separately.

8.2 Supported Audio Codecs

Conventions

Mark Description

+ Format is supported

- Format exists but is not supported ? Format not tested

Format doesn’t exist

8.2.1 Supported MP1 (MPEG layer I) Formats

MPEG 1.0:

Samplerate / Hz Bitrate / kbit/s

32 64 96 128 160 192 224 256 288 320 352 384 416 448

48000 + + + + + + + + + + + + + + 44100 + + + + + + + + + + + + + + 32000 + + + + + + + + + + + + + +

MPEG 2.0:

Samplerate / Hz Bitrate / kbit/s

32 48 56 64 80 96 112 128 144 160 176 192 224 256

24000 ? ? ? ? ? ? ? ? ? ? ? ? ? ? 22050 ? ? ? ? ? ? ? ? ? ? ? ? ? ? 16000 ? ? ? ? ? ? ? ? ? ? ? ? ? ?

Version 1.03, 2005-09-05 24

VLSI

Solution

VS1011e

8.2.2 Supported MP2 (MPEG layer II) Formats

MPEG 1.0:

Samplerate / Hz Bitrate / kbit/s

32 48 56 64 80 96 112 128 160 192 224 256 320 384

48000 + + + + + + + + + + + + + + 44100 + + + + + + + + + + + + + + 32000 + + + + + + + + + + + + + +

MPEG 2.0:

Samplerate / Hz Bitrate / kbit/s

8 16 24 32 40 48 56 64 80 96 112 128 144 160

24000 + + + + + + + + + + + + + + 22050 + + + + + + + + + + + + + + 16000 + + + + + + + + + + + + + +

VS1011E

8. FUNCTIONAL DESCRIPTION

8.2.3 Supported MP3 (MPEG layer III) Formats

MPEG 1.01:

Samplerate / Hz Bitrate / kbit/s

32 40 48 56 64 80 96 112 128 160 192 224 256 320

48000 + + + + + + + + + + + + + + 44100 + + + + + + + + + + + + + + 32000 + + + + + + + + + + + + + +

MPEG 2.01:

Samplerate / Hz Bitrate / kbit/s

8 16 24 32 40 48 56 64 80 96 112 128 144 160

24000 + + + + + + + + + + + + + + 22050 + + + + + + + + + + + + + + 16000 + + + + + + + + + + + + + +

MPEG 2.51:

Samplerate / Hz Bitrate / kbit/s

8 16 24 32 40 48 56 64 80 96 112 128 144 160

12000 + + + + + + + + + + + + + + 11025 + + + + + + + + + + + + + +

8000 + + + + + + + + + + + + + +

Also all variable bitrate (VBR) formats are supported.

Note: 24.0 MHz internal clock (24.0 MHz external clock or 12.0 MHz external clock with clockdoubler) is enough for VS1011e to be able to decode all bitrates and sample rates with bass enhancer and treble control active.

Version 1.03, 2005-09-05 25

VLSI

Solution

VS1011e

8. FUNCTIONAL DESCRIPTION

8.2.4 Supported RIFF WAV Formats

The most common RIFF WAV subformats are supported.

Format Name Supported Comments

0x01 PCM + 16 and 8 bits, any sample rate ≤ 48kHz 0x02 ADPCM 0x03 IEEE FLOAT 0x06 ALAW 0x07 MULAW 0x10 OKI ADPCM 0x11 IMA ADPCM + Any sample rate ≤ 48kHz 0x15 DIGISTD 0x16 DIGIFIX 0x30 DOLBY AC2 0x31 GSM610 0x3b ROCKWELL ADPCM 0x3c ROCKWELL DIGITALK 0x40 G721 ADPCM 0x41 G728 CELP 0x50 MPEG 0x55 MPEGLAYER3 + For supported MP3 modes, see Chapter 8.2.3 0x64 G726 ADPCM 0x65 G722 ADPCM -

VS1011E

Version 1.03, 2005-09-05 26

VLSI

Solution

VS1011E

Volume control

Audio FIFO

S.rate.conv. and DAC

Bitstream FIFO

SDI

SCI_VOL

Bass enhancer

SB_AMPLITUDE=0

SB_AMPLITUDE!=0

AIADDR = 0

AIADDR != 0

User Application

ST_AMPLITUDE=0

ST_AMPLITUDE!=0

Treble enhancer

MP1 / MP2 / MP3 / WAV / ADPCM decode

512 stereo samples

VS1011e

8. FUNCTIONAL DESCRIPTION

8.3 Data Flow of VS1011e

Figure 13: Data Flow of VS1011e.

First, depending on the audio data, MPEG or WAV audio is received and decoded from the SDI bus.

After decoding, if SCI AIADDR is non-zero, application code is executed from the address pointed to by that register. For more details, see VS10XX Application Note: User Applications.

Then data may be sent to the Bass and Treble Enhancer depending on SCI BASS.

After that the signal is fed to the volume control unit, which also copies the data to the Audio FIFO.

The Audio FIFO holds the data, which is read by the Audio interrupt (Chapter 10.9.1) and fed to the sample rate converter and DACs. The size of the audio FIFO is 512 stereo (2×16-bit) samples, or 2 KiB.

The sample rate converter converts all different sample rates to CLKI/512 and feeds the data to the DAC, which in order creates a stereo in-phase analog signal. This signal is then forwarded to the earphone ampliﬁer.

8.4 Serial Data Interface (SDI)

The serial data interface is meant for transferring compressed MP3 audio data as well as WAV data.

Also several different tests may be activated through SDI as described in Chapter 9.

Version 1.03, 2005-09-05 27

VLSI

Solution

VS1011E

VS1011e

8. FUNCTIONAL DESCRIPTION

8.5 Serial Control Interface (SCI)

The serial control interface is compatible with the SPI bus speciﬁcation. Data transfers are always 16 bits. VS1011e is controlled by writing and reading the registers of the interface.

The main controls of the control interface are:

• control of the operation mode, clock, and builtin effects

• access to status information and header data

• access to encoded digital data

• uploading user programs

• feeding input data

8.6 SCI Registers

SCI registers, preﬁx SCI

Reg Type Reset Time1Abbrev[bits] Description

0x0 rw 0 70 CLKI4MODE Mode control 0x1 rw 0x2C 0x2 rw 0 2100 CLKI BASS Built-in bass/treble enhancer 0x3 rw 0 80 XTALI CLOCKF Clock freq + multiplier 0x4 rw 0 40 CLKI DECODE TIME Decode time in seconds 0x5 rw 0 3200 CLKI AUDATA Misc. audio data 0x6 rw 0 80 CLKI WRAM RAM write/read 0x7 rw 0 80 CLKI WRAMADDR Base address for RAM write/read 0x8 r 0 - HDAT0 Stream header data 0

0x9 r 0 - HDAT1 Stream header data 1 0xA rw 0 3200 CLKI2AIADDR Start address of application 0xB rw 0 2100 CLKI VOL Volume control 0xC rw 0 50 CLKI2AICTRL0 Application control register 0 0xD rw 0 50 CLKI2AICTRL1 Application control register 1

0xE rw 0 50 CLKI2AICTRL2 Application control register 2

0xF rw 0 50 CLKI2AICTRL3 Application control register 3

40 CLKI STATUS Status of VS1011e

This is the worst-case time that DREQ stays low after writing to this register. The user may choose to

skip the DREQ check for those register writes that take less than 100 clock cycles to execute.

In addition, the cycles spent in the user application routine must be counted.

Firmware changes the value of this register immediately to 0x28, and in less than 100 ms to 0x20.

Version 1.03, 2005-09-05 28

When mode register write speciﬁes a software reset the worst-case time is 9600 XTALI cycles.

Note that if DREQ is low when an SCI write is done, DREQ also stays low after SCI write processing.

VLSI

Solution

VS1011e

8.6.1 SCI MODE (RW)

SCI MODE is used to control operation of VS1011e.

Bit Name Function Value Description

0 SM DIFF Differential 0 normal in-phase audio

1 SM LAYER12 Allow MPEG layers I & II 0 no

2 SM RESET Soft reset 0 no reset

3 SM OUTOFWAV Jump out of WAV decoding 0 no

4 SM SETTOZERO1 set to zero 0 right

5 SM TESTS Allow SDI tests 0 not allowed

6 SM STREAM Stream mode 0 no

7 SM SETTOZERO2 set to zero 0 right

8 SM DACT DCLK active edge 0 rising

9 SM SDIORD SDI bit order 0 MSb ﬁrst

10 SM SDISHARE Share SPI chip select 0 no

11 SM SDINEW VS1002 native SPI modes 0 no

12 SM SETTOZERO3 set to zero 0 right

13 SM SETTOZERO4 set to zero 0 right

VS1011E

8. FUNCTIONAL DESCRIPTION

1 left channel inverted

1 yes

1 reset

1 yes

1 wrong

1 allowed

1 yes

1 wrong

1 falling

1 MSb last

1 yes

1 wrong

When SM DIFF is set, the player inverts the left channel output. For a stereo input this creates a virtual surround, and for a mono input this effectively creates a differential left/right signal.

SM LAYER12 determines whether it is allowed to decode MPEG 1 and 2 layers I and II in addition to layer III. If you enable Layer I and Layer II decoding, you are liable for any patent issues that may arise. Joint licensing of MPEG 1.0 / 2.0 Layer III does not cover all patents pertaining to layers I and II.

By setting SM RESET to 1, the player is software reset. This bit clears automatically.

Version 1.03, 2005-09-05 29

When the user decoding a WAV ﬁle wants to get out of the ﬁle without playing it to the end, set SM OUTOFWAV, and send zeros to VS1002e until SM OUTOFWAV is again zero. If the user doesn’t want to check SM OUTOFWAV, send 128 zeros.

If SM TESTS is set, SDI tests are allowed. For more details on SDI tests, look at Chapter 9.7.

VLSI

Solution

VS1011E

VS1011e

SM STREAM activates VS1011e’s stream mode. In this mode, data should be sent with as even intervals as possible (and preferable with data blocks of less than 512 bytes), and VS1011e makes every attempt to keep its input buffer half full by changing its playback speed upto 5%. For best quality sound, the average speed error should be within 0.5%, the bitrate should not exceed 160 kbit/s and VBR should not be used. For details, see VS10XX Application Note: Streaming.

SM DACT deﬁnes the active edge of data clock for SDI. If clear data is read at the rising edge, and if set data is read at the falling edge.

When SM SDIORD is clear, bytes on SDI are sent as a default MSb ﬁrst. By setting SM SDIORD, the user may reverse the bit order for SDI, i.e. bit 0 is received ﬁrst and bit 7 last. Bytes are, however, still sent in the default order. This register bit has no effect on the SCI bus.

Setting SM SDISHARE makes SCI and SDI share the same chip select, as explained in Chapter 7.2, if also SM SDINEW is set.

Setting SM SDINEW will activate VS1002 native serial modes as described in Chapters 7.2.1 and 7.3.2.

8. FUNCTIONAL DESCRIPTION

8.6.2 SCI STATUS (RW)

SCI STATUS contains information on the current status of VS1011e and lets the user shutdown the chip without audio glitches.

Name Bits Description

SS VER 6:4 Version SS APDOWN2 3 Analog driver powerdown SS APDOWN1 2 Analog internal powerdown SS AVOL 1:0 Analog volume control

SS VER is 0 for VS1001, 1 for VS1011, 2 for VS1002 and VS1011e, and 3 for vs1003.

You can use SCI MODE to distinguish between VS1002 and VS1011e. After reset VS1011e has SM SDINEW=0, while VS1002 has SM SDINEW=1.

SS APDOWN2controls analog driverpowerdown. Normally this bit is controlled by the system ﬁrmware. However, if the user wants to powerdown VS1011e with a minimum power-off transient, turn this bit to 1, then wait for at least a few milliseconds before activating reset.

SS APDOWN1controls internal analog powerdown. This bit is meant to be used by the system ﬁrmware only.

SS AVOL is the analog volume control: 0 = -0 dB, 1 = -6 dB, 3 = -12 dB. This register is meant to be used automatically by the system ﬁrmware only.

Version 1.03, 2005-09-05 30

VLSI

Solution

VS1011E

VS1011e

8. FUNCTIONAL DESCRIPTION

8.6.3 SCI BASS (RW)

Name Bits Description

ST AMPLITUDE 15:12 Treble Control in 1.5 dB steps (-8..7, 0 = off) ST FREQLIMIT 11:8 Lower limit frequency in 1000 Hz steps (0..15) SB AMPLITUDE 7:4 Bass Enhancement in 1 dB steps (0..15, 0 = off) SB FREQLIMIT 3:0 Lower limit frequency in 10 Hz steps (2..15)

The Bass Enhancer VSBE is a powerful bass boosting DSP algorithm, which tries to take the most out of the users earphones without causing clipping.

VSBE is activated when SB AMPLITUDE is non-zero. SB AMPLITUDE should be set to the user’s preferences, and SB FREQLIMIT to roughly 1.5 times the lowest frequency the user’s audio system can reproduce. For example setting SCI BASS to 0x00f6 will have 15 dB enhancement below 60 Hz.

Note: Because VSBE tries to avoid clipping, it gives the best bass boost with dynamical music material, or when the playback volume is not set to maximum. It also does not create bass: the source material must have some bass to begin with.

Treble Control VSTC is activated when ST AMPLITUDE is non-zero. For example setting SCI BASS to 0x7a00 will have 10.5 dB treble enhancement at and above 10 kHz.

Bass Enhancer uses about 2.1 MIPS and Treble Control 1.2 MIPS at 44100 Hz sample rate. Both can be on simultaneously.

8.6.4 SCI CLOCKF (RW)

SCI CLOCKF is used to tell if the input clock XTALI is running at something else than 24.576 MHz. XTALI is set in 2 kHz steps. Thus, the formula for calculating the correct value for this register is

XT ALI

2000

(XTALI is in Hz). Values may be between 0..32767, although hardware limits the highest allowed speed. Also, with speeds lower than 24.576 MHz all sample rates are no longer available. For example with 24MHz clock 48kHz is played 2.5% off-key.

Setting the MSB of SCI CLOCKF to 1 activates internal clock-doubling when the sample rate is next conﬁgured.

Note: SCI CLOCKF must be set before beginning decoding audio data; otherwise the sample rate will not be set correctly.

Example 1: For a 26 MHz clock the value would be

26000000

2000

= 13000.

Example 2: For a 13 MHz external clock and using internal clock-doubling for a 26 MHz internal frequency, the value would be 0x8000 +

Example 3: For a 24.576 MHz clock the value would be either

13000000

2000

= 39268.

24576000

2000

= 12288, or just the default

value 0. For this clock frequency, SCI CLOCKF doesn’t need to be set.

Version 1.03, 2005-09-05 31

VLSI

Solution

VS1011E

VS1011e

8.6.5 SCI DECODE TIME (RW)

When decoding correct data, current decoded time is shown in this register in full seconds.

The user may change the value of this register. However, in that case the new value should be written twice.

SCI DECODE TIME is reset at every software reset.

8.6.6 SCI AUDATA (RW)

When decoding correct data, the current sample rate and number of channels can be found in bits 15:1 and 0 of SCI AUDATA, respectively. Bits 15:1 contain the sample rate divided by two, and bit 0 is 0 for mono data and 1 for stereo. Writing to this register will change the sample rate on the run to the number given.

8. FUNCTIONAL DESCRIPTION

Example: 44100 Hz stereo data reads as 0xAC45 (44101). Example: 11025 Hz mono data reads as 0x2B10 (11024). Example: Writing 0xAC80 sets sample rate to 44160 Hz, stereo mode does not change.

8.6.7 SCI WRAM (RW)

SCI WRAM is used to upload application programs and data to instruction and data RAMs. The start address must be initialized by writing to SCI WRAMADDR prior to the ﬁrst write/read of SCI WRAM. As 16 bits of data can be transferred with one SCI WRAM write/read, and the instruction word is 32 bits long, two consecutive writes/reads are needed for each instruction word. The byte order is big-endian (i.e. MSBs ﬁrst). After each full-word write/read, the internal pointer is autoincremented.

8.6.8 SCI WRAMADDR (RW)

SCI WRAMADDR is used to set the program address and memory bus for following SCI WRAM writes/reads.

SM WRAMADDR Dest. addr. Bits/ Description Start.. . End Start...End Word

0x1380.. . 0x13FF 0x1380...0x13FF 16 X data RAM 0x4780.. . 0x47FF 0x0780...0x07FF 16 Y data RAM 0x8030.. . 0x84FF 0x0030...0x04FF 32 Instruction RAM 0xC000.. . 0xFFFF 0xC000...0xFFFF 16 I/O

Version 1.03, 2005-09-05 32

VLSI

Solution

8.6.9 SCI HDAT0 and SCI HDAT1 (R)

Bit Function Value Explanation

HDAT1[15:5] syncword 2047 stream valid HDAT1[4:3] ID 3 ISO 11172-3 MPG 1.0

HDAT1[2:1] layer 3 I

HDAT1[0] protect bit 1 No CRC

HDAT0[15:12] bitrate see bitrate table HDAT0[11:10] sample rate 3 reserved

HDAT0[9] pad bit 1 additional slot

HDAT0[8] private bit not deﬁned HDAT0[7:6] mode 3 mono

HDAT0[5:4] extension see ISO 11172-3 HDAT0[3] copyright 1 copyrighted

HDAT0[2] original 1 original

HDAT0[1:0] emphasis 3 CCITT J.17

VS1011e

2 ISO 13818-3 MPG 2.0 (1/2-rate) 1 MPG 2.5 (1/4-rate) 0 MPG 2.5 (1/4-rate)

2 II 1 III 0 reserved

0 CRC protected

2 32/16/ 8 kHz 1 48/24/12 kHz 0 44/22/11 kHz

0 normal frame

2 dual channel 1 joint stereo 0 stereo

0 free

0 copy

2 reserved 1 50/15 microsec 0 none

8. FUNCTIONAL DESCRIPTION

VS1011E

When read, SCI HDAT0 and SCI HDAT1 contain header information that is extracted from MPEG stream being currently being decoded. Right after resetting VS1011e, 0 is automatically written to both registers, indicating no data has been found yet.

The “sample rate” ﬁeld in SCI HDAT0 is interpreted according to the following table:

“sample rate” ID=3 / Hz ID=2 / Hz ID=0,1 / Hz

3 - - 2 32000 16000 8000 1 48000 24000 12000 0 44100 22050 11025

The “bitrate” ﬁeld in HDAT0 is read according to the following table:

Version 1.03, 2005-09-05 33

VLSI

Solution

VS1011e

Layer I Layer II Layer III

“bitrate” ID=3 ID=0,1,2 ID=3 ID=0,1,2 ID=3 ID=0,1,2

kbit/s kbit/s kbit/s

15 forbidden forbidden forbidden forbidden forbidden forbidden 14 448 256 384 160 320 160 13 416 224 320 144 256 144 12 384 192 256 128 224 128 11 352 176 224 112 192 112 10 320 160 192 96 160 96

9 288 144 160 80 128 80 8 256 128 128 64 112 64 7 224 112 112 56 96 56 6 192 96 96 48 80 48 5 160 80 80 40 64 40 4 128 64 64 32 56 32 3 96 56 56 24 48 24 2 64 48 48 16 40 16 1 32 32 32 8 32 8 0 - - - - - -

8. FUNCTIONAL DESCRIPTION

VS1011E

When decoding a WAV ﬁle, SPI HDAT0 and SPI HDAT1 read as 0x7761 and 0x7665, respectively.

8.6.10 SCI AIADDR (RW)

SCI AIADDR indicates the start address of the application code written earlier with SCI WRAMADDR and SCI WRAM registers. If no application code is used, this register should not be initialized, or it should be initialized to zero. For more details, see VS10XX Application Note: User Applications.

8.6.11 SCI VOL (RW)

SCI VOL is a volume control for the player hardware. For each channel, a value in the range of 0..254 may be deﬁned to set its attenuation from the maximum volume level (in 0.5 dB steps). The left channel value is then multiplied by 256 and the values are added. Thus, maximum volume is 0 and total silence is 0xFEFE.

Example: for a volume of -2.0 dB for the left channel and -3.5 dB for the right channel: (4*256) + 7 = 0x407. Note, that at startup volume is set to full volume. Resetting the software does not reset the volume setting.

Note: Setting SCI VOL to 0xFFFF will activate analog powerdown mode.

8.6.12 SCI AICTRL[x] (RW)

SCI AICTRL[x] registers ( x=[0 .. 3] ) can be used to access the user’s application program.

Version 1.03, 2005-09-05 34

VLSI

Solution

VS1011E

VS1011e

9. OPERATION

9 Operation

9.1 Clocking

VS1011e operates on a single, nominally 24.576 MHz fundamental frequency master clock. This clock can be generated by external circuitry (connected to pin XTALI)or by the internal clock chrystal interface (pins XTALI and XTALO). Also, 12.288 MHz external clock can be internally clock-doubled to 24.576 MHz. This clock is sufﬁcient to support a high quality audio output for all codecs, sample rates and bitrates, with bass and treble enhancers.

9.2 Hardware Reset

When the XRESET -signal is driven low,VS1011e is reset and all the control registers and internal states are set to the initial values. XRESET-signal is asynchronous to any external clock. The reset mode doubles as a full-powerdown mode, where both digital and analog parts of VS1011e are in minimum power consumption stage, and where clocks are stopped. Also XTALO and XTALI are grounded.

After a hardware reset (or at power-up), the user should set such basic software registers as SCI VOL for volume (and SCI CLOCKF if the input clock is anything else than 24.576 MHz) before starting decoding.

9.3 Software Reset

In some cases the decoder software has to be reset. This is done by activatingbit 2 in SCI MODE register (Chapter 8.6.1). Then wait for at least 2 µs, then look at DREQ. DREQ will stay down for at least 6000 clock cycles, which means an approximate 250 µs delay if VS1011e is run at 24.576 MHz. After DREQ is up, you may continue playback as usual.

If you want to make sure VS1011e doesn’t cut the ending of low-bitrate data streams and you want to do a software reset, it is recommended to feed 2048 zeros to the SDI bus after the ﬁle and before the reset.

Version 1.03, 2005-09-05 35

VLSI

Solution

VS1011E

VS1011e

9. OPERATION

9.4 SPI Boot

If GPIO0 is set with a pull-up resistor to 1 at boot time, VS1011e tries to boot from external SPI memory.

SPI boot redeﬁnes the following pins:

Normal Mode SPI Boot Mode GPIO0 xCS

GPIO1 CLK DREQ MOSI GPIO2 MISO

The memory has to be an SPI Bus Serial EEPROM with 16-bit addresses (i.e. at least 1 KiB). The serial speed used by VS1011e is 490 kHz with the nominal 24.576 MHz clock. The ﬁrst three bytes in the memory have to be 0x50, 0x26, 0x48. The exact record format is explained in the Application Notes for VS10XX.

If SPI boot succeeds, SCI MODE is left with value 0x0800.

9.5 Play/Decode

This is the normal operation mode of VS1011e. SDI data is decoded. Decoded samples are converted to analog domain by the internal DAC. If no decodable data is found, SCI HDAT0 and SCI HDAT1 are set to 0 and analog outputs are muted.

When there is no input for decoding, VS1011e goes into idle mode (lower power consumption than during decoding) and actively monitors the serial data input for valid data.

9.6 Feeding PCM data

VS1011e can be used as a PCM decoder by sending to it a WAV ﬁle header. If the length sent in the WAV ﬁle is 0 or 0xFFFFFFF, VS1011e will stay in PCM mode indeﬁnitely. 8-bit linear and 16-bit linear audio is supported in mono or stereo.

9.7 SDI Tests

Version 1.03, 2005-09-05 36

There are several test modes in VS1011e, which allow the user to perform memory tests, SCI bus tests, and several different sine wave tests.

All tests are started in a similar way: VS1011e is hardware reset, SM TESTS is set, and then a test command is sent to the SDI bus. Each test is started by sending a 4-byte special command sequence, followed by 4 zeros. The sequences are described below.

VLSI

Solution

VS1011E

VS1011e

9. OPERATION

9.7.1 Sine Test

Sine test is initialized with the 8-byte sequence 0x53 0xEF 0x6E n 0 0 0 0, where n deﬁnes the sine test to use. n is deﬁned as follows:

n bits

Name Bits Description

Idx 7:5 Sample rate index

S 4:0 Sine skip speed

FsIdx F

0 44100 Hz 1 48000 Hz 2 32000 Hz 3 22050 Hz 4 24000 Hz 5 16000 Hz 6 11025 Hz 7 12000 Hz

The frequency of the sine to be output can now be calculated from F = F

128

Example: Sine test is activated with value 126, which is 0b01111110. Breaking n to its components,

Idx = 0b011 = 1 and thus Fs= 22050Hz. S = 0b11110 = 30, and thus the ﬁnal sine frequency

F = 22050H z ×

≈ 5168H z.

128

To exit the sine test, send the sequence 0x45 0x78 0x69 0x74 0 0 0 0.

Note: Sine test signals go through the digital volume control, so it is possible to test channels separately.

9.7.2 Pin Test

Pin test is activated with the 8-byte sequence 0x50 0xED 0x6E 0x54 0 0 0 0. This test is meant for chip production testing only.

9.7.3 Memory Test

Memory test mode is initialized with the 8-byte sequence 0x4D 0xEA 0x6D 0x54 0 0 0 0. After this sequence, wait for 200000 clock cycles. The result can be read from the SCI register SCI HDAT0, and ’one’ bits are interpreted as follows:

Version 1.03, 2005-09-05 37

VLSI

Solution

VS1011e

Bit(s) Mask Meaning

15 0x8000 Test ﬁnished 14:7 Unused 6 0x0040 Mux test succeeded 5 0x0020 Good I RAM 4 0x0010 Good Y RAM 3 0x0008 Good X RAM 2 0x0004 Good I ROM 1 0x0002 Good Y ROM 0 0x0001 Good X ROM

0x807f All ok

Memory tests overwrite the current contents of the RAM memories.

9.7.4 SCI Test

VS1011E

9. OPERATION

Sci test is initialized with the 8-byte sequence 0x53 0x70 0xEE n 0 0 0 0, where n − 48 is the register number to test. The content of the given register is read and copied to SCI HDAT0. If the register to be tested is HDAT0, the result is copied to SCI HDAT1.

Example: if n is 48, contents of SCI register 0 (SCI MODE) is copied to SCI HDAT0.

Version 1.03, 2005-09-05 38

VLSI

Solution

VS1011E

VS1011e

10. VS1011E REGISTERS

10 VS1011e Registers

10.1 Who Needs to Read This Chapter

User software is required when a user wishes to add some own functionality like DSP effects to VS1011e.

However,most users of VS1011e don’t need to worry about writing their own code, or about this chapter, including those who only download software plug-ins from VLSI Solution’s Web site.

10.2 The Processor Core

VS DSP is a 16/32-bit DSP processor core that also had extensive all-purpose processor features. VLSI Solution’s free VSKIT Software Package contains all the tools and documentation needed to write, simulate and debug Assembly Language or Extended ANSI C programs for the VS DSP processor core. VLSI Solution also offers a full Integrated Development Environment VSIDE for full debug capabilities.

10.3 VS1011e Memory Map

VS1011e’s Memory Map is shown in Figure 14.

10.4 SCI Registers

SCI registers described in Chapter 8.6 can be found here between 0xC000..0xC00F. In addition to these registers, there is one in address 0xC010, called SPI CHANGE.

SPI registers, preﬁx SPI

Reg Type Reset Abbrev[bits] Description

0xC010 r 0 CHANGE[5:0] Last SCI access address.

SPI CHANGE bits

Name Bits Description

SPI CH WRITE 4 1 if last access was a write cycle. SPI CH ADDR 3:0 SPI address of last access.

Version 1.03, 2005-09-05 39

VLSI

Solution

VS1011e

00000000

Stack Stack

Instruction (32−bit) Y (16−bit)X (16−bit)

System Vectors

User Space

Y DATA ROM

X DATA ROM

4000

6000

4000

6000

7000 7000

Instruction ROM

Hardware Register Space

C000

C100 C100

C000

00980098

1380

User Space

1400

1380

1400

18001800

User Instruction RAM

X DATA RAM

Y DATA RAM

0C00

0800

0780 0780

0800

0C00

0030 0030

0500 0500

VS1011E

10. VS1011E REGISTERS

Figure 14: User’s Memory Map.

10.5 Serial Data Registers

SDI registers, preﬁx SER

Reg Type Reset Abbrev[bits] Description

0xC011 r 0 DATA Last received 2 bytes, big-endian. 0xC012 w 0 DREQ[0] DREQ pin control.

Version 1.03, 2005-09-05 40

VLSI

Solution

VS1011E

VS1011e

10. VS1011E REGISTERS

10.6 DAC Registers

DAC registers, preﬁx DAC

Reg Type Reset Abbrev[bits] Description

0xC013 rw 0 FCTLL DAC frequency control, 16 LSbs. 0xC014 rw 0 FCTLH[4:0] Clock doubler + DAC frequency control MSbs. 0xC015 rw 0 LEFT DAC left channel PCM value. 0xC016 rw 0 RIGHT DAC right channel PCM value.

Every fourth clock cycle an internal 26-bit counter is added to by (DAC FCTLH & 15) × 65536 + DAC FCTLL. Whenever this counter overﬂows, values from DAC LEFT and DAC RIGHT are read and a DAC interrupt is generated.

If DAC FCTL[4] is 1, the internal clock doubler is activated.

10.7 GPIO Registers

GPIO registers, preﬁx GPIO

Reg Type Reset Abbrev[bits] Description

0xC017 rw 0 DDR[3:0] Direction. 0xC018 r 0 IDATA[3:0] Values read from the pins. 0xC019 rw 0 ODATA[3:0] Values set to the pins.

GPIO DIR is used to set the direction of the GPIO pins. 1 means output. GPIO ODATA remembers its values even if a GPIO DIR bit is set to input.

GPIO registers don’t generate interrupts.

Version 1.03, 2005-09-05 41

VLSI

Solution

VS1011e

10. VS1011E REGISTERS

10.8 Interrupt Registers

Interrupt registers, preﬁx INT

Reg Type Reset Abbrev[bits] Description

0xC01A rw 0 ENABLE[2:0] Interrupt enable. 0xC01B w 0 GLOB DIS[-] Write to add to interrupt counter. 0xC01C w 0 GLOB ENA[-] Write to subtract from interript counter. 0xC01D rw 0 COUNTER[4:0] Interrupt counter.

INT ENABLE controls the interrupts. The control bits are as follows:

INT ENABLE bits

Name Bits Description

INT EN SDI 2 Enable Data interrupt. INT EN SCI 1 Enable SCI interrupt. INT EN DAC 0 Enable DAC interrupt.

VS1011E

Note: It may take upto 6 clock cycles before changing INT ENABLE has any effect.

Writing any value to INT GLOB DIS adds one to the interrupt counter INT COUNTER and effectively disables all interrupts. It may take upto 6 clock cycles before writing to this register has any effect.

Writing any value to INT GLOB ENA subtracts one from the interrupt counter (unless INT COUNTER already was 0). If the interrupt counter becomes zero, interrupts selected with INT ENABLE are restored. An interrupt routine should always write to this register as the last thing it does, because interrupts automatically add one to the interrupt counter, but subtracting it back to its initial value is the responsibility of the user. It may take upto 6 clock cycles before writing this register has any effect.

By reading INT COUNTER the user may check if the interrupt counter is correct or not. If the register is not 0, interrupts are disabled.

Version 1.03, 2005-09-05 42

VLSI

Solution

VS1011E

VS1011e

10. VS1011E REGISTERS

10.9 System Vector Tags

The System Vector Tags are tags that may be replaced by the user to take control over several decoder functions.

10.9.1 AudioInt, 0x20

Normally contains the following VS DSP assembly code:

jmpi DAC_INT_ADDRESS,(i6)+1

The user may, at will, replace the instruction with a jmpi command to gain control over the audio interrupt.

10.9.2 SciInt, 0x21

Normally contains the following VS DSP assembly code:

jmpi SCI_INT_ADDRESS,(i6)+1

The user may,at will, replace the instruction with a jmpi command to gain control over the SCI interrupt.

10.9.3 DataInt, 0x22

Normally contains the following VS DSP assembly code:

jmpi SDI_INT_ADDRESS,(i6)+1

The user may,at will, replace the instruction with a jmpi command to gain control overthe SDI interrupt.

10.9.4 UserCodec, 0x0

Normally contains the following VS DSP assembly code:

Version 1.03, 2005-09-05 43

jr nop

If the user wants to take control away from the standard decoder, the ﬁrst instruction should be replaced with an appropriate j command to user’s own code.

VLSI

Solution

VS1011E

VS1011e

Unless the user is feeding MP3 data at the same time, the system activates the user program in less than 1 ms. After this, the user should steal interrupt vectors from the system, and insert user programs.

10. VS1011E REGISTERS

10.10 System Vector Functions

The System Vector Functions are pointers to some functions that the user may call to help implementing his own applications.

10.10.1 WriteIRam(), 0x2

VS DSP C prototype:

void WriteIRam(register i0 u int16 *addr, register a1 u int16 msW, register a0 u int16 lsW);

This is the only supported way to write to the User Instruction RAM. This is because Instruction RAM cannot be written when program control is in RAM. Thus, the actual implementation of this function is in ROM, and here is simply a tag to that routine.

10.10.2 ReadIRam(), 0x4

VS DSP C prototype:

u int32 ReadIRam(register i0 u int16 *addr);

This is the only supported way to read from the User Instruction RAM. This is because Instruction RAM cannot be read when program control is in RAM. Thus, the actual implementation of this function is in ROM, and here is simply a tag to that routine.

A1 contains the MSBs and a0 the LSBs of the result.

10.10.3 DataBytes(), 0x6

VS DSP C prototype:

u int16 DataBytes(void);

If the user has taken over the normal operation of the system by switching the pointer in UserCodec to point to his own code, he may read data from the Data Interface through this and the following two functions.

This function returns the number of data bytes that can be read.

Version 1.03, 2005-09-05 44

VLSI

Solution

VS1011E

VS1011e

10.10.4 GetDataByte(), 0x8

VS DSP C prototype:

u int16 GetDataByte(void);

Reads and returns one data byte from the Data Interface. This function will wait until there is enough data in the input buffer.

10.10.5 GetDataWords(), 0xa

VS DSP C prototype:

void GetDataWords(register i0 y u int16 *d, register a0 u int16 n);

10. VS1011E REGISTERS

Read n data byte pairs and copy them in big-endian format (ﬁrst byte to MSBs) to d. This function will wait until there is enough data in the input buffer.

Version 1.03, 2005-09-05 45

VLSI

Solution

VS1011E

VS1011e

11. VS1011 VERSION CHANGES

11 VS1011 Version Changes

This chapter describes changes between different generations of VS1011.

11.1 Changes Between VS1011b and VS1011e, 2005-07-13

• Faster decoding: all codecs, bitrates and bass + treble controls can be used at CLKI = 24 MHz.

• Register SCI BASS now also has a treble control (Chapter 8.6.3). Loudness plugin not required.

• Can play IMA ADPCM in mono and stereo (Chapter 8.2.4).

• Register space can now be written to with SCI WRAM (Chapter 8.6.7).

• Memory and register space can now be read from with SCI WRAM (Chapter 8.6.7).

• Added optional playback of MPEG 1 and 2 layers I and II. (Chapters 8.2.2, 8.2.1 and 8.6.1).

• SPI Boot added (Chapter 9.4).

• MPEG 1, 2 and 2.5 layer III decoding more robust against bit errors.

• MPEG 2.5 decoding compatibility enhanced.

• DREQ goes down during SCI operations. (Chapter 7.4).

• DREQ goes down during memory test. (Chapter 7.4).

• In VS1011e the SS VER ﬁeld in SCI STATUS is 2.

11.2 Migration Checklist from VS1011b to VS1011e, 2005-07-13

• The SS VER ﬁeld in SCI STATUS is 2. You can use SCI STATUS and SCI MODE to distinguish between VS1002 and VS1011e. VS1011b has SS VER=1, SM SDINEW=0, VS1011e has SS VER=2, SM SDINEW=0, and VS1002 has SS VER=2, SM SDINEW=1.

• Use built-in bass enhancer and treble control instead of the Loudness plugin. The loudness plugin works, but the builtin controls are much faster.

Version 1.03, 2005-09-05 46

VLSI

Solution

VS1011e

12. DOCUMENT VERSION CHANGES

12 Document Version Changes

This chapter describes the most important changes to this document.

12.1 Version 1.03 for VS1011e, 2005-09-05

• Production version, no longer preliminary

12.2 Version 1.02 for VS1011e, 2005-07-13

• New features for VS1011e added (see Chapter 11.1).

VS1011E

12.3 Version 1.01 for VS1011b, 2004-11-19

• Removed non-existing SCIMB POWERDOWN bit.

• Added SOIC-28 package to Chapters 5.1.3 and 5.2.2.

12.4 Version 1.00 for VS1011b, 2004-10-22

• Fully qualiﬁed values to tables in Chapter 4.

• Reassigned BGA-49 balls for pins DVDD2, DGND2 and DGND3 in Chapter 5.2.

12.5 Version 0.71 for VS1011, 2004-07-20

• Added instructions to add 100 kΩ pull-down resistor to unused GPIOs to Chapter 5.2.

12.6 Version 0.70 for VS1011, 2004-05-13

• Removed SM JUMP.

12.7 Version 0.62 for VS1011, 2004-03-24

• Rewrote and clariﬁed Chapter 8.2, Supported Audio Codecs.

Version 1.03, 2005-09-05 47

12.8 Version 0.61 for VS1011, 2004-03-11

• Added samplerate and bitrate tables to Chapter 8.6.9.

VLSI

Solution

VS1011e

13 Contact Information

VS1011E

13. CONTACT INFORMATION

VLSI Solution Oy

Hermiankatu 6-8 C

FIN-33720 Tampere

FINLAND

Fax: +358-3-316 5220

Phone: +358-3-316 5230

Email: sales@vlsi.ﬁ

URL: http://www.vlsi.ﬁ/

Note: If you have questions, ﬁrst see http://www.vlsi.ﬁ/vs1011/faq/ .

Version 1.03, 2005-09-05 48

VLSI VS 1011E-S Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
