Vjoycar TK05 User Manual

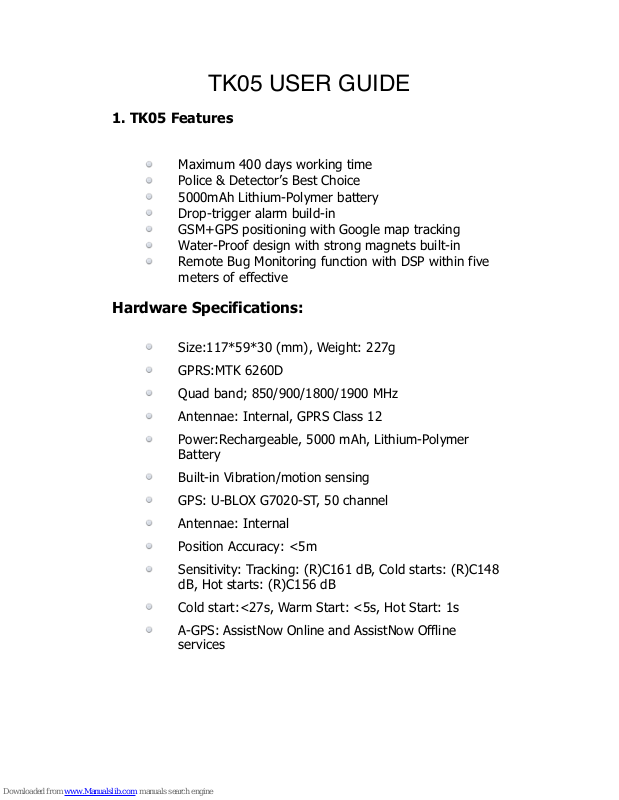

TK05 USER GUIDE!

!

1. TK05 Features

!
!

Maximum 400 days working time
Police & Detector’s Best Choice
5000mAh Lithium-Polymer battery
Drop-trigger alarm build-in
GSM+GPS positioning with Google map tracking
Water-Proof design with strong magnets built-in
Remote Bug Monitoring function with DSP within five
meters of effective

!

Hardware Specifications:

!

Size:117*59*30 (mm), Weight: 227g

GPRS:MTK 6260D

Quad band; 850/900/1800/1900 MHz

Antennae: Internal, GPRS Class 12

Power:Rechargeable, 5000 mAh, Lithium-Polymer
Battery

Built-in Vibration/motion sensing

GPS: U-BLOX G7020-ST, 50 channel

Antennae: Internal

Position Accuracy: <5m

Sensitivity: Tracking: (R)C161 dB, Cold starts: (R)C148
dB, Hot starts: (R)C156 dB

Cold start:<27s, Warm Start: <5s, Hot Start: 1s

A-GPS: AssistNow Online and AssistNow Offline
services!

!

2. Product Image

!
!
!
!
!

3. Installation Manual

3.1 SIM Card Pre-installation, specification note

a. GSM Sim Only
b. SIM card should have its GPRS function enabled.
c. SMS request will function only if Caller ID function is enabled.
d. If SIM card is locked via PIN, please unlock SIM.

!
!

3.2 SIM Card Installations and Removal

b. Open waterproof rubber
c. Insert SIM card into the SIM slot, metal face up, clipped corner to the right.
d. Green light is flashing for couple second and turn to on always on
e.Call the device SIM number and it is supposed to get through without
answer.
f. Ensure the waterproof rubber is closed after SIM installation

!
!

4. Button Operation

!

For the first time activating the device, once Sim is
inserted, device will be on automatically. No any
button operation is needed. !

!

4.1 Button Operation for GPS function

NOTE: “button” presses must be less than 2 seconds each in all uses

!

This control button is at the bottom of the device
a. On: Press control button 5 times. The green indicating light will be on for
30 seconds. (System default as ON)
b. Off: Press control button 10 times. The blue indicating light will flash for 5
times
c. Reset: Press control button 15 times to reset all settings. The blue

indicating light will flash for 5 times, and then the green indicating light will
be on for 30 seconds.

!

4.2 Drop Alert

!
!

5. Operation Commands Guide

!

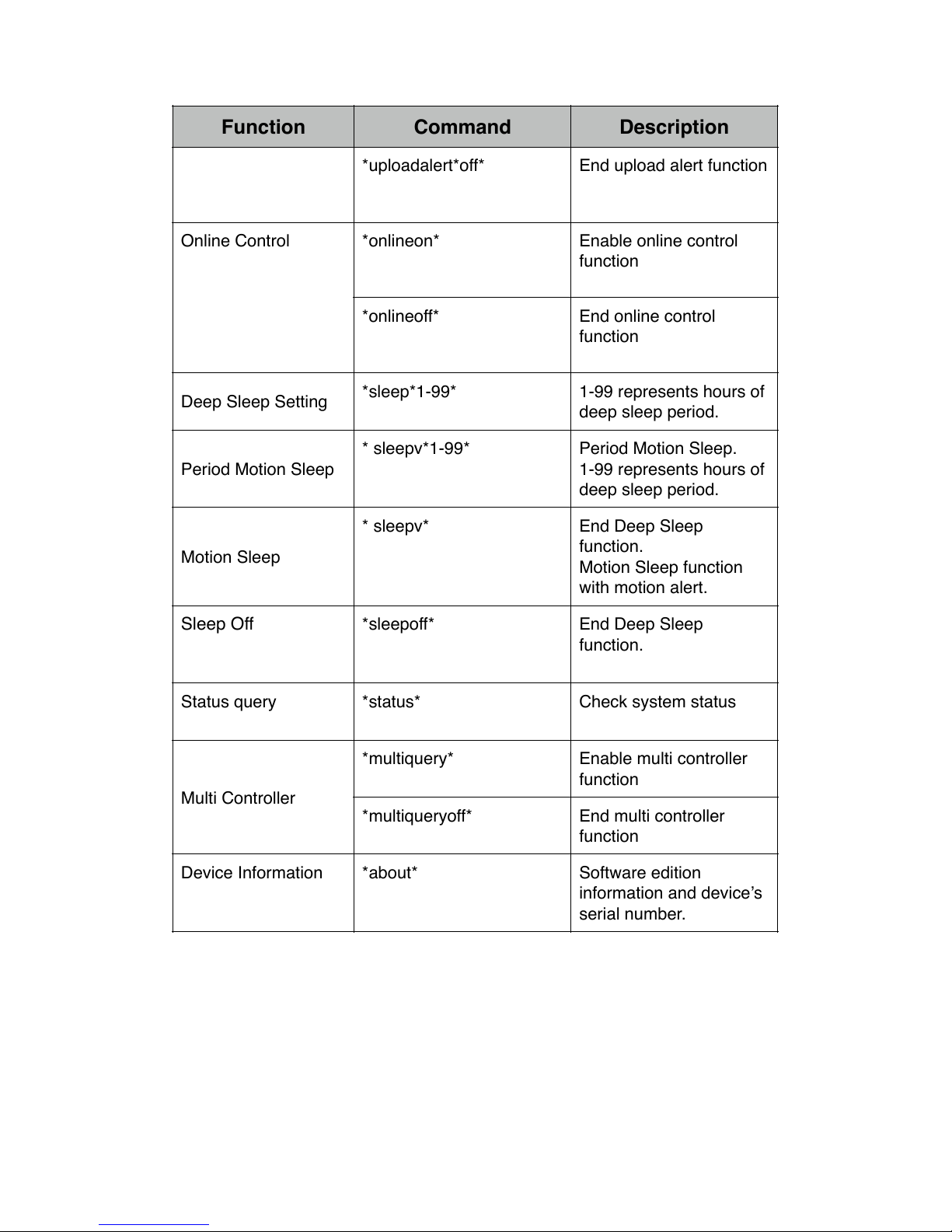

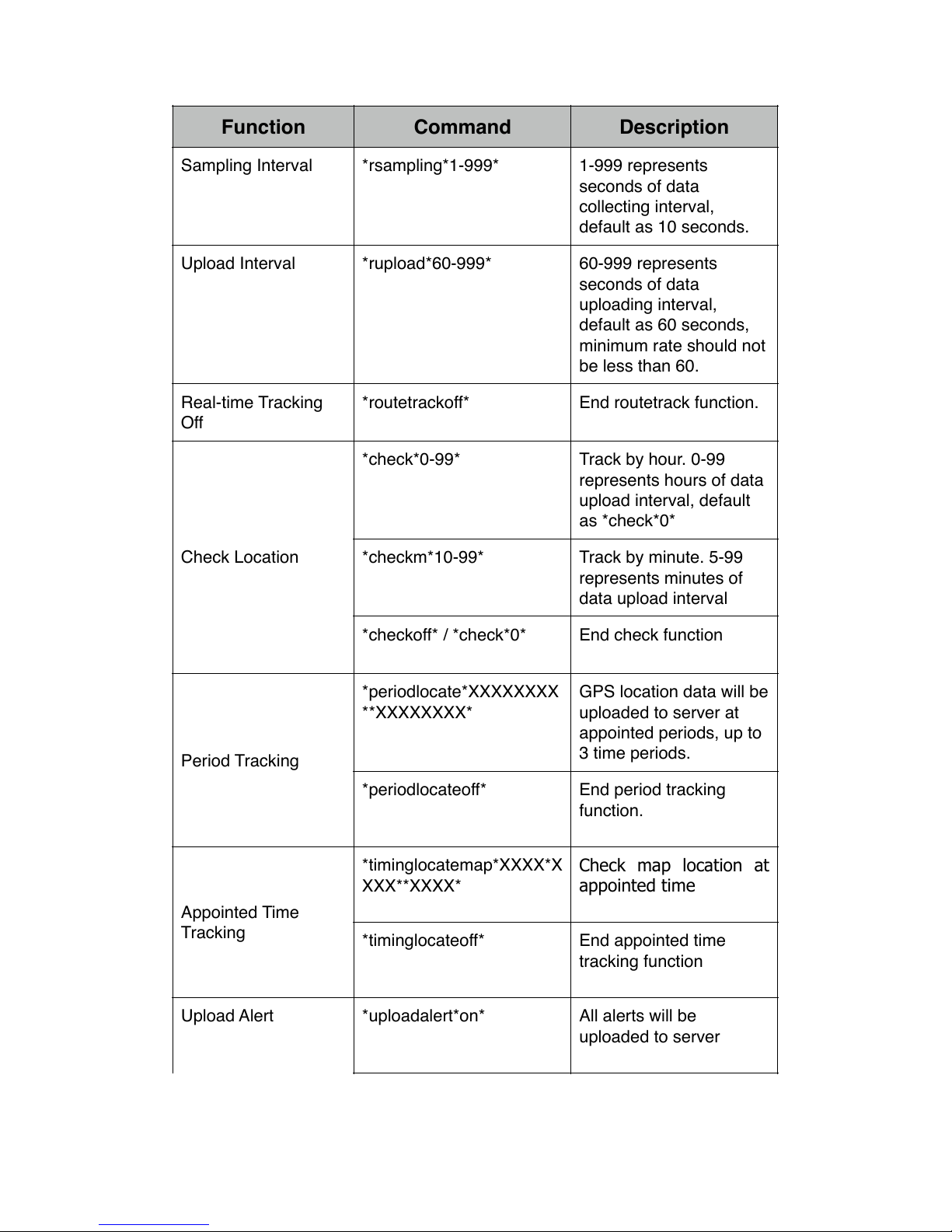

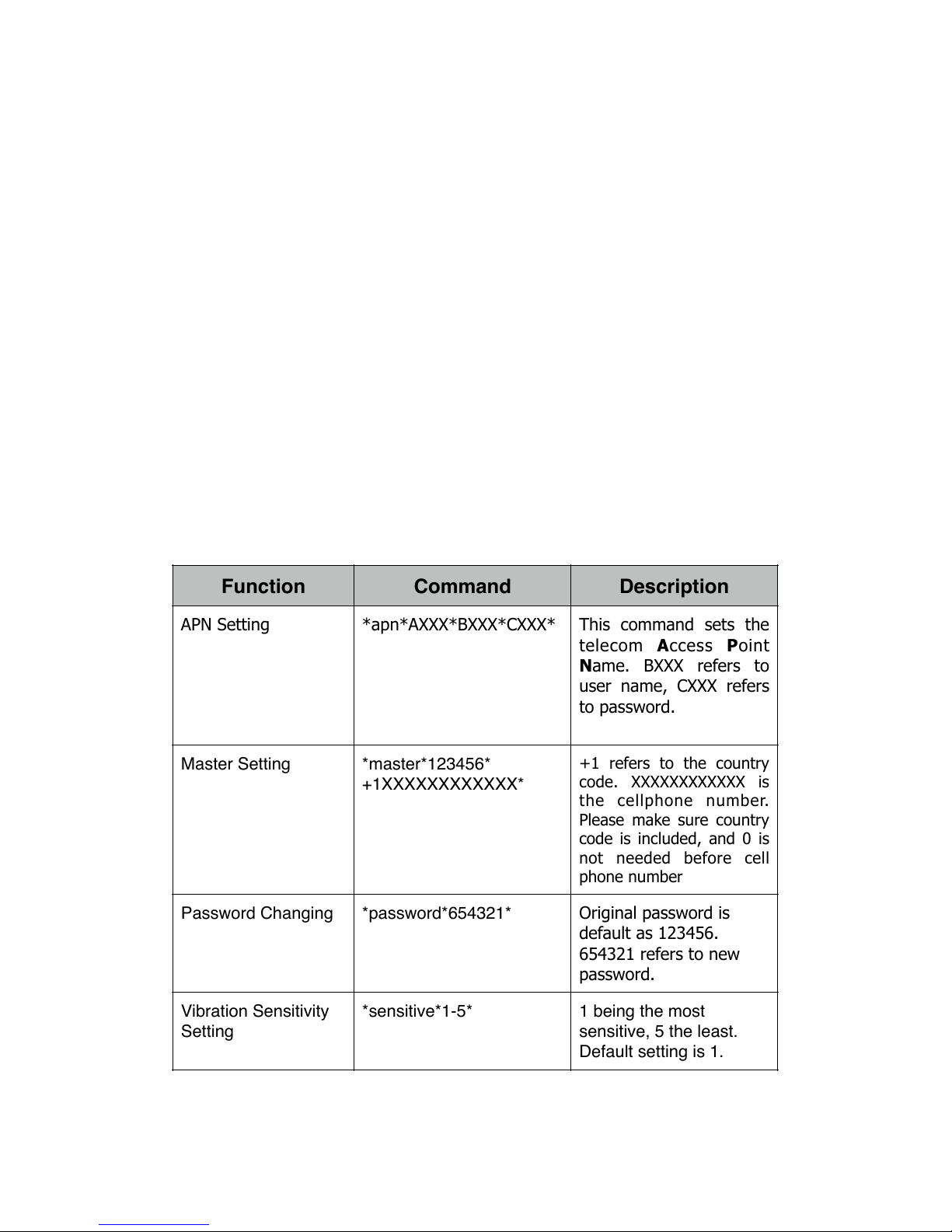

5.1 Set APN: (VERY IMPORTANT AND MUST BE DONE 1ST) For the

device to send data to the server, this command MUST be enabled.

!

SMS: *apn*AXXX*BXXX*CXXX* This command sets the telecom Access
Point Name. BXXX refers to user name, CXXX refers to password.

!

If there is no user name and password required, send as *apn*AXXX*

!

If there is user name but no password required, send as

*apn*AXXX* BXXX*

!
!

APN information can be checked on local telecom website.

!

You will receive the following text: "Notice: APN is set to XXX. User name: XX.
Password: XX”

!
!

5.2 Registering the “Master” Controller
SMS to the device: *master*123456*+1XXXXXXXXXXXX*, (For

instance, master controller phone number is +1XXXXXXXXXXXX. +1 refers to
the country code. XXXXXXXXXXXX is the cellphone number. Please make sure
country code is included, and digit 0 is not needed before cell phone number)

!
!

Device Response: "Notice: Cell Phone # xxxxxxxxxx is set to master
controller, the password is 123456.” (The device has a default password of
“123456” to initially program in your PDA/Phone.

!

NOTE: The device will ONLY listen and respond to instructions from this
number unless you choose to turn on the multi controller function and open
the device to any cell phone number.

!
!
!
!

5.3 Changing the Password:
SMS: *password*654321* (654321 refers to new password)

You will receive the following text: "Notice: The password change is
successful for +1XXXXXXXXXX. The new password is 654321.”

!

Note: Changing password command has to be sent from master controller
number.

!
!

6. Motion Detected Alert

The Master Controller will receive an alert (call or SMS) once the device
detects vibration indictaing possible motion.

!

6.1 Vibration sensitivity:

The device you have purchased is equipped with a sensitive Vibration
detection system. The motion sensor sensitivity rate can be set by SMS
command.

!

SMS: *sensitive*1-5* (where X = 1-5, 1 being the most sensitive, 5 the
least, default setting is 1)
1=3seconds continued vibrating
5=15seconds continued vibrating

!
!

Device Response: “Notice: Vibration sensitivity is set to 1-5.”

!

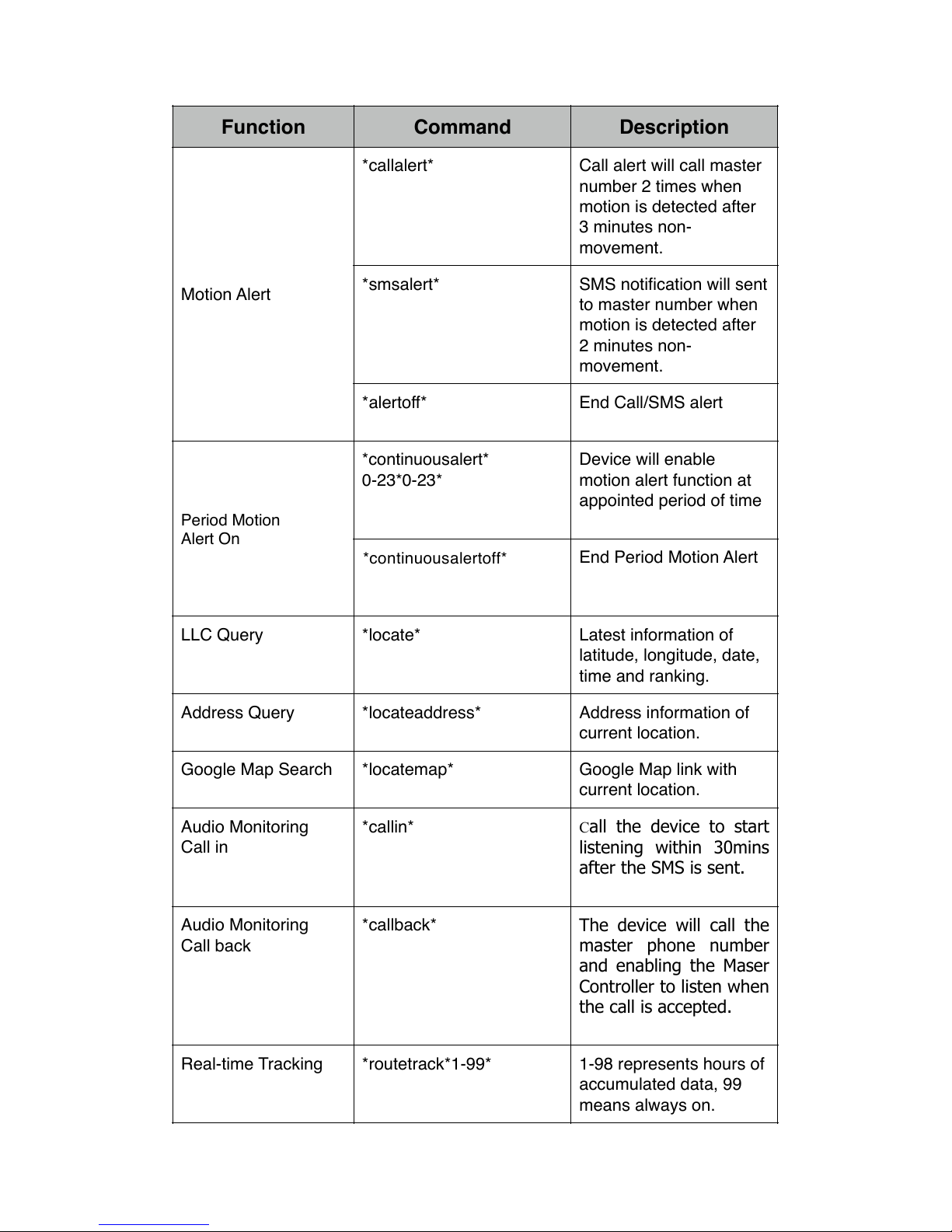

6.2 SMS or CALL Alert Settings:
With the vibration detection system. There will be a Call alert (call master

number 2 times) or a SMS alert generated and send to master number, when
any motion is detected after 3 minutes of non-movement. The system
default setting is call alert, and can be turned off by SMS command

!

SMS: *alertoff*
Device Response: “Notice: System has ended alert function.”

SMS: *smsalert*
Device Response: “Notice: System has entered SMS alert function.”
SMS: *callalert*

Device Response: “Notice: System has entered call alert function.”

!
!
!
!
!
!

6.3 Period Motion Alert

!

System will enable motion alert function at appointed periods, up to 3 time
periods. Time format need to be in military time and can be set to every half

hour. e.g. 08001100，14001830 refers to 8:30-11:00,14:00-18:30 of the day.

!

SMS：*continuousalert*XXXX*XXXX*

Device Response: “Notice: System has enabled period alert function at

appointed time period.”

!

SMS：*continuousalertoff*

Device Response: “Notice: System has ended period alert function.”

!
!

!

7. SMS Location Query
The GPS module establishes location and creates an event, which is sent

immediately. The data packet returned via SMS includes battery level and any
applicable alert mode. User can track the device location via SMS whenever,
wherever.

!
!

7.1 SMS: *locate*

This command “Pings” the unit from the master controller for a spot location
report delivered via SMS back to the Master Controller.

!

Device Response: You will receive back a text include latest information of
latitude, longitude, date, time and ranking. And you can find this location in
details from the tracking website.

!

7.2 SMS: *locateaddress*
Device Response: You will receive back a text include rough address

information of the device. Tracking website is not required.

!
!

7.3 SMS: *locatemap*
You will receive back a text message with a google map link, click the link in
order to view the location through cellphone browser. It is suitable for smart
phone user only.

!
!
!

8. Remote Listening

The device is equipped with an audio DSP which enable master controller to
monitor the environmental sound via calls. Master controller can enable the
bugging function either by calling the device or command the device to call
back.
