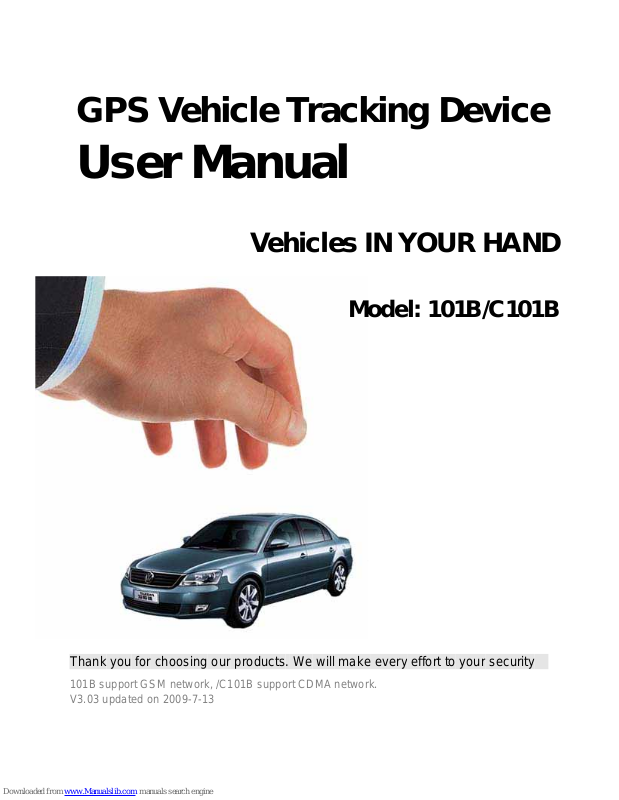

Vjoy C101B, 101B User Manual

Thank you for choosing our products. We will make every effort to your security

101B support GSM network, /C101B support CDMA network.
V3.03 updated on 2009-7-13

GPS Vehicle Tracking Device

User Manual

Vehicles IN YOUR HAND

Model: 101B/C101B

2

Table of Contents

I) Overview………………………………………………………………………………………

II) Part List ………………………………………………………………………………………

III) Installation……………………………………………………………………………………

1) Getting started

2) Install to vehicle

3) Wiring Diagram and Physical

4) Tips

IV) SMS Operation………………………………………………………………………………

1) Setting

2) SMS locating and tracking

3) Request Status

4) Listening in

5) Fuel control

6) Alarm settings

7) Geo fencing

8) Extra command

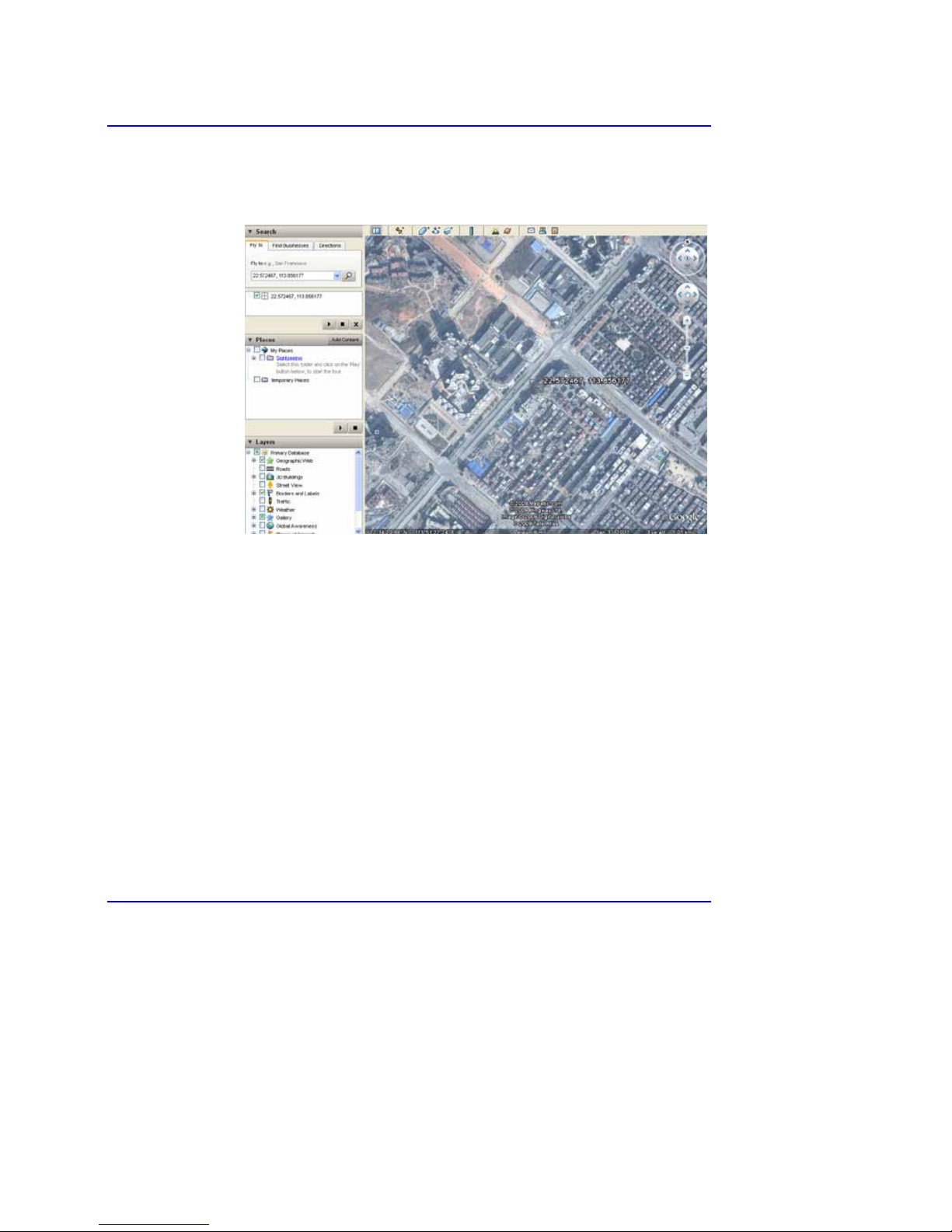

V) Locate with GOOGLE………………………………………………………………………

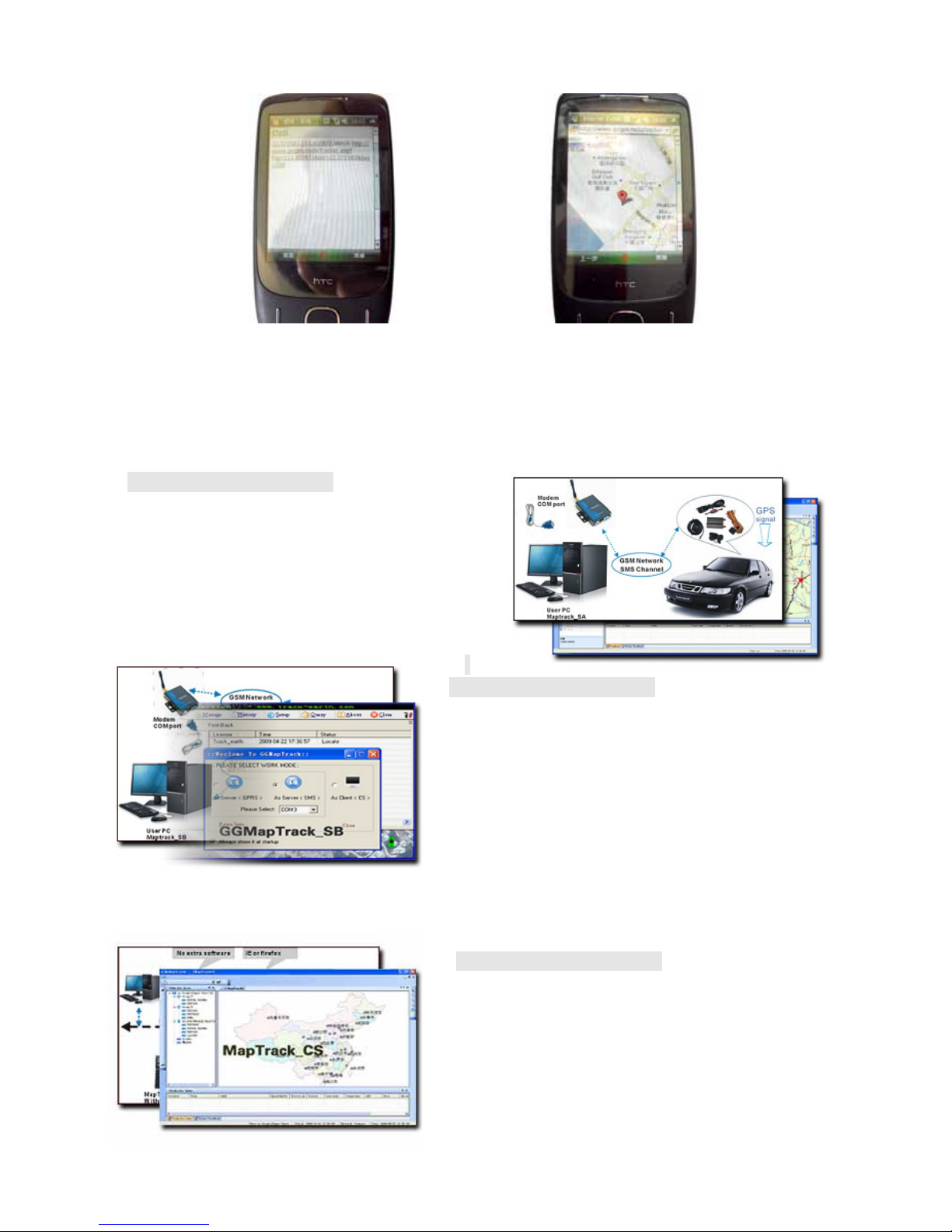

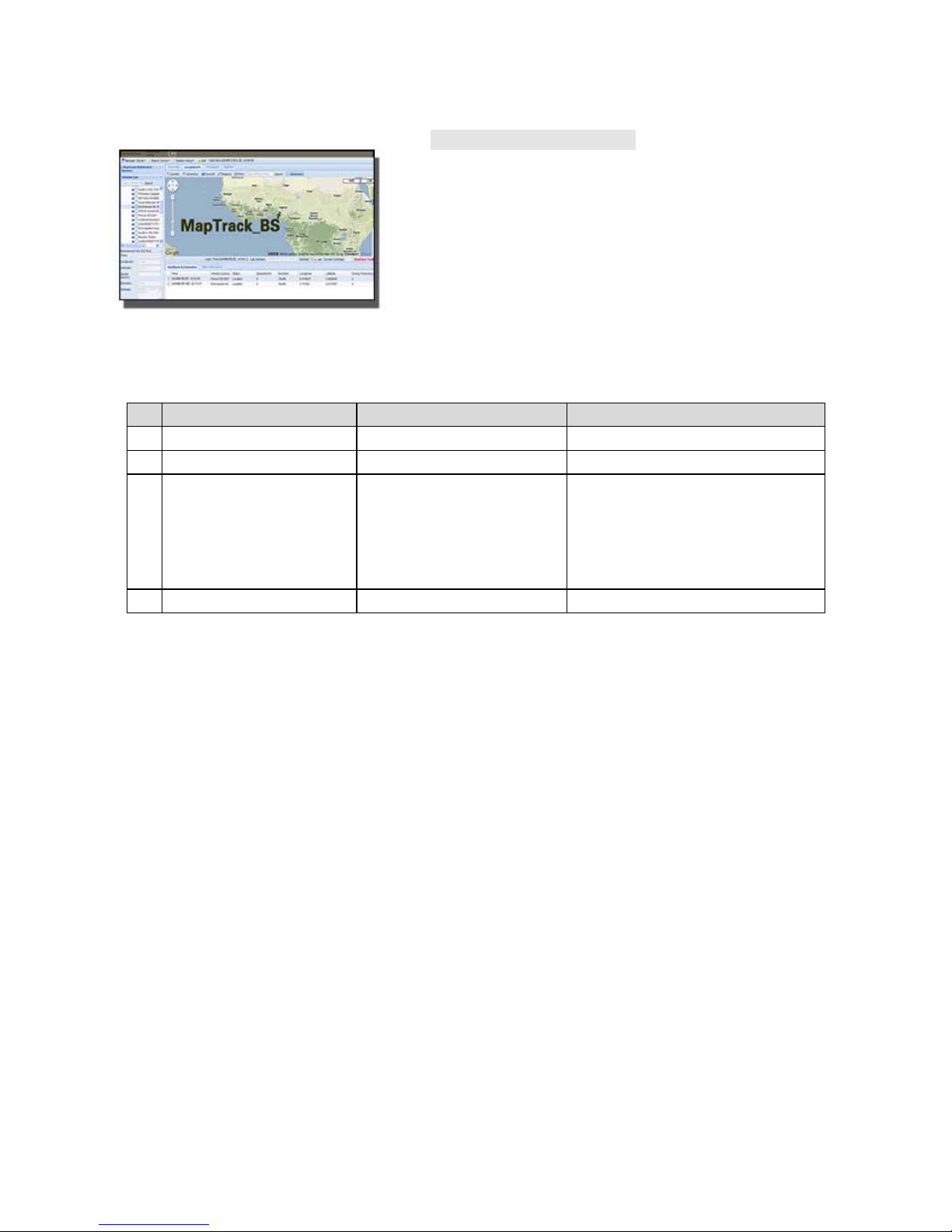

VI) Tracking with software ……………………………………………………………………

VII) GPRS setting……………………………………………………………………………….

VIII) Command List……………………………………………………………………………..

IX) Specifications ………………………………………………………………………………

3

I) Overview

s a car owner, you concern about safet

y

and security. If you are a busines

s

operator, you have to concern more:

productivity, customer service, employees an

d

assets.

We focus in developing and manufacture GP

S

tracking system and hardware. We would like t

o

help you accomplish these.

You will know the vehicle’s current positio

n

anywhere and anytime!

You can monitor the vehicles in 24 hours one day and 7 days a week.All the status will be report
to you including: direction, speed, running time, etc. You will get the alarm report from device as
soon as possible by cell phone, by computer, including: anti-steal, over speed, power alarm,
towing, parking, SOS.

You can set a special zone for vehicles to alert you if they are enter or leaving this zone.

You can remote control your vehicle, fuel control, talk; listening in, lock/unlock the door,

You can check all the history data which is stored in the system and export the statistics report
for mileage, alarms.

Application:

● Taxi /buses management

● Special vehicles and heavy trucks Management

● Anti-theft security system for private vehicles

● Asset management

● Rent car management

● Private car safety and security

A

4

II) Part list

NO PHOTOES NAME QTY SPEC NOTE

1

Main Unit 1 80*53*25mm black

2

GPS Antenna 1 5 meters

waterproof

magnetic

3

GSM Antenna 1 3 meters waterproof

4

Harness &

Relay

1 1.5 meters 8 pin

5

Microphone 1 --

8

N/A Manual CD 1 --

III) Installation

1) Getting started

Before installation, please check all the parts in package as the part list and make sure no

part mentioned lost! If you found there’s part lost, please contact with local agent.

z Step1 SIM card

5

Use a little stick to press the SIM card button and the frame will come out. Put the SIM card inside and keep
metal side upward. Please make sure that the SMS function of the SIM card is available.

Warning: Please confirm the power is off during installation of SIM card. Or it maybe

causes damage to SIM card.

z Step 2 Assemble the antennas

Connect the GPS and GPS ANT to their plug. Keep the GPS antenna where has good condition to receive
the signals. For example, put it outdoor or near the window open to sky.

z Step 3 Power ON

User could power the unit with backup battery or extra power.

Backup battery: switch on the button on the main unit.
Extra power: support the power red (+) and black (-) 12V DC

When power is on, User could see the LED indicator blinking:

The red show GSM working; green shows GPS working.
At first, the RED will blink every second, which means it is searching the GSM network. After it
connected, it will blink every three seconds. If there's phone call, the red will be keeping lighting.
If there's GPRS date translating, it will blink very fast.
The green blinking means it got GPS signal.

z Step 4 Set master phone number

Send the command as the operation explanation to the SIM card number to set user's cell
phone as master phone number.

For example: user’s cell phone number is 138000138000. The SIM card number in device is

13900139000. User send the SMS *master=138000138000:1234# to the number

139000139000.

After that, the device is ready to work.

2) Install to vehicle

Where I should place the main unit?

User could place the main unit any plac

e

you need, for example under the seat, in th

e

trunk, or under the dash board. Ou

r

hardware is black and small size. It’s eas

y

forusertohideitinthecar.

6

Are there any special thing notices on the antenna installation?

GSM signal is fine usually, and then you could put GSM antenna the place you like. But the
GPS antenna need open to sky. So place it where as we suggested.

There are four places, please see the picture.

SOS button can save life!

User need to attach the SOS button where is easy to press. Then when he met some
emergency like car crash or robbery, he could press the button immediately. The hardware will
send out the message to the programmed numbers or server center to call for help. So please
be careful to install this button.

3) Wiring diagrams and Physical

z 101B/C101B

4) Tips:

●

Immobilizer installation
