2.4GHz lndoor/Outdoor 12dBi CPE
Default IP：192.168.1.88
username：v j j t password：v j j t
SectorStation
2
300Mbps
2.4
GHz
www.vj j t.com
OS
1
·Package Contents
Passive PoE Adapter
1(Qty.)
Power Cord
1(Qty.)
Pole Mounting Straps
2(Qty.)
※ Products may be different from pictures and are subject
to change without notice.
Thank you for purchasing the VJJT networks
SectorStation N-5G16. This Quick Start Guide will let you
know the installation of the SS-5G16 and packing information.
Introduction
SS-2G12
1(Qty.)
2
2.4GHz 300Mbps 12dBi Outdoor CPE
Model: SS-2G12 Power: 24V 0.5A
Default Settings:
IP: 192.168.1.88 Usemame: vjjt Password: vjjt
SectorStation
2
GND
Sec ondar y
RST
Mai n
Power
Main
Second ary
Wirele ss Sign al

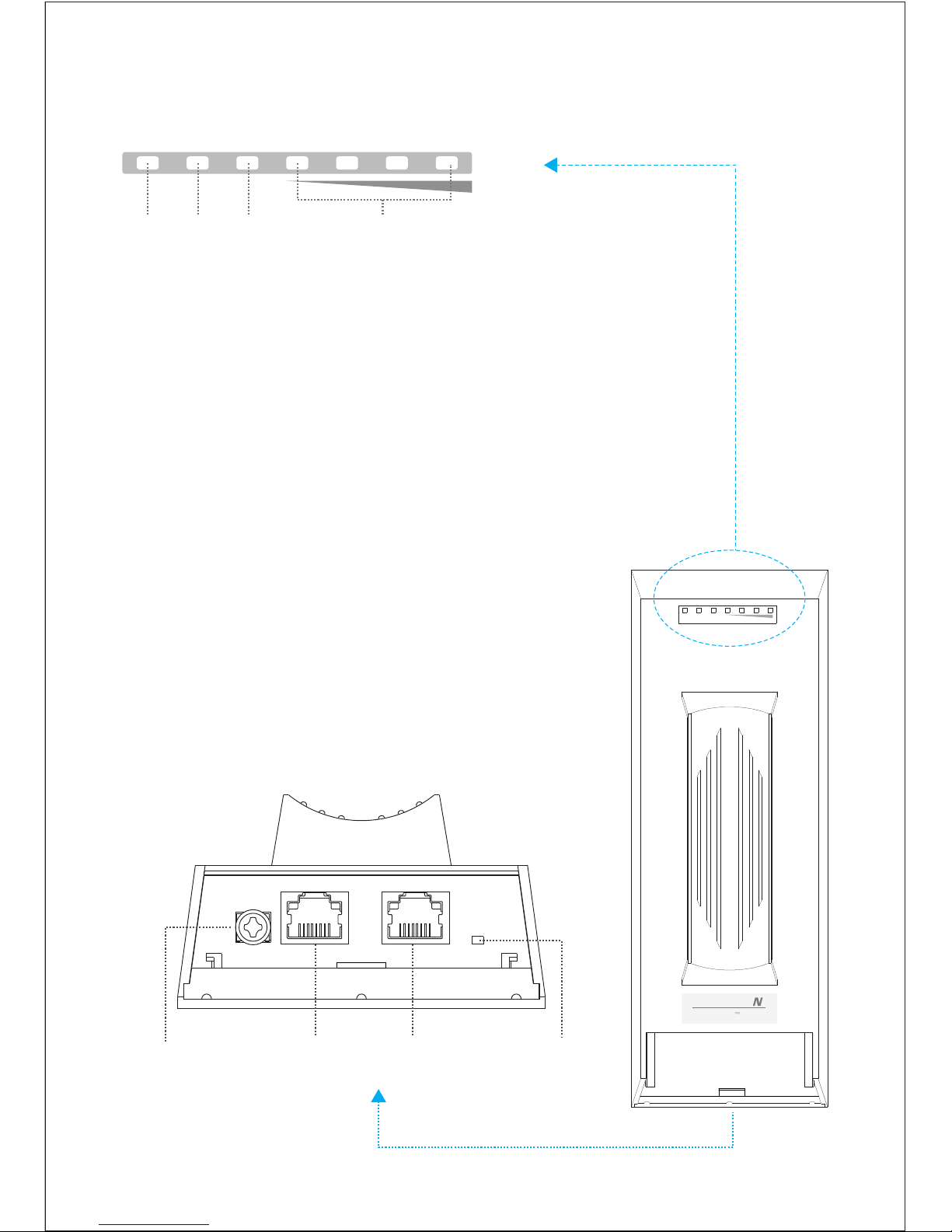

LED Explanation
Power
Main
Secondary
Wireless Signal LED
AP/AP Router mode: All four LEDs remain solid.
Client/Bridge/Repeater/AP Client Router mode:
The more LEDs lit will indicate the better wireless signal strength.
Main and Secondary LED
On: A device is connected to this port, but there is no activity.
Flashing: A device is connected to this port, and is active.
Power LED
On: The power on.
Wireless Signal
RESETGND
Main
Secondary
3
2.4GHz 300Mbps 12dBi Outdoor CPE
Model: SS-2G12 Power: 24V 0.5A
Default Settings:
IP: 192.168.1.88 Usemame: vjjt Password: vjjt
SectorStation
2
GND
Sec ondar y
RST
Power
Main
Second ary
Wirele ss Sign al
Ethernet cable length up to 60m
Slide to replace the cover
of the device when all
connections are finished.
Connect to a computer,
router or switch.
(Depend on your
intended usage and/or
network topology.)

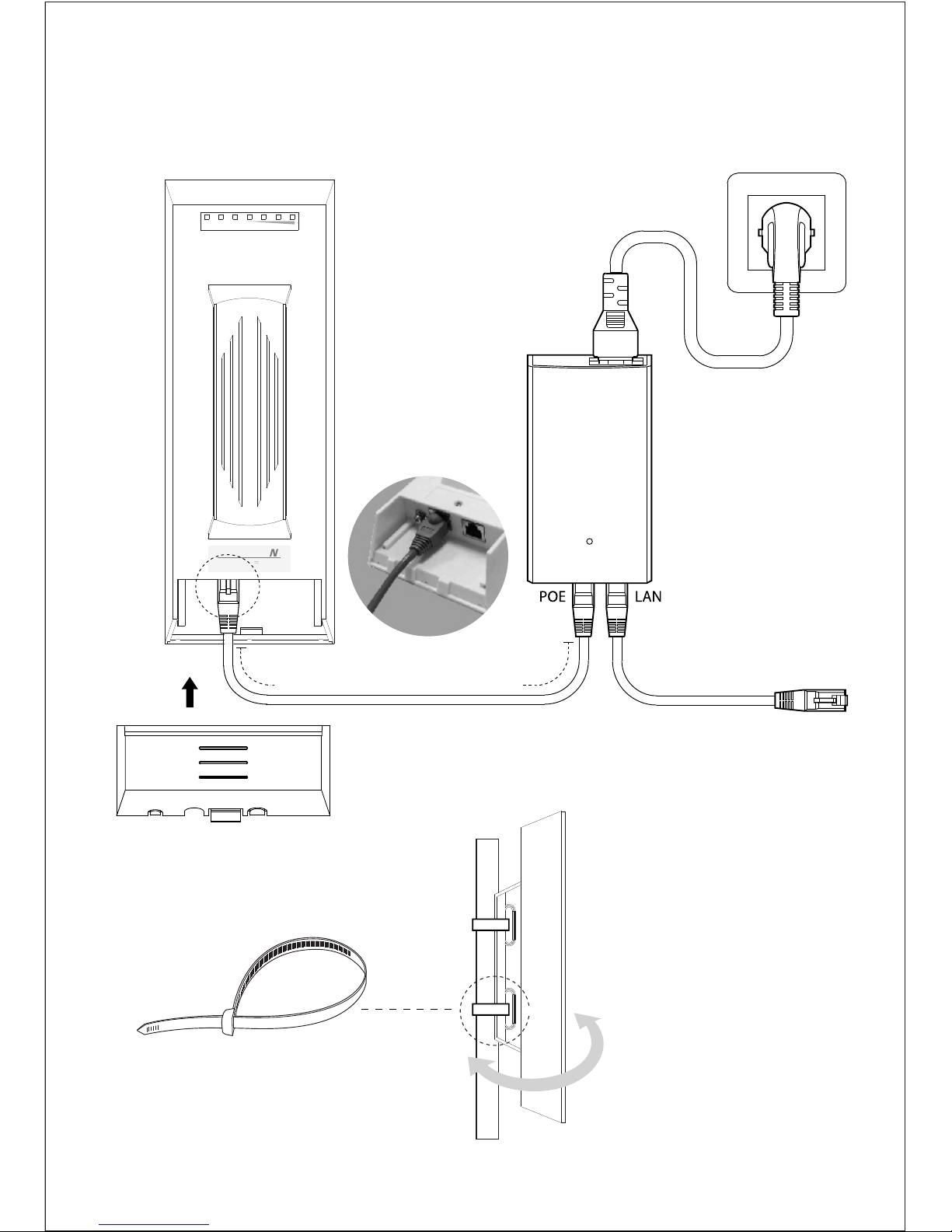

Connection and Installation
Please connect and install the device as shown in the figure below.
At the selected site,
approximately align the
to the device direction that
you have oriented.
4
Accessing SuperOS
Verify connectivity in the SuperOS Configuration lnterface.
1. Make sure that your host machine is connected via Ethernet
to the VJJT device.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.X subnet.
3. Launch your web browser. Type https://192.168.1.88 in
the address field .Press enter (PC) or return (Mac).
4. The login screen will appear. Enter vjjt in the Username and
Password fields. Select your Country and Language. You must
agree to the Terms of Use to use the product. Click Login.
The SuperOS Configuration Interface Will appear, allowing you
to customize your settings as needed.
For additional details on the SuperOS Configuration Interface,
refer to the User Guide available at www.vjjt.com
5
Http://www.vjjt.com E-mail:sales@vjjt.com

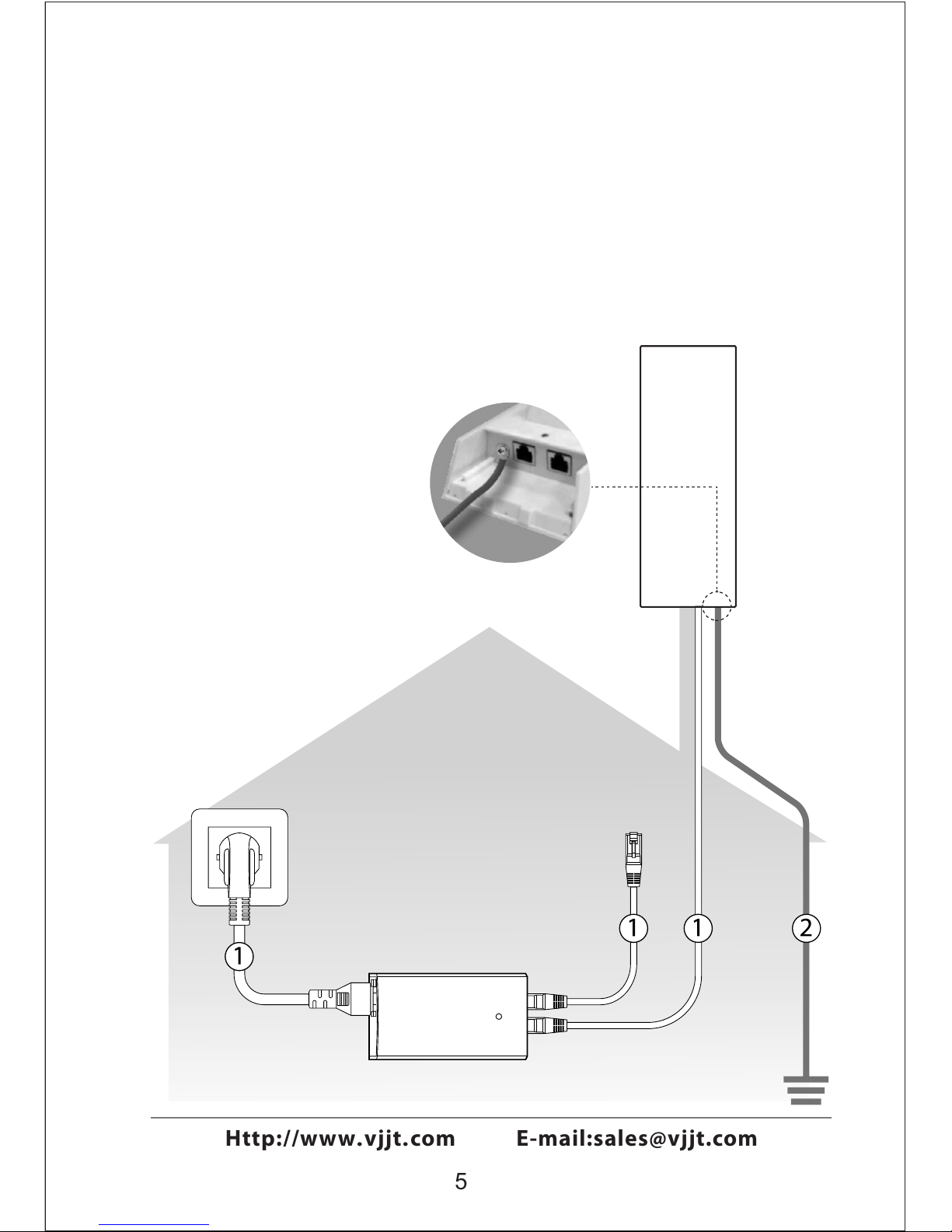

Lightning & ESD Protection
Proper grounding is extremely important for outdoor devices.
By using shielded CAT5e (or above) cable with ground wire for
the connection and the provided PoE adapter (method①), you
can effectively elimin ate ESD attacks. If you use the general
CAT5e cable for the connection, then it is necessary to
connect the grounding terminal of the device to earth ground
through grounding cable (method②).
Two Methods:
① Shielded CAT5e (or above)
Cable with Ground Wire
② Grounding Terminal and Cable
Grounding
Terminal
Grounding
Cable
Grounded 3-wire
Power Outlet
Shielded CAT5e (or above)
Cable with Ground Wire
PoE Adapter
with Earth
Ground
Earth Ground
CPE
