SmartLogic Owner’s Manual
Table of Contents
1. Home Screen Pg. 4
2. Smart Icons Pg. 5
3. Settings Pg. 6
a. Wi-Fi Pg. 6
b. Bluetooth Pg. 7
c. Data Usage Pg. 8
d. More Options Pg. 9
e. Sound Pg. 10
f. Display Pg. 11
g. HDMI Output Pg. 12
h. Screen Shot Pg. 13
i. Storage Pg. 14
j. Battery Pg. 15
k. Apps Pg. 16
l. Location Access Pg. 17
m. Security Pg. 18
n. Language and Input Pg. 19
o. Backup and Reset Pg. 20
p. Add Accounts Pg. 21
2
q. Date and Time Pg. 22
r. Accessibility Pg. 23
s. About Tablet Pg. 24
SmartLogic Owner’s Manual
Table of Contents Continued
4. SmartDVD App Pg. 25-26
a. Operating SmartDVD Pg. 27-28
b. Preferences Pg. 29
c. AutoPlay Pg. 30
d. Resume Playback Pg. 30
e. SmartPlay Settings Pg. 30
f. Add/Update Disc (Basic) Pg. 31-33
g. Add/Update Disc (Advanced) Pg. 34
h. Power Pg. 35-36
5. SmartLogic Automotive Settings Pg. 37
a. Battery Saver Pg. 38
b. Key Power Function Pg. 39
c. Wireless Headphones Pg. 39
d. Android App Auto On Pg. 40
e. Default Settings Pg. 40
6. FM Transmitter Pg. 41-42
7. Closing Running Apps Pg. 43
8. Update the Tablet Pg. 44-46
9. Web Site for SmartLogic Tablet Pg. 47
3
SmartLogic Owner’s Manual
1. Home Screen
The new GUI interface has 18 Smart Icons that make navigating easy and fast
without having to search through a sea of icons. By sliding your finger to the left
or to the right you will be able to view more Icons giving you access to other
popular Apps.
Back Button : Go back to previous screen
Home Screen Button : Takes you to main menu
Recent Apps Button : Recently opened apps
ShareTab™ Video Sharing Button : Wired mirror sharing
Volume down Button : Decrease volume
Volume up Button : Increase volume
4
SmartLogic Owner’s Manual
Our Exclusive ShareTab™ Technology allows you to share and view content
between both tablets with a single touch of the Source Icon on the front of each
Tablet.
2. Smart Icons
Apps
You can access the Tablets default Apps (Applications) or your own downloaded
Apps
SmartDVD
When you insert the DVD, you must open the SmartDVD app to play your DVD
movie.
Browser
You can browse the internet with a solid Wi-Fi connection
My Movies
You can store and access your downloaded movie files.
Games
You can access the Tablets default games or your own downloaded games.
To add your downloaded games to this file you will need to open your Apps page
and hold down the desired game App. This will take you to the Home page where
you can drag the game App to the Games folder.
SD/USB
You can access your files from your mini SD card, USB Thumb Drive or Hard Drive.
Note: You can use up to a 32 GB on the mini SD card.
Other Smart Icons include short cuts to Netflix, Hulu, Skype, Google, Gmail and
YouTube.
5
3. Settings
SmartLogic Owner’s Manual
Wi-Fi
You can access the Internet when connected to a wireless connection.
The Wi-Fi must be turned on to access the internet.
Slide the Highlighted from OFF to ON if the Wi-Fi is turned OFF.
Find the name of your Wi-Fi connection.
Once your Wi-Fi has been located enter your password to connect.
Note: 4G Wi-Fi connection is recommended for steaming movies or gaming.
6
SmartLogic Owner’s Manual
Bluetooth
The Bluetooth needs to be turned On in order to connect your
Bluetooth device. To turn On the Bluetooth, slide the Highlighted
Bluetooth from Off to On. Touch the Search for Devices and wait until
you see your device. If your device does not show up make sure your
device is in discoverable mode. (You can find the instructions for this in
the Bluetooth’s Device user manual). Note: When pairing to a vehicles
factory Bluetooth it is sometimes easier to put the factory radio in
discoverable mode and pair from the tablet, a pass code is usually
required.
7
SmartLogic Owner’s Manual
Data Usage
Data Usage Cycle: This will keep track of your apps used until the
Tablets data is cleared.
8
SmartLogic Owner’s Manual
A)
B)
C)
D)
E)
More Options
A. Airplane Mode - When you turn ON this feature, it shuts off any data
being sent or received from the tablet. Note: Tablet does not have any
built in data service.
B. VPN - virtual private network extends a private network across a
public network, such as the Internet. It enables a computer or Wi-Fienabled device to send and receive data across shared or public
networks as if it were directly connected to the private network, while
benefiting from the functionality, security and management policies of
the private network.
C. Portable Hotspot – This feature allows this device to serve as a link
between nearby Wi-Fi devices and a cellular data networks.
9
SmartLogic Owner’s Manual
D. Ethernet – This feature is used to connect computers in a company
or home network as well as to connect a single computer to a cable
modem or DSL modem for Internet access.
E. Mobile Networks – This feature is a wireless network distributed over
land areas called cells, each served by at least one fixed-location
transceiver, known as a cell site or base station.
Sound
This feature allows you to adjust the volume on music, video, games,
notifications & alarms.
10
SmartLogic Owner’s Manual
Display
This feature allows you to adjust the brightness, font size or auto-rotate
screen on the Tablet.
Sleep mode allows you to adjust the time it takes for the Tablet to shut
down when you turn off your vehicle. The Sleep setting ranges from 15
seconds to 30 minutes. Note: The default factory setting is set to 1
minute.
11
SmartLogic Owner’s Manual
HDMI Output
(High-Definition Multimedia Interface) is a digital interface for audio
and video that provides a single-cable solution for home theater and
consumer electronics equipment such as TVs, Blu-ray players and settop boxes.
12
SmartLogic Owner’s Manual
Screen Shot
A screen shot (sometimes called a screen capture) is an image of a
computer desktop that can be saved as a graphics file.
13
SmartLogic Owner’s Manual
Storage
This feature is the Tablets internal storage space. You can monitor how
much memory is remaining on your Tablet.
This feature also allows you to clear your SD card without removing it
from the Tablet.
14
SmartLogic Owner’s Manual
Battery
This feature allows you to monitor the Battery life of the Tablet. The
Battery life of the tablet fluctuates depending on the use of Wi-Fi,
Bluetooth etc…
Note: The Tablet can be charged in the headrest docking
station or the supplied home charger.
15
SmartLogic Owner’s Manual
Apps
This feature displays the Apps downloaded & what Apps are running on
the Tablet.
16
SmartLogic Owner’s Manual
Location Access
Allows apps that have asked your permission use your location
information.
This feature uses GPS to pinpoint your location.
Note: This device is not equipped with GPS.
17
SmartLogic Owner’s Manual
Security
This feature allows you to Screen Lock/Unlock your Tablet through a
Password, Slide button, Pattern or Face recognition.
Unknown Sources - allows installation of apps or updates from
unknown sources. For example, our game controller app requires you
to check mark this feature to allow the app to install.
18
SmartLogic Owner’s Manual
Language & Input
This feature allows you to change the language setting on the Tablet.
The Personal Dictionary allows you to add your own lingo or dialect to
the Tablet.
The Bitgames IME input setting is designed for the SmartLogic
Bluetooth game controller. Note: Refer to the game controller pairing
manual.
In the Speech settings you can change the language or block offensive
language when you perform text to speech on the Tablet.
19
SmartLogic Owner’s Manual
Backup & Reset
This feature allows you to backup app data, Wi-Fi passwords and other
settings to Google server.
The Factory Data Reset allows you to erase all data on the Tablet.
20
SmartLogic Owner’s Manual
Add Accounts
This feature allows you to add your Facebook, Google or Skype
accounts on to your Tablet. You can also add your Gmail account to
access Google PlayStore for movie or game downloads. Note: A Gmail
account is recommended for SmartDVD updates.
21
SmartLogic Owner’s Manual
Date & Time
This feature allows you to change Date and Time settings on the tablet.
You can also change the time and date format.
22
SmartLogic Owner’s Manual

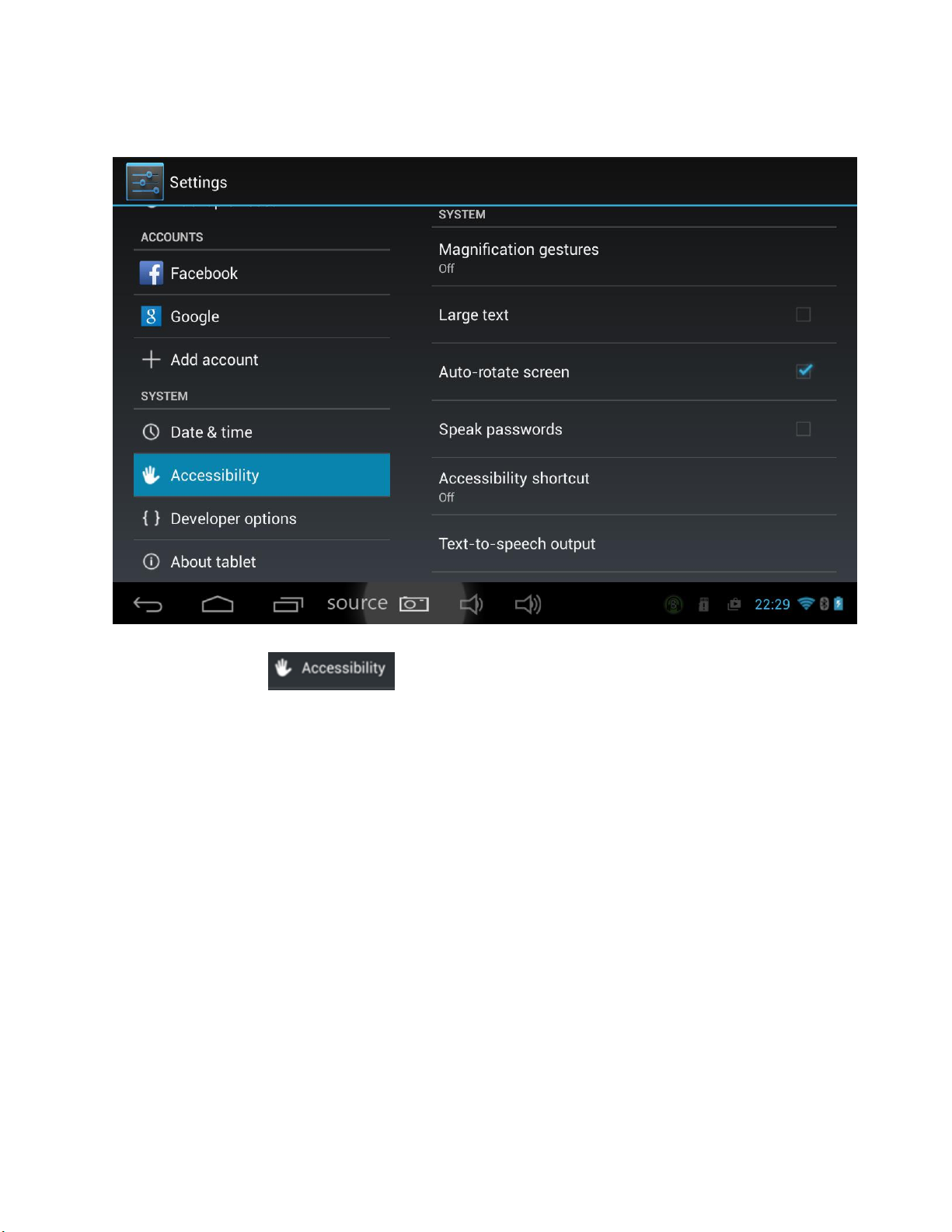

Accessibility
This feature allows you to enlarge the text, turn on/off auto rotate
screen or change text to speech output on the Tablet.
23
SmartLogic Owner’s Manual
About Tablet
This feature provides information about the Tablet. For example, you
can check the status of the Tablet’s battery life or Android version the
Tablet is curently running.
24
SmartLogic Owner’s Manual
4. SmartDVD App
This app is designed to play your DVD movie on the SmartLogic Tablet.
Load your DVD movie into the DVD Rom on the Headrest and press the
SmartDVD app. Note: When loading the DVD, push the DVD in until
the DVD Rom accepts the DVD. It is recommended to use a store
bought DVD.
25
SmartLogic Owner’s Manual
When you open the Smart DVD app, it will display the Stopped screen.
From here, you can choose to Play or Eject the DVD. Note: The DVD
movie must be stopped before you can Eject the DVD.
26
SmartLogic Owner’s Manual
Operating SmartDVD:
When you press Play, the Loading screen will display. In some cases, it
might take a few seconds to read the DVD disc.
27
SmartLogic Owner’s Manual
When the DVD movie starts to Play you can control the functions of the
DVD. Tap the screen to display the function bar on the bottom of the
screen. From here you are able to stop the movie, playback or move
the movie Backwards or Forwards. There is also a Slide bar to navigate
the movie to the desired track.
The DVD menu is located on the top right of the screen. Once you open
the DVD menu, you can choose from Scene Selection, Bonus Features,
Setup, etc…
28
SmartLogic Owner’s Manual
Preference Settings
The SmartDVD Preference Icon is located on the upper right hand
corner of the Stopped screen (The 3 small Squares) Tap the Preference
Icon to open this feature.
Here you can change the Smart DVD settings to fit your DVD movie
watching experience.
29
SmartLogic Owner’s Manual
AutoPlay – When turned ON, this feature allows the DVD to play
automatically after 20 seconds.
Resume Playback - When turned ON, this feature will play the DVD
movie at the same location where it was last stopped.
SmartPlay Settings:
When turned ON, this feature will skip the DVD trailers & DVD menu.
The DVD movie will automatically play the longest movie feature.
30
SmartLogic Owner’s Manual
Add/Update Disc (Basic) - When you select this feature, you should be
presented with a list of titles that are on the disc. Each title will have
different play-times to choose from. However, as stated before, there
may be multiple titles that have the same amount of play-time.
31
SmartLogic Owner’s Manual
To know which title to choose from, you will have to first go to the
DVD’s menu and go to “Play”.
Once the movie starts to play, look towards the top right corner
between the PREVIOUS and NEXT buttons. You will see “TITLE --/99”.
Take note of which title number is being played. For example, in the
movie, “Hansel & Gretel: Witch Hunters”, the main title number is
“TITLE 22/99” (Title number 22 out of 99). Now you can go back to the
title selection menu from SmartPlay™ Settings and set it as “Title 22”.
32
SmartLogic Owner’s Manual
After you have selected which title you want to be played, it will now
show in the SmartPlay™ Settings menu. If you want to change the title,
you will have to select it and choose “Delete”, then go back to
“Add/Update Disc (Basic)” to select another title.
33
SmartLogic Owner’s Manual
Add/Update Disc (Advanced) – When you select this feature, you can
add or update a title setting for the disc currently in the drive just like
(Basic). Use this option if “Add/Update Disc (Basic)” does not show
titles in the selection menu.
To find titles and play-times if this occurs, you will need to load your
DVD into a computer or any other device that will display which title
number is being played. Once you have the title number, you can select
it from the “Add/Update Disc (Advanced)” title list.
You can also check on our SmartLogic® Tablet website for an updated
list of DVDs that may have this problem with the correct title number
for your convenience.
34
SmartLogic Owner’s Manual
Power
If the tablet is not docked or if there is no power to the DVD-ROM
player, the screen will display a blacked out Car and USB/DVD.
Note: The DVD Rom, USB Drive and the Tablet charge will not work
without power to the vehicle.
35
SmartLogic Owner’s Manual
When the Tablet is docked with power, the Car and USB/DVD will light
up. Note: Sometimes the Tablet is not docked correctly if there is still
no power. Push down on the top of the Tablet to insure proper dock.
36
SmartLogic Owner’s Manual
5. SmartLogic Automotive Settings
The Automotive Settings is located in the Apps folder on the 2nd page.
Simply open the Apps folder and swipe right to get to the 2nd
page. Tap the Automotive Settings Icon to open.
37
SmartLogic Owner’s Manual
Battery Saver – This feature turns off the Tablet after it has been in
Sleep mode. You can choose the amount of time to conserve the Tablet
battery.
38
SmartLogic Owner’s Manual
Key Power Function – When checked ON, this feature will allow the
screen to never sleep while charging in the headrest.
Wireless Headphones – When checked ON, this feature allows the
audio to play through the supplied IR wireless headphones. The Driver
side headrest should be set to “A” IR transmitter and the Passenger
side headrest should be set to “B” IR transmitter.
Note: To change the IR transmitter from “A” to “B” on your
Headphone tap the power button after the headphone has been
powered ON. To check the IR setting on the Tablet, tap the time
on the bottom right hand corner.
39
SmartLogic Owner’s Manual
Android App Auto On – When checked ON, this feature will allow the
SmartDVD app to open automatically when the Tablet wakes up.
Default Settings – This feature will restore the Tablet factory settings.
40
SmartLogic Owner’s Manual
6. FM Transmitter
To access the wireless FM Transmitter, open the Apps folder and
locate the FM Transmitter app on the first page.
41
SmartLogic Owner’s Manual
To turn ON the FM transmitter, press the Power button.
The Power button will light up to indicate it is ON.
To Search for available stations, press the arrow buttons.
Once you have found a desired FM station, you can save that station on
the Presets
Set the station that you selected on your Tablet to the vehicles FM
radio. Note: Wireless FM Transmitters will differ from vehicle to
vehicle and from area to area.
It is recommended to use the AUX out from the
headrest to your stereo for direct audio. A 3.5mm stereo to 3.5mm
stereo cable is all that is required. The Speaker Mute button is
designed to mute the Tablets internal speaker when the Tablet is
42
SmartLogic Owner’s Manual
undocked. Note: The Tablets internal speaker automatically will mute
when docked.
7. Closing Running Apps
When you’re using apps or playing games on the tablet, and “exit”
them by touching the Back or Home button, they don’t really
stop running. They are running in the background in an idle state, which
is good in some cases such as switching between apps without having
them close.
However, in some cases it may not be good. Having too many apps and
Games running may cause problems with the performance of the
tablet. It is recommended that you close these apps completely to free
memory on the tablet.
To access the list of running apps, touch the Recent Apps button
You will see a row of all the apps and games that are currently running
on your device. If you want to jump to any of these apps, simply tap the
43
SmartLogic Owner’s Manual
app that is displayed. To close an app, drag it either up or down on the
screen until it disappears.
8. Update the Tablet
You can use a USB cable to connect your tablet to a Windows computer
and transfer music, pictures, movies and other files. Most importantly,
you can update your Tablet when Vizualogic releases new updates. You
can also download new updates through your Gmail account. Note: The
home charger that’s included in your kit will also work as your Tablet
to USB cable.
When you connect your tablet to the USB port on your computer, touch
the “Turn on USB storage” button to connect your tablet to the
computer.
Open the Tablet file folder when it displays on your computer screen.
Next, open the Download folder where you will drag the updated APK
file into the download folder. Note: Add the update APK file to your
desktop so you can drag the update into the download file.
44
SmartLogic Owner’s Manual
When finished, be sure to touch, “Turn off USB storage” to disconnect
the device from the computer.
On the Tablet, open the SD/USB app on the Home screen. Tap
the Internal Memory button to open. Note: You might have to Open
the Home icon to access the Internal Memory page.
45
SmartLogic Owner’s Manual
Open the Download folder to access the Update APK file that you
added from your computer desktop.
Select the Update APK file from the list in the Download folder. For
example, shown below is a SmartDVD 1.7 APK file. Tap the file to start
Download.
For security, your Tablet might block installation of apps from an
unknown source.
46
SmartLogic Owner’s Manual
If you receive this message, open the settings and press the Unknown
Sources and check the empty box.
Press the back button to go back to the Download APK file screen
shown on previous screen.
Next, press the Install button to start the Download. This might take a
few minutes for your Download to complete.
Press the Open button when Download is complete. The Tablet is now
updated.
47
SmartLogic Owner’s Manual
Refer to www.smartlogictablet.com for Updates, Wallpapers,
Accessories, Product Registration, Product Manuals & “How to”
YouTube Videos.
48
Loading...
