VIZIO VO42L FHDTV10A User Manual
Dear VIZIO Customer,
Congratulations on your new VIZIO VO42L
FHDTV10A High Definition LCD Television
purchase. Thank you for your support. For
maximum benefit of your set, please read these
instructions before making any adjustments, and
retain them for future reference. We hope you will
experience many years of enjoyment from your
new VIZIO VO42L FHDTV10A High Definition
Television.
For assistance, please call (877) 698-4946 or email us at
techsupport@vizio.com
.
To purchase or inquire about accessories and
installation services for your VIZIO LCD HDTV,
please visit our website at
www.VIZIO.com
or
call toll free at 888-VIZIOCE (888-849-4623).
We recommend you register your VIZIO VO42L
FHDTV10A either at our website
www.VIZIO.com
or fill in your registration card
and mail it in. For peace of mind and to protect
your investment beyond the standard warranty,
VIZIO offers on-site extended warranty service
plans. These plans give additional coverage
during the standard warranty period. Visit our
website or call us to purchase a plan.
Write down the serial number located on the back
of your VO42L FHDTV10A.
__ __ __ __ __ __ __ __ __ __ __ __ __ __
Purchase Date _____________________
VIZIO is a registered trademark of VIZIO, Inc. dba V, Inc.
HDMI logo and “High Definition Multimedia Interface” are registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories
Dolby and the double-D symbol are trademarks of Dolby Laboratories
Version 2/27/2008 1
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
THIS PRODUCT HAS BEEN DESIGNED AND TESTED FOR COMPLIANCE WITH REGULATORY SAFETY CERTIFICATIONS
This product is designed and manufactured to operate within defined design limits, and misuse may result in electric
shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation,
use and maintenance of the product. Read the following safety instructions before operating the display. Keep these
instructions in a safe place for future reference.
• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the VO42L
FHDTV10A.
• Unplug the power cord before cleaning the VO42L FHDTV10A. A damp cloth is sufficient for cleaning the VO42L FHDTV10A. Do not
use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving the VO42L FHDTV10A from an area of low temperature to an area of high temperature, condensation may form on the
housing. Do not turn on the VO42L FHDTV10A immediately after this to avoid causing fire, electric shock or component damage.
• Do not place the VO42L FHDTV10A on an unstable cart, stand, or table. If the VO42L FHDTV10A falls, it can injure a person and
cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the VO42L
FHDTV10A.
• A distance of at least 3 feet should be maintained between the VO42L FHDTV10A and any heat source, i.e. radiator, heater, oven,
amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or electric
shock.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the VO42L
FHDTV10A and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the VO42L
FHDTV10A in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slot on the VO42L FHDTV10A cabinet. Do not place any objects on the top of the product. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the VO42L FHDTV10A.
• The VO42L FHDTV10A should be operated only from the type of power source indicated on the label. If you are not sure of the type of
power supplied to your home, consult your dealer or local power company.
• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact
your dealer.
• The VO42L FHDTV10A is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only
into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install
the correct outlet, or use an adapter to ground the appliance safely.
grounded plug.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket shall be installed near the equipment and shall be easily accessible.
• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or electric
shock.
• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the VO42L FHDTV10A
from damage due to power surges.
• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk
of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service
personnel.
• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug
the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your
dealer immediately. Do not try to repair the product yourself.
• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may
function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause
fire or electric shock.
• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high
humidity may cause fire or electric shock.
• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the
product.
• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable and
cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power connector.
• To avoid risk of electric shock, do not touch the connector with wet hands.
• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury
and contamination the remote controller.
• If any of the following occurs please contact the dealer:
o The power connector fails or frays.
o Liquid sprays or any object drops into the VO42L FHDTV10A.
o The Display is exposed to rain or other moisture.
o The Display is dropped or damaged in any way.
o The performance of the Display changes substantially.
Do not defeat the safety purpose of the
Version 2/27/2008 2
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
Television Antenna Connection Prote
Television Antenna Connection Protection
Television Antenna Connection ProteTelevision Antenna Connection Prote
External Television Antenna
External Television Antenna Grounding
External Television AntennaExternal Television Antenna
If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage surges and
static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge
unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Lightning Protection
For added protection of the TV during a lightning storm or when it is left unattended or unused for long
periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or where it could fall into such power
lines or circuits.
Grounding
Grounding Grounding
ction
ctionction
Version 2/27/2008 3
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
Opening the Package
Opening the Package
Opening the PackageOpening the Package
Your VIZIO VO42L FHDTV10A and it accompanying accessories are carefully packed in a cardboard
carton that has been designed to protect it from transportation damage. Now you have opened the carton
check that the VO42L FHDTV10A is in good condition and that all of the accessories are included.
The VO42L FHDTV10A weighs approximately 58lbs and is nearly 41” wide and we advise that you take
sensible lifting precautions when you unpack and install the HDTV.
The screen can easily be scratched or broken so please handle the product gently and never place the
HDTV with the glass facing downwards on a surface without protective padding.
IMPORTANT: Save the carton and packing material for future shipping.
Package Contents
Package Contents
Package Contents Package Contents
VIZIO VO42L FHDTV10A
VIZIO Remote Control VR3P
Power Cord
HDMI Cable
This User Manual
Quick Setup Guide
Registration Card
VIP Services Brochure
2 AA Batteries for the Remote Control
VIZIO Warranty and Repair Information
Premium Size Screen Cleaning Cloth
Safety Strap
Version 2/27/2008 4
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
Additional Certified Accessories
Additional Certified Accessories for the VIZIO
Additional Certified AccessoriesAdditional Certified Accessories
VO42L
VO42L FHDTV10A are sold separately
VO42LVO42L
Wall Mounts
High Definition Cables
Extra or replacement Remote
VIZIO also offers Installation Services and Extended Warranty Services for your VIZIO VO42L
FHDTV10A
To purchase or inquire about additional accessories and services for your VIZIO product, visit our web
site at www.VIZIO.com or call us toll free at 888-VIZIOCE (888-849-4623)
FHDTV10A are sold separately
FHDTV10A are sold separately FHDTV10A are sold separately
for the VIZIO
for the VIZIO for the VIZIO
Installation Preparation
Installation Preparation
Installation PreparationInstallation Preparation
Please read this user manual carefully before installing your VIZIO HDTV.
The power consumption of the TV is about 250W, please use the power cord designated for TV. When
an extension cord is required, use one with the correct power rating. The cord must be grounded and the
grounding feature must not be defeated.
The TV should be installed on a flat surface to avoid tipping. For proper ventilation, you must allow space
between the back of the TV and the wall. If you would like to mount your TV on the wall, please see
below ‘Preparing Your LCD HDTV for Wall Mounting’ for additional information. Avoid installing the TV in
places with high humidity, dust or smoke so as not to shorten the service life of the electronic components.
Install the TV in landscape orientation; any 90˚ clockwise or counter-clockwise installation may induce
poor ventilation and excessive component damage.
VIZIO offers professional installation services. Please contact VIZIO for more information on these
services at 888-VIZIOCE (888-849-4623) or www.VIZIO.com.
Attaching the Safety Strap
Attaching the Safety Strap
Attaching the Safety StrapAttaching the Safety Strap
For when the VO42L FHDTV10A is not mounted on the wall with a Wall Mount, a Safety Strap has been
included to attach the HDTV to the wall to reduce the chance of the HDTV being pulled over. The Safety
Strap should be used with common sense practice such as ensuring that children (or adults) do not climb
up, grabbing the top of the HDTV and pulling it onto themselves.
1. Fix one end of the strap to the wall. If you have a drywall
finish it is preferable to fix it to a stud if it is a drywall finish,
using a washer underneath the screw head. If you have a
solid wall you should use a lag bolt, again using a washer
under the nut.
2. Fix the other end of the Safety
Strap to one of the upper wall
mounting holes on the back of
the HDTV, using a washer
under the screw head.
Version 2/27/2008 5
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
Preparing Your LCD HDTV for Wall Mounting
Preparing Your LCD HDTV for Wall Mounting
Preparing Your LCD HDTV for Wall MountingPreparing Your LCD HDTV for Wall Mounting
To remove the stand base
To remove the stand base
To remove the stand baseTo remove the stand base
1. Unplug all of the cables and cords from
your VO42L FHDTV10A.
2. Place the VO42L FHDTV10A face down
on a soft and flat surface (blanket, foam,
cloth, etc) to prevent any damage to the
TV.
3. Push up the plastic panel on the back of
the stand and lift it away once to release.
4. Remove the eight (8) screws that
were hidden by the panel, while
holding the base.
5. Carefully remove the stand base.
Now, the VO42L FHDTV10A can fit securely
to a mount (sold separately) by utilizing the
mounting holes in the center of the back panel
of the TV. Please make sure to read the
instructions of your specific mount to properly
hang the VO42L FHDTV10A.
The pitch of the mounting holes is 400mm
horizontally and 200mm vertically.
The screw type required is metric M6, 1.00mm
pitch. The length of the screws will depend on
the thickness plate being attached to TV set,
our brackets come with different length
screws.
To find the perfect mount for the VIZIO VO42L FHDTV10A, browse VIZIO’s certified mount selection at
www.VIZIO.com or call directly 888-VIZIOCE (888-849-4623).
Version 2/27/2008 6
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
Table of Cont
Table of Contents
Table of ContTable of Cont
Chapter 1 Basic Controls and Connections
Chapter 1 Basic Controls and Connections ................................
Chapter 1 Basic Controls and ConnectionsChapter 1 Basic Controls and Connections
1.1 Front Panel..........................................................................................................................................................9
1.2 Right Side Panel Controls ...................................................................................................................................9
1.3 Rear Panel Connections ...................................................................................................................................10
1.4 Right-Side Panel Connection ............................................................................................................................11
1.5 VIZIO Remote Control.......................................................................................................................................12
1.5.1 Insertion of Batteries in the Remote Control ..............................................................................................14
1.5.2 Remote Control Range ..............................................................................................................................14
1.5.3 VIZIO Remote Control Precautions ...........................................................................................................14
Chapter 2 Connecting Equipment
Chapter 2 Connecting Equipment................................
Chapter 2 Connecting EquipmentChapter 2 Connecting Equipment
2.1 Which Video Connection Should I Use?............................................................................................................15
2.2 Connecting Coaxial (RF) ...................................................................................................................................16
2.2.1 Using Your Antenna or Digital Cable for DTV /TV .....................................................................................16
2.2.2 Using the Antenna or Cable through your VCR .........................................................................................16
2.3 Connecting Your HDTV Set-Top Box ................................................................................................................17
2.3.1 Using HDMI ...............................................................................................................................................17
2.3.2 Using Component Video............................................................................................................................19
2.4 Connecting Your Basic Set-Top Box .................................................................................................................20
2.4.1 Using Composite Video .............................................................................................................................20
2.4.2 Using Coax (RF) ........................................................................................................................................20
2.5 Connecting Your DVD Player ............................................................................................................................21
2.5.1 Using HDMI ...............................................................................................................................................21
2.5.2 Using Component Video............................................................................................................................23
2.5.3 Using S-Video (AV)....................................................................................................................................24
2.5.4 Using Composite (AV) Video .....................................................................................................................25
2.6 Connecting Your VCR or Video Camera ..........................................................................................................26
2.7 Connecting an external Receiver/Amp ..............................................................................................................27
2.7.1 Optical Output of Audio received with HD Programs .................................................................................27
2.8 Connecting a PC Computer ..............................................................................................................................28
2.8.1 Preset PC Resolutions...............................................................................................................................29
2.8.2 Resolution (1920x1080) through RGB (15-Pin VGA) Input........................................................................29
Chapter 3 Setting Up to Watch Television
Chapter 3 Setting Up to Watch Television ................................
Chapter 3 Setting Up to Watch TelevisionChapter 3 Setting Up to Watch Television
3.1 Basic LCD HDTV Start Up ................................................................................................................................30
3.2 Watching a TV Program ....................................................................................................................................35
3.3 Adjusting Basic HDTV Settings .........................................................................................................................36
3.4 Program Information..........................................................................................................................................37
3.5 Information on HDTV Status .............................................................................................................................37
Chapter 4 Advanced Adjustment of HDTV
Chapter 4 Advanced Adjustment of HDTV................................
Chapter 4 Advanced Adjustment of HDTVChapter 4 Advanced Adjustment of HDTV
4.1 Using the On Screen Display (OSD) .................................................................................................................38
4.2 DTV / TV Input Picture Adjustment....................................................................................................................39
4.2.1 Picture Mode .............................................................................................................................................39
4.2.2 Backlight ....................................................................................................................................................39
4.2.3 Brightness..................................................................................................................................................40
4.2.4 Contrast .....................................................................................................................................................40
4.2.5 Color ..........................................................................................................................................................40
4.2.6 Tint.............................................................................................................................................................40
4.2.7 Sharpness .................................................................................................................................................41
4.2.8 Advanced Video Features .........................................................................................................................41
4.2.9 Reset Picture Mode ...................................................................................................................................43
4.3 DTV / TV Input Audio Adjustment......................................................................................................................44
4.3.1 Audio Mode ...............................................................................................................................................44
4.3.2 Equalizer....................................................................................................................................................44
4.3.3 Balance......................................................................................................................................................45
4.3.4 Surround....................................................................................................................................................45
4.3.5 Digital Audio Out........................................................................................................................................45
4.3.6 Speakers ...................................................................................................................................................45
4.3.7 Audio Line Out...........................................................................................................................................45
4.3.8 Lip Sync.....................................................................................................................................................46
4.3.9 Reset Audio Mode .....................................................................................................................................46
ents
entsents
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
.................................................
................................................................
.................................... 9999
................................................................
....................................30
................................................................
..................................
................................................................
................. 15
..................................
15
1515
30
3030
..38
38
....
3838
Version 2/27/2008 7
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
4.4 DTV / TV Tuner Setup.......................................................................................................................................47
4.4.1 Tuner Mode ...............................................................................................................................................47
4.4.2 Auto Search...............................................................................................................................................47
4.4.3 Partial Channel Search..............................................................................................................................48
4.4.4 Skip Channel .............................................................................................................................................48
4.4.5 MTS ...........................................................................................................................................................48
4.4.6 Time Zone .................................................................................................................................................48
4.4.7 Daylight Saving..........................................................................................................................................49
4.5 DTV / TV Input Setup ........................................................................................................................................49
4.5.1 Language...................................................................................................................................................49
4.5.2 PIP (Picture-in-Picture) ..............................................................................................................................49
4.5.3 Sleep Timer ...............................................................................................................................................51
4.5.4 Wide ..........................................................................................................................................................51
4.5.5 Input Naming .............................................................................................................................................52
4.5.6 CC (Closed Caption)..................................................................................................................................53
Closed Caption on Mute .....................................................................................................................................53
4.5.7 H/V Position...............................................................................................................................................54
4.5.8 DTV / TV Input Parental Control ................................................................................................................55
4.5.9 Channel Block ...........................................................................................................................................55
4.5.10 US TV Rating...........................................................................................................................................56
4.5.11 US Movie Rating (For US) .......................................................................................................................57
4.5.12 Canadian English Rating .........................................................................................................................57
4.5.13 Canadian French Rating..........................................................................................................................58
4.5.14 Check for New DTV Rating......................................................................................................................58
4.5.15 Blocked Unrated Programming................................................................................................................59
4.5.16 Change the Password .............................................................................................................................59
4.5.17 Reset All Settings ....................................................................................................................................60
4.6 HDMI Input Picture Adjustment .........................................................................................................................61
4.7 HDMI Input Audio Adjustment ...........................................................................................................................61
4.8 HDMI Input Setup..............................................................................................................................................61
4.9 Video Input Picture Adjustment .........................................................................................................................62
4.10 Video Input Audio Adjustment .........................................................................................................................62
4.11 Video Input Setup............................................................................................................................................62
Auto Phase (for Component input) ..........................................................................................................................63
4.12 Video Input Parental Control ...........................................................................................................................64
4.13 PC Input Picture Adjustment ...........................................................................................................................64
4.13.1 Auto Adjust ..............................................................................................................................................64
4.13.2 Backlight ..................................................................................................................................................64
4.13.3 Brightness................................................................................................................................................65
4.13.4 Contrast ...................................................................................................................................................65
4.13.5 Color Temperature...................................................................................................................................65
4.13.6 H-SIZE.....................................................................................................................................................66
4.13.7 H. Position ...............................................................................................................................................66
4.13.8 V. Position ...............................................................................................................................................66
4.13.9 Fine Tune ................................................................................................................................................66
4.14 PC Input Audio Adjustment .............................................................................................................................67
4.15 PC Input Setup ................................................................................................................................................67
4.16 Understanding Viewing Features ....................................................................................................................68
4.16.1 Viewing Modes ........................................................................................................................................68
Chapter 5 Maintenance and Troubleshooting
Chapter 5 Maintenance and Troubleshooting................................
Chapter 5 Maintenance and TroubleshootingChapter 5 Maintenance and Troubleshooting
5.1 Maintenance......................................................................................................................................................69
5.2 Troubleshooting Guide ......................................................................................................................................70
5.3 Telephone & Technical Support ........................................................................................................................71
5.4 Compliance .......................................................................................................................................................72
5.5 FCC Class B Radio Interference Statement ......................................................................................................72
Chapter 6 Miscellaneous Information
Chapter 6 Miscellaneous Information ................................
Chapter 6 Miscellaneous InformationChapter 6 Miscellaneous Information
6.1 Specifications ....................................................................................................................................................73
6.2 Glossary – Standard Definitions ........................................................................................................................74
6.3 Index .................................................................................................................................................................75
................................................................
................................................................
............................................................
................................................................
..........................................
................................................................
............................69
........................................................
.......... 73
....................
69
6969
73
7373
Version 2/27/2008 8
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
Chapter 1
Chapter 1 Basic Controls and Connections
Chapter 1Chapter 1
1.1
1.1 Front Panel
1.11.1
Power ‘VIZIO’ light – The VIZIO name lights white when
powered on and orange when powered off.
Remote Control Sensor – This is the window through which
all of the remote control signals pass to the sensor. Point the
remote control directly at this window for the best response to
the remote signal.
1.2
1.2 Right Side Panel Controls
1.21.2
Power ( ) – Switch the VO42L FHDTV10A on by pressing the button once. Press the button again to
the VO42L FHDTV10A off.
Menu – This button activates the On Screen Display (OSD). If a submenu is active, pressing this button will return to the previous menu
level.
Channel +/- – Use these buttons to step up or down the TV channels.
While the OSD is active, these buttons function as up and down
controls in the OSD menus.
Volume +/- – Use these buttons to increase or decrease to the
speaker volume. While the OSD is active, these buttons function as
left and right controls in the OSD
menus.
Input (Enter) – Repeated pressing
of this buttons steps through the
input sources in the following
sequence: TV, AV1/S-Video, AV2
Component1, Component2, RGB,
HDMI1, HDMI2, HDMI3 and
HDMI4. Once you have stepped
through the entire sequence, you
will return to the beginning.
Front Panel
Front PanelFront Panel
Right Side Panel Controls
Right Side Panel ControlsRight Side Panel Controls
Basic Controls and Connections
Basic Controls and Connections Basic Controls and Connections
Version 2/27/2008 9
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
1.3
1.3 Rear Panel Connections
1.31.3
1
1. SERVICE – This custom communication port is for factory service only. Use of this input for
2. HDMI 1 – Connect the primary source for digital video such as a DVD multimedia player or
3. HDMI 2 – Connect a second source for digital video such as a DVD multimedia player or set
4. RGB PC – Connect the video and audio from a computer here. The blue color band on the
5. COMPONENT 1 (YPb/CbPr/Cr with Audio L/R) – Connect the primary source for
6. AV1/S-VIDEO IN – Connect a source for composite or S-video image devices, such as a
7. OPTICAL DIGITAL AUDIO OUT –When a digital audio signal is associated with an input

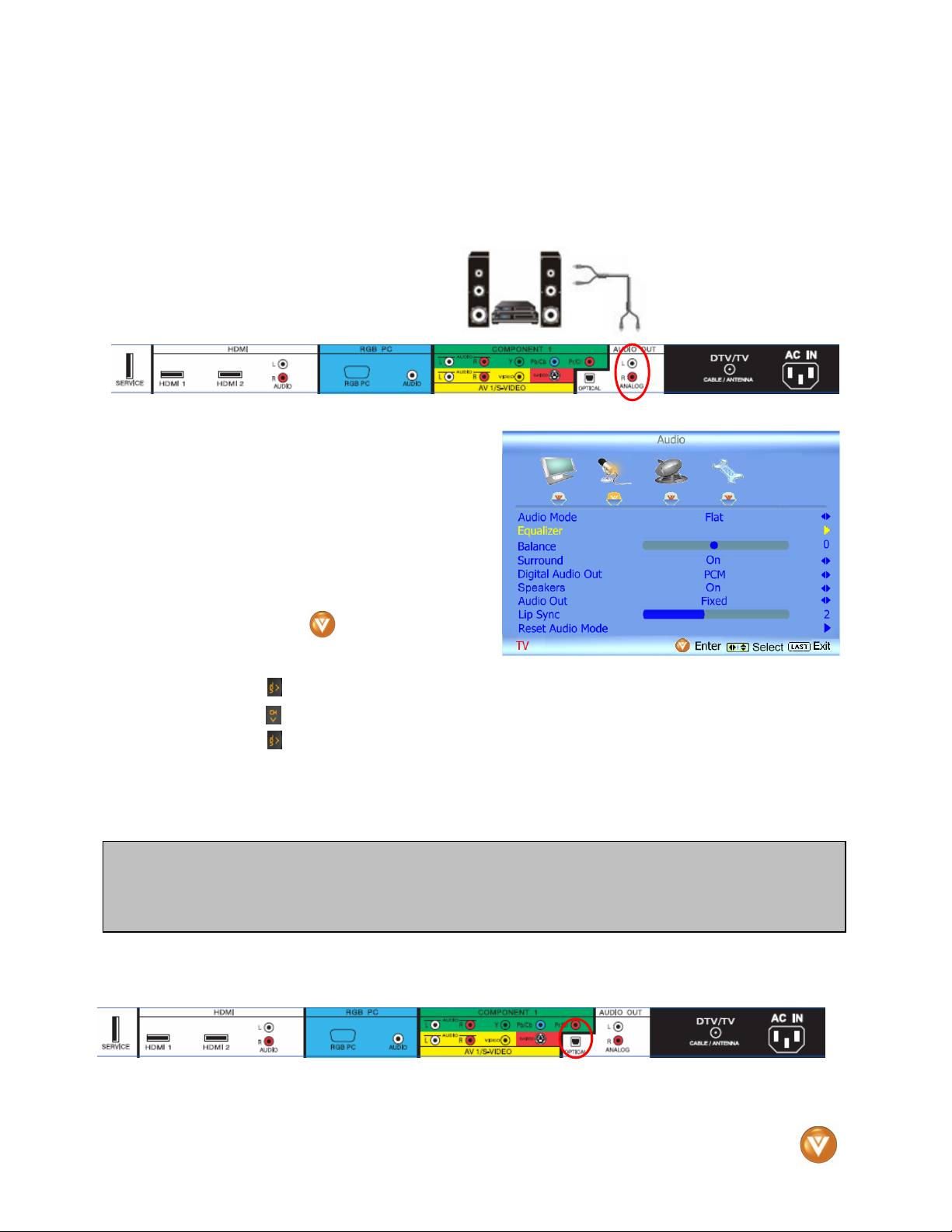

8. ANALOG AUDIO OUT – Connect the audio from the LCD HDTV to an external device, such
9. DTV – Connect to an antenna or digital cable (no Cable Box) for Digital TV.*
10. AC IN – Plug-in the supplied AC Power Cord here.
* For digital TV stations in your area visit www.antennaweb.org.
Rear Panel Connections
Rear Panel ConnectionsRear Panel Connections
5
2
any purpose other than factory authorized service will void the manufacturer’s
warranty of this equipment.
set top box through this all digital connector. The white color band on the rear of the TV
indicates this connection.
top box through this all digital connector. The white color band on the rear of the TV
indicates this connection. For users who want to connect to a DVI enabled device, use a
DVI-HDMI cable and connect the Analog Audio output of the device to the L+R AUDIO here. .
Your VIZIO Certified HDMI and HDMI-DVI cables are available for purchase from
www.VIZIO.com or by calling 888-VIZIOCE (888-849-4623).
rear of the TV indicates this connection. A cable with a 1/8” mini plug stereo connector at the
end connecting to the TV is needed if sound is also transmitted with this signal.
component video devices such as a DVD Player or set top box here. From left to right, use
white for left audio, red for right audio inputs, green for Y, blue for Pb (or Cb) and red for Pr
(or Cr),. The green color band on the rear of the TV indicates this connection.
VCR or video game. Use the white and red connectors to connect the external audio from
the same source, if S-Video is connected; such signal will take priority over the input. The
yellow and red color band on the rear of the TV indicates this connection.
which is selected for viewing, the digital audio associated with digital programming will be
available on this SPDIF Optical connector for connection to your home theatre system. The
white color band on the rear of the TV indicates this connection.
as a home theatre system, external amplifier or stereo. Speakers cannot be connected
directly to here. The white color band on the rear of the TV indicates this connection.
4 6 3
8
9 7
10
Version 2/27/2008 10
www.VIZIO.com
1.4
1.4 Right
1.41.4
Right----Side Panel Connection
RightRight
1. AV2 – Connect the secondary source for composite video devices,
such as a VCR or video game. Use the white and red connectors
to connect the external audio from the same source, then use the
yellow connector to connect the external video from the same
source. The orange color band on the side of the TV indicates this
Side Panel Connection
Side Panel ConnectionSide Panel Connection
VIZIO VO42L FHDTV10A User Manual
connection. Note: The red
and white audio connectors are shared between AV2 and
COMPONENT2.
2. COMPONENT2 (YPb/CbPr/Cr with Audio L/R) - Connect the
secondary source for component video devices such as a DVD
Player or set top box here. From top to bottom, left to
right, use green for Y, blue for Pb (or Cb), red for Pr
(or Cr), then connect white for left audio and red for
right audio inputs under the orange band. The purple color band
on the side of the TV indicates this connection. Note:
The red and white audio connectors are shared
between AV2 and COMPONENT2.
3. HDMI 3 - Connect the third source for digital video such as a DVD
multimedia player or set top box through this all digital connector.
The white color band on the side of the TV indicates this
connection.
4. HDMI 4 - Connect the fourth source for digital video such as a DVD
multimedia player or set top box through this all digital connector. The
white color band on the side of the TV indicates this connection.
2
3
4
1
Version 2/27/2008 11
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
1.5
1.5 VIZIO Remote Control
1.51.5
GUIDE – This button displays program information. Press this button once when in TV mode and the
information of the program being viewed is shown. Press it a second time and the Electronic
Programming Guide will appear in the screen. In any other mode when this button is pressed, the screen
will display the selected input plus the definition of the signal; i.e. HDMI 720p, HDMI 1080i, etc.
POWER – Press this button to turn the TV on from the Standby mode. Press it again to return to the
Standby mode.
HDMI – Press this button to select the HDMI input.
MUTE – This button turns the sound on and off.
TV – Press this button to select TV.
COMPONENT – Press this button to select the Component
(YPbPr) input.
LAST – This button recalls the previously viewed channel. If the
On-Screen Display (OSD) menu is being used, this button will allow
you to get back to previous menu screen or out to your program
when you press it repeatedly.
AV – Press this button to select AV (either Composite or S-Video)
input.
(MENU) – Use this button for the On-Screen Display (OSD)
menu. When it is used within a menu selection, the
help you to make the selection of the feature to be adjusted after it
has been highlighted.
VIZIO Remote Control
VIZIO Remote ControlVIZIO Remote Control
V
ball key will
-These labeled buttons are used to navigate the OSD menu.
When navigating the OSD menu, the arrows control the
direction up and down or left and right. They will also be used
as value settings when the slide bar is shown on the screen
and option settings to turn a feature off or on. During regular
TV watching these keys will provide us with the control
functions of Volume (up or down) and Channel (up or down).
Channel up or down will not function when a cable box or satellite
receiver is being used as the source of the signal.
PIP – Use this button to activate the Picture-in-Picture mode.
SWAP – Used to swap the inputs from the main screen and the
sub-screen while in PIP mode.
FREEZE – Press this button to “freeze-frame” the current screen.
Press this button again to continue playing.
hen
NUMBER BUTTON PAD – Use these buttons to select a channel
or enter a password.
Version 2/27/2008 12
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual

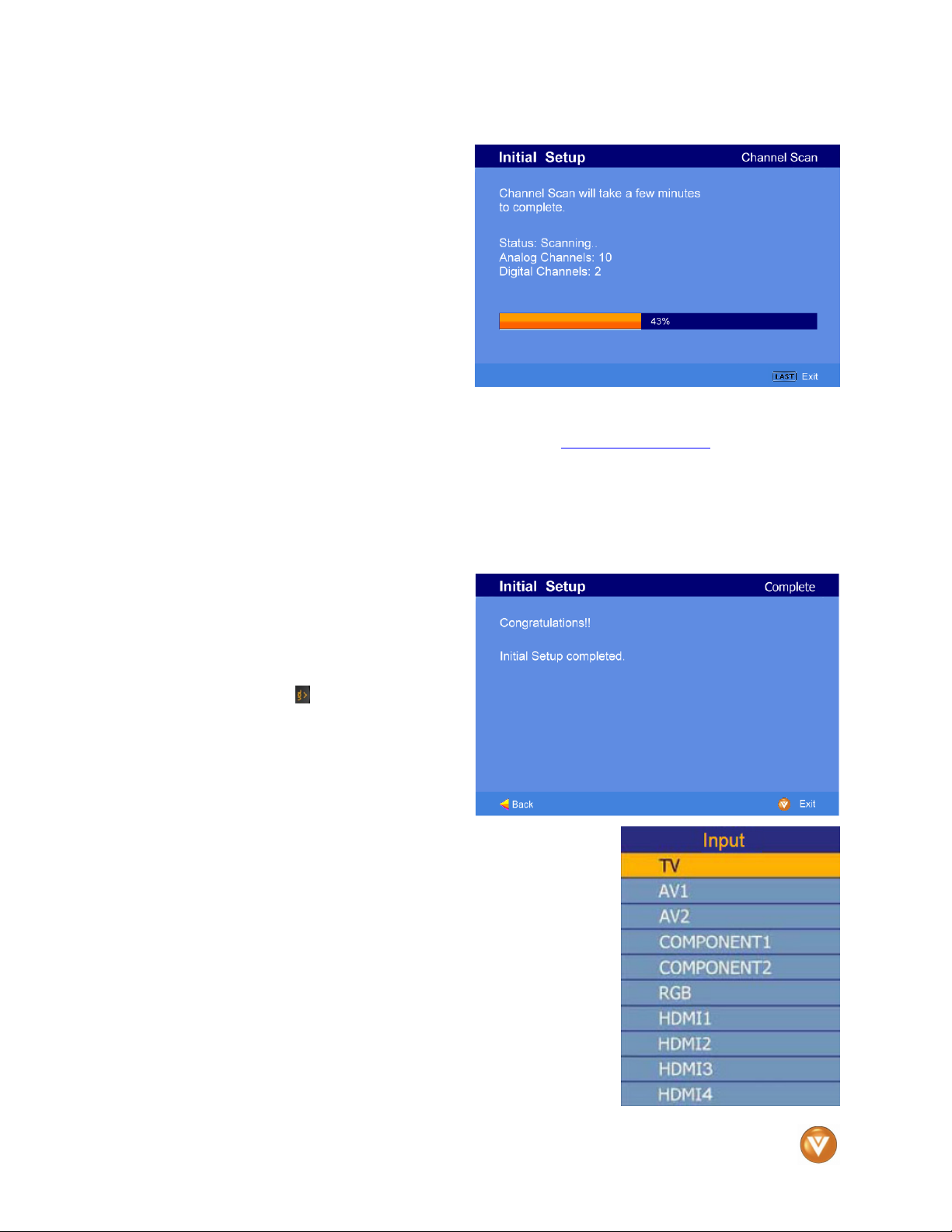

INPUT – This button allows the user to cycle through the inputs.
Repeatedly pressing of this button will step you through the input
sources in the following sequence: TV, AV1/S-VIDEO, AV2,
Component 1, Component 2, RGB, HDMI 1, HDMI 2 and HDMI 3.
Once you have stepped through the entire sequence, you will return
to the beginning.
- (DASH) – When selecting a digital channel directly use this button
for the separation of main and sub-channels. For example, channel
28-2 would be selected by the button sequence 2 8 ENTER 2.
Version 2/27/2008 13
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
1.5.1
1.5.1 Insertion of Batteries in the Remote Control
1.5.11.5.1
Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the
batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the battery cover.
Precautionary Tips for Inserting the Batteries:
Only use the specified AA batteries.
Do not mix new and old batteries. This may result in
cracking or leakage that may pose a fire risk or lead to
personal injury.
Inserting the batteries incorrectly may also result in cracking
or leakage that may pose a fire risk or lead to personal injury.
Dispose of the batteries in accordance with local laws and
regulations.
Keep the batteries away from children and pets.
Insertion of Batteries in the Remote Control
Insertion of Batteries in the Remote ControlInsertion of Batteries in the Remote Control
1.5.2
1.5.2 Remote Control Range
1.5.21.5.2
Point the remote control at the remote control sensor to transmit the commands.
Do not place any obstacles between the remote control and the receiver window.
The effective range of the remote control is approximately 30 feet (10 meters) from the front of the
receiver window, 30° to the left and right, 20° up and down.
Remote Control Range
Remote Control RangeRemote Control Range
1.5.3
1.5.3 VIZIO Remote Control
1.5.31.5.3
The remote control should be kept dry and away from heat sources. Avoid humidity.
If the TV responds erratically to the remote control or does not respond at all, check the batteries. If the
batteries are low or exhausted, replace them with fresh batteries.
When not using the remote control for a long period of time, remove the batteries.
Do not take the batteries apart, heat them, or throw them into a fire.
Do not subject the remote control to undue physical stress, such as striking or dropping it.
Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.
VIZIO Remote Control Precautions
VIZIO Remote ControlVIZIO Remote Control
Precautions
Precautions Precautions
Version 2/27/2008 14
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
Chapter 2
Chapter 2 Connecting Equipment
Chapter 2Chapter 2
2.1
2.1 Which Video Connection Should I Use
2.12.1
The VIZIO VO42L FHDTV10A has six different ways to connect your video equipment from a basic
connection to the most advanced for digital displays.
Which Video Connection Should I Use????
Which Video Connection Should I UseWhich Video Connection Should I Use
Connecting Equipment
Connecting Equipment Connecting Equipment
Connection
Quality
(type)
Best
(digital)
Best
(digital)
- - - - - - - - - - - Good
(analog)
Best
(analog)
Better
(analog)
Connector
Rear
Panel
Color
Codes
HDMI (High-Definition Multimedia Interface) - It is the
first and only industry-supported, uncompressed, alldigital audio/video interface. HDMI provides an
White
Black
Blue
Green
and
Purple
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and an
audio and/or video monitor, such as a digital
television (DTV), over a single cable.
DTV Coaxial RF. When used for MPEG2 encoded
bit streams from ATSC broadcast programming, this
input takes advantage of the High Definition content.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
TV Coaxial RF. This is the connection for standard
NTSC TV using antenna or cable.
RGB PC (VGA) – This video input has separate red,
green and blue color components. The signal carries
horizontal and vertical sync information on the green
signal. This is most commonly used for PC input.
Component - The video signal is separated into three
signals, one containing the black-and-white
information and the other two containing the color
information. This enhancement over S-Video takes
advantage of the superior picture provided by
progressive scan DVD players and HDTV formats.
Description
Good
(analog)
Note: For more info refer to the Quick Start Guide
Version 2/27/2008 15
Yellow
and
Red
www.VIZIO.com
AV/S-Video – 1. Composite: The complete video
signal is carried through this single (yellow) pin
connector. This is the most commonly used video
connection. 2. S-Video: The video signal is separated
into two signals, one containing the black-and-white
information and the other containing the color
information. Separating the color in this way avoids
‘cross color’ effects where closely spaced black and
white lines are erroneously displayed in color. It also
enables text to be displayed more sharply.
VIZIO VO42L FHDTV10A User Manual
2.2
2.2 Connecting Coaxial (RF)
2.22.2
1. Turn off the power to the HDTV.
2. Connect the coaxial (RF) connector from your antenna or digital
3. Turn on the power to the HDTV.
4. Select DTV using the INPUT button on the remote or side of the
Connecting Coaxial (RF)
Connecting Coaxial (RF)Connecting Coaxial (RF)
2.2.1
2.2.1 Using Your Antenna or Digital Cable for DTV
2.2.12.2.1
/TV
/TV
/TV/TV
Note:
a) Not all digital TV broadcasts are High Definition (HD). Refer to the
b) Digital broadcasts are not available in all areas. Refer to
c) Make sure the antenna and coaxial cable are correctly grounded.
d) For Professional antenna installation contact us at www.VIZIO.com or
Using Your Antenna or Digital Cable for DTV
Using Your Antenna or Digital Cable for DTV Using Your Antenna or Digital Cable for DTV
cable (out-of-the-wall, not from the Cable Box) to the DTV/TV
CABLE/ANTENNA connector.
HDTV, or directly by pressing the TV button on the Remote Control.
program guides, or consult your cable, satellite or TV station operator.
www.antennaweb.org for detailed information.
call 1-888-VIZIOCE (1-888-849-4623).
2.2.2
2.2.2 Using the Antenna or Cable through your
2.2.22.2.2
VCR
VCR
VCRVCR
Turn off the power to the HDTV and VCR.
1. Connect the “Output to TV”, “RF Out” or “Antenna Out” connector
2. Turn on the power to the HDTV and VCR.
3. Select TV using the INPUT button on the remote or side of the
Version 2/27/2008 16
Using the Antenna or Cable through your
Using the Antenna or Cable through your Using the Antenna or Cable through your
on the rear of your VCR to the DTV/TV CABLE/ANTENNA
connector at the rear of the HDTV.
HDTV, or directly by pressing the TV button on the Remote Control.
Note: If you have an off-air antenna or cable TV, connect
it to the “Antenna In” connector on the rear of your VCR.
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
2.3
2.3 Connecting Your HDTV Set
2.32.3
HDTV Set-Top Boxes that have a HDMI digital interface should be connected to the HDMI input of the
LCD HDTV for optimal results.
Connecting
Connecting your HDTV Set
ConnectingConnecting
Connecting Your HDTV Set----Top Box
Connecting Your HDTV SetConnecting Your HDTV Set
2.3.1
2.3.1 Using HDMI
2.3.12.3.1
Note: To maintain the display quality, use a VIZIO certified HDMI cable that is 10 meters.
See www.VIZIO.com or call 1-888-VIZIOCE (1-888-849-4623) for details.
Using HDMI
Using HDMIUsing HDMI
your HDTV Set----Top Box (Best)
your HDTV Set your HDTV Set
Top Box (Best)::::
Top Box (Best)Top Box (Best)
Top Box
Top BoxTop Box
1. Turn off the power to the HDTV and HDTV Set-Top Box.
2. Connect a HDMI cable to the HDMI output of your HDTV Set-Top Box and the other end to
the HDMI Input (white color area) at the rear or the side of the HDTV.
3. Turn on the power to the HDTV and HDTV Set-Top Box.
4. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMI button on the Remote Control.
Note:
a) The HDMI input on the HDTV supports High-bandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission between the video source and the
digital display for added security and protection.
b) Refer to your HDTV Set-Top Box user manual for more information about the
video output requirements of the product or consult your cable or satellite operator.
Version 2/27/2008 17
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
For HDTV Set
For HDTV Set----Top Boxes with DVI
For HDTV SetFor HDTV Set
1. Turn off the power to the HDTV and HDTV Set-Top Box.
2. Using a HDMI-DVI cable, connect the DVI end to your HDTV Set-Top Box and the HDMI end
to the HDMI 2 Input (white color area) at the rear of the HDTV.
3. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the DVI output on your HDTV Set-Top Box and connect the other
end to the audio connectors associated with the HDMI input (white area) at the rear of the
HDTV.
4. Turn on the power to the HDTV and HDTV Set-Top Box.
5. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMI button on the Remote Control.
Note:
a) The HDMI input on the HDTV supports High-bandwidth Digital Content Protection
b) Refer to your HDTV Set-Top Box user manual for more information about the
Top Boxes with DVI::::
Top Boxes with DVITop Boxes with DVI
(HDCP). HDCP encrypts the transmission between the video source and the
digital display for added security and protection.
video output requirements of the product or consult your cable or satellite operator.
Version 2/27/2008 18
www.VIZIO.com
2.3.2
2.3.2 Using Component Video
2.3.22.3.2
Connecting
Connecting your HDTV Set
ConnectingConnecting
Using Component Video
Using Component VideoUsing Component Video
your HDTV Set----Top Box (Better)
your HDTV Set your HDTV Set
VIZIO VO42L FHDTV10A User Manual
Top Box (Better)::::
Top Box (Better)Top Box (Better)
1. Turn off the power to the HDTV and HDTV Set-Top Box.
2. Connect the Y (green color) connector on your HDTV Set-Top Box to the corresponding Y
(green color) connector in the Component 1 group (green color area - row of connectors
nearest to you when viewing from the rear of the TV) at the rear of the HDTV.
3. Connect the Pb (blue color) connector on your HDTV Set-Top Box to the corresponding Pb
(blue color) connector in the Component 1 group (green color area - row of connectors
nearest to you when viewing from the rear of the TV) at the rear of the HDTV.
4. Connect the Pr (red color) connector on your HDTV Set-Top Box to the corresponding Pr (red
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the HDTV.
5. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the Component output on your HDTV Set-Top Box and connect
the other end to the audio connectors associated with the Component 1 input (green color
area) at the rear of the HDTV.
6. Turn on the power to the HDTV and HDTV Set-Top Box.
7. Select Component 1 using the INPUT button on the remote or side of the HDTV, or directly
by pressing the Component button on the Remote Control.
Note:
a) Refer to your HDTV Set-Top Box user manual for more information about the
video output requirements of the product or consult your cable or satellite
operator.
b) If you are already using the Component 1 input for another component, or you do
not want to use the Component 1 input for the Set-Top Box, you can connect the
Set-top box to the Component 2 connection at the side of the TV.
Version 2/27/2008 19
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
2.4
2.4 Connecting Your
2.42.4
1. Turn off the power to the HDTV and
2. Using the AV Cable, connect the
3. Using the white and red connectors, connect the cable to the audio output connectors
4. Turn on the power to the HDTV and Set-Top Box.
5. Select AV 1 using the INPUT button on the remote or side of the HDTV, or directly by
Connecting Your Basic Set
Connecting YourConnecting Your
2.4.1
2.4.1 Using Composite Video
2.4.12.4.1
Using Composite Video
Using Composite VideoUsing Composite Video
Set-Top Box.
Video (yellow color) connector on
your Set-Top Box to the
corresponding Video (yellow color)
connector in the AV 1/S-Video
group (yellow/red color area) at the
rear of the HDTV.
associated with the Video output on your Set-Top Box and connect the other end to the audio
connectors associated with the AV 1/S-Video input (yellow/red color area) at the rear of the
HDTV.
pressing the AV button on the Remote Control.
Basic Set----Top Box
Basic Set Basic Set
Top Box
Top BoxTop Box
2.4.2
2.4.2 Using Coax (RF)
2.4.22.4.2
1. Turn off the power to the HDTV and Set-Top Box.
2. Using a Coax (RF) cable, connect one end to the TV OUT (RF) on your
3. Turn on the power to the HDTV and Set-Top Box.
4. Select TV using the INPUT button on the remote or side of the
5. The most common channels; in which your TV must be at, are either channel 3 or channel 4.
Using Coax (RF)
Using Coax (RF)Using Coax (RF)
Set Top Box and the other end to the DTV/TV input at the rear of the
HDTV.
HDTV, or directly by pressing the TV button on the Remote Control.
Please contact your signal provider to verify what channel the TV must be at.
Note: Refer to your Set Top Box user manual for more information
about selecting the video or RF output of the product.
Version 2/27/2008 20
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
2.5
2.5 Connecting Your DVD Player
2.52.5
You have several options for connecting your DVD player to your VO42L FHDTV10A; HDMI, Component,
AV (S-Video or Composite) inputs. Based on your configuration, you can decide which option is right for
you.
DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface) should be
connected to the HDMI input of the VIZIO VO42L FHDTV10A for optimal results.
Note: To maintain the display quality, use a VIZIO certified HDMI cable available up to 10 meters.
See www.VIZIO.com or call 1-888-VIZIOCE (1-888-849-4623) for details.
Connecting
Connecting your DVD Player (Best)
ConnectingConnecting
Connecting Your DVD Player
Connecting Your DVD PlayerConnecting Your DVD Player
2.5.1
2.5.1 Using HDMI
2.5.12.5.1
Using HDMI
Using HDMIUsing HDMI
your DVD Player (Best)::::
your DVD Player (Best) your DVD Player (Best)
1. Turn off the power to the HDTV and DVD player.
2. Connect a HDMI cable to the HDMI output of your DVD player and the other
end to the HDMI Input (white color area) at the rear of the HDTV.
3. Turn on the power to the HDTV and DVD player.
4. Select HDMI using the INPUT button on the remote or side of the HDTV, or
directly by pressing the HDMI button on the Remote Control.
5. If HDMI 1 input is already being used, please select either HDMI
2, or HDMI 3 or 4 on the side of the TV and follow Steps 1
through 4.
Version 2/27/2008 21
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
For DVD Players with DVI
For DVD Players with DVI::::
For DVD Players with DVIFor DVD Players with DVI
1. Turn off the HDTV and DVD player.
2. Using a HDMI-DVI cable, connect the DVI end to your
DVD player and the HDMI end to the HDMI 2 Input
(white color area) at the rear of the HDTV.
3. Connect an audio cable (white and red connectors) to the audio output connectors
associated with the DVI output of the DVD player and connect the other end to the audio
connectors by the HDMI 2 input (white area) at the rear of the HDTV.
4. Turn on the power to the HDTV and your DVD player.
5. Select HDMI 2 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMI button on the Remote.
Note: Refer to your DVD player user manual for more
information about the video output requirements of the product.
Version 2/27/2008 22
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
2.5.2
2.5.2 Using Component Video
2.5.22.5.2
Connecting
Connecting your DVD Player (Better)
ConnectingConnecting
1. Turn off the power to the HDTV and DVD player.
2. Connect the Y (green color) connector on your DVD player to the corresponding Y (green
3. Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue
4. Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color)
5. Using an audio cable (white and red connectors), connect the cable to the audio output
6. Turn on the power to the HDTV and DVD player.
7. Select Component using the INPUT button on the remote or side of the HDTV, or directly by
8. If Component 1 is already being used or you decide to use Component 2; please make the
Using Component Video
Using Component VideoUsing Component Video
your DVD Player (Better)::::
your DVD Player (Better) your DVD Player (Better)
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the HDTV.
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the HDTV.
connector in the Component 1 group (green color area - row of connectors nearest to you
when viewing from the rear of the TV) at the rear of the HDTV.
connectors associated with the Component output on your DVD player and connect the other
end to the audio connectors associated with the Component 1 input (green color area) at the
rear of the HDTV.
pressing the Component button on the Remote Control.
cable connections and follow the steps 1 through 7 to have the DVD player playing through
your TV.
Note: Refer to your DVD player user manual for more
information about the video output requirements of the product.
Version 2/27/2008 23
www.VIZIO.com
VIZIO VO42L FHDTV10A User Manual
2.5.3
2.5.3 Using S
2.5.32.5.3
Connecting
Connecting your DVD Player (Good):
ConnectingConnecting
1. Turn off the power to the HDTV and DVD player.
2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack in the AV1/S-
3. Connect an audio cable (white and red connectors) to the audio output connectors
4. Turn on the power to the HDTV and DVD player.
5. Select AV1 using the INPUT button on the remote or side of the HDTV, or directly by
Using S----Video (AV)
Using SUsing S
your DVD Player (Good):
your DVD Player (Good): your DVD Player (Good):
Video group on the side of the HDTV.
associated with the S-Video output on your DVD player and connect the other end to the
audio connectors associated with the AV1/S-Video input on the rear of the HDTV.
pressing the AV button on the Remote Control.
Video (AV)
Video (AV)Video (AV)
Version 2/27/2008 24
www.VIZIO.com
Loading...
