VIZIO L20 User Guide

Chapter 1 - Introduction

1.1 - Before Use

Congratulations on your VIZIO L20 20” LCD Television purchase. Thank you for your support of
V, Inc. and its LCD Television product line. The L20 is a precise electronic product and you
should read the following instructions carefully to maximize the performance of the product. It has
passed the Class-B EMC test and the UL and CSA safety certifications and you can be assured
of the highest quality display with the utmost reliability. After you have finished reading the
instructions, put them away in a safe place for future reference.

Note: In some countries or regions, the shape of the power plug and power outlet may
sometimes differ from that shown in the explanatory drawings. However the method of
connecting and operating the unit is the same.

1.2 - Specifications

Panel 20.1" Diagonal, TFT, Active Matrix VGA LCD, 4:3 Aspect Ratio

Resolution 640 x 480 pixels

Display Compatibility EDTV (480p) native

Signal Compatibility 480i, 480p, 720p, 1080i

Response Time 16 ms typical

Brightness 450 cd/m2

Contrast Ratio 500:1

Surface treatment Anti-reflective coating + Anti-glare coating

Viewing angles 160° (H) / 140° (V)

1 x RF (1 x F connector for internal NTSC tuner), 1 x Composite Video, 1 x S-

Inputs

Features

Speakers Built-in 2 x 5 W

Power

Voltage 100-240 VAC at 50/60 Hz (auto switch), 1.5A

Consumption On - <73 W (Green LED), Standby - <1W (LED off)

Operating conditions

Temperature 32° F to + 95° F (0° C to + 35° C)

Humidity 10% to 90% (no condensation)

Altitude To 2,000 Meter, 6,500 ft.

Storage conditions

Temperature -4° F to + 140° F (-20° C to + 60° C)

Humidity 10% to 90% (no condensation)

Altitude To 12,000 Meter, 39,000 ft.

Dimensions (w x h x d)

Net Weight 19.8lb (9.0 kg)

Regulations FCC-B, UL, c-UL,BSMI

Video, 1 x Component Video (YPbPr), 2 x Audio RCA (L/R) Stereo

PiP, POP, CC, V-Chip, Comb Filter, Scalar and De-interlacer, NTSC Video

decoding via RF (Antenna, cable or satellite [set top box may be required]) or

Video (CVBS, S-Video or Component YCbCr), Progressive Scan Video via

Component YPbPr, HDTV via Component YPbPr (set top box may be

required)

22.76" x 18.58” x 8.96” with stand (573 mm x 472 mm x 227.5mm with
stand)

*Products are subject to change without notice or obligation.

Version - 2/21/2005 2

www.vizioce.com

VIZIO L20 User Guide

1.3 - Opening the Package

• The VIZIO L20 is packaged in a carton together with other standard accessories. Any
optional accessories are packed separately in another carton.

• The protective glass and the glass substrate are installed on the front of the product. Since
both glasses can be easily scratched or broken, please handle the product gently. Never
place the unit on a surface with the glass facing downwards unless it is on protective
padding.

• When opening the carton, check that the product is in good condition and that all standard
accessories and items are included.

• Save the original box and all packing materials for future shipping needs.

1.4 - Installation

• Please read the user manual carefully before performing the installation.

• The power consumption of the display is approximately 75 Watts. Please use the power cord

designated for the product. When an extension cord is required, use one with the correct
power rating. The cord must be grounded and the grounding feature must not be defeated.

• The product should be installed on a flat surface to avoid tipping. Space should be
maintained between the back of the product and the wall for proper ventilation. See Section

3.2 - Installation of Wall Mount, p. 21, for additional information.

• Avoid installing the product in the kitchen, bathroom or other places with high humidity dust or
smoke, so as not to shorten the service life of the electronic components.

• Please ensure the product is installed with the screen in landscape orientation. Any 90°
clockwise or counterclockwise installation may induce poor ventilation and subsequent
component damage.

Version - 2/21/2005 3

www.vizioce.com

VIZIO L20 User Guide

1.5 - Important Safety Guidelines

This product is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire.
To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the
product. Read the following safety instructions before operating the display. Keep these instructions in a safe place for future
reference.

• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the L20
LCD TV.

• Unplug the power cord before cleaning the L20 LCD TV. A damp cloth is sufficient for cleaning the L20 LCD TV. Do not use a
liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.

• Always use the accessories recommended by the manufacturer to insure compatibility.

• When moving the L20 LCD TV from an area of low temperature to an area of high temperature, condensation may form on the

housing. Do not turn on the L20 LCD TV immediately after this to avoid causing fire, electric shock or component damage.

• Do not place the L20 LCD TV on an unstable cart, stand, or table. If the L20 LCD TV falls, it can injure a person and cause
serious damage to the appliance.

• A distance of at least 3 feet should be maintained between the L20 LCD and any heat source, i.e. radiator, heater, oven,
amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or
electric shock.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the L20
LCD TV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the L20 LCD TV
in a bookcase or cabinet unless proper ventilation is provided.

• Never push any object into the slot on the L20 LCD TV cabinet. Do not place any objects on the top of the product. It could
short circuit parts causing a fire or electric shock. Never spill liquids on the L20 LCD TV.

• The L20 LCD TV should be operated only from the type of power source indicated on the label. If you are not sure of the type
of power supplied to your home, consult your dealer or local power company.

• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information,
contact your dealer.

• The L20 LCD TV is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into
a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician
install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded
plug.

• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

• The wall socket shall be installed near the equipment and shall be easily accessible.

• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or

electric shock.

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the L20 LCD TV

from damage due to power surges.

• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high
voltages, the risk of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servic
qualified service personnel.

• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product,
unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact
your dealer immediately. Do not try to repair the product yourself.

• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components
may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the
product may cause fire or electric shock.

• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust
or high humidity may cause fire or electric shock.

• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before
moving the product.

• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the
cable and cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power
connector.

• To avoid risk of electric shock, do not touch the connector with wet hands.

• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator

injury and contamination the remote controller.

• If any of the following occurs please contact the dealer:

o The power connector fails or frays.
o Liquid sprays or any object drops into the L20 LCD TV.
o The Display is exposed to rain or other moisture.
o The Display is dropped or damaged in any way.
o The performance of the Display changes substantially.

• Operating environment: Temperature: -4°F~104°F (-20°C ~ 60°C), Humidity: 10% to 90% non-condensing

ing to

Version - 2/21/2005 4

www.vizioce.com

VIZIO L20 User Guide

1.6 - Television Antenna Connection Protection

External Television Antenna Grounding

If an outside antenna or cable system is to be connected to the LCD TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage
surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to
proper grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of the grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements of the grounding electrode.

Lightning Protection

For added protection of the LCD TV during a lightning storm or when it is left unattended or
unused for long periods of time, unplug the LCD TV from the wall outlet and disconnect the
antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such
power lines or circuits.

Version - 2/21/2005 5

www.vizioce.com

VIZIO L20 User Guide

1.7 - Package Contents

V, Inc. VIZIO L20 LCD TV

V, Inc. VIZIO Universal Remote Control

Power Cord

AV Cable

This User Guide

IMPORTANT: Save the original box and all the packing material for future shipping needs.

Note: Your product may also include various other accessories depending on region of
purchase.

Version - 2/21/2005 6

www.vizioce.com

VIZIO L20 User Guide

1.8 - Basic Controls

Use the buttons on the front panel control and top panel buttons to display and adjust the On
Screen Display (OSD).

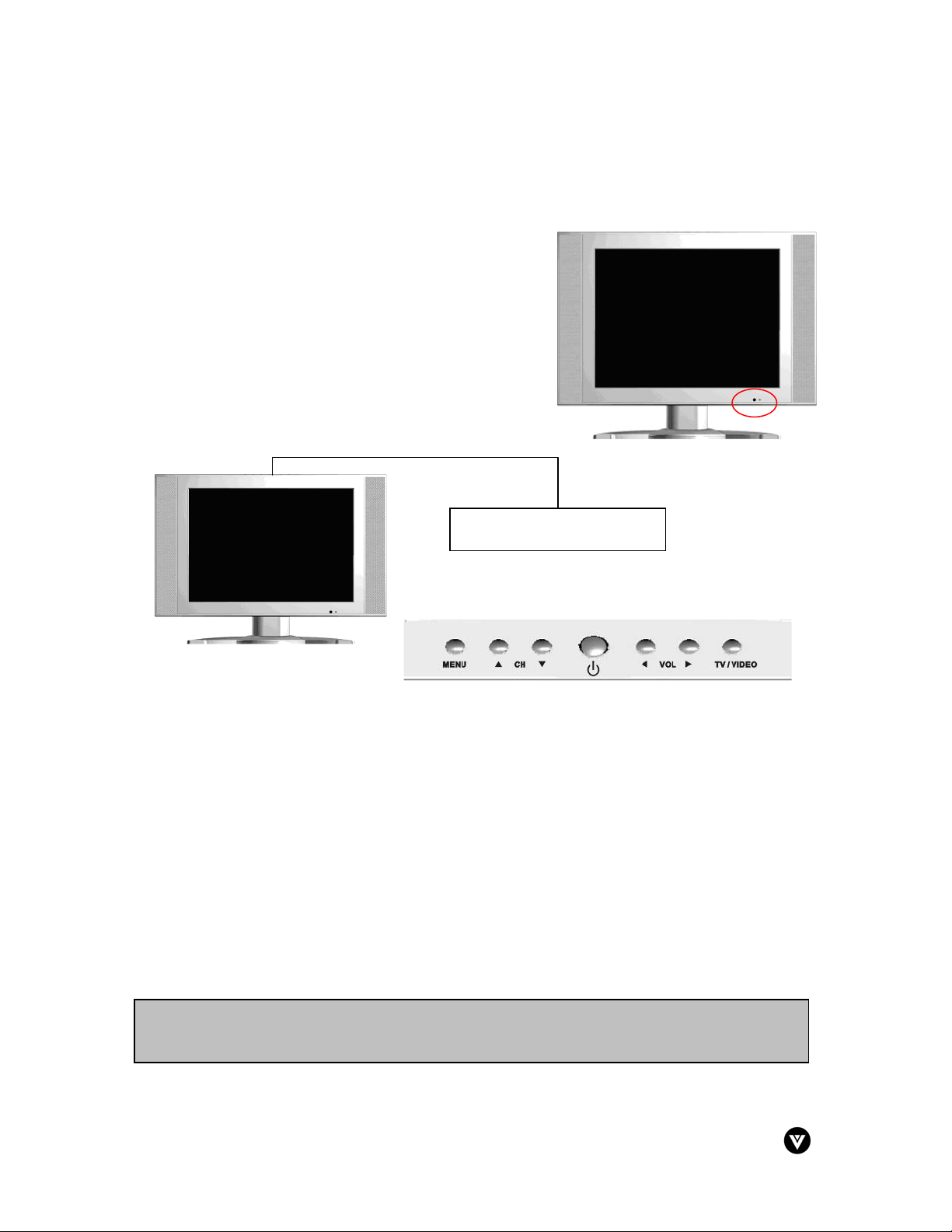

1.8.1 - Front Panel

Remote Control Sensor – This is the window that passes

all of the remote signals to the sensor. Point the remote
control directly at this window for the best response to the
remote signal.

Power LED - Lights green when powered on.

1.8.2 - Top Panel Controls

Top keypad controls are shown in

greater detail below.

Menu – When this button is pressed, the OSD main menu will appear on the screen. If it is
pressed while the main menu is displayed, the main menu will disappear. If pressed while an

OSD sub menu is displayed, it will exit the sub menu and go back to the last menu.

Channel d/c – These buttons are used to increase or decrease the selected channels. While
the OSD is active, these buttons function as select controls in the OSD menus.

Power - Switch the TV on by pressing the button once. Press the button again to turn the TV off.

Volume ◄/► - These buttons are used to increase or decrease the speaker volume. While the

OSD is active, these buttons function as adjustment controls in the OSD menus.

TV/VIDEO - Repeated pressing of this button steps through the input sources in the following
sequence: Component (YPbPr/YCbCr), AV (Composite video), S-Video and TV (tuner). Once you
have stepped through the entire sequence, you will return to the beginning.

Note: In all submenus, the cursor movement is circulatory. For example, if the d Ch button is
pressed when the cursor is on the last item in the submenu, the cursor will move to the main
icon.

Version - 2/21/2005 7

www.vizioce.com

VIZIO L20 User Guide

1.9 - Rear Panel Connections

To access the rear panel connections, first you will need to remove the back panel cover. Gently
push up on the bottom of the panel and lift off the cover.

1

2

3 4 5 6 7 8

1. Component (YPbPr) Input - Connect the external video devices with component output,
such as a DVD player or set-top box.

2. Service Port – To be used for factory service.

3. S-Video – Connect the S-Video to external video device such as VCR, DVD and video
games.

4. Audio In, Right and Left (R/L) – Connect the external audio from the S-Video or
composite video source such as a VCR or DVD player.

5. AV – Connect the composite video to external video device such as VCR, DVD and video
games.

6. Audio In, Right and Left (R/L) – Connect the external audio from the component video
source such as a DVD player or set-top box.

7. RF (TV Input) – Connect to the antenna, satellite or cable service.

8. AC In – Connect one end of the power cord here and connect the other end of the power
cord to a wall socket.

Version - 2/21/2005 8

www.vizioce.com

VIZIO L20 User Guide

8

9

9

0

6

528

3

3

35 36

5

6

3

30 33 3

1.10 - VIZIO Universal Remote Control

The VIZIO Universal Remote Control is a comprehensive remote that can be used to control up to
four different components. The remote control button functions are explained on the following
pages.

VIZIO Universal Remote Control Button Description

1

4

2

7

11

18

15

26

12

23

29

20

13

17

24

27

4

1

14

1

1

22

1

2

21

2

Version - 2/21/2005 9

www.vizioce.com

VIZIO L20 User Guide

1.10.1 - Key Remote Control Functions

1. SETUP - This button starts all programming sequences.

2. Remote LED – Blinks when the remote is being
programmed or is sending a signal to your LCD Display.

3. POWER - Press this key to turn the LCD Display On from
Standby mode. Press it again to return to the Standby
mode.

4. AUX – This button selects a programmed component.

5. CBL – This button selects a programmed cable TV set-top box or selects a programmed
satellite TV set-top box.

6. VCR – This button selects a programmed VCR.

7. TV – This button selects a programmed TV. Pre-programmed for the VIZIO L20 LCD TV.

8. Number Button Pad – These buttons select a channel or
password.

9. MUTE – This button turns the sound on and off.

10. 100/Enter – This button enters a channel number greater
than 100 in TV mode. Additionally, it works as an ENTER
button in other video modes.

11. VOL (+ or -) – These buttons turn volume up or down.

12. LAST – This button recalls the previously viewed channel.

13. INPUT – This button changes the input source in the
following sequence: Component, AV, S-Video and TV.

14. CH (+ or -) – These buttons change the channels up or
down.

15. WIDE/GUIDE – This button cycles through standard and
widescreen viewing modes or accesses programming
guides, such as the one that comes with a satellite dish.
GUIDE does not work in TV mode.

16. FAV/EXIT – This button exits the component, guide or OSD
menus. Additionally, it retrieves your favorite channels in
TV mode. Note: This button is not available on the L20.

17. SELECT – This button works to select your chosen options in on-screen display (OSD)

18. INFO – This button turns the image and system information display On or Off.

19. MENU – This button is used to select the OSD menu pages in the following sequence:

dcfe - These buttons navigate the on-screen display

(OSD) menus.

menus.

Main Picture D Multi ScreenD OSD D TVD Audio D Parental Control

Version - 2/21/2005 10

www.vizioce.com

VIZIO L20 User Guide

20. Reverse/AV1 – This button selects previous on the CD
and DVD or reverses the VCR when the component is
activated with the remote control. Additionally, this button
will select the AV1 component in TV mode.

21. Play/SVid1 – This button plays the CD, DVD or VCR
when the component is activated with the remote control.
Additionally, this button will select the SVid1 component
in TV mode.

22. Forward/YPbPr – This button forwards the CD, DVD or VCR when the component is
activated with the remote control. Additionally, this button will select the YPbPr
component in TV mode.

23. Record/AV2 – This button functions as a VCR Record when the component is activated
with the remote control. Additionally, this button will select the AV2 component in TV
mode. Note: This button is not available on the L20.

24. Stop/DVI – This button stops the CD, DVD or VCR when the component is activated with
the remote control. Additionally, this button will select the DVI component in TV mode.
Note: this button will only be applicable for TVs that are equipped with a DVI port. It is not
available on the L20.

25. Pause/YCbCr – This button pauses the CD, DVD or VCR when the component is
activated with the remote control. Additionally, this button will select the YCbCr
component in TV mode. Note: This button is not available on the L20.

26. ZOOM - Use this key to zoom the image in or out. Note:
This button is not available on the L20.

27. Swap – Used to swap the inputs from the main and PiP or
POP picture mode.

28. – SubCh + - These buttons are used to select the channels
within the PIP. Note: This button is not available on the L20.

29. PIP – Use this key to activate the picture-in-picture mode.

30. FREEZE – Press this key to "Freeze-Frame", the current
screen. You may press this key again to continue playing or play will resume
automatically after one minute.

31. POP – Use this key to activate the picture-on-picture mode.

32. MTS – Press this key to select Stereo, SAP (separate audio program) or Mono audio.
This function is available in the TV mode.

33. CC – Press this key to select closed caption options.

34. Sleep – Press this key to select the sleep options. User can adjust the sleep timer in 30
minutes increments.

35. VGA – This button selects a programmed VGA display. Note: This button is not available
on the L20.

36. TV - This button selects a programmed TV. Pre-programmed for the VIZIO L20 LCD TV.

Note: The remote control layout is for reference only.

Version - 2/21/2005 11

www.vizioce.com

VIZIO L20 User Guide

1.10.2 - Insertion of Batteries in the Remote Control

Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols
on the batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the
battery cover.

Precautionary Tips for Inserting the Batteries:

• Only use the specified AA batteries.

• Do not mix new and old batteries. This may result in cracking or leakage that may pose a

fire risk or lead to personal injury.

• Inserting the batteries incorrectly may result in cracking or leakage that may pose a fire
risk or lead to personal injury.

• Dispose of the batteries in accordance with local laws and regulations.

• Keep the batteries away from children and pets.

Version - 2/21/2005 12

www.vizioce.com

VIZIO L20 User Guide

1.10.3 - Remote Control Range

• Point the remote control at the remote control sensor to transmit the commands.

• Do not place any obstacles between the remote control and the receiver window.

• The effective range of the remote control is approximately 32 feet (10 meters) from the

front of the receiver window, 30º to the left and right, 20º up and down.

1.10.4 - Precautions for the VIZIO Universal Remote Control

• Remote control should be kept dry and away from heat sources. Avoid humidity.

• If the display responds erratically to the remote control or does not respond at all, check

the batteries. If the batteries are low or exhausted, replace them with fresh batteries.

• When not using the remote control for a long period of time, remove the batteries.

• Do not take apart the batteries, heat them, or throw them into a fire.

• Do not subject the remote control to undue physical stress, such as striking or dropping it.

• Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean,

damp cloth.

Version - 2/21/2005 13

www.vizioce.com

VIZIO L20 User Guide

Chapter 2 - Connecting Components

2.1 - Which Video Connection Should I Use?

The VIZIO L20 LCD TV has four different ways to connect your video equipment from a basic one
to the most advanced for digital displays.

Connection
Quality

Cable and Connector Description

OK

Basic

Good

Better

Coaxial RF. This is the only connection that has the audio
and the video in one cable. If you have an antenna or
cable, this is the only way you can connect it to the LCD
TV. If you have a VCR, you can connect your
antenna/cable to the VCR RF Input and connect the VCR
RF Output to this connector.

Composite. The complete video signal is carried through
this single pin connector. This is the most commonly used
video connection.

S-Video. The video signal is separated into two signals,
one containing the black-and-white information and the
other containing the color information. Separating the
color in this way avoids ‘cross color’ effects where closely
spaced black and white lines are erroneously displayed in
color. It also enables text to be displayed more sharply.

Component. The video signal is separated into three
signals, one containing the black-and-white information
and the other two containing the color information. This
enhancement over S-Video takes advantage of the
superior picture provided by progressive scan DVD
players and HDTV formats.

Version - 2/21/2005 14

www.vizioce.com

VIZIO L20 User Guide

2.2 - Connecting Your DVD Player

You have several options for connecting your DVD player to your new L20 LCD TV - Component,
S-Video and Composite inputs. Based on your home theater configuration, you can decide which
option is the right one for you.

2.2.1 - Using Component Video

Installation:

1. Turn off the power to the LCD TV and DVD player.

2. Connect the Y (green color) connector on the rear of your DVD player to the
corresponding Y (green color) connector in the AV2 connections in the rear of your LCD
TV.

3. Connect the Pb (blue color) connector on the rear of your DVD player to the
corresponding Pb (blue color) connector in the AV2 connections in the rear of your LCD
TV.

4. Connect the Pr (red color) connector on the rear of your DVD player to the corresponding
Pr (red color) connector in the AV2 connections in the rear of your LCD TV.

5. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R (red color) and L (white color) audio input connectors in the AV2
connections on the rear of your LCD TV.

6. Turn on the power to the LCD TV and DVD player.

7. Select Component using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.

Version - 2/21/2005 15

www.vizioce.com

VIZIO L20 User Guide

2.2.2 - Using S-Video

Installation:

1. Turn off the power to the LCD TV and DVD player.

2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack in the AV1
connections in the rear of your LCD TV.

3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R (red color) and L (white color) audio input connectors in the AV1
connections in the rear of your LCD TV.

4. Turn on the power to the LCD TV and DVD player.

5. Select S-Video using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.

Version - 2/21/2005 16

www.vizioce.com

VIZIO L20 User Guide

2.2.3 - Using Composite Video

Installation:

1. Turn off the power to the LCD TV and DVD player.

2. Connect the Video/Composite
the AV connector in the AV1 connections in the rear of your LCD TV.

3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R (red color) and L (white color) audio input connectors in the AV1
connections in the rear of your LCD TV.

4. Turn on the power to the LCD TV and DVD player.

5. Select AV using the TV/VIDEO button on the top of the LCD TV.

(yellow color) connector on the rear of your DVD player to

Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.

Version - 2/21/2005 17

www.vizioce.com

VIZIO L20 User Guide

2.3 - Connecting Your HDTV Set-Top Box

You have the option for connecting your HDTV Set-Top Box to your new L20 LCD TV through the
Component connection.

Installation:

1. Connect the Y (green color) connector on the rear of your HDTV Set-Top Box to the
corresponding Y (green color) connector in the AV2 connections in the rear of your LCD
TV.

2. Connect the Pb (blue color) connector on the rear of your HDTV Set-Top Box to the
corresponding Pb (blue color) connector in the AV2 connections in the rear of your LCD
TV.

3. Connect the Pr (red color) connector on the rear of your HDTV Set-Top Box to the
corresponding Pr (red color) connector in the AV2 connections in the rear of your LCD
TV.

4. Connect the R (red color) and L (white color) audio connectors on the rear of your HDTV
Set-Top Box to the R (red color) and L (white color) audio input connectors in the AV2
connections on the rear of your LCD TV.

5. Turn on the power to the LCD TV and HDTV Set-Top Box.

6. Select Component using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your HDTV Set-Top Box user manual for more information about the video
output requirements of the product.

Version - 2/21/2005 18

www.vizioce.com

VIZIO L20 User Guide

2.4 - Connecting Your VCR or Video Camera

Installation:

1. Turn off the power to the LCD TV and VCR or video camera.

2. Connect the S-Video jack on your VCR or video camera to the S-Video jack in the AV1
connections in the rear of your LCD TV.

3. Connect the R (red color) and L (white color) audio connectors on your VCR or video
camera to the R (red color) and L (white color) audio input connectors in the AV1
connections in the rear of your LCD TV.

4. Turn on the power to the LCD TV and VCR or video camera.

5. Select S-Video using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your VCR or video camera user manual for more information about the video
output requirements of the product.

2.5 - Connecting Coaxial (RF)

There are several options for connecting your antenna or cable to your new L20 LCD TV - directly
to the TV or through your VCR. Based on your home theater configuration, you can decide which
option is the right one for you.

2.5.1 - Using Your Antenna or Cable TV

Installation:

1. Turn off the power to the LCD TV.

2. Connect the coaxial (RF) connector from your antenna or cable box to the TV connector
on the rear of your LCD TV.

3. Turn on the power to the LCD TV

4. Select TV using the TV/VIDEO button on the top of the LCD TV.

Note:

a) Make sure the antenna or cable TV is correctly grounded.
b) See page 25 for selecting the TV source within the OSD menus (standard cable,

HRC cable, IRC cable, air (antenna)).

Version - 2/21/2005 19

www.vizioce.com

VIZIO L20 User Guide

2.5.2 - Using the Antenna through Your VCR

Installation:

1. Turn off the power to the LCD TV and VCR.

2. Connect the “Output to TV” (RF Out or Antenna Out) connector on the rear of your VCR
to the TV connector on the rear of your LCD TV.

3. Turn on the power to the LCD TV and VCR.

4. Select TV using the TV/VIDEO button on the top of the LCD TV.

5. Select Channel 3 or 4 to match the channel selected on the rear of your VCR.

Note:

a) If you have an off-air antenna or cable TV, connect the off-air antenna or TV cable to

the RF connector on the rear of your VCR.

b) Make sure the antenna or cable TV is correctly grounded.

Version - 2/21/2005 20

www.vizioce.com

Chapter 3 - Getting Started

3.1 - Turning your LCD TV On and Off

1. Plug the power cord into an AC wall socket.

2. Press the POWER button on the front
panel or the POWER button on the
remote control to power on the LCD TV.
The POWER indicator on the front
panel will light green.

3. Select input source for the LCD TV, via
either OSD menu or remote control.

4. If connecting to antenna, cable or other
RF source on TV inputs, see page 25 to
configure the product to receive all
available channels.

VIZIO L20 User Guide

3.2 - Installation of Wall Mount (Optional)

If you would like to mount your L20 LCD TV to the wall, you can contact V, Inc. directly or your
local dealer to obtain the appropriate wall mounting kit. To convert your LCD TV from a desk­mounted to a wall-mounted display, follow the instructions below:

1. Disconnect Power.

2. Lay the LCD TV face down on a towel or blanket to protect the screen from damage.

3. Remove the 6 screws from the hinge of stand and remove the stand.

Four screws for the wall mount

4. Attach the mounting bracket from the VESA
compatible wall mounting kit (100 mm x 100 mm
size) through the 4 holes in the center of the back
panel.

5. Attach the LCD TV to the wall, following the
instructions with the wall-mounting kit.

Version - 2/21/2005 21

www.vizioce.com

3.3 - Adjusting Basic LCD TV Settings

Volume

To increase the volume, press and hold the VOL + button on the front panel or remote
control until the desired level is reached.

To decrease the volume, press and hold the - VOL button on the front panel or remote
control until the desired level is reached.

TV Channels

To step up through the available TV channels, press the CH + button on the front panel
or remote control once for the next channel or hold it depressed until the desired channel
is reached.

To step down through the available TV channels, press the - CH button on the front panel
or remote control once for the previous channel or hold it depressed until the desired
channel is reached.

Mute

Press the MUTE button on the remote control to turn off the sound; press the button
again to cancel the MUTE feature and turn the sound on.

VIZIO L20 User Guide

Version - 2/21/2005 22

www.vizioce.com

VIZIO L20 User Guide

3.4 - Using the On-Screen Display (OSD)

The remote control or the control keys on the top panel of the LCD TV can control all the function
settings. The on-screen display (OSD) allows you to adjust and save contrast, brightness and
other settings. The LCD TV will save changes made to the settings even if the LCD TV is turned
off.

3.4.1 - Menu Operations

The OSD consists of a Main Menu of items and each of these items has a Sub Menu associated
with it that the OSD will switch to when the item is selected.

1. Press the MENU button on the remote control and the Main Menu will be displayed on
the screen, as shown opposite.

2. Use the e/f buttons on the remote control to highlight the feature you wish to select
within the OSD menu (Main Picture D Multi Screen D OSD D TV D Audio DParental
Controls).

Note: The TV and Parental Controls menus will not be available when Component is
selected as the input source.

3. Press the SELECT button on the remote
control to select the feature. The Main Menu
will now change to the Sub Menu of the
feature selected, as shown opposite.

4. Use the c /d buttons on the remote control
to highlight the option you wish to adjust.

5. Adjust the level or change the setting of the
selected option by pressing e/f buttons on the remote control.

6. Press the SELECT button to confirm the desired selection.

7. Repeat steps 4 and 5 to adjust additional options.

8. Once the adjustment is completed, press the Menu button on the remote control
repeatedly to return to the Main Menu or to exit the OSD.

NOTE: The OSD menu display will disappear automatically after 30 seconds if no action is taken.

Version - 2/21/2005 23

www.vizioce.com

VIZIO L20 User Guide

3.4.2 - OSD Menus and Options

The OSD Menu includes six sub menus: Main Picture, Multi Screen, OSD, TV, Audio and
Parental Controls. With each input source, there will be a corresponding change in the OSD
menu.

3.4.2.1 - Source Input OSD Options with TV, AV and S-Video

(see section 3.4.2.2 for OSD options with Component as the source input)

3.4.2.1.1 – Main Picture Menu

Brightness – Adjusts the black levels of the picture.

Users may need to readjust the brightness

after the LCD TV warms up.
Contrast – Adjusts the white levels of the picture.
Sharpness – Adjust the amount of detail

enhancement.
HUE – Adjusts the color of flesh tones.
Saturation – Adjusts the color saturation making

colors more intense.
Aspect Ratio – Selects the TV display for 4:3 or 16:9.
Close Caption – Turns the closed caption either on or of. Options include OFF, CC1, CC2, CC3,

CC4, TT1, TT2, TT3 or TT4. Note: this option will not be available if Component is selected

as the input source.

3.4.2.1.2 – Multi Screen Menu

When PiP and POP functions are disabled, the menu will appear with only the Sub Screen and
Mode options available.

Sub Screen – Choose the sub screen source.

If main screen (input) is shown with TV, AV or S-

Video, then the sub screen can show the input as

Component.

If main screen (input) is shown with Component,

then sub screen can show the input selection as

TV or AV or S-Video.
Mode – Selects multi-screen to be OFF, PIP or POP.

When PIP function is enabled, the following options will

be available: Sub Screen, Mode, Audio, Swap, PIP

Size, PIP H-Pos and PIP V-Pos.

Audio - Selects audio output source (Main or Sub)
Swap – Swaps the input of the main screen and sub

screen.
PiP Size – Adjusts PIP sub screen size.
PiP H-Pos – Adjusts PIP sub screen horizontal position.
PiP V-Pos – Adjusts PIP sub screen vertical position.

When the POP function is enabled, only the following

options will appear: Sub Screen, Mode, Audio and

Swap. Please see above for a description of each

option.

Version - 2/21/2005 24

www.vizioce.com

VIZIO L20 User Guide

3.4.2.1.3 - OSD Menu

H – Position - Adjusts OSD on horizontal position.
V – Position - Adjusts OSD on vertical position.
Transparency - Adjusts OSD on transparency level.
Language - Choose from the following languages:

English, Spanish, French or Chinese.
Default - Recalls factory default setting.

When this function is executed, the screen will show the

message “DEFAULT”.

3.4.2.1.4 - TV Menu

MTS – Select from one of the following: Stereo, Sap,

Mono or Dual.
Input Signal – Selects the TV input signal from one of

the following: STD (standard cable), HRC (HRC

cable), IRC (IRC cable) or Air (Antenna).
Auto Scan – Scans the channels automatically (press

the right arrow key to execute).
Set Channel – Channel selection to be added or

deleted.
Channel – Adds or deletes the selected channel.
Sleep Time (mins) - Sets the sleep timer on TV from 00, 30, 60, 90, 120 minutes.

Note: The TV menu is not an option when the following inputs are selected: Component, AV or S­Video.

3.4.2.1.5 - AUDIO

Volume – Adjusts the volume level.
Bass – Adjusts the bass level.
Treble – Adjust the treble level.
Balance – Adjusts the left and right speaker balance.

Version - 2/21/2005 25

www.vizioce.com

3.4.2.1.6 – PARENTAL CONTROL

TV Rating – Options include the following:

• TV-Y (all children)

• TV-Y7 (older children)

• TV-G (general audience)

• TV-PG (guidance suggested)

• TV-14 (strongly cautioned)

• TV-MA (mature audience)

You can also customize the TV PG, PG-14 and

MA by using the following:

• D (sexual dialog)

• L (adult language)

• S (sexual situations)

• V (violence)

For additional information, see “Using the Parental Controls”, page 27.

Movie Rating - Options include the following:

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Recommended for children 13 years

of age and older)

• R (mature audience)

• NC-17 (no one under 17 years of age)

• X (Adult audience only)

For additional information, see “Using the Parental Controls”, page 27.

3.4.2.2 - Source Input OSD Options with Component

3.4.2.2.1 – Main Picture

Brightness – Adjusts the brightness of the picture.

Users may need to readjust the brightness after

the LCD TV warms up.
Contrast – Adjusts the contrast of the picture.
Sharpness – Adjust the amount of detail

enhancement.
HUE – Adjusts the color of flesh tones.
Saturation – Adjusts the color saturation making

colors more intense.
Aspect Ratio – Selects the TV display for 4:3 or

16:9.

VIZIO L20 User Guide

Note:

a) Please refer back to pages 24-26 for a description of the Multi Screen, OSD, Audio

and Parental Controls menus.

b) The Component input video settings can be adjusted and saved separately from TV,

Video and S-Video inputs.

Version - 2/21/2005 26

www.vizioce.com

VIZIO L20 User Guide

3.4.3 - Using the Parental Controls

The Parental Controls feature prevents viewers from watching programs that are not age­appropriate, such as programs containing violence or adult language.

1. Press the TV component button on the remote control or

select TV by using the TV/Video button on the top of the

TV.

2. Press the MENU button on the remote control and the

Main Menu will be displayed on the screen.

3. Press f on the remote control until the Parental Controls

menu is highlighted. Then press SELECT.

4. To access the Parental Control Menu, you must first enter

in the default password.

a) Press “0 0 0 0” on the remote control as the default

password.

b) Then press SELECT to confirm the selection.

If the wrong password is entered, you will see the following warning.

For more information about setting a password, see “Setting a

Password”, page 28.

5. Press d button on the remote control until TV Rating is highlighted.

6. Press the SELECT button to open the TV RATINGS menu.

7. Press the ▲ and ▼ buttons on the remote control to navigate through each area. Press the

◄ and ► buttons on the remote control to select which rating you want to block (filled circle)

or unblock (empty circle). You can select from the following ratings:

• TV-Y (all children)

• TV-Y7 (older children)

• TV-G (general audience)

• TV-PG (guidance suggested)

• TV-14 (strongly cautioned)

• TV-MA (mature audience)

You can also customize these ratings for:

• V (violence)

• L (adult language)

• S (sexual situations)

• D (sexual dialog)

8. Press the MENU button again to back out of the menu.

9. Press d button on the remote control once again to highlight the Movie Rating menu.

10. Press the SELECT button to open the Movie Rating menu.

11. Press the ▲ and ▼ buttons on the remote control to navigate through each area. Press the

◄ and ► buttons on the remote control to select which rating

you want to block (filled circle) or unblock (empty circle). You

can select from the following ratings:

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Recommended for children 13 years of age and

older)

• R (mature audience)

• NC-17 (no one under 17 years of age)

• X (no one under 17 years of age)

12. Press the Menu button repeatedly to exit the OSD.

Version - 2/21/2005 27

www.vizioce.com

VIZIO L20 User Guide

p

3.4.4 - Setting a Password

You control access to the Parental Control features with a password. The default password is “0 0
0 0”. You can change the password to any four-digit number.

To change the password:

1. Press the TV component button on the remote control

or select TV by using the TV/Video button on the top

of the TV.

2. Press the MENU button on the remote control and the

Main Menu will be displayed on the screen, as shown

opposite.

3. Press f button on the remote control until the

Parental Control menu is highlighted. Then press

SELECT.

4. Press “0 0 0 0” on the remote control as the default

password.

5. Then press SELECT to confirm the selection.

6. Press the f button on the remote control to open the

PASSWORD sub menu.

7. Enter your old password. Then press SELECT.

8. Enter your new password. Then press SELECT.

9. Enter the new password again in the Confirm area.

10. Press the MENU button repeatedly to exit the OSD.

Note: Please make sure to write down and store the new password in a secured place. The
default option in the OSD menu (see section 3.4.2.1.3 - OSD Menu, p. 25) does not reset the

assword.

Version - 2/21/2005 28

www.vizioce.com

VIZIO L20 User Guide

3.5 - Remote Control Operation

3.5.1 - Programming the VIZIO Universal Remote Control

You can program the remote control to work with up to four different components. Listed below
are the steps for programming your TV, VCR, Cable Box and DVD Player.

3.5.1.1 - Programming for TV

For your convenience, the TV button on the remote has already been preprogrammed for the
L20. If you would like to program a second TV as the primary TV, please follow the instructions
below.

1. Manually turn on the TV.

2. Press the TV button on the remote control.

3. Press and hold the SETUP button until the LED LIGHT flashes twice.

4. Find the programming code for your TV in the code list in the back of this book and enter it

using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit

is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the

component and manufacturer.

5. Point the remote control at the TV and press the POWER button. The TV will turn off.

Note:

a) If your TV does not respond, try all the codes for your brand. If the codes do not work,

or your brand is not listed, see “Searching for Component Codes” , page 36.

b) Sometimes a code listed will only include limited functions. Try other codes that may

include more functionality.

3.5.1.2 - Programming for VCR

1. Manually turn on the VCR.

2. Press the VCR button on the remote control.

3. Press and hold the SETUP button until the LED LIGHT flashes twice.

4. Find the programming code for your VCR in the code list in the back of this book and enter it

using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit

is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the

component and manufacturer.

5. Point the remote control at the VCR and press the POWER button. The VCR will turn off.

Note:

a) If your VCR does not respond, try all the codes for your brand. If the codes do not

work, or your brand is not listed, see “Searching for Component Codes”, page 36.

b) Sometimes a code listed will only include limited functions. Try other codes that may

include more functionality.

Version - 2/21/2005 29

www.vizioce.com

VIZIO L20 User Guide

3.5.1.3 - Programming for Cable Box

1. Manually turn on the Cable Box.

2. Press the CBL button on the remote control.

3. Press and hold the SETUP button until the LED LIGHT flashes twice.

4. Find the programming code for your Cable Box in the code list in the back of this book and

enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the

last digit is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the

component and manufacturer.

5. Point the remote control at the Cable Box and press the POWER button. The Cable Box will

turn off.

Note:

a) If your Cable Box does not respond, try all the codes for your brand. If the codes do

not work, or your brand is not listed, see “Searching for Component Codes”, page 36.

b) Sometimes a code listed will only include limited functions. Try other codes that may

include more functionality.

3.5.1.4 - Programming for AUX (DVD Player)

1. Manually turn on the DVD Player.

2. Press the AUX button on the remote control.

3. Press and hold the SETUP button until the LED LIGHT flashes twice.

4. Find the programming code for your DVD player in the code list in the back of this book and
enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the
last digit is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the
component and manufacturer.

5. Point the remote control at the DVD Player and press the POWER button. The DVD Player
will turn off.

Note:

a) If your DVD Player does not respond, try all the codes for your brand. If the codes do

not work, or your brand is not listed, see “Searching for Component Codes”, page 36.

b) Sometimes a code listed will only include limited functions. Try other codes that may

include more functionality.

Version - 2/21/2005 30

www.vizioce.com

VIZIO L20 User Guide

3.5.2 - Searching for Component Codes

If the user cannot find the manufacturer in the component list or the program code does not work,
the user can use the remote control to search for the correct component code.

To search for a component code:

1. Turn on the component.

2. Press the matching component button on the remote control.

3. Press and hold the SETUP button until the LED flashes twice.

4. Press 9 9 1. The LED flashes twice.

5. Point the remote control at the component and then alternate between pressing the POWER
button and the component button on the remote control until the component turns off.

If the component still does not respond, clear the component button, then repeat the search
procedure.

To clear the component button:

1. Make sure that the component is turned on.

2. Press and hold the SETUP button on the remote control until the LED flashes twice.

3. Press 9 9 2, then press the component button on the remote control twice.

3.5.3 - Reassigning Component Buttons

You can reassign the component buttons on the remote control if you have more than one of the
same types of component. For example, if you are using the remote to control the cable (CBL),
CD, DVD, TV and two VCRs, you can reassign the AV2 button as a second VCR button.

To reassign component buttons:

1. Press and hold the SETUP button until the LED flashes twice.

2. Press 9 9 2. The LED flashes twice.

3. Press the component button that you want (VCR) once, and then press the component button
that you are reassigning (AV2) once. The AV2 button is now reassigned and can be
programmed as a VCR component button. See “Programming the VIZIO Universal Remote
Control”, page 34.

3.5.4 - Changing Volume Lock

The remote control is set to control volume through your TV while in cable (CBL), DVD, satellite
(SAT) and VCR component modes. Use the volume lock if you want to control the volume for all
components through a specific component. For example, you want to control volume for all
components through the tuner (TNR).

To change the volume lock:

1. Press and hold the SETUP button until the LED flashes twice.

2. Press 9 9 3. The LED flashes twice.

3. Press the component button that you want (TNR) once. The LED flashes twice. Volume will
now be controlled through the tuner for all components.

Version - 2/21/2005 31

www.vizioce.com

Chapter 4 - Maintenance and Troubleshooting

4.1 - Maintenance

Important

1. Make sure that the power cable is removed from the socket before cleaning the
display.

2. Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the display.
Such chemicals may damage the housing, screen glass and remote control, and
cause the paint to peel.

Cleaning the Housing and the Remote Control

1. Use a soft cotton cloth for cleaning.

2. If the housing or remote control is seriously contaminated, use a soft cloth moistened
with diluted neutral cleaner to clean the display. Wring water out of the cloth before
cleaning to prevent water from penetrating into the housing. Wipe the display with a
dry cloth after cleaning.

Cleaning the Screen

1. Use a soft cotton cloth to gently clean the screen.

2. The screen glass is very fragile. Do not scrape it with any sharp object. Do not press
or tap the screen to avoid cracking. When the screen is seriously contaminated, use
a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water
out of the cloth before cleaning to prevent water from penetrating into the housing.
Wipe the display with a dry cloth after cleaning.

VIZIO L20 User Guide

4.2 - Troubleshooting Guide

If the display fails or the performance changes dramatically, check the display in accordance with
the following instructions. Remember to check the peripherals to pinpoint the source of the
failure. If the display still fails to perform as expected, contact the dealer for assistance.

Problem Solution

There is not any power. Make sure the DC power button is ON (green LED).

Make sure the AC power cord is securely connected to the
AC socket.
Plug another electrical device to the power outlet to verify that

the outlet is working properly.
Power is ON, but there is not
any screen image.

Make sure the video cable supplied with the LCD display is

tightly secured to the video output port on the back of the

DVD player or VCR. If the other end of the video cable is not

attached permanently to the LCD display, tightly secure it to

the LCD display.

Adjust brightness and contrast.

Check Source settings.
The image on the screen has
incorrect or abnormal colors.

If any colors (red, green, or blue) are missing, check the

video cable (YPbPr) to make sure it is securely connected.

Loose or broken pins in the cable connector could cause an

improper connection.

Connect the LCD display to another DVD Player or VCR.

Version - 2/21/2005 32

www.vizioce.com

VIZIO L20 User Guide

Control buttons do not work Press only one button at one time.
Snow appears on screen

There is not any sound, Check your audio connection.

Remote control does not work.

4.3 - Telephone & Technical Support

Products are often returned due to a technical problem rather than a defective product that may
result in unnecessary shipping charges billed to you. Our trained support personnel can often
resolve the problem over the phone. For more information on warranty service or repair, after the
warranty period, please contact our Support Department at the number below.

Quality service and consistent technical support are integral parts of V's commitment to service
excellence. V's service representatives are dedicated to assist you with the utmost in customer
satisfaction. To better assist you, please call toll free or contact us via email.

Tel: [phone], 7am-4pm PST Mon - Fri

Tel: [phone] Fax: [phone]

Check your antenna connection.

Check TV / CATV selection.

Press MUTE on the remote control again, so that MUTE

disappeared from the screen.

Check your audio settings, your TV audio may be set to SAP

or minimum.

Press the Volume + (Up) key on your remote control.

Make sure that headphones are not connected.

Make sure batteries are inserted correctly.

Batteries could be weak.

Or E-mail: [e-mail]

Corporate Contact Information

V, Inc.

320A Kalmus Drive

Costa Mesa, CA 92626

Web: www.VINC.com

Version - 2/21/2005 33

www.vizioce.com

VIZIO L20 User Guide

4.4 - Compliance

Caution: Always use a power cable that is properly grounded. Please use the AC cords listed
below for each area.

USA UL
Canada CSA
Germany VDE
Britain BASE/BS
Japan Electric Appliance Control Act

4.5 - FCC Class B Radio Frequency Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. It is the responsibilities of the user to
correct such interference.

Version - 2/21/2005 34

www.vizioce.com

VIZIO L20 User Guide

Appendix A: Limited Product Warranty

Please read this warranty information carefully, it is a "ONE-YEAR LIMITED WARRANTY" on parts and labor.

VIZIO’s Responsibility

VIZIO Displays purchased in the United States are warranted to be free from defects in materials or workmanship for a
period of one (1) year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will
service the monitor using new or refurbished parts.

Service Labor

During a period of one (1) year from the effective warranty date, VIZIO will provide, when needed, service labor to repair a
manufacturing defect at its designated Service Center. To obtain warranty service in the Untied States, you must first call
our Customer Support at [phone], 7:30 am – 5:30 pm PST. The determination of service will be made by VIZIO
Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO VIZIO WITHOUT PRIOR AUTHORIZATION.

Parts

New or remanufactured replacements for defective parts will be used for repairs by VIZIO at its designated Service Center
for one (1) year from the effective warranty date. Such replacement parts are warranted for the remaining portion of the
original warranty period.

Service

During the one (1) year warranty period, VIZIO will, at its option and sole discretion, repair or replace defective parts,
including replacement of the entire Panel. The Customer will be required to ship the unit to the Service Center indicated
at the time Customer Support is contacted to make the necessary repairs, you are responsible for all transportation
charges to and from the service facility. VIZIO is not responsible for the de-installation or re-installation of the unit.

Packaging and Shipping Instruction

When you send the product to an authorized VIZIO service facility you must use the original carton box and packing
material or an equivalent as designated by VIZIO

Not Covered

This warranty does not cover defects, malfunctions or failures resulting from shipping or transit accidents, abuse, misuse,
operation contrary to furnished instructions, operation on incorrect power supplies, operation with faulty associated
equipment, modification, alteration, improper servicing, tampering or normal wear and tear or TVs on which the serial
number has been removed or defaced. Image Sticking caused by operating at excessive brightness levels for extended
periods or mishandling are not covered by this warranty.

ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. OUR
LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER,
INCLUDING OUR NEGLIGENCE, ALLEGED DAMAGE OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE
DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE DISPLAY. WE SHALL
NOT BE RESPONSIBLE FOR LOSS OF USE, COMMERCIAL LOSS OR OTHER INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state. This is the only warranty applicable; no one is authorized to extend
or modify it or to grant any other warranty.

VIZIO retains the right to assess all warranty claims and to determine if damages are covered by the warranty. In case of
a claim that is not covered by the warranty, you will be contacted to determine whether VIZIO should repair the damage
for a fee or whether the product should be returned to you as received by the repair center.

Owner’s Responsibility

Effective Warranty Date
Warranty begins on the date of sale to the end user. To ensure warranty service, keep the dated bill or sale receipt as
evidence of the purchase date.

Warranty Service

For warranty service information, contact VIZIO Customer Support at [phone], 7:30 am to 5:30 pm PST or visit
www.vizioce.com. Parts and service labor that are VIZIO’s responsibility (see above) will be provided without charge.
Other service is at the owner’s expense. You must provide the model, serial number and date of purchase. Before you
ask for warranty service, read your User Manual. You might avoid a service call.

Version - 2/21/2005 35

For additional information regarding your warranty, please contact us via phone, e-mail or online.

Tel: [phone], 7:30 am- 5:30 pm PST Mon - Fri

E-mail: [e-mail]

www.vizioce.com

www.vizioce.com

VIZIO L20 User Guide

Appendix B: Component Program Codes

SETUP CODES FOR CURRENT VIZIO PRODUCTS

*Note: Please use these codes to program the VIZIO products to existing Universal remote controls for products such as cable and satellite boxes.

VIZIO L13 0864
VIZIO L6 0885
VIZIO L20 1756
VIZIO L30 1756
VIZIO L30WGU 1756
VIZIO P42 1756
VIZIO P42HD 1756

SETUP CODES FOR AMPLIFIERS

Aiwa 0406
Carver 0269
CurtisMathes 0300
Denon 0160
Harman/Kardon 0892
JVC 0331
Linn 0269
Magnavox 0269
Marantz 0269

SETUP CODES FOR CABLE
ABC 0003, 0008, 0014, 0017,

Allegro 0153, 0315
Archer 0153, 0797
Bell&Howell 0014
Century 0153
Citizen 0153, 0315
Comtronics 0040
Contec 0019
Eastern 0002
Emerson 0797
Everquest 0015, 0040
Focus 0400
Garrard 0153
Gemini 0015, 0797
General Instrument 0476, 0276, 0011, 0810
GoldStar 0144, 0040
Goodmind 0797
Hamlin 0020, 0259, 0009, 0034
Hitachi 0011
Hytex 0007
Jasco 0015, 0153, 0315
Jerrold 0003,0012,0476,0276,

Memorex 0000
MovieTime 0063
NSC 0063
Oak 0019, 0007
Optimus 0021
Panasonic 0000, 0107, 0021
Paragon 0000
Philips 0153

SETUP CODES FOR CD PLAYERS
Aiwa 0157,0124
Burmester 0420
California Audio Labs 0029, 0303
Carver 0157, 0179, 0437
DKK 0000
Denon 0003, 0873
Emerson 0305
Fisher 0179, 0174
Garrard 0420, 0393
Genexxa 0032, 0305
Harman/Kardon 0157, 0173
Hitachi 0032
JVC 0072
Kenwood 0028, 0037, 0190, 0626,

Krell 0157
LXI 0305
Linn 0157
MCS 0029
MTC 0420
Magnavox 0157, 0305
Marantz 0029, 0157, 0180
Mission 0157
NSM 0157
Nikko 0174
Onkyo 0101, 0868
Optimus 0000, 0032, 0179, 0305,

Panasonic 0029, 0303
Parasound 0420
Philips 0157, 0626
Pioneer 0032,0305, 0468, 0244

0007, 0011, 0013

0014, 0015, 0011, 0810

0826, 0681

0037, 0420, 0145, 0468,
0437

Version - 2/21/2005 36

www.vizioce.com

VIZIO P46 1756
VIZIO RP56 1756
VIZIO HDX 20L 1756
VIZIO HDX 42P 1756
Bravo D1 1064
Bravo D2 0123
Bravo HD1 0122

Optimus 0300
Panasonic 0308
Philips 0269, 0892
Pioneer 0013, 0300
Sony 0220, 0689
Technics 0308
Victor 0331
Wards 0013
Yamaha 0354

Pioneer 0144, 0533, 0877
Popular Mechanics 0400
Pulsar 0000
Quasar 0000
RCA 0021
RadioShack 0015, 0315, 0797, 0883
Recoton 0400
Regal 0020, 0259
Regency 0002
Rembrandt 0011
Runco 0000
SLMarx 0040
Samsung 0144, 0040
Scientific Atlanta 0008, 0477, 0017, 0877
Signal 0015, 0040
Signature 0011
Sprucer 0021
Starcom 0003, 0015
Stargate 0015, 0040, 0797
Starquest 0015
TV86 0063
Teleview 0040
Tocom 0012, 0013
Toshiba 0000
Tusa 0015
Unika 0153
UnitedArtists 0007
Universal 0153, 0191
Viewstar 0063
Zenith 0000, 0525
Zentek 0400

Proton 0157
QED 0157
Quasar 0029
RCA 0179,0305, 0053,0764
Realistic 0179,0420, 0180
Rotel 0157, 0420
SAE 0157
Sansui 0157, 0305
Sanyo 0179
Scott 0305
Sears 0305
Sharp 0037, 0180, 0861
Sherwood 0180
Sony 0000, 0185, 0490
Soundesign 0145
Tascam 0420
Teac 0420, 0393, 0174, 0180
Technics 0029, 0303
Victor 0072
Wards 0157, 0053
Yamaha 0036, 0187
Yorx 0461

SETUP CODES FOR LASER DISK

Denon 0059
Mitsubishi 0059
NAD 0059
Optimus 0059
Pioneer 0059
Sony 0193, 0201

SETUP CODES FOR MISC. AUDIO

Jerrold 0459, 0520
Scientific Atlanta 0460
Starcom 0459

SETUP CODES FOR RECEIVERS

ADC 0531
Aiwa 0158, 0189, 0121, 0405
Capetronic 0531
Carver 0189, 0042, 0360
Casio 0195
Clarinette 0195
Curtis Mathes 0080
Denon 0004
Emerson 0424
Fisher 0042, 0219, 0360
Garrard 0463, 0424
Harman/Kardon 0110, 0189, 0891
JBL 0110
JVC 0074
Kenwood 0027, 0186, 0042
Koss 0424
LXI 0181
Linn 0189
Lloyd's 0195
MCS 0039
Magnavox 0531, 0189, 0195, 0391
Marantz 0039, 0189
Modulaire 0195
NAD 0320
Nakamichi 0097
Onkyo 0135

SETUP CODES FOR SATELLITE

AlphaStar 0772
Echostar 0775
Expressvu 0775
General Instrument 0627,0361,0869
HTS 0775
Hitachi 0819
Hughes Network Systems 0749
JVC 0775
Jerrold 0627, 0361
Magnavox 0724, 0722
Memorex 0724

Optimus 0531, 0670, 0186, 0080,

Panasonic 0039, 0309
Penney 0195
Philips 0189, 0391
Pioneer 0531, 0014, 0150, 0630,

Quasar 0039
RCA 0531, 0054, 0360
Realistic 0195, 0181
Sansui 0189
Sanyo 0219, 0801
Sharp 0186
Sherwood 0491, 0502
Sony 0158, 0474
Soundesign 0670
Teac 0463
Technics 0039, 0309
Victor 0074
Wards 0158, 0014, 0189, 0080,

Yamaha 0176, 0186
Yorx 0195
Zenith 0857

Next Level 0869
Panasonic 0701
Philips 0724, 0722
Primestar 0627, 0361
RCA 0566, 0143, 0392, 0855
Radio Shack 0869
Sony 0639
Star Choice 0869
Toshiba 0749, 0790
Uniden 0724, 0722
Zenith 0856

VIZIO L20 User Guide

0042, 0181, 0219, 0738,
0801, 1023

0080, 1023

0054

Version - 2/21/2005 37

www.vizioce.com

SETUP CODES FOR TELEVISION

AOC 0030, 0019
Admiral 0093, 0463
Aiko 0092
Akai 0030
Alaron 0179
America Action 0180
Ampro 0751
Anam 0180
Audiovox 0451, 0180, 0092, 0623
Baysonic 0180
Belcor 0019
Bell & Howell 0154, 0016
Bradford 0180
Brockwood 0019
Broksonic 0236, 0463
CXC 0180
Candle 0030, 0056
Carnivale 0030
Carver 0054
Celebrity 0000
Cineral 0451, 0092
Citizen 0060, 0030 , 0056, 0039,

Concerto 0056
Contec 0180
Craig 0180
Crosley 0054
Crown 0180, 0039
Curtis Mathes 0047, 0054, 0154, 0051,
0451,0093,0060,0030,
0145,0056,0016,0039,
0166,0466,1147,1347
Daewoo 0451, 0019, 0039, 0092,

Daytron 0019
Denon 0145
Dumont 0017, 0019
Dwin 0720, 0774
Electroband 0000
Emerson 0154, 0236 , 0463, 0180,

Envision 0030
Fisher 0154
Fujitsu 0179
Funai 0180, 0179, 0171
Futuretech 0180
GE0 0047, 0051, 0451, 0093,

Gibralter 0017, 0030, 0019
Gold Star 0030, 0178, 0019, 0056
Gradiente 0053, 0056
Grunpy 0180, 0179
Hallmark 0178
Harley Davidson 0179
Harman/Kardon 0054
Harvard 0180
Hitachi 0145, 0056, 0016
Infinity 0054
Inteq 0017
JBL 0054
JCB 0000
JVC 0053
KEC 0180
KTV 0180, 0030, 0039
Kenwood 0030, 0019
LG0 056
LXI 0047, 0054, 0154, 0156,

Logik 0016
Luxman 0056
MGA 0150, 0030, 0178, 0019
MTC 0060, 0030, 0019, 0056
Magnavox 0054, 0030, 0179
Majestic 0016
Marantz 0054, 0030
Matsushita 0250
Megatron 0178, 0145
Memorex 0154, 0250, 0463, 0150,

Midland 0047, 0017, 0051, 0039
Minutz 0021

0092

0623, 0624

0282, 0178, 0019, 0179,
0039, 0623, 0624

0282,0178,0021,1147,
1347

0178

0178, 0056, 0016

Mitsubishi 0093, 0150, 0178, 0019
Motorola 0093
Multitech 0180
NAD 0156, 0178, 0166
NEC 0030, 0019, 0056
NTC 0092
Nikko 0030, 0178, 0092
Onwa 0180
Optimus 0154, 0250, 0166
Optonica 0093, 0165
Orion 0236, 0463, 0179
Panasonic 0051, 0250
Penney 0047, 0156, 0051, 0060,

Philco 0054, 0463, 0030, 0145,

Philips 0054
Pilot 0030, 0019, 0039
Pioneer 0166
Portland 0019, 0039, 0092
Prism 0051
Proscan 0047
Proton 0178, 0466
Pulsar 0017, 0019
Quasar 0051, 0250, 0165
RCA 0047, 0051, 0093, 0019,

RadioShack 0047,0154,0165,0180,

Realistic 0154,0165,0180,0030,

Runco 0017,0030,0603
SSS 0180,0019
Sampo 0030,0039
Samsung 0060,0030,0178,0019,

Samsux 0039
Sansei 0451
Sansui 0463
Sanyo 0154
Scimitsu 0019
Scotch 0178
Scott 0236, 0180, 0178, 0019,

Sears 0047, 0054, 0154, 0156,

Semivox 0180
Semp 0156
Sharp 0093, 0165, 0039
Shogun 0019
Signature 0016
Sony 0000
Soundesign 0180, 0178, 0179
Squareview 0171
Starlite 0180
Supreme 0000
Sylvania 0054, 0030
Symphonic 0171
TMK 0178, 0056
Tandy 0093
Technics 0051, 0250
Technol Ace 0179
Techwood 0051, 0056
Teknika 0054,0180,0150,0060,

Telefunken 0056
Toshiba 0154, 0156 , 0060
Totevision 0039
Vector Research 0030
Victor 0053
Vidikron 0054
Vidtech 0178,0019
Wards 0054, 0165, 0030, 0178,

White Westinghouse 04 63, 0623, 0624
Yamaha 0030, 0019
Zenith 0017,0463,0016,0092,

VIZIO L20 User Guide

0030, 0178, 0021, 0019,
0056, 0039, 1347

0019

0090,1047,1147,1247,134
7

0030,0178,0019,0056,003
9

0178,0019,0056,0039

0056

0179

0178, 0179, 0056, 0171

0019, 0179, 0056, 0016,
0039, 0092

0021, 0019, 0179, 0056,
0016

0624

Version - 2/21/2005 38

www.vizioce.com

SETUP CODES FOR VCR

Admiral 0048,0209
Adventura 0000
Aiko 0278
Aiwa 0037, 0000
Akai 0041
America Action 0278
American High 0035
Asha 0240
Audiovox 0037
Beaumark 0240
Bell & Howell 0104
Broksonic 0184, 0121, 0209, 0002
CCE 0072, 0278
Calix 0037
Canon 0035
Carver 0081
Cineral 0278
Citizen 0037, 0278
Colt 0072
Craig 0037,0047,0240,0072,

Curtis Mathes 0060,0035,0041,0162
Cybernex 0240
Daewoo 0045,0278
Denon 0042
Dynatech 0000
Electrohome 0037
Electrophonic 0037
Emerex 0032
Emerson 0037, 0184 , 0000, 0121,

Fisher 0047, 0104
Fuji 0035, 0033
Funai 0000
GE 0060, 0035, 0048, 0240
Garrard 0000
GoVideo 0526
GoldStar 0037, 0038
Gradiente 0000
HI-Q 0047
Harley Davidson 0000
Harman/Kardon 0081, 0038
Harwood 0072
Headquarter 0046
Hitachi 0000, 0042, 0041
Hughes Network Systems 0042
JVC 0067, 0041
Jensen 0041
KEC 0037, 0278
KLH 0072
Kenwood 0067, 0041, 0038
Kodak 0035, 0037
LXI 0037
Lloyd's 0000
Logik 0072
MEI 0035
MGA 0240, 0043
MGN Technology 0240
MTC 0240, 0000
Magnasonic 0278
Magnavox 0035, 0039, 0081, 0000,

Magnin 0240
Marantz 0035, 0081
Marta 0037
Matsushita 0035, 0162, 0454,
Memorex 0035, 0037, 0048, 0039,

Minolta 0042

SETUP CODES FOR DIGITAL VIDEO DISC

Denon 0490
GE 0522
Harman/Kardon 0582
JVC 0558
Kenwood 0534
Magnavox 0503
Marantz 0521
Onkyo 0503
Optimus 0571
Panasonic 0490
Philips 0503, 0539
Pioneer 0525, 0571
Proscan 0522
RCA 0522
Samsung 0573
Sony 0533
Technics 0490

0271

0043, 0209, 0002, 0278

0149

0047, 0240, 0000, 0104,
0209, 0046, 0454, 1162,
1262

Mitsubishi 0048,0067,0043
Motorola 0035,0048
Multitech 0000,0072
NEC 0104,0067,0041,0038
Nikko 0037
Noblex 0240
Olympus 0035
Optimus 0037,0048,0104,0162,

Orion 0184, 0209, 0002
Panasonic 0035,0162,0225,0454,

Penney 0035,0037,0240,0042,

Pentax 0042
Philco 0035, 0209
Philips 0035, 0081
Pilot 0037
Pioneer 0067
Profitronic 0240
Proscan 0060
Protec 0072
Pulsar 0039
Quarte 0046
Quartz 0046
Quasar 0035,0162,0454,1162
RCA 0060,0035,0048,0240,

RadioShack 0000
Radix 0037
Randex 0037
Realistic 0035, 0037, 0048, 0047,

Runco 0039
STS 0042
Samsung 0240, 0045
Sanky 0048, 0039
Sansui 0000, 0067, 0209, 0041,

Sanyo 0047, 0240, 0104, 0046
Scott 0184, 0045, 0121, 0043
Sears 0035, 0037, 0047, 0000,

Semp 0045
Sharp 0048
Shintom 0072
Shogun 0240
Singer 0072
Sony 0035, 0032, 0000, 0033
Sylvania 0035, 0081, 0000, 0043
Symphonic 0000
TMK 0240
Tatung 0041
Teac 0000, 0041
Technics 0035, 0162
Teknika 0035, 0037, 0000
Thomas 0000
Toshiba 0045, 0043
Totevision 0037, 0240
Unitech 0240
Vector 0045
Vector Research 0038
Video Concepts 0045
Videosonic 0240
Wards 0060, 0035, 0048, 0047,

White Westinghouse 0209, 0278
XR-1000 0035, 0000, 0072
Yamaha 0038
Zenith 0039, 0000, 0209, 0033

ThetaDigital 0571
Toshiba 0503
Yamaha 0490, 0545
Zenith 0503, 0591

VIZIO L20 User Guide

0454,1062,1162,1262

1062, 1162, 1262

0038

0042,0149

0000, 0104, 0046

0271

0042, 0104, 0046

0081, 0240, 0000, 0042,
0072, 0149

Version - 2/21/2005 39

www.vizioce.com
