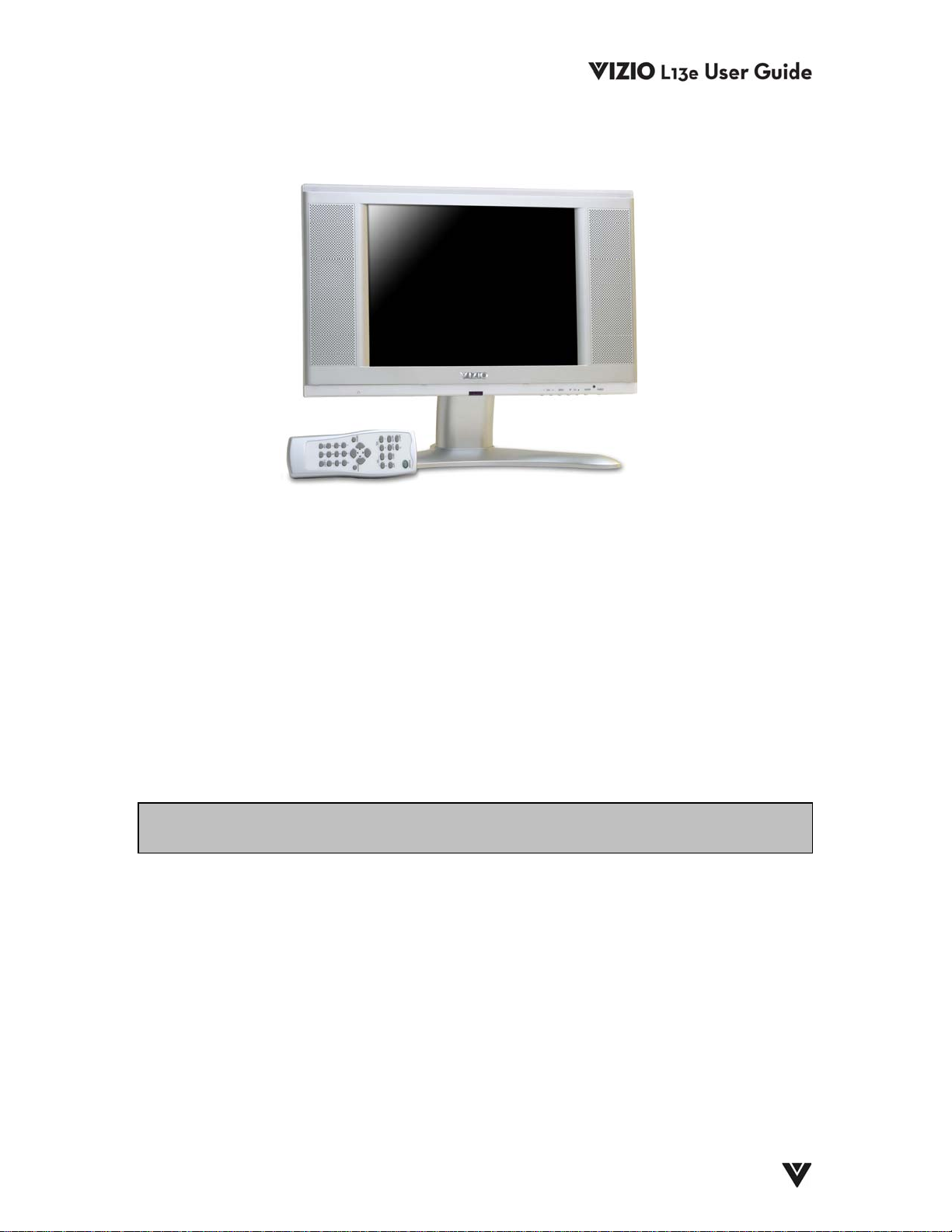

Vizio L13e User Manual

VIZIO

WHERE

VISION

MEETS

VALUE

Table of Contents

Chapter 1 - Introduction................................................................................................................................2

1.1 - Before Use ......................................................................................................................................... 2

1.2 – Specifications .................................................................................................................................... 2

1.3 - Opening the Package......................................................................................................................... 3

1.4 - Installation.......................................................................................................................................... 3

1.5 - Important Safety Guidelines............................................................................................................... 4

1.6 - Television Antenna Connection Protection ........................................................................................ 6

1.7 - Package Contents.............................................................................................................................. 7

1.8 - Front Panel ........................................................................................................................................ 8

1.9 - Rear Panel Connections .................................................................................................................... 9

1.10 - VIZIO L13e Remote Control............................................................................................................ 10

1.10.1 – Remote Control Description ................................................................................................... 10

1.10.2 - Insertion of Batteries in the Remote Control............................................................................11

1.10.3 - Remote Control Range............................................................................................................11

1.10.4 - Precautions for the VIZIO Remote Control..............................................................................11

Chapter 2 - Connecting Components.........................................................................................................12

2.1 - Which Video Connection Should I Use? ...........................................................................................12

2.2 - Connecting Your DVD Player............................................................................................................13

2.2.1 - Using Component Video ...........................................................................................................13

2.2.2 - Using S-Video ...........................................................................................................................14

2.2.3 - Using Composite Video.............................................................................................................15

2.3 - Connecting Your VCR or Video Camera...........................................................................................15

2.4 - Connecting Coaxial (RF)...................................................................................................................16

2.4.1 - Using Your Antenna or Cable TV ..............................................................................................16

2.4.2 - Using the Antenna through Your VCR.......................................................................................16

Chapter 3 - Getting Started ....................................................................................................

3.1 - Turning your LCD TV On and Off......................................................................................................17

3.2 - Installation of Wall Mount (Optional) .................................................................................................17

3.3 - Adjusting Basic LCD TV Settings......................................................................................................18

3.4 - Using the On-Screen Display (OSD).................................................................................................19

3.4.1 - Menu Operations.......................................................................................................................19

3.4.2 - OSD Menus and Options ..........................................................................................................20

3.4.3 - Using the Parental Controls ......................................................................................................22

3.4.4 - Setting a Password ...................................................................................................................23

Chapter 4 - Maintenance and Troubleshooting.........................................................................................24

4.1 - Maintenance .....................................................................................................................................24

4.2 - Troubleshooting Guide......................................................................................................................24

4.3 - Telephone & Technical Support........................................................................................................25

4.4 - Compliance.......................................................................................................................................26

4.5 - FCC Class B Radio Frequency Interference Statement....................................................................26

Appendix A: Limited Warranty Information..................................................................................................27

.....................17

Version - 9/23/2004

1

Chapter 1 - Introduction

1.1 - Before Use

Congratulations on your VIZIO L13e 13” LCD Television purchase. Thank you for your support of
V, Inc. and its LCD Television product line. The L13e is a precise electronic product and you
should read the following instructions carefully to maximize the performance of the product. It has
passed regulatory safety certifications and you can be assured of the highest quality display with
the utmost reliability. After you have finished reading the instructions, put them away in a safe
place for future reference.

Note: In some countries or regions, the shape of the power plug and power outlet may
sometimes differ from that shown in the explanatory drawings. However, the m ethod of
connecting and operating the unit is the same.

1.2 – Specifications

Panel 13” Diagonal, 4:3 Aspect Ratio

Resolution 640 x 480 pixels

Brightness 450 cd/m2 typical

Contrast Ratio 500:1 typical

Response Time 15mS typical

Viewing Angle 170° (horizontal) / 155° (vertical) for CR ≥ 5

Inputs

1x Composite Video (1x RCA) & 1x S-Video (1x DIN) plus 1x Stereo Audio (2x RCA, Left +

1x Component (3 x RCA, YCbCr) plus 1x Stereo Audio (2 x RCA, Left + Right)

Outputs

User Controls Vol-, Vol+, Menu, Ch▼, Ch▲, Enter, Power On/Off

Speakers Built-in 2 x 2.5 W

Features

Backlight Lamp life 60,000 hours.

Power

Storage Conditions

Dimensions (W x H x D)

Weight

Agency Approvals UL, C-UL, FCC Class B

CC, V-Chip, Comb Filter, Video Scalar, NTSC Video decoding via RF (Antenna, Cable or
Satellite [Set Top Box may be required]) or Video (CVBS, S-Video or Component YCbCr)

1x RF (1x F Connector adaptor for internal NTSC Tuner)

Right)

1 x Stereo Audio (2 x RCA, Left + Right)

1 x Stereo Headphone (1 x Stereo Mini Jack)

Input: IEC Connector for direct power line connection

Voltage Range: 100 ~ 240 Vac at 50/60 Hz

Power consumption: 50 W

Temperature: 0°C ~ 35°C (32°F ~ 95°F)

Humidity: 20% ~ 90% (no condensation) Operating Conditions

Altitude: to 10,000 feet (3,000 meters)

Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Humidity: 5% ~ 90% (no condensation)

Altitude: to 40,000 feet (12,000 meters)

16.6” x 10.2” x 2.5” (426mm x 262mm x 63mm without Stand)

16.6” x 14.04” x 7.6” (426mm x 360mm x 195mm with Stand)

6.82 lbs (3.1 kg) without stand

8.58 lbs (3.9) with stand

Version - 9/23/2004

2

1.3 - Opening the Package

• The VIZIO L13e is packaged in a carton together with other standard accessories. Any
optional accessories are packed separately in another carton.

• Never place the unit on a surface with the glass facing downwards unless it is on protective
padding.

• When opening the carton, check that the product is in good condition and that all standard
accessories and items are included.

• Save the original box and all packing materials for future shipping needs.

1.4 - Installation

• Please read the user manual carefully before performing the installation.

• The power consumption of the display is approximately 50 Watts. Please use the power cord

designated for the product. When an extension cord is required, use one with the correct
power rating. The cord must be grounded and the grounding feature must not be defeated.

• The product should be installed on a flat surface to avoid tipping. Space should be
maintained between the back of the product and the wall for proper ventilation. See Section

3.2 - Installation of Wall Mount, p. 16, for additional information.

• Please ensure the product is installed with the screen in landscape orientation. Any 90°
clockwise or counterclockwise installation may induce poor ventilation and subsequent
component damage.

Version - 9/23/2004

3

1.5 - Important Safety Guidelines

Explanation of WARNING symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user

to the presence of not isolated dangerous voltage within the inside of the product that may be
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and servicing instructions in the literature accompanying the appliance.

This product is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire.
To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the
product. Read the following safety instructions before operating the display. Keep these instructions in a safe place for future
reference.

• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the
L13e LCD TV.

• Unplug the power cord before cleaning the L13e LCD TV. A damp cloth is sufficient for cleaning the L13e LCD TV. Do not use
a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.

• Always use the accessories recommended by the manufacturer to insure compatibility.

• When moving the L13e LCD TV from an area of low temperature to an area of high temperature, condensation may form on

the housing. Do not turn on the L13e LCD TV immediately after this to avoid causing fire, electric shock or component
damage.

• Do not place the L13e LCD TV on an unstable cart, stand, or table. If the L13e LCD TV falls,
it can injure a person and cause serious damage to the appliance.

• A distance of at least 2 feet should be maintained between the L13e LCD and any heat source, i.e. radiator, heater, oven,
amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or
electric shock.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the L13e
LCD TV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the L13e LCD TV
in a bookcase or cabinet unless proper ventilation is provided.

• Never push any object into the slot on the L13e LCD TV cabinet. Do not place any objects on the top of the product. It could
short circuit parts causing a fire or electric shock. Never spill liquids on the L13e LCD TV.

• The L13e LCD TV should be operated only from the type of power source indicated on the label. If you are not sure of the type
of power supplied to your home, consult your dealer or local power company.

• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information,
contact your dealer.

• The L13e LCD TV is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only
into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician
install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded
plug.

• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

• The wall socket shall be installed near the equipment and shall be easily accessible.

• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or

electric shock.

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the L13e LCD TV

from damage due to power surges.

• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high
voltages, the risk of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to
qualified service personnel.

• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product,
unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact
your dealer immediately. Do not try to repair the product yourself.

Version - 9/23/20 04

4

1.5 - Important Safety Guidelines

• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components
may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the
product may cause fire or electric shock.

• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before
moving the product.

• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the
cable and cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power
connector.

• To avoid risk of electric shock, do not touch the connector with wet hands.

• Insert batteries for the remote control in accordance with instructions. Incorrect polarities may cause damage and leakage of

the batteries, operator injury and contamination the remote controller.

• If any of the following occurs please contact the dealer:

• Operating environment: Temperature: 0°C ~ 35°C (32°F ~ 95°F), Humidity: 20% to 90% non-condensing

o The power connector fails or frays.
o Liquid sprays or any object drops into the L13E LCD TV.
o The display is exposed to rain or other moisture.
o The display is dropped or damaged in any way.
o The performance of the Display changes substantially.

WARNING: To reduce the risk of fire or electric shock, do notexpose this apparatus to rain

or moisture.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, shall

not be placed on the apparatus.

CAUTION-TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Version - 9/23/2004

5

1.6 - Television Antenna Connection Protection

External Television Antenna Grounding

If an outside antenna or cable system is to be connected to the LCD TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage
surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to
proper grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of the grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements of the grounding electrode.

Lzightning Protection

For added protection of the LCD TV during a lightning storm or when it is left unattended or
unused for long periods of time, unplug the LCD TV from the wall outlet and disconnect the
antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such
power lines or circuits.

Version - 9/23/2004

6

1.7 - Package Contents

V, Inc. VIZIO L13e LCD TV

Standard Remote Control

Power Cord

AV Cable

3 Colored Bezels – white, blue and pink

This User Guide

IMPORTANT: Save the original box and all the packing material for future shipping needs.

Note: Your product may also include various other accessories depending on region of
purchase.

Version - 9/23/2004

7

1.8 - Front Panel

Use the buttons on the front panel control to display and adjust the On Screen Display (OSD).

7

1) Volume - /+ - These buttons are used to increase or decrease the speaker volume. While the

OSD is active, these buttons function as adjustment controls in the OSD menus.

2) Menu – When this button is pressed, the OSD main menu will appear on the screen. If it is

pressed while the main menu is displayed, the main menu will disappear. If pressed while an

OSD sub menu is displayed, it will exit the sub menu and go back to the last menu.

3) Channel d/c – These buttons are used to increase or decrease the selected channels. While

the OSD is active, these buttons function as select controls in the OSD menus.

4) Enter - This button is used to select the highlighted option within the OSD menus.

5) Power LED - Lights green when powered on.

6) Power - Switch the TV on by pressing the button once. Press the button again to turn the TV

off.

7) Remote Control Sensor – This is the window that passes all of the remote signals to the

sensor. Point the remote control directly at this window for the best response to the remote
signal.

1 2 3 4 5 6

Note: In all submenus, the cursor movement is circulatory. For example, if the d Ch button is
pressed when the cursor is on the last item in the submenu, the cursor will move to the main
icon.

Version - 9/23/2004

8

1.9 - Rear Panel Connections

2

31

4

1. AC In – Connect one end of the power cord here and connect the other end of the power

cord to a wall socket.

2. Audio Out, R and L (Right and Left) – Connect the internal audio to an external source.

3. Audio In, R1 and L1 (Right and Left) – Connect the external audio from the video

source such as a DVD player or set-top box.

4. Audio In, R2 and L2 (Right and Left) – Connect the external audio from the second

video source such as a DVD player or set-top box.

5. Component (YCbCr) Input - Connect the external video devices with component output,

such as a DVD player or set-top box.

6. AV Input – Connect the composite video to external video device such as VCR, DVD

and video games.

7. S-Video Input - Connect the S-Video to external video device such as VCR, DVD and

video games.

8. TV Input – Connect to the antenna, satellite or cable service.

8

7

6

5

Version - 9/23/2004

9

p

p

j

r

1.10 - VIZIO L13e Remote Control

1.10.1 - Remote Control Description

Switch TV or CATV

Source Select

Volume U

TV Sleep time setting

Switch channel number key

Note: The remote control layout is for reference only.

Mute On/Off

or Down

OSD Menu On/Off

Power On/Off

Source and channel
information display

MTS Select

Channel U

Function Up/Down
and Select Left/Right

ust within the OSD

ad

Ente

Return to previous channel

/Down adjust

Version - 9/23/2004

10

1.10.2 - Insertion of Batteries in the Remote Control

Insert two AAA batteries into the remote control. Make sure that you match
the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the
battery compartment. Re-attach the battery cover.

Precautionary Tips for Inserting the Batteries:

• Only use the specified AAA batteries.

• Do not mix new and old batteries. This may result in cracking or

leakage that may pose a fire risk or lead to personal injury.

• Inserting the batteries incorrectly may result in cracking or leakage
that may pose a fire risk or lead to personal injury.

• Dispose of the batteries in accordance with local laws and
regulations.

• Keep the batteries away from children and pets.

1.10.3 - Remote Control Range

• Point the remote control at the remote control sensor to transmit the commands.

• Do not place any obstacles between the remote control and the receiver window.

• The effective range of the remote control is approximately 6 feet (2 meters) from the front

of the receiver window, 30º to the left and right, 20º up and down.

1.10.4 - Precautions for the VIZIO Remote Control

• Remote control should be kept dry and away from heat sources. Avoid humidity.

• If the display responds erratically to the remote control or does not respond at all, check

the batteries. If the batteries are low or exhausted, replace them with fresh batteries.

• When not using the remote control for a long period of time, remove the batteries.

• Do not take apart the batteries, heat them, or throw them into a fire.

• Do not subject the remote control to undue physical stress, such as striking or dropping it.

• Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean,

damp cloth.

Version - 9/23/2004

11

Chapter 2 - Connecting Components

2.1 - Which Video Connection Should I Use?

The VIZIO L13e LCD TV has four different ways to connect your video equipment from a basic
one to the most advanced for digital displays.

Connection
Quality

Cable and Connector Description

OK

Basic

Good

Better

Coaxial RF. This is the only connection that has the audio
and the video in one cable. If you have an antenna or
cable, this is the only way you can connect it to the LCD
TV. If you have a VCR, you can connect your
antenna/cable to the VCR RF Input and connect the VCR
RF Output to this connector.

Composite. The complete video signal is carried through
this single pin connector. This is the most commonly used
video connection.

S-Video. The video signal is separated into two signals,
one containing the black-and-white information and the
other containing the color information. Separating the
color in this way avoids ‘cross color’ effects where closely
spaced black and white lines are erroneously displayed in
color. It also enables text to be displayed more sharply.

Component. The video signal is separated into three
signals, one containing the black-and-white information
and the other two containing the color information. This
enhancement over S-Video takes advantage of the
superior picture provided by this type of input.

Version - 9/23/2004

12

2.2 - Connecting Your DVD Player

You have several options for connecting your DVD player to your new L13e LCD TV ­Component, S-Video and Composite inputs. Based on your home theater configuration, you can
decide which option is the right one for you.

2.2.1 - Using Component Video

Installation:

1. Turn off the power to the LCD TV and DVD player.

2. Connect the Y (green color) connector on the rear of your DVD player to the
corresponding Y (green color) connector on the side of your LCD TV.

3. Connect the Cb (blue color) connector on the rear of your DVD player to the
corresponding Cb (blue color) connector on the side of your LCD TV.

4. Connect the Cr (red color) connector on the rear of your DVD player to the corresponding
Cr (red color) connector on the side of your LCD TV.

5. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R1 (red color) and L1 (white color) in the Audio In connections on the rear of
your LCD TV.

6. Turn on the power to the LCD TV and DVD player.

7. Select YCbCr using the Input button on the remote control.

Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.

Version - 9/23/2004

13

2.2.2 - Using S-Video

Installation:

1. Turn off the power to the LCD TV and DVD player.

2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack on the side
of your LCD TV.

3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R1 (red color) and L1 (white color) in the Audio In connections on the rear of
your LCD TV.

4. Turn on the power to the LCD TV and DVD player.

5. Select S-Video using the Input button on the remote control.

Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.

Version - 9/23/2004

14

2.2.3 - Using Composite Video

Installation:

1. Turn off the power to the LCD TV and DVD player.

2. Connect the Video/Composite
the AV connector on the side of your LCD TV.

3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R1 (red color) and L1 (white color) Audio In connections on the rear of your
LCD TV.

4. Turn on the power to the LCD TV and DVD player.

5. Select AV using the Input button on the remote control.

(yellow color) connector on the rear of your DVD player to

Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.

2.3 - Connecting Your VCR or Video Camera

Installation:

1. Turn off the power to the LCD TV and VCR or video camera.

2. Connect the S-Video jack on your VCR or video camera to the S-Video jack on the side
of your LCD TV.

3. Connect the R (red color) and L (white color) audio connectors on your VCR or video
camera to the R1 (red color) and L1 (white color) in the Audio In connections in the rear
of your LCD TV.

4. Turn on the power to the LCD TV and VCR or video camera.

5. Select S-Video using the Input button on the remote control.

Note: Refer to your VCR or video camera user manual for more information about the video
output requirements of the product.

Version - 9/23/2004

15

2.4 - Connecting Coaxial (RF)

There are several options for connecting your antenna or cable to your new L13e LCD TV ­directly to the TV or through your VCR. Based on your home theater configuration, you can
decide which option is the right one for you.

2.4.1 - Using Your Antenna or Cable TV

Installation:

1. Turn off the power to the LCD TV.

2. Connect the coaxial (RF) connector from your antenna or cable
box to the TV connector on the rear of your LCD TV.

3. Turn on the power to the LCD TV

4. Select TV using the Input button on the remote control.

Note:

a) Make sure the antenna or cable TV is correctly grounded.
b) See page 19-20 for selecting the TV source within the OSD menus (standard

cable, HRC cable, IRC cable, air (antenna)).

2.4.2 - Using the Antenna through Your VCR

Installation:

1. Turn off the power to the LCD TV and VCR.

2. Connect the “Output to TV” (RF Out or Antenna Out) connector on the
rear of your VCR to the TV connector on the rear of your LCD TV.

3. Turn on the power to the LCD TV and VCR.

4. Select TV using the Input button on the remote control.

5. Select Channel 3 or 4 to match the channel selected on the rear of your VCR.

Note:

a) If you have an off-air antenna or cable TV, connect the off-air antenna or TV cable to

the RF connector on the rear of your VCR.

b) Make sure the antenna or cable TV is correctly grounded.

Version - 9/23/2004

16

Chapter 3 - Getting Started

3.1 - Turning your LCD TV On and Off

1. Plug the power cord into an AC wall socket.

2. Press the POWER button on the front panel or the POWER button on the remote control
to power on the LCD TV. The POWER indicator on the front panel will light green.

3. Select the input source for the LCD TV using the Input button on the remote control.

4. If connecting to antenna, cable or other RF source on TV inputs, see page 19-20 to
configure the product to receive all available channels.

3.2 - Installation of Wall Mount (Optional)

If you would like to mount your L13e LCD TV to the wall, you can contact V, Inc. directly or your
local dealer to obtain the appropriate wall mounting kit. To convert your LCD TV from a desk­mounted to a wall-mounted display, follow the instructions below:

1. Disconnect Power.

2. Lay the LCD TV face down on a towel or blanket to protect the
screen from damage.

3. Press gently on the 2 concave portions of the back bezel near the
stand hinge with both your thumbs (see Figure 3.2.a)

4. Pull the stand cover towards you to
detach it from the back panel of the
TV and remove the cover completely
(see Figure 3.2.b and 3.2.c).

Fig. 3.2.b

5. Unscrew the 4 set screws (see Figure 3.2.d).

6. Remove the stand from the back of the TV (see Figure 3.2.e).

7. Attach the LCD TV to the wall, following the instructions with the
wall-mounting kit.

Fig. 3.2.a

Fig. 3.2.c

Fig. 3.2.d

Version - 9/23/2004

Fig. 3.2.e

17

3.3 - Adjusting Basic LCD TV Settings

Volume

To increase the volume, press and hold the VOL + button on the front panel or remote
control until the desired level is reached.

To decrease the volume, press and hold the - VOL button on the front panel or remote
control until the desired level is reached.

TV Channels

To step up through the available TV channels, press the CH + button on the front panel
or remote control once for the next channel or hold it depressed until the desired channel
is reached.

To step down through the available TV channels, press the - CH button on the front panel
or remote control once for the previous channel or hold it depressed until the desired
channel is reached.

Mute

Press the MUTE button on the remote control to turn off the sound; press the button
again to cancel the MUTE feature and turn the sound on.

Version - 9/23/2004

18

3.4 - Using the On-Screen Display (OSD)

The remote control or the control keys on the top panel of the LCD TV can control all the function
settings. The on-screen display (OSD) allows you to adjust and save contrast, brightness and
other settings. The LCD TV will save changes made to the settings even if the LCD TV is turned
off.

3.4.1 - Menu Operations

The OSD consists of a Main Menu of items and each of these items has a Sub Menu associated
with it that the OSD will switch to when the item is selected.

1. Press the MENU button on the remote control and the Main Menu will be displayed on
the screen, as shown opposite.

2. Use the c/d buttons on the remote control to highlight
the feature you wish to select within the OSD menu.

3. Use the e/fbuttons on the remote control to adjust
the selected option.

4. Press the MENU button on the remote control to
confirm the desired selection.

5. Repeat steps 3 and 4 to adjust additional options within the selected OSD menu.

6. Once you have finished making adjustments within the selected OSD menu, press the
MENU button on the remote to move to the next page (for example, Sound Menu).

7. Once all the adjustments are completed, press the Menu button on the remote control
repeatedly to exit the OSD.

NOTE: The OSD menu display will disappear automatically after 30 seconds if no action is taken.

Version - 9/23/2004

19

3.4.2 - OSD Menus and Options

The OSD Menu includes four sub menus: Picture Menu, Sound Menu, Option Menu and Setup
Menu. With the different input sources, there will be a corresponding change in the OSD menu.

3.4.2.1 – Picture Menu

Contrast - Adjusts the white levels of the picture.
Brightness - Adjusts the black levels of the picture. Users

may need to readjust the brightness after the TV warms

up.
Color - Adjusts the color saturation making colors more
intense.
Tint - Adjusts the color of flesh tones.
Sharpness - Adjusts the amount of detail enhancement in
increments of approximately 12 (12, 25, 37, 50, 66, 83, 100).

3.4.2.2 – Sound Menu

Balance - Adjusts the balance level between the channels.
Bass - Adjusts the bass.
Treble - Adjust the treble.
Audio Out - Sets audio out as either off or on.

3.4.2.3 – Option Menu

Caption - Turns the close caption OFF or CC1, CC2,

TT1, TT2.
Input – Selects the input source type from one of the

following: AV, S-Video, YCbCr or TV.
Memory Recall – Recall factory settings for video and

audio settings.

Version - 9/23/2004

20

3.4.2.4 – Setup Menu

(Note: This menu is only available in TV mode)

TV/CATV – Selects the TV signal input from one of the

following: TV, CATV, HRC and IRC.
AutoScan – Scans the TV channels (TV or CATV)

automatically.
Channel – Adds or deletes selected TV channel.
Parent Control – Sets V-Chip condition and password.

User will need a password to enter this menu. The default password is “0 0 0 0”. For details,

see section 3.4.3 - Using the Parental Controls on page 21.

3.4.2.4.1 – MPAA Rating

MPAA Rating - Choose either B (Block) or U (Unblock) for the following settings:

X - Adult audience only

NC-17 - No one under 17 years of age

R - Mature audience

PG-13 - Recommended for children 13 years of

age and older
PG - Parental guidance suggested
G - General audience

3.4.2.4.2 – TV Rating

TV Rating – Choose either B (Block) or U (Unblock) for the following settings:

MA - Mature audience
Y14 - Strongly cautioned
PG - Guidance suggested
G - General audience
Y7 - Older children
Y - All children

Version - 9/23/2004

21

3.4.3 - Using the Parental Controls

The Parental Controls feature prevents viewers from watching programs that are not age­appropriate, such as programs containing violence or adult language.

1. Press the Input button on the remote control and
select TV as the input source.

2. Press the MENU button four times on the remote
control so that the Setup Menu is displayed on the
screen.

3. Press d on the remote control until the Parent
Control menu is highlighted. Then press ENTER.

4. To access the Parent Control Menu, you must first enter in the
default password.
a) Press “0 0 0 0” on the remote control as the default

password.

b) Then press ENTER to confirm the selection.

Note: For more information about setting a password, see “Setting a Password”, page 22.

5. The V-Chip Block option will already be highlighted. Press the ► button to select “on”.

6. Press ENTER to confirm.

Note: This will exit the menu and you will need to repeat steps 2 through 4 to access
the Parent Control menu again.

7. Once you are back into the Parent Controls, press the ▼ button to select the MPAA Rating
menu. Then press the ENTER button on the
remote control.

8. Using the e/fbuttons on the remote control,
navigate through the following options:

• X (no one under 17 years of age)

• NC-17 (no one under 17 years of age)

• R (mature audience)

• PG-13 (Recommended for children 13 years of age and older)

• PG (Parental guidance suggested)

• G (General audience)

9. Once the text is red, press the ENTER button to switch between B (block) or U (unblock).

10. Once you are finished setting the MPAA ratings, press the MENU button to exit.

11. Press the ▼ button to select the TV Rating menu. Then press the ENTER button on the
remote control.

12. Using the e/fbuttons on the remote control,
navigate through the following options:

• MA (mature audience)

• Y14 (strongly cautioned)

• PG (guidance suggested)

• G (general audience)

• Y7 (older children)

• Y (all children)

13. Once the text is red, press the ENTER button to switch between B (block) or U (unblock).

14. Once you are finished setting the TV ratings, press the MENU button repeatedly to exit the
OSD.

Version - 9/23/2004

22

3.4.4 - Setting a Password

You control access to the Parent Control Menu features with a password. The default password is
“0 0 0 0”. You can change the password to any four-digit number.

To change the password:

1. Press the Input button on the remote control and
select TV as the input source.

2. Press the MENU button four times on the remote
control so that the Setup Menu is displayed on the
screen.

3. Press d on the remote control until the Parent
Control menu is highlighted. Then press ENTER.

4. To access the Parent Control Menu, you must first enter in the
default password.
a. Press “0 0 0 0” on the remote control as the default

password.

b. Then press ENTER to confirm the selection.

5. Press the d button on the remote control to select “New PinCode”, and then press the
ENTER button.

6. Enter in your new 4-digit password. Then press the ENTER button on the remote control.

7. Confirm the new 4-digit password. Then press the ENTER button on the remote control.

Note: Please make sure to write down and store the new password in a secured place.

Version - 9/23/2004

23

Chapter 4 - Maintenance and Troubleshooting

4.1 - Maintenance

Important

1. Make sure that the power cable is removed from the socket before cleaning the
display.

2. Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the display.
Such chemicals may damage the housing, screen glass and remote control, and
cause the paint to peel.

Cleaning the Housing and the Remote Control

1. Use a soft cotton cloth for cleaning.

2. If the housing or remote control is seriously contaminated, use a soft cloth moistened
with diluted neutral cleaner to clean the display. Wring water out of the cloth before
cleaning to prevent water from penetrating into the housing. Wipe the display with a
dry cloth after cleaning.

Cleaning the Screen

1. Use a soft cotton cloth to gently clean the screen.

2. The screen glass is very fragile. Do not scrape it with any sharp object. Do not press
or tap the screen to avoid cracking. When the screen is seriously contaminated, use
a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water
out of the cloth before cleaning to prevent water from penetrating into the housing.
Wipe the display with a dry cloth after cleaning.

4.2 - Troubleshooting Guide

If the display fails or the performance changes dramatically, check the display in accordance with
the following instructions. Remember to check the peripherals to pinpoint the source of the
failure. If the display still fails to perform as expected, contact the dealer for assistance.

Problem Solution

There isn’t any power. Make sure the DC power button is ON (green LED).

Make sure the AC power cord is securely connected to the
AC socket.
Plug another electrical device to the power outlet to verify that

the outlet is working properly.
Power is ON, but there is not an
image on the screen.

Make sure the video cable supplied with the LCD display is

tightly secured to the video output port on the back of the

DVD player or VCR. If the other end of the video cable is not

attached permanently to the LCD display, tightly secure it to

the LCD display.

Adjust brightness and contrast.

Check Source settings.
The image on the screen has
incorrect or abnormal colors.

If any colors (red, green, or blue) are missing, check the

video cable (YCbCr) to make sure it is securely connected.

Loose or broken pins in the cable connector could cause an

improper connection.

Connect the LCD display to another DVD Player or VCR.

Version - 9/23/2004

24

Control buttons do not work. Press only one button at one time.
Snow appears on screen.

There isn’t any sound. Check your audio connection.

There is only sound coming out
of one speaker.

Remote control does not work.

4.3 - Telephone & Technical Support

Products are often returned due to a technical problem rather than a defective product that may
result in unnecessary shipping charges billed to you. Our trained support personnel can often
resolve the problem over the phone. For more information on warranty service or repair, after the
warranty period, please contact our Support Department at the number below.

Quality service and consistent technical support are integral parts of V's commitment to service
excellence. V's service representatives are dedicated to assist you with the utmost in customer
satisfaction. To better assist you, please call toll free or contact us via email.

Tel: [phone], 7am-4pm PST Mon - Fri

Tel: [phone] Fax: [phone]

Check your antenna connection.

Check TV / CATV selection.

Press MUTE on the remote control again, so that MUTE

disappeared from the screen.

Check your audio settings, your TV audio may be set to SAP

or minimum.

Press the Volume + (Up) key on your remote control.

Make sure that headphones are not connected.

Press MTS on the remote control and make sure that the

audio setting is set to STEREO.

Make sure batteries are inserted correctly.

Batteries could be exhausted.

Or E-mail: [e-mail]

Corporate Contact Information

V, Inc.

320A Kalmus Drive

Costa Mesa, CA 92626

Web: www.VINC.com

Version - 9/23/2004

25

4.4 - Compliance

Caution: Always use a power cable that is properly grounded. Please use the AC cords listed
below for each area.

USA UL
Canada CSA
Germany VDE
Britain BASE/BS
Japan Electric Appliance Control Act

4.5 - FCC Class B Radio Frequency Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. It is the responsibilities of the user to
correct such interference.

Version - 9/23/2004

26

27

WHERE

VISION

MEETS

VALUE

BRAVO, VIZIO and the V Logo are trademarks of V, Inc. Product specifications are

subject to change without notice or obligation. © 2004 V, inc. All rights reserved.
