VlZtO JV50P HDTV10A User Manual

Dear VlZlO Customer,

Congratulations on your new VtZtO JV50P High

Definition Plasma Television purchase. Thank

you for your support. For maximum benefit of your set, please read these instructions before

making any adjustments, and retain them for future reference. We hope you will experience

many years of enjoyment from your new VlZtO JV50P High Definition Television.

For assistance, please call (949) 428-2525 or e-

mail us at techsupport@vizio.com

To purchase or inquire about accessories and installation services for your VlZlO Plasma HDTV,

please visit our website at www.VlZlO.com or call toll free at 888-VlZIO-23 (888-849-4623).

We recommend you register your VlZlO JV50P

HDTV10A either at our website www.VlZlO.com

or fill in your registration card and mail it in. For peace of mind and to protect your investment

beyond the standard warranty, VlZlO offers on- site extended warranty service plans. These

plans give additional coverage during the standard warranty period. Visit our website or call

us to purchase a plan. Write down the serial number located on the back

of your JV50P.

Purchase Date

VlZlO is a registered trademark of V, Inc.

HDMI logo and "High Definition Multimedia Interface" are registered trademarks of HDMI Licensing LLC. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Version 5/21/2007 1

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

THIS PRODUCT HAS BEEN DESIGNED AND TESTED FOR COMPLIANCE WITH REGULATORY SAFETY CERTIFICATIONS

This product is designed and manufactured to operate within defined design limits, and misuse may result in electric

shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the product. Read the following safety instructions before operating the display. Keep these

instructions in a safe place for future reference.

• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the JV50P Plasma HDTV.

• Unplug the power cord before cleaning the JV5OP Plasma HDTV. A damp cloth is sufficient for cleaning the JV5OP Plasma HDTV. Do not use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.

• Always use the accessories recommended by the manufacturer to insure compatibility.

• When moving the JV5OP Plasma HDTV from an area of low temperature to an area of high temperature, condensation may form on

the housing. Do not turn on the JV50P Plasma HDTV immediately after this to avoid causing fire, electric shock or component damage.

• Do not place the JV50P Plasma HDTV on an unstable cart, stand, or table. If the JV50P Plasma HDTV falls, it can injure a person and

cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the JV50P Plasma

HDTV.

• A distance of at least 3 feet should be maintained between the JV50P Plasma HDTV and any heat source, i.e. radiator, heater, oven,

amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or electric shock.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the JV50P Plasma HDTV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the JV5OP Plasma

HDTV in a bookcase or cabinet unless proper ventilation is provided.

• Never push any object into the slot on the JV50P Plasma HDTV cabinet. Do not place any objects on the top of the product. It could

short circuit parts causing a fire or electric shock. Never spill liquids on the JV50P Plasma HDTV.

• The JV50P Plasma HDTV should be operated only from the type of power source indicated on the label. If you are not sure of the type

of power supplied to your home, consult your dealer or local power company.

• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact

your dealer.

• The JV50P Plasma HDTV is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit

only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician

install the correct outlet, or use an adapter to ground the appliance safely DO not defeat the safety purpose of the

grounded plug.

• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

• The wall socket shall be installed near the equipment and shall be easily accessible.

• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or electric

shock.

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Unplug the unit during a lightening storm or when it will not be used for long period of time. This wilt protect the JV5OP Plasma HDTV

from damage due to power surges.

• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk

of electric shock, and other hazards. If repair is required, please contact your dealer and refer al! servicing to qualified service

personnel.

• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug

the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your

dealer immediately. Do not try to repair the product yourself.

• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may

function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause fire or electric shock.

• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high humidity may cause fire or electric shock.

• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the product.

• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable and

cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power connector.

• To avoid risk of electric shock, do not touch the connector with wet hands.

• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury

and contamination the remote controller.

• If any of the following occurs please contact the dealer:

__, The power connector fails or frays. o Liquid sprays or any object drops into the JV50P Plasma HDTV. __, The Display is exposed to rain or other moisture.

o The Display is dropped or damaged in any way. __, The performance of the Display changes substantially.

Version 5/21/2007 2

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

TeLevision Antenna ConneGbion Protection

External TeLevision Antenna Groundinq

If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and

static charges.

Article 810 of the National Electrical Code, ANSt/NFPSA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge

unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements of the grounding electrode.

GROUNRCL,AMP

ELEC_RtC SERVICE EQOJPM_;,iT _ POWER SERVICE6ROL_RD|HG _LECTRODE SYSTEM _c _ z_ _:_ _1

Lightning Protection For added protection of the TV during a lightning storm or when it is left unattended or unused for long

periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits.

Remember, the screen of the coaxial cable is intended to be connected to earth in the building installation.

Version 5/21/2007 3

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

Openinq the Packaqe

Your VlZlO JV50P HDTVl0A and it accompanying accessories are carefully packed in a cardboard carton that has been designed to protect it from transportation damage. Now you have opened the carton

check that the JV50P HDTVl0A is in good condition and that all of the accessories are included. The JV50P HDTVl0A weighs 1161b (52.6kg) and about 49" wide x 32" tall we strongly advise that you

have at least 2 people to unpack and install the HDTV. The glass surface can easily be scratched or broken so please handle the product gently and never place

the HDTV with the glass facing downwards on a surface without protective padding.

IMPORTANT: Save the carton and packing material for future shipping.

Packaqe Contents

VlZtO JV50P HDTVl0A VlZtO Wireless Sub-Woofer

VlZtO Left Rear Satellite Speaker VlZtO Right Rear Satellite Speaker

VlZtO Universal Programmable Remote Control 2 Power Cords

VlZtO Bezel and Screen Cleaning Cloth This User Manual

Quick Setup Guide Registration Card

VlZtO Warranty and Repair Information VlP Services Brochure

2 Double AA Batteries for the Remote Control Warranty Card

Certified Accessories

OVsoP HDTVIoA are sold separateLv

Wall Mounts High Definition Cables

Extra or replacement Remote

VlZtO also offers Installation Services and Extended Warranty Services for your VlZtO JV50P HDTV10A

To purchase or inquire about additional accessories and services for your VlZlO product, visit our web site at www.VlZIO.com or call us toll free at 888-VlZtO-23 (888-849-4623)

Version 5/21/2007 4

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

InsbaLLatioo Preparation

Please read this user manual carefully before installing your VlZtO HDTV. The power consumption of the TV is about 450W, please use the power cord designated for TV. When

an extension cord is required, use one with the correct power rating. The cord must be grounded and the grounding feature must not be defeated.

The TV should be installed on a flat surface to avoid tipping. For proper ventilation, you must allow space between the back of the TV and the wall. If you would like to mount your TV on the wall, please see

below 'Preparing Your Plasma HDTV for Wall Mounting' for additional information. Avoid installing the TV in places with high humidity, dust or smoke so as not to shorten the service life of the electronic components.

Install the TV in landscape orientation; any 90° clockwise or counter-clockwise installation may induce poor ventilation and excessive component damage.

VlZlO offers professional installation services. Please contact VlZtO for more information on these services at 888-VtZtO-23 (888-849-4623) or www.VlZlO.com.

Preparinq Your Plasma HDTV for Wall Mounbinq

The VlZlO JVSOP can either be kept on the stand base or mounted on the wall for viewing. If you choose to mount the JV50P on the wall, please follow the instructions below for removing the stand base.

remove bhe stand base

Unplug all of the cables and cords from your JV50P HDTVl 0A.

Place the JV50P HDTVl0A face down on a soft and

flat surface (blanket, foam, cloth, etc) to prevent any

damage to the TV.

Remove the four (6) screws on each side of the back panel of the JV50P HDTVl0A located near the bottom

so that the stand base can be removed (see Figure A).

Gently pull the stand away from the JV50P HDTVl0A by grasping firmly on the base.

Now, the JV50P HDTVl0A can fir securely to a mount (sold separately) by utilizing the mounting holes in the

center of the back panel of the TV (see Figure B). Please make sure to read the instructions of your

specific mount to properly hang the JV50P HDTVl0A.

To find the perfect mount for the VIZlO JV50P HDTVl0A, browse VlZtO's certified mount selection at www.vizio.com or call directly 888-VlZlO-23 (888-849-4623).

Version 5/21/2007 5

www.VlZlO.com

VlZlOJV50PHDTV10AUserManual

TabLe ®ff Contents

Chapt°er m Basic CombmoLs amd Commectioms ..................................................................8

1.1 Front Panel ..........................................................................................................................................................8

1.2 Side Panel Controls.............................................................................................................................................8

1.3 Rear Panel Connections .....................................................................................................................................9

1.4 VIZIO Universal Remote Control .......................................................................................................................11

1.4.I Insertionof Batteriesin the Remote Control ..............................................................................................14

1.4.2Remote Control Range ..............................................................................................................................14

1.4.3VIZIO Remote Control Precautions ...........................................................................................................14

Ehaptem _ Conneotinq Equipment iS

2.1 Which Video Connection Should I Use? ............................................................................................................ 15

2.2 Connecting Coaxial (RF) ................................................................................................................................... 16

2.2.1 Using Your Antenna or Digital Cable for DTV 1TV .................................................................................... 16

2.2.2 Using the Antenna or Cable through your VCR ......................................................................................... 16

2.3 Connecting Your HDTV Set-Top Box ................................................................................................................ 17

2.3.1 Using HDMI ............................................................................................................................................... 17

2.3.2 Using Component Video ............................................................................................................................ 19

2.4 Connecting Your Basic Set-Top Box ................................................................................................................. 20

2.4.1 Using Composite Video ............................................................................................................................. 20

2.4.2 Using Coax (RF) ........................................................................................................................................ 20

2.5 Connecting Your DVD Player ............................................................................................................................ 21

2.5.1 Using HDMI ............................................................................................................................................... 21

2.5.2 Using Component Video ............................................................................................................................ 23

2.5.3 Using Composite (AV) Video ..................................................................................................................... 24

2.6 Connecting Your VCR or Video Camera ........................................................................................................... 24

2.7 Connecting a PC Computer .............................................................................................................................. 25

2.7.1 Preset PC Resolutions ............................................................................................................................... 25

2.8 Connecting the 5.1 Wireless Surround Sound .................................................................................................. 26

2.8.1 Pairing Procedure ...................................................................................................................................... 27

2.9 Connecting an external Receiver/Amp .............................................................................................................. 28

2.9.1 Using Analog Audio ................................................................................................................................... 28

2.9.2 Using Optical Audio ................................................................................................................................... 29

Chapter 3 Settinq Up to Watch Te[e_Jision ...................................................................30

3.1 Basic Plasma HDTV StartUp ............................................................................................................................30

3.2 Watching a TV Program ....................................................................................................................................33

3.3 Adjusting Basic HDTV Settings ......................................................................................................................... 33

3.4 Program Information .......................................................................................................................................... 34

3.5 Information on HDTV Status ............................................................................................................................. 34

Chapter A Rdvanced Rd3ustment off HO'TV ................................................................... 35

4.1 Using the On Screen Display (OSD) ................................................................................................................. 35

4.2 DTV 1TV Input Picture Adjustment .................................................................................................................... 36

4.2.1 Picture ....................................................................................................................................................... 36

4.2.2 Brightness .................................................................................................................................................. 36

4.2.3 Contrast ..................................................................................................................................................... 36

4.2.4 Color .......................................................................................................................................................... 36

4.2.5 Tint ............................................................................................................................................................. 37

4.2.6 Sharpness ................................................................................................................................................. 37

4.2.7 Color Temperature ..................................................................................................................................... 37

4.2.8 Advanced Video ........................................................................................................................................ 38

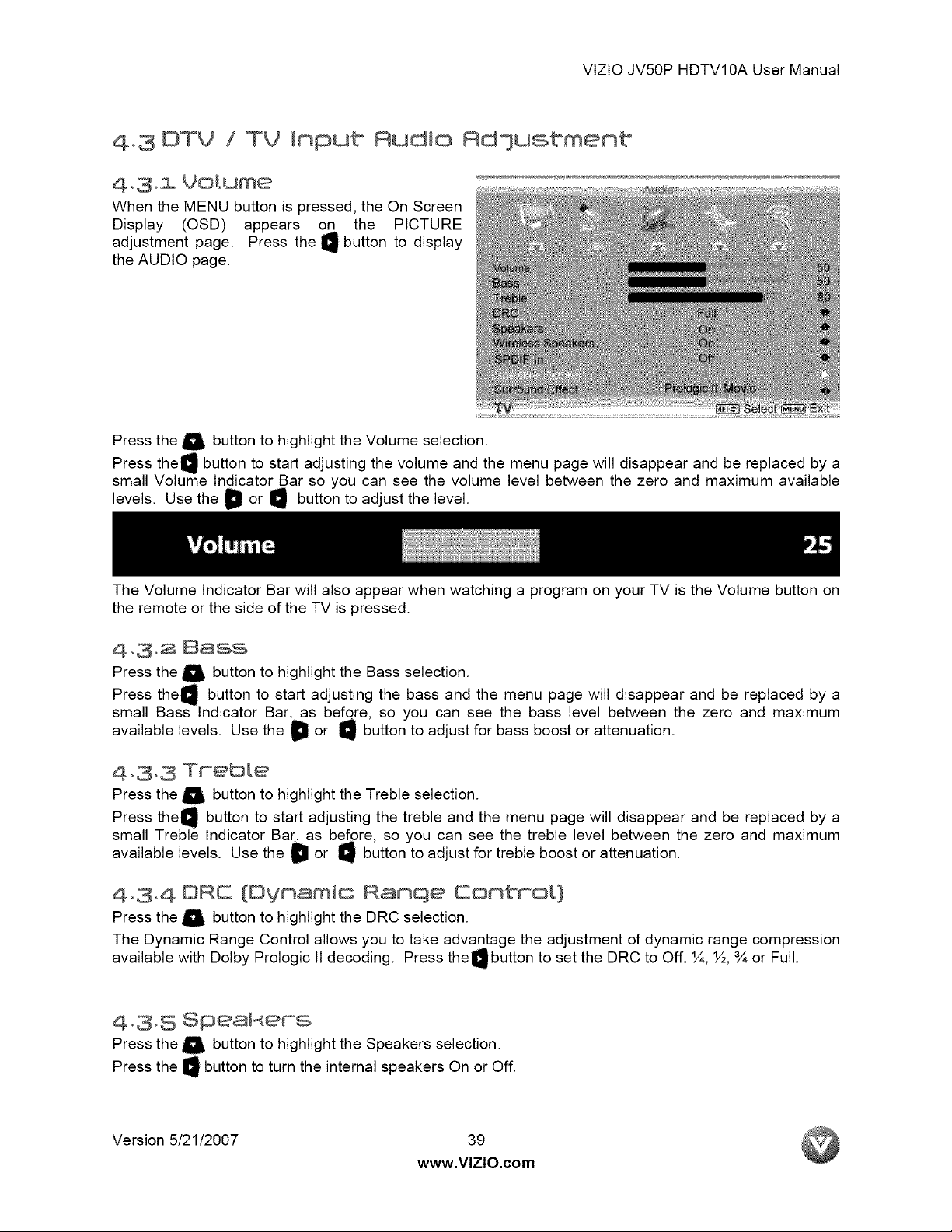

4.3 DTV 1TV Input Audio Adjustment ...................................................................................................................... 39

4.3.1 Volume ...................................................................................................................................................... 39

4.3.2 Bass ........................................................................................................................................................... 39

4.3.3 Treble ........................................................................................................................................................ 39

4.3.4 DRC (Dynamic Range Control) ................................................................................................................. 39

4.3.5 Speakers ................................................................................................................................................... 39

4.3.6 Wireless Speakers ..................................................................................................................................... 40

4.3.7 SPDIF In .................................................................................................................................................... 40

4.3.8 Speaker Setting ......................................................................................................................................... 40

4.3.9 Speaker LocatiOn ....................................................................................................................................... 41

4.3.10 Speaker Trim ........................................................................................................................................... 41

Version 5/21/2007 6

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

4.3.11 Speaker Distance Setup .......................................................................................................................... 41

4.4 DTV / TV Tuner Setup ....................................................................................................................................... 42

4.4.1 Tuner Mode ............................................................................................................................................... 42

4.4.2 Auto Search ............................................................................................................................................... 42

4.4.3 Skip Channel ............................................................................................................................................. 42

4.4.4 Time Zone ................................................................................................................................................. 42

4.4.5 Daylight Saving .......................................................................................................................................... 42

4.5 DTV / TV Input Setup ........................................................................................................................................ 43

4.5.1 Language ................................................................................................................................................... 43

4.5.2 PIP (Picture-in-Picture) .............................................................................................................................. 43

4.5.3 Sleep Timer ............................................................................................................................................... 44

4.5.4 Analog CC ................................................................................................................................................. 44

4.5.5 Digital CC .................................................................................................................................................. 44

4.5.6 Digital CC Style ......................................................................................................................................... 44

4.5.7 image Cleaner ........................................................................................................................................... 45

4.5.8 Reset All Settings ...................................................................................................................................... 45

4.6 DTV / TV Input Parental Control ........................................................................................................................ 45

4.6.1 Channel Block ........................................................................................................................................... 45

4.6.2 TV Rating ................................................................................................................................................... 46

4.6.3 Movie Rating .............................................................................................................................................. 46

4.6.4 Blocked Unrated Programming .................................................................................................................. 47

4.6.5 Change the Password ............................................................................................................................... 47

4.7 HDMI Input Picture Adjustment ......................................................................................................................... 48

4.8 HDMI Input Audio Adjustment ........................................................................................................................... 48

4.9 HDMI Input Setup .............................................................................................................................................. 48

4.10 Video input Picture Adjustment ....................................................................................................................... 49

4.11 Video input Audio Adjustment ......................................................................................................................... 49

4.12 Video input Setup ............................................................................................................................................ 49

4.13 Video input Parental Control ........................................................................................................................... 50

4.14 PC Input Picture Adjustment ........................................................................................................................... 50

4.14.1 Auto Adjust .............................................................................................................................................. 50

4.14.2 Backlight .................................................................................................................................................. 50

4.14.3 Brightness ................................................................................................................................................ 50

4.14.4 Contrast ................................................................................................................................................... 51

4.14.5 Color Temperature ................................................................................................................................... 51

4.14.6 H-SIZE ..................................................................................................................................................... 52

4.14.7 H. Position ............................................................................................................................................... 52

4.14.8 V. Position ............................................................................................................................................... 52

4.14.9 Fine Tune ................................................................................................................................................ 52

4.15 PC Input Audio Adjustment ............................................................................................................................. 52

4.16 PC Input Setup ................................................................................................................................................ 52

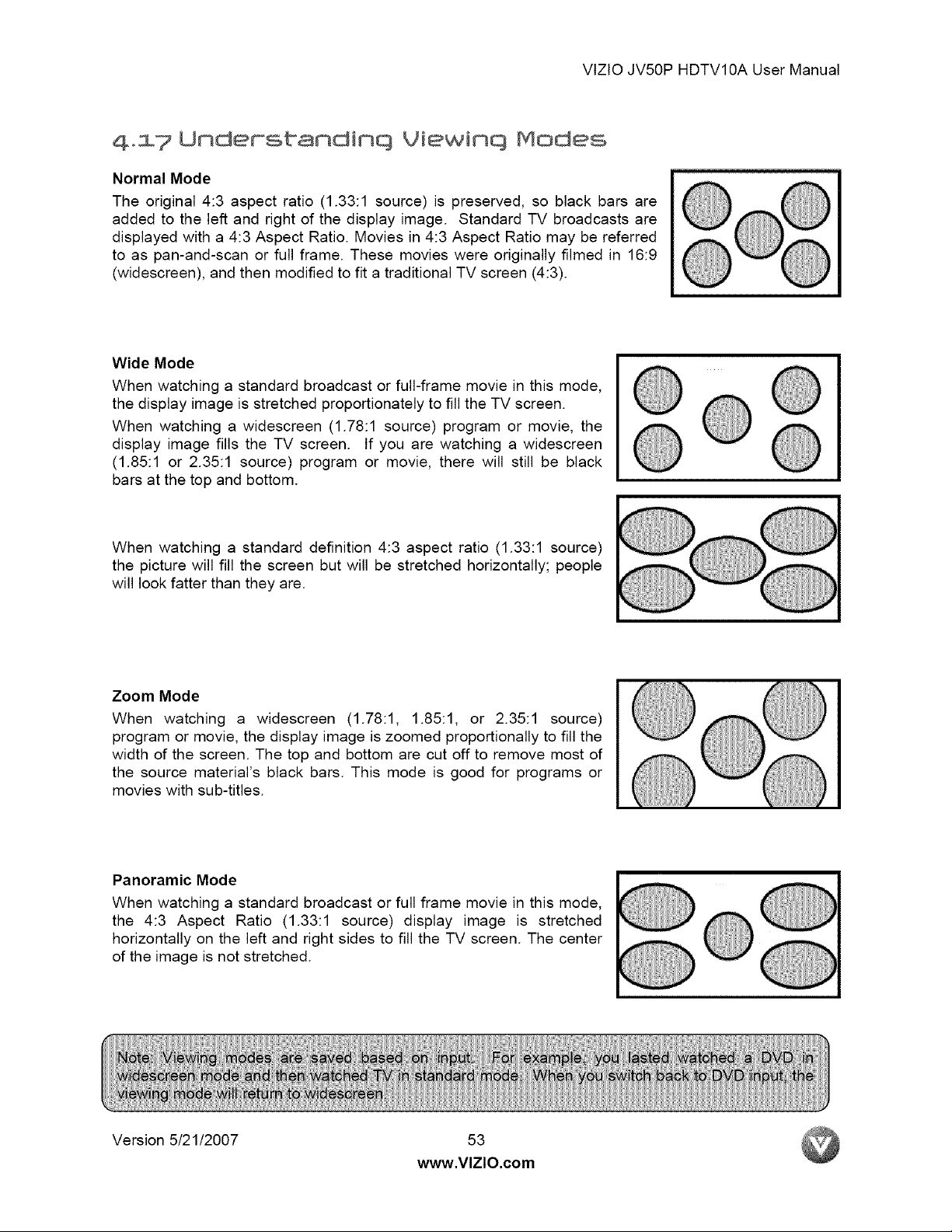

4.17 Understanding Viewing Modes ........................................................................................................................ 53

Chapter S Pro_rammlnq the VIZIO Universal Remote Control 54

5.1.1 Programming for VCR ............................................................................................................................... 54

5.1.2 Programming for Cable Set-Top Box ......................................................................................................... 54

5.1.3 Programming for DVD Player .................................................................................................................... 55

5.1.4 Searching for Component Codes .............................................................................................................. 55

5.2 Using a Cable or Satellite Remote .................................................................................................................... 55

Chapter- 5 Maintenance and Troubteshootlnq .............................................................SB

6.1 Maintenance ...................................................................................................................................................... 56

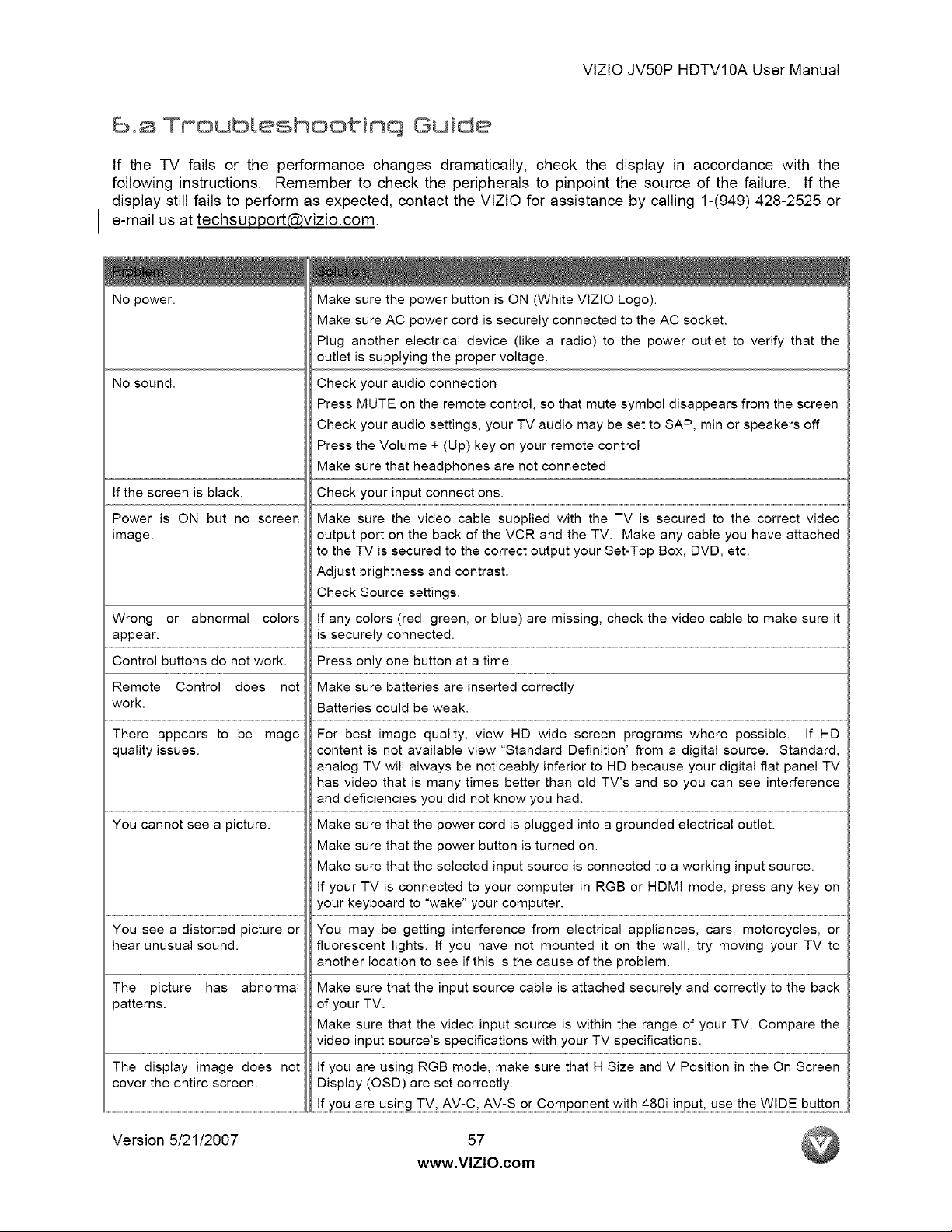

6.2 Troubleshooting Guide ...................................................................................................................................... 57

6.3 Telephone & Technical Support ........................................................................................................................ 58

6.4 Compliance ....................................................................................................................................................... 59

6.5 FCC Class B Radio Interference Statement ...................................................................................................... 59

6.6 FCC RF Radiation Exposure Statement ............................................................................................................ 59

Chapter 7 Miscellaneous Imformatlom ...........................................................................60

7.1 Specifications .................................................................................................................................................... 60

7.2 Glossary - Standard Definitions ........................................................................................................................ 61

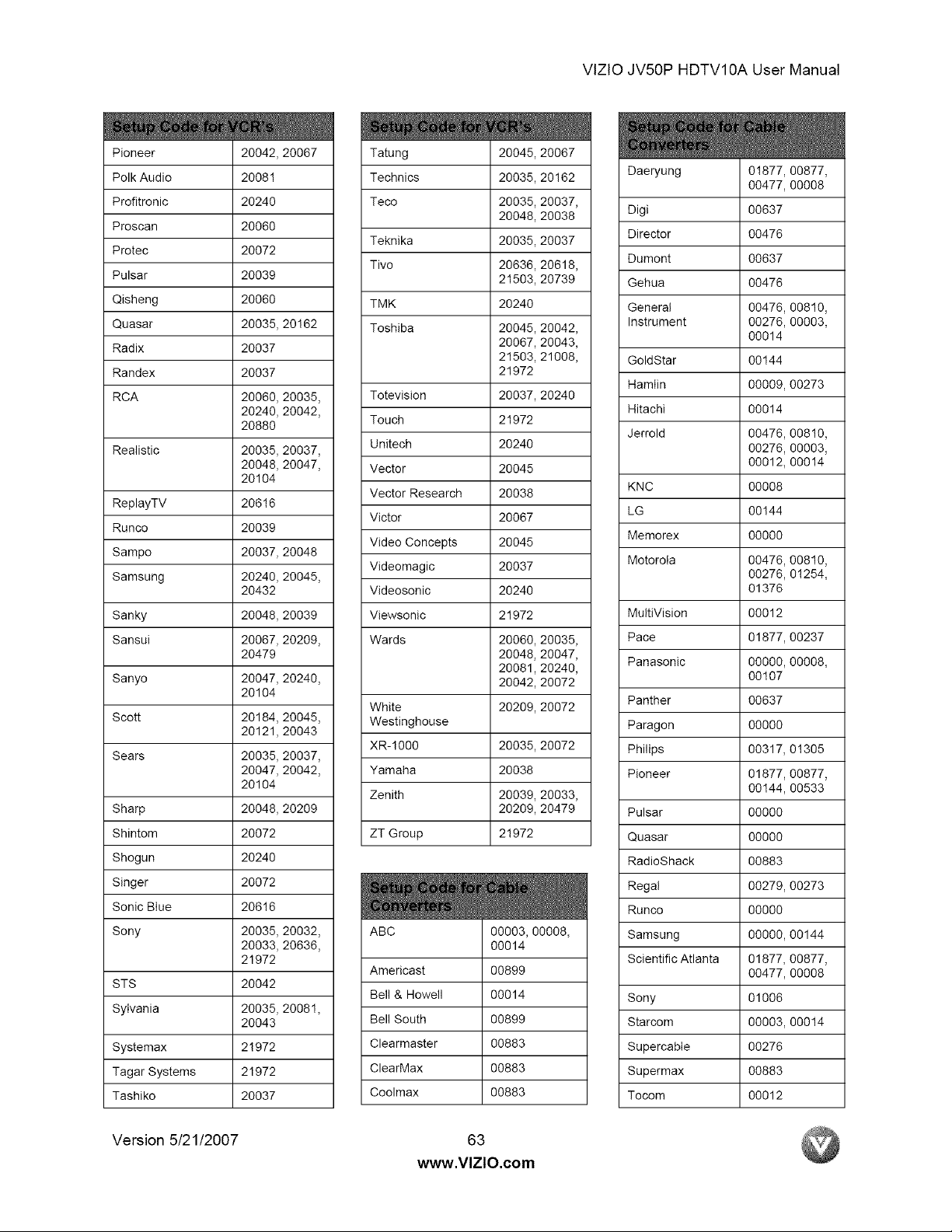

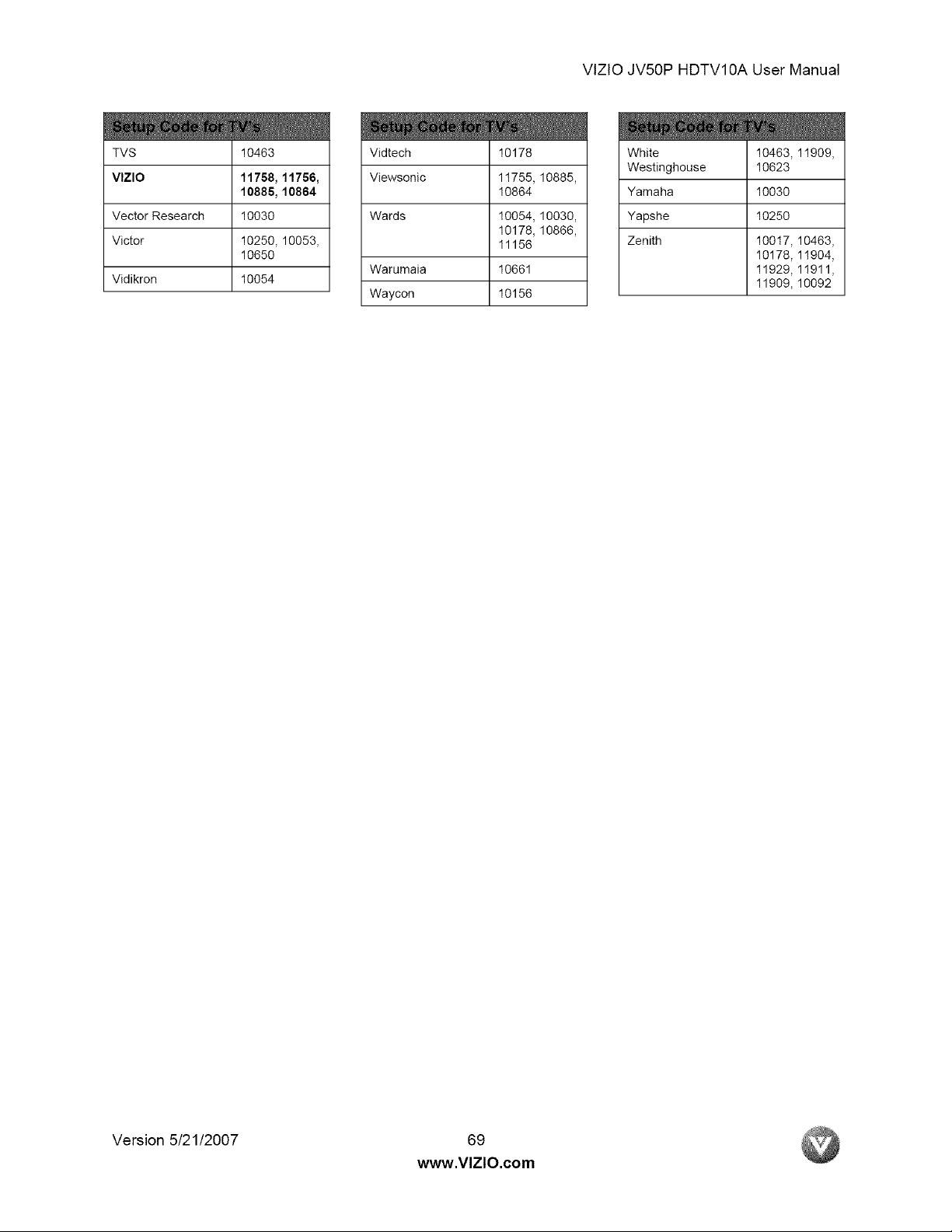

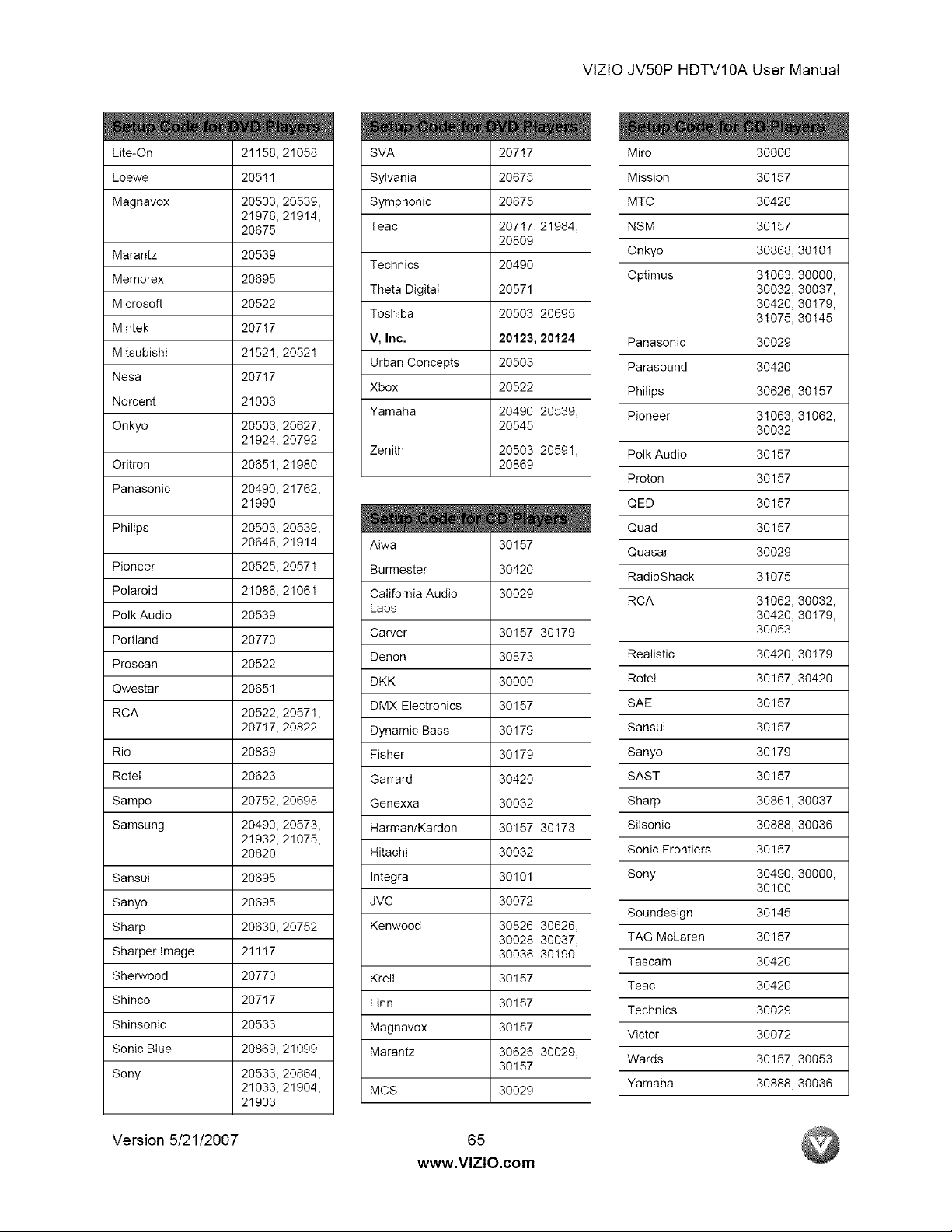

7.3 Equipment Program Codes for Remote ............................................................................................................ 62

7.4 Index ................................................................................................................................................................. 70

Version 5/21/2007 7

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

Chapter k Basic Contrats and Connections

Fronb Pane[

Power 'VlZlO' light - The VlZtO name lights white when powered on and orange when powered off.

Remote Control Sensor - This is the window through which all of the remote control signals pass to the sensor. Point the remote control directly at this window for the best

response to the remote signal.

z,a Side Pane[ Controls

(Power) - Switch the JV50P HDTV10A on by pressing the

button once. Press the button again to the JV50P HDTVl0A off.

MENU - This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will return to the previous

menu level.

C+/A & CH-/T - Use these buttons to step up or down the TV channels. While the OSD is active, these buttons function as up and

down controls in the OSD menus.

VOL+/I_ & VOL-/_I - Use these buttons to increase or decrease to the speaker volume. While the OSD is active, these buttons function

as left and right controls in the OSD menus.

INPUT - Repeated pressing of this buttons steps through the input sources in the following sequence: TV, AVl, AV2, Component 1, Component 2, RGB, HDMI 1, HDMI 2, HDMI 3 and

AUX IN. Once you have stepped through the entire sequence, you will return to the beginning.

Additionally, when the OSD is active, this button confirms the menu function to be adjusted. When the OSD is not active, pressing this button will display the current input mode.

AUDIO IN - Connect your MP3 player here. This input is also the physical input to the AUX IN in the INPUT menu, therefore; when referring to this input we are talking about sound only. There are

not images carry through this connection. Version 5/21/2007

www.VlZlO.com

VlZtOJV50PHDTVIOAUserManual

1.3 Reac Panel

Lefib Portion

10.

SERVICE - This custom communication port is for factory service only. OPTICAL DIGITAL AUDIO IN - When viewing video from equipment with an Optical Audio

Output, you may connect it to this SPDIF Optical connector using a compatible cable. The red color band on the rear of the TV indicates this connection.

HDMI 1 / HDMI 2 - Connect a source for digital video such as a DVD multimedia player or set top box through these all digital connector. The white color band on the rear of the TV

indicates this connection. Your VlZIO Certified HDMI cables are available for purchase from or by calling 888-VIZtO-23 (888-849-4623).

HDMI 3 - Connect a source for digital video such as a DVD multimedia player or set top box through this all digital connector. The white color band on the rear of the TV indicates this

connection. For users who want to connect to a DVl enabled device, use a DVI-HDMI cable and connect the Analog Audio output of the device to the L+R AUDIO here.. Your VIZIO

Certified HDMI and HDMI-DVl cables are available for purchase from www.vizio.com or by calling 888-VIZIO-23 (888-849-4623).

RGB PC - Connect the video and audio from a computer here. The blue color band on the rear of the TV indicates this connection.

COMPONENT 1 (YPb/CbPr/Cr with Audio L/R) - Connect the primary source for component video devices such as a DVD Player or set top box here. From left to right, use

green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio inputs. The green color band on the rear of the TV indicates this connection.

COMPONENT 2 (YPb/CbPr/Cr with Audio L/R) - Connect the secondary source for component video devices such as a DVD Player or set top box here. From left to right, use

green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio inputs. The purple color band on the rear of the TV indicates this connection.

AVl In - Connect the primary source for composite video devices, such as a VCR or video game. Use the white and red connectors to connect the external audio from the same source.

The yellow color band on the rear of the TV indicates this connection.

AV2 In - Connect the secondary source for composite video devices, such as a VCR or video game. Use the white and red connectors to connect the external audio from the same source. The orange color band on the rear of the TV indicates this connection.

DTV - Connect to an antenna or digital cable for Digital TV.*

Connecbions

I I I

* For digital

TV stations in your area visit www.antennaweb.orq.

Version 5/21/2007 9

www.VlZlO.com

Riqht Portion

VlZtOJV50PHDTV10AUserManual

11.

12.

13.

OPTICAL DIGITAL AUDIO OUT - When the DTV input is selected for viewing, the digital audio associated with digital programming will be available on this SPDIF Optical connector

for connection to your home theatre system. The white color band on the rear of the TV

indicates this connection. Audio Out - Connect the audio from the Plasma HDTV to an external device, such as a

home theatre system, external amplifier or stereo. Speakers cannot be connected directly to here. The white color band on the rear of the TV indicates this connection.

AC IN - Plug-in the supplied AC Power Cord here.

Version 5/21/2007 10

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

1.4 VIZIO Universal Remote Eonbrol

The VlZtO Universal Remote Control is a comprehensive remote that can be used to control up to four different components. The remote button functions are explained on the following pages.

Remote LED - Blinks when the remote operates.

This button starts all programming of the Remote Control.

Press this button to turn the TV on from the Standby mode. Press it again to return to the Standby mode.

This button selects a programmed DVD player.

This button selects a programmed Audio Receiver/Amp/Home Theatre System.

This button selects a programmed cable TV set-top box or a satellite TV set-top box.

This button has been pre-programmed to select the codes to operate the VlZtO HDTV.

Use these buttons to select a channel or enter a password.

This button allows the user to cycle through the inputs.

This DASH button is for the DTV mode. When selecting a digital channel directly use this button for the separation of main and

sub-channels. For example, channel 28-2 would be selected by the button sequence 2 8 DASH 2.

iS a

supportinq up to 4 devices {see T% VCR,

with vour 91ZIO TY_ press the TV button on the remote to set the functions back to Tk/,

Version 5/21/2007 11

www,VlZlO,com

VlZtO JV50P HDTV10A User Manual

Use this button for the On-Screen Display (OSD) menus.

This button displays the image and system information display.

Use the NaVigation Wheel to operate the On-Screen Display (OSD) after it has been activated by pressing

the MENU button.

Use the OK button to select your chosen option in On- Screen Display (OSD) menus.

6UIDE - This button displays program information. Noo: fiis bu to_ is o_y u_ctio_a o_ DTV.

EXIT - This button exits the On-Screen Display (OSD) menus.

VOL (+ or -) - These buttons turn the volume up or down.

LAST - This button recalls the previously viewed channel.

MUTE - This button turns the sound on and off.

CH (+ or -) - These buttons change the channels up or down.

Version 5/21/2007 12

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

WhenCABLEisselectedandthecodetomatchyourCableBoxhasbeenentered,thisbutton

willoperatetheCableBoxthesameasthisbuttononyourCableRemote.

WhenCABLEisselectedandthecodetomatchyourCableBoxhasbeenentered,thisbuttonwill operatetheCableBoxthesameasthisbuttononyourCableRemote.

WhenCABLEis selectedandthe codeto matchyourCableBox

hasbeenentered,thisbuttonwilloperatetheCableBoxthesame

asthisbuttononyourCableRemote.tfyouhavea SatelliteBox andthecodetomatchyourSatelliteBoxhasbeenentered,thisbuttonwill operatetheSatelliteBoxthesameasthisbuttononyourSatelliteRemote.

WhenCABLEis selectedandthecodeto matchyourCableBox hasbeenentered,thisbuttonwilloperatetheCableBoxthesame

asthisbuttononyourCableRemote.Ifyouhavea SatelliteBox

insteadandthecodeto matchyourSatelliteBoxhasbeenentered,this buttonwilloperatetheSatelliteBoxthesameasthisbuttononyourSatellite

Remote.

PressthisbuttontoselectTVprogramming.

Repeatedpressingof thisbuttonwillswitchbetweenAVl and

AV2inputs.

RepeatedpressingofthisbuttonwillswitchbetweenComponent

1andComponent2inputs.

RepeatedpressingofthisbuttonwillswitchbetweenHDMI1and HDMI2 inputs.

Thisbuttoncyclesthroughthe availablescreenformats. The optionsare Wide,Normal,Zoom,Panoramic.Noe: in RGB/PC

modefie opio_s are 4:3 a_d '16:9. This buttonalso starts recordingwhenusingtheremotetocontrolyourCable/SatelliteBox orVCR.

Thisbuttonallowstheusertoselectthesleepoptionsbyadjusting

thetimerin30minuteincrementsupto 120minutes.Thisbutton

also Pausesplaybackwhen usingthe remoteto controlyour

Cable/SatelliteBoxorVCR.

ThisbuttonwillselecttheMTSoptionsofStereo,SAPorMonoin standardTVmodeandalternateaudiochannels,whereavailable,in DTVmode.ThisbuttonalsostartsPlaybackwhenusingtheremote

tocontrolyourCable/SatelliteBoxorVCR. Thisbuttonwill selecttheClosedCaptionmode.Theoptionsare

OFF,CCl, CC2,CC3,CC4,TEXT1,TEXT2,TEXT3ORTEXT4. ThisbuttonalsoStopsplayback/recordingwhenusingtheremoteto

controlyourCable/SatelliteBoxorVCR.

Pressthisbuttonto"Freeze-Frame"thecurrentscreen.Pressthis buttonagainthe continueplaying.Thisbuttonalsoskipstothe

previouschapter when using the remote to controlyour Cable/SatelliteBoxorDVDPlayer.

Pressthisbuttontoswitchtheaudiofromthemainscreentothesub-screenwhileinPIPorPOP mode.

Usedtoswaptheinputsfromthemainscreenandthesub-screenwhileinPIP/POPmode.

Version5/21/2007 13

www.VlZlO.com

VlZlOJV50PHDTV10AUserManual

m4. Insertion of 8arteries in the Remote Control

Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the battery cover.

Precautionary Tips for Inserting the Batteries:

Only use the specified AA batteries. Do not mix new and old batteries. This may result in cracking or

leakage that may pose a fire risk or lead to personal injury. Inserting the batteries incorrectly may also result in cracking or

leakage that may pose a fire risk or lead to personal injury. Dispose of the batteries in accordance with local laws and

regulations. Keep the batteries away form children and pets.

m.4.2 Remote Control Ranqe

Point the remote control at the remote control sensor to transmit the commands. Do not place any obstacles between the remote control and the receiver window. The effective range of the remote control is approximately 30 feet (10 meters) from the front of the

receiver window, 30° to the left and right, 20 ° up and down.

m°4°3 VIZIO Remote Control Precautions

The remote control should be kept dry and away from heat sources. Avoid humidity. If the TV responds erratically to the remote control or does respond at all, check the batteries. If the

batteries are low or exhausted, replace them with fresh batteries. When not using the remote control for a long period of time, remove the batteries.

Do not take the batteries apart, heat them, or throw them into a fire. Do not subject the remote control to undue physical stress, such as striking or dropping it.

Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.

Version 5/21/2007 14

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

Chapter Connectinq Equipment

2oi Which Video Connecbion Shou{d I Use?

The VlEIO JV50P has fivedifferentways to connectyourvideoequipment froma basicconnectiontothe most advanced fordigitaldisplays.

HDMI (High-Definition Multimedia Interface) - It is

the first and only industry-supported, uncompressed,

Best

(digital)

White

all-digital audio/video interface. HDMI provides an

interface between any audiolvideo source, such as a

set-top box, DVD player, or A/V receiver and an audio andlor video monitor, such as a digital television (DTV), over a single cable.

Best

(digital)

Good

(analog)

Best

(analog)

Better

(analog)

Good

(analog)

Noe: Fo_ mo_e i°ffo rete_ to fie Quick Sa_ Guide

Yellow

Orange

Black

Blue

Green

and

Purple

and

DTV Coaxial RF. When used for MPEG2 encoded

bit streams from ATSC broadcast programming, this

input takes advantage of the High Definition content.

TV Coaxial RF. This is the connection for standard

NTSC TV using antenna or cable.

RGB PC (VGA) - This video input has separate red,

green and blue color components. The signal carries horizontal and vertical sync information on the green signal. This is most commonly used for

PC input.

Component - The video signal is separated into three signals, one containing the black-and-white

information and the other two containing the color information. This enhancement over S-Video takes

advantage of the superior picture provided by progressive scan DVD players and HDTV formats.

Composite (AVl/2) - The complete video signal is carried through this single pin connector. This is the

most commonly used video connection.

Version 5/21/2007 15

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

2.2 Conneatinq Coa×ia[ [RF] 2020z Usinq Your Antenna or Oiqita[ CabLe _or OTY / TY

Turn off the power to the HDTV.

Connect the coaxial (RF) connector from your antenna or digital cable (out-of- the-wall, not from the Cable Box) to the DTV/TV CABLE/ANTENNA connector.

Turn on the power to the HDTV. Select TV using the INPUT button on the remote or side of the HDTV, or directly

by pressing the TV button on the Remote Control.

2.2.2 Usinq the Antenna or Cable throuqh vour VCR

Turn off the power to the HDTV and VCR.

Version 5/21/2007 16

Connect the "Output to TV", "RF Out" or "Antenna Out" connector on the rear of your VCR to the DTV/TV CABLE/ANTENNA connector at the rear of the HDTV.

Turn on the power to the HDTV and VCR. Select TV using the INPUT button on the remote or side of the HDTV, or directly

by pressing the TV button on the Remote Control.

www,VlZlO,com

VtZtOJV50PHDTV10AUserManual

a.3 Connectinq Your HOTV Set-Top 8ox

a0301 Usinq HOMI

HDTV Set-Top Boxes that have a HDMI digital interface should be connected to the HDMI input of the Plasma HDTV for optimal results.

Connecting your HDTV Set-Top Box {Best}:

Turn off the power to the HDTV and HDTV Set-Top Box.

Connect a HDMI cable to the HDMI output of your HDTV Set-Top Box and the other end to the HDMI1 Input (white color area) at the rear of the HDTV.

Turn on the power to the HDTV and HDTV Set-Top Box.

Select HDMtl using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote Control.

Version 5/21/2007 17

www.VlZlO.com

FoF HDTU SetoTop Boxes with DUI °

Turn off the power to the HDTV and HDTV Set-Top Box.

Using a HDMI-DVl cable, connect the DVl end to your HDTV Set-Top Box and the HDMI end

to the HDMI3 Input (white color area) at the rear of the HDTV.

Using an audio cable (white and red connectors), connect the cable to the audio output

connectors associated with the DVl output on your HDTV Set-Top Box and connect the other end to the audio connectors associated with the HDMI3 input (white area) at the rear of the

HDTV. Turn on the power to the HDTV and HDTV Set-Top Box.

Select HDMI3 using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote Control.

VlZlOJV50PHDTV10AUserManual

Note: The HDM r_t.>u is tO HD Video and wi no suppo_ all PC _o_mas Use the RGB PC inpu o_ a greater seectior o PC _o_mas.

_urHD

_Pera

Version 5/21/2007 18

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

2°3°2 Usinq Component Video

Connectinq Voum HDTV Set-Top Box {Bettem}:

Turn off the power to the HDTV and HDTV Set-Top Box. Connect the Y (green color) connector on your HDTV Set-Top Box to the corresponding Y

(green color) connector in the Component 1 group (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pb (blue color) connector on your HDTV Set-Top Box to the corresponding Pb (blue color) connector in the Component 1 group (green color area - row of connectors

nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pr (red color) connector on your HDTV Set-Top Box to the corresponding Pr (red color) connector in the Component 1 group (green color area - row of connectors nearest to

you when viewing from the rear of the TV) at the rear of the HDTV.

Using an audio cable (white and red connectors), connect the cable to the audio output

connectors associated with the Component output on your HDTV Set-Top Box and connect the other end to the audio connectors associated with the Component 1 input (green color

area) at the rear of the HDTV.

Turn on the power to the HDTV and HDTV Set-Top Box. Select Component 1 using the INPUT button on the remote or side of the HDTV, or directly

by pressing the Component button on the Remote Control.

Version 5/21/2007 19

www,VlZlO,com

VlZlOJV50PHDTV10AUserManual

2.4 Conneabinq Your Basic SebTop Box

24s Usinq O®mposite Video

Turn off the power to the HDTV and Set-Top Box.

Using the AV Cable, connect the Video (yellow color) connector on your Set-Top Box to the

corresponding Video (yellow color) connector in the AVl group (yellow color area) at the rear of the HDTV.

Using the white and red connectors, connect the cable to the audio output connectors

associated with the Video output on your Set-Top Box and connect the other end to the audio connectors associated with the AVl input (yellow color area) at the rear of the HDTV.

Turn on the power to the HDTV and Set-Top Box.

Select AVl using the INPUT button on the remote or side of the HDTV, or directly by pressing the AV button on the Remote Control.

2.4.2 Usinq Eoa× [RF]

Turn off the power to the HDTV and Set-Top Box.

Using a Coax (RF) cable, connect one end to the TV OUT (RF) on your Set Top Box

and the other end to the DTV/TV input at the rear of the HDTV. Turn on the power to the HDTV and Set-Top Box.

Select TV using the INPUT button on the remote or side of the HDTV, or directly by pressing the TV button (below the WIDE button) on the Remote Control.

Version 5/21/2007 20

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

a.5 Connectinq Vouc DVD PLaver

You have several options for connecting your DVD player to your JV50P; HDMI, Component, AV (S- Video or Composite) inputs. Based on your configuration, you can decide which option is right for you.

3,,5,1 Usimq HO[vl_ DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface) should be

connected to the HDMI input of the VlZtO JV50P for optimal results.

Connectinq vour DVD PLayer [Best}:

.®

Turn off the power to the HDTV and DVD player.

Connect a HDMI cable to the HDMI output of your DVD player and the other end to the

HDMtl Input (white color area) at the rear of the HDTV.

Turn on the power to the HDTV and DVD player.

Select HDMI1 using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote Control.

Version 5/21/2007 21

www.VlZlO.com

For OgO P[avers with Ogl:

Turn off the HDTV and DVD player.

Using a HDMI-DVt cable, connect the DVl end to your DVD player and the HDMI end to the

HDMI3 Input (white color area) at the rear of the HDTV.

Connect an audio cable (white and red connectors) to the audio output connectors associated with the DVl output of the DVD player and connect the other end to the audio

connectors by the HDMI3 input (white area) on the HDTV.

Turn on the power to the HDTV and DVD player.

Select HDMI3 using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote.

VlZlOJV50PHDTV10AUserManual

Version 5/21/2007 22

www.VlZlO.com

2°S02 Usimq Compomemt Video

Conneotinq Voum OVO P[avem (@ettem}:

VlZlOJV50PHDTV10AUserManual

Turn off the power to the HDTV and DVD player. Connect the Y (green color) connector on your DVD player to the corresponding Y (green

color) connector in the Component 1 group (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue color) connector in the Component 1 group (green color area - row of connectors nearest to

you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color) connector in the Component 1 group (green color area - row of connectors nearest to you

when viewing from the rear of the TV) at the rear of the HDTV.

Using an audio cable (white and red connectors), connect the cable to the audio output

connectors associated with the Component output on your DVD player and connect the other end to the audio connectors associated with the Component 1 input (green color area) at the

rear of the HDTV.

Turn on the power to the HDTV and DVD player. Select Component using the INPUT button on the remote or side of the HDTV, or directly by

pressing the Component button on the Remote Control.

Version 5/21/2007 23

www.VlZlO.com

_08°3 Usinq Composite {RV} Video Eonneotinq your DVD Prayer {Good}:

Turn off the power to the HDTV and DVD player.

Connect the Video (yellow color) connector on your DVD player to the Video (yellow color) connector in the AVl group

(yellow color area).

Connect the R (red color) and L (white color) audio connectors on your DVD player to the corresponding R (red color) and L (white

color) audio input connectors in the AVl group (yellow color area).

Turn on the power to the HDTV and DVD Player. Select AVl using the INPUT button on the remote or side of the

HDTV, or directly by pressing the AV button on the Remote Control.

VlZtOJV50PHDTVIOAUserManual

2.6

Connectinq Your VCR or Video Camera

Turn off the HDTV and VCR or Video Camera. Connect the Video (yellow color) connector on your VCR or

Video Camera to the Video (yellow color) connector in the AVl group (yellow color area).

Connect the R (red color) and L (white color) audio connectors on your VCR or Video Camera to the corresponding R (red color) and L

(white color) audio input connectors in the AVl group (yellow color area).

Turn on the power to the HDTV and VCR or Video Camera. Select AVl using the INPUT button on the remote or side of the

HDTV, or directly by pressing the AV button on the Remote Control.

Version 5/21/2007 24

www.VlZlO.com

2.7 Connectinq a PC Computer

Turn off the power to the HDTV and PC Computer.

Connect a 15-pin D-Sub RGB (VGA) cable to the RGB output of

your pc computer and the other end to the RGB PC input (blue

area) at the rear of the HDTV.

Connect the Audio Out on your pc computer to the RGB PC Audio

input (blue area) at the rear of the HDTV.

Turn on the HDTV and PC Computer.

Select RGB using the INPUT button on the remote or side of the HDTV, or

directly by pressing the RGB button on the Remote Control.

VlZlOJV50PHDTV10AUserManual

s,7,z Preset PC Reso[obioms

If connecting to a PC through the RGB PC input, set the TV timing mode to VESA 1366x768 at 60Hz

for best picture quality (refer to the graphic card's user guide for questions on how to set this timing

mode). Please see the table below for the factory preset resolutions.

640x480 640x480 720x400 800x600 800x600

800x600 1024x768 1024x768

*1366x768

NOTES: N = Negative,

Version 5/21/2007

60 75 70 60 75 85 60 75 60

Positive, * = Primary (Native) Mode

31.5

37.5

31.46

37.9

46.9

53.7

48.4

60.0

47.7

60.317

www.VlZlO.com

59.94

75.00

70.08

85.06

60.01

75.03

60.00

N N N P P P N P P

N N P P P P N P N

25.175

31.500

28.320

40.000

49.500

56.250

65.000

78.750

85.500

VtZtOJV50PHDTV10AUserManual

2.8 Conneotinq the S°£ WireLess Surround Sound

The JV50P is the first HDTV to giving a full HD experience by providing beautiful High Definition visual experience and an awesome High Definition 5.1 Surround Sound audible experience.

The front left, right and center channel speakers are fixed below the screen of the JV50P HDTV. The sub-woofer requires only to be connected to a wall socket and then it receives the sound signal

wirelessly from the HDTV. The sub-woofer cabinet contains the amplifier to power the sub-woofer itself plus the rear left and right satellite speakers which are connected to it.

As the low frequency sound from the sub-woofer is not directional it can be placed in a convenient location anywhere in the room. We suggest that you place it on the floor behind the couch where nobody

will trip over the power and speaker cables. On the rear of the sub-woofer cabinet there is a three pronged IEC power connector labeled AC IN to which you should connect the supplied power cable.

There also two connectors on the rear for the satellite speakers labeled SPEAKER, the red connector (RS) for the red plug on the right speaker wire and the white connector (LS) for the white plug on the left speaker wire. The

satellite speaker cabinets have keyhole slots in the rear for easy mounting on the wall behind the couch, (screws and wall plugs

are not included), or you may choose to place them on speaker stands, (not included).

Although the wireless system will operate without any setup as shipped from the factory, it is not dedicated to your HDTV and it is possible that it would pick-up the audio from your neighbor's

TV if they are lucky enough and purchase a JV50P as well! We advise you to dedicate your wireless system to your TV by following the Pairing Procedure to

devices to each other using the button on the rear of the sub-woofer labeled CH-SEARCH, PAIRING.

Version 5/21/2007 26

www.VlZlO.com

2.8.i Pairinq Procedure

1. Turn on the HDTV using the remote control.

2. Press the MENU button on the remote to activate the On Screen Display (OSD) which will display the

Picture menu.

VlZtOJV50PHDTV10AUserManual

Press the I_ button once and then press the OK

button to change to the Audio menu.

Make sure the Speakers and Wireless _.i2akers i i

selections are both On._lf not, use the _ and II buttons to correctly set them to On. (See Chapter 4 on how to navigate the OSD.)

Place the sub-woofer 10 ~ 12 feet away from the TV, preferably with the front, (the side with

the large round hole near the top), facing the TV screen.

Turn-off the HDTV.

Plug the sub-woofer power cable into a wall socket and it will power on automatically and the

power indicator light on the front will start flashing on and off*.

Press the CH-SEARCH, PAIRING button and while keeping is depressed turn on the HDTV using the remote.

When the power indicator light on the front of the sub-woofer stops flashing and remains on you have successfully paired the sub-woofer with the HDTV and you can release the button.

If the sub-woofer power indicator light does not remain on then the Pairing Procedure was not successful and you must repeat steps 1 ~ 9.

* When the HOTV is off the sub-woofer power indicator Uqhb will if[ash on and off at a slower rate to indicate

that it is in Sbandb V mode,

wireless channel

Ifi this does not work you must locate

wireless channel it is using,

Version 5/21/2007 27

www.VlZlO.com

can

HDTV ofifi on so

scan a

it or

VlZlOJV50PHDTV10AUserManual

2.q Connecbin9 an external Receiver/Amp 20q0m Usinq Ana[oq Aodio

Turn off the power to the Plasma HDTV and Receiver/Amp.

Using an audio cable (white and red connectors), connect the cable to the audio input

connectors on the Receiver/Amp and connect the other end to the ANALOG OUT (white area) audio connectors at the rear of the Plasma TV.

Turn on the power to the Plasma ......

HDTV and Receiver/Amp. Then press the menu button on the

remote control to open the On-Screen Display (OSD) menu.

Press the _ button on the remote control to select the Audio menu.

Press the a button on the remote to select Speakers.

Press the _ button on the remote to select Off so that the sound from the

Plasma HDTV will now be routed through your Receiver/Amp system.

Version 5/21/2007 28

www.VlZlO.com

a,q,a Usinq Optical Rudio

Turn off the power to the Plasma HDTV and Receiver/Amp.

Using an optical audio cable (SPDtF connector), connect the cable to the audio input

connector on the Receiver/Amp and connect the other end to the OPTICAL Audio Out (white area) audio connector at the rear of the Plasma TV.

Turn on the power to the Plasma ...........

HDTV and Receiver/Amp. Then press the menu button on the

remote control to open the On-Screen Display (OSD) menu.

Press the a button on the remote

control to select the Audio menu.

Press the _, button on the remote to

select Speakers.

Press the a button on the remote to select Off so that the sound from the Plasma HDTV will now be routed

through your Receiver/Amp system.

VlZtOJV50PHDTV10AUserManual

Version 5/21/2007 29

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

Chapter 3 Se inq Up to Watch TeLevision

For 'Preparing Your Plasma HDTV for Wall Mounting', see page 5.

3°1 @asio PLasma HDTU Start Up

Connecting the Power Cable Connect the power cord to the power cord connector on the back of the HDTV, and then plug the

power cord into an AC wall socket.

Connect Audio and Video Cables to the HDTV (see pages 15 ~ 25 for detailed steps)

Turning Power On Once all the components are connected, press the

Power ON button on the side of the HDTV, or press the Power ON (Red) button on the remote control.

Select Input Source Select the Input Source for the HDTV by pressing the

INPUT button on the side of the TV or using the Input button on the remote control. Pressing this button will

cycle you through the following options: TV, AV1, AV2, Component1, Component2, RGB, HDMI1, HDMI2,

HDMt3 and AUX IN.

Using DTV and TV with an Antenna or Cable

At first power on, the HDTV will have the DTV/TV input

selected and will guide through some setup screens. If it is not the first time the HDTV has been powered on,

you will need to select TV using the INPUT button on the remote control or the side of the HDTV, or directly

by pressing the TV button on the remote control, and

Auto Scan for the available TV channels.

The screen will show 'snow' and

the first Initial Setup OSD panel. Press the OK button on the

remote control.

Version 5/21/2007 3O

www.VlZlO.com

TheLanguagechoicescreenwillbe displayed;thedefaultEnglishoption

ishighlighted.Ifyouwishtochange theOSDlanguageto Fran£aisor Espa_ol,pressthe Q buttonon

theremotecontroltoselectthe languageyouwant.

Press the I1_ button on the remote to go to the next screen.

The Tuner screen will be displayed; default choice is Antenna. If you are

using Cable, press the Q:ton to highlight CABLE.

Press the I_! button on the remote to go to the next screen.

VlZtOJV50PHDTV10AUserManual

d. The Channel Scan screen will be

displayed; default choice is Scan. Press the OK button on the remote

control to commence the search for available channels to be stored into

memory. If you do not want to scan for channels

at this time, press the_, button on the remote to highlight Skip Scan and then press the OK button.

Version 5/21/2007 31

www.VlZlO.com

The screen will now change to show the progress of the search

for Analog (NTSC) and Digital (ATSC) channels.

Noe: DTV digila broadcas is no avaiabe in al aeas Reef owww.antennaweb.or.q o ge

ir#o_ma ion abou avaiabii_y i_syour a_ea ype o ar enemaard in which dimcion o poin you_

anenna. The c ar_e avaiabiily h_ough cabe depe_sds upon which cha__ne s you_ cabe operatol

suppiesinCea_QAM consu you cabe opera o_ mo_e in o_ma ion.

When finished, the Complete screen will be displayed to

informed that the HDTV has completed the Initial Setup.

VlZtOJV50PHDTV10AUserManual

Press the OK button on the remote control to exit and begin

watching TV.

Version 5/21/2007 32

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

3.a Watchinq a TV Proqram

Before you start watching TV, please make sure that any cable, satellite or off-air antenna connections are secure. Also, verify that the power cord is plugged into a correctly grounded electrical outlet or surge protector.

Press the power button on the remote or on the side of the HDTV. The VlZlO logo on the

front will change from orange to white.

There are 3 options for selecting your programming: a. If you are using an antenna or cable connected through the DTV/TV CABLE/ANTENNA

input, you can select TV directly by pressing the TV button on the remote, or by pressing the INPUT button on the remote or on the side of the HDTV.

b. If you are watching broadcasts through a cable or satellite set-top box connected by an

HDMI cable, select HDMI directly by pressing the HDMI button on the remote, or by pressing the INPUT button on the remote or on the side of the HDTV.

c. If you are watching broadcasts through a cable or satellite set-top box connected by a

Component (YPbPr) cable, select Component directly by pressing the Component button on the remote, or by pressing the INPUT button on the remote or on the side of the HDTV.

When using option 2a, press the Channel buttons on the remote or the +/- buttons on the side of the HDTV to change the channel. Noe: The Chan_e bu o_s o_ the side o _e HDTV

a_ld on he remoe con_o wi _o work i/_you are watching a p_o£;_am using HDM Componen and AV inpu s.

3,3 Rdoustinq Basic HDTV Settinqs

Volume To increase the volume, press and hold the VOL+ or VOL- button on the side of the Plasma HDTV or

remote control until the desired level is reached.

TV Channels To step up or down through the available TV channels, press the CH+ or CH- button on the side of the

HDTV or remote control once for the next or previous channel, or hold it depressed until the desired channel is reached. Noe: Chancre up and down wi o_y opeae in DTV and _V modes

Wide Using this feature, you can watch video content in different size modes on the HDTV. Press the WIDE

button on the remote control to switch among the modes. Fore more information see Section 4.17 - Understanding Viewing Modes, on page 53.

Version 5/21/2007 33

www.VlZlO.com

VlZtOJV50PHDTVIOAUserManual

3.4 Proqram Information

Press the GUIDE button on the remote and program information for the channel you are watching will be displayed on the screen with the live program content in a small window in the lower left corner.

Press the _ or _ button to scroll up or down the channels. Each time you pause at a channel, the program list will update with the program schedule for the channel and the window will show the live program for that channel. Press the GUIDE button to exit this feature.

3.5 Information on HDTV Status

When you change TV channels or inputs, or press the INFO button on the remote, an Information Banner is displayed for a few seconds to tell you the status of the Plasma HDTV.

I Program Information:

Provided by Broadcaster

Audio is Stereo

Number

I TV Channel

Station Name: provided by Broadcaster

Source is Cable

I ProgramRating

Closed Caption is available

I NTSC SDTV (Standard Definition TV)

Version 5/21/2007 34

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

Chapter 4 Rdvanced RdOustment off HDTV

4,1 Usinq the On Screen Oisptav {OSO}

The remote control or the control buttons on the right hand side of the TV can control all the function settings. The On Screen Display (OSD) allows you to adjust the save contrast, brightness and other

settings. The TV will save changes made to the settings, even if the TV is turned off.

The OSD consists of several menu options: Picture Adjust, Audio Adjust, Setup, TV Tuner Setup and Parental Controls. The main menu options may very depending on your selected input source.

Note: Some of the main menu options may have additional submenus, i.e. the TV Rating submenu for Parental Controls.

Press the MENU button on the remote control or the side of the TV and the Picture Adjust menu will be

shown on the screen.

Press the Dor _ button on the remote control or the VOL + or VOL - button on the side of the HDTV to

select one of the other menu options.

Picture Adjust Audio Adjust TV Tuner Setup Setup Parental Controls

Once the menu option is displayed, press the _ or a button on the remote control or the CH + or CH - button on the side of the TV to select one of the items to adjust.

Press the I_ button on the remote control or the VOL - button on the side of the HDTV to begin adjustment of the item.

Press OK when finished.

Repeat steps 2 through 5 to adjust additional options within this menu. Once the adjustments are completed press the MENU button repeatedly to exit the OSD

completely.

Version 5/21/2007 35

www.VlZlO.com

4.a DTV / TV input Picture Rd]usbment

4.2.1 Picture

When theMENU buttonispressed,theOn Screen Display (OSD) appears on the PICTURE adjustmentpage. Pressthe_l_buttontohighlight

the Picture Mode selection.

VtZtOJV50PHDTV10AUserManual

Use the U or I1_ button to choose from Custom, Standard, Movie and Game.

If Standard, Movie or Game is chosen for the Picture Mode, then the only Picture Adjustments

available for you are for the Backlight and Advanced Video; the rest are preset.

L A

4.2.s 8riqhtness

Pressthe_ buttontohighlighttheBrightnessselection. Pressthe_button tostartadjustingthebrightnessand themenu page willdisappearand be replacedby

a smallBrightnessIndicatorBar so you can see thebrightnesslevelbetween theminimum and maximum availablelevels.Use theD or_ buttontoadjustthelevel.

The Brightness adjusts the black levels in the picture. If the brightness is too low you will not be able to see the detail in darker parts of the picture and if the brightness is too high the picture will look washed

out.

4,2.3 Contrast

Pressthe_ buttontohighlighttheContrastselection. Pressthe_ buttontostartadjustingthecontrastand themenu page willdisappearand be replacedby a

smallContrastIndicatorBar so you can see the contrastlevelbetween the minimum and maximum availablelevels.Use theD or _ buttontoadjustthelevel.

The Contrast adjusts the white levels in the picture, tf the contrast is too low the picture will look washed out and if the contrast is too high you will not be able to see any detail in the bright parts of a picture.

4.2.4 Color

Press the _ button to highlight the Color selection. Press the_ button to start adjusting the color and the menu page will disappear and be replaced by a

small Color Indicator Bar so you can see the color level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

The Color adjusts the amount of color in the picture.

Version 5/21/2007 36

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

4°2,S Tint

Press the i_ button to highlight the Tint selection. Press the_button to start adjusting the tint and the menu page will disappear and be replaced by a small

Tint Indicator Bar so you can see the tint adjustment to the left or right of the nominal position. Use the D or _ button to adjust the level.

The Tint adjusts the hue of the picture. The easiest way to set tint is to look at flesh tones and adjust for a realistic appearance. In most cases, the default middle position is correct, tf people's faces look too

orange try reducing the level of color first as the case of this is often too much color

4.2.6 Sharpness

Press the _ button to highlight the Sharpness selection. Press the _ button to start adjusting the sharpness and the menu page will disappear and be replaced by

a small Sharpness Indicator Bar so you can see the sharpness level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

The Sharpness adjusts the sharpness of the picture.

4,2,7 CoLor Temperature

Press the _ button to highlight the option for Color Temperature selection.

The default is COOL; this is the 9300K setting. Press the D or _ button if you want to choose

the Normal or Custom option.

If you choose the Custom option, then a new menu will be displayed showing the primary color items, Red, Green and Blue. Press the_i button

to highlight the color you wish to adjust. Press the _button to start adjusting the color and

the menu page will disappear and be replaced by

a small Color (Red, ....Green....°rBlue) Indicator Bar

as before. Use the D or U button to adjust the color.

Press the OK button when finished. Repeat the procedure to adjust the other colors if desired.

Version 5/21/2007 37

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

4.2.8 Rdvanced Video

Press the a button to highlight the option for Advanced Video selection and press the OK button. A new menu will be displayed showing the

advanced functions available for fine tuning of the picture.

DNR

Press the a button to highlight DNR (Dynamic Noise Reduction). Use this feature to diminish

picture artifacts caused by the digitizing of image motion content that may be present in the picture. Press the D or _ button to choose from the

Low, Medium or Strong setting.

Black Level Extender

Press the _ button to highlight Black Level Extender. Use this feature to increase the picture reproduction performance

On or Off.

in the dark areas of the picture. Press the _ or _ button to turn this feature

Off,

White Peak Limiter

Press the _ button to highlight White Peak Limiter. Use this feature to limit excessive white in bright areas of the picture, caused by a lower sync level for a channel being received from the antenna or cable.

Press the D or _ button to turn this feature On or Off.

CTI

Press the _button to highlight CTI (Color Transient Improvement). This feature can be used to reduce the time taken to transition from one color to another. The effect will be seen as sharpening the border

between colors. Press the D or _ button to choose from the Off, Low, Medium or Strong setting.

Flesh Tone

Press the _, button to highlight Flesh Tone. In some cases, activation of this feature can result in a more pleasing production of sky and flesh color. Press the D or _ button to turn this feature On or Off.

Adaptive Luma

Press the a button to highlight Adaptive Luma. Large areas of darkness in a picture will result in a lower Average Picture Level (APL) and the overall picture will look too dark; activation of this feature will

raise the APL to counteract this effect. Press the D or _ button to turn this feature On or Off.

Version 5/21/2007 38

www.VIZIO.com

VlZlO JV50P HDTV10A User Manual

A°3 DTV / TV Input Rudio Rd]usbmemb

A0301 VoLume

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE adjustment page. Press the _ button to display

the AUDIO page.

Press the Q button to highlight the Volume selection. Press the_ button to start adjusting the volume and the menu page will disappear and be replaced by a

small Volume Indicator Bar so you can see the volume level between the zero and maximum available levels. Use the D or _ button to adjust the level.

The Volume Indicator Bar will also appear when watching a program on your TV is the Volume button on the remote or the side of the TV is pressed.

A0302 Bass

Press the Q button to highlight the Bass selection. Press the_ button to start adjusting the bass and the menu page will disappear and be replaced by a

small Bass Indicator Bar, as before, so you can see the bass level between the zero and maximum available levels. Use the D or _ button to adjust for bass boost or attenuation.

A0303 'Treble

Press the _ button to highlight the Treble selection. Press the_ button to start adjusting the treble and the menu page will disappear and be replaced by a

small Treble Indicator Bar, as before, so you can see the treble level between the zero and maximum available levels. Use the D or _ button to adjust for treble boost or attenuation.

4.3,4 ORE {Ovnamic Ranqe Control}

Press the _ button to highlight the DRC selection. The Dynamic Range Control allows you to take advantage the adjustment of dynamic range compression

available with Dolby Prologic 1tdecoding. Press the_button to set the DRC to Off, %, ½, ¾ or Full.

4°3°5 Speakers

Press the _ button to highlight the Speakers selection. Press the _ button to turn the internal speakers On or Off.

Version 5/21/2007 39

www.VlZlO.com

4,3.6 Wireless Speakers

Press the _ button to highlight the Wireless Speakers selection.

VlZtOJV50PHDTV10AUserManual

Press the I1_ button to turn the Sub-Woofer and rear Satellite speakers On or Off. tf your JV50P is

receiving 5.1 Surround from an HD program or through the Optical Audio input then it will correctly

play it through the five speakers and one sub- woofer.

When 5.1 Surround Sound is beinq received indicator behind the Center SpeaRer 9ri[[e

the Red S.1

on the HOTV

on0 is of_ the

HDTV is

receivinq true S0m Surround Sound,

If the JV50P is receiving stereo from any program or input it will play it through all the speakers as Simulated Surround Sound. If you prefer to listen to stereo as stereo sound you can turn-off the Wireless

Speakers and the sound will only play through the left and right speakers of the HDTV.

4.3.7 SPOIF In

Press the _ button to highlight the SPDIF selection. Press the _ button to choose with which input you want the Optical Audio input (SPDIF) to be associated.

The choices are AVl, AV2, Component1, Component2, HDMI1, HDMI2 and HDMI3. If you do not have anything connected to this input it is best to leave it Off.

4.3.8 SpeaRer Settinq

Press the _lb button to highliqht the Speakers Setting selection and press the_ button. A new menu will be displayed showing the speaker adjustment functions available for fine tuning of

the speakers.

Version 5/21/2007 4O

www.VlZlO.com

4.30q Speaker tooatiom

Press the _ button to highliclht the Speaker Location selection and press the _ button. A new menu will be displayed showing the all of the

speakers and in the default Auto mode. In the Auto mode, each speaker is highlighted in red as a

single tone is produced through the highlighted speaker. This helps you confirm that you have the

speakers in the correct locations and that all speakers are functioning.

You may use the _ button to manually choose a speaker through which to play the tone.

4.3,,mo Speaker Trim

Navigate to the Speaker Setting menu and press the _ button to highlight the Trim selection and

then press the _ button. The Trim menu will be displayed, tn this menu you can adjust the relative volume level of each speaker individually.

Press the _ button to highlight the speaker you wish to adjust. Use the D or _ button to adjust

the level.

VlZlOJV50PHDTV10AUserManual

4o3omm Speaker Oistanoe Setup

Navigate to the Speaker Setting menu and press _' the _ button to highlight the Speaker Distance Setup selection and then press the _ button. A

new menu will be displayed showing the distance of the viewer/listener from the speakers. In this

menu you can set the distance you will be sitting from the speakers and the JV50P will adjust the

audio delay so that the sound from each speaker will reach your ear at the correct time.

Press the _ button to highlight the speaker you wish to adjust. Use the D or _ button to adjust

the distance.

Version 5/21/2007 41

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

4.4 DTU / TU Tunem Setup

When you first used your JV50P you will have setup your TV for DTV / TV channels using the Initial Setup screens. If you did not do this or if your setup has changed, you can do this from the TV TUNER SETUP

menu.

4,4.1 Tuner Mode

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE

adjustment page. Press the _ button to display the TV page.

Press the _ button to highlight the Tuner Mode selection.

Press the _ button to choose Cable or Air (Antenna) depending upon which equipment you have attached to the DTV / TV Input.

4.4,2 Ruto Search

Press the _ button to highlight the Auto Search selection.

Press the _ button to Auto Search for TV channels available. The TV will automatically

search for analog and digital channels.

4,4,3 Skip Channel

After the TV has stored all of the available DTV channels in memory you will find that some

channels will be too weak to watch comfortably or they may be channels you do not want to see.

Select the channel you wish to remove, press the MENU and i_ buttons to open the TV TUNER

SETUP menu and then press the button to highlight SKIP CHANNEL. Press button to select this channel to be skipped when using the CH+

or CH- button. You will still be able to select this channel using the number buttons on the remote control.

4.4.4 'Time Zone

Setting the correct Time Zone for your area will ensure that the correct program times are shown

after pressing the GUIDE button on the remote control.

Press the _ button to highlight the Auto Search selection.

Press the _ button to select your

area.

4.4.5 OavUqht Savinq

As for Time Zone, setting the daylight saving time for your area will ensure that the correct program

times are shown after pressing the GUIDE button on the remote control. Press the _ button to highlight the Daylight Saving selection. Press the _ button to select On or Off.

Version 5/21/2007 42

www.VlZlO.com

VlZlOJV50PHDTV10AUserManual

4,5 DTV / TV Input Setup

4.S.i Lanquaqe

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE

adjustment page. SETUP page is displayed.

Press the _ button to highlight the Language selection. The default is English.

Press the _ button to select Fran£ais or Espafiol.

4.5o2 PiP {Picture°In°Picture}

Pressthe _1 buttontohighlightthePIP selection ..... ...._'"....

and press the _ button. A new menu will be displayed which allows you to configure the PIP

function.

Press the a button until the

Style

Press the D or _ button to choose from the Off, PIP, POP. In the Off mode the HDTV will display

the main screen. In the PIP mode a smaller sub screen will be displayed on top of the main screen.

For the POP mode the main screen and sub screen will of equal size and be positioned side-

by-side.

Input ....................................

Press the _button to highlight Input and then press the D or _ button to choose the input source for the sub screen. The input sources available will vary according to which input is used for the main

screen; see the table below to find which inputs can PIP/POP with each other.

DTV 1T,7

_[l[l[

Component

_GB

NOIOI

-JDMI

AU× iN

",,'"- Indicates which inputs are available for PIP/POP mode. Note: AUX IN implies that the Audio In input can be combined with all the different inputs which the TV

set has in it in the POP mode or PIP when AUX IN is the main screen. If not main screen, you will get a small blank (black) screen with no audio or sound.

Version 5/21/2007 43

www.VIZlO.com

VlZlO JV50P HDTVIOA User Manual

Position

Press the_button to highlight Position and press the _ or I_ button to choose where on the

picture you want the PIP screen positioned over the main screen.

Size

Press the_ button to highlight Size function and press

the D or_ button to choose Small, Medium

or Large.

See section 1.4 VlZlO Universal Remote Control for the button AUDIO which you can use to switch

the audio source from the main screen (default) to the sub screen, and the button SWAP which you use to switch the main screen input source to the sub-screen and vice-versa.

4°5,3 Sleep Timer

Press the _ button to highlight the Sleep Timer selection. Press the a button to select the timer

to turn-off the TV in 30, 60, 90 or 120 minutes. See the explanation of Remote Sleep button in

section 1.4 VlZlO Universal Remote Control.

4.5.4 Rnaloq CC

When watching regular analog (NTSC) TV, the Analog CC (Closed Caption) feature is available in

the Setup menu. Press the _ button to highlight the Analog CC

selection. Press the _ button to select CC1, CC2, CC3 or CC4. Closed Caption for regular TV is usually CCl or CC2.

4,,5,50iqitaL CC

When watching DTV, the Digital CC Closed Caption feature is available in the Setup menu. Press the _ button to highlight the Digital CC selection.

Press the _ button to select Service 1.

4.5.6 Oiqitsl CC Style

When selecting Digital Closed Caption you are also able to customize the look of the Closed

Caption. Press the _1_ button to highlight the Digital CC

Style selection. The default is Broadcast which means the style is the same as the broadcast

channel has chosen for transmission. Press the _ button to select Custom.

The Custom page allows you to change the font size and color, the background color, and the

transparency of the Closed Caption.

Version 5/21/2007 44

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

4,S°7 Imaqe CLeanem

Plasma technologyhas an effectcalledImage

Sticking. If stationary pictures remain displayed for too long their ghost image will remain when the

picture is taken away; the image is sticking to the screen. Usually ghost images such as these

disappear after a few minutes during normal use but if the stationary image was left on the screen

for too long then the ghost image may be more persistent. To remove this image the JV50P has

an Image Cleaner function and you may choose this to remove the ghost image. You may let the

Image Cleaner cycle through its pre-programmed time of you may stop the function by powering the

HDTV off.

CAUTION: If you leave a stationary image on the screen for a few hours (a computer desktop image for example) it may be permanently burnt onto the screen and the Image Cleaner will not be able to remove

it. Station Iogos and ticker tape images my leave a ghost image but this is usually not permanent. Image Sticking is not covered under the warranty.

4.5.8 Reset R[[ Settinqs

Press the Q button to highlight the Reset All Settings selection. Press the _ button to reset the TV to the default factory settings.

Note: This does NOT reset the Parental Control Password.

4.6 DTY / TV Input Parental Control

4,B°l Channel Block

If you want to restrict certain channel and program viewing, you can do this by turning on the Parental Control. Selected programs, movies and channels can then be made available only after an authorized

password has been entered and accepted by the TV. _,

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE adjustment

page. Press the _button to display the PARENTAL page.

The Password must be entered before the TV will continue with Parental settings. The default password

set in the factory is0000. If you are going to use the Parental Control feature you should change the

password. Press the Q button to highlight the Channel Block

selection. Press the _ button to turn it on or off.

Version 5/21/2007 45

www.VlZlO.com

4.6.2 T_J Ratinq

Follow the procedure in the previous section 4.6.1 to display the Parental Control menu and then

press the _, button to highlight the TV Rating selection.

Press the _ button and the Block TV Rating panel will be displayed.

In the Block TV Rating panel you can customize the program blocking of the following TV ratings:

Y - All children Y7 - Older children

G - General audience PG - Guidance suggested

14 - Strongly cautioned

MA - Mature audience

You can also customize the TV ratings for the following content:

A - Sexual dialog D - Sexual dialog

L - Adult language S - Sexual situations

V - Violence FV - Fantasy violence

VlZtOJV50PHDTV10AUserManual

Press the _ or _ button to navigate through the TV rating options. Press the a button to block (locked) or allow (unlocked).

4.B,,3 Movie Ratinq

Press the _ button to highlight the Movie Rating selection. Press the _ button and the Block Movie Rating panel will be

In the Block Movie Rating panel you can customize the program blocking of the following

Movie ratings:

G - General audience

PG - Parental guidance suggested

PG-13 - Recommended for children 13 years of

age or older

R - Mature audience

NC-17 - No one under 17 years of age

X - No one under 17 years of age

Press the _ or _ button to navigate through the Movie rating options. Press the _ button to block (locked) or allow (unlocked).

Version 5/21/2007 46

www.VlZlO.com

displayed.

4.6.4 Blocked Unrated Proqramminq

Follow the procedure in the previous section 4.6.1 to display the Parental Control menu and then

press the _ button to highlight the Block Unrated TV selection.

Press the im button to turn-on or turn-off the blocking of programming that does not have a rating.

4_6_5 Chanqe the Password

Press the _ button to highlight the Access Code Edit selection.

Press the _ button and the new Password panel will be displayed.

Enter the new, 4-digit password using the number buttons on the remote. Enter it a second time to

confirm you entered it correctly.

VtZtOJV50PHDTV10AUserManual

Version 5/21/2007 47

www.VlZlO.com

4.7 HDMI Input Picture Rd]ustment

The Picture Adjust menu operates in the same way for the HDMI Input as for the DTV / TV input

in section 4.2. The menu difference is that there is no icon along the top for DTV / TV or Parental

Control adjustments.

q.8 HDMI Input Rudio Rdoustment

VlZtOJV50PHDTV10AUserManual

The Audio Adjust menu operates in the same way for the HDMI Input as for the DTV / TV input in

section 4.3. The menu difference is that there is no icon along the top for DTV / TV or Parental

Control adjustments.

4.q HDMI Input Setup

The Setup menu operates in the same way for the HDMI Input as for the TV input in section 4.3.5.

The menu difference is that there is no icon along the top for DTV / TV or Parental Control

adjustments.

Version 5/21/2007 48

www.VlZlO.com

4.1o Video Input Picture Rd]ustment

The Picture Adjust menu operates in the same way for Video Inputs (Component and AV) as for

the DTV / TV input in section 4.2. The menu difference is that there is no icon along the top for

DTV / TV adjustments.

4.11 Video Input Rudio Rd]ustment

VlZlOJV50PHDTV10AUserManual

The Audio Adjust menu operates in the same way for Video Inputs (Component and AV) as for the

DTV / TV input in section 4.3. The menu difference is that there is no icon along the top for

DTV / TV adjustments.

A°i2 Video Input Setup

The Setup menu operates in the same way for Video Inputs (Component and AV) as for the TV

input in section 4.3.5. The menu difference is that there is no icon along the top for TV adjustments.

Version 5/21/2007 49

www.VlZlO.com

4.13 Video Input Parentat Control

The Parental Control menu operates in the same way for Video Inputs (Component and AV) as for

the DTV / TV input in section 0. The menu difference is that there is no icon along the top for

DTV / TV adjustments.

4 14 PC Input Picture Ad]ustment

The Picture Adjust menu operates in the same way for the PC Input as for the DTV / TV input in

section 4.2 for Backlight, Contrast, Brightness and Color Temperature.

VlZtOJV50PHDTV10AUserManual

4°14.1 Auto Rd]ust

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE

adjustment page. Press the _button to highlight the Auto Adjust selection.

Press the _ button for the Plasma HDTV to adjust to the PC signal timing automatically.

4,14.2 Backtiqht

Pressthe_ buttontohighlighttheBacklightselection. Press the_ buttontostartadjustingthe brightnessofthe Backlightand the menu page willdisappear

and be replacedby a smallBacklightIndicatorBar so you can see the lightlevelbetween theminimum

and maximum available levels. Use the D or _ button to adjust the level.

The Backlight level does not affect the Brightness (black level) or Contrast (white level) of the picture, it adjusts the lamp current and this affects the overall brilliance of the picture.

4°14°3 Briqhtness

Press the _ button to highlight the Brightness selection. Press the _ button to start adjusting the brightness and the menu page will disappear and be replaced by

a small Brightness Indicator Bar so you can see the brightness level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

Version 5/21/2007 50

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

TheBrightnessadjuststheblacklevelsinthepicture.Ifthebrightnessistoolowyouwillnotbeableto seethedetailindarkerpartsofthepictureandifthebrightnessistoohighthepicturewilllookwashed

out.

4,14 4 Eontrast

Press the _ button to highlight the Contrast selection. Press the_ button to start adjusting the contrast and the menu page will disappear and be replaced by a

small Contrast Indicator Bar so you can see the contrast level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

4,14,5 [oLor Temperature

Press the _ button to highlight the option for Color Temperature selection.

The default is COOL; this is the 6500K setting. Press the D or _ button if you want to choose

the Normal or Custom option.

If you choose the Custom option, then a new menu will be displayed showing the primary color

items, Red, Green and Blue. Press the _ button to highlight the color you wish to adjust.

Press the _button to start adjusting the color and the menu page will disappear and be replaced by

a small Color (Red, ...Green....°rBlue) Indicator Bar

as before. Use the D or q button to adjust the color.

Press the OK button when finished. Repeat the procedure to adjust the other colors if desired.

Version 5/21/2007 51

www.VlZlO.com

VlZtOJV50PHDTVIOAUserManual

4,14.B HoS_ZE

Press the a button to highlight the H-Size selection. Press the_ button to start adjusting the horizontal size of the picture. Use the D or _ button to adjust

the horizontal size.

4.14°7 H,, Position

Press the a button to highlight the Horizontal Shift selection. Press the_ button to start adjusting the horizontal position of the picture. Use the D or

adjust the horizontal position.

A°iA°@ V° Position

Press the _ button to highlight the Vertical Shift selection. Press the_ button to start adjusting the vertical position of the picture. Use the D or _ button to adjust

the vertical position.

4o14.q Fine Tune

Press the _ button to highlight the Fine Tune selection. Press the_button to start tuning the to the PC signal. Use the D or _ button to adjust the tuning.

button to

4,iS PC Input Rudio Rd]ustment

The Audio Adjust menu operates in the same way for the PC Input as for the DTV / TV input in

section 4.3. The menu difference is that there are no icons along the top for DTV / TV and Parental

Control adjustments.

A°mS PC Input Setup

The Setup menu operates in the same way for the PC Input as for the DTV / TV input in section 4.3.5.

The menu difference is that there is no icon along the top for TV adjustments and no Closed Caption.

Version 5/21/2007 52

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

4.17 Understandinq Viewinq Modes

Normal Mode The original 4:3 aspect ratio (1.33:1 source) is preserved, so black bars are

added to the left and right of the display image. Standard TV broadcasts are displayed with a 4:3 Aspect Ratio. Movies in 4:3 Aspect Ratio may be referred

to as pan-and-scan or full frame. These movies were originally filmed in 16:9 (widescreen), and then modified to fit a traditional TV screen (4:3).

Wide Mode

When watching a standard broadcast or full-frame movie in this mode, the display image is stretched proportionately to fill the TV screen.

When watching a widescreen (1.78:1 source) program or movie, the display image fills the TV screen, tf you are watching a widescreen

(1.85:1 or 2.35:1 source) program or movie, there will still be black bars at the top and bottom.

When watching a standard definition 4:3 aspect ratio (1.33:1 source) the picture will fill the screen but will be stretched horizontally; people

will look fatter than they are.

Zoom Mode

When watching a widescreen (1.78:1, 1.85:1, or 2.35:1 source) program or movie, the display image is zoomed proportionally to fill the

width of the screen. The top and bottom are cut off to remove most of the source material's black bars. This mode is good for programs or

movies with sub-titles.

Panoramic Mode

When watching a standard broadcast or full frame movie in this mode, the 4:3 Aspect Ratio (1.33:1 source) display image is stretched

horizontally on the left and right sides to fill the TV screen. The center of the image is not stretched.

Version 5/21/2007 53

www.VIZlO.com

VlZtO JV50P HDTV10A User Manual

Chapter S Proqramminq Remote Control

You can program the remote control to work with up to four different pieces of equipment including your VlZtO VM60P HDTV. Listed below are the steps for programming your VCR, Cable Box and DVD Player.

S01.1 Proqramminq for VCR

1. Manually turn on the VCR.

2. Press the VCR button on the remote control.

3. Press and hold the SET button until the LED LIGHT flashes twice.

4. Find the programming code for your VCR in the code list in the back of this book and enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component and manufacturer.

5. Point the remote control at the VCR and press the POWER button. The VCR will turn off.

S0i 2 Proqramminq for Cable Set-Top Box

1. Manually turn on the Cable Box.

2. Press the CBL button on the remote control.

3. Press and hold the SET button until the LED LIGHT flashes twice.

4. Find the programming code for your Cable Box in the code list in the back of this book and enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is

entered. If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component and

manufacturer.

5. Point the remote control at the Cable Box and press the POWER button. The Cable Box will turn off.

Version 5/21/2007 54

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

S.1.3 Pmoqramminq riot OVO Player

1. Manually turn on the DVD Player.

2. Press the DVD button on the remote control.

3. Press and hold the SET button until the LED LIGHT flashes twice.

4. Find the programming code for your DVD player in the code list in the back of this book and enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is

entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component

and manufacturer.

5. Point the remote control at the DVD Player and press the POWER button. The DVD Player will turn

off.

5.i.4 Seamchinq for Component Codes

If you cannot find the manufacturer in the component list or the program code does not work, you can use the remote control to search for the correct component code.

To search for a component code:

1. Turn on the component.

2. Press the matching component button on the remote control.

3. Press and hold the SET button until the LED flashes twice.

4. Press 9 9 1. The LED flashes twice.

5. Point the remote control at the component and then alternate between pressing the POWER

button and the component button on the remote control until the component turns off. If the component still does not respond, clear the component button, then repeat the search

procedure.

Usinq a Cabte or SatetUte Remote

Your VlZtO remote uses codes 11758 and 10178 to work your Plasma HDTV. To use a cable or satellite remote to work the Plasma HDTV, refer to your cable or satellite remote user guide for more information

on how to program the remote. If your cable or satellite remote uses a 5-digit code (like most Direct TV units), first try 11758 and then, if that does not work, 10178. tf your cable or satellite remote uses a 4-

digit code, try 1758 and then 0178 as an alternative. If your cable or satellite remote uses a 3-digit code (Echostar or Dish Network for example), use code 627.

Not÷: Some bu o_s may _o _mctio__ as expec ed o__ you_ cabe o sae ile remo e. Typicaly power voLmea_dmuewi wod<.

Version 5/21/2007 55

www.VlZlO.com

VlZlOJV50PHDTV10AUserManual

Chapter 5 Maintenance and TroubLeshaatinq

8.1 Maintenance

Make sure that the power cable is removed from the socket before cleaning the TV.

Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the TV. Such chemicals may damage the housing, screen glass and remote control, and cause paint to peel.

Oteaninq the Housinq and Remote Oontrot

Use the VlZIO soft cloth (included) for cleaning.

If the housing or remote control is seriously contaminated, use a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to prevent water from penetrating into the housing. Wipe the display with a dry cloth after

cleaning.

CLeaninq the Screen

Use the VlZtO soft cotton cloth (included) to gently clean the screen. The screen glass is very fragile. Do not scrape it with any sharp object. Do not press or tap

the screen to avoid cracking. When the screen is seriously contaminated, use a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth

before cleaning to prevent water from penetrating into the housing. Wipe the display with a dry cloth after cleaning.

Version 5/21/2007 56

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

5.2 Tr®ubLeshootinq Guide

If the TV fails or the performance changes dramatically, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the

display still fails to perform as expected, contact the VlZtO for assistance by calling 1-(949) 428-2525 or e-mail us at techsupport(_,vizio.com.

No power. Make sure the power button is ON (White VlZIO Logo).

Make sure AC power cord is securely connected to the AC socket. Plug another electrical device (like a radio) to the power outlet to verify that the

outlet is supplying the proper voltage.

No sound. Check your audio connection

Press MUTE on the remote control, so that mute symbol disappears from the screen

Check your audio settings, your TV audio may be set to SAP, min or speakers off

Press the Volume + (Up) key on your remote control Make sure that headphones are not connected

If the screen is black. Check your input connections. Power is ON but no screen Make sure the video cable supplied with the TV is secured to the correct video

image, output port on the back of the VCR and the TV. Make any cable you have attached

to the TV is secured to the correct output your Set-Top Box, DVD, etc. Adjust brightness and contrast.

Check Source settings.

Wrong or abnormal colors If any colors (red, green, or blue) are missing, check the video cable to make sure it appear, is securely connected.

Control buttons do not work. Press only one button at a time. Remote Control does not Make sure batteries are inserted correctly

work. Batteries could be weak.

There appears to be image For best image quality, view HD wide screen programs where possible. If HD quality issues, content is not available view "Standard Definition" from a digital source. Standard,

analog TV will always be noticeably inferior to HD because your digital flat panel TV has video that is many times better than old TV's and so you can see interference and deficiencies you did not know you had.

You cannot see a picture. Make sure that the power cord is plugged into a grounded electrical outlet.

Make sure that the power button is turned on. Make sure that the selected input source is connected to a working input source. If your TV is connected to your computer in RGB or HDMI mode, press any key on

your keyboard to "wake" your computer.

You see a distorted picture or You may be getting interference from electrical appliances, cars, motorcycles, or hear unusual sound, fluorescent lights. If you have not mounted it on the wall, try moving your TV to

another location to see if this is the cause of the problem.

The picture has abnormal Make sure that the input source cable is attached securely and correctly to the back patterns, of your TV.

Make sure that the video input source is within the range of your TV. Compare the

video input source's specifications with your TV specifications.

The display image does not If you are using RGB mode, make sure that H Size and V Position in the On Screen cover the entire screen. Display (OSD) are set correctly.

If you are using TV, AV-C, AV-S or Component with 480i input, use the WIDE button

Version 5/21/2007 57

www.VlZlO.com

You can see a picture but you cannot hear sound.

The TV has pixels that are always dark or colored.

You see "noise" or "trash" on the screen.

You switch to a different input and the volume changes.

You switch to a different input and the screen size changes.

Tips for High-Definition Users.

VtZtOJV50PHDTV10AUserManual

on the remote control to scroll through various screen modes.

Make sure that the volume is not turned down. Make sure that the sound is not muted.

Make sure that your audio input source cables are connected securely and correctly.

Your Plasma HDTV is manufactured using an extremely high level of precision technology, however, sometimes some pixels of your Plasma HDTV may not

display. Pixel defects within industry specifications are inherent to this type of product and do not constitute a defective product.

When your Plasma HDTV's digital capabilities exceed a digital broadcast signal, the signal is up-converted (increased) to match your TV's display capabilities. Up-

converting can cause noise or trash. The TV remembers the volume level from the last time you adjusted it. If the sound

level is higher or lower from another source, then the loudness will change. The TV remembers the viewing mode from the last time you used a particular input

(AV, Component, HDMI and TV). The Plasma HDTV is an ideal platform for viewing High Definition Content.

Best Image Quality will be achieved by the HDMI Input, then YPbPr, then RGB. However, due to variances in broadcast practices, it is possible some image

distortions can occur.

Tips for Letterbox Content Users.

Letterboxed (or "Widescreen") versions of DVD movies are most commonly

formatted for standard 4:3 Televisions. The Plasma HDTV has the capability of expanding this content so the entire screen is filled at the expense of image

accuracy. To use this function, press the "ZOOM" key on the remote control and cycle among the available options.

6.3 Telephone Technica[ Support

Products are often returned due to a technical problem rather than a defective product that may result in unnecessary shipping charges billed to you. Our trained support personnel can often resolve the problem over the phone. For more information on warranty service or repair, after the warranty period, please

contact our Support Department at the number below. Customer support and quality service are integral parts of VlZtO's commitment to service excellence.

For technical assistance contact our VlZtO Technical Support Department via email or phone.

E-mail: techsupport@vizio.com

Tel: (949) 428-2525

Hours of operations:

6:00am - 6:00pm PST Monday - Friday

10:00am - 2:00pm PST Saturday - Sunday

Please have your VlZtO model number, serial number and date of purchase available before you call.

39 Tesla, lrvine, CA 92618

Tel: (949) 428-2525 Fax: (949) 585-9563

Web: wwwoV_Z_O0com

Version 5/21/2007 58

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

S°4 CompUance

Caution: Always use a power cable that is properly grounded. Please use the AC cords listed below for each area.

USA UL Canada CSA

Germany VDE UK BASE/BS

Japan Electric Appliance Control Act

6.5 FEE CLass B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected. Consult the dealer or an experienced radio/TV technician for help.

Notice:

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment, tt is the responsibilities of the user to correct such

interference.

6.6 FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This

transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Version 5/21/2007 59

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

Chapter 7 MisceLLaneous Information

7oi Specifications

Panel 50" Diagonal, 16:9 Aspect Ratio Resolution 1366 x 768 pixels Pixel (Dot) Pitch 0.810mm (H) x 0.810mm (V) Display Compatibility HDTV (720P)

Signal Compatibility 480i (SDTV), 480P (EDTV), 720P (HDTV), 1080i (HDTV) Colors 1.07 Million

Brightness 1500 cd/m 2 (typical)

Contrast 15,000:1 (typical) Viewing Angle Up to 178 ° (horizontal and vertical) Inputs lx Co-axial RF (ATSC/QAMtNTSC), 3x HDMI TM with HDCP (plus lx Stereo Audio RCA for

DVl source), 2x Component YPbPr plus Stereo Audio, lx RGB PC plus Stereo Audio, 2x

Composite Video (AVl & AV2), lx Optical Digital Audio Outputs lx SPDIF Optical Digital Audio (from digital TV only), lx Analog Audio Features PIP, Noise Reduction, CC, V-Chip, 3D Comb Filter, Zoom, Freeze, Motion Adaptive De-

Interlace, 3:2 and 2:2 Reverse Pull Down, Picture Enhancement, MPEG-2 Decoding via DTV

input, NTSC Video decoding via Video (Composite, S-Video or Component), Progressive

Scan Video via HDMI TM, Component or RGB, HDTV via HDMI TM, Component (Set-Top Box

required), Computer 640x480, 800x600, 1024x768, 1366x768 via RGB, Sound Enhancement Speakers 5x 80W PMOP for Left, Center, Right, Rear Left, Rear Right Speakers

lx 160W PMOP for Sub-Woofer

5x 10W RMS for Left, Center, Right, Rear Left, Rear Right Speakers

lx 20W RMS for Sub-Woofer

Panel Life 60,000 hours to half the original brightness

Input IEC Connector for direct power line connection Voltage Range 100 ~ 240Vac at 50/60Hz

Power Consumption 450 W Average

Operating Non-Operating

Dimensions

Net Weight Gross Weight Certifications

Temperature: 5°C~35°C, Relative Humidity: 20~80%, Altitude: 0~6560ft

Temperature: -20°C~50°C, Relative Humidity: 10~90%, Altitude: 0~9840ft

48.8" W x 33.7" H x 11.5" D with stand; 48.8" W x 32.2" H x 4.1" D without stand 126 Ibs with stand; 116 Ibs without stand

158.7 Ibs

CSA/CSA-US, FCC Class B

*Product specifications may change without notice or obligation.

Version 5/21/2007 60

www.VlZlO.com

VlZlOJV50PHDTV10AUserManual

7.8 GLossary - Standard Oeffinitions

Analog TV: Today's TV system using radio frequency waves to transmit and display pictures and sound. Aspect Ratio (4x3): Traditional TV "aspect ratio", that is, the screen's width as compared to its height.

For example, a "32 inch TV screen" would be 25 inches wide and 19 inches tall. Aspect Ratio (16x9): "Wide screen TV" aspect ratio which is more like a movie screen than a traditional

TV. For example, a "32 inch TV screen" would be 28 inches wide and 16 inches tall. Digital TV (DTV): Television delivered and displayed using radio frequency waves that contain

information that is digitally encoded for improved quality and efficiency. Enhanced Definition TV (EDTV): A better digital television transmission than SDTV with at least 480P,

in a 16x9 or 4x3 display and Dolby digital surround sound. 480P is the quality used by most DVD players. EDTV provides 300-400,000 pixels.

HDTV Monitor (sometimes called HDTV Ready): A set that can display HDTV programming if you have a separate HDTV tuner, HD Cable Set-Top Box or HD Satellite Set-Top-Box Receiver.

HDTV Tuner (also decoder, receiver, set-top box): A device capable of receiving and outputting HDTV signals for display, tt may be stand-alone or integrated in the set.

High-Definition Television (HDTV): The best quality picture, wide screen (16x9) display with at least 720 progressively scanned lines (720P) or 1080 interlaced lines (1080i) and Dolby digital surround sound.

HDTV provides 900,000-2.1 million pixels. Integrated HDTV" An HDTV that has the digital tuner built into the set. It does not need a separate set-

top box to receive over-the-air DTV signals. Interlace Scan: A way to scan vertical lines onto a TV picture by scanning all the odd lines first, then

filling the in the even lines (this happens instantaneously). Plug-and-Play or Digital Cable Ready: A DTV or other device for digital cable consumers that plugs

directly into the cable jack and does not require a separate set-top box. Plug-and-Play TV owners must obtain a CableCARD from their cable company in order to view scrambled programming services.

Progressive Scan: A way to scan vertical lines onto a TV picture by scanning all the lines consecutively (progressively).

Standard Definition TV (SDTV): Basic digital television transmission that may be displayed with fewer than 480 progressively scanned lines (480P) in 16 x 9 or 4 x 3 format. 480 interlaced (480i) is the quality

of today's analog TV system.

Source: Buying a Digi al Te evision CEA HDTV Guide 2005

Not÷: The Federa Comfy _;ficaions Commission (FCC)he Consuner Elecronics Associaion (CEA) arid he Corlsume_ E ecbonics Re aiers Coa ilion (CERC) have made a rew tip skeel avai abe for digila

teevision (DTV)_eaiers o ep_oduce arid disAbue to consJmes on he sales oor Tie ie may be dow_°loaded onine a www.dtv.qov. Whie you_e here check ou he ohe use/:u/i_lo_a ion i_l he CC

ismakir_gava[able oconsumesineresedinlearningmoreabou heanaog od[gi_al ansi[on.

Version 5/21/2007 61

www.VlZlO.com

VtZtOJV50PHDTV10AUserManual

7.3 Equipment Proqram Codes for Remote

ABS 2! 972 Admiral 20048, 20209

Aiko 20278 Aiwa 20037, 20479

Alienware 2!972 America Action 20278

American High 20035 Amoisonic 20479

Anam 20162, 20037,

20240, 20278

Anam National 20162 Asha 20240

Audiovox 20037, 20278 Beaumark 20240

Bell & Howell 20104 Broksonic 20184, 20121,

20209, 20002,

20479 Calix 20037 Canon 20035

Carver 20081 CCE 20072, 20278

Changhong 20048, 20081 Citizen 20037, 20278 Colt 20072

Craig 20037, 20047,

20240, 20072 Curtis Mathes 20060, 20035,

20162 Cybernex 20240

CyberPower 2!972 Daewoo 20045, 20 !04,

20278 Dell 21972 Denon 20042

DirecTV 20739 Durabrand 20039, 20038

EIectrohome 20037 EIectrophonic 20037

Emerex 20032

Emerson 20035, 20037,

20184, 20240, 20045, 20121,

20043, 20209, 20002, 20278,

20479

Fisher 20047, 20104 Fuji 20035, 20033

Fujitsu 20045

Gateway 2 ! 972 GE 20060, 20035,

20240

General 20045

Go Video 20432 GoldStar 20037, 20209,

20038, 20225

Haojie 20240 Harman/Kardon 20081, 20038 Harwood 20072

HewIett Packard 21972 HI-Q 20047

Hitachi 20037, 20042,

20055

Howard Computers 21972 HP 21972

Hughes Network 20042, 20739

Systems

iBUYPOWER 21972

JVC 20045, 20067

KEC 20037, 20278 Kenwood 20067, 20038 KLH 20072

Kodak 20035, 20037 Kolin 20043

LG 20037, 20045,

20042, 20209, 20038

Logik 20072 LXI 20037

Magnavox 20035, 20039,

20081

Magnin 20240

Marantz 20035, 20081 Marta 20037

Matsushita 20035, 20162 Media Center PC 21972

MEI 20035 Memorex 20035, 20 !62,

20037, 20048, 20039, 20047, 20240, 20104,

20209, 20479 MGA 20240, 20043 MGN Technology 20240

Microsoft 21972 Mind 21972 Minolta 20042

Mitsubishi 20067, 20043 Motorola 20035, 20048 MTC 20240 Multitech 20072

NEC 20035, 20037,

20048, 20104,

20067, 20038 Newave 20037

Nikko 20037 Noblex 20240

Northgate 21972 Olympus 20035

Optimus 21062, 20162,

20037, 20048,

20104, 20432 Orion 20184, 20209,

20002, 20479 Panasonic 21062, 20035,

20162, 20616,

20225 Penney 20035, 20037,

20240, 20042,

20038 Pentax 20042

Philco 20035, 20479 Philips 20035, 20081,

20739, 20618 Pilot 20037

Version 5/21/2007

www.VlZlO.com

VlZtO JV50P HDTV10A User Manual

Pioneer 20042, 20067 Polk Audio 20081 Profitronic 20240

Proscan 20060 Protec 20072

Pulsar 20039 Qisheng 20060

Quasar 20035, 20162 Radix 20037

Randex 20037 RCA 20060, 20035,

Realistic 20035, 20037,

ReplayTV 206!6 Runco 20039

Sampo 20037, 20048 Samsung 20240, 20045,

Sanky 20048, 20039 Sansui 20067, 20209,

Sanyo 20047, 20240,

Scott 20184, 20045,

Sears 20035, 20037,

Sharp 20048, 20209 Shintom 20072

Shogun 20240 Singer 20072

Sonic Blue 206 ! 6 Sony 20035, 20032,

STS 20042 Sylvania 20035, 20081,

Systemax 2!972 Tagar Systems 21972

Tashiko 20037

20240, 20042, 20880

20048, 20047, 20104

20432

20479

20104

20121, 20043

20047, 20042, 20104

20033, 20636, 21972

20043

Tatung 20045, 20067 Technics 20035, 20162

Teco 20035, 20037,

20048, 20038

Teknika 20035, 20037 Tivo 20636, 20618,

21503, 20739

TMK 20240 Toshiba 20045, 20042,

20067, 20043, 21503, 21008,

21972

Totevision 20037, 20240 Touch 21972

Unitech 20240 Vector 20045 Vector Research 20038

Victor 20067

Video Concepts 20045 Videomagic 20037

Videosonic 20240 Viewsonic 21972

Wards 20060, 20035,

20048, 20047, 20081, 20240, 20042, 20072

White 20209, 20072 Westinghouse

XR-!000 20035, 20072 Yamaha 20038

Zenith 20039, 20033,

20209, 20479

ZT Group 21972

ABC 00003, 00008,

00014

Americast 00899

Bell & Howell 00014

Bell South 00899 Clearmaster 00883

ClearMax 00883 Coolmax 00883

Daeryung 01877, 00877,

00477, 00008

Digi 00637 Director 00476

Dumont 00637 Gehua 00476

General 00476, 00810,

Instrument 00276, 00003,

00014

GoldStar 00144 HamIin 00009, 00273

Hitachi 00014 Jerrold 00476, 00810,

00276, 00003, 00012, 00014

KNC 00008 LG 00144 Memorex 00000

Motorola 00476, 00810,

00276, 01254,

01376 MultiVision 00012 Pace 01877, 00237 Panasonic 00000, 00008,

00107 Panther 00637

Paragon 00000 Philips 00317, 01305

Pioneer 01877, 00877,

00144, 00533 Pulsar 00000

Quasar 00000 RadioShack 00883

Regal 00279, 00273 Runco 00000

Samsung 00000, 00144 Scientific Atlanta 01877, 00877,

00477, 00008 Sony 01006 Starcom 00003, 00014 SupercabIe 00276

Supermax 00883 Tocom 00012

Version 5/21/2007 63

www.VlZlO.com

Torx 00003 Toshiba 00000 Trans PX 00276 Tristar 00883

TS 00003 V2 00883 Viewmaster 00883

Vision 00883 Vortex View 00883

Zenith 00000, 00525,

AIphaStar 00772 Chaparral 002!6

Crossdigital 01109 DirecTV

Dish Network 01005, 00775, System 01505

Dishpro 01005, 00775,

Echostar 01005,00775,

Expressvu 00775 GE 00566

General 00869 Instrument

GOI 00775 Goodmans 01246 Hisense 01535

Hitachi 00819,00222,

HTS 00775

Hughes Network 01142,00749, Systems 01749,01442

I-Lo 01535

00899

00392,00566, 00639,01142,

00247,00749, 01749,00724, 00819,01856, 01076,01109, 00099,01392,

01640,01442, 01414,01108

01505

01250

JVC 00775

LG 01414,01226 Magnavox 00724,00722

Memorex 00724 Mitsubishi 00749

Motorola 00869 NEC 01270

NextLevel 00869 Panasonic 00247,00701

Paysat 00724 Philips 01142,00749,

01749,00724, 01076,00722, 00099,01442

Proscan 00392,00566 Proton 01535

RadioShack 00869 RCA 00392,00566,

00855,00143, 01392

Samsung 01276,01109,

01108

Sanyo 01219 SKY 00856

Sony 00639,01640 Star Choice 00869

Tivo 01142,01442 Toshiba 00749,01749,

00790,01285

UltimateTV 0!640, 01392 Uniden 00724, 00722 US Digital 01535

USDTV 01535

Voom 00869 Zenith 00856,01856

Aiwa 20641,21912 Akai 20770

Allegro 20869 Apex Digital 20672, 20717,

20797,21061,

VlZtOJV50PHDTV10AUserManual

20796,21056, 21937,20794,

21020,21915 BIaupunkt 20717 Blue Parade 20571 Broksonic 20695

Changhong 20627,21061 CineVision 20869

Coby 21086 Cu_is Mathes 21087

CyberHome 21024,21023,

21129,20816,

21117 Daewoo 20833,21172,

20869 Denon 20490 DVD2000 20521

Emerson 20591,20675 Enterprise 20591 Fisher 21919 Funai 20675

Gateway 21158,21073 GE 20522, 20717

Go Video 20744,20833,

21099,20783,

21075,20869,

21730 GreenhiII 20717

Harman/Kardon 20582,20702 Hitachi 20573, 20664,

21919 Hiteker 20672

Initial 20717 Integra 20627,21924

JBL 20702 JVC 20558,20623,

20867 Kenwood 20490,20534

KLH 20717,21020,

21149 Koss 20651,21980

Lasonic 20798 LG 20591,20869,

20801 Liquid Video 21980

Version 5/21/2007

www.VlZlO.com

VlZtO JV50P HDTV10A User Manual

Lite-On 21158, 21058 Loewe 205 ! 1

Magnavox 20503, 20539,

21976, 21914, 20675

Marantz 20539 Memorex 20695

Microsoft 20522 Mintek 20717

Mitsubishi 21521, 20521 Nesa 20717

Norcent 21003 Onkyo 20503, 20627,

21924, 20792

Oritron 20651,21980 Panasonic 20490, 21762,

21990

Philips 20503, 20539,

20646, 21914

Pioneer 20525, 20571 Polaroid 21086, 21061 Polk Audio 20539

Portland 20770 Proscan 20522

Qwestar 20651 RCA 20522, 20571,

20717, 20822 Rio 20869 RoteI 20623

Sampo 20752, 20698 Samsung 20490, 20573,

21932, 21075,

20820 Sansui 20695

Sanyo 20695 Sharp 20630, 20752 Sharper Image 21117

Sherwood 20770 Shinco 20717

Shinsonic 20533 Sonic Blue 20869, 21099

Sony 20533, 20864,

21033, 21904,

21903

SVA 20717 Sylvania 20675

Symphonic 20675 Teac 20717, 21984,

20809

Technics 20490 Theta Digital 20571

Toshiba 20503, 20695

V, Inc. 20123, 20124

Urban Concepts 20503

Xbox 20522 Yamaha 20490, 20539,

20545

Zenith 20503, 20591,

20869

Aiwa 30157

Burmester 30420

California Audio 30029

Labs

Carver 30157, 30179

Denon 30873 DKK 30000

DMX Electronics 30157

Dynamic Bass 30179 Fisher 30179

Garrard 30420

Genexxa 30032

Harman/Kardon 30157, 30173 Hitachi 30032

Integra 30101

JVC 30072

Kenwood 30826, 30626,

30028, 30037,

30036, 30190 KrelI 30157 Linn 30157

Magnavox 30157 Marantz 30626, 30029,

30157 MCS 30029

Miro 30000 Mission 30157

MTC 30420 NSM 30157

Onkyo 30868, 30101 Optimus 31063, 30000,

Panasonic 30029 Parasound 30420

Philips 30626, 30157 Pioneer 31063, 31062,

Polk Audio 30157 Proton 30157

QED 30157 Quad 30157 Quasar 30029

RadioShack 31075 RCA 31062, 30032,

Realistic 30420, 30179 Rotet 30157, 30420

SAE 30157 Sansui 30157

Sanyo 30179 SAST 30157

Sharp 30861, 30037 Silsonic 30888, 30036 Sonic Frontiers 30157

Sony 30490, 30000,

Soundesign 30145 TAG McLaren 30157

Tascam 30420 Teac 30420

Technics 30029 Victor 30072

Wards 30157, 30053 Yamaha 30888, 30036

30032, 30037, 30420, 30179, 31075, 30145

30032

30420, 30179, 30053

30100

Version 5/21/2007

www.VlZlO.com

VlZtO JV50P HDTV10A User Manual

Zonda 30157

Bose 30674 GE 30078 JVC 30331

Marantz 30321 Nakamichi 30321 NEC 30264

Optimus 30395 Realistic 30395

Sansui 30321 Shure 30264

Sony 30689 Soundesign 30078 Victor 30331 Wards 30078

Yamaha 30354, 30133

ADC 30531 Aiwa 31405, 31243,

30121

Anam 31609, 31074 Audiotronic 31189

Bose 31229 Capetronic 30531

Carver 31189

Coby 31263 Denon 31360, 31142,

30904

Fonmix 31360 Glory Horse 31263

Harman/Kardon 30110 Hitachi 31273 Inket 30027

Integra 30!35 JBL 30110

JVC 30074, 3!263

Kenwood 31313, 31570,

30027 KLH 31428

Magnavox 31189, 3!269,

30531 Marantz 31189, 3!269,

30039 MCS 30039

Onkyo 30842, 30135 Optimus 31023, 30670,

30531,31074 Panasonic 3!518, 30039 Philips 31189, 31269

Pioneer 31023,30150,

30014, 30630,

30531 Proscan 31254

Qisheng 31609 Quasar 30039

RadioShack 31263 RCA 31023, 31609,

31254, 30531,

31074

Sharper Image 31263 Silsonic 30176

Sony 31058, 31441,

31258, 31759

Soundesign 30670 Stereophonics 31023

Sunfire 31313 Teac 31074, 31267

Technics 31308, 31518,

30039

Thorens 31189 Victor 30074 Wards 30014 Yamaha 30176, 3!276,

31176

Addison !0092 Admiral 10093, 10463

Advent 10761, 10842 Aiko 10092 Aiwa 11914

Akai 10812, 10702,

10030, 10672, 11903

AIbatron 10700, 10843 America Action 10180

Anam 10250, 10180,

10700

Anam National 10250, 10650 Anhua 10051

AOC 10451, 10093,

10180, 10060, 10030, 10178,

10092

Apex Digital !0748, 10765,

10879, 10767, 11943

Audiovox 10451, 10180,

10875, 10092, 10623

Baile 10661 Beijing 10812, 10661

Bell & Howell 10154 BenQ 11032

Bradford 10180 Broksonic 10236, 10463,

11911, 11938, 11905, 11935,

11929

Calling !0748 Candle !0030

Carnivale !0030 Carver 10054

Celebrity !0000 CeIera !0765

Changcheng 10051, 10661 Changhong !0156, 10765,

11156, 10767 Ching Tai 10092 Chun Yun 10000, 10180,

10700, 10092,

10843 Chung Hsin 10180, 10053

Cinema 10672

Version 5/21/2007 66

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

Citizen 10060, 10030,

Clarion !0180 Commercial 11447, 10047

Solutions Conrowa

Contec

Craig CrosIey Crown Curtis Mathes

CXC Uaewoo

Dayu Dell Denon

Dumont Durabrand

EIectroband Emerson

Envision Ether Firstar Fisher

Fortress Fujitsu

Funai

Furl Futuretech

11928, 10092

10156,10145, 11156

10180 10180 10054 10180 10047,10054,

10154,10451, 10093,10060,

10702,10030, 10145,10166

10180 10154,10451,

10180,10030, 10178,10672, 11928,10092, 10661,11909, 10623,10700

10661 11080

10145 10017

10463,10180, 10178,10171,

11034 10000

10154,10236, 10463,10180, 10178,10171, 11944,11909,

11929,11905, 11928,10623,

11911

10030

10030 10236 10154

10093 10809,10853

10180,10171, 11904

10145 10180

Gateway 11756,11755

GE 11447,10047,

11454,10051, 10451,10180, 10030,10178, 11917,10092,

11907,11922 Gibratter 10017,10030 GoldStar 10154,10030,

10178,11926 Grunpy 10180

Haler 11034 Hallmark 10178

Hankook 10180,10030,

10178

Harley Davidson 1 !904 Harman/Ka_on 10054

HaHard 10180 Havermy 10093

Helios 10865 Hello Kitty 10451

Hisense 10156,10748,

10145,11156

Hitachi 10156,10030,

10178,11145,

10145,10092,

11904,11156

Hongmei 10093 Hua_ 10145

Huari 10145 Huodat_i 10051

Imperial Crown 10661 Infinity 10054

Inteq 10017

JBL 10054 JCB 10000

Jean 10156,10051,

10236,10092 Jensen 10761 Jiahua 10051

Jin_ng 10051 Jinxing 10054,10156,

10145 JVC 10053,11923,

11253

Kangli 10661 KEC 10180 Kenwood 10030

KLH 10765,10767 Kolin 10180,10150,

10053

KTV 10180,10030 Kunlun 10051,10661

LG 10060,10030,

10178,10856, 10700,10025

Lloyd's 11904 LXI 10047,10054,

10154,10156, 10178

Magnasonic 11928,11913 Magnavox 11454,10054,

10030,10706, 11931,11254, 11913,11904,

11944

Magnin 11907 Marantz 10054,10030,

10704

Matsushita 10250,10650 Maxent 11755

Megapower 10700 Megatron 10178,10145

Memorex 10154,10463,

10150,10178, 11911,11926, 11924,11920,

11927

MGA 10150,10030,

10178,11907

Midland 10047,10017,

10051

Mitsubishi 10154,10250,

10093,10236, 10180,11250,

10150,10030, 10178,11917,

10836

Monivision 10843, 10700 Motorola 10093

MTC 10060, 10030 Mudan 10051 Multitech 10180

Version 5/21/2007 67

www.VlZlO.com

VlZtOJV50PHDTV10AUserManual

NAD 10156,10178,

10866

National 10051 NEC 10154,10156,

10051,10053, 10030,10178,

11704

Newave 10093,10178,

10092

Nikko 10039,10178,

10092

Norcent 19748,10824 NTC 10092

Onwa 10180 Optimus 10154, 10250,

10166,10650, 11927,11924,

11913

Optonica 10093 Orion 10236,10463,

11929,11911, 11905

Panasonic 10054,10250,

10051,10650, 11941,11927,

11924

Panda 10051,10706 Penney 10047,10156,

10051,10060, 10030,10178, 11926,11907

Philco 10054,10180,

10030,10178

Philips 11454,10054,

10000,10051, 10030,10178,

19092,10690

Pilot 10030 Pioneer 10166,10866,

10679 Portland 10092 Prima 10761

Princeton 10709 Prism 10051

Proscan 11447, 10047,

11922 Proton 10939,10178

Pulsar 10017

Qingdao

Quasar 10250, 10051,

RadioShack 10047, 10154,

RCA

Realistic 10154,10180,

Rowa 10748 Runco 10017,10030

Sampo 10154,10093,

Samsung 10154,10156,

Sansui 10463,11904,

Sanyo 10154,10156,

Sanyuan 10093 Scotch 10178

Scott 10236,10180,

Sears 10047,10054,

Shaofeng 10145 Sharp 10093,10030,

Shen Ying 10092 Shencai 10145

Sheng Chia 10093,10236 Skygiant 10180

Skywo_h 10748 Sony 11100,10000,

11924, 10650

10180, 10030, 10178, 11920,

11904 11447,10047,

11454,10000, 10030,10178,

11547,11922, 11917,10092, 11907,11948, 10090,10679

10030,10178

10030,10178, 10171,10700, 10650,11755,

10092

10060,10812, 10702,10030,

10178,11060, 10814,10092, 11903,10090,

10766

11935,11929, 11911

10180,10145, 11907

10178

10154,10156, 10178,10171,

11926,11904

10650,11917

10650,11925,

11904

Soundesign 10180,10178 Sowa 10156,10051,

10060,10178, 10092

Squareview 10171 SSS 10180

Starlite !0189 Studio Experience 10843

Supreme !0000 SVA 10748,10865

Sylvania 10954,10030,

10171,11944, 11931

Symphonic 10180,10171,

11913,11904

Synco 10000,10451,

10093,10060, 10178,10092

Tacico 10178,10092 Tandy 10093

Tashiko 10092,10650 Tatung 10054,10154,

10156,10051, 10060,11156, 11756,11254

Technics 10250,10051 Techwood 10051

Teco 10051,10093,

10178,10092

Teknika 10054,10180,

10150,10060, 10092

TeIe_nken 10702 Tera 10030 Thomas 11904 Tiane 10093

TMK 10178 TNCi 10017 Tobo 10748

Toshiba 10154,10156,

10060,10145, 11945,11704, 11936,11156, 11935,10650,

11918

Tuntex 10039,10092

Version 5/21/2007

www.VlZlO.com

VlZtO JV50P HDTV10A User Manual

TVS 10463

VlZlO 11758, 11756,

10885, 10864

Vector Research 10030 Victor 10250, 10053,

10650 Vidikron 10054

Vidtech 10178 Viewsonic 11755,10885,

10864

Wards 10054, 10030,

10178,10866, 11156

Warumaia 10661 Waycon 10156

White 10463,11909, Westinghouse 10623

Yamaha 10030 Yapshe 10250

Zenith 10017,10463,

10178,11904, 11929,11911, 11909,10092

Version 5/21/2007 69

www.VlZlO.com

7.4 Index

VlZtOJV50PHDTV10AUserManual

Accessories, 4 Adjustments

Closed Caption, 13 Selecting the Screen Size, 13, 33,

54, 62

Stepping through TV Channels,

Volume, 8, 33, 57

Advanced Video Features

Adaptive Luma, 38 Black Level Extender, 38 CTI (Color Transient

hnprovement, 38

DNR (Dynamic Noise Reduction,

38 Flesh Tone, 38 White Peak Limiter, 38

Audio

Audio Delay, 41 Bass adjustment, 39

Connecting the Sun'ound

Speakers, 26 DR(; (Dynamic Range Control),

Optical (SPDIF) Audio Input

Selection, 40 Pairing Procedure, 27

Speaker Distance, 41 Speaker Location, 41

Speaker Setting, 40 Speaker Trim, 41 Speaker Volume Levels, 41

Treble adjustment, 39 Turn-off Speakers, 39 Turn-off Wireless Speakers, 40

Volume adjustment, 39

Cleaning your VIZIO TV, 57 Coax (RF)

Connecting for DTV / TV, 16 Connecting your Basic Set Top

Box, 20

Component

Connecting your DVD Player, 23 Connecting your HDTV Set-Top

Box, 19

Composite (AV)

Connecting your Basic Set-Top

Box, 20 Connecting your DVD Player, 24

Composite Video

Connecting your VCR, 24

Connecting your Video Camera,

Controls

Front Panel, 8 Side Panel, 8

DTV

Audio Adjustment, 39 Parental Control, 46

Picture Adjustment, 36 Setup, 43

Tuner Setup, 42

DTV Audio Adjust

Bass, 39 DRC (Dynamic Range Control),

SPDIF (Optical Audio) Input, 40 Speaker Locations, 41

Speaker Setting, 40, 41 Speakers On/Off, 39 Treble, 39

Volume, 39

Wireless Speakers On/Off; 40

DTV Picture Adjust

Advanced Video, 38 Backlight, 51

Brighmess, 36, 51 Color, 36

Color Temperature, 37, 52 Contrast, 36, 52 Picture, 36

Sharpness, 37 Tint, 37

DTV Special Features

Closed Caption, 44 Closed Caption Style, 44

Sleep Timer, 44

DTV Tuner Setup

Auto Search, 42 Daylight Saving, 42

Skip Channel, 42 Time Zone, 42 Tuner Mode, 42

DVI

Connecting your DVD Player, 22 Connecting your HDTV Set-Top

Box, 18

Glossary, 62

HDMI

Connecting your DVD Player, 21

Connecting your HDTV Set-Top

Box, 17

HDMI Input

Audio Adjustment, 49 Picture Adjustment, 49 Setup, 49

hnage Sticking

Image Cleaner, 45

Inputs

Antenna, 3 Connectors, 15

Rear Label, 9

Installation

Base removal, 5 Preparation, 5

Safety Instructions, 2 Wall Mounting, 5, 30

OSD

Brightness Adjustment, 61 Closed Caption Selection, 13

Color Adjustment, 15 Contrast Adjustment, 61

Outputs

Using an external Receiver/Amp,

Parental Control

Block Unrated Programming, 48 Channel Block, 46

Movie Rating, 47 Password change, 48 TV Rating, 47

PC Input

Audio Adjustment, 53 Picture Adjustment, 51

Setup, 53

PC Picture Adjust

Auto Adjust, 51 Fine Tune, 53

Horizontal Position, 53 Horizontal Size, 53 Vertical Position, 53

PC Resolutions, 25 PIP, 43

Input Source, 43 Position, 44 Size, 44

POP, 43

Input Source, 43

Version 5/21/2007

www.VlZlO.com

VlZtO JV50P HDTV10A User Manual

Remote

Batteries, 14 Layout, 1l, 14

Range, 14

Remote Control

(?odes for other equipment., 63 Programming to work your DVD

Player, 56 Programming to work your Set-

Top Box, 55 Programming to work your VCR,

55 Searching for Codes, 56

Using your Cable or Satellite

Remote to Operate your

VIZIO TV, 56

RGB

Connecting your PC, 25

Screen Size explanation, 54 Setup, 43

hnage Cleaner, 45 Language, 43 PIP, 43 POP, 43

Reset, 45

Technical Specifications, 61 Troubleshooting Guide, 57

Audio Adjustment, 39 Parental Control, 46

Picture Adjustment, 36 Setup, 43

TV Audio Adjust

Bass, 39 DRC (Dynamic Range Control),

SPDIF (Optical Audio) Input, 40 Speaker Locations, 41

Speaker Setting, 40, 41 Speakers On/Off, 39 Treble, 39

Volume, 39

Wireless Speakers OniOfl\ 40

TV Picture Adjust

Advanced Video, 38 Backlight, 51

Brighmess, 36, 51 Color, 36

Color Temperature, 37, 52 Contrast, 36, 52

Picture, 36 Sharpness, 37

Tint, 37

TV Special Features

Closed Caption, 44 Sleep Timer, 44

TV Tnner Setup, 42

Auto Search, 42 Skip Channel, 42

Tuner Mode, 42

Video Input

Audio Adjustment, 50 Parental Control, 51 Picture Adjustment, 50

Setup, 50

Watching TV

Basic Adjustments, 33 Basic connections, 30

First Startup, 30 Getting your Programs, 33

Program Infomlation, 34 Stares Information, 34

Version 5/21/2007 71

www.VlZlO.com

Vizio JV50PHDTV10A Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
