VIZIO GV46L HDTV User Manual
Dear VIZIO Customer,
Congratulations on your new VIZIO GV46L High
Definition LCD Television purchase. Thank you
for your support. For maximum benefit of your set,
please read these instructions before making any
adjustments, and retain them for future reference.
We hope you will experience many years of
enjoyment from your new VIZIO GV46L High
Definition Television.
For assistance, please call 714-668-0588 or email us at
techsupport@vinc.com.
To purchase or inquire about accessories and
installation services for your VIZIO LCD HDTV,
please visit our website at
www.vizioce.com or
call toll free at 888-VIZIOCE (888-849-4623).
We recommend you register your VIZIO GV46L
HDTV either at our website
www.vizioce.com or
fill in your registration card and mail it in. For
peace of mind and to protect your investment
beyond the standard warranty, VIZIO offers onsite extended warranty service plans. These
plans give additional coverage during the
standard warranty period. Visit our website or call
us to purchase a plan.
Write down the serial number located on the back
of your GV46L.
__ __ __ __ __ __ __ __ __ __ __ __ __ __
Purchase Date _____________________
VIZIO is a registered trademark of V, Inc.
TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
HDMI logo and “High Definition Multimedia Interface” are registered trademarks of HDMI Licensing LLC.
"DCDi by Faroudja" is a registered trademark of Genesis Microchip Inc.
Version 7/6/2006 1
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
THIS PRODUCT HAS BEEN DESIGNED AND TESTED FOR COMPLIANCE WITH REGULATORY SAFETY CERTIFICATIONS
This product is designed and manufactured to operate within defined design limits, and misuse may result in electric
shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation,
use and maintenance of the product. Read the following safety instructions before operating the display. Keep these
instructions in a safe place for future reference.
• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the GV46L LCD
HDTV.
• Unplug the power cord before cleaning the GV46L LCD HDTV. A damp cloth is sufficient for cleaning the GV46L LCD HDTV. Do not
use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving the GV46L LCD HDTV from an area of low temperature to an area of high temperature, condensation may form on the
housing. Do not turn on the GV46L LCD HDTV immediately after this to avoid causing fire, electric shock or component damage.
• Do not place the GV46L LCD HDTV on an unstable cart, stand, or table. If the GV46L LCD HDTV falls, it can injure a person and
cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the GV46L LCD
HDTV.
• A distance of at least 3 feet should be maintained between the GV46L LCD HDTV and any heat source, i.e. radiator, heater, oven,
amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or electric
shock.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the GV46L LCD
HDTV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the GV46L LCD HDTV in a
bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slot on the GV46L LCD HDTV cabinet. Do not place any objects on the top of the product. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the GV46L LCD HDTV.
• The GV46L LCD HDTV should be operated only from the type of power source indicated on the label. If you are not sure of the type of
power supplied to your home, consult your dealer or local power company.
• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact
your dealer.
• The GV46L LCD HDTV is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a
grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the
correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket shall be installed near the equipment and shall be easily accessible.
• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or electric
shock.
• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the GV46L LCD HDTV
from damage due to power surges.
• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk
of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service
personnel.
• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug
the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your
dealer immediately. Do not try to repair the product yourself.
• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may
function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause
fire or electric shock.
• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high
humidity may cause fire or electric shock.
• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the
product.
• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable and
cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power connector.
• To avoid risk of electric shock, do not touch the connector with wet hands.
• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury
and contamination the remote controller.
• If any of the following occurs please contact the dealer:
• Operating environment. Temperature: 40˚F ~ 95˚F, Humidity: 10% ~ 90% non-condensing, Altitude: 0 ~ 14,000ft
o The power connector fails or frays.
o Liquid sprays or any object drops into the GV46L LCD HDTV.
o The Display is exposed to rain or other moisture.
o The Display is dropped or damaged in any way.
o The performance of the Display changes substantially.
Version 7/6/2006 2
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Television Antenna Connection Protection
External Television Antenna Grounding
If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage surges and
static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge
unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Lightning Protection
For added protection of the TV during a lightning storm or when it is left unattended or unused for long
periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or where it could fall into such power
lines or circuits.
Remember, the screen of the coaxial cable is intended to be connected to earth in the building
installation.
Version 7/6/2006 3
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Opening the Package
Your VIZIO GV46L HDTV and it accompanying accessories are carefully packed in a cardboard carton
that has been designed to protect it from transportation damage. Now you have opened the carton check
that the GV46L HDTV is in good condition and that all of the accessories are included. Check inside the
top of the carton in case the packing pieces holding the Accessory Box are stuck there.
The GV46L HDTV weighs approximately 82lbs and about 43” wide x 32” tall we strongly advise that you
have at least 2 people to unpack and install the HDTV.
The glass surface can easily be scratched or broken so please handle the product gently and never place
the HDTV with the glass facing downwards on a surface without protective padding.
IMPORTANT: Save the carton and packing material for future shipping.
Package Contents
VIZIO GV46L HDTV
VIZIO Remote Control by Universal Electronics
AV Cable (Yellow, Red and White Connectors)
Power Cord
VIZIO Bezel and Screen Cleaning Cloth
This User Manual
Quick Setup Guide
Registration Card
VIP Services Brochure
Version 7/6/2006 4
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Additional Certified Accessories for the VIZIO
GV46L HDTV are sold separately
Wall Mounts
High Definition Cables
Extra or replacement Remote
VIZIO also offers Installation Services and Extended Warranty Services for your VIZIO GV46L HDTV
To purchase or inquire about additional accessories and services for your VIZIO product, visit our web
site at www.vizioce.com
or call us toll free at 888-VIZIOCE (888-849-4623)
Installation Preparation
Please read this user manual carefully before installing your VIZIO HDTV.
The power consumption of the TV is about 260W, please use the power cord designated for TV. When
an extension cord is required, use one with the correct power rating. The cord must be grounded and the
grounding feature must not be defeated.
The TV should be installed on a flat surface to avoid tipping. For proper ventilation, you must allow space
between the back of the TV and the wall. If you would like to mount your TV on the wall, please see
below ‘Preparing Your LCD HDTV for Wall Mounting’ for additional information. Avoid installing the TV in
places with high humidity, dust or smoke so as not to shorten the service life of the electronic components.
Install the TV in landscape orientation; any 90˚ clockwise or counter-clockwise installation may induce
poor ventilation and excessive component damage.
VIZIO offers professional installation services. Please contact VIZIO for more information on these
services at 888-VIZIOCE (888-849-4623) or www.vizioce.com
.
Version 7/6/2006 5
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Preparing Your LCD HDTV for Wall Mounting
The VIZIO GV46LHDTV can either be kept on the stand base or mounted on the wall for viewing. If you
choose to mount the GV46LHDTV on the wall, please follow the instructions below for removing the stand
base.
To remove the stand base
1. Unplug all of the cables and cords from
your GV46LHDTV.
2. Place the GV46LHDTV face down on a
soft and flat surface (blanket, foam, cloth,
etc) to prevent any damage to the TV.
3. Pull the stand cover off by squeezing the
sides to release the retaining plastic tabs.
4. Remove the four (4) screws so that the stand base can be
removed.
5. Gently remove the stand
base.
6. Now, the GV46LHDTV can fit securely to
a mount (sold separately) by utilizing the
mounting holes in the center of the back
panel of the TV. Please make sure to
read the instructions of your specific
mount to properly hang the GV46LHDTV.
To find the perfect mount for the VIZIO GV46LHDTV, browse VIZIO’s certified mount selection at
www.vizio.com
or call directly 888-VIZIOCE (888-849-4623).
Version 7/6/2006 6
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
To remove the speakers
If you wish to remove the attached speakers as well and use your Home Theatre System for the audio,
please follow the procedure below.
1. Unplug the speaker wires from the
GV46L at the rear of the TV.
1 2 3 4
2. Remove the four (4) screws that hold the right speaker in place and remove the speaker.
The screws are identified by arrows molded into the plastic.
3. Pull off the aluminum name plate from
the front of the TV, between the
speakers. It is snapped in place.
4. Remove the four (4) screws that hold
the left speaker in place and remove
the speaker.
Version 7/6/2006 7
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Table of Contents
Chapter 1 Basic Controls and Connections................................................................ 10
1.1 Front Panel........................................................................................................................................................10
1.2 Side Panel Controls...........................................................................................................................................10
1.3 Rear Panel Connections ...................................................................................................................................11
1.4 VIZIO Universal Remote Control.......................................................................................................................13
1.4.1 Insertion of Batteries in the Remote Control ..............................................................................................16
1.4.2 Remote Control Range ..............................................................................................................................16
1.4.3 VIZIO Universal Remote Control Precautions ...........................................................................................16
Chapter 2 Connecting Equipment .................................................................................. 17
2.1 Which Video Connection Should I Use?............................................................................................................17
2.2 Connecting Your DVD Player............................................................................................................................18
2.2.1 Using HDMI ...............................................................................................................................................18
2.2.2 Using Component Video............................................................................................................................20
2.2.3 Using S-Video (AV2)..................................................................................................................................21
2.2.4 Using Composite (AV) Video .....................................................................................................................22
2.3 Connecting Your HDTV Set-Top Box ................................................................................................................23
2.3.1 Using HDMI ...............................................................................................................................................23
2.3.2 Using Component Video............................................................................................................................25
2.4 Connecting Your VCR or Video Camera ...........................................................................................................26
2.5 Connecting Coaxial (RF) ...................................................................................................................................27
2.5.1 Using Your Antenna or Digital Cable for DTV............................................................................................27
2.5.2 Using Your Antenna or Cable for TV .........................................................................................................28
2.5.3 Using the Antenna or Cable through your VCR .........................................................................................28
2.6 Connecting an external Receiver/Amp ..............................................................................................................29
2.7 Connecting a PC Computer ..............................................................................................................................30
Chapter 3 Setting Up to Watch Television................................................................... 31
3.1 Basic LCD HDTV Start Up ................................................................................................................................31
3.2 Using TV with an Antenna or Cable ..................................................................................................................31
3.2.1 First Time TV Use......................................................................................................................................31
3.2.2 Setting TV Channels..................................................................................................................................32
3.2.3 Adding or Deleting (Skipping) TV Channels ..............................................................................................33
3.3 Using DTV with an Antenna or Cable................................................................................................................33
3.3.1 First Time DTV Use ...................................................................................................................................33
3.3.2 Setting DTV Channels Automatically .........................................................................................................34
3.3.3 Setting DTV Channels Manually................................................................................................................37
3.3.4 Adding or Deleting (Skipping) DTV Channels ............................................................................................38
3.3.5 Digital Audio Out........................................................................................................................................39
3.3.6 Closed Caption for DTV.............................................................................................................................39
3.3.7 Parental Controls for DTV..........................................................................................................................41
3.4 Watching a TV Program ....................................................................................................................................43
3.5 Adjusting Basic LCD HDTV Settings .................................................................................................................43

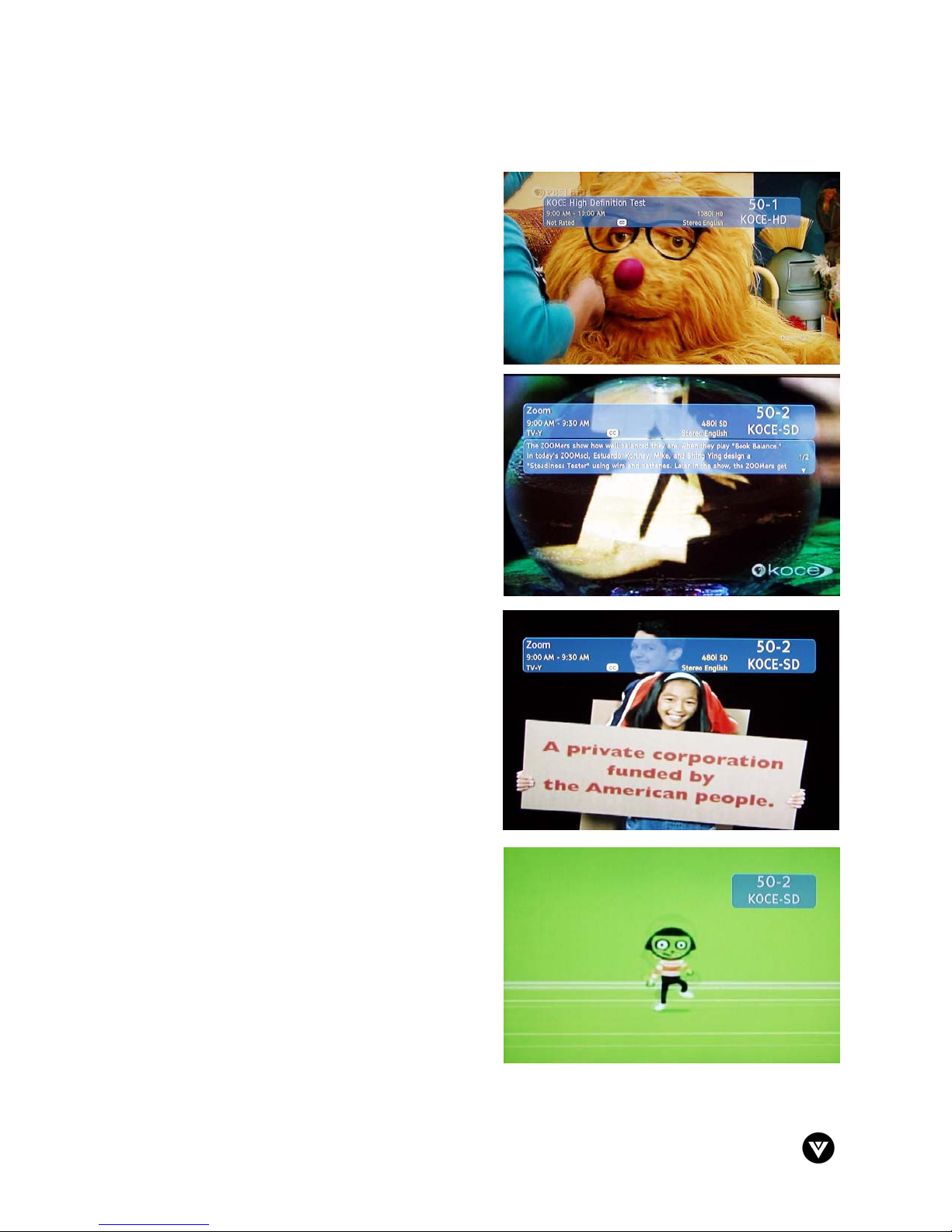

3.6 DTV Channel Information..................................................................................................................................44
3.7 Program Information..........................................................................................................................................45
Chapter 4 Adjustment of the HDTV .............................................................................. 46
4.1 Using the On Screen Display (OSD) .................................................................................................................46
4.2 Image Settings for TV and Video Inputs............................................................................................................47
4.2.1 Picture Mode .............................................................................................................................................47
4.2.2 Brightness..................................................................................................................................................47
4.2.3 Contrast .....................................................................................................................................................47
4.2.4 Saturation ..................................................................................................................................................48
4.2.5 Hue ............................................................................................................................................................48
4.2.6 Sharpness .................................................................................................................................................48
4.2.7 Custom Color.............................................................................................................................................48

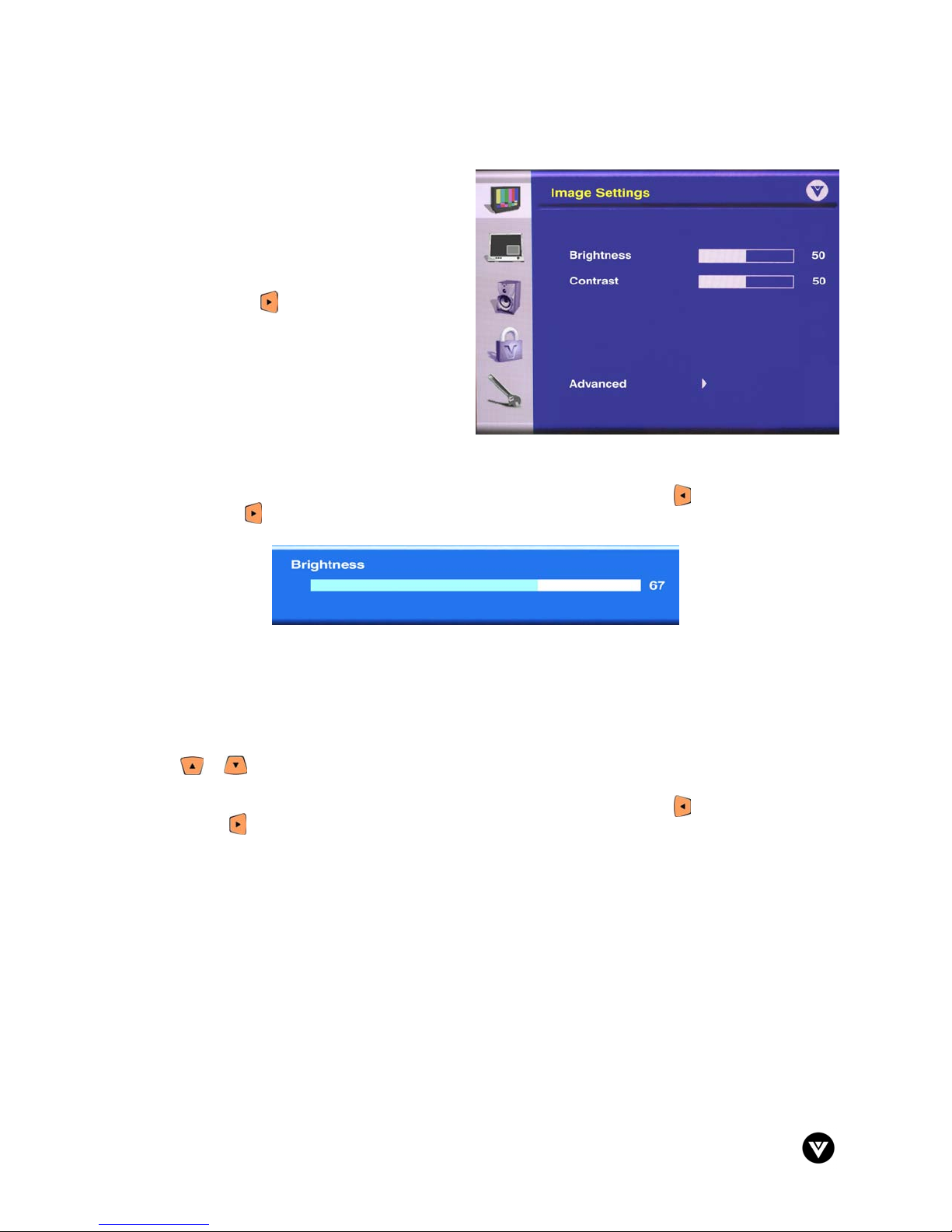

4.3 Image Settings for PC .......................................................................................................................................49
4.3.1 Brightness..................................................................................................................................................49
4.3.2 Contrast .....................................................................................................................................................49
4.4 Advanced Image Settings for TV and Video......................................................................................................50
4.4.1 Noise Reduction ........................................................................................................................................50
4.4.2 Fleshtone...................................................................................................................................................50
Version 7/6/2006 8
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.4.3 Dynamic Contrast ......................................................................................................................................50
4.4.4 Backlight ....................................................................................................................................................50
4.5 Advanced Image Settings for PC ......................................................................................................................51
4.5.1 Auto Adjustment ........................................................................................................................................51
4.5.2 Image Position...........................................................................................................................................51
4.5.3 Phase ........................................................................................................................................................51
4.5.4 Clocks / Line ..............................................................................................................................................51
4.5.5 Color Temp................................................................................................................................................51
4.5.6 Backlight ....................................................................................................................................................52
4.6 Display Settings.................................................................................................................................................52
4.6.1 Aspect Ratio ..............................................................................................................................................52
4.6.2 PIP (Picture-In-Picture)..............................................................................................................................52
4.7 Audio Settings ...................................................................................................................................................53
4.7.1 Bass...........................................................................................................................................................53
4.7.2 Treble ........................................................................................................................................................53
4.7.3 Balance......................................................................................................................................................53
4.7.4 SRS TS XT ................................................................................................................................................53
4.7.5 Auto Volume ..............................................................................................................................................53
4.7.6 Speakers ...................................................................................................................................................53
4.7.7 Audio Out...................................................................................................................................................53

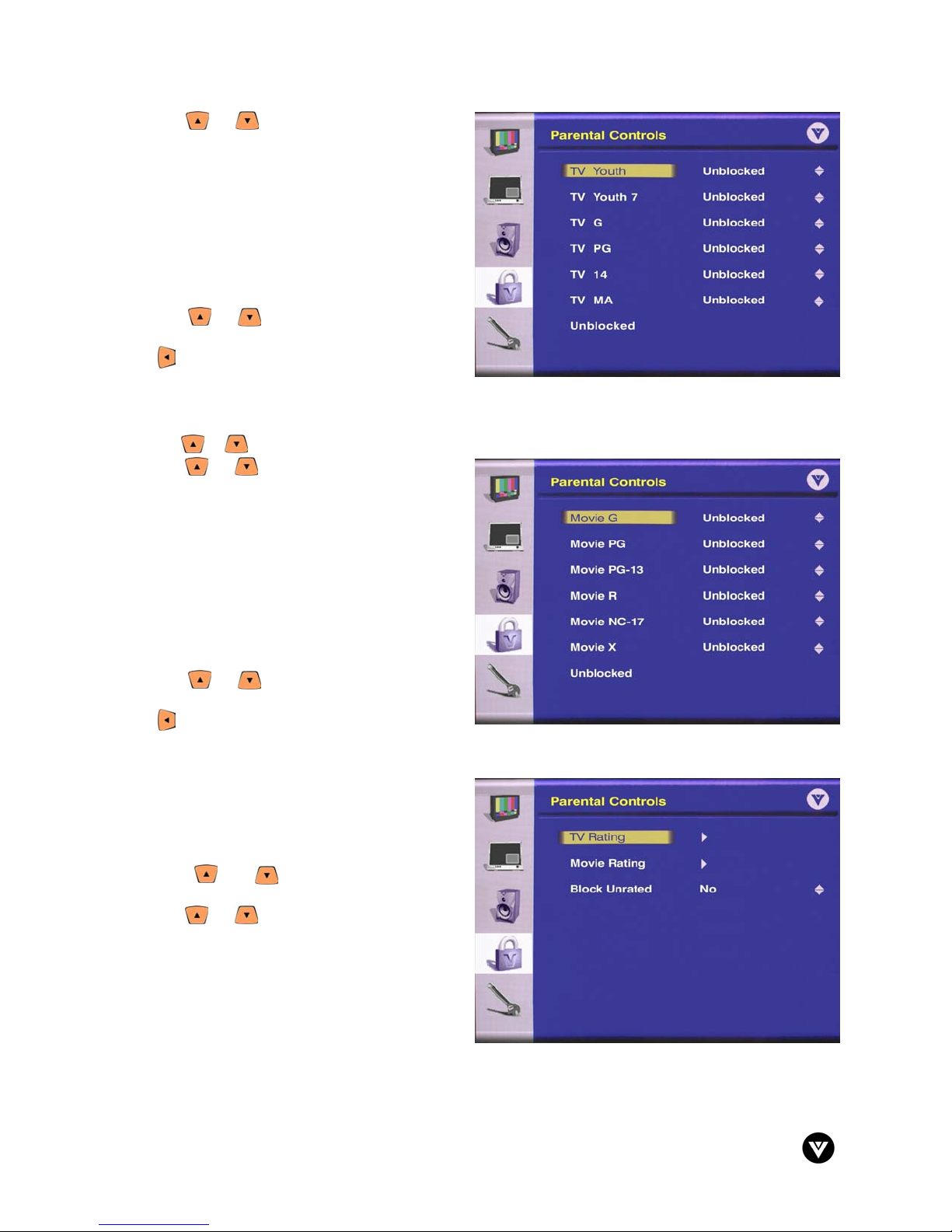

4.8 Parental Controls...............................................................................................................................................54
4.8.1 Settings......................................................................................................................................................54
4.8.2 Change Password .....................................................................................................................................54
4.8.3 Clear All .....................................................................................................................................................54
4.8.4 TV Rating...................................................................................................................................................54
4.8.5 Movie Rating..............................................................................................................................................55
4.8.6 Block Unrated ............................................................................................................................................55
4.8.7 Setting a Password....................................................................................................................................56
4.8.8 Resetting the Password.............................................................................................................................56
4.9 Setup for Video and PC.....................................................................................................................................57
4.9.1 Language...................................................................................................................................................57
4.9.2 Factory Reset ............................................................................................................................................57
4.9.3 Image Cleaner ...........................................................................................................................................57
4.9.4 Firmware Version.......................................................................................................................................57
4.9.5 Closed Caption ..........................................................................................................................................57
4.9.6 Closed Caption on Mute ............................................................................................................................57
4.10 Understanding Viewing Features ....................................................................................................................58
4.10.1 Viewing Modes ........................................................................................................................................58
4.10.2 PIP / POP Mode ......................................................................................................................................59
4.10.3 Adjusting Basic PIP/POP Settings...........................................................................................................59
4.11 Setting the Sleep Timer...................................................................................................................................60
Chapter 5 Programming the VIZIO Universal Remote Control ...................................61
5.1.1 Programming for VCR ...............................................................................................................................61
5.1.2 Programming for Cable Set-Top Box.........................................................................................................61
5.1.3 Programming for DVD Player ....................................................................................................................62
5.1.4 Searching for Component Codes ..............................................................................................................62
5.2 Using a Cable or Satellite Remote ....................................................................................................................62
Chapter 6 Maintenance and Troubleshooting.............................................................63
6.1 Maintenance......................................................................................................................................................63
6.2 Troubleshooting Guide ......................................................................................................................................63
6.3 Telephone & Technical Support ........................................................................................................................65
6.4 Compliance .......................................................................................................................................................66
6.5 FCC Class B Radio Interference Statement......................................................................................................66
Chapter 7 Miscellaneous Information ...........................................................................67
7.1 Specifications ....................................................................................................................................................67
7.2 Glossary – Standard Definitions ........................................................................................................................68
7.3 Index .................................................................................................................................................................69
7.4 Limited Product Warranty..................................................................................................................................71
7.4.1 VIZIO Extended Service Warranty.............................................................................................................71
7.5 Component Program Codes..............................................................................................................................72
Version 7/6/2006 9
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Chapter 1 Basic Controls and Connections
1.1 Front Panel
Power ‘VIZIO’ light – The VIZIO name lights white
when powered on and orange when powered off.
Remote Control Sensor – This is the window through
which all of the remote control signals pass to the
sensor. Point the remote control directly at this
window for the best response to the remote signal.
1.2 Side Panel Controls
Power (
Press the button again to the GV46LHDTV off.
Menu – This button activates the On Screen Display (OSD). If a submenu is active, pressing this button will return to the previous menu level.
Channel +/- – Use these buttons to step up or down the TV channels.
While the OSD is active, these buttons function as up and down controls
in the OSD menus.
Volume +/- – Use these buttons to increase or decrease to the speaker
volume. While the OSD is active, these buttons function as left and right
controls in the OSD menus.
Input (Enter) – Repeated pressing of this buttons steps through the
input sources in the following sequence: DTV, TV, RGB, AV1, AV2,
Component 1, Component 2, HDMI 1 and HDMI 2. Once you have
stepped through the entire sequence, you will return to the beginning.
Additionally, when the OSD is active, this button confirms the menu function to be
adjusted. When the OSD is not active, pressing this button will display the current input
mode.
) – Switch the GV46LHDTV on by pressing the button once.
Version 7/6/2006 10
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
1.3 Rear Panel Connections
Right Portion
1. SERVICE 2 – This custom communication port is for factory service only.
2. DTV/TV – Connect to an antenna or cable/digital cable for TV and Digital TV.*
3. OPTICAL DIGITAL AUDIO OUT – When the DTV input is selected for viewing, the digital
audio associated with digital programming will be available on this SPDIF Optical connector
for connection to your home theatre system. The gray color band on the rear of the TV
indicates this connection.
4. AC IN – Plug-in the supplied AC Power Cord here.
5. SPEAKER – Connection for left speaker.
* For digital TV stations in your area visit www.antennaweb.org
1
2
3 4
5
.
Version 7/6/2006 11
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Left Portion
6 15
7
8
9
10
6. SPEAKER – Connection for right speaker/sub-woofer.
7. SERVICE 1 – This custom communication port is for factory service only.
8. HDMI 1 – Connect the primary source for digital video such as a DVD multimedia player or
set top box through this all digital connector. The white color band on the rear of the TV
indicates this connection. For users who want to connect to a DVI enabled device, use a
DVI-HDMI cable and connect the Analog Audio output of the device to the L+R AUDIO here. .
Your VIZIO Certified HDMI and HDMI-DVI cables are available for purchase from
www.vizioce.com
or by calling 888-VIZIOCE (888-849-4623).
9. HDMI 2 – Connect the secondary source for digital video such as a DVD multimedia player or
set top box through this all digital connector. The white color band on the rear of the TV
indicates this connection. For users who want to connect to a DVI enabled device, use a
DVI-HDMI cable and connect the Analog Audio output of the device to the L+R AUDIO here. .
Your VIZIO Certified HDMI and HDMI-DVI cables are available for purchase from
www.vizioce.com
or by calling 888-VIZIOCE (888-849-4623).
10. RGB PC – Connect the video and audio from a computer here. The blue color band on the
rear of the TV indicates this connection.
11. COMPONENT 1 (YPb/CbPr/Cr with Audio L/R) – Connect the primary source for
component video devices such as a DVD Player or set top box here. From left to right, use
green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio
inputs. The green color band on the rear of the TV indicates this connection.
12. COMPONENT 2 (YPb/CbPr/Cr with Audio L/R) – Connect the secondary source for
component video devices such as a DVD Player or set top box here. From left to right, use
green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio
inputs. The purple color band on the rear of the TV indicates this connection.
13. AV1 In – Connect the primary source for composite video devices, such as a VCR or video
game. Use the white and red connectors to connect the external audio from the same source.
The yellow color band on the rear of the TV indicates this connection. The S-Video
connector in the red area is associated with AV1 and if connected will take priority over AV1
RCA connector.
14. AV2 In – Connect the secondary source for composite video devices, such as a VCR or
video game. Use the white and red connectors to connect the external audio from the same
source. The orange color band on the rear of the TV indicates this connection. The S-Video
connector in the red area is associated with AV2 and if connected will take priority over AV2
RCA connector.
15. Audio Out – Connect the audio from the LCD HDTV to an external device, such as a home
theatre system, external amplifier or stereo. Speakers cannot be connected directly to here.
The gray color band on the rear of the TV indicates this connection.
16. Headphone Out – Connect a headphone directly or use a wireless headphone system.
11
12
13
14
16
Version 7/6/2006 12
www.VIZIOCE.com
1.4 VIZIO Universal Remote Control
The VIZIO Universal Remote Control is a comprehensive remote
that can be used to control up to four different components. The
remote button functions are explained on the following pages.
SET – This button starts all programming of the Remote Control.
Remote LED – Blinks when the remote operates.
POWER – Press this button to turn the TV on from the Standby
mode. Press it again to return to the Standby mode.
TV – This button has been pre-programmed to select the codes
to operate the GV46LHDTV.
VCR – This button selects a programmed VCR.
CABLE – This button selects a programmed cable TV set-top
box or a satellite TV set-top box.
DVD – This button selects a programmed DVD player.
Number Button Pad – Use these buttons to select a channel or
enter a password.
INPUT – This button allows the user to cycle through the inputs.
- / ENTER – This button works as a DASH button in the DTV
mode. When selecting a digital channel directly use this button
for the separation of main and sub-channels. For example,
channel 28-2 would be selected by the button sequence 2 8
ENTER 2.
CH (+ or -) – These buttons change the channels up or down.
LAST – This button recalls the previously viewed channel.
MUTE – This button turns the sound on and off.
VOL (+ or -) – These buttons turn the volume up or down.
MENU – Use this button for the On-Screen Display (OSD) menus.
INFO – This button displays the image and system information
display.
GUIDE – This button displays program information. Note: this
button is only functional for DTV.
EXIT – This button exits the On-Screen Display (OSD) menus.
- These buttons navigate the On-Screen Display
(OSD).
OK – Use this button to select your chosen option in On-Screen
Display (OSD) menus.
NOTE: This is a programmable
remote supporting up to 4 devices
(see TV, VCR, CABLE, DVD buttons at
the top of the remote). If the
remote is not working with your
VIZIO TV, press the TV button on
the remote to set the functions
back to TV.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 13
www.VIZIOCE.com
WIDE/Record – This button cycles through the available screen
formats. The options are Wide, Normal, Zoom, Panoramic. Note: in
RGB/PC mode the options are 4:3 and 16:9. This button also
functions as VCR Record when the component is activated with the
remote control.
SLEEP/Pause – This button allows the user to select the sleep
options by adjusting the timer in 30 minute increments up to 120
minutes. Additionally, this button pauses the CD, DVD or VCR when
the component is activated with the remote control.
MTS/Play – This button will select the MTS options of Stereo, SAP or
Mono in TV mode and alternate audio channels, where available, in
DTV mode. Additionally, this button plays the CD, DVD or VCR when
the component is activated with the remote control.
CC/Stop – Use this button will set the Closed Caption mode when
viewing a DTV or TV channel. Note: To set the default Closed
Caption setting for all channels see Section 3.3.6, Closed Caption
for DTV, on page 39. For DTV the options are CC1, CC2, CC3, CC4,
Service1 or Service2. For TV and AV, the options are On or Off.
Additionally, this button stops the CD, DVD or VCR when the
component is activated with the remote control.
TV/Previous Chapter – Repeated pressing of this button switches
between DTV and TV programming. Note: this button has been pre-
programmed for the VIZIO GV46LHDTV. This button also functions
as a DVD Previous Chapter when the DVD player is activated with the
remote control.
AV/Reverse – Repeated pressing of this button with switch between
AV1 and AV2 inputs. Additionally, this button rewinds the CD, DVD or
VCR when the component is activated with the remote control.
COMPONENT/Forward – Repeated pressing of this button with switch
between Component 1 and Component 2 inputs. Additionally, this
button forwards the CD, DVD or VCR when the component is
activated with the remote control.
HDMI/ Next Chapter – Repeated pressing of this button will switch
between HDMI 1 and HDMI 2 inputs. Additionally, this button
functions as a DVD Next Chapter when the component is activated
with the remote control.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 14
www.VIZIOCE.com
ZOOM (- and +) – Use these buttons to increase or decrease the size
of the picture. Note that in the zoom mode parts of the picture will not
be visible because they extend beyond the edges of the screen.
FREEZE – Press this button to “Freeze-Frame” the current screen.
Press this button again the continue playing.
RGB – This button selects an RGB Analog component such as a PC.
PIP – Use this button to activate the Picture-In-Picture mode.
PIP CH (- and +) – These buttons are used to select the channels
within the PIP screen when DTV/TV is the PIP input selected.
AUDIO – Press this button to switch the audio from the main screen to
the sub-screen while in PIP or POP mode.
PIP INPUT – Press the button to choose the PIP input. Note: The TV
must be in PIP/POP mode for this button to be functional. For
additional information regarding the PIP/POP options, see section
4.10.2 - Picture-In-Picture (PIP)/Picture-by-Picture (POP) Mode, page
59.
PIP SIZE – Press this button to select the size of the PIP screen from
one of the following: small, medium or large.
MODE – Use this button to change the picture mode from Custom,
Vivid, Movie, Game and Sport.
SWAP – Used to swap the inputs from the main screen and the subscreen while in PIP/POP mode.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 15
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
1.4.1 Insertion of Batteries in the Remote Control
Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the
batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the battery cover.
Precautionary Tips for Inserting the Batteries:
Only use the specified AA batteries.
Do not mix new and old batteries. This may result in cracking or leakage
that may pose a fire risk or lead to personal injury.
Inserting the batteries incorrectly may also result in cracking or leakage
that may pose a fire risk or lead to personal injury.
Dispose of the batteries in accordance with local laws and regulations.
Keep the batteries away form children and pets.
1.4.2 Remote Control Range
Point the remote control at the remote control sensor to transmit the commands.
Do not place any obstacles between the remote control and the receiver window.
The effective range of the remote control is approximately 30 feet (10 meters) from the front of the
receiver window, 30° to the left and right, 20° up and down.
1.4.3 VIZIO Universal Remote Control Precautions
The remote control should be kept dry and away from heat sources. Avoid humidity.
If the TV responds erratically to the remote control or does respond at all, check the batteries. If the
batteries are low or exhausted, replace them with fresh batteries.
When not using the remote control for a long period of time, remove the batteries.
Do not take the batteries apart, heat them, or throw them into a fire.
Do not subject the remote control to undue physical stress, such as striking or dropping it.
Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.
Version 7/6/2006 16
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Chapter 2 Connecting Equipment
2.1 Which Video Connection Should I Use?
The VIZIO GV46LHDTV has six different ways to connect your video equipment from a basic connection
to the most advanced for digital displays.
Rear
Connection
Quality (type)
Connector
Panel
Color
Codes
Description
Best
(digital)
Best
(digital)
- - - - - - - - - - - Good
(analog)
Best
(analog)
Better
(analog)
White
Black
Blue
Green
and
Purple
HDMI 1/2 (High-Definition Multimedia Interface) - It is
the first and only industry-supported, uncompressed,
all-digital audio/video interface. HDMI provides an
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and an
audio and/or video monitor, such as a digital
television (DTV), over a single cable.
DTV Coaxial RF. When used for MPEG2 encoded
bit streams from ATSC broadcast programming, this
input takes advantage of the High Definition content.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
TV Coaxial RF. This is the connection for standard
NTSC TV using antenna or cable.
RGB PC (VGA) – This video input has separate red,
green and blue color components. The signal
carries horizontal and vertical sync information on
the green signal. This is most commonly used for
PC input.
Component 1/2 - The video signal is separated into
three signals, one containing the black-and-white
information and the other two containing the color
information. This enhancement over S-Video takes
advantage of the superior picture provided by
progressive scan DVD players and HDTV formats.
Good
(analog)
Good
(analog)
Note: For more info refer to the Quick Start Guide
Version 7/6/2006 17
Red
Yellow
and
Orange
S-Video (AV1/2) - The video signal is separated into
two signals, one containing the black-and-white
information and the other containing the color
information. Separating the color in this way avoids
‘cross color’ effects where closely spaced black and
white lines are erroneously displayed in color. It also
enables text to be displayed more sharply.
AV1/2 (Composite) - The complete video signal is
carried through this single pin connector. This is the
most commonly used video connection.
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.2 Connecting Your DVD Player
You have several options for connecting your DVD player to your GV46LHDTV – HDMI, Component, SVideo and Composite (AV) inputs. Based on your home theater configuration, you can decide which
option is the right one for you.
2.2.1 Using HDMI
DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface) should be
connected to the HDMI input of the VIZIO GV46LHDTV for optimal results.
Note: To maintain the display quality, use a VIZIO certified HDMI cable available up to 10 meters or less.
See www.VIZIOCE.com
Connecting your DVD Player (Best):
1. Turn off the power to the LCD HDTV and DVD player.
2. Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDMI
1 Input (white color area) at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV and your DVD player.
4. Select HDMI 1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the HDMI button on the Remote Control.
Note:
a) If you are already using the HDMI 1 input for another component, or you do not want to use
b) Refer to your DVD player user manual for more information about the video output
the HDMI 1 input for the DVD player, you can connect the DVD player to the HDMI 2
connection.
requirements of the product.
or call 1-888-VIZIOCE (1-888-849-4623) for details.
Version 7/6/2006 18
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
For DVD Players with DVI:
1. Turn off the power to the LCD HDTV and DVD player.
2. Using a HDMI-DVI cable, connect the DVI end to your DVD player and the HDMI end to the
HDMI 1 Input (white color area) at the rear of the LCD HDTV.
3. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the DVI output on your DVD player and connect the other end to
the audio connectors associated with the HDMI 1 input (white area) at the rear of the LCD
HDTV.
4. Turn on the power to the LCD HDTV and your DVD player.
5. Select HDMI 1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the HDMI button on the Remote Control.
Note:
a) If you are already using the HDMI 1 input for another component, or you do not want to use
b) Refer to your DVD player user manual for more information about the video output
the HDMI 1 input for the DVD player, you can connect the DVD player to the HDMI 2
connection.
requirements of the product.
Version 7/6/2006 19
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.2.2 Using Component Video
Connecting your DVD Player (Better):
1. Turn off the power to the LCD HDTV and DVD player.
2. Connect the Y (green color) connector on your DVD player to the corresponding Y (green
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the LCD HDTV.
3. Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the LCD HDTV.
4. Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color)
connector in the Component 1 group (green color area - row of connectors nearest to you
when viewing from the rear of the TV) at the rear of the LCD HDTV.
5. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the Component output on your DVD player and connect the other
end to the audio connectors associated with the Component 1 input (green color area) at the
rear of the LCD HDTV.
6. Turn on the power to the LCD HDTV and DVD player.
7. Select Component 1 using the INPUT button on the remote or side of the LCD HDTV, or
directly by pressing the Component button on the Remote Control.
Note:
a) If you are already using the Component 1 input for another component, or you do not want
b) Refer to your DVD player user manual for more information about the video output
to use the Component 1 input for the DVD player, you can connect the DVD player to the
Component 2 connections coded by the purple area.
requirements of the product.
Version 7/6/2006 20
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.2.3 Using S-Video (AV)
Connecting your DVD Player (Good):
1. Turn off the power to the LCD HDTV and DVD player.
2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack associated (red
area) with the AV1 group (yellow area) at the rear of the LCD HDTV.
3. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the S-Video output on your DVD player and connect the other
end to the audio connectors associated with the AV1 input (yellow area) at the rear of the
LCD HDTV.
4. Turn on the power to the LCD HDTV and DVD player.
5. Select AV1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the AV button on the Remote Control.
Note:
a) If you are already using the AV1 input for another component, or you do not want to use the
b) Refer to your DVD player user manual for more information about the video output
AV1 input for the DVD player, you can connect the DVD player to the AV2 connections
coded by the red area and orange areas.
requirements of the product.
Version 7/6/2006 21
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.2.4 Using Composite (AV) Video
Connecting your DVD Player (Good):
1. Turn off the power to the LCD HDTV and DVD player.
2. Connect the Video (yellow color) connector on your DVD player to the Video (yellow color)
connector in the AV1 group (yellow color area - row of connectors nearest to you when
viewing from the rear of the TV) at the rear of the LCD HDTV.
3. Connect the R (red color) and L (white color) audio connectors on your DVD player to the
corresponding R (red color) and L (white color) audio input connectors in the AV1 group
(yellow color area - row of connectors nearest to you when viewing from the rear of the TV) at
the rear of the LCD HDTV.
4. Turn on the power to the LCD HDTV and DVD Player.
5. Select AV1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the AV button on the Remote Control.
Note:
a) If you are already using the AV1 input for another component, or you do not want to use the AV1
input for the DVD player, and you are not using the S-Video input for another component, you
can connect the DVD player to the AV2 connections coded by the orange area.
b) Refer to your DVD player user manual for more information about the video output requirements
of the product.
Version 7/6/2006 22
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.3 Connecting Your HDTV Set-Top Box
2.3.1 Using HDMI
HDTV Set-Top Boxes that have a HDMI digital interface should be connected to the HDMI input of the
LCD HDTV for optimal results.
Note: To maintain the display quality, use a VIZIO certified HDMI cable that is 10 meters or less. See
www.vizioce.com or call 1-888-VIZIOCE (1-888-849-4623) for details.
Connecting your Set-Top Box (Best):
1. Turn off the power to the LCD HDTV and HDTV Set-Top Box.
2. Connect a HDMI cable to the HDMI output of your HDTV Set-Top Box and the other end to
the HDMI 1 Input (white color area) at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV and HDTV Set-Top Box.
4. Select HDMI 1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the HDMI button on the Remote Control.
Note:
a) The HDMI input on the LCD TV supports High-bandwidth Digital Content Protection
b) If you are already using the HDMI 1 input for another component, or you do not want to use
c) Refer to your HDTV Set-Top Box user manual for more information about the video output
(HDCP). HDCP encrypts the transmission between the video source and the digital display
for added security and protection.
the HDMI 1 input for the Set-Top Box, you can connect the Set-Top Box to the HDMI 2
connection.
requirements of the product or consult your cable or satellite operator.
Version 7/6/2006 23
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
For Set-Top Boxes with DVI:
1. Turn off the power to the LCD HDTV and HDTV Set-Top Box.
2. Using a HDMI-DVI cable, connect the DVI end to your HDTV Set-Top Box and the HDMI end
to the HDMI 1 Input (white color area) at the rear of the LCD HDTV.
3. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the DVI output on your HDTV Set-Top Box and connect the other
end to the audio connectors associated with the HDMI 1 input (white area) at the rear of the
LCD HDTV.
4. Turn on the power to the LCD HDTV and HDTV Set-Top Box.
5. Select HDMI 1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the HDMI button on the Remote Control.
Note: The HDMI Input is for HD Video and will only support 640x480 at 60Hz from a PC. Use the RGB
PC input for a greater selection of PC formats.
Note:
a) The HDMI input on the LCD TV supports High-bandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission between the video source and the digital display
for added security and protection.
b) If you are already using the HDMI 1 input for another component, or you do not want to use
the HDMI 1 input for the Set-Top Box, you can connect the Set-Top Box to the HDMI 2
connection.
c) Refer to your HDTV Set-Top Box user manual for more information about the video output
requirements of the product or consult your cable or satellite operator.
Version 7/6/2006 24
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.3.2 Using Component Video
Connecting your Set-Top Box (Better):
1. Turn off the power to the LCD HDTV and HDTV Set-Top Box.
2. Connect the Y (green color) connector on your HDTV Set-Top Box to the corresponding Y
(green color) connector in the Component 1 group (green color area - row of connectors
nearest to you when viewing from the rear of the TV) at the rear of the LCD HDTV.
3. Connect the Pb (blue color) connector on your HDTV Set-Top Box to the corresponding Pb
(blue color) connector in the Component 1 group (green color area - row of connectors
nearest to you when viewing from the rear of the TV) at the rear of the LCD HDTV.
4. Connect the Pr (red color) connector on your HDTV Set-Top Box to the corresponding Pr (red
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the LCD HDTV.
5. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the Component output on your HDTV Set-Top Box and connect
the other end to the audio connectors associated with the Component 1 input (green color
area) at the rear of the LCD HDTV.
6. Turn on the power to the LCD HDTV and HDTV Set-Top Box.
7. Select Component 1 using the INPUT button on the remote or side of the LCD HDTV, or
directly by pressing the Component button on the Remote Control.
Note:
a) If you are already using the Component 1 input for another component, or you do not want
b) Refer to your HDTV Set-Top Box user manual for more information about the video output
to use the Component 1 input for the Set-Top Box, you can connect the Set-Top Box to the
Component 2 connections coded by the orange area.
requirements of the product or consult your cable or satellite operator.
Version 7/6/2006 25
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.4 Connecting Your VCR or Video Camera
1. Turn off the power to the LCD HDTV and VCR or Video Camera.
2. Connect the S-Video jack on the rear of your VCR or Video Camera to the S-Video jack (red
area) in the AV1 group (yellow area) at the rear of the LCD HDTV.
3. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the S-Video output on your VCR or Video Camera and connect
the other end to the audio connectors associated with the AV1 input (yellow area) at the rear
of the LCD HDTV.
4. Turn on the power to the LCD HDTV and VCR or Video Camera.
5. Select AV1 using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the AV button on the Remote Control.
Note:
a) If you are already using the AV1 input for another component, or you do not want to use the
b) Refer to your VCR or Video Camera user manual for more information about the video
AV1 input for the VCR or Video Camera, you can connect the VCR or Video Camera to the
AV2 connections coded by the red area and orange area.
output requirements of the product.
Version 7/6/2006 26
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.5 Connecting Coaxial (RF)
2.5.1 Using Your Antenna or Digital Cable for DTV
1. Turn off the power to the LCD HDTV.
2. Connect the coaxial (RF) connector from your antenna or
digital cable to the DTV/TV CABLE/ANTENNA connector
at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV.
4. Select DTV using the INPUT button on the remote or
side of the LCD HDTV, or directly by pressing the TV
button on the Remote Control.
Note:
a) Not all digital TV broadcasts are High Definition (HD). Refer to the program guides, or
b) Digital broadcasts are not available in all areas. Refer to www.antennaweb.org
c) Make sure the antenna and coaxial cable are correctly grounded.
d) For Professional antenna installation contact VIZIO at www.VIZIOCE.com
consult your cable, satellite or TV station operator.
for detailed
information.
or call 1-888-
VIZIOCE (1-888-849-4623).
Version 7/6/2006 27
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.5.2 Using Your Antenna or Cable for TV
1. Turn off the power to the LCD HDTV.
2. Connect the coaxial (RF) connector from your antenna
or cable to the DTV/TV CABLE/ANTENNA connector at
the rear of the LCD HDTV
3. Turn on the power to the LCD HDTV.
4. Select TV using the INPUT button on the remote or side
of the LCD HDTV, or directly by pressing the TV button
on the Remote Control.
2.5.3 Using the Antenna or Cable through your VCR
1. Turn off the power to the LCD HDTV and VCR.
2. Connect the “Output to TV”, “RF Out” or “Antenna Out”
connector on the rear of your VCR to the DTV/TV
CABLE/ANTENNA connector at the rear of the LCD
HDTV.
3. Turn on the power to the LCD HDTV and VCR.
4. Select TV using the INPUT button on the remote or side
of the LCD HDTV, or directly by pressing the TV button
on the Remote Control.
Note: If you have an off-air antenna or cable TV, connect it to the “Antenna In” connector on the rear of
your VCR.
Version 7/6/2006 28
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.6 Connecting an external Receiver/Amp
1. Turn off the power to the LCD HDTV and Receiver/Amp.
2. Using an audio cable (white and red connectors), connect the cable to the audio input
connectors on the Receiver/Amp and connect the other end to the ANALOG OUT (white
area) audio connectors at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV
and Receiver/Amp.
4. Then press the MENU button on the
remote control to open the On-Screen
Display (OSD) menu.
5. Press the button on the remote to
highlight the Audio Settings menu.
6. Press the button on the remote to
select the Audio Settings menu.
7. Press the button on the remote to
highlight Speakers and then press the
OK button.
8. Press the button on the remote to
select OFF so that the sound will now
be routed through your Receiver/Amp
system. Press EXIT on the remote to close the OSD.
Note:
a) Refer to your Receiver/Amp user manual to select the corresponding audio input.
b) The audio output is not amplified and cannot be connected directly to external speakers.
Optical Output of Audio received with HD Programs
If your sound system has a SPDIF (optical) digital audio input you can connect it to the optical DIGITAL
AUDIO OUT (gray area) at the rear of the LCD HDTV. This is active when receiving digital audio with the
programs from the DTV/TV CABLE/ANTENNA input.
Version 7/6/2006 29
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
2.7 Connecting a PC Computer
1. Turn off the power to the LCD HDTV and PC Computer.
2. Connect a 15-pin D-Sub RGB (VGA) cable to the RGB output of your pc computer and the
other end to the RGB PC input (blue area) at the rear of the LCD HDTV.
3. Connect the Audio Out on your pc computer to the RGB PC Audio input (purple area) at the
rear of the LCD HDTV.
4. Turn on the power to the LCD HDTV and PC Computer.
5. Select RGB using the INPUT button on the remote or side of the LCD HDTV, or directly by
pressing the RGB button on the Remote Control.
Note:
a) For the best picture quality when connecting a pc computer through RGB PC, set your pc
b) Refer to your pc computer user manual for more information about the video output
c) A RGB (VGA) cable and stereo mini jack cable are not included and can be purchased at an
computer timing mode to VESA 1024x768 at 60Hz. Please refer to the pc or graphic card’s
user guide for additional information on how to set the timing mode.
requirements of the product.
electronics store.
Version 7/6/2006 30
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
pp
Chapter 3 Setting Up to Watch Television
For ‘Preparing Your LCD HDTV for Wall Mounting’, see page 6.
3.1 Basic LCD HDTV Start Up
1. Connecting the Power Cable
Connect the power cord to the power cord connector on the back of the LCD HDTV, and then
plug the power cord into an AC wall socket.
2. Connect Audio and Video Cables to the LCD HDTV
(see pages 17 ~ 30 for detailed steps)
3. Turning Power On
Once all the components are connected, press the Power ON button on the side of the LCD
HDTV, or press the Power ON (Red) button on the remote control.
4. Select Input Source
Select the Input Source for the LCD HDTV by pressing the INPUT button on the side of the TV or
using the Input button on the remote control. Pressing this button will cycle you through the
following options: DTV, TV, RGB, AV1 (S-Video or Video*), AV2 (S-Video or Video*), Component
1, Component 2, HDMI 1 and HDMI 2. You can also select them by using the TV, AV,
Component and HDMI buttons on the remote.
*S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1
S-Video and AV1 Video simultaneously, then S-Video will be the only choice for AV1. If a signal is
connected to AV1 Video only, then Video will be the only choice for AV1. The same input priority
scheme a
lies to AV2.
3.2 Using TV with an Antenna or Cable
3.2.1 First Time TV Use
If an antenna or cable source is connected to the DTV/TV
input, you will need to select TV using the INPUT button on
the remote control or the side of the LCD HDTV, or directly
by pressing the TV button on the remote control, and Auto
Scan for the available TV channels. The screen will show
‘snow’ and an OSD panel that says, “Channel Scan Required
Press Menu.”
Note: If you do not see this option within the OSD, you might have selected the wrong input in the
previous steps and you will need to repeat step 4 (above) to select the correct input source.
Version 7/6/2006 31
www.VIZIOCE.com
3.2.2 Setting TV Channels
1. Press the MENU button on the remote
control to open the OSD menu. The
Image Settings Menu will be displayed.
2. Press the button on the remote once
to highlight the Setup menu and then
press OK to select the menu.
3. Press the and buttons to highlight
the TV Menu sub-menu. Press the
button to select this sub-menu.
4. Once selected, press the button to
highlight Cable / Antenna. Press the OK
button to adjust this option and then press
the or button to select the Cable or
Antenna to match the source you have
connected to the DTV/TV input at the rear
of the LCD HDTV.
5. Press the button when you have
finished your selection.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 32
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
6. Press the button until Auto Scan is
highlighted.
7. Press the button to start the search.
When finished, “Auto Scan Completed”
will be displayed at the top of the screen.
Note: This will take a few minutes to
complete.
3.2.3 Adding or Deleting (Skipping) TV Channels
To select a TV channel to be skipped when ‘channel surfing’ with the CH + / - buttons, or to be added to
these feature, follow this procedure.
1. Using the TV button on the remote, select
TV.
2. Select the channel directly by using the
Number Buttons on the remote and then
press the OK button.
3. Follow steps 1 ~ 3 in the previous section
3.2.2 to select the TV Setup menu.
4. Once selected, press the button to
highlight Set Channel. Press the OK
button and then press the or button
to Add or Delete the channel.
5. Press the button when finished.
3.3 Using DTV with an Antenna or Cable
3.3.1 First Time DTV Use
If an antenna or cable source is connected to the
DTV/TV input, you will need to select DTV using the
INPUT button on the remote control or the side of the
LCD HDTV, or directly by pressing the TV button on the
remote control. The first time you use your DTV input
you will see the information panel, “Channel Scan
Required Press Menu”.
Version 7/6/2006 33
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
3.3.2 Setting DTV Channels Automatically
1. Press the MENU button on the remote
control to open the OSD menu. The
Image Settings Menu will be displayed.
2. Press the button on the remote control
to highlight the Setup menu.
Note: DTV digital broadcast is not available in all areas. Refer to www.antennaweb.org to get
information about availability in your area, type of antenna and in which direction to point your antenna.
The channel availability through cable depends upon which channels your cable operator supplies in
Clear QAM; consult your cable operator for more information.
3. Press the and buttons to highlight
the DTV Menu sub-menu. Press the OK
button to select this sub-menu. This will
display the DTV Tuner Setup menu.
4. The DTV Tuner Setup sub-menu is now
shown on the screen. The DTV Tuner
Setup option should be highlighted, if not,
use the or button to highlight it.
Press the OK button on the remote control
and the next DTV Tuner Setup sub-menu
will be shown.
Version 7/6/2006 34
www.VIZIOCE.com
5. If necessary, highlight the Time Zone
feature by using the or button.
Press the button to select this option.
Setting the correct Time Zone for your
area will ensure that the correct program
times are shown after pressing the GUIDE
button on the remote control.
6. Select your time zone using the or
button. When finished, press the OK
button to save and exit this option.
7. Press the or button on the remote
control to select Cable/Air/Auto.
The default selection is Auto.
This means that the TV will scan for
antenna and cable channels and takes the
most time. If you have an antenna
connected choose Air, or if you have cable
connected choose Cable, and the TV will
take less time in searching for channels.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 35
www.VIZIOCE.com
8. Press the button to select this option.
Using the or button, select Cable if
you are using cable out of the wall, Air if
you are using an antenna.
Press the button to save and exit this
option.
9. Press the button to highlight Scan.
Press the OK button to activate. Note:
This will take a few minutes to complete.
10. Once Auto Scan has finished, you will be
returned to the previous menu. Note: If
you press OK, the Auto Scan process will
start again.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 36
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
3.3.3 Setting DTV Channels Manually
If you feel that not all of the available digital TV channels were found with Auto Scan, then selecting this
option enables the TV to scan again to try to find any missing channels.
1. Press the button to highlight Manual
Scan and then press the OK button.
Note: A channel will be missed if it is not
transmitting at the time of the scan and so
you should try again at a time when you
know the station is transmitting programs.
A channel will also be missed if it is too
weak to be received. Re-orientation of the
antenna or changing to a higher gain
antenna may help, but note that any
changes to the antenna may affect other
channels.
2. The Manual Scan screen now appears
and this can be used in two ways. The
screen defaults to Add-On Mode and
pressing the OK button at this stage
makes the TV scan the whole channel
range again. Press EXIT to navigate
away from this screen.
Note: If the OK button is pressed, then the
automatic scanning will start again.
3. If the or button is pressed first, then
the Range Mode is activated so that you
can specify a smaller range of channels to
be scanned again.
Press the button to highlight From
Channel and enter the channel using the
number buttons, then press the button
again to highlight To Channel and enter
the channel using the number buttons.
Press OK to start scanning.
Press EXIT to navigate away from this
screen.
Note: If the OK button is pressed, then the
automatic scanning will start again.
Version 7/6/2006 37
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
3.3.4 Adding or Deleting (Skipping) DTV Channels
To select a DTV channel to be skipped when ‘channel surfing’ with the CH + / - buttons, or to be added to
these feature, follow this procedure.
4. Follow the steps in Section 3.3.2, page 34
to display the DTV Tuner Setup menu.
Press the button to highlight Channel
Skip. Press the OK button.
5. The list of channels available and stored
in memory is shown on the screen. If the
list is longer than 8 channels, as you
repeatedly press the button you will be
able to scroll through to see them all. The
boxes to the right of the channel names
are empty by default.
6. As you scroll down the channels with the
button, each one is highlighted in turn.
When a channel you want to skip is
highlighted, press the OK button and a
check mark (
opposite that channel. This means that
when surfing with the CH+ or CH- buttons,
this channel will be skipped and not
displayed.
If you wish to add a channel that is being
skipped, highlight the channel and press
the OK button to make the check mark (
disappear.
Press EXIT to navigate away from this
screen when finished.
9
) will appear in the box
9
)
Version 7/6/2006 38
www.VIZIOCE.com
3.3.5 Digital Audio Out
Follow the steps in Section 3.3.2, page 34 to
display the DTV Tuner Setup menu.
Press the button to highlight Digital Audio Out.
Press the OK button.
Use the or button to choose either PCM,
Dolby Digital or Off for the output.
Press the OK button to save and exit this feature.
3.3.6 Closed Caption for DTV
Refer to Section 3.3.2, page 34, and follow the
instructions to display DTV Tuner Setup menu.
Although this is digital TV, some broadcasts will
have analog Closed Caption instead of digital
Closed Caption but your VIZIO GV46L HDTV can
display either.
Press the or button to highlight Closed
Caption and press the OK button.
The settings on this menu page will set the default
for all DTV channels. When viewing a channel,
you can change the Closed Caption setting using
the CC button on the remote but it will only affect
that channel and if you change channels and
come back to the original one, the Closed Caption
setting will revert back to the one set here in the
OSD.
To set Analog Closed Caption for all DTV
channels, use the or button to highlight the
Analog Closed Caption option.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 39
www.VIZIOCE.com
Press the button to select this option. Using
the or button to select the Closed Caption
service required, usually CC1. When finished,
press the OK button to save and exit this option.
NOTE: Analog Closed Caption
has priority over Digital
Closed Caption and so, when
selected, will be the default
setting for all DTV channels.
Use the CC button on the
remote to change the setting
when viewing a channel.
To set Digital Closed Caption for all DTV channels,
use the or button to highlight the Digital
Closed Caption option.
Press the button to select this option. Using
the or button to select the Closed Caption
service required, usually Service 1.
NOTE: The default setting for
all DTV channels will now be
Closed Caption On, in this
example, Service 1 option.
To change the look of the Digital Closed Caption
information, highlight Digital Caption Style using
the button. Press the OK button.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 40
www.VIZIOCE.com
The default style, As Broadcaster, is shown as
selected. This means that the style of the closed
caption is as received from the TV channel. This
is usually acceptable.
If you want to change the style press the OK
button and use the or button to select
Custom.
The Caption Style screen is now filled with many
options to change the look of the Closed Caption
information. Please note, this is only effective with
digital channels and this has no effect on regular
analog channels.
VIZIO GV46L HDTV User Manual
3.3.7 Parental Controls for DTV
Refer to Section 3.3.2, page 34, and follow the
instructions to display DTV Tuner Setup menu.
Press the or button to highlight Parental
Control and press the OK button.
Version 7/6/2006 41
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
The Parental Control Password screen will be
shown. Using the number buttons on the remote
control, enter the four digit password. The factory
default password is 0 0 0 0. If you change the
password, (section 4.8.2, Change Password, on
page 54), please make a note of it in a safe place.
Once the correct password has been entered, the
option for blocking channels becomes available.
Press OK to continue or press to go back.
The list of channels available and stored in
memory is shown on the screen. If the list is
longer than 8 channels, as you repeatedly press
the button you will be able to scroll through to
see them all. The boxes to the right of the channel
names are empty by default.
Scrolling down the channels with the button,
highlights each channel in turn. When a channel
you want to block is highlighted, press the OK
button and a lock symbol ( ) will appear in the
box opposite that channel. This means that when
this channel is selected a password request panel
will appear on the screen and you will not be able
to view this channel without first entering the
password.
To Unblock a channel , highlight it and press the
OK button. The lock symbol ( ) will disappear.
Press EXIT to navigate away from this screen
when finished.
NOTE: If you use the Clear All function on the Parental
Controls menu, it will NOT clear any channels that are selected
as Blocked on this page. Channels blocked on this page can
only be Unblocked individually on this page.
Version 7/6/2006 42
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
3.4 Watching a TV Program
Before you start watching TV, please make sure that any cable, satellite or off-air antenna connections
are secure. Also, verify that the power cord is plugged into a correctly grounded electrical outlet or surge
protector.
1. Press the power button on the remote or on the side of the LCD HDTV. The VIZIO logo on
the Bezel will change from orange to white.
2. There are 3 options for selecting your programming:
a. If you are using an antenna or cable connected through the DTV/TV CABLE/ANTENNA
input, you can select TV directly by pressing the TV button on the remote, or by pressing
the INPUT button on the remote or on the side of the LCD HDTV.
b. If you are watching broadcasts through a cable or satellite set-top box connected by an
HDMI cable, select HDMI 1 or HDMI 2 directly by pressing the HDMI button on the
remote, or by pressing the INPUT button on the remote or on the side of the LCD HDTV.
c. If you are watching broadcasts through a cable or satellite set-top box connected by a
Component (YPbPr) cable, select Component 1 or Component 2 directly by pressing the
Component button on the remote, or by pressing the INPUT button on the remote or on
the side of the LCD HDTV.
Note: You should be able to see a picture. If you do not, make sure that all of the LCD HDTV
connections are secure and you have selected the correct video input source.
3. When using option 2a, press the Channel buttons on the remote or the +/- buttons on the side
of the LCD HDTV to change the channel. Note: The Channel buttons, on the side of the LCD
and on the remote, control will not work if you are watching a program using HDMI,
Component 1, Component 2, AV1 and AV2 inputs.
3.5 Adjusting Basic LCD HDTV Settings
Volume
To increase or decrease the volume, press and hold the VOL+ or VOL- button on the side of the LCD
HDTV or remote control until the desired level is reached.
TV Channels
To step up or down through the available TV channels, press the CH+ or CH- button on the side of the
LCD HDTV or remote control once for the next or previous channel, or hold it depressed until the desired
channel is reached. Note: Channel up and down will only operate in DTV and TV modes.
Wide
Using this feature, you can watch video content in different size modes on the TV. Press the WIDE
button on the remote control to switch among the modes.
Fore more information see Section 4.10.1 – Viewing Modes, on page 58.
Version 7/6/2006 43
www.VIZIOCE.com
3.6 DTV Channel Information
When a channel is selected, an information header is
shown over the picture for a few seconds. This
information consists of the channel number and name,
the format in which the program is broadcast (480i SD,
480P SD, 720P HD, 1080i HD), audio channel 1/2 or
2/2 (omitted if alternate channel is not broadcast),
language, program title, program start and end time,
program rating and if CC is available.
When you press the INFO button on the remote, you
not only get the information header displayed, but also
a short summary of the program content when
available from the broadcaster. If you do nothing else
with the INFO button, these panels will remain on the
screen, even when changing channels.
Press the INFO button and the program summary will
disappear, but the information header will remain.
Press the INFO button again and only the channel
number and name will remain. Press the INFO button
one more time and this will disappear.
VIZIO GV46L HDTV User Manual
Version 7/6/2006 44
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
3.7 Program Information
Press the GUIDE button on the remote and program information for the channel you are watching will be
displayed on the screen with the live program content in a small window in the lower left corner of the
panel.
Press the or button to scroll up or down the channels. Each time you pause at a channel, the
program list will update with the program schedule for the channel and the window will show the live
program for that channel. Press the GUIDE button to exit this feature.
Version 7/6/2006 45
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Chapter 4 Adjustment of the HDTV
4.1 Using the On Screen Display (OSD)
The remote control or the control buttons on the right hand side of the TV can control all the function
settings. The On Screen Display (OSD) allows you to adjust the save contrast, brightness and other
settings. The TV will save changes made to the settings, even if the TV is turned off.
The OSD consists of several menu options: Image Settings, Display Settings, Audio Adjust, Parental
Controls, and Setup. The main menu options may very depending on your selected input source.
Note: Some of the main menu options may have additional submenus, i.e. the TV Rating submenu for
Parental Controls.
1. Press the MENU button on the remote control or the
side of the TV and the Image Settings menu will be
shown on the screen.
2. Press the or button on the remote control or the
CH + or CH – button on the side of the TV to select
one of the other menu options.
Image Settings
Display Settings
Audio Settings
Parental Controls
Setup
3. Once the menu option is displayed, press the button on the remote control to select one
of the items to adjust.
4. Press the or button on the remote control to begin adjustment of the item.
5. Press OK when finished.
6. Repeat steps 2 through 5 to adjust additional options within this menu.
7. Once the adjustments are completed press the EXIT button on the remote control to exit the
OSD completely.
Version 7/6/2006 46
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.2 Image Settings for TV and Video Inputs
4.2.1 Picture Mode
When the MENU button is pressed, the On Screen Display (OSD) appears on the Image Settings page.
Press the button to highlight the Picture Mode selection.
Press the OK button to access this selection.
Press the or button to choose from Custom,
Vivid, Movie, Game and Sport.
Custom – allows you to customize the features on
this menu to your individual taste and the HDTV
will remember them under the Custom selection.
Vivid – automatically increases the saturation
level for viewing the picture in a bright environment.
Movie – automatically decreases the brightness
and contrast level for an optimized picture.
Game – automatically increases the contrast level
and slightly decreases brightness level for an
optimized picture.
Sport – automatically increases contrast and
saturation levels for an optimized picture.
When finished, press the button to save and exit this setting.
4.2.2 Brightness
Press the or button to highlight Brightness and then press the OK button to access this selection.
The menu page will disappear and be replaced by a smaller Brightness Indicator Bar so you can see the
brightness level between the minimum (0) and maximum (100) levels. Use the button to reduce the
brightness and the button to increase the brightness. When finished, press the OK button to save and
exit this setting.
The Brightness adjusts the black levels in the picture. If the brightness is too low you will not be able to
see the detail in darker parts of the picture and if the brightness is too high the picture will look washed
out.
4.2.3 Contrast
Press the or button to highlight Contrast and then press the OK button to access this selection.
The menu page will disappear and be replaced by a smaller Contrast Indicator Bar so you can see the
contrast level between the minimum (0) and maximum (100) levels. Use the button to reduce the
contrast and the button to increase the contrast. When finished, press the OK button to save and exit
this setting.
The Contrast adjusts the white levels in the picture. If the contrast is too low the picture will look washed
out and if the contrast is too high you will not be able to see any detail in the bright parts of a picture.
Version 7/6/2006 47
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.2.4 Saturation
Press the or button to highlight Saturation and then press the OK button to access this selection.
The menu page will disappear and be replaced by a smaller Saturation Indicator Bar so you can see the
color saturation level between the minimum (0) and maximum (100) levels. Use the button to reduce
the color and the button to increase the color. When finished, press the OK button to save and exit
this setting.
The Saturation adjusts the amount of color in the picture.
4.2.5 Hue
Press the or button to highlight Hue and then press the OK button to access this selection.
The menu page will disappear and be replaced by a smaller Hue Indicator Bar so you can see the hue
between from negative (-50) to positive (50). The default is 0. Use the button to change hue in the
negative direction and the button to change hue in the positive direction. When finished, press the OK
button to save and exit this setting.
Hue adjusts the tint of the picture. The easiest way to set tint is to look at flesh tones and adjust for a
realistic appearance. In most cases, the default middle position is correct. If people’s faces look too
orange try reducing the level of color first as the case of this is often too much color.
4.2.6 Sharpness
Press the or button to highlight Sharpness and then press the OK button to access this selection.
The menu page will disappear and be replaced by a smaller Sharpness Indicator Bar so you can see the
sharpness level between the minimum (0) and maximum (24) levels. Use the button to reduce the
sharpness and the button to increase the sharpness. When finished, press the OK button to save and
exit this setting.
The Sharpness adjusts the sharpness of the picture.
4.2.7 Custom Color
Press the or button to highlight Custom Color and then press the OK button to access this selection.
Custom Color allows you to adjust the White Color Temperature (color shade of white) if you wish to fine
tune the factory default setting. Color Temperature is measured in degrees Kelvin (K), television
programming and movies are produced with a 6500K color temperature and this is the temperature that
should be used for faithful reproduction of the program color. Higher color temperatures result in a bluish
white picture. The factory default is set at 6500K.
The Custom Color Image Settings sub menu will
be displayed.
Press the or button to highlight the color you
wish to adjust (Red, Green or Blue).
The value range is 0 to 100, the default being 50.
Use the button to reduce the amount of color
selected and the button to increase the amount
of color selected.
When finished adjusting a color, press the OK
button to save and exit the color selected.
Press the button to return to the Image Settings
menu.
Version 7/6/2006 48
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.3 Image Settings for PC
4.3.1 Brightness
When the MENU button is pressed, the On Screen
Display (OSD) appears on the Image Settings
page. Press the button to highlight the
Brightness selection.
Press the OK button to access this selection.
The menu page will disappear and be replaced by a smaller Brightness Indicator Bar so you can see the
brightness level between the minimum (0) and maximum (100) levels. Use the button to reduce the
brightness and the button to increase the brightness. When finished, press the OK button to save and
exit this setting.
The Brightness adjusts the black levels in the picture. If the brightness is too low you will not be able to
see the detail in darker parts of the picture and if the brightness is too high the picture will look washed
out.
4.3.2 Contrast
Press the or button to highlight Contrast and then press the OK button to access this selection.
The menu page will disappear and be replaced by a smaller Contrast Indicator Bar so you can see the
contrast level between the minimum (0) and maximum (100) levels. Use the button to reduce the
contrast and the button to increase the contrast. When finished, press the OK button to save and exit
this setting.
The Contrast adjusts the white levels in the picture. If the contrast is too low the picture will look washed
out and if the contrast is too high you will not be able to see any detail in the bright parts of a picture.
Version 7/6/2006 49
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.4 Advanced Image Settings for TV and Video
Press the MENU button, then the button to select the Image Settings menu. Refer to section 4.2,
Image Settings for TV and Video Inputs, on page 47. Press the or button to highlight the Advanced
selection and then press the OK button. The Advanced Image Settings sub menu will be displayed.
4.4.1 Noise Reduction
Press the or button to highlight Noise
Reduction and then press the OK button.
The following sub menu options will be displayed.
Motion (Motion Noise Reduction) – This feature
helps to remove picture noise caused by fast
moving video that may be present in the picture.
Press OK and use the or button to adjust the
feature. Press OK to save and exit the adjustment.
Press the button to exit the sub menu.
Digital (Digital Noise Reduction) – This feature
helps to remove picture noise caused by MPEG
compression that may be present in the picture.
Press OK and use the or button to adjust the
feature. Press OK to save and exit the adjustment.
Press the button to exit the sub menu.
4.4.2 Fleshtone
Press the or button to highlight Fleshtone and then press OK. Press the or button to choose
from Off, Low, Moderate or High.
4.4.3 Dynamic Contrast
Press the or button to highlight Dynamic Contrast and then press OK. Press the or button to
choose from 1 (minor) to 3 (strong); 0 is off.
4.4.4 Backlight
Press the or button to highlight Backlight
and then press OK. Press the or button to
choose from High, Medium or Low.
The Backlight level does not affect the Brightness
(black level) or Contrast (white level) of the picture,
it adjusts the lamp current and this affects the
overall brilliance of the picture.
Version 7/6/2006 50
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.5 Advanced Image Settings for PC
Press the MENU button, then the button to select the Image Settings menu. Refer to section 4.2,
Image Settings for TV and Video Inputs, on page 47. Press the or button to highlight the Advanced
selection and then press the OK button. The Advanced Image Settings sub menu will be displayed.
4.5.1 Auto Adjustment
Press the or button to highlight Auto
Adjustment and then press the OK button. The
HDTV will now automatically set the position and
size of the PC picture.
4.5.2 Image Position
Press the or button to highlight Image
Position and then press the OK button.
The menu will be replaced by a small direction
panel to aid in the positioning of the picture using
the buttons. When finished, press the
OK button.
4.5.3 Phase
Press the or button to highlight Phase and then press OK. Use the and buttons to remove
any horizontal distortion and clear/sharpen the displayed characters. When finished, press the OK button.
4.5.4 Clocks / Line
Press the or button to highlight Clocks / Line and then press OK. Use the and buttons to
remove any vertical distortion and clear/sharpen the displayed characters. When finished, press the OK
button.
4.5.5 Color Temp
Press the or button to highlight Color Temp and then press OK. Use the or button to select
from the options Warm(5400K), Standard(6500K), Cool(9300K) or User.
User Color allows you to adjust the White Color Temperature (color shade of white) if you wish to fine
tune the factory default setting. Color Temperature is measured in degrees Kelvin (K), and PC graphics
are made with a 9300K color temperature. The
factory default is set at 9300K.
The User Color Image Settings sub menu will be
displayed.
Press the or button to highlight the color you
wish to adjust (Red, Green or Blue).
The value range is 0 to 100, the default being 50.
Use the button to reduce the amount of color
selected and the button to increase the amount
of color selected.
When finished adjusting a color, press the OK
button to save and exit the color selected.
Press the button to return to the Image Settings
menu.
Version 7/6/2006 51
www.VIZIOCE.com
4.5.6 Backlight
Press the or button to highlight Backlight
and then press OK. Press the or button to
choose from High, Medium or Low.
The Backlight level does not affect the Brightness
(black level) or Contrast (white level) of the picture,
it adjusts the lamp current and this affects the
overall brilliance of the picture.
4.6 Display Settings
When the MENU button is pressed, the On Screen
Display (OSD) appears on the Image Settings
page. Press the button to change to the
Display Settings page.
4.6.1 Aspect Ratio
Press the button to highlight the Aspect Ratio
selection and then press the OK button.
Press the or button to choose from
Panoramic (available only in video mode), 4:3,
16:9 or Zoom (not available for RGB input)
For additional information, see Section 4.10,
Understanding Viewing Features, on page 58.
VIZIO GV46L HDTV User Manual
4.6.2 PIP (Picture-In-Picture)
Press the button to highlight the PIP selection
and then press the OK button. The PIP Display
Settings sub menu will be displayed.
With the PIP Mode highlighted, press OK. Press
the or button to choose from Large PIP,
Small PIP, POP and Off. When finished, press OK.
Press the or button to highlight PIP Position
and press OK. Press the or button to
choose from Top-Left, Top-Right, Bottom-Left, and
Bottom-Right. When finished, press OK.
Press the or button to highlight PIP Input
and press OK. Press the or button to
choose from AV1 (S-Video or video*), AV2 (SVideo or video*), Component 1, Component 2,
HDMI 1, HDMI 2 and RGB.
*S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video and AV1 Video
simultaneously, then S-Video will be the only choice for AV1. If a signal is connected to AV1 Video only, then Video will be the only
choice for AV1. The same input priority scheme applies to AV2.
For more information regarding the PIP source options see section 4.10.2, PIP / POP Mode, on page 59.
Version 7/6/2006 52
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.7 Audio Settings
When the MENU button is pressed, the On Screen Display (OSD) appears on the Image Settings page.
Press the button to change to the Audio Settings page.
4.7.1 Bass
Press the button to highlight the Bass selection
and then press the OK button.
The value range is 0 to 20, the default being 10.
Use the button to reduce the amount of bass
and the button to increase the amount of bass.
When finished press OK.
4.7.2 Treble
Press the or button to highlight Treble and
press OK.
The value range is 0 to 20, the default being 10.
Use the button to reduce the amount of treble
and the button to increase the amount of bass. When finished press OK.
4.7.3 Balance
Press the or button to highlight Balance and press OK.
The value range is -10 to 10, the default being 0.
Use the button to move the sound to the left speaker and the button to move the sound to the right
speaker. When finished press OK.
4.7.4 SRS TS XT
Press the or button to highlight SRS TS XT and press OK.
Press the or button to turn on or off TruSurround XT
surround sound effect with the left and right speakers in the HDTV. When finished press OK.
®
by SRS Labs. This feature produces a
4.7.5 Auto Volume
Press the or button to highlight Auto Volume and press OK.
Press the or button to turn on or off Auto Volume. This feature adjusts the volume so that it is the
same level for all inputs. When finished press OK.
4.7.6 Speakers
Press the or button to highlight Speakers and press OK.
Press the or button to turn on or off the HDTV speakers. When finished press OK.
4.7.7 Audio Out
Press the or button to highlight Audio Out and press OK.
Press the or button to choose from Fixed Volume or Variable Volume. When finished press OK.
Fixed Volume sets a fixed Line Out signal and you use the Receiver/Amp to control the volume. Variable
Volume allows you to adjust the volume using the HDTV volume control.
Note: This option is only available when the internal speakers are turned off.
Version 7/6/2006 53
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.8 Parental Controls
When the MENU button is pressed, the On Screen Display (OSD) appears on the Image Settings page.
Press the button to change to the Parental Controls page.
Press the OK button and the first of the 4
Password boxes will be highlighted. Enter the 4digit password using the number buttons on the
remote.
4.8.1 Settings
The Parental Controls menu changes and the
Settings option is highlighted. Press the OK
button. (Jump to Section 4.8.4, TV Rating.)
4.8.2 Change Password
Press the or button to highlight Change
Password and press OK. (Jump to Section 4.8.7,
Setting a Password, on page 56).
4.8.3 Clear All
Press the or button to highlight Clear All
and press OK. Press the or button to
select Yes and press OK. Everything will be
Unblocked except DTV blocked channels.
4.8.4 TV Rating
The page selections change and TV Rating is
highlighted. Press the OK button.
Version 7/6/2006 54
www.VIZIOCE.com
Press the or button to highlight the rating
you want to block and press OK. You can select
from the following ratings:
• TV Youth (all children)
• TV Youth 7 (older children)
• TV G (general audience)
• TV PG (guidance suggested)
• TV 14 (strongly cautioned)
• TV MA (mature audience)
• Unblocked
Press the or button to select Blocked or
Unblocked. Press OK to save and exit.
Press to return to the previous menu.
4.8.5 Movie Rating
Press the or button to highlight Movie Rating and press OK.
Press the or button to highlight the rating
you want to block and press OK. You can select
from the following ratings:
• Movie G (General audience)
• Movie PG (Parental guidance suggested)
• Movie PG-13 (Recommended for children 13
years of age and older)
• Movie R (mature audience)
• Movie NC-17 (no one under 17 years of age)
• Movie X (no one under 17 years of age)
• Unblocked
Press the or button to select Blocked or
Unblocked. Press OK to save and exit.
Press to return to the previous menu.
VIZIO GV46L HDTV User Manual
4.8.6 Block Unrated
Press the or button to highlight Block
Unrated and press OK.
Press the or button to choose Yes and
press OK.
Movies and Programs that do not have a rating will
be Blocked.
Version 7/6/2006 55
www.VIZIOCE.com
4.8.7 Setting a Password
The default password is “0000”. You can change
the password to any four-digit number.
Enter your new the 4-digit password using the
number buttons on the remote.
Enter your new password again.
Press OK.
VIZIO GV46L HDTV User Manual
4.8.8 Resetting the Password
When the MENU button is pressed, the On Screen Display (OSD) appears on the Image Settings page.
Press the button to change to the Parental Controls page.
Press the OK button and the first of the 4 Password boxes will be highlighted.
Press the buttons in this exact sequence. Press the OK button.
The password has now been reset to “0000" and the following message will appear.
Version 7/6/2006 56
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.9 Setup for Video and PC
When the MENU button is pressed, the On Screen Display (OSD) appears on the Image Settings page.
Press the button to change to the Setup page.
4.9.1 Language
Press the or button to highlight Language
and press OK. Press the or button to
choose English, Español or Français and press
OK to save your choice.
4.9.2 Factory Reset
Press the or button to highlight Factory
Reset and press OK. Press the button to
choose Yes and press OK. The HDTV settings
will be changed back to those it was programmed
with in the factory.
Note: Factory Reset does NOT reset the Parental Controls password.
4.9.3 Image Cleaner
Not necessary for your GV46L HDTV. If the HDTV is left on for long periods (weeks) some ghost images
may be seen and to remove them power-off the HDTV overnight and they will disappear.
4.9.4 Firmware Version
Displays the version of firmware operating your HDTV
4.9.5 Closed Caption
Press the or button to highlight Closed Caption and press OK.
Press the or button to choose Display and
press OK.
Press the or button to choose from CC1,
CC2, CC3, CC4, TEXT1, TEXT2, TEXT3, TEXT4.
Press OK to save your choice.
4.9.6 Closed Caption on
Mute
Press the or button to highlight Captions
on Mute and press OK.
Press the button to choose On and press OK
to save your choice. Now when the sound is
Muted, Closed Caption will be displayed.
Press the button to return to the previous menu.
Version 7/6/2006 57
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.10 Understanding Viewing Features
Your LCD HDTV features four viewing modes and Picture-In-Picture (PIP)/Picture-by-Picture (POP) mode.
You can switch viewing modes using the On Screen Display (OSD) or the remote control.
4.10.1 Viewing Modes
4:3 Mode
The original 4:3 aspect ratio (1.33:1 source) is preserved, so black bars are
added to the left and right of the display image. Standard TV broadcasts are
displayed with a 4:3 Aspect Ratio. Movies in 4:3 Aspect Ratio may be referred
to as pan-and-scan or full frame. These movies were originally filmed in 16:9
(widescreen), and then modified to fit a traditional TV screen (4:3).
16:9 Mode
When watching a standard broadcast or full-frame movie in this mode,
the display image is stretched proportionately to fill the TV screen.
When watching a widescreen (1.78:1 source) program or movie, the
display image fills the TV screen.
NOTE: If you are watching a widescreen
(1.85:1 or 2.35:1 source) movie, there will
still be black bars at the top and bottom
of the screen.
Zoom Mode
When watching a widescreen (1.78:1, 1.85:1, or 2.35:1 source)
program or movie, the display image is zoomed proportionally to fill the
width of the screen. The top and bottom are cut off to remove most of
the source material’s black bars. This mode is good for programs or
movies with sub-titles.
Panoramic Mode
When watching a standard broadcast or full frame movie in this mode,
the 4:3 Aspect Ratio (1.33:1 source) display image is stretched
horizontally on the left and right sides to fill the TV screen. The center
of the image is not stretched.
Note: Viewing modes are saved based on input.
For example, you lasted watched a DVD in widescreen mode and then watched TV in standard mode.
When you switch back to DVD input, the viewing mode will return to widescreen.
Version 7/6/2006 58
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.10.2 PIP / POP Mode
Your TV features PIP mode so you can watch two pictures at the same time. When PIP is turned on, you
can display two pictures at one time. One picture is displayed as the full screen (main screen) and the
other picture is displayed in a small window (sub screen). The sub-screen can be set to small, medium or
large.
See below for detailed information regarding the PIP sources.
SUB
MAIN
DTV
TV
AV1 9 9
AV2 9 9
Component 1
Component 2 9 9
RGB
HDMI 1 9 9
HDMI 2 9 9
DTV TV AV1 AV2
9
9
9 9 9 9 9 9
9 9 9 9
9 9 9 9
9
9 9
9 9 9
9 9 9 9
9 9 9 9
Component 1 Component
9 9 9
9 9
2
9
RGB HDMI 1 HDMI 2
9
9
9
9
9
9
9
9
9 9
9 9
9 9
9 9
9 9
9 9
9 9
9
9
“
9” – Indicates which inputs are available for PIP and POP modes.
4.10.3 Adjusting Basic PIP/POP Settings
The PIP channel is independent of the main TV
channel. To change the PIP channel, press the PIP
CH + or - button on the remote control.
Repeated pressing of the PIP button will cycle through
PIP, POP and Off.
Repeated pressing of the PIP INPUT button will cycle
through the inputs for PIP. This button has no effect
when PIP is off.
Press the PIP SIZE button to alternate between Small
and Large PIP sizes.
You can swap the program that is in the main picture
with the program in the PIP sub-picture. To swap the main picture program with the PIP sub-picture
program, press SWAP on the remote control. If you press SWAP again, it will return the program to the
main picture. This works the same if you are in the Picture-by-Picture (POP) mode.
Version 7/6/2006 59
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
4.11 Setting the Sleep Timer
The Sleep Timer lets you set a time delay to turn off the LCD HDTV automatically.
To set the Sleep Timer using the remote control:
1. Press the SLEEP button on the remote control. The Sleep Timer appears in the center of
you screen.
2. Press the SLEEP button one or more times to select the time you want. The choices are 30,
60, 90 or 120 minutes.
To turn off the sleep time using the remote control, press the SLEEP button repeatedly until Off appears
on the screen.
Version 7/6/2006 60
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Chapter 5 Programming the VIZIO Universal
Remote Control
You can program the remote control to work with up to four different pieces of equipment including your
VIZIO GV46L HDTV. Listed below are the steps for programming your VCR, Cable Box and DVD Player.
5.1.1 Programming for VCR
1. Manually turn on the VCR.
2. Press the VCR button on the remote control.
3. Press and hold the SETUP button until the LED LIGHT flashes twice.
4. Find the programming code for your VCR in the code list in the back of this book and enter it using
the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component
and manufacturer.
5. Point the remote control at the VCR and press the POWER button. The VCR will turn off.
Note:
a) If your VCR does not respond, try all the codes for your VCR brand. If the codes do not
b) Sometimes a code listed will only include limited functions. Try other codes that may
work, or your brand is not listed, see “Searching for Component Codes.”
include more functionality.
5.1.2 Programming for Cable Set-Top Box
1. Manually turn on the Cable Box.
2. Press the CBL button on the remote control.
3. Press and hold the SETUP button until the LED LIGHT flashes twice.
4. Find the programming code for your Cable Box in the code list in the back of this book and enter it
using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is
entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component and
manufacturer.
5. Point the remote control at the Cable Box and press the POWER button. The Cable Box will turn off.
Note:
a) If your Cable Set-Top Box does not respond, try all the codes for your brand. If the codes
b) Sometimes a code listed will only include limited functions. Try other codes that may
Version 7/6/2006 61
do not work, or your brand is not listed, see “Searching for Component Codes.”
include more functionality.
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
5.1.3 Programming for DVD Player
1. Manually turn on the DVD Player.
2. Press the DVD button on the remote control.
3. Press and hold the SETUP button until the LED LIGHT flashes twice.
4. Find the programming code for your DVD player in the code list in the back of this book and enter it
using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is
entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component
and manufacturer.
5. Point the remote control at the DVD Player and press the POWER button. The DVD Player will turn
off.
Note:
a) If your DVD player does not respond, try all the codes for your brand. If the codes do not
b) Sometimes a code listed will only include limited functions. Try other codes that may
work, or your brand is not listed, see “Searching for Component Codes.”
include more functionality.
5.1.4 Searching for Component Codes
If you cannot find the manufacturer in the component list or the program code does not work, you can use
the remote control to search for the correct component code.
To search for a component code:
1. Turn on the component.
2. Press the matching component button on the remote control.
3. Press and hold the SETUP button until the LED flashes twice.
4. Press 9 9 1. The LED flashes twice.
5. Point the remote control at the component and then alternate between pressing the POWER
button and the component button on the remote control until the component turns off.
If the component still does not respond, clear the component button, then repeat the search
procedure.
5.2 Using a Cable or Satellite Remote
Your VIZIO remote uses codes 11758 and 10178 to work your LCD HDTV. To use a cable or satellite
remote to work the LCD HDTV, refer to your cable or satellite remote user guide for more information on
how to program the remote. If your cable or satellite remote uses a 5-digit code (like most Direct TV
units), first try 11758 and then, if that does not work, 10178. If your cable or satellite remote uses a 4digit code, try 1758 and then 0178 as an alternative. If your cable or satellite remote uses a 3-digit code
(Echostar or Dish Network for example), use code 627.
Note: Some buttons may not function as expected on your cable or satellite remote. Typically power,
volume and mute will work.
Version 7/6/2006 62
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Chapter 6 Maintenance and Troubleshooting
6.1 Maintenance
Important
1. Make sure that the power cable is removed from the socket before cleaning the TV.
2. Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the TV. Such
chemicals may damage the housing, screen glass and remote control, and cause paint to
peel.
Cleaning the Housing and Remote Control
1. Use the VIZIO soft cloth (included) for cleaning.
2. If the housing or remote control is seriously contaminated, use a soft cloth moistened with
diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to
prevent water from penetrating into the housing. Wipe the display with a dry cloth after
cleaning.
Cleaning the Screen
1. Use the VIZIO soft cotton cloth (included) to gently clean the screen.
2. The screen glass is very fragile. Do not scrape it with any sharp object. Do not press or tap
the screen to avoid cracking. When the screen is seriously contaminated, use a soft cloth
moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth
before cleaning to prevent water from penetrating into the housing. Wipe the display with a
dry cloth after cleaning.
6.2 Troubleshooting Guide
If the TV fails or the performance changes dramatically, check the display in accordance with the
following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the
display still fails to perform as expected, contact the VIZIO for assistance by calling 1-714-668-0588 or email us at
Problem Solution
No power. Make sure the power button is ON (White VIZIO logo).
No sound. Check your audio connection
If the screen is black. Check your input connections.
techsupport@vinc.com.
Make sure AC power cord is securely connected to the AC socket.
Plug another electrical device (like a radio) to the power outlet to verify that the
outlet is supplying the proper voltage.
Press MUTE on the remote control again, so that MUTE disappears from the screen
Check your audio settings, your TV audio may be set to SAP, speakers Off or min
Press the Volume + (Up) key on your remote control
Make sure that headphones are not connected
Version 7/6/2006 63
www.VIZIOCE.com
Problem Solution
VIZIO GV46L HDTV User Manual
Power is ON but no screen
image.
Wrong or abnormal colors
appear.
Control buttons do not work. Press only one button at a time.
Remote Control does not
work.
There appears to be image
quality issues.
You cannot see a picture. Make sure that the power cord is plugged into a grounded electrical outlet.
You see a distorted picture or
hear unusual sound.
The picture has abnormal
patterns.
The display image does not
cover the entire screen.
You can see a picture but you
cannot hear sound.
The TV has pixels that are
always dark or colored.
You see “noise” or “trash” on
the screen.
You switch to a different input
and the volume changes.
You switch to a different input
and the screen size changes.
Make sure the video cable supplied with the TV is secured to the correct video
output port on the back of the VCR and the TV. Make any cable you have attached
to the TV is secured to the correct output your Set-Top Box, DVD, etc.
Adjust brightness and contrast.
Check Source settings.
If any colors (red, green, or blue) are missing, check the video cable to make sure it
is securely connected.
Make sure batteries are inserted correctly
Batteries could be weak.
Make sure you have selected TV on the remote.
For best image quality, view HD wide screen programs where possible. If HD
content is not available view “Standard Definition” from a digital source. Standard,
analog TV will always be noticeably inferior to HD because your digital flat panel TV
has video that is many times better than old TV’s and so you can see interference
and deficiencies you did not know you had.
Make sure that the power button is turned on.
Make sure that the selected input source is connected to a working input source.
If your TV is connected to your computer in RGB or HDMI mode, press any key on
your keyboard to “wake” your computer.
You may be getting interference from electrical appliances, cars, motorcycles, or
fluorescent lights. If you have not mounted it on the wall, try moving your TV to
another location to see if this is the cause of the problem.
Make sure that the input source cable is attached securely and correctly to the back
of your TV.
Make sure that the video input source is within the range of your TV. Compare the
video input source’s specifications with your TV specifications.
If you are using RGB mode, make sure that H Size and V Position in the On Screen
Display (OSD) are set correctly.
If you are using TV, AV1, AV2 or Component with 480i input, use the WIDE button
on the remote control to scroll through various screen modes.
Make sure that the volume is not turned down.
Make sure that the sound is not muted.
Make sure that your audio input source cables are connected securely and correctly.
Your LCD HDTV is manufactured using an extremely high level of precision
technology, however, sometimes some pixels of your LCD HDTV may not display.
Pixel defects within industry specifications are inherent to this type of product and do
not constitute a defective product.
When your LCD HDTV’s digital capabilities exceed a digital broadcast signal, the
signal is up-converted (increased) to match your TV’s display capabilities. Upconverting can cause noise or trash.
The TV remembers the volume level from the last time you adjusted it. If the sound
level is higher or lower from another source, then the loudness will change.
The TV remembers the viewing mode from the last time you used a particular input
(AV1, AV2, Component 1, Component 2, HDMI 1, HDMI 2 and TV).
Version 7/6/2006 64
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Tips for High-Definition Users. The LCD HDTV is an ideal platform for viewing High Definition Content.
Best Image Quality will be achieved by the HDMI Input, then YPbPr, then RGB.
However, due to variances in broadcast practices, it is possible some image
distortions can occur.
Tips for Letterbox Content Users. Letterboxed (or “Widescreen”) versions of DVD movies are most commonly
formatted for standard 4:3 Televisions. The LCD HDTV has the capability of
expanding this content so the entire screen is filled at the expense of image
accuracy. To use this function, press the “ZOOM” key on the remote control
and cycle among the available options.
6.3 Telephone & Technical Support
Products are often returned due to a technical problem rather than a defective product that may result in
unnecessary shipping charges billed to you. Our trained support personnel can often resolve the problem
over the phone. For more information on warranty service or repair, after the warranty period, please
contact our Support Department at the number below.
Customer support and quality service are integral parts of VIZIO’s commitment to service excellence.
For technical assistance contact our VIZIO Technical Support Department via email or phone.
E-mail: techsupport@vinc.com
Tel: (714)668-0588
Hours of operations:
6:00am – 6:00pm PST Monday – Friday
10:00am – 2:00pm PST Saturday – Sunday
Please have your VIZIO model number, serial number and date of purchase available before you call.
VIZIO
320A Kalmus Drive
Costa Mesa, CA 92626
Tel: (714) 668.0588 Fax: (714) 668-9099
Web:
www.VIZIOCE.com
Version 7/6/2006 65
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
6.4 Compliance
Caution: Always use a power cable that is properly grounded. Please use the AC cords listed below for
each area.
USA UL
Canada CSA
Germany VDE
UK BASE/BS
Japan Electric Appliance Control Act
6.5 FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with
the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this equipment. It is the responsibilities of the user to correct such
interference.
Version 7/6/2006 66
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Chapter 7 Miscellaneous Information
7.1 Specifications
Specifications
Panel 46” Diagonal, 16:9 Aspect Ratio
Resolution 1366 x 768 pixels
Pixel (Dot) Pitch 0.7455mm (H) x 0.7455mm (V)
Display Compatibility HDTV (720P)
Signal Compatibility 480i (SDTV), 480P (EDTV), 720P (HDTV), 1080i (HDTV)
Colors 16.77 Million
Brightness 500 cd/m2 (typical)
Contrast 1200:1 (typical)
Viewing Angle >178° (horizontal and vertical)
Inputs 1x Co-axial RF (ATSC/QAM/NTSC), 2x HDMI™ with HDCP (1 with Stereo Audio RCA), 2x
Component YPbPr plus Stereo Audio, 1x RGB PC plus Stereo Audio, 2x S-Video plus Stereo
Audio (shared in AV1 & AV2), 2x Composite Video plus Stereo Audio (AV1 & AV2)
Outputs 1x 5.1 Audio from DTV input only (SPDIF Optical), 1x Stereo Audio (RCA), 1x Headphone
(Stereo Mini Jack)
Features Zero Bright Pixel, PIP, POP, CC, V-Chip, 3D Comb Filter, Zoom, Freeze, DCDi De-Interlace,
3:2 or 2:2 Reverse Pull-down, ATSC, with 8VSB & QAM demodulation, with MPEG-2
decoding, NTSC Video decoding via RF (Antenna, Cable or Satellite) or Video (CVBS, SVideo or Component), Progressive Scan Video via Component YPbPr, VGA or HDMI, HDTV
via HDMI or Component YPbPr, Computer 640x480, 800x600, 1024x768 via VGA or
640x480 via HDMI, SRS TruSurround XT, Color Temperature of 6500K, 5400K and 9300K
(default) in VGA, 6500K in Video, Independent Red, Green and Blue adjustment in TV,
Video, HDMI and VGA for user fine tuning of color temperature with reset.
Speakers Detachable, 10W x 2 + 20W Sub
Panel Life 50,000 hours to half the original brightness
Power
Input IEC Connector for direct power line connection
Voltage Range 100 ~ 240Vac at 50/60Hz
Power Consumption 260W average
Environmental Conditions
Operating Temperature: 5°C~35°C, Relative Humidity: 20~80%, Altitude: 0~14,000 ft
Non-Operating Temperature: -20°C~50°C, Relative Humidity: 10~90%, Altitude: 0~40,000 ft
Dimensions 44.4” W x 31.0” H x 10.5” D with stand; 44.4” W x 29.5” H x 5.4” D without stand; 44.4” W x
26.5” H x 4.8” D without stand & speakers
Net Weight 82 ±1 lb with speakers and stand, 74 ±1 lb with speakers, 68 ±1 lb without stand & speakers
Gross Weight 97 ± 2.2 lb
Certifications CSA, FCC Class B
*Product specifications may change without notice or obligation.
Version 7/6/2006 67
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
7.2 Glossary – Standard Definitions
Analog TV: Today’s TV system using radio frequency waves to transmit and display pictures and sound.
Aspect Ratio (4x3): Traditional TV “aspect ratio”, that is, the screen’s width as compared to its height.
For example, a “32 inch TV screen” would be 25 inches wide and 19 inches tall.
Aspect Ratio (16x9): “Wide screen TV” aspect ratio which is more like a movie screen than a traditional
TV. For example, a “32 inch TV screen” would be 28 inches wide and 16 inches tall.
Digital TV (DTV): Television delivered and displayed using radio frequency waves that contain
information that is digitally encoded for improved quality and efficiency.
Enhanced Definition TV (EDTV): A better digital television transmission than SDTV with at least 480P,
in a 16x9 or 4x3 display and Dolby digital surround sound. 480P is the quality used by most DVD players.
EDTV provides 300-400,000 pixels.
HDTV Monitor (sometimes called HDTV Ready): A set that can display HDTV programming if you have
a separate HDTV tuner, HD Cable Set-Top Box or HD Satellite Set-Top-Box Receiver.
HDTV Tuner (also decoder, receiver, set-top box): A device capable of receiving and outputting HDTV
signals for display. It may be stand-alone or integrated in the set.
High-Definition Television (HDTV): The best quality picture, wide screen (16x9) display with at least
720 progressively scanned lines (720P) or 1080 interlaced lines (1080i) and Dolby digital surround sound.
HDTV provides 900,000-2.1 million pixels.
Integrated HDTV: An HDTV that has the digital tuner built into the set. It does not need a separate settop box to receive over-the-air DTV signals.
Interlace Scan: A way to scan vertical lines onto a TV picture by scanning all the odd lines first, then
filling the in the even lines (this happens instantaneously).
Plug-and-Play or Digital Cable Ready: A DTV or other device for digital cable consumers that plugs
directly into the cable jack and does not require a separate set-top box. Plug-and-Play TV owners must
obtain a CableCARD from their cable company in order to view scrambled programming services.
Progressive Scan: A way to scan vertical lines onto a TV picture by scanning all the lines consecutively
(progressively).
Standard Definition TV (SDTV): Basic digital television transmission that may be displayed with fewer
than 480 progressively scanned lines (480P) in 16 x 9 or 4 x 3 format. 480 interlaced (480i) is the quality
of today’s analog TV system.
Source: Buying a Digital Television, CEA, HDTV Guide, 2005
Note: The Federal Communications Commission (FCC), the Consumer Electronics Association (CEA)
and the Consumer Electronics Retailers Coalition (CERC) have made a new tip sheet available for digital
television (DTV) retailers to reproduce and distribute to consumers on the sales floor. The file may be
downloaded online at www.dtv.gov
is making available to consumers interested in learning more about the analog to digital transition.
. While you’re there, check out the other useful information in the FCC
Version 7/6/2006 68
www.VIZIOCE.com
7.3 Index
A
Accessories, 5
Adjustments
Audio Settings, 53
Choosing Channels to Skip when Channel Surfing, 39
Closed Caption for Composite Video, 57
Closed Caption for S-Video, 57
Closed Caption on Mute, 57
Display Settings, 52
Image Cleaner, 57
Language of OSD, 57
Menu (On Screen Display), 46
Parental Controls, 54
PC Image Settings, 49
Reset to Factory Default, 57
Selecting the Screen Size, 14, 43, 58, 68
Setup for Video and PC, 57
Sleep Timer, 60
Stepping through TV Channels, 43
Time Zone, 35
TV and Video Image Settings, 47
Volume, 43, 63
Advanced Image Settings
PC Advanced Image Settings, 51
TV and Video Advanced Image Settings, 50
Advanced Settings PC
Auto Adjustment, 51
Backlight, 52
Clocks / Line, 51
Color Temp, 51
Image Position, 51
Phase, 51
Advanced Settings TV and Video
Backlight, 50
Dynamic Contrast, 50
Fleshtone, 50
Noise Reduction, 50
Audio Settings
Auto Volume, 53
Bass, Treble and Balance, 53
Fixed or Variable Output, 53
Speakers On or Off, 53
SRS TruSurround XT, 53
C
Cleaning, 63
Co-axial RF
Connecting for DTV, 27
Connecting for TV, 28
Component
Connecting your DVD Player, 20
Connecting your Set-Top Box, 25
Composite (AV)
Connecting your DVD Player, 21, 22
Connecting your VCR, 26
VIZIO GV46L HDTV User Manual
Connecting your Video Camera, 26
Controls
Front Panel, 10
Side Panel, 10
D
Display Settings
Aspect Ratio, 52
PIP, 52
POP, 52
DVI
Connecting your DVD Player, 19
Connecting your Set-Top Box, 24
E
Extended Warranty, 73
F
Firmware Version, 57
G
Glossary, 68
H
HDMI
Connecting your DVD Player, 18
Connecting your Set-Top Box, 23
I
Inputs
Antenna, 3
Connectors, 17
Rear Label, 11
Rear Label, 12
Installation
Base removal, 6
Preparation, 5
Safety Instructions, 2
Speaker Removal, 7
Wall Mounting, 5, 6
O
OSD
Brightness Adjustment, 67
Contrast Adjustment, 67
Outputs
Using 5.1 Surround with a Home Theatre System, 29
Using an external Receiver/Amp, 29
Version 7/6/2006 69
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
P
Parental Controls
Block Unrated Programs, 55
Change Password, 54
Clear All, 54
Movie Rating, 55
Resetting the Password, 56
Setting a Password, 56
Settings, 54
TV Rating, 54
PC Picture Adjust
Brightness, 49
Contrast, 49
PIP and POP Inputs, 59
R
Remote
Batteries, 16
Layout, 13
Range, 16
Remote Control
Codes for other devices., 74
Programming to work your DVD Player, 62
Programming to work your Set-Top Box, 61
Programming to work your VCR, 61
Searching for Codes, 62
Setting the Sleep Timer, 60
Using your Cable or Satellite Remote to Operate your
VIZIO TV, 62
RGB
Connecting your PC, 30
S
Screen Size explanation, 58
S-Video
Connecting your DVD Player, 21, 22
T
Technical Specifications, 67
Technical Support, 65
Troubleshooting Guide, 63
TV Picture Adjust
Brightness, 47
Color / Saturation, 48
Contrast, 47
Custom Color, 48
Hue / Tint, 48
Picture Mode, 47
Sharpness, 48
V
Video Picture Adjust
Brightness, 47
Color / Saturation, 48
Contrast, 47
Custom Color, 48
Hue / Tint, 48
Picture Mode, 47
Sharpness, 48
W
Warranty, 73
Watching TV
Adding or Deleting DTV Channels, 38
Adding or Deleting TV Channels, 33
Basic Adjustments, 43
Basic connections, 31
Closed Caption for DTV, 39
Digital Audio Out, 39
DTV Channel Information, 44
DTV First Time Use, 33
Getting your Programs, 43
Parental Controls for DTV, 41
Program Information, 45
Selecting a DTV Channel Directly, 13
Setting DTV Channels Automatically, 34
Setting DTV Channels Manually, 37
Setting TV Channels, 32
TV First Time Use, 31
Version 7/6/2006 70
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
7.4 Limited Product Warranty
Please read this warranty card carefully, it is a “ONE-YEAR LIMITED WARRANTY” on parts and labor and is only valid when
purchased from an Authorized Reseller, only on new and non-refurbished product, and available to customers in the Continental US,
Alaska, Hawaii and Puerto Rico. See below for the VIZIO Extended Service warranty.
VIZIO’s Responsibility
VIZIO Displays purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one
(1) year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the monitor using
new or refurbished parts.
Service Labor
During a period of one (1) year from the effective warranty date, VIZIO will provide, when needed, service labor to repair a
manufacturing defect at its designated Service Center. To obtain warranty service in the Untied States, you must first call our
Customer Support at (714) 668-0588. The determination of service will be made by VIZIO Customer Support. PLEASE DO NOT
RETURN YOUR UNIT TO VIZIO WITHOUT PRIOR AUTHORIZATION.
Parts
New or remanufactured replacements for defective parts will be used for repairs by VIZIO at its designated Service Center for one
(1) year from the effective warranty date. Such replacement parts are warranted for the remaining portion of the original warranty
period.
Service
During the one (1) year warranty period, VIZIO will, at its option and sole discretion, repair or replace defective parts, including
replacement of the entire Panel. The Customer will be required to ship the unit to the Service Center indicated at the time
Customer Support is contacted to make the necessary repairs, you are responsible for all transportation charges to and from the
service facility. VIZIO is not responsible for the de-installation or re-installation of the unit.
Packaging and Shipping Instruction
When you send the product to an authorized VIZIO service facility you must use the original carton box and packing material or an
equivalent as designated by VIZIO
Not Covered
This warranty does not cover defects, malfunctions or failures resulting from shipping or transit accidents, abuse, misuse, operation
contrary to furnished instructions, operation on incorrect power supplies, operation with faulty associated equipment, modification,
alteration, improper servicing, tampering or normal wear and tear or TVs on which the serial number has been removed or defaced.
Image Sticking caused by operating at excessive brightness levels for extended periods or mishandling are not covered by this
warranty.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. OUR LIABILITY
FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER, INCLUDING OUR
NEGLIGENCE, ALLEGED DAMAGE OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT,
SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE DISPLAY. WE SHALL NOT BE RESPONSIBLE FOR LOSS OF
USE, COMMERCIAL LOSS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. This is the only warranty
applicable; no one is authorized to extend or modify it or to grant any other warranty.
VIZIO retains the right to assess all warranty claims and to determine if damages are covered by the warranty. In case of a claim
that is not covered by the warranty, you will be contacted to determine whether VIZIO should repair the damage for a fee or whether
the product should be returned to you as received by the repair center.
Owner’s Responsibility
Effective Warranty Date
Warranty begins on the date of sale to the end user. To ensure warranty service, keep the dated bill or sale receipt as evidence of
the purchase date.
Warranty Service
For warranty service information, contact VIZIO Customer Support at (714) 668-0588, 7:30 am to 5:30 pm PST or visit
www.vizioce.com. Parts and service labor that are VIZIO’s responsibility (see above) will be provided without charge. Other service
is at the owner’s expense. You must provide the model, serial number and date of purchase. Before you ask for warranty service,
read your User Manual. You might avoid a service call.
Warranty conditions are subject to change, for latest Warranty Terms and Conditions and additional information regarding your
warranty, please see complete details online at www.VIZIOCE.com
.
7.4.1 VIZIO Extended Service Warranty
Protect your investment beyond the standard warranty and experience piece of mind with VIZIO’s Extended Service Warranty.
Depending on your model, plans are offered for 2-5 years. Visit www.vizioce.com or call 1-800-988-4196 to purchase a plan today.
Version 7/6/2006 71
www.VIZIOCE.com
7.5 Component Program Codes
VIZIO GV46L HDTV User Manual
Setup Code for VCR’s
ABS 21972
Admiral 20048, 20209
Aiko 20278
Aiwa 20037, 20479
Alienware 21972
America Action 20278
American High 20035
Amoisonic 20479
Anam 20162, 20037,
20240, 20278
Anam National 20162
Asha 20240
Audiovox 20037, 20278
Beaumark 20240
Bell & Howell 20104
Broksonic 20184, 20121,
20209, 20002,
20479
Calix 20037
Canon 20035
Carver 20081
CCE 20072, 20278
Changhong 20048, 20081
Citizen 20037, 20278
Colt 20072
Craig 20037, 20047,
20240, 20072
Curtis Mathes 20060, 20035,
20162
Cybernex 20240
CyberPower 21972
Daewoo 20045, 20104,
20278
Dell 21972
Denon 20042
DirecTV 20739
Durabrand 20039, 20038
Electrohome 20037
Electrophonic 20037
Emerex 20032
Setup Code for VCR’s
Emerson 20035, 20037,
Fisher 20047, 20104
Fuji 20035, 20033
Fujitsu 20045
Gateway 21972
GE 20060, 20035,
General 20045
Go Video 20432
GoldStar 20037, 20209,
Haojie 20240
Harman/Kardon 20081, 20038
Harwood 20072
Hewlett Packard 21972
HI-Q 20047
Hitachi 20037, 20042,
Howard Computers 21972
HP 21972
Hughes Network
Systems
iBUYPOWER 21972
JVC 20045, 20067
KEC 20037, 20278
Kenwood 20067, 20038
KLH 20072
Kodak 20035, 20037
Kolin 20043
LG 20037, 20045,
Logik 20072
LXI 20037
Magnavox 20035, 20039,
Magnin 20240
20184, 20240,
20045, 20121,
20043, 20209,
20002, 20278,
20479
20240
20038, 20225
20055
20042, 20739
20042, 20209,
20038
20081
Setup Code for VCR’s
Marantz 20035, 20081
Marta 20037
Matsushita 20035, 20162
Media Center PC 21972
MEI 20035
Memorex 20035, 20162,
20037, 20048,
20039, 20047,
20240, 20104,
20209, 20479
MGA 20240, 20043
MGN Technology 20240
Microsoft 21972
Mind 21972
Minolta 20042
Mitsubishi 20067, 20043
Motorola 20035, 20048
MTC 20240
Multitech 20072
NEC 20035, 20037,
20048, 20104,
20067, 20038
Newave 20037
Nikko 20037
Noblex 20240
Northgate 21972
Olympus 20035
Optimus 21062, 20162,
20037, 20048,
20104, 20432
Orion 20184, 20209,
20002, 20479
Panasonic 21062, 20035,
20162, 20616,
20225
Penney 20035, 20037,
20240, 20042,
20038
Pentax 20042
Philco 20035, 20479
Philips 20035, 20081,
20739, 20618
Pilot 20037
Version 7/6/2006 72
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Setup Code for VCR’s
Pioneer 20042, 20067
Polk Audio 20081
Profitronic 20240
Proscan 20060
Protec 20072
Pulsar 20039
Qisheng 20060
Quasar 20035, 20162
Radix 20037
Randex 20037
RCA 20060, 20035,
20240, 20042,
20880
Realistic 20035, 20037,
20048, 20047,
20104
ReplayTV 20616
Runco 20039
Sampo 20037, 20048
Samsung 20240, 20045,
20432
Sanky 20048, 20039
Sansui 20067, 20209,
20479
Sanyo 20047, 20240,
20104
Scott 20184, 20045,
20121, 20043
Sears 20035, 20037,
20047, 20042,
20104
Sharp 20048, 20209
Shintom 20072
Shogun 20240
Singer 20072
Sonic Blue 20616
Sony 20035, 20032,
20033, 20636,
21972
STS 20042
Sylvania 20035, 20081,
20043
Systemax 21972
Tagar Systems 21972
Tashiko 20037
Setup Code for VCR’s
Tatung 20045, 20067
Technics 20035, 20162
Teco 20035, 20037,
Teknika 20035, 20037
Tivo 20636, 20618,
TMK 20240
Toshiba 20045, 20042,
Totevision 20037, 20240
Touch 21972
Unitech 20240
Vector 20045
Vector Research 20038
Victor 20067
Video Concepts 20045
Videomagic 20037
Videosonic 20240
Viewsonic 21972
Wards 20060, 20035,
White
Westinghouse
XR-1000 20035, 20072
Yamaha 20038
Zenith 20039, 20033,
ZT Group 21972
Setup Code for Cable
Converters
ABC 00003, 00008,
Americast 00899
Bell & Howell 00014
Bell South 00899
Clearmaster 00883
ClearMax 00883
Coolmax 00883
20048, 20038
21503, 20739
20067, 20043,
21503, 21008,
21972
20048, 20047,
20081, 20240,
20042, 20072
20209, 20072
20209, 20479
00014
Setup Code for Cable
Converters
Daeryung 01877, 00877,
Digi 00637
Director 00476
Dumont 00637
Gehua 00476
General
Instrument
GoldStar 00144
Hamlin 00009, 00273
Hitachi 00014
Jerrold 00476, 00810,
KNC 00008
LG 00144
Memorex 00000
Motorola 00476, 00810,
MultiVision 00012
Pace 01877, 00237
Panasonic 00000, 00008,
Panther 00637
Paragon 00000
Philips 00317, 01305
Pioneer 01877, 00877,
Pulsar 00000
Quasar 00000
RadioShack 00883
Regal 00279, 00273
Runco 00000
Samsung 00000, 00144
Scientific Atlanta 01877, 00877,
Sony 01006
Starcom 00003, 00014
Supercable 00276
Supermax 00883
Tocom 00012
00477, 00008
00476, 00810,
00276, 00003,
00014
00276, 00003,
00012, 00014
00276, 01254,
01376
00107
00144, 00533
00477, 00008
Version 7/6/2006 73
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Setup Code for Cable
Converters
Torx 00003
Toshiba 00000
Trans PX 00276
Tristar 00883
TS 00003
V2 00883
Viewmaster 00883
Vision 00883
Vortex View 00883
Zenith 00000, 00525,
00899
Setup Code for Satellite
Receivers
JVC 00775
LG 01414, 01226
Magnavox 00724, 00722
Memorex 00724
Mitsubishi 00749
Motorola 00869
NEC 01270
Next Level 00869
Panasonic 00247, 00701
Paysat 00724
Philips 01142, 00749,
Setup Code for Satellite
Receivers
AlphaStar 00772
Chaparral 00216
Crossdigital 01109
DirecTV 00392, 00566,
Dish Network
System
Dishpro 01005, 00775,
Echostar 01005, 00775,
Expressvu 00775
GE 00566
General
Instrument
GOI 00775
Goodmans 01246
Hisense 01535
Hitachi 00819, 00222,
HTS 00775
Hughes Network
Systems
I-Lo 01535
00639, 01142,
00247, 00749,
01749, 00724,
00819, 01856,
01076, 01109,
00099, 01392,
01640, 01442,
01414, 01108
01005, 00775,
01505
01505
01505
00869
01250
01142, 00749,
01749, 01442
Proscan 00392, 00566
Proton 01535
RadioShack 00869
RCA 00392, 00566,
Samsung 01276, 01109,
Sanyo 01219
SKY 00856
Sony 00639, 01640
Star Choice 00869
Tivo 01142, 01442
Toshiba 00749, 01749,
UltimateTV 01640, 01392
Uniden 00724, 00722
US Digital 01535
USDTV 01535
Voom 00869
Zenith 00856, 01856
Setup Code for DVD Players
Aiwa 20641, 21912
Akai 20770
Allegro 20869
Apex Digital 20672, 20717,
01749, 00724,
01076, 00722,
00099, 01442
00855, 00143,
01392
01108
00790, 01285
20797, 21061,
Setup Code for DVD Players
20796, 21056,
21937, 20794,
21020, 21915
Blaupunkt 20717
Blue Parade 20571
Broksonic 20695
Changhong 20627, 21061
CineVision 20869
Coby 21086
Curtis Mathes 21087
CyberHome 21024, 21023,
21129, 20816,
21117
Daewoo 20833, 21172,
20869
Denon 20490
DVD2000 20521
Emerson 20591, 20675
Enterprise 20591
Fisher 21919
Funai 20675
Gateway 21158, 21073
GE 20522, 20717
Go Video 20744, 20833,
21099, 20783,
21075, 20869,
21730
Greenhill 20717
Harman/Kardon 20582, 20702
Hitachi 20573, 20664,
21919
Hiteker 20672
Initial 20717
Integra 20627, 21924
JBL 20702
JVC 20558, 20623,
20867
Kenwood 20490, 20534
KLH 20717, 21020,
21149
Koss 20651, 21980
Lasonic 20798
LG 20591, 20869,
20801
Liquid Video 21980
Version 7/6/2006 74
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Setup Code for DVD Players
Lite-On 21158, 21058
Loewe 20511
Magnavox 20503, 20539,
21976, 21914,
20675
Marantz 20539
Memorex 20695
Microsoft 20522
Mintek 20717
Mitsubishi 21521, 20521
Nesa 20717
Norcent 21003
Onkyo 20503, 20627,
21924, 20792
Oritron 20651, 21980
Panasonic 20490, 21762,
21990
Philips 20503, 20539,
20646, 21914
Pioneer 20525, 20571
Polaroid 21086, 21061
Polk Audio 20539
Portland 20770
Proscan 20522
Qwestar 20651
RCA 20522, 20571,
20717, 20822
Rio 20869
Rotel 20623
Sampo 20752, 20698
Samsung 20490, 20573,
21932, 21075,
20820
Sansui 20695
Sanyo 20695
Sharp 20630, 20752
Sharper Image 21117
Sherwood 20770
Shinco 20717
Shinsonic 20533
Sonic Blue 20869, 21099
Sony 20533, 20864,
21033, 21904,
21903
Setup Code for DVD Players
SVA 20717
Sylvania 20675
Symphonic 20675
Teac 20717, 21984,
Technics 20490
Theta Digital 20571
Toshiba 20503, 20695
V, Inc. 20123, 20124
Urban Concepts 20503
Xbox 20522
Yamaha 20490, 20539,
Zenith 20503, 20591,
Setup Code for CD Players
Aiwa 30157
Burmester 30420
California Audio
Labs
Carver 30157, 30179
Denon 30873
DKK 30000
DMX Electronics 30157
Dynamic Bass 30179
Fisher 30179
Garrard 30420
Genexxa 30032
Harman/Kardon 30157, 30173
Hitachi 30032
Integra 30101
JVC 30072
Kenwood 30826, 30626,
Krell 30157
Linn 30157
Magnavox 30157
Marantz 30626, 30029,
MCS 30029
20809
20545
20869
30029
30028, 30037,
30036, 30190
30157
Setup Code for CD Players
Miro 30000
Mission 30157
MTC 30420
NSM 30157
Onkyo 30868, 30101
Optimus 31063, 30000,
30032, 30037,
30420, 30179,
31075, 30145
Panasonic 30029
Parasound 30420
Philips 30626, 30157
Pioneer 31063, 31062,
30032
Polk Audio 30157
Proton 30157
QED 30157
Quad 30157
Quasar 30029
RadioShack 31075
RCA 31062, 30032,
30420, 30179,
30053
Realistic 30420, 30179
Rotel 30157, 30420
SAE 30157
Sansui 30157
Sanyo 30179
SAST 30157
Sharp 30861, 30037
Silsonic 30888, 30036
Sonic Frontiers 30157
Sony 30490, 30000,
30100
Soundesign 30145
TAG McLaren 30157
Tascam 30420
Teac 30420
Technics 30029
Victor 30072
Wards 30157, 30053
Yamaha 30888, 30036
Version 7/6/2006 75
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Setup Code for CD Players
Zonda 30157
Setup Code for Audio
Amp/Tuners
JVC 30074, 31263
Kenwood 31313, 31570,
Setup Code for Audio
Amplifiers
Bose 30674
GE 30078
JVC 30331
Marantz 30321
Nakamichi 30321
NEC 30264
Optimus 30395
Realistic 30395
Sansui 30321
Shure 30264
Sony 30689
Soundesign 30078
Victor 30331
Wards 30078
Yamaha 30354, 30133
KLH 31428
Magnavox 31189, 31269,
Marantz 31189, 31269,
MCS 30039
Onkyo 30842, 30135
Optimus 31023, 30670,
Panasonic 31518, 30039
Philips 31189, 31269
Pioneer 31023, 30150,
Proscan 31254
Qisheng 31609
Quasar 30039
RadioShack 31263
RCA 31023, 31609,
Setup Code for Audio
Amp/Tuners
ADC 30531
Aiwa 31405, 31243,
30121
Anam 31609, 31074
Audiotronic 31189
Bose 31229
Capetronic 30531
Carver 31189
Coby 31263
Denon 31360, 31142,
30904
Fonmix 31360
Glory Horse 31263
Harman/Kardon 30110
Hitachi 31273
Inkel 30027
Integra 30135
JBL 30110
Sharper Image 31263
Silsonic 30176
Sony 31058, 31441,
Soundesign 30670
Stereophonics 31023
Sunfire 31313
Teac 31074, 31267
Technics 31308, 31518,
Thorens 31189
Victor 30074
Wards 30014
Yamaha 30176, 31276,
Setup Code for TV’s
Addison 10092
Admiral 10093, 10463
30027
30531
30039
30531, 31074
30014, 30630,
30531
31254, 30531,
31074
31258, 31759
30039
31176
Setup Code for TV’s
Advent 10761, 10842
Aiko 10092
Aiwa 11914
Akai 10812, 10702,
10030, 10672,
11903
Albatron 10700, 10843
America Action 10180
Anam 10250, 10180,
10700
Anam National 10250, 10650
Anhua 10051
AOC 10451, 10093,
10180, 10060,
10030, 10178,
10092
Apex Digital 10748, 10765,
10879, 10767,
11943
Audiovox 10451, 10180,
10875, 10092,
10623
Baile 10661
Beijing 10812, 10661
Bell & Howell 10154
BenQ 11032
Bradford 10180
Broksonic 10236, 10463,
11911, 11938,
11905, 11935,
11929
Cailing 10748
Candle 10030
Carnivale 10030
Carver 10054
Celebrity 10000
Celera 10765
Changcheng 10051, 10661
Changhong 10156, 10765,
11156, 10767
Ching Tai 10092
Chun Yun 10000, 10180,
10700, 10092,
10843
Chung Hsin 10180, 10053
Cinema 10672
Version 7/6/2006 76
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Setup Code for TV’s
Citizen 10060, 10030,
Clarion 10180
Commercial
Solutions
Conrowa 10156, 10145,
Contec 10180
Craig 10180
Crosley 10054
Crown 10180
Curtis Mathes 10047, 10054,
CXC 10180
Daewoo 10154, 10451,
Dayu 10661
Dell 11080
Denon 10145
Dumont 10017
Durabrand 10463, 10180,
Electroband 10000
Emerson 10154, 10236,
Envision 10030
Ether 10030
Firstar 10236
Fisher 10154
Fortress 10093
Fujitsu 10809, 10853
Funai 10180, 10171,
Furi 10145
Futuretech 10180
11928, 10092
11447, 10047
11156
10154, 10451,
10093, 10060,
10702, 10030,
10145, 10166
10180, 10030,
10178, 10672,
11928, 10092,
10661, 11909,
10623, 10700
10178, 10171,
11034
10463, 10180,
10178, 10171,
11944, 11909,
11929, 11905,
11928, 10623,
11911
11904
Setup Code for TV’s
Gateway 11756, 11755
GE 11447, 10047,
Gibralter 10017, 10030
GoldStar 10154, 10030,
Grunpy 10180
Haier 11034
Hallmark 10178
Hankook 10180, 10030,
Harley Davidson 11904
Harman/Kardon 10054
Harvard 10180
Havermy 10093
Helios 10865
Hello Kitty 10451
Hisense 10156, 10748,
Hitachi 10156, 10030,
Hongmei 10093
Huafa 10145
Huari 10145
Huodateji 10051
Imperial Crown 10661
Infinity 10054
Inteq 10017
JBL 10054
JCB 10000
Jean 10156, 10051,
Jensen 10761
Jiahua 10051
Jinfeng 10051
Jinxing 10054, 10156,
JVC 10053, 11923,
11454, 10051,
10451, 10180,
10030, 10178,
11917, 10092,
11907, 11922
10178, 11926
10178
10145, 11156
10178, 11145,
10145, 10092,
11904, 11156
10236, 10092
10145
11253
Setup Code for TV’s
Kangli 10661
KEC 10180
Kenwood 10030
KLH 10765, 10767
Kolin 10180, 10150,
10053
KTV 10180, 10030
Kunlun 10051, 10661
LG 10060, 10030,
10178, 10856,
10700, 10025
Lloyd's 11904
LXI 10047, 10054,
10154, 10156,
10178
Magnasonic 11928, 11913
Magnavox 11454, 10054,
10030, 10706,
11931, 11254,
11913, 11904,
11944
Magnin 11907
Marantz 10054, 10030,
10704
Matsushita 10250, 10650
Maxent 11755
Megapower 10700
Megatron 10178, 10145
Memorex 10154, 10463,
10150, 10178,
11911, 11926,
11924, 11920,
11927
MGA 10150, 10030,
10178, 11907
Midland 10047, 10017,
10051
Mitsubishi 10154, 10250,
10093, 10236,
10180, 11250,
10150, 10030,
10178, 11917,
10836
Monivision 10843, 10700
Motorola 10093
MTC 10060, 10030
Mudan 10051
Multitech 10180
Version 7/6/2006 77
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Setup Code for TV’s
NAD 10156, 10178,
10866
National 10051
NEC 10154, 10156,
10051, 10053,
10030, 10178,
11704
Newave 10093, 10178,
10092
Nikko 10030, 10178,
10092
Norcent 10748, 10824
NTC 10092
Onwa 10180
Optimus 10154, 10250,
10166, 10650,
11927, 11924,
11913
Optonica 10093
Orion 10236, 10463,
11929, 11911,
11905
Panasonic 10054, 10250,
10051, 10650,
11941, 11927,
11924
Panda 10051, 10706
Penney 10047, 10156,
10051, 10060,
10030, 10178,
11926, 11907
Philco 10054, 10180,
10030, 10178
Philips 11454, 10054,
10000, 10051,
10030, 10178,
10092, 10690
Pilot 10030
Pioneer 10166, 10866,
10679
Portland 10092
Prima 10761
Princeton 10700
Prism 10051
Proscan 11447, 10047,
11922
Proton 10030, 10178
Pulsar 10017
Qingdao
Setup Code for TV’s
Quasar 10250, 10051,
RadioShack 10047, 10154,
RCA 11447, 10047,
Realistic 10154, 10180,
Rowa 10748
Runco 10017, 10030
Sampo 10154, 10093,
Samsung 10154, 10156,
Sansui 10463, 11904,
Sanyo 10154, 10156,
Sanyuan 10093
Scotch 10178
Scott 10236, 10180,
Sears 10047, 10054,
Shaofeng 10145
Sharp 10093, 10030,
Shen Ying 10092
Shencai 10145
Sheng Chia 10093, 10236
Skygiant 10180
Skyworth 10748
Sony 11100, 10000,
11924, 10650
10180, 10030,
10178, 11920,
11904
11454, 10000,
10030, 10178,
11547, 11922,
11917, 10092,
11907, 11948,
10090, 10679
10030, 10178
10030, 10178,
10171, 10700,
10650, 11755,
10092
10060, 10812,
10702, 10030,
10178, 11060,
10814, 10092,
11903, 10090,
10766
11935, 11929,
11911
10180, 10145,
11907
10178
10154, 10156,
10178, 10171,
11926, 11904
10650, 11917
10650, 11925,
Setup Code for TV’s
11904
Soundesign 10180, 10178
Sowa 10156, 10051,
10060, 10178,
10092
Squareview 10171
SSS 10180
Starlite 10180
Studio Experience 10843
Supreme 10000
SVA 10748, 10865
Sylvania 10054, 10030,
10171, 11944,
11931
Symphonic 10180, 10171,
11913, 11904
Synco 10000, 10451,
10093, 10060,
10178, 10092
Tacico 10178, 10092
Tandy 10093
Tashiko 10092, 10650
Tatung 10054, 10154,
10156, 10051,
10060, 11156,
11756, 11254
Technics 10250, 10051
Techwood 10051
Teco 10051, 10093,
10178, 10092
Teknika 10054, 10180,
10150, 10060,
10092
Telefunken 10702
Tera 10030
Thomas 11904
Tiane 10093
TMK 10178
TNCi 10017
Tobo 10748
Toshiba 10154, 10156,
10060, 10145,
11945, 11704,
11936, 11156,
11935, 10650,
11918
Tuntex 10030, 10092
Version 7/6/2006 78
www.VIZIOCE.com
VIZIO GV46L HDTV User Manual
Setup Code for TV’s
TVS 10463
VIZIO 11758, 11756,
10885, 10864
Vector Research 10030
Victor 10250, 10053,
10650
Vidikron 10054
Setup Code for TV’s
Vidtech 10178
Viewsonic 11755, 10885,
Wards 10054, 10030,
Warumaia 10661
Waycon 10156
10864
10178, 10866,
11156
Setup Code for TV’s
White
Westinghouse
Yamaha 10030
Yapshe 10250
Zenith 10017, 10463,
10463, 11909,
10623
10178, 11904,
11929, 11911,
11909, 10092
Version 7/6/2006 79
www.VIZIOCE.com
Loading...
