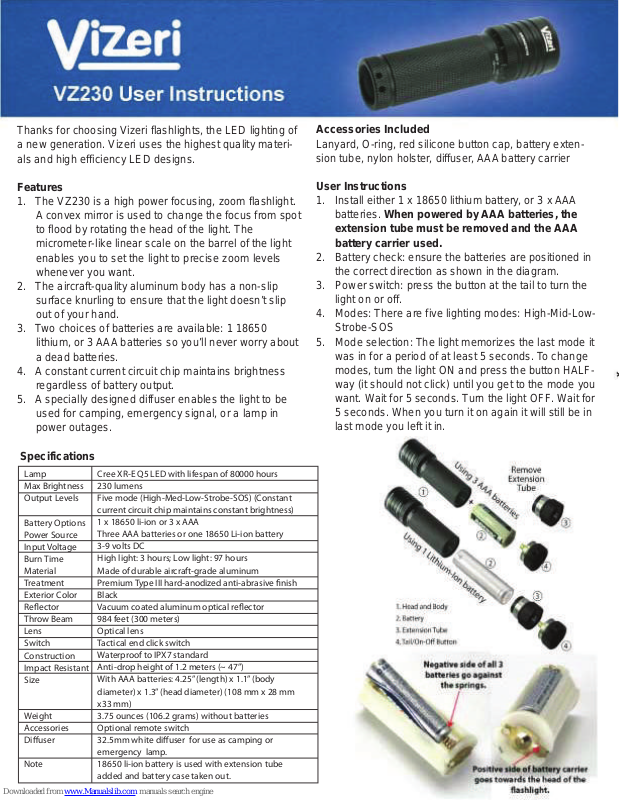

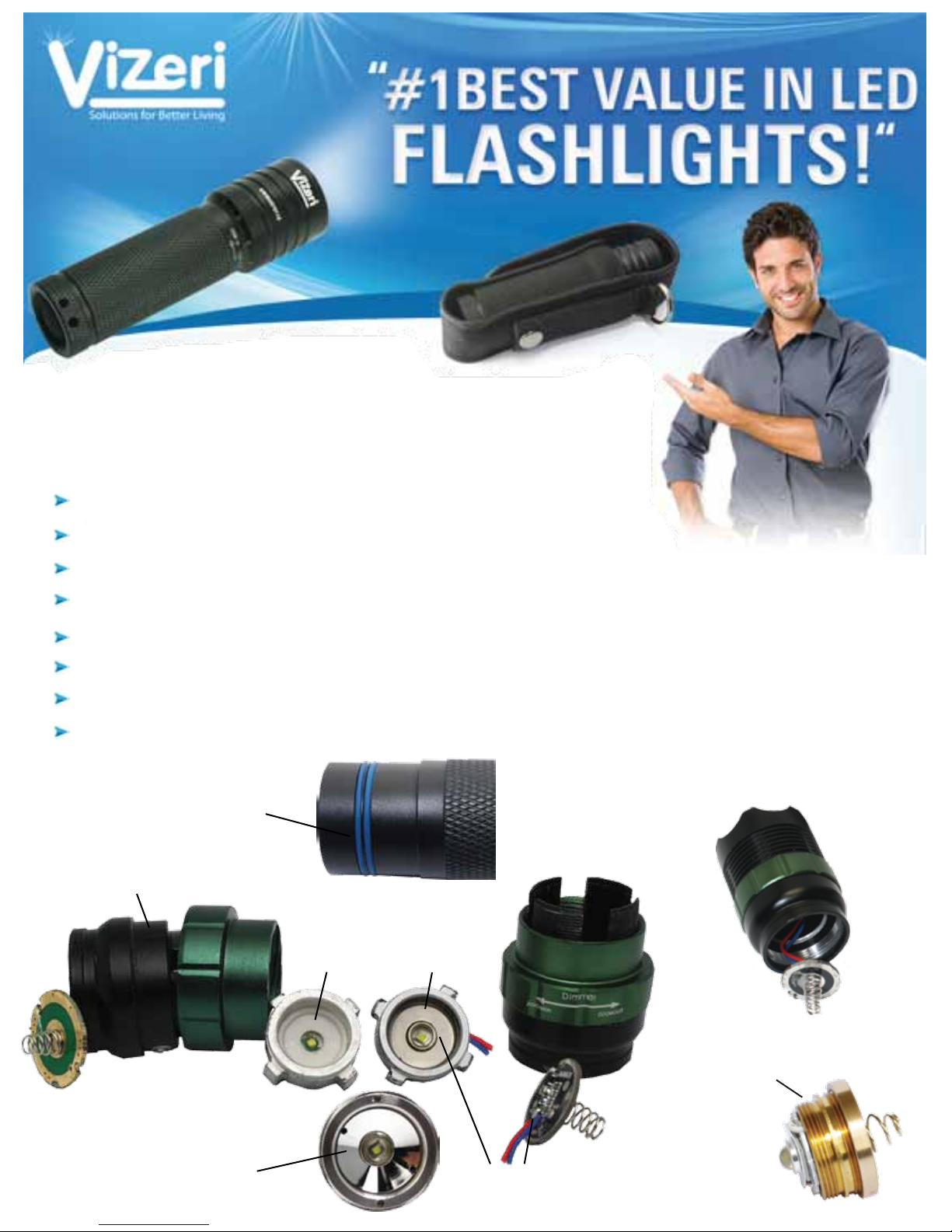

Vizeri VZ230 User Instructions

Thanks for choosing Vizeri flashlights, the LED lighting of
a new generation. Vizeri uses the highest quality materi­als and high efficiency LED designs.

Features

1. The VZ230 is a high power focusing, zoom flashlight.
A convex mirror is used to change the focus from spot
to flood by rotating the head of the light. The
micrometer-like linear scale on the barrel of the light
enables you to set the light to precise zoom levels
whenever you want.

2. The aircraft-quality aluminum body has a non-slip
surface knurling to ensure that the light doesn’t slip
out of your hand.

3. Two choices of batteries are available: 1 18650
lithium, or 3 AAA batteries so you’ll never worry about
a dead batteries.

4. A constant current circuit chip maintains brightness
regardless of battery output.

5. A specially designed diffuser enables the light to be
used for camping, emergency signal, or a lamp in
power outages.

Accessories Included

Lanyard, O-ring, red silicone button cap, battery exten­sion tube, nylon holster, diffuser, AAA battery carrier

User Instructions

1. Install either 1 x 18650 lithium battery, or 3 x AAA
batteries. When powered by AAA batteries, the

extension tube must be removed and the AAA
battery carrier used.

2. Battery check: ensure the batteries are positioned in
the correct direction as shown in the diagram.

3. Power switch: press the button at the tail to turn the
light on or off.

4. Modes: There are five lighting modes: High-Mid-Low­Strobe-SOS

5. Mode selection: The light memorizes the last mode it
was in for a period of at least 5 seconds. To change
modes, turn the light ON and press the button HALF­way (it should not click) until you get to the mode you
want. Wait for 5 seconds. Turn the light OFF. Wait for
5 seconds. When you turn it on again it will still be in
last mode you left it in.

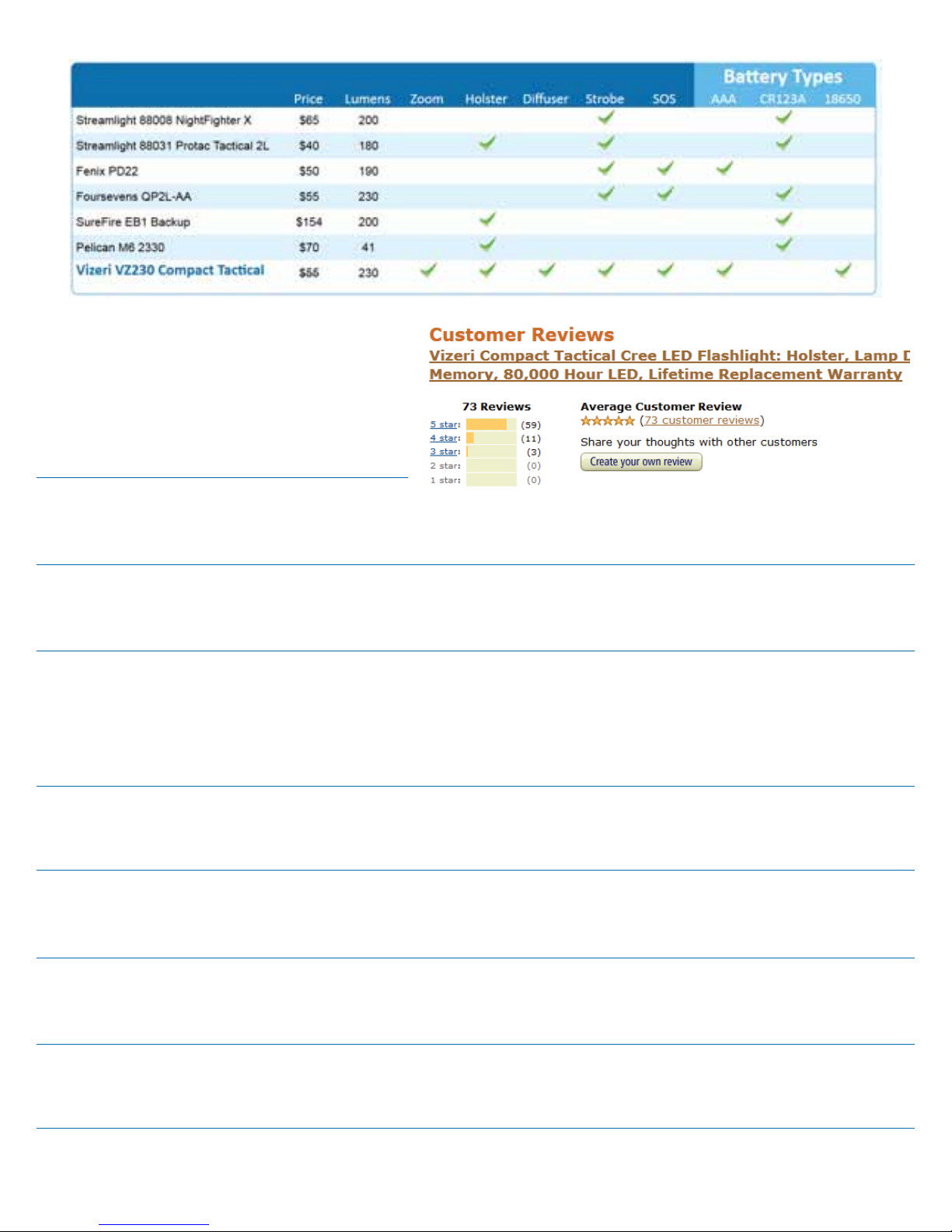

Specifications

Lamp
Max Brightness
Output Levels

Battery Options
Power Source
Input Voltage
Burn Time
Material
Treatment
Exterior Color
Reector
Throw Beam
Lens
Switch
Construction
Impact Resistant
Size

Weight
Accessories
Diuser

Note

Cree XR-E Q5 LED with lifespan of 80000 hours
230 lumens
Five mode (High-Med-Low-Strobe-SOS) (Constant
current circuit chip maintains constant brightness)
1 x 18650 li-ion or 3 x AAA
Three AAA batteries or one 18650 Li-ion battery
3-9 volts DC
High light: 3 hours; Low light: 97 hours
Made of durable aircraft-grade aluminum
Premium Type III hard-anodized anti-abrasive nish
Black
Vacuum coated aluminum optical reector
984 feet (300 meters)
Optical lens
Tactical end click switch
Waterproof to IPX7 standard
Anti-drop height of 1.2 meters (~ 47”)
With AAA batteries: 4.25” (length) x 1.1” (body
diameter) x 1.3” (head diameter) (108 mm x 28 mm
x33 mm)

3.75 ounces (106.2 grams) without batteries
Optional remote switch

32.5mm white diuser for use as camping or
emergency lamp.
18650 li-ion battery is used with extension tube
added and battery case taken out.

Maintenance and Warnings

1. Only high quality batteries should be used.

2. Due to the high brightness, do not shine directly into
eyes. Children should only use the light under
guidance of adults. Please keep the light away from
children.

3. Avoid using the light for a lengthy time in chemicals,
or corrosive gas to protect the flashlight’s surface
treatment.

4. It is suggested that the O-Ring be lubricated or
replaced if defective to ensure its waterproof perfor­mance.

5. Users should lubricate the screw threads 2-3 times

per year to ensure smooth performance.

6. Use a soft brush and alcohol to clean the flashlight

when needed.

7. If unused for a lengthy time, take the battery out to

avoid corrosion. Lithium-ion batteries should be
recharged every 3 months to maintain maximum
performance.

8. Non-professional personnel should not disassemble

the flashlight to avoid circuit damage.

How to Change the Switch-Cap on the Vizeri VZ230

1. Remove the end cap and locate the two holes near
the spring.

2. Place the tips of a pointed tweezers in the two
holes.

3. Turn the tweezers in a counter-clockwise direction,
to remove the spring.

4. Push on the switch cap and it will pop in. Put the
new switch cover on and reverse this procedure.

Optional Accessories

Red-Orange Diuser (sold by Vizeri)

Bike Mount (sold by Vizeri)

18650 Lithium-Ion Rechargable

Batteries (not sold by Vizeri)

VZ230-SW Remote Switch (sold by Vizeri)

Press button to turn on,
release to turn o. Cycles
through modes on each press
unless the light is left on at
least 2 seconds and o for 2
seconds.

30mm Weapons Mount (not sold by Vizeri)

Verzeri, LLC

8161 Highway 100, #194
Nashville, TN 37221
www.vizeri.com

The ashlight ts in loosely on a 30-millimeter weapons mount so it must

be wrapped with black tape, bike handlebar tape, or some other
padding. This eliminates metal-to-metal contact which prevents wear
caused by the impact of ring the gun.
