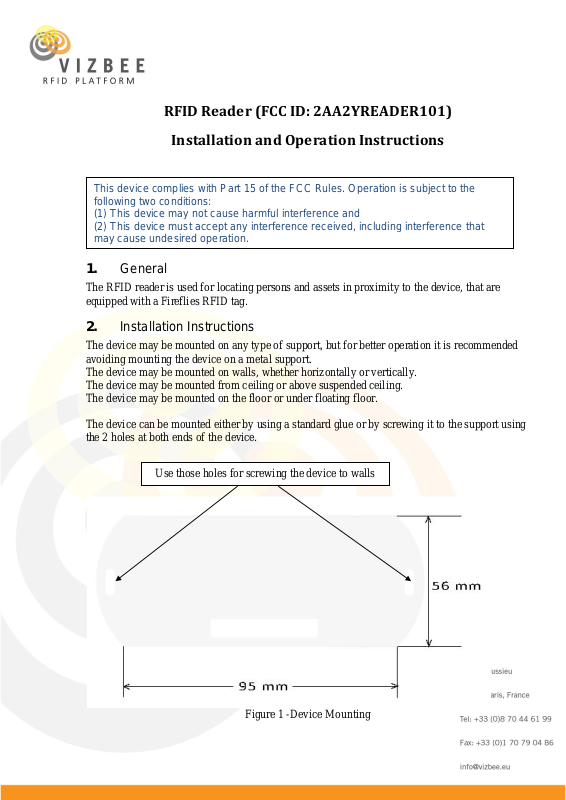

VizbeeS READER101 User Manual

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.
Use those holes for screwing the device to walls
RFID Reader (FCC ID: 2AA2YREADER101)
Installation and Operation Instructions
1. General
The RFID reader is used for locating persons and assets in proximity to the device, that are equipped with a Fireflies RFID tag.
2. Installation Instructions
The device may be mounted on any type of support, but for better operation it is recommended avoiding mounting the device on a metal support. The device may be mounted on walls, whether horizontally or vertically. The device may be mounted from ceiling or above suspended ceiling. The device may be mounted on the floor or under floating floor.
The device can be mounted either by using a standard glue or by screwing it to the support using the 2 holes at both ends of the device.
Figure 1 -Device Mounting
Reader 2
Reader 3
Reader 1
Gateway
3. Operation Instructions
3.1. Activating the Device
Once installed, the device should be activated by pushing the led on the side of the device 3 consecutive times. The device should flash red 3 times and then start blinking in red. If in the receiving area there is another device of the same type or a person tag (FCC ID
2AA2YPTAG101) device configured as a gateway, the device should start blinking in green
after a while.
3.2. Working with the Device
The device can receive transmissions from person tags (FCC ID 2AA2YPTAG101) and send them through the network to the gateway (person tag configured as a gateway). In order for the transmission to arrive to the gateway (and from there to a host computer), there should be a path from the device to the gateway, either directly or by relaying through other readers of the same type.
Figure 2 - Network Schema
In figure 2 Reader 1 connects directly with the gateway, whereas Readers 2 and 3 are too far from the gateway, so will reach through Reader 1.
3.3. Turning the Device Off
The device is turned off by pressing the led on the side of the device 3 consecutive times. The device will flash green 3 times and then will turn off.
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Consult the dealer or an experienced radio/TV technician.
FCC Warning
Modifications not expressly approved by the manufacturer could
void the user authority to operate the equipment under FCC Rules.
4. Instructions concerning human exposure to radio frequency electromagnetic fields
To comply with FCC Section 1.1310 for human exposure to radio frequency electromagnetic fields, implement the following instruction: A distance of at least 20cm between the equipment and all persons should be maintained during the operation of the equipment.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
