Viv + Rae HBEE4846 Assembly Instructions

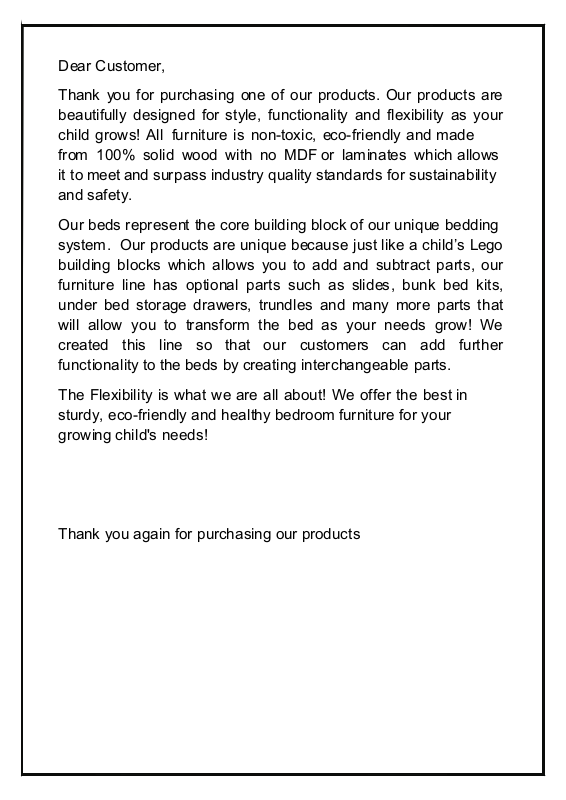

Dear Customer,

Thank you for purchasing one of our products. Our products are
beautifully designed for style, functionality and flexibility as your
child grows! All furniture is non-toxic, eco-friendly and made
from 100% solid wood with no MDF or laminates which allows
it to meet and surpass industry quality standards for sustainability

and safety.

Our beds represent the core building block of our unique bedding

system. Our products are unique because just like a child’s Lego
building blocks which allows you to add and subtract parts, our
furniture line has optional parts such as slides, bunk bed kits,
under bed storage drawers, trundles and many more parts that
will allow you to transform the bed as your needs grow! We
created this line so that our customers can add further
functionality to the beds by creating interchangeable parts.

The Flexibility is what we are all about! We offer the best in
sturdy, eco-friendly and healthy bedroom furniture for your
growing child's needs!

Thank you again for purchasing our products

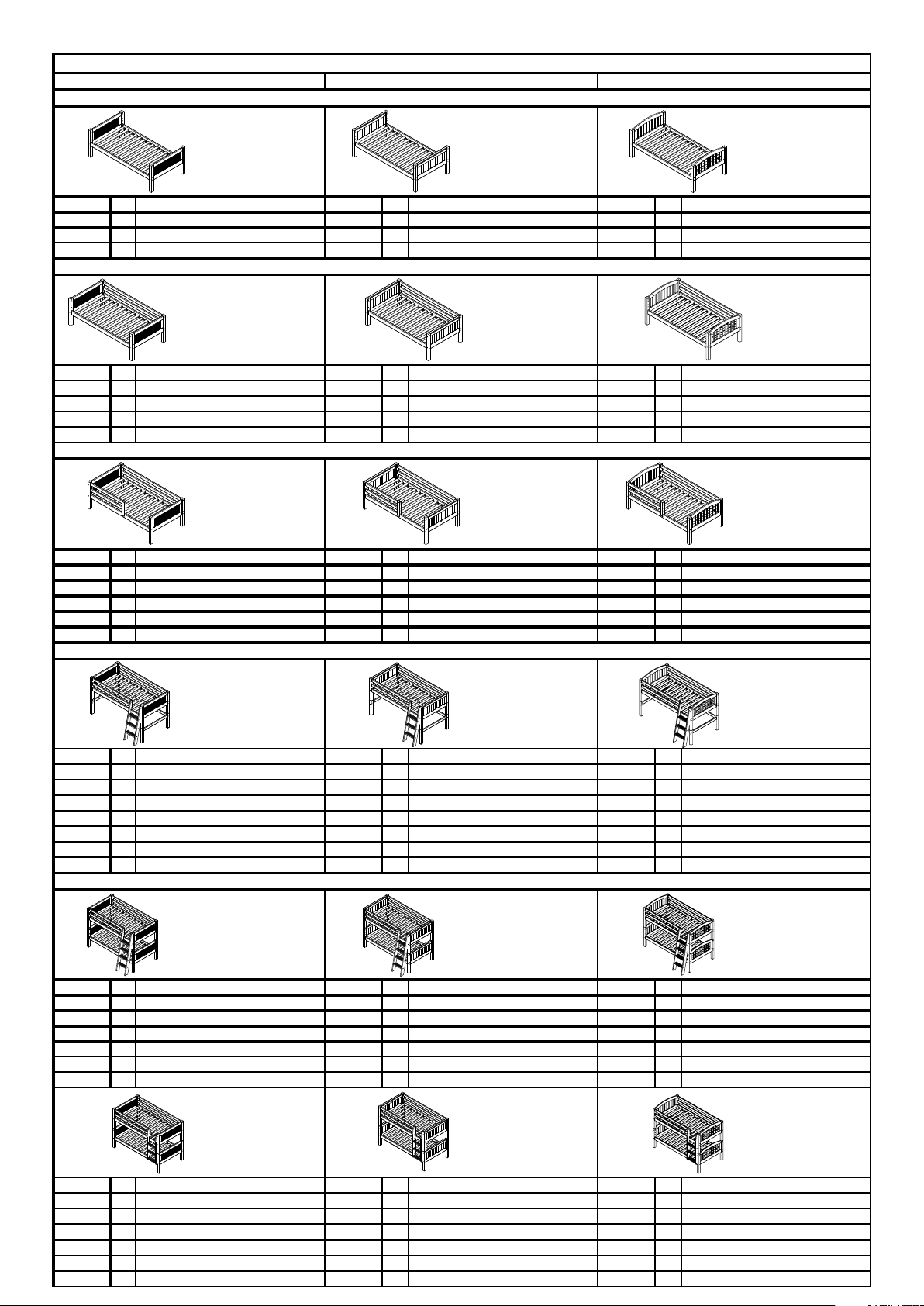

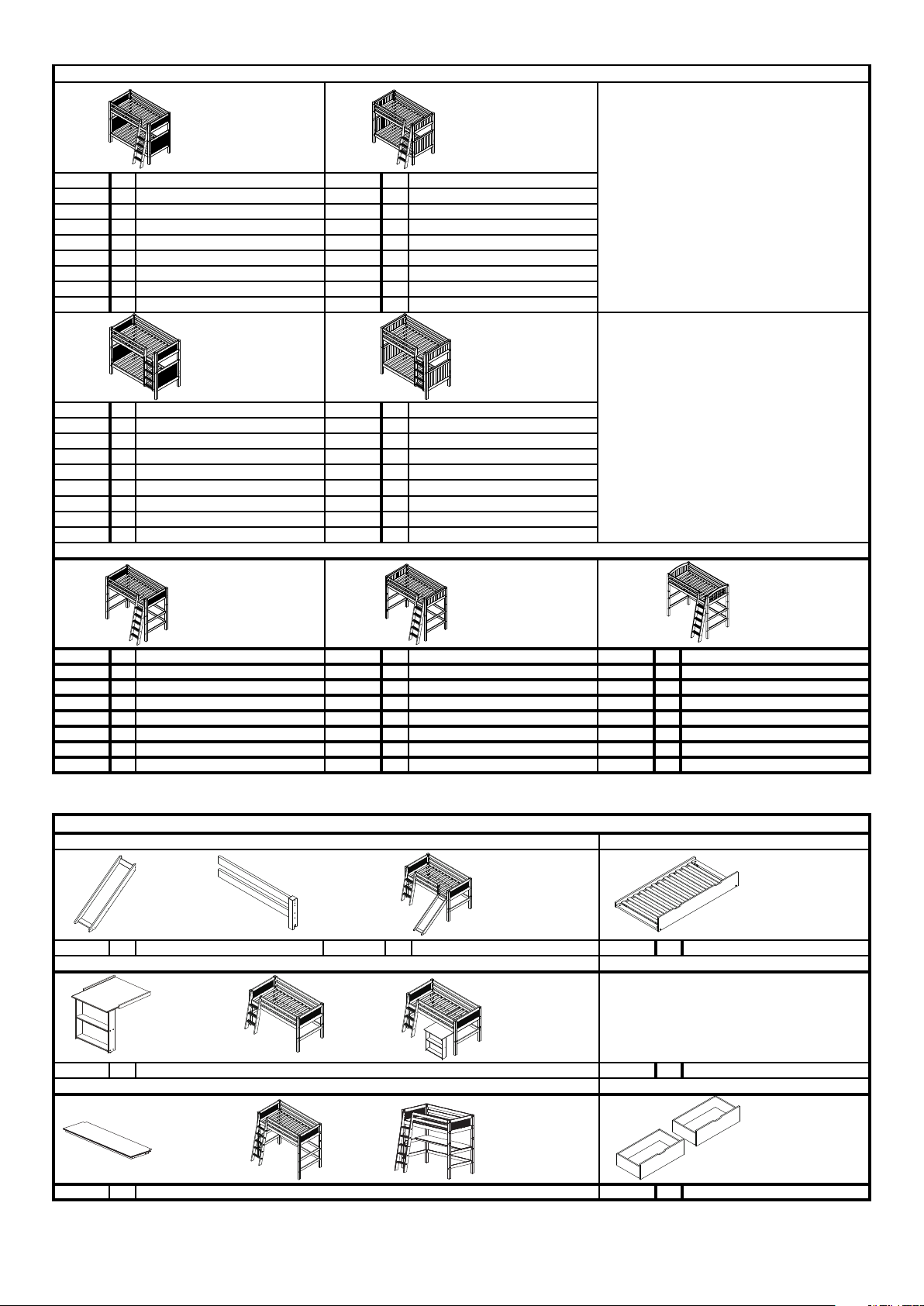

POSSIBLE MODELS AND ITS ACCESSORIES

Mission Panel Ar ch Spindle

BAS E BED

BASE DAYBED

BAS E DAYBED WITH FRONT GUARD RAIL

LOW LOFT BED

LOW BUNK BED

‘’THINKING OUTSIDE OF THE BED’’

1x twin mission style low headboard 1x twin panel low headboard 1x arch spindle

1x post for headboa rd 1x post for headboard 1x post for headboard

1x rail s for bed with center support 1x rails for bed with center support 1x rails for bed with center support

1x wood slats for mattress foundation 1x wood slats for mattress foundation 1x wood slats for mattress foundation

1x twin mission style low headboard 1x twin panel low headboard

1x post for headboa rd 1x post for headboard 1x post for headboard

1x rail s for bed with center support 1x rails for bed with center support 1x rails for bed with center support

1x full length gua rd rails 1x fu ll length guard rails 1x full length guard rails

1x wood slats for mattress foundation 1x wood sl ats for mattress foundation 1x wood slats for mattress foundation

1x arch spindle

1x twin mission style low headboard 1x twin panel low headboard 1x arch spindle

1x post for headboa rd 1x post for headboard 1x post for headboard

1x rail s for bed with center support 1x rails for bed with center support 1x rails for bed with center support

1x full length gua rd rails 1x full length guard rails 1x full length guard rails

1x short length guard rails 1x short length guard rails

1x wood slats for mattress foundation 1x wood sl ats for mattress foundation 1x wood slats for mattress foundation

1x short length guard rails

1x twin mission style low headboard 1x twin panel low headboard 1x arch spindle

1x post for headboa rd 1x post for headboard 1x post for headboard

1x rail s for bed with center support 1x rails for bed with center support 1x rails for bed with center support

1x full length guard rails 1x full length guard rails 1x full length guard rails

1x mid height loft bed kit 1x mid height loft bed kit 1x mid heigh t loft bed kit

1x 3/4 long gua rd rails 1x 3/4 long guard rails 1x 3/4 long guard rails

1x angle la dder for mid height loft Bed 1x angle ladder for mid heig ht loft bed 1x angle ladder for mid height l oft bed

1x wood slats for mattress foundation 1x wood sl ats for mattress foundation 1x wood slats for mattress foundation

1x twin mission style low headboard 1x twin panel low headboard 1x arch spindle

1x rail s for bed with center support 1x rails for bed with center support 1x rails for bed with center support

1x full length guard rails 1x fu ll length guard rails 1x ful l len gth guard rail s

1x 3/4 long gua rd rails 1x 3/4 long guard rails 1x 3/4 long guard rail s

1x angle la dder for bunk bed 60" 1x angle ladder for bunk bed 60" 1x angle ladder for bunk bed 60"

1x wood slats for mattress foundation 1x wood slats for mattress foundation 1x wood slats for mattress foundation

1x twin mission style low headboard 1x twin panel low headboard 1x arch spindle

1x rail s for bed with center support 1x rails for b ed with center support 1x rails for bed with center support

1x full length guard rails 1x full length guard rails 1x full len gth guard rail s

1x 3/4 long gua rd rails 1x 3/4 long guard rails 1

1x wood slats for mattress foundation 1x wood sl ats for mattress foundation 1x wood slats for mattress found ation

1x post for headboa rd 1x post for headboard 1x post for headboard

1x post for headboa rd 1x post for headboard 1x post for headboard

1x attached ladder for bunk bed 60" 1x attached ladder for bunk bed 6 0"

1x attached l adder for bunk bed 60"

x 3/4 long guard rails

BUNK BED

HI GH LOFT BED

ACCESSORIES

LOW LOFT BED WITH SLIDE UNDER BED TRUNDLE

LOW LOFT BED WITH RETRACTABLE DESK

HIGH LOFT BED WITH DESK UNDER BED DRAWE RS

1x twin mission style low headboard 1x twin panel low headboard

1x post for headboard 1x post for headboard

1x rails for bed wi th ce nter support 1x rails for bed with center support

1x tall headboard mission style 1x tall headboard panel headboard

1x posts for headboard 1x posts for headboard

1x full length guard rails 1x full l ength guard rails

1x 3/4 long guard rails 1x 3/4 long guard rails

1x angle ladder for bunk bed 1x angle ladder for bunk bed

1x wood slats for mattress foundation 1x wood slats for mattress foundation

1x twin mission style low headbo ard 1x twin panel low headboard

1x post for headboa rd 1x post for headboard

1x rails for bed with center suppo rt 1x rails for bed with center support

1x tall headboard mission style 1x tall headboard panel headboard

1x posts for headboard 1x posts for he adboard

1x full length guard rails 1x full length guard rai ls

1x 3/4 long guard rails 1x 3/4 long guard rails

1x attached ladder for bunk bed 1x attached l adder for bunk bed

1x wood slats for mattress foundation 1x wood slats for mattress foundatio n

1x twin mission style low headbo ard 1x twin panel low headboard 1x arch spindle

1x post for headboa rd 1x post for headboard 1x post for head board

1x rails for bed with center suppo rt 1x rails for bed with center support 1x rails f or bed with center support

1x full length guard rails 1x full length guard rails 1x full length guard rails

1x 3/4 long guard rails 1x 3/4 long guard rails 1x 3/4 long guard rails

1x ladder for high loft bed 1x ladder for high loft bed 1x ladder for high loft bed

1x high loft bed ki t 1x high loft bed kit 1x high loft bed kit

1x wood slats for mattress foundation 1x wood slats for mattress foundation 1x wood slats for mattress foundation

+

1x slide fo r mi d height loft bed 1x short length guard rails 1 x trundle

+

=

=

1x bookcase desk for mid or high loft bed

+

1x long desk for high loft bed 1x two drawers

=

ATTENTION

1 - Read and observe carefully all the assembly instructions before
beginning assembly.

2 - The assembly of the product must be done on a clean and flat
surface. We suggest to use the packaging to cover the floor to avoid

damages.
3 - The screw m ust be tightened periodically.

4 - Avoid contact with sharp objects.
5 - Avoid banging pieces together.

BASE BED HIGH HEAD BOARDS

Model 01 - Standard Bed Height - Mission

Model 02 - Standard Bed Height - Panel

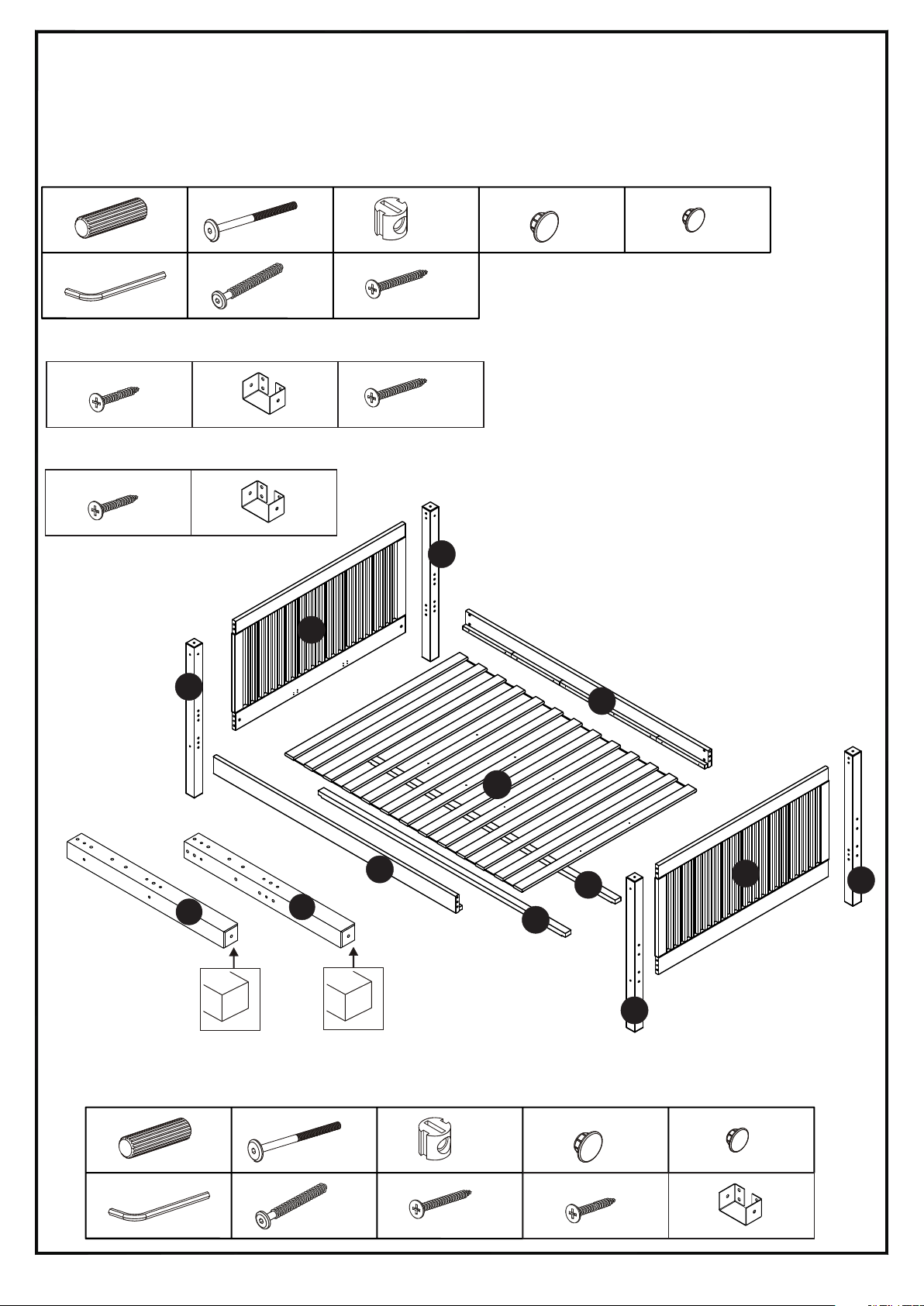

Parts and hardware list for BASE BED.

The hardware is located in carton SKU numbers as indicated below.

Please check all parts available.

Hardware Carton

A

F

16Pc

ø3/8" x 1 9/16"

B

ø1/4" x 4 1/4"

G

12Pc

4Pc

C

I

12Pc

ø1/4"x5/8"

15Pc

AJ

ø9/16"

4Pc

E

24Pc

ø3/8"

1Pc

Hardware Carton

12Pc

M

ø1/8"x3/4"

J

Hardware Carton

12Pc

M

ø1/8"x3/4"

J

02

ø1/4 x 3 7/8"

02Pc

02Pc

03

ø1/8" x 1 3/8"

I

ø1/8" x 1 3/8"

05Pc

01

04

A

F

02

16Pc

ø3/8" x 1 9/16"

1Pc

2

2

B

G

01

ø1/4" x 4 1/4"

ø1/4 x 3 7/8"

05

04

1

1

Total Hardware

12Pc

4Pc

C

I

ø1/8" x 1 3/8"

12Pc

ø1/4"x5/8"

20Pc

06

AJ

M

06

01

4Pc

ø9/16"

24Pc

ø1/8"x3/4"

E

J

03

02

24Pc

ø3/8"

04Pc

2/9 F

ASSEMBLY INSTRUCTIONS - OPTION 01

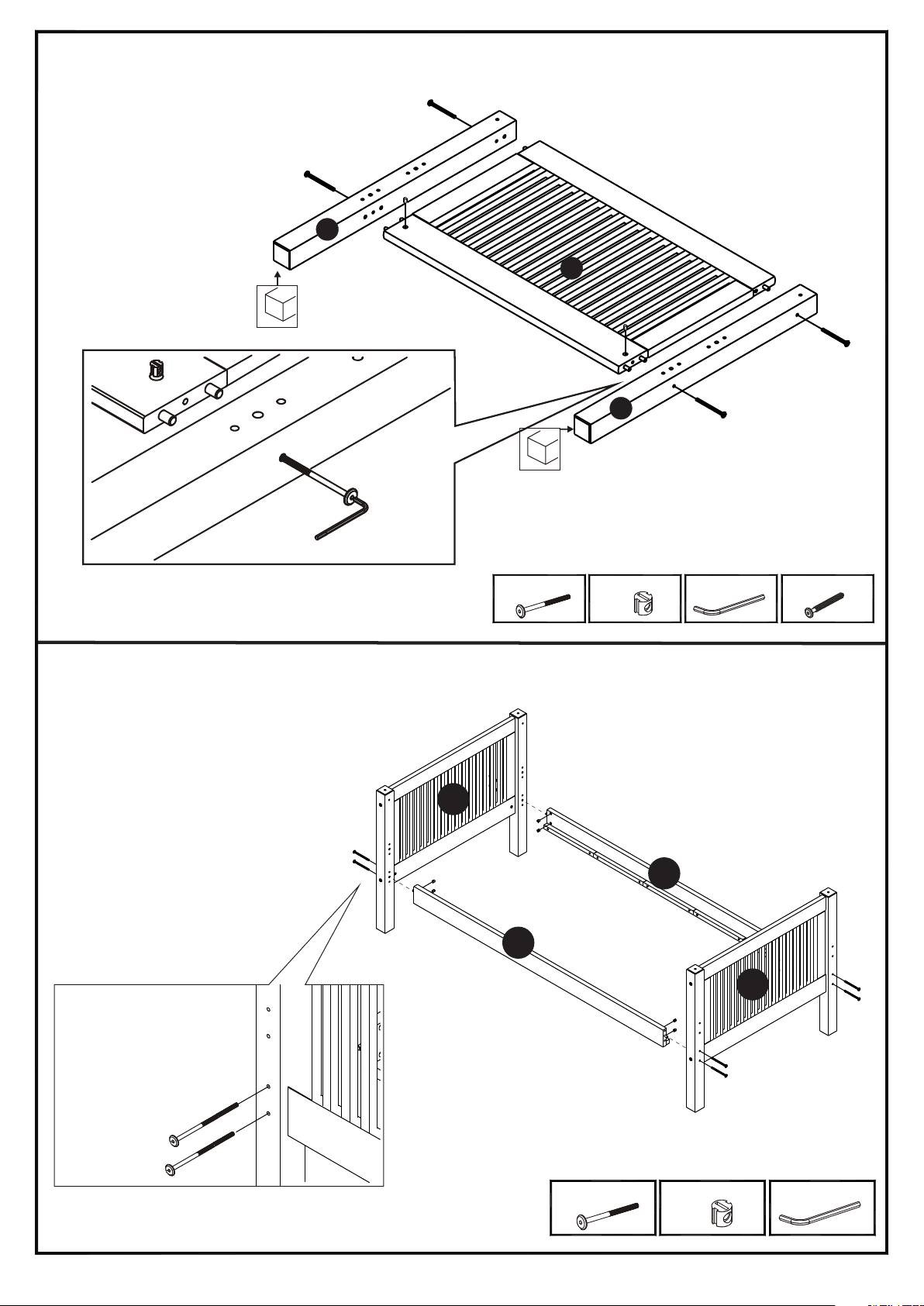

Step 01 - Place wood dowels into head board panels and bed rails,
indicated in diagram

Model 02 - Panel

Model 01 - Mission

A

A

2x

03

A

A

A

A

2x

A

A

04

Parts needed for this step:

A

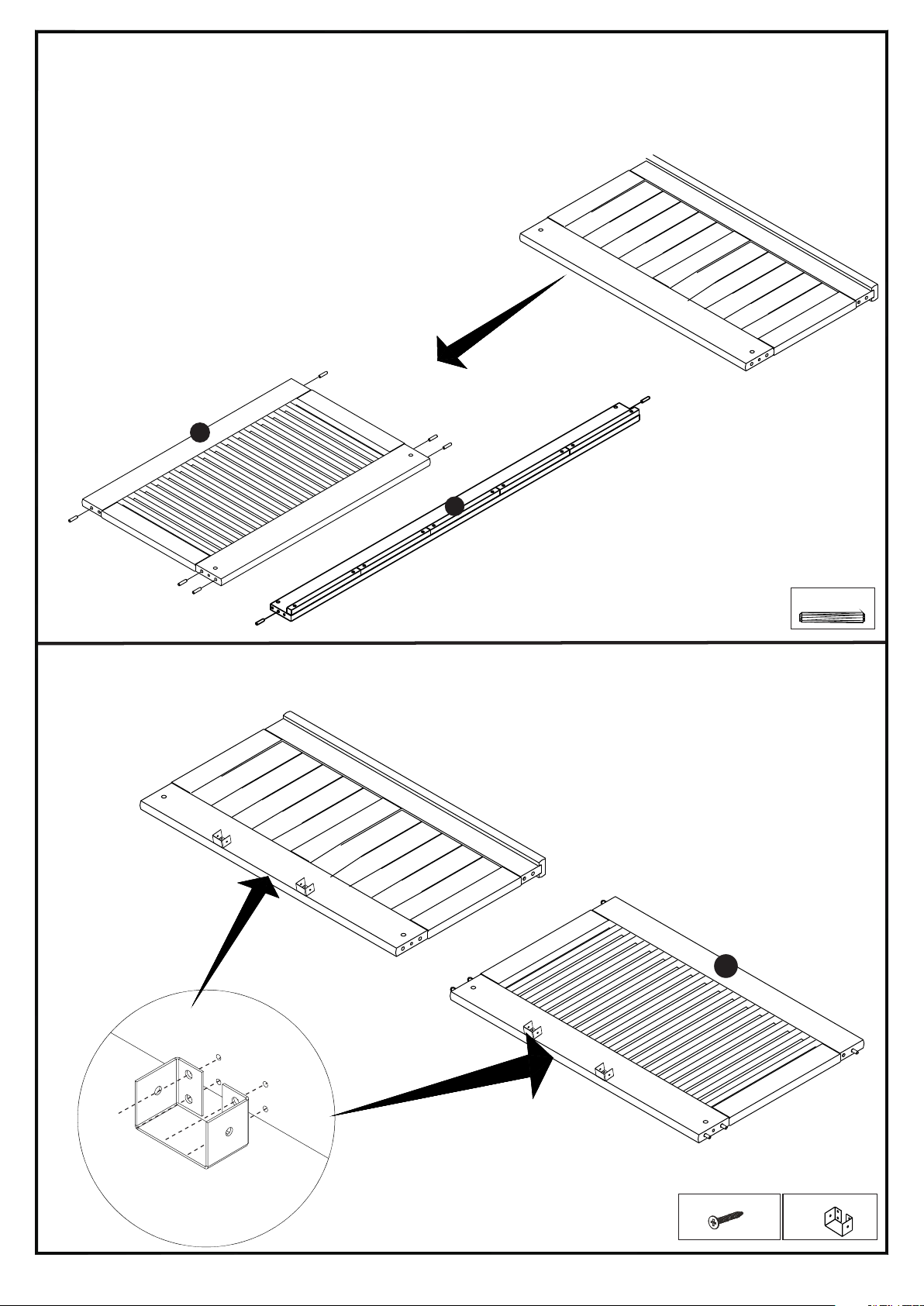

Step 02 - Attach metal center support brackets (parts J x 4) to
center of head board panel as indicated.

Model 02 - Panel

2x

(16x)

M

M

M

M

4x

Model 01 - Mission

2x

03

Parts needed for this step:

M (16X)

J (4X)

3/9 F

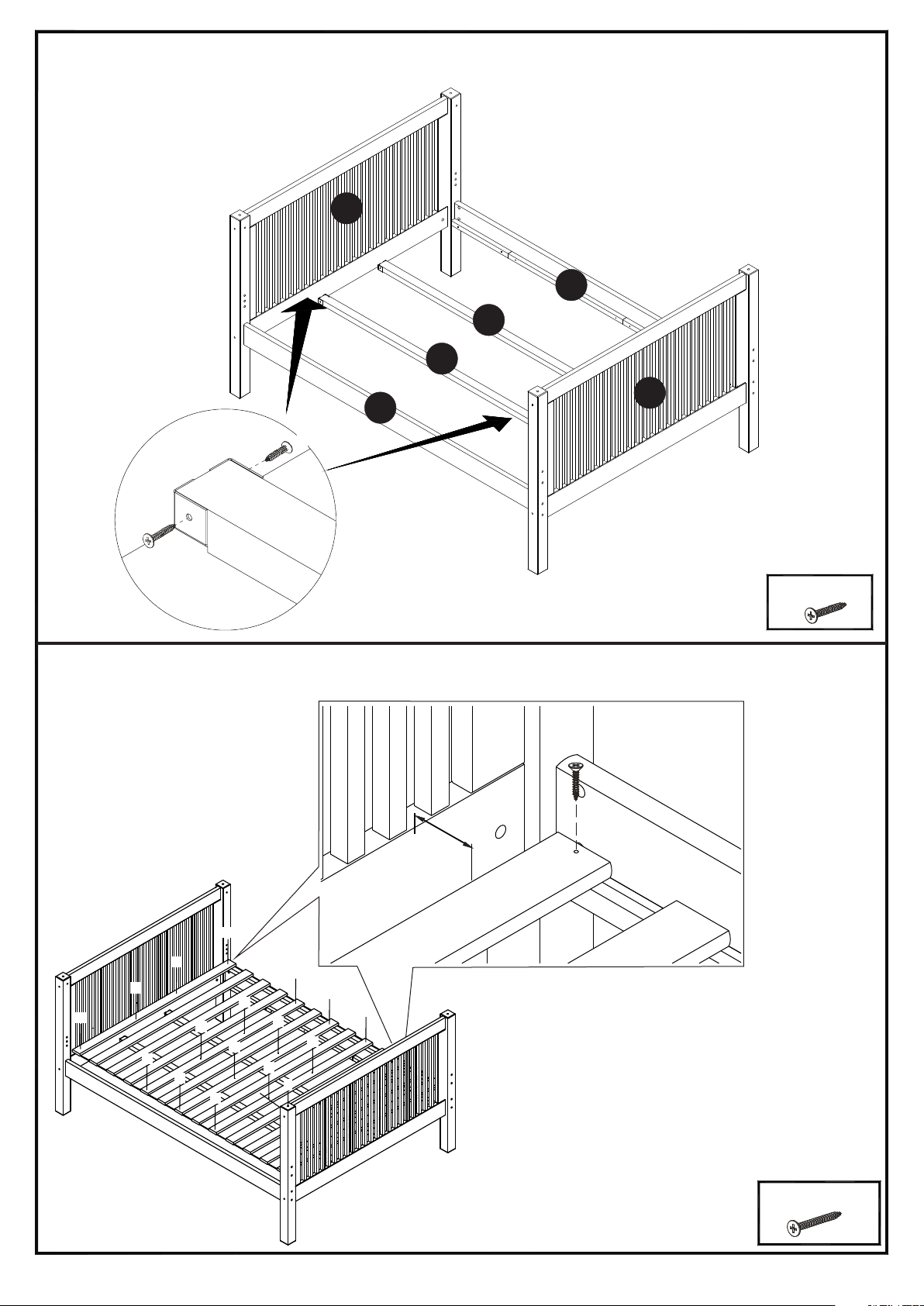

Step 03 - Fasten panel head boards to bed posts (left and right sides).

G

2x

B

C

01

1

03

1

C

C

G

2

2

B

F

Parts needed for this step:

B

(4x) (4x) (1x) (4x)

C F G

Step 04 -Fasten bed rails to head board posts.

03

C
C

B
B

C
C

02

B

04

B

B

04

C

C

Parts needed for this step:

B

(8x) (8x) (1x)

C F

03

B
B

B
B

4/9 F

Step 05 - Place wood center support into metal brackets and fasten
as indicated.

03

04

06

06

04

03

M

M

Parts needed for this step:

4x

Step 06 - Attach slat roll foundation to bed rails as indicated.

I

2 1/4"

M (8X)

I

I

I

I

I

I

I

I

I

I

AJ

I

I

I

I

I

E

I

Parts needed for this step:

I

(20x)

5/9 F

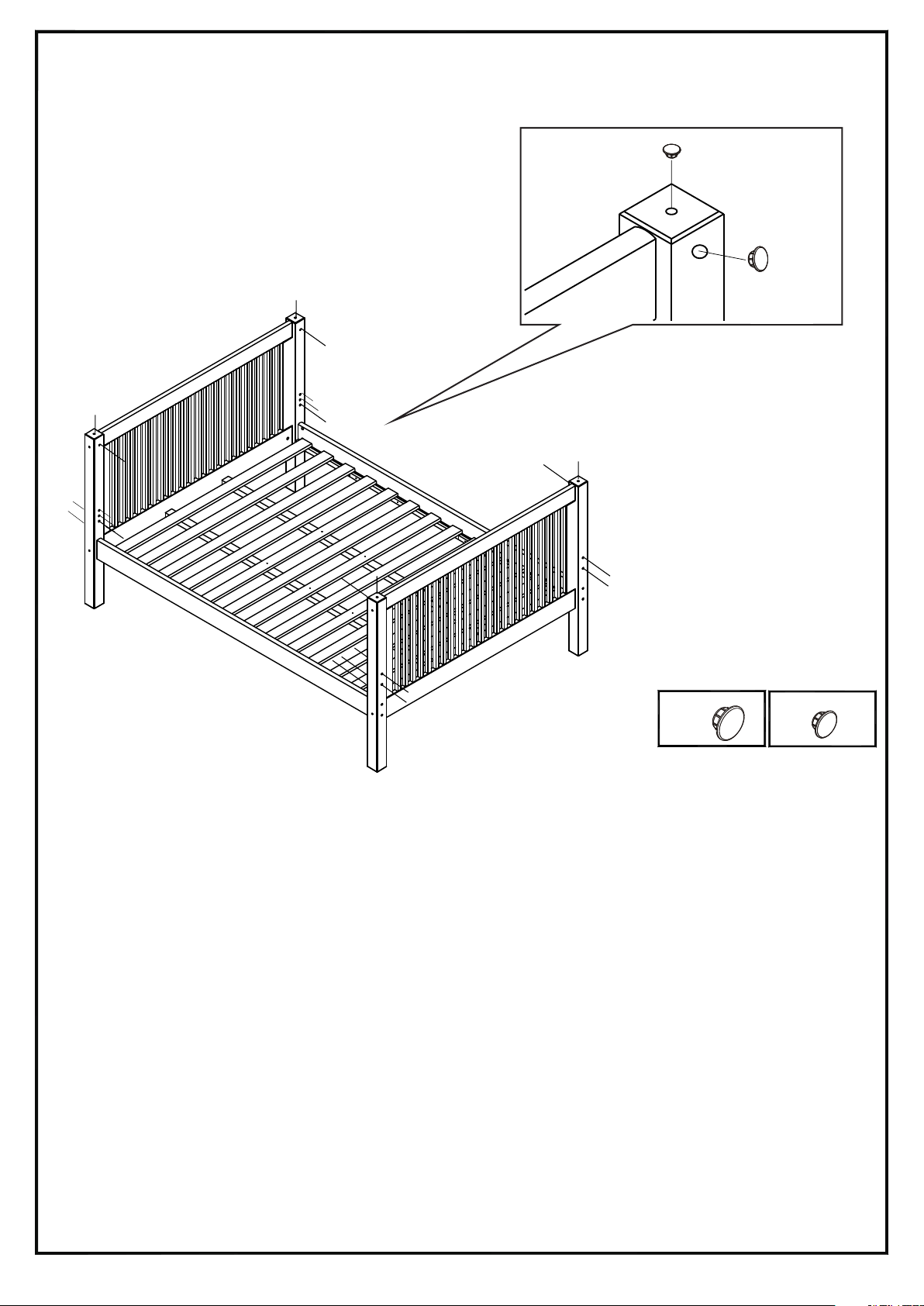

Step 07 - Place plastic plugs into open screw holes:

E

AJ

E

E

E

E

E

AJ

AJ

E

E

E

E

E

E

AJ

E

E

E

E
E

AJ

E

E

E

Parts needed for this step:

AJ (4X)

E (24X)

Your bed is now ready for use as is or to be
added to other bed configurations, such Loft Bed, Bunk Bed,
etc.

6/9 F

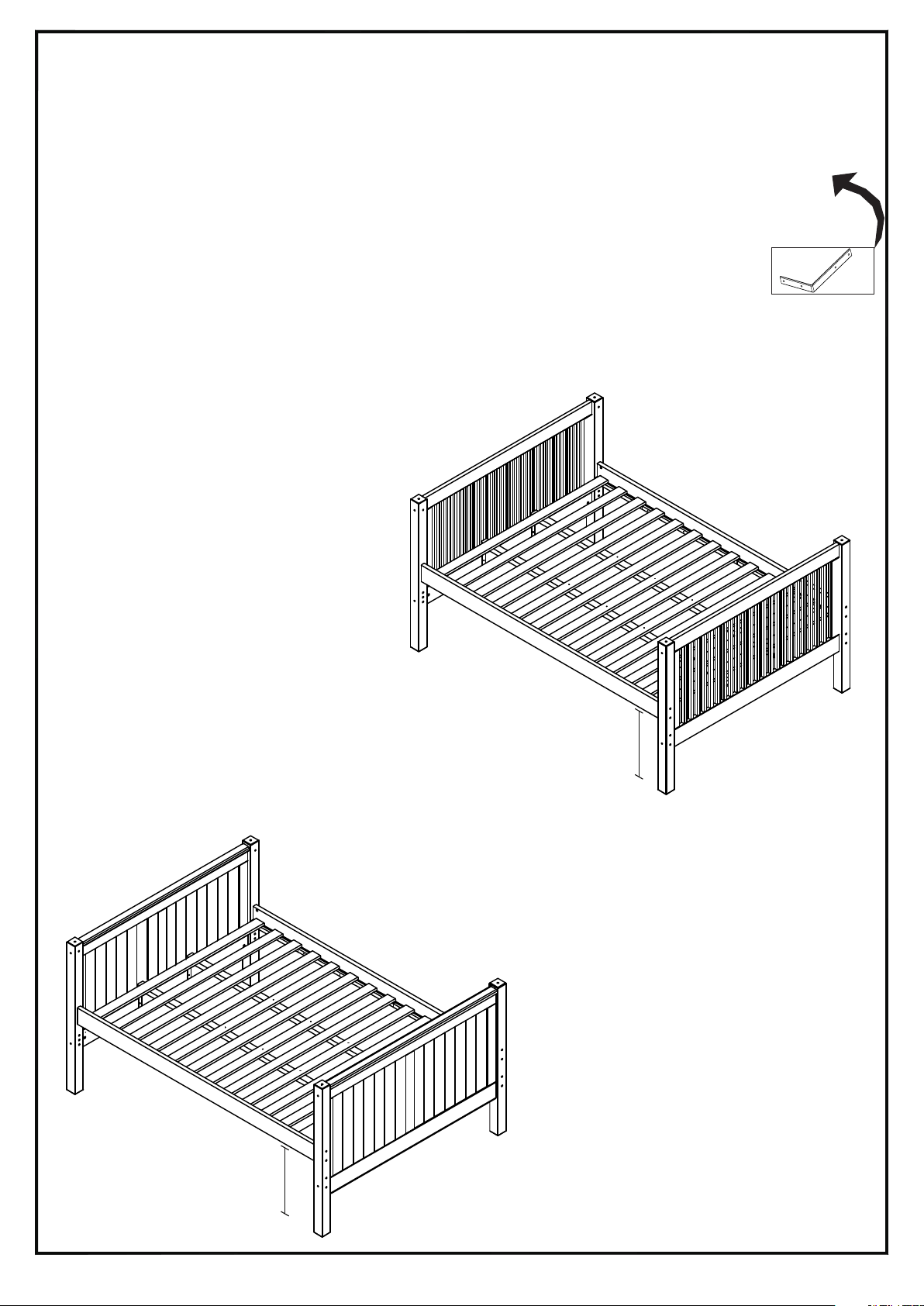

The tall head boards offer the option of adjusting bed rails to higher
position for extra under bed storage. Please note that additional
metal ‘’L’’ shaped brackets are needed to be purchased for option 2.
Since majority of customers who purchase this bed do not use this
option, and in the interest of keeping the costs of bed down, the

metal brackets are sold separate. Please contact your local furniture

dealer or the manufacturer to purchase these parts.

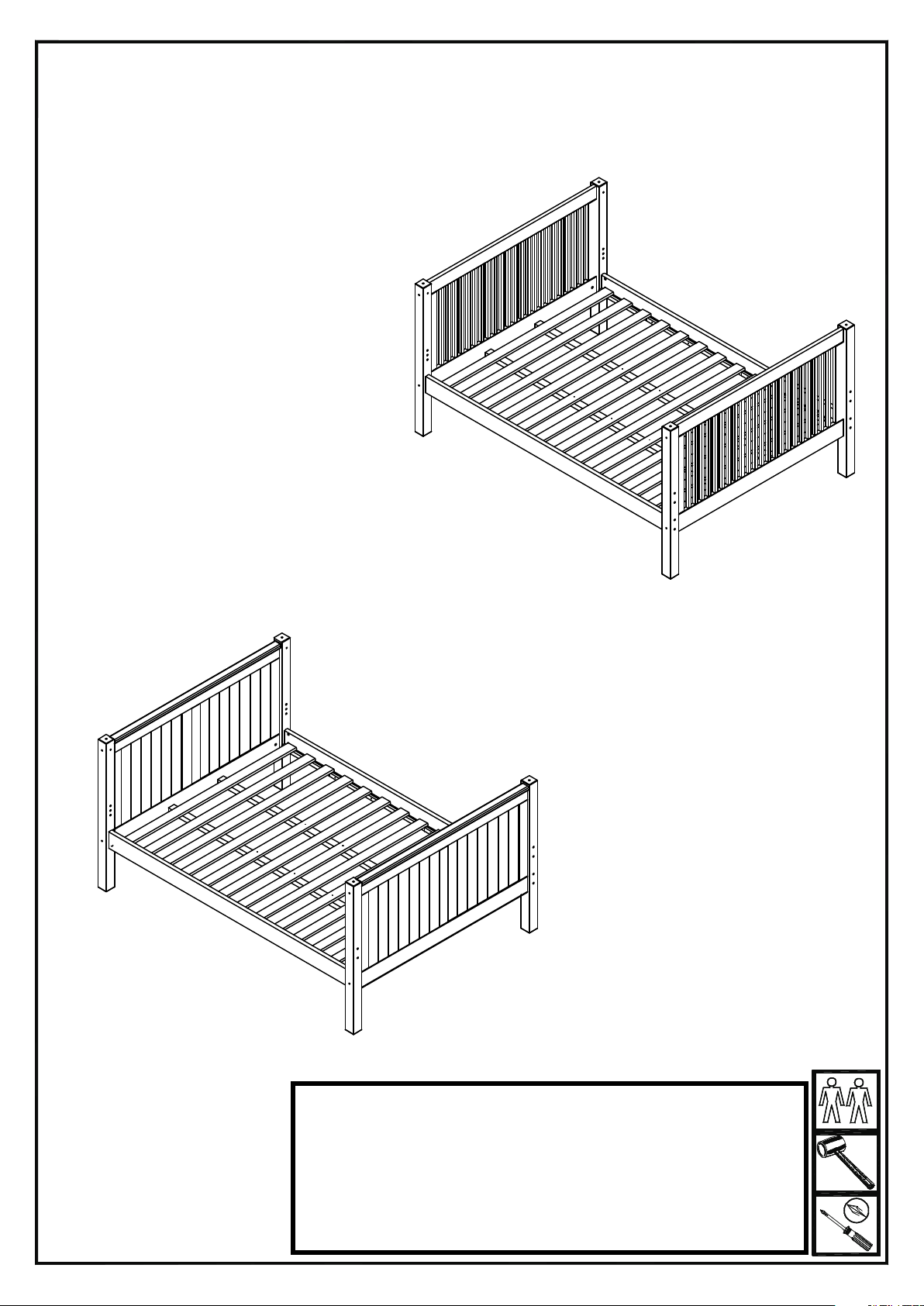

ASSEMBLY INSTRUCTIONS - OPTION 02

Model 01 - High Bed Height - Mission

18

18

3

⁄

4

in

Model 02 - High Bed Height - Panel

3

⁄

4

in

7/9 F

Step 01 -Fasten metal bracket (part AG) to head boards as indicated

below.

M

M

High Bed Height - Mission

2x

4x

03

Parts needed for this step:

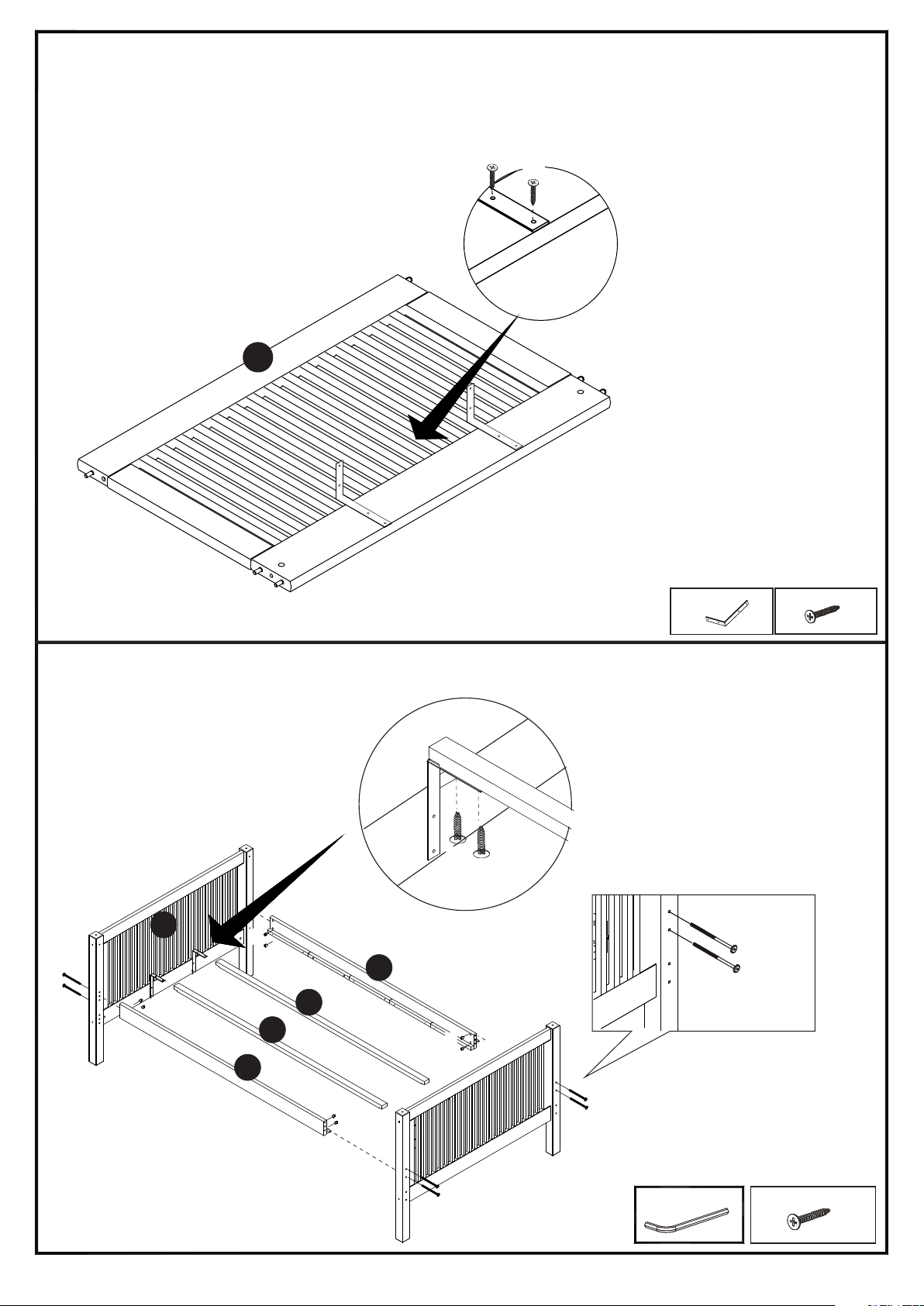

Step 02 - Fasten center support to metal bracket

AG (4X)

M (8X)

M

M

03

B
B

C

C

04

C
C

06

06

04

C
C

C

C

B
B

B
B

Parts needed for this step:

B
B

F

(1x)

M (8X)

8/9 F

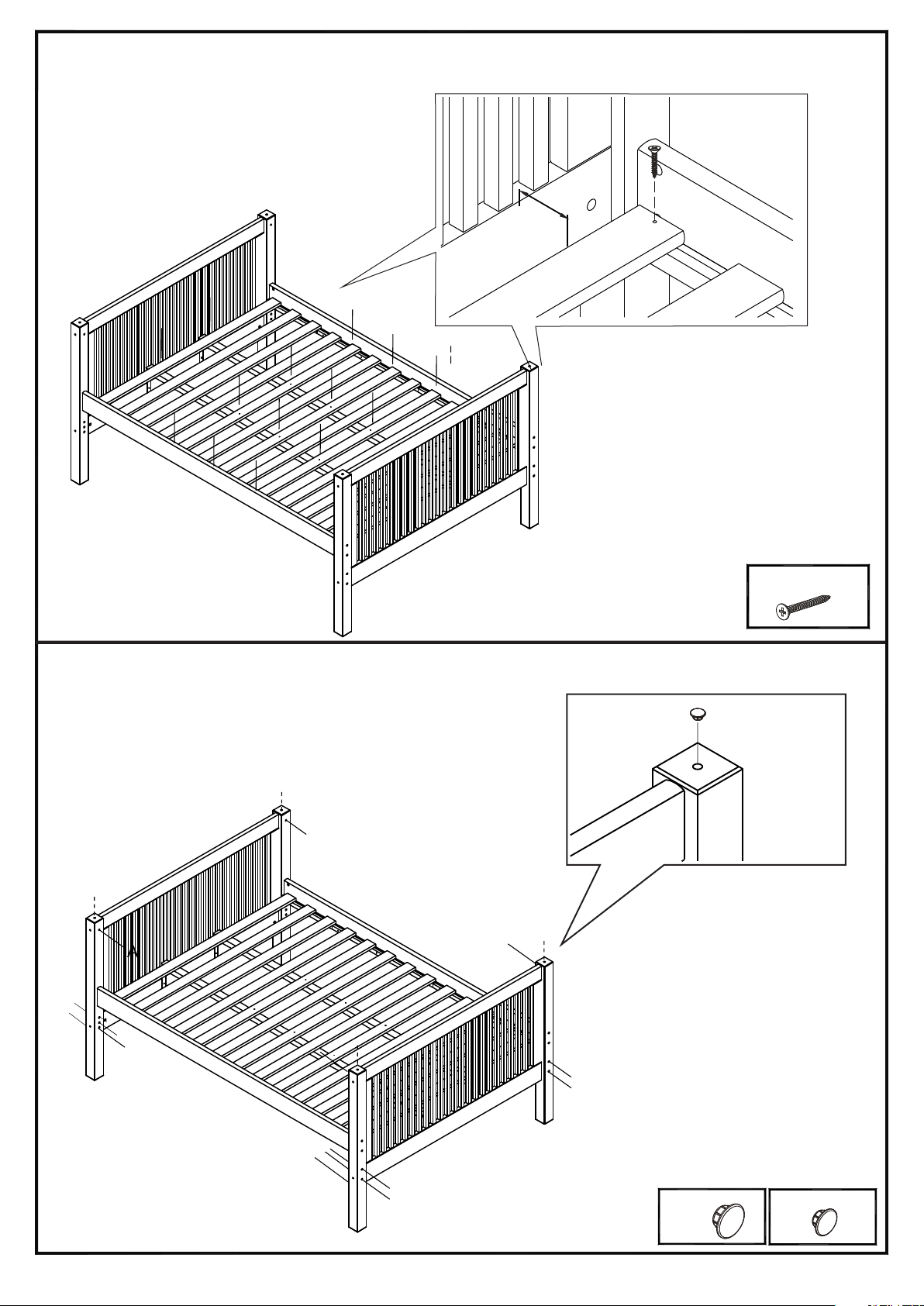

Step 03 - Attach slat roll foundation to bed rails and wood center
support as indicated.

I

2 1/4"

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

Step 04 - Place plastic plugs into open holes

Parts needed for this step:

I

(20x)

E

E

AJ

E

AJ

E

E

E

E

E

AJ

E

E

E

E

E
E

AJ

E

E

E

Parts needed for this step:

AJ (4X)

E (24X)

9/9 F
