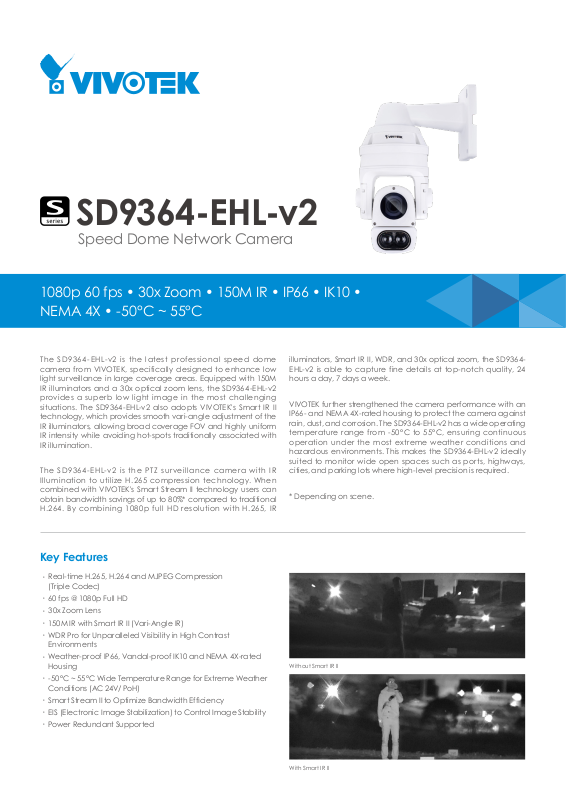

Vivotek SD9364-EHL-V2 Specsheet

SD9364-EHL-v2

Speed Dome Network Camera

1080p 60 fps • 30x Zoom • 150M IR • IP66 • IK10 •
NEMA 4X • -50°C ~ 55°C

The SD9364-EHL-v2 is the latest professional speed dome
camera from VIVOTEK, specifically designed to enhance low
light surveillance in large coverage areas. Equipped with 150M
IR illuminators and a 30x optical zoom lens, the SD9364-EHL-v2
provides a superb low light image in the most challenging
situations. The SD9364-EHL-v2 also adopts VIVOTEK's Smart IR II
technology, which provides smooth vari-angle adjustment of the
IR illuminators, allowing broad coverage FOV and highly uniform
IR intensity while avoiding hot-spots traditionally associated with
IR illumination.

The SD9364-EHL-v2 is the PTZ surveillance camera with IR
Illumination to utilize H.265 compression technology. When
combined with VIVOTEK's Smart Stream II technology users can
obtain bandwidth savings of up to 8 0%* compared to traditional
H.264. By combining 1080p full HD resolution with H.265, IR

Key Features

Real-time H.265, H.264 and MJPEG Compression

•

(Triple Codec)

60 fps @ 1080p Full HD

•

30x Zoom Lens

•

150M IR with Smart IR II (Vari-Angle IR)

•

WDR Pro for Unparalleled Visibility in High Contrast

•

Environments

Weather-proof IP66, Vandal-proof IK10 and NEMA 4X-rated

•

Housing

-50 °C ~ 55°C Wide Temperature Range for E xtreme Weather

•

Conditions (AC 24V/ PoH)

Smar t Stream II to Optimize Bandwidth Efciency

•

EIS (Electronic Image Stabilization) to Control Image Stability

•

Power Redundant Supported

•

illuminators, Smart IR II, WDR, and 30x optical zoom, the SD9364­EHL-v2 is able to capture fine details at top-notch quality, 24
hours a day, 7 days a week.

VIVOTEK further strengthened the camera performance with an
IP66- and NEMA 4X-rated housing to protect the camera against
rain, dust, and corrosion. The SD9364-EHL-v2 has a wide operating
temperature range from -50°C to 55°C, ensuring continuous
operation under the most extreme weather conditions and
hazardous environments. This makes the SD9364-EHL-v2 ideally
suited to monitor wide open spaces such as ports, highways,
cities, and parking lots where high-level precision is required.

* Depending on scene.

With out Smar t IR II

With Smart IR I I

Technical Specications

Model SD9364-EHL-v2

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 512 MB

Camera Features

Image Sensor 1/3" Progressive CMOS

Max. Resolution 192 0x10 80

Lens Type 30x Optical Zoom, Auto Focus

Focal Length f = 4.3 ~ 129 mm (30x zoom)

Aperture F1.6 ~ F4.7

Iris type DC-iris

Fiel d of View

Shutter Time 1/8 sec. to 1/30,000 sec.

WDR Technology WDR Pro

Minimum Illumination

Day/Night

2° ~ 59 ° (Horizontal)
2° ~ 45° (Vertical)
3° ~ 71° (Dia gonal)

0.42 Lux @ F1.6 (Colo r)

0.01 Lux @ F1.6 (B/W)
0 Lux with IR illumination on

Removable IR-cut lter for day & night

function

Dynamic Range 110 dB

Video Streaming

Image Settings

Adjus table resolution, quality and bitrate;
Smar t Stream II

Adjus table image size, qua lity and bit

rate; Time stamp, text overlay, ip &
mir ror; Congurable brightness, contrast,

saturation, sha rpness, white balance,
exposure control, gain, backlight
compensation, p rivacy masks (Up to 24);

Scheduled prol e settings, defog, 3DNR,

EIS, HLC

Audio

Audio Capability Two-way Audio

Compression G.711, G.726

Inter face

External microphone input
External li ne output

Network

Users Live vi ewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

Protocol s

Inter face

ONVIF

RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,
DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP,
ICMP, ARP, SSL, TLS, NTCIP

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are compliant

with the 3P/ETL standard.

Suppo rted, specication available at
www.onvif.org

Intelligent Video

Pan Speed 0.1° ~ 300 ° / sec.

Pan Range 360° endless

Tilt Speed 0.1° ~ 30 0° / sec.

Tilt Range 22 0° (-110° ~ +110°)

Preset Locations

Pan/Tilt/Zoom
Functionalities

IR Illuminators

On- board Storage

256 preset locations
128 presets per tour

128x dig ital zoom (4x on IE plug- in, 32x built­in), Auto pan mode, Auto patrol mode

Built-in IR Illuminators up to 150 meters with
Smar t IR II, IR LED*2

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Compression H265, H264, MJPEG

Maximum Frame Rate

Maximum Streams 4 simu ltaneous s treams

H.265 & H.264: 60 fps @ 1920x1080
MJPEG: 30 fps @ 1920x108 0

Video Motion Detection Five-window video motion detection

Auto-Tracking Auto-t racking on moving object

Alarm and Event

Motion detection, manual tr igger, dig ital

Alarm Triggers

Alarm Events

input, periodical trig ger, system boot,

recording notication, audio detection, SD

card life expectancy, camera tampering
detection

Event notication using digital output, HTTP,

SMTP, FTP, NAS server and Micro SD card
File upload via HTTP, SMTP, FTP, NAS ser ver
and MicroSD card

General

RJ- 45 cable connector for Network 10/100
Mbps PoE connection*1
Audio input*1

Connectors

LED Indicator System power and status indicato r

Audio output*1
AC/DC 24V power input*1
Digital input*4
Digital output*2
RS-485 for PT Z control (PelcoD protocol,
Baud rate 2400)*1

S/N Ratio 54 dB

Power Input

PoH/PoE (95W)
AC/DC 24V

Technical Specications

PoH/PoE (95W):
Max. 70 W (Heater on)

Power Consumption

Dimensions 237 x 364 mm

Weig ht

Casing IP66, IK10, NEMA 4X

Safety Certications CE, FCC Class A, VCCI, C-T ick, NEMA 4X, UL

Operating Temperature

Humidity 98%

War ranty 36 months

Max. 51 W (Heater off)
AC/DC 24V:
Max. 6 3 W (Heater on)
Max. 4 5 W (Heater of f)

7.1 kg (with bracket)

5.7 kg (without bracket)

Star ting Tempe rature:

-40°C ~ 55°C (-40°F ~ 131°F)
Working Temperature:

-40°C ~ 55°C (-40°F ~ 131°F),
DC 24V powe r input

-50 °C ~ 55°C (-58° F ~ 131°F),
AC 24V/ PoH(95W) power input

System Requirements

Operating System

Microsoft Windows 8/7
Mac 10.12 (Chrome only)

Other Players

Included Accessories

Others

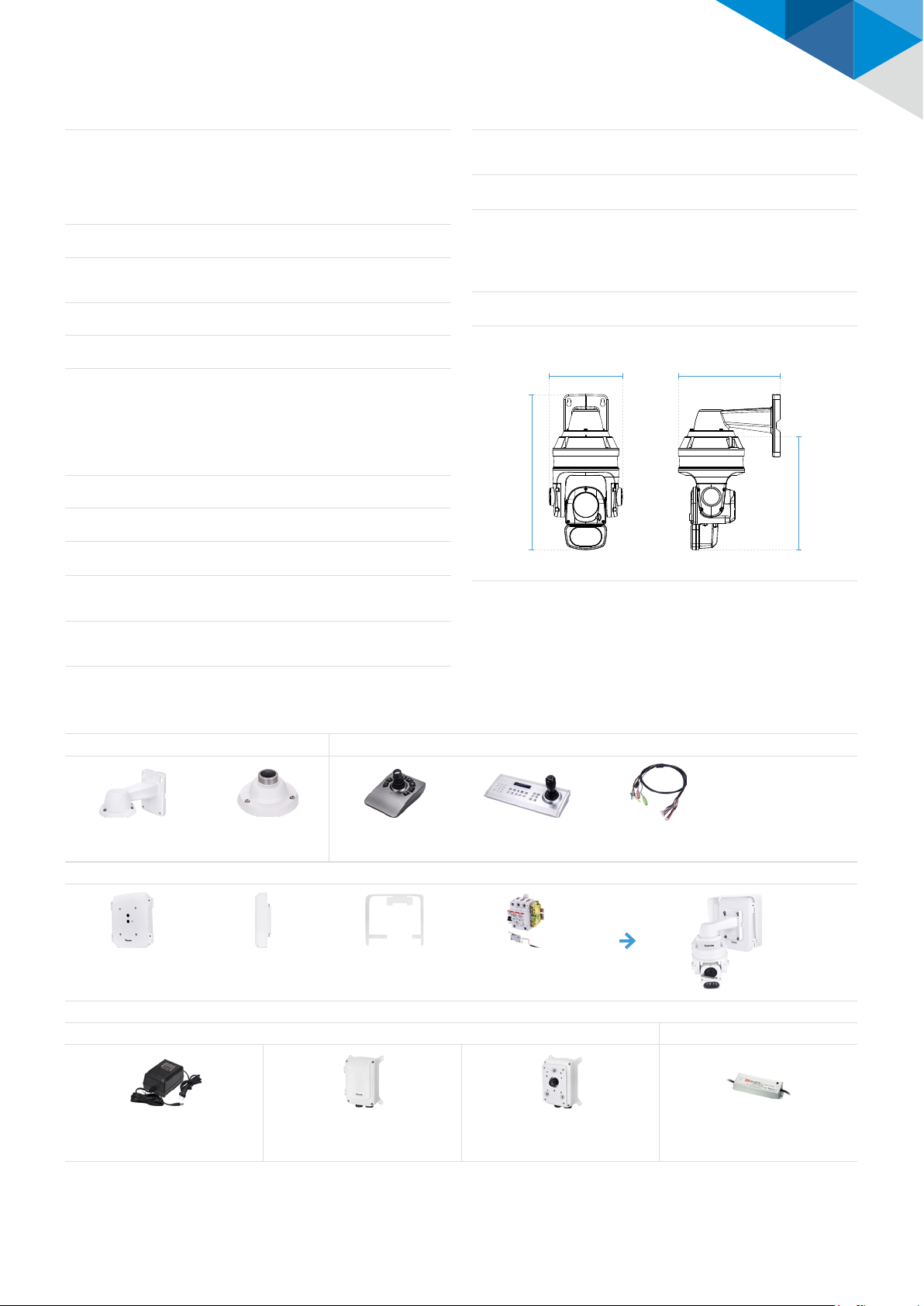

Dimensions

237 mm 326 mm

499 mm

VLC: 1.1.11 or above
Quicktime: 7 or above

Wall mount bracket, I/O cabl e, screws,
waterproof connectors, terminal bl ocks,
quick installation gui de, warranty card,
alignment sti cker, ground wire, T25
stardriver, desiccant bags

364 mm

Web Browser

Chrome 58.0 or above
Inter net Explorer 10/11

Compatible Accessories

Mounting Kits Others

AM-2 20 AM-529 AJ -0 01 AJ-002 AO-0 07

Wall Mount Bracket Mounting Adapter USB Joystick USB Joystick I/O Combo Cable

Cabinet

AT- CAS-0 01 AT-CAB- 002 AT-SUN- 00 2 AT-SWH-000

Cabinet for Speed

Dome

Cabinet for HLG Power

Supply

Sunshield Power Safet y Kit

PoE Kit/Power Adapter

24 VAC 24VDC

AC 24V 3.5A Power Adapter Outdoor Power Box, 24VAC/144W,

AA-341 AA-351 AA-352 HLG -120H-24

IP67, IK10

Outdoor Power Box, 24VAC/144W,

IP67, IK10

Industrial 24VDC/120W Power

Supply, IP67

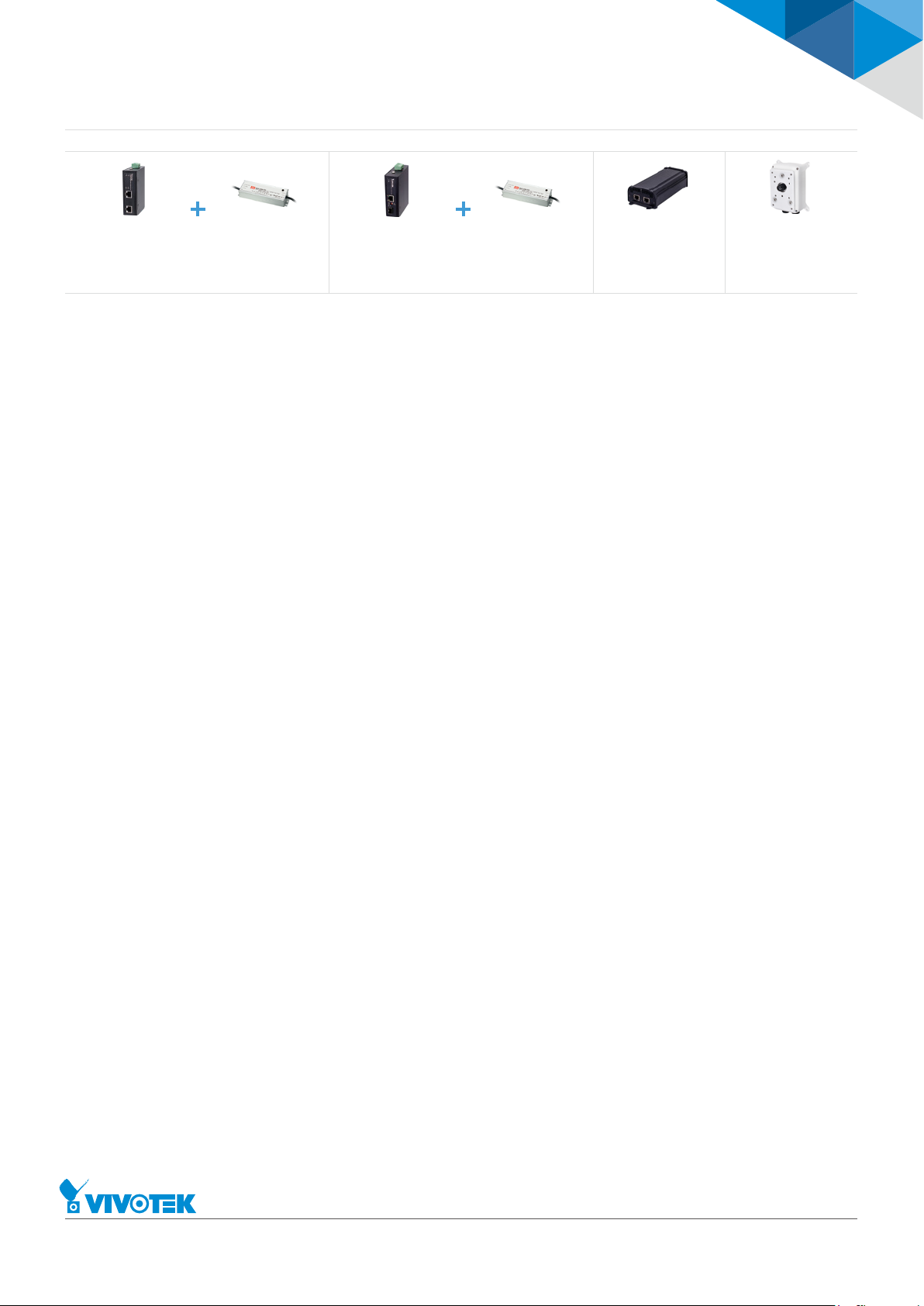

Compatible Accessories

95W PoH/PoE

AW- IHH- 0100 HLG-120H-54 AW-IHH-0200 H LG-120H-54

Industrial 1xGE 95W

PoH/PoE Injector

Industrial 54VDC/120W

Power Supply, IP67

Industrial 1xGE 95W

PoH/PoE + 1x SFP G E

Switch

Industrial 54VDC/120W

Power Supply, IP67

AP-GIC-011A-095 AP-GIC-015B-095

1xGE 95W PoH/PoE
Injector with Su rge

Protection 12KV

Outdoor 1xGE 95W

PoH/PoE Injector with

Surge Protection 12KV,

IP67, IK10

All sp ecicati ons are subj ect to change without notice. Copyr ight © VIVOTEK I NC. All rig hts reser ved. Ver. 5

6F, No.192, Lien -Cheng Rd., Chung-Ho, New Taip ei City, 235, Taiwa n, R.O.C. | T: [phone] | F: [phone] | E: sales @vivotek.co m | W: www.vivotek .com
