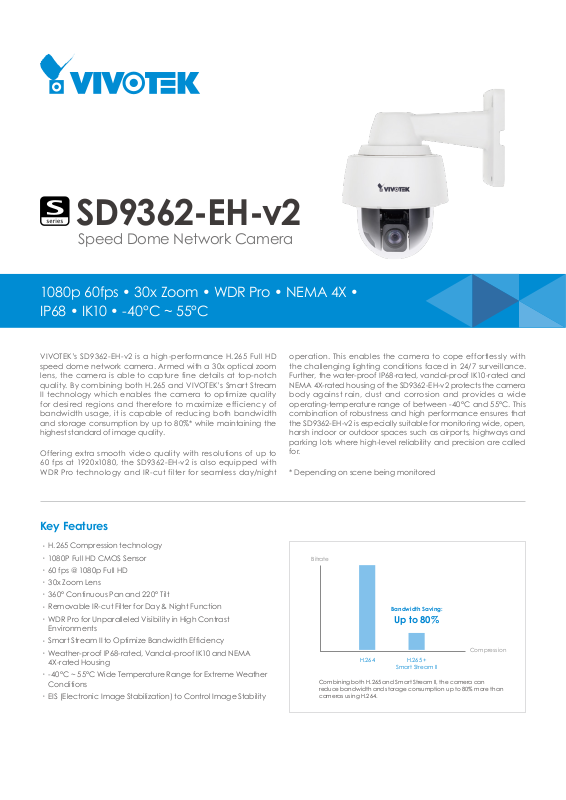

Vivotek SD9362-EH-V2 Specsheet

SD9362-EH-v2

Speed Dome Network Camera

1080p 60fps • 30x Zoom • WDR Pro • NEMA 4X •
IP68 • IK10 • -40°C ~ 55°C

VIVOTEK’s SD9362-EH-v2 is a high-performance H.265 Full HD
speed dome network camera. Armed with a 30x optical zoom
lens, the camera is able to capture fine details at top-notch
quality. By combining both H.265 and VIVOTEK’s Smart Stream
II technology which enables the camera to optimize quality
for desired regions and therefore to maximize efficiency of
bandwidth usage, it is capable of reducing both bandwidth
and storage consumption by up to 80%* while maintaining the
highest standard of image quality.

Offer ing extra smooth video quality with resolutions of up to
60 fps at 1920x1080, the SD9362-EH-v2 is also equipped with
WDR Pro technology and IR-cut filter for seamless day/night

Key Features

H.265 Compression technology

•

1080 P Full HD CMOS Sensor

•

60 fps @ 1080p Full HD

•

30x Zoom Lens

•

360° Continuous Pan and 220° Tilt

•

Removable IR-cut Filter for Day & Night Function

•

WDR Pro for Unparalleled Visibility in High Contrast

•

Environments

Smar t Stream II to Optimize Bandwidth Efciency

•

Weather-proof IP68 -rated, Vandal-proof IK10 and NEMA

•

4X-rated Housing

-40°C ~ 55°C Wide Temperature Range for Extreme Weather

•

Conditions

EIS (Electronic Image Stabilization) to Control Image Stability

•

operation. This enables the camera to cope effortlessly with
the challenging lighting conditions faced in 24/7 surveillance.
Further, the water-proof IP68 -rated, vandal-proof IK10- rated and
NEMA 4X-rated housing of the SD9362-EH-v2 protects the camera
body against rain, dust and corrosion and provides a wide
operating-temperature range of between -40°C and 55°C. This
combination of robustness and high performance ensures that
the SD9362-EH -v2 is especially suitable for monitoring wide, open,
harsh indoor or outdoor spaces such as airports, highways and
parking lots where high-level reliability and precision are called
for.

* Depending on scene being monitored

Bitrate

Bandwidth Saving:

Up to 80%

Compression

H.264 H.26 5 +

Combining both H.265 a nd Smar t Stream II , the came ra can
reduce bandwi dth and sto rage cons umptio n up to 80% more than
cameras using H .264.

Smar t Stream II

Technical Specications

Model SD9362-EH-v2

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 512 MB

Camera Features

Image Sensor 1/2.8" Progressive CMOS

Max. Resolution 1920 x1080 (2MP)

Lens Type 30x Optical Zoom, Auto Focus

Focal Length f = 4.3 ~ 129 mm (30x zoom)

Aperture F1.6 ~ F4.7

Iris Type DC-iris

Fiel d of View

Shutter Time 1 sec. to 1/10,00 0 sec.

WDR Technology WDR Pro

Day/Ni ght Yes

Removable IR-cut Filter Yes

Minimum Illumination

Pan Speed 0.05° ~ 450° / sec.

Pan Range 360° endless

Tilt Speed 0. 05° ~ 450° / sec.

Tilt Range 220° (-110° ~ +110°)

Preset Locations

Pan/Tilt/Zoom
Functionalities

On- board Storage

2.3° ~ 64° (Horizontal)

1.3° ~ 36° (Vertical)

2.6° ~ 73° (Diagonal)

0.195 Lux @ F1.6 (Color)

0.01 Lux @ F1.6 (B/W)

256 preset locations
128 presets per tour

48x digital zoom (4x on IE pl ug-i n, 12x built­in), Auto pan mode, Auto patrol mode

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Compression G.711, G.726

Inter face

External microphone input
External line output

Network

Users Live vi ewing for up to 10 clients

802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP,

Protocol s

Inter face

ONVIF

DNS, F TP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6,
NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP,
SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is h ighly recommended to use standard
CAT5e & CAT6 cables which are compliant
with the 3P/ETL standard.

Suppo rted, specication available at
www.onvif.org

Intelligent Video

Video Motion Detection Five-window video motion detection

Auto-Tracking Auto-t racking on moving object

VAD P Pac kag e

Genetec package, Amazon Kinesis Video
Streams

Alarm and Event

Motion detection, manual t rigger, digital

Alarm Trigg ers

Alarm Events

input, period ical trigger, system boot,

recording notication, audio detection, SD

card life expectancy

Event notication vi a digital output, email,

HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS ser ver,
SD card

General

RJ- 45 cable connector for Network
10/100Mbps PoE connection*1
Audio input*1

Connectors

LED Indicator System power and status indicator

Audio output*1
AC/DC 24V power input*1
Digital input*4
Digital output*2
RS-485 for PTZ control (PelcoD protocol,
Baud rate 2400)*1

Video

Compression H265, H264, MJPEG

Maximum Frame Rate

Maximum Streams 4 simu ltaneous streams

S/N Ratio 66 dB

Dynamic Range 130 dB

Video Streaming

Image Settings

H.265 & H.264: 60 fps @ 1920x108 0
MJPEG: 30 fps @ 1920x1080

Adjus table resolution, quality and constant
bit rate control, Sma rt Strea m II

Time stamp, text overlay, ip and mirror,
congu rable brightness/contrast/

saturation/sharpnes s, white balance,
exposure control, gain, backlight
compensation, privacy masks (Up to 24),

scheduled prole settings, defog, 3D NR, EIS,

HLC

Audio

Audio Capability Two-way Audio (fu ll dupl ex)

Power Input

Power Consumption

Dimensions Ø 162 x 221 mm

Weig ht

Casing IP68, IK10, NEMA 4X

Safety Certications CE, FCC Class A, VCCI, C-Tick, UL

Operating Temperature

Humidity 98%

War rant y 36 months

UPo E (60W)
AC/DC 24V

PoE: Max. 48/26 W (Heater on/off)
AC/DC 24V: Max. 40/21 W(Heater on/off)

4.35 kg (with bracket)

2.95 kg (without bracket)

Starting Temperature:

-40°C ~ 55°C (-40 °F ~ 131°F)
Working Temperatu re:

-40°C ~ 55°C (-40 °F ~ 131°F)

System Requirements

Technical Specications

Operating System

Web Browser

Other Players

Included Accessories

Others

Dimensions

With bracket Without brac ket

Ø222.8 mm

Ø161.7 mm

Microsoft Windows 8/7
Mac 10.12 (Chrome only)

Chrome 58.0 or above
Inter net Exp lorer 10/11

VLC: 1.1.11 or above
QuickTime: 7 or above

Wall mount bracket, I/O combo cable,
screws, waterproof connectors, quick
installation guide, alignment sticker,
L-wrench, desiccant bags

331. 4 mm

355.3 mm

Ø22 2.83 mm

Ø161.7 mm

221. 3 mm

Compatible Accessories

Mounting Kits Others

AM -10E AM-220 AM-529 AJ -0 01 AJ-002 AO -0 03

Recessed kit Wall Mount Bracket

AT- CAS -0 01 AT-CAB- 002 AT- SUN -0 02 AT-SWH-000

Cabinet for Speed

Dome

(standard package)

Cabinet for HLG Power

Supply

24VDC 24 VAC

Industrial 24VDC/80W Power Supply Outdoor Power Box, 24VAC/144W, IP67, IK10 Outdoor Power Box, 24VAC/144W, IP67, IK10

HLG -8 0H-24 AA-351 AA-352

Mounting Adapter USB Joystick USB Joystick I/O Combo Cables

Cabinet

Sunshield Power Safet y Kit

PoE Kit/Power Adapter

Compatible Accessories

PoE Kit/Power Adapter

60W UPoE

Industrial 1xGE 60W UPoE Injecto r Industrial 54VDC/8 0W Power

AW- IH U- 010 0 HLG -8 0H-54 AW-IHU-0200 HLG -8 0H-54

Supply

AP-GIC-011A-060 AP-GIC-015B-095

60W PoH/PoE Injector with Su rge Protection 12KV Outdoor 1xGE 95W PoH/PoE Injecto r with Surge Protection 12KV, IP67,

Industrial 1xGE 60W UPoE + 1x SFP

GE Switch

Industrial 54VDC/8 0W Power

Supply

IK10
